# Validation of a Modal Work Approach for Forced Response Analysis of Bladed Disks

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Numerical Methods

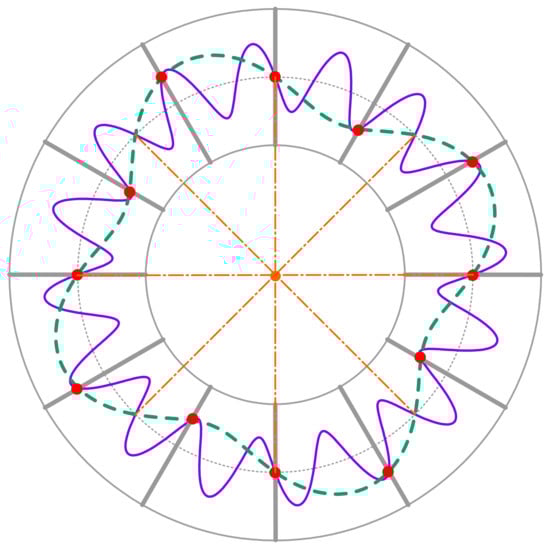

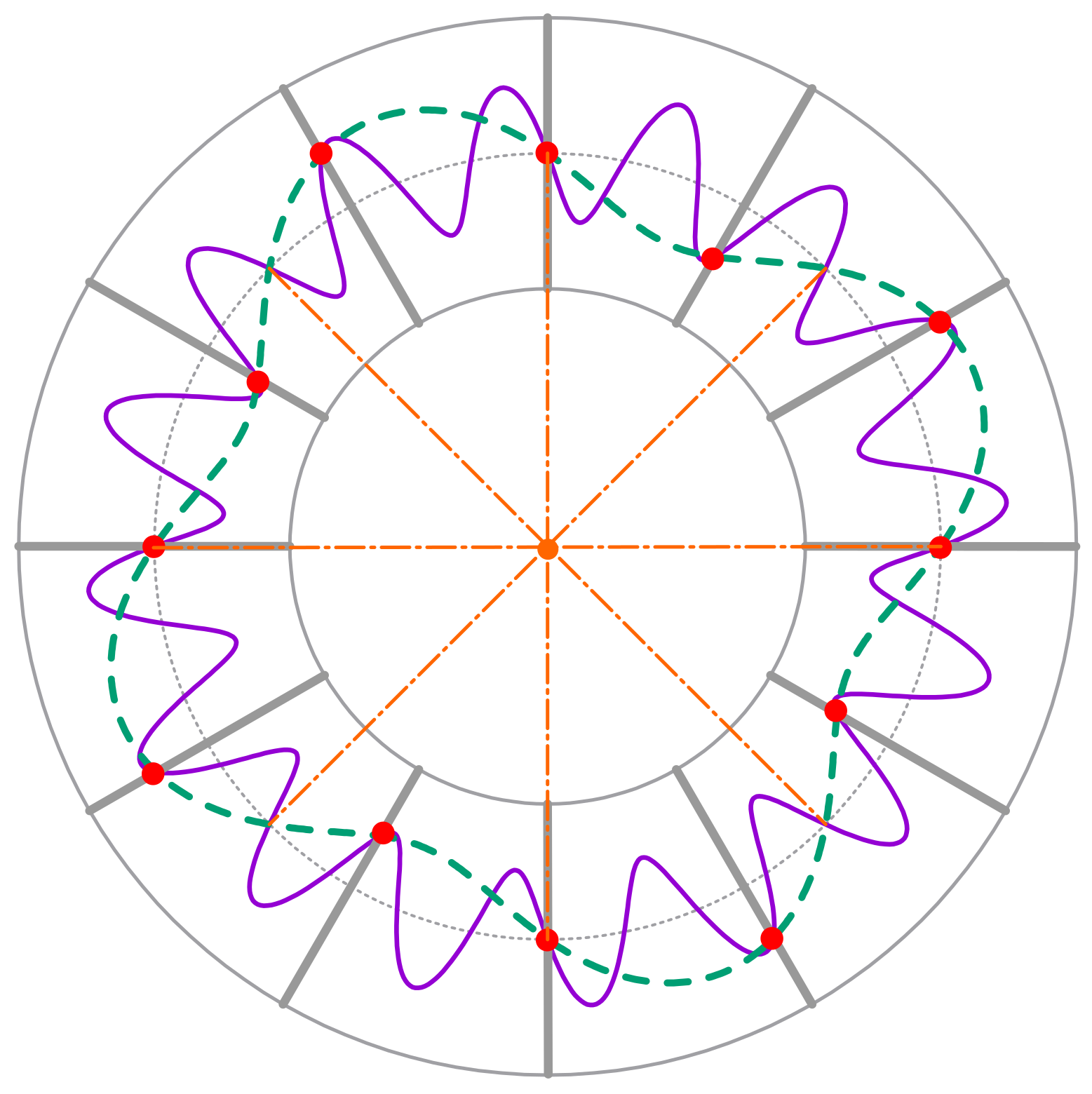

#### 2.1. Unsteady Forcing Decomposition

#### 2.2. Modal Work Approach

#### 2.3. ANSYS Harmonic Analysis

## 3. Results and Comparisons

#### 3.1. Dummy Test Case

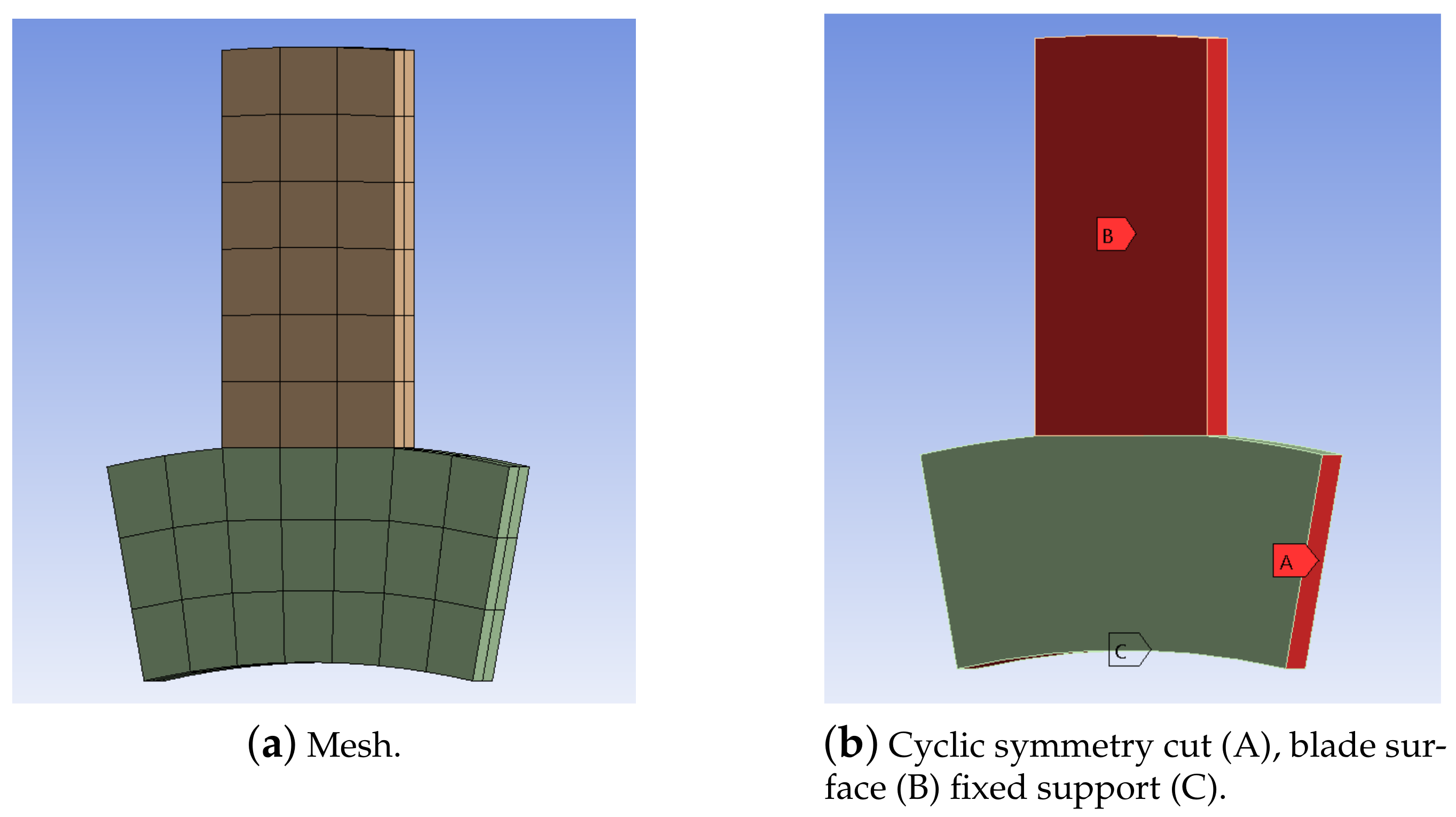

#### 3.1.1. Modal Analysis

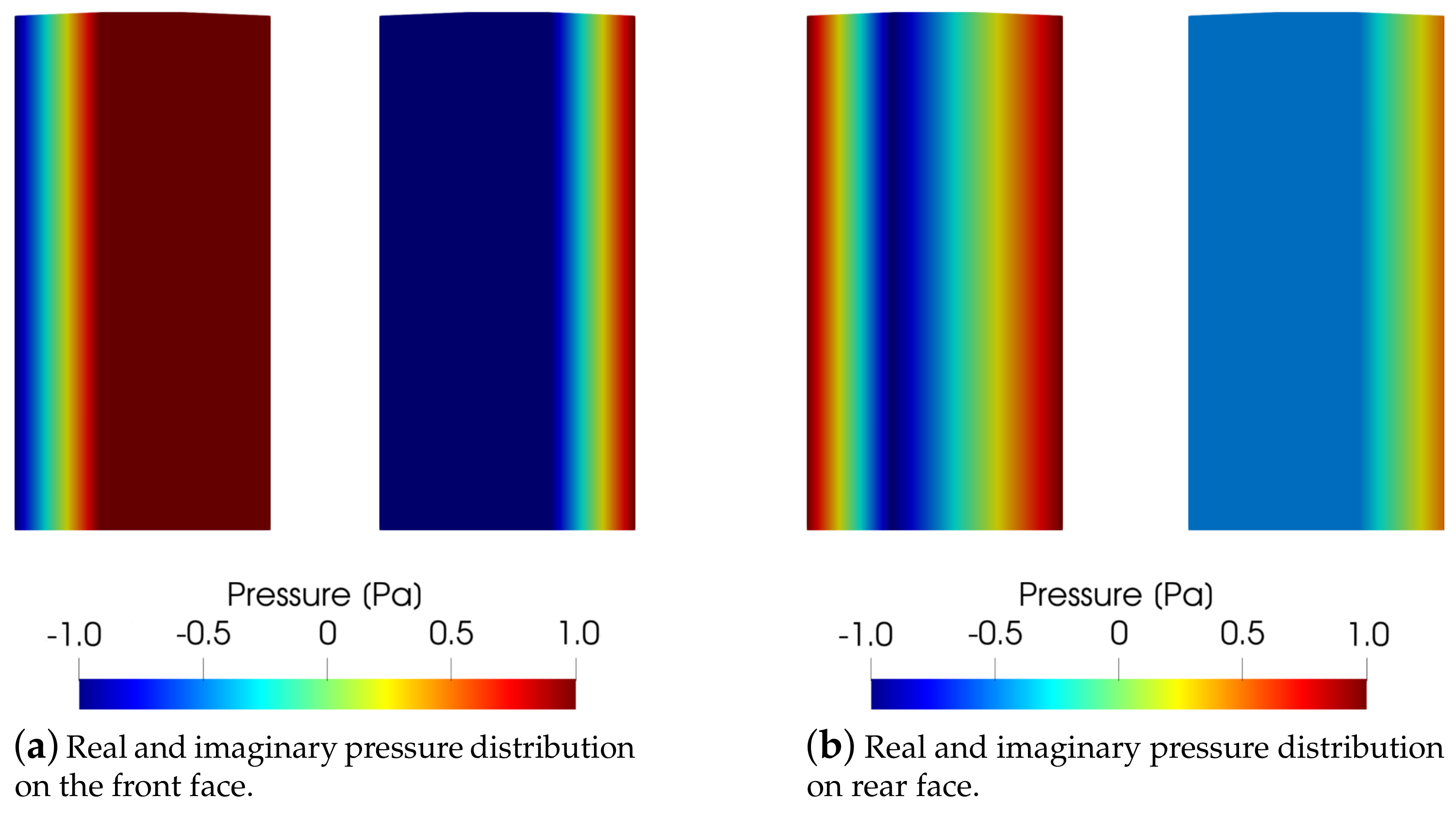

#### 3.1.2. Forcing Function Distribution

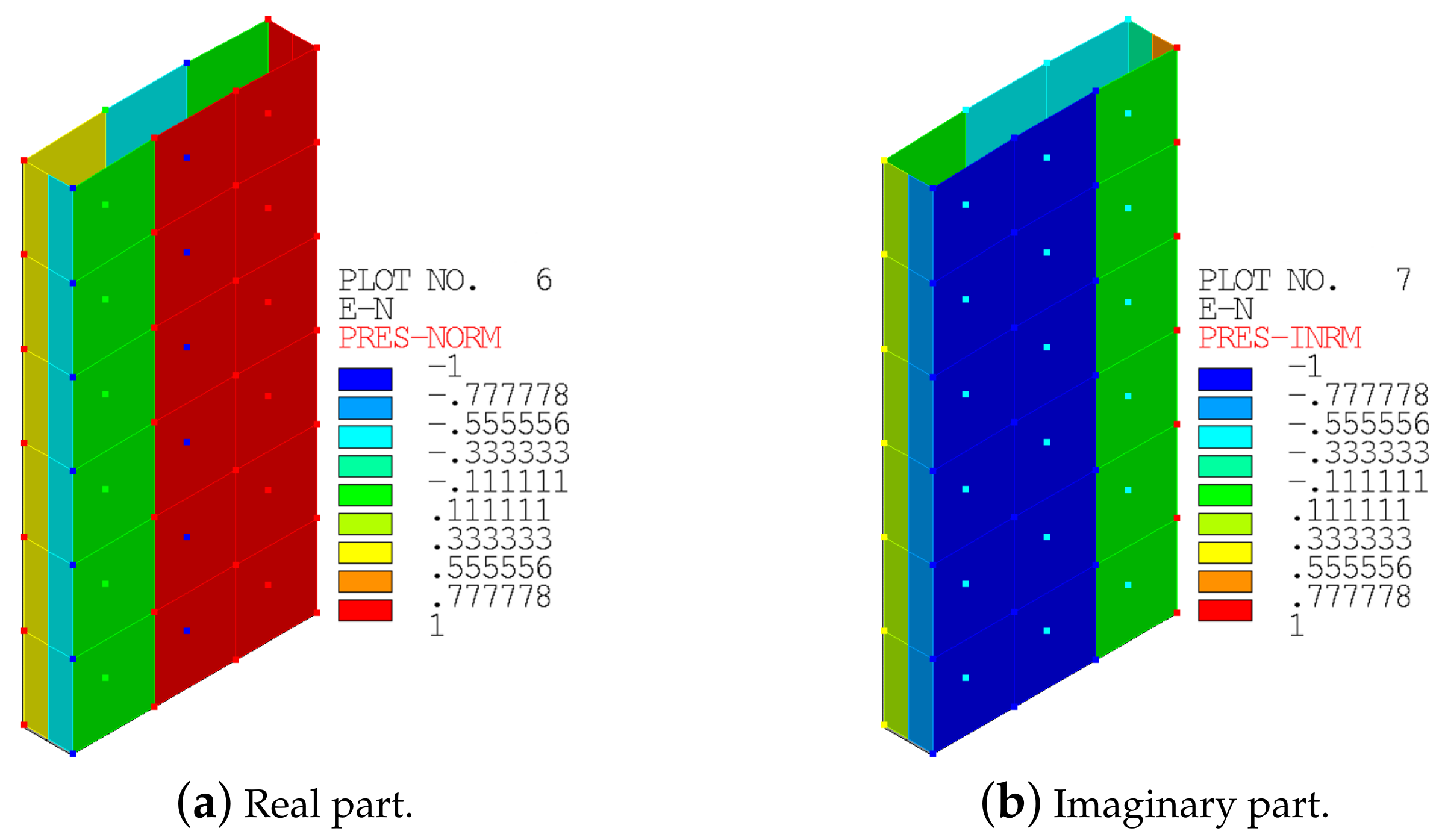

#### 3.1.3. Harmonic Analysis with ANSYS

#### 3.1.4. Tremor-ANSYS Comparison

#### 3.2. LPT Bladed Rotor Test Case

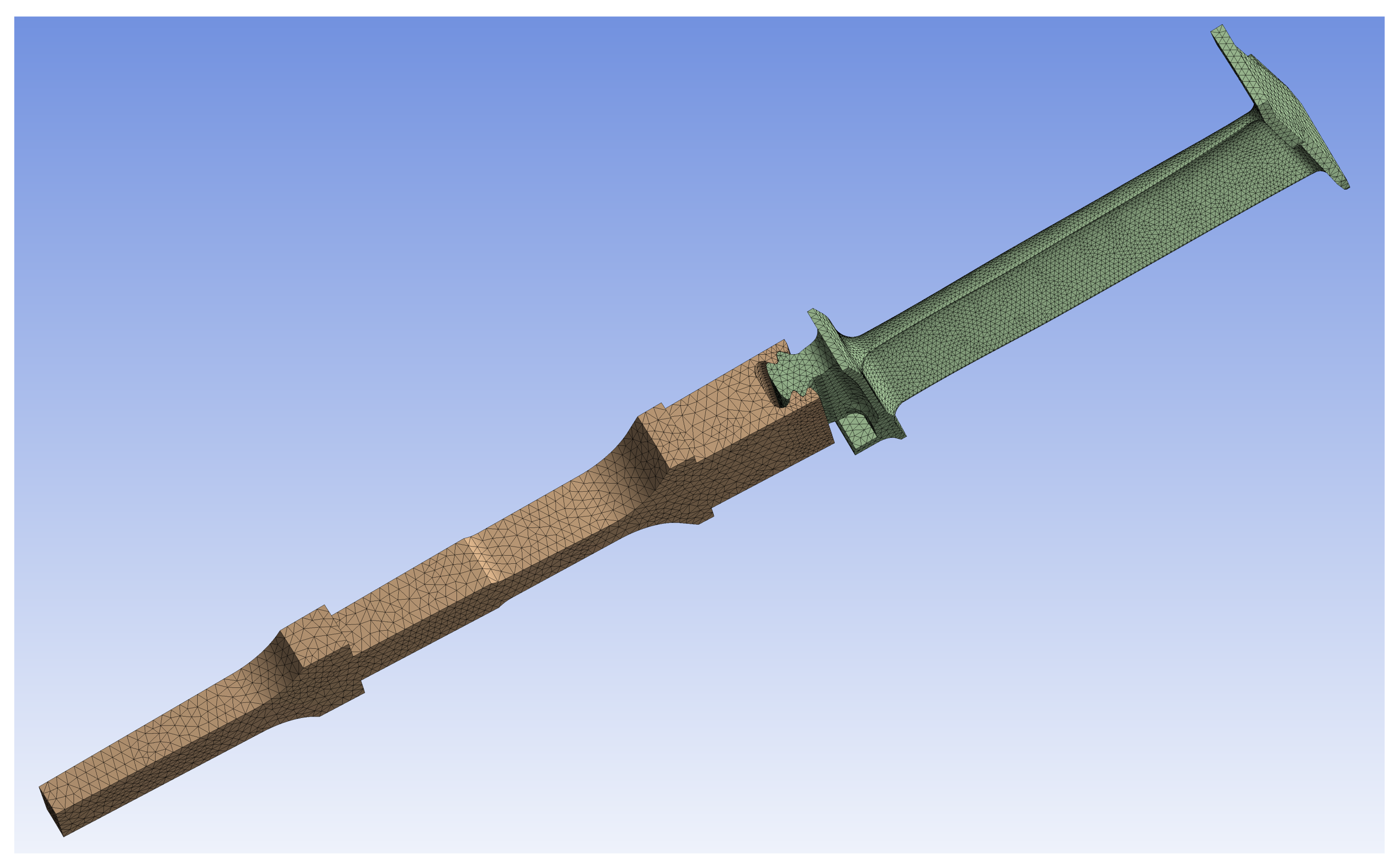

#### 3.2.1. FEM Bladed Rotor Model

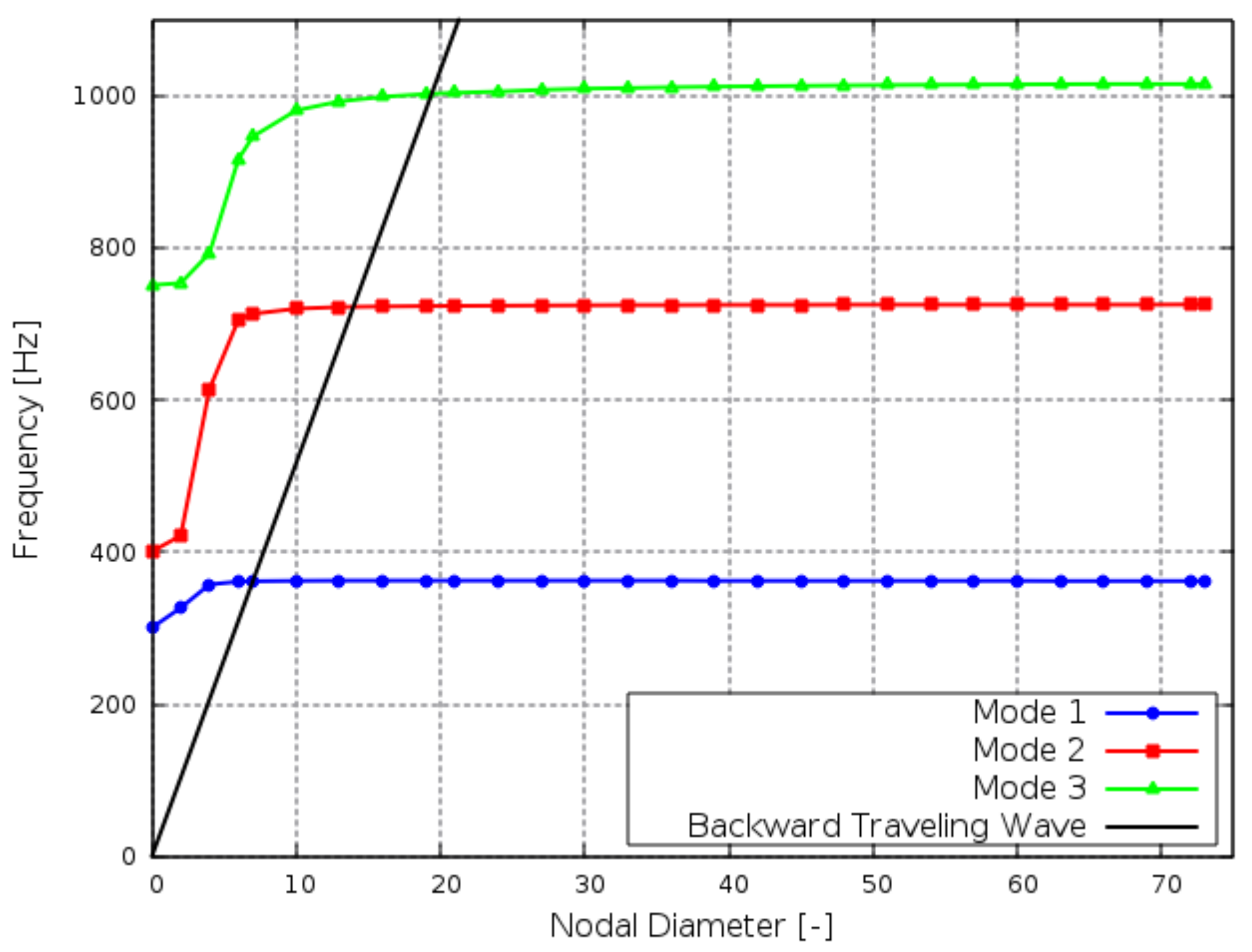

#### 3.2.2. Pre-Stressed Modal Analysis

#### 3.2.3. CFD Multi-Row Model

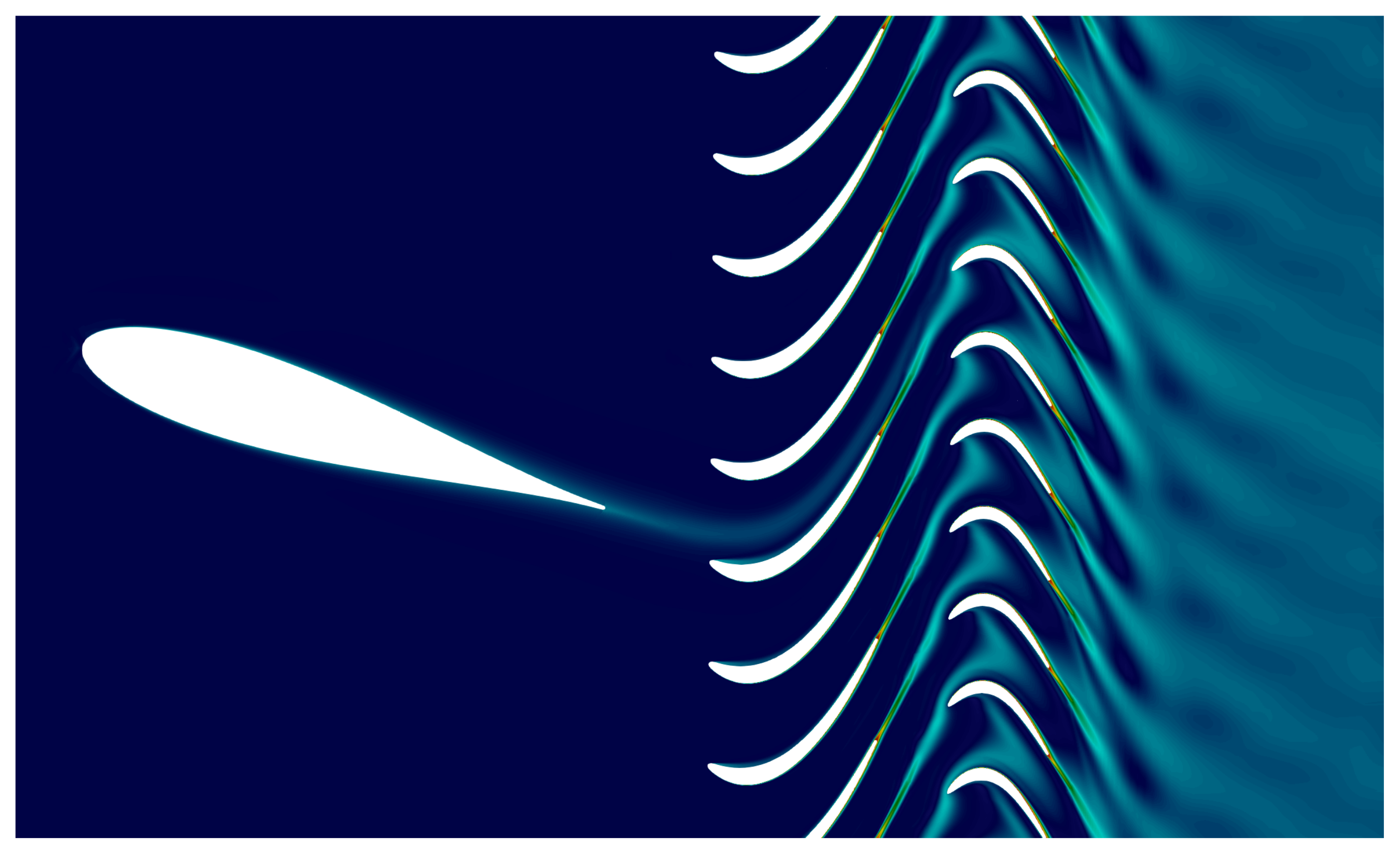

#### 3.2.4. Unsteady Multi-Row Analysis

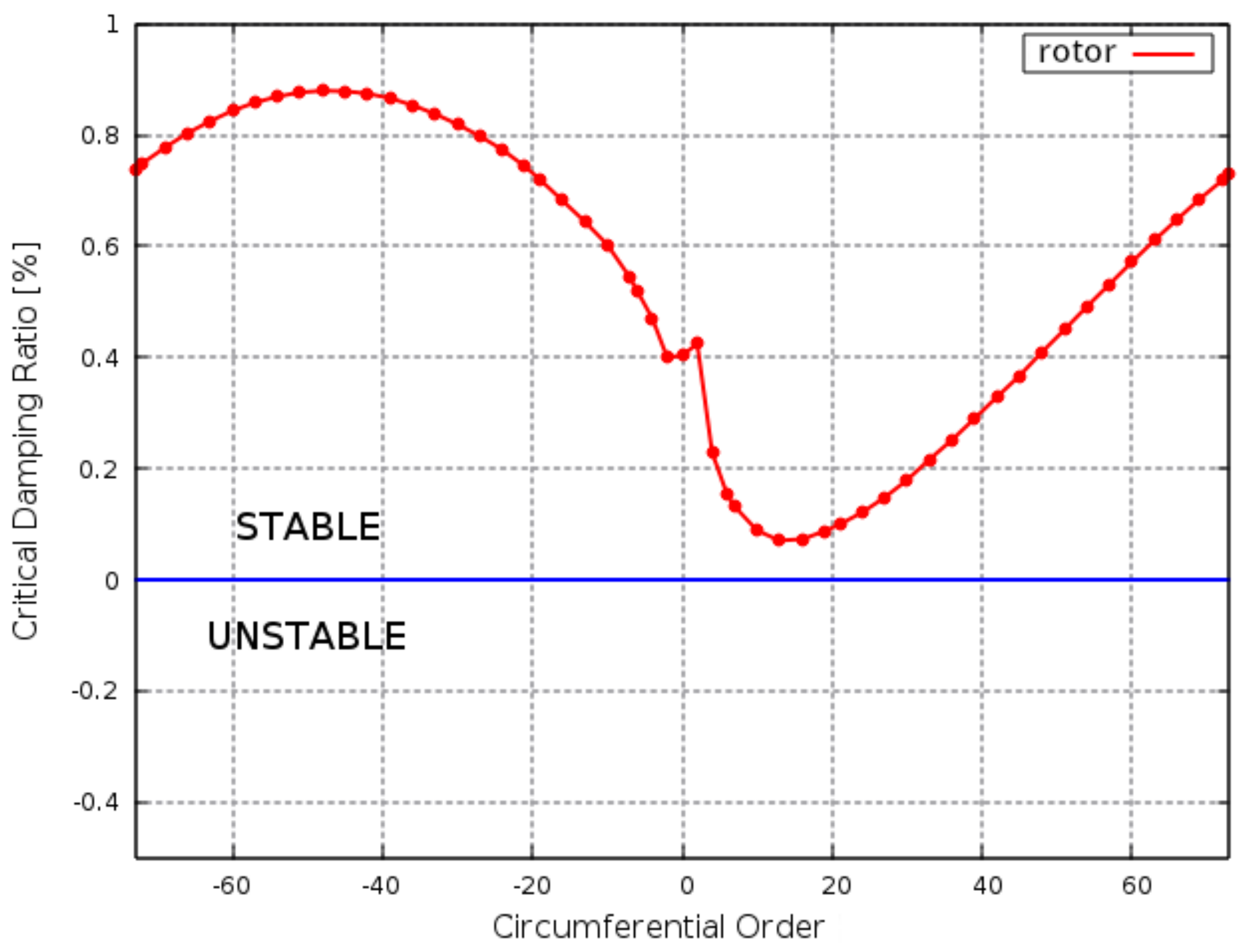

#### 3.2.5. Aerodynamic Damping Evaluation

#### 3.2.6. Harmonic Analysis with ANSYS

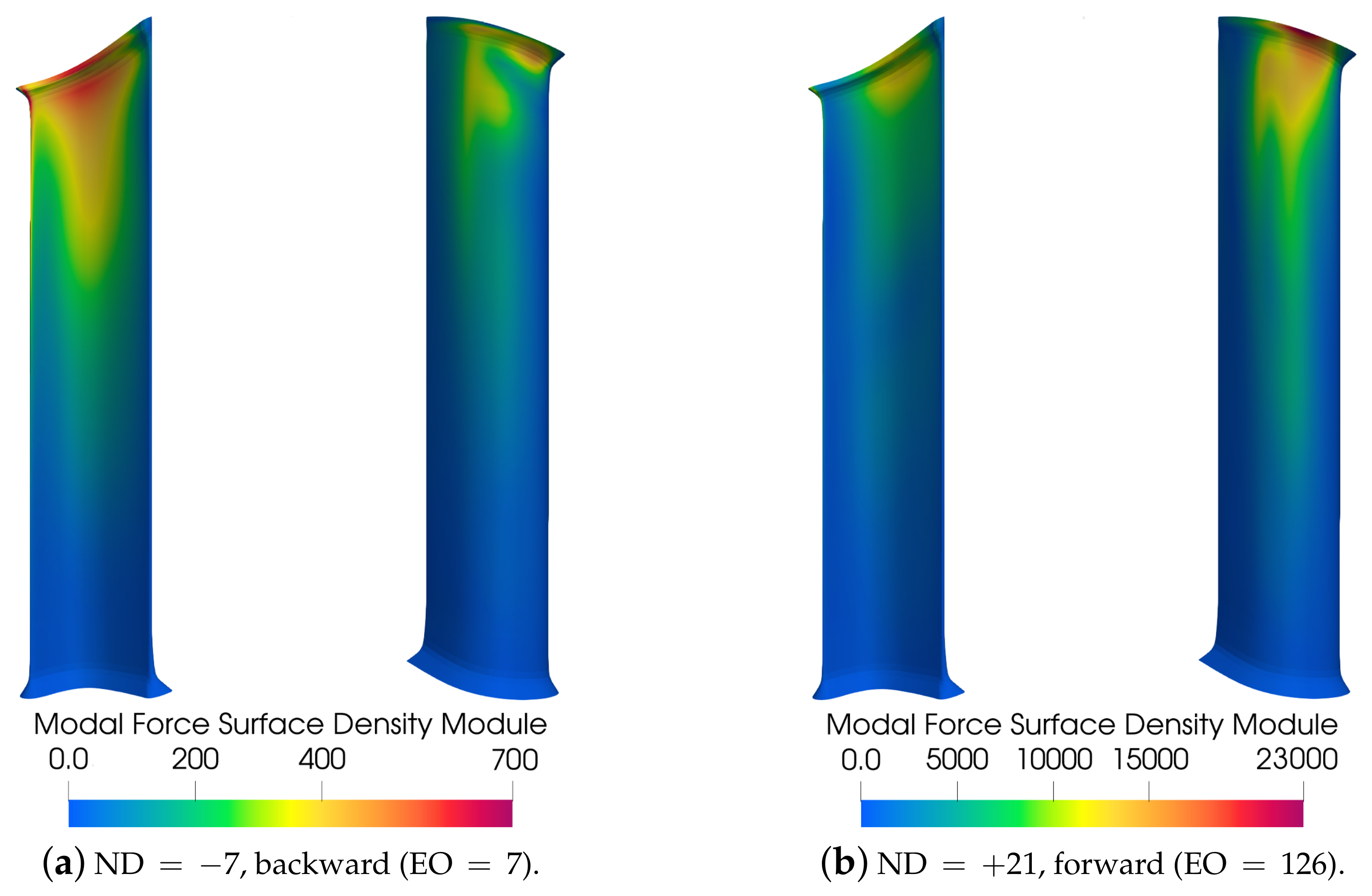

#### 3.2.7. Tremor–ANSYS Comparison

## 4. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## Abbreviations

BPF | Blade Passing Frequency |

CAD | Computer-Aided Design |

CFD | Computational Fluid Dynamic |

DFT | Discrete Fourier Transform |

EO | Engine Order |

FEM | Finite Element Method |

HCF | High Cycle Fatigue |

IBPA | Inter Blade Phase Angle |

IGV | Inlet Guide Vane |

LPT | Low-Pressure Turbine |

MSUP | Mode SUPerposition |

ND | Nodal Diameter |

PS | Pressure Side |

SS | Suction Side |

TREMOR | Tool for Response Evaluation by Modal wORk |

URANS | Unsteady Reynolds-Averaged Navier–Stokes |

ZZENF | Zig Zag shaped Excitation line in the Nodal diameter versus Frequency |

## References

- Fleeter, S. Aeroelasticity Research for Turbomachine Applications. J. Aircr.
**1977**, 16, 320–326. [Google Scholar] [CrossRef] - Parker, R.; Watson, J.F. Interaction Effects between Blade Rows in Turbomachines. Proc. Inst. Mech. Eng.
**1972**, 186, 331–340. [Google Scholar] [CrossRef] - Snyder, L.E.; Burns, D.W. Forced Vibration and Flutter Design Methodology. 1988. Available online: https://www.osti.gov/biblio/6876219 (accessed on 1 June 1988).
- Barreca, P.; Pinelli, L.; Vanti, F.; Arnone, A. Aeroelastic Investigation of a Transonic Compressor Rotor with Multi-Row Effects. Energy Procedia
**2018**, 148, 58–65. [Google Scholar] [CrossRef] - Rzadkowski, R.; Kubitz, L.; Gnesin, V.; Kolodyazhnaya, L. Flutter of long blades in a steam turbine. J. Vib. Eng. Technol.
**2018**, 6, 289–296. [Google Scholar] [CrossRef] - Biagiotti, S.; Pinelli, L.; Poli, F.; Vanti, F.; Pacciani, R. Numerical Study of Flutter Stabilization in Low Pressure Turbine Rotor with Intentional Mistuning. Energy Procedia
**2018**, 148, 98–105. [Google Scholar] [CrossRef] - Lottini, F.; Poli, F.; Pinelli, L.; Vanti, F.; Pacciani, R. Flutter stability assessment of a low pressure turbine rotor: A comparison between cantilever and interlocked configurations. AIP Conf. Proc.
**2019**, 2191, 020102. [Google Scholar] [CrossRef] - Slater, J.; Minkiewicz, G.; Blair, A. Forced response of bladed disk assemblies—A survey. In Proceedings of the 34th AIAA/ASME/SAE/ASEE Joint Propulsion Conference and Exhibit, Cleveland, OH, USA, 13–15 July 1998. [Google Scholar]
- Chiang, H.W.D.; Kielb, R.E. An Analysis System for Blade Forced Response. J. Turbomach.
**1993**, 115, 762–770. [Google Scholar] [CrossRef] - Toni, L.; Moyroud, F.; Ramakrishnan, K.; Michelassi, V.; Schurr, E. Prediction and Validation of High Performance Centrifugal Compressor Impeller Forced Response. In Proceedings of the 12th European Conference on Turbomachinery Fluid Dynamics and Thermodynamics, Stockholm, Sweden, 3–7 April 2017. [Google Scholar]
- Rzadkowski, R.; Gnesin, V.; Kolodyazhnaya, L. Aeroelasticity analysis of unsteady rotor blade forces and displacements in LP last stage steam turbine with various pressure distributions the stage exit. J. Vib. Eng. Technol.
**2018**, 6, 333–337. [Google Scholar] [CrossRef] - Berthillier, M.; Dhainaut, M.; Burgaud, F.; Garnier, V. A Numerical Method for the Prediction of Bladed Disk Forced Response. J. Eng. Gas Turbines Power
**1997**, 119, 404–410. [Google Scholar] [CrossRef] - Breárd, C.; Vahdati, M.; Sayma, A.I.; Imregun, M. An Integrated Time-Domain Aeroelasticity Model for the Prediction of Fan Forced Response due to Inlet Distortion. J. Eng. Gas Turbines Power
**2000**, 124, 196–208. [Google Scholar] [CrossRef] - Bornassi, S.; Firrone, C.M.; Berruti, T.M. Vibration Parameters Estimation by Blade Tip-Timing in Mistuned Bladed Disks in Presence of Close Resonances. Appl. Sci.
**2020**, 10, 5930. [Google Scholar] [CrossRef] - Cooper, A.J.; Peake, N. Propagation of unsteady disturbances in a slowly varying duct with mean swirling flow. J. Fluid Mech.
**2001**, 445, 207–234. [Google Scholar] [CrossRef] - Hellmich, B.; Seume, J.R. Causes of Acoustic Resonance in a High-Speed Axial Compressor. J. Turbomach.
**2008**, 130, 031003. [Google Scholar] [CrossRef] - Terstegen, M.; Sanders, C.; Jeschke, P.; Schoenenborn, H. Rotor–Stator Interactions in a 2.5-Stage Axial Compressor—Part I: Experimental Analysis of Tyler–Sofrin Modes. J. Turbomach.
**2019**, 141, 101002. [Google Scholar] [CrossRef] - Figaschewsky, F.; Kühhorn, A.; Beirow, B.; Giersch, T.; Schrape, S. Analysis of mistuned forced response in an axial high-pressure compressor rig with focus on Tyler–Sofrin modes. Aeronaut. J.
**2019**, 123, 356–377. [Google Scholar] [CrossRef] - Gaetani, P.; Persico, G.; Pinelli, L.; Marconcini, M.; Pacciani, R. Computational and Experimental Study of Hot Streak Transport Within the First Stage of a Gas Turbine. J. Turbomach.
**2020**, 142, 081002. [Google Scholar] [CrossRef] - Pinelli, L.; Marconcini, M.; Pacciani, R.; Gaetani, P.; Persico, G. Computational and Experimental Study of the Unsteady Convection of Entropy Waves Within a High-Pressure Turbine Stage. J. Turbomach.
**2021**, 143, 091011. [Google Scholar] [CrossRef] - Amedei, A.; Meli, E.; Rindi, A.; Romani, B.; Pinelli, L.; Vanti, F.; Arnone, A.; Benvenuti, G.; Fabbrini, M.; Morganti, N. Innovative Design, Structural Optimization and Additive Manufacturing of New-Generation Turbine Blades. In Turbo Expo: Power for Land, Sea, and Air; Volume 2C: Turbomachinery; American Society of Mechanical Engineers: New York, NY, USA, 2020. [Google Scholar] [CrossRef]
- Vanti, F.; Pinelli, L.; Arnone, A.; Schneider, A.; Astrua, P.; Puppo, E. Aeroelastic Optimization of an Industrial Compressor Rotor Blade Geometry. In Turbo Expo: Power for Land, Sea, and Air; American Society of Mechanical Engineers: New York, NY, USA, 2018; Volume 2D: Turbomachinery. [Google Scholar] [CrossRef]
- Arnone, A. Viscous analysis of three-dimensional rotor flow using a multigrid method. J. Turbomach.
**1994**, 116, 435–445. [Google Scholar] [CrossRef] - Pacciani, R.; Marconcini, M.; Arnone, A. Comparison of the AUSM+-up and other advection schemes for turbomachinery applications. Shock Waves
**2019**, 29, 705–716. [Google Scholar] [CrossRef] - Pinelli, L.; Vanti, F.; Peruzzi, L.; Arnone, A.; Bessone, A.; Bettini, C.; Guida, R.; Marré Brunenghi, M.; Slama, V. Aeromechanical Characterization of a Last Stage Steam Blade at Low Load Operation: Part 2—Computational Modelling and Comparison. In Turbo Expo: Power for Land, Sea, and Air; Volume 10A: Structures and Dynamics; American Society of Mechanical Engineers: New York, NY, USA, 2020. [Google Scholar] [CrossRef]
- Corral, R.; Beloki, J.; Calza, P.; Elliott, R. Flutter Generation and Control Using Mistuning in a Turbine Rotating Rig. AIAA J.
**2019**, 57, 782–795. [Google Scholar] [CrossRef]

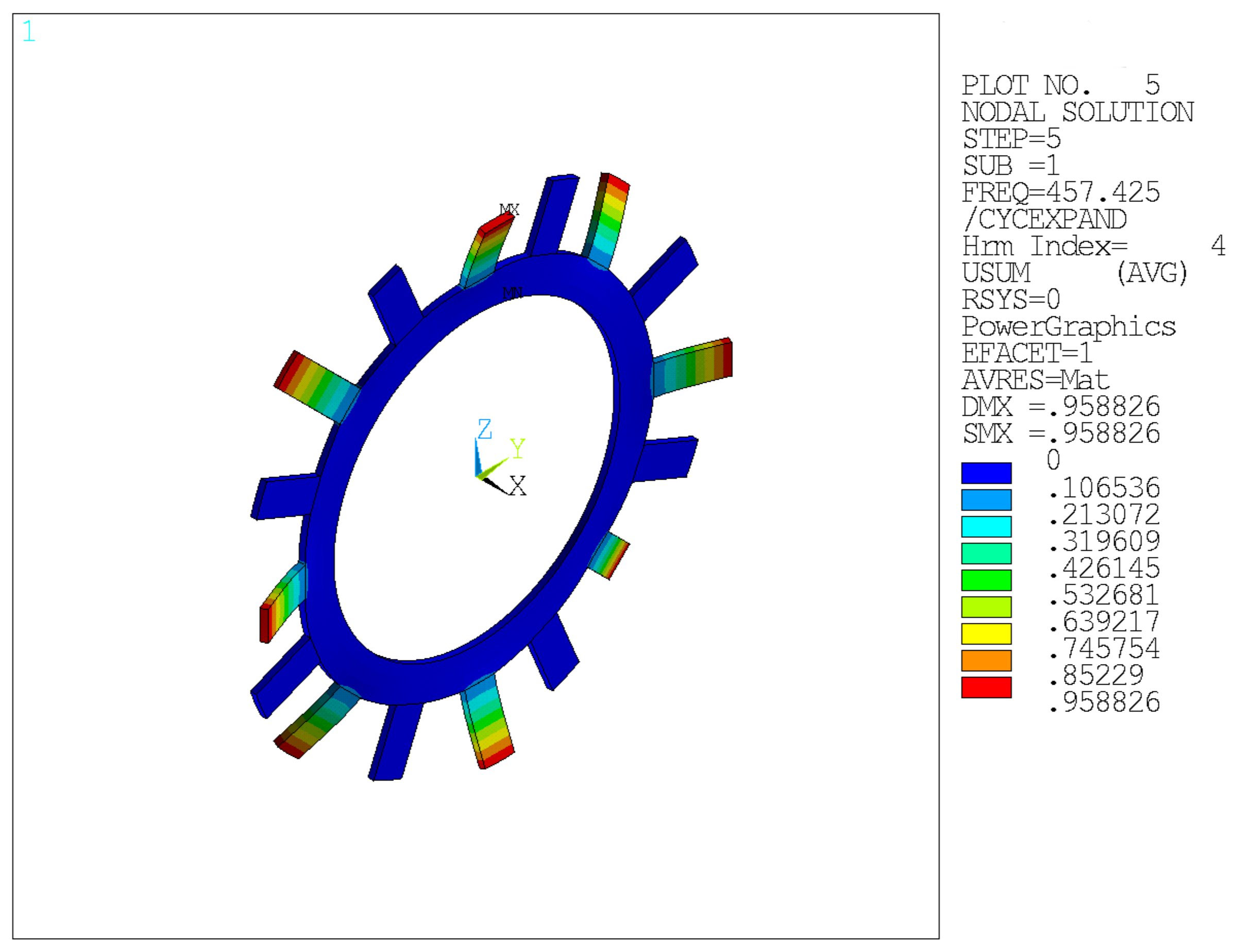

**Figure 3.**First bending mode of the dummy test case ($\mathrm{ND}\phantom{\rule{0.166667em}{0ex}}=\phantom{\rule{0.166667em}{0ex}}\pm 4$).

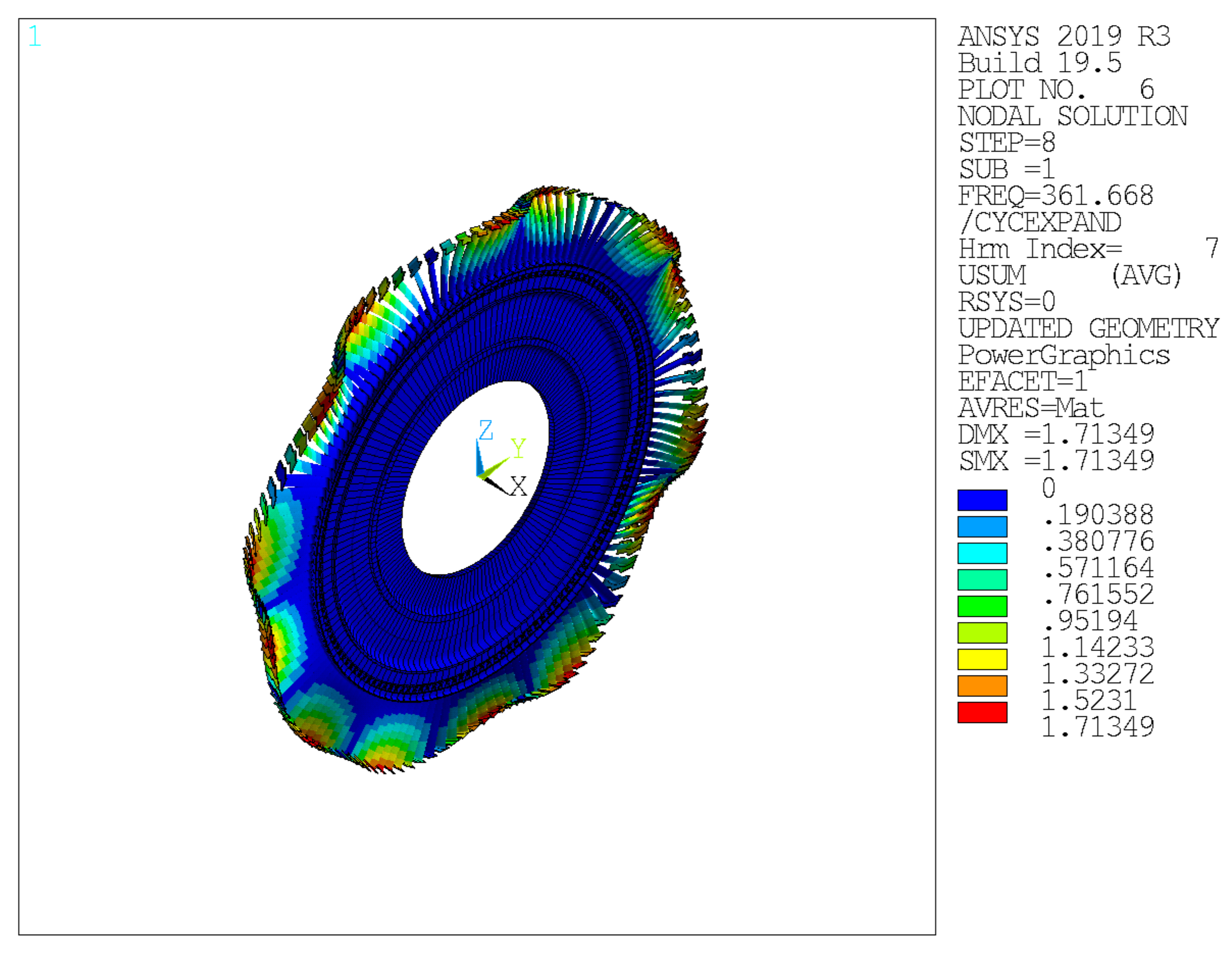

**Figure 8.**Modal displacements for $\mathrm{ND}\phantom{\rule{0.166667em}{0ex}}=\phantom{\rule{0.166667em}{0ex}}\pm 7$ of the 1st bending family.

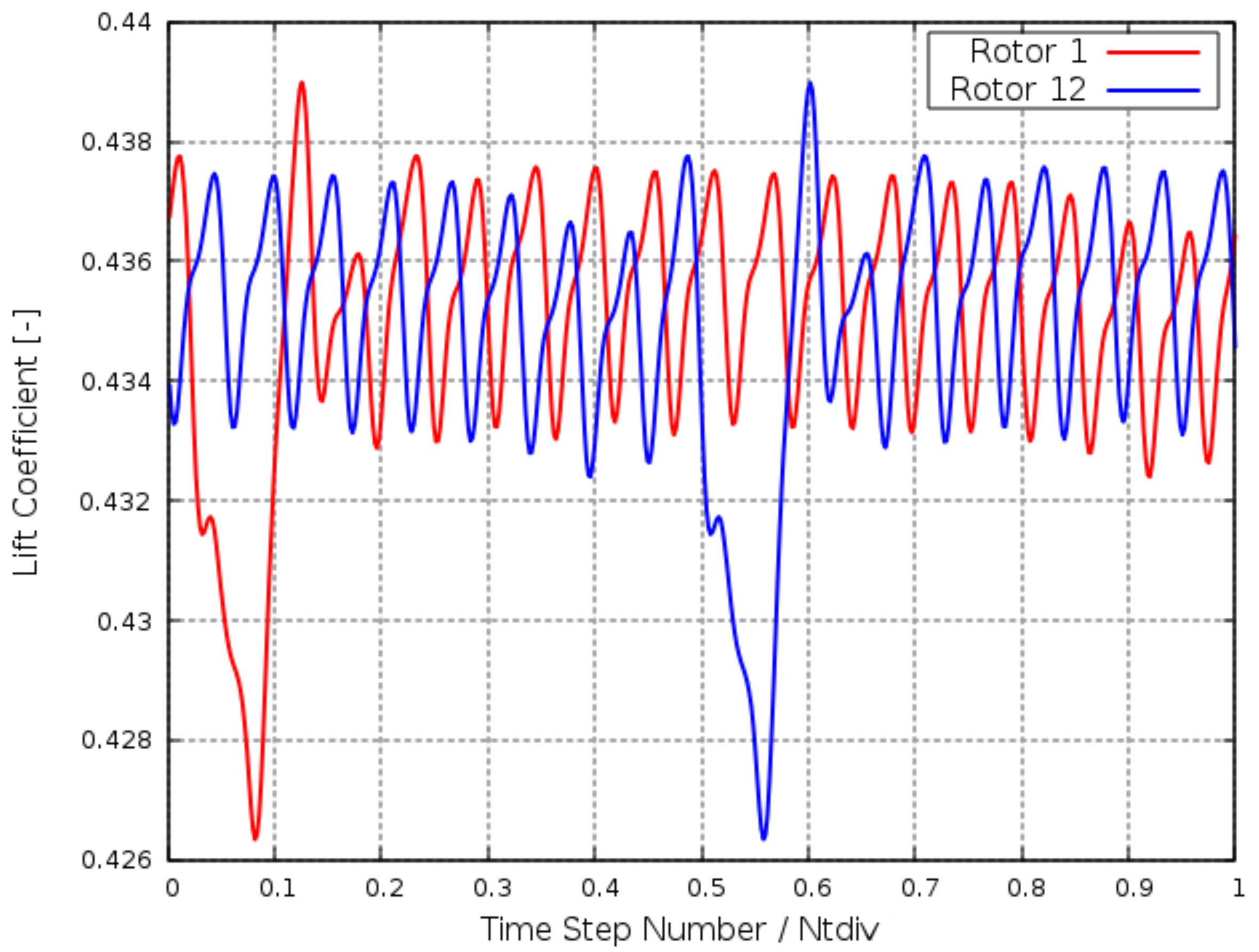

**Figure 9.**Unsteady lift coefficient for two different rotor profiles during 1/7 of the rotor revolution.

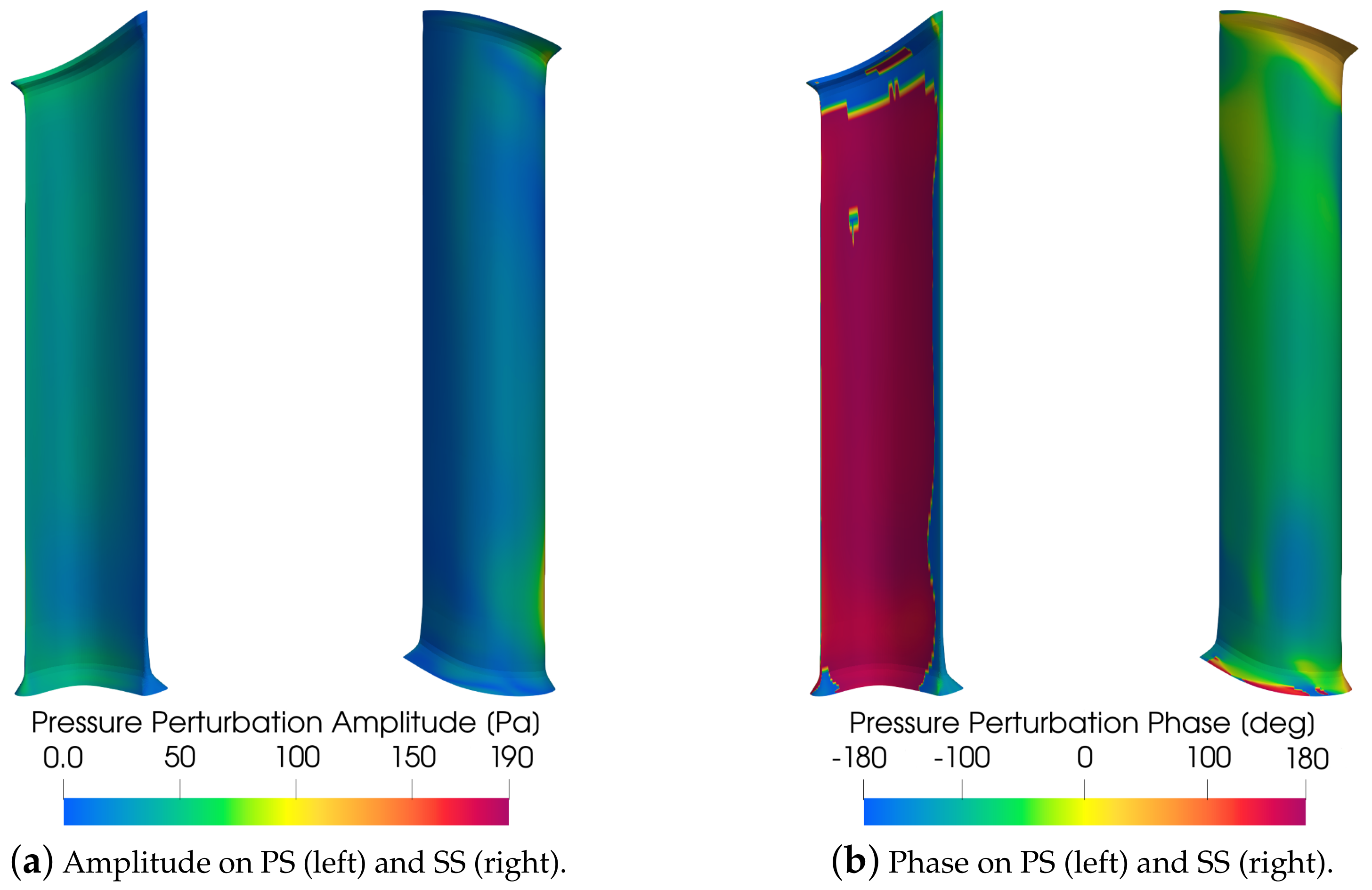

**Figure 11.**Unsteady forcing at $\mathrm{EO}\phantom{\rule{0.166667em}{0ex}}=\phantom{\rule{0.166667em}{0ex}}7$ and $\mathrm{ND}\phantom{\rule{0.166667em}{0ex}}=\phantom{\rule{0.166667em}{0ex}}-7$.

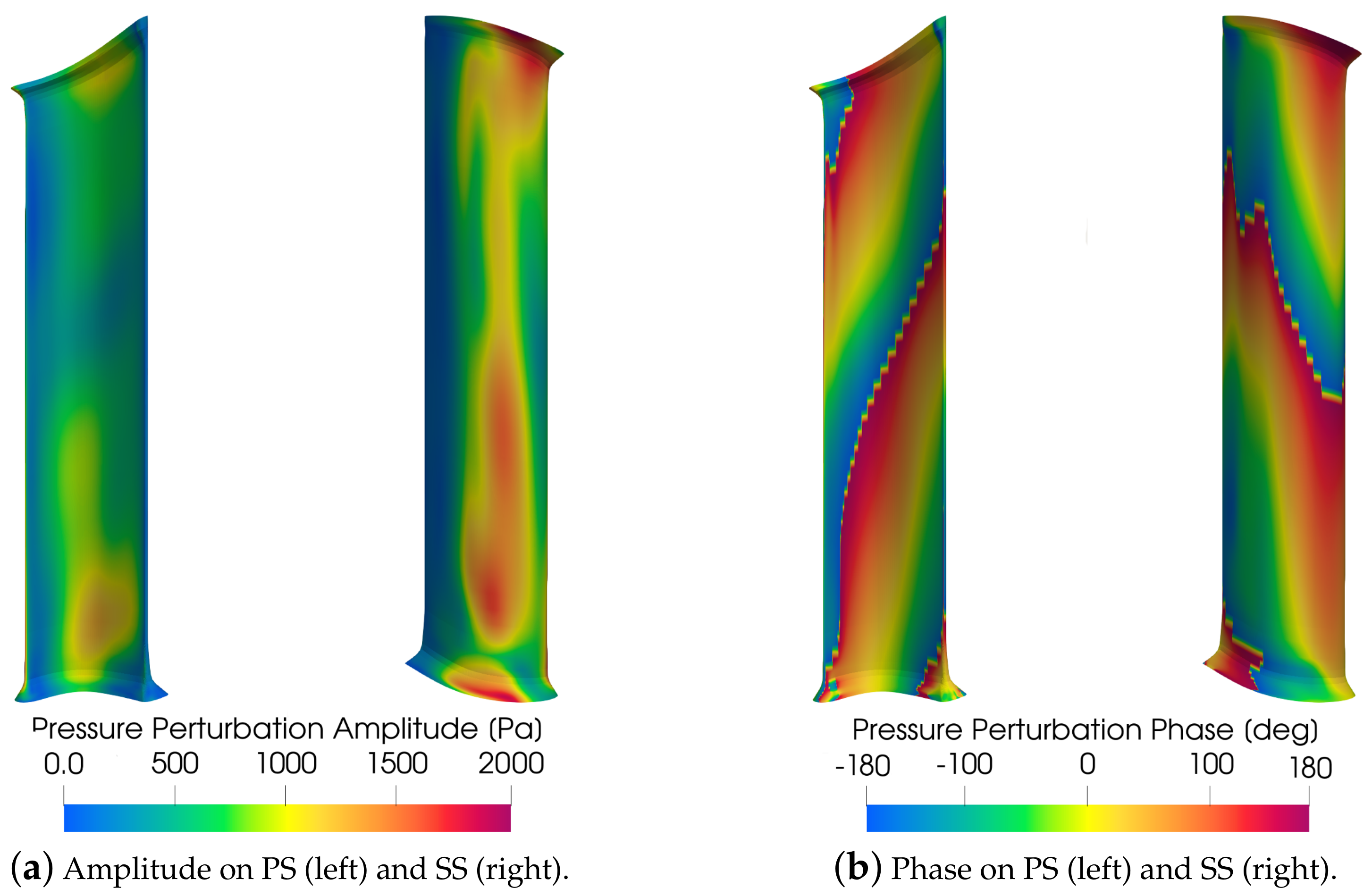

**Figure 12.**Unsteady forcing at $\mathrm{EO}\phantom{\rule{0.166667em}{0ex}}=\phantom{\rule{0.166667em}{0ex}}126$ and $\mathrm{ND}\phantom{\rule{0.166667em}{0ex}}=\phantom{\rule{0.166667em}{0ex}}+21$.

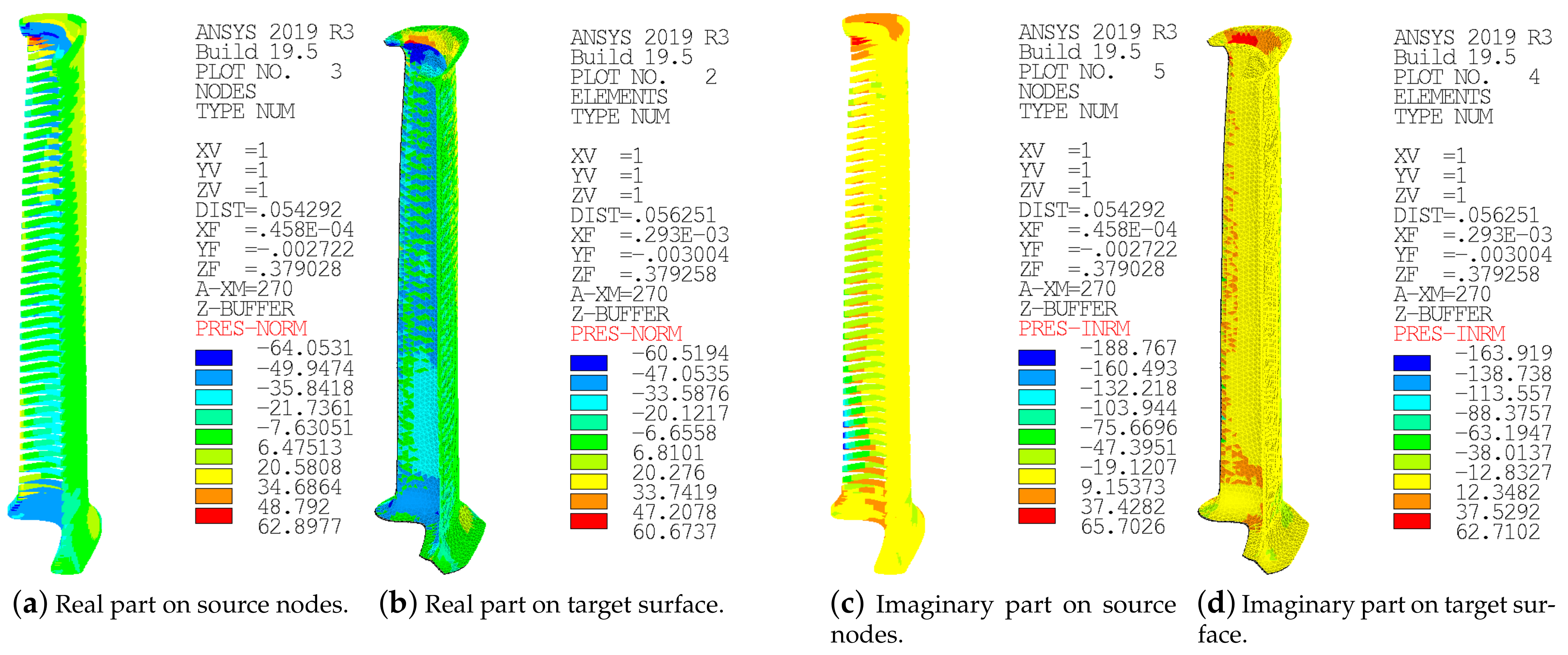

**Figure 14.**Check on forcing distribution mapping ($\mathrm{EO}\phantom{\rule{0.166667em}{0ex}}=\phantom{\rule{0.166667em}{0ex}}7$).

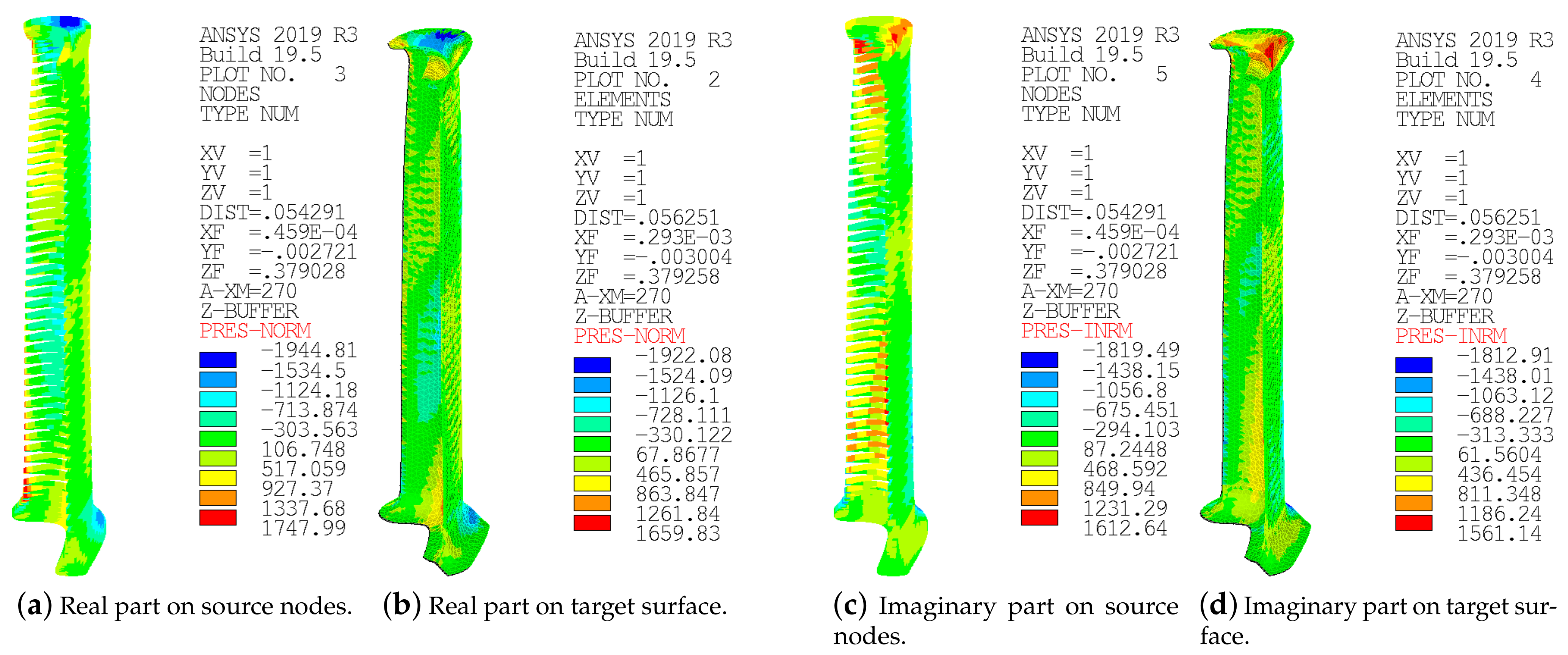

**Figure 15.**Check on forcing distribution mapping ($\mathrm{EO}\phantom{\rule{0.166667em}{0ex}}=\phantom{\rule{0.166667em}{0ex}}126$).

Maximum Amplitude of Total Displacement (m) | ||||
---|---|---|---|---|

ND = 0 | ND = +4 | ND = −4 | ND = +8 | |

Tremor | $9.36\phantom{\rule{3.33333pt}{0ex}}\phantom{\rule{-0.166667em}{0ex}}\times \phantom{\rule{-0.166667em}{0ex}}\phantom{\rule{3.33333pt}{0ex}}{10}^{-8}$ | $8.95\phantom{\rule{3.33333pt}{0ex}}\phantom{\rule{-0.166667em}{0ex}}\times \phantom{\rule{-0.166667em}{0ex}}\phantom{\rule{3.33333pt}{0ex}}{10}^{-8}$ | $8.60\phantom{\rule{3.33333pt}{0ex}}\phantom{\rule{-0.166667em}{0ex}}\times \phantom{\rule{-0.166667em}{0ex}}\phantom{\rule{3.33333pt}{0ex}}{10}^{-8}$ | $8.12\phantom{\rule{3.33333pt}{0ex}}\phantom{\rule{-0.166667em}{0ex}}\times \phantom{\rule{-0.166667em}{0ex}}\phantom{\rule{3.33333pt}{0ex}}{10}^{-8}$ |

ANSYS | $9.36\phantom{\rule{3.33333pt}{0ex}}\phantom{\rule{-0.166667em}{0ex}}\times \phantom{\rule{-0.166667em}{0ex}}\phantom{\rule{3.33333pt}{0ex}}{10}^{-8}$ | $8.95\phantom{\rule{3.33333pt}{0ex}}\phantom{\rule{-0.166667em}{0ex}}\times \phantom{\rule{-0.166667em}{0ex}}\phantom{\rule{3.33333pt}{0ex}}{10}^{-8}$ | $8.60\phantom{\rule{3.33333pt}{0ex}}\phantom{\rule{-0.166667em}{0ex}}\times \phantom{\rule{-0.166667em}{0ex}}\phantom{\rule{3.33333pt}{0ex}}{10}^{-8}$ | $8.12\phantom{\rule{3.33333pt}{0ex}}\phantom{\rule{-0.166667em}{0ex}}\times \phantom{\rule{-0.166667em}{0ex}}\phantom{\rule{3.33333pt}{0ex}}{10}^{-8}$ |

**Table 2.**Tremor–ANSYS comparison (1st family, out of resonance for $\mathrm{EO}\phantom{\rule{0.166667em}{0ex}}=\phantom{\rule{0.166667em}{0ex}}4$, case 3).

Maximum Amplitude of Total Displacement (m) for EO = 4 | |||||
---|---|---|---|---|---|

ND = 0 | ND = +2 | ND = +4 | ND = +6 | ND = +8 | |

Tremor | $2.51\phantom{\rule{3.33333pt}{0ex}}\phantom{\rule{-0.166667em}{0ex}}\times \phantom{\rule{-0.166667em}{0ex}}\phantom{\rule{3.33333pt}{0ex}}{10}^{-8}$ | $3.31\phantom{\rule{3.33333pt}{0ex}}\phantom{\rule{-0.166667em}{0ex}}\times \phantom{\rule{-0.166667em}{0ex}}\phantom{\rule{3.33333pt}{0ex}}{10}^{-8}$ | $8.95\phantom{\rule{3.33333pt}{0ex}}\phantom{\rule{-0.166667em}{0ex}}\times \phantom{\rule{-0.166667em}{0ex}}\phantom{\rule{3.33333pt}{0ex}}{10}^{-8}$ | $2.77\phantom{\rule{3.33333pt}{0ex}}\phantom{\rule{-0.166667em}{0ex}}\times \phantom{\rule{-0.166667em}{0ex}}\phantom{\rule{3.33333pt}{0ex}}{10}^{-8}$ | $1.93\phantom{\rule{3.33333pt}{0ex}}\phantom{\rule{-0.166667em}{0ex}}\times \phantom{\rule{-0.166667em}{0ex}}\phantom{\rule{3.33333pt}{0ex}}{10}^{-8}$ |

ANSYS | $2.51\phantom{\rule{3.33333pt}{0ex}}\phantom{\rule{-0.166667em}{0ex}}\times \phantom{\rule{-0.166667em}{0ex}}\phantom{\rule{3.33333pt}{0ex}}{10}^{-8}$ | $3.31\phantom{\rule{3.33333pt}{0ex}}\phantom{\rule{-0.166667em}{0ex}}\times \phantom{\rule{-0.166667em}{0ex}}\phantom{\rule{3.33333pt}{0ex}}{10}^{-8}$ | $2.78\phantom{\rule{3.33333pt}{0ex}}\phantom{\rule{-0.166667em}{0ex}}\times \phantom{\rule{-0.166667em}{0ex}}\phantom{\rule{3.33333pt}{0ex}}{10}^{-8}$ | $1.94\phantom{\rule{3.33333pt}{0ex}}\phantom{\rule{-0.166667em}{0ex}}\times \phantom{\rule{-0.166667em}{0ex}}\phantom{\rule{3.33333pt}{0ex}}{10}^{-8}$ |

Item | Unit | Disk | Blade |
---|---|---|---|

Material | Structural Steel | Aluminum | |

Young’s modulus | (GPa) | 200 | 72 |

Density | (kg/m^{3}) | 2810 | 7850 |

Poisson ratio | (-) | 0.3 | 0.33 |

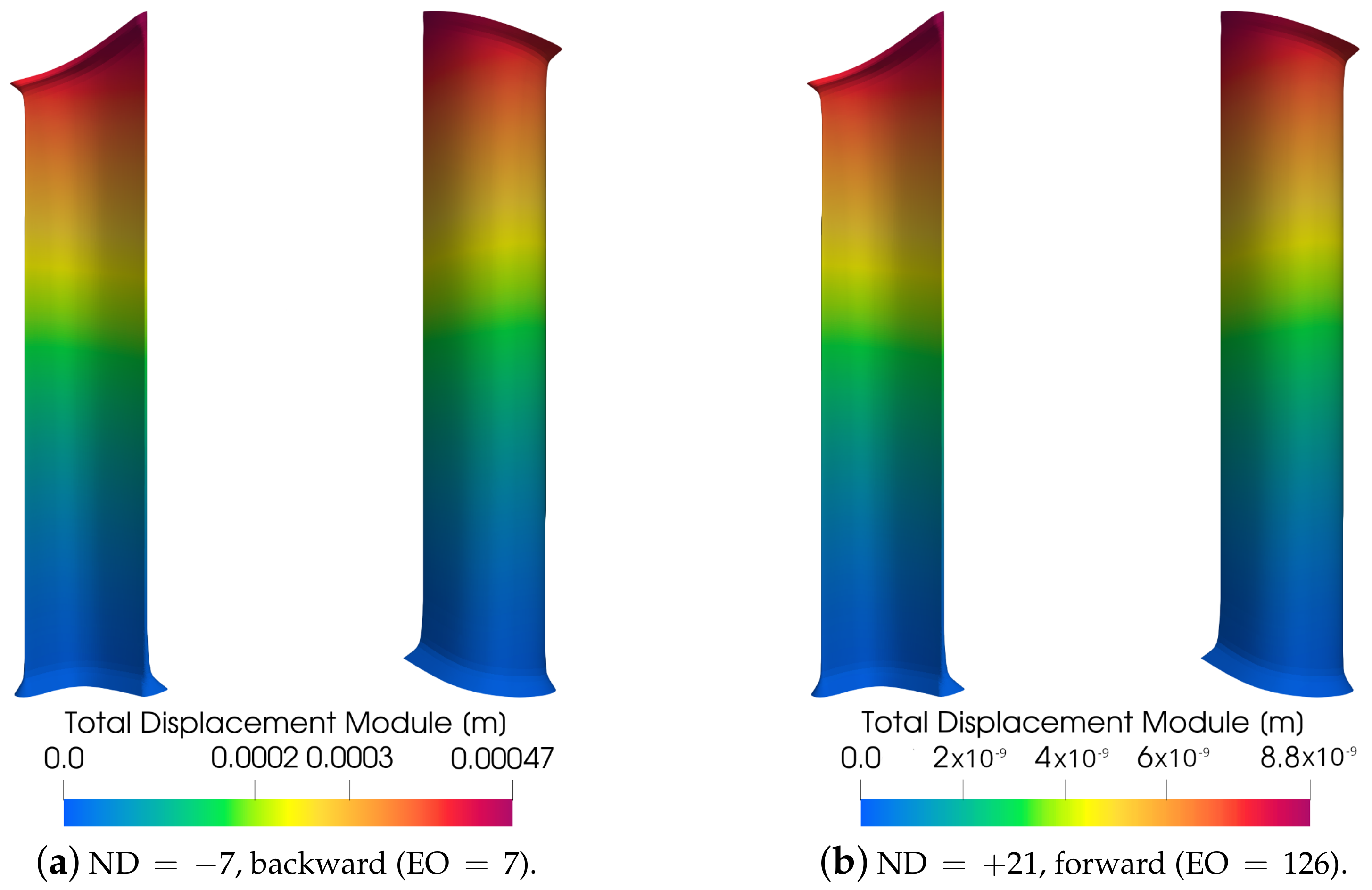

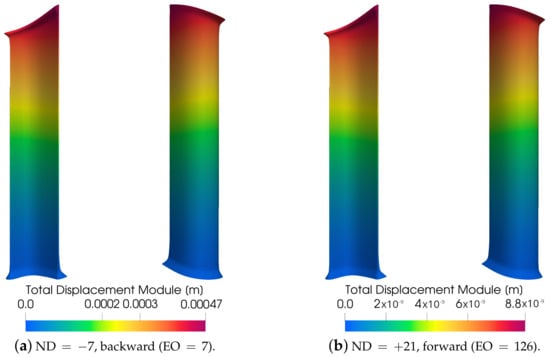

Maximum Amplitude of Total Displacement (m) | ||
---|---|---|

IGV Wake (EO = 7) | Stator Wake (EO = 126) | |

Tremor | $4.77\phantom{\rule{3.33333pt}{0ex}}\phantom{\rule{-0.166667em}{0ex}}\times \phantom{\rule{-0.166667em}{0ex}}\phantom{\rule{3.33333pt}{0ex}}{10}^{-4}$ | $8.89\phantom{\rule{3.33333pt}{0ex}}\phantom{\rule{-0.166667em}{0ex}}\times \phantom{\rule{-0.166667em}{0ex}}\phantom{\rule{3.33333pt}{0ex}}{10}^{-9}$ |

ANSYS | $4.45\phantom{\rule{3.33333pt}{0ex}}\phantom{\rule{-0.166667em}{0ex}}\times \phantom{\rule{-0.166667em}{0ex}}\phantom{\rule{3.33333pt}{0ex}}{10}^{-4}$ | $9.40\phantom{\rule{3.33333pt}{0ex}}\phantom{\rule{-0.166667em}{0ex}}\times \phantom{\rule{-0.166667em}{0ex}}\phantom{\rule{3.33333pt}{0ex}}{10}^{-9}$ |
