Evolutionary Integrated Heuristic with Gudermannian Neural Networks for Second Kind of Lane–Emden Nonlinear Singular Models

Abstract

In this work, a new heuristic computing design is presented with an artificial intelligence approach to exploit the models with feed-forward (FF) Gudermannian neural networks (GNN) accomplished with global search capability of genetic algorithms (GA) combined with local convergence aptitude of active-set method (ASM), i.e., FF-GNN-GAASM to solve the second kind of Lane–Emden nonlinear singular models (LE-NSM). The proposed method based on the computing intelligent Gudermannian kernel is incorporated with the hidden layer configuration of FF-GNN models of differential operatives of the LE-NSM, which are arbitrarily associated with presenting an error-based objective function that is used to optimize by the hybrid heuristics of GAASM. Three LE-NSM-based examples are numerically solved to authenticate the effectiveness, accurateness, and efficiency of the suggested FF-GNN-GAASM. The reliability of the scheme via statistical valuations is verified in order to authenticate the stability, accuracy, and convergence.

1. Introduction

The singular models have many appreciated applications in physics, physiology, engineering, and mathematics. The paramount Lane–Emden model is a historical model, which is famous due to singularity and presented by Lane and Emden [1,2] a few centuries ago by working on the performance of thermal gas and the state of thermodynamics [3]. The generic form of the Lane–Emden nonlinear singular models (LE-NSM) is written as [4]:

$$\{\begin{array}{l}{u}^{″}(t)+\frac{\eta }{t}{u}^{\prime }(t)+g(t,u)=0,\hspace{0.17em}\hspace{0.17em}\eta \ge 0,\hspace{0.17em}\hspace{0.17em}0<t\le 1,\\ u(0)=I_1,\hspace{0.17em}\hspace{0.17em}{u}^{\prime }(0)=I_2,\hspace{0.17em}\hspace{0.17em}\end{array}$$

(1)

where the shape factor is $\eta$, $g(t,u)$ is the real-valued continuous function, and $I_1$ and $I_2$ represent constants values.

The LEM singular nonlinear models define a collection of phenomena in the gaseous star density [5], the physical area of science [6], the theory of electromagnetic [7], stellar construction system [8], morphogenesis [9], physics-based mathematical model [10], oscillating magnetic areas [11], an isotropic medium [12] and models of dusty fluid [13]. Solving the singular models is found to be grim and tough due to a singular point at the origin. Few analytical and numerical schemes are accessible to handle such singular nonlinear models are presented in these references [14,15,16].

All presented above schemes have their individual sensitivity, potential, efficiency, and correctness, as well as weaknesses, flaws, and demerits over each other. The extensive computing heuristic approach potential is to solve the singular systems applying the widespread capacity of artificial neural networks (ANNs) collectively with local and global based search approaches [17,18,19,20,21,22,23]. Few noteworthy illustrations contain neuro-intelligent computing approach to study the dynamics of convective heat transfer involving carbon nanotubes [24], dusty plasma nonlinear model [25], model of mosquito release in the heterogeneous atmosphere [26], Navier Stokes problems [27], singular functional differential model [28], HIV infection system of CD4+ T cells [29], plasma-based physics investigations [30], Thomas-Fermi singular system [31], prey-predator biological system [32], nanotechnology [33], killing well control system [34], biological model based on corneal shape [35], Jeffery Hamel flow problem [36], parameter estimation in biodiesel studies [37] and model of atomic physics model [38]. These potential applications proved the significance of the stochastic solvers on the basis of stability, convergence, and exactitude. Therefore, the novel design of the Gudermannian neural network (GNN) is exploited using the genetic algorithm (GA) and active-set method, i.e., GNN-GAASM for the second kind of LE-NSM.

The basic aim of this study is to solve the second kind of LE-NSM by introducing a new intelligent scheme based on combined heuristics of GNN-GAASM. Few pioneering topographies of the designed GNN-GAASM are briefly listed as follows:

• A novel GNN-GAASM computing-based stochastic solver is designed, implemented, and exploited using differential continuous mapping of GNNs together with optimization with the hybrid combined heuristics of GAs and ASM;
• The presented GNN-GAASM solver is tested accurately to effectively solve the three different examples of the nonlinear singular model;
• The overlapping of the results obtained by the GNN-GAASM from the exact solutions show the consistency, precision, and correctness of GNN-GAASM to approximate the solution of the second kind of the LE-NSMs;
• The obtained outcomes of proposed GNN-GAASM for multiple executions via different performance measures of mean, Nash Sutcliffe efficiency (NSE), semi-interquartile range (S.I.R), median, and variance account for (VAF) further enhanced the competence of the designed GNN-GAASM.

The other paper parts are provided as: Section 2 describes the model structure, Section 3 gives the optimization model detail, Section 4 gives the information of performance indices, Section 5 relates the detail of numerical solutions together with interpretations of the outcome. The conclusion details and future research clarifications are given in the final section.

2. Methodology

The current section describes the GNN operators, which are designed with the necessary explanation to solve the second kind of LE-NSM. The operations of the differential system, merit function (MF), and optimization procedures through the GAASM are also discussed.

2.1. Designed Methodology: GNN

The neural networks are familiar with delivering standardized as well as reliable solutions for numerous applications arising in a variety of diverse fields. In this modeling, $\widehat{u}(t)$ shows the obtained results through GNN-GAASM and its nth derivatives, written as:

$$\begin{array}{c}\widehat{u}(t)={\displaystyle \sum _{k\hspace{0.17em}=\hspace{0.17em}1}^m{q}_{k}z(w_{k}t+p_k)}\\ {\widehat{u}}^{(n)}={\displaystyle \sum _{i=1}^m{q}_k{z}^{(n)}(w_{k}t+p_k)},\end{array}$$

(2)

where, n and m indicate the derivative order and number of neurons, respectively. The MF is z, while,$q$,$w$,$p$ are the unknown weight vectors, which are defined as $\mathit{W}=[\mathit{q},\mathit{w},\mathit{p}]$, for $\mathit{q}=[q_1,q_2,q_3,\dots ,q_m]$,$\mathit{w}=[w_1,w_2,w_3,\dots ,w_m]$ and $\mathit{p}=[p_1,p_2,p_3,\dots ,p_m]$. The Gudermannian function (GF) is written as:

$$u(t)=2{\tan }^{-1}\left[\exp (t)\right]-\frac{1}{2}\pi$$

(3)

Using the GF given in the above equation, the approximate continuous mapping of differential operations is written as:

$$\begin{array}{c}\widehat{u}(t)={\displaystyle \sum _{k=1}^m{q}_k\left(2{\tan }^{-1}{e}^{(w_{k}t+p_k)}-\frac{\pi }{2}\right)},\\ {\widehat{u}}^{\prime }(t)={\displaystyle \sum _{k=1}^{m}2q_k{w}_k\left(\frac{e^{(w_{k}t+p_k)}}{1+{\left(e^{(w_{k}t+p_k)}\right)}^2}\right)},\\ {\widehat{u}}^{″}(t)={\displaystyle \sum _{k=1}^{m}2q_k{w}_k{}^2\left(\frac{e^{(w_{k}t+p_k)}}{1+{\left(e^{(w_{k}t+p_k)}\right)}^2}-\frac{2e^{{(w_{k}t+p_k)}^3}}{{\left(1+{\left(e^{(w_{k}t+p_k)}\right)}^2\right)}^2}\right)}\end{array}$$

(4)

For solving the second kind of the LE-NSM, the formulation of MF using the mean squared error metric is given as:

$$E=E_1+E_2,$$

(5)

where $E$ denotes an unsupervised error function associated to the second kind of the LE-NSM, whereas, $E_1$ and $E_2$ are the respective error functions linked to boundary conditions of the model (1) as:

$$E_1=\frac{1}{N}{{\displaystyle \sum _{k=1}^N\left({\widehat{u}}^{″}(t_k)+\frac{\eta }{t_k}{\widehat{u}}^{\prime }(t_k)+g\left(t_k,u(t_k)\right)\hspace{0.17em}\right)}}^2,$$

(6)

$$E_2=\frac{1}{2}\left({({\widehat{u}}_0-I_1)}^2+\hspace{0.17em}\left({{\widehat{u}}^{\prime }}_0-I_2\right){\hspace{0.17em}}^2\right),$$

(7)

where $Nh=1,\hspace{0.17em}{\widehat{u}}_k=u(t_k),\hspace{0.17em}g(t,u)=g(t_k,u(t_k)),$ and $t_k=kh$.

2.2. Network Optimization

The numerical solutions of the second kind of LE-NSM are acquired to optimize the GNN by applying the hybrid computing scheme, i.e., GAASM.

GA is one of the intelligent evolutionary computing schemes that is based on natural development. In the 7th decade of the 19th century, GA is discovered with the innovator’s work of Holland [39], and later it is employed as a key leading derivative to optimize the models based on constrained/un-constrained arrangements. GA works through the optimal process of mutation, selection, heuristic, and crossover. GA is widely applied in many areas such as robotics, astrophysics, optics, digital communication, bioinformatics, signal processing, financial mathematics, nuclear power system, economics, chemical industry, and materials. Some recent submissions of GAs that works as an optimization model are wind power model [40], heart disease prediction [41], intrusion detection performance model [42], energy managing systems [43], metal-organic constructions [44], heterogeneous celebration [45], heartbeat systems [46], a study of military systems [47], aquatic weed model [48]. These presented applications inspired the authors to apply the GA as an optimization process using the GNN to find the approximate outputs of the second kind of LE-NSM.

GA hybridizes with local search ASM, i.e., local search approach to use the quick convergence by assigning the best GA values as a start/initial point. Hence, ASM is suitable to regulate the parameters. ASM has been implemented in many recent submissions, such as trade and industry load dispatch models [49], short-term hydrothermal supervision [50], bipedal walking robot dynamics [51], economic multiproduct manufacture [52], LNG process [53], model of heating in the thermal blow frame cycling [54], aircraft transportation [55], wind turbine support structures [56] and quadratic convex bilevel programming models [57]. In this study, the combination of GAASM is implemented to solve the second kind of LE-NSM, and the optimization process of GAASM is provided in

Table 1. Pseudocode for the optimization GNN-GAASM for solving the second kind of LE-NSM.

GA procedure    Inputs: Indicate the chromosomes with equal number of model entries as:       W = [$\mathit{q}$, $\mathit{w}$,$\mathit{p}$]    Population: The chromosomes set is signified as:       $\mathit{q}=[q_1,q_2,q_3,\dots ,q_m]$, $\mathit{w}=[w_1,w_2,w_3,\dots ,w_m]$ and $\mathit{p}=[p_1,p_2,p_3,\dots ,p_m]$.    Output: GA best global weights are symbolized as WGA-Best    Initialization: Create a W called a weight vector containing real entries to select a chromosome. ‘W’ is applied to design an initial population with [Population Size = 270]. Regulate the values of generation as well as assertion for the ga optimset.    Fitness valuation: Accomplished the fitness (E) in the population for all the weight    vectors using the Equations (5)–(7).    Stopping criteria: Terminate, when any of the value is achieved   [Fit = 10−19], [StallLimit = 100], [Generations = 75], [TolCon = TolFun = 10−22],   Other: default    Move to storage, when meets the stopping standards    Ranking: Rank the weight vector of Population for the brilliance of Fit    Reproduction:   [Selection = @ uniform],   [Crossover:@ heuristic],   [Mutations:@adapt feasible].    Store: Save WGA-Best, E, Generations, function counts and time for the existing GAs runs. GA process Ends Process of ASM Starts    Inputs: Starting point: WGA-Best    Output: Best GAASM weights are signified as WGAASM    Initialize: Take WGA-Best, assignments, Bounded constraints,       generations and other values of the deceleration.    Terminate: The process stops, when any of the below criteria meets       [Fit = $e_{FIT}$ = 10−17], [Iterations = 500], [Max Evals Fun = 272,000],       [TolX = TolCon= TolFun = 10−18]    While [Terminate]    Fitness assessment: Assess the Fit, W, using Equations (5)–(7).    Modifications: For the SQP scheme, Invoke [fmincon]. Adjust‘W’ For the Fit calculation    by taking Equations (5)–(7).    Accumulate: Regulate function counts, WGA-Best, time, iterations and Fit for the current    trials of ASM. End of ASM Data Generations    Replicate the GAASM 100 times for a larger dataset to optimize the variables for the second kind of LE-NSM by using the GNN-GAASM for functioning the statistical interpretations.

. The variety of the procedure is introduced for selection, i.e., stochastic uniform, remainder, roulette, and tournament, for mutation, i.e., Gaussian, uniform and adaptive feasible, as well as for crossover, scattered, single point, two points, intermediate, arithmetic and heuristic, however, we set stochastic uniform for the selection, heuristics for the crossover and adaptive feasible for mutation. These parameter settings are adopted after a lot of experiments, knowledge, experience, and performance advantages on different applications in the presented study.

3. Performance Procedures

The demonstration actions to solve the second kind of LE-NSM to authenticate the GAASM are constructed in terms of the Nash Sutcliffe efficiency (NSE) and variance account for (VAF), mathematically given as:

$$\begin{array}{l}\mathrm{NSE}=\left\{1-\frac{{{\displaystyle \sum _{k=1}^n\left(u_k-{\widehat{u}}_k\right)}}^2}{{{\displaystyle \sum _{k=1}^n\left(u_k-{\overline{u}}_k\right)}}^2},\right.{\overline{u}}_k=\frac{1}{n}{\displaystyle \sum _{k=1}^n{u}_k},\\ \mathrm{ENSE}=1-\mathrm{NSE}.\end{array}$$

(8)

$$\left\{\begin{array}{l}VAF=\left(1-\frac{\mathrm{var}\left(u_k-{\widehat{u}}_k\right)}{\mathrm{var}\left(u_k\right)}\right)\times 100,\\ EVAF=\left|VAF-100\right|,\end{array}\right.$$

(9)

4. Result and Simulations

The comprehensive simulations for the numerical outcomes using GNN-GAASM to solve the second kind of LE-NSM are presented in this section.

Problem I: Consider the second kind of LE-NSM involving exponential functions is written as:

$$\left\{\begin{array}{l}{u}^{″}(t)+\frac{0.5}{t}{u}^{\prime }(t)+(e^{2u(t)}-0.5e^{u(t)})=0,\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}t\in (0,1),\\ u(0)=\ln (2),\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}u(1)=0.\end{array}\right.$$

(10)

For the above equation, the MF is given as follow:

$$E=\frac{1}{N}{{\displaystyle \sum _{k=1}^N\left(\begin{array}{l}{t}_k{\widehat{u}}^{″}(t_k)+0.5{\widehat{u}}^{\prime }(t_k)+\\ t_k(e^{2\widehat{u}(t_k)}-0.5e^{\widehat{u}(t_k)})\end{array}\right)}}^2+\frac{1}{2}\left({\left({\widehat{u}}_0-\ln (2)\right)}^2+{\left({\widehat{u}}_N\right)}^2\right).$$

(11)

The exact solution is $\ln \left(\frac{2}{(t^2+1)}\right)$.

Problem II: Consider the second kind of LE-NSM is written as:

$$\left\{\begin{array}{l}{u}^{″}(t)+\frac{2}{t}{u}^{\prime }(t)+u^5(t)=0,\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}t\in (0,1),\\ u(1)=0.75,\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}{u}^{\prime }(0)=0.\hspace{0.17em}\hspace{0.17em}\end{array}\right.$$

(12)

For the above equation, the MF is given as follow:

$$\begin{array}{l}E=\frac{1}{N}{{\displaystyle \sum _{k=1}^N\left(t_k{\widehat{u}}^{″}(t_k)+2{\widehat{u}}^{\prime }(t_k)+t_k{\widehat{u}}^5(t_k)\right)}}^2\\ \hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}+\frac{1}{2}\left({\left({\widehat{u}}_N-0.75\right)}^2+{\left({{\widehat{u}}^{\prime }}_0\right)}^2\right).\end{array}$$

(13)

The exact solution is $\sqrt{\frac{3}{t^2+3}}$.

Problem III: Consider the second kind of LE-NSM having an exponential function is written as:

$$\left\{\begin{array}{l}{u}^{″}(t)+\frac{1}{t}{u}^{\prime }(t)+e^{u(t)}=0,\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}t\in (0,1),\\ u^{\prime }(0)=0,\hspace{0.17em}\hspace{0.17em}u(1)=0.\hspace{0.17em}\hspace{0.17em}\end{array}\right.$$

(14)

For the above equation, the MF is given as follow:

$$E=\frac{1}{N}{{\displaystyle \sum _{k=1}^N\left(t_k{\widehat{u}}^{″}(t_k)+{\widehat{u}}^{\prime }(t_k)+t_k{e}^{\widehat{u}(t_k)}\right)}}^2+\frac{1}{2}\left({\left({{\widehat{u}}^{\prime }}_0\right)}^2+{\left({\widehat{u}}_N\right)}^2\right).$$

(15)

The exact solution is $2\ln \left(\frac{4-2\sqrt{2}}{1+(3-2\sqrt{2})t^2}\right)$.

To optimize the second kind of LE-NSM based on all problems by functional the GAASM system using the activation GF for independent hundred executions to find the system parameter variables. The set of best weight validates the estimated numerical outcomes for 10 neurons. The mathematical form of the obtained results is given as:

$$\begin{array}{l}{\widehat{u}}_1(t)=0.7360(2{\tan }^{-1}{e}^{(1.5572t+0.2711)}-0.5\pi )-1.3828(2{\tan }^{-1}{e}^{(0.0176t+1.1785)}-0.5\pi )+\\ \hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}3.1285(2{\tan }^{-1}{e}^{(-0.320t-0.1422)}-0.5\pi )-0.5492(2{\tan }^{-1}{e}^{(-0.0149t-0.104)}-0.5\pi )-\\ \hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}0.3260(2{\tan }^{-1}{e}^{(-0.261t-1.2335)}-0.5\pi )-0.8072(2{\tan }^{-1}{e}^{(0.6869t-0.8473)}-0.5\pi )+\\ \hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}1.8626(2{\tan }^{-1}{e}^{(1.0913t+0.6683)}-0.5\pi )-1.2435(2{\tan }^{-1}{e}^{(1.3372t-0.1917)}-0.5\pi )-\\ \hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}0.2982(2{\tan }^{-1}{e}^{(-1.018t+1.7279)}-0.5\pi )+0.445(2{\tan }^{-1}{e}^{(0.3368t+0.5995)}-0.5\pi ),\end{array}$$

(16)

$$\begin{array}{l}{\widehat{u}}_2(t)=-5.627(2{\tan }^{-1}{e}^{(4.107t+13.776)}-0.5\pi )+19.796(2{\tan }^{-1}{e}^{(-1.1441t+2.700)}-0.5\pi )\\ \hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}-16.9872(2{\tan }^{-1}{e}^{(-1.825t-5.530)}-0.5\pi )+18.171(2{\tan }^{-1}{e}^{(1.1842t-2.7152)}-0.5\pi )\\ \hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}-1.1341(2{\tan }^{-1}{e}^{(10.9932t+17.9253)}-0.5\pi )+9.3739(2{\tan }^{-1}{e}^{(0.2126t-13.113)}-0.5\pi )\\ \hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}+14.154(2{\tan }^{-1}{e}^{(6.1138t+17.6261)}-0.5\pi )+8.7317(2{\tan }^{-1}{e}^{(-6.7862t-16.019)}-0.5\pi )\\ \hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}+5.2472(2{\tan }^{-1}{e}^{(-4.4685t-6.8103)}-0.5\pi )+1.7752(2{\tan }^{-1}{e}^{(9.4095t-19.1893)}-0.5\pi ),\end{array}$$

(17)

$$\begin{array}{l}{\widehat{u}}_2(t)=0.7499(2{\tan }^{-1}{e}^{(-0.5392t+0.7869)}-0.5\pi )+0.435(2{\tan }^{-1}{e}^{(0.2239t-0.3881)}-0.5\pi )\\ \hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}+1.3708(2{\tan }^{-1}{e}^{(-0.3328t+0.3684)}-0.5\pi )+0.9967(2{\tan }^{-1}{e}^{(-0.034t-0.269)}-0.5\pi )\\ \hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}+1.3307(2{\tan }^{-1}{e}^{(0.0317t-1.9519)}-0.5\pi )-0.2491(2{\tan }^{-1}{e}^{(-1.0871t-0.2457)}-0.5\pi )\\ \hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}+0.0744(2{\tan }^{-1}{e}^{(0.0144t-18.028)}-0.5\pi )+2.1415(2{\tan }^{-1}{e}^{(-0.1161t-0.1017)}-0.5\pi )\\ \hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}-1.6038(2{\tan }^{-1}{e}^{(-0.8301t-1.3457)}-0.5\pi )+0.0044(2{\tan }^{-1}{e}^{(-0.445t+0.4301)}-0.5\pi ),\end{array}$$

(18)

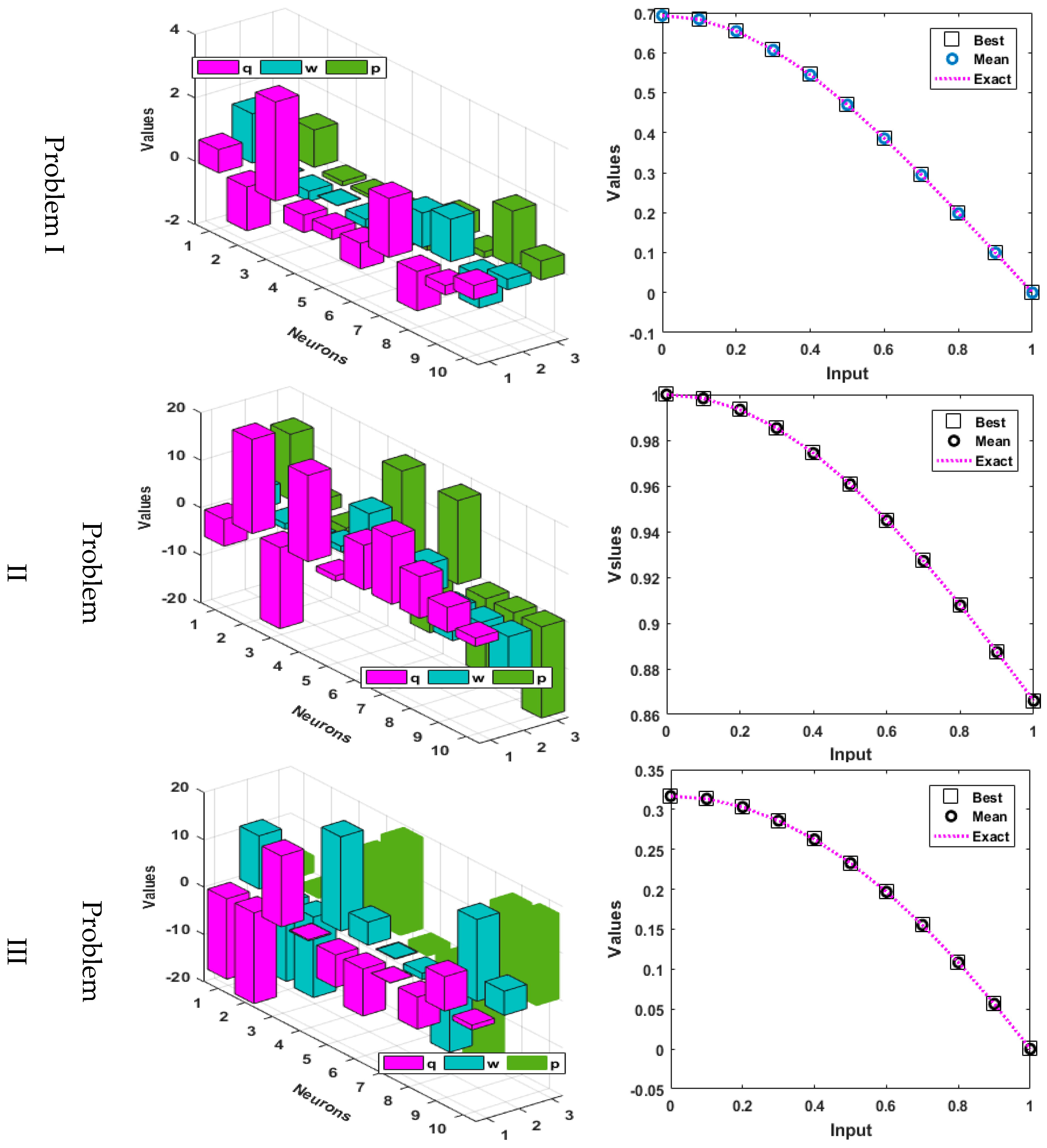

The best weights set for 10 neurons and comparison of the mean, exact, and the best results for all the problems of the second kind of LE-NSM is shown in Figure 1. The set of best weight is drawn by using Equations 16 to 18. It is seen that the overlapping of the mean, exact, and best results are performed for all the problems of the second kind of LE-NSM. These results assessment shown in Figure 1 indicates the correctness and exactness of the suggested GNN-GAASM. Figure 2 shows the performance investigations based on the TIC, ENSE, and EVAF operator together with the best, worst, and mean values of AE for all variants of the second kind of LE-NSM. In order to evaluate the performance measures for Problem I, the calculations of the best Fit, ENSE, and EVAF values lie 10⁻¹⁰–10^−12, and the mean values of the Fit, ENSE and EVAF lie 10⁻⁴–10⁻⁶. The performance of the best Fit, ENSE, and EVAF values for Problem 2 and 3 lie 10⁻¹⁰–10⁻¹⁵, 10⁻⁶–10⁻¹⁰, and 10⁻⁷–10⁻¹⁰, respectively, while the mean Fit, ENSE, and EVAF are close to 10⁻⁵. In order to measure the absolute error (AE), the best values have been calculated around 10⁻⁶ to 10⁻⁷ for Problem I, while for another two problems, the best AE lie 10⁻⁵–10⁻⁶. The mean AE values have also been noticed in suitable measures for all variants of the second kind of LE-NSM.

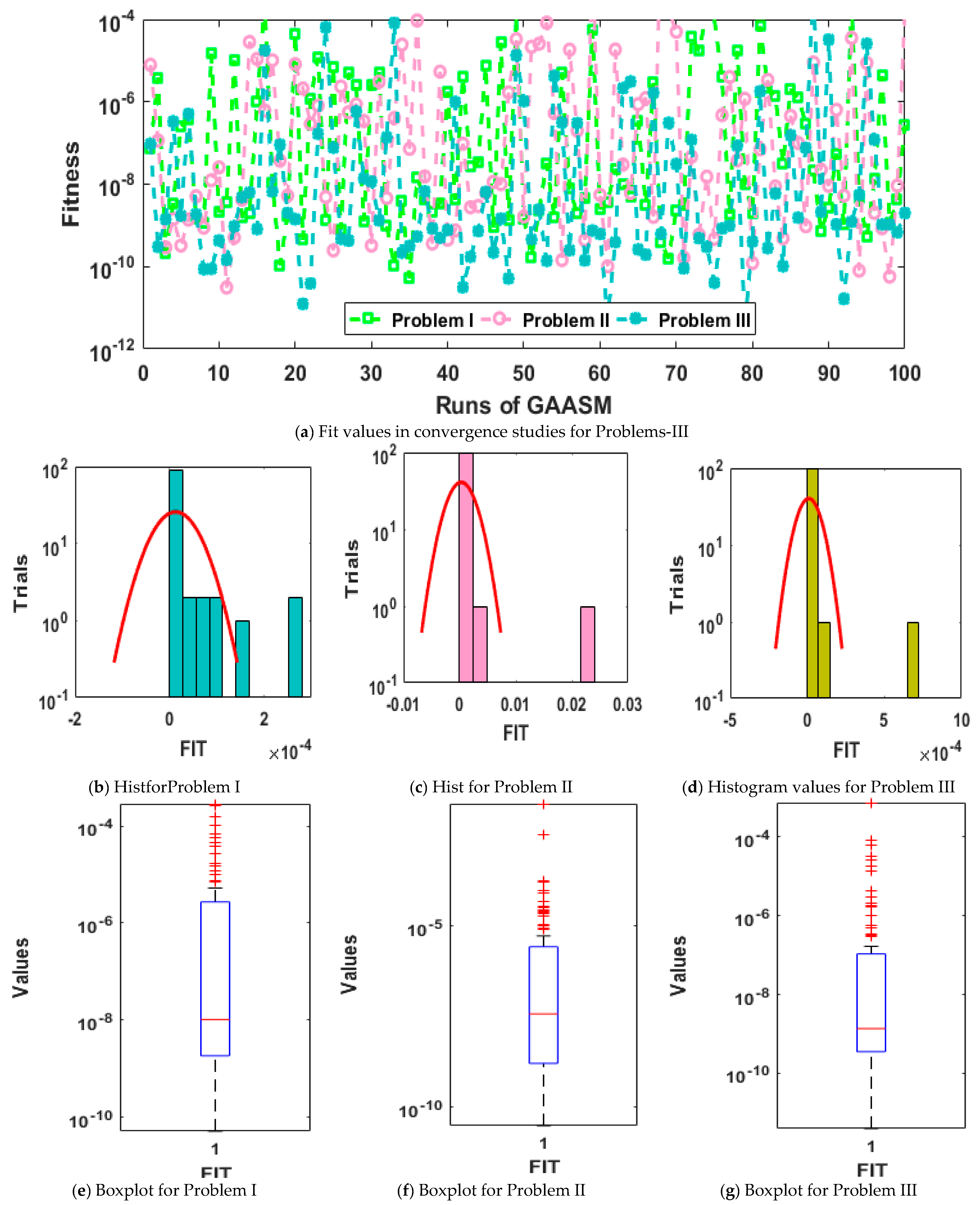

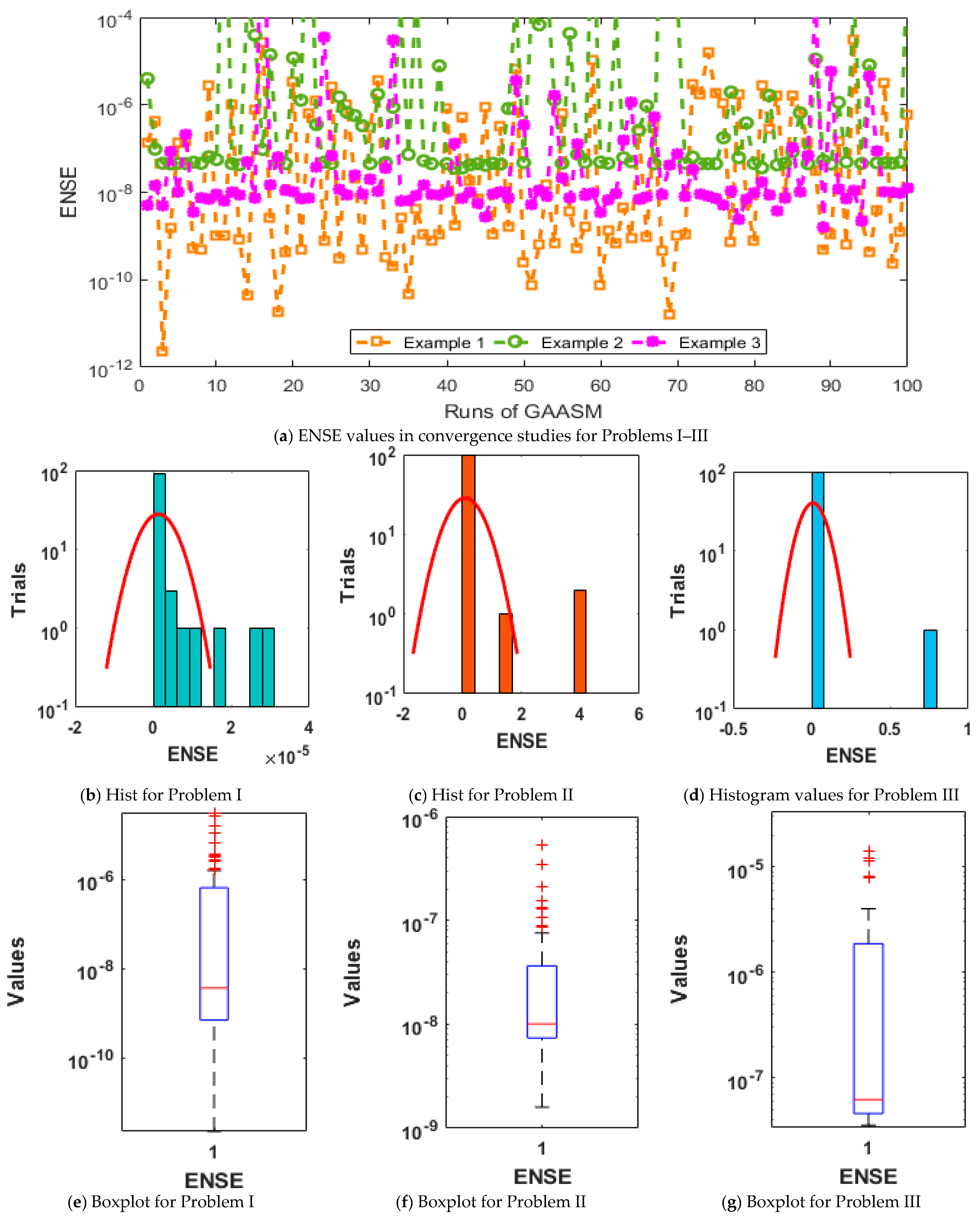

The plots of the convergence measures for the Fit, ENSE, and EVAF together with the boxplots and histogram are given in Figure 3, Figure 4 and Figure 5 for for all variants of the second kind of LE-NSM. It is indicated that most of the Fit, EVAF, and ENSE values for all the problems lie around 10⁻⁵ to 10⁻¹⁰, 10⁻⁶ to 10⁻⁹, and 10⁻⁷ to 10⁻⁹, respectively. One can determine that the accurate, precise, and specific values of the ENSE and EVAF operators have been obtained for all variants of the second kind of LE-NSM.

The statistical presentations have been examined using the GNN-GAASM to solve all variants of the second kind of LE-NSM for 100 executions based on the maximum (Max), minimum (Min), semi-interquartile range (S.I.R), median (MED), mean, and standard deviation (STD). The Min values show the best outcomes, while Max values are calculated based on worst runs using the GNN-GAASM are given in

Table 2. Statistical performances for all variants of the second kind of LE-NSM.

Index	Gages	The Projected GNN-GAASM Outcomes of the Second Kind of LE-NSM
		0	0.10	0.20	0.30	0.40	0.50	0.60	0.70	0.80	0.90	1.0
P I	Min	1 × 10−7	5 × 10−7	7 × 10−7	1 × 10−6	1 × 10−6	1 × 10−6	1 × 10−6	1 × 10−6	9 × 10−7	9 × 10−7	7 × 10−7
	Med	5 × 10−6	2 × 10−5	4 × 10−5	5 × 10−5	5 × 10−5	5 × 10−5	5 × 10−5	4 × 10−5	3 × 10−5	3 × 10−5	2 × 10−5
	Max	2 × 10−3	1 × 10−3	3 × 10−3	4 × 10−3	5 × 10−3	5 × 10−3	4 × 10−3	4 × 10−3	3 × 10−3	2 × 10−3	2 × 10−3
	Mean	1 × 10−4	2 × 10−4	3 × 10−4	4 × 10−4	5 × 10−4	5 × 10−4	4 × 10−4	4 × 10−4	3 × 10−4	3 × 10−4	2 × 10−4
	S.I.R	4 × 10−5	1 × 10−4	2 × 10−4	3 × 10−4	3 × 10−4	3 × 10−4	3 × 10−4	3 × 10−4	2 × 10−4	2 × 10−4	1 × 10−4
	STD	4 × 10−4	3 × 10−4	5 × 10−4	8 × 10−4	9 × 10−4	9 × 10−4	8 × 10−4	7 × 10−4	6 × 10−4	5 × 10−4	4 × 10−4
P II	Min	1 × 10−7	5 × 10−7	7 × 10−7	1 × 10−6	1 × 10−6	1 × 10−6	1 × 10−6	1 × 10−6	9 × 10−7	9 × 10−7	7 × 10−7
	Med	5 × 10−6	2 × 10−5	4 × 10−5	5 × 10−5	5 × 10−5	5 × 10−5	5 × 10−5	4 × 10−5	3 × 10−5	3 × 10−5	2 × 10−5
	Max	2 × 10−3	1 × 10−3	3 × 10−3	4 × 10−3	5 × 10−3	5 × 10−3	4 × 10−3	4 × 10−3	3 × 10−3	2 × 10−3	2 × 10−3
	Mean	1 × 10−4	2 × 10−4	3 × 10−4	4 × 10−4	5 × 10−4	5 × 10−4	4 × 10−4	4 × 10−4	3 × 10−4	3 × 10−4	2 × 10−4
	S.I.R	4 × 10−5	1 × 10−4	2 × 10−4	3 × 10−4	3 × 10−4	3 × 10−4	3 × 10−4	3 × 10−4	2 × 10−4	2 × 10−4	1 × 10−4
	STD	4 × 10−4	3 × 10−4	5 × 10−4	8 × 10−4	9 × 10−4	9 × 10−4	8 × 10−4	7 × 10−4	6 × 10−4	5 × 10−4	4 × 10−4
P III	Min	1 × 10−7	5 × 10−7	7 × 10−7	1 × 10−6	1 × 10−6	1 × 10−6	1 × 10−6	1 × 10−6	9 × 10−7	9 × 10−7	7 × 10−7
	Med	5 × 10−6	2 × 10−5	4 × 10−5	5 × 10−5	5 × 10−5	5 × 10−5	5 × 10−5	4 × 10−5	3 × 10−5	3 × 10−5	2 × 10−5
	Max	2 × 10−3	1 × 10−3	3 × 10−3	4 × 10−3	5 × 10−3	5 × 10−3	4 × 10−3	4 × 10−3	3 × 10−3	2 × 10−3	2 × 10−3
	Mean	1 × 10−4	2 × 10−4	3 × 10−4	4 × 10−4	5 × 10−4	5 × 10−4	4 × 10−4	4 × 10−4	3 × 10−4	3 × 10−4	2 × 10−4
	S.I.R	4 × 10−5	1 × 10−4	2 × 10−4	3 × 10−4	3 × 10−4	3 × 10−4	3 × 10−4	3 × 10−4	2 × 10−4	2 × 10−4	1 × 10−4
	STD	4 × 10−4	3 × 10−4	5 × 10−4	8 × 10−4	9 × 10−4	9 × 10−4	8 × 10−4	7 × 10−4	6 × 10−4	5 × 10−4	4 × 10−4

. The mathematical form of the S.I.R is one-half of the difference between the third and first quartiles, respectively. These statistics-based performances for all variants of the second kind of LE-NSM are found to be satisfactory and endorse the precision/accuracy of the proposed GNN-GAASM. The global demonstrations for all the variants of the second kind of LE-NSM using the proposed GNN-GAASM are given in

Table 3. Global demonstrations for all variants of the second kind of LE-NSM using the GNN-GAASM.

Problem	[G.FIT]		[G.EVAF]		[G.ENSE]
	Min	MED	Min	MED	Min	MED
1	5.227610 × 10−11	1.028782 × 10−8	2.535194 × 10−12	3.717371 × 10−9	2.312817 × 10−12	3.756261 × 10−9
2	3.099837 × 10−11	3.760316 × 10−8	1.690676 × 10−9	4.479814 × 10−9	3.557807 × 10−8	6.170927 × 10−8
3	3.994743 × 10−12	1.372601 × 10−9	1.096359 × 10−9	7.456837 × 10−9	1.590472 × 10−9	1.006110 × 10−8

. [G.FIT], [G.EVAF] and [G.ENSE] based Min values lie in the ranges of 10⁻¹¹–10⁻¹², 10⁻⁹–10⁻¹², and 10⁻⁸–10⁻⁹, respectively, while the MED-based values for all the operators are examined around 10⁻⁸ to 10⁻⁹ for the second kind of LE-NSM using GNN-GAASM. These optimum obtained values from the mentioned statistical performances based on global operators authorize the accuracy of the GNN-GAASM. The convergence measures for all variants of the second kind of LE-NSM using GNN-GAASM are given in

Table 4. Convergence measures for all variants of the second kind of LE-NSM using the GNN-GAASM.

Problem	FIT≤			EVAF≤			ENSE≤
	10−4	10−5	10−6	10−4	10−5	10−6	10−7	10−8	10−9
I	100	93	81	100	100	72	100	100	100
II	98	93	78	97	93	77	100	100	100
III	99	97	93	99	99	93	100	100	100

. The complexity analysis for the designed second kind of LE-NSM using GNN-GAASM using the generation, implemented time, and function calculations are given in

Table 5. Complexity presentations for all variants of the second kind of LE-NSM using the GNN-GAASM.

Problem	Iterations		Implemented Time		Function Computations
	Mean	STD	Mean	STD	Mean	STD
I	28.42678858	7.64904008	396.38000000	136.03213970	30,490.24000000	8905.29769705
II	73.21185177	583.79311938	366.69000000	156.81486833	28,517.91000000	9840.05489852
III	15.87415954	5.49982366	386.22000000	143.77371249	29,862.04000000	9239.89403599

. It is concluded that the average generations, implemented time together with the function calculations are around 39.1709, 383.0966, and 29,623.3967, respectively, for the second kind of LE-NSM using GNN-GAASM.

5. Conclusions

The current research work is related to design a novel Gudermannian neural network for solving the nonlinear Lane–Emden singular model of the second kind using GNN-GAASM containing the singular point at the origin using 10 neurons. The optimization is produced by the global skill of genetic algorithms and rapid modification of applicant solutions by working the local search through the active-set scheme. The solver based on Gudermannian computing intelligent neural network is designed with the layer structure neural network models for solving the second kind of nonlinear Lane–Emden singular model. The precision, convergence, and accuracy of the stochastic numerical solver are anticipated to attain the matching/overlapping results with the exact solutions having 6 to 8 decimal levels of accuracy for the second kind of nonlinear Lane–Emden singular model. Furthermore, statistical interpretations based on 100 executions for the second kind of nonlinear Lane–Emden singular model, in the form of maximum, minimum, median, mean, standard deviation, and semi-interquartile range, validate the trustworthiness, exactness, robustness, and correctness of the proposed GNN-GAASM that is specified further by the procedures of ENSE and EVAF.

In the future, the designed ANN-PSOIPA can be functional to apply to the biological models [58,59] and fluid dynamics models [60,61,62,63].
