InGaN Resonant-Cavity Light-Emitting Diodes with Porous and Dielectric Reflectors

Featured Application

Over the last decades, InGaN-based light-emitting diodes and laser diodes have been widely studied to improve quantum efficiency. However, few studies have focused on the directional emission properties in the short (1λ) InGaN resonant-cavity structure with the porous GaN reflector. The epitaxial 20-period n⁺-GaN/n-GaN stacked structure was transformed into the porous-GaN/n-GaN distributed Bragg reflector (DBR) structure through a simple wet etching process. Directional emission pattern and narrow linewidth were observed in the InGaN active layer with bottom porous DBR, top dielectric DBR, and the optimum Ta₂O₅ spacer layer to match the short cavity structure. We believe that this work can offer a new perspective for the conventional III-V semiconductor community and the readers with the background of the LED and laser.

Abstract

InGaN based resonant-cavity light-emitting diode (RC-LED) structures with an embedded porous-GaN/n-GaN distributed Bragg reflector (DBR) and a top dielectric Ta₂O₅/SiO₂ DBR were demonstrated. GaN:Si epitaxial layers with high Si-doping concentration (n⁺-GaN:Si) in the 20-period n⁺-GaN/n-GaN stacked structure were transformed into a porous-GaN/n-GaN DBR structure through the doping-selective electrochemical wet etching process. The central wavelength and reflectivity were measured to be 434.3 nm and 98.5% for the porous DBR and to be 421.3 nm and 98.1% for the dielectric DBR. The effective 1λ cavity length at 432nm in the InGaN resonant-cavity consisted of a 30 nm-thick Ta₂O₅ spacer and a 148 nm-thick InGaN active layer that was analyzed from the angle-resolved photoluminescence (PL) spectra. In the optical pumping PL spectra, non-linear emission intensity and linewidths reducing effect, from 6.5 nm to 0.7 nm, were observed by varying the laser pumping power. Directional emission pattern and narrow linewidth were observed in the InGaN active layer with bottom porous DBR, top dielectric DBR, and the optimum spacer layer to match the short cavity structure.

1. Introduction

Nitride-based materials are widely used in optoelectronic devices such as light-emitting diodes (LEDs), laser diodes (LDs), and vertical cavity surface emitting lasers (VCSELs) [1,2]. The VCSEL devices have low threshold current density, high efficiency, directional emission pattern, and the ability of high-speed operation properties for the high-density optical storage, biochemical sensors, and micro-projectors. For the short-wavelength VCSEL structures, the InGaN cavity length and the distributed Bragg reflectors (DBRs) should be considered. In short-wavelength VCSEL, the modulation of the cavity length may suppress the constructive interference, tune the directional far-field emission pattern, and affect the single-mode emission properties. The high reflectance of the embedded DBR structure can provide a high-quality factor of the lasing peak in the VCSEL devices. For the embedded DBR structures, the epitaxial AlGaN/GaN [3,4], AlN/GaN [5], and AlInN/GaN [6] DBR structures have been reported that have high reflectivity at the emission wavelength region of the InGaN active layers. All dielectric DBR VCSEL structures have been reported that are deposited on curved mirror of the sapphire substrate [7], on GaN after sapphire lift-off process [8], and as the epitaxial lateral overgrowth mirror [9]. The GaN VCSEL structure with bottom dielectric DBR and top TiO₂ high-index-contrast grating reflectors had been reported [10]. High efficiency InGaN VCSELs had been reported with the conductive AlInN/GaN DBR structures [11,12,13,14]. For the current injection process, the VCSEL structure with buried tunnel junction had been demonstrated in the semi-polar blue GaN-based VCSEL [15]. The airgap DBR structure [16,17] was incorporated into the VCSEL fabrication because of a high refractive index contrast between GaN and airgap in the stack structure. As for the epitaxial DBR structure, a large lattice mismatch and lengthy epitaxial growth time are the challenges to be solved. The porous-GaN/GaN stack structure with short epitaxial growth time and large refractive index difference had been reported as the DBR structures [18,19,20,21] that were fabricated through a simple wet etching process. The lasing properties of the InGaN VCSELs with the porous-GaN DBR structures were reported [22,23]. The mechanical [24], thermal [25], and electrical [23] properties of the InGaN devices with porous structures have been reported. The InGaN-based LED consisted of a 6λ cavity length and an embedded nanoporous DBR structure, without the top DBR structure, were reported in our previous report [26]. The single-mode and low threshold current density of the VCSEL devices can be realized in short 1λ resonant-cavity length. In the GaN-based VCSEL structure, 1λ cavity length is difficult to realize due to the large strain and the conductivity in the conventional AlGaN- and AlN-based DBR structures. A 1.5λ-cavity GaN-based vertical-cavity surface-emitting laser has been reported by using the n-type conducting AlInN/GaN DBR structure [11].

In this paper, the optical confinement properties of 1λ InGaN resonant-cavity light-emitting diode (RC-LED) structure was studied by adding the top dielectric distributed Bragg reflector (DBR) and the bottom porous-DBR structure. Through the epitaxial growth and electrochemical wet etching processes, the InGaN active layer with an embedded 20-period porous-GaN/n-GaN DBR structure was demonstrated. Then, a Ta₂O₅ spacer layer as a cavity length adjustable layer and 8.5-period Ta₂O₅/SiO₂ alternately stacked structure for top reflector were deposited on the InGaN epitaxial structure. The optical pumped lasing phenomenon at 432 nm was observed in the InGaN resonant cavity with 1λ effective cavity length by tuning the thickness of Ta₂O₅ spacer layer. The surface morphology and optical properties of the InGaN resonant-cavity structures were analyzed in detail.

2. Materials and Methods

InGaN RC-LED structures were grown on a 4 in. c-face (0001) patterned sapphire substrate by using the metal-organic chemical vapor deposition (MOCVD) system. Trimethylgallium (TMGa), ammonia (NH3) gas, and trimethylindium (TMIn) were used as gallium (Ga), nitrogen (N), and indium (In) sources material, respectively. Silane (SiH₄) and bis-cyclopentadienyl magnesium (CP2Mg) were used as the n-type and p-type doping sources, respectively. The LED epitaxial layers consisted of a 30 nm-thick GaN buffer layer, a 4.0 µm-thick unintentionally doped GaN layer, 20-period n⁺-GaN:Si/n-GaN:Si (55 nm/45 nm) stacked structure, a 38 nm-thick n-GaN layer, 5-period In_0.2GaN/GaN (3 nm/9 nm) multiple-quantum wells (MQWs) structure, and a 50 nm-thick p-GaN layer. The growth temperatures of the GaN buffer layer and the u-GaN layer were measured at 530 °C and 1050 °C, respectively. The Si-doping concentrations of the stacked structure were measured at 2 × 10¹⁹ cm⁻³ for the n⁺-GaN:Si layer and at 2 × 10¹⁸ cm⁻³ for the n-GaN:Si layer, respectively, at 1050 °C. The growth temperature and Si-doping concentration of the n-GaN layer were measured at 1050 °C and 2 × 10¹⁸ cm⁻³, respectively. The growth temperature of the InGaN/GaN MQW active layer was measured at 760 °C. The growth temperature and Mg-doping concentration of the p-GaN layer were measured at 950 °C and 1 × 10¹⁸ cm⁻³, respectively. The p-type GaN:Mg layers were thermally activated in the furnace at 750 °C for 30 min in N₂ ambient gas. The lateral wet etching channels with a spacing of 230 µm on the LED structure were defined through the laser scribing (LS) process. The depth of LS line was measured at 2.2 µm to reach the as-grown 20-period n⁺-GaN:Si/n-GaN stacked structure by using 355 nm pulsed laser. The Indium metal contact was used to contact the n⁺-GaN:Si layer to apply the positive bias during the wet etching process. Then, the samples were cleaned through the ultrasonic cleaning process in the deionized water and the isopropyl alcohol (IPA) solution to remove the contamination in the etching channels. After the wet etching process, the n⁺-GaN:Si layers were transformed into porous GaN layers through the doping-selective electrochemical etching process in a 0.5 M nitride acid solution with a positive 8 V external bias voltage. The EC-treated samples were rinsed in the deionized water and dried for the following measurements. The GaN EC etching porosification chemistry/process have been reported [16,27]. Then, high refractive index n⁺-GaN:Si layers were transformed into low refractive index of porous GaN layers. The treated DBR structure consisted of a quarter-wavelength porous GaN layers and a quarter-wavelength GaN layers acted as a bottom reflector. Then, a 30 nm-thick Ta₂O₅ film was deposited on the top of the p-type GaN:Mg layer acting as a spacer layer for tuning the cavity length in the resonant-cavity structure. Finally, the 8.5-peroid Ta₂O₅/SiO₂ dielectric DBR was deposited onto the Ta₂O₅ spacer layer to complete the full RC-LED structure for optical measurement. The non-treated LED structure was defined as the standard LED (ST-LED). The InGaN LED with top and bottom DBR structure was defined as the resonant cavity LED (RC-LED). The photoluminescence spectra were measured by using monochromators (JOBIN YVON iHR550) with a TE-cooled charge-coupled device (CCD) detector. The surface morphologies of the RC-LED structures were observed using the optical microscope (OM) and the field-emission scanning electron microscope (FE-SEM, JEOL 6700F).

3. Results

In Figure 1a, the bottom porous-GaN/n-GaN DBR with blue light image and the laser scribing lines were observed by using optical microscope. The porous-DBR stacked structure consisted of a 55 nm thick, porous-GaN layer and a 45 nm thick GaN layer approximately in the cross-sectional SEM micrograph as shown in Figure 1b. The etching interface of the porous-GaN/n-GaN stack structure was observed clearly after the doping-selective electrochemical wet etching process. The 148 nm-thick LED structure with the InGaN MQW layers was shown in Figure 1c as the epitaxial cavity structure above the porous DBR structure. In our previous reports [19], the InGaN-based LED consisted of a large cavity length and an embedded nanoporous DBR structure without capping the top dielectric DBR structure. In this study, the 30 nm-thick Ta₂O₅ spacer layer and 8.5-period Ta₂O₅/SiO₂ dielectric DBR were deposited on the LED epitaxial layer as shown in Figure 1d. The resonant cavity consisted of the epitaxial InGaN active layer and the deposited Ta₂O₅ spacer layer between top dielectric DBR and bottom porous DBR structures.

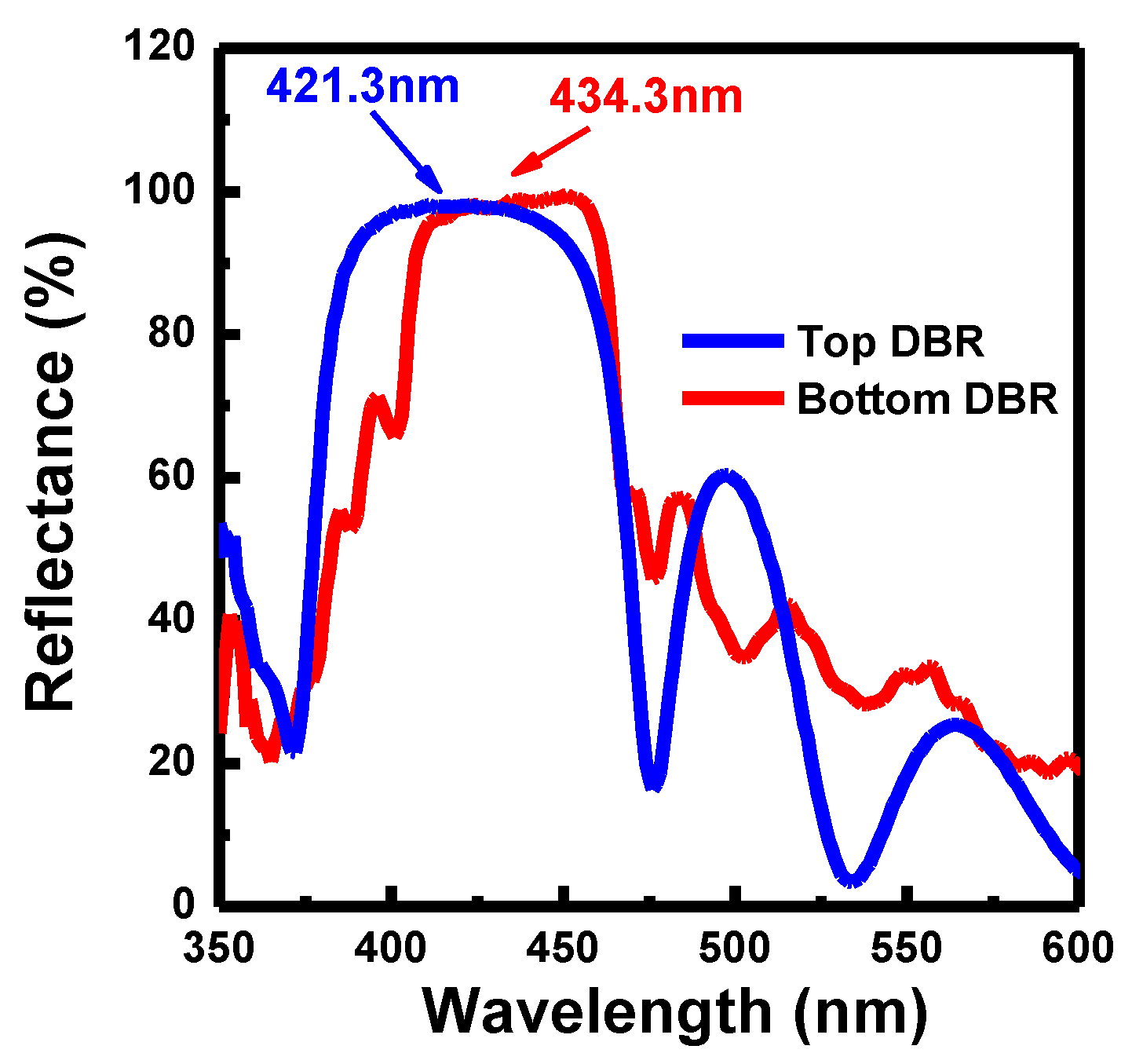

In Figure 2, the reflectance spectra of the top Ta₂O₅/SiO₂ dielectric DBR and the bottom porous-GaN/n-GaN DBR structure were measured by using Xe lamp as a reference light source. The central wavelength, reflectivity, and the stopband width of the reflectance spectra were measured at 421.3 nm/98.1%/67 nm for the top dielectric DBR and at 434.3 nm/98.5%/55 nm for the porous DBR, respectively, listed in

Table 1. Top and bottom DBR structures.

	Wavelength	Reflectivity	Stopband Width
Top dielectric DBR	421.3 nm	98.1%	67 nm
Bottom porous DBR	434.3 nm	98.5%	55 nm

. The stopband width of the reflector is defined as the wavelength region that the reflectivity is higher than 90%. High reflectance and wide stopband width were observed on the top dielectric DBR and the bottom porous DBR structures.

As per Figure 3, the photoluminescence (PL) spectra were measured through angle-resolved measurement with a 405 nm laser source. When the incident 405 nm laser illuminated from the backside of the LED samples, the laser light will not be absorbed by the sapphire substrate, the n-type GaN:Si layer, and the p-type GaN:Mg layer at a normal direction. Only the InGaN active layers were excited and emitted the photoluminescence for the angle-resolved PL measurement. Then, the PL emission spectra were measured from the front-side of the LED chips.

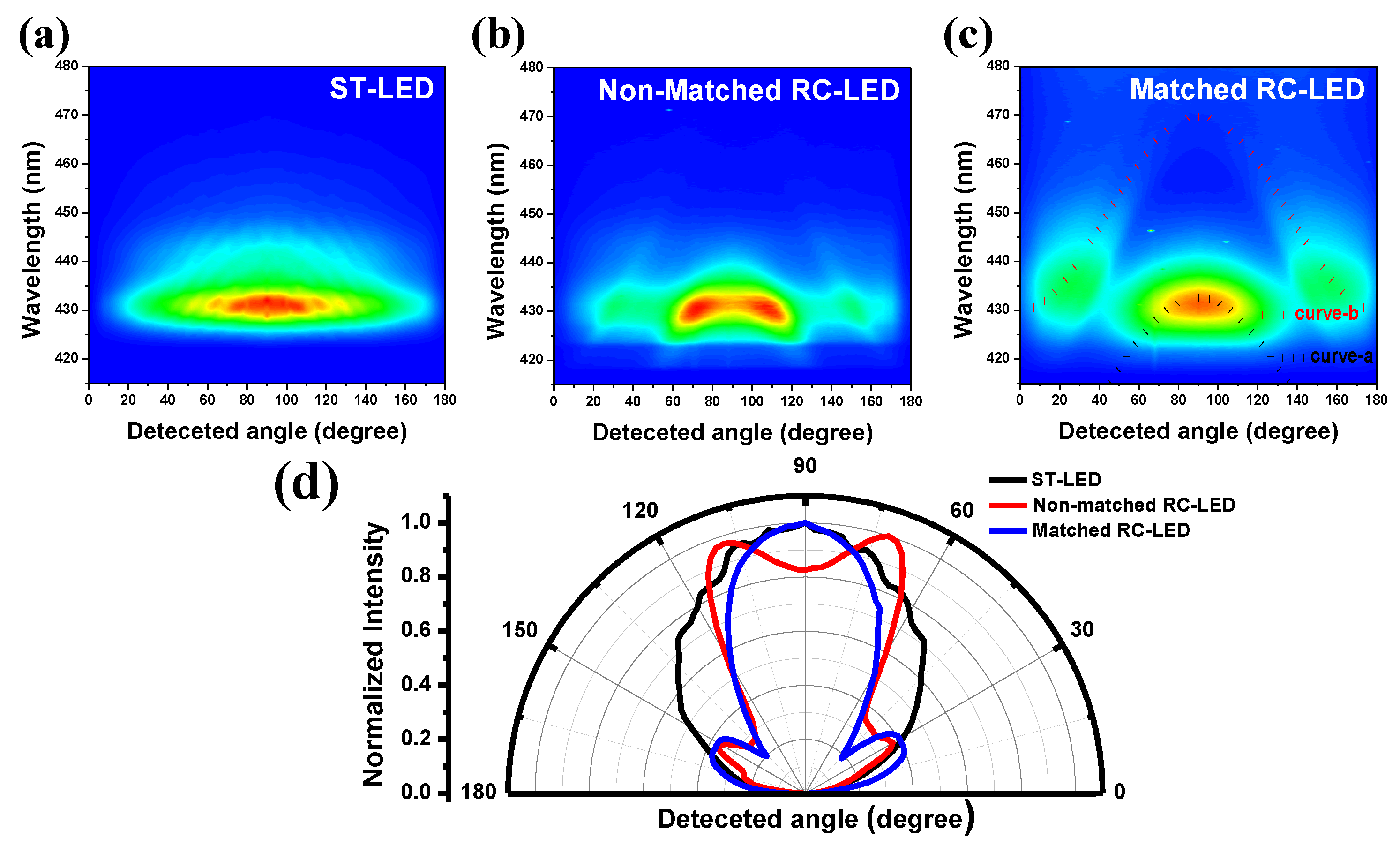

In Figure 3a, the Fabry–Pérot (FP) interference line patterns of the non-treated LED (ST-LED) structure were observed with multiple curves due to the light reflected at the flat top GaN:Mg/Air interface and the bottom GaN/Al₂O₃ interface. The thickness of the epitaxial layers was calculated as the value of 6.1 µm for the ST-LED, which was similar to the actual epitaxial thickness grown on sapphire substrate. In non-matched RC-LED structure, 8.5-period Ta₂O₅/SiO₂ dielectric DBR layers were deposited on the LED structure directly without a spacer layer. The peak intensities of the far-field pattern measured at 72° and 108° detected angles that were higher than it at normal direction (90°) as shown in Figure 3b. As for the matched RC-LED structure with 30 nm-thick Ta₂O₅ spacer layer, the two interference line patterns were observed apparently in the far-field PL spectra. The PL emission wavelength of the InGaN active layer was matched to the interference curve in the far-field PL spectra pattern as shown in Figure 3c. The intensity formula of the angle-resolved spectra was I(λ_o, θ) = (2n_sT/m_c)cos(θ) = λ_ocos(θ), where ns is the refractive index of GaN (2.48), mc is the cavity mode number, and T represents the cavity thickness [26]. In Figure 3c, the simulated interference line pattern was matched to the peak emission wavelength of the InGaN active layer. The fitting thickness of the InGaN LED cavity structure was calculated as the value of 173 nm between the bottom porous DBR and the top dielectric DBR structure. The FP second order mode in the 1λ resonant cavity was matched to the PL emission wavelength of the InGaN active layer as shown in curve-a in Figure 3c. From the simulation results, the penetration depths were calculated as the value of 196 nm-thick for the bottom porous DBR and 138 nm-thick for the top dielectric DBR. The effective cavity length in curve-b consisted of the 148 nm-thick InGaN active layer, 30 nm-thick Ta₂O₅ spacer layer, the 196 nm-thick penetration depth of the porous DBR, and 138 nm-thick penetration depth of the dielectric DBR as shown in Figure 3c. The normalized PL intensity of the far-field radiation patterns of all LED structures were measured in Figure 3d. By forming the resonant-cavity structure, the divergent angle was drastically decreased from 114° for the ST-LED to 57° for the matched RC-LED structure. The peak emission intensity of the matched RC-LED structure was observed at normal direction (90°) that matched to the resonant cavity length between top dielectric and bottom porous DBR structures.

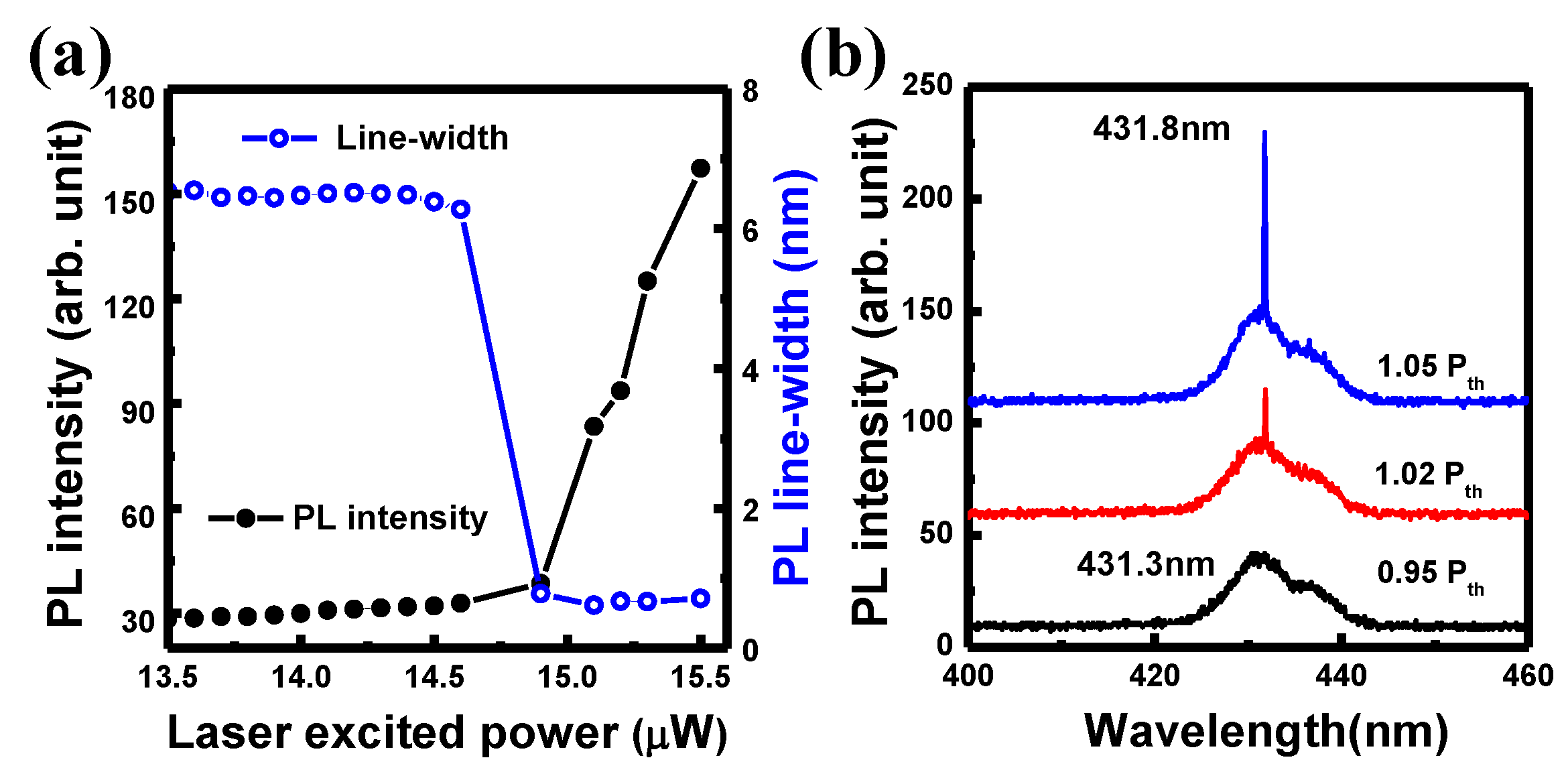

In Figure 4, the optical pumping spectra of the InGaN resonant cavity structure were measured by using a Nd-YVO₄ 355 nm pulsed laser as laser excitation source. In Figure 4a, the PL peak intensities and the linewidth of the PL spectra were measured as a function of the laser excited power. By increasing the laser pumping power, the PL emission intensities had a non-linear increasing property. The threshold value of the laser pumping power (P_th) was measured as the value of 14.8 μW at room temperature. In the matched RC-LED structure, the linewidth of the PL spectra was reduced from 6.5 nm to 0.7 nm by increasing the laser pumping power. In Figure 4b, the PL emission spectra of the matched RC-LED structure were observed under 0.95 P_th, 1.02 P_th, and 1.05 P_th laser pumping power, respectively. The linewidth and dominated emission wavelength of the InGaN active layer were measured at 6.5 nm for the spontaneous emission peak (at 431.3 nm) and at 0.7 nm for the stimulated emission peak (at 431.8 nm). The lasing phenomenon of the matched InGaN resonant cavity structure was measured at 431.8 nm with a 0.7 nm linewidth at room temperature.

4. Conclusions

In summary, InGaN RC-LED structures with bottom porous DBR and top dielectric DBR structures were fabricated. The directional PL emission phenomenon at normal direction was observed by tuning the Ta₂O₅ spacer layer to match the 1λ cavity length in the resonant cavity structure. The short cavity and single mode emission of the InGaN resonant cavity structure can be realized by using the embedded EC-treated porous-GaN/n-GaN DBR structure. A small divergent angle and a narrow linewidth of the PL spectra were observed in the InGaN RC-LEDs which have the potential for the projective light source and the VCSEL applications.
