# Electronic Emulator of Biological Tissue as an Electrical Load during Electroporation

^{*}

## Abstract

**:**

## Featured Application

**Development of a analog electronic circuit that emulates biological tissue during high voltage pulse delivery and/or electroporation. A case study and a proof of concept with potential for development of an electroporator tester.**

## Abstract

## 1. Introduction

## 2. Methods and Materials

#### 2.1. Mathematical Model

#### 2.2. Circuit Model

#### 2.2.1. Single Monopolar Pulse Model

#### 2.2.2. Multiple Monopolar Pulse Model

#### 2.3. Electronic Load Emulator

## 3. Results

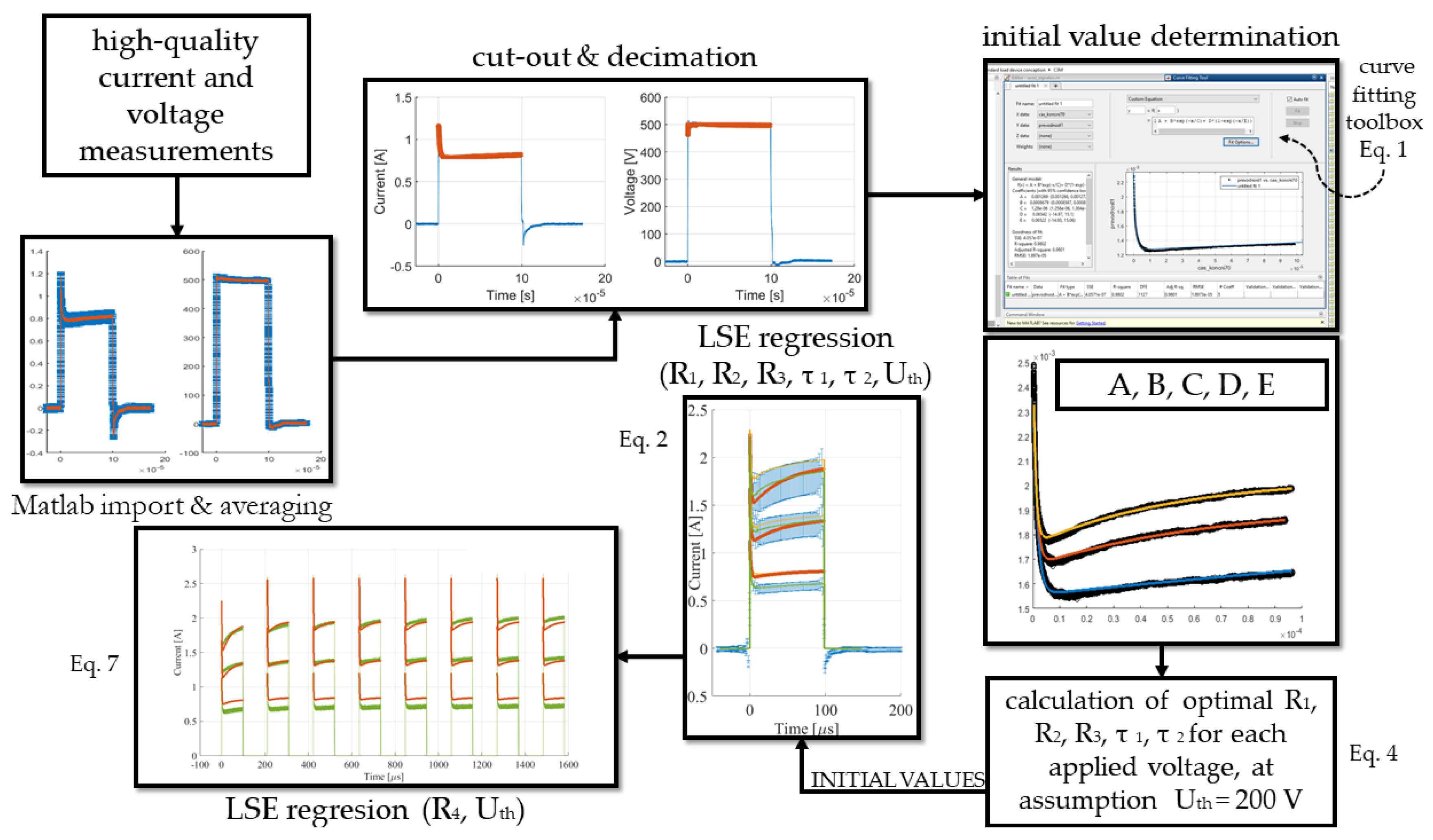

#### 3.1. Numerical Calculations

#### 3.2. PSpice Model and Electronic Emulator

## 4. Discussion

## 5. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## Abbreviations

ECT | Electrochemotherapy |

PEF | Pulsed electric fields |

LSE | Least square error |

RMSE | Root mean square error |

## References

- Yarmush, M.L.; Golberg, A.; Serša, G.; Kotnik, T.; Miklavčič, D. Electroporation-based technologies for medicine: Principles, applications, and challenges. Annu. Rev. Biomed. Eng.
**2014**, 16, 295–320. [Google Scholar] [CrossRef] [Green Version] - Miklavčič, D. Network for development of electroporation-based technologies and treatments: COST TD1104. J. Membr. Biol.
**2012**, 245, 591–598. [Google Scholar] [CrossRef] [Green Version] - Kotnik, T.; Rems, L.; Munir, T.; Miklavčič, D. Membrane electroporation and electropermeabilization: Mechanisms and models. Annu. Rev. Biophys.
**2019**, 48, 63–91. [Google Scholar] [CrossRef] [PubMed] - Miklavčič, D.; Davalos, R.V. Electrochemotherapy (ECT) and irreversible electroporation (IRE)-advanced techniques for treating deep-seated tumors based on electroporation. Biomed. Eng. Online
**2015**, 14, I1. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Mir, L.M.; Orlowski, S.; Belehradek, J.; Paoletti, C. Electrochemotherapy potentiation of antitumour effect of bleomycin by local electric pulses. Eur. J. Cancer Clin. Oncol.
**1991**, 27, 68–72. [Google Scholar] [CrossRef] - Serša, G.; Miklavčič, D.; Čemažar, M.; Rudolf, Z.; Pucihar, G.; Snoj, M. Electrochemotherapy in treatment of tumours. Eur. J. Surg. Oncol.
**2008**, 34, 232–240. [Google Scholar] [CrossRef] [Green Version] - Mali, B.; Jarm, T.; Snoj, M.; Serša, G.; Miklavčič, D. Antitumor effectiveness of electrochemotherapy: A systematic review and meta-analysis. Eur. J. Surg. Oncol.
**2013**, 39, 4–16. [Google Scholar] [CrossRef] - Mir, L.M.; Gehl, J.; Serša, G.; Collins, C.G.; Garbay, J.-R.; Billard, V.; Geertsen, P.F.; Rudolf, Z.; O’Sullivan, G.C.; Marty, M. Standard operating procedures of the electrochemotherapy: Instructions for the use of bleomycin or cisplatin administered either systemically or locally and electric pulses delivered by the CliniporatorTM by means of invassive or non-invasive electrodes. Eur. J. Cancer Suppl.
**2006**, 4, 14–25. [Google Scholar] [CrossRef] - Gehl, J.; Sersa, G.; Matthiessen, L.W.; Muir, T.; Soden, D.; Occhini, A.; Quaglino, P.; Curatolo, P.; Campana, L.G.; Kunte, C.; et al. Updated standard operating procedures for electrochemotherapy of cutaneous tumours and skin metastases. Acta Oncol.
**2018**, 57, 874–882. [Google Scholar] [CrossRef] [PubMed] - Reberšek, M.; Miklavčič, D.; Bertacchini, C.; Sack, M. Cell membrane electroporation-Part 3: The equipment. IEEE Elect. Insul. Mag.
**2014**, 30, 8–18. [Google Scholar] [CrossRef] - Pirc, E.; Reberšek, M.; Miklavčič, D. 12 Dosimetry in Electroporation-Based Technologies and Treatments. In Dosimetry in Bioelectromagnetics; Markov, M., Ed.; CRC Press: Boca Raton, FL, USA, 2017; pp. 233–268. [Google Scholar]
- Puc, M.; Reberšek, S.; Miklavčič, D. Requirements for a clinical electrochemotherapy device—Electroporator. Radiol. Oncol.
**1997**, 31, 368–373. [Google Scholar] - Ivorra, A. Tissue Electroporation as a Bioelectric Phenomenon: Basic Concepts. In Irreversible Electroporation; Rubinsky, B., Ed.; Springer: Berlin/Heidelberg, Germany, 2010; pp. 23–61. [Google Scholar]
- Canatella, P.J.; Black, M.M.; Bonnichsen, D.M.; McKenna, C.; Prausnitz, M.R. Tissue Electroporation: Quantification and Analysis of Heterogeneous Transport in Multicellular Environments. Biophys. J.
**2004**, 86, 3260–3268. [Google Scholar] [CrossRef] [Green Version] - Powell, K.T.; Morgenthaler, A.W.; Weaver, J.C. Tissue electroporation. Observation of reversible electrical breakdown in viable frog skin. Biophys. J.
**1989**, 56, 1163–1171. [Google Scholar] [CrossRef] [Green Version] - Sel, D.; Cukjati, D.; Batiuskaite, D.; Slivnik, T.; Mir, L.M.; Miklavčič, D. Sequential finite element model of tissue electropermeabilization. IEEE Trans. Biomed. Eng.
**2005**, 52, 816–827. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Ivorra, A.; Al-Sakere, B.; Rubinsky, B.; Mir, L.M. In vivo electrical conductivity measurements during and after tumor electroporation: Conductivity changes reflect the treatment outcome. Phys. Med. Biol.
**2008**, 54, 5949–5963. [Google Scholar] [CrossRef] [PubMed] - Neal, R.E., II; Garcia, P.A.; Robertson, J.L.; Davalos, R.V. Experimental Characterization and Numerical Modeling of Tissue Electrical Conductivity during Pulsed Electric Fields for Irreversible Electroporation Treatment Planning. IEEE Trans. Biomed. Eng.
**2012**, 59, 1076–1085. [Google Scholar] [CrossRef] [PubMed] - Langus, J.; Kranjc, M.; Kos, B.; Šuštar, T.; Miklavčič, D. Dynamic finite-element model for efficient modelling of electric currents in electroporated tissue. Sci. Rep.
**2016**, 6, 26409. [Google Scholar] [CrossRef] - Pintar, M.; Langus, J.; Edhemović, I.; Brecelj, E.; Kranjc, M.; Sersa, G.; Šuštar, T.; Rodič, T.; Miklavčič, D.; Kotnik, T.; et al. Time-Dependent Finite Element Analysis of In Vivo Electrochemotherapy Treatment. Technol. Cancer Res. Treat.
**2018**, 17, 1–9. [Google Scholar] [CrossRef] [Green Version] - Cukjati, D.; Batiuskaite, D.; André, F.; Miklavčič, D.; Mir, L.M. Real time electroporation control for accurate and safe in vivo non-viral gene therapy. Bioelectrochemistry
**2007**, 70, 501–507. [Google Scholar] [CrossRef] - Puc, M.; Corović, S.; Flisar, K.; Petkovsek, M.; Nastran, J.; Miklavčič, D. Techniques of signal generation required for electropermeabilization. Survey of electropermeabilization devices. Bioelectrochemistry
**2004**, 64, 113–124. [Google Scholar] [CrossRef] - Reberšek, M.; Miklavčič, D. Concepts of Electroporation Pulse Generation and Overview of Electric Pulse Generators for Cell and Tissue Electroporation. In Advanced Electroporation Techniques in Biology and Medicine; Pakhomov, A.G., Miklavčič, D., Markov, M.S., Eds.; CRC Press: Boca Raton, FL, USA, 2010; Chapter 16; pp. 323–339. [Google Scholar]
- Chicaybam, L.; Barcelos, C.; Peixoto, B.; Carneiro, M.; Limia, C.G.; Redondo, P.; Lira, C.; Paraguassú-Braga, F.; De Vasconcelos, Z.F.M.; Barros, L.; et al. An Efficient Electroporation Protocol for the Genetic Modification of Mammalian Cells. Front. Bioeng. Biotechnol.
**2017**, 4, 99. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Iversen, N.; Birkenes, B.; Torsdalen, K.; Djurovic, S. Electroporation by nucleofector is the best nonviral transfection technique in human endothelial and smooth muscle cells. Genet. Vaccines Ther.
**2005**, 3, 2. [Google Scholar] [CrossRef] [Green Version] - Arslan-Yildiz, A.; El Assal, R.; Chen, P.; Guven, S.; Inci, F.; Demirci, U. Towards artificial tissue models: Past, present, and future of 3D bioprinting. Biofabrication
**2016**, 8, 014103. [Google Scholar] [CrossRef] [PubMed] - Zhao, Y.; Liu, H.; Bhonsle, S.P.; Wang, Z.; Davalos, R.V.; Yao, C. Ablation outcome of irreversible electroporation on potato monitored by impedance spectrum under multi-electrode system. Biomed. Eng. Online
**2018**, 17, 126. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Ruarus, A.H.; Vroomen, L.G.; Puijk, R.S.; Scheffer, H.J.; Faes, T.J.C.; Meijerink, M.R. Conductivity Rise During Irreversible Electroporation: True Permeabilization or Heat? Cardiovasc. Intervent Radiol.
**2018**, 41, 1257–1266. [Google Scholar] [CrossRef] [Green Version] - Kranjc, M.; Bajd, F.; Serša, I.; Miklavčič, D. Magnetic resonance electrical impedance tomography for measuring electrical conductivity during electroporation. Physiol. Meas.
**2014**, 35, 985–996. [Google Scholar] [CrossRef] [Green Version] - Ivorra, A.; Rubinsky, B. In Vivo Electrical Impedance Measurements during and after Electroporation of Rat Liver. Bioelectrochemistry
**2017**, 70, 287–295. [Google Scholar] [CrossRef] - Pavlin, M.; Miklavčič, D. Theoretical and experimental analysis of conductivity, ion diffusion and molecular transport during cell electroporation-relation between short-lived and long-lived pores. Bioelectrochemistry
**2008**, 74, 38–46. [Google Scholar] [CrossRef] - Lacković, I.; Magjarević, R.; Miklavčič, D. Three-dimensional Finite-element Analysis of Joule Heating in Electrochemotherapy and in vivo Gene Electrotransfer. IEEE Trans. Dielectr. Electr. Insul.
**2009**, 16, 1338–1347. [Google Scholar] [CrossRef] - Stern, J.V.; Gowrishankar, T.R.; Smith, K.C.; Weaver, J.C. Broad pore lifetime distributions: A fundamental concept for cell electroporation. arXiv
**2017**, arXiv:1708.076133v1. [Google Scholar] - Merla, C.; Pakhomov, A.G.; Semenov, I.; Vernier, P.T. Frequency spectrum of induced transmembrane potential and permeabilization efficacy of bipolar electric pulses. Biochim. Biophys. Acta (BBA)-Biomembr.
**2017**, 1859, 1282–1290. [Google Scholar] [CrossRef] [PubMed] - Sharma, V.K.; Chopra, Y.C.; Bajwa, J.S.; Sohi, B.S.; Tiwari, R.K. A reliable microprocessor-based defibrillator analyzer. IEEE. Trans. Instrum. Meas.
**1982**, IM-31, 28–31. [Google Scholar] [CrossRef]

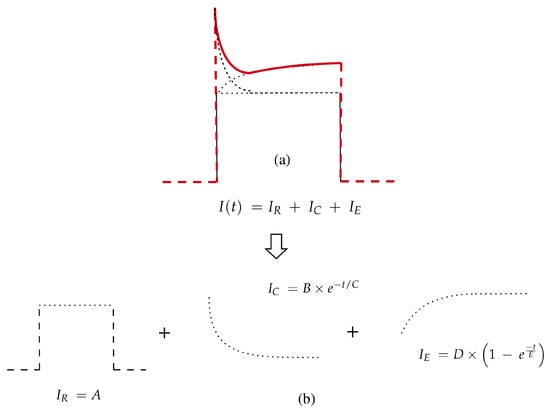

**Figure 1.**(

**a**) Typical time course during PEF application to the tissue (red) and three mathematical functions (black); (

**b**) Current is modeled as a sum of a square wave pulse and two exponential functions, by following the equation (Equation (1)).

**Scheme 1.**Single monopolar pulse circuit emulator: equivalent circuit model of tissue during electroporation. Where ${V}_{ep}$ represent applied electroporation pulse, with pulse voltage amplitude ${U}_{amp}$ and ${U}_{th}$ electroporation threshold voltage.

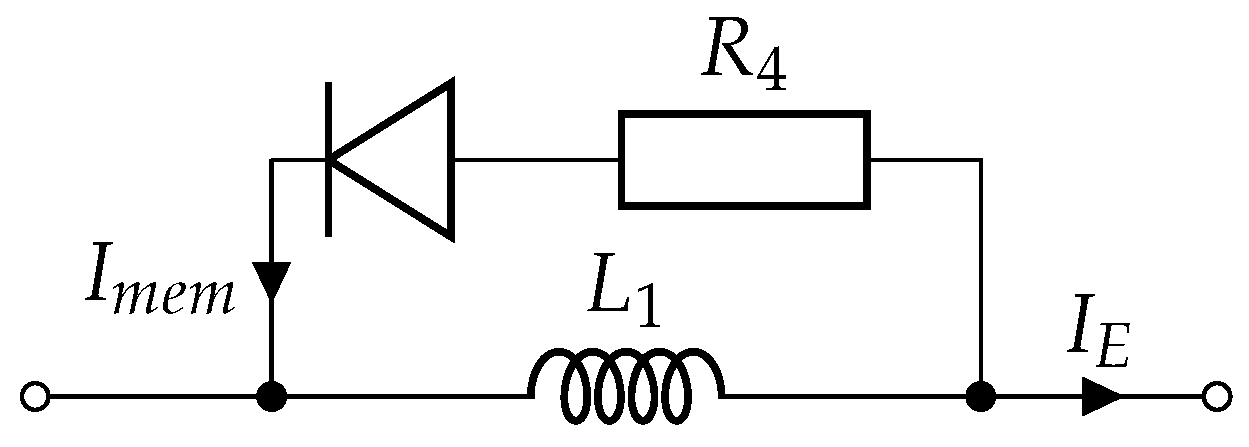

**Scheme 2.**Additional in series connected resistor ${R}_{4}$ and diode in parallel to the inductor ${L}_{1}$, emulate an “electroporation” memory, which enables that the following pulse starts at the higher initial value.

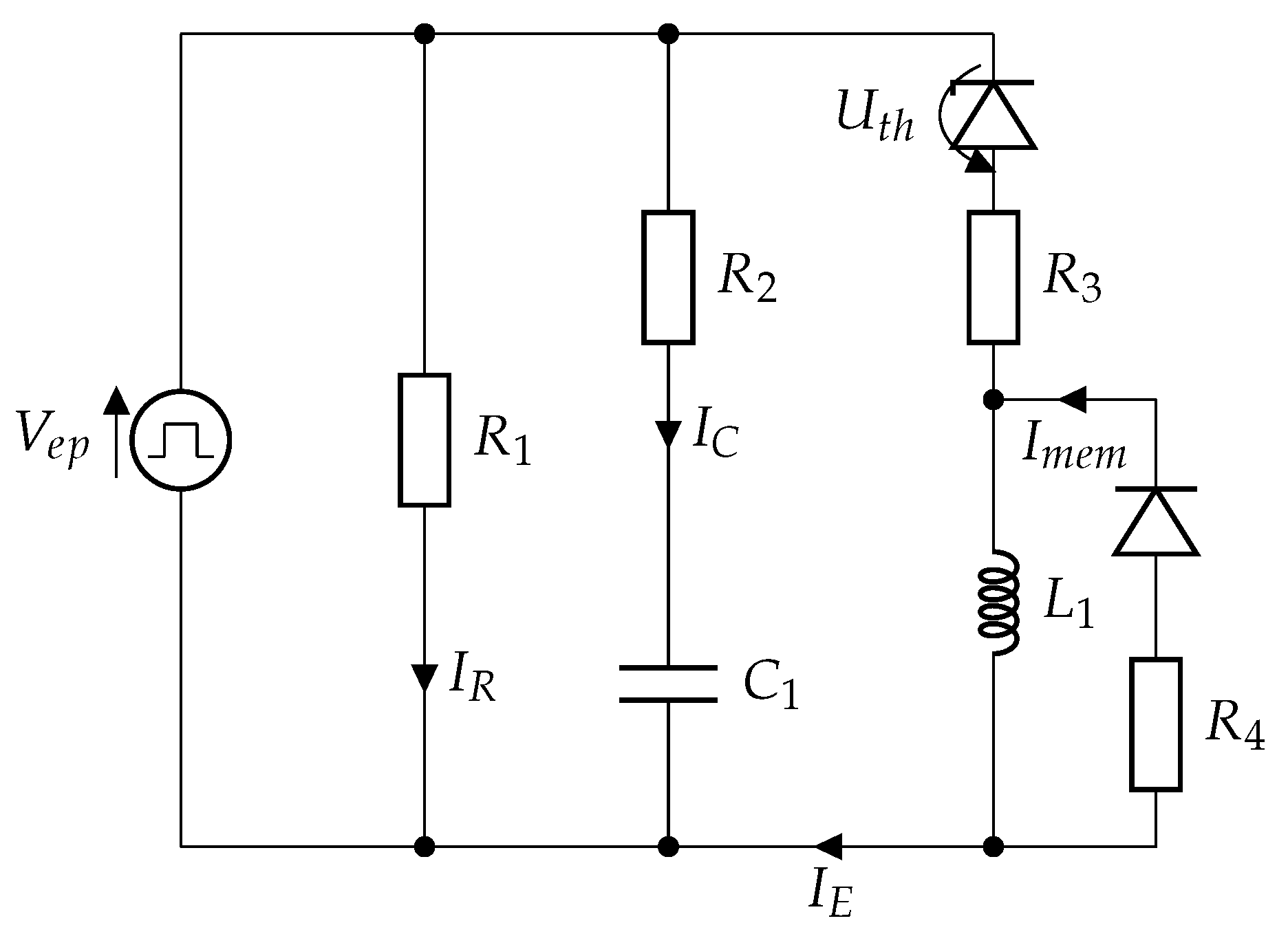

**Scheme 3.**Final electronic emulator of biological tissue as an electrical load during electroporation.

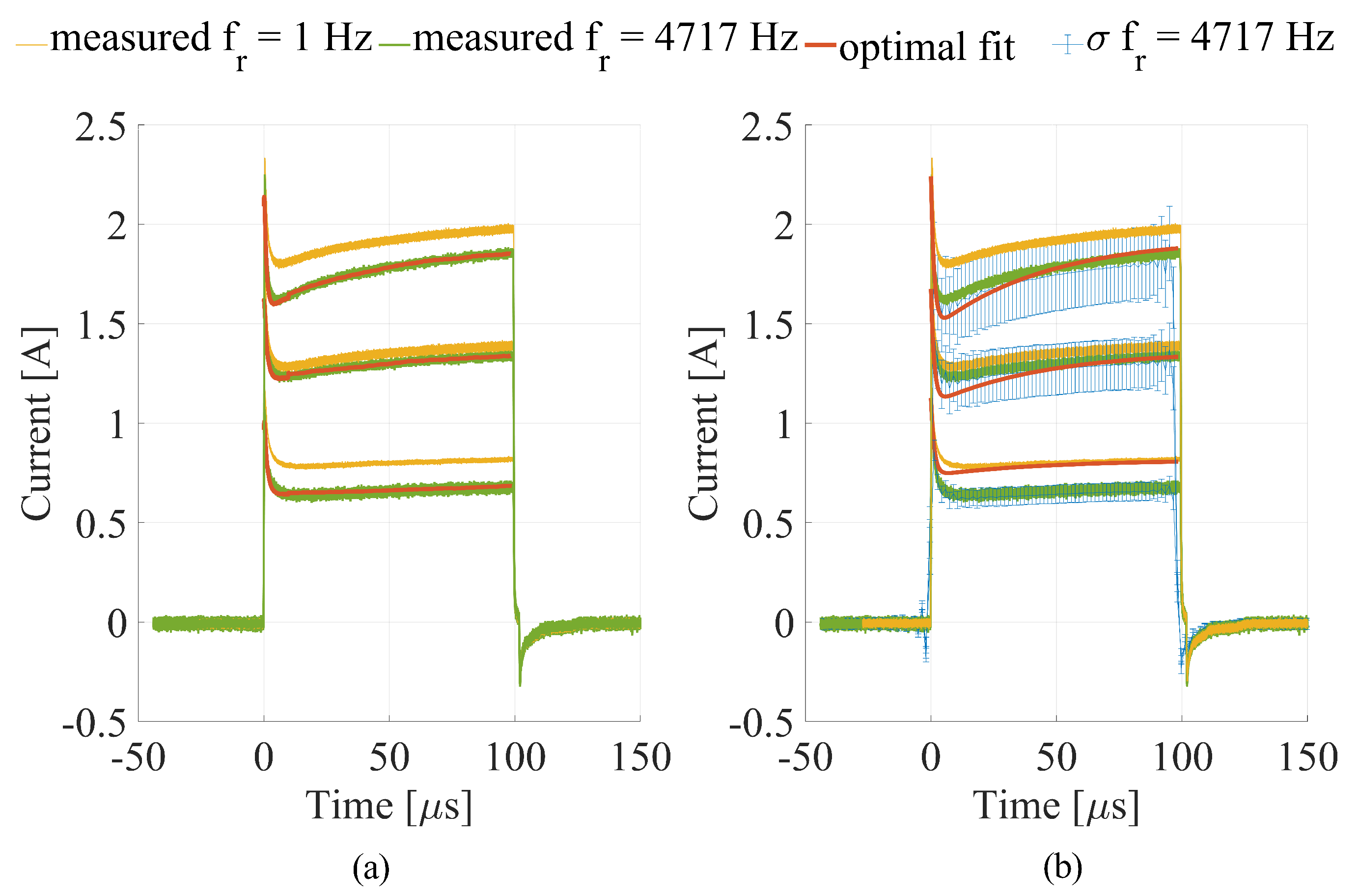

**Figure 3.**Average of five current measurements of the first pulse at 1 Hz (yellow) and 4717 Hz (green) repetition frequency. (

**a**) Modeled current (red), optimal circuit parameter values were determined for each applied voltage separately for 4717 Hz pulse repetition rate; (

**b**) Modeled current (red), optimal circuit parameter values were determined with the LSE method, the cost function included all three currents at different voltages for pulse repetition rate 4717 Hz.

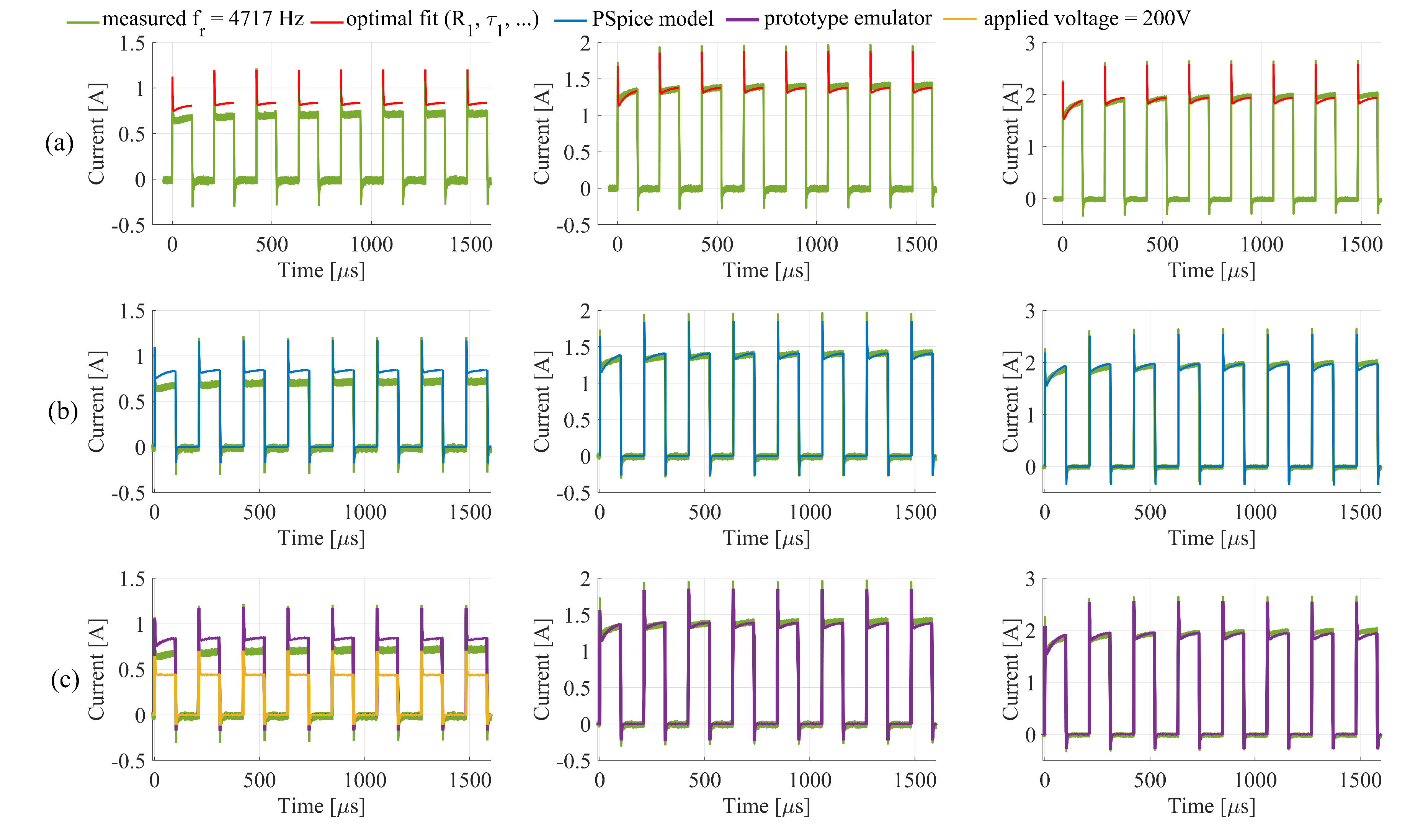

**Figure 4.**Average of five current measurements at 4717 Hz repetition frequency (green), (

**a**) numerically modeled current by Matlab (red, first row), (

**b**) modeled current by a PSpice (blue, second row) and (

**c**) measured current trough prototype emulator (purple, third row). An additional current measurement in the case of the emulator was added at the applied voltage set to 200 V, in order to present a current response, when the applied voltage is lower than the threshold voltage. In the first column, the current at 500 V in the second 750 V and third 1000 V applied voltage amplitude is presented.

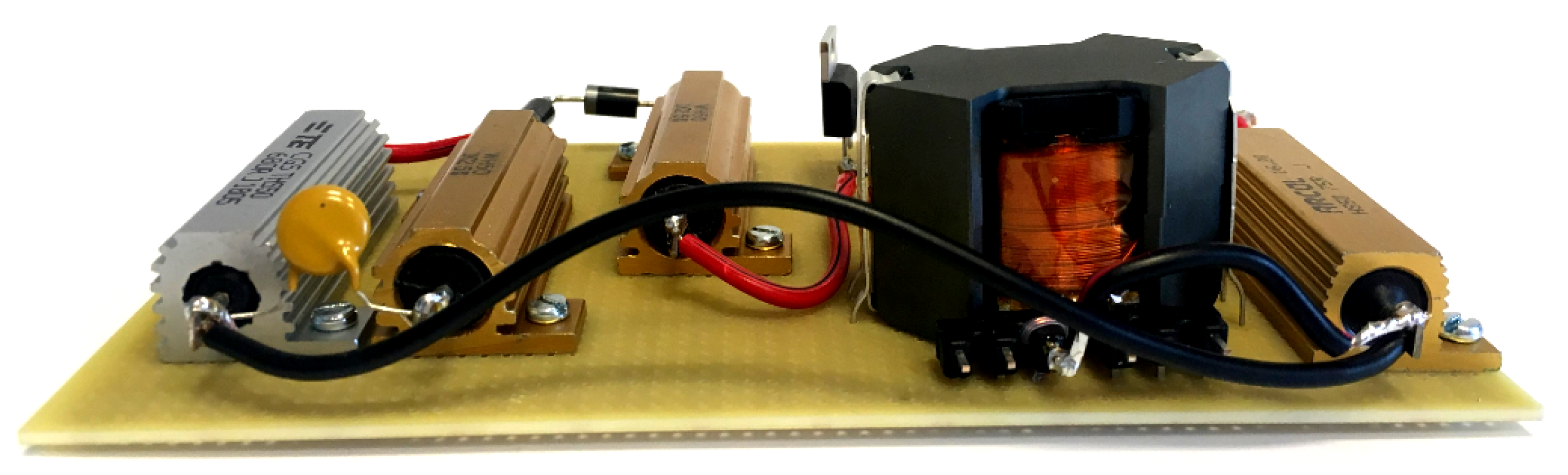

**Figure 5.**A physical prototype electronic emulator of biological tissue as an electrical load during electroporation.

**Scheme 4.**Proposed emulator upgrade for electroporation with both polarity pulses, but additional current measurements should be analyzed in detail, to determine the relation between both inductors (${L}_{1},{L}_{2}$).

Voltage [V] | ${\mathit{R}}_{1}[\Omega ]$ | ${\mathit{R}}_{2}[\mathbf{k}\Omega ]$ | ${\mathit{R}}_{3}[\mathbf{k}\Omega ]$ | ${\mathit{C}}_{1}$ [nF] | ${\mathit{L}}_{1}$ [mH] | ${\mathit{U}}_{\mathit{th}}$ [V] |
---|---|---|---|---|---|---|

500 | 787.5 | 1.152 | 0.176 | 1.1 | 609,400 | 200 |

750 | 621.1 | 1.626 | 3.192 | 0.77 | 182.5 | 200 |

1000 | 639.9 | 1.401 | 2.393 | 0.65 | 106.9 | 200 |

**Table 2.**Optimal values of electronic components for the single positive monopolar pulse model are presented in the first line and for multiple monopolar pulse model in the second.

${\mathit{R}}_{1}[\Omega ]$ | ${\mathit{R}}_{2}[\mathbf{k}\Omega ]$ | ${\mathit{R}}_{3}[\mathbf{k}\Omega ]$ | ${\mathit{R}}_{4}[\Omega ]$ | ${\mathit{C}}_{1}$ [nF] | ${\mathit{L}}_{1}$ [mH] | ${\mathit{U}}_{\mathit{th}}$ [V] |
---|---|---|---|---|---|---|

682.4 | 1.287 | 1.287 | - | 0.998 | 57.5 | 400 |

682.4 | 1.287 | 1.287 | 171.1 | 0.998 | 57.5 | 366.7 |

**Table 3.**Final component value table, of components which were used in the PSpice simulation and prototype emulator.

${\mathit{R}}_{1}[\Omega ]$ | ${\mathit{R}}_{2}[\mathbf{k}\Omega ]$ | ${\mathit{R}}_{3}[\mathbf{k}\Omega ]$ | ${\mathit{R}}_{4}[\Omega ]$ | ${\mathit{C}}_{1}$ [nF] | ${\mathit{L}}_{1}$ [mH] | ${\mathit{U}}_{\mathit{th}}$ [V] |
---|---|---|---|---|---|---|

680 | 1.2 | 1.2 | 175 | 1 | 57.5 | 360 |

**Table 4.**The performance summary table displays the root mean square error between measurements on beef liver and mathematical model ($RMS{E}_{M}$), or prototype emulator ($RMS{E}_{E}$) or resistor ($RMS{E}_{R}$) and mean standard deviation of five measurements on beef liver (${\sigma}_{liver}$).

SET VOLTAGE, REP. F | ${\mathit{\sigma}}_{\mathit{liver}}$ | ${\mathit{RMSE}}_{\mathit{M}}$ | ${\mathit{RMSE}}_{\mathit{E}}$ | ${\mathit{RMSE}}_{\mathit{R}}$ |
---|---|---|---|---|

[mA] | [mA] | [mA] | [mA] | |

500 V, 1 Hz | 38.5 | 40.3 | 38 | 101.1 |

500 V, 4717 Hz | 46.3 | 125.8 | 132.1 | 101.4 |

750 V, 1 Hz | 115.1 | 111.6 | 106.2 | 72.6 |

750 V, 4717 Hz | 124.7 | 41.4 | 40.7 | 471.4 |

1000 V, 1 Hz | 116.1 | 192.7 | 189.5 | 131.6 |

1000 V, 4714 Hz | 177 | 55.7 | 58.1 | 705.7 |

Total RMSE | 108.87 | 356.7 |
