Basal-Plane Catalytic Activity of Layered Metallic Transition Metal Ditellurides for the Hydrogen Evolution Reaction

Abstract

We report the electrochemical hydrogen evolution reaction (HER) of two-dimensional metallic transition metal dichalcogenides (TMDs). TMTe₂ (TM: Mo, W, and V) single crystals were synthesized and characterized by optical microscopy, X-ray diffraction, and electrochemical measurements. We found that TMTe₂ acts as a HER-active catalyst due to the inherent catalytic activity of its basal planes. Among the three metallic TMTe₂, VTe₂ shows the best HER performance with an overpotential of 441 mV and a Tafel slope of 70 mV/dec. It is 668 mV and 137 mV/dec for MoTe₂ and 692 mV and 169 mV/dec for WTe₂. Even though VTe₂ has the lowest values in the exchange current density, the active site density, and turn-over-frequency (TOF) among the three TMTe₂, the lowest charge transfer resistance (R_CT) of VTe₂ seems to be critical to achieving the best HER performance. First-principles calculations revealed that the basal-plane-active HER performance of metallic TMDs can be further enhanced with some Te vacancies. Our study paves the way to further study of the inherent catalytic activity of metallic 2D materials for active hydrogen production.

1. Introduction

Hydrogen energy is receiving tremendous attention as it is regarded as the most promising eco-friendly and renewable energy to replace the carbon emission energies such as fossil fuels [1,2,3,4]. To produce high purity hydrogen gas, electrochemical water splitting has been frequently used with noble metal-based electrocatalysts [5]. Much research has focused on the development of new types of the electrocatalysts, combining lower amounts of noble metals with earth-abundant materials for economy and efficient hydrogen production [6,7].

Hybrid electrocatalysts commonly consist of catalytic active nanoparticles embedded in catalytic inactive low-dimensional supports such as a graphene matrix with defects [8,9,10,11,12,13,14]. However, the high surface energy of nanoparticles has hindered the goal of obtaining small-sized nanoparticles and has boosted the aggregation of nanoparticles, which is known as the Ostwald ripening effect in nanoparticles [15,16]. Therefore, for a high number of active sites, the periodic arrangement of the catalytic active sites in the 2D plane can be a challenging theme for an efficient hydrogen evolution reaction (HER).

Two dimensional transition metal dichalcogenides (TMDs) are thought of as next generation electrocatalysts for the HER because of their abundant HER active sites with almost zero Gibbs free energy for hydrogen adsorption [17,18]. The semiconducting TMDs such as MoS₂ and WS₂ demonstrate excellent performance for hydrogen production at their active sites, mostly defects or edges [19,20,21]. Some TMDs experience a structural phase transition to a metallic state with defects, strains, or doping [22,23] and the thickness of TMDs has been known as an important property for the charge transfer process in HER performance [24]. Therefore, an unstable surface state due to many defects or edges is the main obstacle for stable hydrogen production.

The recently reported basal plane activity in metallic TMDs has been spotlighted to solve the above problems [18,23,24,25,26]. Soek et al. reported that the nonhomogeneous distribution of surface atoms creates intrinsic catalytic activity at its basal plane [22]. They also reported that the HER process of metallic TMDs sometimes accompanies structural modification due to hydrogen adsorption, which helps to enhance the catalytic activity of metallic TMDs. Kwon et al. also reported that the HER performance of metallic TMDs can be enhanced by the creation of Te vacancies [27]. Even though many metallic TMDs show the HER performance, the detailed mechanism of their basal plane-catalytic activity for HER is still unclear.

Here, we report the intrinsic catalytic activity of the basal plane of metallic transition metal (TM) ditellurides (TMTe₂), where the TMs are V, Mo, and W. We synthesized TMTe₂ single crystals using previously reported methods [27,28,29] and characterized it by optical microscopy, X-ray diffraction, and electrochemical measurements. X-ray diffraction results confirmed that TMTe₂ single crystals have the orthorhombic, monoclinic, and monoclinic structure for WTe₂, MoTe₂, and VTe₂, respectively [27,28,29]. The optical microscopy and the SEM images (Figure S1) show that their surfaces were well prepared with the clean surface minimizing the cracks, the edges, or the defects, which were usually regarded as extrinsic active sites in many TMDs. We found that clean surfaces of TMTe₂ behaved as HER-active surfaces due to the inherent catalytic activity of their basal planes. Among the three metallic TMTe₂, VTe₂ achieved the best HER performance with the lowest overpotential and Tafel slope, which demonstrated that it was promising for active hydrogen production.

2. Experiments

X-ray diffraction of three TMTe₂ single crystals was taken using an X-ray diffractometer (D/MAX-2500/PC, Rigaku, Japan) with Cu K radiation (λ = 1.54718 Å) at room temperature. The temperature dependent resistance of three TMTe₂ single crystals was measured by a physical property measurement system (PPMS) (Quantum Design) through direct current (DC) measurements over a temperature range between 1.8 and 300 K.

For the electrochemical measurement of three TMTe₂ single crystals, a piece of TMTe₂ single crystal was glued to an Au (100 nm)/SiO₂ (300 nm)/Si substrate and connected to the bottom Cu plate. Except for the open area for the HER, all other surface areas were covered by an insulating nail polish to prevent any unexpected leakage current. The open area of samples for the HER was automatically estimated by the Leopard 2.5 program installed in the software for the optical microscope; the current density (J) in this manuscript was calculated by the current divided by the open sample area.

All electrochemical experiments were performed using a potentiostat (VMP3 from Bio Logic, France) and three-electrode electrochemical cell in 0.5 M sulfuric acid (H₂SO₄) electrolyte solution. A silver/silver chloride electrode (Ag/AgCl, Qrins, Korea), a platinum wire electrode (Qrins, Korea), and the TMTe₂ were used as the reference, counter, and working electrodes, respectively. Linear sweep voltammetry (LSV) was conducted with a scan rate of 5 mV/s. The electrochemical active surface area (ECSA) analysis with VTe₂, MoTe₂, and WTe₂ was conducted at different voltage range and sweep rates. For impedance measurement, potentiostatic electrochemical impedance spectroscopy (PEIS) technique was used and measurements were carried out at frequency range between 100 kHz to 100 mHz with an AC voltage of 10 mV and a DC voltage, electric potential, of 390 mV (vs. RHE). The results were analyzed by using z-fitting software named EC-Lab.

First-principles calculations were conducted using a Quantum ESPRESSO package [30]. We used norm-conserving pseudopotentials [31] for W, Te, and H atoms, a plane wave energy cutoff of 80 Ryd, and a Perdew-Burke-Ernzerhof exchange-correlation functional [32]. Equilibrium lattice parameters of a = 6.36 Å and b = 3.53 Å are used to simulate the orthorhombic MoTe₂ structure.

3. Result and Discussion

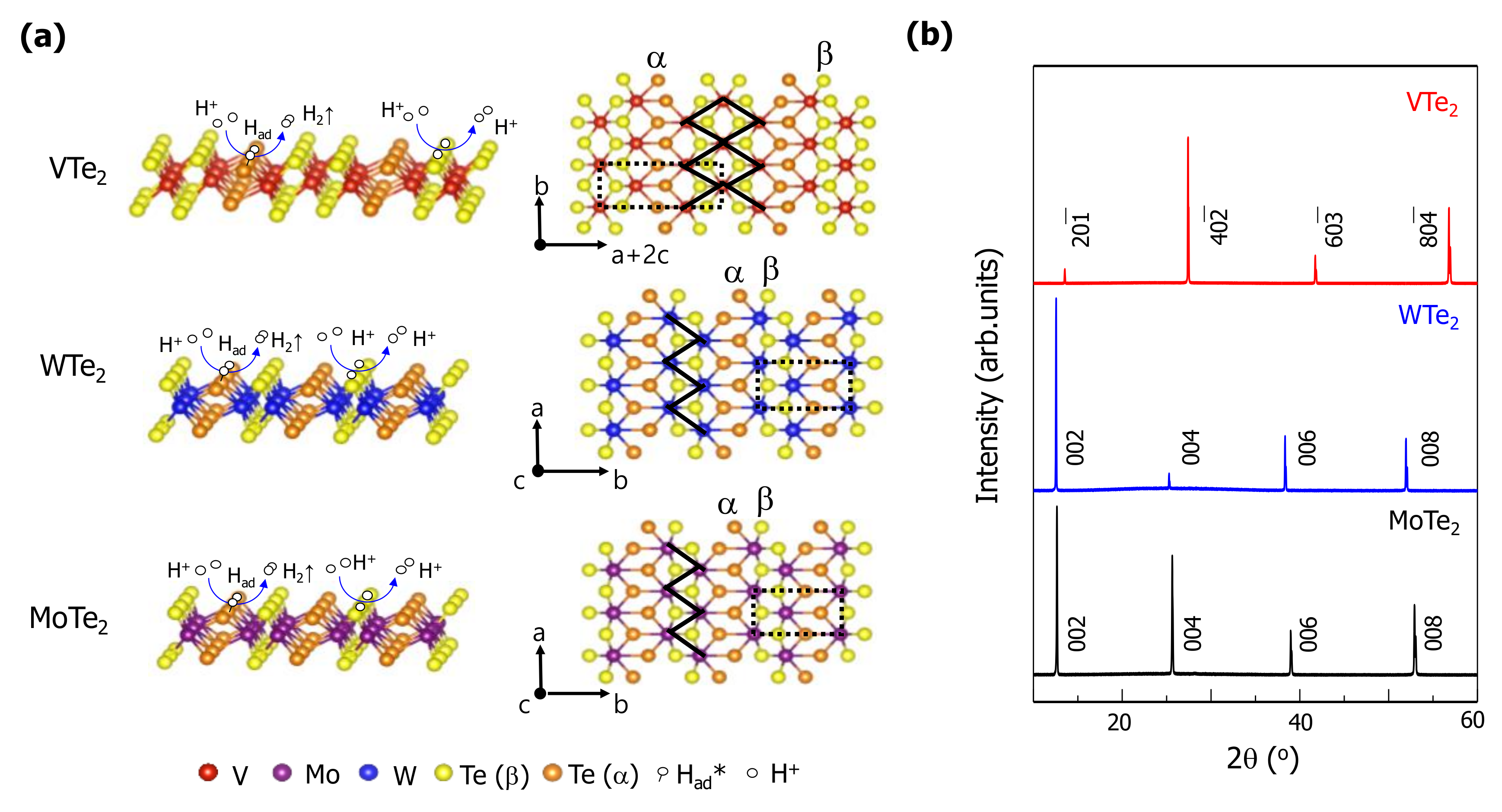

The atomic arrangements of the three metallic transition metal ditellurides (TMTe₂), VTe₂, WTe₂, and MoTe₂, are shown in Figure 1a. One transition metal atom is surrounded by six tellurium atoms with the form of a distorted octahedron: one center TM atom and six corner Te atoms. These layered metallic TMDs have exotic buckled layer structures due to the lattice distortion originating from strong correlations between spin, charge, and lattice in 2D materials [28,29]. The buckled monolayer of TMTe₂ has non-uniform distribution of surface Te atoms, which is categorized as α (orange circles) and β (yellow circles) according to the vertical positions at the basal plane as seen in Figure 1a. Different from the zig-zag chains (black lines) of Mo or W atoms in MoTe₂ and WTe₂, VTe₂ has mirrored double zig-zag chains (black lines) of V atoms, leading to the different surface densities of site α and β for hydrogen evolution as described in

Table 1. Summary of electrochemical properties of three TMTe_2.

Catalyst	Overpotential (mV vs. RHE)	Tafel Slope (mV/dec)	Exchange Current Density (mA/cm2)	⚜ site density (#/nm2)	TOF (ms−)	Double Layer Capacitance (mF/cm2)	Charge Transfer Resistance (k⚜CT)
VTe2	−441	70	0.2	2.92	2.14	0.03	5.8
MoTe2	−668	137	0.7	4.50	4.85	0.08	13.0
WTe2	−692	169	1.0	4.51	6.92	0.06	21.6

.

Different Te atoms in the buckled layer of the three TMTe₂ have different Gibbs free energies for hydrogen adsorption. We classified two Te atomic sites as α sites and β sites to analyze the HER performances of metallic TMTe₂. We assume that α site Te atoms are better catalytically active than β site Te atoms in the three TMTe₂, which is consistent with recently reported HER works on MoTe₂ and WTe₂ [22,23,27]. During the HER process, approaching proton atoms (H⁺) are captured at α sites rather than β sites due to the differences in Gibbs free energies, which creates the intrinsic catalytic activity for hydrogen evolution [22,23,27]. The number densities of active α site in three TMTe₂ are calculated with unit surface area, which contains one active α site (squares with dashed lines in Figure 1a) in the basal plane (see Table 1).

To study the inherent catalytic activity of the basal plane in TMTe₂, TMTe₂ single crystals were used for this study. We synthesized single crystalline TMTe₂ using the NaCl-Flux method and the solid state reaction described in our previous studies [28,29]. We confirmed that TMTe₂ single crystals have the orthorhombic (a = 3.498 Å, b = 6.338 Å, c = 15.432 Å, β = 90°), monoclinic (a = b = 3.559 Å, c = 40.693 Å, β = 90°), and monoclinic (a = 14.826 Å, b = 3.605 Å, c= 9.366 Å, β = 112.4°) structure for WTe₂, MoTe₂, and VTe₂, respectively, and the TMTe₂ was well grown with a growth axis in the (00n) direction using x-ray diffraction as seen in Figure 1b. All three TMTe₂ show metallic behaviors in which the resistivity decreases with a decreasing temperature (see Figure S2). The three TMTe₂ are known as semimetals (or bad metals) with few carriers due to the quasi gap at the Fermi surface [33,34]. Thus, they have good charge transfer and also less of a screening effect.

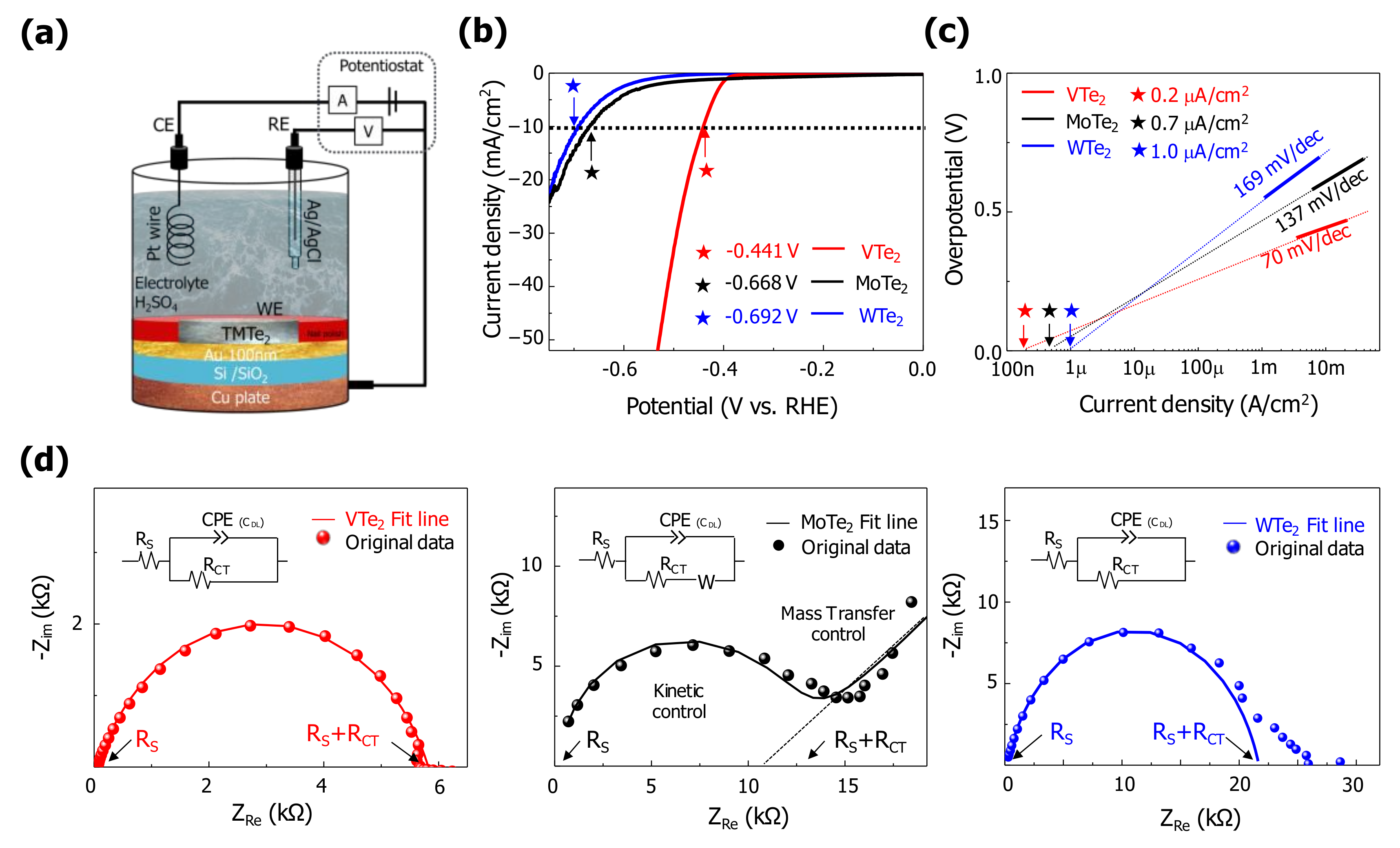

Figure 2a shows the experimental setup for electrochemical measurements of the three metallic TMTe₂. We used a three-electrode system for the TMTe₂ working electrode (WE), platinum wire for the counter electrode (CE), and Ag/AgCl for the reference electrode (RE). We applied an external voltage between the WE and RE and measured the current density between the WE and CE. TMTe₂ single crystals were used for the WE and the sample area of the WE was estimated by an analyzing program (Leopard 2.5) with optical images.

The electrochemical HER performance of the three TMTe₂ electrodes was examined by linear sweep voltammetry (LSV) and electrochemical impedance spectroscopy (EIS). Figure 2b shows that the LSV curves of three TMTe₂ electrodes and the overpotentials of −441, −668, and −692 mV were required to obtain 10 mA/cm² for VTe₂, MoTe₂, and WTe₂, respectively. The overpotential of VTe₂ was found to be the smallest among three TMTe₂ electrodes. Figure 2c shows the Tafel slopes of the three TMTe₂ electrodes were 70, 137, and 169 mV/dec for VTe₂, MoTe₂, and WTe₂, respectively, and VTe₂ exhibited the lowest Tafel slope among them. The overpotential and the Tafel slope of VTe₂ single crystal were consistent with reported values in micro-sized VTe₂ flakes, which were transferred to the glassy carbon working electrode by drop-cast method, indicating that the basal plane of VTe₂ can be active for HER [35]. We extracted the exchange current densities of three TMTe₂ from extended linear lines of Tafel slopes down to zero value in the overpotential, 0.2, 0.7, and 1.0 μA/cm² for VTe₂, MoTe₂, and WTe₂, respectively.

To analyze the catalytic activity of the α site in the TMTe₂, we calculated the turn over frequency (TOF), which is proportional to the conversion rate from proton to hydrogen gas at one active site for one second. The TOF was calculated by equation $\mathrm{TOF}=\frac{j\times A\times N_A}{S\times n\times F}$, where j is the exchange current density, n is the number of electrons transferred per molecule (2 for HER), F is the Faraday constant (96,458 C mol⁻¹ electrons), A is the superficial electrode area, and N_A is Avogadro’s number (6.022 × 10²³ mol⁻¹). The TOF values were 2.14, 4.85, and 6.92 ms⁻¹ for VTe₂, MoTe₂, and WTe₂, respectively, and WTe₂ had the largest TOF value among the three. It seems that the TOF results contradict the reported Gibbs free energies of α sites in MoTe₂ (ΔG_H = 0.77 eV) and WTe₂ (ΔG_H = 1.14 eV) [17,18]. This is explained by the fact that the hydrogen adsorption at the catalytic active sites is less critical in determining the hydrogen conversion rate during the HER process.

To study the charge transfer process for the HER, we measured the electrochemical impedance spectroscopy (EIS) with the three TMTe₂ electrodes. Figure 2d shows the Nyquist plots of the three TMTe₂ electrodes with the complex impedance, the real part Z_Re, and the imaginary part −Z_Im with various frequencies from 100 kHz to 100 mHz. We included the Warburg impedance (w) on the equivalent Randles circuit models to interpret the mass transfer at the low frequency region (inset in Figure 2d). The Nyquist plots show semicircles in the kinetic control region at the high frequencies with the diameter of R_CT, which represents the charge transfer resistance. The values of R_CT were 5.8, 13.0, and 21.6 kΩ, which increased in order of VTe₂, MoTe₂, and WTe₂ and the lowest R_CT was found in VTe₂.

We also estimated the double layer capacitance (C_DL) between the TMTe₂ electrode and the electrolyte. Cyclic voltammetry (CV) was measured with different scan rates. Figure 3a shows the hysteresis of the CV curves taken in non-Faradaic voltage regions without any additional electrochemical reactions. We plotted the curves of the capacitive current density as shown in the CV curves in Figure 3a as a function of scan rate to obtain C_DL of three TMTe₂ electrodes. Figure 3b shows similar C_DL values due to the similar sample area, the same dielectric constant of the electrolyte, and the same distance of the double layer capacitance. These C_DL values in TMTe₂ single crystals were almost 100 times smaller than the reported C_DL in micro-sized flakes on the glassy carbon working electrode due to the difference of the electrochemical surface area [23].

We summarized our experimental results of the HER performances observed in the three TMTe₂ in Table 1. Among the three TMTe₂, VTe₂ had the best HER performance with a small overpotential and Tafel slope. Even though VTe₂ had the smallest α site density and TOF, the smallest R_CT was found in VTe₂. It seems that the HER process of TMTe₂ is significantly influenced by the charge transfer process. Therefore, to enhance the inherent catalytic activity of TMTe₂, we can further enhance the charge transfer for a small R_CT or to increase the electrochemical active surface area for large C_DL.

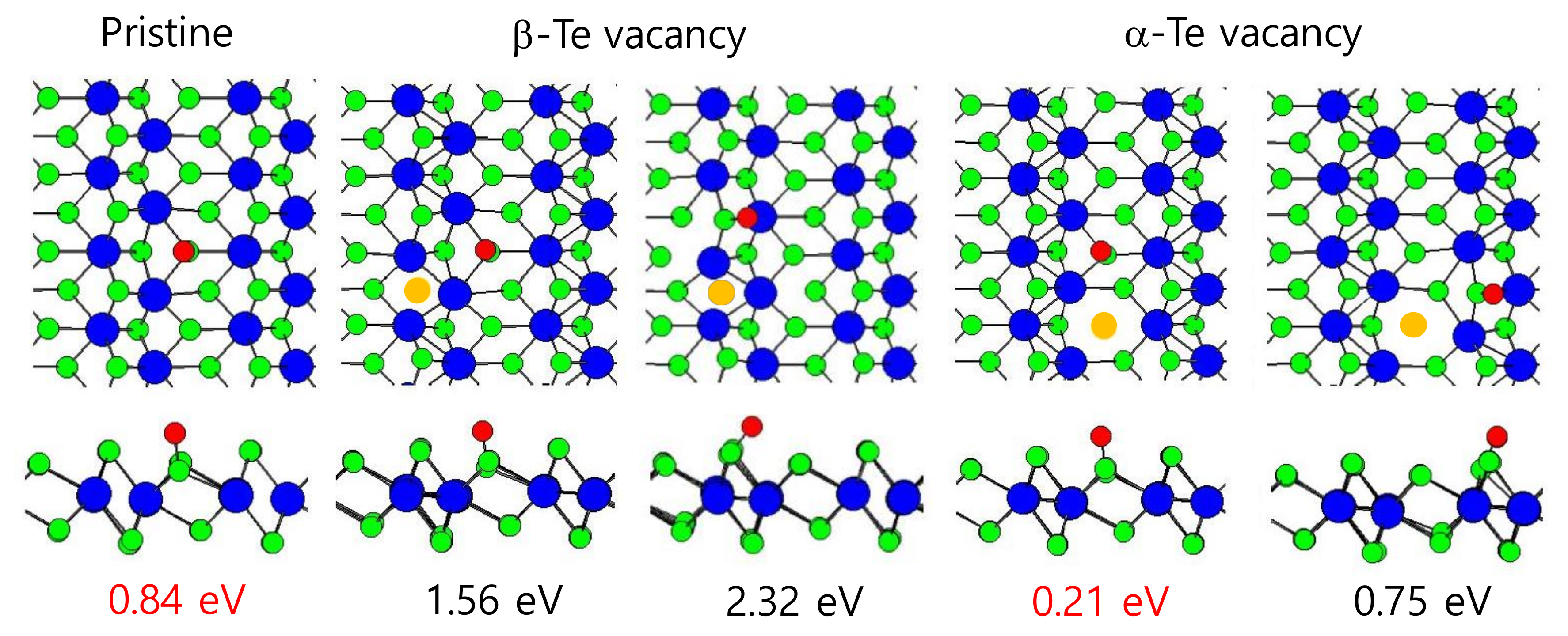

Considering the Gibbs free energies of α sites in TMTe₂, the defect creation can help to enhance the hydrogen adsorption on basal plane of TMTe₂. Figure 4 shows the energies of hydrogen adsorption of α and β sites in MoTe₂ with or without Te defects. We can decrease the energy of hydrogen adsorption at α sites from 0.84 eV to 0.21 eV with Te defects, which can be a considerable value for better HER.

4. Conclusions

In conclusion, the basal plane catalytic activity for the HER was investigated with three metallic TMTe₂ (TM: Mo, W, and V). We measured the electrochemical measurements, LSVs, EISs, and CVs, and obtained the overpotential, Tafel slope, exchange current, α site density, TOF, C_DL, and R_CT. Among the three TMTe₂, VTe₂ had the best HER performance with an overpotential of −441 mV and a Tafel slope of 70 mV/dec. Even though VTe₂ had the lowest exchange current, the α site density and TOF among the three TMTe₂, the lowest R_CT of VTe₂ seems to be critical to achieve the best HER performance. Our study suggests that the inherent HER performance of metallic TMDs can be enhanced by enhancing the charge transfer process, increasing the electrochemical active surface area or by creating Te vacancies.
