Thermal Infrared Imaging-Based Affective Computing and Its Application to Facilitate Human Robot Interaction: A Review

Chiara Filippini
David Perpetuini
Daniela Cardone
Antonio Maria Chiarelli
1 and
Arcangelo Merla
Department of Neuroscience and Imaging, Institute for Advanced Biomedical Technologies, University G. D’Annunzio of Chieti-Pescara, Via Luigi Polacchi 13, 66100 Chieti, Italy
Next2U s.r.l., Via dei Peligni 137, 65127 Pescara, Italy
Author to whom correspondence should be addressed.
Appl. Sci. 2020, 10(8), 2924;
Submission received: 6 March 2020 / Revised: 16 April 2020 / Accepted: 21 April 2020 / Published: 23 April 2020
(This article belongs to the Special Issue Ubiquitous Technologies for Emotion Recognition)


Over recent years, robots are increasingly being employed in several aspects of modern society. Among others, social robots have the potential to benefit education, healthcare, and tourism. To achieve this purpose, robots should be able to engage humans, recognize users’ emotions, and to some extent properly react and "behave" in a natural interaction. Most robotics applications primarily use visual information for emotion recognition, which is often based on facial expressions. However, the display of emotional states through facial expression is inherently a voluntary controlled process that is typical of human–human interaction. In fact, humans have not yet learned to use this channel when communicating with a robotic technology. Hence, there is an urgent need to exploit emotion information channels not directly controlled by humans, such as those that can be ascribed to physiological modulations. Thermal infrared imaging-based affective computing has the potential to be the solution to such an issue. It is a validated technology that allows the non-obtrusive monitoring of physiological parameters and from which it might be possible to infer affective states. This review is aimed to outline the advantages and the current research challenges of thermal imaging-based affective computing for human–robot interaction.

1. Introduction

Human–robot interaction (HRI) can vary depending on the specific robotic function. In fact, robots have been effectively used in the last decade in therapy and educational interventions, but they have been also used where human interaction is not required, such as for example in robotic vacuum cleaner applications. Even though the latter were not designed to interact socially and form bonds with humans, it was found that people often attribute human-like characteristics to their robotic technology and that they express attachment toward them [1]. This is in line with the assertion that humans have a natural tendency to anthropomorphize everything around them, including technology [2]. This goes especially with children, who “are unlikely to only use a robot as a tool, and they will undoubtedly have some sort of interaction that can be considered social” [3]. Therefore, it would be desirable that robots, which are designed to interact with adults and children, would be able to socially interact. To facilitate the interaction, robots should be easy to use, and they should be built to understand and correctly respond to different needs. As robots gain utility, and thereby influence on society, research in HRI is becoming increasingly important. HRI primarily deals with social robotics and includes relevant aspects of robot action, perception, and cognition. The development of social robots focuses on the design of living machines that humans would perceive as realistic, effective, communicative, and cooperative [4]. For this purpose, social robots should be able to express, through their shapes and behaviors, a certain degree of “intelligence” [5]. This skill entails the whole set of social and perceptual abilities of the robot, delivering a human-like interaction.
However, on the other hand, the matter about the anthropomorphism of social robots is still strongly debated. Indeed, the inclination to anthropomorphize the existing technology could have negative consequences [6] and even lead to an unrecognized change in human relationships [7] or invasion of privacy [8]. Therefore, it would be prudent to distinguish cases in which the use of anthropomorphism can be encouraged and cases in which it would be better not to [9]. Darling [10] argues that anthropomorphic framing is desirable where it enhances the function of the technology. Especially, it should be encouraged for social robots and discouraged for robots that are not designed in an intrinsically social way [9,10]. The present review is focused on social robots and in this context, their anthropomorphism is aimed at facilitating the interaction with humans.
An important key to reproduce a human-like behavior and facilitate HRI is the understanding of human emotional reactions. In recent years, a great effort was devoted to endowing the robot with the capability of interpreting and adapting to humans’ emotional state. Consequently, a core aspect of HRI is Affective Computing. The term Affective Computing was created over 10 years ago; it is defined as "computing that relates to, arises from, or deliberately influences emotion or other affective phenomena" [11]. Since then, the community developed different concepts, models, frameworks, and demo applications for affective systems that are able to recognize, interpret, process, and simulate human feelings and emotions. However, these activities have been currently limited to possibility studies, proof-of-concept prototypes, or demonstrators.
Human emotions are indeed manifested as visible changes in facial expressions, gestures, body movements, or voice tone [12]. Beyond these observable expressive channels, physiological modulations also occur and can be observed as modifications in blood pressure, heart rate, or electrodermal activity [13,14]. These modulations are controlled by the autonomic nervous system and are not directly visible to humans. The main approaches to objectively measure these emotional signs rely on the observation of the face, gestures or body posture, and on measurements of physiological parameters through contact sensors [15,16]. Visual observation has the advantage of being completely non-invasive and only moderately intrusive. In fact, whereas a camera is being considered an intrusion into privacy, people are inclined to accept and forget it once they get used to it and see a value in it [17]. Furthermore, the greatest advantage of using the visual domain for emotion recognition is that it relies on years of study and cutting-edge algorithms developed for face identification and facial expressions analysis. The disadvantage of the visual approach is that people are prone to avoid facial expressions when interacting with technical systems [18]. In fact, the facial display of emotional states characterizes the human-to-human interaction, and it was acquired through evolution to facilitate communication and to influence others’ actions [19,20]. Since machines do not still respond to emotional expressions, humans have not yet learned to use this channel when communicating with a robot. On the contrary, measuring physiological parameters has the advantage of evaluating features that people cannot control or mask [21]. Therefore, they may deliver much more reliable data about the emotional symptoms than visual channels. Physiological parameters such as heart rate, skin temperature, and electrodermal activity are very simple to acquire and analyze. The drawback of working with physiological readings is that they are mostly obtained through contact sensors [22]. Direct contact with the person’s skin requires the willingness to correctly wear the device. Novel wearable sensors have to meet various technological requirements (e.g., reliability, robustness, availability, and quality of data), which are often very difficult to obtain. Finally, the time required for sensors placing is not negligible.
In recent years, thermal InfraRed (IR) imaging has been used for Affective Computing [23,24,25], and it exploits the advantages of both visual and physiology measuring approaches, as well as overcoming their drawbacks. Thermal IR imaging-based Affective Computing is a breakthrough technology that enables monitoring human physiological parameters and Autonomic Nervous System (ANS) activity in a non-contact manner and without subject’s constraining [26]. Although thermal IR imaging has been widely used for human emotion recognitions [27,28,29,30,31,32,33,34,35], its application in HRI implies overcoming ambitious and entirely new challenges. The most important ones are real-time monitoring and real-life applications. To this end, the use of a mobile and ideally miniaturized technology is essential to bridge the gap between laboratory and real-world applications. In addition, since robots should be commercially available, they need to include low-cost technology, which implies facing further issues such as low resolution and signal-to-noise ratio.
In this survey, the importance of facilitating HRI in different aspect of everyday life is firstly highlighted. The state-of-the-art of affective state recognition through thermal IR imaging is briefly reviewed. Afterwards, the above-mentioned challenges are examined, indicating what has been done so far and suggesting further development to ensure its future efficient use in the field. Finally, the possible impact of this technology for HRI applications in infants, children, and adults is highlighted.

2. Study Organization and Search Processing Method

This study has been carried out as a systematic literature review based on the original guidelines as proposed by Kitchenham [36]. The work aims to highlight the positive impact that the thermal IR imaging technology can have on HRI application, facilitating and enhancing this interaction by recognizing the human affective state. For this purpose, the research questions (RQ) addressed by this study were:
RQ1. What is the broad social impact of a facilitated HRI? Or Why is facilitated HRI important?
RQ2. What are the scientific bases for thermal IR imaging as an affective state recognition technique?
RQ3. What are the limitations of current research?
RQ4. Has thermal IR imaging already been addressed in the HRI field?
One of the goals of this study was to make this review as inclusive and practical as possible. Therefore, the databases searched were both Scopus and Google Scholar. All the papers published in conferences and journals between 2000 and 2020 were considered. Papers published from the year 2000 were considered, since the word “Affective Computing” was coined by Picard that year [6], and “Affective Computing” started to be applied in the HRI field. For each research question, a search process was applied.
Concerning RQ1, the search was based on the words “facilitate” and “human–robot Interaction”. In the Scopus database, the survey was set up by searching for those words within the following fields: article title, abstract, and keywords. The basic search generated 441 results. In the Scholar database, on the other hand, the advanced search can be performed either by searching (i) the entire text or (ii) the title only. Therefore, the search was based on “facilitate human–robot interaction” within the entire text. A total of 360 results were obtained from the Scholar survey. The review papers and all the papers that did not refer to a user study or that did not relate to HRI were excluded, which reduced the considered pool to 155 papers. Within those papers, 130 were related to Scopus research, and 105 were from Scholar with an overlap of 80 papers. The manual review process was adopted for the final exclusion; the papers’ abstracts were scanned, and all the papers that did not report experimental applications of human interaction were discarded. A total of 18 papers were discussed in the review concerning these keywords. Among those papers, 13 papers resulted from both Scopus and Scholar research, while 5 were from Scholar only.
With respect to RQ2 and RQ3, the searched keywords were “thermal imaging” OR “IR imaging” OR “thermography” AND “emotion recognition” OR “Affective Computing” OR “emotion”. In the Scopus database, those keywords were surveyed in fields such as article title, abstract, and keywords. Whereas in Scholar, the advanced survey was carried out by searching for “thermal imaging” OR “IR imaging” OR “thermography” with at least one of these words: “Affective Computing” OR “emotion”, and the field searched was the entire text. The search generated 115 results in Scopus and 163 in Scholar with an overlap of 95 papers. The results were scanned through a manual review procedure focused on the papers’ abstracts, which aimed to identify whether the considered works reported on thermal IR imaging for human emotion recognition. Papers not related to it were excluded. The resulting papers were analyzed and grouped based on their experimental applications, strengths and limitations were indicated, and 46 were reported in the present work. Among those papers, 40 papers resulted from both Scopus and Scholar research, while 6 were from Scholar only.
Finally, as for the RQ4, the keywords “thermal imaging” OR “IR imaging” OR “thermography” AND "human–robot interaction" were searched. The fields checked and the procedure performed were the same reported in the previous RQs. The basic search generated 13 results in Scopus and 388 in Scholar. Ten papers that resulted from Scopus search were also found in the Scholar research outcome. Exclusion criteria regarded all the results that were not conference or journal papers actually related to thermal IR imaging applied in the HRI field. From the latter, 20 papers of thermal IR imaging-based Affective Computing were selected and included in this work. Among those papers, a subset of 2 papers was linked to both RQ2/RQ3 and RQ4; therefore, it was reported in both sections.

3. The Importance of Facilitating Human–Robot Interaction

Robotic technologies and HRI are being increasingly integrated in real-life contexts. Modern society creates ever more spaces where robot technology is intended to interact with people. Robots applications can range from education to communication, assistance, entertainment, healthcare, and tourism. Hence, there is a need to better understand how robotic technologies shape the social contexts in which they are used [37]. In this section, the importance of a natural and efficient HRI, in three major fields such as education, healthcare, and tourism, is deepened.
Economic and demographic factors drive the need for technological support in education. The growing number of students per class, the reduction of the school budget, and the demand for greater personalization of curricula for children with diverse needs are encouraging research on technology-based support for parents and teachers [38]. Hence, the efficacy of robots in education is of primary interest. Movellan et al. deployed a fully autonomous social robot in a nursery school’s classrooms for a period of 2 weeks in order to study whether the robot could improve target vocabulary skills in toddlers (18–24 months age) [39]. The results showed that the vocabulary skills improved significantly; in fact, the number of learned words increased by 27% when compared to a matched set of control. Considerable educational benefits can also be obtained from a robot that takes on the role of a novice (i.e., a care-receiving robot), thus allowing the student to take on the role of the instructor, which generally improves self-confidence and learning outcomes. This phenomenon is known as learning by teaching. An example is the educational use of Pepper (Figure 1), which was designed to learn together with children at their home environment from a remote teacher [40].
Social robots are also widely used in healthcare fields. Given the exponential growth of vulnerable populations (e.g., the elderly, children with developmental disabilities, and sick people), there is an increasing demand for social robots that are able to provide aids and entertainment for patients in the hospital or at home. For instance, an important contribution can be provided by companion robots especially among sick people, in the mitigation of boredom, depression, isolation, and loneliness. In this perspective, Banks et al. explored the ability of a robotic dog (AIBO) to treat loneliness in elderly patients living in long-term care facilities (LTCF). Results demonstrated that LTCF residents showed a high level of attachment to AIBO, highlighting the capability of interactive robotic dogs to reduce loneliness [41].
Together with companion robots, therapy robots are also considered of high social impact. Therapy robots are generally employed to deliver treatment for people with physical and mental diseases, such as Autism Spectrum Disorder (ASD). A recent review reported statistics showing an annual increase in the number of children with ASD, starting from 1 out of 1000 children in 1970 up to 1 out of 59 children in 2018 [42]. Thus, the need for innovative care and proper attention for ASD children is compelling. Particularly, researches have shown that people suffering from Autism Spectrum Disorders (ASD) responded better to treatments involving robotic technology rather than treatments from human therapists [43]. Moreover, it was demonstrated that the use of robots in education helps ASD children to improve their abilities to handle social and sensory challenges at school environment and to better control the anxiety and stress [44,45]. Furthermore, Wilson et al. noted that one of the major barriers to the education of children with autism pertains to lack of knowledge, training, and specialized support staff as well as the lack of adequate resources for education and classroom size [46]. Therefore, the development of robots with advanced emotion recognition and HRI capabilities that can be used at school or at home is becoming essential in supporting ASD patients.
Finally, several applications in the literature confirmed the importance of HRI in tourism settings. In fact, with recent technological advancements in artificial intelligence (AI) and robotics, we see an increasing number of service robots entering tourism and hospitality contexts, including consumer-facing ones [47]. For instance, Niculescu et al. developed SARA (Singapore’s Automated Responsive Assistant), a robotic virtual agent, to offer information and assistance to tourists, being able to detect the user’s location on a map [48]. CLARA is a virtual restaurant recommendation system and conversational agent that provides tourists with information about sightseeing, restaurants, transportation, and general information about Singapore [49]. However, the adoption of service robots inevitably changes the nature of service experience. Unlike industrial robots whose performance metrics depend entirely on efficiency, the success of service robots depends on user satisfaction and, consequently on the degree of empathy and natural interaction. Tussyadiah et al. focused on consumer’s evaluation of hotel service robots. In their study, they surveyed consumer response to two types of robots, NAO and Relay. The results revealed that consumer intention to accept hotel service robots is influenced by their interaction with the robot, dimensions of anthropomorphism, perceived intelligence and security [47]. The same conclusion was drawn from Kervenoael et al. in [50], where they stated that empathy from service robots has a positive and significant effect on the intention to use a robot. Empathy is meant as the robot’s ability to understand or feel what another person is experiencing from within their frame of reference, i.e., the robot’s ability to recognize emotion and to respond it in an appropriate way. In conclusion, beyond the requirement of well-programmed social robots, in order to cater to specific consumers or interlocutor’s needs, they must incorporate a seamless integration of safe and reliable service that includes courtesy and inspires trust.
With sophisticated robots or artificial agents becoming ever more ubiquitous in daily life, their appropriate use is crucial. In this section, we provided examples of their positive impact on fields such as education, healthcare, and tourism. Research on HRI requires contributions and expertise from heterogeneous disciplines, including engineering and artificial intelligence. In fact, to ensure a natural HRI, social robots need to recognize human emotions, respond adequately to them, understand and generate natural language, have reasoning skills, plan actions, and execute movements in line with what is required by the specific context or situation [51]. A good extent of the effort can be ascribed to emotion recognition, which currently requires exploring fields of facial expression analysis and speech processing, which are anything but trivial tasks. Relying on emotion recognition through non-obtrusive physiological sensing, thermal IR imaging-based affective computing can be a way to avoid some of those challenges. Although this technique is already used in the field of emotion recognition, methodological considerations are required to make it suitable for HRI applications.

4. Affective States Recognition through Thermal IR Imaging

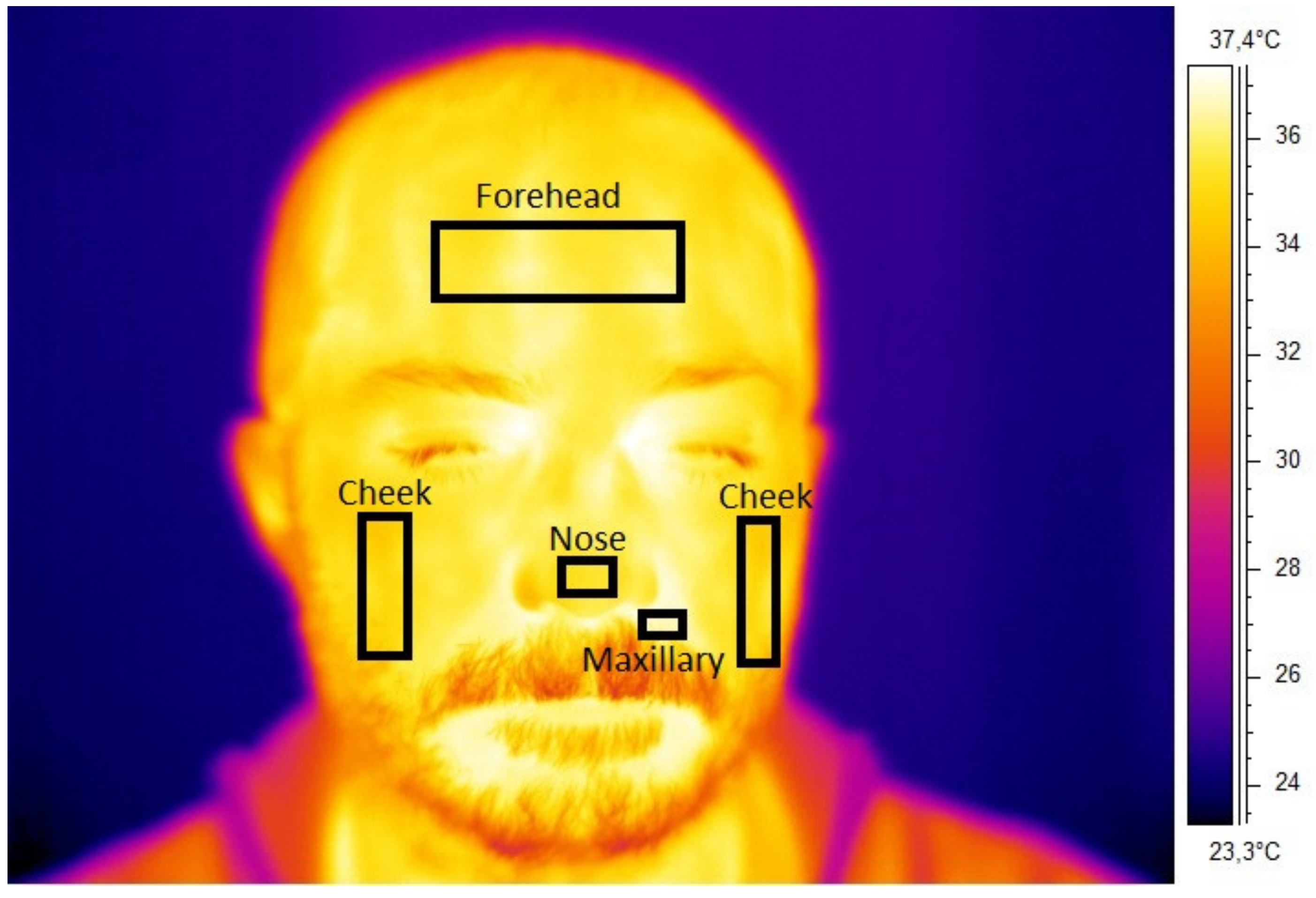

A considerable number of studies have explored the use of thermal IR imaging for classifying affective states and human emotions. Those studies were based on measuring a person’s physiological cues that are considered related to affective states. Indeed, the observations of affective nature derive primarily from muscular activity, subcutaneous blood flow, perspiration patterns in specific body parts, as well as from changing in breathing or heart rate, which are all phenomena that are controlled by our ANS. Measuring facial cutaneous temperature and assessing both its topographic and temporal distribution can provide insights about the person’s autonomic activity. This depends on the ANS’s role in the human body’s thermal homeostasis and in the regulation of physiological responses to emotional stimuli [29]. Alert, anxiety, frustration responses, and other affective states determine the redistribution of the blood in the vessels through vasodilation or vasoconstriction phenomena which are regulated by ANS. These phenomena can be captured by an IR thermal camera through changes in the IR emissivity of the skin. Vasoconstriction implies a decrease in temperatures of the Region Of Interest (ROI). On the other hand, vasodilatation is the cause of heating. Vasomotor processes can be identified and monitored over time because they produce a thermal variation of the skin and they can be characterized by simple metrics such as temperature difference between data at two temporal points. For this reason, most researchers have focused on studying the relationship between thermal directional changes (i.e., temperature drop and rise) of specific skin areas in relation to psychophysiological states [28,31,52,53]. As a body area of interest, the human face is considered of particular importance since it can be easily recorded and it is naturally exposed to social stimuli. Regions of the face extensively characterized are the nose or nose tip, the glabella (area associated with the corrugator muscle), the periorbital area, forehead, and the orbicularis oculi (surrounding the eyes), as well as the maxillary area or the upper lip (perinasal) [24,28,54]. Partially evaluated regions were cheeks, carotid, eyes, fingers, and lips. An exhaustive review on this topic by Ioannou et al. summarized the emotions, the observed regions, and the direction of the average temperature changes in those regions (Table 1) [55].
Similar results were found in a recent study by Cruz-Albarran et al., where thermal IR imaging was used during the emotions induction process to quantify temperature changes that occurred on different ROIs of the face [56]. The authors were able to classify the emotions relying on regional temperatures with an accuracy of 89.9%. The induced emotions were joy, disgust, fear, anger, and sadness. The examined ROIs were nose, cheeks, forehead, and maxillary area, which are depicted in Figure 2. Among all the ROIs, the nose and maxillary area were the most responsive to emotional stimuli, as they showed a significant change in temperature in all the induced emotions. The forehead temperature changed during sadness, anger, and fear, while the temperature of the cheeks changed during disgust and sadness.
Emotion identification through thermal IR imaging was also employed in studies on children. Such applications may receive the greatest benefit from the technology thanks to the ecological nature of this technique and the difficulties associated with measuring children with skin-located sensing. Goulart et al. proposed an experimental design to identify five emotional states (disgust, fear, happiness, sadness, and surprise) evoked in children between 7 and 11 years old [57]. The forehead, the tip of nose, the cheeks, the chin, the periorbital and the perinasal regions were chosen to extract the affective information. Each thermal frame was processed by segmenting the ROIs and evaluating the ROIs’ temperature mean, variance, and median values. Then, a linear discriminant analysis was used as a classifier. High accuracy (higher than 85%) was obtained for the classification of the five emotions, thus resulting in a robust method to identify quantitative patterns for emotion recognition in children. Temperature decrease was detected in the forehead region during disgust and surprise; in the periorbital region during happiness, sadness, and surprise; in the perinasal region during disgust and happiness; in the chin during surprise, happiness, and sadness; and finally, in the nose during disgust, fear, and happiness. The temperature increase was detected in the left cheek region for all emotions and in the nose tip during surprise.
Beyond the basic emotions, thermal IR imaging has been used to characterize the two dimensions of emotions, such as valence (pleasant versus unpleasant) and arousal (low versus high). Emotions dimensions are a crucial aspect in the affective research field, on which most of the studies on emotions recognition are based. The most commonly used models representing emotions dimension in HRI are the Pleasure, Arousal, Dominance (PAD) emotional state model [58] and the circumplex model of affect [59]. The PA dimensions of PAD were developed into the circumplex model, which indeed assume that any emotion might be described with two continuous dimensions of valence and arousal [60]. The valence dimension indicates whether the subject’s current emotional state is positive or negative. Arousal, on the other hand, indicates whether the subject is responsive or not, at that given moment and for that given stimulus, and how active he/she is. In particular, the theory of the dimension of the emotions proposes that the emotional states are not discrete categories but rather a result of varying degrees of their dimensions. A graphical representation of the circumplex model of affect developed by Russel is reported in Figure 3. For example, joy is characterized as the product of strong activation in the neural systems associated with positive valence or pleasure together with moderate activation in the neural systems associated with arousal (i.e., low arousal). Emotions other than joy likewise arise from the same two-dimensional systems but differ in the degree or extent of activation. This allows characterizing also complex emotions such as love or happiness other than the basic ones. The analysis of the emotion recognition solutions reveals that there is no one commonly accepted standard model for emotion representation. The dimensional adaptation of Ekman’s six basic emotions and the circumplex or PAD model are the ones widely adopted in emotion recognition solutions [61].

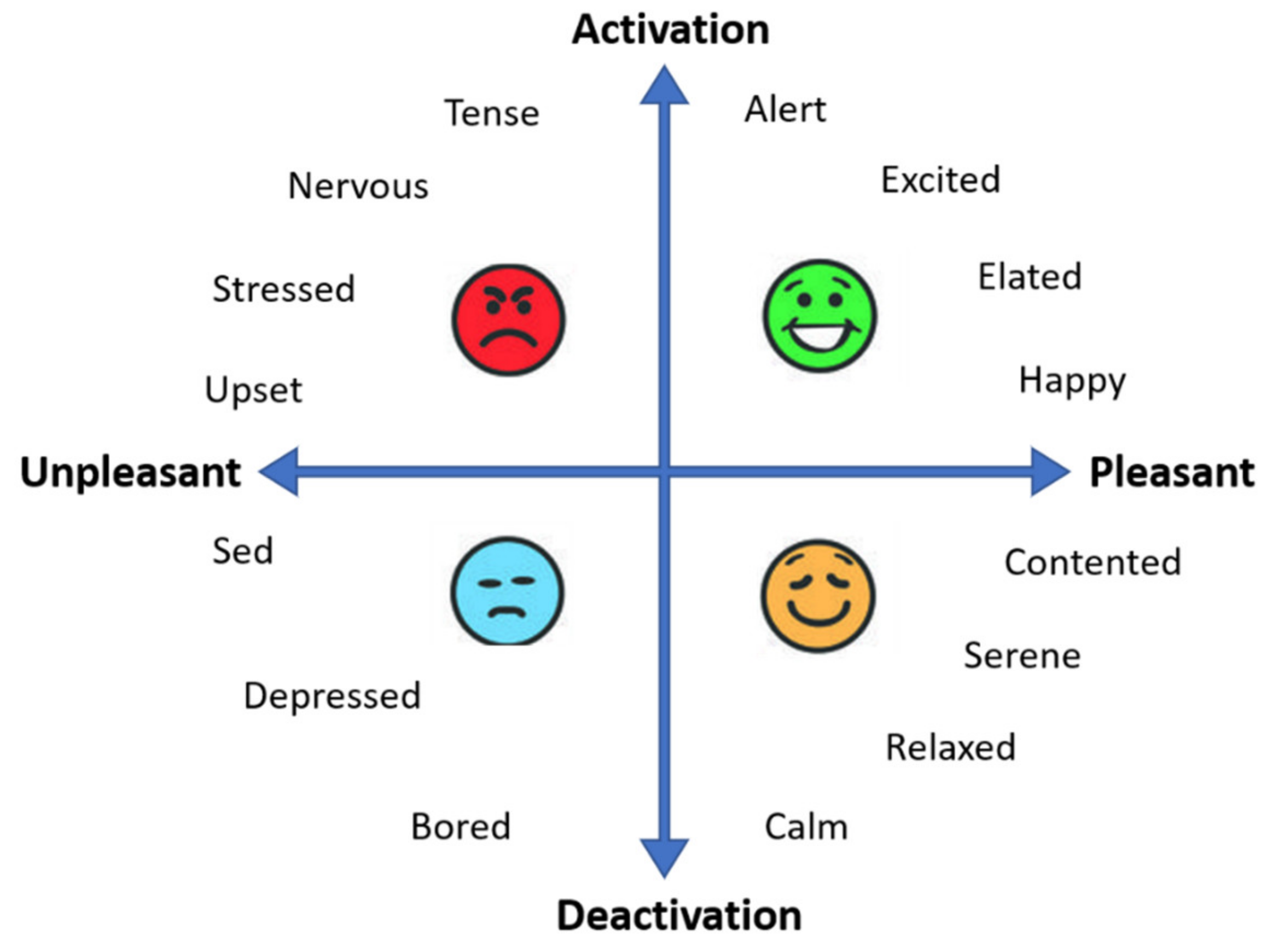

Recent studies explored temperature changes associated with different degrees of valence and arousal. For instance, Salazar-Lopez et al. studied the relation between changes in temperature of the subject’s face and valence or arousal dimensions [53]. They used pictures from the International Affective Picture System (IAPS), which is widely used in studies of emotion recognition and characterized along the two dimensions [62]. The analyzed ROIs were the forehead (left and right sides), the tip of the nose, the cheeks, the eyes, and the mouth regions. Significant differences in temperature were found only on the tip of the nose. The results showed that high arousal images elicited temperature increases on the tip of the nose, while low arousal images led to temperature increases for pleasant images (i.e., positive valence) and decreases for unpleasant ones (i.e., negative valence). Contrasting results were indeed found by Kosonogov et al. [63]. The authors found no significant temperature differences along the valence dimension of the emotions (i.e., pleasant and unpleasant emotions). Besides, an activation effect of emotional pictures was found on the amplitude and latency of nasal thermal responses: the more arousing the pictures, the faster and larger the thermal responses. The only evaluated region was the tip of the nose. The relevance of the emotional arousal in causing changes in the nose tip temperature is supported and demonstrated in different studies, such as in Diaz-Piedra et al., where a direct relationship was found between reduced levels of arousal and nasal skin temperature [64], and confirmed in Bando et al. [65].
Moreover, Pavlidis et al. proposed quantifying stress through thermal IR imaging [54]. Stress in the valence–arousal space is identified as negative valence and high arousal [66]. Pavlidis et al. found that high stressful situations resulting in the cooling of the area around the nose tip [54]. Parallel results were found in children, Ioannou et al. obtained, in their study of guilt in children (age 39–42 months), in which the higher the distress signs, the higher the decrease in nose temperature [67]. The sense of guilt was induced through the “mishap paradigm” in which children were led to believe they had broken the experimenter’s favorite toy (Figure 4). The temperature of the nasal area decreased following the “mishap” condition, suggesting a sympathetic activation and peripheral nasal vasoconstriction, and it increased after soothing due to a parasympathetic activation.
Vasomotor process, subcutaneous blood flow, and perspiration patterns are not the only physiological measures that can be detected through thermal IR imaging. In fact, the physiological signature of the autonomic system activation such as heart and breathing rate variation can be also monitored [69,70,71,72]. These two parameters are measurable with thermal IR imaging by positioning a ROI over a superficial vessel or over the nostrils respectively and by monitoring the ROI average temperature over time. Whereas the latter is easily detectable, because the thermal difference between the expired and inspired air is easily appreciable (approximately 0.5 °C), the modulation of temperature caused by the pulsation of blood in the vessel is not. Therefore, a series of algorithms have been developed for the estimation of the heart rate through thermal imaging [69]. Cross et al. used thermal IR imaging to detect physiological indicators of stress in the adult population by analyzing the respiration and heart rate variation during the performance of mental and physical tasks [26]. Temperature variation over time was recorded on the nose tip and regions near superficial arteries to detect respiration and heart rates, respectively. The results showed that the accuracy in the physical versus psychological stressors classification was greater than 90%, and the heart and respiration rate were accurately detected by thermal IR imaging. Whereas the evaluation of the heart rate through thermal IR imaging is not common in the literature, the respiration rate assessment through thermal IR imaging has been tested in different settings, including sleep monitoring [73], neonatal care [74], and driver’s drowsiness monitoring [75].

5. Limits of Current Thermal IR Imaging for HRI Applications

Studies reviewed in this section revealed thermal IR imaging ability to monitor physiological signs and affective states. Although they have sometimes shown incongruent results (e.g., nose tip temperature did not significantly change along the valence dimension of the emotions in Kosonogov et al. [63], whilst it did change in Salazar-López et al. [53]), these findings open exciting prospects for affective computing. One of the causes of inconsistency could be that a single discrete metric is maybe not always sufficient, since it could be susceptible to the complex physiological mechanisms [76]. In addition, there could be interaction effects between affective states. Nonetheless, all the affective states analyzed have the capability to induce ROI temperature variations. However, an important consideration is that all these studies were conducted using high-end thermal camera and performed in controlled laboratory settings. The thermal systems mostly used in literature are FLIR (Wilsonville, OR, USA) A655sc with 640 × 480 spatial resolution, a 50 Hz sampling rate, and <0.03 °C thermal sensitivity and a FLIR A325sc with 320 × 240 spatial resolution, 60 Hz sampling rate, and <0.05 °C thermal sensitivity. In addition, all the observations reported were made in a climate-controlled room according to the International Academy of Thermology (IACT) guidelines [77]. In fact, IACT guidelines indicated that when performing a thermal IR imaging measurement, it is mandatory to control the temperature and humidity of the experimental room. They suggested a temperature range of 18–23 °C and a controlled humidity range between 40% and 70%. No direct ventilation on the subject and no direct sunlight (no windows or with curtains or blinds) is also recommended during the experimental measures. In conclusion, by analyzing the studies reported in this section, two main constraints were identified that are not suitable for HRI applications. Those are (1) the use of high-end and sized thermal imaging systems and (2) the circumstances in which the studies were conducted i.e., in restricted laboratory settings. On the other hand, HRI applications require daily life scenarios, eventually suitable for outdoor use, and technology embedded in commercial social robots, i.e., low-cost miniaturized sensors. In Section 6 and Section 7, those limits are addressed in order to highlight the new improvements developed in recent studies. A special emphasis was placed on these two sections as they deal with crucial aspects for the use of thermal IR imaging in the HRI field. Finally, the last section focuses on the actual state of the art of thermal IR imaging-based affective computing applications.

6. Mobile Thermal IR Imaging

The relevant spread of thermal IR technology, together with the miniaturization of IR detectors, induced manufacturers to produce portable thermographic systems, i.e., mobile and low-cost thermal IR imaging devices. One of the first companies to commercialize mobile thermal devices was FLIR with systems such as the FLIR ONE Pro, 160 × 120 spatial resolution, an approximately 8.7 Hz sampling rate, 0.15 °C thermal sensitivity, and dimensions of 68 × 34 × 14 mm3, or FLIR Lepton, 80 × 160 spatial resolution, an approximately 8.7 Hz sampling rate, <0.05 °C thermal sensitivity, and dimensions of 11.8 × 12.7 × 7.2 mm3. FLIR ONE was designed to be integrated on mobile phones. Another mobile thermal system designed to be integrated on a mobile phone is the Therm-App system developed by Opgal manufacturer; it has 384 × 288 spatial resolution, an approximately 9 Hz sampling rate, approximately 0.07 °C thermal sensitivity, and dimensions of 55 × 65 × 40 mm3. Market research has shown that the SmartIR640 mobile thermal system, manufactured by Device aLab (640 × 480 spatial resolution, 30 Hz sampling rate, <0.05 °C thermal sensitivity, and dimensions of 27 × 27 × 18 mm3) is also a valid solution, but it is not yet used for research projects.
Despite the relatively low-quality thermal imaging outputs of a mobile thermal system, this technology could help bridge the gap between the findings from highly constrained laboratory environments and wild real-world applications. Indeed, its portability (e.g., small size and low computational resource requirement) allows the camera not only to be easily attached to a mobile phone but also to be integrated in a social robot head. Recent studies have started to explore mobile thermal IR imaging for affect recognition tasks, especially focused on stress monitoring [78,79,80,81]. Cho et al. proposed a system consisting of a smartphone camera-based PhotoPlethysmoGraphy (PPG) and a low-cost thermal camera added to the smartphone, which was designed to continuously monitor the subject’s mental stress [78]. By analyzing the nose tip temperature and the blood volume pulse through PPG [82,83], they were able to classify the stress with an accuracy of 78.33%, which is comparable to the state-of-the-art stress recognition methods. The employed mobile thermal camera was the FLIR ONE. The study was conducted in a quiet laboratory room with no distractions. Another study by the same authors included the mobile thermal camera as a standalone system to monitor mental stress [80]. The authors proposed a novel low-cost non-contact thermal IR imaging-based stress recognition system that relayed on the breathing dynamic patterns analysis. In fact, since breathing is an important vital process controlled by the ANS, its pattern monitoring can be informative of a person’s mental and physical condition. Results showed a classification accuracy of 84.59% for a binary classification (i.e., no-stress, stress) and an accuracy of 56.52% for multi-class classification (i.e., none, low, high-level stress). The breathing signal was recovered by tracking the person’s nostril area. Then, the extracted breathing signal was converted in a two-dimensional spectrogram by stacking the Power Spectral Density (PSD) vector of a short-time-window respiration signal over time. Since the PSD function handles the short-time autocorrelation that identifies similarities between neighboring signal patterns, it can be used to examine respiration variations in a short period [65]. The breathing signal was also investigated through the use of a mobile thermal camera by Ruminski et al., who embedded such a camera in smart glasses [84]. Basu et al. instead used a mobile thermal system for the challenging purpose of classifying personality (psychoticism, extraversion, and neuroticism) [81]. The proposed system classified the emotional state using an information fusion of thermal and visible images. A blood flow perfusion model was used to obtain discriminating eigenfeatures from the thermal system. Then, these eigenfeatures were fused with those of visible images and classified. The blood perfusion model was obtained by analyzing the thermogram of the entire face and using Pennes’ bioheat equation. The classification performance reached 87.87%.
Summarizing, mobile thermal IR imaging can provide high levels of flexibility and suitability for recovering physiological signatures such as the breathing signal and recognizing a person’s affective states. However, a key challenge on the use of a mobile thermal system is related to the low quality of the output signal due to the low thermal and spatial resolution of the imaging system. The low spatial resolution can be easily addressed by bringing the thermal camera closer to the region of interest, but this is not always possible. An interesting method to overcome such an issue is presented in Cho et al. [85]. The authors proposed the Thermal Gradient Flow and Thermal Voxel Integration algorithms. Thermal Gradient Flow was mainly based on building thermal-gradient magnitude maps for enhancing the boundary around the region of interest, which in turn contributes to making the system robust to motion artifacts in presence of low-resolution images. Instead, the Thermal Voxel Integration consisted of a projection of a 2D thermal matrix onto a 3D space by taking a unit thermal element as a thermal voxel. This method was applied for breathing signal analysis application, and it resulted in producing a higher quality of breathing patterns.

7. Thermal IR Imaging-Based Affective Computing Outside Laboratory Settings

The market entry of smaller and low-cost thermal cameras is paving the way for thermal IR imaging applications outside laboratory environments. However, only few studies have been conducted. One example is reported by Goulart et al., who proposed a camera system composed of thermal and visible cameras for emotion recognition in children [86]. The camera system was attached to the head of a social robot, and the experiment was conducted in a room within the children’s school environment. The room temperature was kept between 20 and 24 °C, using a constant luminous intensity. To capture thermal variation in the children’s faces, they used the mobile thermal camera Therm-App. A similar set-up has been reported in Filippini et al. [87]. The authors installed a mobile thermal IR imaging system, the FLIR ONE, on the head of a social robot. The study was conducted in a primary school. Filippini and Goulart’s studies are described in detail in the next section. Although both experiments were performed outside a laboratory setting, they still had constraints that are not adaptable to all real-life applications, such as the need to maintain a stable temperature, which is not possible in open air contexts or applications. Instead, Cho et al. conducted one of their experiments in unconstrained settings with varying thermal dynamic range scenes (i.e., indoor and outdoor physical activity). The experiment was aimed to monitoring a person’s thermal signatures while walking [85].
Concerning the employment of thermal mobile system for affective computing purposes, one of the most compelling challenges for real-world environment is to ensure reliable thermal tracking of the chosen ROIs. This is due to dynamic changes in ambient temperature that affect the skin and can cause an inconsistent thermal signal coupled with the low resolution of the low-cost thermal system. This aspect makes it difficult to track ROIs automatically. Moreover, applications in real-world scenarios require real-time responses from the sensors of interest. Hence, an automatic recording of thermal IR imaging data and real-time processing is required. In this regard, signal processing techniques need to be chosen based on their efficiency in terms of computational load to allow acceptable performance for real-time processing. In Goulart et al. and Filippini et al., the tracking algorithm in thermal images relied on the visible images [86,87]. Thereby, the first phase consisted on the camera calibration done through a synchronous acquisition between visual and thermal images and using a checkerboard whose details were clearly detectable by both the visible spectrum and the thermal camera. After the calibration, the face detection and ROIs localization were performed on the visible image, since a state-of-the-art computer vision algorithm can be used in the visible field, and then the ROI coordinates in the visible images were converted to those of the thermal image. In Goulart et al., the Viola–Jones algorithm was used for visible ROIs detection, and then these ROIs were transferred to the corresponding thermal camera frame through a homography matrix [86]. In Filippini et al., the authors used an object detector based on the histogram of oriented gradients (HOG) for face localization in visible images [87]. The extraction of landmarks was based, instead, on a regression tree ensemble algorithm. An average of 82.75% of the total amount of the frames were correctly tracked as a result. However, it is important to mention that a further improvement would be to develop a real-time tracker, based on the only IR videos, acquired by low-resolution thermal cameras, to avoid problems due to a low-light environment and to infer the psychophysiology state of the human interlocutor. An attempt in this direction was proposed in Cho et al., where the authors were interested in tracking the physiological signal related to the only breathing process, focusing on the nostril region [85]. The approach they proposed was intended to compensate for the effects of variation in ambient temperature and movement artifacts, and it was named the “Optimal Quantization” method. The quantization process itself is the process of translating from a continuous temperature value to its digital color-mapped equivalent. This method consisted in adaptively quantizing the thermal distribution sequences by finding a thermal range of interest that contains the whole facial temperature distributions for every single frame. Despite the enhancing approach, this cannot cover all possible scenarios such as contexts of high humidity or severe temperature condition. Nonetheless, the further development of automatic ROI tracking on thermal images in entirely mobile and ubiquitous situations is required.

8. Thermal IR Imaging-Based Affective Computing in HRI

For decades, a growing interest on the possibility of developing intelligent machines that engage in social interaction has been observed. Many researchers, also in the field of thermal IR imaging, have been enthralled with the HRI appeal and with the possibility of developing robots that are capable of social interactions with humans. The application of thermal IR imaging in this field was firstly investigated by Merla in 2014 [88]. Since then, many studies have been conducted to validate the thermal IR imaging technique for emotion recognition analysis with the aim of applying this technique in the HRI field. However, only few applications have been actually implemented in this area. One of the first attempts was carried out by Sorostinean et al. [89]. In this study, the authors presented the design of a thermal IR imaging-based system mounted on a humanoid robot performing a contact-free measurement of temperature variations across people’s faces in a stressful interaction. The results showed a statistically significant interaction between the distance and the gaze direction of the robot and the temperature variation of the nasal and peri-nasal region. This supported the fact that thermal imaging sensors can be successfully employed in embodying robots with physiological sensing capabilities to allow them to become aware of their effect on people, know about their preferences, and build a reactive behavior. Agrigoroaie et al. reported promising preliminary results in their attempt to determine if a person was trying to deceive a robot through the use of a mobile thermal camera [90]. Instead, Boccanfuso et al. evaluated the efficacy of the thermal IR imaging for detecting robot-elicited affective response compared to video-elicited affective response by tracking thermal changes in five ROIs on the subject’s face [91]. They studied the interaction effects of condition (robot/video) and emotion (happy/angry) on individual facial ROIs. Although no interaction effects for most ROI temperature slopes were found, a strong, statistically significant effect of the interaction between condition and emotion when evaluating the temperature slope on the nose tip was observed. This result confirms again the assumption that the nasal area is a salient region for emotion detection [32,67,92,93,94,95]. Recent studies included applications with more challenging populations such as infants and children. Scassellati et al. proposed the design of a unique dual-agent system that uses a virtual human and a physical robot to engage 6–12-month-old deaf infants in linguistic interactions. The system was endowed with a perception system that was capable of estimating infant attention and engagement through thermal imaging and eye tracking [96]. This study was part of a larger project designed to develop a system called RAVE (Robot AVatar thermal Enhanced language learning tool). RAVE is aimed to be an augmentative learning tool that can provide linguistic input, in particular visual language inputs, to facilitate language learning during one widely recognized critical developmental period for language (ages 6–12 months [97]) [96,98,99,100,101]. To this end, thermal IR imaging was used to determine the emotional arousal and attentional valence, providing new knowledge about when infants are most optimally “Ready to Learn”, even before the onset of language production. This is prominent for infants who might not otherwise receive sufficient language exposure. Of particular concern are deaf babies, many of whom are born to parents who do not know a signed language [96].
Although these studies were very ambitious and fascinating, they were still carried out in constrained laboratory settings, probably implying a not entirely free interaction. To the state of the art, the only two studies performed so far that have concerned HRI applications in a out-of-laboratory context are those reported in Section 7 [86,87].

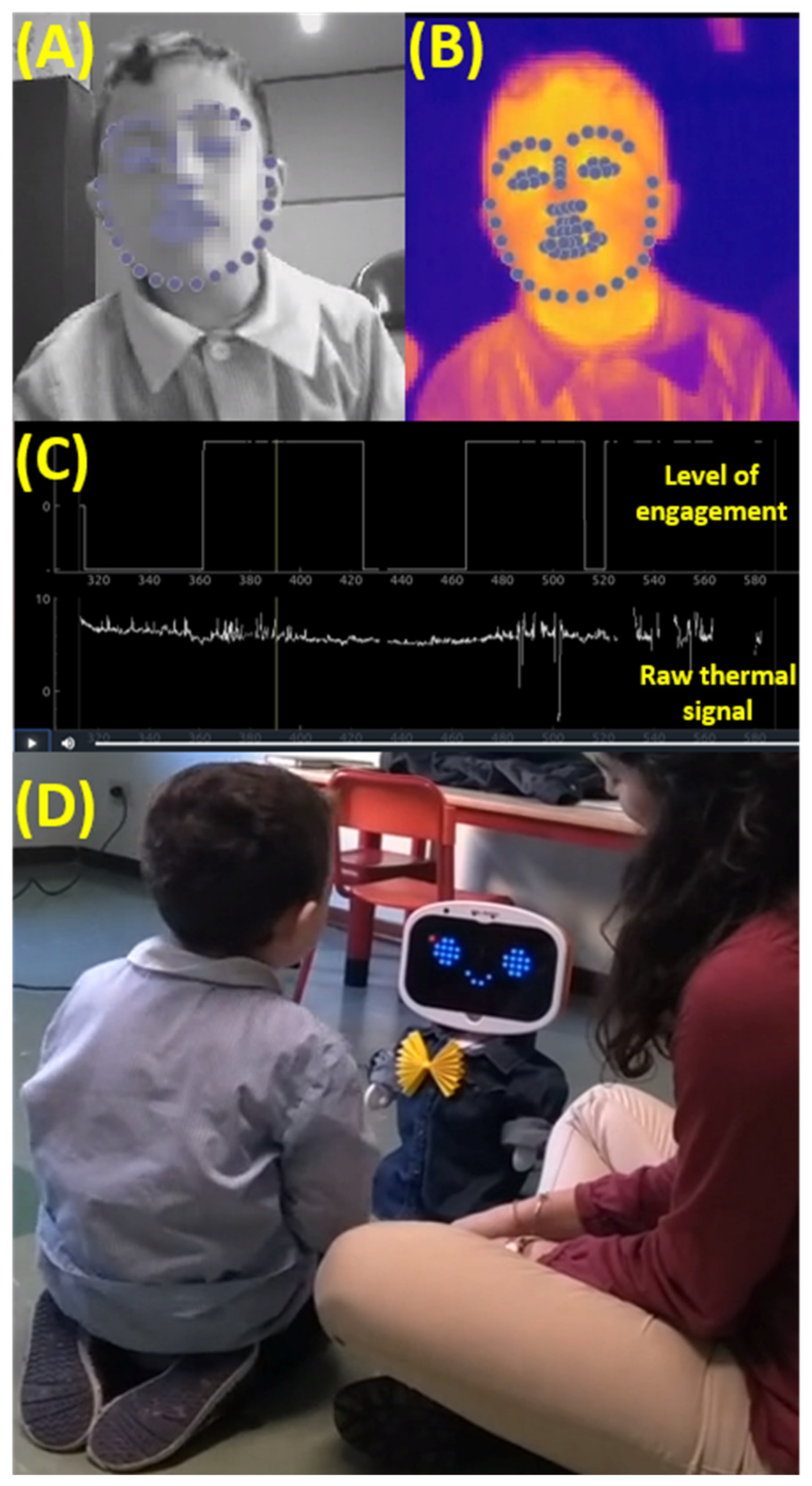

Goulart et al. used a mobile social robot called N-MARIA (New-Mobile Autonomous Robot for Interaction with Autistics), which was built in UFES/Brazil to assist children during social relationship rehabilitation [86]. In the interaction with the child, which lasted two minutes, the child was encouraged to make communication and tactile interaction with the robot. The robot was equipped with low-cost hardware (thermal and visible camera) used to give information about the emotional state of the child, which was related to five emotions (i.e., surprise, fear, disgust, happiness, and sadness). Results showed that the system was able to recognize those emotions, achieving 85.75% accuracy. Such accuracy was comparable with gold standard techniques in emotion recognition, such as facial expression analysis and speech tone analysis [102,103,104,105,106]. Filippini et al. used the social robot “Mio Amico” robot, produced by ©Liscianigiochi, in which the mobile thermal system FLIR ONE (which includes a thermal and a visible camera) was installed on the head of the robot [87]. The study aimed to endow the robot with the capability of real-time assessment of the interlocutor’s state of engagement (positive, neutral, and negative emotional engagement). During the interaction between the robot and the child, the robot could either tell a fairy tale or sing a song. At the end of the fairy tale or the song, the robot asked the child if he/she liked the fairy tale/song and if he wanted to listen to another one. Based on the child’s answer, the robot could choose the next action. The engagement state of the infant was classified by analyzing the child’s thermal modulation using a low computational processing pipeline. Figure 5 summarizes in a–c the processing pipeline for the interlocutor’s state of engagement identification and (d) the child–robot interaction. The accuracy reached was 70%. Although this study presented a lower level of accuracy compared to Goulart et al. [86], it is worth mentioning that the estimation of the level of engagement can be considered a hard task, since it represents a complex emotion (combination of the basic ones), and it has been poorly investigated in the literature. Besides, the study reported in Filippini et al. [87] represents the first and unique study in which the robot could actually change its activities based on the child affective state, opening the way to a bidirectional interaction.

9. Thermal IR Imaging-Based Affective Computing in Intelligent Systems Such as Driver-Assistance Systems or Autonomous Vehicles

Besides humanoid robots, systems such as driver-assistance systems or autonomous vehicles can also be classified as “robots” due to their intelligent behaviors. Indeed, driving functions are becoming increasingly automated; consequently, motorists could run the risk of being cognitively removed from the driving process. Thermal IR imaging was demonstrated to be a valid technique for assessing variation in cognitive load [52,107,108]. Most of all, it could enable sensing the real-time state of motorists non-invasively i.e., without disrupting driving-related tasks and, unlike RGB cameras, independently from external light conditions [109]. Studies of thermal IR imaging in driving contexts stated that a rise in mental workload leads to an increase in the difference between nose and forehead temperature [108,110]. Moreover, thermal IR imaging was demonstrated to be a valuable indicator of the driver arousal level, from alertness to drowsiness [64,111]. A recent study employed it to detect human thermal discomfort in order to develop a fully automated climate control system in the vehicles [112]. Even in the view of automated vehicles, in complex situations, they will need human assistance for a long time. Therefore, for road safety, driver monitoring is more relevant than ever, in order to keep the driver alert and awake.
Autonomous driving relies on the understanding of objects and scenes through images. A recent study assessed a fusion system consisting of a visible and thermal sensor on object recognition from a driving dataset, and it demonstrated that thermal images significantly improve detection accuracy [113]. Miethig et al. argued that thermal IR imaging can improve the overall performance of existing autonomous detection system and reduce pedestrian detection time [114].
In conclusion, thermal IR imaging can be greatly useful also in vehicle technology; however, further testing is needed to better understand how it would improve automated vehicles and the knowledge about cognitive states in traffic safety.

10. Discussion

The advancement in robotics, especially in social robotics, is breathtaking. Social robots could potentially revolutionize the way of taking care of the sick or the elderly people, the way of teaching and learning, and even the definition of the concept of companionship. Nowadays, social robots hold the promise of extending life expectancies and improving health and the quality of life. In this review, the impact that social robots have in fields such as education, healthcare, and tourism is briefly surveyed. In all these areas, they are mainly intended to improve or protect the lifestyle and health, both physical and mental, of the human user. In fact, robots can also help socially impaired people relate to others, practice empathetic behaviors, and act as a steppingstone toward human contact. However, the most important and desirable requirement is that the robot meets the person’s needs. Robots actually need to be able to recognize the interlocutor’s affective state to communicate naturally with him/her and to engage him/her not only on a cognitive level but on an emotional level as well.
To be able to get information about the partner’s affective state, there are at least two possibilities. Either the user has to explicit and voluntarily express information about his/her emotions to the robot—for example, using natural language or facial expressions and gestures, or the robot has to recognize involuntary affective information from physiological measures, such as respiration, heart rate, skin conductance, skin temperature, and blood pressure. In the present review, the use of an ecological technology is promoted, such as the thermal IR imaging-based affective computing technique. It aimed to facilitate HRI by endowing the robots with the capability of autonomously identifying the person’s emotional state. Thermal IR imaging, by recording facial cutaneous temperature and its topographic distribution, is able to identify specific features clearly correlated to emotional state and measures associated with standard physiological signals of the sympathetic activity. Emotional state, in fact, determines a redistribution of the blood in the vessels through vasodilation or vasoconstriction phenomena, which are regulated by ANS. These phenomena can be identified and monitored over time because they produce a thermal variation on the skin. The thermal IR imaging technique is already validated in the literature for emotion recognition tasks.
Regarding emotion recognition, gold standard techniques such as speech and facial expression analysis were mentioned. However, it is worth mentioning that to distinguish between emotions, different models or theories have been so far developed and used by psychologists or cognitive neuroscientists. Thus, it is difficult to take a theory of one research field, such as psychology, and apply it to another, such as HRI. This remains an open discussion issue in the HRI research field. For instance, in speech analysis, the emotion recognition models developed using the utterances of a particular language usually do not yield appreciably good recognition performance for utterances from other languages [115]. On the other hand, in facial expression and gesture analysis, two main theories are currently established in emotion research: a discrete approach, claiming the existence of universal “basic emotions” [116], and a dimensional approach, assuming the existence of two or more major dimensions that can describe different emotions and distinguish between them [117]. The thermal IR imaging technique, i.e., the ROI’s temperature modulation analysis, has demonstrated to be suitable for emotion recognition based on both the basic emotion approach and on the dimensional theory of the emotion (as reported in Section 4). This makes thermal IR imaging a cross-cutting and ubiquitous technique in the area of emotion recognition and consequently a valuable contribution in HRI studies. Of course, thermal IR imaging is not the first and unique technology explored for emotion recognition through physiological measures in HRI, but it seems to be one of the most ecological. In this review, the major challenges toward the application of this technique in HRI fields has been highlighted, bridging the gap between the constrained laboratory setting and the real-world scenario. To this end, a few studies have been reported in the literature and were here analyzed. The application of thermal IR imaging-based Affective Computing in the field of HRI has been reviewed as well. Interesting results were reported by Goulart et al, in which the developed system was able to recognize emotions, achieving 85.75% accuracy [86]. To some extent, such accuracy can be comparable with gold standard techniques in emotion recognition for HRI, such as facial expression analysis and speech tone analysis.
An important aspect that further draws attention to this technique is its adaptability in applications where there is interaction between social robots and challenging populations such as neonates. This was the case of RAVE, the learning tool composed of an avatar and a social robot, which was designed to facilitate langue learning during the critical developmental period (age 6–12 months) and devolved to infants who might not otherwise receive proper language exposure. In conclusion, we believe that this review paves the way for the use of thermal IR imaging in HRI, which could endow the social robot with the capability of recognizing the interlocutor’s emotions relying on involuntary physiological signals measurements. These measurements may be fed to multivariate linear [118,119] or non-linear regressors or classification algorithms [120], also relying on data-driven machine learning and deep learning approaches [121,122]. In this way, it is possible to avoid the artifact of social masking and make HRI suitable also for people who lack the ability to express emotions. Beyond robots, intelligent systems such as autonomous vehicles or even smart buildings could also benefit from this technique.

11. Conclusions

HRI is a relatively young discipline that has attracted a lot of attention in recent years due to the increasing availability of complex robots and people’s exposure to such robots in their daily lives. Moreover, robots are increasingly being developed for real-world application areas, such as education, healthcare, eldercare, and other assistive applications. A natural HRI is crucial for the beneficial influence that robots can have in human life. Understanding the interlocutor’s need and affective state during the interplay is the foundation of a human-like interaction. To this end, an ecological technology such as thermal IR imaging, which can provide information about physiological parameters associated to the subject affective state, was here presented and surveyed. The technology can provide the ground for the further development of robust social robots and to facilitate HRI. Thermal IR imaging has already been validated in the literature in the fields of emotion recognition. This review can act as a guideline to, and foster, the use of thermal IR imaging-based affective computing in HRI applications, which is intended to support a natural HRI, with special regard to those who find difficult to express emotions.

Author Contributions

Conceptualization, C.F., A.M.; investigation, C.F., D.C., A.M.C., D.P.; writing—original draft preparation, C.F.; writing—review and editing D.C., A.M.C., D.P.; supervision, A.M.; funding acquisition, A.M. All authors have read and agreed to the published version of the manuscript.


This research was funded by PON FESR MIUR R&I 2014-2020 - Asse II - ADAS+, ARS01_00459 and PON MIUR SI-ROBOTICS, ARS01_01120.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Sung, J.-Y.; Guo, L.; Grinter, R.E.; Christensen, H.I. “My Roomba is Rambo”: Intimate home appliances. In Proceedings of the International Conference on Ubiquitous Computing, Innsbruck, Austria, 16–19 September 2007; Springer: Berlin/Heidelberg, Germany, 2007; pp. 145–162. [Google Scholar]
  2. Dautenhahn, K. Methodology & themes of human-robot interaction: A growing research field. Int. J. Adv. Robot. Syst. 2007, 4, 15. [Google Scholar]
  3. Salter, T.; Werry, I.; Michaud, F. Going into the wild in child–robot interaction studies: Issues in social robotic development. Intell. Serv. Robot. 2008, 1, 93–108. [Google Scholar] [CrossRef]
  4. Horvitz, E.; Paek, T. Harnessing models of users’ goals to mediate clarification dialog in spoken language systems. In Proceedings of the International Conference on User Modeling, Sonthofen, Germany, 13–17 July 2001; Springer: Berlin/Heidelberg, Germany, 2001; pp. 3–13. [Google Scholar]
  5. Kahn, P.H., Jr.; Ishiguro, H.; Friedman, B.; Kanda, T.; Freier, N.G.; Severson, R.L.; Miller, J. What is a Human? Toward psychological benchmarks in the field of human–robot interaction. Interact. Stud. 2007, 8, 363–390. [Google Scholar]
  6. Duffy, B.R. Anthropomorphism and the social robot. Robot. Auton. Syst. 2003, 42, 177–190. [Google Scholar] [CrossRef]
  7. Turkle, S. In good company? On the threshold of robotic companions. In Close Engagements with Artificial Companions; John Benjamins: Amsterdam, The Netherlands, 2010; pp. 3–10. [Google Scholar]
  8. Thomasen, K. Examining the constitutionality of robot-enhanced interrogation. In Robot Law; Edward Elgar Publishing: Cheltenham, UK, 2016. [Google Scholar]
  9. Darling, K. Extending legal protection to social robots: The effects of anthropomorphism, empathy, and violent behavior towards robotic objects. In Robot Law; Edward Elgar Publishing: Cheltenham, UK, 2016. [Google Scholar]
  10. Darling, K. ’Who’s Johnny?’Anthropomorphic Framing in Human-Robot Interaction, Integration, and Policy. Anthr. Fram. Hum. Robot Interact. Integr. Policy March 23 2015 ROBOT ETHICS 2015, 2. [Google Scholar] [CrossRef] [Green Version]
  11. Press, T.M. Affective Computing. Available online: (accessed on 27 December 2019).
  12. Russell, J.A.; Bachorowski, J.-A.; Fernández-Dols, J.-M. Facial and vocal expressions of emotion. Annu. Rev. Psychol. 2003, 54, 329–349. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Fernandes, A.; Helawar, R.; Lokesh, R.; Tari, T.; Shahapurkar, A.V. Determination of stress using blood pressure and galvanic skin response. In Proceedings of the 2014 International Conference on Communication and Network Technologies, 2014, Sivakasi, India, 18–19 December 2014; pp. 165–168. [Google Scholar]
  14. Bradley, M.M.; Lang, P.J. Measuring emotion: Behavior, feeling, and physiology. Cogn. Neurosci. Emot. 2000, 25, 49–59. [Google Scholar]
  15. Schachter, S.; Singer, J. Cognitive, social, and physiological determinants of emotional state. Psychol. Rev. 1962, 69, 379. [Google Scholar] [CrossRef]
  16. Knapp, R.B.; Kim, J.; André, E. Physiological signals and their use in augmenting emotion recognition for human–machine interaction. In Emotion-Oriented Systems; Springer: Berlin/Heidelberg, Germany, 2011; pp. 133–159. [Google Scholar]
  17. Reynolds, C.; Picard, R. Affective sensors, privacy, and ethical contracts. In Proceedings of the CHI’04 Extended Abstracts on Human Factors in Computing Systems, 2004, Vienna, Austria, 24–29 April 2004; pp. 1103–1106. [Google Scholar]
  18. Sebe, N.; Sun, Y.; Bakker, E.; Lew, M.S.; Cohen, I.; Huang, T.S. Towards authentic emotion recognition. In Proceedings of the 2004 IEEE International Conference on Systems, Man and Cybernetics (IEEE Cat. No. 04CH37583), Hague, The Netherlands, 10–13 October 2004; Volume 1, pp. 623–628. [Google Scholar]
  19. Schmidt, K.L.; Cohn, J.F. Human facial expressions as adaptations: Evolutionary questions in facial expression research. Am. J. Phys. Anthropol. Off. Publ. Am. Assoc. Phys. Anthropol. 2001, 116, 3–24. [Google Scholar] [CrossRef]
  20. Crivelli, C.; Fridlund, A.J. Facial displays are tools for social influence. Trends Cogn. Sci. 2018, 22, 388–399. [Google Scholar] [CrossRef] [Green Version]
  21. Wioleta, S. Using physiological signals for emotion recognition. In Proceedings of the 2013 6th International Conference on Human System Interactions (HSI), 2013, Sopot, Poland, 6–8 June 2013; pp. 556–561. [Google Scholar]
  22. Jerritta, S.; Murugappan, M.; Nagarajan, R.; Wan, K. Physiological signals based human emotion recognition: A review. In Proceedings of the 2011 IEEE 7th International Colloquium on Signal Processing and its Applications, 2011, Penang, Malaysia, 4–6 March 2011; pp. 410–415. [Google Scholar]
  23. Basu, A.; Routray, A.; Shit, S.; Deb, A.K. Human emotion recognition from facial thermal image based on fused statistical feature and multi-class SVM. In Proceedings of the 2015 Annual IEEE India Conference (INDICON), 2015, New Delhi, India, 17–20 December 2015; pp. 1–5. [Google Scholar]
  24. Puri, C.; Olson, L.; Pavlidis, I.; Levine, J.; Starren, J. StressCam: Non-contact measurement of users’ emotional states through thermal imaging. In Proceedings of the CHI’05 extended abstracts on Human factors in computing systems, 2005, Portland, OR, USA, 2–7 April 2005; pp. 1725–1728. [Google Scholar]
  25. Wang, S.; He, M.; Gao, Z.; He, S.; Ji, Q. Emotion recognition from thermal infrared images using deep Boltzmann machine. Front. Comput. Sci. 2014, 8, 609–618. [Google Scholar] [CrossRef]
  26. Cross, C.B.; Skipper, J.A.; Petkie, D.T. Thermal imaging to detect physiological indicators of stress in humans. In Proceedings of the Thermosense: Thermal Infrared Applications XXXV, Baltimore, MD, USA, 30 April–2 May 2013; International Society for Optics and Photonics: Bellingham, WA, USA, 2013; Volume 8705, p. 87050. [Google Scholar]
  27. Cardone, D.; Pinti, P.; Merla, A. Thermal infrared imaging-based computational psychophysiology for psychometrics. Comput. Math. Methods Med. 2015, 2015. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Engert, V.; Merla, A.; Grant, J.A.; Cardone, D.; Tusche, A.; Singer, T. Exploring the Use of Thermal Infrared Imaging in Human Stress Research. PLoS ONE 2014, 9. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  29. Ebisch, S.J.; Aureli, T.; Bafunno, D.; Cardone, D.; Romani, G.L.; Merla, A. Mother and child in synchrony: Thermal facial imprints of autonomic contagion. Biol. Psychol. 2012, 89, 123–129. [Google Scholar] [CrossRef]
  30. Paolini, D.; Alparone, F.R.; Cardone, D.; van Beest, I.; Merla, A. “The face of ostracism”: The impact of the social categorization on the thermal facial responses of the target and the observer. Acta Psychol. (Amst.) 2016, 163, 65–73. [Google Scholar] [CrossRef]
  31. Di Giacinto, A.; Brunetti, M.; Sepede, G.; Ferretti, A.; Merla, A. Thermal signature of fear conditioning in mild post traumatic stress disorder. Neuroscience 2014, 266, 216–223. [Google Scholar] [CrossRef]
  32. Panasiti, M.S.; Cardone, D.; Pavone, E.F.; Mancini, A.; Merla, A.; Aglioti, S.M. Thermal signatures of voluntary deception in ecological conditions. Sci. Rep. 2016, 6, 1–10. [Google Scholar] [CrossRef]
  33. Aureli, T.; Grazia, A.; Cardone, D.; Merla, A. Behavioral and facial thermal variations in 3-to 4-month-old infants during the Still-Face Paradigm. Front. Psychol. 2015, 6. [Google Scholar] [CrossRef] [Green Version]
  34. Perpetuini, D.; Cardone, D.; Filippini, C.; Chiarelli, A.M.; Merla, A. Modelling Impulse Response Function of Functional Infrared Imaging for General Linear Model Analysis of Autonomic Activity. Sensors 2019, 19, 849. [Google Scholar] [CrossRef] [Green Version]
  35. Perpetuini, D.; Cardone, D.; Chiarelli, A.M.; Filippini, C.; Croce, P.; Zappasodi, F.; Rotunno, L.; Anzoletti, N.; Zito, M.; Merla, A. Autonomic impairment in Alzheimer’s disease is revealed by complexity analysis of functional thermal imaging signals during cognitive tasks. Physiol. Meas. 2019, 40, 034002. [Google Scholar] [CrossRef]
  36. Kitchenham, B. Procedures for Performing Systematic Reviews; Keele University: Keele, UK, 2004; Volume 33, pp. 1–26. [Google Scholar]
  37. Belpaeme, T.; Kennedy, J.; Ramachandran, A.; Scassellati, B.; Tanaka, F. Social robots for education: A review. Sci. Robot. 2018, 3. [Google Scholar] [CrossRef] [Green Version]
  38. Girotto, V.; Lozano, C.; Muldner, K.; Burleson, W.; Walker, E. Lessons Learned from In-School Use of rTAG: A Robo-Tangible Learning Environment. In Proceedings of the 2016 CHI Conference on Human Factors in Computing Systems, Association for Computing Machinery, New York USA. San Jose, CA, USA, 7–12 May 2016; pp. 919–930. [Google Scholar]
  39. Movellan, J.; Eckhardt, M.; Virnes, M.; Rodriguez, A. Sociable robot improves toddler vocabulary skills. In Proceedings of the 4th ACM/IEEE International Conference on Human Robot Interaction, La Jolla, CA, USA, 9–13 March 2009; pp. 307–308. [Google Scholar]
  40. Tanaka, F.; Isshiki, K.; Takahashi, F.; Uekusa, M.; Sei, R.; Hayashi, K. Pepper learns together with children: Development of an educational application. In Proceedings of the 2015 IEEE-RAS 15th International Conference on Humanoid Robots (Humanoids), Seoul, Korea, 3–5 November 2015; pp. 270–275. [Google Scholar]
  41. Banks, M.R.; Willoughby, L.M.; Banks, W.A. Animal-assisted therapy and loneliness in nursing homes: Use of robotic versus living dogs. J. Am. Med. Dir. Assoc. 2008, 9, 173–177. [Google Scholar] [CrossRef] [PubMed]
  42. Hodges, H.; Fealko, C.; Soares, N. Autism spectrum disorder: Definition, epidemiology, causes, and clinical evaluation. Transl. Pediatr. 2020, 9, S55. [Google Scholar] [CrossRef] [PubMed]
  43. Olaronke, I.; Oluwaseun, O.; Rhoda, I. State of The Art: A Study of Human-Robot Interaction in Healthcare. Int. J. Inf. Eng. Electron. Bus. 2017, 9, 43–55. [Google Scholar] [CrossRef] [Green Version]
  44. Cabibihan, J.-J.; Javed, H.; Ang, M.; Aljunied, S.M. Why robots? A survey on the roles and benefits of social robots in the therapy of children with autism. Int. J. Soc. Robot. 2013, 5, 593–618. [Google Scholar] [CrossRef]
  45. Sartorato, F.; Przybylowski, L.; Sarko, D.K. Improving therapeutic outcomes in autism spectrum disorders: Enhancing social communication and sensory processing through the use of interactive robots. J. Psychiatr. Res. 2017, 90, 1–11. [Google Scholar] [CrossRef]
  46. Wilson, K.P.; Landa, R.J. Barriers to Educator Implementation of a Classroom-Based Intervention for Preschoolers with Autism Spectrum Disorder. Front. Educ. 2019, 4. [Google Scholar] [CrossRef]
  47. Tussyadiah, I.P.; Park, S. Consumer Evaluation of Hotel Service Robots. In Proceedings of the Information and Communication Technologies in Tourism, Jönköping, Sweden, 24–26 January 2018; Stangl, B., Pesonen, J., Eds.; Springer International Publishing: Cham, Switzerland, 2018; pp. 308–320. [Google Scholar]
  48. Niculescu, A.I.; Jiang, R.; Kim, S.; Yeo, K.H.; D’Haro, L.F.; Niswar, A.; Banchs, R.E. SARA: Singapore’s Automated Responsive Assistant, A Multimodal Dialogue System for Touristic Information. In Proceedings of the Mobile Web Information Systems, Barcelona, Spain, 27–29 August 2014; Awan, I., Younas, M., Franch, X., Quer, C., Eds.; Springer International Publishing: Cham, Switzerland, 2014; pp. 153–164. [Google Scholar]
  49. D’Haro, L.F.; Kim, S.; Yeo, K.H.; Jiang, R.; Niculescu, A.I.; Banchs, R.E.; Li, H. CLARA: A Multifunctional Virtual Agent for Conference Support and Touristic Information. In Natural Language Dialog Systems and Intelligent Assistants; Lee, G.G., Kim, H.K., Jeong, M., Kim, J.-H., Eds.; Springer International Publishing: Cham, Switzerland, 2015; pp. 233–239. ISBN 978-3-319-19291-8. [Google Scholar]
  50. de Kervenoael, R.; Hasan, R.; Schwob, A.; Goh, E. Leveraging human-robot interaction in hospitality services: Incorporating the role of perceived value, empathy, and information sharing into visitors’ intentions to use social robots. Tour. Manag. 2020, 78, 104042. [Google Scholar] [CrossRef]
  51. Cross, E.S.; Hortensius, R.; Wykowska, A. From social brains to social robots: Applying neurocognitive insights to human–robot interaction. Philos. Trans. R. Soc. B Biol. Sci. 2019, 374, 20180024. [Google Scholar] [CrossRef] [Green Version]
  52. Abdelrahman, Y.; Velloso, E.; Dingler, T.; Schmidt, A.; Vetere, F. Cognitive heat: Exploring the usage of thermal imaging to unobtrusively estimate cognitive load. Proc. ACM Interact. Mob. Wearable Ubiquitous Technol. 2017, 1, 1–20. [Google Scholar] [CrossRef]
  53. Salazar-López, E.; Domínguez, E.; Juárez Ramos, V.; de la Fuente, J.; Meins, A.; Iborra, O.; Gálvez, G.; Rodríguez-Artacho, M.A.; Gómez-Milán, E. The mental and subjective skin: Emotion, empathy, feelings and thermography. Conscious. Cogn. 2015, 34, 149–162. [Google Scholar] [CrossRef] [PubMed]
  54. Pavlidis, I.; Tsiamyrtzis, P.; Shastri, D.; Wesley, A.; Zhou, Y.; Lindner, P.; Buddharaju, P.; Joseph, R.; Mandapati, A.; Dunkin, B. Fast by nature-how stress patterns define human experience and performance in dexterous tasks. Sci. Rep. 2012, 2, 305. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Ioannou, S.; Gallese, V.; Merla, A. Thermal infrared imaging in psychophysiology: Potentialities and limits. Psychophysiology 2014, 51, 951–963. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Cruz-Albarran, I.A.; Benitez-Rangel, J.P.; Osornio-Rios, R.A.; Morales-Hernandez, L.A. Human emotions detection based on a smart-thermal system of thermographic images. Infrared Phys. Technol. 2017, 81, 250–261. [Google Scholar] [CrossRef]
  57. Goulart, C.; Valadão, C.; Delisle-Rodriguez, D.; Caldeira, E.; Bastos, T. Emotion analysis in children through facial emissivity of infrared thermal imaging. PLoS ONE 2019, 14. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  58. Mehrabian, A. Pleasure-arousal-dominance: A general framework for describing and measuring individual differences in temperament. Curr. Psychol. 1996, 14, 261–292. [Google Scholar] [CrossRef]
  59. Posner, J.; Russell, J.A.; Peterson, B.S. The circumplex model of affect: An integrative approach to affective neuroscience, cognitive development, and psychopathology. Dev. Psychopathol. 2005, 17, 715–734. [Google Scholar] [CrossRef]
  60. Zhong, K.; Qiao, T.; Zhang, L. A Study of Emotional Communication of Emoticon Based on Russell’s Circumplex Model of Affect. In Proceedings of the Design, User Experience, and Usability Design Philosophy and Theory, Orlando, FL, US, 26–31 July 2019; Marcus, A., Wang, W., Eds.; Springer International Publishing: Cham, Switzerland, 2019; pp. 577–596. [Google Scholar]
  61. Landowska, A. Towards new mappings between emotion representation models. Appl. Sci. 2018, 8, 274. [Google Scholar] [CrossRef] [Green Version]
  62. Mikels, J.A.; Fredrickson, B.L.; Larkin, G.R.; Lindberg, C.M.; Maglio, S.J.; Reuter-Lorenz, P.A. Emotional category data on images from the International Affective Picture System. Behav. Res. Methods 2005, 37, 626–630. [Google Scholar] [CrossRef]
  63. Kosonogov, V.; Zorzi, L.D.; Honoré, J.; Martínez-Velázquez, E.S.; Nandrino, J.-L.; Martinez-Selva, J.M.; Sequeira, H. Facial thermal variations: A new marker of emotional arousal. PLoS ONE 2017, 12, e0183592. [Google Scholar] [CrossRef]
  64. Diaz-Piedra, C.; Gomez-Milan, E.; Di Stasi, L.L. Nasal skin temperature reveals changes in arousal levels due to time on task: An experimental thermal infrared imaging study. Appl. Ergon. 2019, 81, 102870. [Google Scholar] [CrossRef]
  65. Bando, S.; Oiwa, K.; Nozawa, A. Evaluation of dynamics of forehead skin temperature under induced drowsiness. IEEJ Trans. Electr. Electron. Eng. 2017, 12, S104–S109. [Google Scholar] [CrossRef]
  66. Liapis, A.; Katsanos, C.; Sotiropoulos, D.G.; Karousos, N.; Xenos, M. Stress in interactive applications: Analysis of the valence-arousal space based on physiological signals and self-reported data. Multimed. Tools Appl. 2017, 76, 5051–5071. [Google Scholar] [CrossRef]
  67. Ioannou, S.; Ebisch, S.; Aureli, T.; Bafunno, D.; Ioannides, H.A.; Cardone, D.; Manini, B.; Romani, G.L.; Gallese, V.; Merla, A. The Autonomic Signature of Guilt in Children: A Thermal Infrared Imaging Study. PLoS ONE 2013, 8, e79440. [Google Scholar] [CrossRef] [Green Version]
  68. Manini, B.; Cardone, D.; Ebisch, S.; Bafunno, D.; Aureli, T.; Merla, A. Mom feels what her child feels: Thermal signatures of vicarious autonomic response while watching children in a stressful situation. Front. Hum. Neurosci. 2013, 7. [Google Scholar] [CrossRef] [Green Version]
  69. Garbey, M.; Sun, N.; Merla, A.; Pavlidis, I. Contact-Free Measurement of Cardiac Pulse Based on the Analysis of Thermal Imagery. IEEE Trans. Biomed. Eng. 2007, 54, 1418–1426. [Google Scholar] [CrossRef]
  70. Lewis, G.F.; Gatto, R.G.; Porges, S.W. A novel method for extracting respiration rate and relative tidal volume from infrared thermography. Psychophysiology 2011, 48, 877–887. [Google Scholar] [CrossRef] [Green Version]
  71. Murthy, R.; Pavlidis, I. Noncontact measurement of breathing function. IEEE Eng. Med. Biol. Mag. 2006, 25, 57–67. [Google Scholar] [CrossRef] [PubMed]
  72. Pereira, C.B.; Yu, X.; Czaplik, M.; Rossaint, R.; Blazek, V.; Leonhardt, S. Remote monitoring of breathing dynamics using infrared thermography. Biomed. Opt. Express 2015, 6, 4378–4394. [Google Scholar] [CrossRef] [PubMed]
  73. Fei, J.; Pavlidis, I. Thermistor at a distance: Unobtrusive measurement of breathing. IEEE Trans. Biomed. Eng. 2009, 57, 988–998. [Google Scholar] [PubMed]
  74. Abbas, A.K.; Heimann, K.; Jergus, K.; Orlikowsky, T.; Leonhardt, S. Neonatal non-contact respiratory monitoring based on real-time infrared thermography. Biomed. Eng. OnLine 2011, 10, 93. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  75. Kiashari, S.E.H.; Nahvi, A.; Homayounfard, A.; Bakhoda, H. Monitoring the Variation in Driver Respiration Rate from Wakefulness to Drowsiness: A Non-Intrusive Method for Drowsiness Detection Using Thermal Imaging. J. Sleep Sci. 2018, 3, 1–9. [Google Scholar]
  76. Cho, Y.; Bianchi-Berthouze, N. Physiological and Affective Computing through Thermal Imaging: A Survey. ArXiv 2019, 1908, 10307. [Google Scholar]
  77. Thermography Guidelines. Standards and Protocols. Available online: (accessed on 18 February 2020).
  78. Cho, Y.; Julier, S.J.; Bianchi-Berthouze, N. Instant Stress: Detection of Perceived Mental Stress Through Smartphone Photoplethysmography and Thermal Imaging. JMIR Ment. Health 2019, 6, e10140. [Google Scholar] [CrossRef] [Green Version]
  79. Cho, Y. Automated mental stress recognition through mobile thermal imaging. In Proceedings of the 2017 Seventh International Conference on Affective Computing and Intelligent Interaction (ACII), San Antonio, TX, USA, 23–26 October 2017; pp. 596–600. [Google Scholar]
  80. Cho, Y.; Bianchi-Berthouze, N.; Julier, S.J. DeepBreath: Deep learning of breathing patterns for automatic stress recognition using low-cost thermal imaging in unconstrained settings. In Proceedings of the 2017 Seventh International Conference on Affective Computing and Intelligent Interaction (ACII), San Antonio, TX, USA, 23–26 October 2017; pp. 456–463. [Google Scholar]
  81. Basu, A.; Dasgupta, A.; Thyagharajan, A.; Routray, A.; Guha, R.; Mitra, P. A Portable Personality Recognizer Based on Affective State Classification Using Spectral Fusion of Features. IEEE Trans. Affect. Comput. 2018, 9, 330–342. [Google Scholar] [CrossRef]
  82. Vinciguerra, V.; Ambra, E.; Maddiona, L.; Romeo, M.; Mazzillo, M.; Rundo, F.; Fallica, G.; di Pompeo, F.; Chiarelli, A.M.; Zappasodi, F. PPG/ECG multisite combo system based on SiPM technology. In Proceedings of the Convegno Nazionale Sensori, Catania, Italy, 21–23 February 2018; Springer: Berlin/Heidelberg, Germany, 2018; pp. 353–360. [Google Scholar]
  83. Chiarelli, A.M.; Bianco, F.; Perpetuini, D.; Bucciarelli, V.; Filippini, C.; Cardone, D.; Zappasodi, F.; Gallina, S.; Merla, A. Data-driven assessment of cardiovascular ageing through multisite photoplethysmography and electrocardiography. Med. Eng. Phys. 2019, 73, 39–50. [Google Scholar] [CrossRef]
  84. Ruminski, J.; Kwasniewska, A. Evaluation of respiration rate using thermal imaging in mobile conditions. In Application of Infrared to Biomedical Sciences; Springer: Berlin/Heidelberg, Germany, 2017; pp. 311–346. [Google Scholar]
  85. Cho, Y.; Julier, S.J.; Marquardt, N.; Bianchi-Berthouze, N. Robust tracking of respiratory rate in high-dynamic range scenes using mobile thermal imaging. Biomed. Opt. Express 2017, 8, 4480–4503. [Google Scholar] [CrossRef] [Green Version]
  86. Goulart, C.; Valadão, C.; Delisle-Rodriguez, D.; Funayama, D.; Favarato, A.; Baldo, G.; Binotte, V.; Caldeira, E.; Bastos-Filho, T. Visual and Thermal Image Processing for Facial Specific Landmark Detection to Infer Emotions in a Child-Robot Interaction. Sensors 2019, 19, 2844. [Google Scholar] [CrossRef] [Green Version]
  87. Filippini, C.; Spadolini, E.; Cardone, D.; Merla, A. Thermal Imaging Based Affective Computing for Educational Robot. In Proceedings of the Multidisciplinary Digital Publishing Institute Proceedings, Florence, Italy, 16–19 September 2019; Volume 27, p. 27. [Google Scholar]
  88. Merla, A. Thermal expression of intersubjectivity offers new possibilities to human–machine and technologically mediated interactions. Front. Psychol. 2014, 5. [Google Scholar] [CrossRef] [Green Version]
  89. Sorostinean, M.; Ferland, F.; Tapus, A. Reliable stress measurement using face temperature variation with a thermal camera in human-robot interaction. In Proceedings of the 2015 IEEE-RAS 15th International Conference on Humanoid Robots (Humanoids), Seoul, Korea, 3–5 November 2015; pp. 14–19. [Google Scholar]
  90. Agrigoroaie, R.; Tapus, A. Detecting Deception in a Human-Robot Interaction Scenario. In Proceedings of the Companion of the 2017 ACM/IEEE International Conference on Human-Robot Interaction, Vienna, Austria, 6–9 March 2017; pp. 59–60. [Google Scholar]
  91. Boccanfuso, L.; Wang, Q.; Leite, I.; Li, B.; Torres, C.; Chen, L.; Salomons, N.; Foster, C.; Barney, E.; Ahn, Y.A. A thermal emotion classifier for improved human-robot interaction. In Proceedings of the 2016 25th IEEE International Symposium on Robot and Human Interactive Communication (RO-MAN), New York, NY, USA, 26–31 August 2016; pp. 718–723. [Google Scholar]
  92. Moliné, A.; Dominguez, E.; Salazar-López, E.; Gálvez-García, G.; Fernández-Gómez, J.; De la Fuente, J.; Iborra, O.; Tornay, F.J.; Milán, E.G. The mental nose and the Pinocchio effect: Thermography, planning, anxiety, and lies. J. Investig. Psychol. Offender Profiling 2018, 15, 234–248. [Google Scholar] [CrossRef]
  93. Moliné, A.; Gálvez-García, G.; Fernández-Gómez, J.; De la Fuente, J.; Iborra, O.; Tornay, F.; Martín, J.L.M.; Puertollano, M.; Milán, E.G. The Pinocchio effect and the Cold Stress Test: Lies and thermography. Psychophysiology 2017, 54, 1621–1631. [Google Scholar] [CrossRef] [PubMed]
  94. Merla, A.; Romani, G.L. Thermal Signatures of Emotional Arousal: A Functional Infrared Imaging Study. In Proceedings of the 2007 29th Annual International Conference of the IEEE Engineering in Medicine and Biology Society, Lyon, France, 22–26 August 2007; pp. 247–249. [Google Scholar]
  95. Porges, S.W. The Polyvagal Theory: Phylogenetic contributions to social behavior. Physiol. Behav. 2003, 79, 503–513. [Google Scholar] [CrossRef]
  96. Scassellati, B.; Brawer, J.; Tsui, K.; Nasihati Gilani, S.; Malzkuhn, M.; Manini, B.; Stone, A.; Kartheiser, G.; Merla, A.; Shapiro, A.; et al. Teaching Language to Deaf Infants with a Robot and a Virtual Human. In Proceedings of the 2018 CHI Conference on Human Factors in Computing Systems, Montreal QC, Canada, 21–26 April 2018; ACM: New York, NY, USA, 2018. [Google Scholar]
  97. Petitto, L.A.; Berens, M.S.; Kovelman, I.; Dubins, M.H.; Jasinska, K.; Shalinsky, M. The “Perceptual Wedge Hypothesis” as the basis for bilingual babies’ phonetic processing advantage: New insights from fNIRS brain imaging. Brain Lang. 2012, 121, 130–143. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  98. Nasihati Gilani, S.; Traum, D.; Merla, A.; Hee, E.; Walker, Z.; Manini, B.; Gallagher, G.; Petitto, L.-A. Multimodal Dialogue Management for Multiparty Interaction with Infants. In Proceedings of the 20th ACM International Conference on Multimodal Interaction, Boulder, CO, USA, 16–20 October 2018; ACM: New York, NY, USA, 2018; pp. 5–13. [Google Scholar]
  99. Nasihati Gilani, S.; Traum, D.; Sortino, R.; Gallagher, G.; Aaron-lozano, K.; Padilla, C.; Shapiro, A.; Lamberton, J.; Petitto, L. Can a Virtual Human Facilitate Language Learning in a Young Baby? In Proceedings of the 18th International Conference on Autonomous Agents and MultiAgent Systems, Montreal, QC, Canada, 13–17 May 2019; International Foundation for Autonomous Agents and Multiagent Systems: Richland, SC, USA, 2019; pp. 2135–2137. [Google Scholar]
  100. Nasihati Gilani, S.; Traum, D.; Sortino, R.; Gallagher, G.; Aaron-Lozano, K.; Padilla, C.; Shapiro, A.; Lamberton, J.; Petitto, L.-A. Can a Signing Virtual Human Engage a Baby’s Attention? In Proceedings of the 19th ACM International Conference on Intelligent Virtual Agents, Paris, France, 2’5 July 2019; ACM: New York, NY, USA, 2019; pp. 162–169. [Google Scholar]
  101. Petitto, L.-A. Hearing Babies Respond to Language’s Patterning and Socially-Contingent Interactions with a Signing Avatar: Insights into Human Language Acquisition. Available online: (accessed on 2 March 2020).
  102. Essa, I.A.; Pentland, A.P. Coding, analysis, interpretation, and recognition of facial expressions. IEEE Trans. Pattern Anal. Mach. Intell. 1997, 19, 757–763. [Google Scholar] [CrossRef] [Green Version]
  103. Breazeal, C.; Aryananda, L. Recognition of Affective Communicative Intent in Robot-Directed Speech. Auton. Robots 2002, 12, 83–104. [Google Scholar] [CrossRef]
  104. Busso, C.; Deng, Z.; Yildirim, S.; Bulut, M.; Lee, C.M.; Kazemzadeh, A.; Lee, S.; Neumann, U.; Narayanan, S. Analysis of emotion recognition using facial expressions, speech and multimodal information. In Proceedings of the 6th international conference on Multimodal interfaces, State College, PA, USA, 14–15 October 2004; Association for Computing Machinery: New York, NY, USA, 2004; pp. 205–211. [Google Scholar]
  105. Lee, C.M.; Yildirim, S.; Bulut, M.; Kazemzadeh, A.; Busso, C.; Deng, Z.; Lee, S.; Narayanan, S. Emotion Recognition Based on Phoneme Classes 4. Available online: (accessed on 20 February 2020).
  106. Tin, L.N.; Foo, S.W.; De Silva, L.C. Speech Based Emotion Classification. In Proceedings of the IEEE Region 10 International Conference on Electrical and Electronic Technology. TENCON 2001, Singapore, 19–22 August 2001; (Cat. No. 01CH37239). IEEE: Piscataway, NJ, USA; Volume 1, pp. 297–301. Available online: (accessed on 22 February 2020).
  107. Stemberger, J.; Allison, R.S.; Schnell, T. Thermal imaging as a way to classify cognitive workload. In Proceedings of the 2010 Canadian Conference on Computer and Robot Vision, Ottawa, ON, Canada, 31 May–2 June 2010; pp. 231–238. [Google Scholar]
  108. Or, C.K.; Duffy, V.G. Development of a facial skin temperature-based methodology for non-intrusive mental workload measurement. Occup. Ergon. 2007, 7, 83–94. [Google Scholar]
  109. Lohani, M.; Payne, B.R.; Strayer, D.L. A review of psychophysiological measures to assess cognitive states in real-world driving. Front. Hum. Neurosci. 2019, 13. [Google Scholar] [CrossRef]
  110. Kajiwara, S. Evaluation of driver’s mental workload by facial temperature and electrodermal activity under simulated driving conditions. Int. J. Automot. Technol. 2014, 15, 65–70. [Google Scholar] [CrossRef]
  111. Kiashari, S.E.H.; Nahvi, A.; Bakhoda, H.; Homayounfard, A.; Tashakori, M. Evaluation of driver drowsiness using respiration analysis by thermal imaging on a driving simulator. Multimed. Tools Appl. 2020, 1–23. [Google Scholar] [CrossRef]
  112. Abouelenien, M.; Burzo, M. Detecting Thermal Discomfort of Drivers Using Physiological Sensors and Thermal Imaging. IEEE Intell. Syst. 2019, 34, 3–13. [Google Scholar] [CrossRef]
  113. Agrawal, K.; Subramanian, A. Enhancing Object Detection in Adverse Conditions using Thermal Imaging. ArXiv 2019, 1909, 13551. [Google Scholar]
  114. Miethig, B.; Liu, A.; Habibi, S.; Mohrenschildt, M.V. Leveraging thermal imaging for autonomous driving. In Proceedings of the 2019 IEEE Transportation Electrification Conference and Expo (ITEC), Detroit, MI, USA, 19–21 June 2019; pp. 1–5. [Google Scholar]
  115. Koolagudi, S.G.; Rao, K.S. Emotion recognition from speech: A review. Int. J. Speech Technol. 2012, 15, 99–117. [Google Scholar] [CrossRef]
  116. Ekman, P. An argument for basic emotions. Cogn. Emot. 1992, 6, 169–200. [Google Scholar] [CrossRef]
  117. Russel, J. Three dimensions of emotion. J. Soc. Psychol. 1980, 9, 1161–1178. [Google Scholar]
  118. Kiebel, S.; Holmes, A.P. The general linear model. Hum. Brain Funct. 2003, 2, 725–760. [Google Scholar]
  119. Chiarelli, A.M.; Romani, G.L.; Merla, A. Fast optical signals in the sensorimotor cortex: General Linear Convolution Model applied to multiple source–detector distance-based data. NeuroImage 2014, 85, 245–254. [Google Scholar] [CrossRef]
  120. Suykens, J.A.; Vandewalle, J. Least squares support vector machine classifiers. Neural Process. Lett. 1999, 9, 293–300. [Google Scholar] [CrossRef]
  121. LeCun, Y.; Bengio, Y.; Hinton, G. Deep learning. Nature 2015, 521, 436–444. [Google Scholar] [CrossRef]
  122. Croce, P.; Zappasodi, F.; Marzetti, L.; Merla, A.; Pizzella, V.; Chiarelli, A.M. Deep Convolutional Neural Networks for feature-less automatic classification of Independent Components in multi-channel electrophysiological brain recordings. IEEE Trans. Biomed. Eng. 2018, 66, 2372–2380. [Google Scholar] [CrossRef]
Figure 1. Pepper robot interaction with a child.
Figure 1. Pepper robot interaction with a child.
Applsci 10 02924 g001
Figure 2. Thermal IR images with marked ROIs (black rectangles).
Figure 2. Thermal IR images with marked ROIs (black rectangles).
Applsci 10 02924 g002
Figure 3. Graphical representation of the circumplex model of affect with the horizontal axis representing the valence dimension and the vertical axis representing the arousal dimension. Adapted from [60].
Figure 3. Graphical representation of the circumplex model of affect with the horizontal axis representing the valence dimension and the vertical axis representing the arousal dimension. Adapted from [60].
Applsci 10 02924 g003

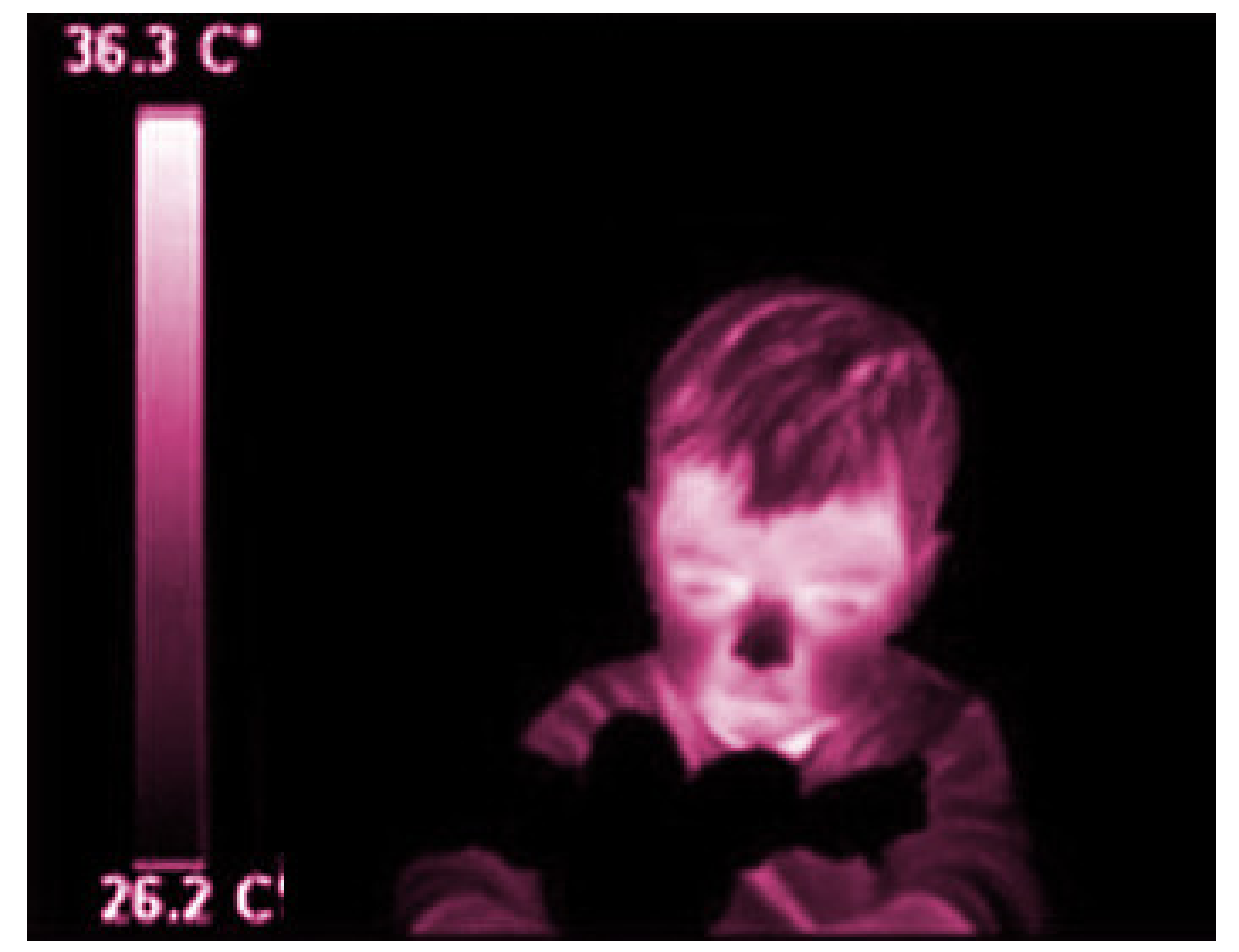

Figure 4. Child facial temperature during the mishap condition. Adapted from [68].
Figure 4. Child facial temperature during the mishap condition. Adapted from [68].
Applsci 10 02924 g004
Figure 5. (AC) Processing pipeline. (A) The first phase relied on the visible image to detect the child’s face and locate specific facial landmarks. (B) The corresponding landmarks on the thermal image were then obtained thanks to a previous optical calibration procedure. (C) The thermal signal is extracted from the nose tip region and processed in order to obtain the subject’s level of engagement. (D) The child–robot interactions are guided by the robot’s understanding of the child’s level of engagement.
Figure 5. (AC) Processing pipeline. (A) The first phase relied on the visible image to detect the child’s face and locate specific facial landmarks. (B) The corresponding landmarks on the thermal image were then obtained thanks to a previous optical calibration procedure. (C) The thermal signal is extracted from the nose tip region and processed in order to obtain the subject’s level of engagement. (D) The child–robot interactions are guided by the robot’s understanding of the child’s level of engagement.
Applsci 10 02924 g005
Table 1. Overview of the temperature variations direction, as estimated through thermal IR imaging, for each emotion in the different regions considered. The table is adapted from [55].
Table 1. Overview of the temperature variations direction, as estimated through thermal IR imaging, for each emotion in the different regions considered. The table is adapted from [55].
StressFearStartleSexual ArousalAnxietyJoyPainGuilt
Nose Applsci 10 02924 i001 Applsci 10 02924 i001 Applsci 10 02924 i002 Applsci 10 02924 i001 Applsci 10 02924 i001
Cheeks Applsci 10 02924 i001
Periorbital Applsci 10 02924 i002 Applsci 10 02924 i002 Applsci 10 02924 i002
Supraorbital Applsci 10 02924 i002 Applsci 10 02924 i002
Forehead Applsci 10 02924 i001 Applsci 10 02924 i002 Applsci 10 02924 i001 Applsci 10 02924 i002 Applsci 10 02924 i002 Applsci 10 02924 i001
Maxillary Applsci 10 02924 i001 Applsci 10 02924 i001 Applsci 10 02924 i001 Applsci 10 02924 i001 Applsci 10 02924 i001
Neck-carotid Applsci 10 02924 i002
Finger/palm Applsci 10 02924 i001
Lips/mouth Applsci 10 02924 i002

Share and Cite

MDPI and ACS Style

Filippini, C.; Perpetuini, D.; Cardone, D.; Chiarelli, A.M.; Merla, A. Thermal Infrared Imaging-Based Affective Computing and Its Application to Facilitate Human Robot Interaction: A Review. Appl. Sci. 2020, 10, 2924.

AMA Style

Filippini C, Perpetuini D, Cardone D, Chiarelli AM, Merla A. Thermal Infrared Imaging-Based Affective Computing and Its Application to Facilitate Human Robot Interaction: A Review. Applied Sciences. 2020; 10(8):2924.

Chicago/Turabian Style

Filippini, Chiara, David Perpetuini, Daniela Cardone, Antonio Maria Chiarelli, and Arcangelo Merla. 2020. "Thermal Infrared Imaging-Based Affective Computing and Its Application to Facilitate Human Robot Interaction: A Review" Applied Sciences 10, no. 8: 2924.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
