Improving the Performance of EDM through Relief-Angled Tool Designs

1
Department of Industrial and Manufacturing Engineering, University of Engineering and Technology, Lahore 54890, Pakistan
2
Department of Industrial Engineering, College of Engineering and Architecture, Al Yamamah University, Riyadh 11512, Saudi Arabia
3
Raytheon Chair for Systems Engineering, Advanced Manufacturing Institute, King Saud University, Riyadh 11421, Saudi Arabia
*
Author to whom correspondence should be addressed.
Appl. Sci. 2020, 10(7), 2432; https://doi.org/10.3390/app10072432
Received: 2 March 2020 / Revised: 26 March 2020 / Accepted: 30 March 2020 / Published: 2 April 2020

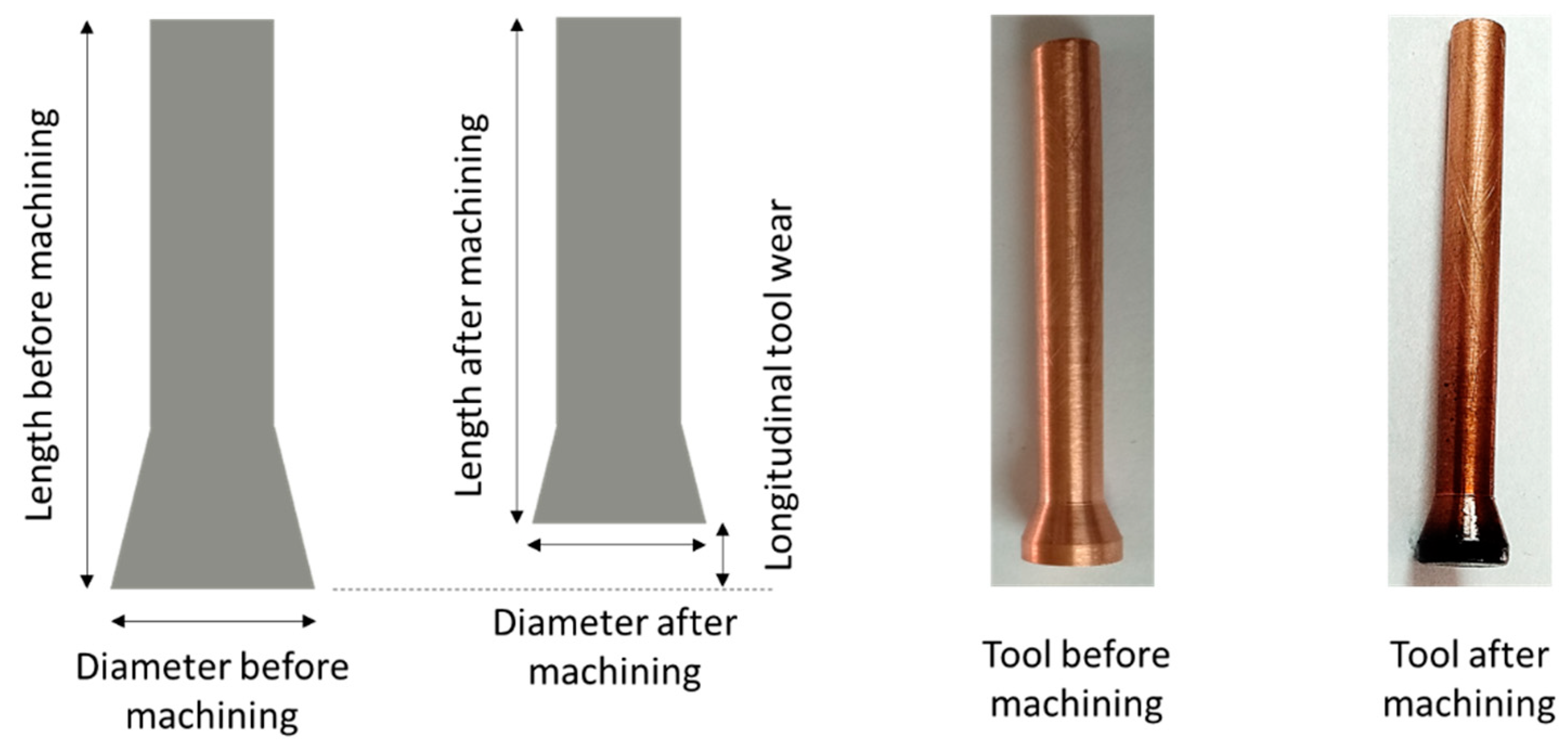

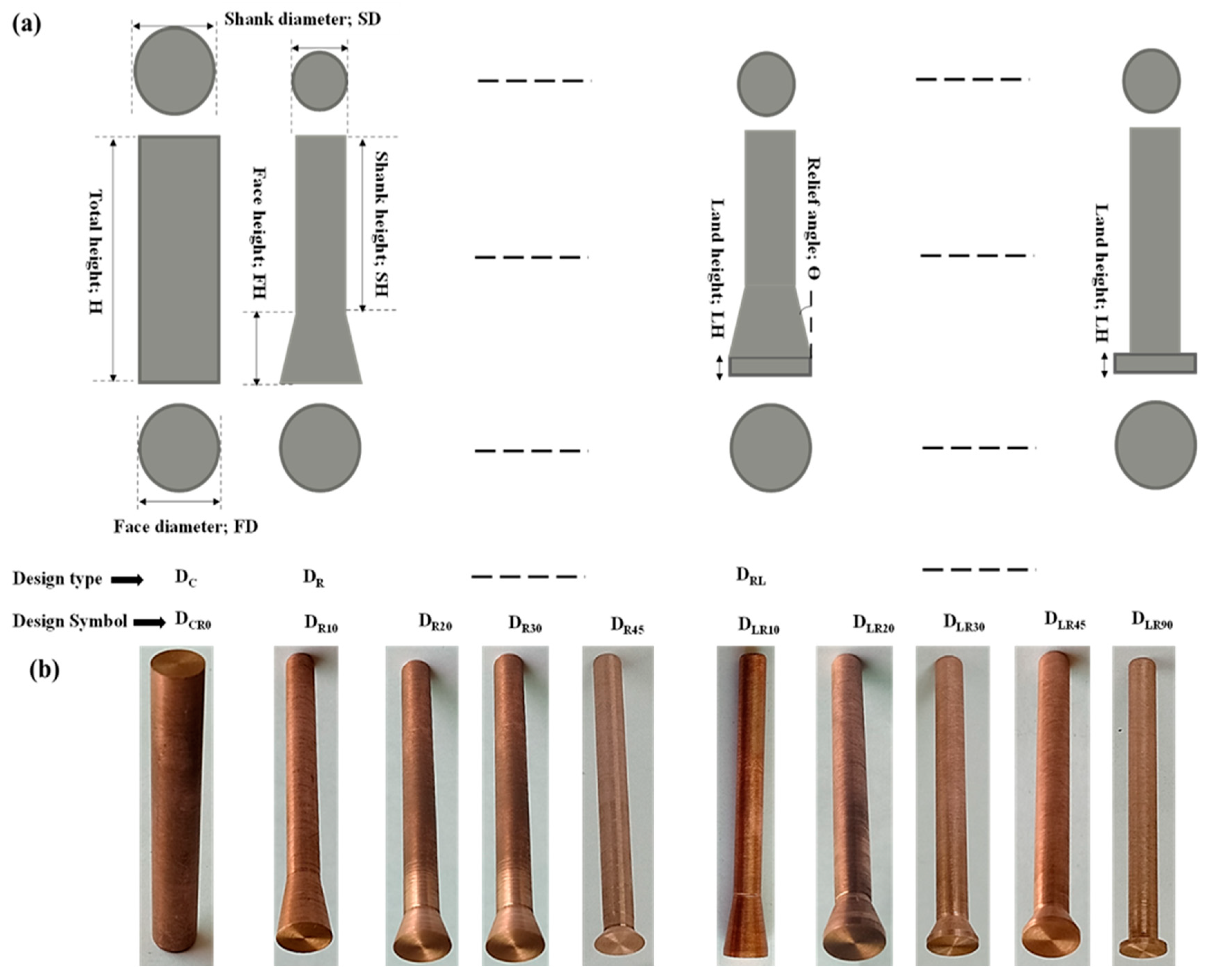

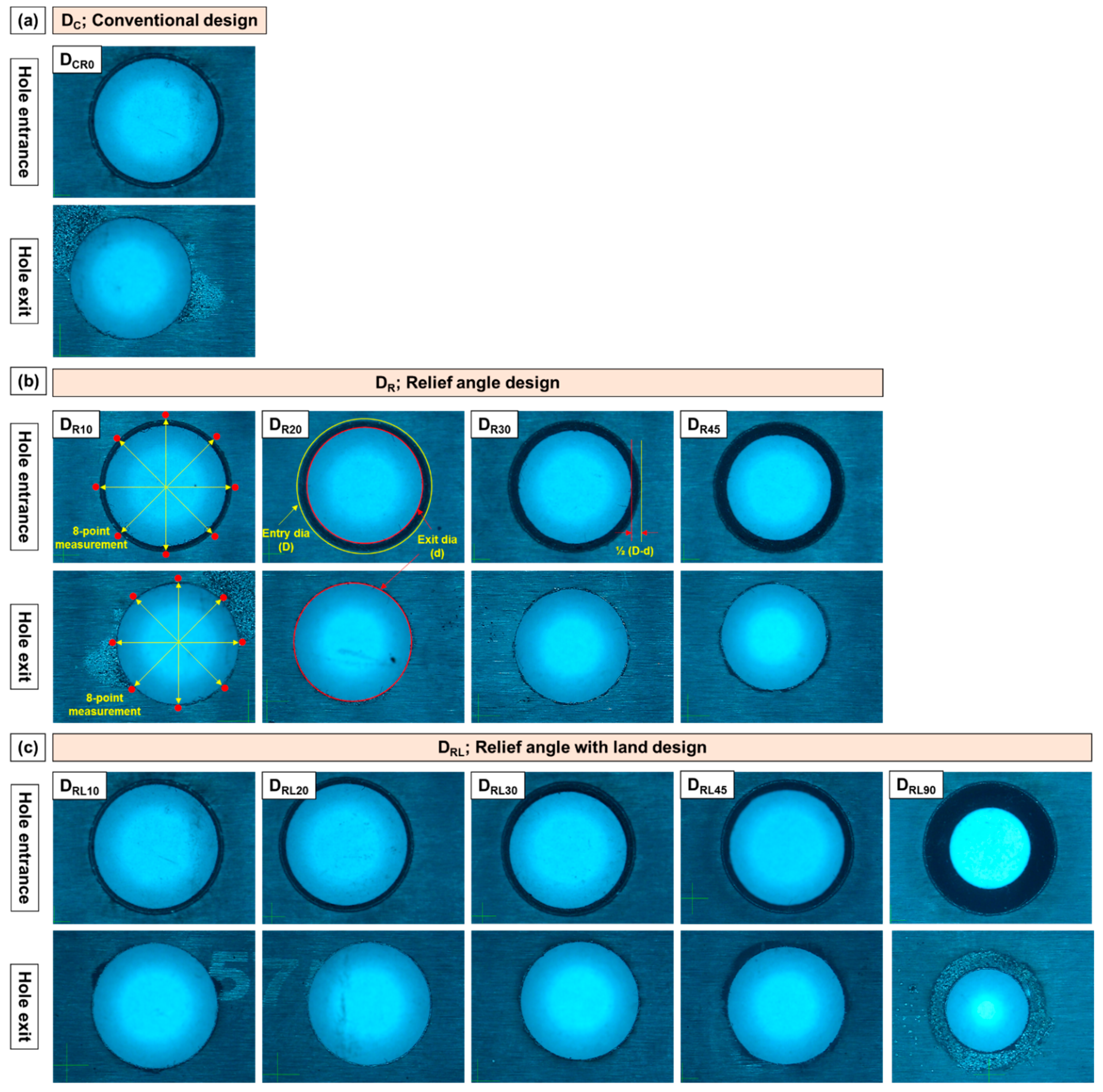

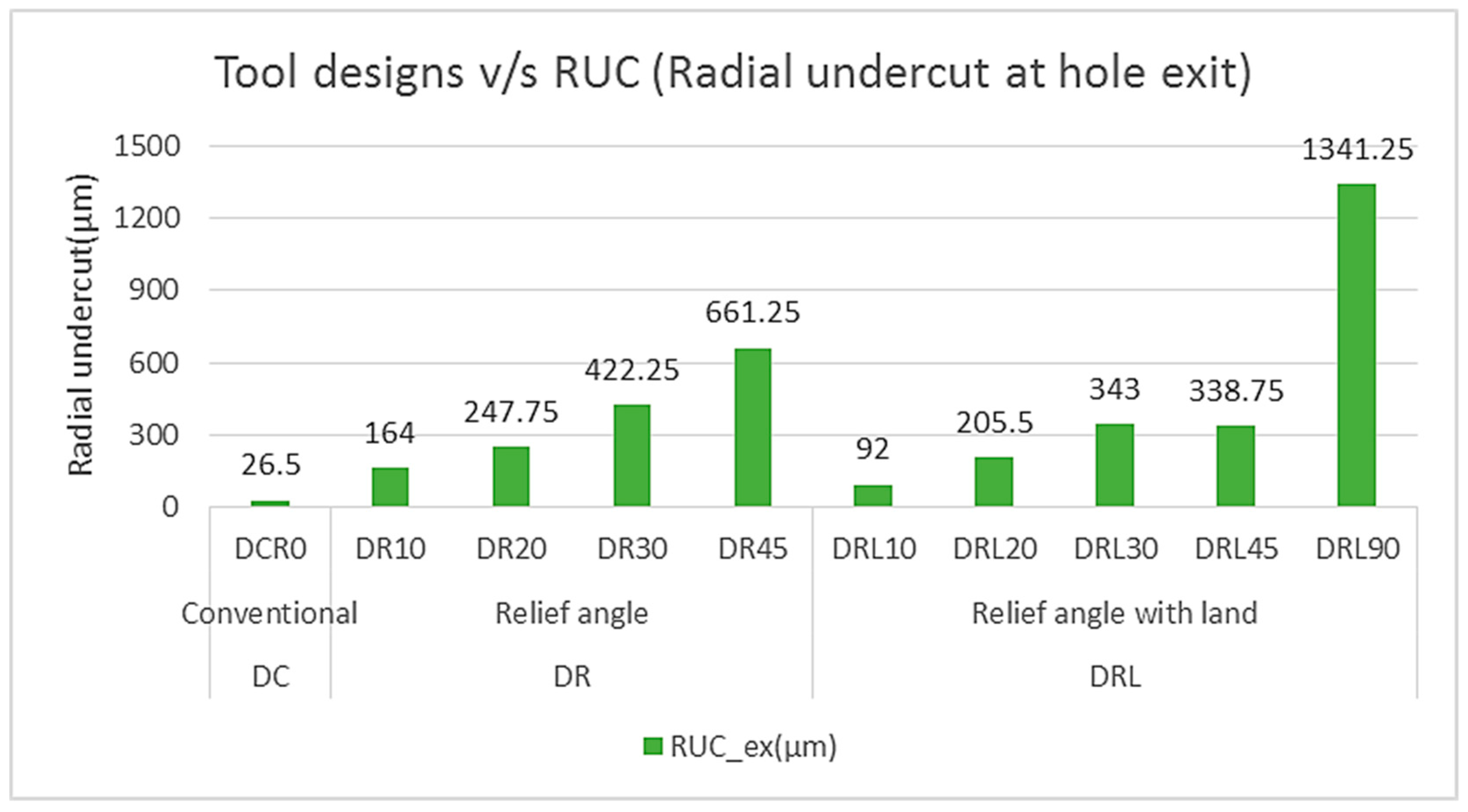

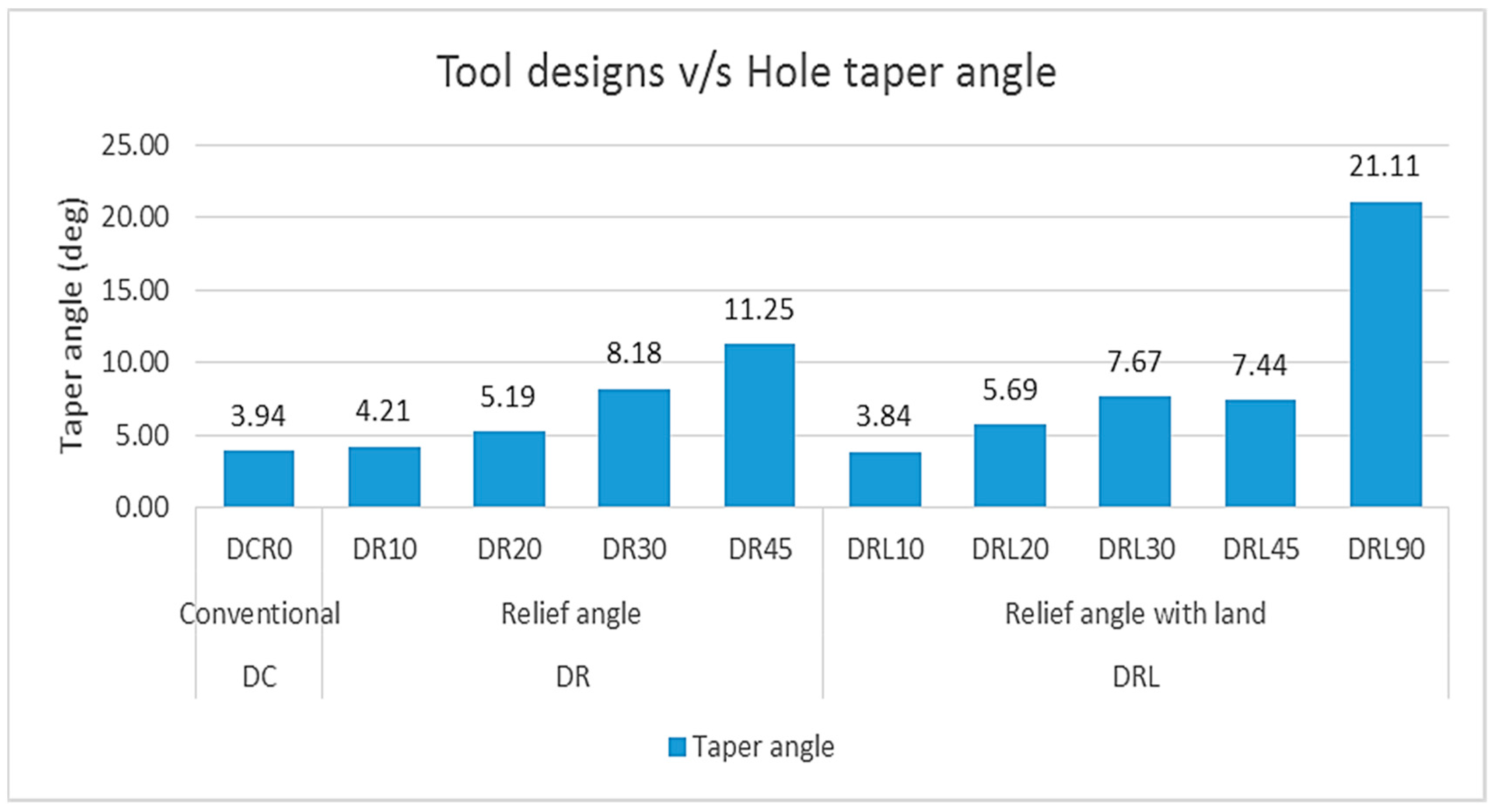

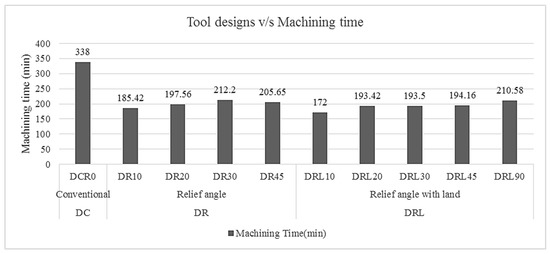

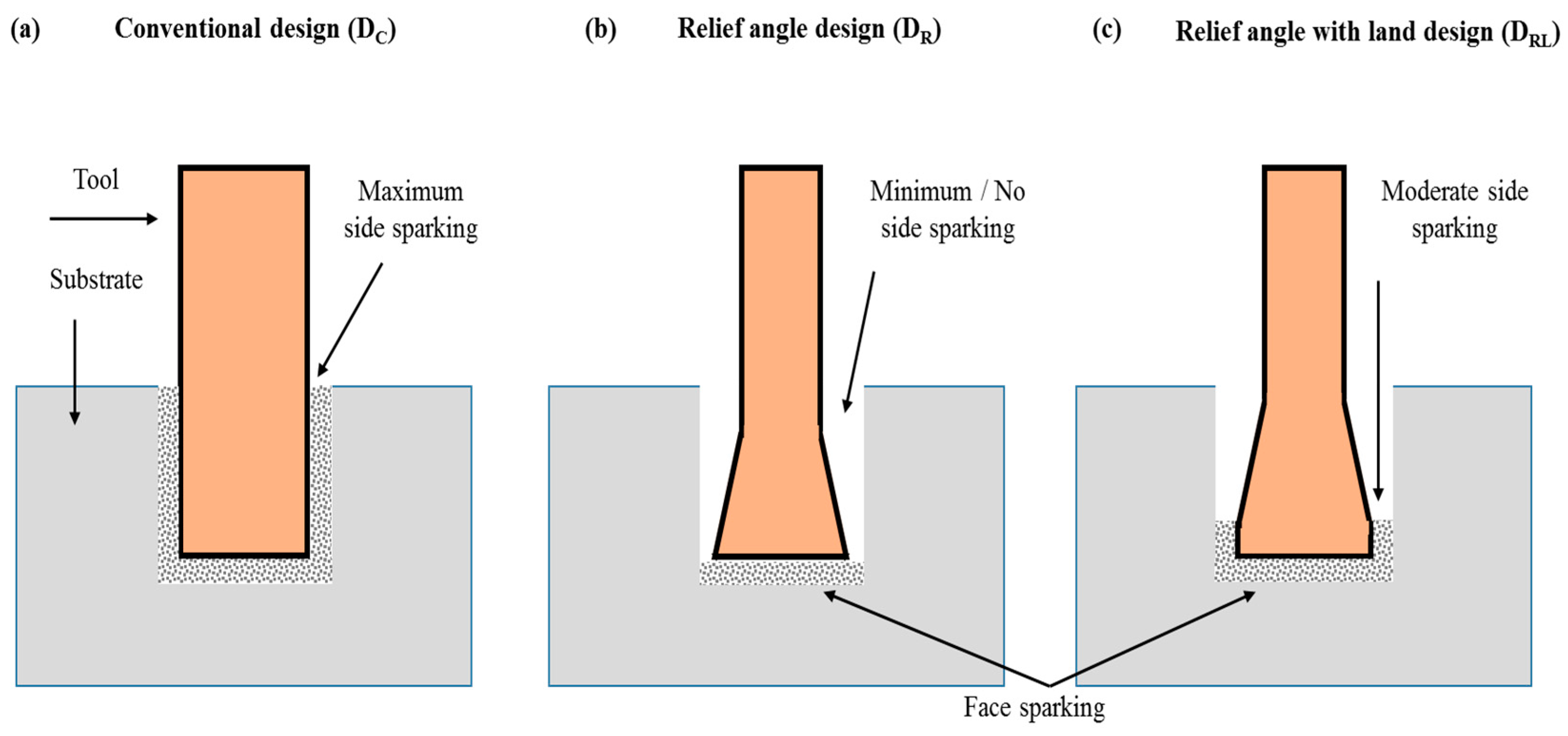

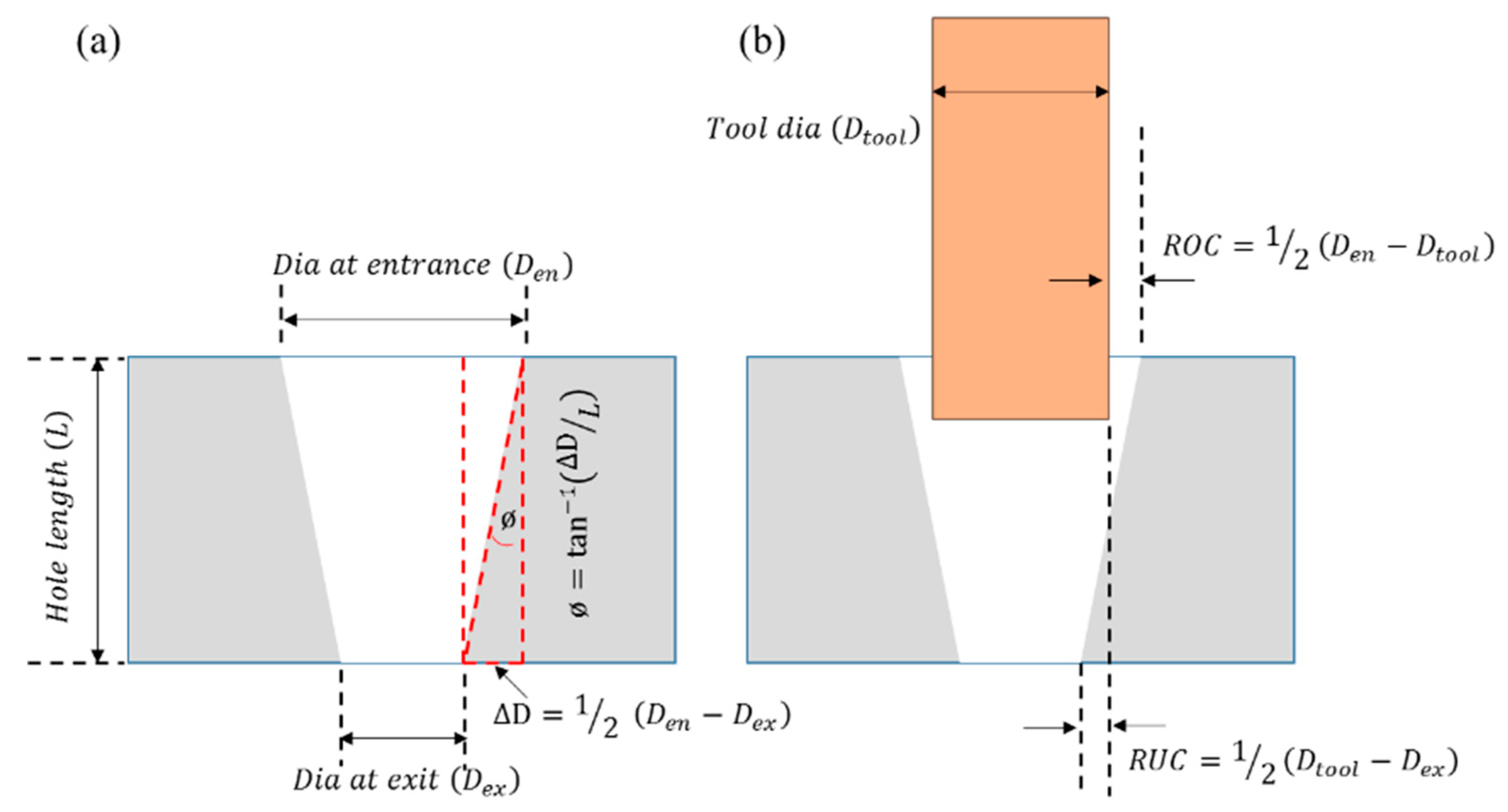

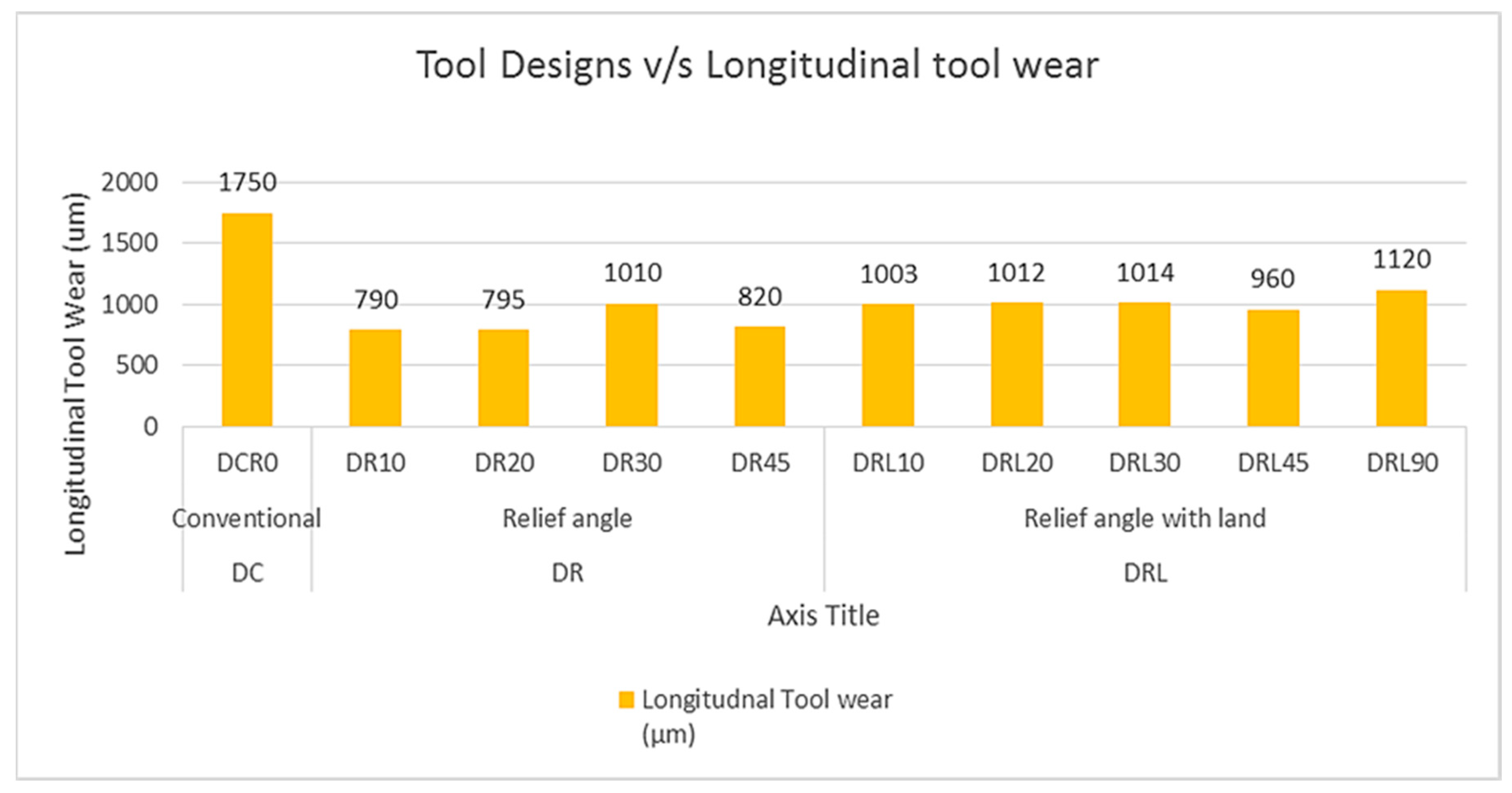

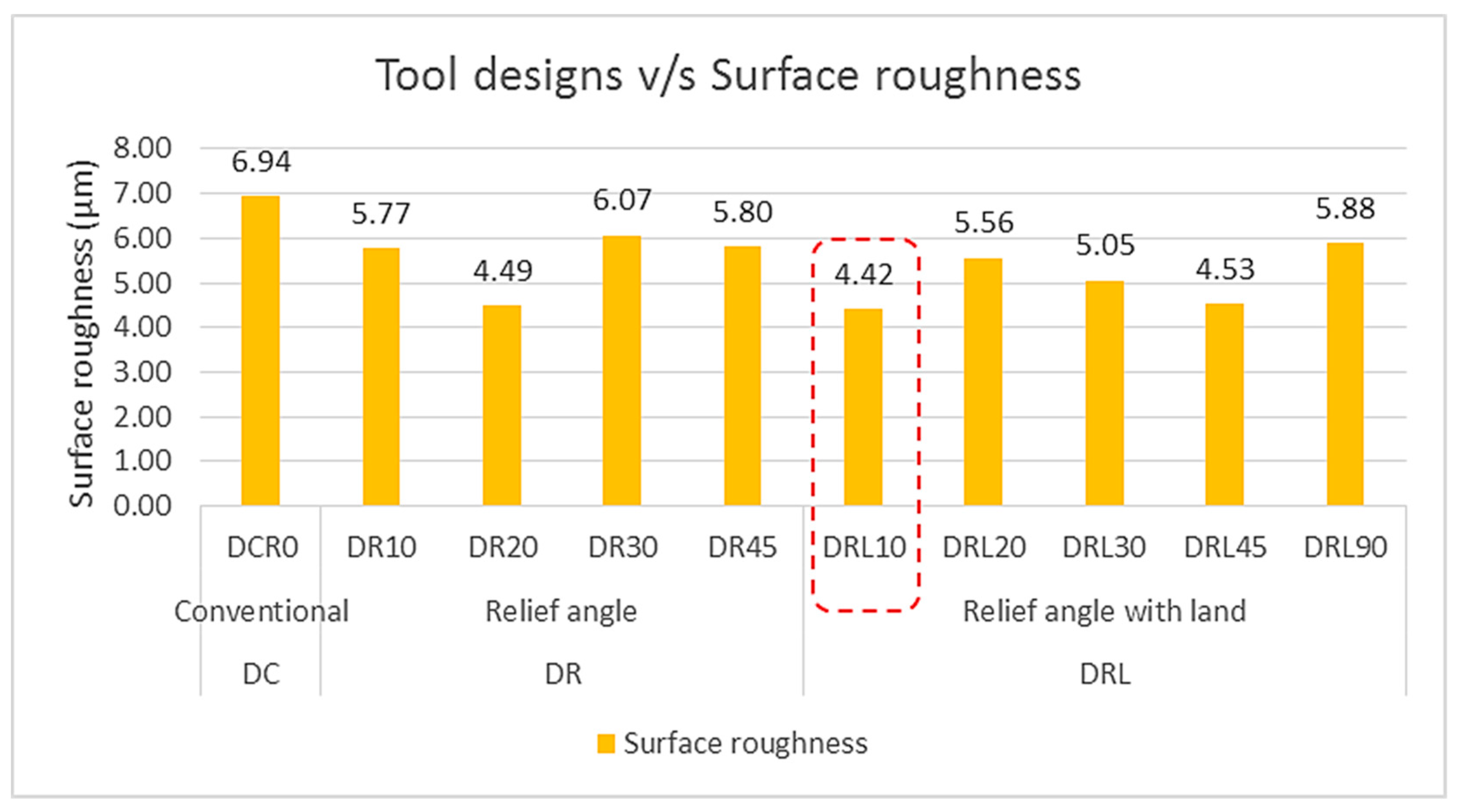

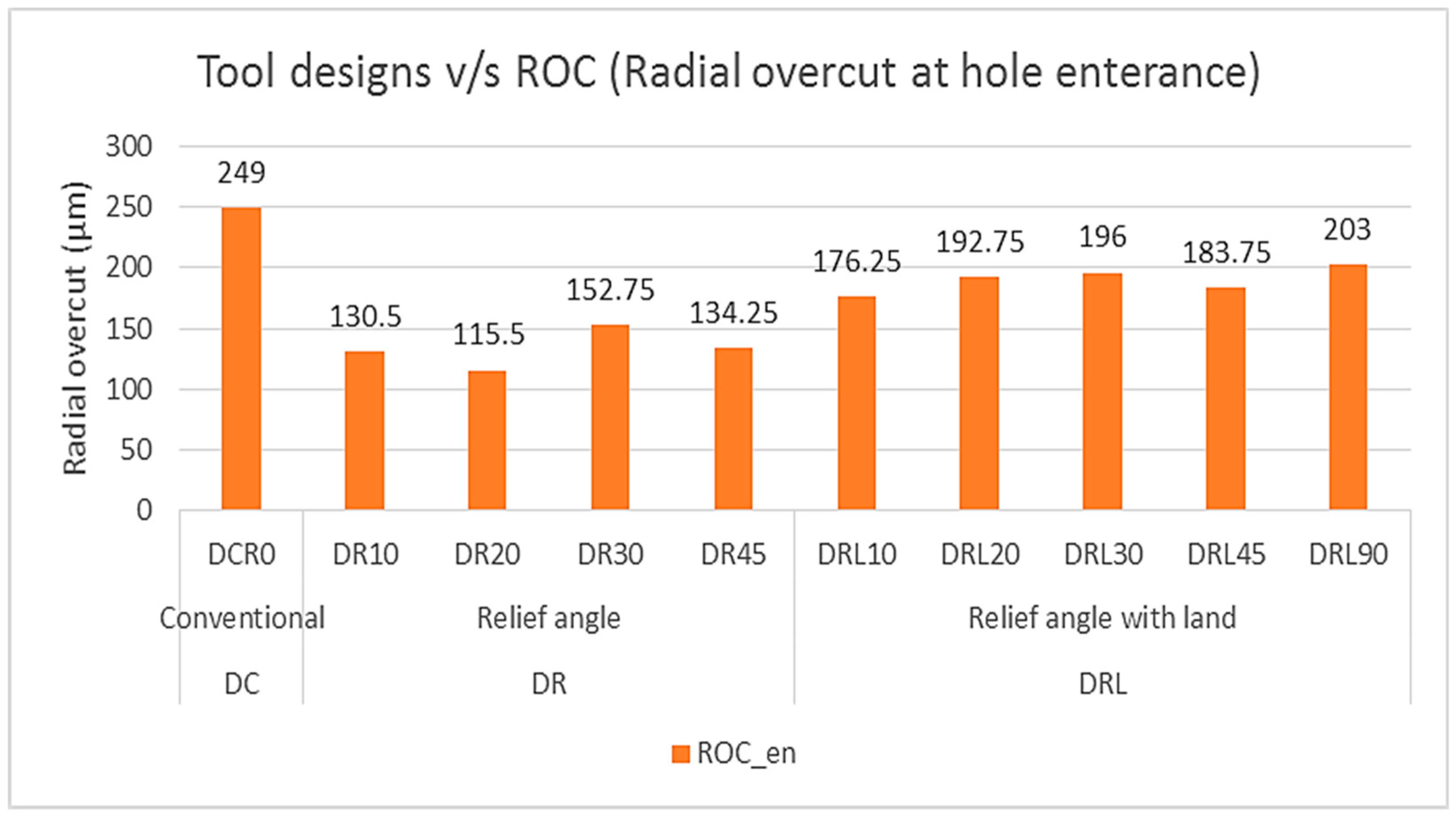

Among the family of carbides, tungsten carbide (WC) and its variants have extensive use in numerous applications including cutting tools, dies, and many wear resistant parts. Such applications need machining of WC, which is famously considered as challenging due to high tool wear mainly in traditional machining. Sinking electric discharge machining (EDM) can be considered as a suitable alternate but the low machining rate of EDM, with conventional tool design, poses limitations. In this research, the conventional tool design is modified by providing relief angles to the tool electrodes. The relief-angled tool electrodes are first time introduced in this research to machine through holes. The role of the relief angle during EDM has been investigated in terms of six response characteristics, i.e., machining time, hole taper angle, radial overcut at the hole entrance, radial undercut at the hole exit, longitudinal tool wear, and roughness of inside hole surfaces. The performance of the relief-angled electrodes is found to be significantly better than the performance of conventional cylindrical tool. In addition to improvements in other responses, a 49% reduction in the machining time has been realized by the use of relief-angled electrode indicating a worthwhile contribution in the field of electric discharge machining. View Full-Text
Keywords: EDM; tungsten carbide; relief angle tool; side sparking; taper angle; machining time EDM; tungsten carbide; relief angle tool; side sparking; taper angle; machining time
Show Figures

Figure 1

MDPI and ACS Style

Ahmad Mufti, N.; Rafaqat, M.; Ahmed, N.; Qaiser Saleem, M.; Hussain, A.; Al-Ahamri, A.M. Improving the Performance of EDM through Relief-Angled Tool Designs. Appl. Sci. 2020, 10, 2432.
