Research on a Noise Reduction Method Based on Multi-Resolution Singular Value Decomposition
Abstract
:1. Introduction
2. Method Overview
2.1. MRSVD

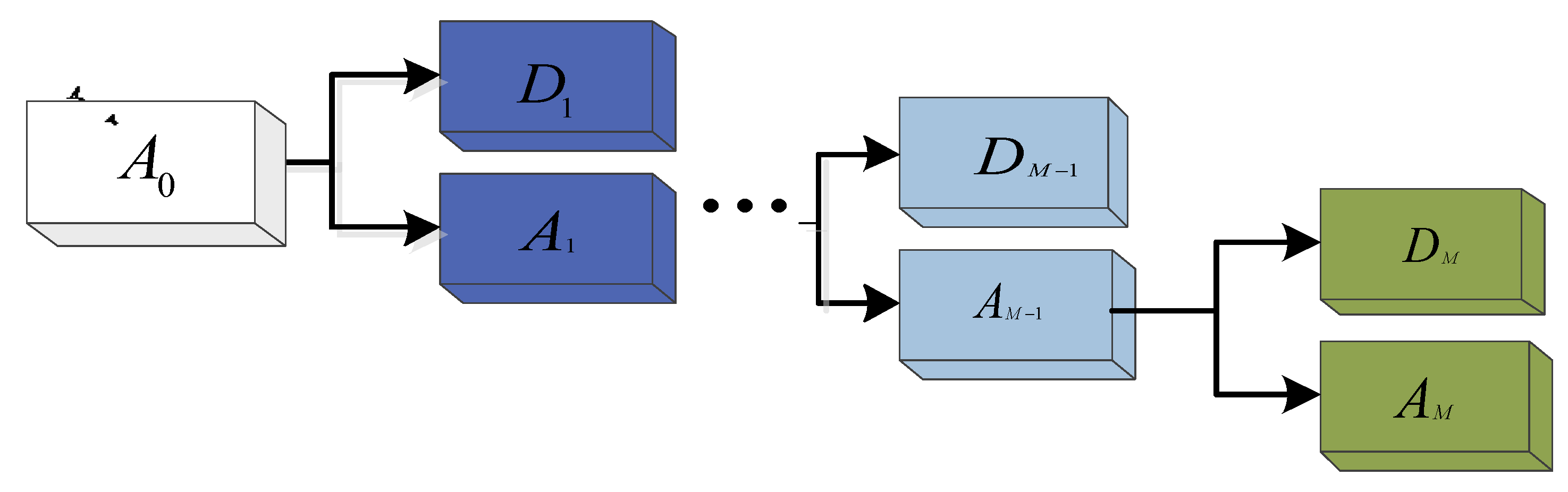

2.1.1. The Two-Division Recursion SVD

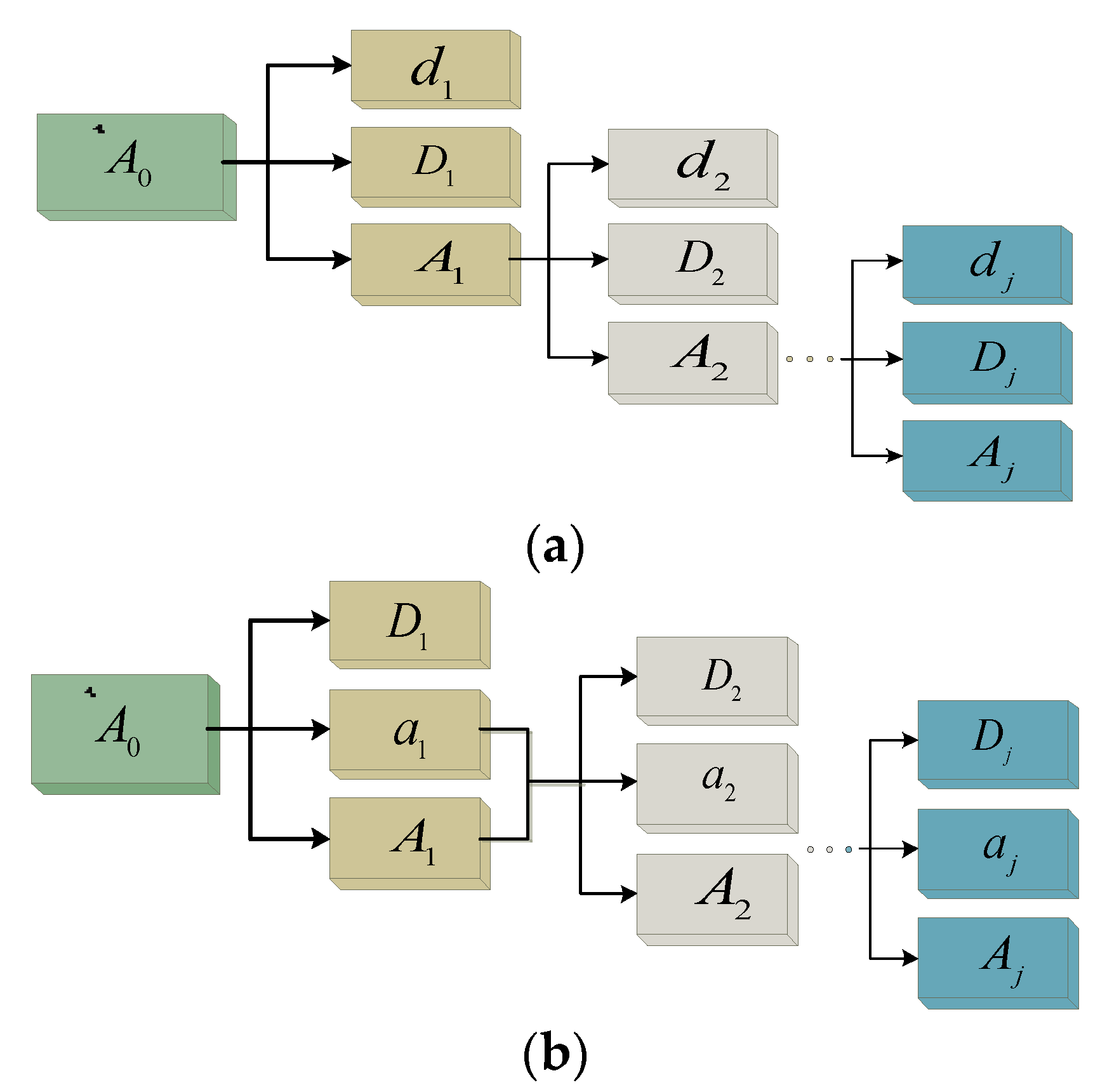

2.1.2. Multi-Division Structure MRSVD
2.2. Noise Reduction Principle Based on MRSVD
- (1)
- The signal containing noise is constructed to a matrix A that is same as Formula (1).
- (2)
- Performing the first SVD decomposition on matrix A will obtain two singular values whose reconstructed components can reflect the power concentration of original signal and the noise. Larger singular value will primarily reflect the original signal, while smaller singular value will primarily reflect the noise.
- (3)
- Zeroing the singular value that reflects the noise, that is to discard the detail signal , which is equivalent to removing some of the noise in the signal.
- (4)
- The approximation signal is retained to reconstruct the Hankel matrix for decomposition of the next layer, in such a way that decomposition of each layer separates the noise of amplitude .
2.3. Noise Reduction Process
3. Analysis

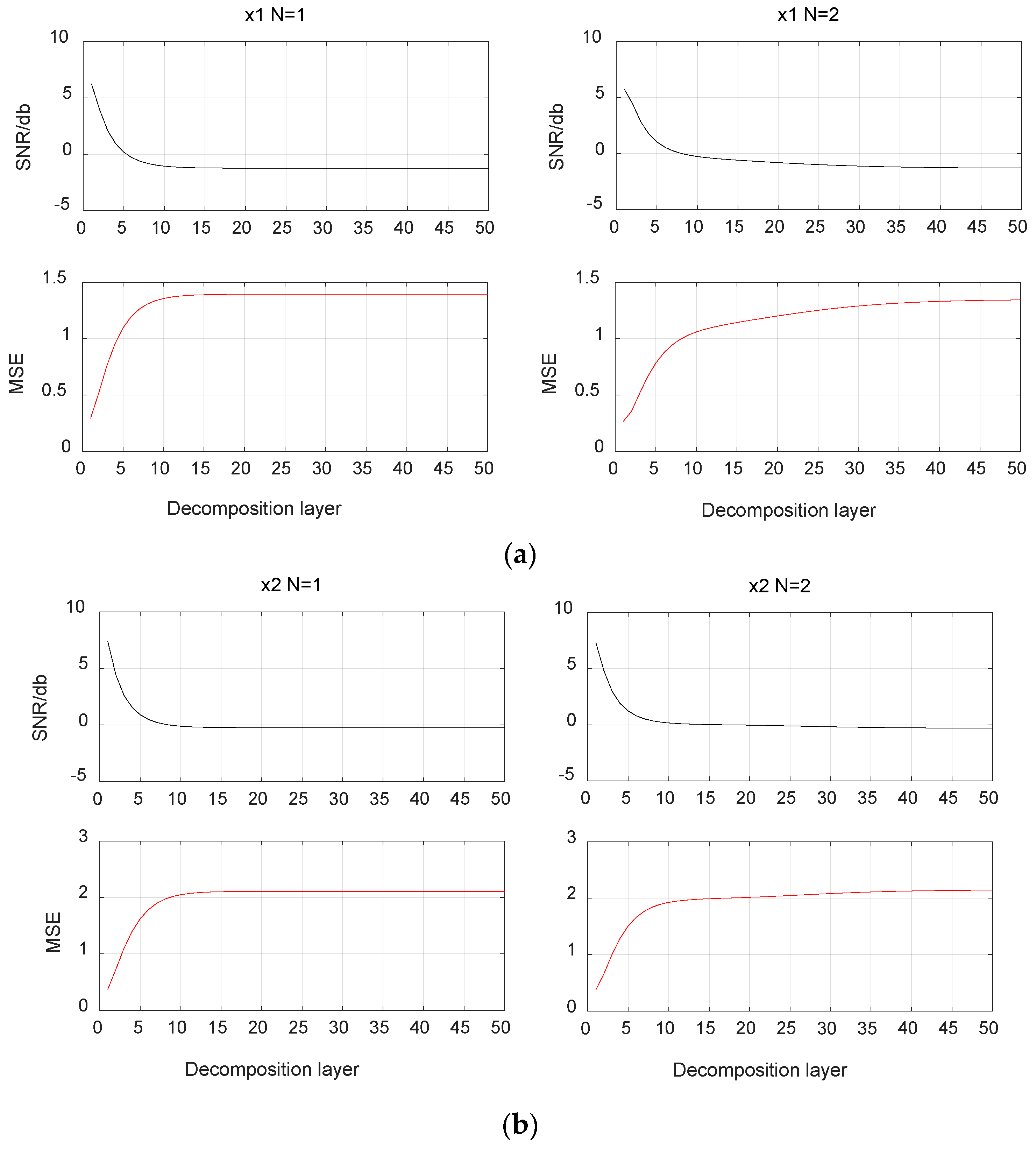

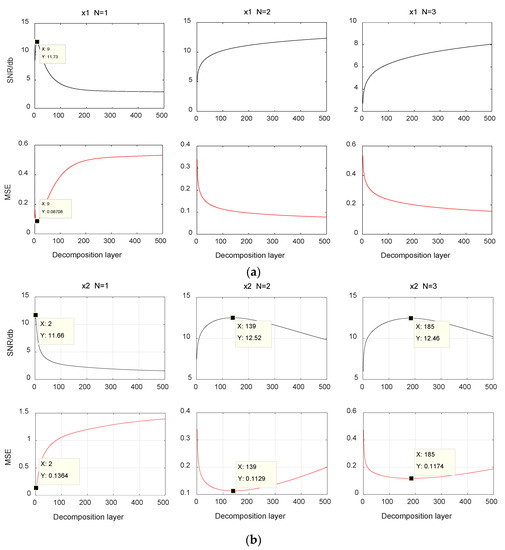

3.1. The Optimal Model of MRSVD

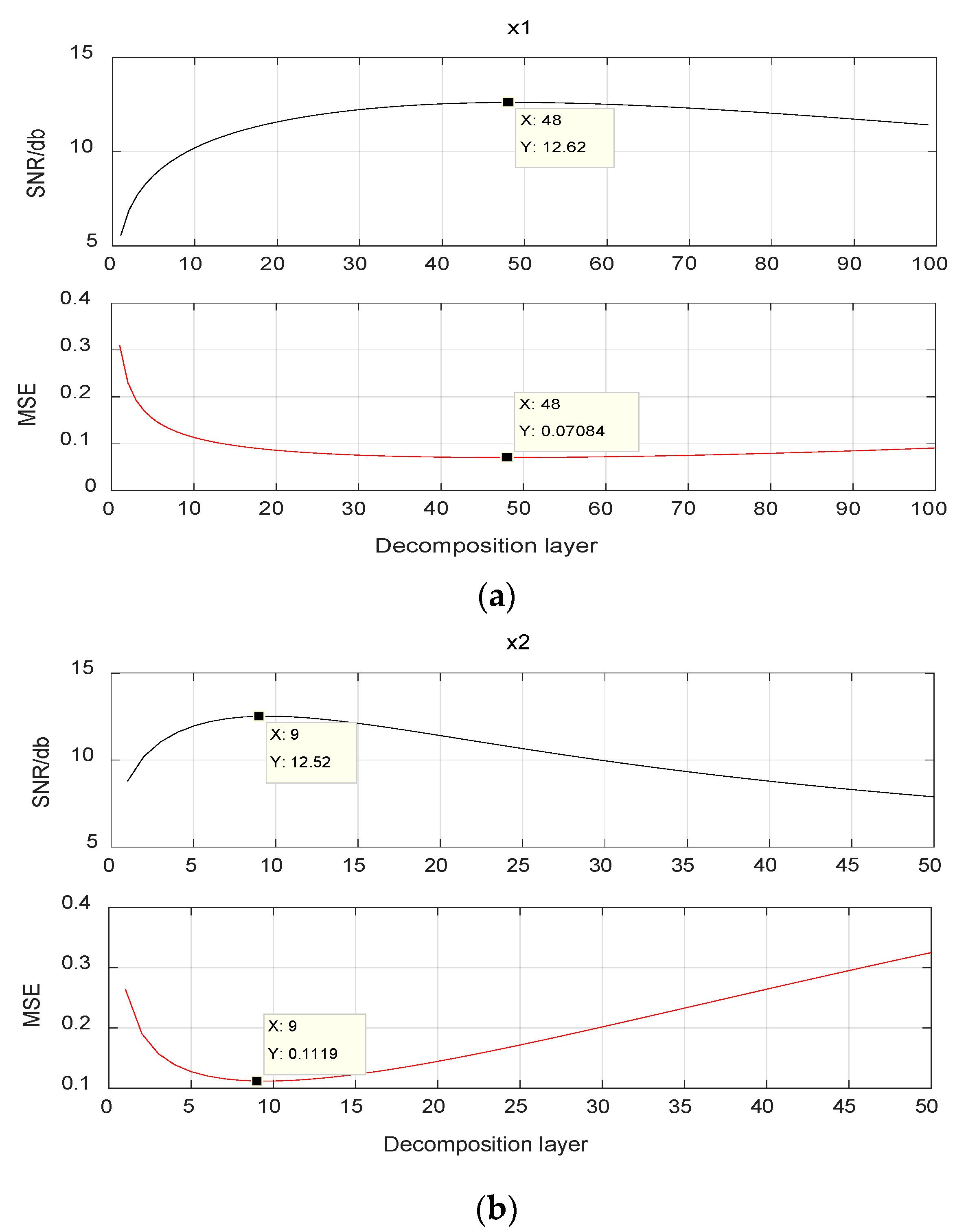

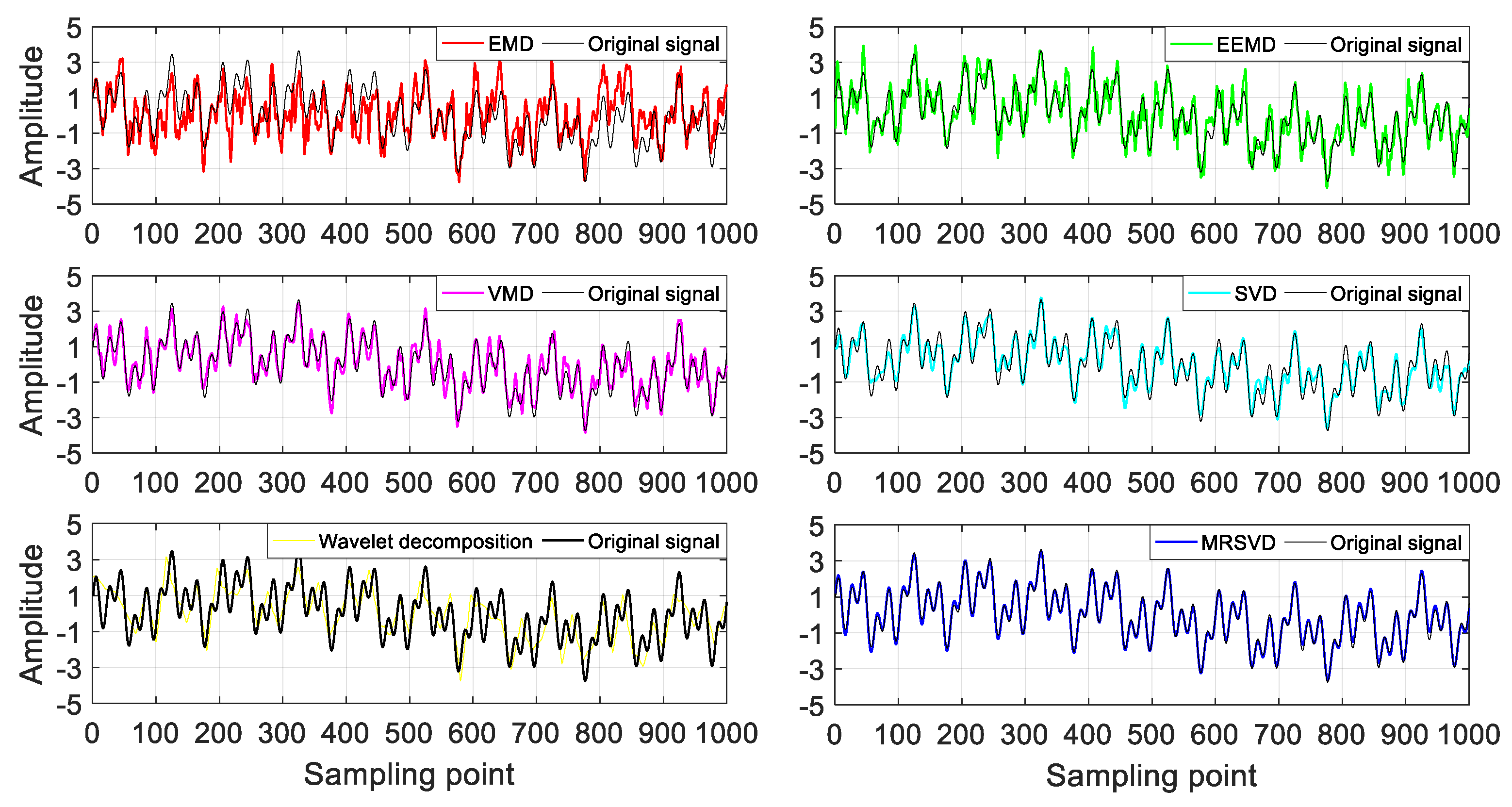

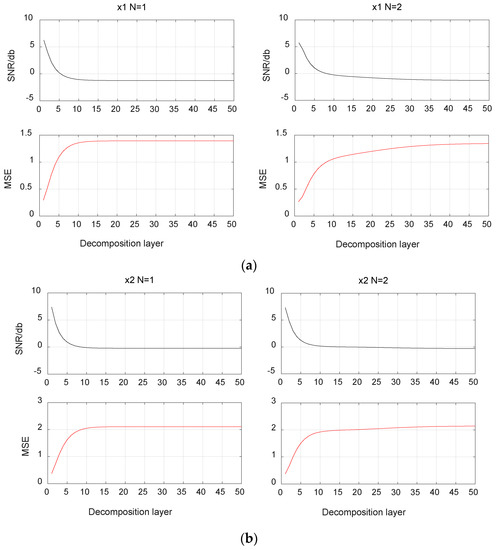

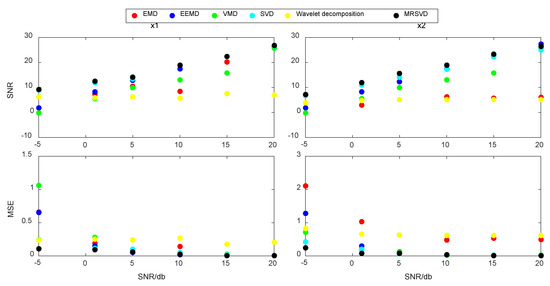

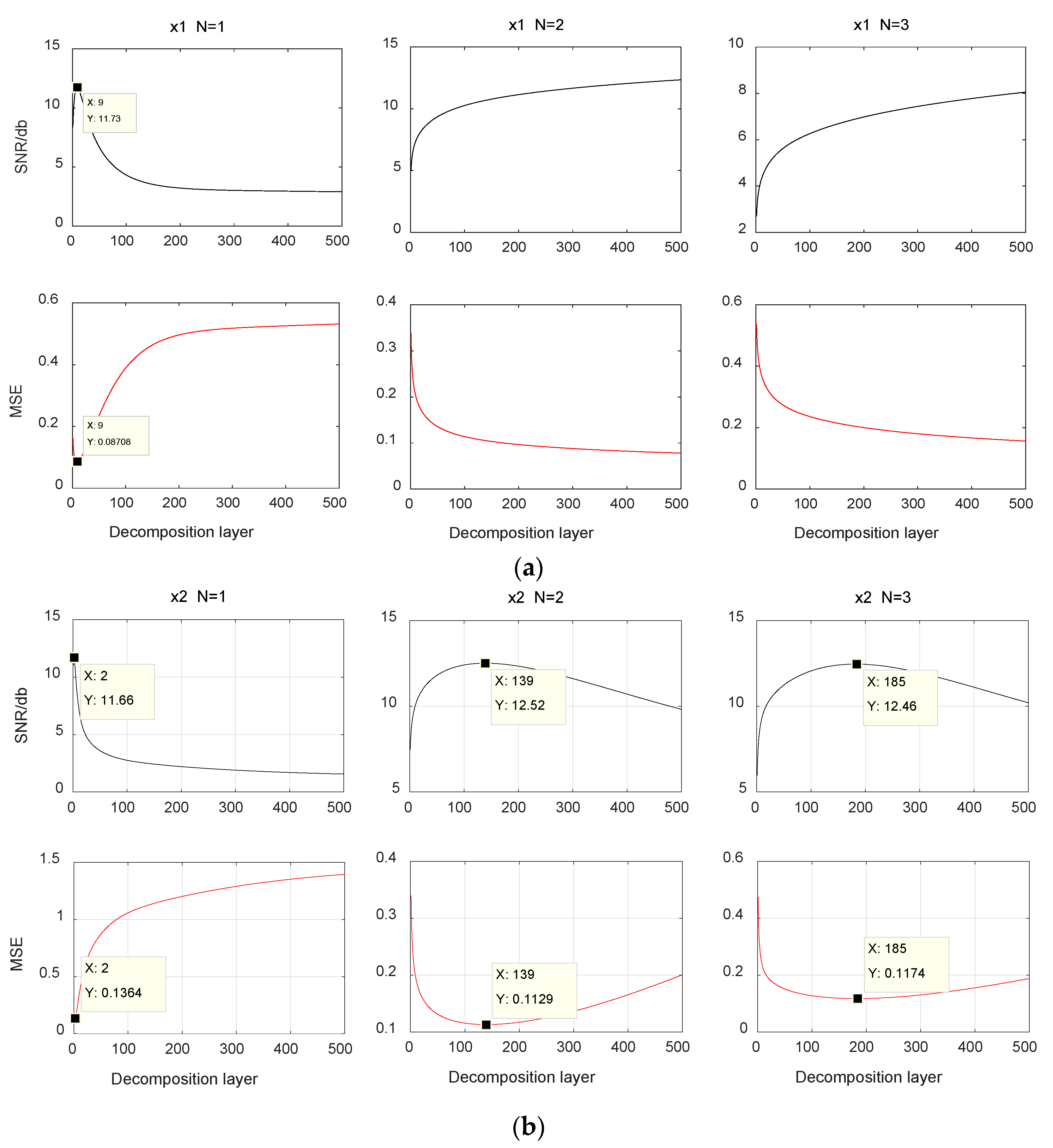

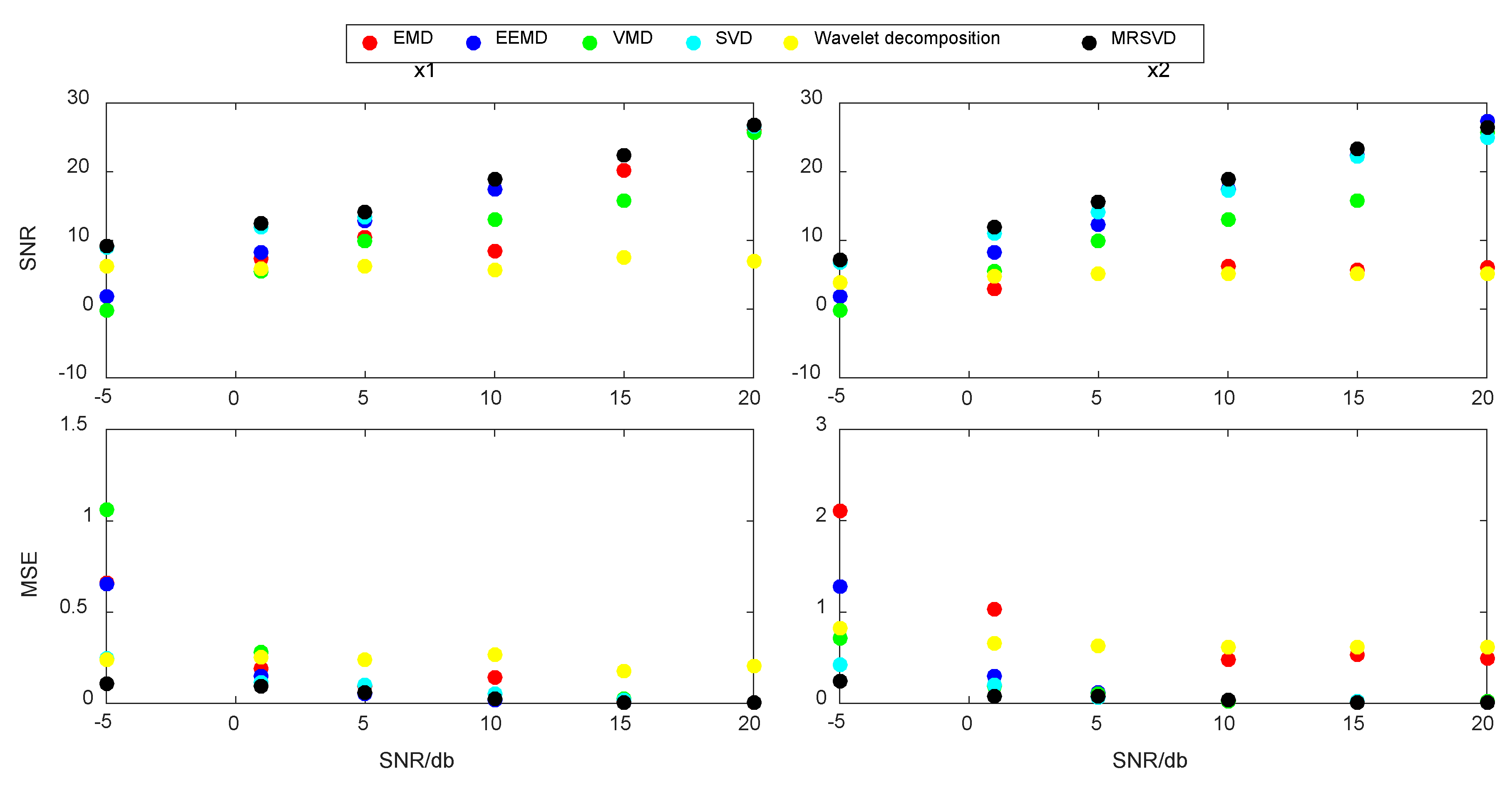

3.2. Comparison among Multiple Models

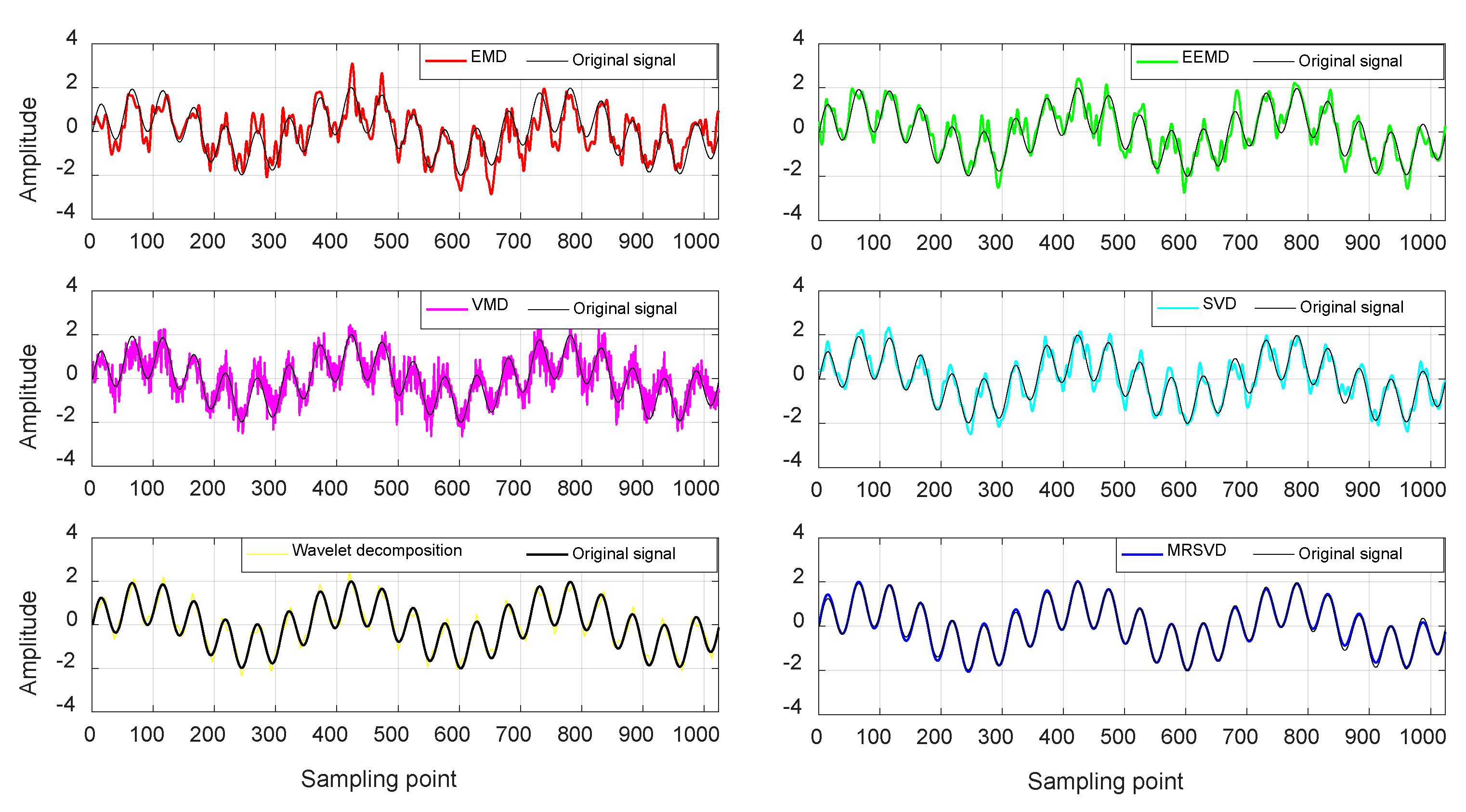

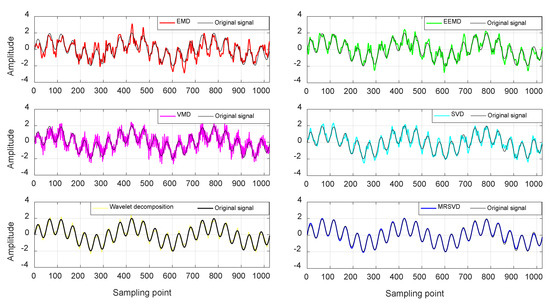

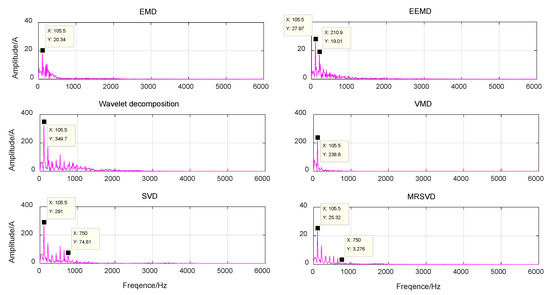

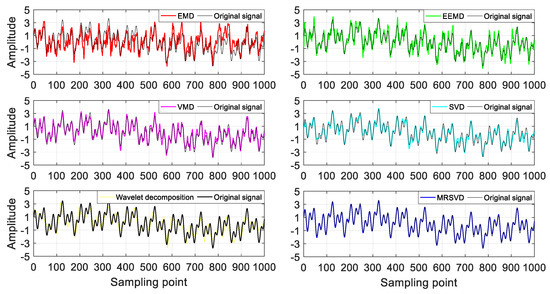

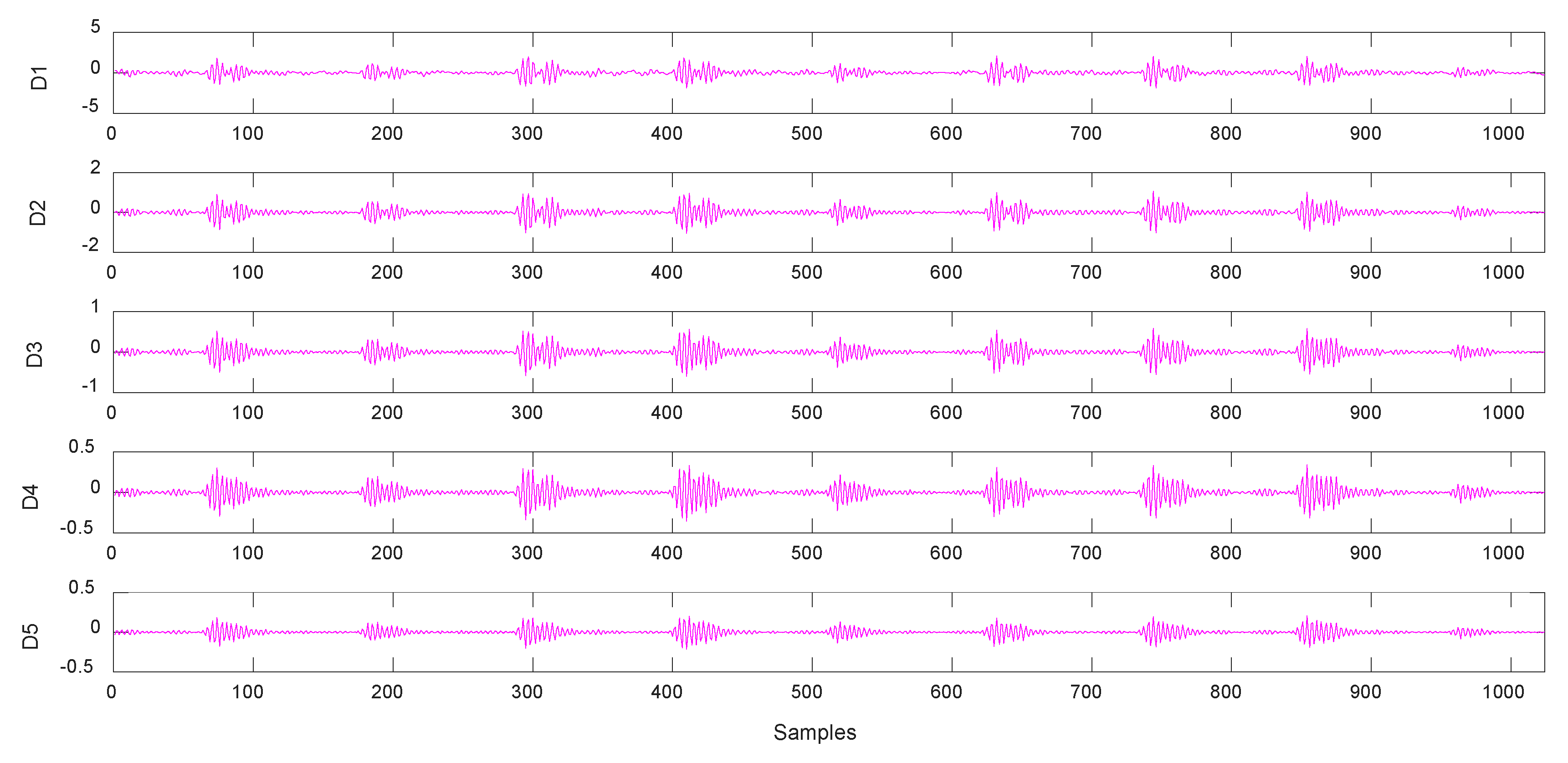

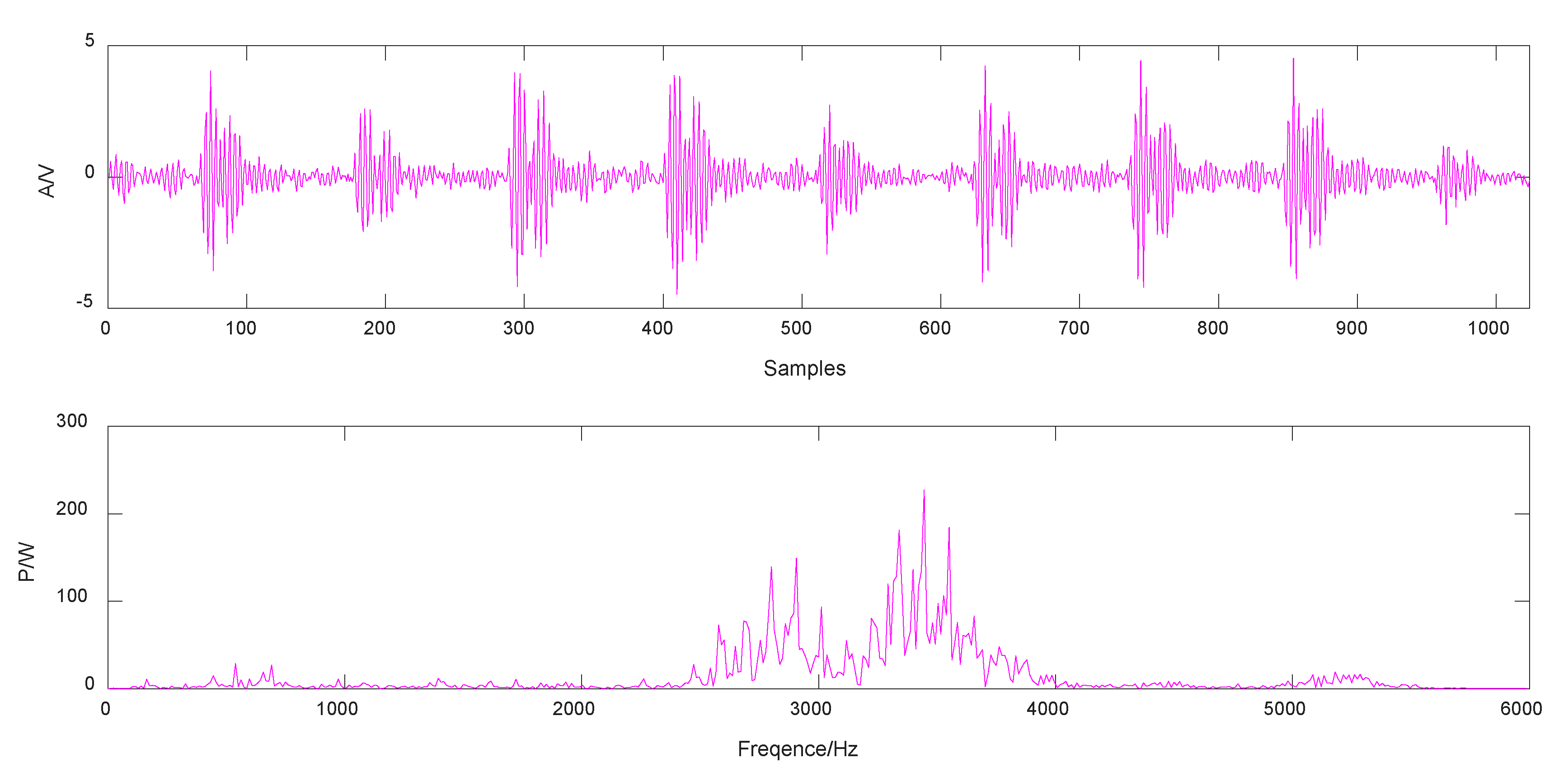

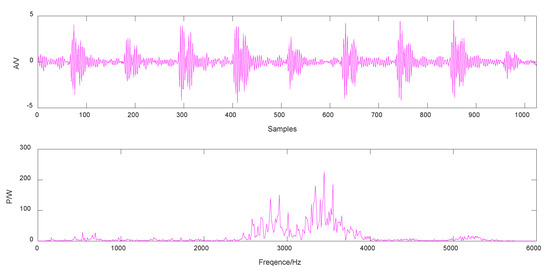

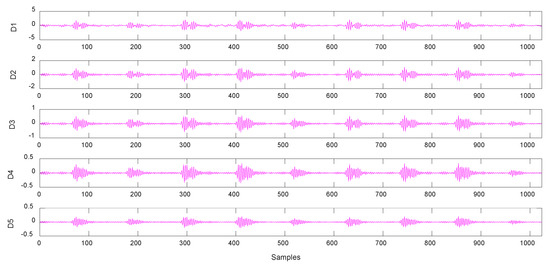

3.3. Instance Verification
4. Conclusions
Author Contributions
Funding
Conflicts of Interest

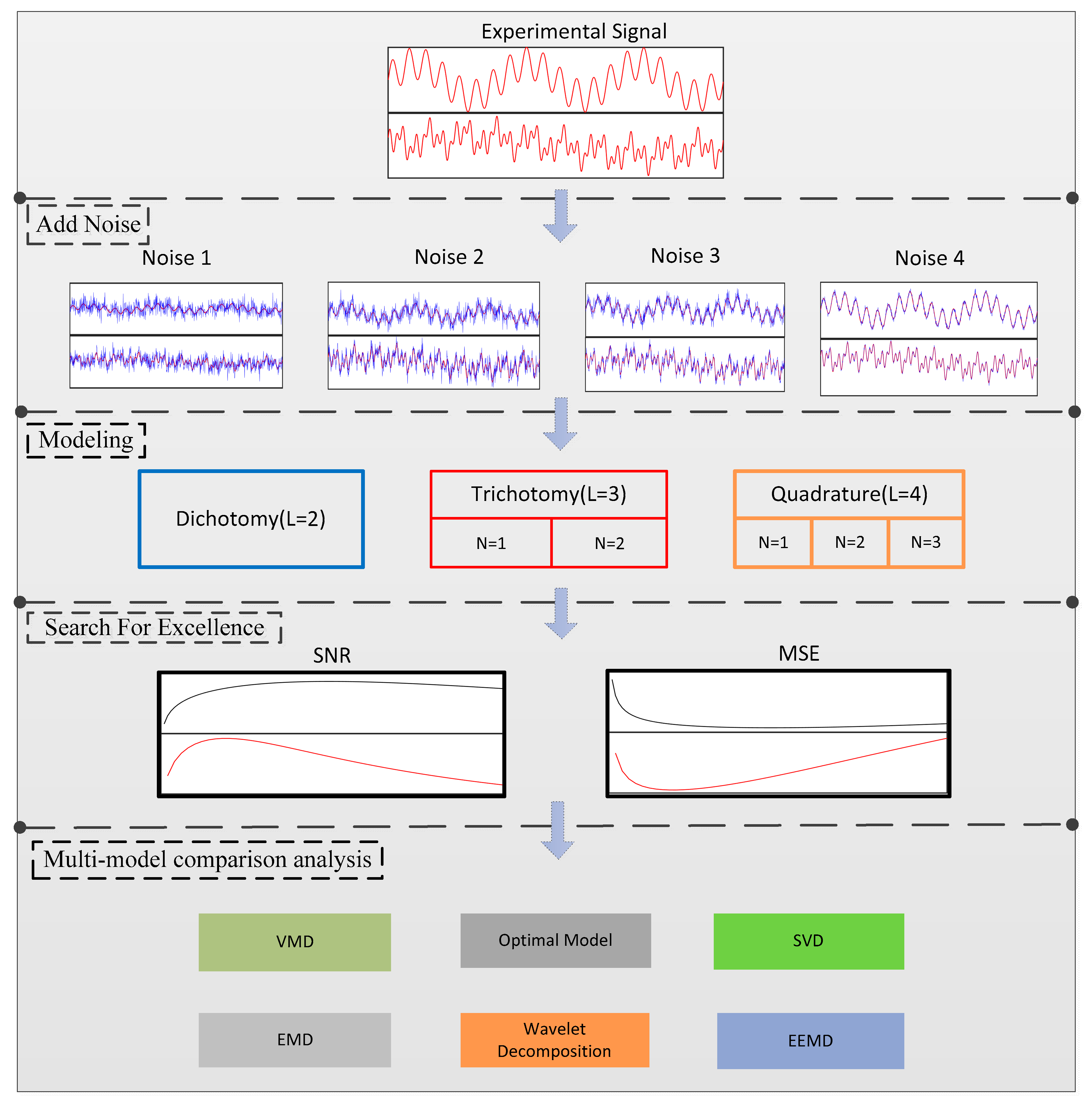

Appendix A
References
- Kim, D.; Oh, H.S. EMD: A package for empirical mode decomposition and Hilbert spectral analysis. R. J. 2009, 1, 40–46. [Google Scholar] [CrossRef] [Green Version]
- Huang, N.E.; Shen, Z.; Long, S.R. A new view of nonlinear waves: The Hilbert spectrum. Ann. Rev. Fluid Mech. 1998, 31, 417–457. [Google Scholar] [CrossRef] [Green Version]
- Yang, Y.; Cheng, J.S.; Zhang, K. An ensemble local means decomposition method and its application to local rub-impact fault diagnosis of the rotor systems. Measurement 2012, 45, 561–570. [Google Scholar] [CrossRef]
- Bai, Y.; Chen, Z.; Xie, J.; Li, C. Daily reservoir inflow forecasting using multiscale deep feature learning with hybrid models. J. Hydrol. 2016, 532, 193–206. [Google Scholar] [CrossRef]
- Yu, Y.H.; Zhang, H.B.; Singh, V.P. Forward Prediction of Runoff Data in Data-Scarce Basins with an Improved Ensemble Empirical Mode Decomposition (EEMD) Model. Water 2018, 10, 388. [Google Scholar] [CrossRef] [Green Version]
- Tang, G.J.; Wang, X.L. Parameter Optimized Variational Mode Decomposition Method with Application to Incipient Fault Diagnosis of Rolling Bearing. J. Xi’an Jiaotong Univ. 2015, 49, 73–81. [Google Scholar]
- Zhu, Y.; Jia, Y.; Wang, L.; Li, L.; Zheng, Y.Y. Feature Extraction and Classification on Partial Discharge Signals of Power Transformers Based on Improved Variational Mode Decomposition and Hilbert Transform. Trans. China Electrotech. Soc. 2017, 32, 221–235. [Google Scholar]
- Fella, B.M.; Khier, B.H.; Riadh, H.D. Denoising of degraded face images sequence in PCA domain for recognition. J. King Saud Univ. Comput. Inf. Sci. 2019, 4, 14. [Google Scholar] [CrossRef]
- Tang, J.; Li, W.; Ouyang, Y.P. Partial Discharge Pattern Recognition Using Discrete Wavelet Transform and Singular Value Decomposition. High Volt. Eng. 2010, 36, 1686–1691. [Google Scholar]
- Niu, H.Q.; Wu, J.Z.; Guo, S.F. Application of Singular Value Decomposition in Pattern Recognition of Cable Partial Discharge Signals. J. South China Univ. Technol. (Nat. Sci. Ed.) 2018, 46, 26–32. [Google Scholar]
- Luo, J.; Liu, G.; Huang, Z.M.; Law, S.S. Mode shape identification based on Gabor transform and singular value decomposition under uncorrelated colored noise excitation. Mech. Syst. Signal Pr. 2019, 128, 446–462. [Google Scholar] [CrossRef]
- Padhy, S.; Sharma, L.N.; Dandapat, S. Multilead ECG data compression using SVD in multiresolution domain. Biomed. Signal Process. 2018, 51, 361–366. [Google Scholar] [CrossRef]
- Thomas, S. Compression and Noise Reduction of Biomedical Signals by Singular Value Decomposition. IFAC Pap. Online 2018, 51, 361–366. [Google Scholar]
- Alberto, R.; Sebastián, S.P.; Luis, E. Filtering of pulses from particle detectors by means of Singular Value Decomposition (SVD). Nuclear Inst. Methods Phys. Res. 2019, 922, 257–264. [Google Scholar]
- Lü, Y.L.; Lang, R.L.; Liang, J.C. Decision of threshoH for singular value decmpositon filter based on SIR smpirical value. Appl. Res. Comput. 2009, 26, 3254–3266. [Google Scholar]
- Rajesh, P. Noise Reduction using Wavelet Transform and Singular Vector Decomposition. Procedia Comput. Sci. 2015, 54, 849–853. [Google Scholar]
- Qian, Z.W.; Cheng, L.; Li, Y.H. Signal denoising method using singular value decomposition. J. Vib. Meas. Diagn. 2011, 31, 459–463, 534–535. [Google Scholar]
- Li, H.; Liu, T. Research on bearing fault feature extraction based on singular value decomposition and optimized frequency band entropy. Mech. Syst. Signal Pr. 2019, 118, 477–502. [Google Scholar] [CrossRef]
- Zhao, X.Z. Singlar vular decomposition packet and its application to extraction of weak fault feature. Mech. Syst. Signal Pr. 2016, 70–71, 73–86. [Google Scholar] [CrossRef]
- Zhao, X.Z.; Chen, T.J.; Ye, B.Y. Variable Structure SVD Algorithm and Its Application to Signal Separation. J. Mech. Eng. 2017, 53, 11. [Google Scholar] [CrossRef]
- Tong, S.G.; Tang, N.; Cong, Y.F.; Zhou, W.; Dong, G.M. Fault Feature Extraction Technology Based on Singular Value Decomposition and Extended Application. J. Vib. Meas. Diagn. 2017, 37, 65–69, 199. [Google Scholar]
- Li, G.N.; Hu, Y.P. An enhanced PCA-based chiller sensor fault detection method using ensemble empirical mode decomposition based denoising. Energy Build. 2018, 183, 311–324. [Google Scholar] [CrossRef]
- Li, J.H.; He, D.X.; Zhou, L.D.; Zhao, X.R.; Zhao, T.T.; Zhang, W.; He, X.Y. The Effects of Facial Attractiveness and Familiarity on Facial Expression Recognition. Front. Psychol. 2019, 10. [Google Scholar] [CrossRef] [PubMed]
- Ayyad, M.; Khalid, C. New fusing of SVD and Relevance Weighted LDA for face recognition. Procedia Comput. Sci. 2019, 148, 380–388. [Google Scholar] [CrossRef]
- Zhao, X.Z.; Ye, B.Y.; Chen, T.J. Theory of Multi-resolution Singular Value Decomposition and Its Application to Signal Processing and Fault Diagnosis. J. Mech. Eng. 2010, 46, 65–75. [Google Scholar] [CrossRef]
- Huang, G.J.; Fan, Y.G.; Feng, Z.; Liu, Y.J. Research on fault diagnosis method based on generalized morphological filtering and MRSVD. Comput. Eng. Appl. 2018, 54, 217–221. [Google Scholar]
- Malini, S.; Moni, R.S. Image Denoising Using Multi-resolution Singular Value Decomposition Transform. Procedia Comput. Sci. 2015, 46, 1708–1715. [Google Scholar] [CrossRef] [Green Version]
SNR/db | ||||||||
---|---|---|---|---|---|---|---|---|
−5 | 1 | 5 | 20 | −5 | 1 | 5 | 20 | |
Two-division | 9.182 | 12.621 | 14.210 | 26.718 | 7.129 | 12.526 | 15.618 | 26.458 |
Three-division(N = 1) | 0.752 | 6.253 | 8.071 | 7.107 | 2.445 | 7.375 | 8.031 | 6.997 |
Three-division(N = 2) | −2.186 | 5.734 | 7.361 | 5.585 | 1.762 | 7.322 | 8.039 | 5.867 |
Four-division(N = 1) | 8.396 | 11.735 | 13.374 | 26.135 | 7.597 | 11.662 | 14.388 | 22.725 |
Four-division(N = 2) | 5.501 | 12.611 | 14.125 | 30.321 | 7.012 | 12. 523 | 15.606 | 30.385 |
Four-division(N = 3) | 7.453 | 8.255 | 14.212 | 29.712 | 6.821 | 12.463 | 15.528 | 29.263 |
MSE | ||||||||
---|---|---|---|---|---|---|---|---|
−5 | 1 | 5 | 20 | −5 | 1 | 5 | 20 | |
Undecomposed | 3.141 | 0.777 | 0.352 | 0.009 | 3.308 | 0.827 | 0.286 | 0.013 |
Two-division | 0.184 | 0.071 | 0.022 | 0.002 | 0.138 | 0.112 | 0.039 | 0.004 |
Three-division(N = 1) | 0.389 | 0.247 | 0.156 | 0.138 | 0.399 | 0.365 | 0.291 | 0.244 |
Three-division(N = 2) | 0.552 | 0.266 | 0.183 | 0.118 | 0.518 | 0.369 | 0.272 | 0.234 |
Four-division(N = 1) | 0.199 | 0.087 | 0.033 | 1.9 × 10−3 | 0.182 | 0.129 | 0.059 | 0.010 |
Four-division(N = 2) | 0.186 | 0.073 | 0.023 | 6 × 10−4 | 0.154 | 0.113 | 0.039 | 1.9 × 10−3 |
Four-division(N = 3) | 0.265 | 0.124 | 0.036 | 9.4 × 10−4 | 0.291 | 0.117 | 0.047 | 2.1 × 10−3 |
Decomposition Layer | ||||||||
---|---|---|---|---|---|---|---|---|
−5 | 1 | 5 | 20 | −5 | 1 | 5 | 20 | |
Two-division | 78 | 48 | 29 | 7 | 22 | 9 | 8 | 1 |
Three-division(N = 1) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
Three-division(N = 2) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
Four-division(N = 1) | 18 | 9 | 1 | 1 | 4 | 1 | 1 | 1 |
Four-division(N = 2) | 5734 | 4144 | 2583 | 1755 | 251 | 139 | 90 | 15 |
Four-division(N = 3) | 5623 | 4994 | 3673 | 3112 | 366 | 185 | 88 | 25 |
SNR/db | ||||||||
---|---|---|---|---|---|---|---|---|
−5 db | 1 db | 5 db | 20 db | −5 db | 1 db | 5 db | 20 db | |
EMD | 1.786 | 7.273 | 10.376 | 26.005 | −0.258 | 2.957 | 5.078 | 6.329 |
EEMD | 1.850 | 8.380 | 12.854 | 26.642 | 1.745 | 8.555 | 12.305 | 27.652 |
VMD | 0.206 | 6.004 | 9.542 | 25.472 | 4.533 | 10.477 | 13.146 | 20.405 |
SVD | 8.946 | 11.842 | 13.346 | 26.685 | 6.759 | 11.031 | 14.186 | 24.919 |
MRSVD | 9.182 | 12.621 | 14.210 | 26.718 | 7.129 | 12.526 | 15.618 | 26.458 |
Wavelet decomposition | 6.191 | 5.928 | 6.266 | 7.005 | 4.078 | 4.784 | 5.033 | 5.134 |
MSE | ||||||||
---|---|---|---|---|---|---|---|---|
−5 db | 1 db | 5 db | 20 db | −5 db | 1 db | 5 db | 20 db | |
Undecomposed | 3.351 | 0.707 | 0.299 | 0.009 | 3.206 | 0.833 | 0.303 | 0.010 |
EMD | 0.662 | 0.187 | 0.916 | 0.002 | 2.162 | 1.015 | 0.697 | 0.468 |
EEMD | 0.652 | 0.146 | 0.052 | 0.002 | 1.338 | 0.298 | 0.117 | 0.004 |
VMD | 1.058 | 0.282 | 0.101 | 0.003 | 0.713 | 0.201 | 0.097 | 0.018 |
SVD | 0.242 | 0.114 | 0.103 | 0.003 | 0.428 | 0.205 | 0.066 | 0.005 |
MRSVD | 0.184 | 0.071 | 0.022 | 0.002 | 0.138 | 0.112 | 0.039 | 0.004 |
Wavelet decomposition | 0.241 | 0.256 | 0.239 | 0.201 | 0.811 | 0.654 | 0.627 | 0.612 |
Noise reduction model | EMD | EEMD | VMD | Wavelet decomposition | SVD | MRSVD |
Maximum kurtosis component | IMF1 | IMF3 | IMF3 | d1 | / | D2 |
