Evaluation of Commercial Ropes Applied as Artificial Tendons in Robotic Rehabilitation Orthoses

Featured Application

This study can be used as a reference for works that develop active orthoses or prostheses that use artificial tendons to move the fingers, helping in the process of defining these tendons.

Abstract

This study aims to present the design, selection and testing of commercial ropes (artificial tendons) used on robotic orthosis to perform the hand movements for stroke individuals over upper limb rehabilitation. It was determined the load applied in the rope would through direct measurements performed on four individuals after stroke using a bulb dynamometer. A tensile strength test was performed using eight commercial ropes in order to evaluate the maximum breaking force and select the most suitable to be used in this application. Finally, a pilot test was performed with a user of the device to ratify the effectiveness of the rope. The load on the cable was 12.38 kgf (121.4 N) in the stroke-affected hand, which is the maximum tensile force that the rope must to supports. Paragliding rope (DuPont™ Kevlar${}^{\circledR }$) supporting a load of 250 N at a strain of 37 mm was selected. The clinical test proved the effectiveness of the rope, supporting the requested efforts, without presenting permanent deformation, effectively performing the participant’s finger opening.

1. Introduction

Stroke is the world’s leading cause of death and disability [1]. with 6.7 million deaths per year, estimated to be the second leading cause of death by the year 2030 [2,3].

Stroke is a clinical syndrome caused by a reduction in blood perfusion in brain structures and is characterized by disturbances in brain function [4]. About 57% of individuals, after having a stroke, have some of limitations in daily activities and more than 50% of these individuals have functional impairment, thus requiring some external help to perform functional tasks [5]. The prevalent motor deficits presented are paralysis (hemiplegia) or weakness (hemiparesis) of body contralateral half to stroke injury [6]. Clinically, muscle weakness, muscle tone abnormality, movement control deficiency, body composition changes of the extremities with loss of muscle and bone mass [7], postural alteration, lack of mobility, abnormal synergistic patterns and loss or reduction of motor coordination can also be observed [8].

An innovative and promising rehabilitation alternative capable of enhancing the motor and functional capacity of individuals after stroke is the robotic therapy [9]. It uses robotic orthoses, which is mechatronic equipment ranging from the creation of artificial limbs, to robots that assist in rehabilitation or hospital or residential care [10].

The great advantage of using these devices is the high degree of repeatability and the performance of intensive activities with less professional supervision, using a simple routine of pre-programmed robot rehabilitation activities [8,11,12,13]. Numerous systematic reviews have been performed showing the efficiency in using these devices to rehabilitate individuals [12,14,15,16,17,18]. An Improvement in short and long-term proximal end (shoulder and elbow) motor control has been observed in acute and chronic post-stroke patients, using these devices [12,17]. A combination of traditional methods and robotic therapy in some stages of stroke recovery can produce a significant improvement in elbow and shoulder motor recovery [16,18]. An improvement in daily life activity, arm function and muscle strength has also been observed [15], as well as minor effects on motor control and mild effects on muscle strength compared with other short-term interventions using robotic therapy [14]. A combination of these devices with brain–computer interfaces has been also used to improve the rehabilitation ability of individuals after stroke, thus proving the effectiveness of these robots during therapy sessions [19].

Several devices have also been developed to rehabilitate or assist upper limb function, such as MIT-Manus [20], ARMin III [21], MIME [22], BI-MANU-TRACK [23], ARM Guide [24] and NeReBot [25]. In Brazil, the Laboratório de Bioengenharia da Universidade Federal de Minas Gerais (LabBio-UFMG), located in Belo Horizonte/MG, developed a robotic orthosis for upper limb rehabilitation of post stroke individuals [26,27].

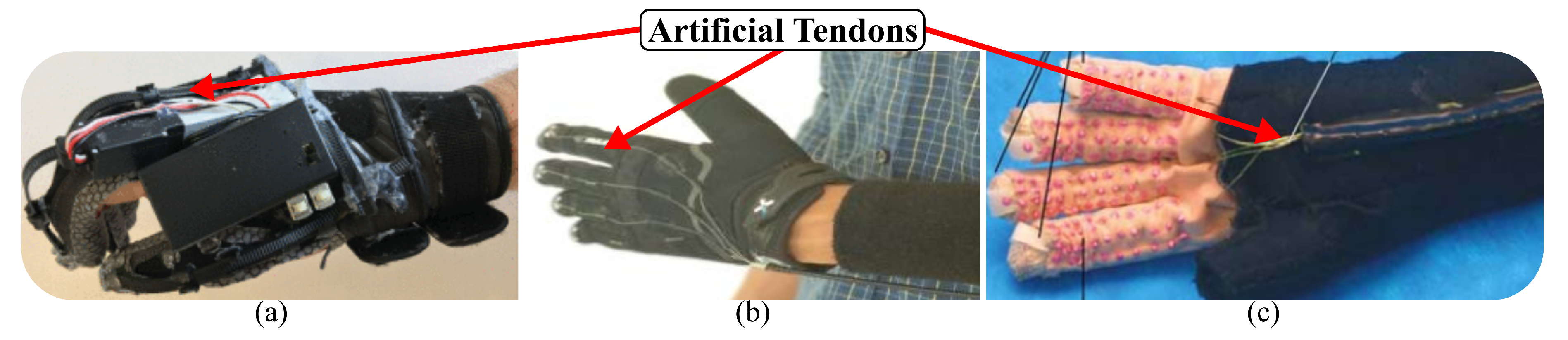

Currently is desire the development of soft robots, made by tissue, or elastic polymers [28]. In this way, mechanical tendons or soft actuators act like a human tendon performing the exoskeleton actuation function, while the hand and fingers perform the strutural function [29]. These devices often use springs, cables, elastics, ropes or elastic wires, making the same fuction of artificial tendons, to transmit movement to the paralyzed muscles, through traction and relaxation of them. In the Exo-Glove [29] (Figure 1b) a Bowden cable, frequently used like a bicycle brake cable, was used to perform the artificial tendon function and control the fingers movement, your choice was due to a teflon coating which protects the steel cable. In the Xiloyannis et al. [30], Xiloyannis et al. [31] work a Bowden cable was used to transmit de motor force to the artificial tendon, but in the first a Kevlar rope was used in the artifical tendon function and in the second another cable steel was used for this. In the Hero system [32] (Figure 1a) a tie up, made by plastic, was used and a simple rope was used in the previously version of the LabBio hand orthesis [33] (Figure 1c).

These artificial tendons must be able to withstand heavy loads, have low strain, ease of handling and good fit for the user limb, ensuring safe use of the equipment. To achieve this a correct analysis of each cable must be made, through tests that prove the correct functioning of the tendons. Thus, this paper aims to present the design, selection and testing of commercial ropes that were used to generate the hand movements of a robotic orthosis for upper limb rehabilitation of individuals after stroke.

2. Methodology

2.1. Device

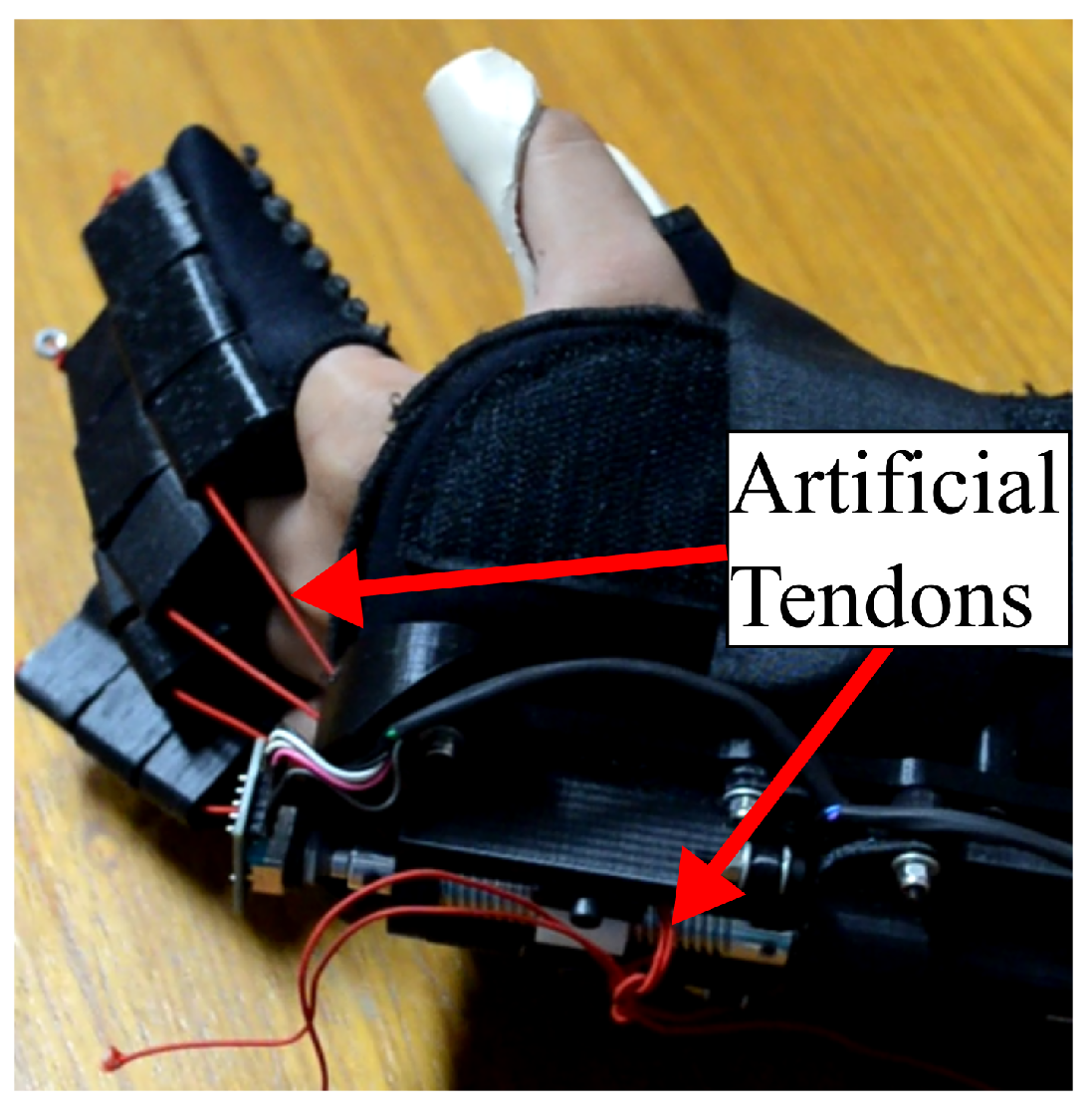

The orthosis developed in (LabBio-UFMG) is portable, low cost and low weight composed by a module with glove and artificial fingers and phalanxes, witch are connected to ropes (artificial tendons) that are able to open the user’s fingers. The rope is pulled through a power screw system coupled to a motor, which executes and controls the motions. The rope was attached to the transmission system through a support fixed by a bolt (Figure 2).

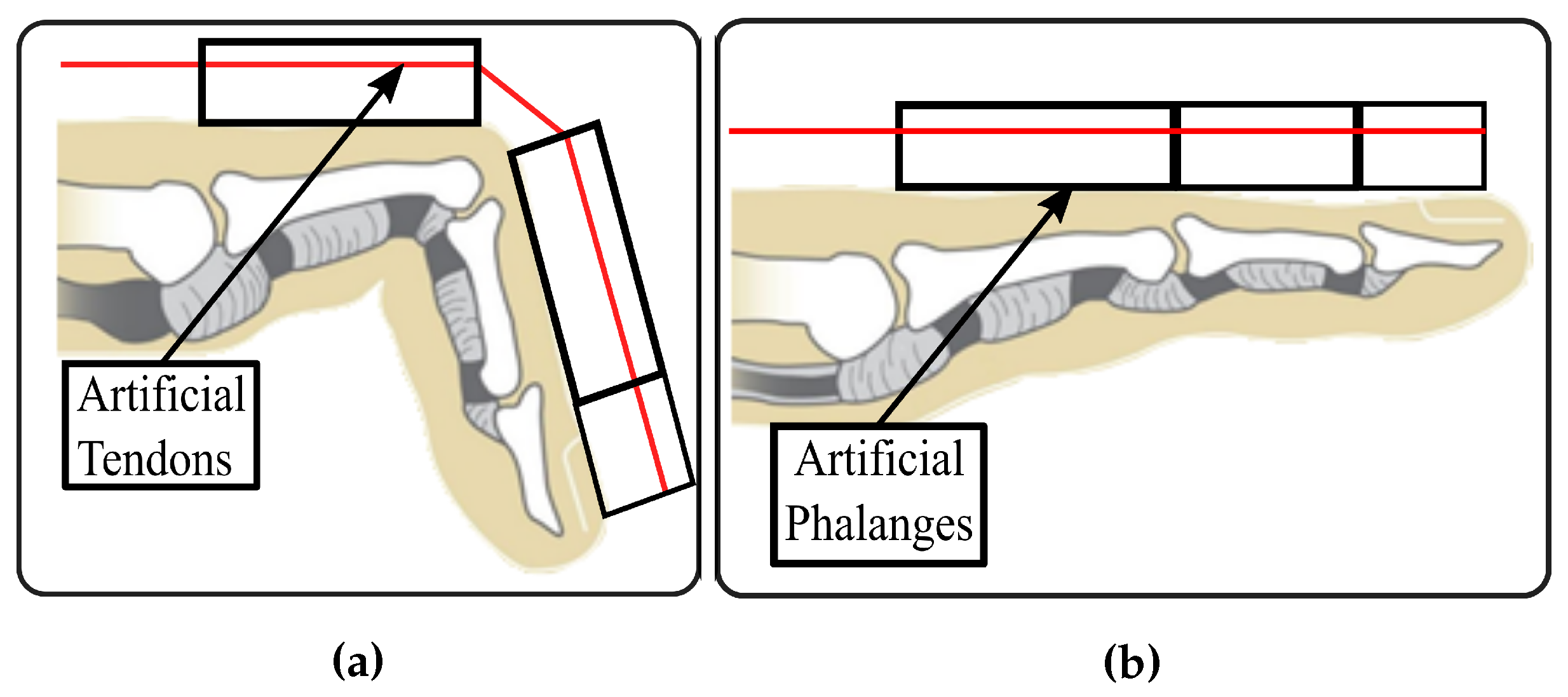

The artificial phalanges limit the users’ phalanges movement avoiding anything greater than physiological amplitudes. For fingers’ opening movement, the artificial tendon was tensioned and the distal artificial phalanx was pulled, in that way, performing a rotation about the distal articulation axis. This movement was performed until the distal artificial phalanx collided with the middle artificial phalanx. Keeping the traction in the artificial tendon, a rotation about the middle articulation axis was performed until the collision between middle and proximal artificial phalanges. The rotation now occurred about the proximal articulation axis until the transmission system nut actuated the travel limiter sensor present in the system, so the fingers’ opening completed movement was performed (Figure 3). The closing movement of the fingers was performed passively, taking advantage of the user’s ability to perform this movement. Due to this, the artificial tendon was designed to support the traction during the fingers opening movement.

Before to the operation started, with the orthosis dressed up, the operator commanded the actuator to the fully fingers opening setup with the bracket screw loose.Upon reaching the position, the operator pulled the ropes, with the user’s hand fully opening, until they were on full traction, and tightened the fastener screw, thus ensuring the correct performance of the system. All position and speed control was made through an application developed for the Android${}^{\circledR }$ system and a microcontrolled electronic circuit by a STM32F103.

2.2. Volunteers

The volunteers were recruited, for a pilot test with the device, through a public call issued by stroke associations, rehabilitation centers, hospitals and social media in the city of Belo Horizonte, Minas Gerais in December 2016. They were selected according to the inclusion and exclusion criteria and informed about the study objectives. Those who agreed to participate signed the informed consent form. The study project was approved by the Universidade Federal de Minas Gerais Research Ethics Committee (CAAE Registry: 22207213.5.0000.5149).

Inclusion criteria were: age greater or equal than 18 years with left unilateral stroke and chronic impairment diagnosis (minimum six months after stroke) [34]; present hemiparesis with reduced upper limb motor function (elbow and fingers incomplete flexion and extension movements, presenting arm and hand in the 4th Brunnstrom phase) [35]; present at least 45${}^{\circ }$ of the shoulder flexion and abduction, complete passive movement of the elbow, hand and finger joints without compromised sensitivity measure by the Fugl–Meyer scale [36]; present muscle tone alteration from mild to moderate, measured through the Modified Ashworth Scale [37]; present absence of severe cognitive deficits, evaluated by the Brazilian version of the Mini-Mental State Examination [38]. The exclusion criteria in the study were: flaccidity in the affected upper limb; severe neurological, orthopedic or rheumatologic impairment before the stroke that may interfere with the performance task; severe cognitive impairment (global aphasia, attention deficit, neglect) that limits understanding of commands or conclusion of experimental tasks; severe pain in the affected upper limb, measured using the Visual Analogue Scale (VAS) (> 8 on a scale from 0 to 10); opened skin injuries where the device would be attached; having used Botox in the last three months for spasticity or other medicines known to increase motor recovery; having participated in the last three months of another research study to improve upper limb function.

Four individuals were selected to participate in the study. Their characteristics are presented in

Table 1. Volunteers characteristics.

Participant	Sex	Age	Dominance	Post Stroke Time	Finger Spasticity Level *
1	Male	73	Right	53 months	1
2	Male	38	Right	113 months	2
3	Female	25	Left	48 months	2
4	Female	48	Right	24 months	1

(*) Spasticity assessed using the Ashworth Scale.

.

2.3. Artificial Tendons Design and Selection

For the artificial tendons design and selection used in the hand module, some design steps were required. The first was the determination of the loads to which the ropes were subjected; thereafter a tensile strength test using various commercial ropes to evaluate and determine what would best fit the use; and finally a pilot test with the volunteers to confirm the effectiveness of the rope as an artificial tendon.

2.3.1. Applied Loads Determination

To determine the traction force that the rope would be subjected, direct measurements were performed on the four volunteers with a New Saehan Squeeze Dynamometer-SH5008 bulb-type dynamometer. Normative anthropometric data were not used for this determination because individuals after stroke present abnormality in tone, which implies hypotonia in the development and subsequent hypertonia in these individuals. This hypertonia can lead to spasticity, which implies speed-dependant increase in muscle tone, thereby increasing myotactic reflex, postural changes and stereotyped movements, which leads to a reduction in the range of joint motion, pain, muscles limb activities limitation and consequently hinders the performance of daily functional activities [39,40]. Because of that, these individuals present a lower grip strength than normative anthropometric data, which present an average of 44.2 kgf for men and 31.6 kgf for women when using the dominant hand [35].

As users of this equipment present difficulties only in the fingers opening movement, the maximum force required to the rope was greater or equal than the maximum grip strength of the hand affected, that is, pulling the rope. The movement of finger closure was given passively, taking advantage of the spasticity presented by the individuals and the ability to close the fingers preserved.

To measure the grip strength, each participant squeezed the dynamometer body as tightly as possible for three consecutive times and an average of the strength measured was calculated. The traction force applied to the selected cable was determined to be the highest of the average forces measured, thus ensuring that the rope safely supports the required loads.

2.3.2. Tensile Strength Test

After defining the applied traction force, the rope used was selected. For this, a set of eight different commercial ropes were subjected to a tensile strength test, until their rupture, to determine the maximum supported force and the strain of each one. The first guarantees the system’s operation, and must have a value greater or equal than the volunteers highest average grip force, which was the maximum traction load defined for the project. Already the strain ensures the device a degree of repeatability, since one of the great advantages of robotic therapy is the ability to perform the same movements over and over again on the patient [8,11,12], the selected rope must not have permanent strain after performing one or more actions, to ensure the fingers correct position.

The selected ropes to the tests should have a diameter equal or less than 1.25 mm to easily couple the rope in the nut and artificial phalanges without raising the device components size and weight. Furthermore, they usually used in hight loads applications and could be easily found in the regional market due to the fabrication costs. Their characteristics are presented in the

Table 2. Ropes characteristic.

Manufacturer	Product	Material	Diameter [mm]
D’Addarío	Guitar String	Brass	0.64
	D (85/15)
D’Addarío	Guitar String	Brass	0.23
	E (85/15)
D’Addarío	Guitar String	Brass	0.30
	B (85/15)
D’Addarío	Guitar String	Brass	0.89
	A (85/15)
D’Addarío	Guitar String	Brass	0.38
	G (85/15)
D’Addarío	Guitar String	Brass	1.14
	E (85/15)
TufLine XP	Fishing line	Spectra${}^{\circledR }$	0.48
SOL Paragliders	Paragliding rope	DuPont™ Kevlar${}^{\circledR }$	1.00

.

The tests were performed at the Structural Analysis Laboratory of the Pontifícia Universidade Católica de Minas Gerais, using the EMIC 23-5D tensile testing machine, which has a maximum load capacity of up 5 KN and clamps for specimen fixation. For the attachment of the ropes, a tie was used, where the cable was tied to the machine’s claws ends, using a simple knot. With the cable properly fixed, the upper clamp was adjusted to an initial height of 300 mm, thus allowing a usable wire clearance of 255 mm and a maximum test height of 600 mm.

For control and data acquisition, Tesc Version 3.04 software was used. The test parameters were then defined in the software, which were the “Rectangular Tie Pull” method, the type of material tested and the rope diameter analyzed. The test was initiated by the operator, and the machine gradually increased the applied force automatically until the sample rupture was reached. With the test finished, the software generated the strain and force plots with the value measured. Several tests were performed in order to stabilize the values of force and strain obtained, since the desired curve for each rope should have similar behaviors, without great variability in their force values by strain. However a great variability in the values found were observed, mainly due to the way the ropes were attached to the claw, which often fails to fix them sometimes loosening the knot made which altered the obtained data and thus several tests were needed. The results presented took into account the tests that behaved with greater similarity for each rope.

2.3.3. Pilot Test

With the rope selected, a device functionality test was performed with the four volunteers to approve this rope like artificial tendons. Only the results of one of the volunteers (participant 3) was shown, because this participant presented one of the highest hand spasticity values, so if the tendons could open their fingers efficiently, all of the individuals, with a spasticity lower of equal than his, would be also able to open their fingers.

The opening and closing movement of the fingers (complete extensions and flexions) were performed several times to verify if the artificial tendon supported the loads during the whole movement. Partial openings were also made in order to verify the degree of precision of the system by measuring the opening angle of the hand using a plastic PVC Carci finger goniometer. In addition, it was verified that the cable did not suffer any permanent strain during its operation.

3. Results

3.1. Applied Loads Determination

With the data of volunteers grip strength (

Table 3. Unaffected and affected limb grip strength of volunteers.

Participant	Measured		Average		Standard Deviation
	Unaffected	Affected	Unaffected	Affected	Unaffected	Affected
	[kgf]	[kgf]	[kgf]	[kgf]	[kgf]	[kgf]
1	36	9	38.67	11.00	2.52	1.73
	39	12
	41	12
2	54	18	49	17.83	5	0.29
	49	18
	44	17.5
3	38	15	38.67	13.33	1.15	2.89
	38	10
	40	15
4	34.5	6	33.83	7.33	3.55	1.53
	37	9
	30	7
Average			40.04	12.38	6.45	4.28

), the highest average grip strength observed was equal to 17.83 kgf (174,91 N) in the hand afected by the stroke. Therefore this is the maximum traction force that the rope used should support.

3.2. Tensile Strength Test

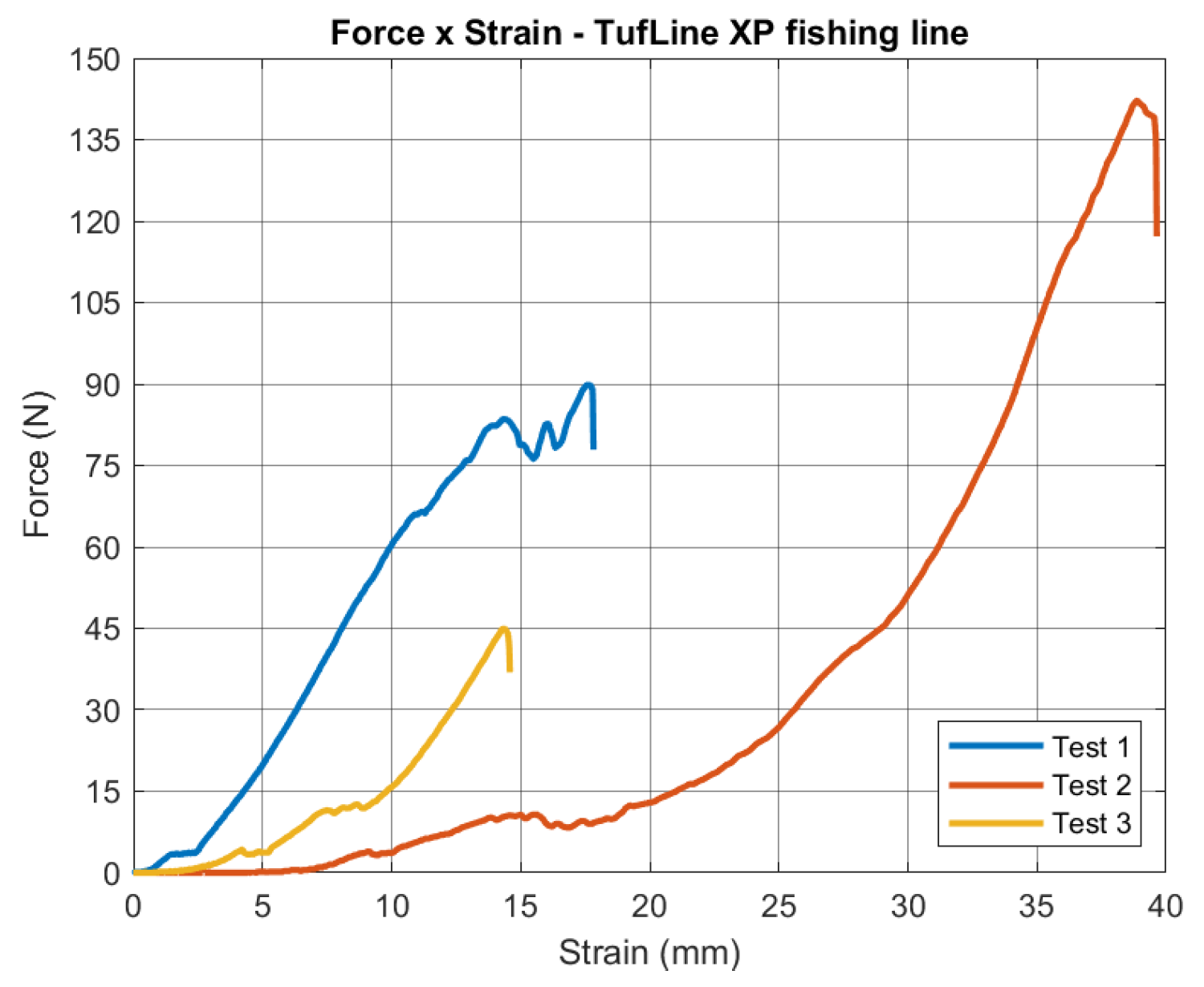

The TufLine XP fishing line behaved heterogeneously, as shown in the three force x strain curves below (Figure 4). It presented the maximum strength range between 45 and 140 N and a strain between 14 and 39 mm approximately.

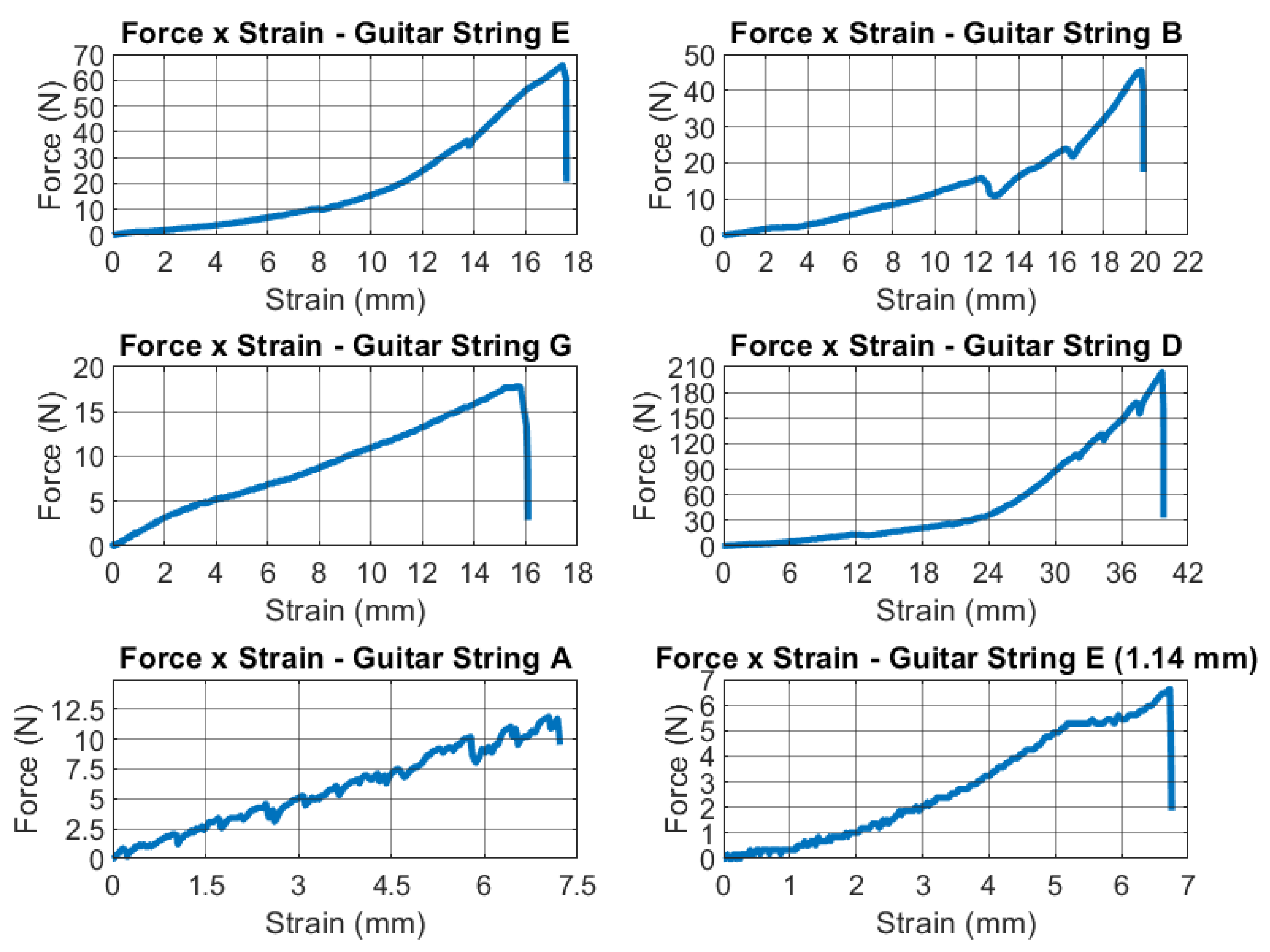

The guitar strings tested, showed a more consistent behavior, and were analyzed as shown in Figure 5. Only one curve force x strain for each string was shown, due to close behavior of the curves obtained by the tests. Among the guitar strings submitted to the tensile strength test, the one that presented the best result was the D string (0.64 mm in diameter), it presents approximately a 37 mm of strain, when it is pulled at 200 N force. This value is higher than the global average grip force in the volunteers (12.38 kgf or 121.45 N) and the maximum traction force determined in the project (174.91 N). The ropes did not perform as expected, there was no proportional increase in the maximum tensile strength relative to the increase in the diameter of the rope. This is because, in order to change the musical notes (frequencies), in addition to increasing the diameter, changes in the string structures are necessary.

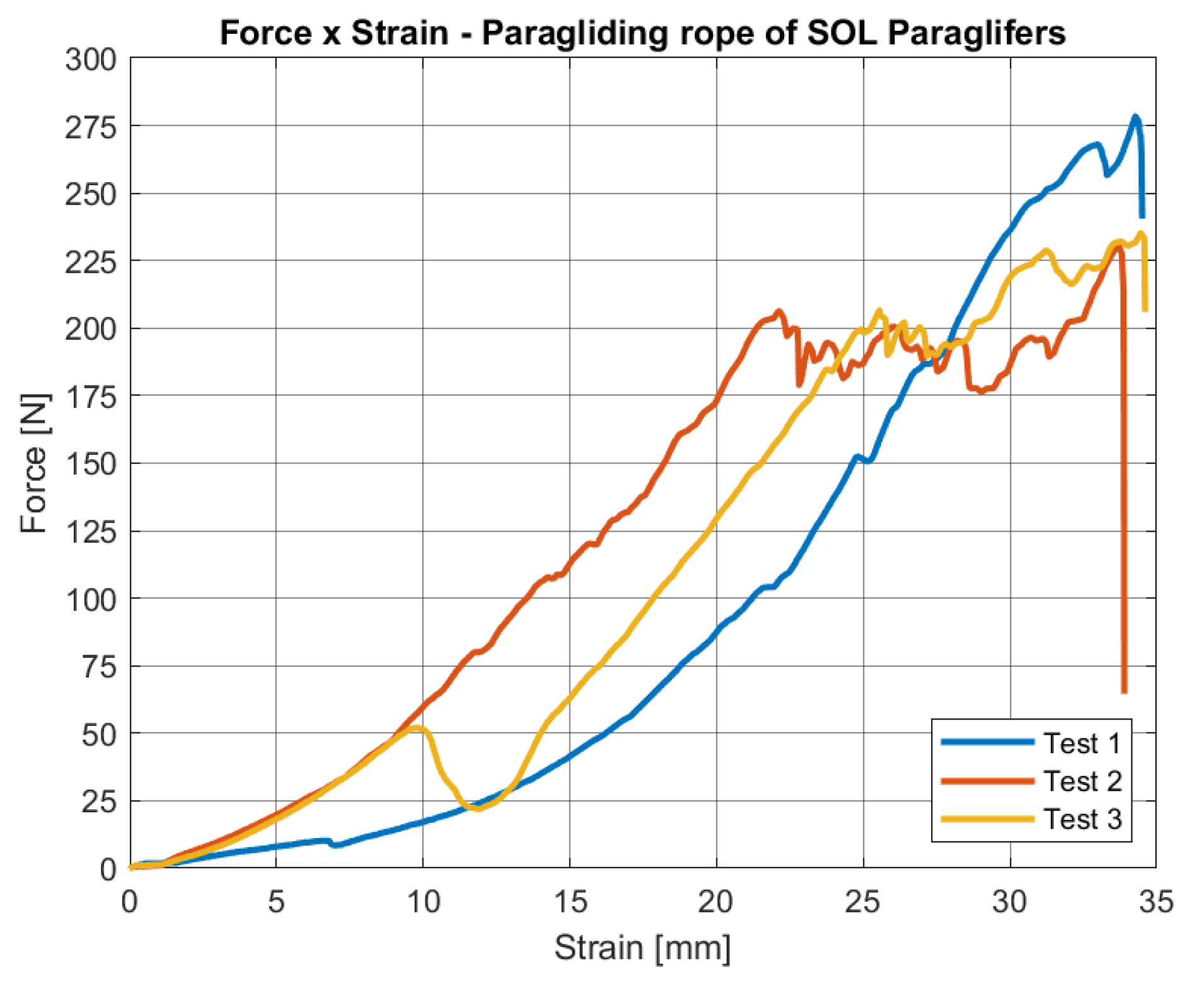

The last rope analyzed was the SOL Paragliders paragliding rope. The force x strain curves shown (Figure 6) to demonstrate the more stable behavior of the paragliding rope than the fishing line. It withstood high tensile loads between 225 N and 280 N and maximum strain between 33 mm and 35 mm. In addition, the generated curves present greater congruence of values for the elastic, plastic and rupture limit regions compared to the other lines submitted to the test.

3.3. Pilot Test

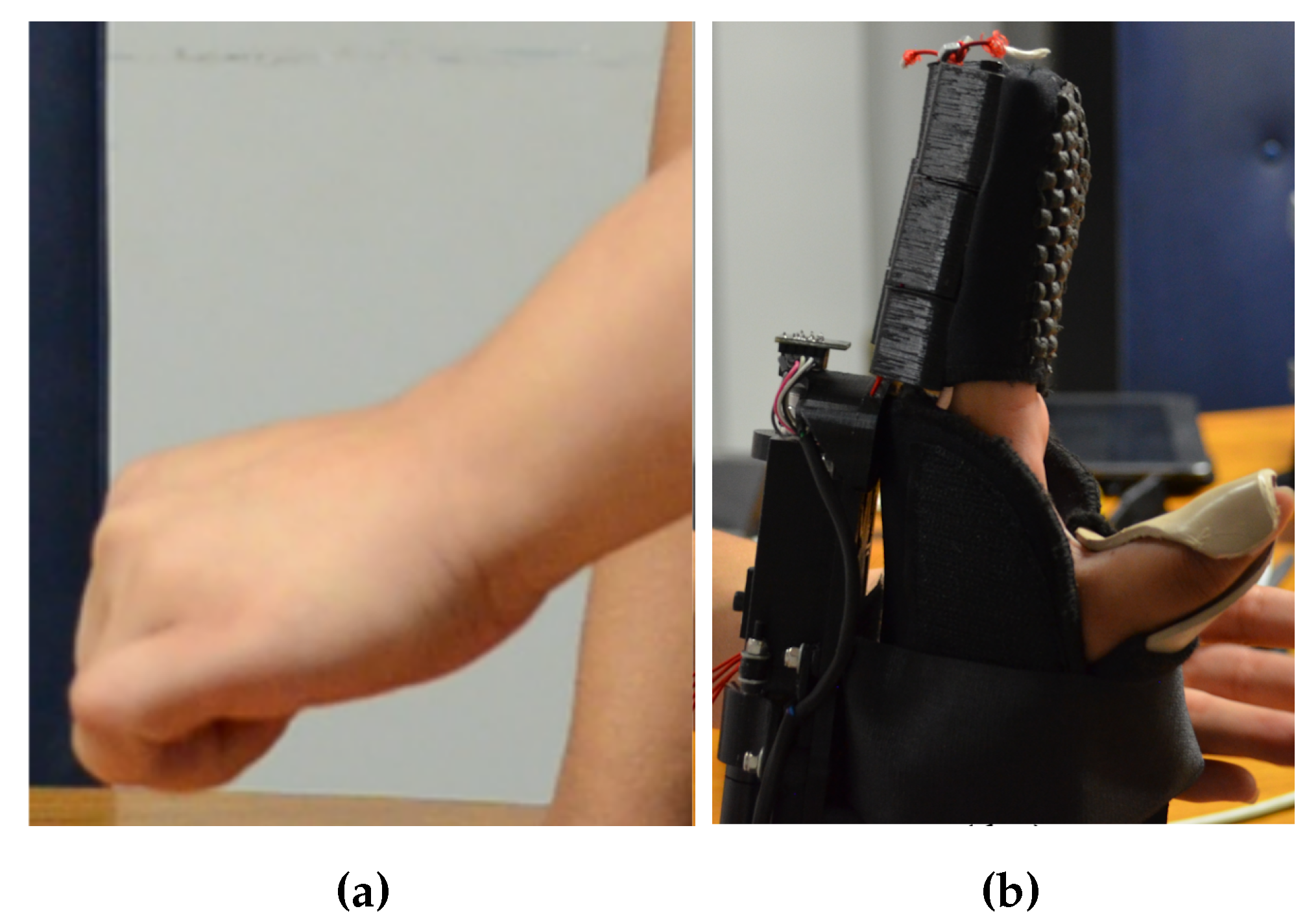

With the artificial tendon selected, it was then possible to use it with a post stroke individual to validate its application. As shown in Figure 7, the participant’s finger opening, using the orthosis, was satisfactory, the full opening was performed, which was not possible naturally, through voluntary control. As shown in the Figure 7a, the spasticity prevented the volunteer’s hand opening movement, which at the same time performed wrist pronation due to stroke sequelae. With the orthosis (Figure 7b), pronation was no longer performed and the full opening movement of the hand was performed, proving the functionality of the device for this individual.

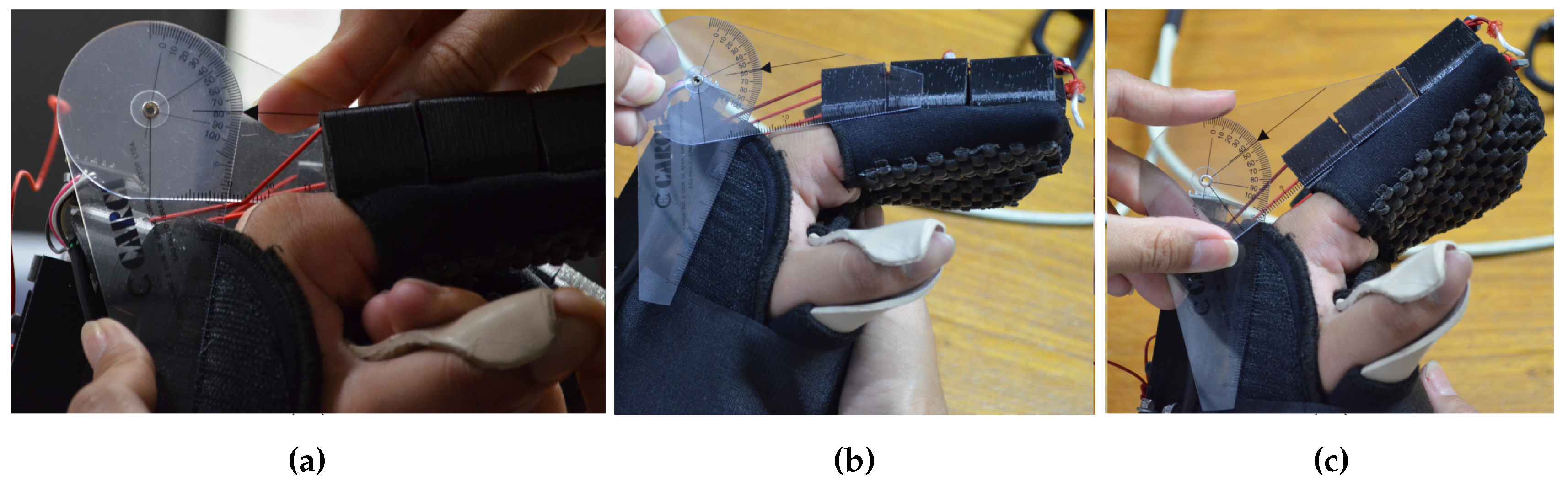

Making repeated partial openings of 80${}^{\circ }$, 60${}^{\circ }$ and 40${}^{\circ }$ (Figure 8), it was observed that the fingers presented a consistency and precision in the opening angle, showing that the use of this type of rope can satisfactorily perform as an artificial tendon in robotic orthoses for individuals after stroke. It is important to emphasize that the repeated use of the equipment did not generate permanent strains in the rope, being able to execute without variations the same amount of opening requested.

4. Discussion

Results of the volunteers grip force measures confirm that they have a strength lower than that of typical individuals. Normative data indicate that healthy individuals had an average dominant hand grip force of 28.4 ± 9.7 kgf for women and 40.3 ± 14.3 kgf for men [41]. The change in post-stroke individuals grip force is related to the motor deficits found after the brain injury, which result from the injury to the upper motor neurons that control the distal and proximal muscles, generating a decrease in the activation of some muscle groups [42]. In addition, there is the presence of spasticity, could cause postural changes in the upper limb, which, if not corrected it generate deformities, affecting even the joints and muscles viscoelastic properties and the tendons integrity. Therefore, based on the studies of Wu et al. [43,44], we can use a high resolution ultrasound as an alternative to check these phenomena and select the most suitable cable to be used in robotic orthoses.

It can be noted in the fishing line tensile strength test (Figure 4), that there is a variability in its behavior, presented maximum traction strength below than the desired. In addition to inconsistent behavior, it is difficult to handle and could difficulty in properly adjusting tendons before orthosis operation.

The D’Addarío (85/15 bronze) guitar strings (Figure 5), despite their smallest strain, suffered some damage with the application of low force, once their constitution was related to the sound and not to the material resistance. Its structure broke internally or suffered cracks with low loads, which can be seen with a simple visual inspection.

The paragliding rope showed the highest tensile strength among the tested ropes (Figure 6), breaking through the external structure destruction, with a smoothly break.

Thus, given the analysis of data obtained in the tests performed with different ropes, the conclusion was that the most suitable for use in robotic orthosis is the paragliding rope which meets the pre-established criteria of: strength, diameter and cost. (DuPont™ Kevlar${}^{\circledR }$). The rope presented an easy handling and greater security due to values of resistance to traction superior to the other ropes, and due to its form of rupture, since the others present a whip when broken.

The pilot test confirmed the consistency and precision in the opening angle using this rope, showing the satisfactory use as an artificial tendon in robotic orthoses. This system makes it possible to efficiently open and close the post-stroke individuals fingers, since a significant proportion of individuals with physical sequel resulting from stroke, remains with problematic or unsatisfactory manual function return [45]. With the use of artificial tendons in the orthosis, there is an increase in functional skills, facilitating the daily activities performance, such as reaching, picking up and holding objects, using tools such as a cell phone, eating, dressing and performing personal care in a general way. This significantly impacts the patient’s life, improving his independence, self-esteem and life quality.

5. Conclusions

The use of artificial tendons applied to upper limb orthoses is one of the ways to effectively perform fingers opening of the individual. As shown in this study, commercial ropes can be used for this purpose as long as they support the requested loads without presenting a permanent strain. We analyzed eight ropes to act as artificial tendon and withstand a tensile load of 121.4 N. Of these, the paragliding rope manufactured by SOL Paragliders showed the best performance for this purpose, withstanding a load of 250 N at approximately 30 to 35 mm of strain. When used in the device, in an individual after stroke, it was effective for application, being able to perform the task without breaking, and maintaining the degree of repeatability, i.e., did not suffer permanent strain, which would affect the equipment degree of repetition, validating its use as an artificial tendon.
