Synthesis and Characterization of Spherical Calcium Carbonate Nanoparticles Derived from Cockle Shells

1
Prosthodontics Unit, School of Dental Sciences, Health Campus, Universiti Sains Malaysia, Kubang Kerian 16150, Kelantan, Malaysia
2
Department of Prosthodontic Dentistry, College of Dentistry, University of Anbar, Ramadi 31001, Iraq
3
Hospital Universiti Sains Malaysia, Kubang Kerian 16150, Kelantan, Malaysia
4
Department of Biomaterials, School of Dental Sciences, Health Campus, Universiti Sains Malaysia, Kubang Kerian 16150, Kelantan, Malaysia
*
Author to whom correspondence should be addressed.
Appl. Sci. 2020, 10(20), 7170; https://doi.org/10.3390/app10207170
Submission received: 12 September 2020 / Revised: 30 September 2020 / Accepted: 5 October 2020 / Published: 14 October 2020

Abstract

:

Featured Application

Spherical nano calcium carbonate will be used as a precursor to produce calcium oxide.

Abstract

Cockle shells are a natural reservoir of calcium carbonate (CaCO3), which is widely used in bone repair, tissue scaffolds, and the development of advanced drug delivery systems. Although many studies report on the preparation of CaCO3, the development of a nanosized spherical CaCO3 precursor for calcium oxide (CaO) that is suitable to be incorporated in dental material was scarce. Therefore, this study aimed to synthesize a nanosized spherical CaCO3 precursor for CaO derived from cockle shells using a sol–gel method. Cockle shells were crushed to powder form and mixed with hydrochloric acid, forming calcium chloride (CaCl2). Potassium carbonate (K2CO3) was then fed to the diluted CaCl2 to obtain CaCO3. The effect of experimental parameters on the morphology of CaCO3, such as volume of water, type of solvents, feeding rate of K2CO3, and drying method, were investigated using field-emission scanning electron microscopy, energy-dispersive X-ray spectroscopy, X-ray diffractometry (XRD), Brunauer–Emmett–Teller surface area analysis, and thermogravimetric analysis. Optimized CaCO3 was then calcined to form CaO. XRD analysis of CaCO3 nanoparticles was indicative of the formation of a calcite phase. The well-structured spherical shape of CaCO3 was obtained by the optimum condition of the addition of 50 mL of water into CaCl2 in ethanolic solution with a 1 h feeding rate of K2CO3. Less agglomeration of CaCO3 was obtained using a freeze-drying technique with the surface area of 26 m2/g and average particle size of 39 nm. Spherical shaped nanosized CaO (22–70 nm) was also synthesized. The reproducibility, low cost, and simplicity of the method suggest its potential applications in the large-scale synthesis of the nanoparticles, with spherical morphology in an industrial setting.

1. Introduction

Calcium carbonate is an inorganic calcium salt which can be derived from shelled mollusks, limestone, coccolithophores, plant ashes, chalk, and marble [1,2]. It is considered to be a primary source of CaO, which has been identified as a biological constituent of human bone. CaCO3 is found abundantly in three natural polymorphs: calcite, vatrite, and aragonite. CaCO3 nanoparticles with desired sizes, shapes, and morphologies has been extensively researched for their vast application in industrial, electronic, and agricultural fields [3].
Cockles are native to the coast of South East Asia (Thailand, Malaysia, and Indonesia) and are readily available as waste. Cockle shells are a natural reservoir of CaCO3, which is important for biomedical purposes [4]. In recent years, many reports have been documented on the application of CaCO3 nanoparticles derived from cockle shells waste product, such as in drug delivery [5], polymer industries [6], biomedical scaffolds [7], and in nanomedicine [8]. The exploitation of solid waste such as the cockle shell makes the process more ecological, green, and cost-effective.
Nanoparticles are important for producing materials with good properties [9]. The small particle size provides a larger surface area for the particles to be uniformly dispersed, and therefore may enhance the mechanical properties of the material [10], hence making the material more resistant to degradation [11]. The physical and mechanical properties of these nanomaterials are dependent on their morphology [12]. Therefore, various methodologies have been devised to synthesize appropriate morphologies of these CaCO3 nanoparticles. Spherical nanoparticles behave quite differently from layered silicates and fibers [13]. Their large surface area results in strong interfacial interactions between the filler and the polymer matrices in dental composite material [14], and provides them with their superior diffusion properties in various solvents [15]. Spherical nanoscale CaCO3 fillers are most used in the preparation of nanocomposites and cementing materials for various uses [16]. The spherical particle structure is also important in producing a material with a higher glossiness and enamel-like reflection/refraction [17].
In dentistry, zirconia-based ceramics have been used as dental implants [18], and in crowns and bridges [19]. Pure zirconia has the disadvantage of cracking upon cooling, which can be avoided by adding a small percentage of oxide stabilizers like yttria (Y2O3), ceria (CeO2), magnesia (MgO), and calcia (CaO) [20,21,22,23]. Yttrium-stabilized zirconia is tough, with a fracture toughness of 5 to 10 MPa m1/2 and a flexural strength of 900–1400 MPa [24,25], and it suffers from low-temperature aging degradation (LTAD) [26]. Although ceria-stabilized zirconia-alumia (Ce-TZP/A) can overcome the problem of LTAD, it is also among the toughest dental ceramic materials available, with a fracture toughness of 19 MPa m1/2 and a flexural strength of 1400 MPa [24]. Both previously mentioned zirconia have the disadvantage of inferior machining associated with wear of the tool, due to their superior hardness. Therefore, other partially and fully stabilized zirconia, for example calcium oxide (CaO), may be used as replacement materials for dental application. A study has been conducted to produce calcia-doped zirconia for hip and knee replacement with modest fracture toughness (6 MPa m1/2) [27]. Therefore, calcia-stabilized zirconia is a possible material to give optimum strength, and at the same time it does not wear the milling machine. A study was also carried out to stabilize zirconia using CaO [28]. However, the particle size of stabilizers was not clearly specified. Furthermore, the shape of the CaO stabilizers produced was not spherical.
Currently, various template-aided methods such as Langmuir monolayers, functionalized polymer surfaces, and self-assembled monolayers are being used for the morphologically controlled synthesis of CaCO3 nanoparticles [29]. However, these methods require expensive chemical decontamination, meticulous processing, sophisticated instrumentation, and a tedious and lengthy preparatory procedure, and therefore may not be suitable for large-scale synthesis.
The sol–gel synthetic method is among the most versatile technique, with advantages including the improvement of bonding with the chemical reaction taking place at low temperature, as well as simplicity and cost effectiveness [30]. Previous studies showed that factors such as temperature, solution pH, concentrations of reactants and surfactants, aging time, and nature of additives may influence the morphology, phases, and particle size of CaCO3 crystals [31,32].
Even though many studies have been carried out to prepare CaCO3 for various applications, to the best of the authors’ knowledge, the development of spherical nano-CaO from a CaCO3 precursor derived from cockle shells using the sol–gel method has been scarcely reported. Furthermore, the shape and size of CaCO3 and CaO derived from cockle shell developed in previous studies were neither nanosized nor spherical [33,34,35]. The purpose of this study was to synthesize and characterize spherical nanoparticles of CaCO3 and CaO from cockle shells using the sol–gel method.

2. Materials and Methods

Cockle shells were obtained from a local beach, Pantai Bachok. The collected cockle shells were scrubbed under tap water with a brush to remove dirt and rinsed with double-distilled water (DDW). The cockle shells were finely crushed using a mortar and pestle, and then blended using a blender machine (Premier Super-g, India) into a fine cockle shell powder.
The powder was then sieved using a stainless-steel Sieve Shaker AS 200 Control (Retsch GmbH, Haan, Germany) with an aperture size of 63 μm to obtain micron size (10–63 μm diameter). Then, 5 g of micron-sized cockle shell powder was dissolved into 20 mL of 5 M hydrochloric acid (HCl) 37%, Emsure® (Merck KGaA, Darmstadt, Germany) to form calcium chloride (CaCl2). The solution was filtered with filter papers (Filters Fioroni Filter Circles 70 mm, Lab Logistic Group GmbH, Meckenheim, Germany). Contamination products were extracted from the solution using an electric mixer spun at 500 rpm for 1 h at room temperature. The formed CaCl2 was then diluted with 1 L DDW to form stock solution. Stock solution of K2CO3 was prepared by dissolving 5 g of K2CO3 ACS reagent, ≥99% (Sigma Aldrich, Steinheim, Germany) in 100 mL of DDW.
Different volumes of DDW (0, 10, 20, 50, 60, and 70 mL) were then added to 10 mL of diluted CaCl2 followed by the addition of 10 mL of diluted K2CO3 at different feeding rates (1, 1.5, 2, and 2.5 h). The procedure was repeated using three different solvents of reaction, namely, methanol, Analytical Reagent Grade, Lot No. 1,352,421 (Sigma Aldrich, Steinheim, Germany); 70% ethanol, ChemPur® CAS No. 64-17-5 (Systerm, GmbH, Karlsruhe, Germany); or propanol, Analytical Reagent Grade, Lot No. 1,367,431 (Sigma Aldrich, Steinheim, Germany). The solutions were then left for 24 h to precipitate. Then, the supernatant solution was discarded and the resultant product was centrifuged using Eppendorf Centrifuge 5804 (Eppendorf North America Inc., Enfield, CT, USA) at 7000 rpm for 7 min. The acidity of the resultant solution was then neutralized by washing three times with DDW. The resultant product was either dried using a Memmert oven 100–800 (Memmert, Schwabach, Germany) at 110 °C for 24 h or by freeze drying; first by putting the resultant product in the Ilshin Europe Biobase DF8517 freezer (Ilshin Lab Co. Ltd., Ede, Netherlands) at −80 °C for 3 h and then at −108 °C for 48 h in the freeze-drying machine (Scanvac CoolSafe 4.5L, LaboGene ApS, Allerød, Denmark).
The CaCO3 powder derived from cockle shell, obtained using different parameters, was first characterized using a field-emission scanning electron microscope equipped with energy-dispersive X-ray (FESEM-EDX), LEICA EM SCD005, (Leica, Tokyo, Japan) to evaluate its morphology, particle size, and elemental composition. Then, the CaCO3 powder was characterized with the Brunauer–Emmett–Teller (BET) method using TristarII (Micromeritics Instrument Corporation, Norcross, GA, USA) for its average surface area and pore diameter. Once the optimization of CaCO3 powder was achieved, it was then characterized with an X-ray diffractometer (XRD) using a Shimadzu XRD−6000 (Shimadzu Corporation, Kyoto, Japan) to study its crystallinity and phases using Cu Kα radiation (λ = 1.5406 Å, 40 kV at 30 mA). Then, the CaCO3 powder was also characterized with Fourier transform infrared (FTIR) spectroscopy using an FTIR SPECTRUM RX1 (Perkin Elmer Inc. Hopkinton, MA, USA) spectrometer in the range of 600–4000 cm−1 for determination of the chemical bonding of chemical substances.
The thermal stability of CaCO3 was then investigated with thermogravimetric analysis (TGA), using an SSC/5200 TG/DTA 220 (Seiko Instrument, Tokyo, Japan) with a temperature range of 50–900 °C and scan rate of 20 °C/min under N2 atmosphere.
The optimized CaCO3 was then calcined at 750 °C for 30 min using a Standard Digital Muffles Furnace FH 27 (DAIHAN Scientific Co., Ltd., Gangwon-do, Korea) to produce CaO powder. The CaO powder was then characterized using SEM, XRD, and FTIR. Figure 1 summarizes the overall synthetic reaction to produce and convert CaCO3 to CaO. The morphology of CaO derived from cockle shell was compared to commercial CaO 98%, <160 nm (Sigma Aldrich, Steinheim, Germany) using FESEM.

3. Results and Discussion

3.1. FESEM/EDX and BET Analyses of CaCO3 Particles Using Different Parameters

Figure 2 indicates the effect of different volumes of DDW on the morphology of the CaCO3 derived from cockle shells. Samples of CaCO3 prepared by diluting CaCl2 with 50 mL of DDW, as shown in Figure 2d, exhibited spherical-like, well-dispersed crystals with even size. However, other samples of CaCO3 prepared with different DDW volumes exhibited clumped and agglomerated masses of crystals with irregular shapes and sizes. It may be explained that an increased amount of DDW resulted in greater dilution of samples, which provided more space for the movement of nanoparticles. However, as the volume of DDW increased, these molecules tended to be more solvated due to excess absorption of water, thus increasing in size and leading to agglomeration. Calcium carbonate prepared using 50 mL of DDW dilution had an average particle size of 39 nm, which was smaller in comparison to other samples. BET surface area analysis also revealed that using 50 mL of DDW gave the largest surface area and the smallest pore diameter of CaCO3 in comparison to other samples, as shown in Table 1. The smaller particle size is related to a larger surface area and smaller pore diameter. CaCO3, with various morphologies, have been fabricated previously. This has included cubic and needle shaped particles [36] where polyacrylamide was used, and rod-shaped particles [6] where a microemulsion system was used.
The morphology of CaCO3 using the different polar solvents methanol, ethanol, and propanol is illustrated in Figure 3. The particle size and average pore diameter of CaCO3 are tabulated in Table 2, where CaCO3 particles, in all solvent systems except ethanol, possessed macroporous structure with a range of more than 50 nm, which is in accordance with Zdravkov et al. [37]. From the FESEM images, the samples prepared with ethanol displayed spherical calcite crystals, which were evenly dispersed and more symmetrical in structure when compared to methanol and propanol. The use of ethanol slowed down the chemical reaction, and hence the particles acquired a spherical shape with no agglomeration. Ethanol was used in other studies [38,39] and showed similar results with the current study. This phenomenon is probably due to the presence of smaller and more active –OH and –C2H5 groups in ethanol, which is reported to be effective in eliminating water molecules [40] that cause more agglomeration to form larger molecules [39]. The enhancement of the particle size upon the addition of ethanol was reported to be due to the reduction of the energy of atomization as a consequence of the decrease in the vapour pressure of the solution, owing to their slow evaporation [41,42].
The effect of the K2CO3 feeding rate on the morphology of CaCO3 nanoparticles in ethanolic solution is shown in Figure 4. It can be seen that the 1 h feeding rate of K2CO3 had led to the formation of spherical CaCO3 with clear surface and high sphericity. However, as the feeding rate was increased, the shape of the particles was distorted and their form changed with more agglomeration of the particles. The surface area and average pore diameter of CaCO3 are tabulated in Table 3. As the feeding rate increased, the surface area decreased and pore diameter increased, which is similar to a previous study by Chen et al. [43] where hollow microspheres increased as the feeding rate increased. This was probably attributed to the Ostwald ripening process, where larger particles begin to grow and consume the smaller particles due to the difference in concentration gradient [44].
The effect of different drying methods on the morphology of CaCO3 nanoparticles is shown in Figure 5. The CaCO3 nanoparticles prepared in the ethanolic solution and then freeze-dried exhibited structurally well-organized, more uniform spherical shapes with less agglomeration compared to the oven-drying technique. This is probably because oven drying may produce uneven and overheating of the material, where the material does not have sufficient time to take its proper shape, leading to agglomeration of the particles. These current results are supported by another study [45].

3.2. XRD Analysis of Optimized CaCO3 Nanoparticles

Based on the aforementioned parameters, the optimal conditions for the formation of spherical nanoparticles of CaCO3 were 50 mL of DDW with 1 h feeding rate of K2CO3 in ethanolic solution, using the freeze-drying technique. Figure 6 shows the XRD analysis of the composition and phase of the optimized CaCO3 nanoparticles derived from cockle shell. The presence of CaCO3 can be observed at 2θ of 23.0, 29.5, 36.0, 39.3, 43.2, 48.5, 57.5, 60.9, 63.1, 64.4, 65.6, and 83.7°. These 2θ positions correspond to (0 1 2), (1 0 4), (1 1 0), (1 1 3), (2 0 2), (1 1 6), (1 2 2), (2 1 4), (1 2 5), (0 3 0), (0 0 12), and (1 3 4) crystal planes, respectively. Other parameters such as a = b = 4.9900 Å, c = 17.0020 Å, α = β = 90.0000°, and γ = 120.0000o were also obtained. The assignments of 2θ position and other parameters for CaCO3 from XRD were in agreement with the reference code 98-000-5340 of a hexagonal crystal system and space group R-3c. The crystallite size of CaCO3 nanoparticles was 61.4 nm, which was calculated from the Debye–Scherrer equation, L = Kλ/β cos 2θ), where K is a constant; λ is to the X-ray wavelength (λ = 1.54060 Å), β is the full-width at half maximum, and θ is the angle. The formation of the calcite phase of CaCO3 in the current investigation matched well with the results of Kontoyonis et al. [46], with the characteristic peak positioned at 2θ = 29.5° and the crystal plane of (1 0 4).

3.3. EDX Analysis of Optimized CaCO3 Nanoparticles

The elemental composition of the optimized CaCO3 nanoparticles is shown in Figure 7. The expected elements such as Ca, C, and O were present in the CaCO3 derived from cockle shells, indicating the success of the sol–gel method.

3.4. FTIR Analysis of Optimized CaCO3 Nanoparticles

The FTIR of CaCO3 is shown in Figure 8. According to Wang et al. [47], due to the different vibration modes of CO32−, four normal vibration modes of CO32− can be obtained, namely, doubly degenerate planar bending, symmetric stretching, out-of-plane bending, and in-plane bending, which appeared at 1420 cm−1, 1093 cm−1, 880 cm−1, with a very weak vibration mode at around 700 cm−1 respectively, which confirms the formation of CaCO3 [48]. The peak at 3644 cm−1 is due to the O-H bond from the adsorbed water molecule.

3.5. TGA of Optimized CaCO3 Nanoparticles

Figure 9 illustrates the TGA of CaCO3, where the first weight loss of around 22% was due to water loss, which occurred at around 100 °C. The second weight loss of around 25% was due to the decomposition of CaCO3 to CaO and CO2 [49], which started from around 500−700 °C. This is in agreement with Popescu et al. [50], who reported the formation of calcite CaCO3 at 459 °C. The CaO was expected to completely form after 700 °C [49]. The purity of the CaO detected by TGA curves was 53.30% while the purity of CaO was 56% ± 3%, which is considered standard of pure CaO.
Therefore, based on the TGA results it can be suggested that the formation of CaO involved a few steps of chemical reactions, namely, dissolution reaction, precipitation reaction, and degradation reaction, as depicted in Equations (1)–(3) below.
Dissolution reaction:
Ca(s) + 2HCl(aq) → CaCl2(aq) + H2(g)
Precipitation reaction:
CaCl2(aq) + K2CO3(aq) → CaCO3(s) + 2 KCl(aq)
Degradation reaction:
CaCO3(s) → CaO(s) + CO2(g)

3.6. FTIR Analysis of CaO Nanoparticles

From Figure 10, the formation of CaO can be observed at 721 cm−1, which can be assigned as Ca-O bond, as previously reported by Rudy Syah Putra et al. [51]. Furthermore, the presence of CaO after the calcination of CaCO3 can be further observed at 1420 cm−1 and 875 cm−1, which is in agreement with Guan et al. [52].

3.7. XRD Analysis of CaO Nanoparticles

Figure 11 shows the XRD analysis of CaO powder derived from cockle shells. The high and narrow intense peaks depict the structural crystallization of the CaO. The formation of CaO can be observed at 2θ = 29, 36, 39, 47, and 48°, which is accordance with Bai et al. [53] who prepared CaO from 0.3 M sodium carbonate (Na2CO3) and 0.3 M calcium chloride (CaCl2). Therefore, the formation of the CaO derived from cockle shell can be successfully synthesized by the sol–gel method.

3.8. FESEM Analysis of CaO Nanoparticles

Figure 12a,b illustrate the FESEM images of CaO derived from cockle shells and commercially obtained CaO respectively. The magnified images of both cockle-shell-derived CaO and commercial CaO show that they were evenly dispersed and structurally similar. The average particle sizes of CaO derived from cockle shells and commercially obtained CaO were 22–70 nm and 32–159 nm, respectively. The CaO obtained in the current study was used to stabilize zirconia, which showed good properties as a potential dental material [9].

4. Conclusions

Well-structured spherical CaCO3 of calcite phase was obtained from the optimum conditions by adding 50 mL DDW into CaCl2 in ethanolic solution with a feeding rate of K2CO3 of 1 h using the freeze-drying method. Less agglomeration was obtained by the freeze-drying technique with the surface area of 26 m2/g and average particle size of 39 nm. Spherical nanosized CaO (22–70 nm) was obtained when the CaCO3 was calcined at 750 °C for 30 min.

Author Contributions

Conceptualization, Z.A.-G., A.I.H., I.A.R., A.H.; methodology, A.I.H., I.A.R., A.N.C.M., N.A.A.G.; software, A.I.H., A.N.C.M., N.A.A.G.; validation, Z.A.-G., I.A.R., A.H.; formal analysis, A.I.H., A.N.C.M., N.A.A.G.; investigation, A.I.H., A.N.C.M.; resources, Z.A.-G., I.A.R., A.H.; data curation, A.I.H., A.N.C.M., N.A.A.G.; writing—original draft preparation, A.I.H., Z.A.-G., A.N.C.M.; writing—review and editing, Z.A.-G., A.H., I.A.R.; supervision, Z.A.-G., I.A.R., A.H.; project administration, Z.A.-G.; funding acquisition, Z.A.-G., I.A.R., A.H. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Science Fund from the Ministry of Science, Technology and Innovation (MOSTI) with the grant number: 07-01-05 SF0845 (305/PPSG/6113701).

Acknowledgments

The authors would like to acknowledge all Multidisciplinary Laboratory administrative and technical staff for their kind support throughout the research work.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Jaji, A.Z.; Zuki, A.; Mahmud, R.; Loqman, M.Y.; Hezmee, M.N.M.; Isa, T.; Wenliang, F.; Hammadi, N.I. Synthesis, characterization, and cytocompatibility of potential cockle shell aragonite nanocrystals for osteoporosis therapy and hormonal delivery. Nanotechnol. Sci. Appl. 2017, 10, 23–33. [Google Scholar] [CrossRef] [Green Version]
  2. Maleki, S.; Barzegar-Jalali, M.; Zarrintan, M.H.; Adibkia, K.; Lotfipour, F. Calcium carbonate nanoparticles; potential applications in bone and tooth disorders. Pharm. Sci. 2015, 20, 175–182. [Google Scholar]
  3. Kharissova, O.V.; Dias, H.R.; Kharisov, B.I.; Pérez, B.O.; Pérez, V.M.J. The greener synthesis of nanoparticles. Trends Biotechnol. 2013, 31, 240–248. [Google Scholar] [CrossRef]
  4. Awang-Hazmi, A.; Zuki, A.; Noordin, M.; Jalila, A.; Norimah, Y. Mineral Composition of the Cockle (Anadara granosa) Shells of West Coast of Peninsular Malaysia and It? s Potential as Biomaterial for Use in Bone Repair. J. Anim. Vet. Adv. 2007, 6, 591–594. [Google Scholar]
  5. Ghafar, S.L.M.A.; Hussein, M.Z.; Rukayadi, Y.; Zakaria, Z.A.B. Surface-functionalized cockle shell–based calcium carbonate aragonite polymorph as a drug nanocarrier. Nanotechnol. Sci. Appl. 2017, 10, 79–94. [Google Scholar] [CrossRef] [Green Version]
  6. Kamba, A.S.; Ismail, M.; Ibrahim, T.A.T.; Zuki, A. Synthesis and Characterisation of Calcium Carbonate Aragonite Nanocrystals from Cockle Shell Powder (Anadara granosa). J. Nanomater. 2013, 2013, 1–9. [Google Scholar] [CrossRef] [Green Version]
  7. Mahmood, S.; Zuki, A.; Razak, I.S.A.; Yusof, L.M.; Jaji, A.Z.; Tijani, I.; Hammadi, N.I. Preparation and characterization of cockle shell aragonite nanocomposite porous 3D scaffolds for bone repair. Biochem. Biophys. Rep. 2017, 10, 237–251. [Google Scholar] [CrossRef]
  8. Mailafiya, M.M.; Abubakar, K.; Danmaigoro, A.; Chiroma, S.M.; Rahim, E.B.A.; Moklas, M.A.M.; Zuki, A. Cockle Shell-Derived Calcium Carbonate (Aragonite) Nanoparticles: A Dynamite to Nanomedicine. Appl. Sci. 2019, 9, 2897. [Google Scholar] [CrossRef] [Green Version]
  9. Hussein, A.I.; Mat, A.N.C.; Wahab, N.A.A.A.; Ab Rahman, I.; Husein, A.; Ab-Ghani, Z. Synthesis and Properties of Novel Calcia-Stabilized Zirconia (Ca-SZ) with Nano Calcium Oxide Derived from Cockle Shells and Commercial Source for Dental Application. Appl. Sci. 2020, 10, 5751. [Google Scholar] [CrossRef]
  10. Vinas, M.T.; Zhang, F.; Vleugels, J.; Anglada, M. Effect of calcia co-doping on ceria-stabilized zirconia. J. Eur. Ceram. Soc. 2018, 38, 2621–2631. [Google Scholar] [CrossRef] [Green Version]
  11. Papanagiotou, H.P.; Morgano, S.M.; Giordano, R.A.; Pober, R. In vitro evaluation of low-temperature aging effects and finishing procedures on the flexural strength and structural stability of Y-TZP dental ceramics. J. Prosthet. Dent. 2006, 96, 154–164. [Google Scholar] [CrossRef]
  12. Beyth, N.; Houri-Haddad, Y.; Domb, A.J.; Khan, W.; Hazan, R. Alternative Antimicrobial Approach: Nano-Antimicrobial Materials. Evid. Based Complement. Altern. Med. 2015, 2015, 1–16. [Google Scholar] [CrossRef] [Green Version]
  13. Grochowska, K.; Siuzdak, K.; Karczewski, J.; Śliwiński, G. Functionalization of indium-tin-oxide electrodes by laser-nanostructured gold thin films for biosensing applications. Appl. Surf. Sci. 2015, 357, 1684–1691. [Google Scholar] [CrossRef]
  14. Espinosa, K.R.; Castillo, L.A.; Barbosa, S.E. Blown nanocomposite films from polypropylene and talc. Influence of talc nanoparticles on biaxial properties. Mater. Des. 2016, 111, 25–35. [Google Scholar] [CrossRef]
  15. Abt, T.; Sánchez-Soto, M. A Review of the Recent Advances in Cyclic Butylene Terephthalate Technology and its Composites. Crit. Rev. Solid State Mater. Sci. 2016, 42, 173–217. [Google Scholar] [CrossRef] [Green Version]
  16. Lu, J.; Lu, Z.; Li, X.; Xu, H.; Li, X. Recycling of shell wastes into nanosized calcium carbonate powders with different phase compositions. J. Clean. Prod. 2015, 92, 223–229. [Google Scholar] [CrossRef]
  17. Kurokawa, H. Temporal change of polished surface of composite resin. Jpn. J. Conserv. Dent. 2007, 50, 17. [Google Scholar]
  18. Afrashtehfar, K.I.; Del Fabbro, M. Clinical performance of zirconia implants: A meta-review. J. Prosthet. Dent. 2020, 123, 419–426. [Google Scholar] [CrossRef]
  19. Raigrodski, A.J. Contemporary materials and technologies for all-ceramic fixed partial dentures: A review of the literature. J. Prosthet. Dent. 2004, 92, 557–562. [Google Scholar] [CrossRef]
  20. Dion, I.; Rouais, F.; Baquey, C.; Lahaye, M.; Salmon, R.; Trut, L.; Cazorla, J.P.; Huong, P.V.; Monties, J.R.; Havlik, P. Physico-chemistry and cytotoxicity of ceramics: Part I—Characterization of ceramic powders. J. Mater. Sci. Mater. Electron. 1997, 8, 325–332. [Google Scholar] [CrossRef]
  21. Nakonieczny, D.; Paszenda, Z.; Drewniak, S.; Radko, T.; Lis, M. sZrO2-CeO2 ceramic powders obtained from a sol-gel process using acetylacetone as a chelating agent for potential application in prosthetic dentistry. Acta Bioeng. Biomech. 2016, 18, 53–60. [Google Scholar]
  22. Nakonieczny, D.; Walke, W.; Majewska, J.; Paszenda, Z. Characterization of magnesia-doped yttria-stabilized zirconia powders for dental technology applications. Acta Bioeng. Biomech. 2014, 16, 16. [Google Scholar]
  23. Piconi, C.; Maccauro, G. Zirconia as a ceramic biomaterial. Biomaterials 1999, 20, 1–25. [Google Scholar] [CrossRef]
  24. Tanaka, K.; Tamura, J.; Kawanabe, K.; Nawa, M.; Oka, M.; Uchida, M.; Kokubo, T.; Nakamura, T. Ce-TZP/Al2O3 nanocomposite as a bearing material in total joint replacement. J. Biomed. Mater. Res. 2002, 63, 262–270. [Google Scholar] [CrossRef]
  25. Christel, P.; Meunier, A.; Heller, M.; Torre, J.P.; Peille, C.N. Mechanical properties and short-termin vivo evaluation of yttrium-oxide-partially-stabilized zirconia. J. Biomed. Mater. Res. 1989, 23, 45–61. [Google Scholar] [CrossRef]
  26. Hannink, R.H.J.; Kelly, P.M.; Muddle, B.C. Transformation Toughening in Zirconia-Containing Ceramics. J. Am. Ceram. Soc. 2004, 83, 461–487. [Google Scholar] [CrossRef]
  27. Nath, S.; Sinha, N.; Basu, B. Microstructure, mechanical and tribological properties of microwave sintered calcia-doped zirconia for biomedical applications. Ceram. Int. 2008, 34, 1509–1520. [Google Scholar] [CrossRef]
  28. Gempita, G.; Hasratiningsih, Z.; Subrata, G.; Purwasasmita, B.S. Synthesis of mesh-shaped calcia partially stabilized zirconia using eggshell membrane template as filler composite. Padjadjaran J. Dent. 2017, 29, 29. [Google Scholar] [CrossRef] [Green Version]
  29. Papahadjopoulos-Sternberg, B.; Ackrell, J. Seeing Multifunctional Nano- and Micro-particles Suitable for Imaging & Therapy Using Freeze-fracture Electron Microscopy. Microsc. Microanal. 2008, 14, 1604–1605. [Google Scholar] [CrossRef]
  30. 3Kumar, A.; Yadav, N.; Bhatt, M.; Mishra, N.K.; Chaudhary, P.; Singh, R. Sol-gel derived nanomaterials and it’s applications: A review. Res. J. Chem. Sci. 2015, 5, 98–105. [Google Scholar]
  31. De Choudens-Sanchez, V.; Gonzalez, L.A. Calcite and Aragonite Precipitation Under Controlled Instantaneous Supersaturation: Elucidating the Role of CaCO3 Saturation State and Mg/Ca Ratio on Calcium Carbonate Polymorphism. J. Sediment. Res. 2009, 79, 363–376. [Google Scholar] [CrossRef]
  32. Górna, K.; Hund, M.; Vučak, M.; Gröhn, F.; Wegner, G. Amorphous calcium carbonate in form of spherical nanosized particles and its application as fillers for polymers. Mater. Sci. Eng. A 2008, 477, 217–225. [Google Scholar] [CrossRef]
  33. Buasri, A.; Chaiyut, N.; Loryuenyong, V.; Worawanitchaphong, P.; Trongyong, S. Calcium Oxide Derived from Waste Shells of Mussel, Cockle, and Scallop as the Heterogeneous Catalyst for Biodiesel Production. Sci. World J. 2013, 2013, 1–7. [Google Scholar] [CrossRef]
  34. Ghazali, S.S.; Kem, K.L.; Jusoh, R.; Abdullah, S.; Shariffuddin, J.H. Evaluation of La-Doped CaO Derived from Cockle Shells for Photodegradation of POME. Bull. Chem. React. Eng. Catal. 2019, 14, 205–218. [Google Scholar] [CrossRef] [Green Version]
  35. Laonapakul, T.; Sutthi, R.; Chaikool, P.; Mutoh, Y.; Chindaprasirtd, P. Optimum conditions for preparation of bio-calcium from blood cockle and golden apple snail shells and characterization. Sci. 2019, 45, 10–20. [Google Scholar] [CrossRef] [Green Version]
  36. Wang, C.; Zhao, J.; Zhao, X.; Bala, H.; Wang, Z. Synthesis of nanosized calcium carbonate (aragonite) via a polyacrylamide inducing process. Powder Technol. 2006, 163, 134–138. [Google Scholar] [CrossRef]
  37. Zdravkov, B.D.; Čermák, J.J.; Šefara, M.; Janků, J. Pore classification in the characterization of porous materials: A perspective. Open Chem. 2007, 5, 385–395. [Google Scholar] [CrossRef]
  38. Khodaee, P.; Najmoddin, N.; Shahrad, S. The effect of ethanol and temperature on the structural properties of mesoporous silica synthesized by the sol-gel method. In Proceedings of the 2018 25th National and 3rd International Iranian Conference on Biomedical Engineering (ICBME), Qom, Iran, 29–30 November 2018; pp. 1–5. [Google Scholar]
  39. Bahar, M.; Mozaffari, M.; Esmaeili, S. Effect of different alcohols, gelatinizing times, calcination and microwave on characteristics of TiO2 nanoparticles synthesized by sol–gel method. J. Theor. Appl. Phys. 2017, 11, 79–86. [Google Scholar] [CrossRef] [Green Version]
  40. Zhu, Y.; Zhang, L.; Gao, C.; Cao, L. The synthesis of nanosized TiO2 powder using a sol-gel method with TiCl4 as a precursor. J. Mater. Sci. 2000, 35, 4049–4054. [Google Scholar] [CrossRef]
  41. Stein, S.W.; Myrdal, P.B. The Relative Influence of Atomization and Evaporation on Metered Dose Inhaler Drug Delivery Efficiency. Aerosol Sci. Technol. 2006, 40, 335–347. [Google Scholar] [CrossRef] [Green Version]
  42. Smyth, H.D. Multimodal particle size distributions emitted from HFA-134a solution pressurized metered-dose inhalers. AAPS PharmSciTech 2003, 4, 76–86. [Google Scholar] [CrossRef] [Green Version]
  43. Chen, P.; Ye, N.; He, C.; Tang, L.; Li, S.; Sun, L.; Lia, Y. Preparation of Polyacrylate Hollow Microspheres via Facile Spray Drying. Appl. Sci. 2019, 9, 228. [Google Scholar] [CrossRef] [Green Version]
  44. Kumar, V.; Singh, K.; Kumar, A.; Kumara, M.; Singh, K.; Vij, A.; Thakur, A. Effect of solvent on crystallographic, morphological and optical properties of SnO 2 nanoparticles. Mater. Res. Bull. 2017, 85, 202–208. [Google Scholar] [CrossRef]
  45. Krokida, M.K.; Maroulis, Z.B. Effect of drying method on shrinkage and porosity. Dry. Technol. 1997, 15, 2441–2458. [Google Scholar] [CrossRef]
  46. Kontoyannis, C.G.; Vagenas, N.V. Calcium carbonate phase analysis using XRD and FT-Raman spectroscopy. Analyst 2000, 125, 251–255. [Google Scholar] [CrossRef]
  47. Wang, Y.; Moo, Y.X.; Chen, C.; Gunawan, P.; Xu, R. Fast precipitation of uniform CaCO3 nanospheres and their transformation to hollow hydroxyapatite nanospheres. J. Colloid Interface Sci. 2010, 352, 393–400. [Google Scholar] [CrossRef]
  48. Alba-Rubio, A.C.; Santamaría-González, J.; Mérida-Robles, J.M.; Moreno-Tost, R.; Martín-Alonso, D.; Jiménez-López, A.; Maireles-Torres, P. Heterogeneous transesterification processes by using CaO supported on zinc oxide as basic catalysts. Catal. Today 2010, 149, 281–287. [Google Scholar] [CrossRef]
  49. Karunadasa, K.S.; Manoratne, C.; Pitawala, H.; Rajapakse, R. Thermal decomposition of calcium carbonate (calcite polymorph) as examined by in-situ high-temperature X-ray powder diffraction. J. Phys. Chem. Solids 2019, 134, 21–28. [Google Scholar] [CrossRef]
  50. Popescu, M.-A.; Isopescu, R.; Matei, C.; Fagarasan, G.; Plesu, V. Thermal decomposition of calcium carbonate polymorphs precipitated in the presence of ammonia and alkylamines. Adv. Powder Technol. 2014, 25, 500–507. [Google Scholar] [CrossRef]
  51. Putra, R.S.; Liyanita, A.; Arifah, N.; Puspitasari, E.; Sawaludin; Hizam, M.N. Enhanced Electro-Catalytic Process on the Synthesis of FAME Using CaO from Eggshell. Energy Procedia 2017, 105, 289–296. [Google Scholar] [CrossRef]
  52. Guan, W.; Ji, F.; Cheng, Y.; Fang, Z.; Fang, D.; Yan, P.; Chen, Q. A Novel Synthesis Method of Porous Calcium Silicate Hydrate Based on the Calcium Oxide/Polyethylene Glycol Composites. J. Nanomater. 2013, 2013, 1–7. [Google Scholar] [CrossRef] [Green Version]
  53. Bai, H.-X.; Shen, X.-Z.; Liu, X.-H.; Liu, S.-Y. Synthesis of porous CaO microsphere and its application in catalyzing transesterification reaction for biodiesel. Trans. Nonferrous Met. Soc. China 2009, 19, s674–s677. [Google Scholar] [CrossRef]

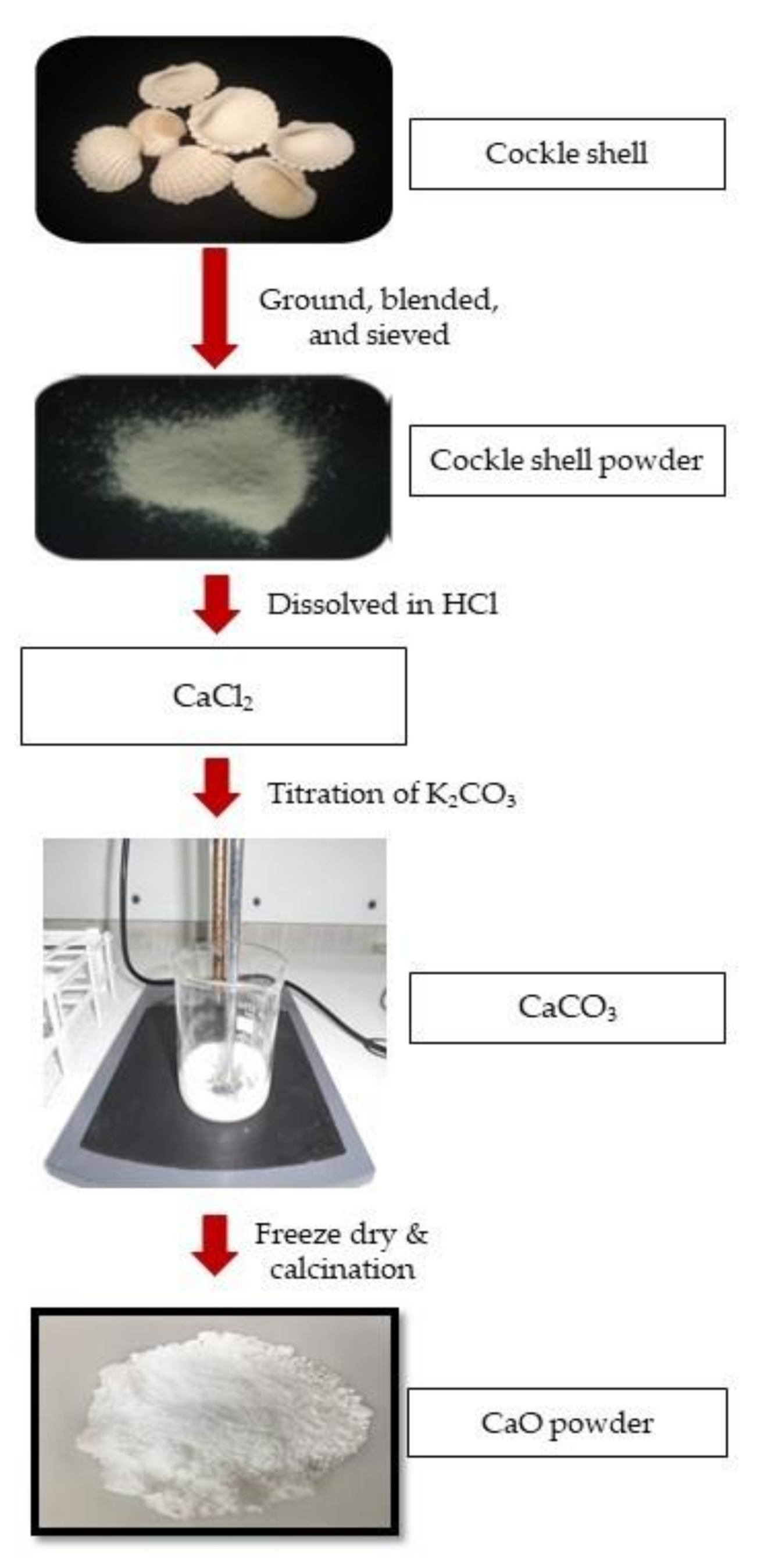

Figure 1. Schematic diagram of CaCO3 and CaO synthetic procedure.
Figure 1. Schematic diagram of CaCO3 and CaO synthetic procedure.
Applsci 10 07170 g001

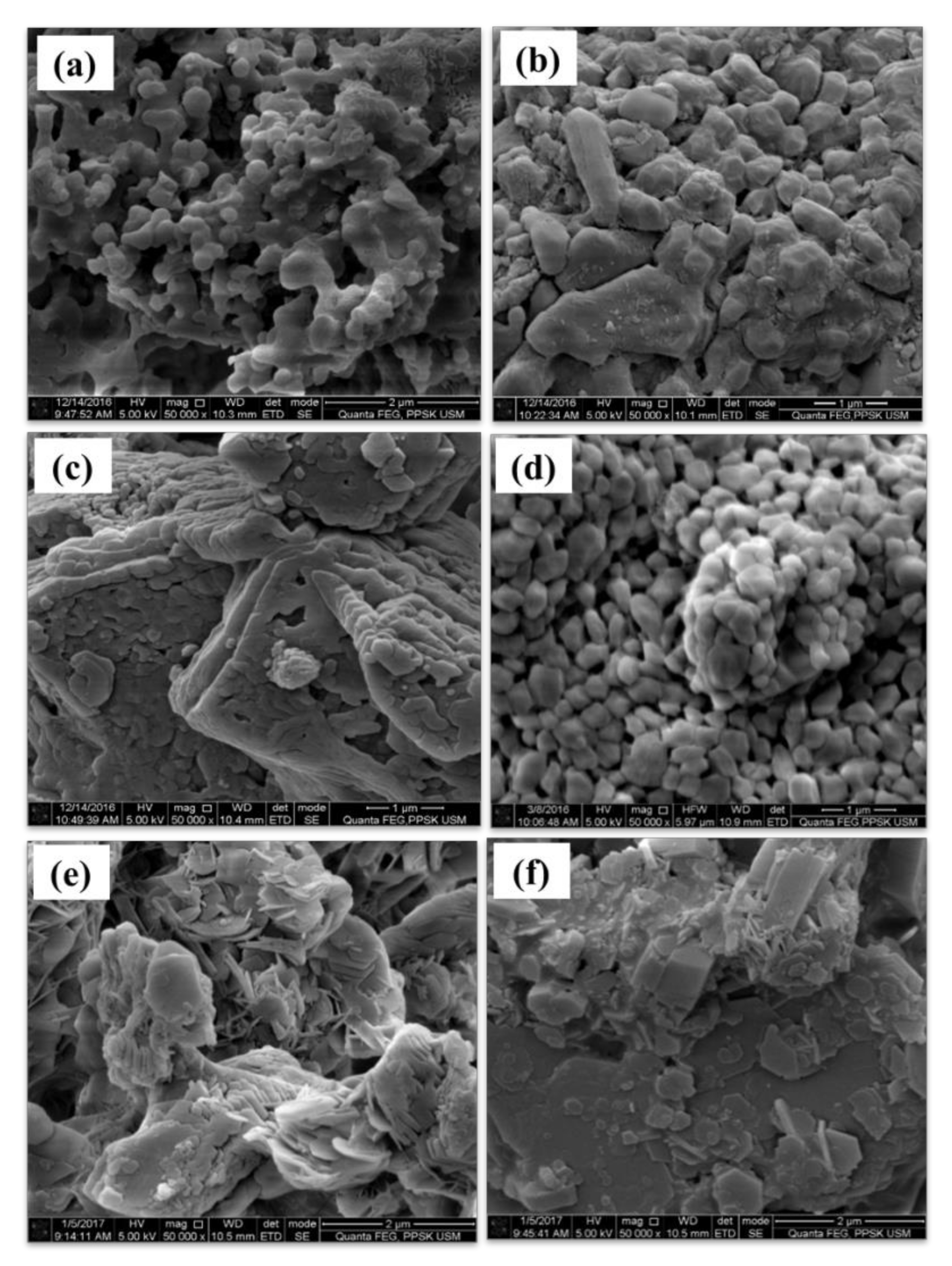

Figure 2. FESEM images of CaCO3 at different volumes of distilled water: (a) 0 mL; (b) 10 mL; (c) 20 mL; (d) 50 mL; (e) 60 mL; and (f) 70 mL.
Figure 2. FESEM images of CaCO3 at different volumes of distilled water: (a) 0 mL; (b) 10 mL; (c) 20 mL; (d) 50 mL; (e) 60 mL; and (f) 70 mL.
Applsci 10 07170 g002
Figure 3. FESEM images of CaCO3 in different solvents: (a) ethanol; (b) methanol; and (c) propanol.
Figure 3. FESEM images of CaCO3 in different solvents: (a) ethanol; (b) methanol; and (c) propanol.
Applsci 10 07170 g003

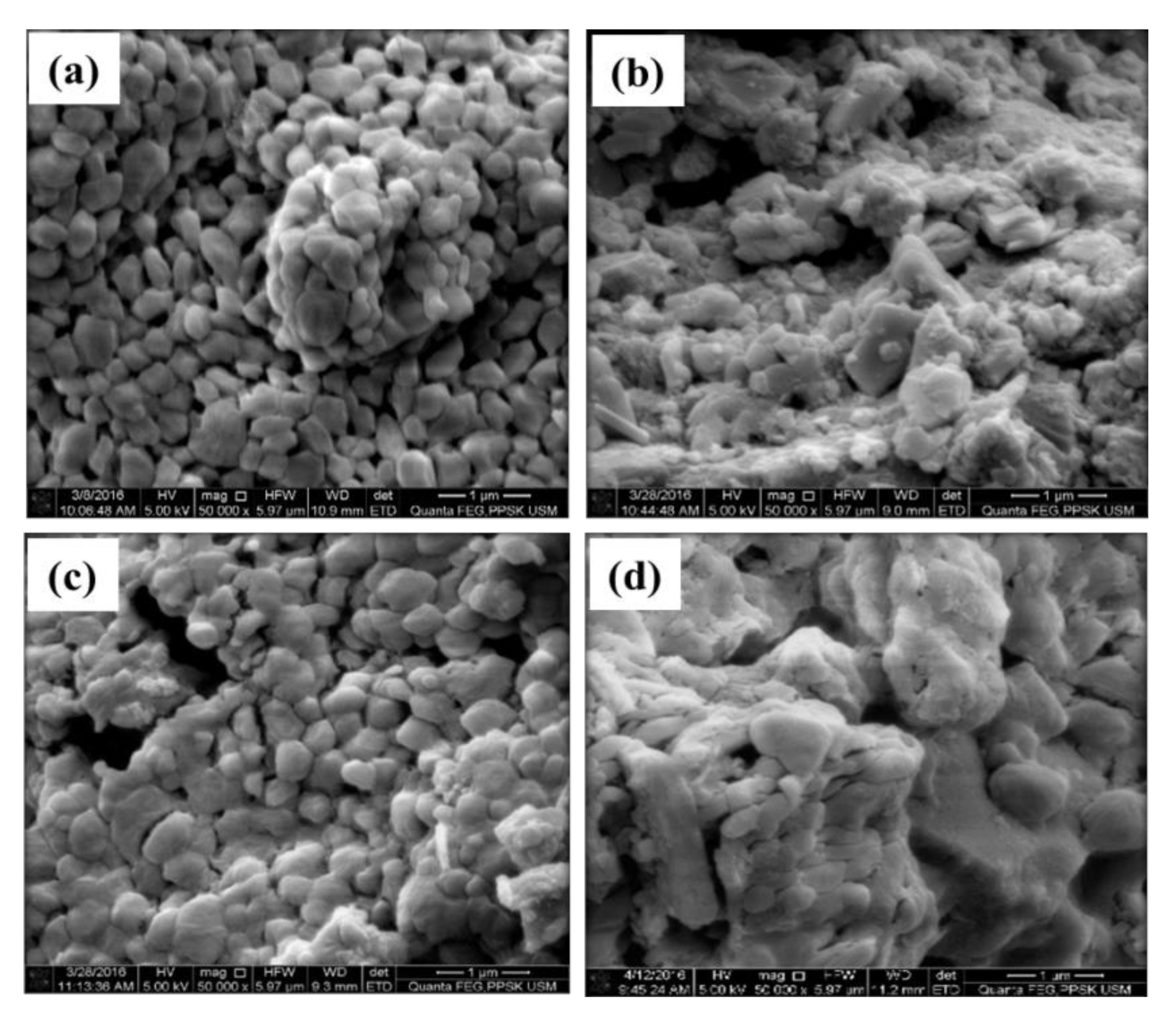

Figure 4. FESEM images of CaCO3 using differing feeding rates of K2CO3: (a) 1 h; (b) 1.5 h; (c) 2 h; and (d) 2.5 h.
Figure 4. FESEM images of CaCO3 using differing feeding rates of K2CO3: (a) 1 h; (b) 1.5 h; (c) 2 h; and (d) 2.5 h.
Applsci 10 07170 g004

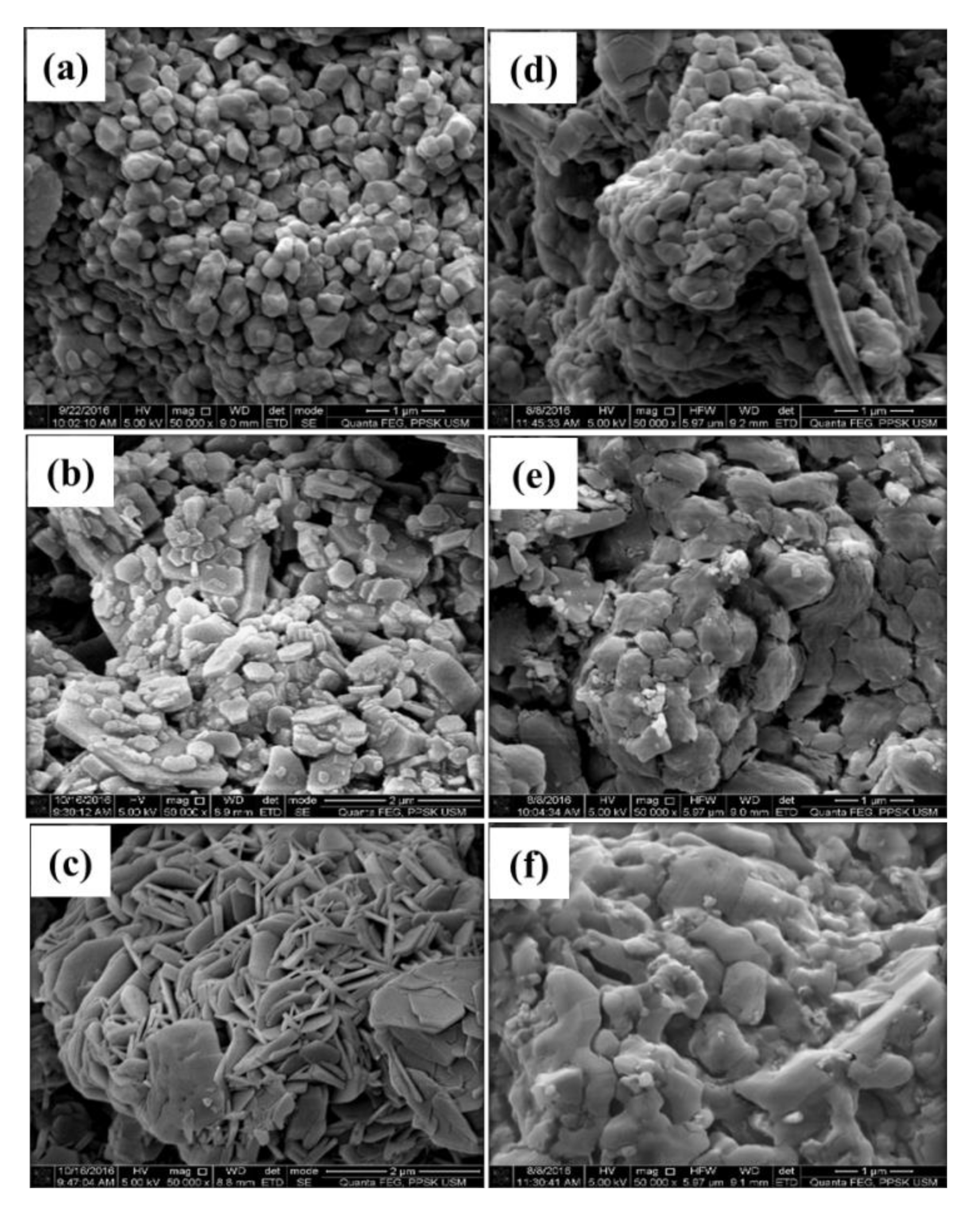

Figure 5. FESEM images of CaCO3 prepared in (a,d) ethanol; (b,e) methanol; and (c,f) propanol after freeze drying (left) and oven drying (right).
Figure 5. FESEM images of CaCO3 prepared in (a,d) ethanol; (b,e) methanol; and (c,f) propanol after freeze drying (left) and oven drying (right).
Applsci 10 07170 g005

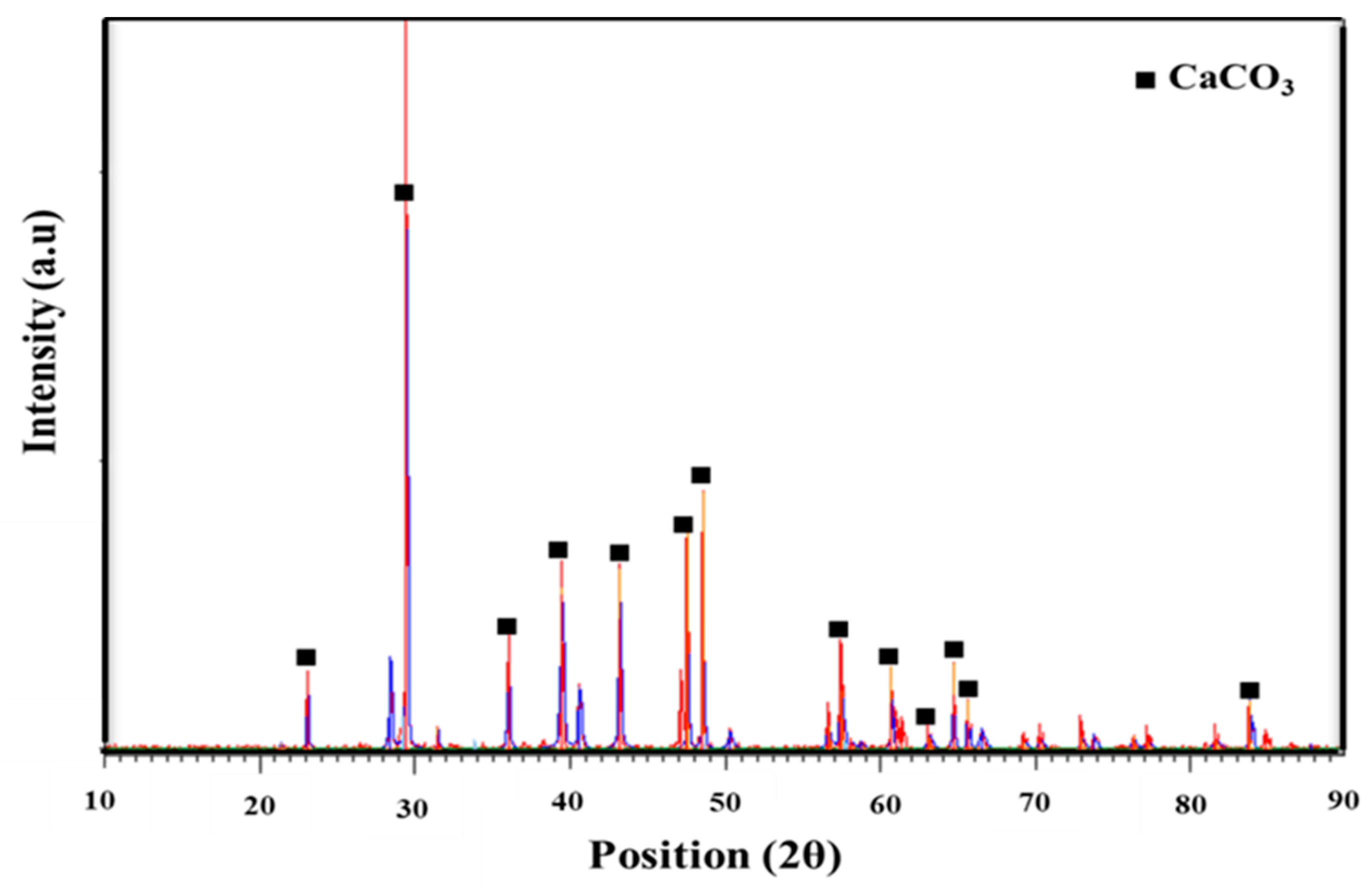

Figure 6. XRD analysis of CaCO3.
Figure 6. XRD analysis of CaCO3.
Applsci 10 07170 g006

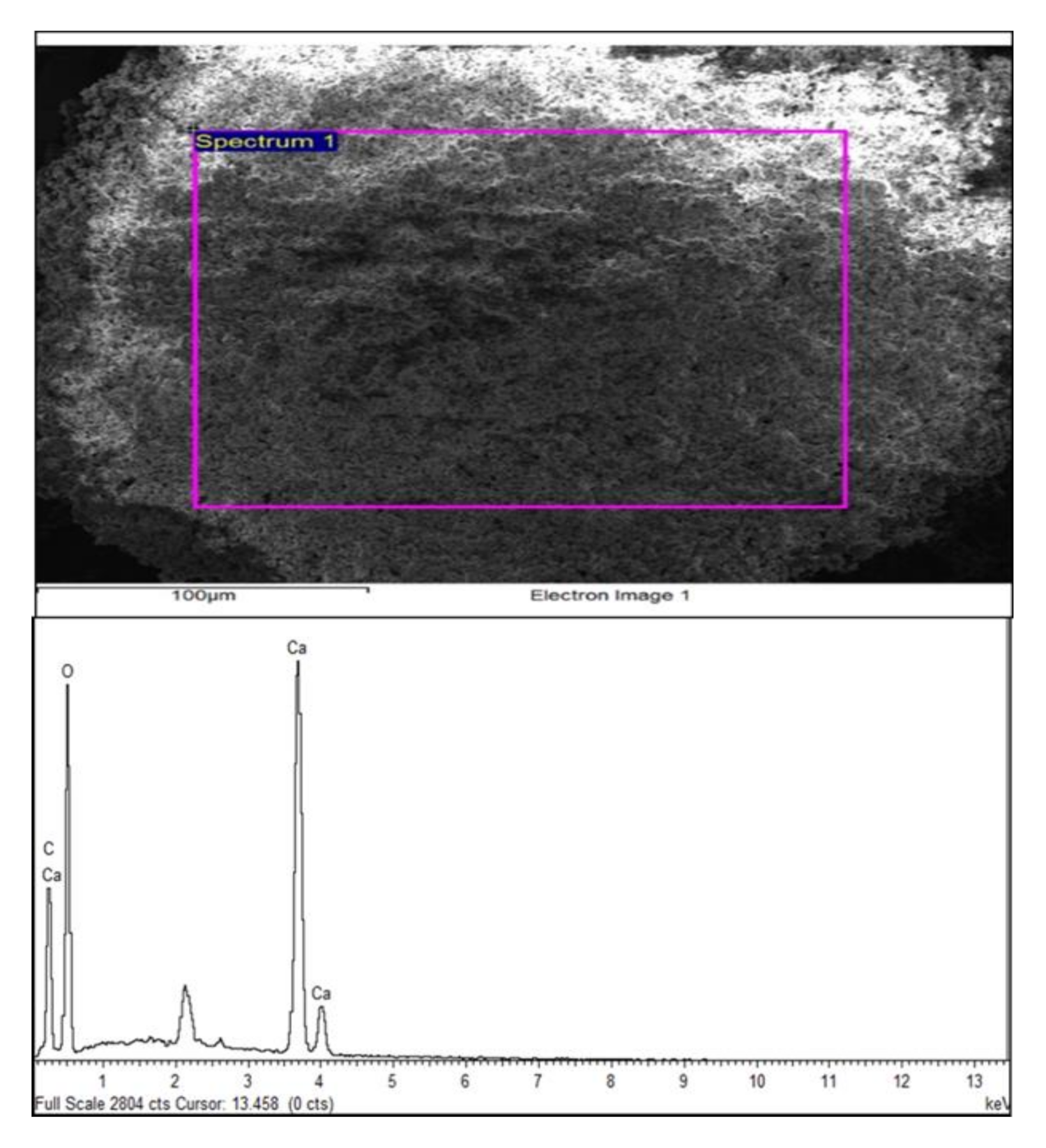

Figure 7. EDX spectrum of CaCO3 nanoparticles.
Figure 7. EDX spectrum of CaCO3 nanoparticles.
Applsci 10 07170 g007

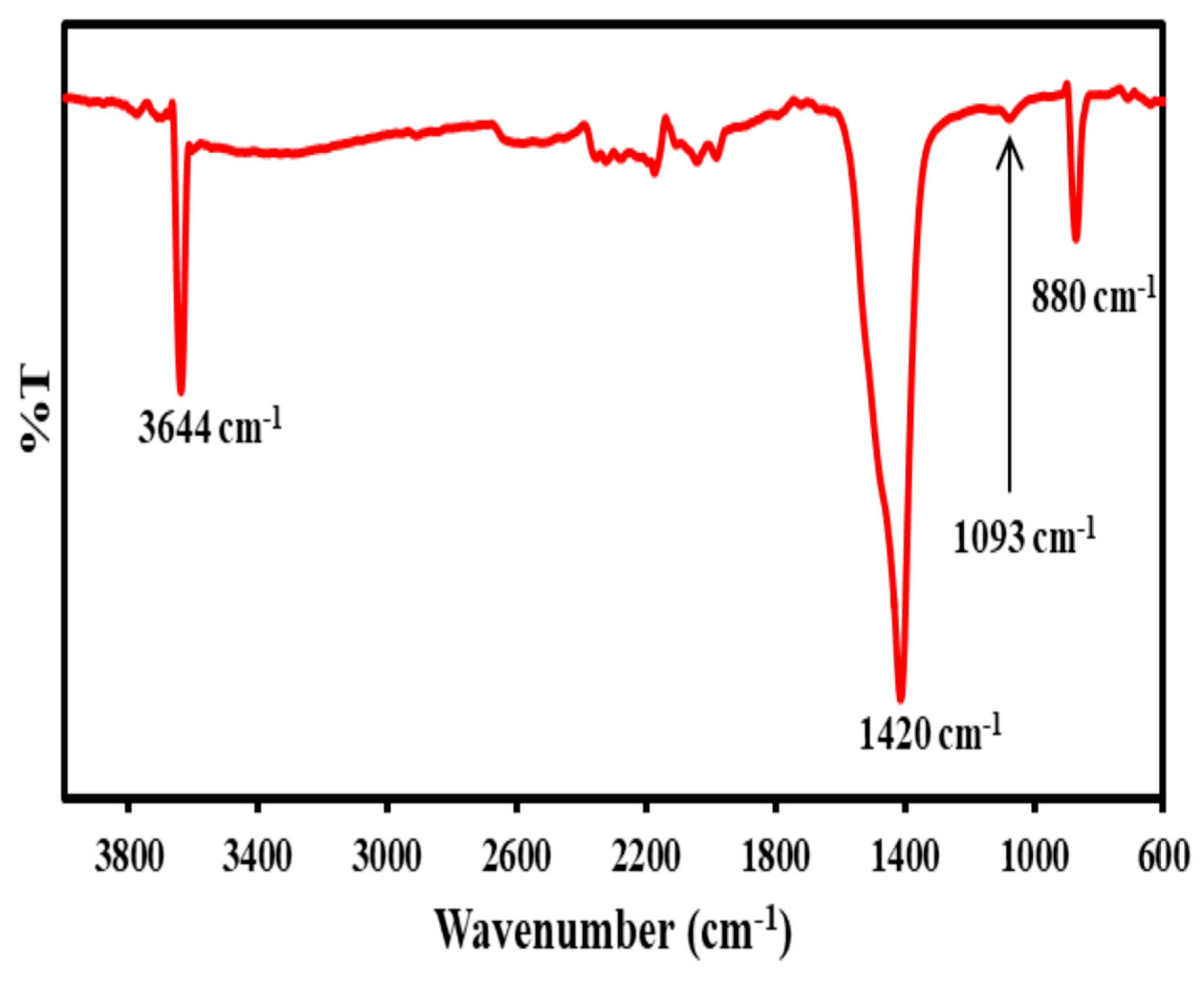

Figure 8. FTIR spectrum of CaCO3.
Figure 8. FTIR spectrum of CaCO3.
Applsci 10 07170 g008

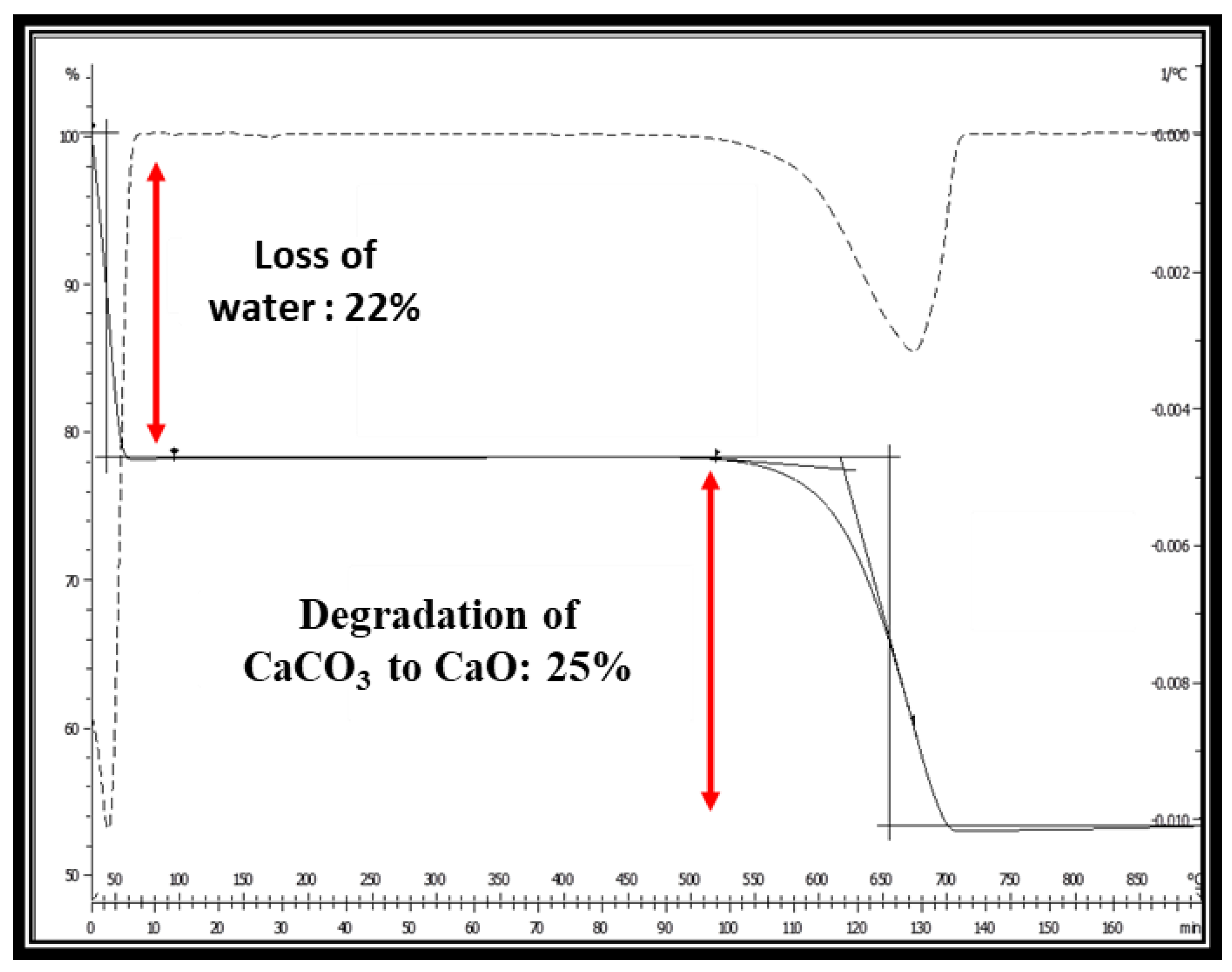

Figure 9. TGA of CaCO3.
Figure 9. TGA of CaCO3.
Applsci 10 07170 g009

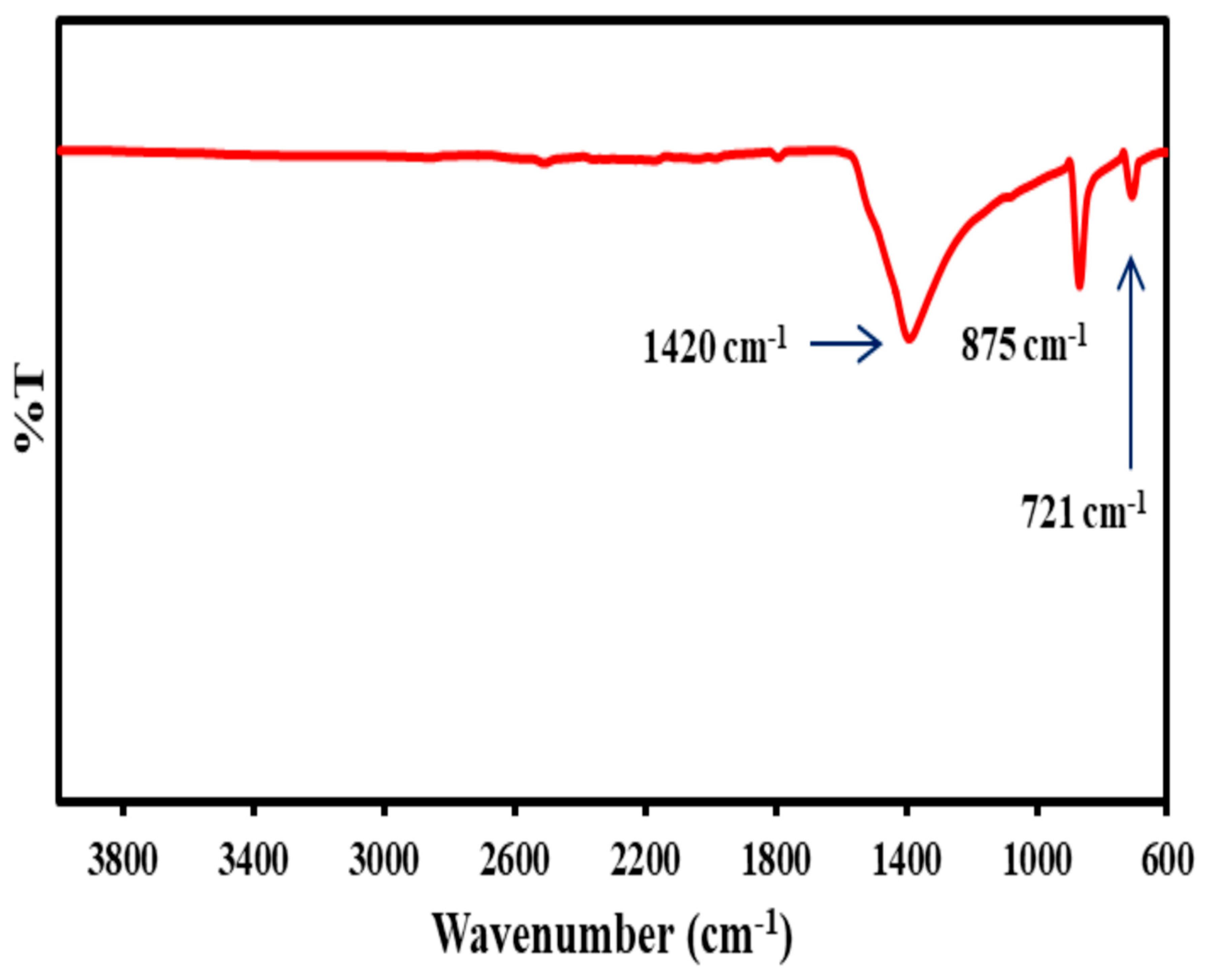

Figure 10. FTIR spectrum of CaO.
Figure 10. FTIR spectrum of CaO.
Applsci 10 07170 g010

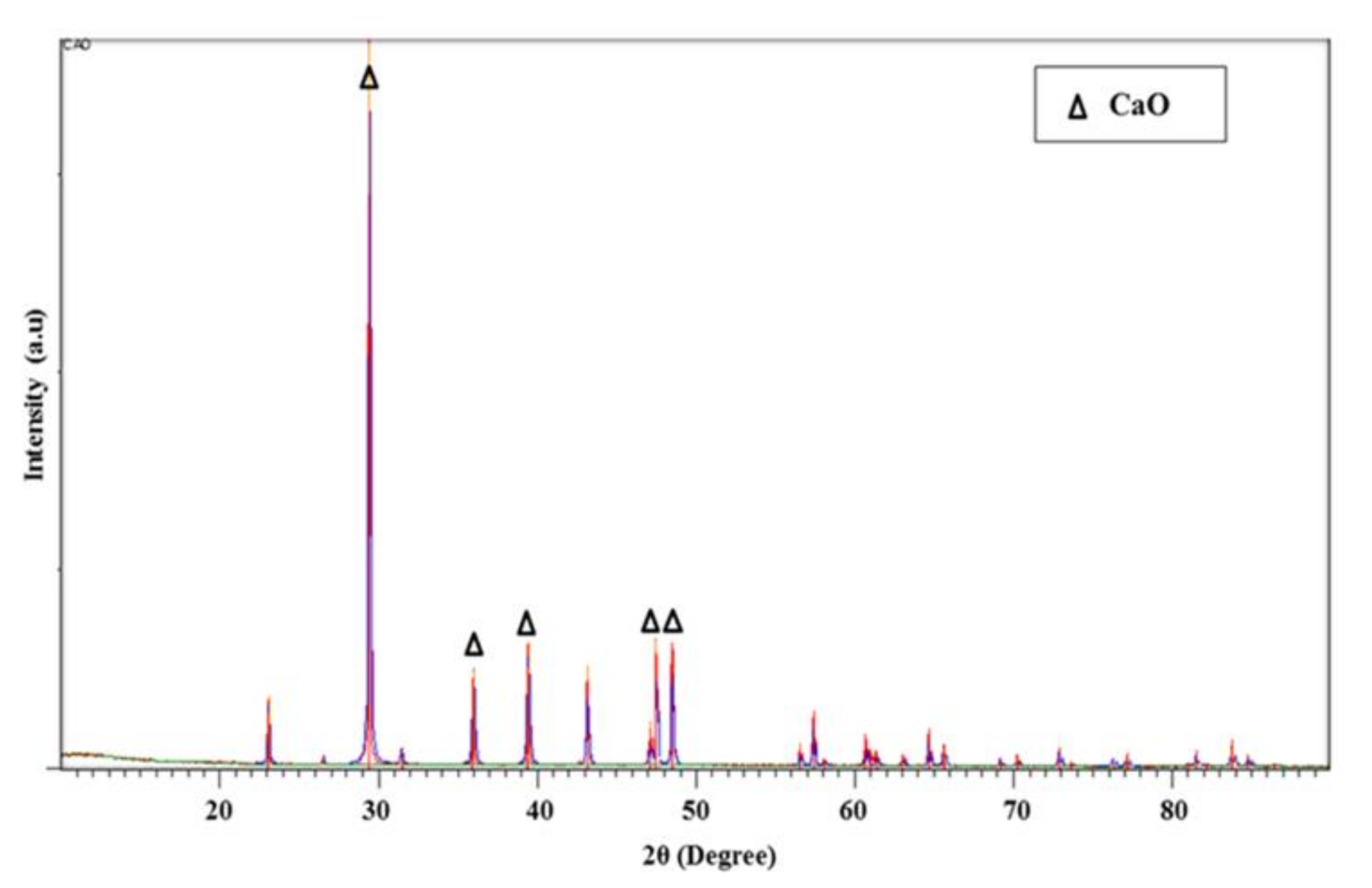

Figure 11. XRD analysis of CaO.
Figure 11. XRD analysis of CaO.
Applsci 10 07170 g011

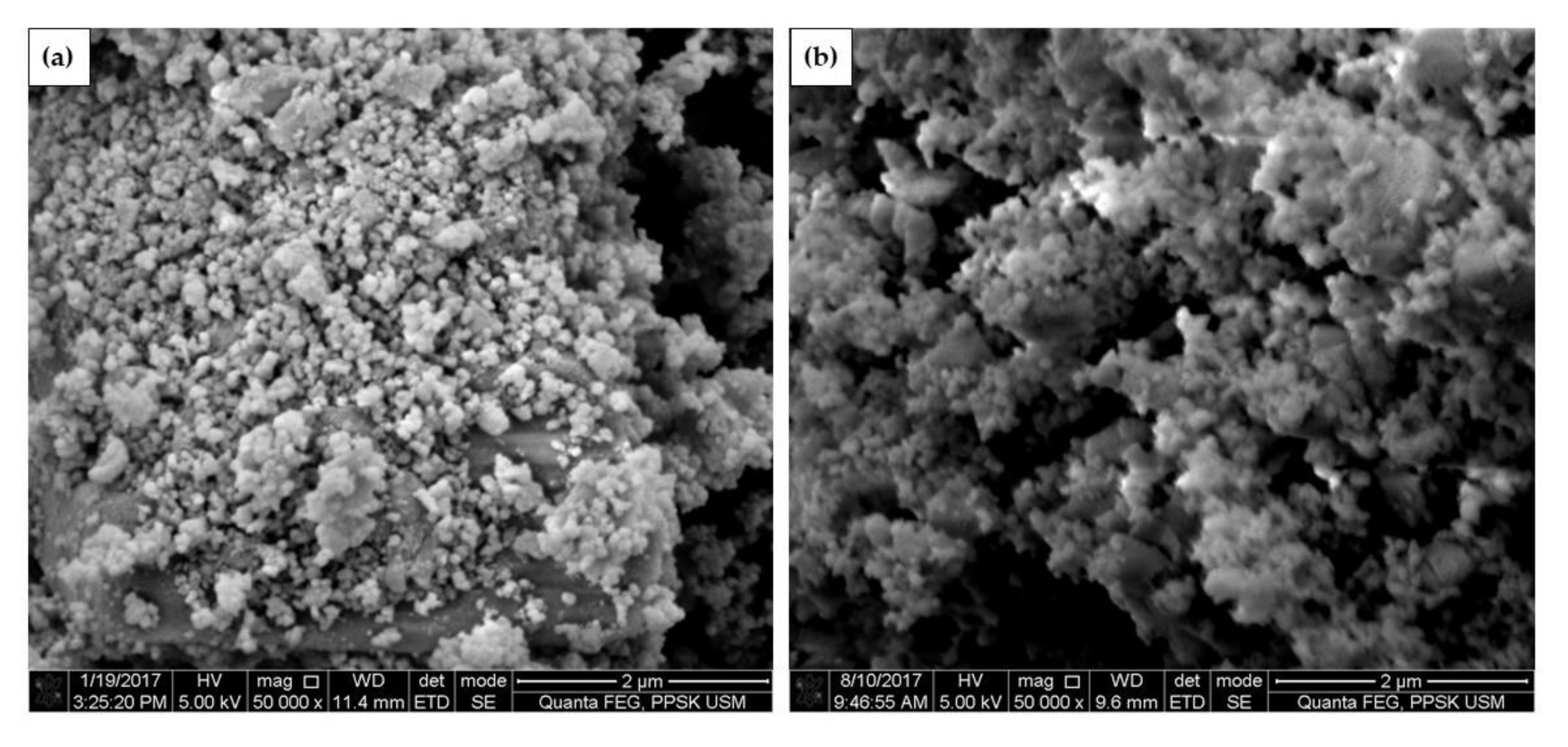

Figure 12. FESEM images of CaO: (a) derived from cockle shell; (b) commercial.
