Open AccessArticle

A Novel GPU-Based Acceleration Algorithm for a Longwave Radiative Transfer Model

1
School of Information Engineering, China University of Geosciences, Beijing 100083, China
2
Computer Network Information Center, Chinese Academy of Sciences, Beijing 100190, China
3
Institute of Atmospheric Physics, Chinese Academy of Sciences, Beijing 100029, China
*
Author to whom correspondence should be addressed.
Appl. Sci. 2020, 10(2), 649; https://doi.org/10.3390/app10020649
Received: 27 November 2019 / Revised: 10 January 2020 / Accepted: 11 January 2020 / Published: 16 January 2020

Abstract

Graphics processing unit (GPU)-based computing for climate system models is a longstanding research area of interest. The rapid radiative transfer model for general circulation models (RRTMG), a popular atmospheric radiative transfer model, can calculate atmospheric radiative fluxes and heating rates. However, the RRTMG has a high calculation time, so it is urgent to study its GPU-based efficient acceleration algorithm to enable large-scale and long-term climatic simulations. To improve the calculative efficiency of radiation transfer, this paper proposes a GPU-based acceleration algorithm for the RRTMG longwave radiation scheme (RRTMG_LW). The algorithm concept is accelerating the RRTMG_LW in the g- p o i n t dimension. After implementing the algorithm in CUDA Fortran, the G-RRTMG_LW was developed. The experimental results indicated that the algorithm was effective. In the case without I/O transfer, the G-RRTMG_LW on one K40 GPU obtained a speedup of 30.98× over the baseline performance on one single Intel Xeon E5-2680 CPU core. When compared to its counterpart running on 10 CPU cores of an Intel Xeon E5-2680 v2, the G-RRTMG_LW on one K20 GPU in the case without I/O transfer achieved a speedup of 2.35×.
Keywords: high performance computing; graphics processing unit; compute unified device architecture; radiation transfer high performance computing; graphics processing unit; compute unified device architecture; radiation transfer

1. Introduction

The radiative process, one of the important atmospheric physics processes, is often used for calculating atmospheric radiative fluxes and heating rates [1]. To simulate the radiative process, several radiative transfer models were developed, such as the line-by-line radiative transfer model (LBLRTM) [2], and the rapid radiative transfer model (RRTM) [3]. The RRTM that is a validated model computing longwave and shortwave radiative fluxes and heating rates, uses the correlated-k method to provide the required accuracy and computing efficiency [4], but it still demands enormous computing resources for long-term climatic simulation. To address this issue, as an accelerated version of RRTM, the rapid radiative transfer model for general circulation models (RRTMG) provides improved efficiency with minimal loss of accuracy for atmospheric general circulation models (GCMs) [5]. As a coupled climate system model comprising eight separate component models and one central coupler, the Chinese Academy of Sciences–Earth System Model (CAS-ESM) [6,7] was developed by the Institute of Atmospheric Physics (IAP) of Chinese Academy of Sciences (CAS). As the atmospheric component model of the CAS-ESM, the IAP Atmospheric General Circulation Model Version 4.0 (IAP AGCM4.0) [8,9] used the RRTMG as its radiative parameterization scheme.
Radiative transfer is relatively time-consuming [10,11]. The RRTMG improves the computing efficiency of radiative transfer, but it is still so computationally expensive that it cannot be performed with shorter time steps or finer grid resolutions in operational models [12]. To greatly improve the computational performance, it is beneficial to use high-performance computing (HPC) technology to accelerate the RRTMG.
At present, HPC is widely employed in earth climate system models [13,14,15]. With the rapid development of HPC technology, due to the features of multithreaded many-core processor, high parallelism, high memory bandwidth, and low cost, the modern graphics processing unit (GPU) has substantially outpaced its central processing unit (CPU) counterparts in dealing with data- and computing-intensive problems [16,17,18,19]. Currently, increasing numbers of atmospheric applications were accelerated by the GPUs [20,21]. For example, the WSM5 microphysics scheme from the Weather Research and Forecasting (WRF) model obtained a 206× speedup on a GPU [22].
In view of the booming GPU capability, our previous study used a GPU for accelerating the RRTMG longwave radiation scheme (RRTMG_LW). In this study, the GPU-based acceleration algorithms with one-dimensional (1D) and two-dimensional (2D) domain decompositions for the RRTMG_LW were proposed [23]. However, the RRTMG_LW did not achieve an excellent speedup on a GPU. Therefore, the present paper focuses on the implementation of better GPU-based accelerating methods for the RRTMG_LW. To further accelerate the RRTMG_LW in the CAS-ESM, a GPU-based acceleration algorithm in the g- p o i n t dimension is proposed. The proposed algorithm enables massively parallel calculation of the RRTMG_LW in the g- p o i n t dimension. Then, an optimized version of the RRTMG_LW is built by successfully adopting GPU technology, resulting in G-RRTMG_LW. The experimental results demonstrated that the G-RRTMG_LW on one K40 GPU obtained a 30.98× speedup.
The main contributions of this study are as follows:
(1)
To further accelerate the RRTMG_LW with a massively parallel computing technology, a GPU-based accelerating algorithm in the g- p o i n t dimension is proposed. The aim is to explore the parallelization of the RRTMG_LW in the g- p o i n t dimension. The proposed algorithm adapts well to the advances in multi-threading computing technology of GPUs and can be generalized to accelerate the RRTMG shortwave radiation scheme (RRTMG_SW).
(2)
The G-RRTMG_LW was implemented in CUDA (NVIDIA’s Compute Unified Device Architecture) Fortran and shows excellent computational capability. To some extent, the more efficient computation of the G-RRTMG_LW supports real-time computing of the CAS-ESM. Moreover, the heterogeneous computing of the CAS-ESM is implemented.
The remainder of this paper is organized as follows. Section 2 presents representative approaches that aim at improving the computational efficiency of physical parameterization schemes. Section 3 introduces the RRTMG_LW model and GPU environment. Section 4 details the CUDA-based parallel algorithm in the g- p o i n t dimension for the RRTMG_LW. Section 5 describes the parallelization implementation of the G-RRTMG_LW. Section 6 evaluates the performance of the G-RRTMG_LW in terms of runtime efficiency and speedup, and discusses some of the problems arising in the experiment. The last section concludes the paper with a summary and proposal for future work.

2. Related Work

There were many successful attempts at using GPUs to accelerate physical parameterization schemes and climatic system models. This section describes the most salient work along this direction.
The WRF Goddard shortwave radiance was accelerated on GPUs using CUDA C [24]. Via double precision arithmetic and with data I/O, the shortwave radiance obtained a 116× speedup on two NVIDIA GTX 590 s [25]. The WRF five-layer thermal diffusion scheme was accelerated using CUDA C, and a 311× speedup was obtained on one Tesla K40 GPU [26]. The WRF Single Moment 6-class microphysics scheme was also accelerated using CUDA C, and obtained a 216× speedup on one Tesla K40 GPU [27].
The WRF long-wave RRTM code was ported to GPUs using CUDA Fortran [28]. The RRTM on Tesla C1060 GPUs attained a 10× speedup [29]. The RRTM longwave radiation scheme (RRTM_LW) on the GTX480 obtained a 27.6× speedup compared with the baseline wall-clock time [1]. The CUDA Fortran version of the RRTM_LW in the GRAPES_Meso model was developed. It adopted some optimization methods for enhancing the computational efficiency, and obtained a 14.3× speedup [10].
The Fortran code of the WRF RRTMG_LW was rewritten in the C programming language, and then its GPU parallelization was implemented using CUDA C. With I/O transfer, the RRTMG_LW achieved a 123× speedup on one Tesla K40 GPU [30]. The Fortran code of the RRTMG_SW was also rewritten in the C programming language. Furthermore, the RRTMG_SW achieved a 202× speedup on one Tesla K40 GPU compared with its single-threaded Fortran counterpart running on Intel Xeon E5-2603 [31].
In a significantly different approach from the previous work, this study first proposes a new and detailed parallel algorithm in the g- p o i n t dimension for the CAS-ESM RRTMG_LW. Rewriting the original Fortran code of the RRTMG_LW would take considerable time, so CUDA Fortran rather than CUDA C was adopted in the parallelization implementation. The major concerns addressed by the proposed algorithm include the following: (a) runtime efficiency, and (b) common processes and technologies of GPU parallelization.

3. Model Description and GPU Overview

3.1. RRTMG_LW Model

As a critical process affecting our planet’s climate, radiative transfer is the transport of energy by electromagnetic waves through a gas. Atmospheric and Environmental Research (AER) developed the RRTM and RRTMG. Their calculations exhibit an effective accuracy equivalent to that provided by the LBLRTM, but their computational cost is lower. In view of these advantages, the RRTM or RRTMG was adopted as the radiative transfer schemes of many climate models, such as the WRF and GRAPES [32].
The RRTM uses the correlated k-distribution method to calculate the broad-band radiative fluxes. In this method, the radiative spectrum is first divided into bands. Because of the rapid variation of absorption lines within the bands of gas molecules, the values of the absorption intensities within each band are further binned into a cumulative distribution function of the intensities. This distribution function is then discretized by using g intervals for integration within each band to obtain the band radiative fluxes, which are further integrated across the bands to obtain the total radiative flux to calculate atmospheric radiative heating or cooling. The g points are the discretized absorption intensities within each band.
The RRTM_LW is the RRTM for infrared radiation (longwave, LW); RRTM_SW is the RRTM for solar radiation (shortwave, SW). RRTM_LW has 16 bands and 256 g points. RRTM_SW has 16 bands and 224 g points. To speed up the calculations for climate and weather models, the spectral resolutions of RRTM_LW and RRTM_SW are further coarsened for applications in GCMs as RRTMG_LW and RRTMG_SW. RRTMG_LW has 16 bands and 140 g points. RRTMG_SW has 16 bands and 112 g points [33].
Below, we briefly describe the radiation flux and heating/cooling rate for calculating radiative transfer through a planetary atmosphere. The spectrally averaged outgoing radiance from an atmospheric layer is expressed using the following formula:
I v ( μ ) = 1 v 2 v 1 v 1 v 2 d v I 0 ( v ) + T v 1 [ B ( v , θ ( T v ) ) I 0 ( v ) ] d T .
In this expression, μ is the zenith direction cosine; v is the wavenumber; θ is temperature; v 1 and v 2 are the beginning and ending wavenumbers of the spectral interval, respectively; B ( v , θ ) is the Planck function at v and θ ; I 0 is the radiance incoming to the layer; T v is the transmittance for the layer optical path; T v is the transmittance at a point along the optical path in the layer.
Equation (1) can derive the following Equation (2) under the necessary assumptions. In Equation (2), g is the fraction of the absorption coefficient; B e f f ( g , T g ) is an effective Planck function for the layer; ρ is the absorber density in the layer; P is layer pressure; Δ z is the vertical thickness of the layer; φ is the angle of the optical path in the azimuthal direction; k ( g , P , θ ) is the absorption coefficient at P and θ .
I g ( μ , φ ) = 0 1 d g B e f f ( g , T g ) + [ I 0 ( g ) B e f f ( g , T g ) ] e x p [ k ( g , P , θ ) ρ Δ z c o s φ ] .
The monochromatic net flux is
F v = F v + F v ,
where F v + = 2 π 0 1 I v ( μ ) μ d μ and F v = 2 π 0 1 I v ( μ ) μ d μ .
The total net flux is obtained by integrating over v
F n e t = F n e t + F n e t .
The radiative heating (or cooling) rate is expressed as
d θ d t = 1 c p ρ d F n e t d z = g c p d F n e t d P ,
where c p is the specific heat at a constant pressure; P is pressure; g is the gravitational acceleration; ρ is the air density in a given layer [30].

3.2. RRTMG_LW Code Structure

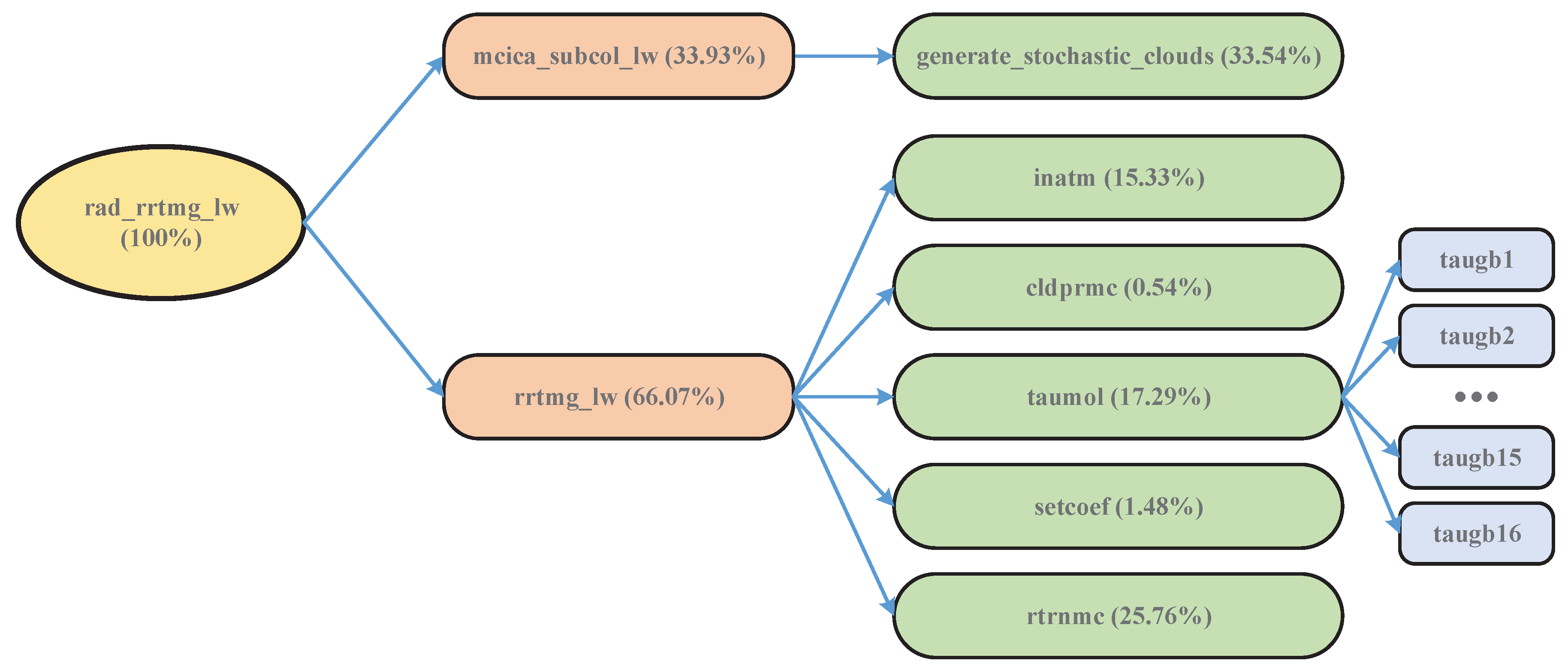

Figure 1 indicates the profiling graph of the original Fortran RRTMG_LW. Here, the subroutine r a d _ r r t m g _ l w is the driver of longwave radiation code. The subroutine m c i c a _ s u b c o l _ l w is used to create Monte-Carlo Independent Column Approximation (McICA) stochastic arrays for cloud physical or optical properties. The subroutine r r t m g _ l w is the driver subroutine for the RRTMG_LW. The subroutine r r t m g _ l w (a) calls the subroutine i n a t m to read in the atmospheric profile from the GCM for use in the RRTMG_LW, and to define other input parameters; (b) calls the subroutine c l d p r m c to set cloud optical depth for the McICA based on the input cloud properties; (c) calls the subroutine s e t c o e f to calculate information needed by the radiative transfer routine that is specific to this atmosphere, especially some of the coefficients and indices needed to compute the optical depths by interpolating data from stored reference atmospheres; (d) calls the subroutine t a u m o l to calculate the gaseous optical depths and Planck fractions for each of the 16 spectral bands; (e) calls the subroutine r t r n m c (for both clear and cloudy profiles) to perform the radiative transfer calculation using the McICA to represent sub-grid scale cloud variability; and (f) passes the necessary fluxes and heating rates back to the GCM.
Algorithm 1 shows the computing procedure of r r t m g _ l w . As depicted in Figure 1, r r t m g _ l w took most computing time of r a d _ r r t m g _ l w , so the study target was to use GPUs for accelerating the i n a t m , c l d p r m c , s e t c o e f , t a u m o l , and r t r n m c subroutines.

3.3. GPU and CUDA Fortran

There are an array of streaming multiprocessors (SMs) inside a GPU. Several streaming processors inside each SM share the control logic and instruction cache. CUDA, a general purpose parallel computing architecture, fosters a software environment to make full use of many cores of GPUs in a massively parallel fashion. Functions or subroutines are defined as “kernels” by CUDA, and then they are executed on the GPU. Before running on the GPU, these kernels need to be invoked by the CPU. In the three-level hierarchy of CUDA, each kernel has a grid that is at the highest level. Each grid consists of thread blocks. Inside each thread block, data is efficiently shared by a group of threads through a fast shared memory [34]. CUDA supports many high-level languages, such as C/C++ and Fortran. NVIDIA and PGI jointly developed CUDA Fortran [28]. CUDA Fortran extends Fortran in memory management statements, declaration statements, CUDA runtime APIs, and kernel execution syntaxes [35].
Algorithm 1: Computing procedure of original rrtmg_lw.
subroutine rrtmg_lw(parameters)
      //ncol is the number of horizontal columns
 1.do iplon=1, ncol
 2. call inatm(parameters)
 3. call cldprmc(parameters)
 4. call setcoef(parameters)
 5. call taumol(parameters)
 6. if aerosol is active then
    //combine gaseous and aerosol optical depths
 7.  taut(k, ig) = taug(k, ig) + taua(k, ngb(ig))
 8. else
 9.  taut(k, ig) = taug(k, ig)
 10. end if
 11. call rtrnmc(parameters)
 12. Transfer fluxes and heating rate to output arrays
 13.end do
end subroutine

4. GPU-Enabled Acceleration Algorithm

In this section, the 2D acceleration algorithm of the RRTMG_LW is introduced. Then, the parallel strategy of the RRTMG_LW in the g- p o i n t dimension is described. Finally, a CUDA-based acceleration algorithm is proposed.

4.1. 2D Acceleration Algorithm

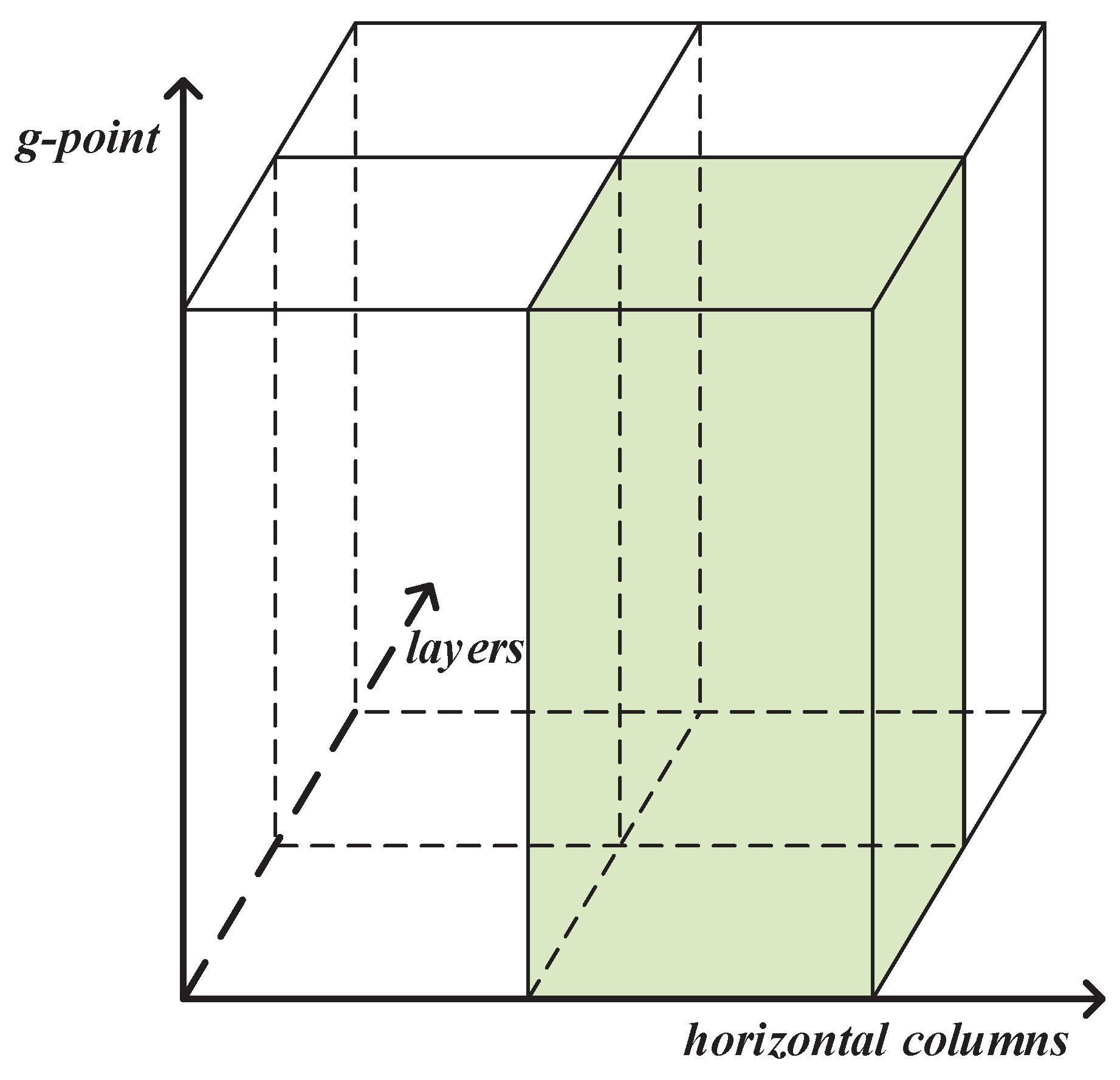

The RRTMG_LW uses a collection of three-dimensional (3D) cells to describe the atmosphere. Its 1D acceleration algorithm with a domain decomposition in the horizontal direction assigns the workload of one “column,” shown in Figure 2, to each CUDA thread. Here, the x-axis represents longitude, the y-axis represents latitude, and the z-axis represents the vertical direction. The RRTMG_LW in spatial structure has three dimensions, but the x and y dimensions in its CUDA code implementation are merged into one dimension to easily write the code. In the CAS-ESM, the IAP AGCM4.0 has a 1.4 ° × 1.4 ° horizontal resolution and 51 levels in the vertical direction, so the RRTMG_LW has n x × n y = 256 × 128 horizontal grid points. Thus, the first dimension of 3D arrays in its code has 256 × 128 elements at most.
To make full use of the GPU performance, the 2D acceleration algorithm with a domain decomposition in the horizontal and vertical directions for the RRTMG_LW was proposed in our previous study [23]. Figure 3 illustrates the 2D domain decomposition for the RRTMG_LW accelerated on the GPU. The 2D acceleration algorithm is illustrated in Algorithm 2. Because of data dependency, the acceleration of c l d p r m c and r t r n m c in the vertical direction is unsuitable, while i n a t m , s e t c o e f , and t a u m o l are able to accelerate in the vertical direction. In the 1D acceleration, n is the number of threads in each thread block, while m = ( real ) n c o l / n is the number of blocks used in each kernel grid. In the 2D acceleration, t B l o c k defines the number of threads used in each thread block of the x, y, and z dimensions by the derived type d i m 3 . Furthermore, g r i d defines the number of blocks in the x, y, and z dimensions by d i m 3 .
Algorithm 2: 2D acceleration algorithm.
subroutine rrtmg_lw_d2(parameters)
  • Copy input data to GPU device
    //Call inatm_d1 with 2D decomposition
  • callinatm_d1 g r i d , t B l o c k (parameters)
    //Call inatm_d2 with 2D decomposition
  • callinatm_d2 g r i d , t B l o c k (parameters)
    //Call inatm_d3 with 1D decomposition
  • callinatm_d3 m , n (parameters)
    //Call inatm_d4 with 2D decomposition
  • callinatm_d4 g r i d , t B l o c k (parameters)
    //Call cldprmc_d with 1D decomposition
  • callcldprmc_d m , n (parameters)
    //Call setcoef_d1 with 2D decomposition
  • callsetcoef_d1 g r i d , t B l o c k (parameters)
    //Call setcoef_d2 with 1D decomposition
  • callsetcoef_d2 m , n (parameters)
    //Call taumol_d with 2D decomposition
  • calltaumol_d g r i d , t B l o c k (parameters)
    //Call rtrnmc_d with 1D decomposition
  • callrtrnmc_d m , n (parameters)
  • Copy result to host
    //Judge whether atmospheric horizontal profile data is completed
  • if it is not completed goto 1
end subroutine

4.2. Parallel Strategy

In the RRTMG_LW, the total number of g points, n g , is 140. Therefore, there are iterative computations for each g point in i n a t m , t a u m o l , and r t r n m c . For example, the computation of 140 g points is executed by a do-loop in the GPU-based acceleration implementation of 1D r t r n m c _ d , as illustrated in Algorithm 3. To achieve more fine-grained parallelism, 140 CUDA threads can be assigned to run the kernels i n a t m _ d , t a u m o l _ d , and r t r n m c _ d . Thus, the parallel strategy is further accelerating i n a t m _ d , t a u m o l _ d , and r t r n m c _ d in the g- p o i n t dimension. Moreover, the parallelization between the kernels should also be considered in addition to that within the kernels.
It is noteworthy that the first dimension of 3D arrays in the CUDA code represents the number of horizontal columns, the second dimension represents the number of model layers, and the third dimension represents the number of g points. If one GPU is applied, in theory, n x × n y × n z × n g = 256 × 128 × 51 × 140 CUDA threads will be required for each kernel in the new parallel method.

4.3. Acceleration Algorithm

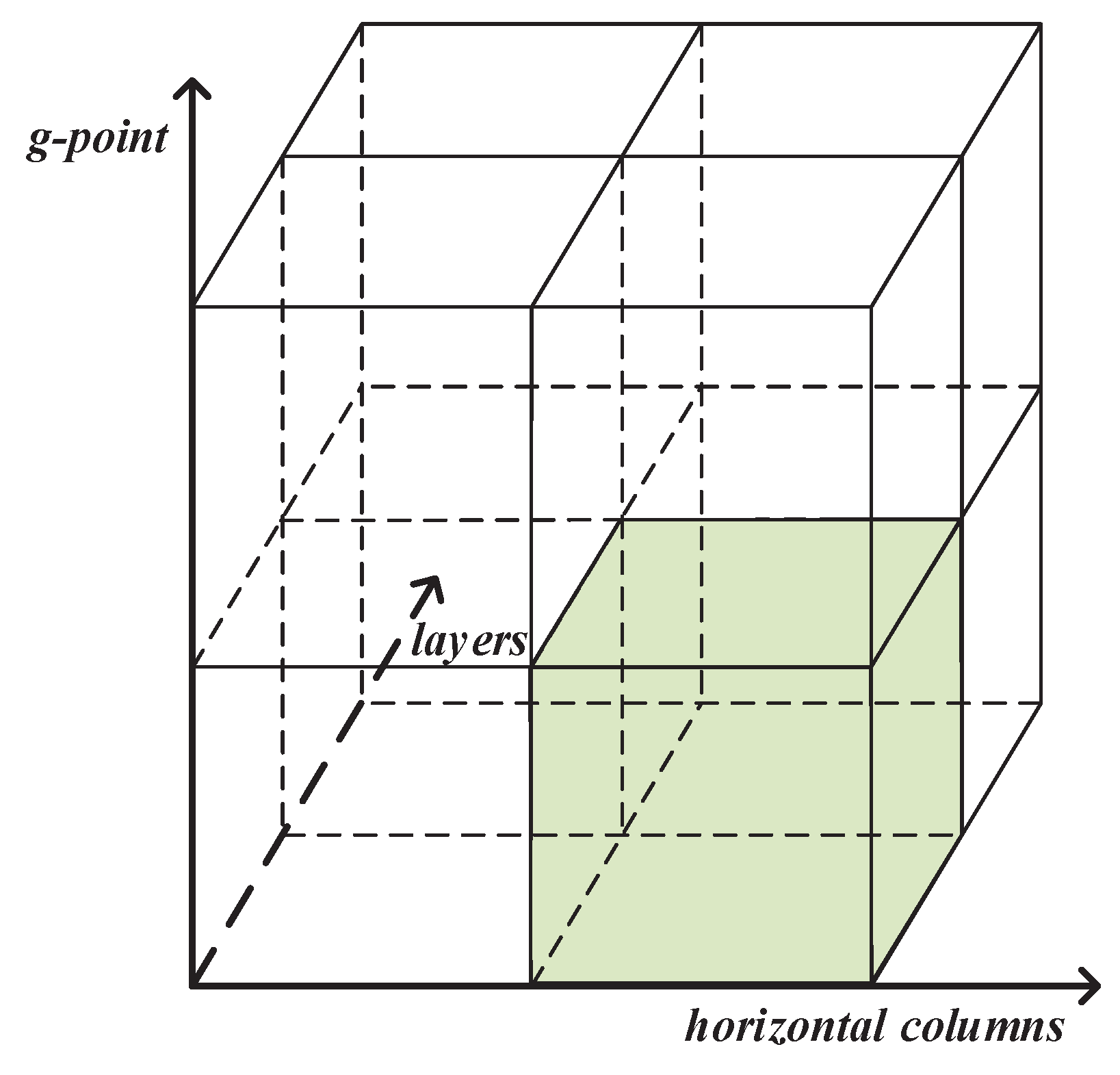

Figure 4 illustrates the domain decomposition in the g- p o i n t dimension for the RRTMG_LW accelerated on the GPU. The acceleration algorithm in the g- p o i n t dimension for the RRTMG_LW, is illustrated in Algorithm 4. The algorithm is described as follows:
(1)
In the acceleration algorithm, i n a t m consists of five kernels ( i n a t m _ d 1 , i n a t m _ d 2 , i n a t m _ d 3 , i n a t m _ d 4 , and i n a t m _ d 5 ). Due to data dependency, a piece of code in i n a t m can be parallel only in the horizontal or vertical direction, so the kernel i n a t m _ d 4 uses a 1D decomposition. The kernels i n a t m _ d 1 , i n a t m _ d 2 , and i n a t m _ d 5 use a 2D decomposition in the horizontal and vertical directions. The kernel i n a t m _ d 3 uses a composite decomposition in the horizontal and vertical directions and g- p o i n t dimension. Due to the requirement of data synchronization, i n a t m _ d 1 and i n a t m _ d 2 cannot be merged into one kernel.
(2)
The kernel c l d p r m c _ d still uses a 1D decomposition.
(3)
Similarly, the kernel s e t c o e f _ d 1 uses a 2D decomposition, and the kernel s e t c o e f _ d 2 uses a 1D decomposition.
(4)
The kernel t a u m o l _ d uses a composite decomposition in the horizontal and vertical directions and g- p o i n t dimension. In t a u m o l _ d , 16 subroutines with the device attribute are invoked.
(5)
Similarly, r t r n m c consists of 11 kernels ( r t r n m c _ d 1 r t r n m c _ d 11 ). Here, r t r n m c _ d 1 , r t r n m c _ d 4 , r t r n m c _ d 8 , r t r n m c _ d 10 , and r t r n m c _ d 11 use a 1D decomposition. Furthermore, r t r n m c _ d 2 and r t r n m c _ d 9 use a 2D decomposition in the horizontal and vertical directions. In addition, r t r n m c _ d 5 and r t r n m c _ d 6 use a 2D decomposition in the horizontal direction and g- p o i n t dimension. Finally, r t r n m c _ d 3 and r t r n m c _ d 7 use a composite decomposition in the horizontal and vertical directions and g- p o i n t dimension.
Algorithm 3: Implementation of 1D rtrnmc_d.
 attributes(global) subroutine rtrnmc_d(parameters)
  • iplon=(blockIdx%x-1)×blockDim%x+threadIdx%x
  • if (iplon≥1 .and. iplon≤ncol) then
  •  Initialize variable arrays
  • do lay = 1, nlayers
  •   do ig = 1, ngptlw
  •    do some corresponding work
  •   end do
  • end do
     //Loop over frequency bands
     //istart is beginning band of calculation
     //iend is ending band of calculation
  • do iband = istart, iend
      //Downward radiative transfer loop
  •   do lay = nlayers, 1, -1
  •    do some corresponding work
  •   end do
  • end do
  • end if
end subroutine
Algorithm 4: Acceleration in g- p o i n t dimension.
subroutine rrtmg_lw_d3(parameters)
  • Copy input data to GPU device
    //Call inatm_d1 with 2D decomposition
  • callinatm_d1 g r i d 1 , t B b l o c k 1 (parameters)
    //Call inatm_d2 with 2D decomposition
  • callinatm_d2 g r i d 1 , t B b l o c k 1 (parameters)
    //Call inatm_d3 with g- p o i n t acceleration
  • callinatm_d3 g r i d 2 , t B b l o c k 2 (parameters)
    //Call inatm_d4 with 1D decomposition
  • callinatm_d4 m , n (parameters)
    //Call inatm_d5 with 2D decomposition
  • callinatm_d5 g r i d 1 , t B b l o c k 1 (parameters)
    //Call cldprmc_d with 1D decomposition
  • callcldprmc_d m , n (parameters)
    //Call setcoef_d1 with 2D decomposition
  • callsetcoef_d1 g r i d , t B b l o c k (parameters)
    //Call setcoef_d2 with 1D decomposition
  • callsetcoef_d2 m , n (parameters)
    //Call taumol_d with g- p o i n t acceleration
  • calltaumol_d g r i d 2 , t B b l o c k 2 (parameters)
    //Call rtrnmc_d1 with 1D decomposition
  • callrtrnmc_d1 m , n (parameters)
    //Call rtrnmc_d2 with 2D decomposition
  • callrtrnmc_d2 g r i d 1 , t B b l o c k 1 (parameters)
    //Call rtrnmc_d3 with g- p o i n t acceleration
  • callrtrnmc_d3 g r i d 2 , t B b l o c k 2 (parameters)
    //Call rtrnmc_d4 with 1D decomposition
  • callrtrnmc_d4 m , n (parameters)
    //Call rtrnmc_d5 with 2D decomposition in horizonal and g- p o i n t dimensions
  • callrtrnmc_d5 g r i d 3 , t B b l o c k 3 (parameters)
    //Call rtrnmc_d6 with 2D decomposition in horizonal and g- p o i n t dimensions
  • callrtrnmc_d6 g r i d 3 , t B b l o c k 3 (parameters)
    //Call rtrnmc_d7 with g- p o i n t acceleration
  • callrtrnmc_d7 g r i d 2 , t B b l o c k 2 (parameters)
    //Call rtrnmc_d8 with 1D decomposition
  • callrtrnmc_d8 m , n (parameters)
    //Call rtrnmc_d9 with 2D decomposition
  • callrtrnmc_d9 g r i d 1 , t B b l o c k 1 (parameters)
    //Call rtrnmc_d10 with 1D decomposition
  • callrtrnmc_d10 m , n (parameters)
    //Call rtrnmc_d11 with 1D decomposition
  • callrtrnmc_d11 m , n (parameters)
  • Copy result to host
    //Judge whether atmospheric horizontal profile data is completed
  • if it is not completed goto 1
end subroutine

5. Algorithm Implementation

In this section, the acceleration algorithm implementation is described. The implementations of 1D c l d p r m c _ d and 2D s e t c o e f _ d were described in our previous paper, so this section only considers the implementations of i n a t m _ d , t a u m o l _ d , and r t r n m c _ d with an acceleration in the g- p o i n t dimension.

5.1. Inatm_d

The implementations of CUDA-based 2D i n a t m _ d 1 , i n a t m _ d 2 , and i n a t m _ d 5 are similar to the procedure in Algorithm 5. Here, t h r e a d I d x % x identifies a unique thread inside a thread block in the x dimension, b l o c k I d x % x identifies a unique thread block inside a kernel grid in the x dimension, and b l o c k D i m % x identifies the number of threads in a thread block in the x dimension. In the same way, t h r e a d I d x % y , b l o c k I d x % y , and b l o c k D i m % y identify the corresponding configuration in the y dimension. Please note that the “%” symbol in Fortran is the access to fields of a structure and not the modulus operator. In addition, i p l o n , the coordinate of the horizontal grid points, represents the ID of a global thread in the x dimension, which can be expressed as i p l o n =( b l o c k I d x % x -1)× b l o c k D i m % x + t h r e a d I d x % x . The coordinate of the vertical direction, l a y , also represents the ID of a global thread in the y dimension, which can be expressed as l a y =( b l o c k I d x % y -1)× b l o c k D i m % y + t h r e a d I d x % y . Thus, a grid point in the horizontal and vertical directions can be identified by the i p l o n and l a y variables as 2D linear data.
The implementation of i n a t m _ d 3 is illustrated in Algorithm 6. Here, t h r e a d I d x % z identifies a unique thread inside a thread block in the z dimension, b l o c k I d x % z identifies a unique thread block inside a kernel grid in the z dimension, and b l o c k D i m % z identifies the number of threads in a thread block in the z dimension. The coordinate of the g points, i g , also represents the ID of a global thread in the x dimension, which can be expressed as i g =( b l o c k I d x % x -1)× b l o c k D i m % x + t h r e a d I d x % x . Furthermore, i n a t m _ d 3 is used to assign a value to the four 3D arrays.
The implementation of 1D i n a t m _ d 4 is illustrated in Algorithm 7.
Algorithm 5: Implementation of 2D inatm_d.
 attributes(global) subroutine inatm_d(parameters)
  • iplon=(blockIdx%x-1)×blockDim%x+threadIdx%x
  • lay=(blockIdx%y-1)×blockDim%y+threadIdx%y
     //nlayers=nlay + 1, nlay is number of model layers
  • if ((iplon≥1 .and. iplon≤ncol) .and. (lay≥1 .and. lay≤nlayers-1 or nlayers or nlayers+1)) then
  •   Initialize variable arrays or do some computational work for them
  • end if
end subroutine
Algorithm 6: Implementation of inatm_d3.
 attributes(global) subroutine inatm_d3(parameters)
  • ig=(blockIdx%x-1)×blockDim%x+threadIdx%x
  • iplon=(blockIdx%y-1)×blockDim%y+threadIdx%y
  • lay=(blockIdx%z-1)×blockDim%z+threadIdx%z
    //ngptlw is total number of reduced g-intervals
  • if ((iplon≥1 .and. iplon≤ncol) .and. (lay≥1 .and. lay≤nlayers-1) .and. (ig≥1 .and. ig≤ngptlw)) then
  •  cldfmc(ig, iplon, lay) = cldfmcl_d(ig, iplon, nlayers-lay)
  •  taucmc(ig, iplon, lay) = taucmcl_d(ig, iplon, nlayers-lay)
  •  ciwpmc(ig, iplon, lay) = ciwpmcl_d(ig, iplon, nlayers-lay)
  •  clwpmc(ig, iplon, lay) = clwpmcl_d(ig, iplon, nlayers-lay)
  • end if
end subroutine

5.2. taumol_d

The implementation of t a u m o l _ d is illustrated in Algorithm 8. Here, the implementations of t a u g b 1 _ d and t a u g b 2 _ d with the device attribute are also described. The implementations of the other 14 subroutines ( t a u g b 3 _ d t a u g b 16 _ d ) are similar to those of t a u g b 1 _ d and t a u g b 2 _ d .
Algorithm 7: Implementation of 1D inatm_d4.
 attributes(global) subroutine inatm_d4(parameters)
  • iplon=(blockIdx%x-1)×blockDim%x+threadIdx%x
  • if (iplon≥1 .and. iplon≤ncol) then
  •  Initialize variable arrays
  • do lay = 1, nlayers-1 or nlayers
  •   do some corresponding computational work
  • end do
  • end if
end subroutine
Algorithm 8: Implementation of taumol_d.
 attributes(global) subroutine taumol_d(parameters)
  • iplon=(blockIdx%x-1)×blockDim%x+threadIdx%x
  • lay=(blockIdx%y-1)×blockDim%y+threadIdx%y
  • ig=(blockIdx%z-1)×blockDim%z+threadIdx%z
  • if ((iplon≥1 .and. iplon≤ncol) .and. (lay≥1 .and. lay≤nlayers) .and. (ig≥1 .and. ig≤ngptlw)) then
  • call taugb1_d(parameters)
  • call taugb2_d(parameters)
  • call taugb3_d(parameters)
  • call taugb4_d(parameters)
  • call taugb5_d(parameters)
  • call taugb6_d(parameters)
  • call taugb7_d(parameters)
  • call taugb8_d(parameters)
  • call taugb9_d(parameters)
  • call taugb10_d(parameters)
  • call taugb11_d(parameters)
  • call taugb12_d(parameters)
  • call taugb13_d(parameters)
  • call taugb14_d(parameters)
  • call taugb15_d(parameters)
  • call taugb16_d(parameters)
  • end if
end subroutine
 attributes(device) subroutine taugb1_d(parameters)
      //Lower atmosphere loop
      //laytrop is tropopause layer index, ngs1 is an integer parameter used for 140 g-point model
  • if ((iplon≥1 .and. iplon≤ncol) .and. (lay≥1 .and. lay≤laytrop(iplon)) .and. (ig≥1 .and. ig≤ngs1)) then
  •  do some computational work
  • end if
     //Upper atmosphere loop
  • if ((iplon≥1 .and. iplon≤ncol) .and. (lay≥laytrop(iplon)+1 .and. lay≤nlayers) .and. (ig≥1 .and. ig≤ngs1)) then
  •  do some computational work
  • end if
end subroutine
 attributes(device) subroutine taugb2_d(parameters)
      //ngs2 is an integer parameter used for 140 g-point model
  • if ((iplon≥1 .and. iplon≤ncol) .and. (lay≥1 .and. lay≤laytrop(iplon)) .and. (ig≥ngs1+1 .and. ig≤ngs2)) then
  •  do some computational work
  • end if
  • if ((iplon≥1 .and. iplon≤ncol) .and. (lay≥laytrop(iplon)+1 .and. lay≤nlayers) .and. (ig≥ngs1+1 .and. ig≤ngs2)) then
  •  do some computational work
  • end if
end subroutine

5.3. rtrnmc_d

The implementations of 1D r t r n m c _ d 1 , r t r n m c _ d 4 , r t r n m c _ d 8 , r t r n m c _ d 10 , and r t r n m c _ d 11 are similar to the procedure in Algorithm 3. The 2D r t r n m c _ d 2 and r t r n m c _ d 9 are used to assign a value to some arrays; their implementations are not described further here. The implementations of r t r n m c _ d 3 , 2D r t r n m c _ d 5 , and 2D r t r n m c _ d 6 are illustrated in Algorithm 9. The implementation of r t r n m c _ d 7 is similar to that of r t r n m c _ d 3 .
Algorithm 9: Implementation of rtrnmc_d.
 attributes(global) subroutine rtrnmc_d3(parameters)
  • iplon=(blockIdx%x-1)×blockDim%x+threadIdx%x
  • igc=(blockIdx%y-1)×blockDim%y+threadIdx%y
  • lay=(blockIdx%z-1)×blockDim%z+threadIdx%z
  • if ((iplon≥1 .and. iplon≤ncol) .and. (lay≥0 .and. lay≤nlayers) .and. (igc≥1 .and. igc≤ngptlw)) then
  •  urad(iplon, igc, lay) = 0.0
  •  drad(iplon, igc, lay) = 0.0
  •  clrurad(iplon, igc, lay) = 0.0
  •  clrdrad(iplon, igc, lay) = 0.0
  • end if
end subroutine
 attributes(global) subroutine rtrnmc_d5(parameters)
  • iplon=(blockIdx%x-1)×blockDim%x+threadIdx%x
  • igc=(blockIdx%y-1)×blockDim%y+threadIdx%y
  • if ((iplon≥1 .and. iplon≤ncol) .and. (igc≥1 .and. igc≤10)) then
     //Loop over frequency bands
  •  iband=1
     //Downward radiative transfer loop
  • do lay = nlayers, 1, -1
  •   do some corresponding work
  • end do
  • end if
  • if ((iplon≥1 .and. iplon≤ncol) .and. (igc≥11 .and. igc≤22)) then
  •  iband=2
  • do lay = nlayers, 1, -1
  •   do some corresponding work
  • end do
  • end if
  • When iband= 3 9 , the algorithms are similar to that in the case of iband=1 or 2.
end subroutine
 attributes(global) subroutine rtrnmc_d6(parameters)
  • iplon=(blockIdx%x-1)×blockDim%x+threadIdx%x
  • igc=(blockIdx%y-1)×blockDim%y+threadIdx%y
  • if ((iplon≥1 .and. iplon≤ncol) .and. (igc≥109 .and. igc≤114)) then
  •  iband=10
  • do lay = nlayers, 1, -1
  •   do some corresponding work
  • end do
  • end if
  • When iband= 11 16 , the algorithms are similar to that in the case of iband=10.
end subroutine

6. Result and Discussion

Experimental studies were conducted to evaluate and compare the performance of the proposed algorithm with the solutions above. The results are described below.

6.1. Experimental Setup

To fully investigate the proposed algorithm, this paper conducted an ideal global climate simulation for one model day. The time step of the RRTMG_LW was 1 h.
The experiment platforms include two GPU clusters (K20 and K40 clusters). The K20 cluster at the Computer Network Information Center of CAS has 30 GPU nodes. Each GPU node has two Intel Xeon E5-2680 v2 processors and two NVIDIA Tesla K20 GPUs. Twenty CPU cores in each GPU node share 64 GB DDR3 system memory through QuickPath Interconnect. The basic compiler is the PGI Fortran compiler Version 14.10 that supports CUDA Fortran. The K40 cluster at China University of Geosciences (Beijing) has four GPU nodes, each with two NVIDIA Tesla K40 GPUs. Table 1 lists their detailed configurations. The serial RRTMG_LW was executed on an Intel Xeon E5-2680 v2 processor of K20 cluster. The G-RRTMG_LW was executed on one K20 or K40 GPU.

6.2. Influence of Block Size

The serial runtime of the subroutine r r t m g _ l w on one core of an Intel Xeon E5-2680 v2 processor, which accounts for 66.07% of the total computing time of the subroutine r a d _ r r t m g _ l w , is 647.12 s in this simulation, as shown in Table 2. Here, the computing time of the RRTMG_LW on the CPU or GPU, T r r t m g _ l w , is calculated with the following formula:
T r r t m g _ l w = T i n a t m + T c l d p r m c + T s e t c o e f + T t a u m o l + T r t r n m c ,
where T i n a t m is the computing time of the subroutine i n a t m or kernel i n a t m _ d ; moreover, T c l d p r m c , T s e t c o e f , T t a u m o l , and T r t r n m c are the corresponding computing times of the other kernels. For exploring whether/how the number of threads in a thread block may affect the computation performance, the execution time of the G-RRTMG_LW with a tuned number of threads was measured over one GPU. Taking the case of no I/O transfer as an example, Figure 5 portrays the runtime of the G-RRTMG_LW on one K20 GPU. Indeed, the number of threads per block, or block size, affected the computation performance to some extent. The G-RRTMG_LW achieved optimal performance when the block size was 128. The G-RRTMG_LW on one K40 GPU resulted in a similar rule, as shown in Figure 6. Some conclusions and analysis are drawn as below.
(1)
Generally, increasing the block size can hide some memory access latency to some extent and improve the computational performance of parallel algorithms. Therefore, kernels with simple computation usually show optimal performance when the block size is 128 or 256. Thus, with a large amount of calculation, the kernel t a u m o l with an acceleration in the g- p o i n t dimension achieved optimal performance on one K20 GPU when the block size was 128.
(2)
The runtime and speedup of the RRTMG_LW 2D acceleration algorithm on the K20 and K40 GPUs are shown in Table 2. From Table 2, Figure 5 and Figure 6, the kernel t a u m o l with an acceleration in the g- p o i n t dimension costs more computational time than its 2D version did. This is because there is much redundant computing in the current t a u m o l . For example, each thread in 2D t a u m o l ran the code shown in Table 3, but each thread in the current t a u m o l still had to run the code although there were more threads. Therefore, the current t a u m o l , with more threads than its 2D counterpart, did not take full advantage of having plenty of threads.
(3)
The r t r n m c with an acceleration in the g- p o i n t dimension on one K20 GPU and one K40 GPU both achieved optimal performance when the block size was 512. During its current acceleration, more threads were assigned, so that each thread had fewer calculations and required fewer hardware resources. When the block size was 512, the assigned hardware resources of each thread were in a state of equilibrium, so in this case, the current r t r n m c showed better performance.

6.3. Evaluations on Different GPUs

The runtime and speedup of the G-RRTMG_LW on the K20 and K40 GPUs are shown in Table 4. Due to the poor performance of the t a u m o l with an acceleration in the g- p o i n t dimension, its 2D version was still used here. The speedups of the i n a t m and r t r n m c with an acceleration in the g- p o i n t dimension on one K20 GPU were 87.37× and 13.20×, respectively. Using one K20 GPU in the case without I/O transfer, the G-RRTMG_LW achieved a speedup of 25.47× as compared to its counterpart running on one CPU core of an Intel Xeon E5-2680 v2. Whereas, using one K40 GPU in the case without I/O transfer, the G-RRTMG_LW achieved a speedup of 30.98×. Some conclusions and analysis are drawn below.
(1)
The K40 GPU had a higher core clock and memory clock, more cores, and stronger floating-point computation power than the K20 GPU did. Thus, the G-RRTMG_LW on the K40 GPU showed better performance.
(2)
According to the testing, it was found that the transposition of four 3D arrays in the 1D or 2D i n a t m required most of the computational time. Because of discontinuous access for these arrays using a do-loop form, the transposition cost too much time. However, the i n a t m with an acceleration in the g- p o i n t dimension has no do-loops, as shown in Algorithm 6, so it can show an excellent performance improvement.
(3)
There are 11 kernels in the current r t r n m c , but only two of them have a composite decomposition in the horizontal, vertical and g- p o i n t dimensions. The two kernels only cost about 17% computational time, so the current r t r n m c did not achieve a noticeable performance improvement compared with its 1D version.
When compared to its counterpart running on 10 CPU cores of an Intel Xeon E5-2680 v2, the speedup of the G-RRTMG_LW on the K20 GPU is shown in Table 5. In this case, using one K20 GPU in the case without I/O transfer, the G-RRTMG_LW achieved a speedup of 2.35×. This shows that running the RRTMG_LW on one K20 GPU still has a better computing performance than on 10 cores of a CPU.

6.4. I/O Transfer

I/O transfer between the CPU and GPU is inevitable. The runtime and speedup of the G-RRTMG_LW with I/O transfer on the K20 and K40 GPUs are shown in Table 6. The I/O transfer time on the K20 cluster was 61.39 s, while it was 59.3 s on the K40 cluster. Using one K40 GPU in the case with I/O transfer, the G-RRTMG_LW achieved a speedup of 8.07×. Some conclusions and analysis are drawn below.
(1)
In the simulation with one model day, the RRTMG_LW required integral calculations 24 times. During each integration for all 128×256 grid points, the subroutine r r t m g _ l w had to be invoked 16 (128×256/ n c o l ) times when n c o l is 2048. Due to the memory limitation of the GPU, the maximum value of n c o l on the K40 GPU was 2048. This means that the G-RRTMG_LW was invoked repeatedly 16 × 24 = 384 times in the experiment. For each invocation, the input and output of the 3D arrays must be updated between the CPU and GPU, so the I/O transfer incurs a high communication cost.
(2)
The computational time of the G-RRTMG_LW in the case without I/O transfer was fairly short, so the I/O transfer cost exhibited a huge bottleneck for the maximum level of performance improvement of the G-RRTMG_LW. In the future, compressing data and improving the network bandwidth will be beneficial for reducing this I/O transfer cost.

6.5. Error Analysis

During accelerating the computational performance of a climate system model, it is of vital importance to ensure that the model on one GPU can generate the same results within a small tolerance threshold. In this simulating experiment, Figure 7 illustrates the impact on the longwave flux at the top of the atmosphere in a clear sky. The outgoing longwave flux by running entirely the CAS-ESM RRTMG_LW on the CPU is shown in Figure 7a. The longwave flux differences between the simulations running the CAS-ESM RRTMG_LW only on the CPU and running the CAS-ESM RRTMG_LW (G-RRTMG_LW) on the K20 GPU is shown in Figure 7b. The results show that there are minor and negligible differences. Besides the impact of running the G-RRTMG_LW on the GPU, the impact of the slight physics change by running the G-RRTMG_LW code on the GPU also results in these differences.

7. Conclusions and Future Work

It is exceedingly challenging to use GPUs to accelerate radiation physics. In this work, a GPU-based acceleration algorithm of the RRTMG_LW in the g- p o i n t dimension was proposed. Then, the acceleration algorithm was implemented using CUDA Fortran. Finally, G-RRTMG_LW, the GPU version of the RRTMG_LW, was developed. The results indicated that the algorithm was effective. During the climate simulation for one model day, the G-RRTMG_LW on one K40 GPU achieved a speedup of 30.98× as compared with a single Intel Xeon E5-2680 CPU-core counterpart. Its runtime decreased from 647.12 s to 20.8876 s. Running the G-RRTMG_LW on one GPU presented a better computing performance than on a CPU with multiple cores. Furthermore, the current acceleration algorithm of the RRTMG_LW displayed better calculation performance than its 2D algorithm did.
The future work will include three aspects. First, the proposed algorithm will be further optimized. For example, read-only arrays in CUDA code will be considered for inclusion in the CUDA texture memory, rather than in the global memory. Second, the I/O transfer in the current G-RRTMG_LW still costs a great deal of time, so the methods of reducing the I/O transfer between the CPU and GPU will be studied. Third, the G-RRTMG_LW currently only runs on one GPU. The CAS-ESM often runs on several CPUs and nodes, so the acceleration algorithm on multiple GPUs will be studied. An MPI+CUDA hybrid paradigm will be adopted to run the G-RRTMG_LW on multiple GPUs.

Author Contributions

Conceptualization, Y.W.; Methodology, Y.W., Y.Z. and J.J.; Supervision, Y.W.; Validation, Y.W. and Y.Z.; Writing—original draft, Y.W.; Writing—review & editing, Y.W. and H.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported in part by the National Key Research and Development Program of China under Grant 2016YFB0200800, in part by the National Natural Science Foundation of China under Grant 61602477, in part by the China Postdoctoral Science Foundation under Grant 2016M601158, in part by the Fundamental Research Funds for the Central Universities under Grant 2652017113, and in part by the Open Research Project of the Hubei Key Laboratory of Intelligent Geo-Information Processing under Grant KLIGIP-2017A04.

Acknowledgments

The authors would like to acknowledge the contributions of Minghua Zhang for insightful suggestions on algorithm design.

Conflicts of Interest

The authors declare no conflict of interest.The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Lu, F.; Cao, X.; Song, J.; Zhu, X. GPU computing for longwave radiation physics: A RRTM_LW scheme case study. In Proceedings of the IEEE 9th International Symposium on Parallel and Distributed Processing with Applications Workshops (ISPAW), Busan, Korea, 26–28 May 2011; pp. 71–76. [Google Scholar]
  2. Clough, S.A.; Iacono, M.J. Line-by-line calculation of atmospheric fluxes and cooling rates II: Application to carbon dioxide, ozone, methane, nitrous oxide and the halocarbons. J. Geophys. Res. Atmos. 1995, 100, 16519–16535. [Google Scholar] [CrossRef]
  3. Mlawer, E.J.; Taubman, S.J.; Brown, P.D.; Iacono, M.J.; Clough, S.A. Radiative transfer for inhomogeneous atmospheres: RRTM, a validated correlated-k model for the longwave. J. Geophys. Res. Atmos. 1997, 102, 16663–16682. [Google Scholar] [CrossRef]
  4. Clough, S.A.; Shephard, M.W.; Mlawer, E.J.; Delamere, J.S.; Iacono, M.J.; Cady-Pereira, K.; Boukabara, S.; Brown, P.D. Atmospheric radiative transfer modeling: A summary of the AER codes. J. Quant. Spectrosc. Radiat. Transf. 2005, 91, 233–244. [Google Scholar] [CrossRef]
  5. Iacono, M.J.; Delamere, J.S.; Mlawer, E.J.; Shephard, M.W.; Clough, S.A.; Collins, W.D. Radiative forcing by long-lived greenhouse gases: Calculations with the AER radiative transfer models. J. Geophys. Res. Atmos. 2008, 113. [Google Scholar] [CrossRef]
  6. Wang, Y.; Jiang, J.; Ye, H.; He, J. A distributed load balancing algorithm for climate big data processing over a multi-core CPU cluster. Concurr. Comput. Pract. Exp. 2016, 28, 4144–4160. [Google Scholar] [CrossRef]
  7. Wang, Y.; Hao, H.; Zhang, J.; Jiang, J.; He, J.; Ma, Y. Performance optimization and evaluation for parallel processing of big data in earth system models. Clust. Comput. 2017, 22, 2371–2381. [Google Scholar] [CrossRef]
  8. Zhang, H.; Zhang, M.; Zeng, Q. Sensitivity of simulated climate to two atmospheric models: Interpretation of differences between dry models and moist models. Mon. Weather. Rev. 2013, 141, 1558–1576. [Google Scholar] [CrossRef]
  9. Wang, Y.; Jiang, J.; Zhang, H.; Dong, X.; Wang, L.; Ranjan, R.; Zomaya, A.Y. A scalable parallel algorithm for atmospheric general circulation models on a multi-core cluster. Future Gener. Comput. Syst. 2017, 72, 1–10. [Google Scholar] [CrossRef]
  10. Zheng, F.; Xu, X.; Xiang, D.; Wang, Z.; Xu, M.; He, S. GPU-based parallel researches on RRTM module of GRAPES numerical prediction system. J. Comput. 2013, 8, 550–558. [Google Scholar] [CrossRef]
  11. Iacono, M.J. Enhancing Cloud Radiative Processes and Radiation Efficiency in the Advanced Research Weather Research and Forecasting (WRF) Model; Atmospheric and Environmental Research: Lexington, MA, USA, 2015. [Google Scholar]
  12. Morcrette, J.J.; Mozdzynski, G.; Leutbecher, M. A reduced radiation grid for the ECMWF Integrated Forecasting System. Mon. Weather. Rev. 2008, 136, 4760–4772. [Google Scholar] [CrossRef]
  13. Xue, W.; Yang, C.; Fu, H.; Wang, X.; Xu, Y.; Liao, J.; Gan, L.; Lu, Y.; Ranjan, R.; Wang, L. Ultra-scalable CPU-MIC acceleration of mesoscale atmospheric modeling on tianhe-2. IEEE Trans. Comput. 2015, 64, 2382–2393. [Google Scholar] [CrossRef]
  14. Wang, Y.; Jiang, J.; Zhang, J.; He, J.; Zhang, H.; Chi, X.; Yue, T. An efficient parallel algorithm for the coupling of global climate models and regional climate models on a large-scale multi-core cluster. J. Supercomput. 2018, 74, 3999–4018. [Google Scholar] [CrossRef]
  15. Cracknell, A.P.; Varotsos, C.A. New aspects of global climate-dynamics research and remote sensing. Int. J. Remote. Sens. 2011, 32, 579–600. [Google Scholar] [CrossRef]
  16. Deng, Z.; Chen, D.; Hu, Y.; Wu, X.; Peng, W.; Li, X. Massively parallel non-stationary EEG data processing on GPGPU platforms with Morlet continuous wavelet transform. J. Internet Serv. Appl. 2012, 3, 347–357. [Google Scholar] [CrossRef]
  17. Chen, D.; Wang, L.; Tian, M.; Tian, J.; Wang, S.; Bian, C.; Li, X. Massively parallel modelling & simulation of large crowd with GPGPU. J. Supercomput. 2013, 63, 675–690. [Google Scholar]
  18. Chen, D.; Li, X.; Wang, L.; Khan, S.U.; Wang, J.; Zeng, K.; Cai, C. Fast and scalable multi-way analysis of massive neural data. IEEE Trans. Comput. 2015, 64, 707–719. [Google Scholar] [CrossRef]
  19. Candel, F.; Petit, S.; Sahuquillo, J.; Duato, J. Accurately modeling the on-chip and off-chip GPU memory subsystem. Future Gener. Comput. Syst. 2018, 82, 510–519. [Google Scholar] [CrossRef]
  20. Norman, M.; Larkin, J.; Vose, A.; Evans, K. A case study of CUDA FORTRAN and OpenACC for an atmospheric climate kernel. J. Comput. Sci. 2015, 9, 1–6. [Google Scholar] [CrossRef]
  21. Schalkwijk, J.; Jonker, H.J.; Siebesma, A.P.; Van Meijgaard, E. Weather forecasting using GPU-based large-eddy simulations. Bull. Am. Meteorol. Soc. 2015, 96, 715–723. [Google Scholar] [CrossRef]
  22. Mielikainen, J.; Huang, B.; Huang, H.L.; Goldberg, M.D. Improved GPU/CUDA based parallel weather and research forecast (WRF) single moment 5-class (WSM5) cloud microphysics. IEEE J. Sel. Top. Appl. Earth Obs. Remote. Sens. 2012, 5, 1256–1265. [Google Scholar] [CrossRef]
  23. Wang, Y.; Zhao, Y.; Li, W.; Jiang, J.; Ji, X.; Zomaya, A.Y. Using a GPU to accelerate a longwave radiative transfer model with efficient CUDA-based methods. Appl. Sci. 2019, 9, 4039. [Google Scholar] [CrossRef]
  24. NVIDIA, CUDA C Programming Guide v10.0. Technical Document (2018). Available online: https://docs.nvidia.com/pdf/CUDA_C_Programming_Guide.pdf (accessed on 1 October 2019).
  25. Mielikainen, J.; Huang, B.; Huang, H.L.; Goldberg, M.D. GPU acceleration of the updated Goddard shortwave radiation scheme in the weather research and forecasting (WRF) model. IEEE J. Sel. Top. Appl. Earth Obs. Remote. Sens. 2012, 5, 555–562. [Google Scholar] [CrossRef]
  26. Huang, M.; Huang, B.; Chang, Y.L.; Mielikainen, J.; Huang, H.L.; Goldberg, M.D. Efficient parallel GPU design on WRF five-layer thermal diffusion scheme. IEEE J. Sel. Top. Appl. Earth Obs. Remote. Sens. 2015, 8, 2249–2259. [Google Scholar] [CrossRef]
  27. Huang, M.; Huang, B.; Gu, L.; Huang, H.L.; Goldberg, M.D. Parallel GPU architecture framework for the WRF Single Moment 6-class microphysics scheme. Comput. Geosci. 2015, 83, 17–26. [Google Scholar] [CrossRef]
  28. NVIDIA, CUDA Fortran Programming Guide and Reference. Technical Document (2019). Available online: https://www.pgroup.com/resources/docs/19.1/pdf/pgi19cudaforug.pdf (accessed on 1 October 2019).
  29. Ruetsch, G.; Phillips, E.; Fatica, M. GPU acceleration of the long-wave rapid radiative transfer model in WRF using CUDA Fortran. In Proceedings of the Many-Core and Reconfigurable Supercomputing Conference, Roma, Italy, 22–24 March 2010; Available online: https://pdfs.semanticscholar.org/6844/d70506d1f79ce7a70fa505a4625febd2dec2.pdf (accessed on 1 October 2019).
  30. Price, E.; Mielikainen, J.; Huang, M.; Huang, B.; Huang, H.L.; Lee, T. GPU-accelerated longwave radiation scheme of the Rapid Radiative Transfer Model for General Circulation Models (RRTMG). IEEE J. Sel. Top. Appl. Earth Obs. Remote. Sens. 2014, 7, 3660–3667. [Google Scholar] [CrossRef]
  31. Mielikainen, J.; Price, E.; Huang, B.; Huang, H.L.; Lee, T. GPU compute unified device architecture (CUDA)-based parallelization of the RRTMG shortwave rapid radiative transfer model. IEEE J. Sel. Top. Appl. Earth Obs. Remote. Sens. 2016, 9, 921–931. [Google Scholar] [CrossRef]
  32. Wang, Z.; Xu, X.; Xiong, N.; Yang, L.T.; Zhao, W. GPU acceleration for GRAPES meteorological model. In Proceedings of the IEEE International Conference on High Performance Computing and Communications, Banff, AB, Canada, 2–4 September 2011; pp. 365–372. [Google Scholar]
  33. Mlawer, E.J.; Iacono, M.J.; Pincus, R.; Barker, H.W.; Oreopoulos, L.; Mitchell, D.L. Contributions of the ARM program to radiative transfer modeling for climate and weather applications. Ams Meteorol. Monogr. 2016, 57, 15.1–15.19. [Google Scholar] [CrossRef]
  34. Chen, D.; Li, D.; Xiong, M.; Bao, H.; Li, X. GPGPU-aided ensemble empirical-mode decomposition for EEG analysis during anesthesia. IEEE Trans. Inf. Technol. Biomed. 2010, 14, 1417–1427. [Google Scholar] [CrossRef]
  35. Lu, F.; Song, J.; Cao, X.; Zhu, X. CPU/GPU computing for long-wave radiation physics on large GPU clusters. Comput. Geosci. 2012, 41, 47–55. [Google Scholar] [CrossRef]
Figure 1. Profiling graph of the original RRTMG_LW code in the CAS-ESM.
Figure 1. Profiling graph of the original RRTMG_LW code in the CAS-ESM.
Applsci 10 00649 g001
Figure 2. Spatial structure of RRTMG_LW.
Figure 2. Spatial structure of RRTMG_LW.
Applsci 10 00649 g002
Figure 3. Schematic diagram of 2D decomposition for the RRTMG_LW in the GPU acceleration.
Figure 3. Schematic diagram of 2D decomposition for the RRTMG_LW in the GPU acceleration.
Applsci 10 00649 g003
Figure 4. Schematic diagram of the decomposition in the g- p o i n t dimension for the RRTMG_LW in the GPU acceleration.
Figure 4. Schematic diagram of the decomposition in the g- p o i n t dimension for the RRTMG_LW in the GPU acceleration.
Applsci 10 00649 g004

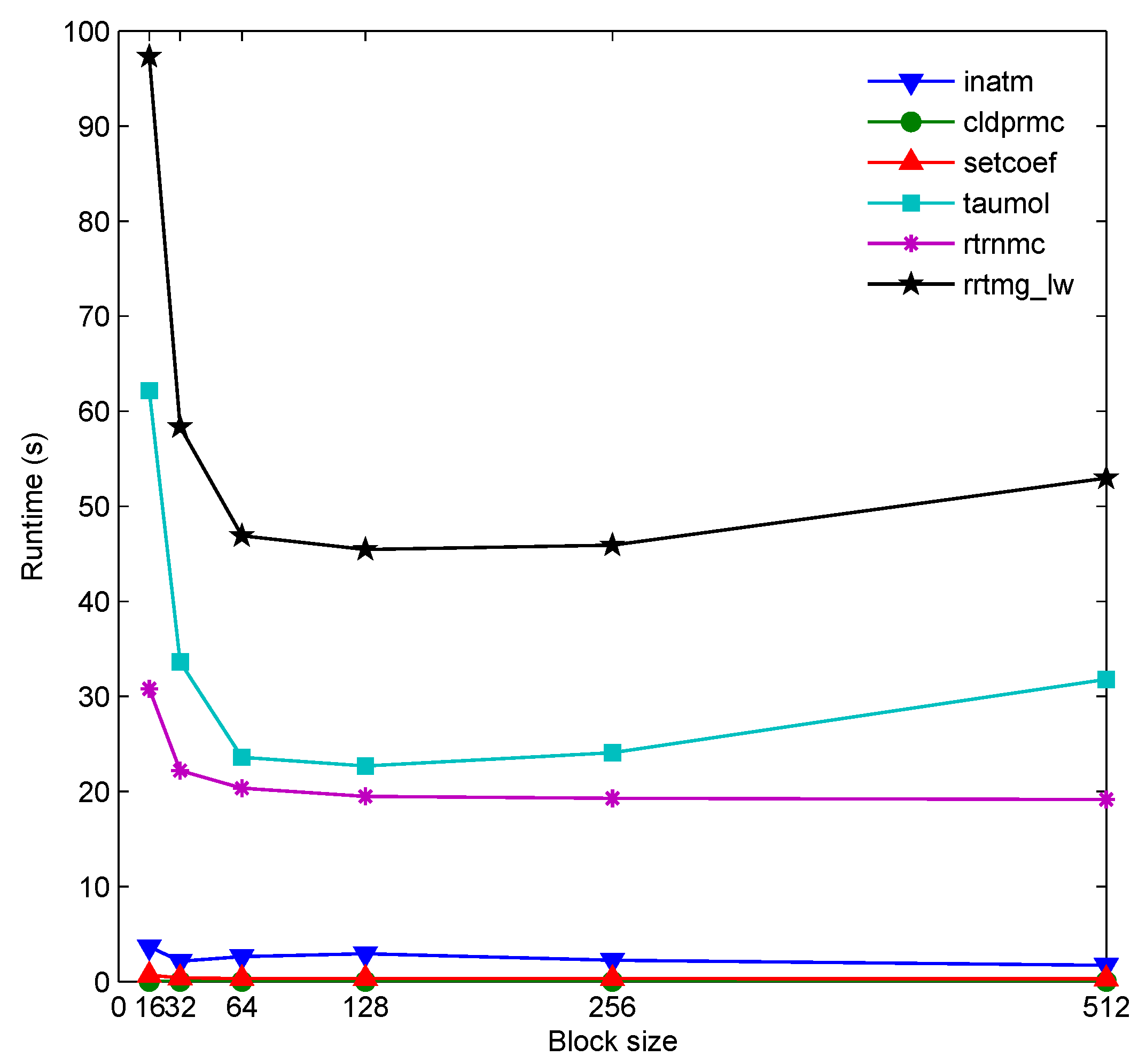

Figure 5. Runtime of the G-RRTMG_LW on one K20 GPU.
Figure 5. Runtime of the G-RRTMG_LW on one K20 GPU.
Applsci 10 00649 g005

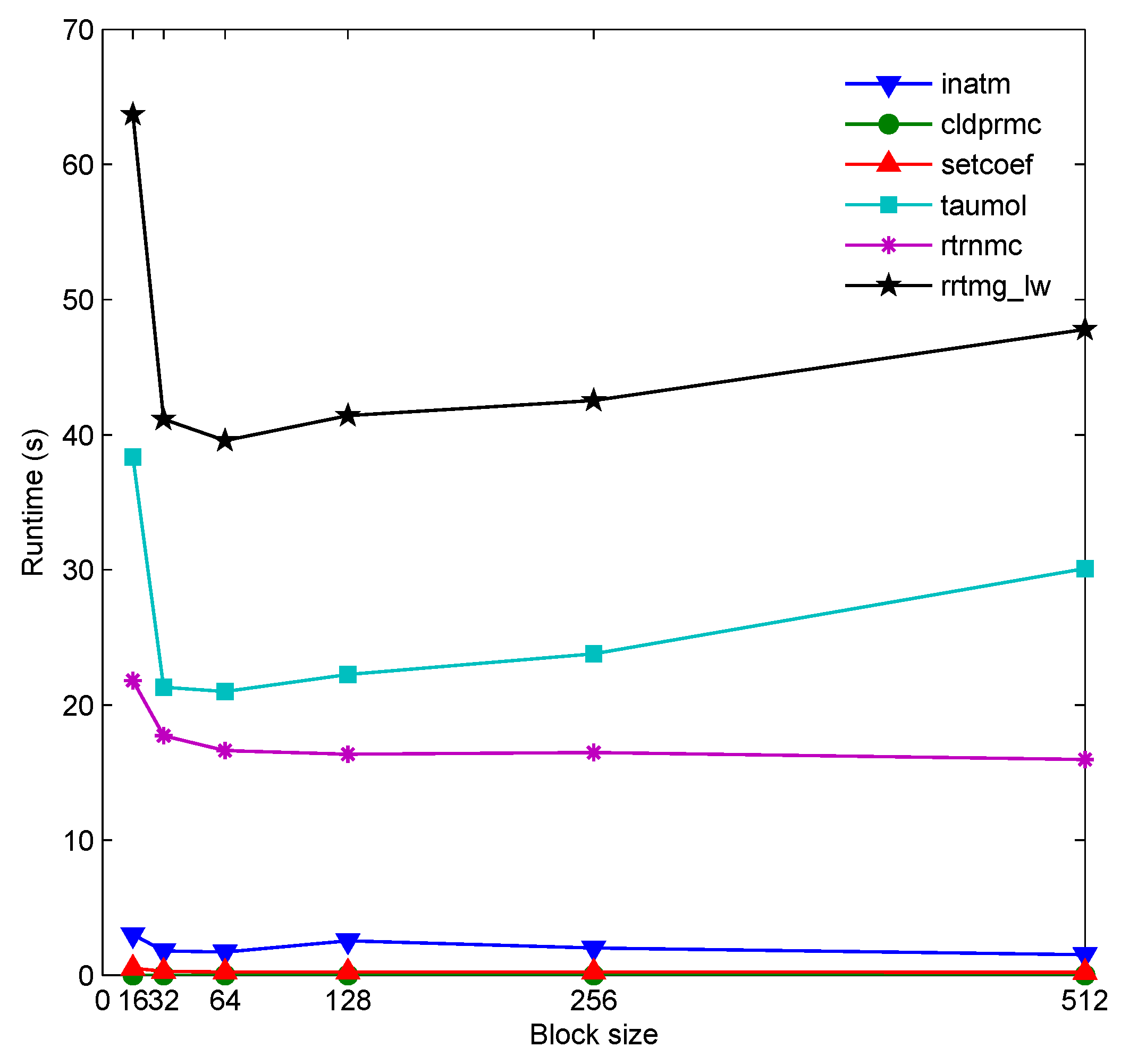

Figure 6. Runtime of the G-RRTMG_LW on one K40 GPU.
Figure 6. Runtime of the G-RRTMG_LW on one K40 GPU.
Applsci 10 00649 g006

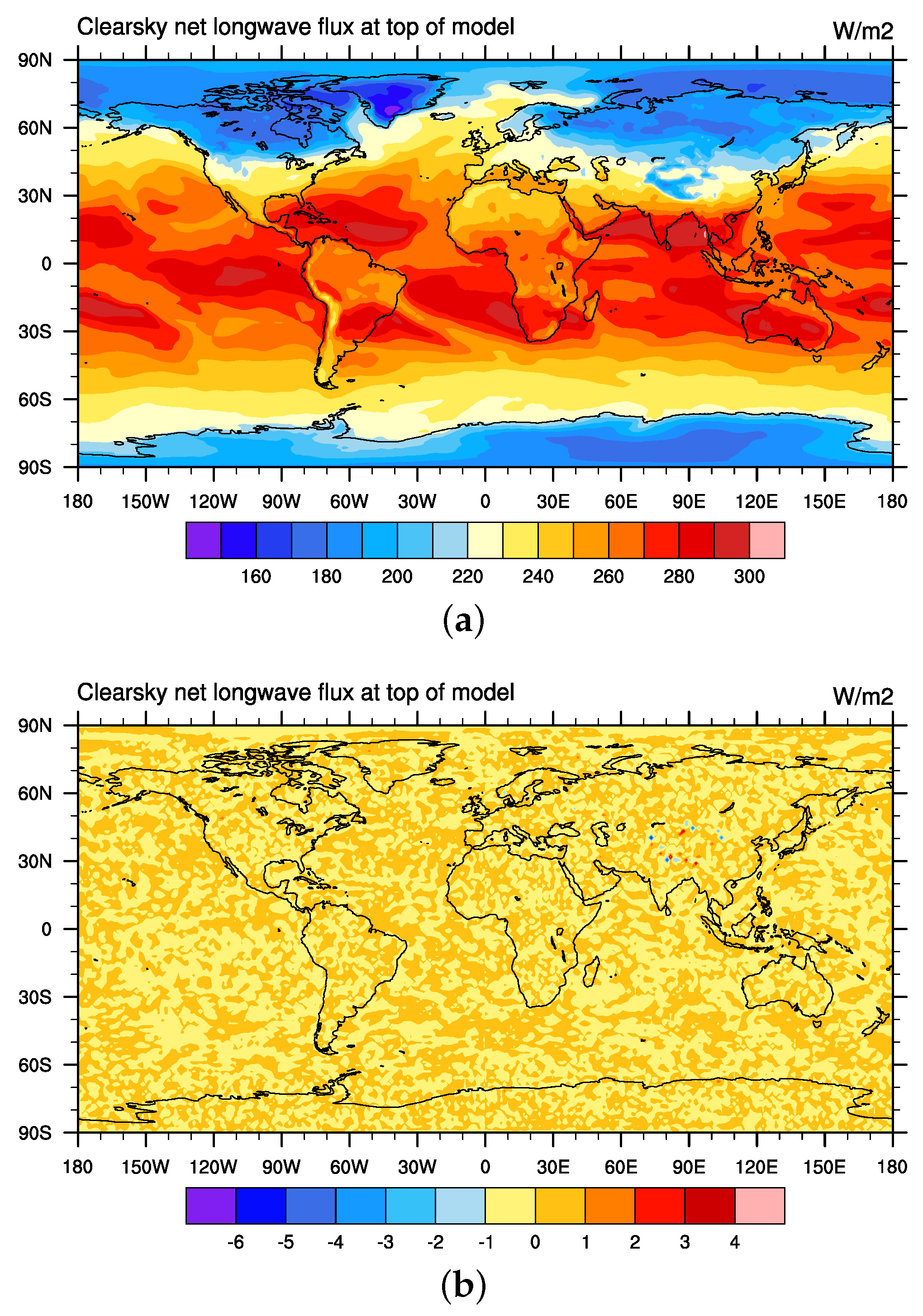

Figure 7. Impact on the longwave flux at the top of the atmosphere in a clear sky. (a) Longwave flux simulated by the CAS-ESM RRTMG_LW on the CPU; (b) Longwave flux differences between the simulations running the CAS-ESM RRTMG_LW only on the CPU and running the CAS-ESM RRTMG_LW on the GPU.
Figure 7. Impact on the longwave flux at the top of the atmosphere in a clear sky. (a) Longwave flux simulated by the CAS-ESM RRTMG_LW on the CPU; (b) Longwave flux differences between the simulations running the CAS-ESM RRTMG_LW only on the CPU and running the CAS-ESM RRTMG_LW on the GPU.
Applsci 10 00649 g007
Table 1. Configurations of GPU clusters.
Table 1. Configurations of GPU clusters.
Specification of CPUK20 ClusterK40 Cluster
CPUE5-2680 [email protected]E5-2695 [email protected]
Operating SystemCentOS 6.4Red Hat Enterprise Linux Server 7.1
Specification of GPUK20 ClusterK40 Cluster
GPUTesla K20Tesla K40
CUDA Cores24962880
Standard Memory5 GB12 GB
Memory Bandwidth208 GB/s288 GB/s
CUDA Version6.59.0
Table 2. Runtime and speedup of the RRTMG_LW 2D acceleration algorithm on one GPU. Here, the block size = 128 and ncol = 2048; inatm, cldprmc, and rtrnmc are with a 1D decomposition; setcoef and taumol are with a 2D decomposition.
Table 2. Runtime and speedup of the RRTMG_LW 2D acceleration algorithm on one GPU. Here, the block size = 128 and ncol = 2048; inatm, cldprmc, and rtrnmc are with a 1D decomposition; setcoef and taumol are with a 2D decomposition.
SubroutinesCPU Time (S)K20 Time (S)Speedup
inatm150.4818.20608.27
cldprmc5.270.00202635.00
setcoef14.520.336043.21
taumol169.684.185240.54
rtrnmc252.8021.514811.75
rrtmg_lw647.1244.244014.63
SubroutinesCPU Time (S)K40 Time (S)Speedup
inatm150.4814.906810.09
cldprmc5.270.00202635
setcoef14.520.248058.55
taumol169.683.152453.83
rtrnmc252.8016.629215.20
rrtmg_lw647.1234.938418.52
Table 3. A piece of code in taumol.
Table 3. A piece of code in taumol.
if((iplon≥1 .and. iplon≤ncol) .and. (lay≥laytrop(iplon)+1 .and. lay≤nlayers) .and. (ig≥1 .and. ig≤ngl)) then
   ind0_1 = ((jp(iplon, lay) - 13) ∗ 5 + (jt(iplon, lay) - 1)) ∗ nspb(1) + 1
   ind1_1 = ((jp(iplon, lay) - 12) ∗ 5 + (jt1(iplon, lay) - 1)) ∗ nspb(1) + 1
   indf_1 = indfor(iplon, lay)
   indm_1 = indminor(iplon, lay)
   pp_1 = pavel(iplon, lay)
   corradj_1 = 1._r8 - 0.15_r8 ∗ (pp_1 / 95.6_r8)
   scalen2_1 = colbrd(iplon, lay) ∗ scaleminorn2(iplon, lay)
end if
Table 4. Runtime and speedup of the G-RRTMG_LW on one GPU. Here, the block size = 512 and ncol = 2048; inatm and rtrnmc are with an acceleration in the g- p o i n t dimension; cldprmc is with a 1D decomposition; setcoef and taumol are with a 2D decomposition.
Table 4. Runtime and speedup of the G-RRTMG_LW on one GPU. Here, the block size = 512 and ncol = 2048; inatm and rtrnmc are with an acceleration in the g- p o i n t dimension; cldprmc is with a 1D decomposition; setcoef and taumol are with a 2D decomposition.
SubroutinesCPU Time (S)K20 Time (S)Speedup
inatm150.481.722487.37
cldprmc5.270.00202635.00
setcoef14.520.336043.21
taumol169.684.185240.54
rtrnmc252.8019.158013.20
rrtmg_lw647.1225.403625.47
SubroutinesCPU Time (S)K40 Time (S)Speedup
inatm150.481.514099.39
cldprmc5.270.00202635
setcoef14.520.248058.55
taumol169.683.152453.83
rtrnmc252.8015.971215.83
rrtmg_lw647.1220.887630.98
Table 5. Runtime and speedup of the G-RRTMG_LW on one GPU when compared to its counterpart running on 10 CPU cores of an Intel Xeon E5-2680 v2. Here, the block size = 512 and ncol = 2048; inatm and rtrnmc are with an acceleration in the g- p o i n t dimension; cldprmc is with a 1D decomposition; setcoef and taumol are with a 2D decomposition.
Table 5. Runtime and speedup of the G-RRTMG_LW on one GPU when compared to its counterpart running on 10 CPU cores of an Intel Xeon E5-2680 v2. Here, the block size = 512 and ncol = 2048; inatm and rtrnmc are with an acceleration in the g- p o i n t dimension; cldprmc is with a 1D decomposition; setcoef and taumol are with a 2D decomposition.
SubroutinesCPU Time (S)K20 Time (S)Speedup
rrtmg_lw59.7925.40362.35
Table 6. Runtime and speedup of the G-RRTMG_LW with I/O transfer on one GPU, where the block size = 512 and ncol = 2048.
Table 6. Runtime and speedup of the G-RRTMG_LW with I/O transfer on one GPU, where the block size = 512 and ncol = 2048.
SubroutinesCPU Time (S)K20 Time (S)Speedup
rrtmg_lw647.1286.797.46
SubroutinesCPU Time (S)K40 Time (S)Speedup
rrtmg_lw647.1280.198.07
Back to TopTop
