The Seepage and Soil Plug Formation in Suction Caissons in Sand Using Visual Tests

Abstract

The rapid development of offshore wind energy in China is becoming increasingly relevant for movement toward green development. This paper presents the results of visual tests of a suction caisson used as foundation for offshore wind turbines. The distribution of hydraulic gradients of sand at the mudline in the caisson was obtained to find out the relationship with the heights of soil plugs. The relationship equation was proposed and obtained by using quadratic regression, guiding project designs, and construction. It was found that there was no soil plug in the caisson when small suction was applied during the suction penetration. The relationship between the heights of the soil plugs and the hydraulic gradient of the soil was proposed and obtained by using quadratic regression to predict (roughly) the height of soil plugs in suction caissons in sand during suction penetration. The influence of settlement outside caissons on the soil plug was found to decrease as the buried depth rose.

1. Introduction

In the past few decades, it has become increasingly important to rapidly develop the offshore wind industry, which provides practical sources of energy with a low carbon footprint [1,2]. Foundations play an important role in guaranteeing the safe operation of offshore wind turbines [3]. The suction caisson, being installed economically and efficiently into soil deposits, has been increasingly used as a competitive foundation for offshore wind turbines in deep water [4,5]. A suction caisson is a large cylindrical structure that is typically made of steel, open at the bottom and closed at the top [6]. To set up a perfect offshore wind turbine, two aspects need to be considered for the engineering design of this foundation: suction installation and in-service performance [7]. The capacity of suction caissons as the foundation for offshore wind turbines is enhanced by means of peripheral embedded thin walls, which confine the internal soil [8]. A caisson is installed by penetrating the seabed under its own weight, and then by pumping water out of the caisson to create suction that forces the foundation into the seabed [9].

During suction penetration, the induced seepage flow through highly permeable sand into the caisson interior can create some negative effects. To investigate these effects, a number of studies have been completed, and they show that the seepage facilitates the installation process at the caisson tip and along the inner wall [10,11,12,13]. Erbrich and Tjelta [14] presented a series of finite element analyses and found that the suction forced water to migrate through the soil from outside to the inner caisson. Previous research [15,16] still has certain issues, in that the seepage around the suction was assumed to follow Darcy’s law, which requires that we carry on further discussion. Experimental investigations in sand have revealed that soil plugs are likely to occur during suction-assisted installation [15,17,18]. A series of centrifuge tests on the installation of suction caissons were carried out by Tran et al. [19,20], who found that the soil plugs heave up to 20% of the caisson penetration as excessive suction, and they developed a void ratio–permeability relationship to check the sand heave against the plugs. There is no previous study on the relationship between soil plugs and the seepage velocity of sand around suction caissons.

This paper presents the results of visual tests of a suction caisson used as a foundation for offshore wind turbines. The process of suction installation of the caisson foundations with axisymmetric geometry is simplified to a plane problem. In order to study their composition, the heights of the final soil plugs in the caisson were measured. The distribution of the hydraulic gradient of sand at the mudline in the caisson was obtained to find out its relationship with the heights of the soil plugs. The relationship between the heights of soil plugs and the hydraulic gradient of soil was proposed and obtained by using quadratic regression, guiding project designs, and construction.

2. Experimental Program

The process of suction installation of the caisson foundations (shown in Figure 1a) with axisymmetric geometry is simplified to a plane problem in this paper. Due to the fact that the soil was replaced by the walls of the soil tank in tests, it is assumed that the forces of water adhesion to the walls are equal to that of the sand around the suction caissons. A soil tank (shown in Figure 1), as used in tests, has dimensions of 20 × 0.5 cm in its plan view, and a depth of 28 cm. Transparent fiberglass was used to make the soil tank, with a thickness of 1.0 cm. The two pumping outlets in the soil tank were connected to the suction loading system by a thin pipe and a drainpipe, respectively. Figure 1b shows the diagram of the test device, with a constant suction S in the caisson caused by the suction loading system creating the different head H. The value of the applied constant suction can be expressed as S = γ_wH, where γ_w is the unit weight of water (10 kN/m³).

Figure 1. Test devices.

The suction caisson with an external diameter D of 12 cm had a height of 17.5 cm L and a thickness T of 0.5 cm. In order to create an enclosed compartment between the soil tank, the suction caisson, and the soil, UV glue was used to stick the soil tank and the suction caisson together. The suction caisson model was located at a distance 7.5 cm from the bottom of the soil tank.

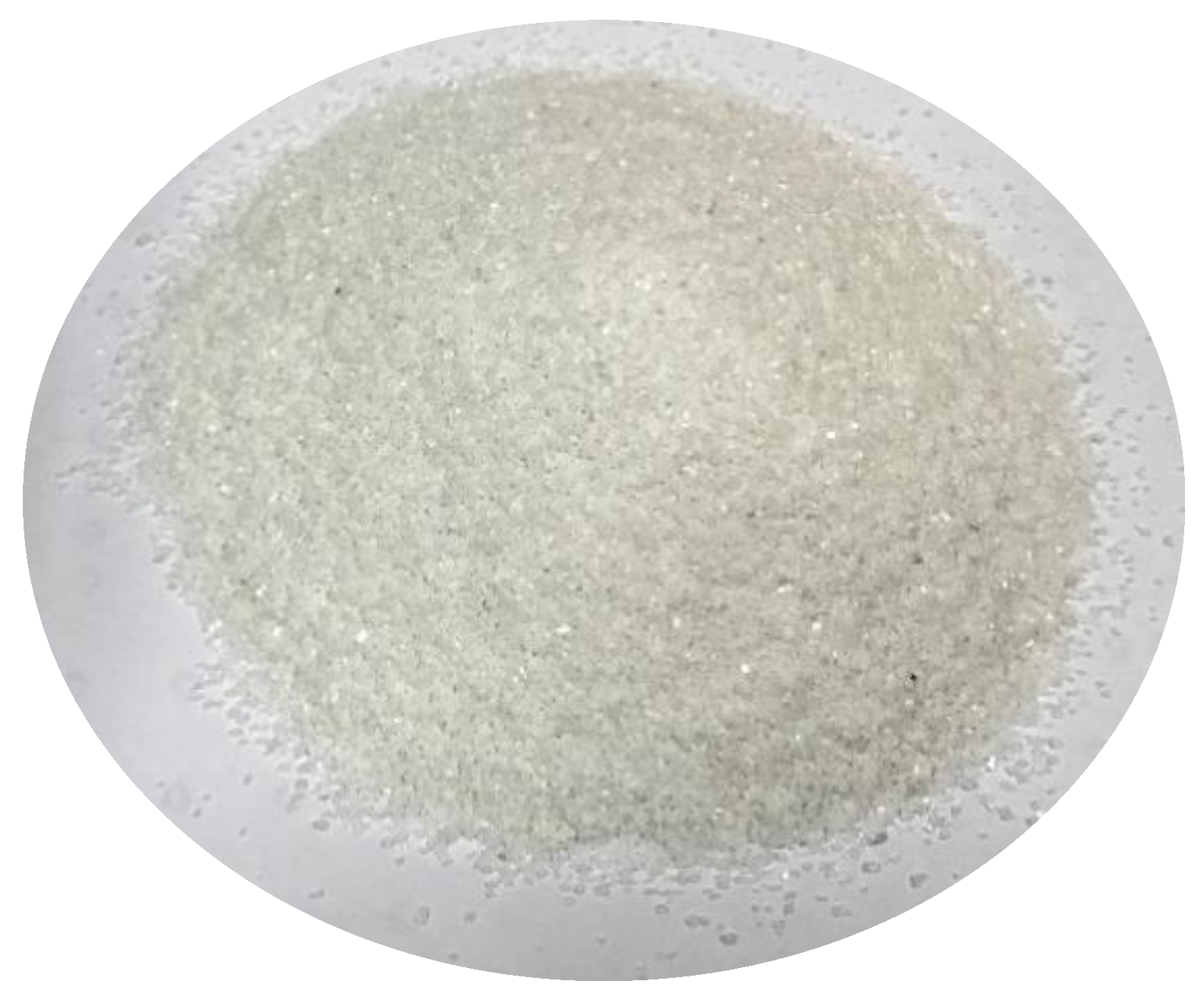

The siliceous sand shown in Figure 2 was used in tests because it is commercially available and shows a deep contrast with the carmine stain. The void ratio e of the soil was determined according to the standard soil testing methods, and can be written as e = ρ_wG_s/ρ_d-1, where ρ_d is the dry density of the sand and G_s is the specific gravity of the sand. Table 1 shows the properties of the siliceous sand in tests. The siliceous sand particles had an average radius of 0.748 mm, and they obeyed uniform distribution, with a ratio of maximum to minimum radii of 2.0. The pluviation method and the compaction method were used to prepare uniform sand specimens in layers in the soil tank. The permeability coefficient of the siliceous sand was obtained by using an empirical equation, k = 2d₁₀²e² [21], where d₁₀ is the effective size of the sand. Due to the uniform particle size of the sand, it is suggested that d₁₀ is equal to the average particle size (0.718 mm). Before carrying out every test, the sand specimen was left to stand for 24 h.

Figure 2. The siliceous sand in tests.

Table 1. Properties of siliceous sand.

Property	Specific Gravity Gs	Void Ratio e	Saturated Weight γsat (kN/m3)	Permeability Coefficient k (cm/s)	Cohesion c (kPa)	Angle of Internal Friction φ (°)
Value	2.66	0.75	19.5	0.28	0	31

The seepage field around the suction caisson model was visualized by the tracer titration system, which consisted of an infusion system and carmine stain. The infusion system was made of a medical syringe with a thin pipe (radius of 2 mm), shown in Figure 1b. Three holes were drilled in the soil tank at points A, B, and C, connecting to the infusion system with the thin pipes. At points A, B, and C, the carmine stain was released with pinpoint accuracy by the infusion system. To reduce the effect of turbulence, the carmine stain was injected into the soil used in tests as slowly as possible.

The suction caisson model had a buried depth h (5, 10, and 15 cm) before each test, to simulate the process of suction installation. The influence of the temperatures of the environment and the water were not considered in the tests. A video camera was used to collect images of the experimental phenomena of seepage and the soil plug in the suction caisson. At the end of the trial, the height of the soil plug did not seem to change. The testing programs are listed in Table 2 in tests. The pre-test results show that seepage failure took place in the sand when the suction in the caisson with buried depths of 5, 10, and 15 cm were greater than 2.0, 3.5, and 4.0 kPa, respectively.

Table 2. List of visual tests on suction caissons.

Buried Depth h (cm)	Suction S (kPa)
5	0.5	1.0	1.5	-	-	-	-
10	0.5	1.0	1.5	2.0	2.5	3.0	-
15	0.5	1.0	1.5	2.0	2.5	3.0	3.5

3. Test Results and Discussion

3.1. Visual Seepage Paths

The seepage field can be visualized where the carmine stain flows along streamlines in the soil around the suction caisson. Figure 3 shows the visualization of the seepage flow at point B as h = 15 cm and S = 0.5 kPa. It was observed that the visual tests achieved good results to study the seepage of sand around a suction caisson during suction penetration. It took 500 s for the carmine stain to move from point B to the mudline, and the length of the seepage path was 3.21 cm. Tests revealed that the seepage paths of soil with different S in suction caissons had the same motion path. The results indicated that the seepage path of soil is unrelated to the S applied in the caisson and is affected by the penetration depth during the installation of the foundation. The seepage paths of the carmine stain in sand are plotted with a plane coordinate system, shown in Figure 4. It can be seen that there is an obvious trend: the streamline dyed by carmine stain moves toward the wall of the caisson model. Additionally, the larger the penetration depth, the more obvious was the streamline–adherent trend. It was observed that the seepage path lengths were 1.95 and 1.34 h when the penetration depths were equal to 5 and 15 cm, respectively. The distance between the carmine stain in the mudline and the inner wall of the caisson model was 0.375 times the diameter of the suction caisson, for h = 0.42, 0.83, and 1.25 L, respectively.

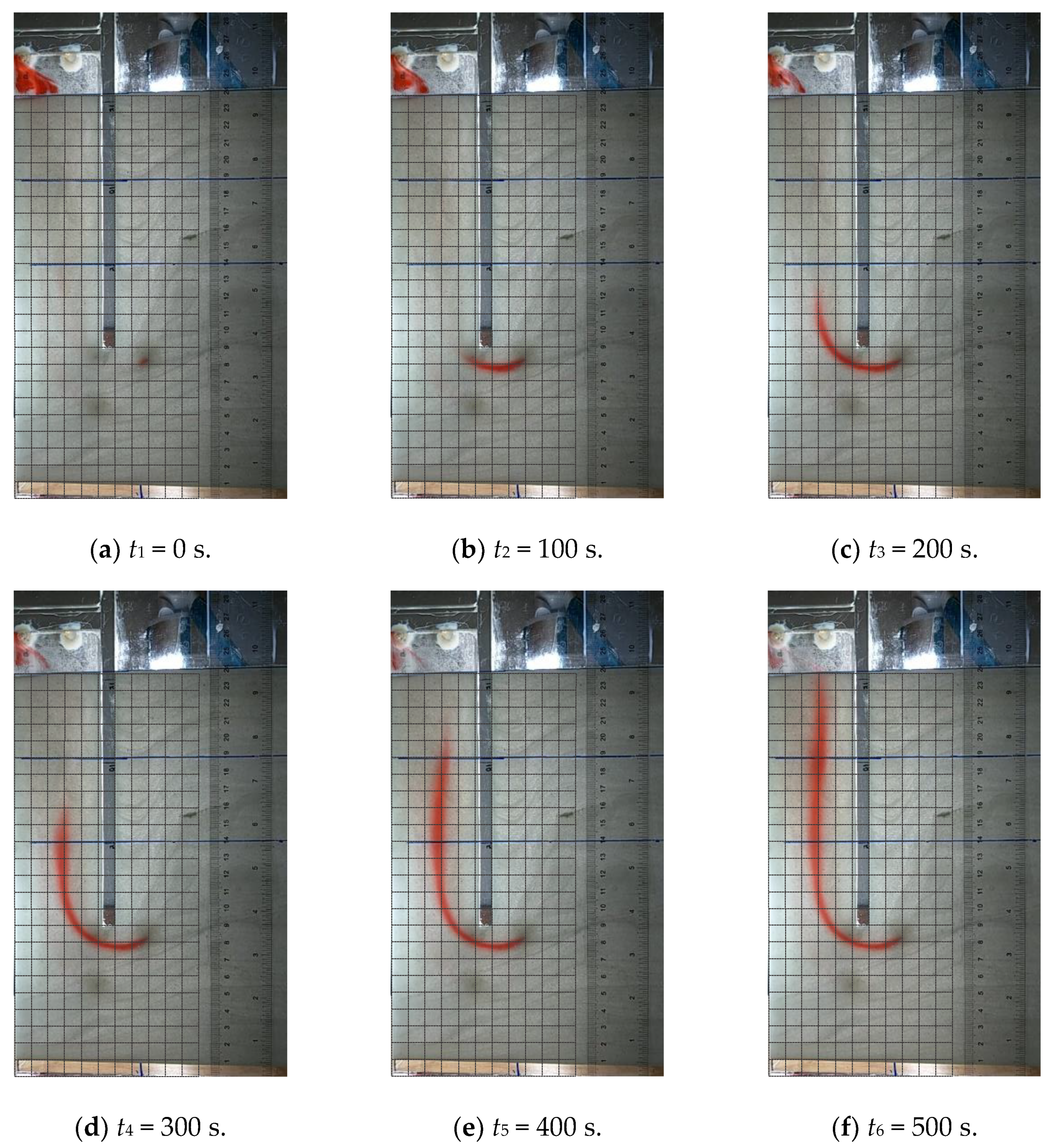

Figure 3. The visualization of seepage flow at point B with h = 15 cm and S = 0.5 kPa.

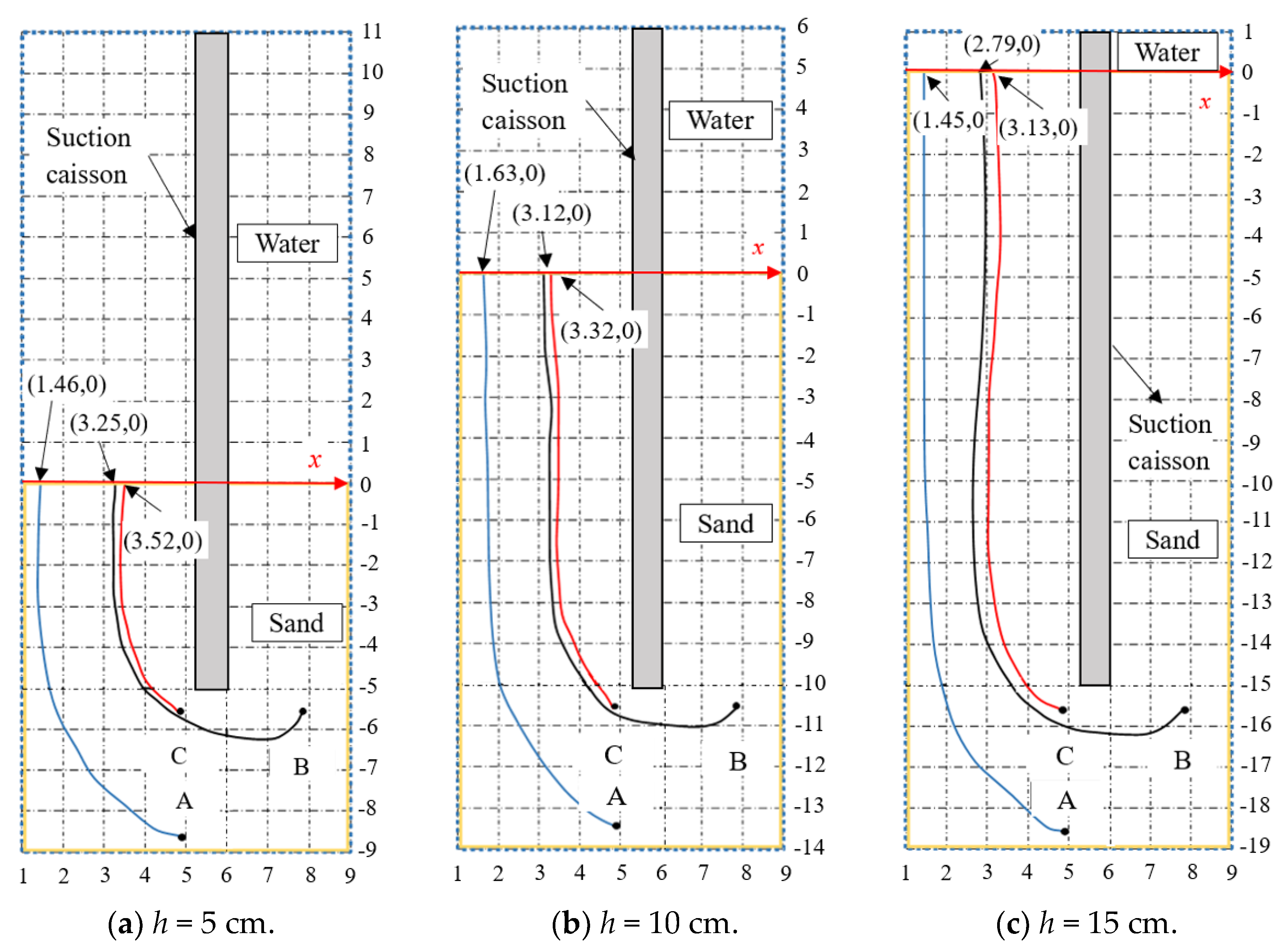

Figure 4. The seepage path of the carmine stain in sand.

3.2. Hydraulic Gradient Analysis

In this paper, the test results prove that Darcy’s law is not applicable, and this phenomenon was also observed from the large test pressure difference found in the literature [22]. For the seepage velocity v, it was assumed that the streamlines around the caissons were stable and not affected by each other. The path lengths of the carmine stain were measured from test images. All results are presented in terms of dimensionless forms. The seepage velocity v of the sand was assumed to be affected by x/D and S/γ’h. The hydraulic gradient v/k of the sand in tests at the mudline was proposed by using the regression function, and can be expressed as follows:

$$\frac{v}{k}=0.163{\left[\frac{0.94DS}{(0.5D-x)\gamma \prime h}\right]}^{0.76}$$

(1)

where x is the abscissa value in Figure 1 and γ’ is the effective unit weight of soil.

The comparison of actual values and calculated values is shown in Figure 5. It can be seen that the fitted values agree well with the actual values. Compared with v/k obtained from tests, the fitted values have a residual sum of squares of about 1.467.

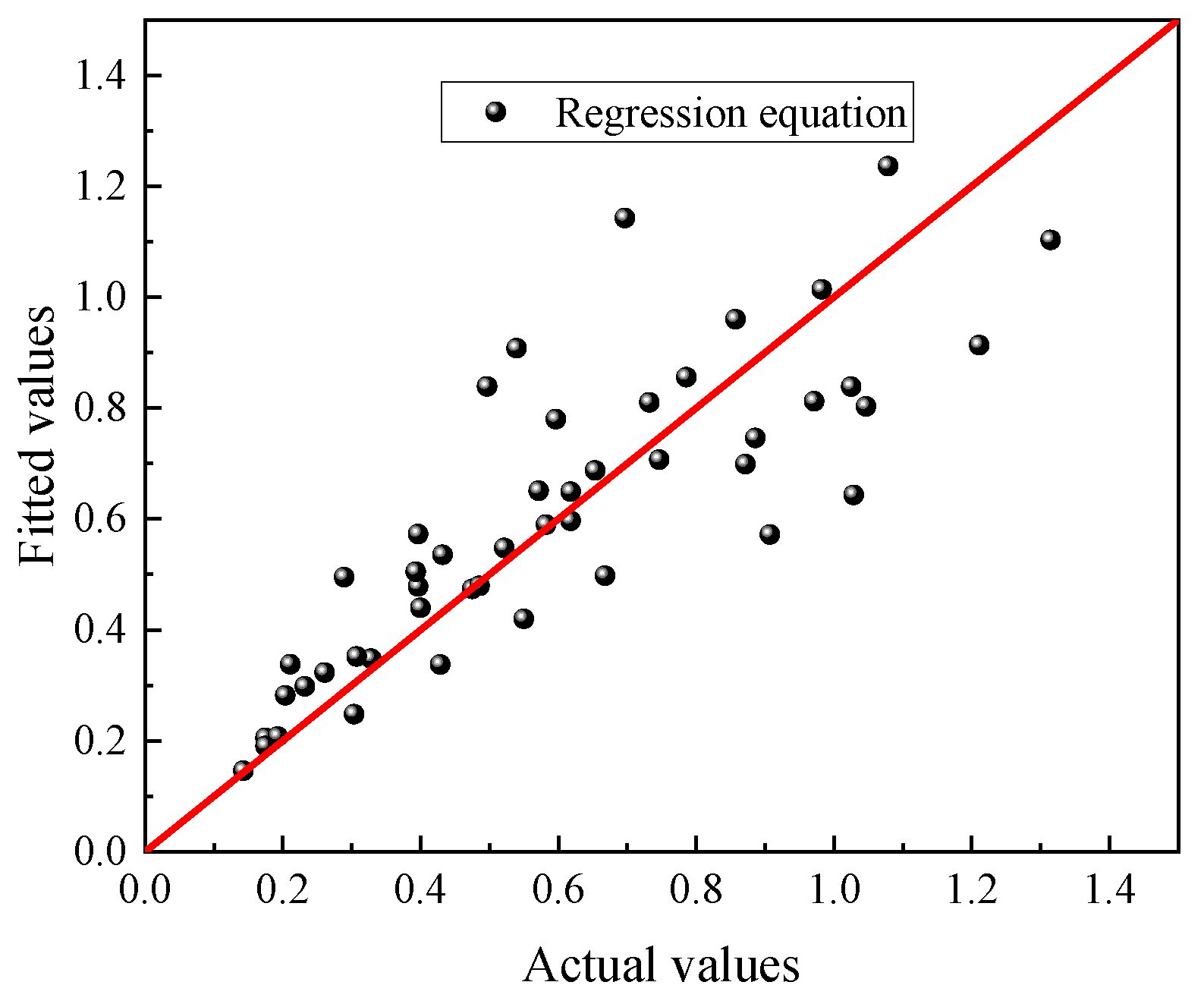

Figure 5. The comparison of actual values and fitted values for v/k.

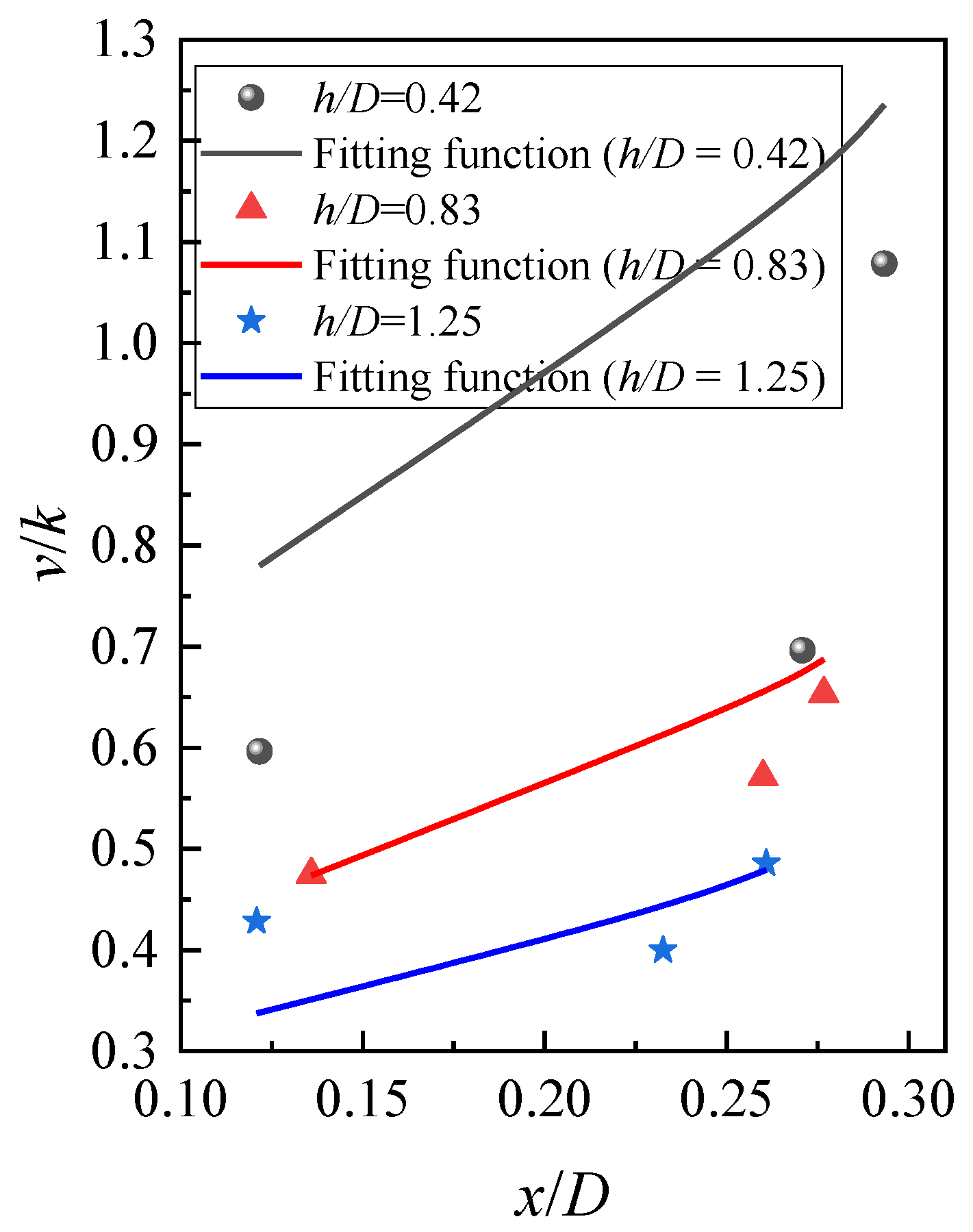

Figure 6 shows the hydraulic gradient of sand around a suction caisson with different x/D when the suction in the caisson is equal to 1.5 kPa. It can be seen that the hydraulic gradient v/k increases with the increase of x/D. The results indicated that the seepage velocity is larger as the streamline moves toward the wall of the suction caissons. The hydraulic gradient v/k, with x/D = 0.2675 and h/D = 1.25, is shown in Figure 7. It can be observed that the v/k increases with the increase of S/γ’h and the fitted values of the v/k agree well with the test results. The v/k when S/γ’h = 2.451 is 5.85 times greater than when S/γ’h = 0.351 in tests. The minimum relative error is 5.05% for Equation (1) when S/γ’h = 5.478. When h/D = 0.42, the streamline around the suction becomes disordered as a result of the larger applied suction (S = 1.5 kPa). Due to the assumption that the streamlines are stable and not affected by each other, the seepage velocity obtained is smaller than the actual situation, leading to large deviations as compared with Equation (1).

Figure 6. The hydraulic gradient with S = 1.5 kPa.

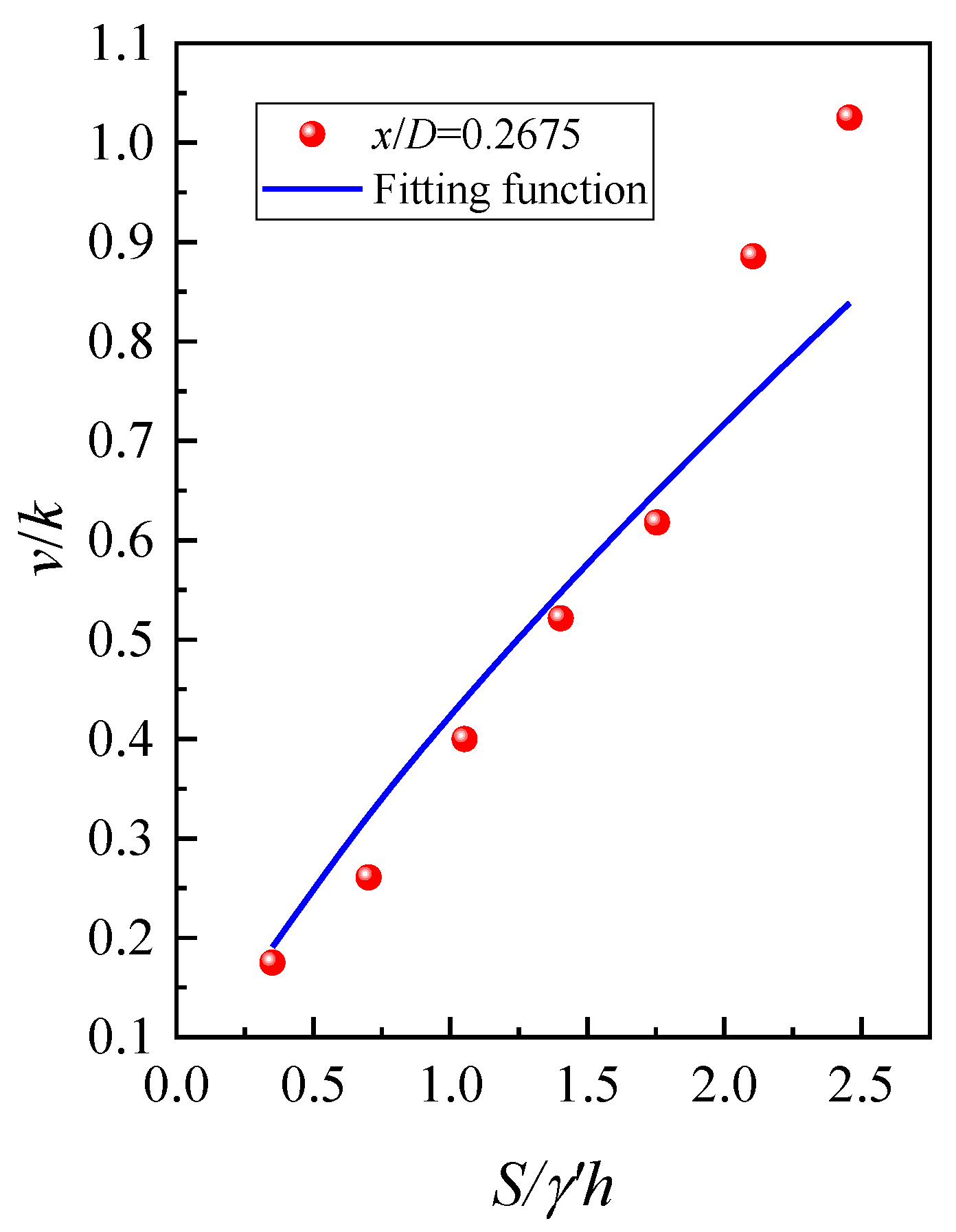

Figure 7. The hydraulic gradient with x/D = 0.2675 and h/D = 1.25.

3.3. Soil Plug and Settlement Formation

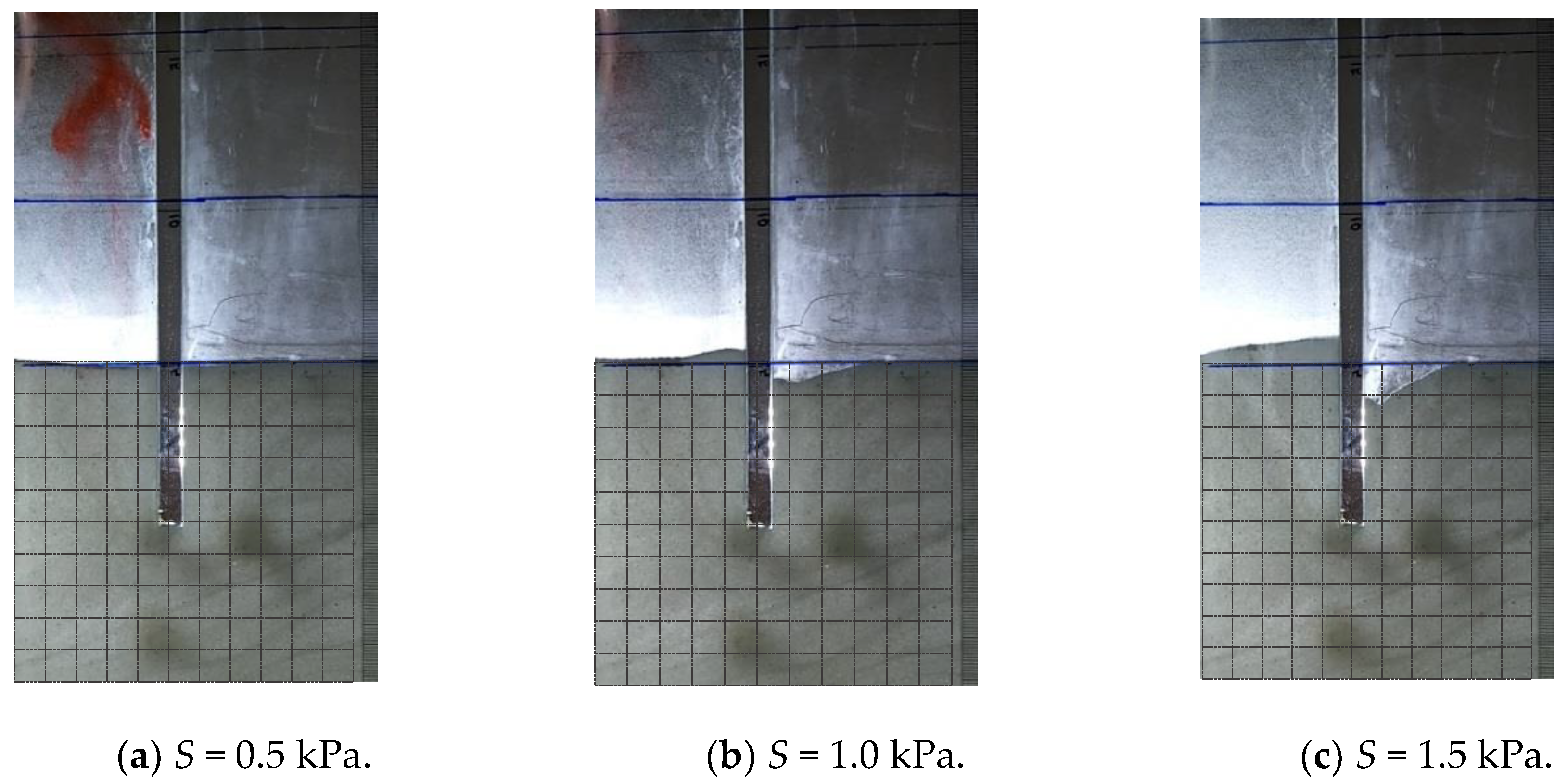

During suction penetration, a part of the soil in the caissons gets into the open-ended hollow caisson cavity, forming a soil plug [23]. The final soil plugs in the caisson at the buried depth of 5 cm (caused by the caisson) are shown in Figure 8. The test results show that there is no soil plug in the caissons with small suction applied during suction penetration. The maximum heights of soil plugs in the suction caisson models with buried depths of 5, 10, and 15 cm are 0.169, 0.085, and 0.087 times the buried depths, respectively. It was observed that the suction caused settlement of the surrounding soils outside the caisson. The maximum soil settlement appeared a certain distance from the outer wall of a suction caisson due to caisson–soil friction.

Figure 8. The soil plug in the caisson.

Figure 9 shows the curves of the heights of soil plug h_sp and of soil settlement h_settlement outside the caisson. Other test conditions not drawn in Figure 9 did not have the obvious soil plug and soil settlement around the suction caisson model. There is no obvious soil settlement outside the suction caisson with a buried depth of 15 cm. The height of soil plug h_sp increases with the increase of x as a result of the distribution of seepage velocity, which is greater as it moves toward the wall of suction caissons.

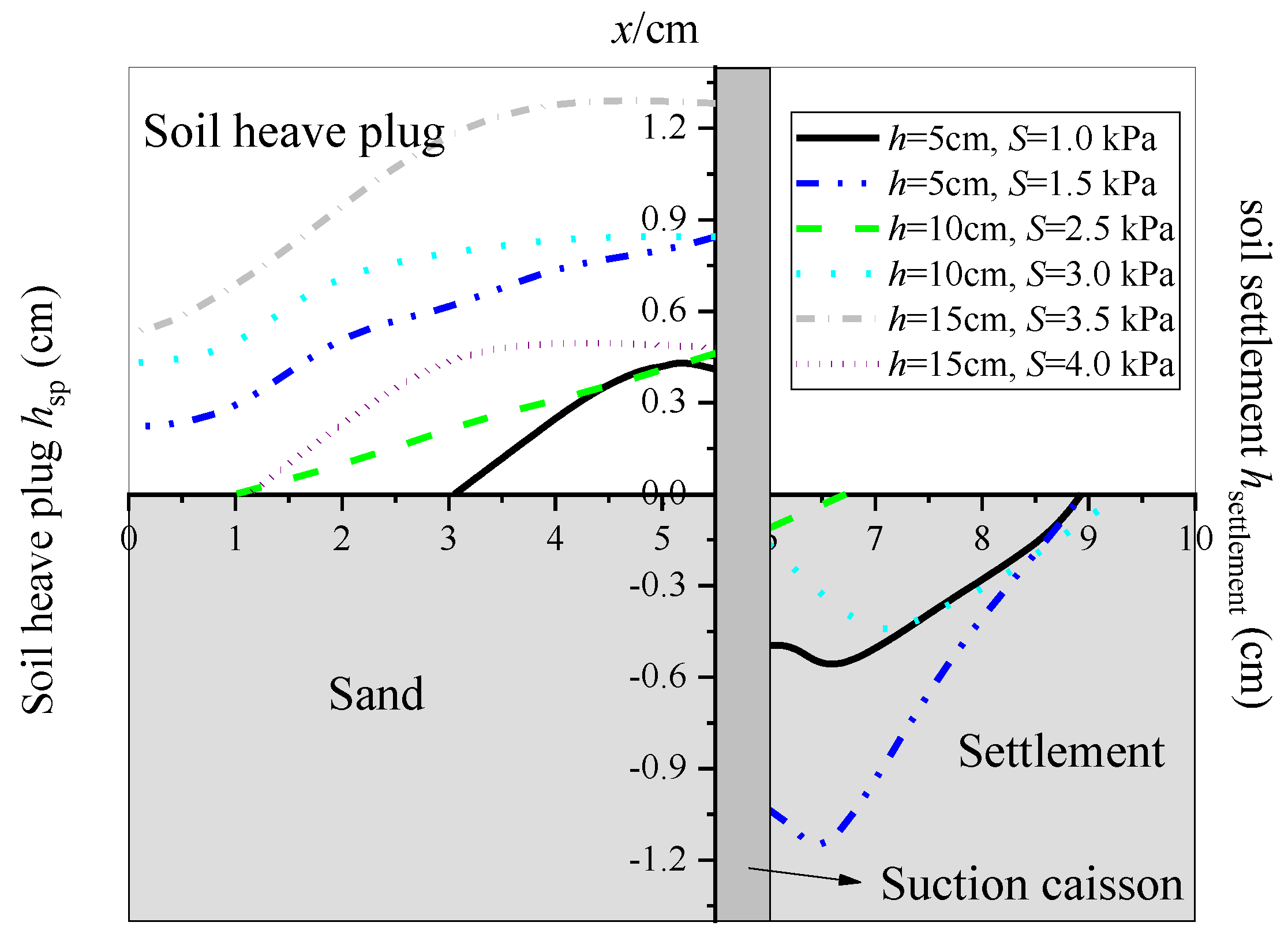

Figure 9. The height of soil plug and soil settlement outside the caisson.

The volume of soil plug V_sp and that of soil settlement V_settlement were measured by using the volume formula after obtaining the size of the soil plug and settlement from the images. The comparison between the volume of soil plug V_sp and that of soil settlement V_settlement in tests is shown in Table 3. The soil plug consists of the soil heaved by seepage force into the caisson, and the soil from outside into the caisson, leading to soil settlement around the foundation. It can be seen that the influence of settlement outside the caisson on the soil plug decreases as the buried depth rises. The soil plug is mainly influenced by the soil from outside into the caisson, and V_settlement/V_sp = 1.581 due to the decrease in the void ratio of soil around the caisson caused by the seepage force during suction penetration when h = 5 cm and S = 1.0 kPa. The influence of the soil heaved by the soil plug increases with the increase of h. The volume of soil heaved begins to rise as the velocity of seepage reaches a certain value.

Table 3. The volume of soil plug and soil settlement in tests.

	h = 5 cm		h = 10 cm		h = 15 cm
	S = 0.1 kPa	S = 1.5 kPa	S = 2.5 kPa	S = 3.0 kPa	S = 3.5 kPa	S = 4.0 kPa
Vsettlement (cm3)	0.544	0.970	0.020	0.473	0.000	0.000
Vsp (cm3)	0.344	1.520	0.519	1.954	0.849	2.827
Vsettlement/Vsp	1.581	0.638	0.039	0.242	0.000	0.000

3.4. Prediction of Soil Plug Height

The relationship between the height of the soil plug h_sp and the hydraulic gradient v/k was proposed by using quadratic regression, and can be expressed as follows:

$$\frac{h_{sp}}{h}=A+B\frac{S}{\gamma \prime h}+C{\left(\frac{S}{\gamma \prime h}\right)}^2+D\frac{v}{k}+E{\left(\frac{v}{k}\right)}^2+F\frac{Sv}{\gamma \prime hk},$$

(2)

where A–F are constant coefficients (given in Table 4). Figure 10 shows the comparison of actual values and fitted values for the dimensionless soil plug h_sp/h. Fitted values are evenly distributed around the actual values. Compared with the actual values, the fitted values have an average relative error of about 28.74%.

Table 4. Optimal value of constant coefficients for h_sp/h.

A	B	C	D	E	F
0.57495	−0.49370	0.09759	0.05075	−0.02168	0.02252

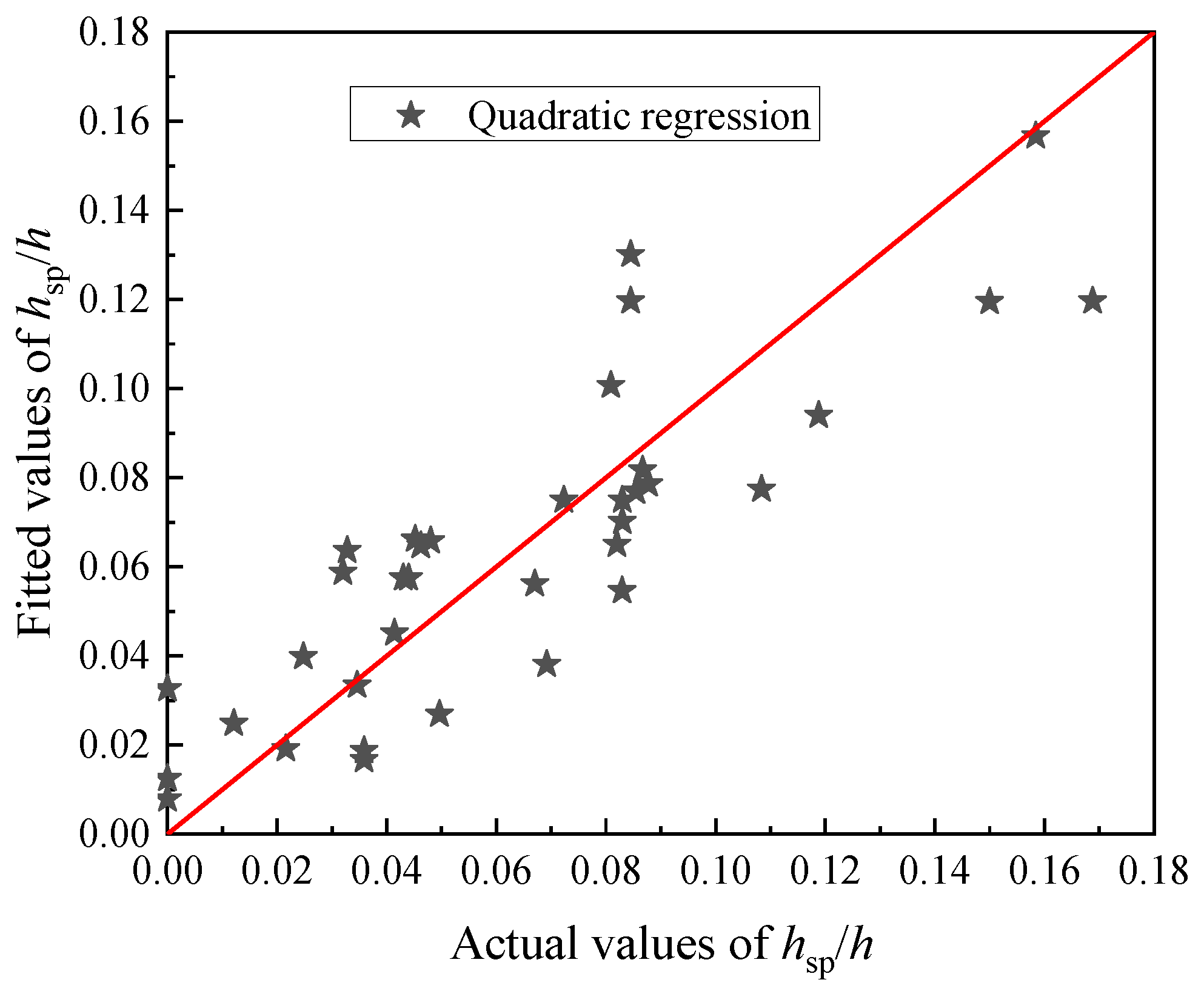

Figure 10. The comparison of actual values and fitted values for the dimensionless soil plug h_sp/h.

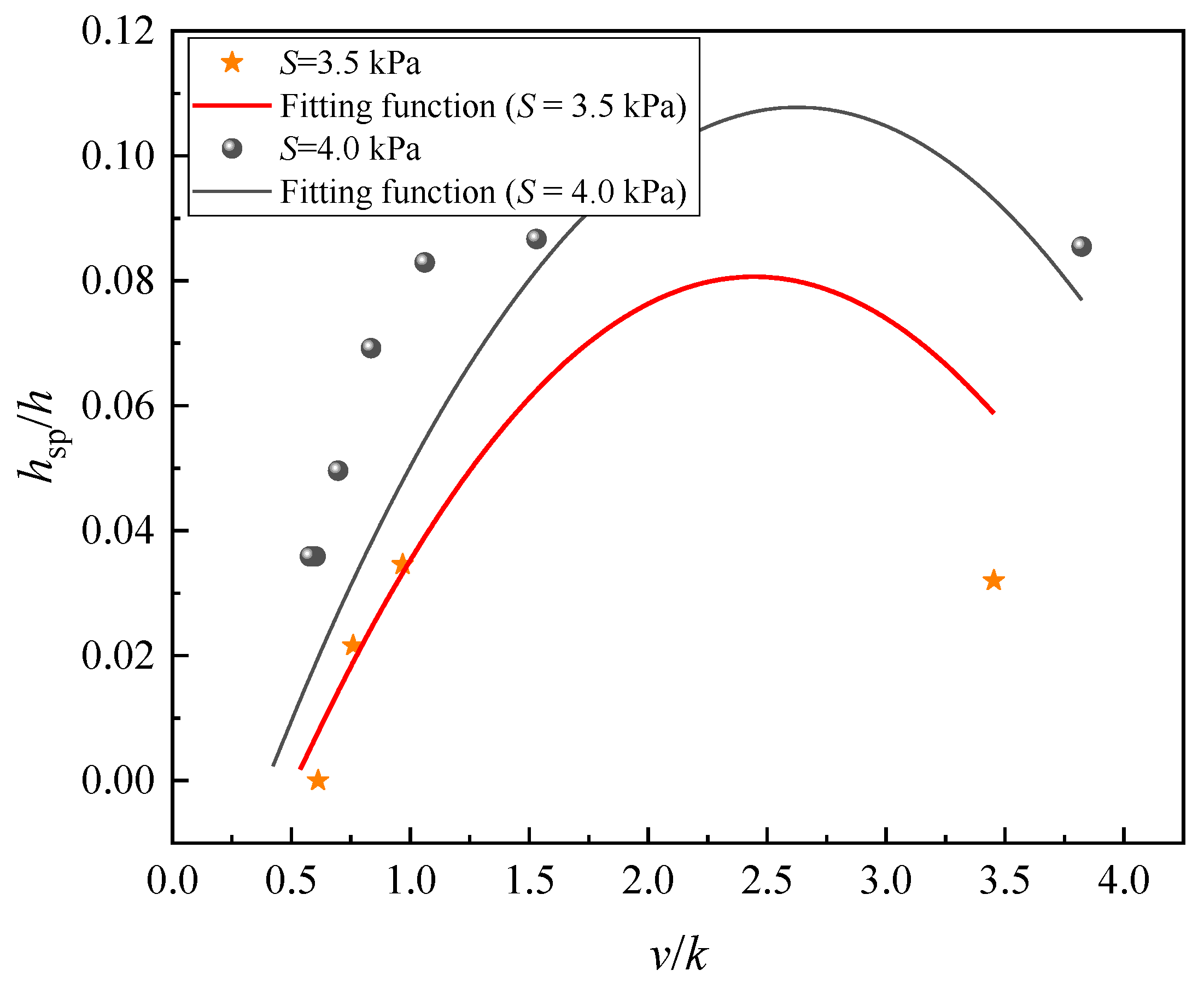

Figure 11 shows the relationship between h_sp/h and v/k when h = 15 cm. It is shown that the dimensionless soil plug h_sp/h first increases and then decreases with the increase of v/k. The reason behind the decreased trend is that the soil plug is subjected to downward friction applied by the inner wall of the suction caisson. The combination of Equations (1) and (2) is used to predict roughly the height of soil plugs in suction caissons in sand during suction penetration, guiding project designs, and construction.

Figure 11. The relationship between h_sp/h and v/k when h = 15 cm.

4. Conclusions

A series of model tests were conducted in this study to investigate the visualization of suction caisson penetration in sand. The following conclusions can be drawn:

(1)

The seepage field can be visualized while the carmine stain flows along a streamline in the soil around the suction caisson. The seepage velocity is larger as the streamline moves toward the wall of the suction caissons. The pre-test results show that the seepage failure took place in the sand when the suction in the caisson with buried depths of 5, 10, and 15 cm was greater than 2.0, 3.5, and 4.0 kPa, respectively. The results indicated that the seepage path of the soil is unrelated to S applied in the caisson and is affected by the penetration depth during the installation of the foundation.

(2)

The hydraulic gradient v/k of the sand in tests at the mudline was proposed by using the regression function. It can be seen that the fitted values agree well with the actual values. Darcy’s law is not applicable, and the hydraulic gradient v/k increases with the increase of x/D. The results indicated that the seepage velocity is larger as the streamline moves toward the wall of the suction caissons. The v/k when S/γ’h = 2.451 is 5.85 times greater than when S/γ’h = 0.351 in tests. The minimum relative error is 5.05% for Equation (1) when S/γ’h = 5.478.

(3)

There is no soil plug in the caissons with small suction applied during suction penetration. The maximum heights of the soil plugs in the suction caisson models with buried depths of 5, 10, and 15 cm are 0.169, 0.085, and 0.087 times the buried depths, respectively. The height of soil plug h_sp increases with the increase of x as a result of the distribution of seepage velocity, which is greater as it moves toward the wall of suction caissons. The influence of the soil heaved by the soil plug increases with the increase of h. The volume of the soil heaved begins to rise as the velocity of the seepage reaches a certain value. The dimensionless soil plug h_sp/h first increases and then decreases with the increase of v/k.
