Article

Osseointegration of Antimicrobial Acrylic Bone Cements Modified with Graphene Oxide and Chitosan

by
Mayra Eliana Valencia Zapata
1,
José Herminsul Mina Hernandez
1,*,
Carlos David Grande Tovar
2,
Carlos Humberto Valencia Llano
3,
Blanca Vázquez-Lasa
4,5,*,
Julio San Román
4,5 and
Luis Rojo
4,5
1
Grupo de Materiales Compuestos, Escuela de Ingeniería de Materiales, Universidad del Valle, Calle 13 # 100-00, Cali 76001, Colombia
2
Grupo de Investigación de Fotoquímica y Fotobiología, Universidad del Atlántico, Carrera 30 Número 8-49 Puerto Colombia, Atlántico 081008, Colombia
3
Grupo Biomateriales Dentales, Escuela de Odontología, Universidad del Valle, Calle 4B No. 36-00, Cali 76001, Colombia
4
Instituto de Ciencia y Tecnología de Polímeros, ICTP-CSIC, C/Juan de la Cierva 3, 28006 Madrid, Spain
5
Consorcio Centro de Investigación Biomédica en Red, CIBER-BBN, Instituto de Salud Carlos III, C/Monforte de Lemos 3–5, 1128029 Pabellón, Spain
*
Authors to whom correspondence should be addressed.
Appl. Sci. 2020, 10(18), 6528; https://doi.org/10.3390/app10186528
Submission received: 29 July 2020 / Revised: 10 September 2020 / Accepted: 13 September 2020 / Published: 18 September 2020
(This article belongs to the Special Issue Advances in Antimicrobial Sustainable Polymers)
Browse Figures
Versions Notes

Abstract

:
Acrylic bone cement (ABC) is one of the most used materials in orthopedic surgery, mainly for the fixation of orthopedic implants to the bone. However, ABCs usually present lack of biological activity and osseointegration capacity that leads to loosening of the prosthesis. This work reports the effect of introducing graphene oxide (GO) and chitosan (CS), separately or together, in the ABC formulation on setting performance, mechanical behavior, and biological properties. Introduction of both CS and GO to the ABC decreased the maximum temperature by 21% and increased the antibacterial activity against Escherichia coli by 87%, while introduction of only CS decreased bending strength by 32%. The results of cell viability and cell adhesion tests showed in vitro biocompatibility. The in vivo response was investigated using both subdermal and bone parietal implantations in Wistar rats. Modified ABCs showed absence of immune response, as confirmed by a normal inflammatory response in Wistar rat subdermal implantation. The results of the parietal bone implantation showed that the addition of CS and GO together allowed a near total healing bone–cement interface, as observed in the micrographic analysis. The overall results support the great potential of the modified ABCs for application in orthopedic surgery mainly in those cases where osseointegration is required.

1. Introduction

Acrylic bone cement (ABC) is one of the most widely used materials in orthopedic surgery, and the gold standard for the fixation of orthopedic implants to bone [1]. Since ABCs are the anchoring point at the implant–bone interface, they are important for load transfer [2,3]. The main advantage of their use is a fast primary fixation with a subsequent efficient patient recovery [4].
The bone–cement interface plays a key role for the longevity of the implanted prostheses [5]. Due to this, in recent decades there has been a strong effort to overcome one of the biggest problems associated with ABCs, which is the lack of biological activity [6,7] and osseointegration [2], thus promoting ABC function based on mechanical interlocking with bone rather than adhesive chemical bonding to form a stable cement–bone interface [8]. Moreover, bone necrosis produced by high exothermic temperatures during the polymerization reaction and the susceptibility of some pathogenic bacteria [9,10] generated premature failure [7], increasing the patient complications and leading to additional interventions what is safety risky for the patient [11,12,13].
Bioactive fillers such as hydroxyapatite and tricalcium phosphate have been added to overcome the low prosthesis biological performance and promote direct bone apposition rather than encapsulation of the implant by fibrous tissue [14,15,16,17,18,19]. This bioactive filler addition promoted bone growth based on strong chemical interactions between cement and bone [2,20]. However, some bioactive fillers make the cement more brittle and additional modifications on the polymeric matrix are need in order to increase ductility but at expense of decreasing the modulus [12].
The presence of biodegradable substances in ABC facilitates the replacement and growth of new bone inside the cement in the pores produced by hydrolytic and enzymatic degradation in the biological medium and improves mechanical anchorage [21,22]. However, high porosity percentages in the cement produce a significant loss of mechanical properties, which is inadequate for orthopedic applications [20].
Chitosan (CS) is a linear and semi-crystalline polysaccharide consisting of β-(1→4)-N-acetyl-d-glucosamine and β-(1→4)-d-glucosamine units [22] widely used in bone regeneration due to its non-toxic, non-allergenic and non-immunogenic properties [23,24]. Moreover, it is mucoadhesive, biocompatible, biodegradable [25], bioactive [23], and osteoconductive, with a capacity to mimic the extracellular matrix due to the glycosaminoglycans (GAGs) similar structure [24,26]. Chitosan introduction to different biomaterials also provides very convenient antimicrobial properties in biomedical applications [24,27,28,29,30]. However, the high water affinity intrinsic property of the polysaccharide produces a serious limitation due to poor mechanical properties compared to the natural bones [22,26].
Antimicrobial fillers, such as low concentrations of graphene oxide (GO) incorporated in ABCs are interesting to promote asepsis and mechanical reinforcement to joint prostheses [7,31]. GO can be dispersed in both aqueous and organic solvents [32], and under certain conditions it can be considered biocompatible [33] and antimicrobial [34]. In addition, it has been demonstrated that GO improves the viability and osteogenic differentiation of human bone marrow mesenchymal stem cells [35] and can be biodegraded by neutrophils [36], macrophages [37] and enzymes [33,38], suggesting its prospective for biomedical applications [39,40].
In a previous study [31], we presented the physicochemical, thermal, mechanical, and in vitro biological characterization of novel ABCs modified with CS and GO. In the present work, new research results on material setting and bending properties are reported. In addition, new in vitro assays and in vivo experiments are addressed to confirm the biocompatibility and osseointegration of the developed ABCs in the presence of cells and tissues. In particular, in vitro assays of the ABCs in the presence of human osteoblasts (HOb) and Gramm-negative bacteria (E. coli) are presented and the in vivo response of the ABCs implanted in subdermal and parietal bone tissues evaluated. The results indicate a positive synergy between CS and GO on parameters such as maximum polymerization temperature, antimicrobial activity, bioactivity, and osseointegration of ABCs demonstrating applicability in tissue engineering. Thus, it is the first report of using biodegradable and antimicrobial fillers such as GO and CS biopolymer in ABC formulations confirming the absence of immune response in Wistar rats’ subdermal implantations and a practically total healing interface between bone and ACB.

2. Materials and Methods

2.1. Materials

The solid phase (SP) consisted of poly(methyl methacrylate) (PMMA) beads (New Stetic S.A., Medellin, Colombia), barium sulfate (BaSO4) (Alfa Aesar, Tewksbury, MA, USA), CS from shrimp shells (Mw = 190–310 kg/mol and deacetylation degree (DD) of 88%) and benzoyl peroxide (BPO) (Sigma-Aldrich, Palo Alto, CA, USA). The liquid phase (LP) was composed of methyl methacrylate (MMA), 2-(diethylamino) ethyl acrylate (DEAEA), 2-(diethylamino) ethyl methacrylate (DEAEM) (Sigma-Aldrich, Palo Alto, CA, USA), N,N-dimethyl p-toluidine (DMPT), (Merck, Burlington, MA, USA) and GO nanosheets synthesized by the modified Hummers method (thickness < 30 nm, average size of 400 nm and interlaminar distance of 7.953 Å [31]).

2.2. Preparation of Bone Cements

Four ABC formulations were prepared (Table 1). All formulations had a solid/liquid ratio (S:L) = 2. Before manual mixing of the SP and the LP, both phases were conditioned at 23 ± 2 °C for approximately 2 h. The LP consisted of the monomer MMA, a 50:50 weight ratio of DEAEA and DEAEM, and DMPT, as an activator. Additionally, BaSO4, the radiopaque agent for cement radiological monitoring, was added in the SP to the PMMA beads and BPO as radical initiator.

2.3. Setting Properties

The setting properties of the cement paste were evaluated according to the International Standard ISO 5833-02 [41]. Right after the mixing of the ABC components, the cement was deposited in a 68 mm diameter and 20 mm high Teflon mold to record time and temperature data. The plot of the temperature against time allowed calculating the maximum temperature (Tmax), while the setting time (Tset) was calculated according to Equation (1), as the time for reaching the setting temperature (Tset).
T s e t = T m a x + T a m b 2
where Tamb is the ambient temperature, Tmax is the highest temperature recorded, the test was carried out at least three times for each formulation.

2.4. Mechanical Properties

For the four-point bending test rectangular samples of 75 mm long, 10 mm wide, and 3 mm thick were used. The test was carried out in a universal testing machine (Tinuos Olsen H50KS, Horsham, PA, USA) with a 10 kN load cell, at a rate of 5 mm/min, according to the ISO 5833-02. The bending strength and bending modulus were calculated using Equations (2) and (3), respectively.
B = 3 F a b h 2
E = Δ F a 4 f b h 3 × ( 3 l 2 − 4 a 2 )
where B is the bending strength, E is the bending modulus, F is the force at break, b is the average measured width of specimen, h is the average measured thickness of specimen, a is the distance between the inner and outer loading points, ΔF is the load range (50 N − 15 N = 35 N), f is the difference the deflections under the loads of 15 N and 50 N, l is the distance between the outer loading points. At least six specimens were tested for each formulation.

2.5. In Vitro Studies

2.5.1. Antibacterial Activity against Escherichia coli

Antibacterial activity of ABCs loaded with CS and GO was evaluated against the Gram-negative bacteria E. coli (DH5α), by colony-forming units (CFU) determined by standardized plate counting agar method reported previously [31]. Briefly, bacterial concentration was estimated at 108 CFU/mL. An aliquot of 100 µL of the inoculum test (105 CFU·cm−2) prepared in 1/500 diluted Nuria Broth medium (Sparks, MD, USA, Difco) was placed onto the surface of sterile discs of 10 mm diameter and incubated for 24 h at 37 °C. Afterwards, samples were washed with 1 mL of phosphate buffer solution (PBS) (pH 7.2) and the numbers of CFU recovered from each sample disc were determined by standardized plate counting agar techniques and referred as CFU (N)/cm2. The mean reported for each concentration of filler was based on three replicates. Later, samples of ABCs were observed in a scanning electronic microscopy (SEM) Philips XL30 with tungsten filament (Philips, Eindhoven, The Netherlands).

2.5.2. Cell Viability

ABCs cell viability with human osteoblasts cells (HOb) (ECACC 06090739) was carried out by the methylthiazol tetrazolium (MTT) assay as previously reported [31]. Briefly, the corresponding sterilized disc, 10 mm in diameter and 1.5 mm of thickness, was submerged in 5 mL of Dulbecco’s modified Eagle’s medium-DMEM and incubated at 37 °C for 1, 14, and 21 days. HOb were seeded in a 96-well plate (9 × 104 cells/well) and exposed to the sample extracts for 24 h; then, a MTT solution (0.5% MTT (Sigma, St. Louis, MO, USA) in phosphate buffered saline) was added into the well. After 4 h of incubation at 37 °C, cell viability was measured using the optical density of the wells at 570 nm in a microplate reader Synergy HT (Biotek, Winooski, VT, USA). Percentage of cell viability was calculated by Equation (4):
%   C e l l   v i a b i l i t y = O D s − O D T O D C × 100
where ODS, ODT, and ODC are the optical density measurements of the sample, the target (MEM medium introduced into wells without cells) and the negative control (Thermanox®), respectively.

2.5.3. Cell Adhesion

HOb cells were seeded at a density of 9 × 104 cell/mL and cultured for 24 h over the testing specimens placed in a 24-well culture plate. After that, 2 mL of Alamar Blue dye (10% Alamar Blue solution in phenol red free DMEM medium) were added to each well. After 4 h of incubation, specimens were washed twice with PBS in order to remove the rest of the reagent, and 1 mL of culture medium was added to monitor cell adhesion on the materials. This step was done at 1, 7, 14, and 21 days of incubation and afterwards samples were fixed in an aqueous solution of glutaraldehyde 2.5% v/v. Finally, the ABCs were observed in a scanning electronic microscopy (SEM) Philips XL30 with tungsten filament (Philips, Eindhoven, The Netherlands).

2.6. In Vivo Studies

The in vivo studies followed the recommendations of ISO 10993-6 [42] related to the selection and implanted zone requirements for biomodel tests. This research was reviewed, supported, and approved by the Institutional Ethics Review Committee with experimental animals of the Universidad del Valle (Cali, Colombia) through act 001 of 2012.

2.6.1. Subdermal Implantation

Implantation of samples corresponding to the four ABCs formulations (Table 1) was performed in subdermal tissue of nine male Wistar rats (three months old and 280 g average weight) to evaluate the in vivo biocompatibility. Porcine collagen membrane samples (Membracel®, Buenos Aires, Argentina) were used as a control for biocompatible foreign membranes. The animals were supplied and hosted by the LABBIO laboratory at the Universidad del Valle, Cali, Colombia.
Each experiment consisted of an incision 1 cm long by 3 cm deep on the dorsal surface of the rats. The procedure started with sedation by intramuscular application of 70 mg/kg of ketamine and 30 mg/kg of xylazine (HOLLIDAY SCOTTS, Buenos Aires, Argentina). After 1 month of implantation, the animals were euthanized by applying pentobarbital sodium (390 mg/mL) and diphenylhydantoin sodium (50 mg/mL) (Euthanex®, laboratory INVENT, Colombia) in a dose of 100 mg/kg with intraperitoneal application.
The recovered samples were fixed for 48 h in buffered formalin; then, the soft tissue capsule surrounding the implanted material was opened to remove the bone cement samples and analyze the morphology by SEM (JEOL Model JSM 6490 LV, Akishima, Tokyo, Japan).
Soft tissue samples were processed using a Leica TP1020 automatic tissue processor (Leica Biosystems, Buffalo Grove, IL, USA), in alcohol solutions with ascending concentration (70, 80, 95 and 100%) and xilol. Right after, the processed tissue samples were embedded in paraffin blocks using a Shandon Histocentre™ REF8330 embedding center (Thermo Fisher Scientific™, Waltham, MA, USA) and cut into 5 µm sheets using a microtome (Leica Biosystems RM2245, Buffalo Grove, IL, USA). The cut tissue samples were stained with Hematoxylin-Eosin and Masson’s Trichrome techniques. For the analysis of histological images, a Leica DM 750 microscope coupled to a Leica DFC camera was used, and the data were processed using the Leica Suite software version 4.12.0 (Leica Microsystems, Wetzlar, Germany).
Soft tissue samples were processed using a Leica TP1020 automatic tissue processor (Leica Biosystems, Buffalo Grove, IL, USA), in alcohol solutions with ascending concentration (70, 80, 95 and 100%) and xilol. Right after, the processed tissue samples were embedded in paraffin blocks using a Shandon Histocentre™ REF8330 embedding center (Thermo Fisher Scientific™, Waltham, MA, US) and cut into 5 µm sheets using a microtome (Leica Biosystems RM2245, Buffalo Grove, IL, US). The cut tissue samples were stained with Hematoxylin-Eosin and Masson’s Trichrome techniques. For the analysis of histological images, a Leica DM 750 microscope coupled to a Leica DFC camera was used, and the data were processed using the Leica Suite software version 4.12.0 (Leica Microsystems, Wetzlar, Germany).

2.6.2. Bone Implantation Study

Following the same sedation protocol of the subdermal implantation, a defect of 5 mm in diameter was made in the parietal bone of 15 Wistar rats of 8 months old and 370 g average weight. The generated defect was filled with the corresponding ABC formulation and the defect sutured as observed in the photography of the parietal bone animal zones (Figure S1).
After 3 months of implantation, animals were euthanized following the same procedure described in the subdermal implantation. Tissues of 1 × 1 cm2 containing the implanted ABC and original peripheral bone were recovered. Samples were fixed in 10% buffered formalin for 48 h, washed with distilled water and dehydrated by passing through increasing ethanol solutions of 30, 50, 70 and 90% for 10 min and in pure ethanol for 1 h. Finally, the samples were stored for at least 48 h in a desiccator at room temperature and analyzed by SEM and X-ray energy dispersive spectrometry (EDS) techniques (JEOL Model JSM 6490 LV, Akishima, Tokyo, Japan). In this analysis, areas of interest at the cement, interface, and bone zones were analyzed for each sample composition as illustrated in the supporting information section.

2.7. Statistical Analysis

Values of setting and mechanical properties, cell viability, and antibacterial activity were presented as mean ± SD. Statistical analyses was performed using Student’s t-test. Statistical analysis was performed comparing modified ABCs samples with respect to Control ABC. Differences were considered statistically significant at * p < 0.05 and ** p < 0.01.

3. Results and Discussion

3.1. Setting Properties

Table 2 demonstrates that CS and GO separately added to the cement decreased the maximum temperature (Tmax) during polymerization and increased the setting time (Tset). However, the formulation containing both components presented a synergy in reducing Tmax and increasing Tset by more than 21%. All the values of setting parameters in Table 2 are within the limits allowed by ISO 5833-02 [41], which sets a maximum temperature limit of 90 °C and a curing time between 3 and 15 min.
Reduction of Tmax is particularly important to assure the patient’s healthiness, reducing the risk of tissue necrosis. Some reported cements had Tmax up to 100 °C demonstrating a high patient risk [43].
According to Paz et al. [44], the decrease in polymerization heat observed in GO formulations, suggests that it retards and inhibits the curing reaction by interfering with the radical reaction. This was also confirmed by Ormsby et al. [45] who proposed that the chemical interaction between PMMA and carboxyl functionalized multi-walled carbon nanotubes (MWCNT-COOH) occurs through two mechanisms: A covalent bonding of the MWCNTs with the growing polymer chains via esterification reactions, or GO nanosheets acting as heat dissipaters.
On the other hand, Gonçalves et al. [46] proposed that GO acts as a radical scavenger that inhibits or delays the free radical polymerization reaction, which is consistent with the increase in setting time and the Tmax reduction. CS addition in ABCs has also been observed as the main factor for decreasing Tmax through a heat dissipation mechanism [9].

3.2. Mechanical Properties

According to standard ISO 5833-02 [41] compressive and bending properties of ABC are crucial for good biomechanical performance of ABCs. In a previous paper results of compression test of developed ABCs were already reported [31]. Table 3 presents results of the bending test reported in this paper. Compression and bending strengths and bending modulus were significantly reduced (p < 0.01) with the incorporation of 15% CS compared to Control ABC; even when 15% CS was added together with 0.3% GO compressive strength significantly decreased although it still remained higher than 70 MPa that is the minimum value allowed by the standard. However, for the ABC that contained both CS and GO bending strength was not significantly different with respect to Control ABC. On the other hand, the introduction of GO to ABCs by its own did not showed significant differences of the mechanical properties with respect to Control ABC.
Some researchers have reported improvements in tensile, compressive [7] and flexural properties [13] in bone cements with GO incorporation. The improvement is caused by a stronger interfacial interaction between GO and PMMA generated by a high amount of hydroxyl and carboxyl groups present on the GO surface [44].
On the other hand, some studies reported negative effects in the mechanical properties with CS introduction [47,48]. The interference of the polysaccharide in the polymerization of MMA and the irregular morphologies of this component that acts as an accumulator of stress are the main reasons for the detrimental effect [31]. Despite that, evidence of the reinforcing effect of GO functionalization with CS has been reported [49,50,51] arguing chemical reactions between the amino groups of CS and the carboxyl groups of the GO, what indicates that the presence of both fillers is crucial for the properties improvement.

3.3. In Vitro Studies

3.3.1. Antibacterial Activity against Escherichia coli

E. coli has been used in this research only as a model to evaluate the antimicrobial activity of different modifications of bone cements and prove that the biological activity of the GO and CS is maintaining after curing reaction of ABC. Previous results [31] shows that the CFU of E. coli for Control ABC, ABC 0.3% GO, ABC 15% CS and ABC 0.3GO-15CS were 96 ± 3, 17 ± 2, 69 ± 2 and 12 ± 6, respectively. The former indicate than the effect of GO incorporation on the antibacterial activity of ABCs was much more significant compared to the introduction of only CS. ABCs loaded with GO showed a reduction in CFU by more than 80%, while those containing only CS reduced the number of colonies by 28%, as compared to the Control ABC. The result obtained for ABCs with both loadings (CS and GO) did not show statistical significance comparative with ABC loaded with 0.3% of GO.
SEM micrographs of cements with bacteria (Figure 1) confirmed a higher bacterial population with the formulations that did not contain GO. These results suggested that GO introduction is the main caused for antibacterial activity of ABCs and is promising for clinical applications devoted to avoiding bacterial infections, a common health risk during surgeries and implantations.
Mori et al. [9] reported low antibacterial activity of CS in ABC formulations, suggesting the need to add other synergistic antibacterial properties. The mechanisms of the antimicrobial activity of CS involve electrostatic interactions between the positively charged chitosan chains and bacterial cell membrane, affecting cell permeability and leading to bacterial death [12]. Membrane damage, interaction with DNA/RNA, metal chelation and deposition on the microbial surface are also other possible chitosan antimicrobial mechanisms reported [52]. In this work, the antibacterial activity exhibited by the studied ABCs is enhanced by the presence of GO which presents antibacterial mechanisms due to its extremely sharp edges that cause physical damage to the bacterial membrane [49,50]. In addition, oxidative stress with production of reactive oxygen species (ROS) disrupts the balance in redox processes within the cell leading to a disruptive membrane cell mechanism [53,54,55,56,57] and cell lysis [53,58].

3.3.2. Cellular Behavior of Human Osteoblasts

SEM micrographs of Figure 2 show the surface morphology of the different cement samples directly seeded with human osteoblasts and cultured for 1, 7, 14, and 21 days. It is evident that cement surfaces containing CS showed a rough topography (Figure 2i–o). This topography can be caused by the high viscosity of the CS containing cement paste, which increases the porosity in the matrices [31]. At day 1, a rapid adhesion of HObs (marked with red triangles in Figure 3) with homogeneous distribution was evident across the surface of all cement formulations. After 14 days, individual cells were no longer visible; instead, it was possible to observe a continuous monolayer of extracellular matrix and cells covering all the studied samples. Remarkably, a deeper analysis of the ABC0.3GO-15CS images showed rougher surfaces for this composition revealing a qualitatively superior population of osteoblasts along with higher extracellular matrix formation. Only if cells are alive and functional healthy tissues are synthesized [59] what supports the good biocompatibility of the ABCs prepared in this study.
The positive effects of GO and CS on the osteoblasts adhesion, proliferation and deposition of extracellular matrix have been reported by several authors [7,27,60] and they were attributed, in the case of GO introduction, to the increase in the hydrophilicity of the cement surface with hydroxyl groups, which can act as possible anchoring points for cells [7]. In the case of CS, they are related to the low toxicity and excellent ability to promote osteoblastic cell growth of this polysaccharide [27].

3.4. In Vivo Studies

In vivo biocompatibility of the developed ABCs was carried out by application of two different animal models. In particular, these studies consisted of subdermal and bone implantations. Subdermal ABCs implantation was analyzed by SEM and histology of tissues with Hematoxylin and Eosin stain and Masson-trichrome stains. For its part, implantations in parietal bones were evaluated by SEM and EDS studies at the implantation zone.

3.4.1. Subdermal Implantation

The SEM micrographs shown in Figure 3 correspond to representative images of the four cements response after 1 month of subdermal implantation in Wistar rat tissues. In Figure 3b, a structure compatible with one cell (marked with triangle in Figure 3) is observed, while Figure 3c,d showed better surface texture and abundant deposits of extracellular matrix on their surface (marked with arrows in Figure 3), compared with the Control ABC (Figure 3a). Since cells of mesenchymal origin, including fibroblasts, are rugophilic, it is valid to think that the surface of the loaded cements, being more irregular than the Control ABC, is more encouraging for the cells. Several pieces of research had demonstrated that a higher roughness of the surface of the biomaterials favors the adhesion and proliferation of the cells [61,62,63,64,65]. The presence of cells and deposits of extracellular matrix on the cements confirmed their biocompatibility because according to Richards [61], the adhesion of cells to surfaces is one of the vital aspects in biocompatibility.
As far as histological analysis, the samples corresponding to the collagen control at 1 month of implantation are showed in Figure 4 which revealed the presence of remaining material (Col) in the implantation zone (IZ) in process of degradation/absorption and abundant inflammatory infiltration (II).
Figure 5 corresponds to the Control ABC formulation, showing a capsule (C) surrounding the zone of implantation (IZ) and including an inflammatory infiltrate (II).
The three formulations of implanted cements including GO and/or CS (Figure 6) showed similar response to that of Control ABC (Figure 5), characterized by a localized inflammatory response, surrounded by a capsule (C) with the presence of inflammatory infiltrate (II). However, compared to collagen samples (Figure 4), the latter had a more diffuse inflammatory response with abundant inflammatory infiltrate.
The tissues stained with the Masson’s trichrome stain (Figure 7) showed a fibrous capsule at the IZ composed of collagen type I fibers for collagen control and the studied cements.
The presence of the capsule and the inflammatory infiltrate surrounding the cement samples can be considered a normal in vivo response to materials that have been implanted in soft tissue and promote healthy wound healing [66]. For example, Maiborodin et al. [67] reported the formation of a transparent capsule surrounding samples of polyhydroxyalkanoates implanted in rats. Fibrous encapsulation has also been reported for various biomaterials, such as nano-crystalline hydroxyapatite [68] and ABCs with CS [4].

3.4.2. Bone Implantation of ABCs

SEM and EDS studies were performed at the interface of bone and cements to evaluate the osseointegration process through the sealing defect and to detect the presence of Ca and P, respectively.
According to the SEM micrographs illustrated in Figure 8, Control ABC implantation area in parietal bone of Wistar rats showed that after 3 months of implantation, the cement was not completely integrated with the surrounding bone tissue, since a clear separation between the two was observed (Figure 8a,b). In the area corresponding to the cement, the typical topography of the bone cement was observed with few deposits of extracellular matrix (EM).
On the contrary, the formulations modified with GO (Figure 9a,b) or CS (Figure 9c,d) and with both components together (Figure 9e,f) presented the bone–cement interface with an advanced sealing process. In addition, at the interface there were presence of osteoblasts (OB) and abundant deposits of EM that nearly completely seal the periphery of the intraosseous preparation as shown in Figure 9. The better sealing means an enhanced osseointegration or chemical affinity of the modified ABCs with the bone. In accordance, the difference in the EM deposits between the Control ABC and the modified cements (Figure 8 and Figure 9 respectively) is evident. Interestingly, cement with both CS and GO presented a more active interface with a group of osteoblasts growing from the interface towards the bone cement (Figure 9e,f).
When the cement–bone interface of the ABC 15% CS and ABC0.3% GO-15% CS formulations were analyzed at higher magnification (500×) (Figure 10) it was appreciated that the interface of ABCs modified with only CS was not totally sealed, showing cement particles in the process of cellular colonization, while that of the ABC 0.3% GO-15% CS formulation was almost completely sealed.

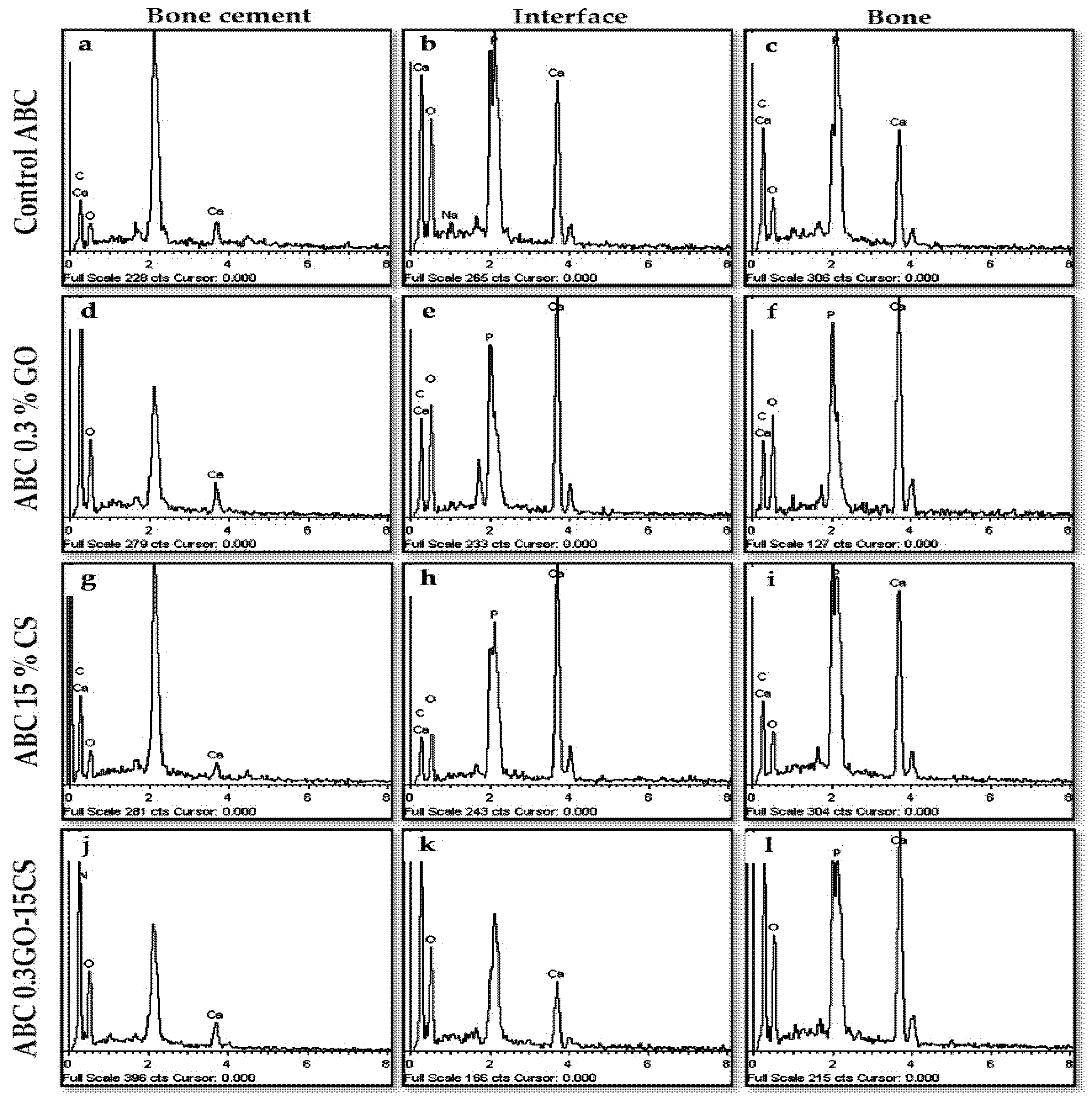

Analysis of EDS spectra at the interface and the bone zones (Figure 11) in all cases demonstrated the presence of bands of calcium (Ca) and phosphorous (P) in their corresponding spectra (Figure 11b,c,e,f,h,i,k,l) supporting the mineralization process and the good biocompatibility of the ABCs studied here. However, analysis of EDS spectra in the cement IZ showed the presence of the Ca signal of low intensity and absence of the that of P (Figure 11a,d,g,j).
Interestingly, increasing amounts of Ca and P were found for the formulations with 0.3% GO and/or 15% CS with respect to Control ABC, more marked for the sample containing both components (Figure S2). The deposition of Ca and P elements is a primary evidence of the osteogenesis process and the amount of elemental deposition is associated with a material biocompatibility and osteoconductive behavior [43].
These results agree with those previously obtained by SEM, since the enhanced biomineralization at the interface for the ABC with 0.3% GO and 15% CS sample correlates with a greater integration of this cement with the bone and with an improved biocompatibility compared to the other studied formulations. The foregoing indicates that this formulation is highly promising stimulating bone regeneration and therefore it has potential for the fixation of orthopedic implants to the bone, mainly in applications where osseointegration is required.

4. Conclusions

Inclusion of CS and GO separately or together in cement formulations improved setting properties and biocompatibility both in vitro and in vivo, although incorporation of only CS showed a decrease in the mechanical properties of ABCs. The synergy of the contribution of GO and CS was evident in the ABC 0.3% GO-15% CS formulation providing a significant decrease in the maximum temperature and an increase in the antibacterial activity compared to the other formulations. All formulations showed biocompatibility against human osteoblasts and in a subdermal model in rats.
Implantation of modified cements in parietal bone of rats showed that all the ABCs favored healthy sealing of the critical size defect. However, an improved process of osseointegration and biocompatibility were observed in the cements modified with 0.3% GO and 15% CS, since they show a more mature interface with a group of osteoblasts colonizing the surface of the bone cement, abundant deposits of EM and notable presence of Ca and P elements at the interface. These late corroborates the positive synergistic effect between GO and CS in the bioactivity of the ABCs and its promising use as a bioactive ABC for the fixation of orthopedic implants to the bone.

Supplementary Materials

The following are available online at https://www.mdpi.com/2076-3417/10/18/6528/s1, Figure S1: Sequence of implantation of ABCs in parietal bone of Wistar rats. Figure S2: MTT assay performed with HOb in the presence of extracts of ABCs taken after 1, 14, and 21 days. Figure S3: EDS analysis of the implantation zone of ABCs after 3 months of implantation in critically sized bone defects in the parietal bone of Wistar rats.

Author Contributions

Conceptualization, M.E.V.Z., J.H.M.H. and C.D.G.T.; methodology, M.E.V.Z., J.H.M.H., C.D.G.T., C.H.V.L., B.V.-L., J.S.R. and L.R.; investigation, M.E.V.Z., J.H.M.H. and C.D.G.T.; writing—original draft preparation, M.E.V.Z.; writing—review and editing, M.E.V.Z., C.H.V.L., C.D.G.T., B.V.-L. and L.R.; funding acquisition, J.H.M.H. and J.S.R. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Sistema General de Regalías funded this research-FCTeI-Colombia (BPIN: 2013000100300), Spanish AEI/FEDER/UE MAT2015-73656-JIN and MAT2017-84277-R, and Health Institute Carlos III (CIBER-BBN).

Acknowledgments

The authors acknowledge Rosa Ana Ramirez Jimenez of the Biomaterials Group of the Instituto de Ciencia y Tecnología de Polímeros, ICTP-CSIC, Spain for the support in the in vitro assays. The authors acknowledge to the Sistema General de Regalías-FCTeI-Colombia (BPIN: 2013000100300) for funding the research. Author Mayra Eliana Valencia Zapata acknowledges to MinCiencias for funding her doctoral studies. The authors Blanca Vázquez-Lasa and Luis Rojo are members of the SusPlast platform from the Spanish National Research Council (CSIC).

Conflicts of Interest

The authors declare no conflict of interest.
