Article

Incorporation of Bioactive Glasses Containing Mg, Sr, and Zn in Electrospun PCL Fibers by Using Benign Solvents

1
Dipartimento di Ingegneria Enzo Ferrari, Università degli Studi di Modena e Reggio Emilia, Via P. Vivarelli 10, 41125 Modena, Italy
2
Department of Materials Science and Engineering, Institute of Biomaterials, University of Erlangen-Nuremberg, Cauerstr. 6, 91058 Erlangen, Germany
*
Author to whom correspondence should be addressed.
Appl. Sci. 2020, 10(16), 5530; https://doi.org/10.3390/app10165530
Received: 4 July 2020 / Revised: 4 August 2020 / Accepted: 7 August 2020 / Published: 10 August 2020

Abstract

:
Poly(ε-caprolactone) (PCL) and PCL/bioactive glass composite fiber mats were produced by electrospinning technique. To improve cell adhesion and proliferation (i) 45S5, (ii) a bioactive glass containing strontium and magnesium oxides, and (iii) a bioactive glass containing zinc oxide were separately added to the starting PCL solution before electrospinning. A good incorporation of bioactive glass particles in PCL electrospun mats was confirmed by SEM and FTIR analyses. Bioactivity was evaluated by immersion of PCL mats and PCL/bioactive glass electrospun fiber mats in simulated body fluid (SBF). Bone murine stromal cells (ST-2) were employed in WST-8 assay to assess cell viability, cell morphology, and proliferation. The results showed that the presence of bioactive glass particles in the fibers enhances cell adhesion and proliferation compared to neat PCL mats. Furthermore, PCL/bioactive glass electrospun mats showed higher wound-healing rate (measured as cell migration rate) in vitro compared to neat PCL electrospun mats. Therefore, the characteristics of the PCL matrix combined with biological properties of bioactive glasses make PCL/bioactive glass composite ideal candidate for biomedical application.

1. Introduction

Electrospinning is a widely used technique based on a starting polymeric solution and high electric field between two electrodes to fabricate nano- and micro- fibers for biomedical applications. Nanosized fibers mimicking the original structure of extracellular matrix (ECM) [1] can be fabricated by electrospinning technique. The features of samples are affected by (i) solution parameters (i.e., rheological properties, type of solvent(s), etc.), (ii) process parameters, and (iii) environmental parameters [1,2,3,4]. Among them, the selection of a proper solvent system plays a crucial role on the features of samples [5,6]. Recently, the standard solvents used for the electrospinning process, which are toxic, such as chloroform, dichloromethane, hexafluoro-2-propanol, dimethylformamide, methanol, or a mixture of them, have been increasingly substituted by less harmful solvents such as acetic acid, formic acid or acetone [7,8,9], which have been defined as benign solvents [10], highlighting the important properties related to prevention of biopolymer denaturation and presence of traces of toxic solvents on the fibers, as well as having a positive environmental impact.
Poly(ε-caprolactone) (PCL) has been widely used in combination with benign solvents (acetic acid or formic acid or acetone) to develop the starting polymeric solution for the production of electrospun mats [7,8,9,10]. PCL is widely investigated for biomedical applications because of its biocompatibility and biodegradability [11,12,13] and is approved by the Food and Drug Administration (FDA) for clinical use. However, PCL bioactivity can be enhanced by the addition of bioactive biomaterials such as bioactive glasses (BGs). Generally, bioactive glasses have shown high bioactivity and high interaction with hard and soft tissues [14,15]. In this work, 45S5 BG (composition 45 wt% SiO2, 24.5 wt% CaO, 24.5 wt% Na2O, and 6.0 wt% P2O5) [16], Sr- and Mg-substituted bioactive glass (BGMS10 [17,18,19,20,21,22,23]), and Zn-substituted bioactive glass (BGMS_2Zn [24]) were incorporated in PCL fibers by electrospinning technique. BGMS10 was designed starting from the composition of 45S5 by adding SrO and MgO; subsequently, ZnO was added to the BGMS10 composition to produce a Zn-substituted bioactive glass labelled as BGMS_2Zn [24]. The incorporation of different ions into bioactive glass compositions aims to impart specific biological functionalities and to enhance the therapeutic behavior [25,26,27,28]. In particular, Sr has been shown to enhance osteogenic differentiation, to stimulate osteoblast differentiation [29] and bone formation [30,31,32,33] as well as angiogenesis and cell proliferation [34,35,36]. Furthermore, Sr, because of its anabolic and anti-resorptive effect on bone, is already in use as strontium ranelate in the treatment of osteoporosis [37]. Mg, which is the 4th most abundant cation in the human body, not only stimulates stem cells proliferation and differentiation but it plays a pivotal role in bone metabolism by enhancing ALP activity [38]. Furthermore, Mg can be useful for bone regeneration [39,40]. Therefore, it is expected that PCL fibers containing BGMS10 and BGMS_2Zn particles will release Sr and Mg showing enhanced cell adhesion and proliferation in in vitro tests. In addition, it is expected that PCL fibers containing BGMS_2Zn particles will also release Zn ions. Zn is not only essential for cell growth and proliferation, but it also takes part in enzyme production, replication of DNA, and growth factors (GFs) [41,42,43]. Furthermore, Zn ions have shown antimicrobial properties [44,45,46]. Therefore, the incorporation in PCL fibers of such ion-doped BGs aims to enhance bioactivity, cell proliferation, and angiogenesis as well [47,48,49,50]. Because of the capacity of bioactive glasses to stimulate both hard and soft tissues, PCL/bioactive glass composite fiber mats could represent the starting materials for wound-healing devices. The use of composites combines the properties of the organic matrix with the reinforcement of the inorganic phase embedded into the fibers which could be suitable for the fabrication of healing devices with suitable mechanical and biological performance [8].

2. Materials and Methods

2.1. Bioactive Glasses Preparation

BGMS10 and BGMS_2Zn were manufactured by the conventional melt-quenching route as reported in the literature [51,52,53]. In brief, the commercial raw powders (SiO2, Ca3(PO4)2, CaCO3, Na2CO3, K2CO3, MgCO3, SrCO3, ZnO, from Carlo Erba Reagenti, Cornaredo, Italy) were mixed for 3 h in a laboratory shaker (M63a4-Motori Elettrici Carpanelli, Bologna, Italy) and then melted in a platinum crucible (in air). The thermal cycle was the following: from room temperature to 1100 °C at 10 °C/min; a decarbonation step at 1100 °C for 2 h; from 1100 °C to 1450 °C at 10 °C/min followed by keeping 1450 °C constant for 45 min. The fused glass was rapidly quenched in room-temperature water to have a frit, which was dried at 110 °C for 12 h. The frit of each glass composition was then milled to obtain bioactive glass powders with final grain size to achieve an effective incorporation inside PCL fibers. The average particle size of the different powders was calculated using ImageJ (NIH, Bethesda, MD, USA) [54] from the SEM micrographs reported in Figure 1 and resulted in the following values: 2.4 μm for 45S5, 2.3 μm for BGMS10 and 3.2 μm for BGMS_2Zn.
Subsequently, bioactive glass powders were added to the starting polymeric solution before electrospinning. The composition of the BGs investigated is shown in Table 1.

2.2. Solution Preparation

Electrospun mats were obtained from PCL (80 kDa, Sigma Aldrich, Munich, Germany) solutions and acetic acid (AA, VWR, Darmstadt, Germany) was used as solvent. The solutions of PCL in acetic acid (20% w/v) were mixed overnight and then were ultrasonicated for 1 h before electrospinning. To produce the composite electrospun mats, 45S5, BGMS10, and BGMS_2Zn were homogenously dispersed (5 wt% respect to PCL) in the polymer solution and mixed for 10 min and subsequently immersed in ultrasonic bath for 1 min before electrospinning. The amount of bioactive glass was chosen at 5 wt% because previous studies demonstrated that adding only 5 wt% bioactive glass to PCL can already generate relevant in vitro and in vivo outcomes with respect to PCL only [55]. In particular, the focus of this work is the development of composite fibers with suitable properties for applications in soft tissue engineering, as widely reported [47,48,49,50] and it is not oriented to the osteogenic differentiation as reported in [55]. The composite electrospun mats were namely PCL, PCL_45S5, PCL_BG10, and PCL_BGZn.

2.3. Electrospinning Process

The electrospinning parameters used (Table 2) have been previously optimized as reported elsewhere [8]. Briefly, the electrospinning parameters to fabricate PCL electrospun mats were: (i) 15 kV voltage; (ii) 11 cm needle-target distance; (iii) 0.4 mL/h flow rate with a needle diameter of 0.8 mm. The process was executed with a commercial device equipped with a climate control chamber EC-CLI (IME Medical Electrospinning) and the environmental parameters as temperature (T) and relative humidity (RH%) were set at 25 °C and 40%, respectively. On the other hand, to fabricate the PCL_45S5, PCL_BG10 and PCL_BGZn composite electrospun mats the parameters of electrospinning were the same used for neat PCL except for the flow rate which was increased from 0.4 mL/h to 0.6 mL/h.

2.4. Microstructural Characterization

The morphology of samples was investigated by means of scanning electron microscopy (SEM) analysis (FE-SEM-EDS (Auriga Base, Zeiss, Jena, Germany)). Sputter Coater (Q150T, Quorum Technologies, Darmstadt, Germany) was used to sputter with gold the samples before SEM analysis. ImageJ (NIH, Bethesda, MD, USA) was used to calculate fibers average dimeters of 50 fibers from each sample [54]. SEM analysis was performed before and after immersion in simulated body fluid (SBF) solution (see Section 2.6); the eventual formation of hydroxy-carbonate apatite (HCA) layer on samples’ surface was investigated by means of SEM. Furthermore, FTIR spectra before and after immersion in SBF were obtained using the FTIR spectrometer (Shimadzu, IRAffinity-1S, Fourier Transform infrared spectrophotometer, Duisburg, Germany). For the analysis, 40 spectral scans at resolution of 4 cm−1 were repeated over the wavenumber range 4000–400 cm−1.

2.5. Mechanical Testing, Contact Angle, and Thermal Behavior

The mechanical properties of the electrospun fibers were investigated by means of uniaxial tensile test at room temperature (5960 Dual Column Tabletop Testing System, Instron®, Darmstadt, Germany) by fixing electrospun samples in a paper frame, following the protocol reported in [9]. Five samples for each electrospun mat were tested. Furthermore, contact angle measurements were performed by releasing 3 μL of distilled H2O (Krüss DSA30, Hamburg, Germany) to assess the wettability of electrospun fibers. Thermogravimetric analysis and differential thermal analysis (TG/DTA) (Netzsch Differential Thermal Analyzer STA 429 CD, NETZSCH-Gerätebau GmbH, Selb, Germany) were employed to ascertain the incorporation of bioactive glass particle considering the residual amount of mass after PCL decomposition. Thermal decomposition analysis was executed in static air atmosphere on 30 mg of samples heated from 25 °C to 800 °C at 10 °C/min. The tests were performed in static air atmosphere.

2.6. In Vitro Bioactivity

The samples were immersed in SBF solution to assess their in vitro bioactivity, which is defined as the ability to form hydroxycarbonate apatite once immersed in physiological fluids. The SBF solution was prepared following the protocol developed by Kokubo et al. [56,57]. The ratio between the surface of samples and the SBF volume was calculated according to [57]. Before soaking in SBF, the samples were fixed on scaffold holders (Scaffdex, Sigma Aldrich). The samples (PCL, PCL_45S5, PCL_BG10 and PCL_BGZn) were kept in self-stand Falcon tubes at 37 °C in an incubator on an oscillating tray for 1, 7, 14, and 21 days. The SBF solution was refreshed every 3 days and the pH was measured every day. At each time point, the samples were immediately washed with distilled H2O and dried at room temperature. The eventual HCA layer formation on samples’ surface was studied by SEM and FTIR spectroscopy.

2.7. Biological Tests

2.7.1. Bone Murine Stromal Cells ST-2

Bone murine stromal cells ST-2 (Leibniz-Institut DSMZ—German Collection of Microorganisms and Cell Cultures GmbH, Braunschweig, Germany) were used to investigate cell viability, cell morphology, and proliferation. ST–2 cell line was selected because it showed osteoblast [58], chondrocyte [59], and adipocyte differentiation [60], confirming to be appropriate for preliminary studies for both soft and hard tissue engineering applications. Before the seeding, ST-2 cells were cultured in RPMI 1640 medium (Thermo Fisher Scientific, Erlangen, Germany), supplemented with 10% fetal bovine serum (Lonza) and 1% penicillin/streptomycin (Lonza) and incubated at 37 °C with 5% CO2.

2.7.2. WST-8 Assay

Sample holders (Scaffdex, CellcrownTM, Sigma Aldrich, Munich, Germany) were used to fix all the electrospun mats, the samples with the inserts were put in 24-multiwell plate and disinfected by exposure to UV light for 1 h, before cell seeding. An inoculum ratio of 1.5 × 105 cells/mL with a drop of 100 μL per sample was used for seeding cells. After 15 min of incubation at 37 °C, 1 mL of RPMI medium was added to each well. WST-8 assay (CCK-8, Sigma) was performed 1 day and 7 days after the seeding in triplicate on all samples, according to [61]. Cell morphology was investigated 7 days after seeding by staining with rhodamine phalloidin, and DAPI (Thermo Fisher Scientific). Rhodamine phalloidin solution (8 µL/mL) and DAPI solution (1 µL/mL) were employed for the staining, according to the protocol previously described in [10]. All samples were then investigated by a fluorescence microscope (Axio Scope A1, Zeiss, Jena, Germany).

2.7.3. Scratch Test

In vitro scratch test is based on the observation of a gap (i.e., the “scratch”) on a confluent monolayer of cells until the contact between cells is established again [62,63]. Images are taken immediately after the creation of the scratch and at regular intervals to investigate cell migration. At the end, images collected at each time point are compared to ascertain the rate of cells migration.
Mouse embryonic fibroblast cells (NIH 3T3) were seeded in 24-multi-well and incubated at 37 °C to allow the creation of a confluent monolayer. Cells were cultured in Dulbecco’s modified Eagle’s medium (DMEM) containing L-glutamine 2 mM, 1 mM sodium pyruvate, 10 mg/mL penicillin/streptomycin, and 10% (v/v) FBS (fetal bovine serum, Invitrogen, Thermo Fisher Scientific, Rodano, Italy). The type of cells and the size of the multi-well influence the number of cells required to create a confluent monolayer. To produce the scratch, by scraping the confluent monolayer of cells, a 200-μL pipet tip was used. Then, cells were immediately washed with 500 µL of PBS and in each well 500 μL of medium (DMEM) and 500 μL of the eluates of electrospun fibers (PCL, PCL_45S5, PCL_BG10 and PCL_BGZn) were added. Eluates were prepared by soaking samples (3 cm2/mL surface of sample/liquid volume) in DMEM and incubated at 37 °C for 72 h. Then, samples’ eluates were filtered before their usage with cells. To acquire the same area of the scratch during image acquisition, a visible mark was created. Images were taken immediately after the creation of the scratch on confluent monolayer (i.e., time 0) before incubating the multi-well at 37 °C until the next time points. Images were acquired at three time points: at time 0, time 1 (24 h after the scratch), and time 2 (48 h after the scratch). For each image, ImageJ (NIH, Bethesda, MD, USA) [54] was used to measure the area of the gap between the edges of the scratch. The cell migration rate was calculated as follows according to [64]:
C e l l   m i g r a t i o n   r a t e   ( % ) = A 0 A 1 A 0 × 100
where A0 is the area of the gap at time 0 and the A1 is the area of the gap at time X where in this case X is either 24 h or 48 h.

2.7.4. Statistical Analysis

ANOVA one-way analysis was performed to evaluate the results of cell viability and mechanical testing. A p-value < 0.05 was considered statistically significant.

3. Results and Discussion

3.1. Microstructural Characterization

SEM analysis of PCL, PCL_45S5, PCL_BG10, and PCL_BGZn (Figure 2a–d) showed a homogeneous fiber diameter distribution. Some bioactive glass particles embedded in PCL matrix are observed in the insets in Figure 2b–d. The average fiber diameter was calculated by ImageJ [54] to verify the influence of bioactive glass particles on fiber diameter. The average fiber diameter was 1.3 ± 0.4 μm for neat PCL; while 1.0 ± 0.7 μm, 1.2 ± 0.6 μm, and 1.1 ± 0.7 μm were the average values for PCL_45S5, PCL_BG10, and PCL_BGZn fibers, respectively. These results demonstrate that bioactive glass particles did not influence the morphology of fibers in terms of average fiber diameter.

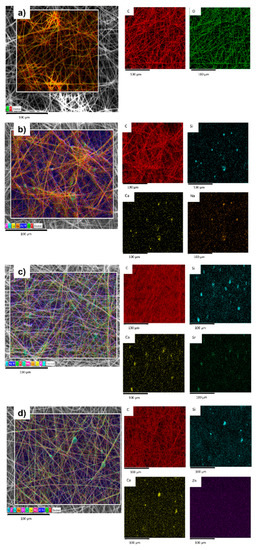

Furthermore, to verify the presence of bioactive glass particles in the fibers, the composite electrospun mats were characterized by EDX (Figure 3b–d). Although EDX analysis is not a quantitative analysis, elements present in bioactive glasses such as Si, Ca, Na were detected confirming the incorporation of bioactive glass particles in PCL matrix. C element from the PCL matrix was also detected.

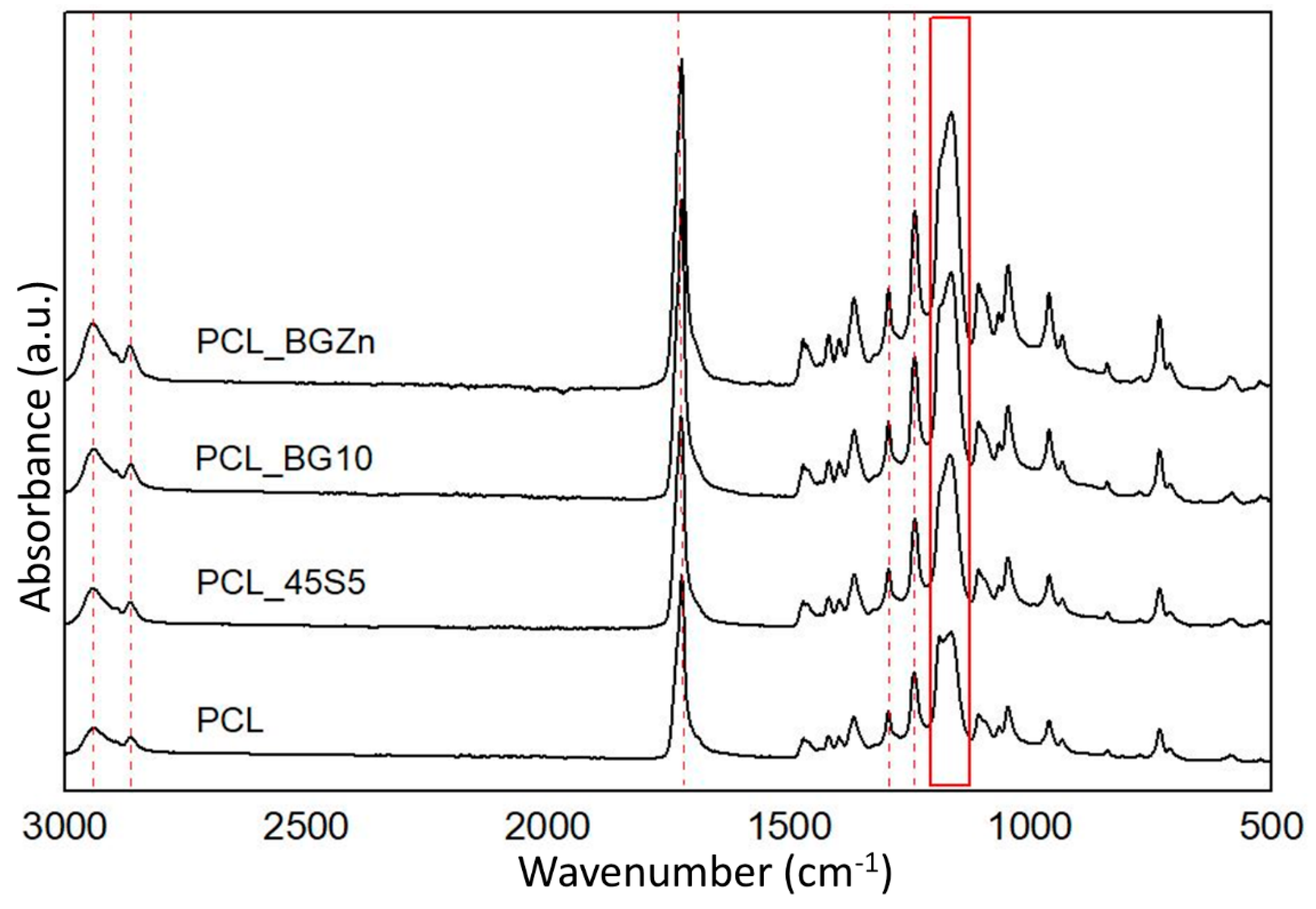

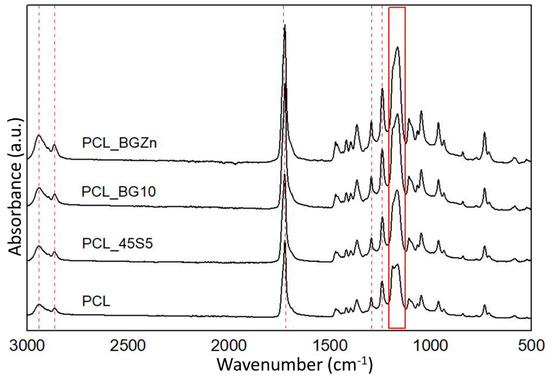

FTIR analysis was performed to detect the characteristic bands of bioactive glass particles embedded in PCL fibers. Figure 4 showed the characteristic bands of PCL: (i) two bands at 2942 and 2867 cm−1 ascribed to CH2 asymmetric and symmetric stretching [65]; (ii) a band at 1722 cm−1 correlated to carbonyl stretching [66]; (iii) a band at 1294 cm−1 related to the C-O and C-C stretching [67]; and (iv) two bands at 1241 and 1164 cm−1 ascribed to the asymmetric and symmetric C-O-C stretching, respectively [61,65]. Unfortunately, the bands ascribed to stretching and bending of functional groups (i.e., Si-O-Si) of bioactive glass particles were not detected, since they overlap with the above mentioned bands. Such overlapping is highlighted in Figure 4; the different shape of the characteristic peak at 1164 cm−1 of PCL in PCL/bioactive glass composites can be ascribed to the overlapping of Si-O-Si group of bioactive glasses [68]. This could also be related to the low amount of bioactive glass particles added to PCL starting solution (5%wt with respect to PCL).

3.2. Mechanical Testing, Thermal Characterization, and Contact Angle Measurement

Electrospun mats fixed in a paper frame were mounted in the tensile tester and investigated to determine the Young’s modulus and strain at break. A significantly lower value (p < 0.05) of tensile strain (%) could be observed for PCL_45S5, PCL_BG10, and PCL_BGZn compared to the value of PCL electrospun mats (Table 3).
In the same table the Young’s modulus is reported. Generally, the decrease of the value of tensile strain (%) could be correlated with the incorporation of bioactive glass particles in PCL matrix. Bioactive glass particles weaken the entire composite electrospun mat in terms of displacement because the particles act as rigid inclusion inside PCL matrix, as already reported in [9].
Furthermore, the contact angle was measured as it provides unique insight into how the surface will interact with the external world. A drop of liquid on a solid surface represents a powerful but simple method to investigate the properties of the surface [69]. A change in the contact angle of PCL electrospun mats and composite (PCL_45S5, PCL_BG10, and PCL_BGZn) electrospun mats could be an indicator of successful surface modification. However, contact angle also relies on both the porosity and roughness of the surface of electrospun mats. Generally, when a drop of water is placed on electrospun fibers only a fraction of water encounters the fibers, decreasing the liquid–solid interactions and increasing the liquid–air interactions. This leads to higher contact angles compared to that measured for smooth surfaces, like films [70]. Moreover, when measuring contact angles of electrospun mats it is difficult to estimate the circular part of the drop profile with the surface when it is irregular. However, as expected, the results showed hydrophobic behavior for all samples (Table 3). The bioactive glass particles incorporated in the PCL matrix seems not to affect the hydrophobic behavior of PCL electrospun mats because the values of contact angle were comparable for all samples.

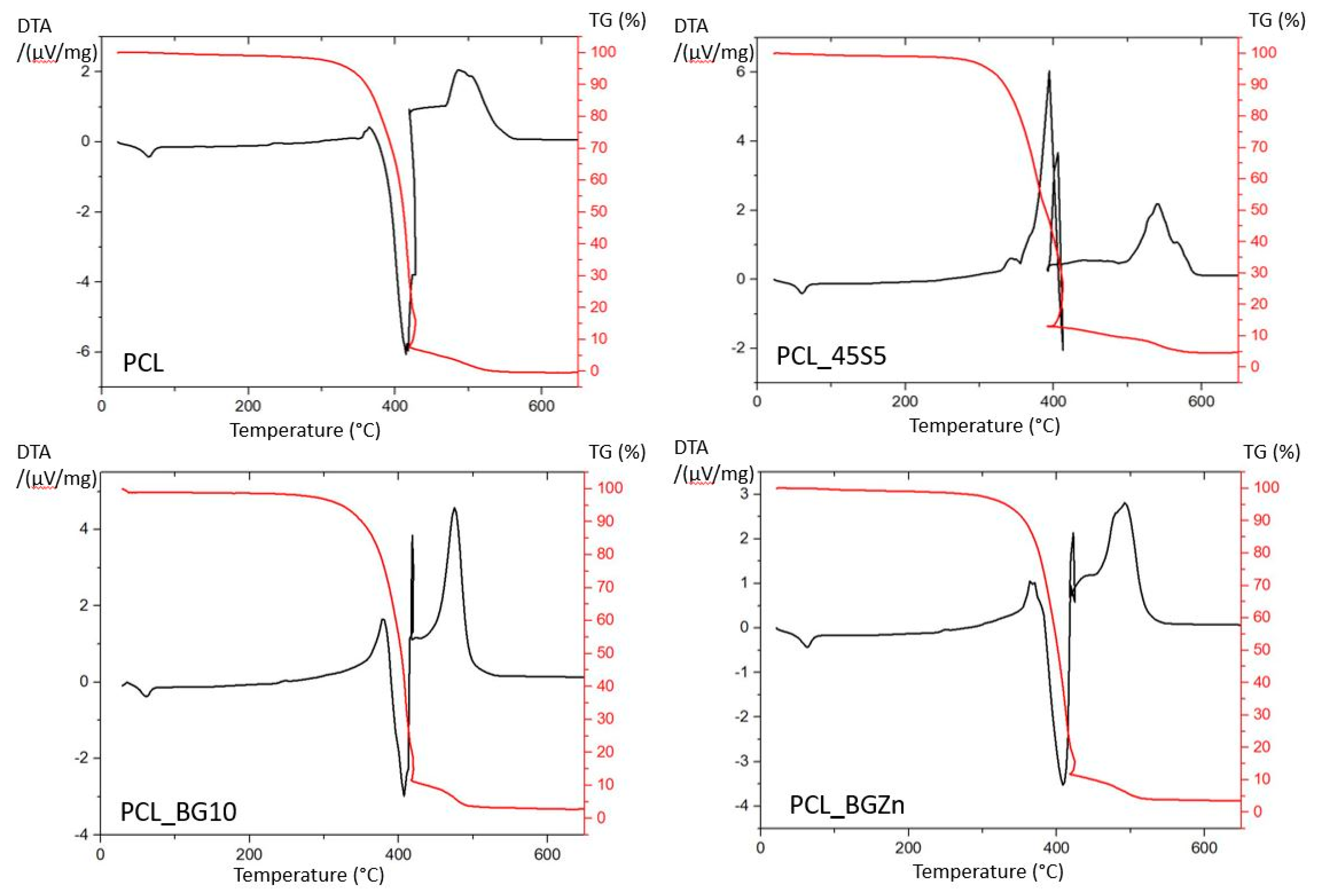

PCL decomposition was investigated by TG/DTA analyses (Figure 5). Generally, PCL shows single stage thermal degradation [71]. PCL decomposed completely in the region 350 °C to 420 °C (Figure 5) where a significant weight loss is recorded [72]. Each exothermic peak at around 450 °C represent the Tmax (i.e., the maximum degradation rate) [67]. The residual weight in PCL_45S5, PCL_BG10, and PCL_BGZn was due to the presence of bioactive glass particles embedded in the PCL fibers. For PCL_45S5 the amount was similar to the initial amount added in the polymeric solution, while for PCL_BG10 and PCL_BGZn it was less than 5% wt (the residual weight was 2.25 wt% of BGMS10 and 3.33 wt% of BGMS_2Zn). In fact, the mass loss after heating was 95.25% for PCL_45S5, 97.75% for PCL_BG10, and 96.67% for PCL_BGZn.

3.3. In Vitro Bioactivity Investigation

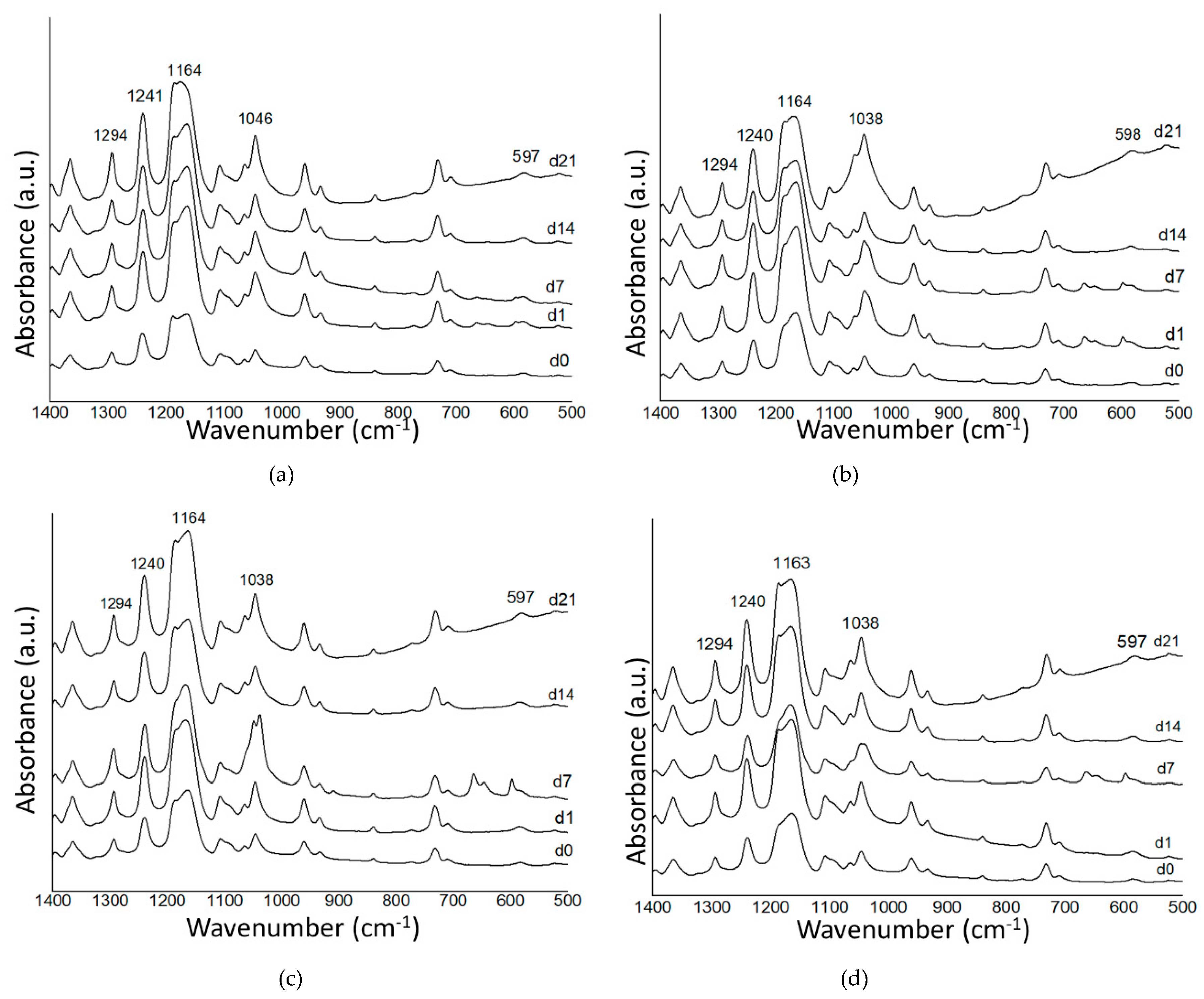

SEM and EDX analyses 7, 14, and 21 days after immersion in SBF on PCL_45S5, PCL_BG10, and PCL_BGZn were performed. In case of wound dressing applications, mineralization is not of pivotal importance as it is for biomaterials used mainly for bone regeneration. However, its role and relevance in wound-healing applications is still a matter of discussion [73]. For this reason, considering that in vitro bioactivity tests have been commonly performed also on films or hydrogels developed for wound-healing applications [74,75], the same test was performed on the developed PCL composite fibers. FTIR spectra after soaking in SBF solution showed the bands that correspond to HCA layer. At around 600 cm−1 the P-O bending vibration (Figure 6a–d) was detected [76]. PCL_45S5 spectra (Figure 6b) showed a broad band at around 1046 cm−1 which could be the overlap of PCL peak (1046 cm−1) and the P-O asymmetric stretching vibration at around 1030 cm−1 correlated to the presence of HCA on electrospun mats [77]. The P-O asymmetric stretching vibration at around 1030 cm−1 in addition to P–O bending vibration at around 600 cm−1 was detected for PCL_45S5 1 day after immersion in SBF. While P-O asymmetric stretching vibration was detected 7 days after immersion for PCL_BG10 and PCL_BGZn samples (Figure 6c,d). Furthermore, FTIR spectra at 14 days and 21 days after immersion in SBF, showed P-O bending vibration but it was difficult to detect the broader peaks at around 1040 cm−1. The lower bioactivity of PCL_BGZn could be ascribed to the lower bioactivity of BGMS_2Zn bioactive glass compared to 45S5. The presence of a relatively low amount of HCA indicates a slow ion exchange with the surrounding solution. It is reported that Zn ions hinder ions involved in the exchange with the surrounding environment delaying HCA precipitation [78]. ZnO could behave both as a network modifier and as an intermediate oxide. It is supposed that ZnO behaves as a network modifier because it replaces CaO [79], forming tetrahedral species (ZnO42−) which required Ca ions for charge balancing. This behavior decreases glass bioactivity by reducing glass dissolution [80] because cations from silica network are removed. Additionally, by increasing the amount of Zn ions, a decrease in the releasing of alkaline earth ions (i.e., Ca2+, Mg2+) and alkali ions (i.e., Na+, K+) occurs [81,82,83]. This behavior is verified by the low oscillation of pH during soaking time which leads to a low interchange between alkaline, alkali ions, and H3O+ ions of the surrounding solution, as outlined in previous studies [81,82,83]. Therefore, Zn ions decrease the degradation of bioactive glass and consequently the formation of HCA on PCL_BGZn was delayed.

3.4. Biological Investigation

3.4.1. WST–8 Assay

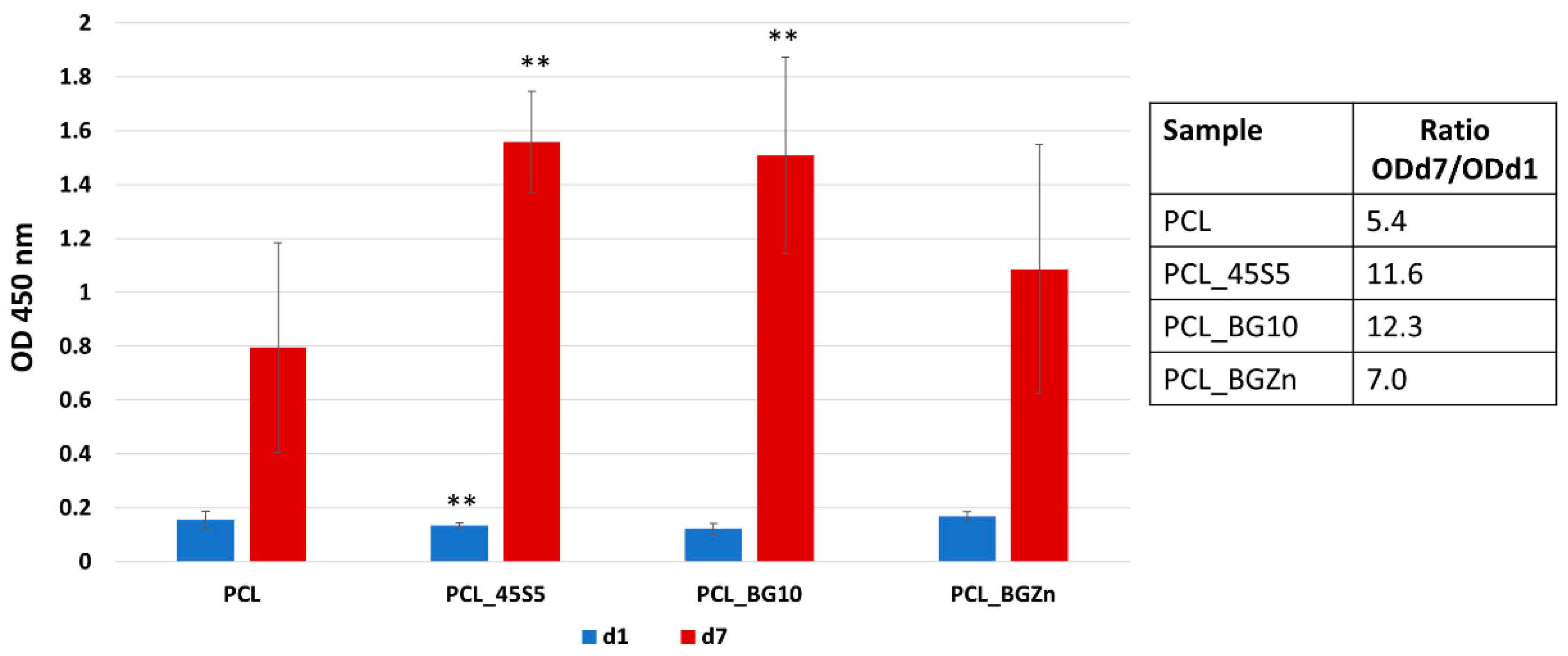

WST–8 results (Figure 7) show that 1 day after seeding PCL_45S5 has lower OD values compared to neat PCL electrospun mats used as control; on the other hand, PCL_BGZn and PCL_BG10 showed comparable OD values.
7 days after seeding, PCL_45S5 and PCL_BG10 showed higher OD values compared to PCL, while PCL_BGZn had a comparable value (Figure 7). To highlight the effect of the presence of BGs on cell viability the ratio between the OD at 7 days (ODd7) and the OD measured after 1 day (ODd1) from the seeding was calculated for all samples and is shown in Figure 7. It is relevant to notice that this value is higher for all composites mats with respect to neat PCL while PCL_BG10 shows the highest value. This behavior could be due to the ions released by bioactive glass particles. In fact, it is known that bioactive glasses influence cell proliferation with an increase in the level of differentiation markers such as ALP, osteocalcin, and osteopontin and they improve osteogenesis by controlling genes involved in the cell cycle toward mature osteoblasts [84]. Additionally, BGs release ions such as Si, Ca, Na, P that can activate the osteogenesis related signaling pathway [85]. Therefore, the incorporation of bioactive glass particles enhances cell viability 7 days after seeding compared to PCL electrospun fiber mats. Additionally, 45S5 and BGMS10 seem to have higher effect than BGMS_2Zn. Although PCL_BGZn showed OD values higher than those of PCL, it showed lower cell viability compared to PCL_45S5 and PCL_BG10 samples. This behavior is probably due to Zn ions released that could become toxic in an in vitro environment characterized by the absence of fluid exchange as is the case inside the human body [86,87].
The morphology of cells was investigated by means of fluorescence microscopy 7 days after seeding. The fluorescence staining corroborates the results obtained by WST–8 assay. All samples (Figure 8) showed cells in their characteristic shape spread on electrospun mats.
It is possible to observe that the cells seeded on PCL_BG10 and PCL_BGZn showed a more elongated morphology with respect to neat PCL and PCL_45S5, suggesting that the presence of Mg and Sr could affect cell adhesion on the fibers [88,89,90].

3.4.2. Scratch Test

As mentioned, the in vitro scratch test is a cheap, easy, and well-developed method to measure cell migration in vitro [62,63]. The in vitro scratch test is useful to evaluate the migration of cells after the creation of a gap on confluent monolayer. Such test mimics cell migration in vivo and it is advantageous to assess through cell–cell interaction and cell interaction with ECM the regulation of cell migration [91]. Additionally, the scratch test uses inexpensive and common supplies found in most laboratories of cell culturing, thus, it is the simplest method to analyze the migration rate of cells in vitro.

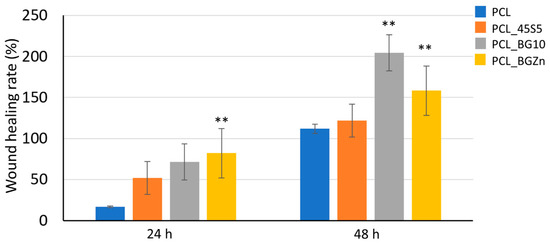

To assess the effect PCL and PCL/bioactive glass composite electrospun mats on NIH 3T3 cells, the closure of the gap in monolayers of mouse embryonic fibroblast was investigated. The scratches in monolayers of cells were created by the tip of a 200-μL pipette and the closure of such scratches was measured at 24 h and 48 h. At 24 h, a significant closure in terms of wound-healing rate (%) (measured as cell migration rate) was registered for PCL_BG10 and PCL_BGZn, compared to neat PCL and PCL_45S5.

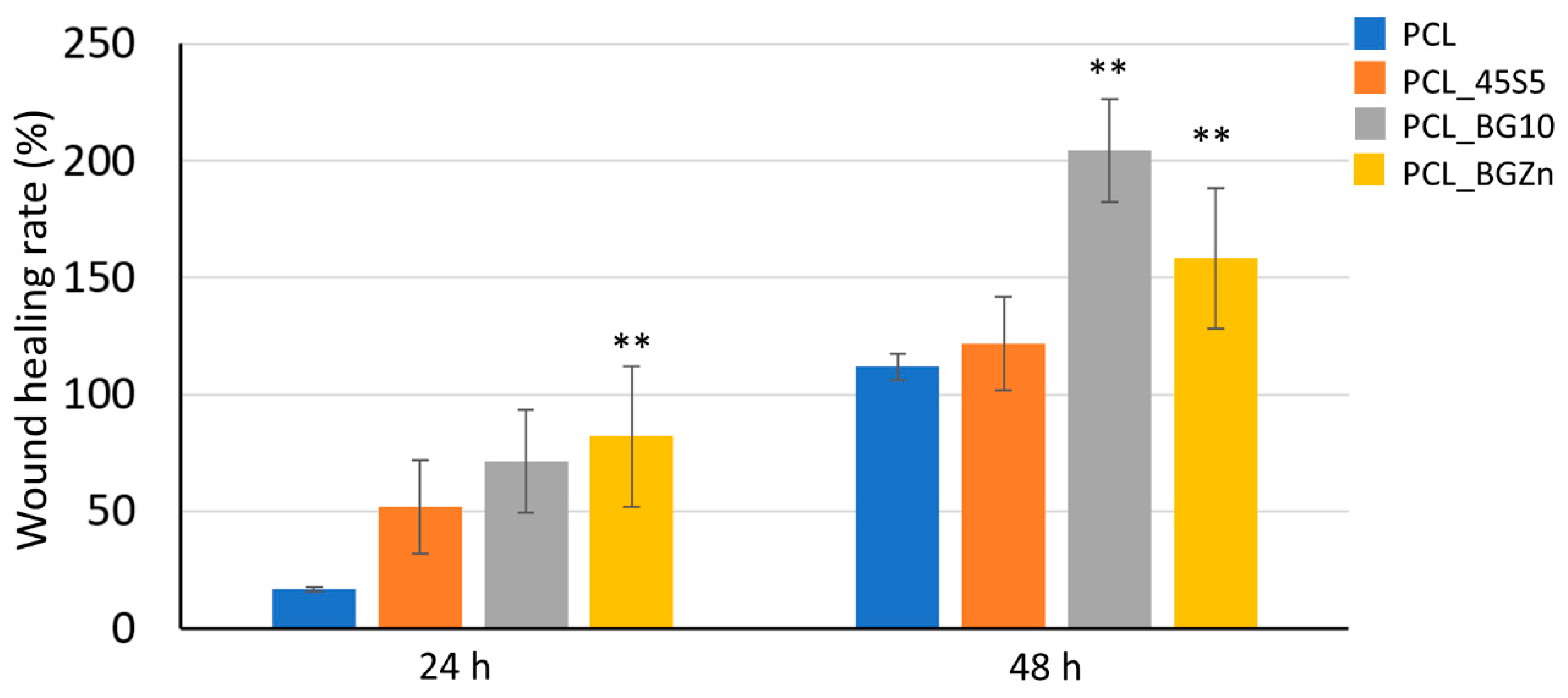

At 48 h, the cell migration rate (%) of PCL/bioactive glass composite electrospun mats was higher compared to that measured for neat PCL (Figure 9). 45S5, BGMS10, and BGMS_2Zn influenced positively the closure of the scratch on the confluent mouse embryotic fibroblast monolayer. The reason could be ascribed to ions released by different BGs to stimulate specific signaling pathways promoting cellular response [92]. For instance, 45S5 release Ca and Si ions that contribute to the formation of HCA and are involved in specific signaling pathways [93,94]. It has been reported that Ca ions are involved in the regulation of Golgi, mitochondrial shuttling, and endosomal and vesicular fusion events etc., [95]; thus, Ca ions influence every aspect of cell life and death [96]. Additionally, Si ions showed a strong stimulatory effect on ALP activity [31]. Furthermore, Sr ions in BGMS10 and BGMS_2Zn have been shown to significantly enhance the expression of ang-1 and VEGF compared to Si ions [31]. Additionally, PCL_BGZn composite mats contain Zn ions that have been shown to stimulate protein synthesis and to enhance ALP activity as presented in [40]. Free intracellular Zn level influences signaling pathway and stability [97] by altering the affinity between ligand binding to receptor [98]. The intracellular zinc has shown to activate MAPK/ERK and Akt pathways which improve cell proliferation and migration [99]. Furthermore, the release of Zn into the cytoplasm seems to be ROS-induced. Key immune functions are activated by both the increase of ROS level and the Zn signal [100]. Therefore, the high wound-healing rate (%) of PCL/bioactive glass composite electrospun mats (Figure 9) could be attributed to the release of ions which have been shown to improve cell adhesion and proliferation by stimulating specific cellular responses.

4. Conclusions

PCL electrospun mats and composite electrospun mats suitable for wound-healing applications were successfully fabricated by electrospinning. Bioactive glasses with different compositions were embedded into a PCL matrix to enhance the cell response to the fiber mats. In fact, it is well-known that bioactive glass particles improve bioactivity, cell adhesion, and proliferation in composite, showing their suitability for applications in soft tissue engineering, as wound healing. Our results showed that both bioactivity and cell viability on composite fibers were higher compared to those of neat PCL electrospun mats, even though the amount of added bioactive glass was relatively low (5% wt with respect to PCL). In particular, the presence of BG does not inhibit cell viability, which was higher (for 45S5 and BGMS10) or comparable (for BGMS_2Zn) with respect to neat PCL fibers. Furthermore, PCL/bioactive glass electrospun mats showed higher wound-healing rate (measured as cell migration rate) compared to neat PCL 48 h after the scratch in vitro. The incorporation of BGs and, in particular, the incorporation of BGMS10 achieved enhanced cell viability preserving the mechanical properties. Further work will be focused on the incorporation of a higher amount of bioactive glass particles and on investigating possible antimicrobial effects due to Zn ions.

Author Contributions

Investigation, writing—original draft preparation, R.S.; conceptualization, investigation, writing—review and editing, supervision, L.L.; conceptualization, writing—review and editing, supervision, V.C. and A.R.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Jiang, T.; Carbone, E.J.; Lo, K.W.-H.; Laurencin, C.T. Electrospinning of polymer nanofibers for tissue regeneration. Prog. Polym. Sci. 2015, 46, 1–24. [Google Scholar] [CrossRef][Green Version]
  2. Loh, Q.L.; Choong, C. Three-dimensional scaffolds for tissue engineering applications: Role of porosity and pore size. Tissue Eng. Part B Rev. 2013, 19, 485–502. [Google Scholar] [CrossRef][Green Version]
  3. Rezwan, K.; Chen, Q.; Blaker, J.J.; Boccaccini, A.R. Biodegradable and bioactive porous polymer/inorganic composite scaffolds for bone tissue engineering. Biomaterials 2006, 27, 3413–3431. [Google Scholar] [CrossRef] [PubMed]
  4. Sun, B.; Long, Y.-Z.; Zhang, H.; Li, M.; Duvail, J.; Jiang, X.; Yin, H. Advances in three-dimensional nanofibrous macrostructures via electrospinning. Prog. Polym. Sci. 2014, 39, 862–890. [Google Scholar] [CrossRef]
  5. Shenoy, S.L.; Bates, W.D.; Frisch, H.L.; Wnek, G.E. Role of chain entanglements on fiber formation during electrospinning of polymer solutions: Good solvent, non-specific polymer-polymer interaction limit. Polymer 2005, 46, 3372–3384. [Google Scholar] [CrossRef]
  6. Jarusuwannapoom, T.; Hongrojjanawiwat, W.; Jitjaicham, S.; Wannatong, L.; Nithitanakul, M.; Pattamaprom, C.; Koombhongse, P.; Rangkupan, R.; Supaphol, P. Effect of solvents on electro-spinnability of polystyrene solutions and morphological appearance of resulting electrospun polystyrene fibers. Eur. Polym. J. 2005, 41, 409–421. [Google Scholar] [CrossRef]
  7. Van Der Schueren, L.; De Schoenmaker, B.; KalaogluÖzlem, I.; De Clerck, K. An alternative solvent system for the steady state electrospinning of polycaprolactone. Eur. Polym. J. 2011, 47, 1256–1263. [Google Scholar] [CrossRef][Green Version]
  8. Liverani, L.; Lacina, J.; Roether, J.A.; Boccardi, E.; Killian, M.S.; Schmuki, P.; Schubert, D.W.; Boccaccini, A.R. Incorporation of bioactive glass nanoparticles in electrospun PCL/chitosan fibers by using benign solvents. Bioact. Mater. 2018, 3, 55–63. [Google Scholar] [CrossRef]
  9. Liverani, L.; Boccaccini, A. Versatile Production of Poly(Epsilon-Caprolactone) Fibers by Electrospinning Using Benign Solvents. Nanomaterials 2016, 6, 75. [Google Scholar] [CrossRef]
  10. Liverani, L.; Killian, M.S.; Boccaccini, A.R. Fibronectin Functionalized Electrospun Fibers by Using Benign Solvents: Best Way to Achieve Effective Functionalization. Front. Bioeng. Biotechnol. 2019, 7, 1–12. Available online: https://www.frontiersin.org/article/10.3389/fbioe.2019.00068/full (accessed on 4 August 2020). [CrossRef][Green Version]
  11. Dziadek, M.; Pawlik, J.; Menaszek, E.; Ewa, S.-Z.; Cholewa-Kowalska, K. Effect of the preparation methods on architecture, crystallinity, hydrolytic degradation, bioactivity, and biocompatibility of PCL/bioglass composite scaffolds. J. Biomed. Mater. Res. Part B Appl. Biomater. 2015, 103, 1580–1593. [Google Scholar] [CrossRef] [PubMed]
  12. Da Silva, G.R.; Lima, T.H.; Oréfice, R.L.; Silva-Cunha, A.; Silva-Cunha, A.; Zhao, M.; Behar-Cohen, F. In vitro and in vivo ocular biocompatibility of electrospun poly(ε-caprolactone) nanofibers. Eur. J. Pharm. Sci. 2015, 73, 9–19. [Google Scholar] [CrossRef] [PubMed][Green Version]
  13. Lee, K.; Kim, H.Y.; Khil, M.; Ra, Y.; Lee, D. Characterization of nano-structured poly(ε-caprolactone) nonwoven mats via electrospinning. Polymer 2003, 44, 1287–1294. [Google Scholar] [CrossRef]
  14. Rahaman, M.N.; Day, D.E.; Bal, B.S.; Fu, Q.; Jung, S.B.; Bonewald, L.F.; Tomsia, A.P. Bioactive glass in tissue engineering. Acta Biomater. 2011, 7, 2355–2373. [Google Scholar] [CrossRef] [PubMed][Green Version]
  15. Jones, J.R.; Brauer, D.S.; Hupa, L.; Greenspan, D.C. Bioglass and Bioactive Glasses and Their Impact on Healthcare. Int. J. Appl. Glas. Sci. 2016, 7, 423–434. [Google Scholar] [CrossRef]
  16. Hench, L.L.; Splinter, R.J.; Allen, W.C.; Greenlee, T.K. Bonding Mechanisms at the Interface of Ceramic Prosthetic Materials. J. Biomed. Mater. Res. 1971, 2, 117–141. [Google Scholar] [CrossRef]
  17. Bellucci, D.; Cannillo, V. A novel bioactive glass containing strontium and magnesium with ultra-high crystallization temperature. Mater. Lett. 2018, 213, 67–70. [Google Scholar] [CrossRef]
  18. Bellucci, D.; Salvatori, R.; Anesi, A.; Chiarini, L.; Cannillo, V. SBF assays, direct and indirect cell culture tests to evaluate the biological performance of bioglasses and bioglass-based composites: Three paradigmatic cases. Mater. Sci. Eng. C 2019, 96, 757–764. [Google Scholar] [CrossRef]
  19. Bellucci, D.; Salvatori, R.; Giannatiempo, J.; Anesi, A.; Bortolini, S.; Cannillo, V. A New Bioactive Glass / Collagen Hybrid Composite for Applications in Dentistry. Materials 2019, 12, 2079. [Google Scholar] [CrossRef][Green Version]
  20. Bellucci, D.; Veronesi, E.; Strusi, V.; Petrachi, T.; Murgia, A.; Mastrolia, I.; Dominici, M.; Cannillo, V. Human Mesenchymal Stem Cell Combined with a New Strontium-Enriched Bioactive Glass: An ex-vivo Model for Bone Regeneration. Materials 2019, 12, 3633. [Google Scholar] [CrossRef][Green Version]
  21. Bellucci, D.; Veronesi, E.; Dominici, M.; Cannillo, V. On the in vitro biocompatibility testing of bioactive glasses. Materials 2020, 13, 1816. [Google Scholar] [CrossRef] [PubMed][Green Version]
  22. Elsayed, H.; Romero, A.R.; Bellucci, D.; Cannillo, V.; Bernardo, E. Advanced open-celled structures from low-temperature sintering of a crystallization-resistant bioactive glass. Materials 2019, 12, 3653. [Google Scholar] [CrossRef] [PubMed][Green Version]
  23. Sergi, R.; Bellucci, D.; Salvatori, R.; Cannillo, V. Chitosan based bioactive glass gauze: Microstructural properties, in vitro bioactivity and biological tests. Materials 2020, 13, 2819. [Google Scholar] [CrossRef] [PubMed]
  24. Sergi, R.; Bellucci, D.; Salvatori, R.; Maisetta, G.; Batoni, G.; Cannillo, V. Zinc containing bioactive glasses with ultra-high crystallization temperature, good biological performance and antibacterial effects. Mater. Sci. Eng. C 2019, 104, 109910. [Google Scholar] [CrossRef]
  25. Xynos, I.D.; Edgar, A.J.; Buttery, L.D.; Hench, L.L.; Polak, J.M. Ionic products of bioactive glass dissolution increase proliferation of human osteoblasts and induce insulin-like growth factor II mRNA expression and protein synthesis. Biochem. Biophys. Res. Commun. 2000, 276, 461–465. [Google Scholar] [CrossRef] [PubMed]
  26. O’Neill, E.; Awale, G.; Daneshmandi, L.; Umerah, O.; Lo, K.W.-H. The roles of ions on bone regeneration. Drug Discov. Today 2018, 23, 879–890. [Google Scholar] [CrossRef]
  27. Valerio, P.; Pereira, M.M.; Goes, A.M.; Leite, M. The effect of ionic products from bioactive glass dissolution on osteoblast proliferation and collagen production. Biomaterials 2004, 25, 2941–2948. [Google Scholar] [CrossRef]
  28. Baino, F.; Hamzehlou, S.; Kargozar, S. Bioactive Glasses: Where Are We and Where Are We Going? J. Funct. Biomater. 2018, 9, 25. [Google Scholar] [CrossRef][Green Version]
  29. Yang, F.; Yang, D.; Tu, J.; Zheng, Q.; Cai, L.; Wang, L. Strontium enhances osteogenic differentiation of mesenchymal stem cells and in vivo bone formation by activating Wnt/catenin signaling. Stem Cells 2011, 29, 981–991. [Google Scholar] [CrossRef]
  30. Bonnelye, E.; Chabadel, A.; Saltel, F.; Jurdic, P. Dual effect of strontium ranelate: Stimulation of osteoblast differentiation and inhibition of osteoclast formation and resorption in vitro. Bone 2008, 42, 129–138. [Google Scholar] [CrossRef]
  31. Mao, L.; Xia, L.; Chang, J.; Liu, J.; Jiang, L.; Wu, C.; Fang, B. The synergistic effects of Sr and Si bioactive ions on osteogenesis, osteoclastogenesis and angiogenesis for osteoporotic bone regeneration. Acta Biomater. 2017, 61, 217–232. [Google Scholar] [CrossRef] [PubMed]
  32. Weng, L.; Chandorkar, Y.; Teusink, M.J.; Shuler, F.D.; Li, X.; Xie, J. Binary Doping of Strontium and Copper Enhancing Osteogenesis and Angiogenesis of Bioactive Glass Nanofibers while Suppressing Osteoclast Activity. ACS Appl. Mater. Interfaces 2017, 9, 24484–24496. [Google Scholar] [CrossRef] [PubMed]
  33. Zhang, Y.; Cui, X.; Zhao, S.; Wang, H.; Rahaman, M.N.; Liu, Z.; Huang, W.; Zhang, C. Evaluation of injectable strontium-containing borate bioactive glass cement with enhanced osteogenic capacity in a critical-sized rabbit femoral condyle defect model. ACS Appl. Mater. Interfaces 2015, 7, 2393–2403. [Google Scholar] [CrossRef] [PubMed]
  34. Gorustovich, A.; Roether, J.A.; Boccaccini, A.R. Effect of Bioactive Glasses on Angiogenesis: A Review of In Vitro and In Vivo Evidences. Tissue Eng. Part B Rev. 2010, 16, 199–207. [Google Scholar] [CrossRef] [PubMed]
  35. Yu, H.; Peng, J.; Xu, Y.; Chang, J.; Li, H. Bioglass Activated Skin Tissue Engineering Constructs for Wound Healing. ACS Appl. Mater. Interfaces 2016, 8, 703–715. [Google Scholar] [CrossRef] [PubMed]
  36. Baino, F.; Novajra, G.; Miguez-Pacheco, V.; Boccaccini, A.R.; Vitale-Brovarone, C. Bioactive glasses: Special applications outside the skeletal system. J. Non Cryst. Solids 2016, 432, 15–30. [Google Scholar] [CrossRef][Green Version]
  37. Reginster, J.Y.; Badurski, J.; Bellamy, N.; Bensen, W.; Chapurlat, R.; Chevalier, X.; Christiansen, C.; Genant, H.; Navarro, F.; Nasonov, E.; et al. Efficacy and safety of strontium ranelate in the treatment of knee osteoarthritis: Results of a double-blind, randomised placebo-controlled trial. Ann. Rheum. Dis. 2013, 72, 179–186. [Google Scholar] [CrossRef]
  38. Dasgupta, S.; Banerjee, S.S.; Bandyopadhyay, A.; Bose, S. Zn-and Mg-Doped Hydroxyapatite Nanoparticles for Controlled Release of Protein. Langmuir 2010, 26, 4958–4964. [Google Scholar] [CrossRef][Green Version]
  39. Lijuan, X.; Liuyun, J.; Lixin, J.; Chengdong, X. Synthesis of Mg-substituted hydroxyapatite nanopowders: Effect of two different magnesium sources. Mater. Lett. 2013, 106, 246–249. [Google Scholar] [CrossRef]
  40. Cacciotti, I. Bivalent cationic ions doped bioactive glasses: The influence of magnesium, zinc, strontium and copper on the physical and biological properties. J. Mater. Sci. 2017, 52, 8812–8831. [Google Scholar] [CrossRef]
  41. MacDonald, R. The role of Zinc in Growth and Cell Proliferation. J. Nutr. 2000, 130, 1488–1492. Available online: http://jn.nutrition.org/content/130/5/1447S.long (accessed on 4 August 2020). [CrossRef] [PubMed][Green Version]
  42. Maret, W. Zinc in Cellular Regulation: The Nature and Significance of “Zinc Signals”. Int. J. Mol. Sci. 2017, 18, 2285. [Google Scholar] [CrossRef] [PubMed][Green Version]
  43. Huang, M.; Hill, R.G.; Rawlinson, S. Zinc bioglasses regulate mineralization in human dental pulp stem cells. Dent. Mater. 2017, 33, 543–552. [Google Scholar] [CrossRef] [PubMed]
  44. Pasquet, J.; Chevalier, Y.; Couval, E.; Bouvier, D.; Noizet, G.; Morlière, C.; Bolzinger, M.-A. Antimicrobial activity of zinc oxide particles on five micro-organisms of the Challenge Tests related to their physicochemical properties. Int. J. Pharm. 2014, 460, 92–100. [Google Scholar] [CrossRef] [PubMed]
  45. Kamitakahara, M.; Ohtsuki, C.; Inada, H.; Tanihara, M.; Miyazaki, T. Effect of ZnO addition on bioactive CaO-SiO2-P2O5-CaF2glass-ceramics containing apatite and wollastonite. Acta Biomater. 2006, 2, 467–471. [Google Scholar] [CrossRef]
  46. Pasquet, J.; Chevalier, Y.; Couval, E.; Bouvier, D.; Bolzinger, M.-A. Zinc oxide as a new antimicrobial preservative of topical products: Interactions with common formulation ingredients. Int. J. Pharm. 2015, 479, 88–95. [Google Scholar] [CrossRef]
  47. Miguez-Pacheco, V.; Gorustovich, A.; Roether, J.A.; Boccaccini, A.R. Bioactive glasses for soft tissue engineering applications. In Bioactive Glasses: Fundamentals, Technology and Applications Royal Society of Chemistry; Royal Society of Chemistry: Cambridge, UK, 2017; pp. 336–361. [Google Scholar]
  48. Saghiri, M.A.; Asatourian, A.; Orangi, J.; Sorenson, C.M.; Sheibani, N. Functional role of inorganic trace elements in angiogenesis—Part II: Cr, Si, Zn, Cu, and S. Crit. Rev. Oncol. Hematol. 2015, 96, 143–155. [Google Scholar] [CrossRef]
  49. Kargozar, S.; Baino, F.; Hamzehlou, S.; Hill, R.G.; Mozafari, M. Bioactive Glasses: Sprouting Angiogenesis in Tissue Engineering. Trends Biotechnol. 2018, 36, 430–444. [Google Scholar] [CrossRef]
  50. Gaharwar, A.; Nikkhah, M.; Sant, S.; Khademhosseini, A. Anisotropic Poly (glycerol sebacate)-Poly (ε-caprolactone) Electrospun Fibers Promote Endothelial Cell Guidance. Biofabrication 2016, 7, 1–19. [Google Scholar]
  51. Bellucci, D.; Cannillo, V.; Ciardelli, G.; Gentile, P.; Sola, A. Potassium based bioactive glass for bone tissue engineering. Ceram. Int. 2010, 36, 2449–2453. [Google Scholar] [CrossRef]
  52. Bellucci, D.; Cannillo, V.; Sola, A. A new potassium-based bioactive glass: Sintering behaviour and possible applications for bioceramic scaffolds. Ceram. Int. 2011, 37, 145–157. [Google Scholar] [CrossRef]
  53. Bellucci, D.; Cannillo, V.; Sola, A. Calcium and potassium addition to facilitate the sintering of bioactive glasses. Mater. Lett. 2011, 65, 1825–1827. [Google Scholar] [CrossRef]
  54. Caroline, A.; Schneider Wayne, S. Rasband and KWE. Image J. Fundam. Digit. Imaging Med. 2010, 9, 185–188. [Google Scholar]
  55. Shahin-Shamsabadi, A.; Hashemi, A.; Tahriri, M.; Bastami, F.; Salehi, M.; Abbas, F.M. Mechanical, material, and biological study of a PCL/bioactive glass bone scaffold: Importance of viscoelasticity. Mater. Sci. Eng. C 2018, 90, 280–288. [Google Scholar] [CrossRef]
  56. Maҫon, A.L.B.; Kim, T.B.; Valliant, E.M.; Goetschius, K.; Brow, R.K.; Day, D.E. A unified in vitro evaluation for apatite- forming ability of bioactive glasses and their variants of bioactive glasses and their variants. J. Mater. Sci. Mater. Med. 2015, 26, 115. Available online: https://spiral.imperial.ac.uk/bitstream/10044/1/26039/2/TC04_RR_Paper_ for spiral (accessed on 4 August 2020).
  57. Kokubo, T.; Takadama, H. How useful is SBF in predicting in vivo bone bioactivity? Biomaterials 2006, 27, 2907–2915. [Google Scholar] [CrossRef]
  58. Yamaguchi, A.; Hirose, S. Characterization of osteoblastic differentiation of stromal cell line ST2 that is induced by ascorbic acid. Am. J. Physiol. 1999, 277, C132–C138. [Google Scholar]
  59. Robins, J.C.; Akeno, N.; Mukherjee, A.; Dalal, R.R.; Aronow, B.J.; Koopman, P.; Clemens, T.L. Hypoxia induces chondrocyte-specific gene expression in mesenchymal cells in association with transcriptional activation of Sox9. Bone 2005, 37, 313–322. [Google Scholar] [CrossRef]
  60. Ding, J.; Nagai, K.; Woo, J. Insulin-Dependent Adipogenesis in Stromal ST2 Cells Derived from Murine Bone Marrow. Biosci. Biotechnol. Biochem. 2003, 67, 314–321. [Google Scholar] [CrossRef]
  61. Liverani, L.; Boccardi, E.; Beltrán, A.; Boccaccini, A.R. Incorporation of calcium containing mesoporous (MCM-41-type) particles in electrospun PCL fibers by using benign solvents. Polymers 2017, 9, 487. [Google Scholar] [CrossRef][Green Version]
  62. Todaro, G.J.; Lazar, G.K.; Green, H. The initiation of cell division in a contact-inhibited mammalian cell line. J. Cell. Comp. Physiol. 1965, 66, 325–333. [Google Scholar] [CrossRef] [PubMed]
  63. Jonkman, J.E.N.; Cathcart, J.A.; Xu, F.; Bartolini, M.E.; Amon, J.E.; Stevens, K.M.; Colarusso, P. An introduction to the wound healing assay using live-cell microscopy. Cell Adhes. Migr. 2014, 8, 440–451. [Google Scholar] [CrossRef] [PubMed][Green Version]
  64. Grada, A.; Otero-Viñas, M.; Prieto-Castrillo, F.; Obagi, Z.; Falanga, V. Research Techniques Made Simple: Analysis of Collective Cell Migration Using the Wound Healing Assay. J. Investig. Dermatol. 2017, 137, e11ee16. [Google Scholar] [CrossRef] [PubMed][Green Version]
  65. Ghasemi-mobarakeh, L.; Prabhakaran, M.P.; Morshed, M. Electrospun poly(3-caprolactone)/gelatin nanofibrous scaffolds for nerve tissue engineering. Biomaterials 2008, 29, 4532–4539. [Google Scholar] [CrossRef]
  66. Qin, X.; Wu, D. Effect of different solvents on poly(caprolactone)(PCL) electrospun nonwoven membranes. J. Therm. Anal. Calorim. 2012, 107, 1007–1013. [Google Scholar] [CrossRef]
  67. Gautam, S.; Dinda, A.K.; Mishra, N.C. Fabrication and characterization of PCL/gelatin composite nanofibrous scaffold for tissue engineering applications by electrospinning method. Mater. Sci. Eng. C 2013, 33, 1228–1235. [Google Scholar] [CrossRef]
  68. Correia, C.; Leite, Á.J.; Mano, J.F. Chitosan/bioactive glass nanoparticles scaffolds with shape 511 memory properties. Carbohydr. Polym. 2015, 123, 39–45. [Google Scholar] [CrossRef]
  69. Ratner, B.; Hoffman, A.; Schoen, F.; Lemons, J. An Introduction to Materials in Medicine 2nd Edition. Biomater. Sci. 2004, 484, 1–851. [Google Scholar]
  70. Cipitria, A.; Skelton, A.; Dargaville, T.R.; Dalton, P.D.; Hutmacher, D.W. Design, fabrication and characterization of PCL electrospun scaffolds—A review. J. Mater. Chem. 2011, 21, 9419–9453. [Google Scholar] [CrossRef][Green Version]
  71. Wan, Y.; Lu, X.; Dalai, S.; Zhang, J. Thermophysical properties of polycaprolactone / chitosan blend membranes. Thermochim. Acta 2009, 487, 33–38. [Google Scholar] [CrossRef]
  72. Ma, W.; Yang, X.; Ma, L.; Wang, X.; Zhang, L.; Yang, G.; Han, C.; Gou, Z. Fabrication of bioactive glass-introduced nanofibrous membranes with multifunctions for potential wound dressing. RSC Adv. 2014, 4, 60114–60122. [Google Scholar] [CrossRef]
  73. Naseri, S.; Lepry, W.C.; Nazhat, S.N. Bioactive glasses in wound healing: Hope or hype? J. Mater. Chem. B 2017, 5, 6167–6174. [Google Scholar] [CrossRef] [PubMed]
  74. Luz, G.M.; Mano, J.F. Chitosan/bioactive glass nanoparticles composites for biomedical applications. Biomed. Mater. 2012, 7, 054104. [Google Scholar] [CrossRef] [PubMed]
  75. Luz, G.; Boesel, L.; Del Campo, A.; Mano, J.F. Micropatterning of bioactive glass nanoparticles on chitosan membranes for spatial controlled biomineralization. Langmuir 2012, 28, 6970–6977. [Google Scholar] [CrossRef][Green Version]
  76. Zheng, K.; Solodovnyk, A.; Li, W.; Goudouri, O.-M.; Stähli, C.; Nazhat, S.N.; Boccaccini, A.R. Aging time and temperature effects on the structure and bioactivity of gel-derived 45S5 glass-ceramics. J. Am. Ceram. Soc. 2015, 98, 30–38. [Google Scholar] [CrossRef]
  77. Aguiar, H.; Serra, J.; González, P.; León, B. Structural study of sol-gel silicate glasses by IR and Raman spectroscopies. J. Non Cryst. Solids 2009, 355, 475–480. [Google Scholar] [CrossRef]
  78. Mohini, G.J.; Krishnamacharyulu, N.; Baskaran, G.S.; Rao, P.V.; Veeraiah, N.; Nalluri, V. Studies on influence of aluminium ions on the bioactivity of B2O3-SiO2-P2O5-Na2O-CaO glass system by means of spectroscopic studies. Appl. Surf. Sci. 2013, 287, 46–53. [Google Scholar] [CrossRef]
  79. Lázaro, G.S.; Santos, S.C.; Resende, C.X.; Dos Santos, E.A. Individual and combined effects of the elements Zn, Mg and Sr on the surface reactivity of a SiO2·CaO·Na2O·P2O5 bioglass system. J. Non Cryst. Solids 2014, 386, 19–28. [Google Scholar] [CrossRef][Green Version]
  80. Rabiee, S.M.; Nazparvar, N.; Azizian, M.; Vashaee, D.; Tayebi, L. Effect of ion substitution on properties of bioactive glasses: A review. Ceram. Int. 2015, 41, 7241–7251. [Google Scholar] [CrossRef]
  81. Aina, V.; Malavasi, G.; Pla, A.F.; Munaron, L.; Morterra, C. Zinc-containing bioactive glasses: Surface reactivity and behaviour towards endothelial cells. Acta Biomater 2009, 5, 1211–1222. [Google Scholar] [CrossRef]
  82. Wajda, A.; Goldmann, W.H.; Detsch, R.; Boccaccini, A.R.; Sitarz, M. Influence of zinc ions on structure, bioactivity, biocompatibility and antibacterial potential of melt-derived and gel-derived glasses from CaO-SiO2 system. J. Non Cryst. Solids 2019, 511, 86–99. [Google Scholar] [CrossRef]
  83. Haimi, S.; Gorianc, G.; Moimas, L.; Lindroos, B.; Huhtala, H.; Räty, S.; Kuokkanen, H.; Sándor, G.K.; Schmid, C.; Miettinen, S. Characterization of zinc-releasing three-dimensional bioactive glass scaffolds and their effect on human adipose stem cell proliferation and osteogenic differentiation. Acta Biomater. 2009, 5, 3122–3131. [Google Scholar] [CrossRef] [PubMed]
  84. Jell, G.; Notingher, P.; Tsigkou, O.; Polak, J.; Hench, L.; Stevens, M.M.; Notingher, I. Bioactive glass-induced osteoblast differentiation: A noninvasive spectroscopic study. J. Biomed. Mater. Res. 2008, 86A, 31–40. [Google Scholar] [CrossRef] [PubMed]
  85. Zhao, F.; Zhang, W.; Fu, X.; Xie, W.; Chen, X. Fabrication and characterization of bioactive glass/alginate composite scaffolds by a self-crosslinking processing for bone regeneration. RSC Adv. 2016, 6, 91201–91208. [Google Scholar] [CrossRef]
  86. Aina, V.; Perardi, A.; Bergandi, L.; Malavasi, G.; Menabue, L.; Morterra, C.; Ghigo, D. Cytotoxicity of zinc-containing bioactive glasses in contact with human osteoblasts. Chem. Biol. Interact. 2007, 167, 207–218. [Google Scholar] [CrossRef]
  87. Ito, A.; Ojima, K.; Naito, H.; Ichinose, N.; Tateishi, T. Preparation, solubility, and cytocompatibility of zinc-releasing calcium phosphate ceramics. J. Biomed. Mater. Res. 2000, 50, 178–183. [Google Scholar] [CrossRef]
  88. Gentleman, E.; Fredholm, Y.C.; Jell, G.; Lotfibakhshaiesh, N.; O’Donnell, M.; Hill, R.G.; Stevens, M.M. The effects of strontium-substituted bioactive glasses on osteoblasts and osteoclasts in vitro. Biomaterials 2010, 31, 3949–3956. [Google Scholar] [CrossRef][Green Version]
  89. O’Donnell, M.; Hill, R. Influence of strontium and the importance of glass chemistry and structure when designing bioactive glasses for bone regeneration. Acta Biomater. 2010, 6, 2382–2385. Available online: http://www.ncbi.nlm.nih.gov/pubmed/20079468 (accessed on 4 August 2020). [CrossRef]
  90. Massera, J.; Kokkari, A.; Närhi, T.; Hupa, L. The influence of SrO and CaO in silicate and phosphate bioactive glasses on human gingival fibroblasts. J. Mater. Sci. Mater. Med. 2015, 26, 196. [Google Scholar] [CrossRef]
  91. Liang, C.-C.; Park, A.Y.; Guan, J.-L. In vitro scratch assay: A convenient and inexpensive method for analysis of cell migration in vitro. Nat. Protoc. 2007, 2, 329–333. [Google Scholar] [CrossRef][Green Version]
  92. Badr-Mohammadi, M.-R.; Hesaraki, S.; Zamanian, A. Mechanical properties and in vitro cellular behavior of zinc- containing nano-bioactive glass doped biphasic calcium phosphate bone substitutes. J. Mater. Sci. Mater. Med. 2014, 25, 185–197. [Google Scholar] [CrossRef] [PubMed]
  93. Jones, J.R. Reprint of: Review of bioactive glass: From Hench to hybrids. Acta Biomater. 2015, 23, S53–S82. [Google Scholar] [CrossRef] [PubMed]
  94. Hench, L.L. The story of Bioglass®. J. Mater. Sci. Mater. Med. 2006, 17, 967–978. [Google Scholar] [CrossRef] [PubMed]
  95. Putney, J.W. Calcium Signaling, 2nd ed.; CRC Press: Boca Raton, FL, USA, 2005; pp. 1–540. [Google Scholar]
  96. Humeau, J.; Pedro, J.M.B.-S.; Vitale, I.; Nuñez, L.; Villalobos, C.; Kroemer, G.; Senovilla, L. Calcium signaling and cell cycle: Progression or death. Cell Calcium. 2018, 70, 3–15. [Google Scholar] [CrossRef] [PubMed]
  97. Maret, W. Metals on the move: Zinc ions in cellular regulation and in the coordination dynamics of zinc proteins. BioMetals 2011, 24, 411–418. [Google Scholar] [CrossRef]
  98. Maywald, M.; Wessels, I.; Rink, L. Zinc signals and immunity. Int. J. Mol. Sci. 2017, 18, 2222. [Google Scholar] [CrossRef][Green Version]
  99. Jia, L.; Yiyuan, K.; Wei, Z.; Limin, W.; Liangjiao, C.; Bin, S.; Shao, L. Ion-Shedding Zinc Oxide Nanoparticles Induce Microglial BV2 Cell Proliferation via the ERK and Akt Signaling Pathways. Toxicol. Sci. 2017, 156, 167–178. [Google Scholar] [CrossRef]
  100. Hasan, R.; Rink, L.; Haase, H. Zinc signals in neutrophil granulocytes are required for the formation of neutrophil extracellular traps. Innate Immun. 2013, 19, 253–264. [Google Scholar] [CrossRef]

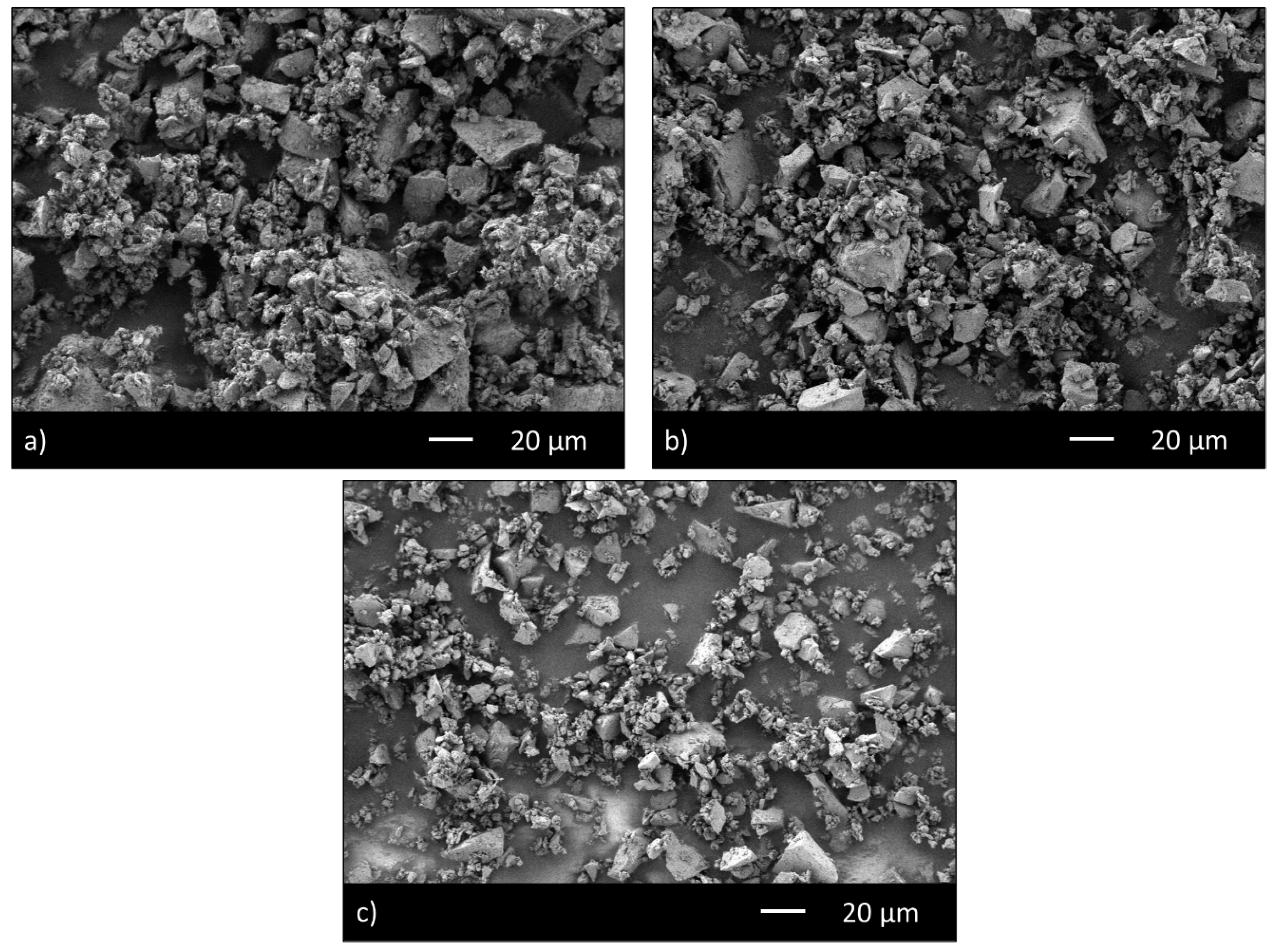

Figure 1. SEM analysis of bioactive glass particles after milling before electrospinning: 45S5 (a), BGMS10 (b), and BGMS_2Zn (c).
Figure 1. SEM analysis of bioactive glass particles after milling before electrospinning: 45S5 (a), BGMS10 (b), and BGMS_2Zn (c).
Applsci 10 05530 g001

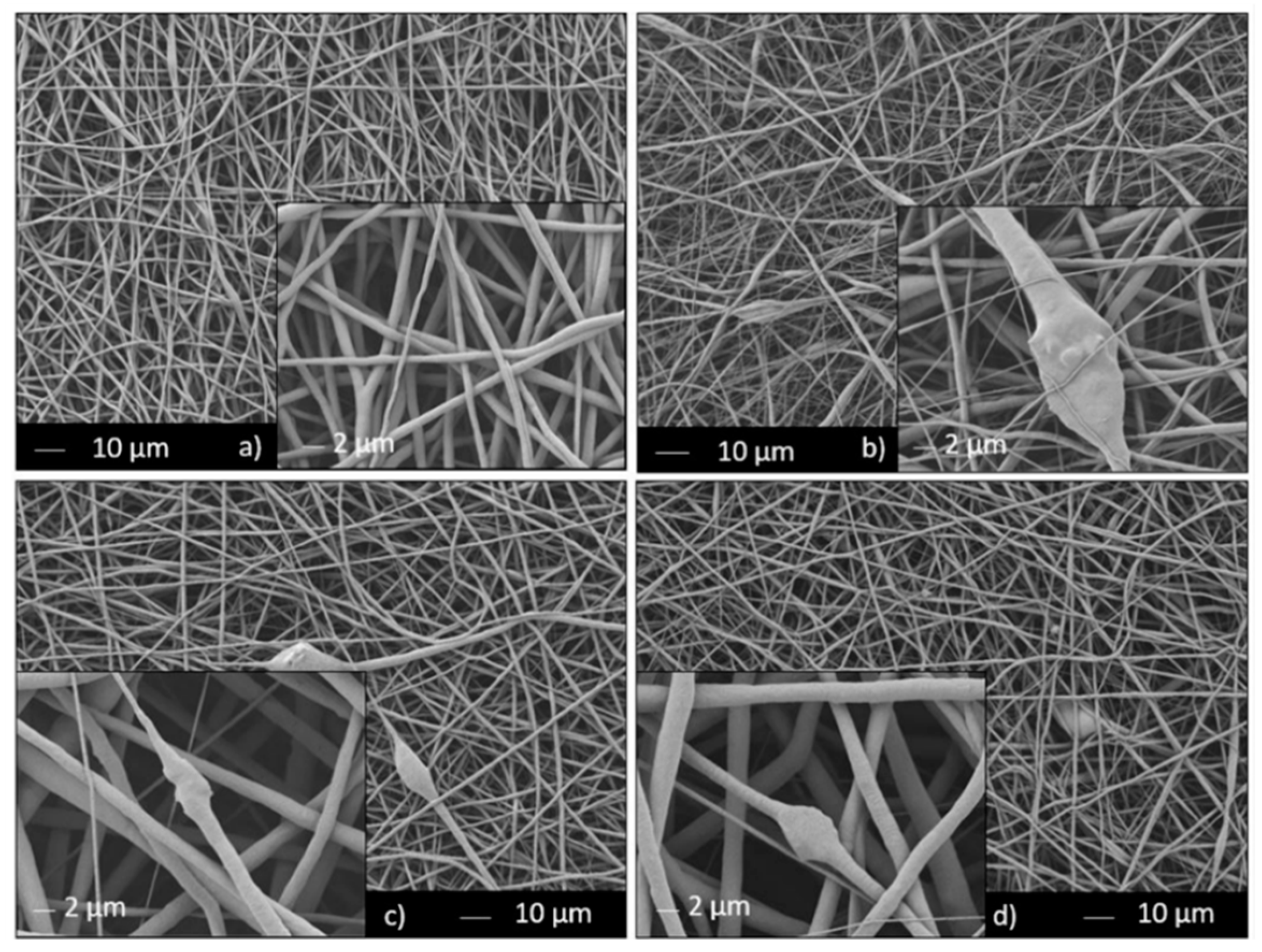

Figure 2. SEM analysis of electrospun mats: PCL (a), PCL_45S5 (b), PCL_BG10 (c), and PCL_BGZn (d).
Figure 2. SEM analysis of electrospun mats: PCL (a), PCL_45S5 (b), PCL_BG10 (c), and PCL_BGZn (d).
Applsci 10 05530 g002
Figure 3. EDX mapping of electrospun PCL (a) and composites PCL_45S5 (b), PCL_BG10 (c), PCL_BGZn (d) at d0 (before immersion in simulated body fluid (SBF)).
Figure 3. EDX mapping of electrospun PCL (a) and composites PCL_45S5 (b), PCL_BG10 (c), PCL_BGZn (d) at d0 (before immersion in simulated body fluid (SBF)).
Applsci 10 05530 g003
Figure 4. FTIR spectra of PCL, PCL_45S5, PCL_BG10, and PCL_BGZn electrospun mats before immersion in SBF solution. The indicated peaks are discussed in the text.
Figure 4. FTIR spectra of PCL, PCL_45S5, PCL_BG10, and PCL_BGZn electrospun mats before immersion in SBF solution. The indicated peaks are discussed in the text.
Applsci 10 05530 g004
Figure 5. TG/DTA analyses of PCL, PCL_45S5, PCL_BG10, and PCL_BGZn.
Figure 5. TG/DTA analyses of PCL, PCL_45S5, PCL_BG10, and PCL_BGZn.
Applsci 10 05530 g005
Figure 6. FTIR spectra before immersion (0d) in SBF and 1, 7, 14, 21 days after immersion in SBF for: PCL (a); PCL_45S5 (b); PCL_BG10 (c); and PCL_BGZn (d). Relevant indicated peaks are discussed in the text.
Figure 6. FTIR spectra before immersion (0d) in SBF and 1, 7, 14, 21 days after immersion in SBF for: PCL (a); PCL_45S5 (b); PCL_BG10 (c); and PCL_BGZn (d). Relevant indicated peaks are discussed in the text.
Applsci 10 05530 g006
Figure 7. WST–8 analysis: graph of OD at 450 nm for all electrospun mats 1 day and 7 days after seeding. ** p < 0.05 (one-way ANOVA) and a table reporting the ratio ODd7/ODd1.
Figure 7. WST–8 analysis: graph of OD at 450 nm for all electrospun mats 1 day and 7 days after seeding. ** p < 0.05 (one-way ANOVA) and a table reporting the ratio ODd7/ODd1.
Applsci 10 05530 g007
Figure 8. Fluorescence images of actin filaments (red) and cell nuclei (blue) for PCL (a), PCL_45S5 (b), PCL_BG10 (c), and PCL_BGZn (d) 7 days after the seeding.
Figure 8. Fluorescence images of actin filaments (red) and cell nuclei (blue) for PCL (a), PCL_45S5 (b), PCL_BG10 (c), and PCL_BGZn (d) 7 days after the seeding.
Applsci 10 05530 g008
Figure 9. Wound-healing rate % (measured as cell migration rate %) 24 h and 48 h after the introduction of the “scratch” in confluent monolayers of NIH 3T3 cells in contact with eluates of PCL, PCL_45S5, PCL_BG10, and PCL_BGZn composite electrospun mats. ** p < 0.05.
Figure 9. Wound-healing rate % (measured as cell migration rate %) 24 h and 48 h after the introduction of the “scratch” in confluent monolayers of NIH 3T3 cells in contact with eluates of PCL, PCL_45S5, PCL_BG10, and PCL_BGZn composite electrospun mats. ** p < 0.05.
Applsci 10 05530 g009
Table 1. Summary of bioactive glasses (BGs) compositions reported in wt%.
Table 1. Summary of bioactive glasses (BGs) compositions reported in wt%.
BG LabelSiO2CaONa2OK2OP2O5MgOSrOZnO
45S5 [16]4524.524.5-6---
BGMS10 [17,18,19,20,21,22,23]4422.32.23.45.76.316.1-
BGMS_2Zn [24]41.120.823.1115152
Table 2. Summary of parameters used for the different solutions during electrospinning process.
Table 2. Summary of parameters used for the different solutions during electrospinning process.
Sample NameSolution Concentration (%w/v)Solvent(s)kVDistance Tip-Target (cm)Needle Diameter (mm)Flow Rate (mL/h)T (°C)Relative Humidity (% RH)
PCL20Acetic acid15110.80.42540
PCL_45S5, PCL_BG10, PCL_BGZn20Acetic acid15110.80.62540
Table 3. Tensile strain, Young´s modulus and contact angle values for PCL, PCL_45S5, PCL_BG10, and PCL_BGZn.
Table 3. Tensile strain, Young´s modulus and contact angle values for PCL, PCL_45S5, PCL_BG10, and PCL_BGZn.
Sample Name Tensile Strain (%)Young’s Modulus (MPa)Contact Angle (°)
PCL496 ± 2012 ± 1104 ± 17
PCL_45S595 ± 14.5 ± 0.9105 ± 11
PCL_BG10221 ± 1412 ± 396 ± 2
PCL_BGZn113 ± 1812 ± 2104 ± 19

Share and Cite

MDPI and ACS Style

Sergi, R.; Cannillo, V.; Boccaccini, A.R.; Liverani, L. Incorporation of Bioactive Glasses Containing Mg, Sr, and Zn in Electrospun PCL Fibers by Using Benign Solvents. Appl. Sci. 2020, 10, 5530. https://doi.org/10.3390/app10165530

AMA Style

Sergi R, Cannillo V, Boccaccini AR, Liverani L. Incorporation of Bioactive Glasses Containing Mg, Sr, and Zn in Electrospun PCL Fibers by Using Benign Solvents. Applied Sciences. 2020; 10(16):5530. https://doi.org/10.3390/app10165530

Chicago/Turabian Style

Sergi, Rachele, Valeria Cannillo, Aldo R. Boccaccini, and Liliana Liverani. 2020. "Incorporation of Bioactive Glasses Containing Mg, Sr, and Zn in Electrospun PCL Fibers by Using Benign Solvents" Applied Sciences 10, no. 16: 5530. https://doi.org/10.3390/app10165530

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
