Article

Water Quality Monitoring with Arduino Based Sensors

1
Faculty of Integrated Technologies, Universiti Brunei Darussalam, Jalan Tungku Link BE1410, Brunei
2
Faculty of Science, Universiti Brunei Darussalam, Jalan Tungku Link BE1410, Brunei
*
Author to whom correspondence should be addressed.
Environments 2021, 8(1), 6; https://doi.org/10.3390/environments8010006
Received: 8 September 2020 / Revised: 5 October 2020 / Accepted: 2 November 2020 / Published: 14 January 2021

Abstract

:
Water is a quintessential element for the survival of mankind. Its variety of uses means that it is always in a constant state of demand. The supply of water most primarily comes from large reservoirs of water such as lakes, streams, and the ocean itself. As such, it is good practice to monitor its quality to ensure it is fit for human consumption. Current water quality monitoring is often carried out in traditional labs but is time consuming and prone to inaccuracies. Therefore, this paper aims to investigate the feasibility of implementing an Arduino-based sensor system for water quality monitoring. A simple prototype consisting of a microcontroller and multiple attached sensors was employed to conduct weekly onsite tests at multiple daily intervals. It was found that the system works reliably but is reliant on human assistance and prone to data inaccuracies. The system however, provides a solid foundation for future expansion works of the same category to elevate the system to being Internet of Things (IoT) friendly.

1. Introduction

The Internet of Things, otherwise known as IoT in the simplest sense, refers to the concept of connecting physical devices, machines, software, and objects to the Internet [1]. In a broader sense, it is a dynamic and global network infrastructure, in which intelligent objects and entities are used in conjunction with actuators, electronics, sensors, software and connectivity to enhance connection, collection and data exchange [2]. This type of network generally has a large number of nodes that interact with the environment and exchange data, whilst reacting to events or triggering actions to exert control or change upon the physical world. By sharing and acting on shared data contributed by individual parts, an IoT system would be greater than the sum of its parts [3]. Each network node is considered smart and consumes little resources such as data processing and data storage power as well as energy consumption.
The term Internet of Things was initially coined in 1999 by Kevin Ashton, an expert in digital innovation [4]. Since then, there has been a significant growth and development in the IoT industry because IoT provides a platform that creates opportunities for people to connect devices and control them with big data technology. Figure 1 below shows the seven industries that are mainly affected by the growth of IoT over the period of late 2014 to early 2017, indicated by the weight which represents the occurrences of investment. The industries affected are namely: Manufacturing, Agriculture, Public Service, Health, Electronics, Energy, and Mining [5]. IoT integration into manufacturing operations have been repeatedly emphasized by governments using the term Industrial IoT (IIoT) to produce fully intelligent, connected and autonomous manufacturing plants. Agriculture benefits from IoT’s real-time operation for optimizing productivity at reduced costs. A recent study by Cipolla et al. (2019) shows that an IoT system can be used to monitor soil moisture and electrical conductivity, as well as surface and groundwater electrical conductivity, to optimize the management of both irrigation and drainage system [6]. Installation and monitoring of sensor devices in public services allowed for intelligent transportation system and traffic management, optimal water and electricity management. A water flow driven sensor network can be deployed without much expense and maintenance can be used to reduce the time needed to detect leakage or contamination in urban water distribution systems [7]. Very low applied risks in IoT implementation in cities are the reason why the Public Service industry is heavily influenced by IoT. Electronics are able to share information through internet connections. Health service can provide better healthcare system and medical data through qualitative analysis in diagnosis.
IoT is not limited to public uses only but can also be used privately. With a central integrated IoT system, the home atmosphere can be adjusted by the pressing of a button, be it temperature, air control, or ambient music. Furthermore, there is the option for smart home security systems which can incorporate cameras, motion detectors, and locks, to notify home owners immediately if the system suspects burglary or intrusion of property. Household IoT systems are able to understand the user’s life habits and appropriately evolve and adapt into a smart housekeeper through constant self-perception and self-checking [4]. Having all of these features adds convenience, customization, security, and ease of use to life at home [8].
Evidently, IoT minimizes human efforts in many life aspects whilst promoting efficient resource utilization. It guarantees high speed, accurate quality data with secure processing and better client or user experience [9]. These imply, amongst other advantages, the reliability and validity of data, performance, security and privacy. Table 1 shows that IoT units are becoming increasingly popular for not just consumer use, but also business and industries and are projected to rise at a steady rate for the coming years [10].
Lakes and streams are the planet’s most important freshwater system. According to their immediate environments, they are ecosystems and natural life habitats and form part of the food chain from vegetative material to animals to humankind. Rivers are complex life support systems that operate on a thin line of sustainability [11]. In recent history, the sharp increase in the human population has resulted in a considerable increase in the need for freshwater worldwide. Coupled with other factors such as global warming and anthropogenic inputs (pollution from municipal and industrial wastewater discharge), it is not unbelievable to say that the quality of water is now a major concern for experts around the world. To comprehend the effort and investment needed to obtain fresh drinking water, it is necessary to first understand the fundamental problems faced by freshwater systems.
The quality of surface water is largely affected by natural processes as well as man-made impacts, whereas surface water runoff is a seasonal phenomenon largely affected by climate; anthropogenic discharges represent a constant polluting source to rivers and streams. The Environmental Protection Agency (EPA) attributes Nonpoint Pollution Sources (NPS) as the reason that America’s lakes, rivers and estuaries, in general, remain polluted. Some of the NPS can be prevented, but much of it is a result of the combination of rain, melting snow and irrigation systems [12]. All three of these events mean that water picks up all types of debris and pollutants in its path to waterways. Water runoff from parking lots, industries, farmlands, and suburb carries oil, gasoline, pesticides, sewage and various other contaminants into water supplies, lakes, rivers and eventually the oceans. Trash, plastic bottles and other refuse also are carried away by floods and rainstorms. These pollutants can have a negative and devastating impact on vegetation and aquatic ecosystems. Thus, activities that can generate NPS include, but are not limited to [13]:
  • Sediment washing from agriculture.
  • Deadly viruses and bacteria from animal grazing.
  • Construction works.
  • Aftermath of natural disasters particularly floods, tornadoes, hurricanes, and tsunamis.
  • Gasoline and oil from recreational boating.
  • Old and leaky septic systems.
  • Urban runoffs from homes and landfills.
  • Chemicals from household mismanagement and so on.
Climate and seasons have an effect on the baseflow of rivers and streams. Changing trends in rainfall have contributed to water shortages and affected terrestrial habitats due to variation in precipitation patterns and intensity [14]. Extreme rainfall may cause disasters such as rainstorms, floods, and erosion, all of which have the ability to alter the natural ecosystem of rivers, streams, and lakes. There is a clear relationship between precipitation and decreased river water quality. The regression models used in reference [15] have demonstrated that bacteria concentrations increase exponentially with observed precipitation. With heavy rainfalls, it is expected that erosion loss in a freshwater ecosystem would be significant, potentially causing an alteration to the depth of the river bed and to the river flow. Subjectively however, rainfall does not directly influence sediment discharge, but rather the interplay between rainfall and land-use activities affecting sediment production [16].
What then defines a healthy river? According to [17], “a biological system can be considered healthy when its inherent potential is realized, its condition is stable, its capacity for self-repair when perturbed is preserved, and minimal external support for management is needed”. Simply put, a river may be defined to be in good condition if its appearance remains stable and is able to rectify any unnatural changes by itself. When conducting water quality monitoring, there are many indicators to choose from. These may be from a biological perspective such as observation of local aquatic life residing in the body of water, or from a physical and chemical perspective such as soil erosion, stream flow, and sediment discharge [18]. For a small-scale river, measurement of a few important parameters can suffice in giving a general idea to river health.
Currently only few studies exist which investigated ground or surface water in Brunei Darussalam [19,20]. Results of studies and ongoing monitoring activities have highlighted certain level of pollution in the Brunei River. Possible complex contamination scenarios resulting from this may require a range of remediation and assessment measures [21]. However, natural occurring microbial processes are able to break down even recalcitrant contaminants [22].The main sources of pollution have been traced to: effluent and sludge from sewage treatment works within the catchment, sullage waste, solid waste, and direct disposal of sewage from the water village and nearby settlements (50%), surface water runoff from the capital’s central area (29%), and point and nonpoint pollutant loads from various sub-catchment uses, including agricultural, residential and industrial uses [23]. Under the Tenth National Development Plan, upgrades to existing monitoring systems and quality management frameworks as well as installation of new drainage and sewage systems have been proposed by the government [23]. However, this does not take away the fact that Brunei does not have a method of active online water quality monitoring. The current scheme of monitoring targets the source water where river water is piped to a treatment plant and samples are collected via sampling tap in the treatment plant’s laboratory. Water quality monitoring results can also be compiled in a database for improved decision making [24]. Laboratory results take time to be processed and, even then, the results might be inaccurate as certain parameters vary onsite and in-lab. Thus, this study is undertaken to lay the foundation for making advancements in the field of online water quality monitoring.
The main objectives of the study are to develop Internet of Things (IoT) systems, consisting of multiple sensors, communication link, storage and processing capabilities, energy for powering the device, etc., in order to monitor water quality of rivers/streams and also to identify the causes and factors contributing to water quality issues around the vicinity if any. A testing site in Universiti Brunei Darussalam (UBD) has been chosen for the study where the IoT system was placed and monitored directly. Due to financial constraints, the sensors chosen will only focus on the most important parameters. The study took into account the measurement of defined parameters in order to offer real-time online monitoring feedback to users. The data gathered from different IoT sensors would be used in combination with other data to perform data analysis and the results obtained are used to propose preventive measures on how to minimize the impact of pollution. The foundation laid by this study will be kept in order to develop a fully integrated IoT system in the future.
The next section will provide insights on the research component selection, prototype setup, sensor calibrations, and test site selection. Results are given in Section 3, which is followed by discussions in Section 4. The final section concludes the paper.

2. Design and Development

The development of a simple prototype system fit for water quality monitoring needs to be comprised of the following components:
  • Multiple sensors to collect relevant data from the environment.
  • A central microcontroller loaded with a computer program to read analogue data and convert them to digital output.
  • A portable laptop with relevant software to read the digital data and present the data in an understandable format on a screen, as well as to provide power to the microcontroller.
The main component of the monitoring system is the Arduino UNO R3 Board shown in Figure 2. It is a microcontroller board based on the ATmega328 with three important features:
  • A total of 6 analog input pins labelled A0 to A5 to allow up to a maximum of 6 analog sensors to connect directly to the Arduino.
  • A total of 2 power supplies pin labelled 3.3 volts and 5 volts with in-built voltage regulation to provide power to sensors.
  • A USB plug that can be used in conjunction with a USB cable to connect with a microprocessor.
The system used is an Arduino microcontroller with four accommodating sensors: pH, Temperature, Turbidity, and Total Dissolved Solids (TDS). Sensors were chosen based on ease of use, measurability (of parameters), portability, as well as being economical and cost-effective as a strict budget must be adhered to. The sensors are collectively shown in Figure 3.
Figure 3a shows the RELAND SUN pH sensor with a temperature range of −10 °C to 50 °C. It has a response time of under 5 s but a settling time of nearly a minute for readings to stabilize. Figure 3b shows the DS18B20 temperature sensor that has an operating temperature range from −55 °C to +125 °C with accuracy +/−0.5 °C (between the range −10 °C to 85 °C). The ReYeBu turbidity sensor shown in Figure 3c, was used to measure turbidity and has an operating temperature of 5 °C~90 °C with a response time of less than 500 ms. The OOTRTY total dissolved solids (TDS) sensor referred to in Figure 3d was used to measure TDS. It has a measurement range of 0~1000 ppm and measurement accuracy of ±10% F.S. It should be noted that the sensor cannot be used above 55 °C and it is advisable not to place the sensor too close to the edge of a water surface.
Figure 4 below shows the connection of the sensors to the Arduino microcontroller and operating laptop.
Due to the limited number of power outputs of the Arduino, the power pin of the Arduino was connected to a breadboard to allow powering of multiple devices at the same time, as shown in Figure 5 below.
Both turbidity and pH sensors require calibration to convert the obtained voltage readings to the corresponding turbidity and pH readings. To calibrate, different concentrations of soil and water mixtures and different pH solutions were used to calibrate the turbidity and pH sensors, respectively.
The turbidity sensor was calibrated by measuring several soil and water mixtures made from known masses of soil mixed with 0.6 L of water. The data are tabulated below in Table 2.
Figure 6 below shows the plotted relationship between the average voltage readings and average NTU readings.
The pH sensor was calibrated by testing it against three solutions of Atlas Scientific pH samples of pH 10, 7, and 4. Due to a room temperature of 20 °C, there is a slight pH change and actual pH is adjusted according to specification labels. Data from calibration is found below in Table 3.
Figure 7 below shows the plotted relationship between the average voltage readings and average pH readings.
Programming was done with an Integrated Development Environment (IDE) based in Java with the programming language C/C++. With the IDE, program sketches can be made, compiled, debugged, and uploaded to the Arduino microcontroller board to be executed. References to build the program sketches may be found online and OneWire and DallasTemperature libraries needed to be downloaded for the temperature sensor to function.
Testing was carried out at a small stream within the Universiti Brunei Darussalam (UBD) campus ground, shown in Figure 8. Underground pipe discharge is the source of the stream and is human controlled such that discharges are only active during the morning. Water from the stream thus flows downstream during the morning and the stream is otherwise still. The testing ground is also shaded by trees. Testing was done during working days over a period of 4 weeks for a total of 20 days. Data were taken once in the morning at 10:00 a.m. and once in the afternoon at 4:00 p.m. Readings were taken every 10 s over a 2-min time period to establish the average reading for a particular parameter.

3. Results

Table 4 below shows the data gathered during the duration of the test. Data for pH were initially unavailable while the pH sensor was being calibrated. Readings for pH only became available from week 3 onwards after the sensor was readied.
The data from the four weeks were compiled and plotted on graphs to analyze any correlation between parameters and to evaluate the health of the river.

4. Discussion

From Figure 9, it can be seen that temperature in the morning varies between 24 °C to 27 °C whereas afternoon temperature varies from 25 °C to over 28 °C. Additionally from Table 5, the maximum recorded temperature is 28 °C while the lowest is 24 °C, and the deviation is slight per day. Heating of the earth by the sun is cumulative throughout the day and maximum temperature of the day is achieved during noon to mid-afternoon, between 12 p.m. and 3 p.m., when accumulated solar energy is at its maximum [25]. In a tropical country such as Brunei, the season is akin to summer all year round and solar radiation is high so it is not unusual for the river temperature to approach 30 °C. Unsteady heating by the sun causes variations in heat accumulation and accounts for fluctuations in daily temperatures. Data for day 13 and 20 are noted for being lower than expected due to the presence of rain earlier in the day.
Figure 10 shows that turbidity values are higher in the afternoon. The tested stream is artificial, its contents come from underground pipes that flow in the morning but not in the afternoon. According to [26], when the stream is flowing the kinetic energy of the high-speed stream can resuspend river bottom solids and carry suspended solids which would account for high turbidity values. In a still body of water, suspended solids would settle on the river bottom and give lower turbidity readings. Thus, according to theory, the values should be higher in the morning but Figure 10 does not justify this. A possible explanation would be the oversaturation of suspended solids in the afternoon still river. With no flow, the solids remain within the stream and contribute to turbidity readings and there is no sediment transfer downstream. It is also known that turbidity and temperature share a positive correlation. Suspended solids have a higher heat capacity than water and are able to absorb more heat, leading to a higher recorded temperature [27,28]. Indeed, both temperature and turbidity readings are higher in the afternoon. It should however be noted that the exact turbidity value is difficult to pinpoint due to natural variation in season, local geology, river flow, weather, and climate and readings vary slightly every few seconds when measuring, though a value not exceeding 3000 NTU is deemed favorable.
Figure 11 shows an increasing trend in dissolved solids in the river over the course of the sampling period. To begin understanding this trend, the relationship between total dissolved solids, conductivity, and temperature must first be clarified. Total dissolved solids and conductivity are directly proportional to one another. Pure water cannot hold any electrical charge but water that contains minerals and salts can. Any body of water that contains dissolved salts and mineral will give a conductivity reading. Conductivity of water (and by extension dissolved solids) is expected to increase with temperature. For each 1 °C increment, conductivity rises by 2–4%. Temperature influences conductivity by increasing ion mobility and dissolvability of many salts and minerals [29]. Figure 12 shows that average temperature increased from Day 4 to 12, likewise there was a general increase in TDS values in the same period. In this period, the correlation coefficient was 261 ppm/°C in the morning and 177 ppm/°C in the afternoon, indicating a big increase in total dissolved solids per temperature increment. Furthermore, the data from Day 15 to 19 where there was a decrease in average temperature also resulted in a general decrease in TDS values in the same period. During this period, the correlation coefficient was 106 ppm/°C in the morning and 117 ppm/°C in the afternoon, indicating a marginal decrease in total dissolved solids per temperature decrease. Total dissolved solids (TDS) is usually low for freshwater sources, at less than 500 ppm [30] which is agreed by most of the data here.
As can be seen from Figure 12 and Table 5, the pH values recorded were inaccurate. The afternoon data for day 17 and morning data for day 19 lie within the extremes of the pH range of 0–14. A reason for low water pH values can be related to stimulation treatments or CO2 sequestration operations performed in the oil and gas industry [31,32] however which have not been conducted in this area. The remaining pH values vary significantly each day and onsite readings can change drastically every second. This is a stark contrast to its stability when being calibrated under lab conditions. A logical explanation would be that this is due to the artificial nature of the stream where its contents are influenced by local underground discharge pipes. The pipes may have contained high amounts of hydrogen or hydroxy ions. Another possible explanation would be the decomposition of leaves in the river bottom which would release carbon dioxide, allowing the formation of carbonic acid. Carbonic acid can lose one or both its hydrogen ions as shown in the equations below:
Equation (1): Formation of carbonic acid
C O 2   ( g )   +   H 2 O   ( l )     H 2 C O 3   ( a q )
Equation (2): Loss of first hydrogen ion
H 2 C O 3   ( a q )     H C O 3   ( a q )   +   H +   ( a q )
Equation (3): Loss of second hydrogen ion
H C O 3   ( a q )     C O 3   2 ( a q )   +   H +   ( a q )
The release of hydrogen ions will decrease the pH of the river. However, at higher pH the equilibrium will shift towards the left side, promoting formation of carbonic acid and the resulting decrease in hydrogen ions will increase the pH of the river [33]. Regardless, the shift in pH due to equilibrium should not be too great and, admittedly, the data gathered for pH is inadequate and more time might have made for better data comparison and evaluation. There were no data for pH for the first two weeks while the pH sensor was still being calibrated.
According to a report by Tziortzioti et al. (2019), the system they used is nearly identical to the same setup that we had used, apart from different sensors and an enclosed box to protect the Arduino microcontroller and sensor modules [34]. From their experiment it can be seen that the readings they obtained are relatively stable, whereas, in the present setup, the readings of pH differ greatly every second. Taking into consideration that the pH sensor was stable during calibration, it may be surmised that the artificial nature of the sample stream may be the cause of the fluctuations, though an experiment in normal water may be needed to justify this claim. The results that they obtained align quite well with our present study. It is also noted that they experience the same problem with the turbidity sensor as in this study, the sensor cable being too short, the issue of the sensor floating on the water surface instead of being fully submerged, and sensor malfunctioning due to water infiltration into sensor core. Additionally, their turbidity sensor suffered from rust due to seawater exposure and needed to be replaced.

5. Conclusions

The results seem to indicate that the stream is healthy, however more tests are required to further determine data validity and operability of the current system before the system can be deployed elsewhere. The prototype yet lacks many capabilities and thus require upgrades and expansions; namely, to give it the ability to transmit data through a wireless network to a remote laptop or mobile at any given time and location, and a stronger memory drive or the ability to store data in databases. To that end, a Raspberry Pi 4 Model B could be used in conjunction with the current system. The Pi offers ground-breaking increases in processor speed, multimedia performance, memory, and connectivity. It is outfitted with dual-band wireless LAN and Bluetooth which can be routed to a dedicated monitor which is vital in wireless networking. Additionally, a SIM card would allow it to store quantities of data from the Arduino. The combined central system must then be encased to prevent potential detrimental drawbacks from exposure to environmental weather and conditions. Among the sensors, the turbidity sensor must be improved or replaced altogether. An opening at the top of the turbidity sensor allows water to enter if the sensor is lowered too deep into the stream and the influx causes a direct disturbance in readings. Its short cable meant that it is also severely limited to use at the water edges. A suitable replacement could be the digital type RELIHONES turbidity sensor that is waterproof and offers a longer cable. Implementation of additional sensors in the project extension will allow for monitoring of extra parameters, particularly of concentration of various ions. Such data may be helpful for better determining river health through calculation of Water Quality Index (WQI) or other related indexes. Finally, changes could be made to the testing environment and schedule. Conducting the test at additional locations and taking more frequent data readings should provide for much needed additional data and accuracies in determining river health and validating the monitoring system.

Author Contributions

Writing—original draft preparation and data acquisition, W.J.H.; investigation and writing—original draft preparation, W.J.H. and N.S.; conceptualization, validation, methodology and supervision, N.S., E.A., H.S., R.A.A., Z.M.; methodology, E.A., R.A.A., Z.M., S.H.G.; manuscript editing, N.S., M.N.A.N., S.H.G. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Universiti Brunei Darussalam Sensor Technology Research Grant, reference number UBD/RSCH/URC/NIG/3.0/2019/001.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. McClelland, C. What Is IoT? A Simple Explanation of the Internet of Things. Available online: https://www.iotforall.com/what-is-iot-simple-explanation/ (accessed on 13 May 2019).
  2. Diène, B.; Rodrigues, J.J.P.C.; Diallo, O.; Ndoye, E.H.M.; Korotaev, V.V. Data management techniques for Internet of Things. Mech. Syst. Signal Process. 2020, 138, 106564. [Google Scholar] [CrossRef]
  3. McClelland, C. IoT Explained—How Does an IoT System Actually Work? Available online: https://www.leverege.com/blogpost/iot-explained-how-does-an-iot-system-actually-work (accessed on 29 October 2016).
  4. Li, C.-Z.-E.; Deng, Z.W. The Embedded Modules Solution of Household Internet of Things System and The Future Development. Procedia Comput. Sci. 2020, 166, 350–356. [Google Scholar] [CrossRef]
  5. Dachyar, M.; Zagloel, T.; Saragih, L. Knowledge Growth and Development: Internet of Things (Iot) Research, 2006–2018. Heliyon 2020, 5, e02264. [Google Scholar] [CrossRef] [PubMed][Green Version]
  6. Cipolla, S.; Maglionico, M.; Masina, M.; Lamberti, A.; Daprà, I. Real time monitoring of water quality in an agricultural area with salinity problems. Environ. Eng. Manag. J. 2019, 18, 2229–2240. [Google Scholar]
  7. Pal, A.; Kant, K. Water flow Driven Sensor Networks for leakage and contamination monitoring. In Proceedings of the 2015 IEEE 16th International Symposium on A World of Wireless, Mobile and Multimedia Networks (WoWMoM), Boston, MA, USA, 14–17 June 2015. [Google Scholar] [CrossRef]
  8. IoT Smart City—What Is Smart Home? The Internet of Things. Available online: http://www.infiniteinformationtechnology.com/iot-smart-city-what-is-smart-home (accessed on 27 November 2016).
  9. Mallon, S. IoT Is the Most Important Development of the 21st Century. Available online: https://www.smartdatacollective.com/iot-most-important-development-of-21st-century/ (accessed on 29 October 2018).
  10. Ranger, S. What Is the IoT? Everything You Need to Know about the Internet of Things Right Now. Available online: https://www.zdnet.com/article/what-is-the-internet-of-things-everything-you-need-to-know-about-the-iot-right-now/ (accessed on 21 August 2018).
  11. Everard, M.; Powell, A. Rivers as living systems. Aquat. Conserv. Mar. Freshw. Ecosyst. 2002, 12, 329–337. [Google Scholar] [CrossRef]
  12. U.S. Environmental Protection Agency [EPA]. National Nonpoint Source Program—A Catalyst for Water Quality Improvements. Available online: https://www.epa.gov/sites/production/files/2016-10/documents/nps_program_highlights_report-508.pdf (accessed on 2 November 2020).
  13. Donlon, A.; McMillan, B. Best Management Practices to Control Nonpoint Source Pollution: A Guide for Citizens and Town Officials; The Watershed Assistance Section, NH Department of Environmental Services: Concord, NC, USA, 2004.
  14. Hader, D.P.; Barnes, P.W. Comparing the impacts of climate change on the responses and linkages between terrestrial and aquatic ecosystems. Sci. Total Environ. 2019, 682, 239–246. [Google Scholar] [CrossRef] [PubMed]
  15. Tornevi, A.; Bergstedt, O.; Forsberg, B. Precipitation Effects on Microbial Pollution in a River: Lag Structures and Effect Modification. PLoS ONE 2014, 9, e98546. [Google Scholar] [CrossRef] [PubMed]
  16. Ismail, W.; Hashim, M. Changing trends of rainfall and sediment fluxes in the Kinta River catchment, Malaysia. In Proceedings of the International Association of Hydrological Sciences, New Orleans, LA, USA, 11–14 December 2014. [Google Scholar] [CrossRef][Green Version]
  17. Karr, J.R.; Fausch, K.D.; Angermeier, P.L.; Yant, P.R.; Schlosser, I.J. Assessing Biological Integrity in Running Waters: A Method and its Rationale; Special Publication 5; Illinois Natural History Survey: Champaign, IL, USA, 1986. [Google Scholar]
  18. Norris, R.H.; Thoms, M.C. What is river health? Freshw. Biol. 1999, 41, 197–209. [Google Scholar] [CrossRef][Green Version]
  19. Azhar, A.S.; Latiff, A.H.A.; Lim, L.H.; Gödeke, S.H. Groundwater investigation of a coastal aquifer in Brunei Darussalam using seismic refraction. Environ. Earth Sci. 2019, 78, 1–17. [Google Scholar] [CrossRef]
  20. Gödeke, S.H.; Malik, O.A.; Lai, D.T.C.; Bretzler, A.; Mansor, N.H. Water quality investigation in Brunei Darussalam: Investigation of the influence of climate change. Environ. Earth Sci. 2020, 79, 419. [Google Scholar] [CrossRef]
  21. Marshall, D.J.; Abdelhady, A.A.; Wah, D.T.T.; Mustapha, N.; Gödeke, S.H.; De Silva, L.C.; Hall-Spencer, J.M. Biomonitoring acidification using marine gastropods. Sci. Total Environ. 2019, 692, 833–843. [Google Scholar] [CrossRef] [PubMed]
  22. Gödeke, S.; Geistlinger, H.; Fischer, A.; Richnow, H.H.; Wachter, T.; Schirmer, M. Simulation of a reactive tracer experiment using sto-chastic hydraulic conductivity fields. Environ. Geol. 2008, 55, 1255–1261. [Google Scholar] [CrossRef]
  23. Khalid, M. Plans to Prevent the Degradation of Water Quality in Brunei. Available online: https://borgenproject.org/water-quality-brunei/ (accessed on 31 July 2018).
  24. Yusri, N.I.A.B.; Gödeke, S.H.; Mohd Mansor, N.H.B.H. A water quality database for Brunei—The case of Bukit Barun and Layong. In Proceedings of the 7th Brunei International Conference on Engineering and Technology 2018 (BICET 2018), Bandar Seri Begawan, Brunei, 12–14 November 2018. [Google Scholar] [CrossRef][Green Version]
  25. Spano, D.; Duce, P.; Snyder, R.L.; Cesaraccio, C. An improved model for determining degree-day values from daily temperature data. Int. J. Biometeorol. 2001, 45, 161–169. [Google Scholar] [CrossRef] [PubMed]
  26. Perlman, H. Turbidity in the USGS Water Science School. Available online: http://water.usgs.gov/edu/turbidity.html (accessed on 2 November 2020).
  27. Moore, R.D.; Spittlehouse, D.L.; Story, A. Riparian microclimate and stream temperature response to forest harvesting: A review. J. Am. Water Resour. Assoc. 2005, 41, 813–834. [Google Scholar] [CrossRef]
  28. Ling, T.-Y.; Soo, C.-L.; Sivalingam, J.-R.; Nyanti, L.; Sim, S.-F.; Grinang, J. Assessment of the Water and Sediment Quality of Tropical Forest Streams in Upper Reaches of the Baleh River, Sarawak, Malaysia, Subjected to Logging Activities. J. Chem. 2016, 1–13. [Google Scholar] [CrossRef]
  29. Poisson, A. Conductivity/salinity/temperature relationship of diluted and concentrated standard seawater. IEEE J. Ocean. Eng. 1980, 5. [Google Scholar] [CrossRef]
  30. Moran, S. Clean water characterization and treatment objectives. In An Applied Guide to Water and Effluent Treatment Plant Design; Elsevier: Amsterdam, The Netherlands, 2018; pp. 61–67. [Google Scholar] [CrossRef]
  31. Gharbi, O.; Goedeke, S.; Al-Sammaraie, M.; Al-Shahwani, S.; Cheneviere, P.; Al-Mohannadi, N.; Julien, P. Core-flood analysis of acid stimulation in carbonates: Towards effective diversion and water mitigation. In Proceedings of the International Petroleum Technology Conference, IPTC 2014: Unlocking Energy Through Innova-tion, Technology and Capability, Doha, Qatar, 19–22 January 2014; Volume 4, pp. 3270–3274. [Google Scholar] [CrossRef]
  32. Sazali, Y.A.; Sazali, W.M.L.; Ibrahim, J.M.; Dindi, M.; Graham, G.; Gödeke, S. Investigation of high temperature, high pressure, scaling and dissolution effects for Carbon Capture and Storage at a high CO2 content carbonate gas field offshore Malaysia. J. Pet. Sci. Eng. 2019, 174, 599–606. [Google Scholar] [CrossRef]
  33. Fu, X.; Finley, A.; Carpenter, S. Formation Damage Problems Associated with CO2 Flooding. In Formation Damage during Improved Oil Recovery; Gulf Professional Publishing: Oxford, UK, 2018; pp. 305–359. [Google Scholar] [CrossRef]
  34. Tziortzioti, C.; Amaxilatis, D.; Mavrommati, I.; Chatzigiannakis, I. IoT sensors in sea water environment: Ahoy! Experiences from a short summer trial. Electron. Notes Theor. Comput. Sci. 2019, 343, 117–130. [Google Scholar] [CrossRef]

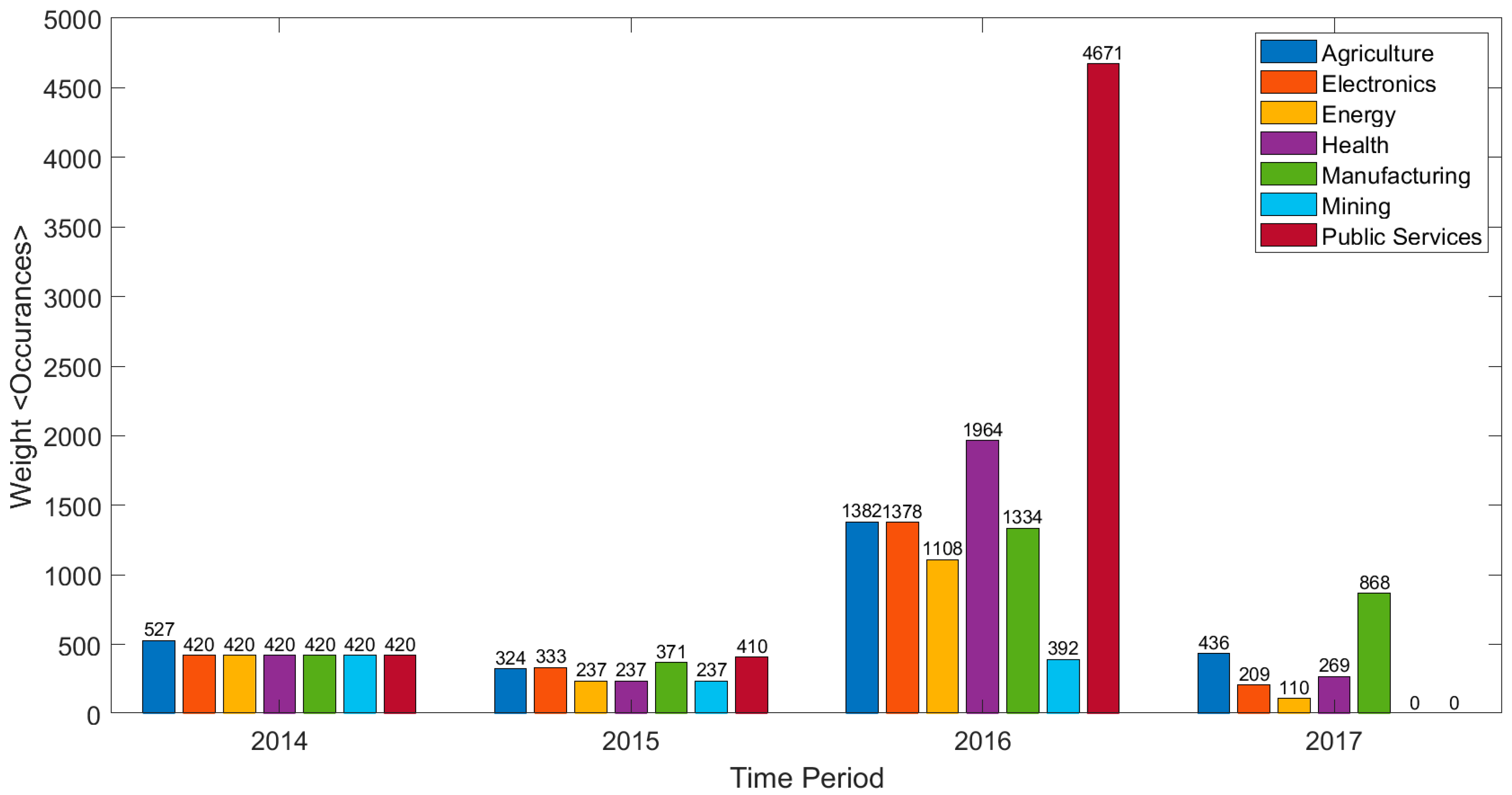

Figure 1. Trends of Industry Impacted by Internet of Things (IoT). Adapted from [5].
Figure 1. Trends of Industry Impacted by Internet of Things (IoT). Adapted from [5].
Environments 08 00006 g001

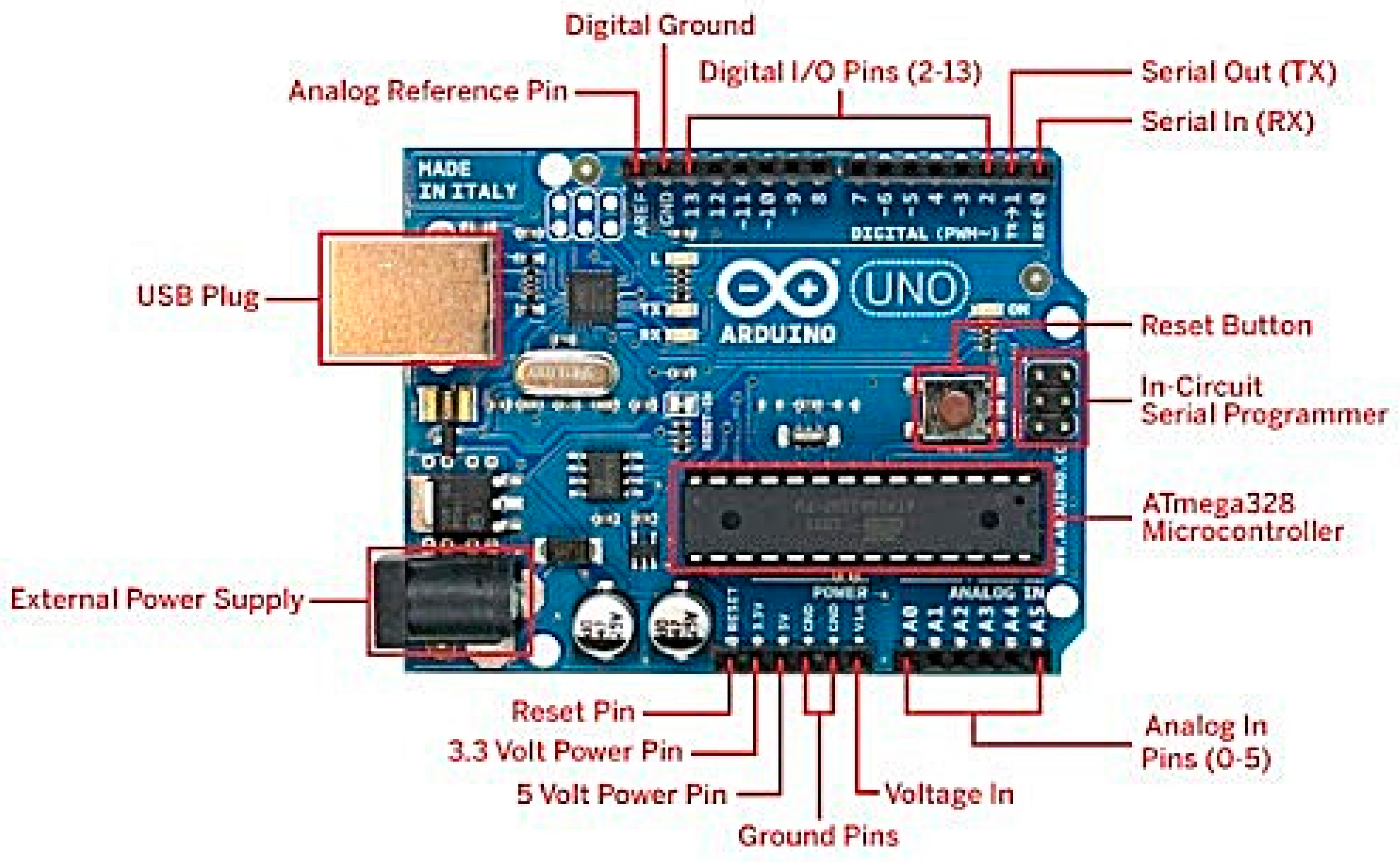

Figure 2. Arduino board and its connections.
Figure 2. Arduino board and its connections.
Environments 08 00006 g002

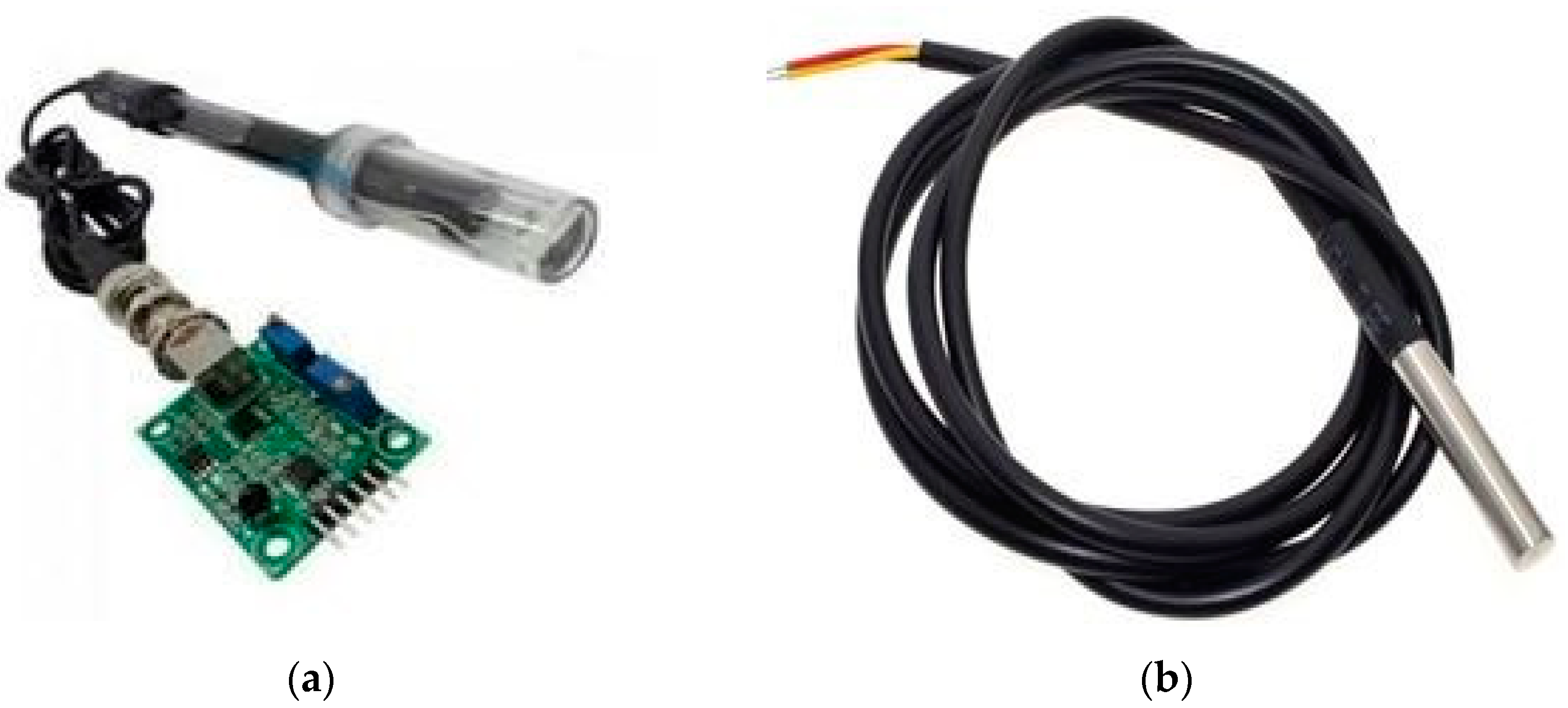

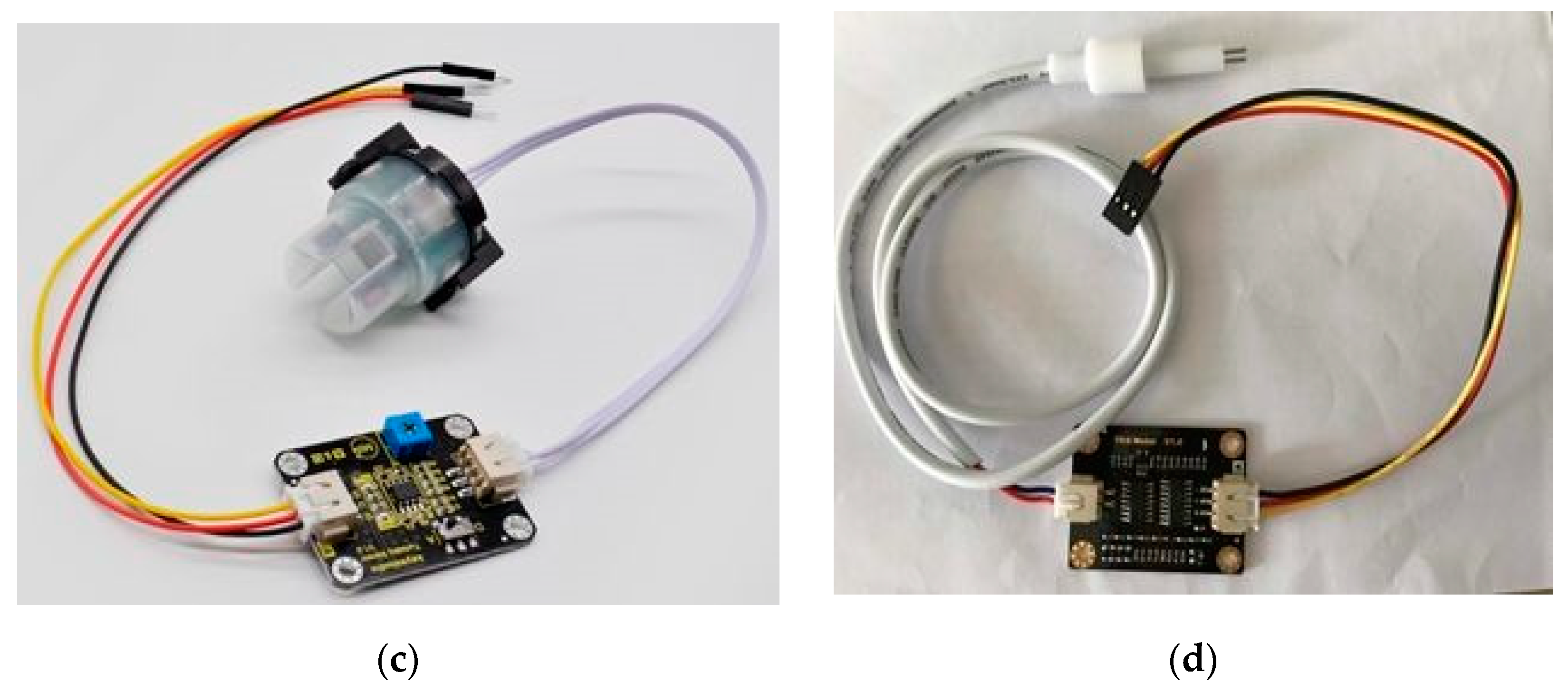

Figure 3. (a) pH sensor, (b) temperature sensor, (c) turbidity sensor, (d) total dissolved solids sensor.
Figure 3. (a) pH sensor, (b) temperature sensor, (c) turbidity sensor, (d) total dissolved solids sensor.
Environments 08 00006 g003aEnvironments 08 00006 g003b

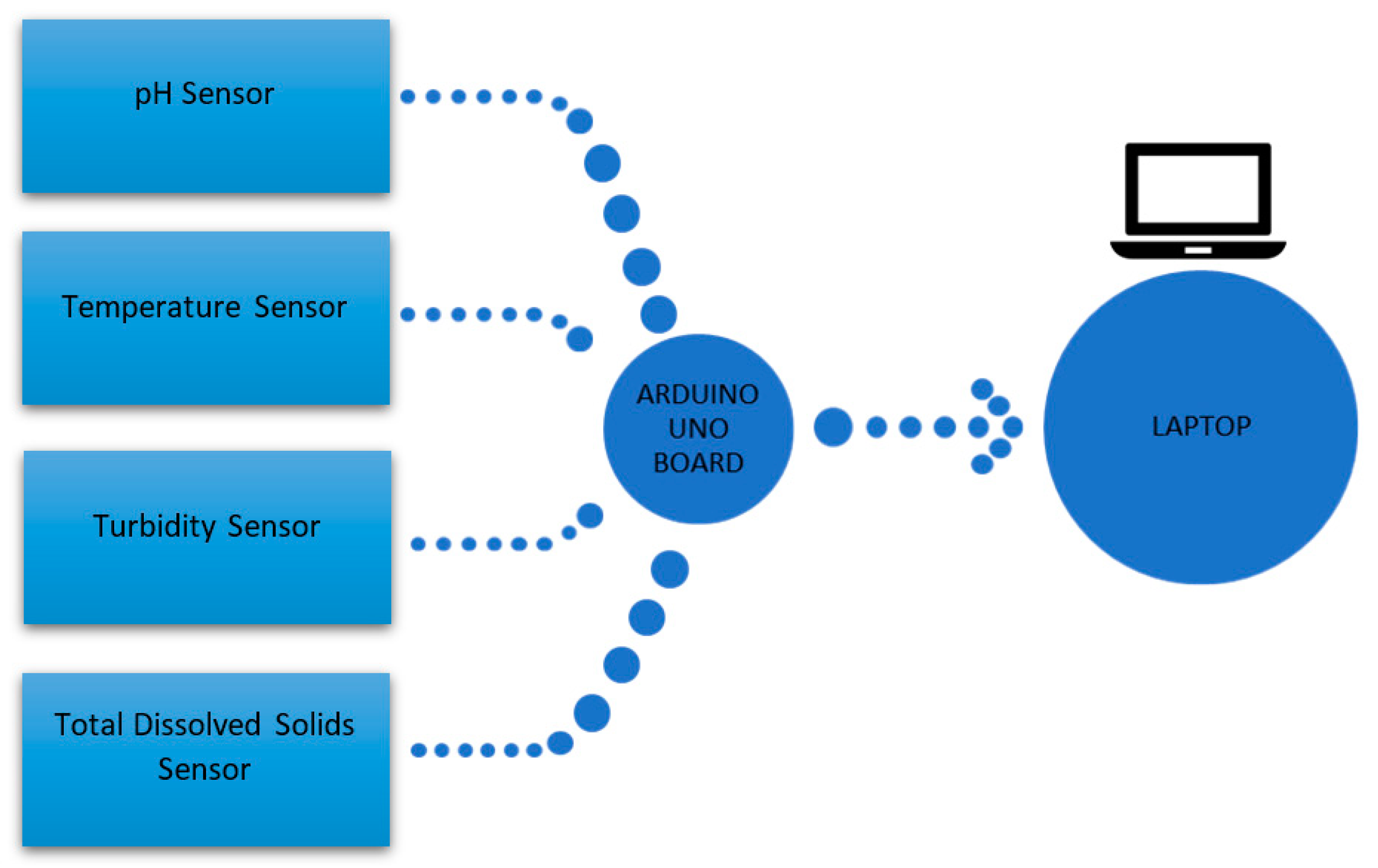

Figure 4. Block diagrams of the connections.
Figure 4. Block diagrams of the connections.
Environments 08 00006 g004

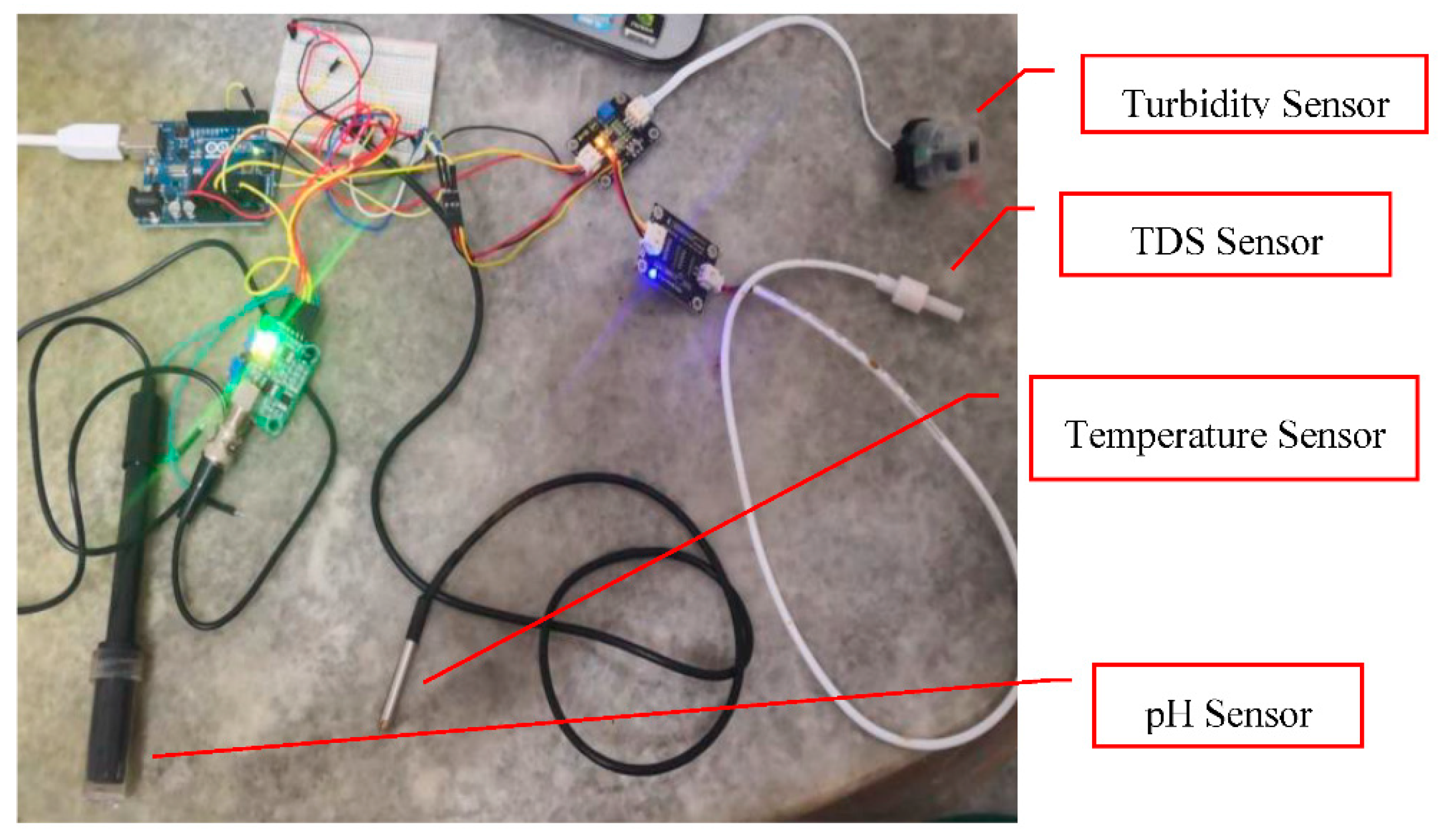

Figure 5. Setup of the Arduino-based sensor system.
Figure 5. Setup of the Arduino-based sensor system.
Environments 08 00006 g005

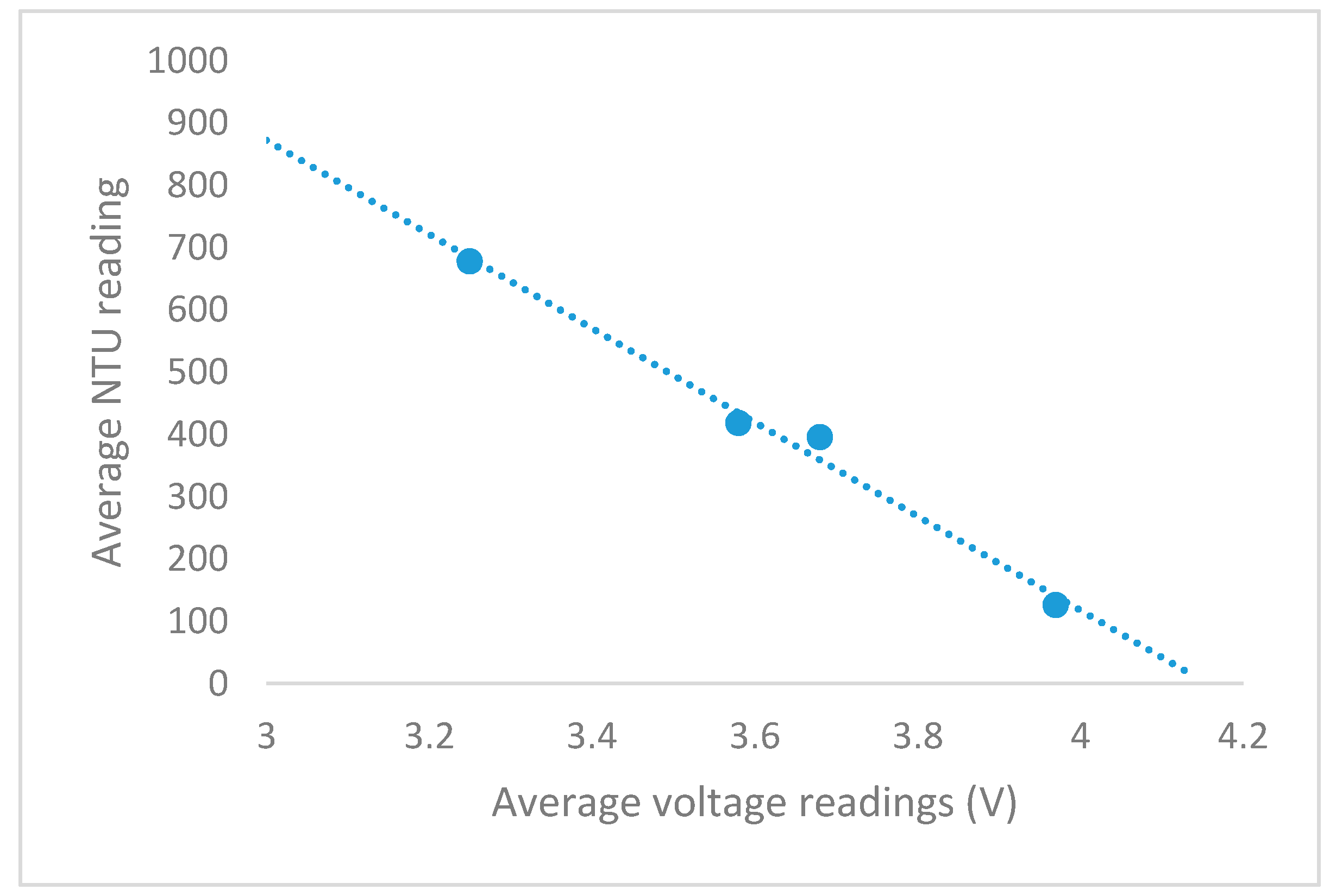

Figure 6. Relationship between turbidity and voltage.
Figure 6. Relationship between turbidity and voltage.
Environments 08 00006 g006

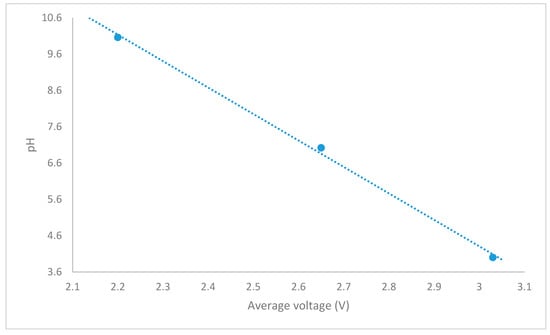

Figure 7. Relationship between pH and voltage.
Figure 7. Relationship between pH and voltage.
Environments 08 00006 g007

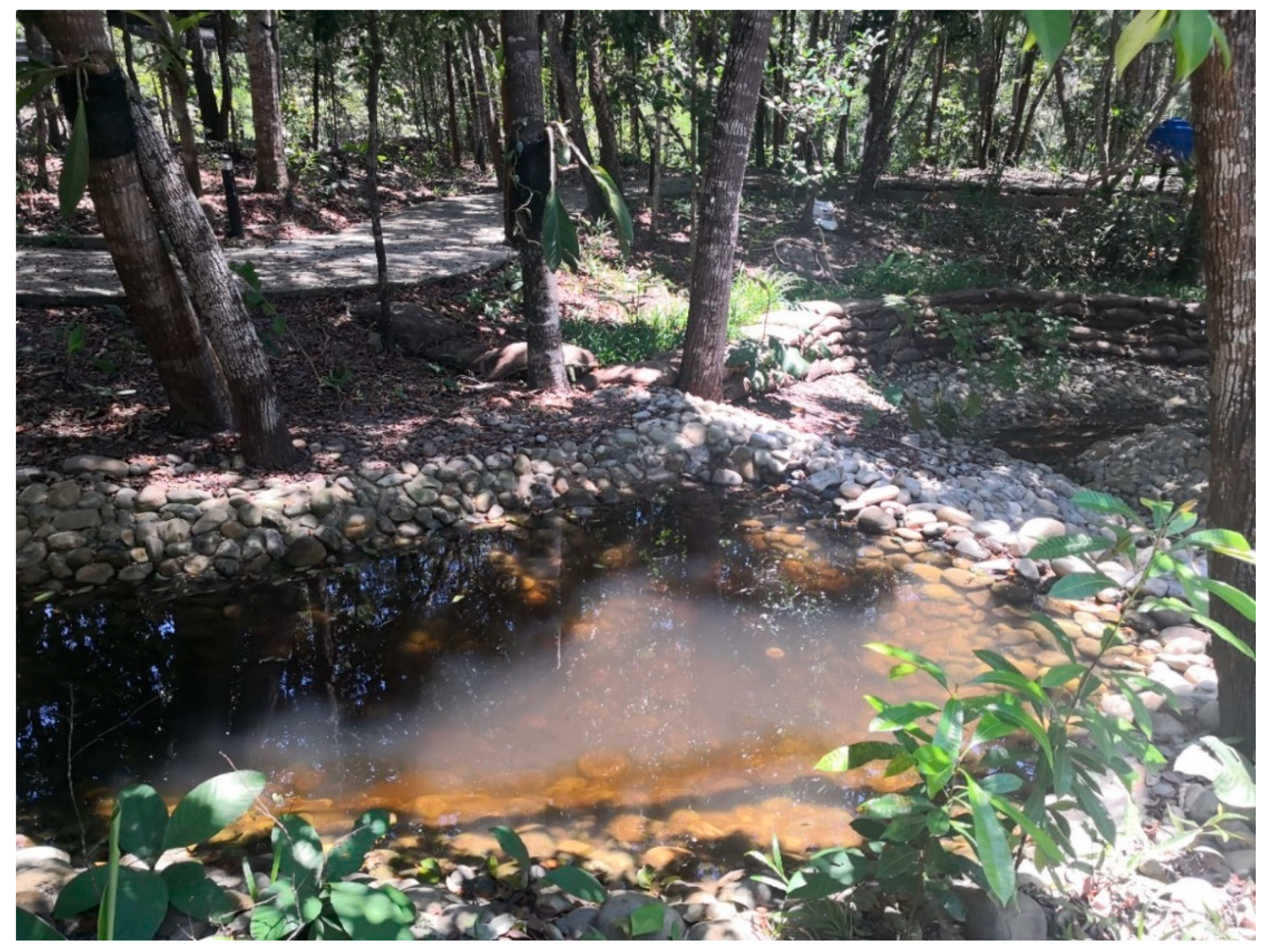

Figure 8. Testing site.
Figure 8. Testing site.
Environments 08 00006 g008

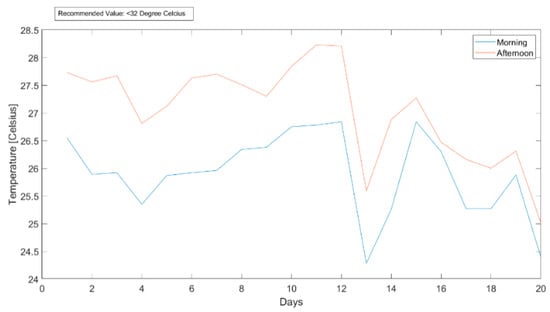

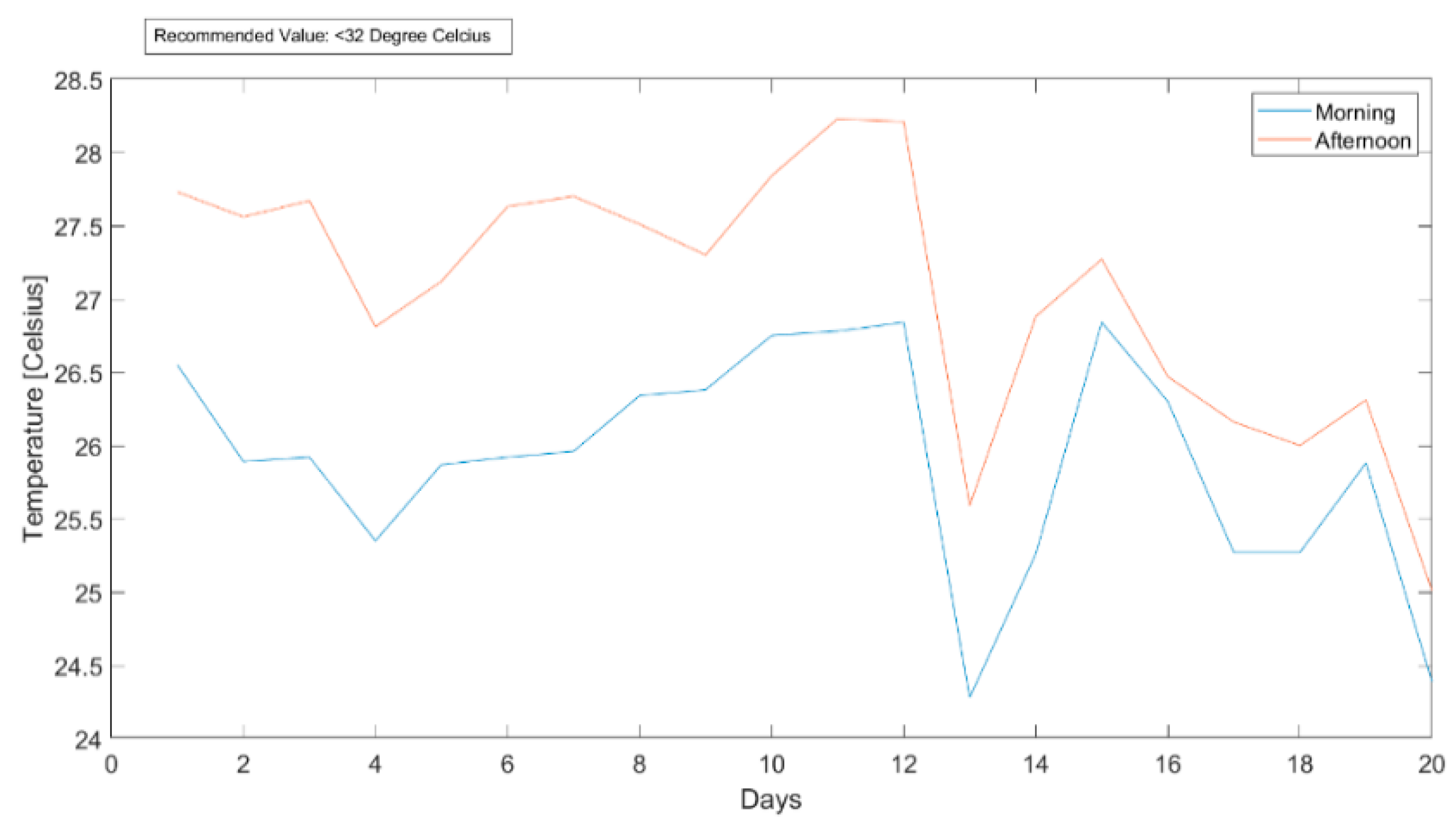

Figure 9. Temperature variation.
Figure 9. Temperature variation.
Environments 08 00006 g009

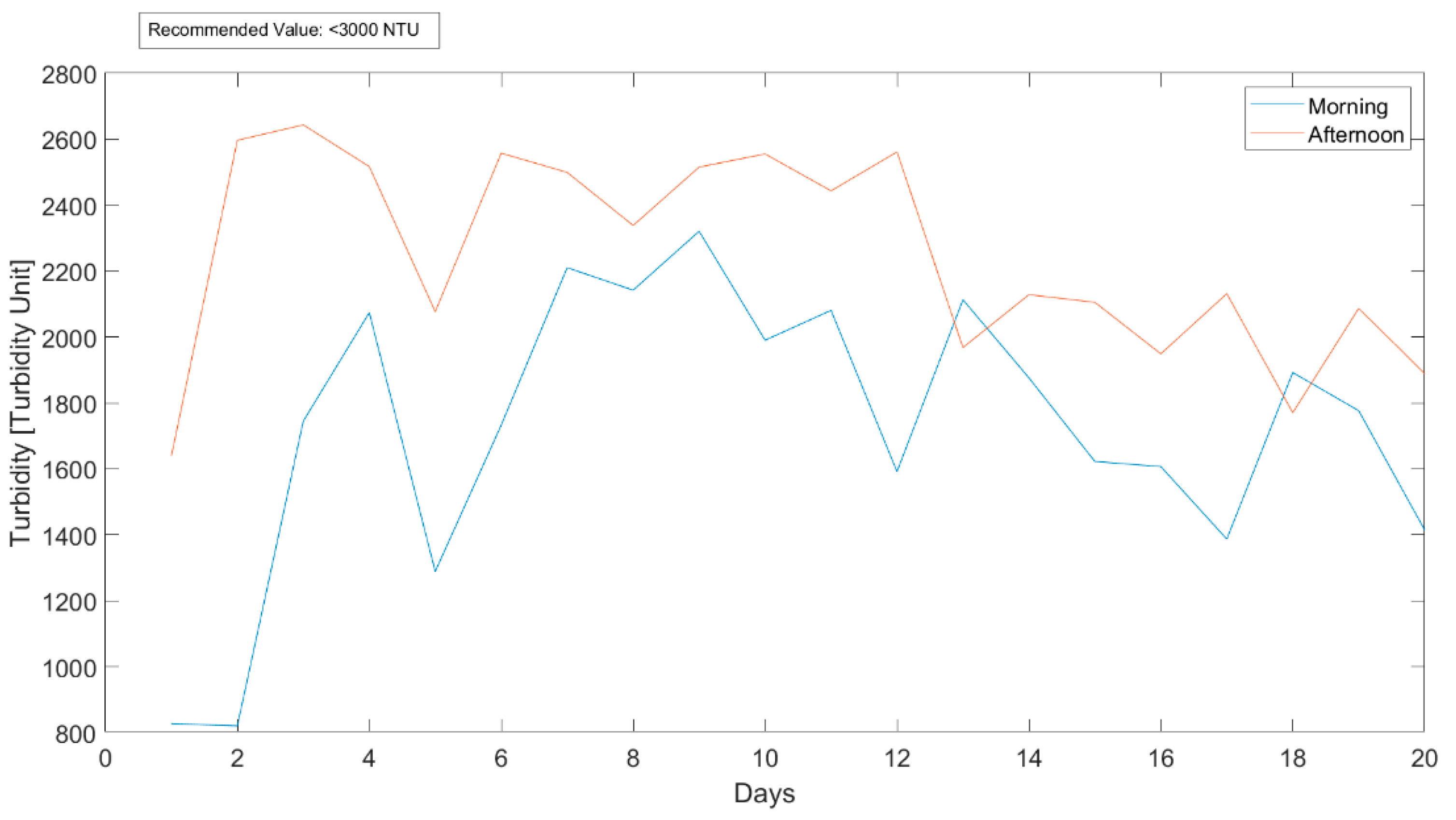

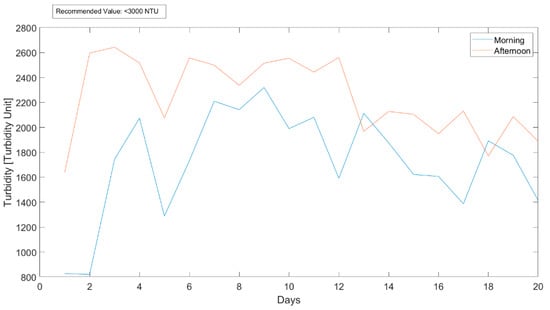

Figure 10. Turbidity variation.
Figure 10. Turbidity variation.
Environments 08 00006 g010

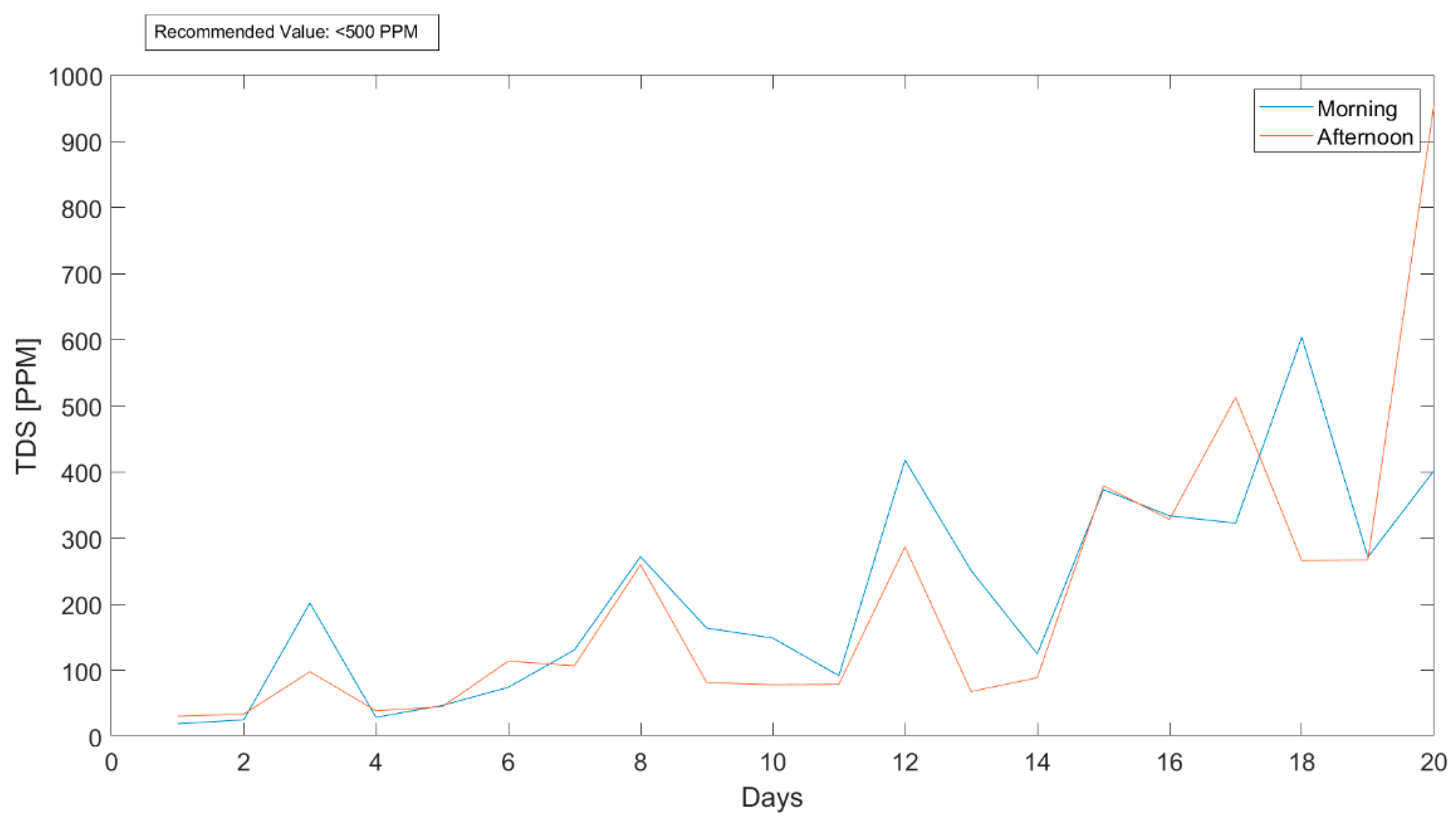

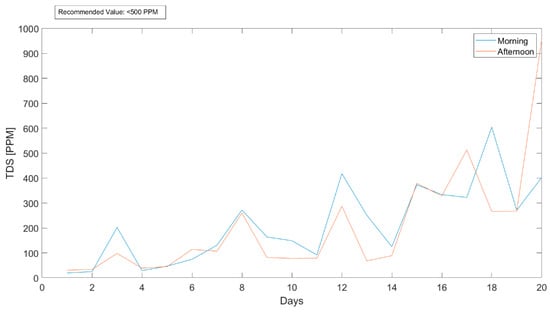

Figure 11. Total dissolved solids (TDS) Variation.
Figure 11. Total dissolved solids (TDS) Variation.
Environments 08 00006 g011

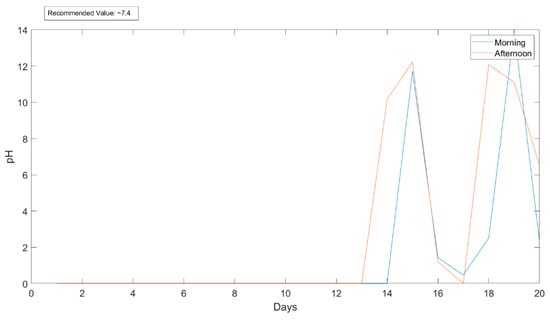

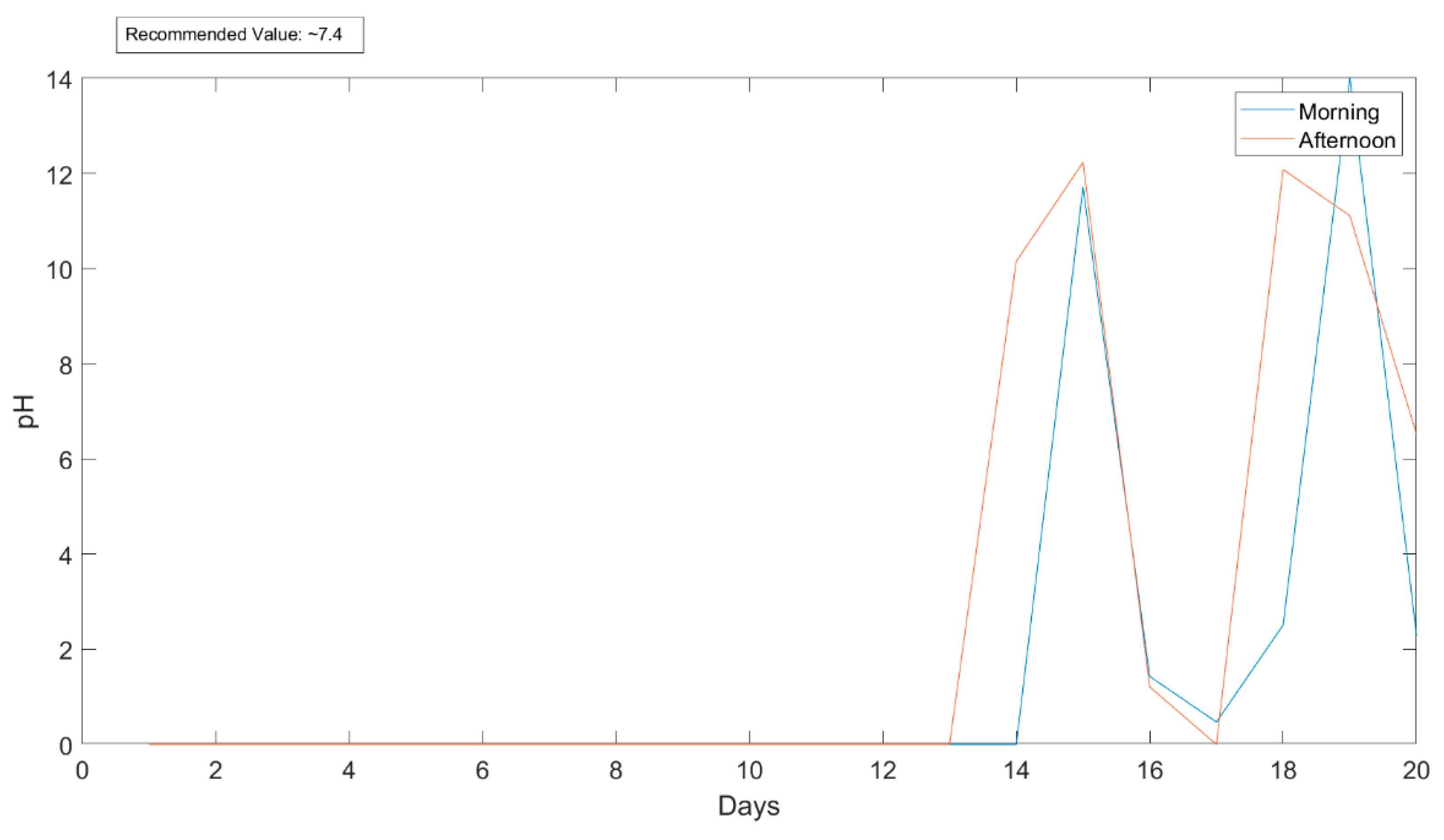

Figure 12. pH Variation.
Figure 12. pH Variation.
Environments 08 00006 g012
Table 1. IoT units installed by categories (millions of units).
Table 1. IoT units installed by categories (millions of units).
Category2016201720182019
Consumer3963.05244.37036.312863.0
Business: Cross-Industry1102.11501.02132.64381.4
Business: Vertical-Specific1316.61635.42027.73171.0
Grand Total6381.88380.611196.620415.4
Table 2. Data for turbidity calibration.
Table 2. Data for turbidity calibration.
Soil Mass (g)Water Volume (L)Nephelometric Turbidity Units (NTU) ReadingsAverage NTU ReadingAverage Voltage Reading (V)
1.01690.6120.1, 128.3, 140.4, 121.3, 120.6126.143.97
2.01900.6392.0, 398.0, 392.0, 396.0, 400.0395.603.68
3.00960.6407.0, 422.0, 412.0, 428.0, 422.0418.203.58
4.02010.6677.0, 657.0, 690.0, 702.0, 664.0678.003.25
Table 3. Data for pH calibration.
Table 3. Data for pH calibration.
pHVoltage [V]Average Voltage [V]
pH 10.062.20, 2.20, 2.20, 2.19, 2.20, 2.19, 2.21, 2.20, 2.20, 2.20, 2.202.20
pH 7.022.69, 2.65, 2.65, 2.64, 2.65, 2.64, 2.65, 2.64, 2.63, 2.64, 2.652.65
pH 4.003.01, 3.09, 3.02, 3.02, 3.03, 3.02, 3.03, 3.03, 3.03, 3.04, 3.033.03
Table 4. Data for the duration of the test.
Table 4. Data for the duration of the test.
DateTimeTemperature (°C)Turbidity (V)Turbidity (NTU)Total Dissolved Solids (PPM)pH (V)pH
Week 17 October201910:30 am26.553.06827.4319.4--
Monday4:30 pm27.7321639.1330.8--
8 October 201910:10 am25.893.06820.5425.2--
Tuesday4.10 pm27.560.752596.4533.8--
9 October 201910:30 am25.921.861744.9202--
Wednesday4.00 pm27.670.692643.298--
10 October 201910:40 am25.351.432073.7129--
Thursday4.00 pm26.810.852516.7339--
12 October 20199:50 am25.872.451288.8547--
Saturday3:50 pm27.121.432076.7845--
Week 214 October 201910:20 am25.921.871732.6474.4--
Monday4:10 pm27.630.82557.36114--
15 October 201910:00 am25.961.252210.15131--
Tuesday4:10 pm27.70.872499.11107--
16 October 201910:30 am26.341.342141.93272--
Wednesday4:00 pm27.511.082338.15260--
17 October 201910:20 am26.381.112320.52164--
Thursday4:10 pm27.30.852515.281.6--
19 October 201910:10 am26.751.541990.17148.9--
Saturday4:00 pm27.840.82555.0678.4--
Week 321 October 201910:50 am26.781.422080.6192--
Monday3:50 pm28.230.952443.1579--
22 October 201910:00 am26.842.061591.6418--
Tuesday4:10 pm28.210.792561.19287--
23 October 201910:10 am24.281.382112.8251--
Wednesday4:00 pm25.591.571967.9468--
24 October 201910:50 am25.261.691875.97125--
Thursday4:30 pm26.881.362128.13892.210.15
26 October 201912:30 pm26.842.021622.26373.41.9911.71
Saturday6:20 pm27.271.392105.14379.21.9212.23
Week 428 October 201910:20 am26.32.041606.93333.83.391.43
Monday3:20 pm26.471.591948.78328.43.421.21
29 October 201911:00 am25.272.331386.96322.73.520.47
Tuesday4:30 pm26.161.352131.25133.580
30 October 20199:10 am25.271.671892.066043.242.51
Wednesday4:10 pm261.831770.192661.9412.08
1 November 201910:50 am25.881.821776.32271.21.6714
Thursday3:00 pm26.311.412086.742672.0711.11
3 November 201911:30 am24.392.291414.55402.43.272.29
Saturday4:30 pm25.011.671889956.32.696.52
Table 5. Summary of parameters.
Table 5. Summary of parameters.
TemperatureTurbidityTDSpH
Average26.481986.99210.676.59
Minimum24.28820.5419.400.00
Maximum28.232643.2956.3014.00
Standard Deviation0.98444.56188.755.17
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Hong, W.J.; Shamsuddin, N.; Abas, E.; Apong, R.A.; Masri, Z.; Suhaimi, H.; Gödeke, S.H.; Noh, M.N.A. Water Quality Monitoring with Arduino Based Sensors. Environments 2021, 8, 6. https://doi.org/10.3390/environments8010006

AMA Style

Hong WJ, Shamsuddin N, Abas E, Apong RA, Masri Z, Suhaimi H, Gödeke SH, Noh MNA. Water Quality Monitoring with Arduino Based Sensors. Environments. 2021; 8(1):6. https://doi.org/10.3390/environments8010006

Chicago/Turabian Style

Hong, Wong Jun, Norazanita Shamsuddin, Emeroylariffion Abas, Rosyzie Anna Apong, Zarifi Masri, Hazwani Suhaimi, Stefan Herwig Gödeke, and Muhammad Nafi Aqmal Noh. 2021. "Water Quality Monitoring with Arduino Based Sensors" Environments 8, no. 1: 6. https://doi.org/10.3390/environments8010006

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
