Evaluation of the Copper and Zinc Contents of Soils in the Vineyards of La Rioja (Spain)

Abstract

The aim of this study was to determine the concentrations of Cu and Zn in soils in the vineyards of La Rioja and to calculate reference values for the two elements. Samples were taken from the surface horizon (0–20 cm) and the subsurface horizon (40–60 cm) in 106 locations. Some physico-chemical properties were analyzed along with the total and bioavailable contents of these elements. Various statistical parameters were calculated, and distribution maps were then created using the ordinary-Kriging method. The Cu content was in the range of 2.46–121.52 mg kg^–1, and the Zn content was 9.05–125.67 mg kg^–1. These values fell within the normal ranges in comparison with other areas of Spain and the rest of Europe. The concentrations in the surface and in the subsurface were compared; in the case of Cu, the concentration was higher at the surface, whereas significant differences in the vertical distribution of Zn were not observed. Both metals had a heterogeneous distribution across the entire area of study. In the case of Zn, the similarity of the maps between surface and depth was verified, while the case of Cu was different. The main source of these metals was the parent material from which the soil had been formed, but in the case of Cu, maps showed increased Cu at the surface, which was especially marked at certain points and seemed to indicate the presence of an exogenous contribution at these locations. That means that the copper concentrations in the topsoil resulted from the yearlong grapevine protection with copper-based agents. Reference values were calculated to be 85.28 and 48.88 mg kg^–1 of Cu and 83.69 and 72.05 mg kg^–1 for Zn at the surface and at depth, respectively.

1. Introduction

Certain heavy metals and other trace elements are natural constituents of soil, since they derive from the bedrock from which the soil has been formed. In particular, copper and zinc are essential for plants, but they become toxic at higher concentrations. Their content is an indicator of possible excesses or deficiencies for plat nutrition and, ultimately, human health.

Hence, soils that are derived from the same parent material usually have similar concentrations of trace elements [1]. This concentration can increase due to natural causes such as leaching processes or due to various anthropogenic sources.

In this regard, special consideration is given to agricultural soils, because the treatments applied to them may affect soil fertility or introduce toxic elements into the human food chain [2]. For this reason, the determination of the concentrations of heavy metals in soils has become the focus of various public institutions and has led to the drawing up of several regulations on soil protection, such as Council Directive 86/278/EEC and a set of indicative values for soil contamination in Spain [3].

In many regions, the determination of the concentrations of these metals in soils has been a priority for some time in order to understand and distinguish between the contributions made by the soil’s parent material and human activity. Reference values have been established from the determined values, i.e., the thresholds for concentrations above which it can be suggested that there are external contributions and, therefore, signs of contamination [4,5].

The qualified Rioja DOCa (calificada designation of origin) has a high standing in terms of the production and quality of its wines. An important factor in the quality of these wines is the soil in the vineyards. Consequently, it is essential to determine the reference levels for potentially toxic elements in these soils and to subsequently monitor them to ensure ongoing soil fertility and the safety of the wines produced in this region.

In particular, copper and zinc are essential for plants, but they become toxic at higher concentrations. Their content is an indicator of possible excesses or deficiencies for plant nutrition and ultimately human health. The aims of the research described here were to determine the total and bioavailable contents of Cu and Zn in soils in the vineyards of La Rioja, both at the surface and at depth, in order to compare their distribution throughout the region and to calculate their reference levels.

2. Materials and Methods

2.1. Area of Study: Rioja DOCa

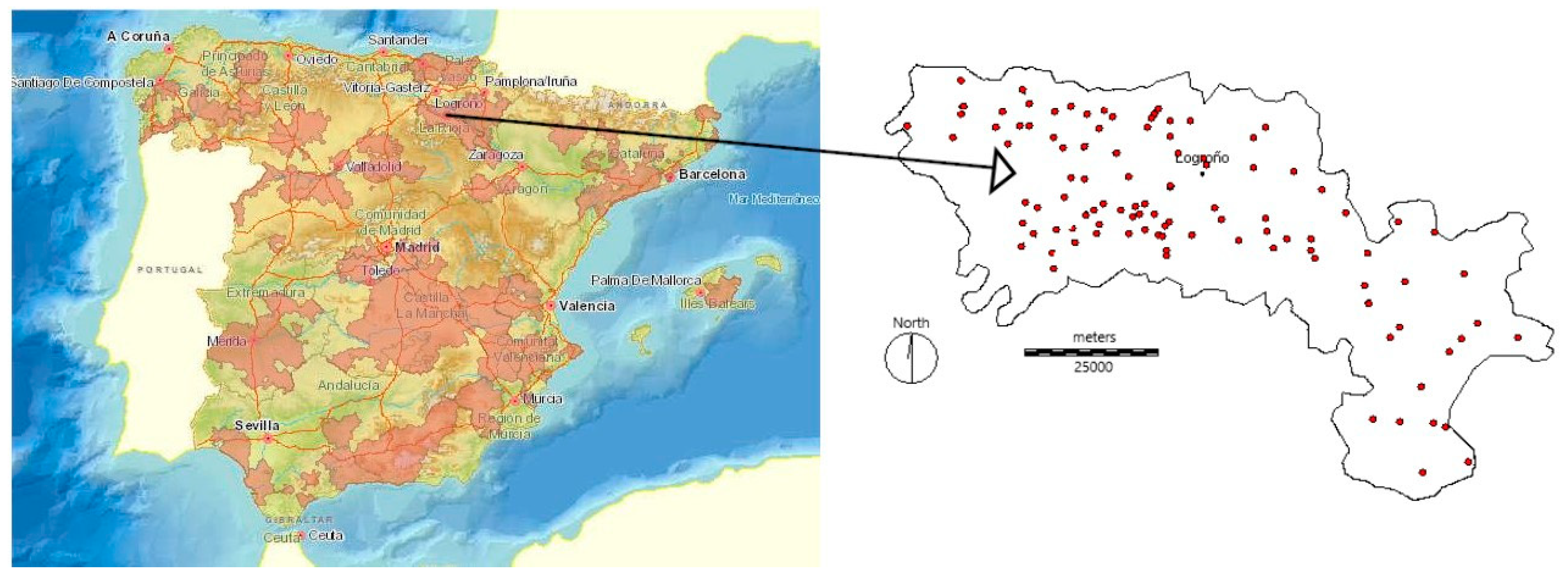

The chosen area, Rioja DOCa, is located close to the northern coast of the Iberian Peninsula (Figure 1) and consists of cultivated land that has been subject to various geological and pedological processes. It is a region with a significant amount of cultivation, including market gardens, orchards, and vineyards.

The region is located on the banks of the River Ebro and is divided into three different zones. Rioja Alta is the westernmost region of the area of study and is located on the south bank of the Ebro, with an average altitude of 400–500 m, an Atlantic climate, and calcareous soils. Rioja Baja is the easternmost region and is also located on the south bank of the river. Its elevation is the lowest of the three zones (300–400 m) and its climate is Mediterranean (dry and warm), with soils formed from fluvial materials. Rioja Alavesa is the northernmost area and is located north of the River Ebro at an altitude of 500–700 m, and the soil has a high proportion of calcium carbonate and clays. The average temperature in the three zones is 12–14 °C.

The geological material found in this area mainly consists of sedimentary rocks such as marl, limestone, sandstone, conglomerate, and gypsum (on the terraces and slopes). There are also some acidic rocks, often with gravel. Predominantly deriving from limestone and used intensively for vineyards, some soils are located on slope shade lands in the lower section. Some areas are occupied by soils developed in calcareous clay (with more clay and silt than those derived from sandstone) that has a predominantly silty-loam texture, and these areas are usually well or moderately drained; others have been developed primarily in sandstones, with a dominant texture that ranges from sandy loam to loamy sand and being mostly well drained. Sometimes, though vineyard soils are saturated in spring, they may suffer drought stress during summer.

This parent material, along with other soil forming factors, has led to a variety of soils types: Entisols, Inceptisols, Mollisols, Alfisols, and (rarely) Aridisols [6]. The presence of these different soils means that some vineyards have certain chemical and physical limitations (e.g., highly active limestone contents) and require the use of fertilizers [1].

The potential erosion is rated as intermediate due to the development of vineyard soils from alluvial terrain.

2.2. Sampling

A total of 106 locations in the described area were chosen at random for sampling. In each selected location, two individual samples were taken using a core sampler; the first sample was representative of the surface (Ap horizon between 0 and 30 cm), and the second was taken from the lower layer or subsoil (B or C horizon between 30 and 60 cm). Four subsamples were collected to obtain a simple soil.

A total of 212 samples were taken, and the sites were identified using a Garmin eTrex handheld global positioning system (GPS). A map with the locations from which samples were taken is provided in Figure 1.

2.3. Analytical Methods

Each soil sample was dried at room temperature to constant weight. The sample was then sieved through a 2 mm sieve in order to remove the thicker materials. The remainder was carefully mixed until it was homogeneous. Aliquots of these samples were taken to carry out various chemical analyses.

The chemical properties of the soil were analyzed in accordance with the standard procedures used in the soil analysis laboratories at the University of La Rioja. Each sample was analyzed for texture, determining the amount of clay present (soil texture) [7], and the organic matter (OM) content through dichromate digestion based on the Walkley–Black method. The soil pH was potentiometrically estimated after balancing with H₂O and 0.1 M KCl at a ratio of 1:2.5. The calcium carbonate content was determined using a Bernard calcimeter.

For the determination of Cu and Zn, the soil samples were digested using a mixture of HNO₃/HClO₄/HF, following the procedure described in detail in previous studies [8]. The total concentrations of Cu and Zn were analyzed after complete dissolution with the use of graphite furnace atomic absorption spectroscopy in conjunction with a Varian 220FS detector.

Detection limits were calculated as three times the standard deviation of ten blank samples [9]. The limits were 0.08 mg kg^–1 for Cu and 0.06 mg kg^–1 for Zn. The bioavailable content was determined using the method developed by [10] through extraction with DTPA (diethylenetriaminepentaacetic acid). Quality control for measurements was ensured by means of duplication.

2.4. Statistical Methods

The data obtained from the surface and subsurface horizons were processed separately. Firstly, the Kolmogorov–Smirnov test was used to analyze the normal distribution of each variable. After this test, standard statistical analyses were performed on the mean, standard deviation, maximum, and minimum using SPSS 20 for Windows. A paired mean differences analysis was also carried out to determine if there were any significant differences between the contents at the surface and at depth. The Pearson correlation coefficient between variables was calculated.

The obtained data were used to calculate distribution semivariograms for each element, and the corresponding distribution maps were created using the ordinary Kriging method [11].

3. Results and Discussion

The total metal total content refers to all existing forms of this metal (ions, oxides, metals, and other compounds). Because of this, the content of disposable metal is not the same and depends on multiple factors. The available content of metal is the quantity that a plant or other living form can uptake.

The statistics (number of samples, mean, standard deviation, variance, minimum, and maximum) for the results obtained for the physicochemical properties of the soil and the concentration of Cu and Zn in both horizons are presented in

Table 1. Statistical values of measured soil properties (pH, CaCO₃: calcium carbonate %, OM: organic matter %, and Clay: clay contents %) and trace elements concentration (mg kg⁻¹) of the total and plant-available (BIO) Cu and Zn contents in 212 vineyard soil samples at the surface (S) and at depth (D). Additionally shown are pedogeochemical baselines (RV), given in mg kg⁻¹, for Cu and Zn in the DOCa Rioja region.

	Minimum	Maximum	Mean	Standard Deviation	Variance	Reference Values
pH (S)	5.24	8.83	8.12	0.64	0.41
pH (D)	5.24	8.85	8.21	0.5	0.25
CaCO3 (S)	0	51.75	20.37	14.55	211.93
CaCO3 (D)	0	54.32	20.98	14.39	207.33
OM (S)	0.1	3.24	0.9	0.54	0.68
OM (D)	0	3.49	1	0.8	0.68
Clay (S)	1.62	49.34	20.09	9.3	86.65
Clay (D)	0	45.93	18.34	9.7	94.25
Cu Total (S)	2.46	121.52	33.48	23.9	571.26	85.28
Cu Total (D)	6.07	96.64	20.74	14.07	198.18	48.88
Cu Bio (S)	0.11	14.79	3.46	3.4	11.59
Cu Bio (D)	0.07	13.81	1.23	2.01	4.05
Zn Total (S)	9.05	125.67	46.87	18.41	339.09	83.69
Zn Total (D)	17.8	92.94	44.67	13.69	187.64	72.05
Zn Bio (S)	0.07	2.78	0.5	0.45	0.21
Zn Bio (D)	0.04	1.96	0.34	0.34	0.12

.

It can be seen from the results in Table 1 that the variance for clay content was very high, which indicated an appreciable variability in the textures. Significant variations were also observed in the soil pH, which ranged from 5 to 8.8, with a mean of 8.12 at the surface and 8.21 at depth. In contrast, the variance obtained for the organic matter content was very low, as can be seen from the minimum and maximum values at the surface (0.1% and 3.24%, respectively, with a mean average of 0.9%) and at depth (0% and 3.5%, respectively, with a mean of 1.0%). Calcium carbonate was present in most soils at high levels, and these were higher at depth (between 0% and 51.75% with a mean average of 20.37% in the surface horizon and 20.98% in the deeper horizon).

3.1. Concentration and Distribution of Cu

The descriptive statistics for the Cu and Zn concentrations are shown in Table 1 (mean, variance, standard deviation, minimum, and maximum). The variance in the concentrations of these elements was also high, which highlighted the great variability in these soils. The Cu content varied between 2.46 and 121.52 mg kg^–1 at the surface, with an average of 33.48 mg kg^–1, and between 6.07 and 96.64 mg kg^–1 at depth with a mean average of 20.74 mg kg^–1.

The concentration values for Cu cited in other research from around the world are provided in

Table 2. Concentrations of Cu and Zn (average values) cited by other studies given in mg kg⁻¹.

Region	Cu	Zn	Reference
La Rioja (Spain)	3.01–28.68	53.9	[12]
Galicia (Spain)	17.7–45.2		[13]
Alicante (Spain)	10	21	[14]
Spain	59		[15]
Europe	68.7		[15]
Portugal		59	[16]
Carpatos (Romania)	3.6–12.6	5–136	[17]
Piamonte (Italy)	58.3	62	[18]
India (Sehore and Vidisha)	178.1	85.2	[19]
World	50		[15]

. In this case, it can be stated that the values found in this study are within the range of those included in Table 2. A comparison of the values obtained for Cu in this study with those shown in

The values for the mean surface and depth contents differences are provided in

Table 3. Mean differences between S and D total and bioavailable (B) concentrations of Cu and Zn.

		Mean	Standard Deviation	Standard Mean Error	95% Confidence Interval Difference		t	Sig. (Bilateral)
					Lower	Upper
Pair 1	CuS - CuD	13.19245	26.63001	2.58653	8.06383	18.32107	5.1	0
Pair 2	CuBS - CuBD	2.3	3.76475	0.36566	1.57495	3.02505	6.29	0
Pair 3	ZnS - ZnD	2.11132	22.67722	2.20261	−2.25604	6.47868	0.959	0.34
Pair 4	ZnBS - ZnBD	0.15	0.57607	0.05595	0.03906	0.26094	2.681	0.009

. The average values obtained for Cu were slightly higher at the surface (with a difference of 13 mg kg^–1), although they were similar to those found in non-cultivated soils in La Rioja [12]. This finding 12indicated a contribution that is mainly geological in origin. The fact that there was a greater quantity at the surface and that high values were found in some localized spots (over 80 mg kg^–1) could be related to the application of plant protection products with high levels of Cu, as suggested by [13]. As stated previously, Garcia-Navarro et al. [1] commented that some vineyard soils require the use of fertilizers due to particular soil characteristics. Nevertheless, the levels of fertilizer applied were never found to exceed the recommended values for environmental protection set out in 86/278/EEC for agricultural soils with pH > 7 (210 mg kg^–1). It does not seem that external contributions have significantly increased the concentrations of these metals to levels that might be considered contaminating.

Some variability was observed in the concentration of bioavailable Cu content, with a range between 0.11 and 14.79 mg kg^–1 and a mean average of 3.46 mg kg^–1 at the surface and between 0.07 and 13.81 mg kg^–1 with a mean average of 1.23 mg kg^–1 at depth. The relationship between the bioavailable content and the total content was around 10% at the surface and 4% at depth with respect to total Cu. These relationships were low, which indicated that this element was available to be assimilated by plants without oversaturation.

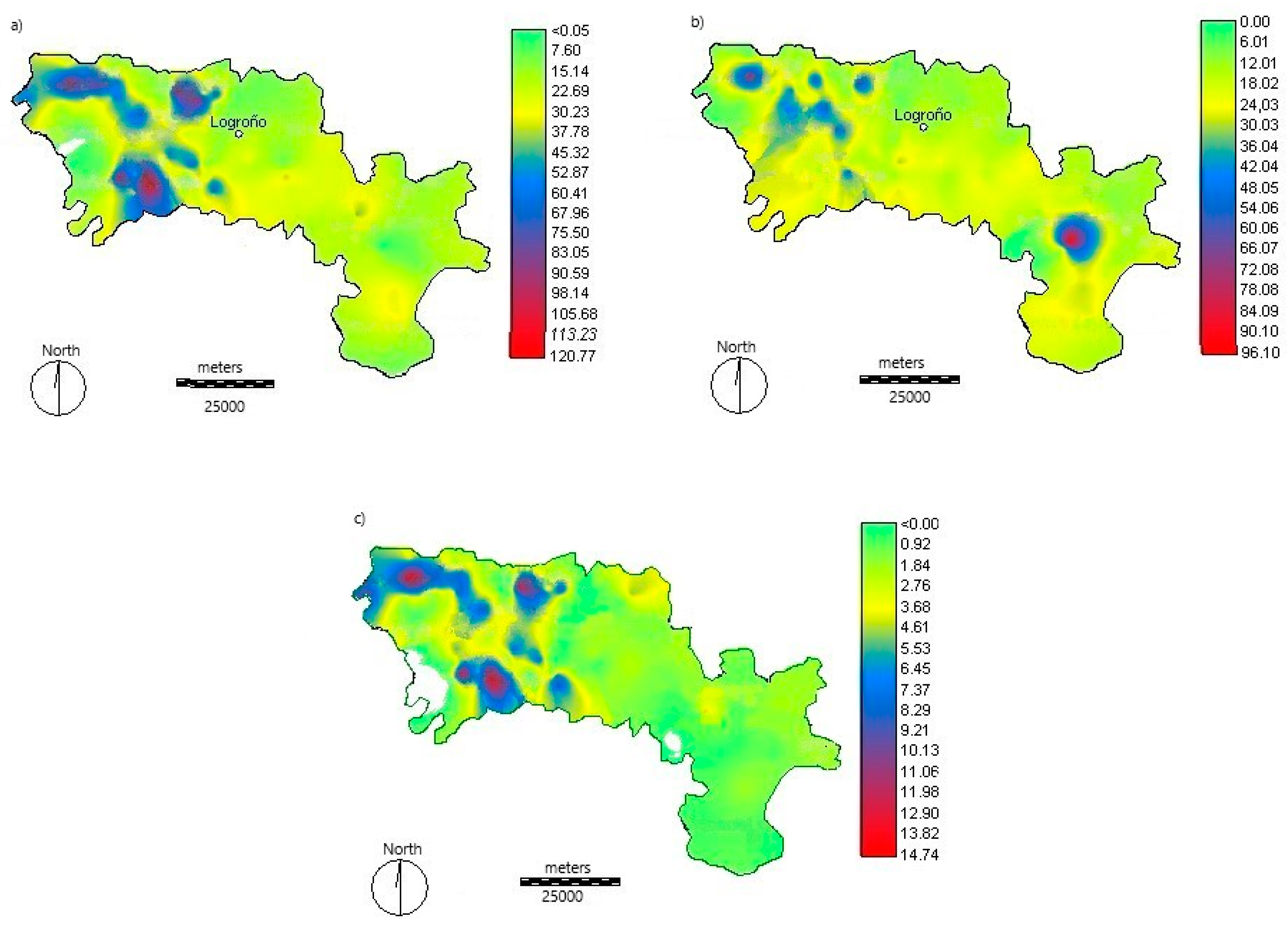

Distribution maps were created for total contents at the surface and at depth, as well as for bioavailable contents of both elements at the surface. These maps are shown in Figure 2 for Cu and Figure 3 for Zn. The maps were developed using the ordinary Kriging method, which involved the calculation of the omnidirectional variogram and manual adjustment, as recommended in other studies [11,20]. The total concentration of Cu (Figure 2a,b) showed a similar distribution at the surface and at depth, although the latter map also shows a maximum in the Rioja Baja zone that is not present in Figure 2a. The distribution of the bioavailable content at the surface (Figure 2c) was very similar to the distribution of the total content. This finding suggested that the main source of Cu is the parent material, as shown above. However, there are some areas in Figure 2a with maxima that are not observed in Figure 2b. This difference can be explained by the external contribution due to the application of fertilizers and other agrochemical products in the vineyard.

3.2. Concentration and Distribution of Zn

The variation in the Zn concentration was high, albeit with less variability than Cu. The Zn at the surface ranged from 9.05 to 125.67 mg kg^–1 with a mean of 46.87 mg kg^–1. At depth, it ranged from 17.8 to 92.94 mg kg^–1 with a mean of 46.87 mg kg^–1. As in the discussion of Cu, the results from other studies carried out around the world are presented in Table 2. A comparison of the Zn concentrations with those shown in Table 2 shows that the values were similar to those found in non-cultivated soils in La Rioja [12] and lower than those found in other places.

The spatial variability of the bioavailable Zn content was lower, with a range between 0.07 and 2.78 mg kg^–1 and a mean average of 0.50 mg kg⁻¹ at the surface. At depth, it ranged from 0.04 to 1.96 mg kg^–1 with a mean average of 0.34 mg kg^–1. The relationship between the bioavailable and total content of Zn was 1%, and it can therefore be stated that the bioavailable Zn concentration does not represent a potential risk.

It can be seen from the results in Table 3 that significant differences between surface and depth samples were not observed with respect to Zn. Sonoda et al. [21] pointed out the Zn accumulated in the uppermost soil layer, while [22] showed that soil erosion significantly affected the topsoil Cu concentrations. This finding suggested that Zn does not have an external contribution, and its main origin is the parental soil.

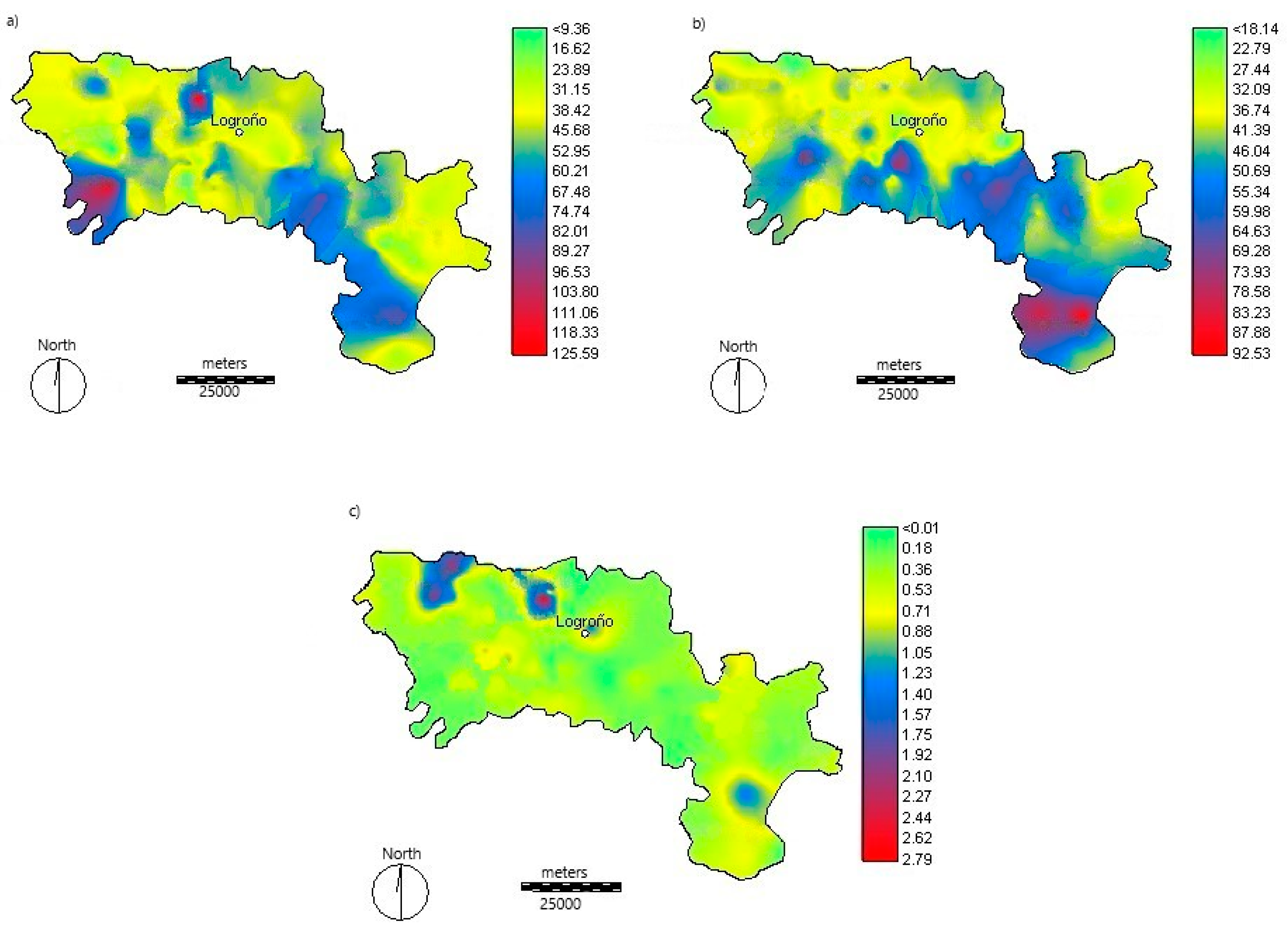

The distribution maps for Zn are shown in Figure 3. Once again, maps were created for total contents at the surface and at depth (Figure 3a,b), along with a map for bioavailable content at the surface (Figure 3c).

The distributions of total contents at the surface and at depth were similar, although the maxima for the two maps are displaced with respect to one another. The bioavailable contents show maxima at the same points in Rioja Alta as the distribution of the total content.

The distribution maps for Zn show a highly heterogeneous distribution in the surface horizon, both for the total Zn and the bioavailable Zn. The distribution at the surface shows two maxima in Rioja Alavesa and another in Rioja Alta, while at depth, the maxima are shown to be found in Rioja Baja. The distribution maps for bioavailable Zn show low values throughout the area of study.

The absence of significant differences between the concentrations at the surface and at depth, the low bioavailability of Zn (<1% of the total content), and the fact that the values are similar to or lower than those found in other studies indicate that the principal contribution for this element is of geological origin.

3.3. Reference Values

Having determined the concentrations of Cu and Zn, the reference values for these metals were calculated with the aim of obtaining the thresholds above which it can be considered that soils are contaminated.

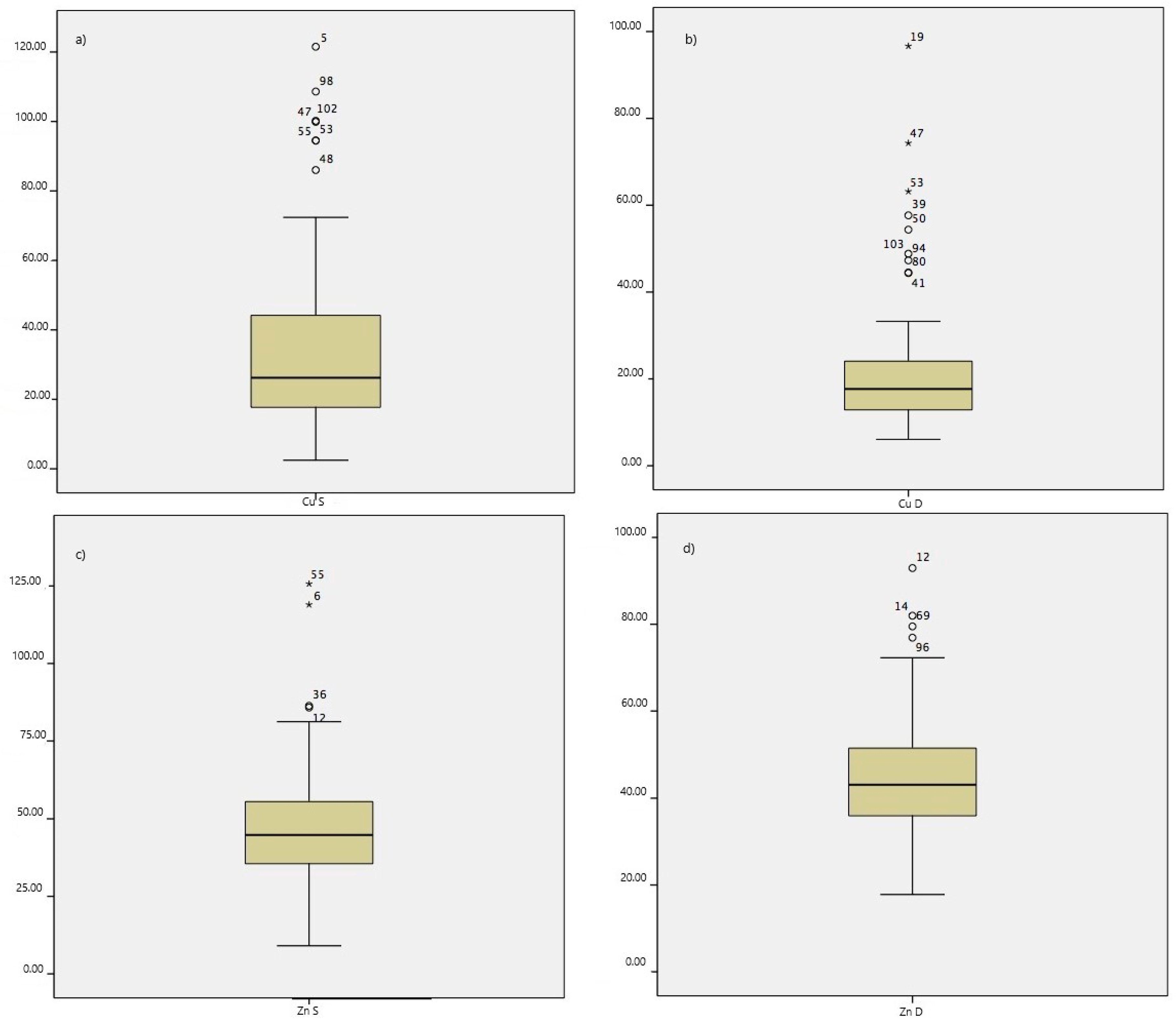

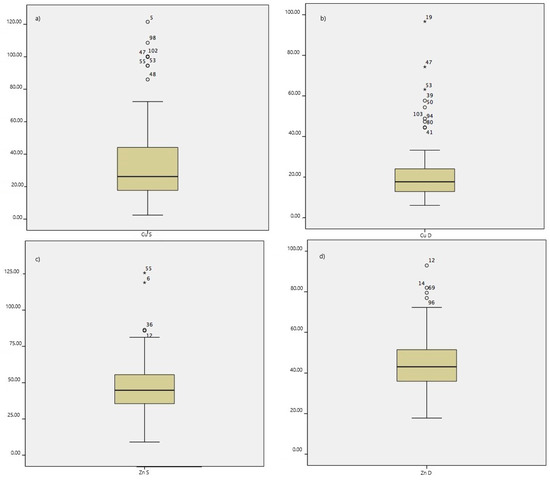

Outlier values were removed from the distribution prior to performing this calculation. A boxplot was drawn for this purpose (Figure 4a–d). On this basis, reference values were calculated according to the formula suggested in the literature [5,23,24]: mean + 2 × SD.

The reference values calculated were 85.28 mg kg^–1 at the surface and 48.88 mg kg^–1 at depth for Cu, and they were calculated as 83.69 mg kg^–1 at the surface and 72.05 mg kg^–1 at depth for Zn.

3.4. Statistical Correlations

The statistical correlations (p > 0.05 significance) found for the properties at the concentrations analyzed are provided in

Table 4. Correlation matrix (surficial horizons). Significative correlation at 0.05 level (bilateral).

	pH	CaCO3	OM	Clay	Cu
CaCO3	0.296
OM	0.02	0.095
Clay	0.132	0.267	0.007
Cu	0.006	0.106	0.063	0.165
Zn	0.185	0.92	0.151	0.275	0.205

. There were significant positive correlations between total contents at the surface and at depth for both metals. This finding again suggested that the main contribution of these elements comes from the parent soil.

A correlation was also found between the organic matter content and the total metal content at the surface, while the Zn content was also correlated with the clay content. In contrast, Cu showed a negative correlation with the carbonate and clay contents in both horizons. This trend may be related to the scarcity of clay in limestone rocks [25]. Consequently, it can be suggested that calcium carbonate does not have an impact on the distribution of Cu in soils.

Zn shows a positive correlation with the clay content at the surface. The bioavailable content of Zn, on the other hand, shows a negative correlation with clay content. The correlation between the Cu and Zn concentrations and the clay content also suggests that the Cu and Zn concentrations are mainly derived from the bedrock, as discussed in other publications and for in land cultivated over long periods of time [25,26].

While the main concentration of Cu was found to arise from the parent material, with the highest concentration in the surface, the positive correlation between this metal, its bioavailable content, and the organic matter content should be noted. The results of numerous studies have suggested that the intensive use of fertilizers and agrochemicals can lead to the accumulation of trace metals in the soil [25,26] and that this can usually be correlated with organic matter content, as observed in the study reported here [27].

There are specific areas in which there was an increase in both Cu and Zn values at the surface, as can be seen from the maximum values (Figure 2a and Figure 3a). It is probable that the favorable climate of La Rioja means that large quantities of agrochemical products are not required in most cases. Nevertheless, the high concentrations found in certain locations suggest that some areas have been subject to the excessive application of Cu-based formulations, such as organic fertilizers and fungicides, as suggested by other authors [13,20,22,25,28].

From the data obtained—and having verified that the concentrations of Cu and Zn in the soils originate from the parent material—the reference values for Cu and Zn concentrations in the analyzed soils were calculated (Table 1). These values can be used in subsequent studies to determine whether there are external sources of the elements in question and how they affect the soils.

4. Conclusions

The concentrations of Cu and Zn were similar to other levels of these elements found in studies in Spain and around the world. The distribution maps and mean statistical differences showed that the main origin of these metals was the parent material. Despite the fact that the Cu concentration was higher in the surface, the surface map did indicate higher concentrations in certain spots, and this indicates some external contribution. The relationships between the bioavailable contents and total contents support the above conclusion. In addition, these percentages were low, and this indicates that there is no potential risk to human health.

Reference values for the concentrations of Cu and Zn were calculated so that it will be possible in future studies to assess if there is any external contribution to these elements. The reference values were 85.28 mg kg^–1 at the surface and 48.88 mg kg^–1 at depth for Cu, and they were 83.69 mg kg^–1 at the surface and 72.05 mg kg^–1 at depth for Zn.
