Measuring Soil Metal Bioavailability in Roadside Soils of Different Ages

Abstract

Finding a reliable method to predict soil metal bioavailability in aged soil continues to be one of the most important problems in contaminated soil chemistry. To investigate the bioavailability of metals aged in soils, we used roadside soils that had accumulated metals from vehicle emissions over a range of years. We collected topsoil (0–10 cm) samples representing new-, medium- and old-aged roadside soils and control site soil. These soils were studied to compare the ability of the diffusive gradients in thin films technique (DGT), soil water extraction, CaCl₂ extraction, total metal concentrations and optimised linear models to predict metal bioavailability in wheat plants. The response time for the release of metals and the effect on metal bioavailability in field aged soils was also studied. The DGT, and extractable metals such as CaCl₂ extractable and soil solution metals in soil, were not well correlated with metal concentrations in wheat shoots. In comparison, the strongest relationships with concentrations in wheat shoots were found for Ni and Zn total metal concentrations in soil (e.g., Ni r = 0.750, p = 0.005 and Zn r = 0.833, p = 0.001); the correlations were still low, suggesting that total metal concentrations were also not a robust measure of bioavailability. Optimised linear models incorporating soil physiochemical properties and metal extracts together with road age as measure of exposure time, demonstrated a very strong relationship for Mn R² = 0.936; Ni R² = 0.936 and Zn R² = 0.931. While all the models developed were dependent on total soil metal concentrations, models developed for Mn and Zn clearly demonstrated the effect of road age on metal bioavailability. Therefore, the optimised linear models developed have the potential for robustly predicting bioavailable metal concentrations in field soils where the metals have aged in situ. The intrinsic rate of release of metals increased for Mn (R² = 0.617, p = 0.002) and decreased for Cd (R² = 0.456, p = 0.096), Cu (R² = 0.560, p = 0.083) and Zn (R² =0.578, p = 0.072). Nickel did not show any relationship between dissociation time (Tc) and road age. Roadside soil pH was likely to be the key parameter controlling metal aging in roadside soil.

1. Introduction

Metals are persistent, bioaccumulate and are well-known for their toxicity. The presence of elevated concentrations of metals in soil due to natural or anthropogenic activity represents a potential risk to human and ecological health; consequently, the assessment of soil metal contamination risks is of great interest to governments and regulators [1]. The measurement and understanding of the bioavailability of elevated metals in soil are an important part of any risk assessment. The bioavailability of metals in soil is a complex dynamic process and believed to be driven by speciation, sorption and biological processes in soil, but still little is known about their interplay in soil systems [2]. Previous studies have shown the importance of soil metal bioavailability in determining metal toxicity; however, there is still no general agreement on how best to measure metal bioavailability in soils [2,3,4,5,6]. Over the years, researchers have attempted to measure bioavailable metals in soil using many techniques such as ion exchange extraction, chelate extractions, rhizosphere extractions, isotopic solution extractions and the diffusive gradients in thin films technique (DGT). Effective elemental concentrations available for uptake from the solution-phase and solid-phase [7] can be simulated using the 2D DIFS model used in DGT. The DGT technique has also been used to estimate metal release kinetics from the solid to solution phase in soils [8,9]. The response time of soil to the resupply of metals in to the solution phase represents the response to metal depletion, and is directly related to the rate constant of the metal resupply process from the solution phase to the DGT film and therefore to plant roots [7]. To predict the concentration of metals in wheat plants as a result of the uptake of metals from uncontaminated soil, mathematical models including multiple regression analysis have also been validated and applied [10,11]. Generally, these techniques may not account for metals that have been accumulated over time in soil i.e., the aging effect of metals in soil. Thus, there is still a need to find and validate techniques for measuring bioavailable metals in aged contaminated soil.

Metal aging in soil is the process by which the bioavailability, mobility and/or the exchangeability of metals declines over time. The aging process is also referred to as natural attenuation or the fixation effect of metals in soil [12]. Aging of metals in soil is a long-term process and an important aspect affecting metal bioavailability [13,14]. However, our current understanding of the kinetics of metal aging in soil is limited. Experiments have confirmed that metal bioavailability in soil decreases as a result of the aging process [15,16,17]. Temperature, pH, moisture content and climate affect the rate of metal aging in soil, with pH considered as the most important parameter [18]. However, the majority of experiments on metal aging have been conducted using soils that have been spiked with metals in a laboratory [19], and thus have only assessed short-term aging effects.

The aim of this study was to systematically investigate metal bioavailability in roadside soil at varying road ages and metal concentrations. Wheat plants were used as a bioassay to accumulate bioavailable metals. The ability of DGT, soil water extraction, CaCl₂ extraction, total metal concentrations in soil and optimised linear models to measure metal bioavailability, together with the release response time of metals and its impact on metal bioavailability in field-aged soils were studied. We used roadside soil to investigate soil properties and metal aging effects on bioavailability for a wide range of metals. Cadmium, Cu, Ni, Mn and Zn have previously been found to be elevated in roadside soils from Melbourne, Australia [20]. More information on the vehicular sources of Cd, Cu, Mn, Ni and Zn in roadside soils can be found in De Silva et al. [21]. Soil samples were collected from sites representing three different road ages, i.e., new, medium and old-aged roads.

2. Methods

2.1. Soil Sampling

Metals in roadside soils have been deposited from vehicle emissions over varying time periods of up to multiple decades depending on the age of the roads. Thus, roadside soils provide an opportunity to study bioavailability and metal aging processes in long-term in situ metal-contaminated soils. Soil samples were collected in December 2012 from roadside soils formed on chromosol [22] of newer volcanic basaltic geology [23] in the west of Melbourne, Australia. The selection of roads from the same geology ensured that the soil derived from similar parent material reduced variations due to natural soil derivatives. All chosen roads were constructed from the same surface material, i.e., asphalt. Samples were collected adjacent to roads carrying ≥ 1500 vehicles/day and represented three different road ages, i.e., new (N = 1.5–5 years), medium (M = 5–10 years) and old (O ≥ 15 years). Three soil replicates for each road type were collected. Three sites in parklands at least 1 km away from roads and industry were included as control sites. Approximately 500 g of topsoil samples from 0–10 cm were collected using a clean stainless steel spatula and placed in zip-lock polythene bags. The immediate road edge up to 1 m was avoided to minimise the risk of sampling refilled or recently disturbed soil from road constructions and upgrades [24]. Soil samples were air-dried (23 ± 2 °C), sieved (≤2 mm), sealed in zip lock polythene bags and stored at ambient laboratory conditions (20 ± 2 °C) in the dark until further analysis [20].

2.2. Wheat Assay

Soil aliquots (75 g) were placed into 24 polystyrene plastic pots (180 mL). The pots were moistened to 50% of the maximum water holding capacity (MWHC) with ultrapure water (18 MΩ.cm) and left to equilibrate for 24 h at 21 °C in the dark. Triticum aestivum cv. AXE (bread wheat) seeds (Department of Primary Industries, New South Wales, Australia) were surface sterilised with 0.3% NaOCl solution and rinsed with deionised water [25]. Twenty seeds were sown into each pot and the pots placed in a growth chamber at 21 °C/15 °C on a 14 h/10 h light/dark cycle for 28 days. On the 5th day after sowing, the seedlings were thinned to 10 plants per pot. Aliquots (5 mL) of Ruakara nutrient solution [6] were added to the pots on days 5, 10, 15, 20 and 25 prior to watering. Throughout the experiment, pots were regularly watered with ultrapure water to maintain 50% MWHC.

On day 28, seedlings were harvested by cutting shoots 1 cm above the soil surface. Shoots were washed thoroughly with ultrapure water, dried for 24 h at 45 °C, and the shoot dry weight was recorded for each pot. Dried shoot samples were finely ground and stored in polypropylene plastic storage vials at ambient laboratory conditions (20 ± 2 °C) in the dark until further processing. Nitric acid (HNO₃, 5 mL, 70%, Sigma Aldrich analytical grade), together with hydrogen peroxide (H₂O₂, 1 mL, 30% w/w, Sigma Aldrich analytical grade), was added to aliquots of the dried plant samples (0.2 g) and digested at 115 °C using a microwave digester (Milestone, Ethos d’ model). After digestion, samples were filtered (pore size 0.45 µm) and diluted with ultrapure water before being analysed for total metals using inductively coupled plasma-mass spectrometry (ICP-MS, Agilent Technologies 7700x element analyser). The isotopes chosen for this investigation were Cd (111), Cu (63), Ni (60), Mn (55) and Zn (66). The accuracy of the method was verified by analysing reagent blanks, which represented 10% of the total digested sample population and replicates of certified reference citrus plant material [NCS ZC73018 (GSB-11)]. The recovery of the certified reference material was >90% for all certified metals and no signs of contamination were found.

2.3. Analysis of Metals in Soil

2.3.1. Total Metal Digestion

Air-dried and sieved soil aliquots of 0.5 g were digested in 2.5 mL of aqua regia (HNO₃: HCl, 1:3) at 105 °C for 2 h, followed by the addition of 1 mL of H₂O₂ 30% (w/w). Digested soil samples were cooled and final volumes were diluted to 50 mL using ultrapure water. Diluted acid digestate was then filtered using 0.45 µm nylon filter membranes. To determine the contamination, precision and bias of the analysis, reagent blanks which represented 10% of the total digested sample population and replicated certified reference materials (DO82-540, ERA) were incorporated into the analysis. The findings of the analytical results showed no signs of contamination, and the accuracy was found to be consistently within 10% of the certified values [20].

2.3.2. Metal CaCl₂ Extraction

For the extraction of soluble metals from soil, air-dried soil aliquots (10 g) were placed in 250 mL high density polyethylene (HDPE) plastic bottles. Calcium chloride (100 mL, 0.01 M) was then added to each bottle [26]. The bottles were vortexed for 2 h at 20 °C. The suspension was decanted into a 100 mL centrifuge tube and centrifuged for 10 min at 1800 rpm. A 10 mL aliquot of the supernatant was filtered using a 0.45 µm syringe filter. The filtered supernatant was acidified with 4% HNO₃ at a ratio of 1:2 ratio before metal analysis.

2.3.3. Analysis of Metals in Soil Digests and Extracts

Total metals and CaCl₂ extractable metals were analysed for Cd, Cu, Mn, Ni and Zn using ICP-MS. The isotopes chosen for this investigation were Cd (111), Cu (63), Ni (60), Mn (55) and Zn (66). The accuracy of the method was verified by analysing certified reference soil (DO82-540) alongside samples and with recovery >90% for all certified metals as previously described in De Silva et al. [20].

2.3.4. Other Soil Analysis

Methods described in Rayment and Higginson [27] were used to determine soil parameters. The following soil analyses methods were used: pH (method 4A1) using 1:5 soil/water extract, effective cation exchange capacity (ECEC) (method 15D1) using 1 M ammonium acetate at pH 7.0; pre-treatment for soluble salts and manual leaching, and organic carbon (OC) (method 6A1) using the Walkley and Black (W and B) method.

2.4. Diffusive Gradients in Thin Films (DGT) Technique

The DGT soil measurement method followed the DGT soil deployment protocol guided by DGT research (DGT soil deployment guide A2-20), and as described by Zhang et al. [28]. Briefly, 50 g soil aliquots were moistened to MWHC by adding the measured mass of ultrapure water while mixing with a wooden spatula until a smooth paste was formed. The soil paste was covered with clean plastic wrap to prevent water evaporation and left to equilibrate for 24 h in the dark at 20 ± 1 °C. Before DGT deployment in the soil, the DGT (Chelex-100) devices (Griffith University, Australia) were rinsed thoroughly with ultrapure water to remove the NaNO₃ storage solution and dried with tissue paper. A small subsample of each soil paste was applied directly to the DGT device membrane to ensure complete contact between the soil paste and the DGT membrane, before the device was placed with gentle pressure directly onto the soil paste sample. During deployment of the DGT devices, the dishes were covered with plastic paraffin film (Parafilm M^®, Bemis NA) to minimise water evaporation. Blank DGT without soil paste were also deployed. In this experiment, the deployment time of 7 h was used to avoid exceeding the capacity of the resin gel, as verified by calculations for the highest concentrations of metals in water extractable metal concentrations [29,30]. The deployment occurred at ambient laboratory lighting conditions. The temperature throughout the deployment was recorded using two data loggers and a mean temperature of deployment period of 20 °C (range 19–21 °C) was used for DGT calculation.

Upon retrieval, each DGT device was rinsed using ultrapure water to remove soil particles, and dried using clean, dry tissue paper. The resin gel was removed using separate, clean plastic tweezers for each sample. Metals bound within the resin gel were extracted using 1 mL of 1 M HNO₃ in 5 mL polypropylene centrifuge tubes. To obtain soil solution samples for the analysis of soil solution metal concentration (CSOL), an aliquot of the sample of the soil paste was added to a 50 mL centrifuge tube and centrifuged at 5000 rpm for 5 min. The supernatant was decanted and filtered through a nylon filter membrane (0.45 µm). The metal concentrations in the resin gel and soil solution samples were analysed using ICP-MS.

DGT Data Analysis

The concentration of metal accumulated on the binding gel in the DGT device (M) was determined according to Equation (1).

M = C (V_acid + V_gel)/fe

(1)

where: C is the metal concentration eluted from the binding gel measured by ICP-MS

V_acid is the volume of acid used for elution (V_acid = 1 mL),

V_gel is the volume of resin gel (V_gel = 0.16 mL),

fe is the elution factor (fe = 0.8).

Once M was calculated, the interfacial DGT concentration (C_DGT) was calculated using Equation (2),

C_DGT = MΔg/DAt

(2)

where: Δg is the diffusive layer thickness (0.8 mm) plus the thickness of the filter membrane (0.14 mm), which is 0.94 mm,

D is the diffusion coefficient of metal at a given temperature (cm² S⁻¹),

A is the area of the exposed membrane (A = 3.14 cm²),

t is the deployment time (in seconds).

The diffusion coefficients of the metal of interest (Ds) were calculated using Equations (3)–(5).

Pc = m / V

(3)

ϕ = Dp / (Pc + Dp)

(4)

Ds = D₀ / (1 − ln ϕ²)

(5)

where: m is the total mass of all soil particles;

V the pore water volume in a given volume of total soil (cm³),

Dp is the density of soil particles (2.65g cm⁻³) in soil,

Do is the diffusion coefficient of the metal ion at 20 ± 1 °C, (cm² S⁻¹),

Ds is the diffusion coefficient in sediment (cm² S⁻¹).

The input parameters used in the 2D DFIS model to calculate R_DIFF, were particle concentration (Pc) and soil porosity (ϕ). Pc (g cm⁻³) was determined using Equation (3) and soil porosity (ϕ) was determined using Equation (4), and the diffusion coefficient in sediment (Ds) was calculated using Equation (5).

Effective solution concentrations, C_E, were derived using Equation (6).

C_E = C_DGT / R_DIFF

(6)

where: C_DGT was the metal concentration measured by the DGT technique (in mg/kg).

The effective concentration (C_E) was used to estimate the potential metal concentration that can be absorbed by plants. The DGT technique is designed to mimic root uptake metal from soil. During DGT measurement, interface metal concentrations were measured to take into account the continuous depletion of metals, due to the uptake and the resupply process of metals from solid to solution phase. Metal depletion is indicated as a ratio (R) using the C_DGT and independently measured solution (C_SOL) concentrations (Equation (7)).

R = C_DGT/ C_SOL

(7)

Tc = C (1 − R / R − d)²

(8)

where: Tc (seconds) is the time taken to reach the equilibrium, Tc is determined using Equation (8).

Note: For samples with high porosity; C = 403, d = 0.0247 and for low porosity case C = 229, d = 0.0186 [7]. The soils for this study were treated as being low porosity.

2.5. Statistical Analysis

Data were analysed using SPSS Statistics IBM version 21 (2012). Soil physicochemical parameters were analysed for descriptive statistics (mean ± standard error). Roadside and control sites were compared using one-way ANOVA, with significance taken as p < 0.05. Where necessary, data were square root or log₁₀ transformed to obtain an acceptable normal distribution and to stabilise the variance of the residuals, and significance was based on an analysis of the transformed data. Relationships between the metal of interest and other physicochemical parameters were analysed using a 2-tailed Pearson correlation test; significance was treated as p < 0.05. Optimised linear models for soil metal concentrations were determined using stepwise regression with criteria of α = 0.05 for entry. The input parameters used were soil physiochemical properties including pH, EC, ECEC, TOC, Tc, DGT, soil total metals, CaCl₂ extractable metals, water extractable metals, and the age of the road as a measure of metal aging in soil. Linear correlations were also developed; p < 0.05 was considered significant and 0.05 < p < 0.10 was considered marginally significant.

3. Results

3.1. Soil Properties

There were differences in general soil characteristics between road types and the control sites (

Table 1. Soil characteristics for roadside soils in western Melbourne, Australia, on Newer Volcanic parent material; values are mean ± standard error (n = 3). Soils were collected from new (N = 1.5–5 years), medium (M = 5–10 years) and old (O ≥ 15 years) roads. Numbers in a column with the same letter are not significantly different (p > 0.05).

Site	pH	Pc (g/cm3)	TOC (C% dry Soil)	EC (mS/cm)	ECEC (meq/100 g)
Control	5.2 ± <0.1 a	1.6 ± <0.1 a	1.8 ± 0.1 a	48 ± 4 a	8 ± 2 a
New	8.2 ± 0.1 b	1.6 ± 0.3 a	1.8 ± 0.4 a	174 ± 37 b	31 ± 3 a
Medium	6.2 ± 0.2 ab	1.4 ± 0.4 a	1.9 ± 0.5 a	225 ± 39 b	25 ± 3 a
Old	6.3 ± 0.5 ab	1.6 ± <0.1 a	3.5 ± 0.7 b	162 ± 15 b	22 ± 2 a

Pc = soil particle concentration determined using Equation (3); EC = electrical conductivity, TOC = total organic carbon, ECEC = effective cation exchange capacity. Values are means (n = 3), ± standard error, a, b, c, denotes the significance between the sites at p < 0.05.

). Significantly more alkaline pH was recorded from new roadsides compared to other sites; total organic carbon was highest in the oldest roadside soils and EC was lowest in the control soil. There was no significant difference in Pc or ECEC between the roadside soil sites, i.e., new, medium and old roads.

3.2. Metal Concentrations in Soil, Wheat, DGT, C_E, C_SOL, CaCl₂ Extractable Metals

Total metal (Cd, Cu, Mn, Ni and Zn) concentrations measured in the control soil were lower than in the roadside soil (

Table 2. Metal concentrations (Cd, Cu, Mn, Ni and Zn) in soil, wheat, DGT, C_E, C_SOL, CaCl₂ extractable metals for soil and soil after the growth of wheat.

Metal	Type	Total (mg/kg)	µg/L				Plant (mg/kg DW)	R
			CaCl2	CSOL	CE	CDGT
Cd	C	0.05 ± 0.02 a	0.22 ± 0.01 a	0.004 ± <0.001 a	0.02 ± 0.02 a	0.002 ± 0.001 a	0.02 ± 0.01 a	0.41 ± 0.17 b
	N	0.07 ± 0.02 ab	0.10 ± <0.01 a	0.011 ± <0.001 a	0.02 ± 0.01 a	0.002 ± 0.001 a	0.04 ± 0.03 ab	0.09 ± 0.05 a
	M	0.13 ± 0.01 b	0.30 ± 0.032 a	0.008 ± <0.001 a	0.06 ± 0.02 a	0.005 ± 0.000 a	0.07 ± 0.01 b	0.39 ± 0.09 b
	O	0.21 ± 0.02 b	0.16 ± <0.01 a	0.027 ± 0.010 a	0.07 ± 0.02 a	0.006 ± 0.002 a	0.01 ± 0.00 a	0.11 ± 0.05 a
Cu	C	3.94 ± 0.45 a	0.02 ± 0.01 a	0.03 ± 0.006 a	0.04 ± 0.01 a	0.003 ± 0.001 a	1.78 ± 0.00 a	0.13 ± 0.01 a
	N	7.80 ± 0.98 b	0.08 ± 0.03 ab	0.04 ± 0.006 a	0.03 ± 0.01 a	0.002 ± 0.001 a	1.87 ± 0.36 a	0.05 ± 0.01 a
	M	8.96 ± 1.16 b	0.17 ± 0.12 b	0.06 ± 0.02 a	0.10 ± 0.03 b	0.009 ± 0.003 ab	2.36 ± 1.18 a	0.14 ± 0.02 a
	O	8.65 ± 0.65 b	0.06 ± 0.01 ab	0.07 ± 0.02 a	0.11 ± 0.05 b	0.010 ± 0.004 b	2.38 ± 1.00 a	0.13 ± 0.02 a
Mn	C	55 ± 12 a	0.02 ± 0.01 a	0.53 ± 0.11 a	2.10 ± 0.07 a	0.21 ± 0.01 a	14.37 ± 9.79 a	0.42 ± 0.08 a
	N	599 ± 26 c	0.01 ± 0.004 a	0.21 ± 0.07 a	1.29 ± 0.58 a	0.12 ± 0.06 a	52.88 ± 2.88 b	0.53 ± 0.10 a
	M	323 ± 117 b	0.03 ± 0.03 a	0.37 ± 0.02 a	2.28 ± 0.37 a	0.20 ± 0.04 a	71.50 ± 16.2 b	0.53 ± 0.08 a
	O	171 ± 54 b	0.06 ± 0.002 a	0.80 ± 0.26 b	3.32 ± 0.11 a	0.27 ± 0.01 a	59.84 ± 7.94 b	0.54 ± 0.07 a
Ni	C	4.3 ± 1.20 a	0.14 ± 0.03 a	0.016 ± 0.006 a	0.069 ± 0.02 a	0.006 ± 0.001 a	2.70 ± 0.61 a	0.25 ± 0.06 a
	N	16.6 ± 5.7 b	0.07 ± 0.01 a	0.054 ± 0.011 a	0.065 ± 0.005 a	0.006 ± 0.001 a	10.5 ± 4.98 b	0.12 ± 0.01 a
	M	19.0 ± 3.9 b	0.15 ± 0.05 a	0.053 ± 0.005 a	0.118 ± 0.019 a	0.011 ± 0.001 b	9.09 ± 0.43 b	0.21 ± 0.01 a
	O	14.5 ± 1.1 b	0.13 ± 0.03 a	0.058 ± 0.012 a	0.106 ± 0.016 a	0.010 ± 0.001 b	10.81 ± 2.31 b	0.18 ± 0.01 a
Zn	C	8.4 ± 1.8 a	2.20 ± 0.69 a	0.04 ± 0.301 a	0.36 ± 0.06 a	0.034 ± 0.006 a	06.30± 1.74 a	0.20 ± 0.08 a
	N	25.7 ± 6.7 b	1.48 ± 0.48 a	1.14 ± 0.115 b	0.21 ± 0.03 a	0.02 ± 0.003 a	24.66 ± 1.91 b	0.02 ± 0.00 a
	M	38.6 ± 3.9 b	2.97 ± 0.32 a	0.43 ± 0.301 ab	0.38 ± 0.06 a	0.036 ± 0.005 a	25.34 ± 2.51 b	0.19 ± 0.07 a
	O	45.2 ± 1.4 b	2.10 ± 0.87 a	1.02 ± 0.004 b	0.54 ± 0.16 a	0.052 ± 0.015 a	28.47 ± 1.73 b	0.05 ± 0.02 a

DGT = Diffusive gradients in thin film, CE = effective concentration, C_SOL = pore water metal concentrations, CaCl₂ extractable = available metals, R = ratio of C_DGT and C_SOL, C = soil not exposed to vehicular emissions (control), N = new aged roads (2–5 years), M = medium aged roads (5–10 years) and O = old aged roads (≥15 years). Values are means (n = 3), ± standard error, a, b, c, denotes the significance between the sites at p < 0.05.

). The highest Zn and Cd concentrations (45 mg/kg and 0.2 mg/kg) were recorded adjacent to old roads and the highest Mn concentration (599 mg/kg) was recorded next to a new road. The highest Cu concentration (12 mg/kg) and highest Ni concentration (21 mg/kg) were recorded from medium-aged roads [20].

Metal concentrations in wheat shoots varied across the sites. Significantly higher wheat shoot concentrations were measured for Mn (p = 0.041), Ni (p = 0.024) and Zn (p = 0.035) for roadside soils compared to the control sites (Table 2). Cadmium showed a significant accumulation in wheat shoots grown in medium-aged roadside soil compared to control site grown wheat. Copper accumulation did not vary significantly in wheat shoots at any site. Some roadside soil samples showed a significant difference in CaCl₂ extracted metals, soil solution metals (C_SOL) and effective concentrations (C_E) among roadside and control soils (Table 2).

Both the DGT technique and CaCl₂ extractable metals were not statistically correlated to metals in wheat shoots for plants grown in roadside soil (

Table 3. Pearson correlation coefficients (r) between metal concentrations in wheat tissues, soil physiochemical properties and extractable metals measured by different methods in soil. Statistically significant values (p < 0.05) are in bold font.

Metal	Variable	CDGT	CSOL	R	Wheat	Soil	CE	CaCl2	pH	TOC
Cd	CSOL	0.54 *	1
	R	0.27	−0.27	1
	Wheat	0.27	0.02	0.37	1
	Soil	0.41	0.55 *	−0.27	0.48 *	1
	CE	0.99 ***	0.55 *	0.26	0.25	0.39	1
	CaCl2	0.22	−0.46	0.48	0.10	−0.34	0.21	1
	pH	0.06	0.26	−0.57 *	0.22	0.57 *	0.04	−0.20	1
	TOC	0.18	0.23	−0.14	−0.44	0.01	0.20	−0.09	−0.20	1
	TC	−0.23	0.10	−0.25	0.32	0.58 **	−0.25	−0.17	0.63 **	−0.08
Cu	CSOL	0.90 ***	1
	R	0.66 **	0.33	1
	Wheat	−0.44	−0.53 *	−0.01	1
	Soil	0.13	0.30	−0.21	0.26	1
	CE	0.99 ***	−0.91 ***	0.65 **	−0.46	0.13	1
	CaCl2	0.42	0.57	0.03	−0.58 *	0.25	0.45	1
	pH	−0.22	0.10	−0.63 **	0.11	0.51 *	−0.22	0.04	1
	TOC	0.30	0.2	-0.02	−0.23	0.27	0.31	−0.03	−0.20	1
	TC	−0.32	−0.21	−0.55 *	0.11	−0.17	−0.32	0.01	0.36	−0.04
Mn	CSOL	0.13	1
	R	0.31	0.07	1
	Wheat	−0.15	−0.54 *	−0.16	1
	Soil	−0.46	−0.46	0.10	0.27	1
	CE	0.96 ***	−<0.01	0.26	0.04	−0.50	1
	CaCl2	0.09	0.27	0.07	0.05	−0.10	0.13	1
	pH	−0.44	−0.59 **	0.31	0.36	0.81 ***	−0.37	−0.20	1
	TOC	0.43	−0.22	−0.36	0.30	−0.26	0.54 *	−0.009	−0.20	1
	TC	0.17	−0.15	−0.91 ***	0.13	−0.34	0.31	−0.34	−0.25	0.70 **
Ni	CSOL	0.56 *	1
	R	0.04	−0.59 *	1
	Wheat	0.22	0.46	−0.3	1
	Soil	0.48 *	0.67 **	−0.2	0.75 ***	1
	CE	0.99 ***	0.52 *	0.01	0.19	0.42	1
	CaCl2	0.32	−0.03	0.4 *	−0.33	0.13	0.30	1
	pH	−0.15	0.45	−0.73 **	0.63 **	0.52 *	−0.19	−0.52 *	1
	TOC	0.37	0.30	0.10	−0.16	−0.04	0.38	0.26	−0.20	1
	TC	−0.20	0.50	−0.79 ***	0.20	0.31	−0.19	−0.45	0.66 **	−0.03
Zn	CSOL	0.14	1
	R	−0.10	−0.97 ***	1
	Wheat	0.13	0.48 *	−0.45	1
	Soil	0.43	0.31	−0.32	0.83 ***	1
	CE	0.99 ***	0.15	−0.10	0.13	0.43	1
	CaCl2	−0.08	−0.32	0.30	0.07	0.02	−0.07	1
	pH	−0.48	0.55 *	−0.60 **	0.59 **	0.27	−0.49 *	−0.21	1
	TOC	0.82 ***	0.42	−0.34	0.35	0.50 *	0.83 ***	−0.09	−0.20	1
	TC	−0.57 *	0.46	−0.53 *	0.28	−0.06	−0.57 *	0.02	0.81 ***	−0.33

*** Correlation is significant at the 0.001 level, ** Correlation is significant at the 0.01 level, * Correlation is significant at the 0.05 level, Wheat = metal concentrations in wheat shoots, Soil = total metal concentration in soil, R = C_DGT/C_SOL.

), except for Cu, where a significant negative correlation r = −0.562 was found for CaCl₂ extractable Cu. In general, the factors best correlated with shoot metal concentrations were total metal concentrations in soil (Ni: r = 0.750, p = 0.005; Zn: r = 0.833, p = 0.001), C_SOL concentrations (Cu: r = −0.528, p = 0.009; Mn: r = −0.544, p = 0.005; Ni: r = 0.465, p = 0.025; Zn: r = 0.485, p = 0.016) and soil pH (Ni: r = 0.632, p = 0.001; Zn: r = 0.589, p = 0.004).

Soil pH also correlated with several other soil metal measurements, in particular with R, C_SOL and Tc (Table 3). The dissociation time for Cd (r = 0.630, p = 0.028), Ni (r = 0.661, p = 0.027) and Zn (r = 0.807, p = 0.002) in soil was significantly correlated with soil pH (Table 3), while Tc showed a strong correlation with soil TOC for Mn (r = 0.701).

3.3. Metal Aging and Dissociation Time in Soil

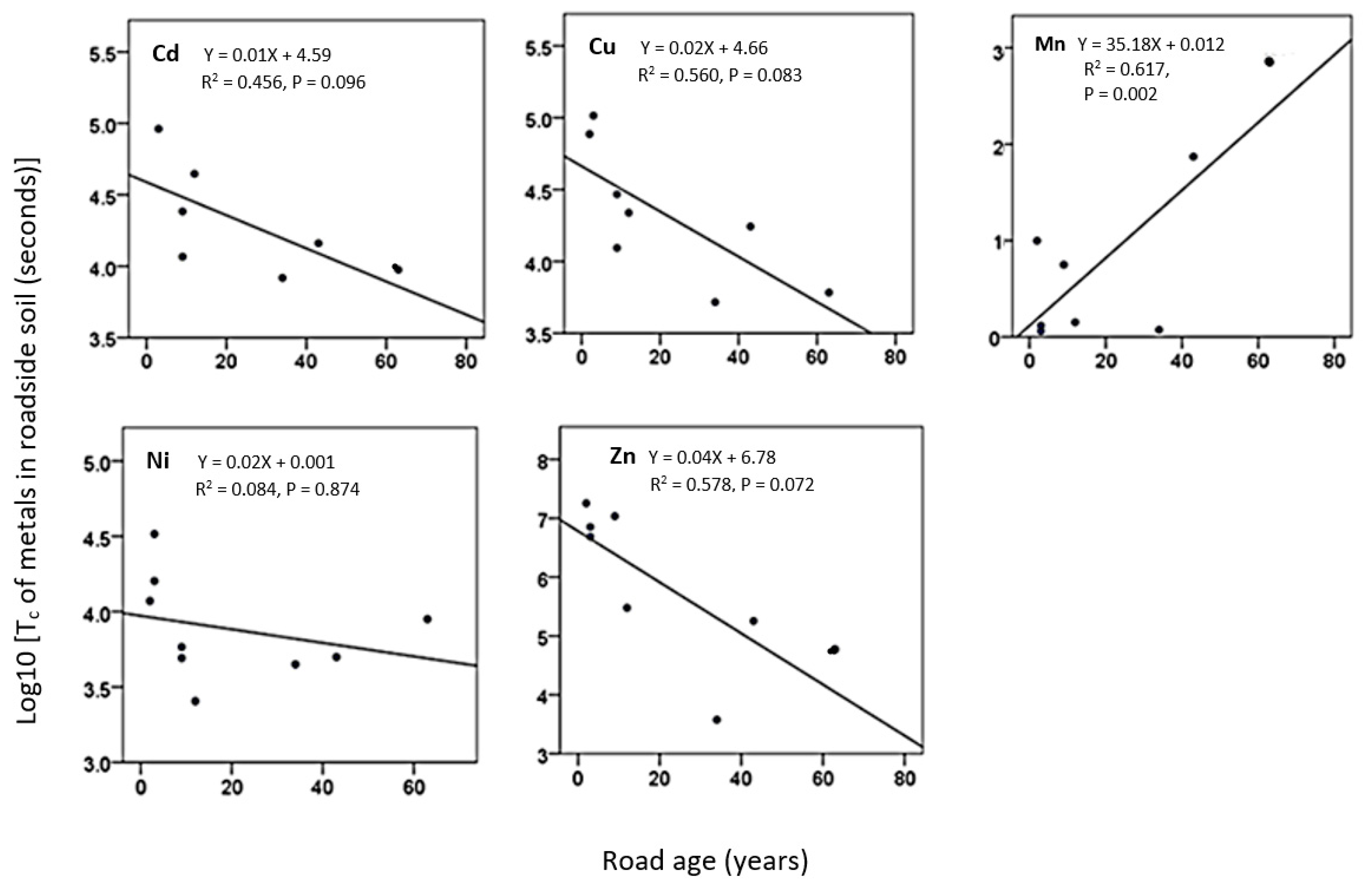

The time for the dissociation of metals from the solid-liquid interface was examined with respect to the effect of the time of soil exposure to vehicular emitted metal contamination (i.e., road age) on metal dissociation in soil (Figure 1). Negative marginally significant (p < 0.1) linear correlations were found between Tc and the following soil metal concentrations: Cd (R² = 0.456, p = 0.096), Cu (R² = 0.560, p = 0.083) (Figure 1) and Zn (R² = 0.578, p = 0.072) (Figure 1). In contrast, the Tc of Mn increased significantly (p < 0.05) with the length of time for contamination (R² = 0.617, p = 0.002), and Ni did not show a linear relationship between Tc and road age (R² = 0.084, p = 0.874).

Optimised linear models between wheat shoot concentrations, i.e., bioavailable metal concentrations and other soil properties for Mn, Ni and Zn all had R² > 0.9, but for Cd and Cu, no relationships were able to be developed (

Table 4. Optimised linear models for the relationship between metal concentration in wheat, and soil chemical and physical properties. Models were determined by stepwise regression using list wise forward selection (criteria of α = 0.05 for entry).

Independent Variable	Model	R2
Metal concentrations in wheat	Cd = No models were able to be developed	-
	Cu = No models were able to be developed	-
	Mn (mg/kg) = 104 + 0.01 TOC (C% dry soil) − 0.9 road age (years) − 0.08 soil Mn (mg/kg)	0.936
	Ni (mg/kg) = −7.78 + 0.73 soil-Ni (mg/kg) + 0.37 soil moisture (%)	0.936
	Zn (mg/kg) = 16.5 + 0.32 soil-Zn (mg/kg) − 0.12 age (years)	0.931

). Total metal concentrations in soil showed a consistent positive relationship with Ni and Zn metal bioavailability, but a negative relationship for Mn. Overall, the metal bioavailability was best explained by the total metal concentration in soil and the road age, while soil properties such as TOC and soil moisture were also important.

4. Discussion

Wheat grown in roadside soils accumulated Cd, Mn, Ni and Zn significantly in shoots compared to the control site grown wheat (Table 2). These findings are an indication of the presence of bioavailable metals in the roadside soils tested. In general, out of all the soil assays tested, correlations between metals in wheat shoots and optimized linear models (Table 4) were the best representation of the bioavailability of metals found in the studied roadside soils. Other studies have shown that the toxicity and mobility of metals in soils are as dependent on the total concentrations of metals in soil [31,32].

The magnitude of the r-values for soil concentration (C_SOL) relationships in this current study were weak (Table 3 and Table 4) and demonstrates that only a small proportion of the variation in metal bioavailability to wheat could be explained via soil solution concentrations. That is, only about 30% of these metals found in wheat shoot could be explained by C_SOL for metal concentrations like Zn and Ni. Thus, the C_SOL metal concentrations in soil do not appear to be an appropriate measure of bioavailability in roadside soils where the metals have aged in the soil over a number of years. In comparison, C_SOL concentrations have previously been reported as a good measure of bioavailability for Zn in spiked roadside soils [33].

The CaCl₂ extraction was also found to be a poor measure for metal bioavailability in roadside soils, with the only significant correlation being for Cu (r = −0.582, p = 0.077). It should be noted that the r value for Cu in the current study, while significant is not strong, suggesting that CaCl₂ extraction is a poor predictor of the variability of the metal bioavailability in roadside soil (aged). In comparison, Menzies et al. [34], in a meta-analysis of the literature, reported CaCl₂ as a good measure of Cu bioavailability for grasses in soil.

The concentration of metals in roadside soils as measured by DGT did not correlate significantly with metal concentrations in wheat shoots (Table 3). This indicates that, in roadside soils where metals have aged for multiple years, DGT measurements of soils were not a good measure of the bioavailability of metals to wheat shoots. While Zhang et al. [33] found good correlations between DGT measurements and Zn plant uptake, their results were for soils that had been recently spiked with metals collected from roadsides, rather than soils where the metals had been present for extended periods of time.

Even though there has been considerable research into metal bioavailability in soil (including Naidu et al. [2], Smolders et al. [35], Zogaj and Düring [11] and many others) there remains a lack of ability to robustly predict bioavailable metal concentrations in soil. Many soil properties such as pH, organic matter content, clay contents/soil composition, and contaminant physicochemical properties such as oxidation state and aqueous solubility are responsible for controlling the behaviour of metals in soil [4]. These properties can be used to predict the fraction of contaminants that may be bioavailable in a given soil, such that a model which can incorporate many of these individual effects on bioavailability may be more effective. The optimised linear models we developed using soil physiochemical properties, different metal concentrations representing different metal extracting techniques and age of the roadside soil showed very strong relationship for Mn, R² = 0.936; Ni, R² = 0.936 and Zn, R² = 0.931 (Table 4). While all the models developed were dependent on total soil metal concentrations, models developed for Mn and Zn clearly demonstrated the effect of road age, i.e., how long metals had aged in situ on metal bioavailability. Thus, optimised linear models have the potential for use in robustly predicting bioavailable metal concentrations in field soils where the metal concentrations have aged in situ.

The low R (C_DGT/C_SOL) values determined in this research (Table 3) may be as a result of metals being only slowly resupplied from the soil solid phase [36]. The reasons for the low resupply of metals could include limited metal reservoirs, a slow rate constant of the metal resupply process (Kdl) and/or slow desorption metal kinetics [7]. The results suggest a decrease in the R value in soil metals after the wheat assay compared to prior growing wheat. The low R values may be as a result of a reduction in labile metal concentration in the solution due to plant uptake [37].

The biological impact of metals will depend on the rate of the metal dissociation (desorption) from the soil solid to liquid phase and its subsequent availability to organisms. The Tc marginally significantly (p ≤ 0.1) decreased with the age of the roads for Cd (p = 0.096), Cu (p = 0.08) and Zn (p = 0.072), while for Mn, Tc significantly increased (p = 0.002) with the age of the roads (Figure 1). Therefore, Cd, Cu, Ni and Zn showed a slower release rate from the solid to solution phase compared to Mn in newer roads and a higher rate of release for old roads (Figure 1). This is counterintuitive for all metals except Mn, as it would generally be expected that metals that had aged longer in soils would be more tightly bound and therefore dissociate at lower rates. However, correlation coefficients analysis (Table 3) showed that Tc was positively related to soil pH for Cd (r = 0.630, p = 0.028, Ni (r = 0.661, p = 0.027) and Zn (r = 0.807, p = 0.004) (Table 2). The trend of decreasing soil pH with increasing age of roads (Table 1) is likely to have lowered the Tc for these metals. This is in contrast to Ernstberger et al. [8], who reported no clear trend for Ni between Tc and pH. The decrease of soil pH with the age of the road is possible due to sulphur contained in vehicular emissions, resulting in acid generation in soil [38]. The high Mn concentrations present in the newest roads could have also controlled the labile metal pools of other metals by binding to Mn-oxide. For example the presence of high Mn has been shown to effect the binding ability of Cd with Fe-Mn oxides and organics [39], resulting in lower solubility of the corresponding metal in new roadside soil metals. In addition, Temminghoff et al. [40] observed increases in solubility with increases in the organic carbon content of the soil for Cu and Zn in soil, and a similar scenario may have been operating in the roadside soils measured in the current experiment. Thus, a more alkaline pH, low Mn content and higher TOC in older roadside soils (Table 1) may have caused the higher availability of Cd, Cu and Zn compared to soils besides newer roads. Tc and pH could be used as an important tool in comparing soil metal aging effect in soil solutions, thus metal bioavailability.

5. Conclusions

This study investigated the bioavailability of metals aged in situ in roadside soil. None of the soil assays tested (total metals, DGT, soil solution and CaCl₂ extractable metals) were good approaches for measuring the bioavailability of metals aged in roadside soils. Optimised linear models showed good potential for use in predicting bioavailable Mn, Ni and Zn in field contaminated aged soils. Soil concentration (C_SOL) relationships in this current study were weak, while CaCl₂ showed only one significant correlation with Cu (r = −0.582, p = 0.077). This study provided insights into the understanding of the kinetics of long-term metal aging in field contaminated soil, using roadside soils as the model. The dissociation time, Tc, was used for comparing soil metal aging effects. The results showed that Tc was pH dependent for most metals tested (Cd, Ni and Zn). Soil pH was likely to be the key parameter controlling aging of metals in roadside soil, thus metal bioavailability.
