How Inter-Basin Transfer of Water Alters Basin Water Stress Used for Water Footprint Characterization

Abstract

Water footprint assessments contribute to a better understanding of potential environmental impacts related to water and have become essential in water management. The methodologies for characterizing such assessments, however, usually fail to reflect temporal and spatial variations at local scales. In this paper, we employ four widely-used characterization factors, which were originally developed with global estimates of water demand and availability, to evaluate the impact that inter-basin transfer (IBT) of water has on water risk assessments and, consequently, on the evaluation of the soundness of water cycle. The study was conducted for two major river basins in Japan, where diversion channels were built to move water from the Tone river basin to the Arakawa river basin. Considering IBT, the available water in the Arakawa river basin increases a 45%, reducing the characterization factors a 44% on average and denoting their tendency to overestimate the risk in this basin, while the Tone river basin increased the characterization factors a 28% on average by IBT. Moreover, with a simple example we show how ambiguity in the definition of some characterization factors may cause significant changes in the result of the assessments. Finally, we concluded that local water footprint characterization can be more helpful in local assessment of water resources if the results are unanimous, Targetable, Replicable, Ameliorable, Comparable, and Engageable (uTRACE).

1. Introduction

Water resources are of vital importance for the health and livelihood of humans as well as the surrounding natural environments. The sixth goal of the Sustainable Development Goals (SDGs) acknowledges water as an essential part of the livelihood of the world’s population, emphasizing on two requisites for accomplishing a healthy, environmentally sustainable and economically prosper quality of life. These requisites are (1) access to safe water and sanitation and (2) sound management of freshwater ecosystems [1,2]. The targets included in this goal encompass access to safe and affordable drinking water, water quality improvement, water-use efficiency, protection of water-related ecosystems, and capacity-building support to developing countries. The essentiality of water and its natural cycle in human activities is demonstrated by looking at the contents of other SDGs, such as the goal 3, 4, 12, 13, and 15. The definition of the sixth SDG and its specific targets were accompanied by indicators, one of which measures the degree of water stress in terms of a relationship between the freshwater withdrawn for human consumption and the availability or renewability of freshwater resources. Because water stress can be defined in different mathematical ways and also include other variables (e.g., space, time, and source), the evaluation and inter-regional comparison is not simple and has led to the development of alternative ways to measure water stress and the associated environmental risks.

Water sustainability cannot be discussed without considering its natural cycle, given that water depends on it as a renewable resource [3,4,5,6]. In the Basic Act on Water Cycle Policy of Japan, a sound water cycle is defined as a water cycle adequately maintained to facilitate the function of water in contribution to human activities and conserving the environment [7,8]. Because the evaluation of the soundness of the water cycle should include not only the use of water for environmental conservation but also the use in human activities, the sustainability assessment of water use aimed at achieving a sound water cycle should be based on Life Cycle Assessment (LCA) techniques.

In LCAs, the water footprint is a fundamental concept that has been defined differently by the Water Footprint Network (WFN) and the International Organization for Standardization (ISO). Water footprint, as defined by WFN, is a measure of humanity’s appropriation of fresh water in volumes of water consumed and/or polluted [9,10]. Because this concept of water footprint is consumption-based, it can be used to assess the use of water from both ends of supply chains. However, the local state of water resources was overlooked causing the possibility of water footprint values being similar in tropical and arid areas. Later, the International Organization for Standardization set the requirements and guidelines of water footprint assessments by using life-cycle assessment principles [11,12]. Because water resources are unevenly distributed both geographically and temporally, the spatiotemporal impact of water use is uneven as well [3,13,14], and the inclusion of specific impacts in water footprint assessments, as intended by ISO, needs to adopt characterization factors of such impacts [12]. However, because the (mathematical) definition of the characterizations are driven by different interests, the results of different evaluation frameworks may be disparate causing uncertainty and conflict. Some of the more widely used evaluation frameworks are summarized below.

The characterization of water stress is usually some representation of the unbalance between human demand (water withdrawals) and natural supply (freshwater availability). Baseline Water Stress (BWS), defined as annual water withdrawals divided by mean available water [15], is a fundamental concept that has been widely used in scientific and policy literature to identify water stress [16,17,18]. However, because spatiotemporal variations of water are not explicitly represented by BWS, following the ISO standards, other water risk assessments have included the uneven distribution of water resources in the characterization process. The Water Stress Index (WSI) is a screening indicator that accounts for temporal variability in water availability and the effects of regulated flows (e.g., dams) [19]. The water unavailability factor (fwua) evaluates the potential impacts of water use on fresh water availability by considering the uneven distribution of water resources over space, time and source. Because the fwua is obtained globally using the same spatial and temporal references of water quantities, comparisons with other areas are straightforward [20]. The Available WAter REmaining (AWARE) characterization factor (CF_AWARE) was proposed as an indicator of available water remaining after the human and aquatic ecosystem demands have been met [21].

The abovementioned assessment frameworks and their corresponding characterizations factors are useful for making large-scale assessments or comparisons. However, their regional application needs further improvement in order to achieve more robust and beneficial results. We consider that some of the existing assessments overlook local condition of water resources, some midpoint indicators are calculated based on particular requirements with a top-down approach. Additionally, because the calculation of characterization factors is based on different definitions (mathematical relationships) of water stress, the comparison between assessment frameworks is not straightforward.

There are a limited number of studies that have validated (or improved) the results of global assessments of water risk with local data and statistical records. Examples are the case studies of the Colorado river basin (United States) [22], the Yellow river basin (China) [23], the Yangtze river basin (China) [24], the Mekong river basin (Southeast Asia) [25] and the Orange-Senqu river basin (Southern Africa) [26], in which the water risk metrics of the Aqueduct framework and the quantities needed for their calculation (e.g., BWS) were recalculated using the available local data. Such local validations were critical for achieving more robust and objective assessments of water demand-to-availability that provided useful information that can be used in regional planning [27].

In this paper, we report the results of recalculating the four abovementioned characterization factors (i.e., BWS, WSI, fwua and CF_AWARE) using local data and adapting the formulations of water demand-to-availability to reflect the effect of the IBT between the Tone and Arakawa river basins. Then, we show how the inclusion of temporal variability has a relevant role in the characterization of demand-to-availability, yet the risk of temporal variability can be mitigated through the implementation of an adequate mitigation such as IBT. Finally, considering the merits and weaknesses of existing characterization factors and the fact that the inclusion of local alterations to water supply in the assessment process might serve as motivation to improve the current state of the water cycle, we propose five fundamental requirements that we consider the process of water footprint characterization should fulfil.

2. Materials and Methods

2.1. Study Area

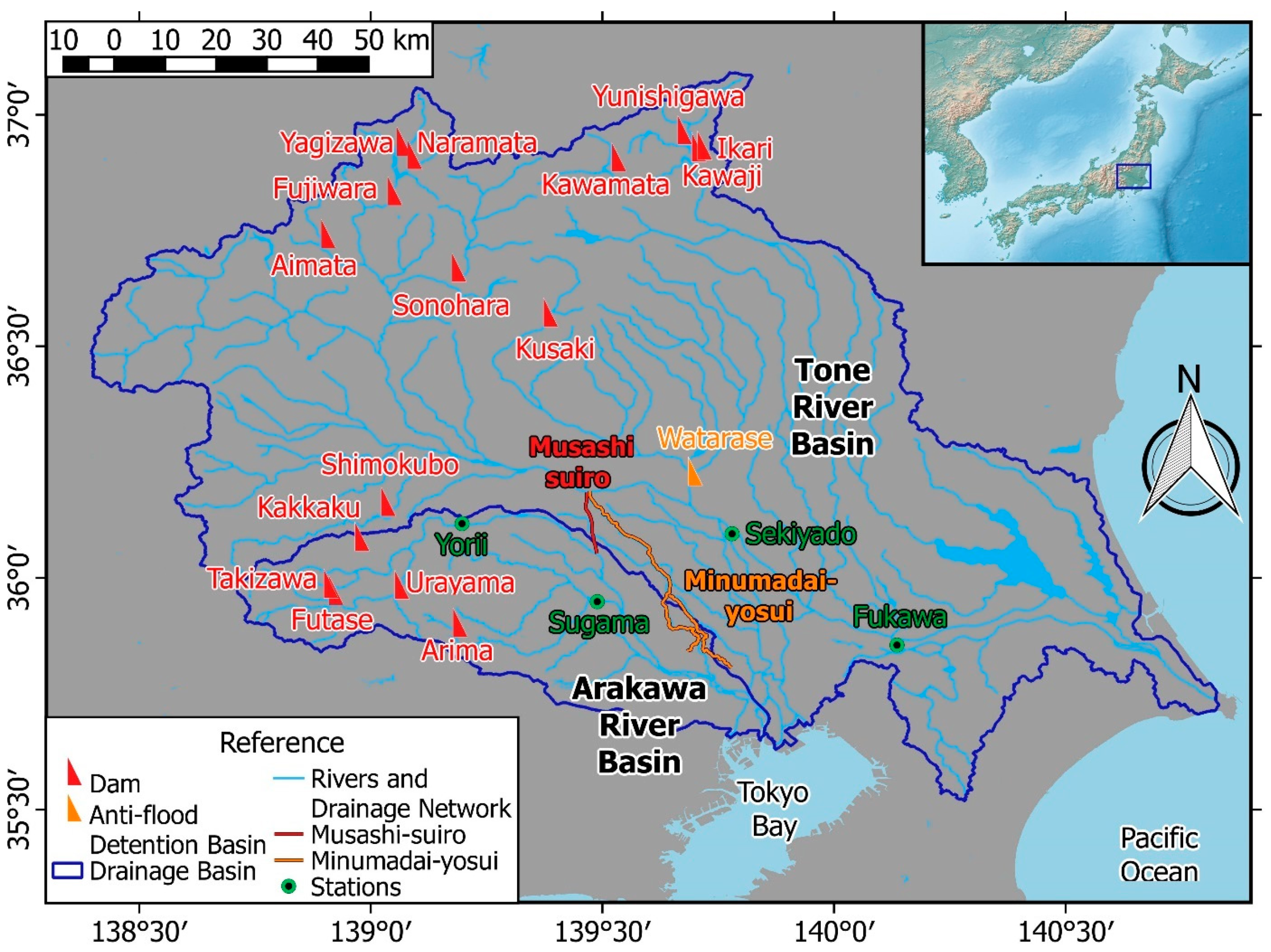

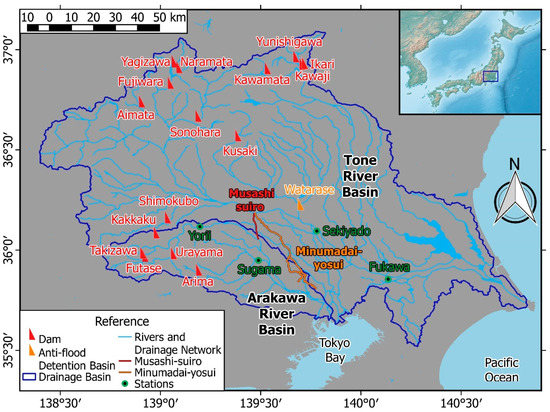

We chose the Tone and Arakawa rivers to conduct our study. These two rivers are extremely important as they supply freshwater to the capital region of Japan (Figure 1). The Tokyo metropolitan area has concentrated assets that lead to higher potential economic risk raised by water issues. For this reason, the local authorities have invested heavily in flood control measures and a managed water supply system [28].

The selected rivers are connected by the Musashi-suiro and Minumadai-yosui canals constructed from 1964 to cope with the industrial, domestic and irrigation demands in the Arakawa river basin, which transport water from the Tone river basin [29].

2.2. Description of Characterization Factors

Considering the definition given in Section 1, in which a sound water cycle implies having a low risk of water stress, in this study we test if the existing characterization factors for water footprint can be utilized to assess the soundness of the water cycle. Herein, BWS of the Aqueduct framework [15,30], WSI [19], fwua of surface water [20], and CF_AWARE [21] were chosen to conduct the local validation. These characterization factors have been well adopted by various water footprint and water risk assessment studies [18,31,32,33]. The mathematical expression, the variable range and the horizontal resolution of the publicly available global datasets of the selected characterization factors are shown in

Table 1. Description of characterization factors.

Indicator	Expression	Range	Resolution
Baseline Water Stress (BWS) [15]	$\frac{Waterwithdrawals}{Availablebluewater}$	0~∞	Basin
Water Stress Index (WSI) [19]	$\frac{1}{1+e^{-6.4·{\mathrm{WTA}}^{\ast }}\left(\frac{1}{0.01}-1\right)}$ WTA*: adjusted WTA (WTA: withdrawal to availability)	0.01~1	Basin, 0.5° × 0.5°
Water unavailability factor (fwua) [20]	$\frac{A_{x,l}}{A_{ref}}$ A: required land area to obtain the reference volume of water	0~∞ (99 percentile)	0.5° × 0.5°
CFAWARE [21]	$\frac{{\mathrm{AMD}}_{\mathrm{world}\mathrm{avg}}}{{\mathrm{AMD}}_i}$ AMD: availability-minus-demand	0.1~100	Basin, 0.5° × 0.5°

WTA*: adjusted WTA.

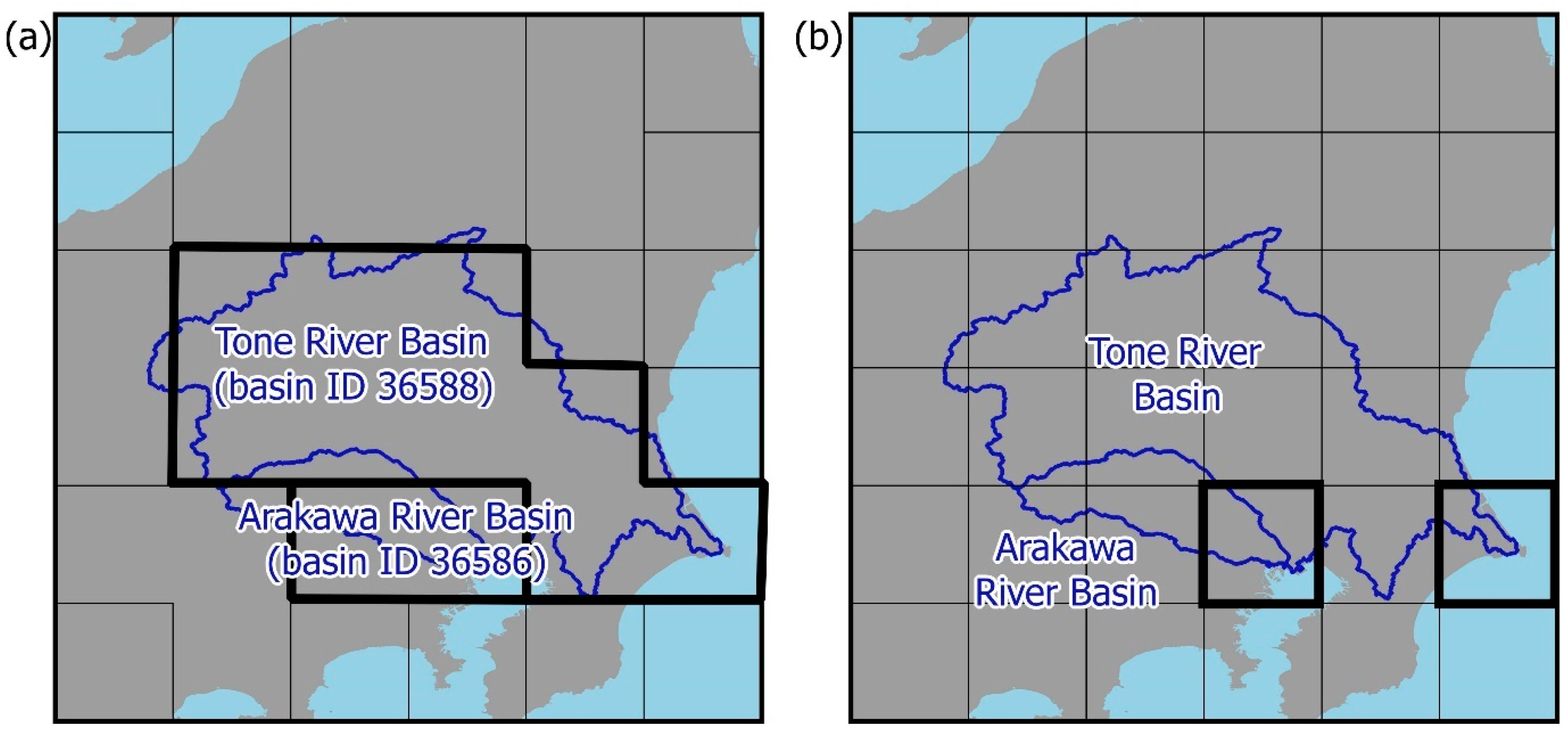

. The values of the characterization factors extracted from the global datasets are henceforth denominated global estimates. The global estimate of BWS for the Tone river basin is divided in three parts, corresponding to the smaller basins of the Tone, Nakagawa, and Ayase rivers. Thus, the area-weighted average of the three smaller basins is used. WSI, fwua, and CF_AWARE are available as gridded datasets or gridded basin-units with a spatial resolution of 0.5° × 0.5°. The global estimates of WSI and CF_AWARE of the Tone and Arakawa river basins correspond respectively to the basin-unit identification numbers (basin ID) 36588 and 36586 of the global datasets. The global estimates of fwua correspond to the grids in which the river mouth of the Tone and Arakawa rivers are located (Figure 2).

The characterization factors computed with local data are hereafter denominated local estimates. The quantities needed for calculating the local estimates of the selected characterization factors were collected or computed using locally available information. For calculating BWS, total water withdrawals were assumed to be equal to the sum of withdrawals for municipal, industrial, and irrigation use. Available blue water is the total water volume that is available to a catchment minus the upstream consumptive water use, where consumptive use is the water withdrawn that was not returned to its natural course. Because we were computing for the whole basin, we estimated available blue water as the sum of observed discharge accumulated in the period in which withdrawals are available and the difference of total withdrawals and non-consumptive use (i.e., withdrawn water returned to the natural stream). The estimation of available blue water also considered flow changes caused by reservoir control and IBT where applicable.

As detailed in Table 1, WSI is a function of the ratio of annual water withdrawals to availability. Because this demand-to-availability quantity is defined in a similar fashion as BWS, to calculate water withdrawals to availability, we proceeded in the same way as described above for BWS. Water withdrawals to availability need to be adjusted to consider annual and seasonal variations, as well as the effect of regulations of flow. The Tone and the Arakawa river basins were both recognized as “not strongly regulated” rivers [34].

Besides considering the variations in space and time, fwua evaluates the impacts of water use separately for three types of water sources: precipitation, surface water, and groundwater [20]. Because in this analysis we only consider surface water, the acronym fwua henceforth refers to surface water only. The estimation of fwua depends on the annual renewability rate of surface water, the consumptive water use and the environmental flow. We assumed the annual renewability rate, which is the sum of surface and subsurface runoff, equal to the annual river flow at the river mouth. For the consumptive water use, we considered that half of the irrigation withdrawals are returned to the river. The environmental flow was assumed as maintenance flow rate needed to maintain an adequate river environment considering the potential use in activities such as shipping, fishery, setup of rivers scenery, mitigation of salt damage, and others undertaken at maintenance facilities. Lastly, fwua expresses the potential impacts relatively to a reference volume of water. We adopted the conditions and reference volume proposed in previous studies, 1000 mm y⁻¹ over 1.0 m² of land (1 m³ y⁻¹) [35].

CF_AWARE is a measure of water availability-minus-demand relative to a global average. As available water, we used the monthly values of available blue water that were calculated earlier for BWS. Water demand is the monthly available water remaining after subtracting human water consumption and environmental water requirements, which we assumed to be equal to the consumptive water use and environmental flow, respectively, that were used in the estimation of fwua. The global average of availability-minus-demand was set equal to 0.0136 m³ m⁻²-month [21].

2.3. Sources of Local Data for Computation of Local Estimates

2.3.1. Tone River Basin

To estimate the annual water withdrawals across the Tone river basin, we collected the water withdrawals correspond to the records of municipal, industrial and agricultural consumption in the period 1985–2013 at 28, 9 and 45 sites, respectively. Observed discharge corresponds to records of river discharge at the Fukawa station (Figure 1). This station is located at 76.47 km from the river mouth and has a drainage area equal to 12,458 km². Approximately 50 km upstream of the Fukawa station, the Tone river basin has a bifurcation near the Sekiyado district of the Chiba prefecture. The bifurcation is the origin of the Edo River. We adjusted the observed discharge of the Fukawa station by adding the observed discharge at the Sekiyado district and considering the changes of flow due to reservoir operation.

Changes of flow due to reservoir operation were calculated using inlet and outlet flows of the Yagisawa, Naramata, Fujisawa, Aimata, Sonohara, Shimokubo, Kusaki, Watarase, Kawaji, Kawamata, Ikari, and Yunishigawa dams [36,37]. The location of the dams is also shown in Figure 1.

The available blue water for the whole basin, which has a drainage area of 16,840 km², was estimated multiplying the ratio of drainage areas (i.e., 16,840 km² divided by 12,458 km²) and the adjusted observed discharge.

We calculated basin-average monthly (Pm) and annual precipitation (Pa) using the records of the Japan’s Automated Meteorological Data Acquisition System dense network of meteorological stations [38]. The records of the stations were previously spatially interpolated to have a gridded dataset with a horizontal resolution of 0.05° × 0.05°.

The water withdrawals and the available blue water were calculated for two scenarios, one with IBT from the Tone river basin to the Arakawa river basin and another without.

2.3.2. Arakawa River Basin

To estimate the annual water withdrawals across the Arakawa river basin, we collected the water withdrawals correspond to the records of municipal, industrial and agricultural consumption in the period 1985–2009 at 29, 7 and 8 sites, respectively.

Observed discharge corresponds to records of river discharge at the Yorii station for the Arakawa River and the Sugama station for one of its afluents. The point where the affluent meets the river has a drainage area equal to 2018 km². We adjusted the total observed discharge by considering the changes of flow due to reservoir operation. Changes of flow due to reservoir operation were calculated using inlet and outlet flows of the Urayama, Takizawa, Futase, Kakkaku, and Arima dams [36]. The location of the dams is shown in Figure 1.

The available blue water for the whole basin, which has a drainage area of 2940 km², was estimated multiplying the ratio of drainage areas (i.e., 2940 km² divided by 2018 km²) and the adjusted observed discharge. We calculated basin-average monthly (Pm) and annual precipitation (Pa) as it was done for the Tone river basin. As it was done for the Tone river basin, the water withdrawals and the available blue water were calculated for two scenarios, one with IBT and another without.

2.4. The Inclusion of Inter-Basin Transfer in the Definition of the Characterization Factors

The inclusion of the volume of transferred water in the selected water-stress characterization factors depends on whether water stress is being assessed for the sending-basin or for the receiving-basin.

For the Tone river basin (i.e., sending basin), the transferred water can be considered either as water withdrawn that does not return to the original course (consumptive use) or as a reduction of the available water. Thus, one possibility is to add the volume of transferred water (T) to the volume of total withdrawals (W), in which case the expression of BWS is modified as shown in Equation (1), the other possibility is to subtract the transferred water from the available blue water (Q), in which case the expression of BWS is modified as shown in Equation (2). For the Arakawa river basin (i.e., receiving basin), the transferred water is an increase of the available blue water (Q), in which case the expression of BWS is modified as shown in Equation (3).

$$BW{S}_s=\frac{W_s}{Q_s}=\frac{W+T}{Q}$$

(1)

$$BW{S}_s=\frac{W_s}{Q_s}=\frac{W}{Q-T}$$

(2)

where BWS_s is BWS of the sending-basin, W_s is the volume of water withdrawals of the sending-basin (m³ y⁻¹), and Q_s is the available blue water of the sending-basin (m³ y⁻¹).

$$BW{S}_r=\frac{W_r}{Q_r}=\frac{W}{Q+T}$$

(3)

where BWS_r is BWS of the receiving-basin, W_r is the volume of water withdrawals of the receiving-basin (m³ y⁻¹), and Q_r is the available blue water of the receiving basin (m³ y⁻¹).

The quantities of water availability and demand for the other characterization factors in the cases with and without IBT were modified accordingly.

3. Results

For the Tone river basin,

Table 2. Computed local estimates of variables with and without IBT (inter-basin transfer) for the Tone river basin (1985–2013).

Variable	With IBT (Equation (1))	SD (StanDard DeviatIons)	With IBT (Equation (2))	SD	Without IBT	SD
Annual Precipitation, Pa (mm y−1)	1458	178	1458	178	1458	178
Annual Withdrawals, Ws(Mm3 y−1)	5824	278.9	4509	238.7	4509	238.7
Available Blue Water, Qs (Mm3 y−1)	16,397	3195.4	15,082	3220.8	16,397	3195.4
Transferred Water, T (Mm3 y−1)	1315		1315		0
Human Water Consumption (Mm3 y−1)	2695		2695		1384
Environmental Water Requirements (Mm3 y−1)	946		946		946

shows the computed local estimates and their standard deviations (SD) for the calculation of characterization factors, including the case with IBT (using the possibilities of computation shown in Equations (1) and (2) and the case without). The average annual precipitation of the Tone river basin from 1985 to 2013 was 1458 mm y⁻¹. The average available blue water was estimated as 16,397 million m³ y⁻¹, while it decreased a 8% to 15,082 million m³ y⁻¹ considering IBT by the Equation (2). The annual water withdrawals increased by IBT with the Equation (1), from 4509 to 5824 million m³ y⁻¹, respectively. The human water consumption of the Tone river basin was estimated to be 1384 million m³ y⁻¹ without IBT and 2695 million m³ y⁻¹ with IBT. The environmental water requirements of the Tone river basin were 946 million m³ y⁻¹.

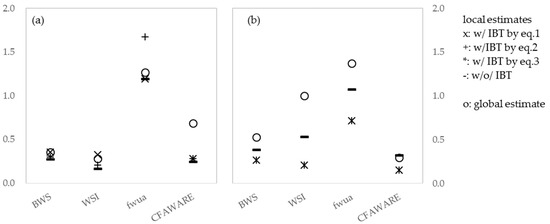

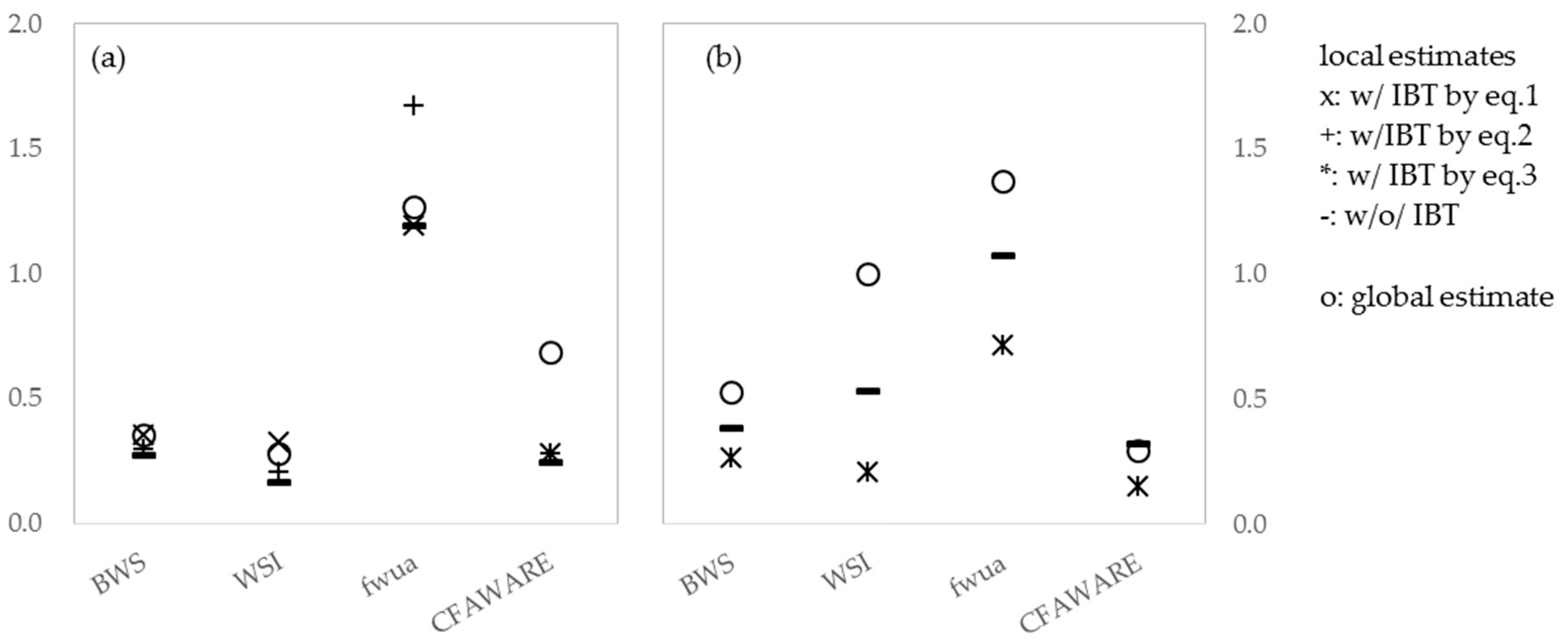

Figure 3a shows the result of local characterization factors with and without IBT, comparing with the global estimates. The average value of BWS without IBT was 0.275, while the cases with IBT estimated by the Equations (1) and (2) had BWS_s values of 0.355 and 0.299, respectively. The global estimate of BWS by Aqueduct resulted in 0.356 and ranked “medium to high” on a five-grade evaluation [15]. This value gave close agreement with the local estimate by Equation (1) in this study. The local estimates of characterization factors varied from 0.207 to 1.116 for the cases with IBT and 0.245 to 1.027 for cases without IBT, while the global estimates varied from 0.284 to 1.267. On average, the computed characterization factors increased a 28% by IBT.

For the characterization factors of the Arakawa river basin,

Table 3. Computed local estimates of variables with and without IBT for the Arakawa river basin (1985–2009).

Variable	With IBT (Equation (3))	SD	Without IBT	SD
Annual Precipitation, Pa (mm y−1)	1447	229	1447	229
Annual Withdrawals, Ws (Mm3 y−1)	1181	85.2	1181	85.2
Available Blue Water, Qs (Mm3 y−1)	4412	1024.7	3052	1020.9
Transferred Water, T (Mm3 y−1)	1360		0
Human Water Consumption (Mm3 y−1)	79		79
Environmental Water Requirements (Mm3 y−1)	158		158

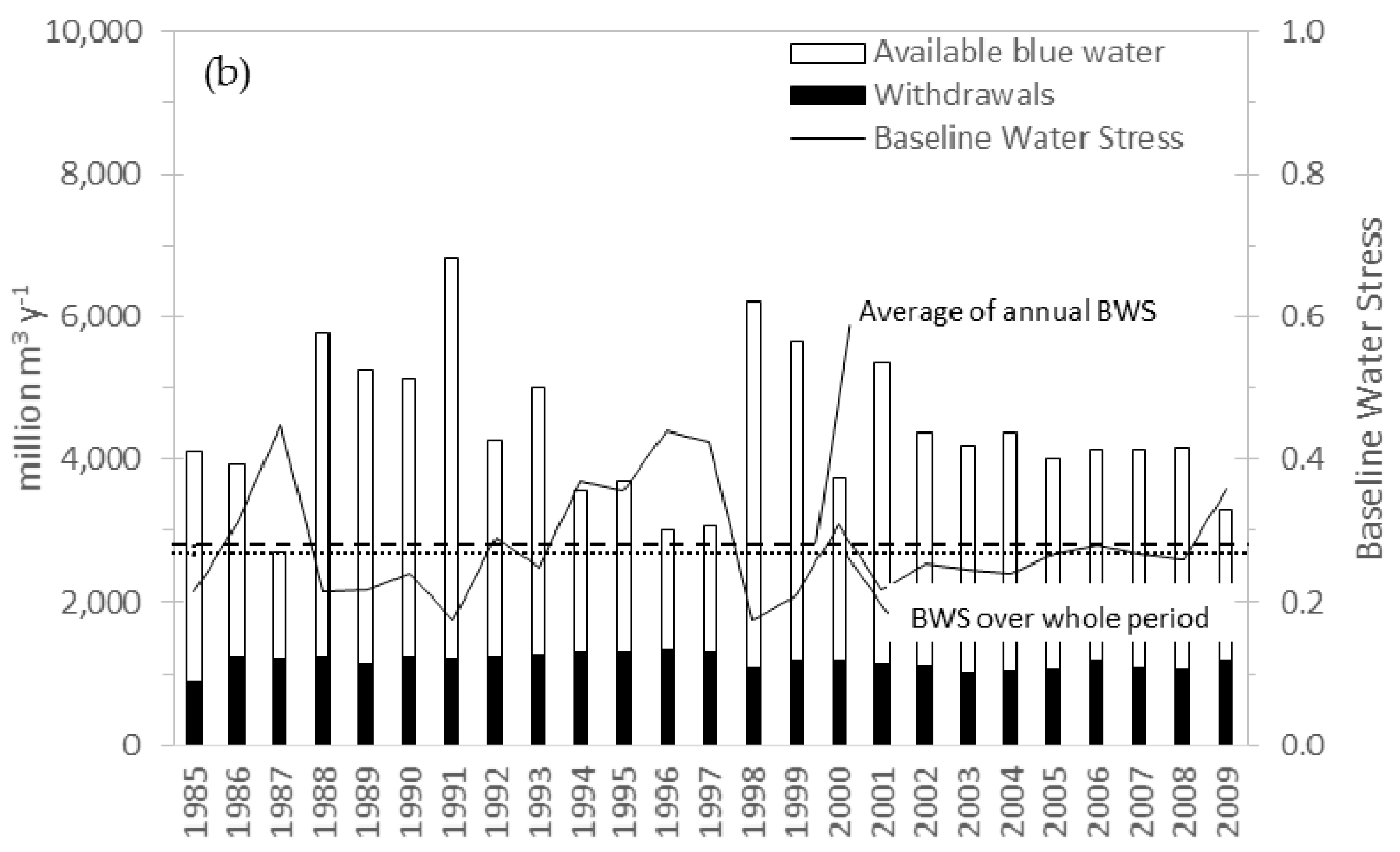

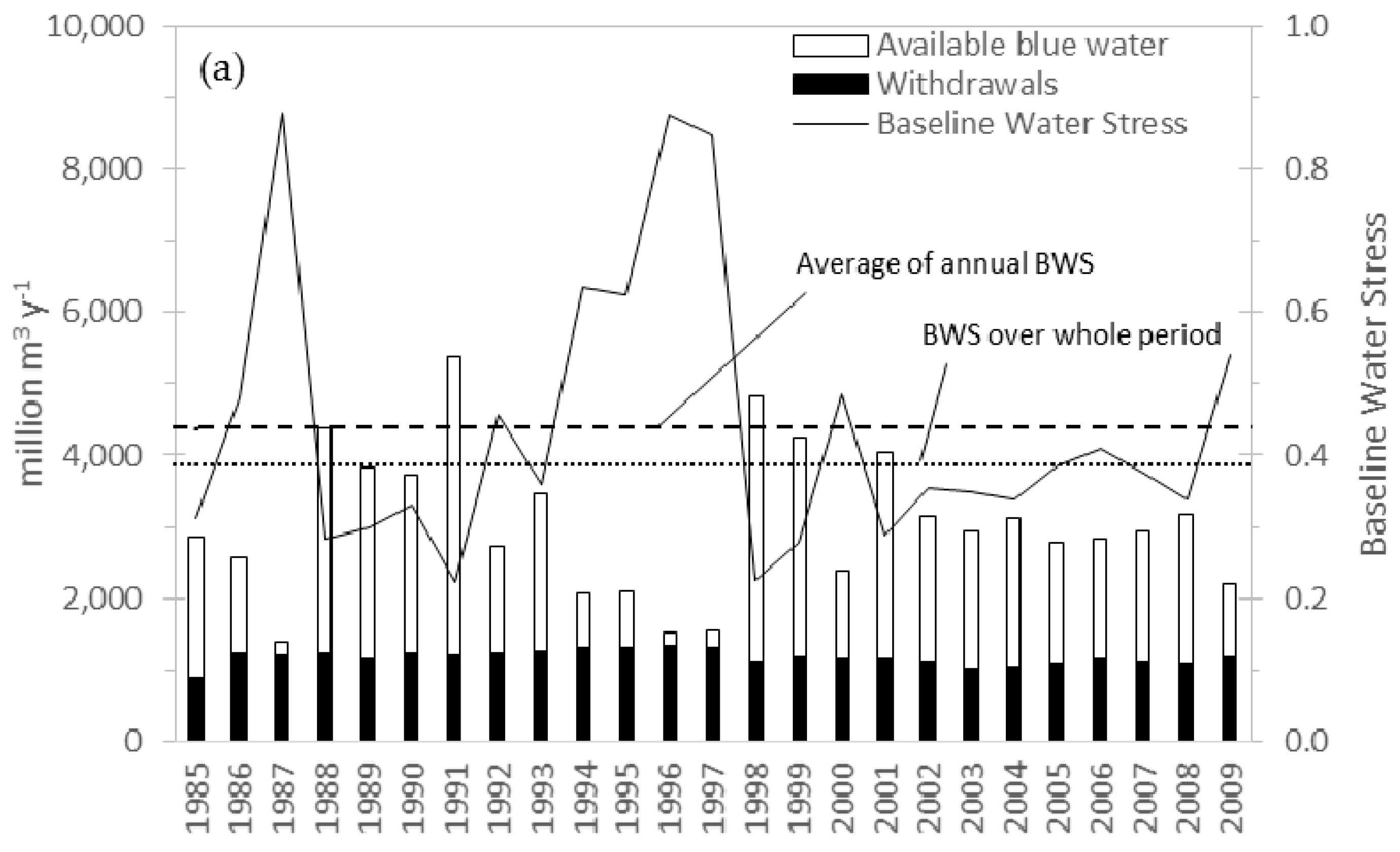

shows the local estimates of variables with their SD, including the case with IBT (using the reasoning of Equation (3)) and the case without. The average annual precipitation was 1447 mm y⁻¹. The IBT increased the available blue water from 3052 million m³ y⁻¹ to 4412 million m³ y⁻¹. The computed characterization factors as local estimates comparing with the global estimates were shown in Figure 3b. The BWS was 0.387 without IBT, while it decreased to 0.268, “medium to high” considering IBT, because of increase of available blue water. According to the global estimate by Aqueduct, the BWS of this area is 0.529, “high” in the five categories. Unlike the case of the Tone river basin, the values of characterization factors with IBT had lower values without IBT. The global estimates of BWS, WSI, and fwua had higher values compared with the results of local estimates in this study. CF_AWARE had a value between the local estimates with and without IBT. Although the global estimate of WSI resulted in the Arakawa river basin having the maximum level of water stress (1.000) using a global hydrological model, the local estimates both with and without IBT had lower values than the global estimates.

4. Discussion

4.1. Impact of Inter-Basin Transfer on Characterization Factors

If the global datasets of water availability and demand are a good approximation of the observed data, the global estimates and the local estimates of the case without IBT should be close. In the case of the Tone river basin, considering the ranges in which each characterization factor can vary, the global estimates of all 4 characterization factors can be considered close to the local estimates, and therefore seem good approximations. However, the mathematical formulations proposed in the assessment frameworks, we can derive that because the Tone river basin is the largest catchment area in Japan, some global estimates of the characterization factors may be misleading. For example, in the Aqueduct assessment framework, the estimation of water withdrawals adopted for calculating BWS utilizes the total volume of the country and by means of regression determines the volume of each basin based on population-density-weights [15]. Due to this procedure, the volumes of water withdrawals tend to be larger than the real ones, and consequently, the global estimate of BWS show a more “water-stressed” condition than reality. CF_AWARE is another good example of the influence of the size of the basin in the characterization factors [21], where the availability-minus-demand relationship is normalized by the area of each unit-basin and the volumes of human water consumption (i.e., water demand) come from a model that employs national scale estimations of water use. Both circumstances may produce overestimated global estimates of CF_AWARE in the Tone river basin.

The two possibilities for including IBT in the computation of the characterization factors yielded similar results. If we consider that IBT should modify the water withdrawals (W_s) as shown in Equation (1), which is equivalent to an increase of 29%, all characterization factors except for fwua depict a more “water-stressed” basin, which is an expected result. Because fwua is not directly a function of water withdrawals, calculating with Equation (1) does not alter the result. Alternatively, if we consider that IBT should modify the available water (Q_s), which is equivalent to a reduction of 8%, all four characterization factors show a more “water-stressed” basin. Notably, computing CF_AWARE with either equation yields the same result. Because availability-minus-demand is an absolute measure and not a relative measure as it happened to be for BWS and WSI, having to choose between Equations (1) or (2) is not source of uncertainty.

Even though the selected characterization factors changed when considering changes of water supply and demand as a consequence of IBT, the impact in the result of the evaluations is not substantial for the Tone river basin. For example, the categorization of the local estimates of BWS without IBT is “medium to high” (between 0.2 and 0.4) in the five-grade evaluation defined by the Aqueduct framework, which does not change when any of the two with-IBT equations used for calculating the local estimates of BWS. However, it should be noted that the impact on water footprint characterization might be more significant if the catchment area of the sending-basin is relatively small or if the volume of transferred water is substantial.

In the case of the Arakawa river basin, the global and local estimates for the case without IBT of fwua and CF_AWARE are not significantly different, while the global estimates of BWS and WSI denote a much more “water-stressed” basin. Possible reasons for these outcomes are the fact that the water availability-to-demand relationship is a relative measure in BWS and WSI and the Arakawa river basin encompasses one of the most densely populated and industrialized regions of the world (Tokyo Metropolitan). Considering that IBT modifies the available water (Q_r), which is equivalent to a substantial increase of 45%, all four characterization factors showed a less “water-stressed” basin. The average percentage in which all characterization factors are reduced is about 44%. This result shows how local efforts aimed at alleviating water scarcity have a great impact on the soundness of water cycle and how global estimates tend to overlook these local efforts. As it was highlighted in the discussion of the results of the Tone River Basin about the relevance of the catchment area, the fact that the diverted water into the basin is almost half (45%) of the natural available water (which is a function of the catchment area) explains the degree of impact that IBT has on the characterization factors.

While IBT impacted on the Arakawa river basin to increase the available blue water and decrease the characterization factors, which means decrease water risk and improve the water cycle soundness, it looks that the Tone river basin increased its water risk and decreased soundness of water cycle by IBT. Looking at the quantified effect of IBT, the Arakawa river basin decreased the characterization factors a 44% on average, while the Tone river basin increased them a 28%. The availability-minus-demand (AMD) of the Tone river basin without IBT was 0.070 m³ m⁻² month⁻¹, while it decreased a 9% to 0.063 m³ m⁻² month⁻¹. Considering that both rivers kept AMD considering environmental water requirements through IBT and that the positive impact of IBT for Arakawa river basin was larger than the negative impact for the Tone river basin, the IBT between the two river basins can be assessed as decreasing water risk and improving the soundness of water cycle in a comprehensive manner.

4.2. Sensibility of the Characterization Factors to Different Sources of Uncertainty

BWS is a measure that was designed to evaluate the long-term ratio of water withdrawals to available water (after upstream consumption), reducing the effect of interannual climate cycles and short-time variations of flow caused by dams or floodplains. However, since evaluation of water-related risks requires the consideration of temporal variability, BWS is usually complemented with other metrics [16]. To have a single parameter that evaluates water availability-to-demand and temporal variability as well, other assessment frameworks have included the effect of climate cycles in the characterization factors, e.g., WSI. To show the effect of temporal variability in BWS we make the exercise of computing the mean of annual BWS and compare them to the original BWS (corresponding to long-term means of availability and demand). Figure 4 shows the annual values of available blue water, withdrawals and BWS for cases with IBT and without. In the case without IBT, for which BWS is equal to 0.387, the mean of annual BWS is 0.439. Looking at the variation of available blue water in the analyzed period and considering the definition of BWS the result is coherent. In the case with IBT, for which BWS is equal to 0.268, the mean of annual BWS is 0.281. This result shows that the increase of available blue water in a (45%) almost cancels out the effect of interannual variability if BWS would be calculated annually and misleadingly does not reflect the potential risk of climate variability.

4.3. Suggestions for Assessing Soundness of the Water Cycle

The development of water footprint assessment has had the intention of designing a single characterization factor that is able to represent the risk of water consumption and the effects of additional midpoint impacts. The following observations are made by comparing the merits and weaknesses of the different assessment frameworks.

• The Aqueduct framework proposed a set of indicators, which can be aggregated into a composite factor. However, because the end-user is able to decide which indicator has more or less importance in the assessment of risk, the process is subject to conflict. Thus, it was necessary to create a composite factor that can be accepted UNANIMOUSLY.
• The four selected characterization factors are able to show the degree of water stress and hence are useful for stablishing a TARGET in which consumption of water does not represent a risk.
• In this paper, we were able to REPLICATE the process of calculation of the characterization factors to validate the global estimates using local data.
• WSI includes the effect of climate variability and to some extent the effect of regulations of river flow. However, the relative measure of demand-to-availability used in its formulation may cause quite disparate results between two basins with similar levels of water consumption and similar climate variability. Therefore, the developers of fwua and CF_AWARE sought to create a characterization factor that would be easy to COMPARE.
• The selected characterization factors were not able to reflect the effect of IBT in reducing the stressed state of the water cycle in the Arakawa river basin. To motivate local actions improving a sound water cycle, the assessment frameworks should allow local authorities and other stakeholders to AMELIORATE the state.
• Finally, the water footprint assessment process should be based on information that can be measured and stablishes ENGAGEMENTS of the involved stakeholders based on adequate motivations, continuity and sustainability.

We conclude that the process and results of regional water footprint characterizations should have five fundamental requirements (uTRACE).

✓

Unanimous. A result that encourages planning based on mutual consent of stakeholders.

✓

Targetable. A value that reflects sound water cycle and can be set as target.

✓

Replicable. A transparent evaluation based on scientific knowledge that can be validated.

✓

Ameliorable. A concise evaluation of the water cycle state encourages practical solutions.

✓

Comparable. A result that can be fairly compared in spite of climatological or spatial differences.

✓

Engageable. A value that reflects the level of compromise towards achieving the target.

5. Concluding Remarks

The effect of IBT on the soundness of the water cycles (i.e., water footprint characterization) in two major river basins in Japan was evaluated using four characterization factors and observed data: BWS, WSI, fwua, and CF_AWARE. The following is a summary of the contents and results of the evaluation:

✓

Due to approximations and assumptions about small-scale variability of water supply and demand, global estimates of characterization factors fail to represent the actual local conditions that might have been changed to improve the soundness of water cycles.

✓

In large basins with no surface water conveyances or other changes of freshwater sources, the global estimates of characterization factors can be a good approximation of the estimates calculated with local data and observations.

✓

Changes in the existing water stores and natural freshwater courses such as meltwater from glaciers, desalination in coastal regions, and IBT need to be included in the characterization of water-related risk assessments. When the change in supply is substantial, such as the Arakawa river basin receiving a volume equal to 45% of its natural supply from the Tone River, the global estimates of the selected characterization factors depicted a more “water-stressed” condition.

✓

We resulted that the IBT between the Tone and Arakawa river basins decreased water risk and improve the soundness of water cycle from averaged results of characterization factors in a comprehensive manner.

✓

The existing characterization factors were designed to evaluate the water-related risks for specific simplified conditions. However, appropriate risk assessments need to consider spatiotemporal variations of the availability-to-demand relation. With current ambiguity in the definition of some characterization factors, it is difficult to include local water surface conveyances such as IBT. Moreover, with a simple exercise we show how the effect of temporal variability can be ameliorated with changes of supply producing misleading results of the potential risk of climate variability.

✓

Good practices towards a sound water cycle should be based on assessments that provide uTRACE results.
