Effects of Land Use Change on Sediment and Water Yields in Yang Ming Shan National Park, Taiwan

Abstract

The Soil and Water Assessment Tool (SWAT) is a watershed-based, semi-distributed hydrologic model for simulating hydrological processes at different spatial scales. The SWAT hydrology and erosion/sediment components are first validated after the hydrologic components calibration. The SWAT model also utilizes geographic information system (GIS) and digital elevation model (DEM) to delineate watersheds and extract the stream network. This study applies SWAT model to assess the impacts of land use change on soil and water losses from Yang Ming Shan National Park Watershed in northern Taiwan. Although the government has formulated regulations to limit the development, however, intense human activities, such as farming and building construction, still continue to exist. This study utilized two land-use data periods, one in 1996 and another in 2007, along with the SWAT model to simulate soil and water losses in Yang Ming Shan National Park. Based on the baseline scenario, the SWAT model was also successful in simulating the future scenario. Study results for scenario 2007, as compared to 1996 baseline period indicate that land use change shows forest land decreases about 6.9%, agricultural land increases about 9.5%, and causes sediment yield increase of 0.25 t/ha. Human activities deserve more attention when assessing soil and water losses because of their inevitable impacts. Government needs to modify land development policies and plans for land use change detection using satellite imagery to avoid illegal development activities.

1. Introduction

Yang Ming Shan National Park is located in northern edge of the Taipei Basin (Figure 1). It is an important ecological basket of Northern Taiwan, as well as origin for many important rivers. Since the middle of the Qing Dynasty (from 1683 to 1895), constructed irrigation ditches supply residents domestic and irrigation water needs. Before the establishment of the National Park, residents have developed part of the land and changed the land cover. Land use change in Yang Ming Shan National Park included the conversion of 704 hectares of forest to agricultural land between 1996 and 2007. The impacts of land use change on river basin hydrology are interrelated to climate impacts.

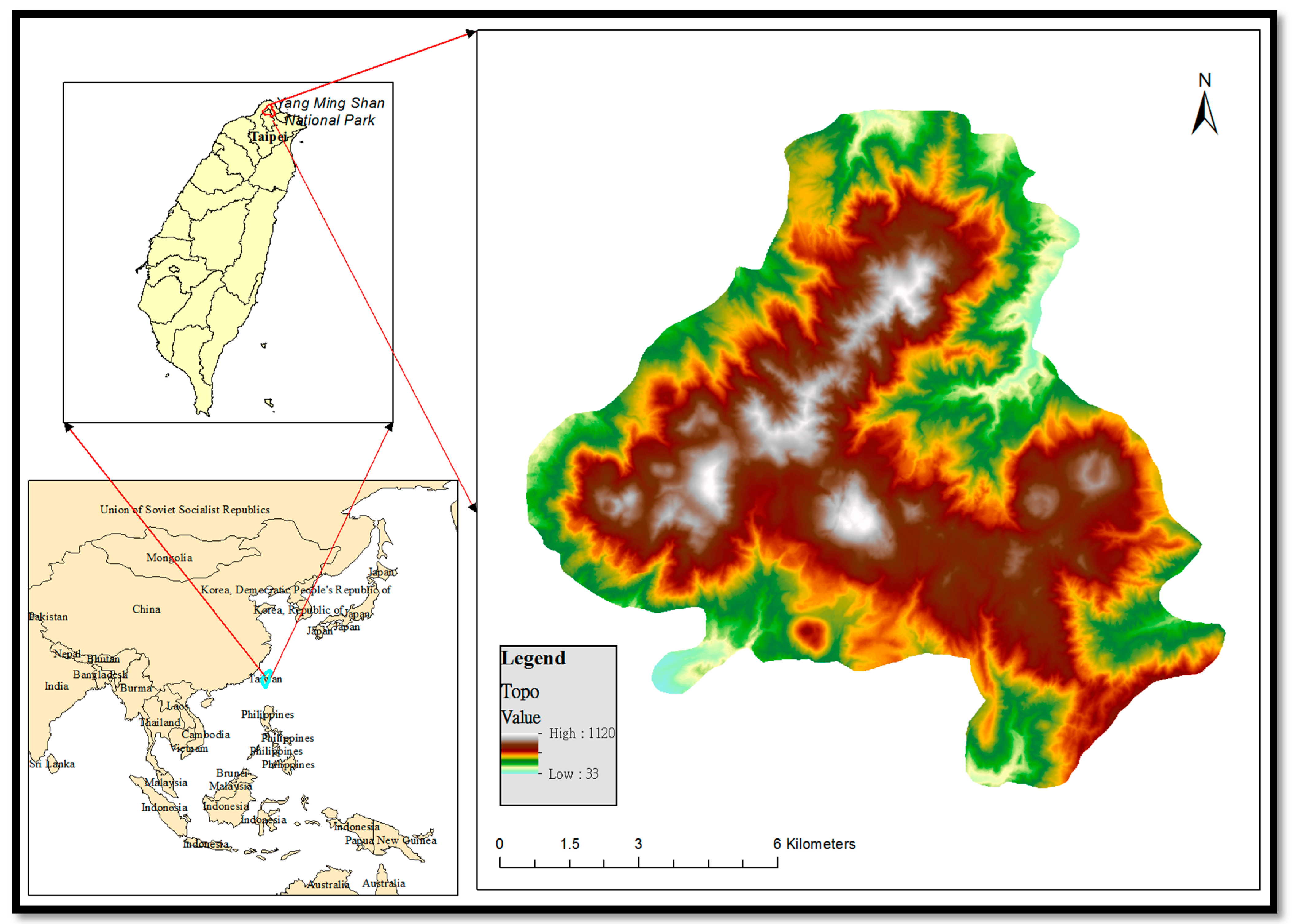

Figure 1. Location of Yang Ming Shan National Park and its elevation (m) pattern.

Figure 1. Location of Yang Ming Shan National Park and its elevation (m) pattern.

Evaluation of soil and water losses under changing conditions require models that can simulate flow regimes under different scenarios of change. This study uses high-resolution datasets, such as a 5 m resolution DEM (digital elevation model) from LiDAR, a 1:5000 scale land use map, a soil map, and weather data from National Center for Environmental Prediction (NCEP). The date period covers two years, 1996 and 2007.

The development of separate and sophisticated land dynamic tools was observed over the last two decades. This is because of the large number of variables involved influencing the land use change [1]. A widely used, highly sophisticated modeling tool, which addresses many aspects of catchment is the Soil and Water Assessment Tool (SWAT). The model has gained international acceptance as a robust interdisciplinary watershed modeling tool as evidenced by international SWAT conferences, hundreds of SWAT‐related papers presented at numerous other scientific meetings, and dozens of articles published in peer‐reviewed journals [2]. The model is also very flexible. Kim et al. demonstrates that an integrated SWAT-MODFLOW is capable of simulating a spatio-temporal distribution of groundwater recharge rates, aquifer evapotranspiration and groundwater levels [3]. It also enables an interaction between the saturated aquifer and channel reaches. This interaction played an important role in the generation of groundwater discharge in the basin, especially during the low flow period. However, in a low mountain region, the calculated contribution of the baseflow to the streamflow is far too high whereas the interflow is strongly underestimated. Alternatively, Eckhardt et al. developed a modified version SWAT-G that yielded far better results for catchments with predominantly steep slopes and shallow soils over hard rock aquifers [4].

Unfortunately, nearly all SWAT applications addressing the effect of land use change were performed on scenario-based predictions with static land use only. Many SWAT applications have been focused on the impact of land use and management change, as well as climate change dynamics. With the Arc-SWAT 2012 Version, the input lup.dat file allows HRU (hydrologic response unit) fraction updating during a simulation run. The lup.dat file is particularly useful to initialize mid-simulation conservation measures. After its initialization, the practices remain in effect for the remainder of the simulation. However, the lup.dat file is not widely used yet due to its impractical set-up/use (any update must be made for each HRU one by one).

There are many cases where SWAT models have been used to predict impact of land use change on soil and water losses. The results indicate that even a relatively limited land use change, from forest to arable land or vice versa, has a significant effect on regional soil erosion rates and sediment supply to rivers [5]. The quantitative hydrological analysis due to land use change by SWAT model is thought to be a good approach for identifying the impact of land use in Jeju Island, Korea [6]. The approach used in their study simply determined the contributions of land use change to change in stream flow and sediment yield, providing quantitative information that would allow stakeholders and decision makers to make better choices regarding land and water resource management [7].

The objectives of this study are: (1) to evaluate the impacts of land use changes on streamflow and sediment yield; and (2) to provide invaluable evidence for future formulation of appropriate government land development policies.

2. Research Methodology

2.1. SWAT Model Description

The SWAT model is a physically based distributed model designed to predict the impact of land management practices on water, sediment, and agricultural chemical yields in large complex watersheds with varying soil, land use, and management conditions over long periods of time [8]. SWAT subdivides a basin into sub-basins connected by a stream network and further delineates each sub-basin into HRUs consisting of unique combinations of land use and soils. SWAT allows a number of different physical processes to be simulated in a basin. The hydrological routines within SWAT account for snowfall and melt, vadose zone processes (infiltration, evaporation, plant uptake, lateral flows, and percolation), and groundwater flows [9]. The subdivision of the watershed enables the model to reflect differences in evapotranspiration for various crops and soils. Runoff is predicted separately for each HRU and routed to obtain the total runoff for the watershed. This increases accuracy and gives a much better physical description of the water balance.

The SWAT model simulates the hydrology into land and routing phases. In the land phase, the amount of water, sediment and other non-point loads are calculated from each HRU and summed up to the level of sub-basins. Each sub-basin controls and guides the loads towards the basin outlet. The routing phase defines the flow of water, sediment and other non-point sources of pollution through the channel network to an outlet of the basin. SWAT computes soil erosion at a HRU level using the modified Universal Soil Loss Equation (MUSLE). This process constitutes computing sediment yields from each sub-basin and routing the sediment yields to the basin outlet. The hydrological cycle simulated by SWAT is based on the water balance equation:

$$S{W}_t=S{W}_0+{\displaystyle \sum _{i=1}^t(R_{day}-Q_{surf}-E_a-w_{seep}-Q_{lat}-Q_{gw})}$$

(1)

where SW_t is the final soil water content, SW₀ is the initial soil water content on day i, t is the time (days), R_day is the amount of precipitation on day i, Q_surf is the amount of surface runoff on day i (mm H₂O), E_a is the amount of evapotranspiration on day i, w_seep is the amount of water entering the vadose zone from the soil profile on day i, Q_lat is the water percolation past bottom of soil profile in the watershed for day i, and Q_gw is the amount of return flow on day i. All water units are in mm H₂O.

For more detail about SWAT theory, please reference SWAT2009 Theoretical Documentation [8], which is available online (http://swat.tamu.edu/).

2.2. Study Area

Yang Ming Shan National Park is located in northern Taiwan (Figure 1). Millions of years ago, subterranean movements caused a massive collision between the Philippines oceanic plate and the Eurasian continental plate. The resulting pressure spawned violent volcanic activity and lifted the Eurasian plate. Incandescent magma, as hot as 1000 degrees Celsius, burst from erupting volcanoes and covered tertiary sedimentary rock to form the Tatun Volcano group in the northern Taiwan coastal region. Part of this group consists of the 20 and more volcanoes at the heart of Yang Ming Shan National Park (http://english.ymsnp.gov.tw/).

The park’s area is about 11,455 ha, elevation ranging from 33 to 1120 m and lies between the latitudes of 25°7' and 25°15'N and the longitudes of 121°29' to 121°39'E. It has a clearly differentiated monsoon climate. In summer, southwesterly monsoons bring clear mornings with afternoon thundershowers. In winter, northeasterly monsoons bring humid, rainy weather.

According to the Taiwan soil classification system, the major soil types include black soils, yellow soils, incipient yellow soils, Lithosols, mixed alluvial soils, residual soils, colluvial soils, which correspond respectively to Andisols, Entisols, Alfisols, Ultisols, and Inceptosols in the USA Soil Taxonomy (Soil Survey and Remediation Laboratory, National Taiwan University). The dominant land use types are forest, villages, small towns, and agricultural land.

2.3. Data Set

The basic datasets that are required by the hydrological model are topography, climate, streamflow, soil, and land use data (Table 1). The land cover change detection is based on land use investigation of Taiwan maps from 1996 and 2007.

Table 1. Spatial model input data for Yang Ming Shan National Park.

Data type	Content	Resolution	Source
Topography map	digital elevation model (DEM)	5 m	Yang Ming Shan National Park
Land use map	land use classification	1:5000	Ministry of Interior (MOI), Taiwan
Soil map	soil type	1:50,000	Yang Ming Shan National Park
Weather	precipitation, wind, relative humidity, and solar	daily	National Center for Environmental Prediction (NCEP) (http://globalweather.tamu.edu/)

Table 1. Spatial model input data for Yang Ming Shan National Park.

Data type	Content	Resolution	Source
Topography map	digital elevation model (DEM)	5 m	Yang Ming Shan National Park
Land use map	land use classification	1:5000	Ministry of Interior (MOI), Taiwan
Soil map	soil type	1:50,000	Yang Ming Shan National Park
Weather	precipitation, wind, relative humidity, and solar	daily	National Center for Environmental Prediction (NCEP) (http://globalweather.tamu.edu/)

The current version, Arc-SWAT2012, was used to compile the SWAT input files. The National Park is subdivided into smaller sub-basins based on the digital elevation model data, land use and soil type data, conforming to concentrated drainage pattern as well as similar hydrological responses. Based on the DEM, land use, and soil data, the National Park was divided into 118 sub-basins (Figure 2). The model ignores small basins as well as sub-basins that do not drain directly to the main basin along the boundary of the National Park basin. As such, the study basin area is a bit smaller than the physical boundary of the National Park. Land use data for the 2 years (1996 and 2007) from MOI, and the soil type map are shown in Figure 3 and Figure 4, respectively.

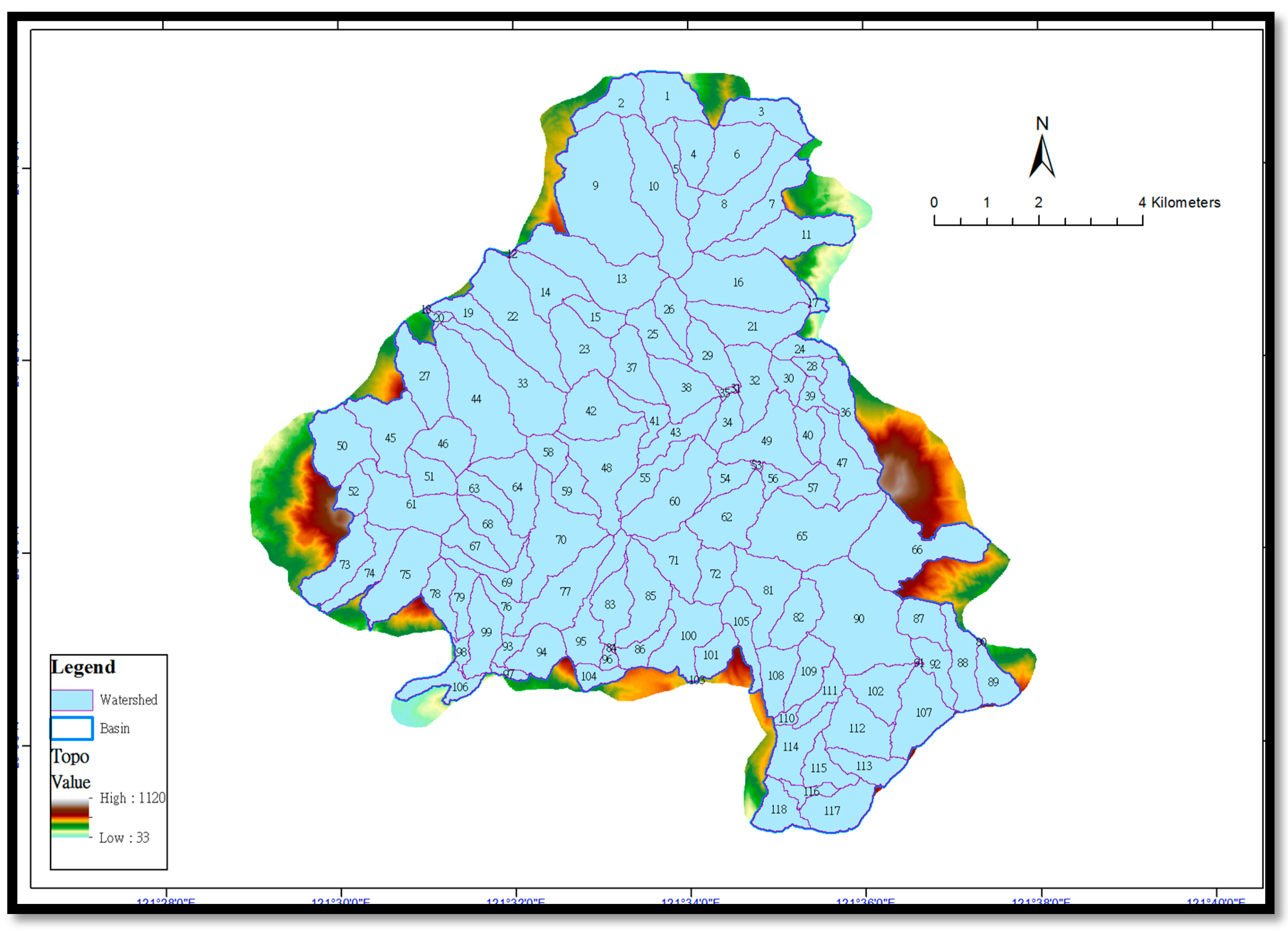

Figure 2. Subbasins from DEM.

Figure 2. Subbasins from DEM.

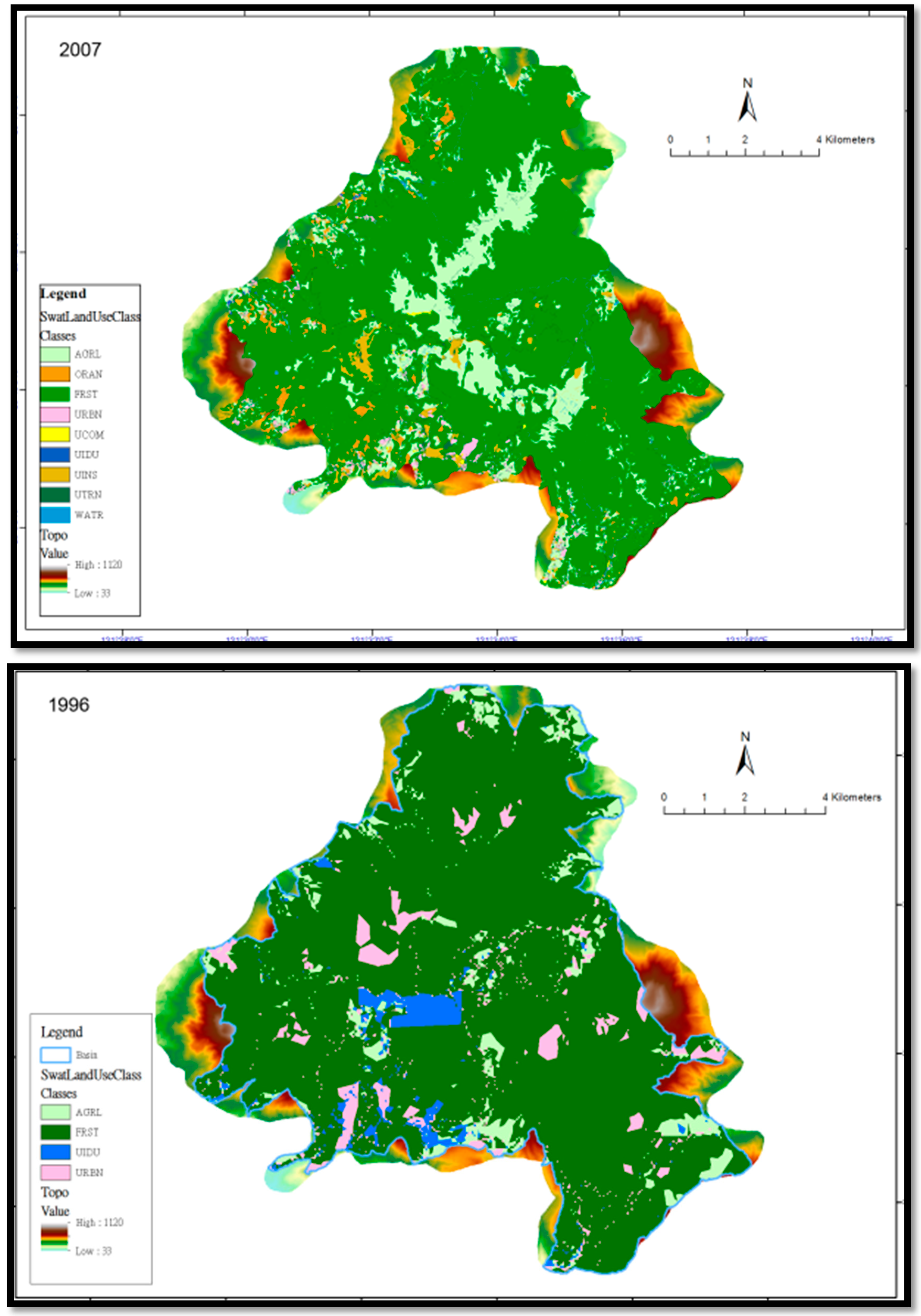

Figure 3. Land use map of 1996 and 2007.

Figure 3. Land use map of 1996 and 2007.

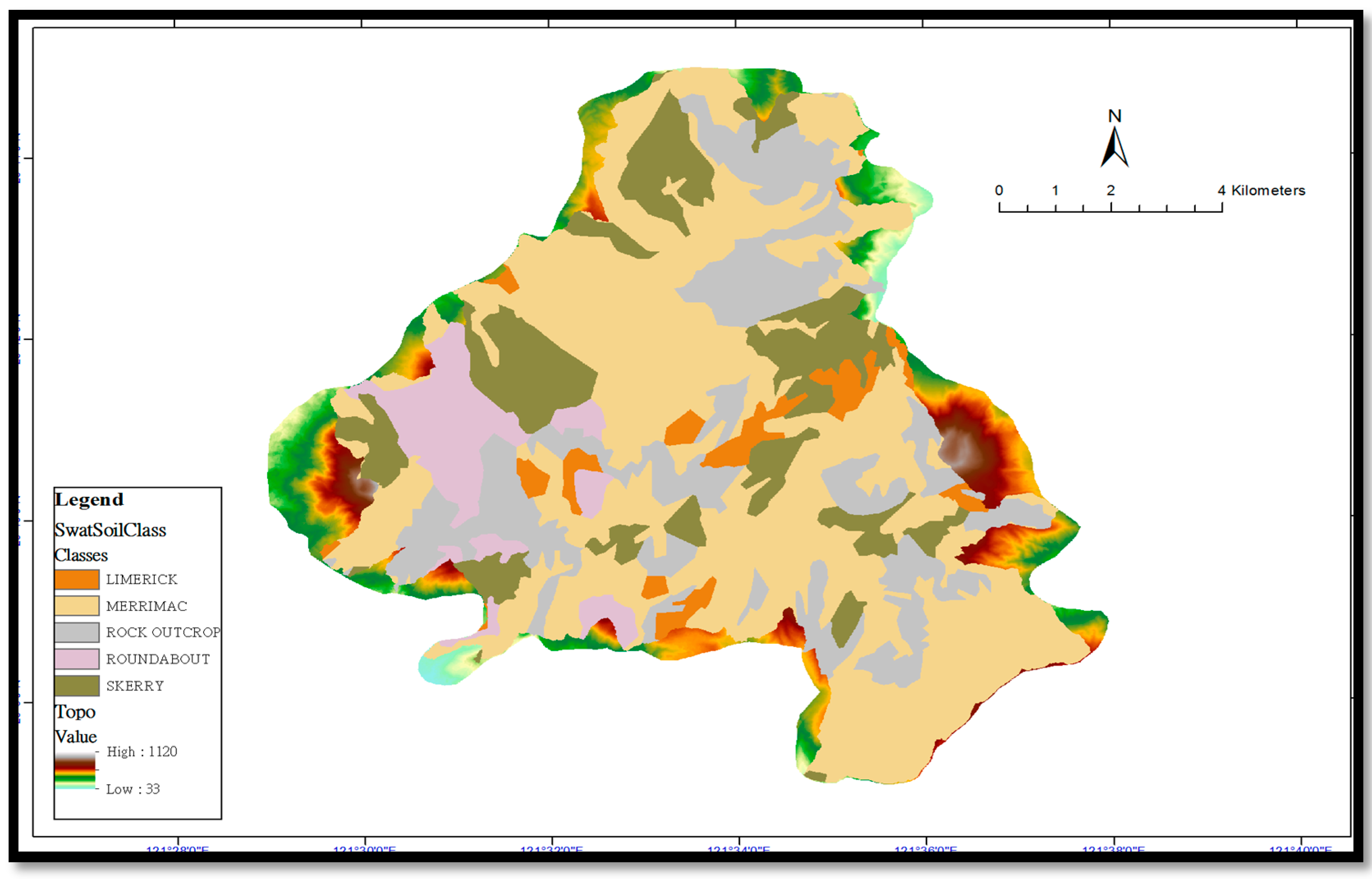

Figure 4. Soil type map.

Figure 4. Soil type map.

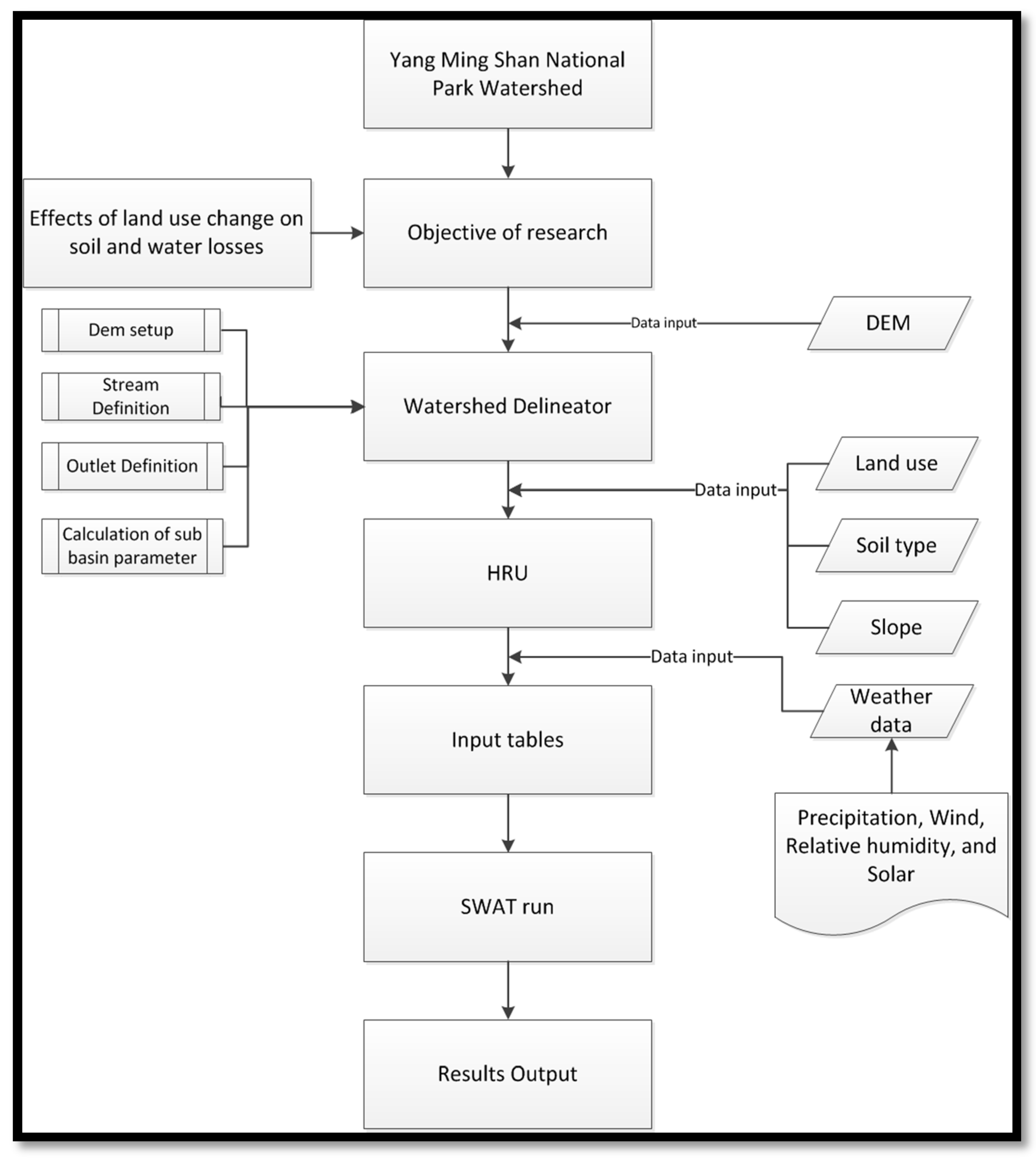

Figure 5. Flowchart of ArcSWAT processing steps.

Figure 5. Flowchart of ArcSWAT processing steps.

The Arc-SWAT2012 is an ArcView extension. It provides a graphical user interface that allows for GIS data to be easily formatted for use in SWAT model simulations. ArcSWAT breaks preprocessing into four main steps: watershed delineation, HRU analysis, weather data definition and SWAT simulation. In order to understand how each section works within the modeling process, it is important to understand the conceptual framework of each step, as well as what data are used and how they integrate into ArcSWAT. Figure 5 shows the flowchart of modeling using ArcSWAT.

3. Results and Discussions

3.1. Land Use Change Detection

Table 2 shows the land use changes. It can be seen that the dominant land use types of the National Park basin are forest and agriculture, which in total account over 90% of the total area. The land use map for 1996 shows 6.34% agricultural land, 85.04% forest land, 8.61% built up and others. The land use map for 2007 shows 15.84% agricultural land, 78.15% forest land, 6.01% built up and others. There is a decrease in the forest land by 6.89%, and an increase in the agricultural land area by 9.5%.

Table 2. Land use changes between 1996 and 2007 in Yang Ming Shan National Park.

Land Use Type	1996		2007		Change
	Area (%)	Area (ha)	Area (%)	Area (ha)	Area (%)	Area (ha)
Agriculture	6.34	648.21	15.84	1638.05	+9.5	+989.84
Forest	85.04	8690.40	78.15	8081.66	−6.89	−608.74
Built up and others	8.62	1002.60	6.01	621.51	−2.61	−381.09

Table 2. Land use changes between 1996 and 2007 in Yang Ming Shan National Park.

Land Use Type	1996		2007		Change
	Area (%)	Area (ha)	Area (%)	Area (ha)	Area (%)	Area (ha)
Agriculture	6.34	648.21	15.84	1638.05	+9.5	+989.84
Forest	85.04	8690.40	78.15	8081.66	−6.89	−608.74
Built up and others	8.62	1002.60	6.01	621.51	−2.61	−381.09

3.2. Hydrologic Response to Land Use Change

The ArcSWAT model simulation process uses 1996 as the base line and subjects 1996’s weather data on different land use in 1996 and 2007 for simulating hydrological responses. The results are shown in Table 3.

Table 3. Annual hydrological summaries for the watershed.

Year	PREC *	SURQ	LATQ	GWQ	LATE	SW	ET	PET	WATER YIELD	SED YIELD
1996	2224.67	1108.14	162.47	32.89	46.39	89.89	921.87	1613.67	1303.50	1.35
2007	2261.38	1134.79	161.64	34.83	49.22	91.95	927.67	1630.14	1331.27	1.60
Change	+36.71	+26.65	−0.83	+2.06	+2.83	+2.06	+5.8	+26.47	+27.77	+0.25

Notes: * PREC: Average amount of precipitation in watershed for the year (mm), SURQ: Amount of surface runoff contribution from streamflow from HRU during simulation, LATQ: Lateral flow contribution to streamflow in watershed for the year (mm), GWQ: Groundwater contribution to stream in watershed on year (mm), LATE: Water percolation past bottom of soil profile in watershed for the year (mm), SW: Amount of water stored in soil profile in watershed for the year (mm), ET: Actual evapotranspiration in watershed for the year (mm), WATER YIELD: Water yield to streamflow from HRUs in watershed for the year (mm), and SED YIELD: Sediment yield from HRUs in watershed for the year (t/ha).

Table 3. Annual hydrological summaries for the watershed.

Year	PREC *	SURQ	LATQ	GWQ	LATE	SW	ET	PET	WATER YIELD	SED YIELD
1996	2224.67	1108.14	162.47	32.89	46.39	89.89	921.87	1613.67	1303.50	1.35
2007	2261.38	1134.79	161.64	34.83	49.22	91.95	927.67	1630.14	1331.27	1.60
Change	+36.71	+26.65	−0.83	+2.06	+2.83	+2.06	+5.8	+26.47	+27.77	+0.25

Notes: * PREC: Average amount of precipitation in watershed for the year (mm), SURQ: Amount of surface runoff contribution from streamflow from HRU during simulation, LATQ: Lateral flow contribution to streamflow in watershed for the year (mm), GWQ: Groundwater contribution to stream in watershed on year (mm), LATE: Water percolation past bottom of soil profile in watershed for the year (mm), SW: Amount of water stored in soil profile in watershed for the year (mm), ET: Actual evapotranspiration in watershed for the year (mm), WATER YIELD: Water yield to streamflow from HRUs in watershed for the year (mm), and SED YIELD: Sediment yield from HRUs in watershed for the year (t/ha).

The Water Resource Planning Commission (WRPC) reports that the average soil erosion depth for Taiwan, when no conservation measures are employed, is about 5 mm/yr (70 t/ha/yr), based on river sediment transport measurements [10]. Lee [11] also estimates the average soil erosion from mountain lands to be about 9.2 mm/yr, based on sedimentation data from nine reservoir watersheds. Using the area-weighted average, Wu [12] revises Lee’s estimation to 4.8 mm/yr. Therefore, if the effects of good land management (>80% forest cover) and conservation control practice (National Park setting) are taken into account, the annual sediment yield or soil loss rate (about 1 t/ha) estimated by the SWAT model is not too different from those of WRPC, Lee and Wu [11,12].

Results indicate that land use change impact on the hydrological response is not large. The impact on soil erosion amounts to an increase of 0.25 t/ha. This loss increase is due to land use change, as a result of forest land reduction and increase in agricultural use.

The results per HRU statistics can compare each basin soil loss change. Table 4 shows the largest change (about 8 HRUs) among all HRUs. Although there are only 8 HRUs (12, 18, 20, 59, 71, 76, 81, and 103) with largest yield changes, if multiplies by the HRU area it will amount to about 1406 tons. This is all due to the land use pattern conversion from forest to agriculture.

Table 4. Largest change of sediment yield among all HRUs.

HRU	SED * (ton/ha)		Change	Area	Land Use
(Sub-basin)	1996	2007	(t/ha)	(ha)	1996	2007
12	49.56	0.07	−49.49	0.73	built up	forest
18	59.83	0.04	−59.79	0.79	agriculture	forest
20	0.04	21.62	21.58	9.41	forest	agriculture
59	57.07	0.07	−57.00	57.76	built up	forest
71	0.05	28.68	28.63	98.72	forest	agriculture
76	55.53	0.08	−55.45	39.36	built up	forest
81	0.06	30.03	29.97	131.32	forest	agriculture
103	8.98	0.02	−8.96	0.12	built up	forest

Notes: * SED: Sediment yield from HRUs in watershed for the year (t/ha).

Table 4. Largest change of sediment yield among all HRUs.

HRU	SED * (ton/ha)		Change	Area	Land Use
(Sub-basin)	1996	2007	(t/ha)	(ha)	1996	2007
12	49.56	0.07	−49.49	0.73	built up	forest
18	59.83	0.04	−59.79	0.79	agriculture	forest
20	0.04	21.62	21.58	9.41	forest	agriculture
59	57.07	0.07	−57.00	57.76	built up	forest
71	0.05	28.68	28.63	98.72	forest	agriculture
76	55.53	0.08	−55.45	39.36	built up	forest
81	0.06	30.03	29.97	131.32	forest	agriculture
103	8.98	0.02	−8.96	0.12	built up	forest

Notes: * SED: Sediment yield from HRUs in watershed for the year (t/ha).

4. Conclusions

The model runs for different land use period are performed on similar weather conditions as the annual rainfall is about 2225 mm and 2261 mm for 1996 and 2007, respectively. The results indicate that land use change may cause a great deal of sediment yield increase. This is mainly attributed to land degradation (conversion of forest to agricultural land) due to intense human activities, especially deforestation. The park has increased about 980 ha agricultural land and decreased about 608 ha forest land between 1996 and 2007.

In order to avoid illegal development activities, the government has formulated laws and regulations to limit the development. However, some land use pattern change still exists resulting in increased soil erosion within the National Park.

According to the model results, it is necessary to prescribe appropriate soil and water conservation practices to control the stream flow and sedimentation problems in this National Park. The SWAT model is also capable of identifying areas within the basin with high water and sediment yield. This provides a useful guide for formulating policies and developing plans to counteract erosion effects, to optimize land use, and to achieve sustainable land development. Based on the model output at the HRU level, high erosion areas may be easily identified within the basin. Subsequent land development should avoid such areas because of the need to adequately protect them with appropriate conservation strategies.

Human activities deserve more attention when assessing soil and water losses because of their inevitable impacts. How to avoid residents’ illegal development activities will be the future important task of the Yang Ming Shan National Park. Re-evaluation of the existing laws and regulations, strengthening park inspection, and plans for land use change detection using satellite images that can monitor small land use perturbations to deter violations, should be further enhanced to minimize deterioration of the invaluable environment condition in this National Park.
