Multimethod Approach to the Study of Recent Volcanic Ashes from Tengger Volcanic Complex, Eastern Java, Indonesia

Abstract

Volcanic ash is a volcanic product with a wide distribution that can be used as a geological marker. In volcanic regions such as Indonesia, the identification of the sources of volcanic ash and tuff layers from different volcanoes or eruptive events is a challenging task. In this study, samples of volcanic ash from the 2010 eruption of Bromo—a relatively young and active tuff cone volcano within the Sandsea caldera in the Tengger volcanic complex in East Java, Indonesia—along with two older tuff layers from the same caldera (Widodaren tuff: 1.8 kyr and Segarawedi tuff: 33 kyr) were subjected to magnetic measurements, geochemical analyses, and petrographic analyses. The aim is to attempt to use magnetic characters as a fingerprint for volcanic ash and tuff layers. The results show that the samples had variations in grain size and magnetic domain as indicated by the hysteresis parameters. These magnetic characters correlated with the results of geochemical and petrographic analyses, suggesting that magnetic properties may potentially be used as fingerprints to identify volcanic ashes and tuff layers.

1. Introduction

According to the PVMBG (Pusat Vulkanologi dan Mitigasi Bencana Geologi—Indonesian Center for Volcanology and Mitigation of Geological Hazards), the Bromo volcano (latitude 7.942° S; longitude 112.95° E) is one of the most active volcanoes amongst Indonesia’s 129 active volcanoes [1]. Since 1995, Bromo has erupted every five years with a duration of approximately one year [1]. Bromo is located in the Sandsea caldera of the Tengger Volcanic Complex in East Java, which houses other older and extinct volcanoes, namely Widodaren, Segarawedi Lor, Segarawedi, and Kursi-Watangan (Figure 1). Next to Bromo is the young and yet inactive Batok volcano. Tuff layers from Widodaren and Segarawedi have been dated to 1.8 kyr and 33 kyr, respectively [2]. Based on the stages of evolution for the Tengger Volcanic Complex, the Sandsea caldera is actually the youngest (late Pleistocene to early Holocene) caldera [3]; the two older ones are the Agrowulan and Ngadisari calderas [2]. The Bromo activity is considered to have been initiated sometime prior to ~1800 years BP.

Due to its activity and impact on the local populations, Bromo has been the subject of many different studies. For instance, Gottschämer and Surono [4] determined the locations of the tremor sources and shock signals based on seismic signals recorded during a phase of high eruptive activity in 1995. Abidin et al. [5] used GPS surveys to detect the deformation of Bromo. Later, Kumalasari and Srigutomo [6] used an inversion scheme to estimate the magma chamber location and volume change contributing to the surface deformation. Apart from physical studies, there have also been chemical studies on Bromo. Bani et al. [7] studied sulfur dioxide emissions from Bromo and Papandayan, the other active volcano in West Java. Later, using in situ Multi-Gas analysis and remote spectroscopic measurements, Aiuppa et al. [8] measured the composition and fluxes of volcanic gases released by Bromo. The social aspect of Bromo and its inhabitants has also been studied, where Bachri et al. [9] investigated the reasons why people chose to live near Bromo despite the exposure to volcanic hazards and found that the interaction between humans and the volcanic environment at Bromo was multifaceted and complex.

Despite its abundant volume, volcanic ash (such as that from the 2010 Bromo eruption) has never been studied, especially with regard to rock magnetic aspects. Only a few studies exist that combine rock magnetic methods with the more common methods of petrographic and geochemical analyses studies are available in the literature. Cicchino et al. [10] measured the geochemistry, as well as the magnetic remanence and AMS (anisotropy of magnetic susceptibility), of two islands in the Aeolian Islands to improve the stratigraphic correlation between the deposits cropping out on these two islands. Oda et al. [11] carried out rock magnetic and geochemical analyses on volcanic ash particles extracted from tephra-bearing ice samples collected from the Nansen Ice Field south of the Sør Rondane Mountains (Antarctica) and found that the magnetic mineral in the volcanic particles was titanomagnetite with an ulvöspinel content of 0.2–0.35 (in 0 to 1 scale). Oda et al. [11] also compared the geochemistry of the volcanic ash with that of three tephra layers from three different locations in Antarctica and found that these samples had a high geochemical similarity. The source of the tephra layers was suspected to be South Sandwich Island, located 2800 km from the Sør Rondane Mountains. Additionally, working with volcanic ash from several volcanoes, Pawse et al. [12] found that hysteresis measurements and electron spin resonance (ESR) spectroscopy may be used to identify and correlate distal volcanic ash.

The identification of volcanic ash could be very important as geological markers in volcanic regions such as Indonesia. Volcanic ash has usually been used for stratigraphic correlation and age measurements [13,14,15]. In Indonesia, volcanic ash and tuff layers from different volcanoes or different eruptive events of the same volcano may be deposited at a particular location as overlapping layers [16,17]. This study aimed to obtain an overview of the magnetic characteristics of the Bromo volcanic ash in a maiden attempt to use magnetic characters as fingerprints for volcanic ash. Magnetic characterization focused on the volcanic ash from the 2010 eruption due to its extended eruption period and its enormous volume. As a comparison, tuff layers from earlier eruptions from the same caldera were also measured. To complement the magnetic methods, petrographic and X-ray Fluorescence (XRF) was also conducted on the same set of samples.

2. Materials and Methods

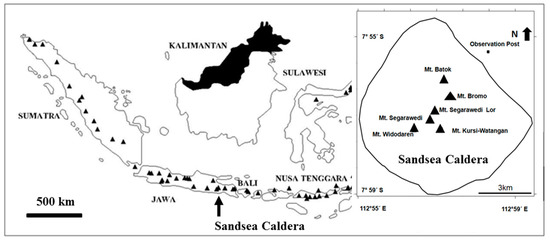

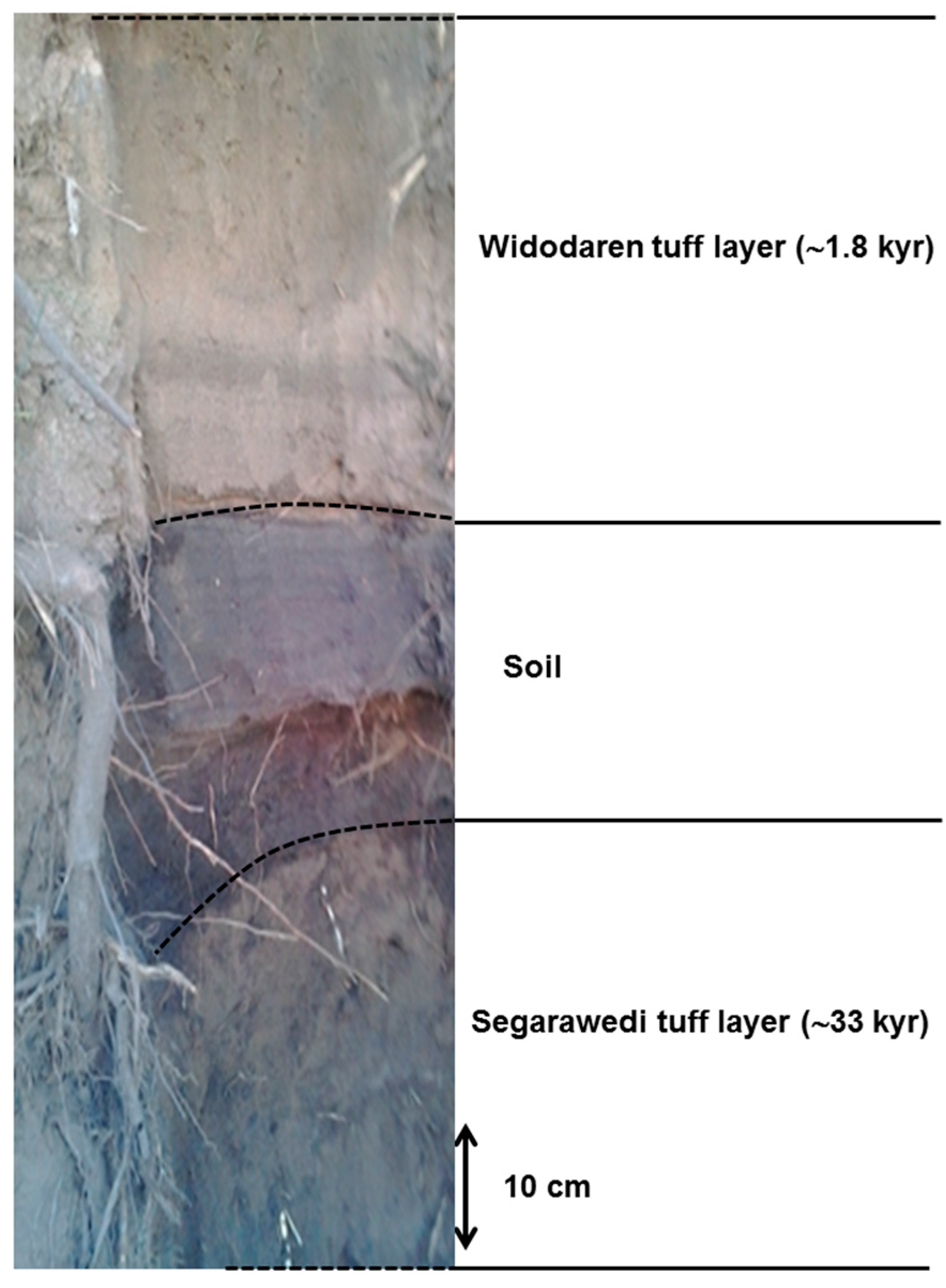

Samples of 2010 Bromo volcanic ash were obtained from the Indonesian Geological Survey Bromo Volcano Observational Post whose personnel collected ash during the 2010–2011 Bromo eruption. The tuff layers of Segarawedi and Widodaren were collected from an outcrop (Figure 2) in the vicinity of the aforementioned observational post. The observation post is located in the rim of the Sandsea caldera (Figure 1) at an elevation of 2275 m a.s.l. It administratively belongs to the Ngadisari Village, Sukapura District, Probolinggo Regency, East Java Province (latitude 7.942° S, longitude 112.950° E).

The dry powder samples were brought to the Institut Teknologi Bandung (Bandung) where they were prepared for petrographic, geochemical, and magnetic susceptibility measurements. For simplicity, in this paper, the 2010 Bromo ash, Widodaren dan Segarawedi tuffs will be referred to as separate events (i.e., 2010 Bromo event, Widodaren event and Segarawedi event). Each event was represented by a single sample for petrographic analysis and analyzed with a Ci-POL polarizing microscope (Nikon, Tokyo, Japan) in the Petrographic Laboratory, Institut Teknologi Bandung. Later, each event was represented by a single sample for geochemical analysis using XRF (ARLX OPTX-2050, Thermo Fisher Scientific, Reinach, Switzerland) with a maximum current of 10 mA, maximum voltage of 50 kV, and maximum power of 200 W at the Nanotech Laboratory in Serpong. Mass-specific magnetic susceptibility was measured using a Bartington MS2B magnetic susceptibility system (Bartington Instrument Ltd., Witney, UK) with a dual-frequency sensor (470 Hz and 4700 Hz) at the Laboratory of Rock Magnetism at the Institut Teknologi Bandung. Mass-specific magnetic susceptibility at low frequency was termed χ_LF, while that at high frequency was termed χ_HF. Parameter frequency-dependent magnetic susceptibility χ_FD (%) was calculated as 100% × (χ_LF − χ_HF)/χ_LF. The total number of samples for magnetic susceptibility measurements were 15, where each event was represented by five samples. The samples were then subjected to ARM (anhysteretic remanent magnetization) analyses, where ARM was induced inside a Molspin AF (alternating field) demagnetizer (Molspin Ltd., Witney, UK) in a steady field of 0.05 mT imposed on a peak alternating magnetic field of 70 mT. Next, the ARM intensity was measured using a Minispin magnetometer (Molspin Ltd.). The ARM was then demagnetized using the AF demagnetizer in steps of 5 mT until it reached 70 mT, where the remaining ARM was less than 10% of its original value. After each demagnetizing step, the ARM intensity was remeasured using a Minispin magnetometer.

Three samples for each event were then analyzed for trace elements using atomic absorption spectroscopy (AAS; Agilent FS 280, Agilent Technologies, Santa Clara, CA, USA) for Cr, and inductively coupled plasma optical emission spectrometry (ICP OES Agilent Series 700) for Y, La, Zr, Ce, and V. These measurements were carried out in a laboratory at the Coal and Geothermal Mineral Resources Center at the Ministry of Energy and Mineral Resources in Bandung. Later, the samples were transported to the Rock Magnetic Laboratory in the Center of Advanced Marine Core Research, Kochi University, Japan where they were prepared for further magnetic analysis that included isothermal remanent magnetization (IRM), thermomagnetic, and magnetic hysteresis parameters. The measurement of magnetic hysteresis parameters and IRM were conducted using a vibrating sample magnetometer (VSM) (MicroMag 3900, Princeton Measurement Co., Princeton, NJ, USA) on dry powder samples. Five samples from each event (2010 Bromo ash, Widodaren tuff and Segarawedi tuff) were measured for the hysteresis parameters, while three samples from each event were measured for IRM. Magnetic hysteresis parameters were produced a with maximum applied field of 1 T and applied field increments of 2 mT. IRM saturation curves were produced by applying successive magnetic fields of 0 mT to a maximum field of 1 T with field increments of 2 mT. Each event was represented by a single sample for thermomagnetic analyses using a Magnetic Balance (NMB-89, Natsuhara Giken, Osaka, Japan) equipped with a furnace and special power supply. Magnetization of the sample was measured during heating in a vacuum from 50 to 700 °C, then subsequently during cooling back to room temperature.

3. Results and Discussion

Table 1. Chemical composition of the samples (in weight %) based on X-ray fluorescence (XRF) measurements.

Oxides	Bromo	Widodaren	Segarawedi	Merapi Ash 1	Toba Tuff 2
SiO2	50.70	54.09	54.22	54.69	77.24
TiO2	1.17	1.05	1.04	0.74	0.06
Al2O3	17.09	18.23	18.82	19.29	12.54
FeO	10.93	9.57	9.29	7.76	0.85
MnO	0.20	0.19	0.18	0.19	0.07
MgO	2.22	2.04	2.00	2.25	0.05
CaO	7.58	6.08	5.90	8.12	0.78
Na2O	4.15	4.40	4.24	3.73	3.10
K2O	3.20	3.27	2.97	2.16	5.20
P2O5	0.54	0.60	0.59	0.30	-
SO3	1.44	-	0.21	0.03	-
Total	99.22	99.52	99.46	99.28	100.00

¹ Merapi ash [12]; ² Toba tuff [13].

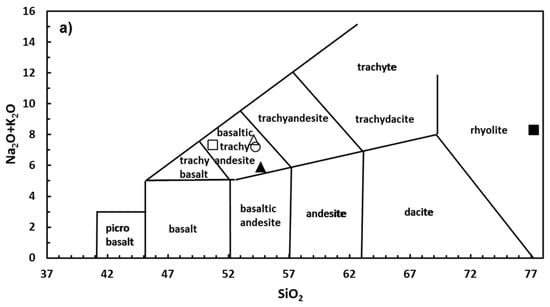

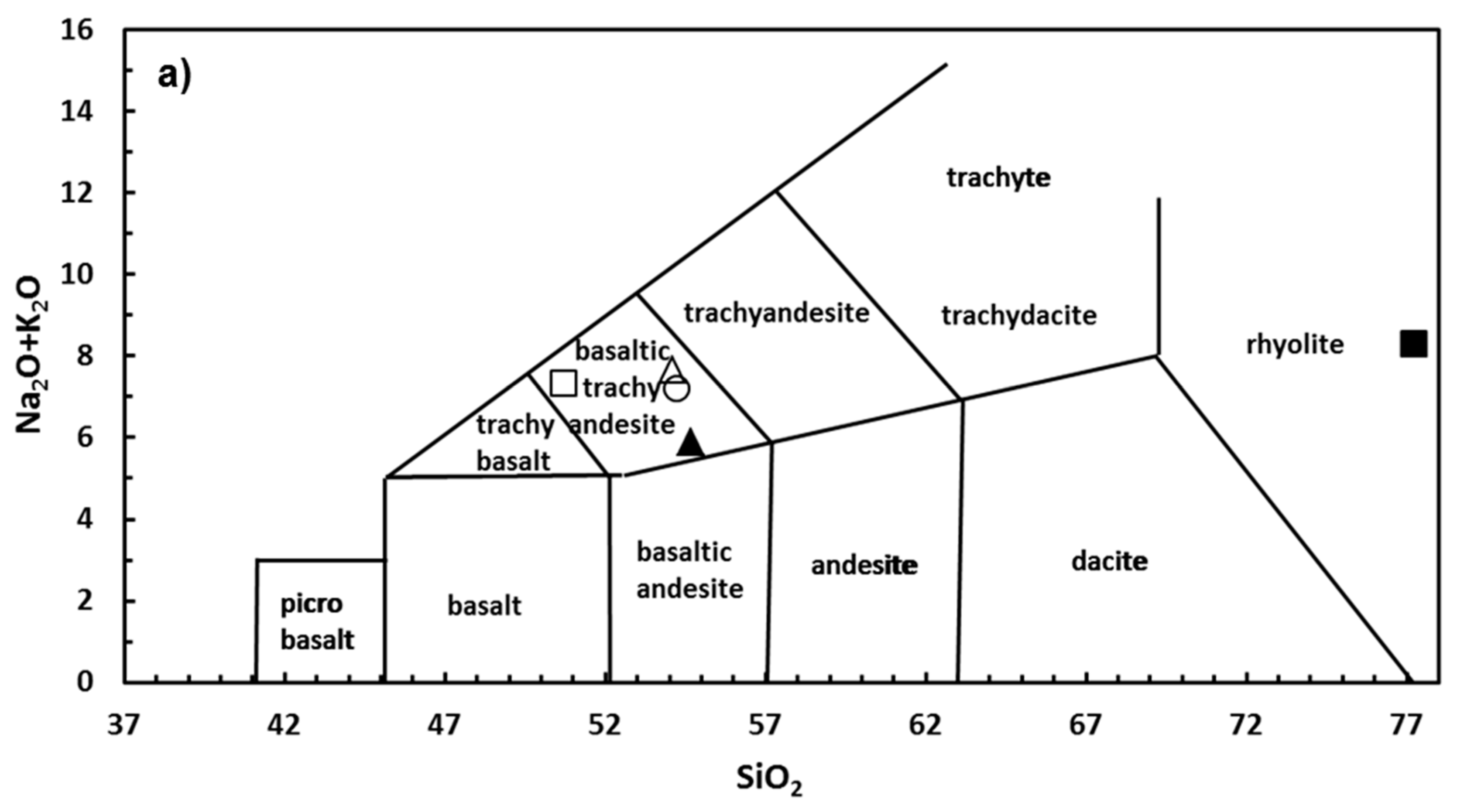

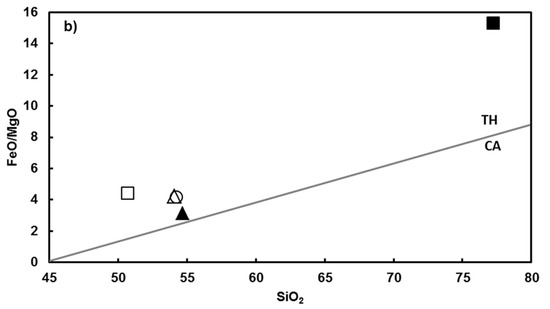

shows the results of the XRF analyses for the 2010 Bromo ash, Widodaren tuff, and Segarawedi tuff. Data from the Merapi ash [18] and Toba tuff [19] were also listed for comparison. The Merapi ash came from the 2010 eruption [18], the same year as the Bromo ash. Although they belong to different volcanic systems, Bromo and Merapi are only approximately 280 km apart. Toba tuff was used only as a reference. Data from Table 1 were then plotted in Figure 3a,b. Figure 3a shows the plots of Na₂O + K₂O versus SiO₂ (as proposed by Le Bas et al. [20]) for all samples, and shows that the 2010 Bromo ash, Widodaren tuff, Segarawedi tuff, and Merapi ash plotted close to each other and could be considered as basaltic trachy-andesite, while the Toba tuff was a rhyolite. As expected, when plotted in Miyashiro’s plot [21] of FeO/MgO versus SiO₂ (see Figure 3b), the 2010 Bromo ash, Widodaren tuff, Segarawedi tuff, Merapi ash, and Toba tuff belonged to the tholeiitic magma series.

Table 2. Results of trace elements analysis.

Sample	Y (ppm)	Cr (ppm)	La (ppm)	Zr (ppm)	Ce (ppm)	V (ppm)
Bromo 1	18.12	18	13.84	130.14	40.66	40
Bromo 2	18.71	20	14.94	133.60	46.14	40
Bromo 3	18.33	19	13.78	129.97	42.42	40
Widodaren 1	18.53	13	15.73	134.14	42.86	40
Widodaren 2	19.21	13	15.09	141.28	45.92	40
Widodaren 3	18.86	12	14.26	151.76	44.57	40
Segarawedi 1	16.34	20	14.50	127.44	41.51	60
Segarawedi 2	17.29	19	14.31	119.37	41.52	40
Segarawedi 3	16.47	20	13.96	123.40	42.78	60

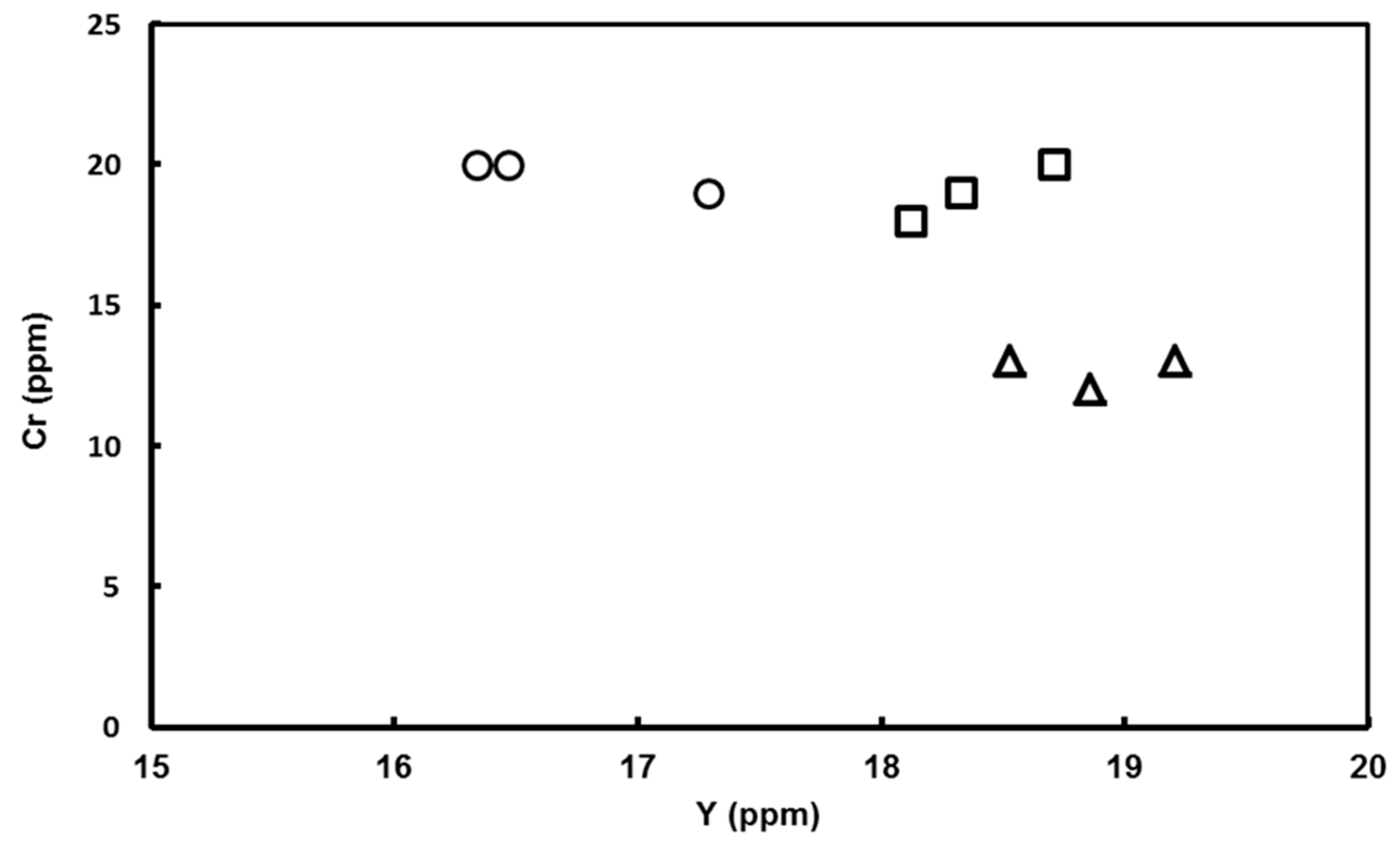

lists the results of the trace element analyses. After plotting one trace element against another, it was found that the plots of Y versus Cr (as proposed by Rollinson [22]) were the best plots to distinguish between the volcanic ash in this study (Figure 4). As seen in Figure 4, samples from each event clustered together so that each event could be distinguished easily. The range of Y and Cr values for all samples fell within the volcanic-arc basalts [22]; and both Y and Cr were often used as fractionation indexes in volcanic-arc basalts [22].

Table 3. Results of magnetic susceptibility measurements.

Sample	χLF (× 10−8 m3/kg)	Average χLF (× 10−8 m3/kg)	χHF (× 10−8 m3/kg)	Average χHF (× 10−8 m3/kg)	χFD (%)	Average χFD (%)
Bromo 1	462.5	464.98 ± 2.54	444.6	448.54 ± 3.98	3.87	3.54 ± 0.57
Bromo 2	465.5		446.1		4.17
Bromo 3	462.2		447.7		3.14
Bromo 4	467.8		454.9		2.76
Bromo 5	466.9		449.4		3.75
Widodaren 1	351.9	354.64 ± 10.79	338.5	341.04 ± 9.27	3.81	3.83 ± 0.34
Widodaren 2	369.5		353.5		4.33
Widodaren 3	350.2		336.8		3.83
Widodaren 4	341.1		329.6		3.37
Widodaren 5	360.5		346.8		3.80
Segarawedi 1	530.1	530.26 ± 7.42	509.7	511.36 ± 6.45	3.85	3.56 ± 0.49
Segarawedi 2	525.5		505.1		3.88
Segarawedi 3	521.5		507.3		2.72
Segarawedi 4	540.8		521.6		3.55
Segarawedi 5	533.4		513.1		3.81

χ_LF: magnetic susceptibility at low frequency; χ_HF: magnetic susceptibility at high frequency; χ_FD: frequency-dependent magnetic susceptibility.

lists the results of the mass-specific magnetic measurements for the samples. Data from the Tiva Canyon tuff were used only for comparison [17]. Our results showed that the average χ_LF value of the 2010 Bromo ash was 464.98 × 10⁻⁸ m³/kg, which was higher than that of the Widodaren tuff (354.64 × 10⁻⁸ m³/kg) and lower than that of the Segarawedi tuff (530.26 × 10⁻⁸ m³/kg). The results were comparable with the Tiva Canyon tuff at 12 cm depth, which had a χ_LF of 500 × 10⁻⁸ m³/kg [16]. Table 3 also shows that the average χ_FD (%) values for all samples varied only slightly around 3.5%, suggesting a small or negligible contribution of superparamagnetic (SP) grains.

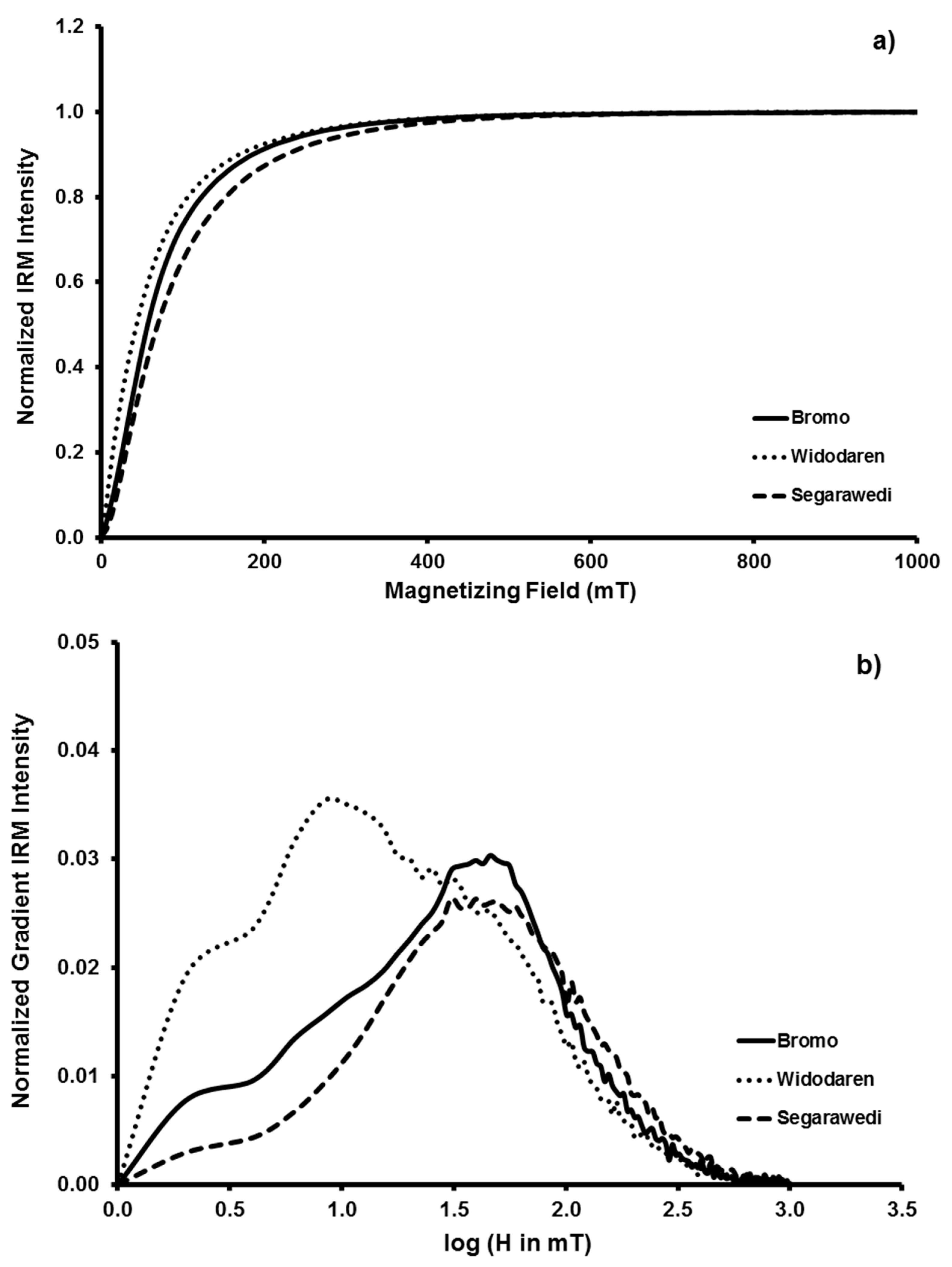

Figure 5a shows the IRM saturation curves for the 2010 Bromo ash samples along with those of the Widodaren and Segarawedi tuffs. All samples were saturated below the magnetizing field of 300 mT, implying that the predominant magnetic mineral in these samples was magnetite (Fe₃O₄). In addition, the second derivative curves of IRM over field [23] showed that each sample had a different coercivity spectrum (Figure 5b). This inferred that each sample had its own unique magnetic phase, which was also supported by the results of thermomagnetic analyses.

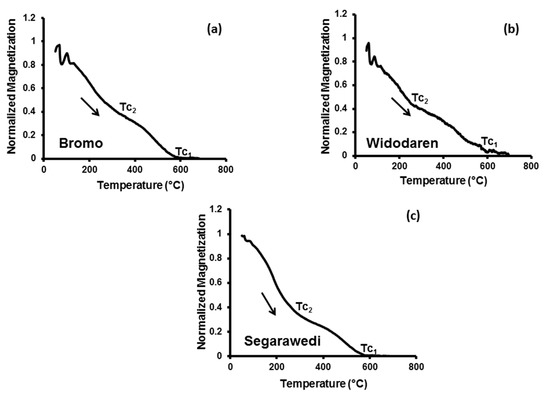

Figure 6a–c show the thermomagnetic curves for the 2010 Bromo ash samples, along with those of the Widodaren and Segarawedi tuffs. For all three samples, the heating curves showed double peaks that corresponded to the Hopkinson effect, i.e., a peak in magnetic susceptibility associated with Curie temperature [23]. The presence of magnetite with its distinctive Curie temperature (T_C) of ~580 °C was obvious in the 2010 Bromo ash (Figure 6a) and Segarawedi tuff (Figure 6c), but was not so obvious in the Widodaren tuff (Figure 6b). Figure 6a–c also show that there was another magnetic phase with a Curie temperature (Tc) of ~250–300 °C, indicating a titanomagnetite phase with a Ti substitution of 0.4–0.5 [24]. Such variations may explain the dissimilarity in IRM saturation curves for all samples (Figure 5a); moreover, the presence of two different magnetic phases was most likely due to the mechanisms that govern crystallization of iron-rich melt. Such mechanisms might include temperature variation, changes in chemistry prior to eruption, and increases in the redox conditions of the silicate melt [25]. The presence of these two different magnetic phases also reinforced the notion that new magma injection occurred during the Bromo eruption of 2010.

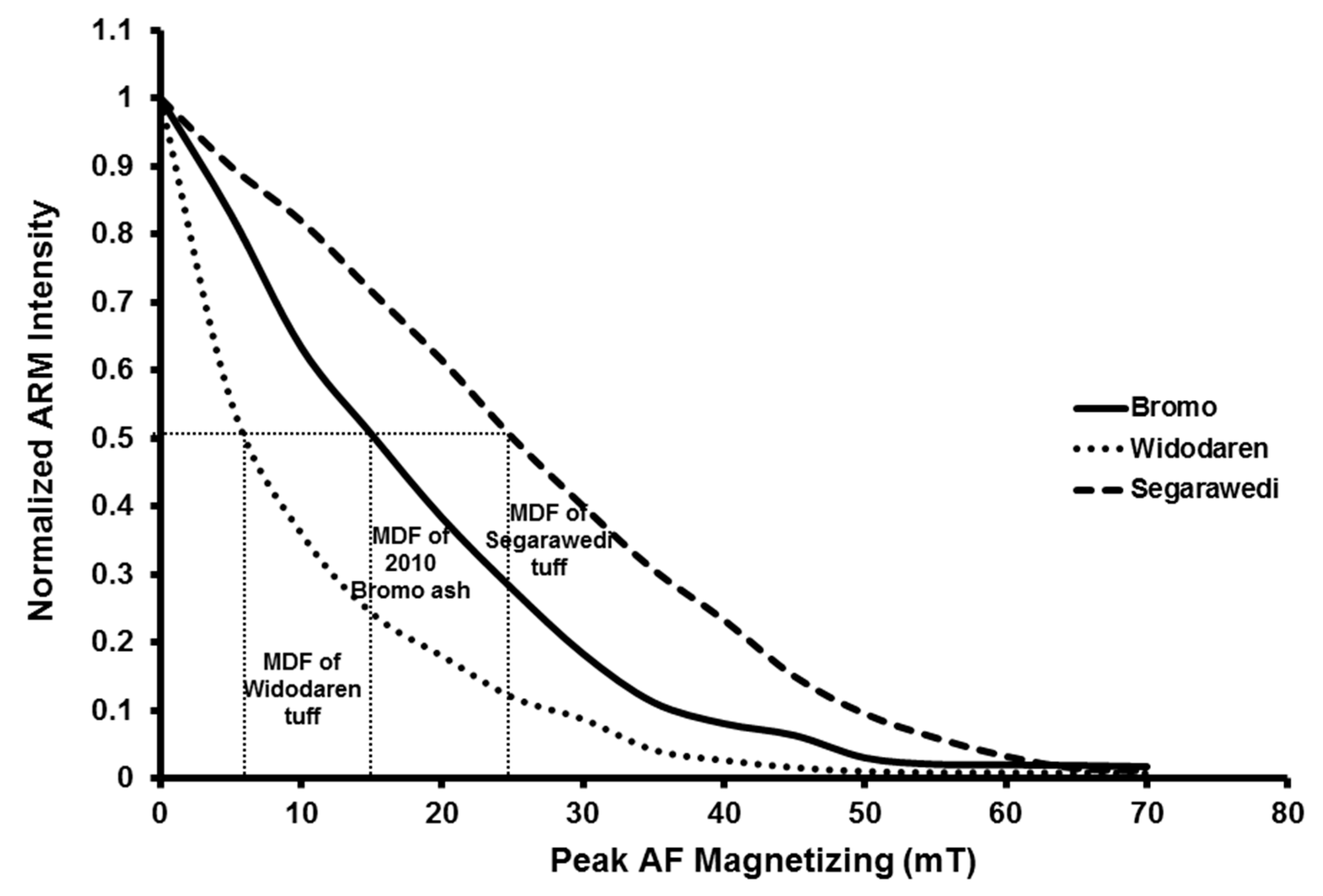

Figure 7 shows the ARM demagnetization curves for the 2010 Bromo ash samples, along with those from the Widodaren and Segarawedi tuffs. By assuming that magnetite was the predominant magnetic mineral in these samples, the magnetic grain sizes of these samples could be estimated from the value of MDF (median destructive field) [26,27]. Figure 7 shows that the MDF of the 2010 Bromo ash and Segarawedi tuff were 15 mT and 25 mT corresponded to a grain size of 3–6 µm for the 2010 Bromo ash and 0.6–1 µm for Segarawedi tuff, respectively (as described in [26]), which represented the PSD (pseudo-single domain). Meanwhile, the Widodaren tuff sample showed a much lower MDF of 5 mT that corresponded to a grain size of >135 µm, which represented the MD (multi domain).

The petrographic analyses showed that the 2010 Bromo ash contained glass fragments (60%), crystal fragments (20%), and lithic or tuff fragments (20%). Meanwhile, the Widodaren tuff contained glass fragments (60%), crystal fragments (35%), and pores (5%). In contrast, the Segarawedi tuff contained mostly lithic fragments (65%), as well as lower quantities of glass (25%) and crystal (10%) fragments. Crystal fragments in all events consisted of plagioclase, pyroxene, and opaque minerals. The above finding suggests that the 2010 Bromo ash and Widodaren tuff experienced fast cooling processes during their deposition, while the Segarawedi tuff experienced a slow cooling process during its deposition. However, a fast cooling process does not necessarily produce multi domain magnetite. Ferk et al. [28] reported that, unlike single domain (SD) magnetite, PSD and MD magnetite was not affected by an increase or decrease of the cooling rate.

Table 4. Ratios of hysteresis parameters for samples.

Name of Volcano/Event	Sample Code	Mr/Ms	Bcr/Bc
Bromo 1	BM1	0.19	3.35
Bromo 2	BM2	0.19	3.26
Bromo 3	BM3	0.19	3.35
Bromo 4	BM4	0.21	2.89
Bromo 5	BM5	0.20	3.05
Widodaren 1	WD1	0.10	5.23
Widodaren 2	WD2	0.10	4.72
Widodaren 3	WD3	0.11	4.51
Widodaren 4	WD4	0.10	4.98
Widodaren 5	WD5	0.10	4.77
Segarawedi 1	SW1	0.26	2.46
Segarawedi 2	SW2	0.26	2.54
Segarawedi 3	SW3	0.25	2.55
Segarawedi 4	SW4	0.25	2.58
Segarawedi 5	SW5	0.26	2.51

M_r: remanence magnetization; M_s: saturation magnetization; B_cr: coercivity of remanence magnetic field; B_c: coercivity magnetic field.

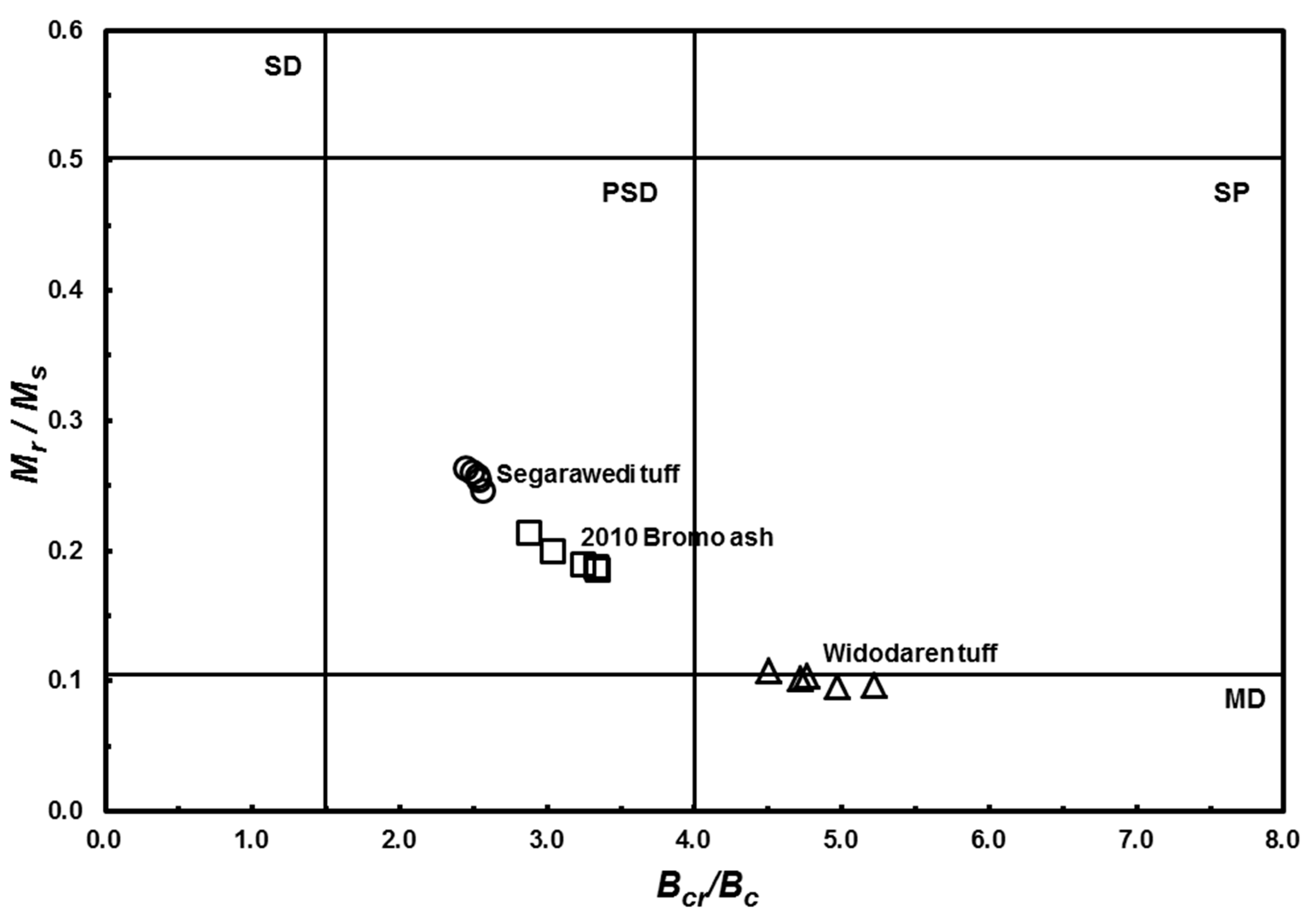

shows the ratios of the magnetic hysteresis parameters. Data from Table 4 were plotted in Figure 8 (as suggested by Day et al. [29]) to identify the grouping of the samples based on their magnetic domains. Figure 8 shows that the samples from each event (2010 Bromo, Widodaren, and Segarawedi) clustered together. The 2010 Bromo ash and Segarawedi samples were clustered in the PSD region, while the Widodaren samples were clustered in the MD region, thus supporting the results of the ARM analyses. However, despite all samples (2010 Bromo, Widodaren, and Segarawedi) being basaltic trachy-andesite, each event was still differentiable based on its hysteresis parameters. Care, however, should be taken when interpreting the Day’s plot [29] on a mixture of SD and MD magnetite, or a mixture of magnetite and titanomagnetite [30,31]. These results show that magnetic hysteresis is the most promising and effective magnetic measurement for distinguishing volcanic ash.

The distinct magnetic characteristics of the 2010 Bromo ash, and Widodaren and Segarawedi tuffs shown in this study may serve as an initial step in using magnetic characteristics as fingerprints for volcanic ash and tuff layers. Earlier attempts by Xia et al. [14] to correlate the tephra layers using magnetic signatures in Iceland showed that the individual tephra did not have unique magnetic signatures, and that a correlation of the tephra layers could only be achieved through complex statistical techniques. This study showed that combined with trace element analyses, magnetic measurements (especially hysteresis measurement) could be used to potentially distinguish between the eruption events of volcanic ashes and tuffs. This study even showed that the three samples (2010 Bromo ash, Widodaren tuff, and Segarawedi tuff) originated from the same caldera, and that a similar composition of major elements could have distinct magnetic signatures. Despite the positive results of this study, the use of magnetic parameters as correlation tools in volcanic ash layers should be tested further.

4. Conclusions

The predominant magnetic mineral in the 2010 Bromo ash was found to be Ti-rich titanomagnetite with PSD magnetite. Compared with tuff layers from earlier events (Widodaren and Segarawedi), there were some dissimilarities in magnetic characteristics including grain size, magnetic domain, and hysteresis parameters. Dissimilarities in these events were also found in Y versus Cr plots and in petrographic analyses. Thus, the applications of these three methods (magnetic, geochemistry, and petrographic) might be used to identify volcanic ash and tuff layers. However, the use of magnetic methods alone should be carried out cautiously, especially if the volcanic ash or tuff layer has undergone physical and chemical changes such as diagenesis. Furthermore, hysteresis parameters and Day’s plots have been shown to be effective discriminating tools for identifying volcanic ash and tuff layers.
