3D Response Characteristics Analysis of Vertical Electric Dipole Transient Electromagnetic Fields Under Complex Geological Conditions

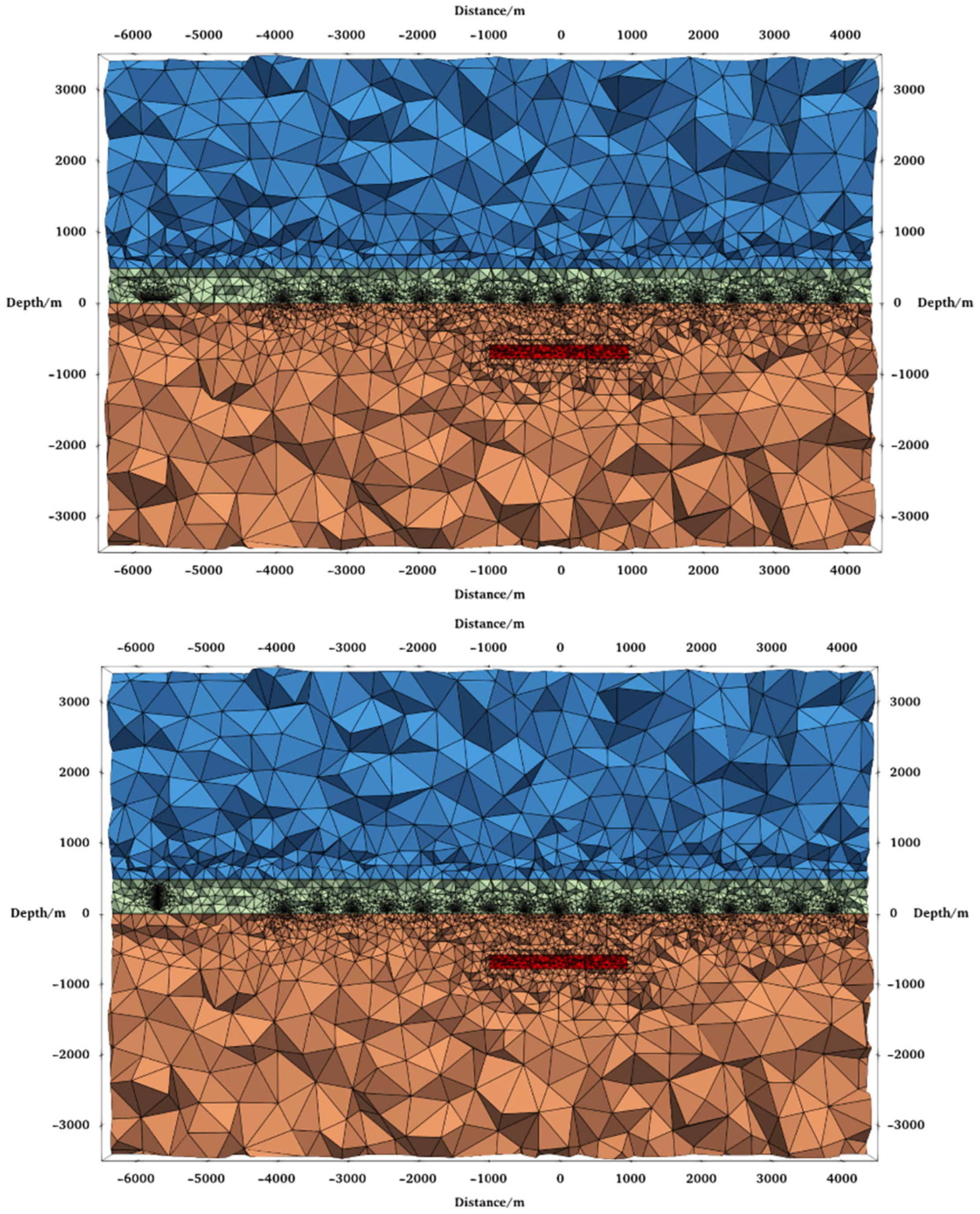

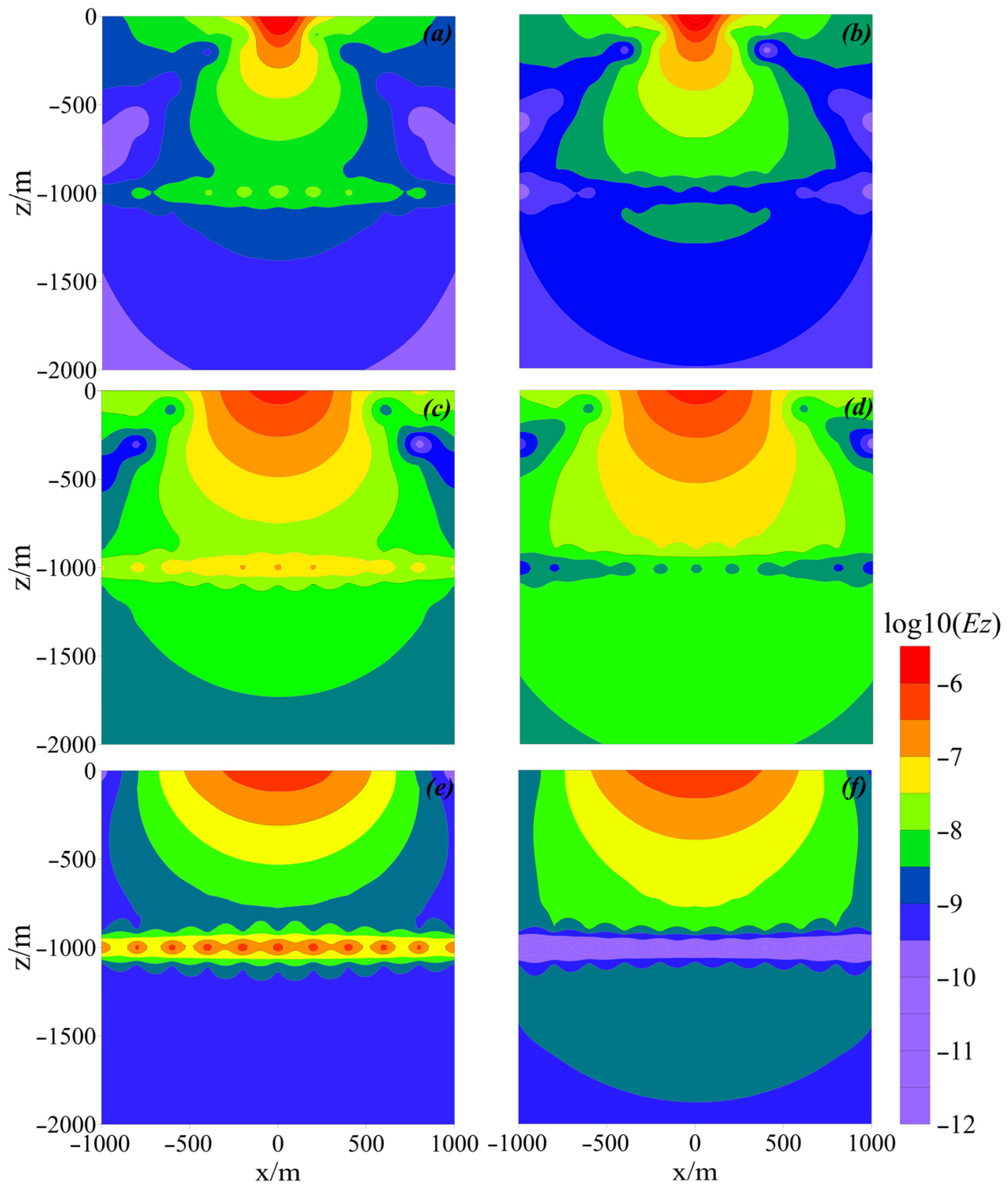

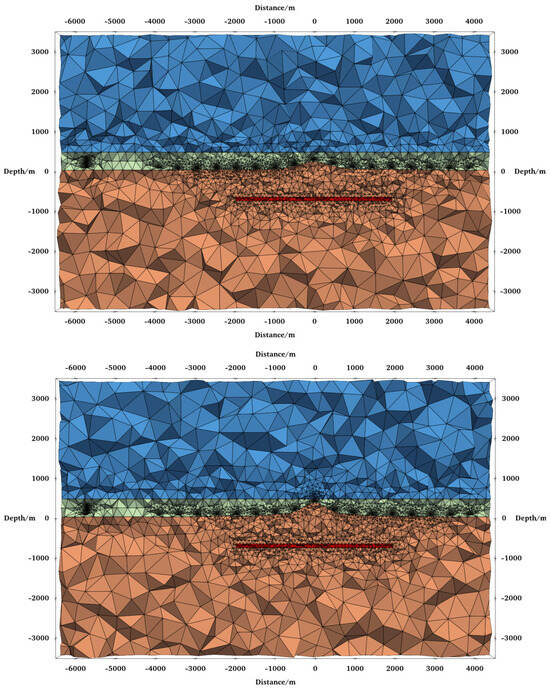

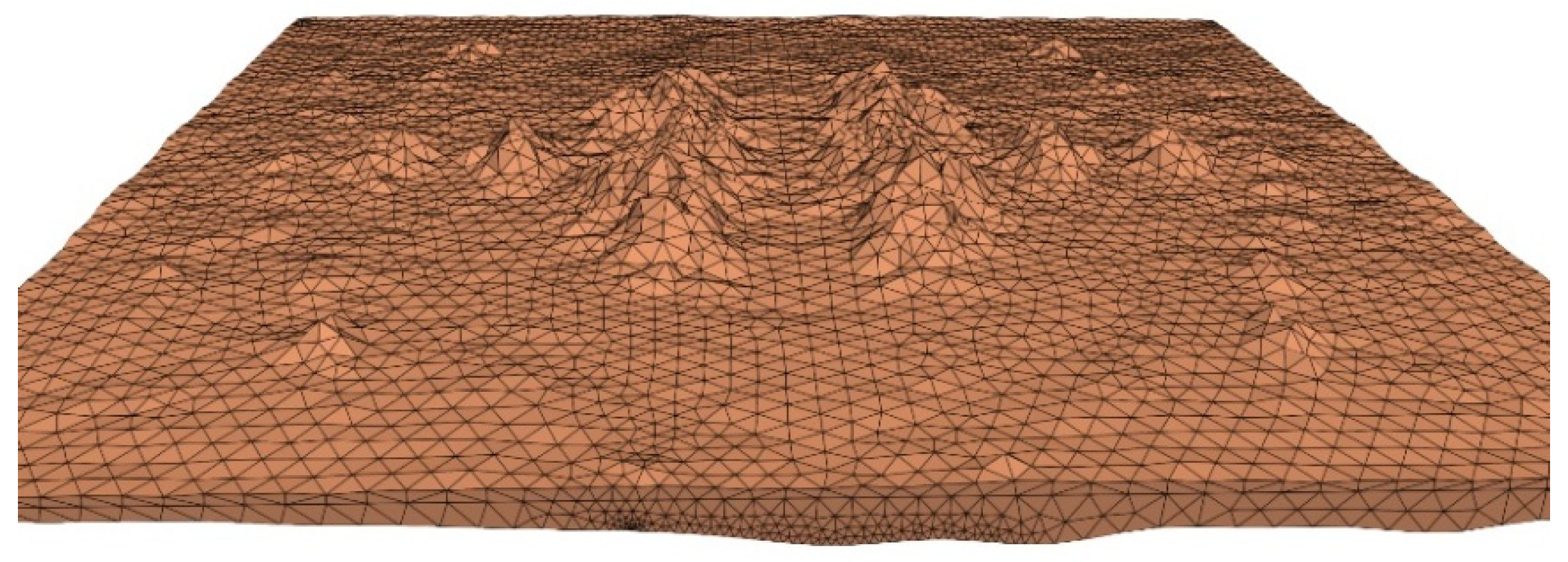

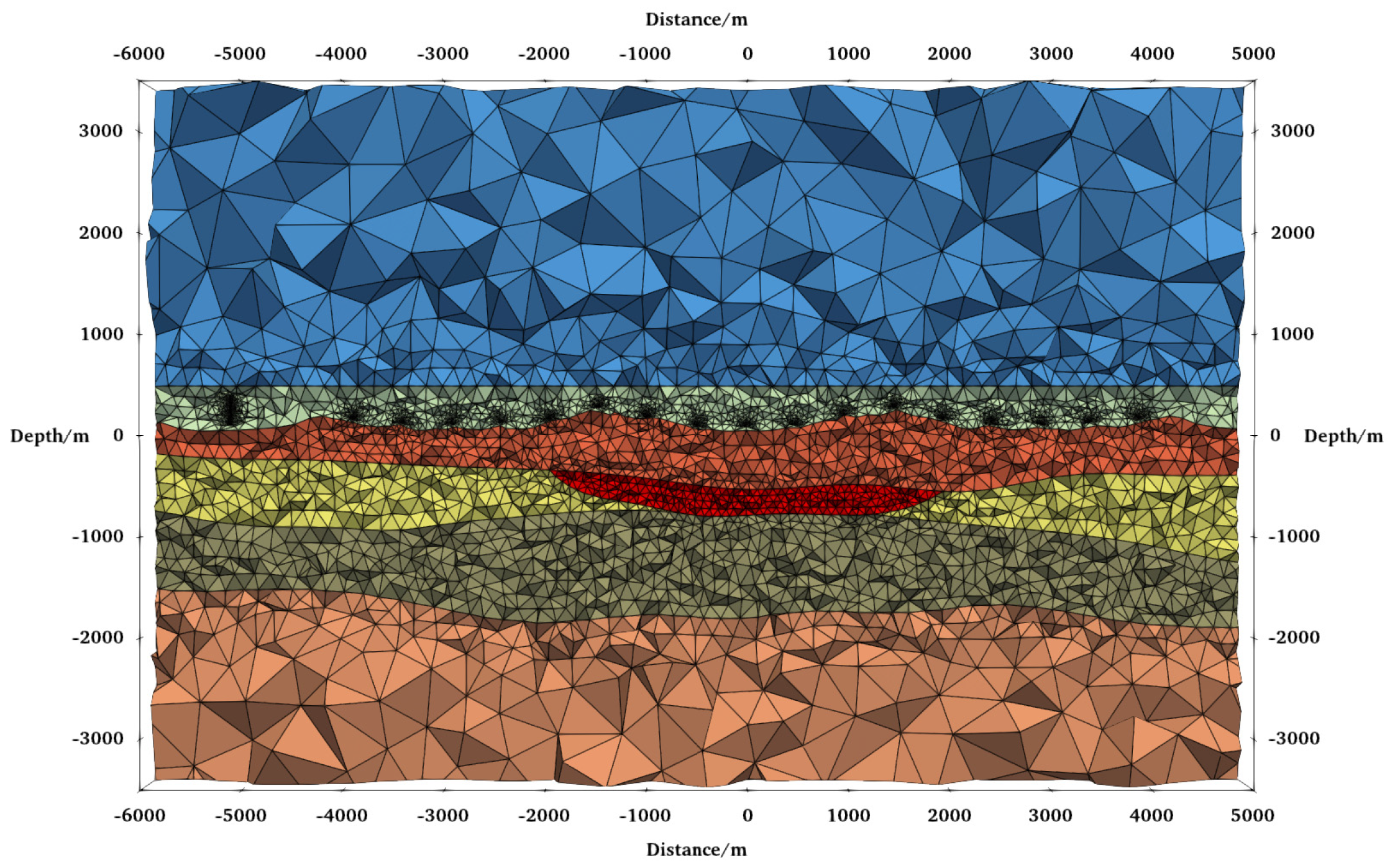

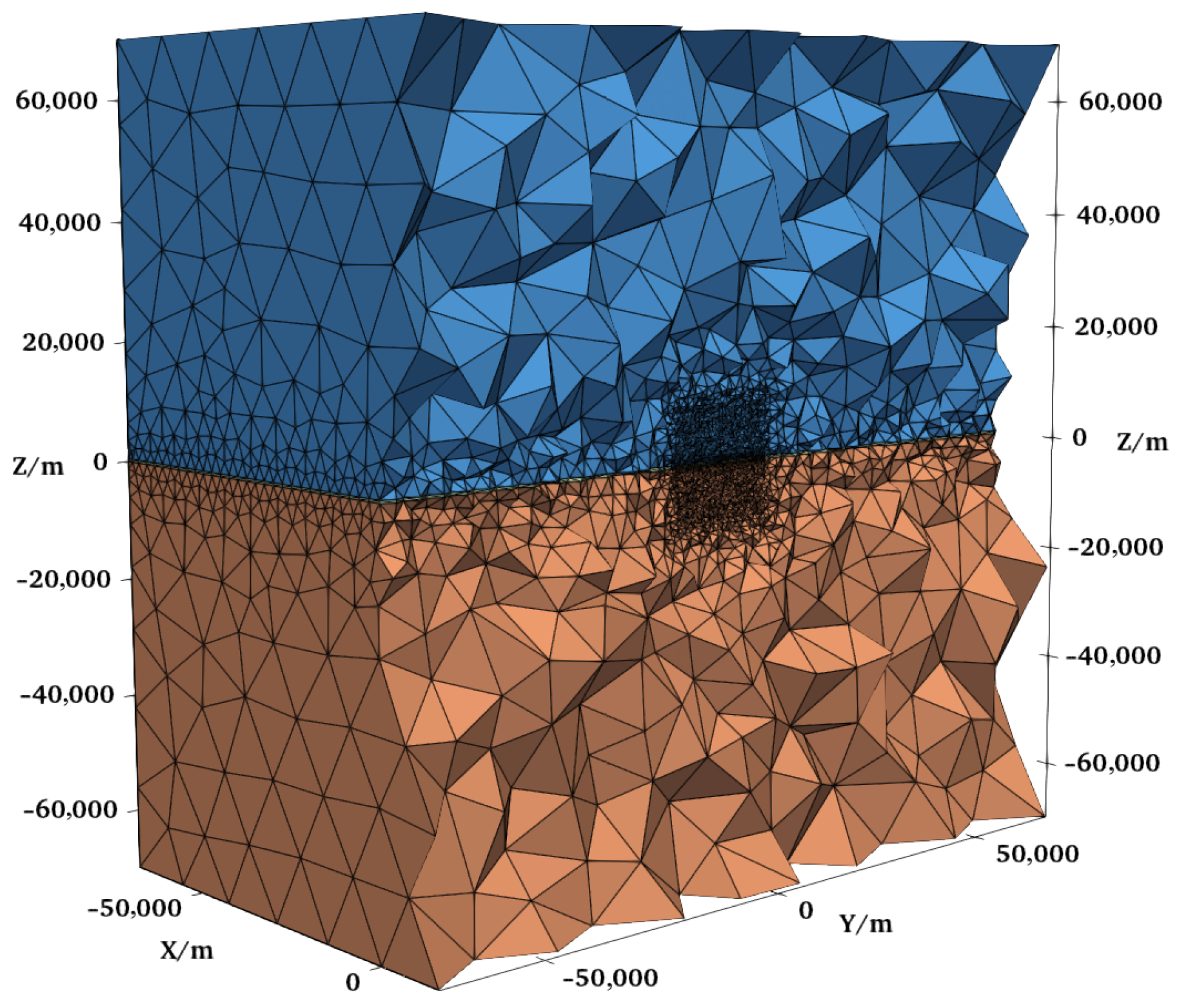

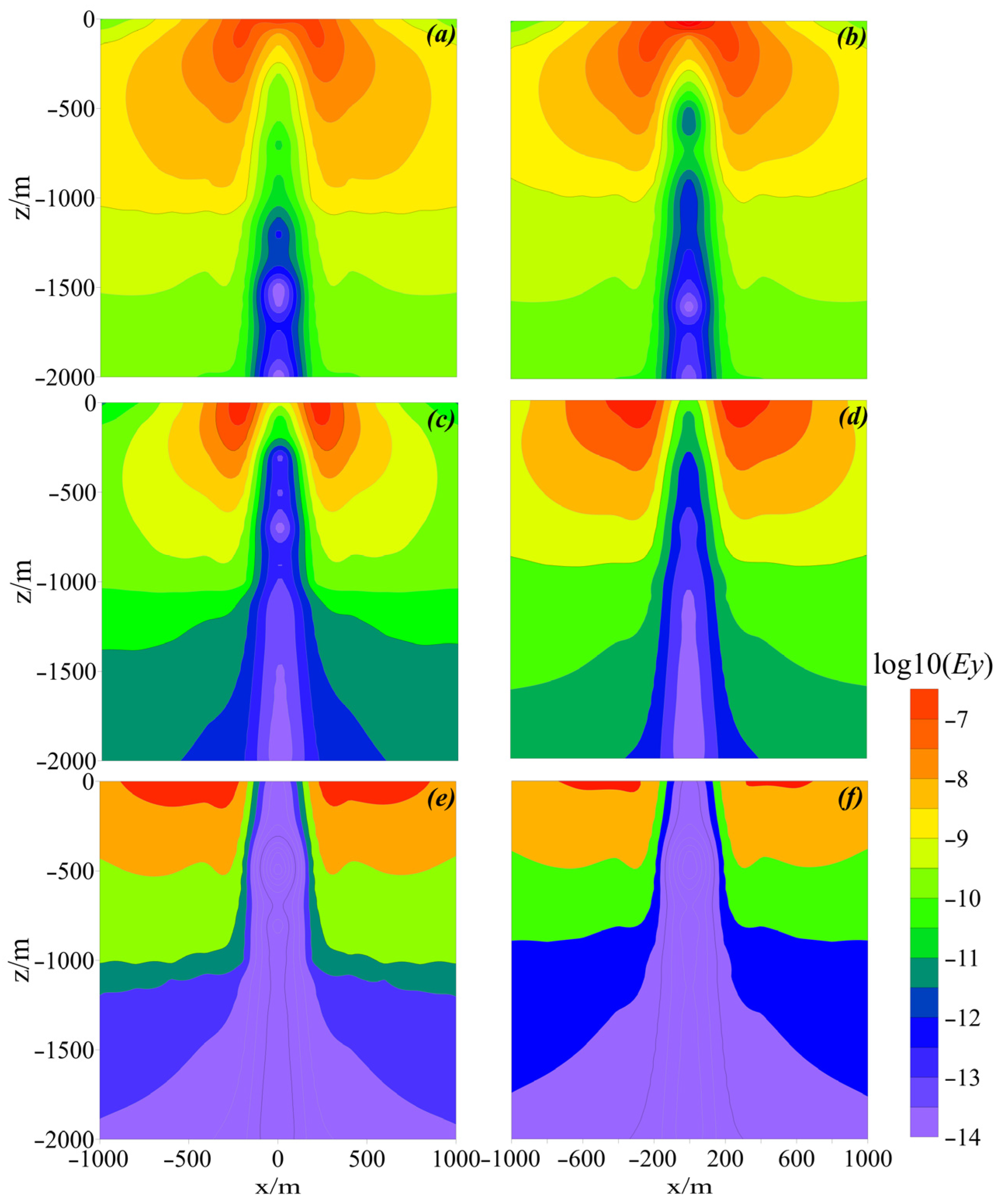

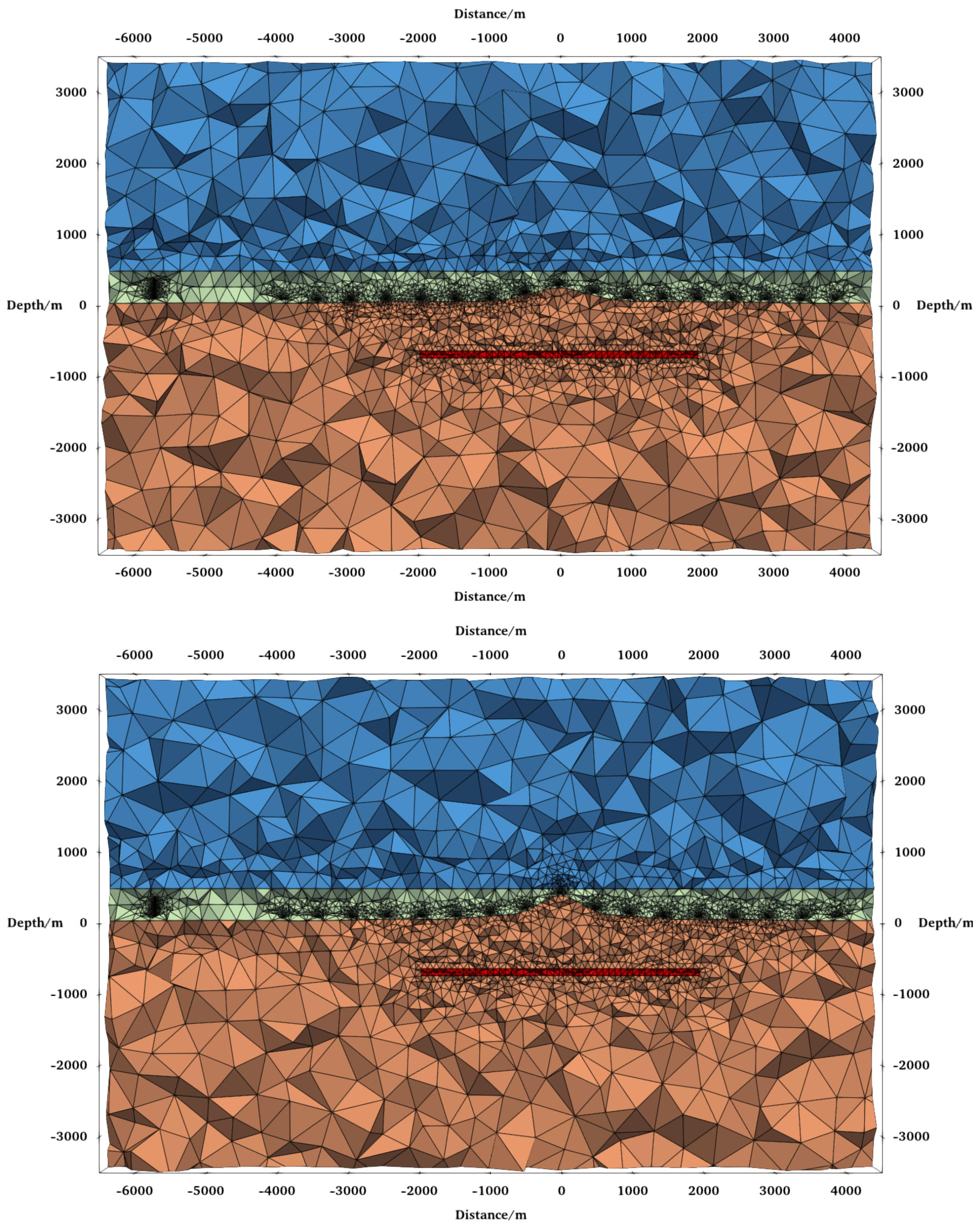

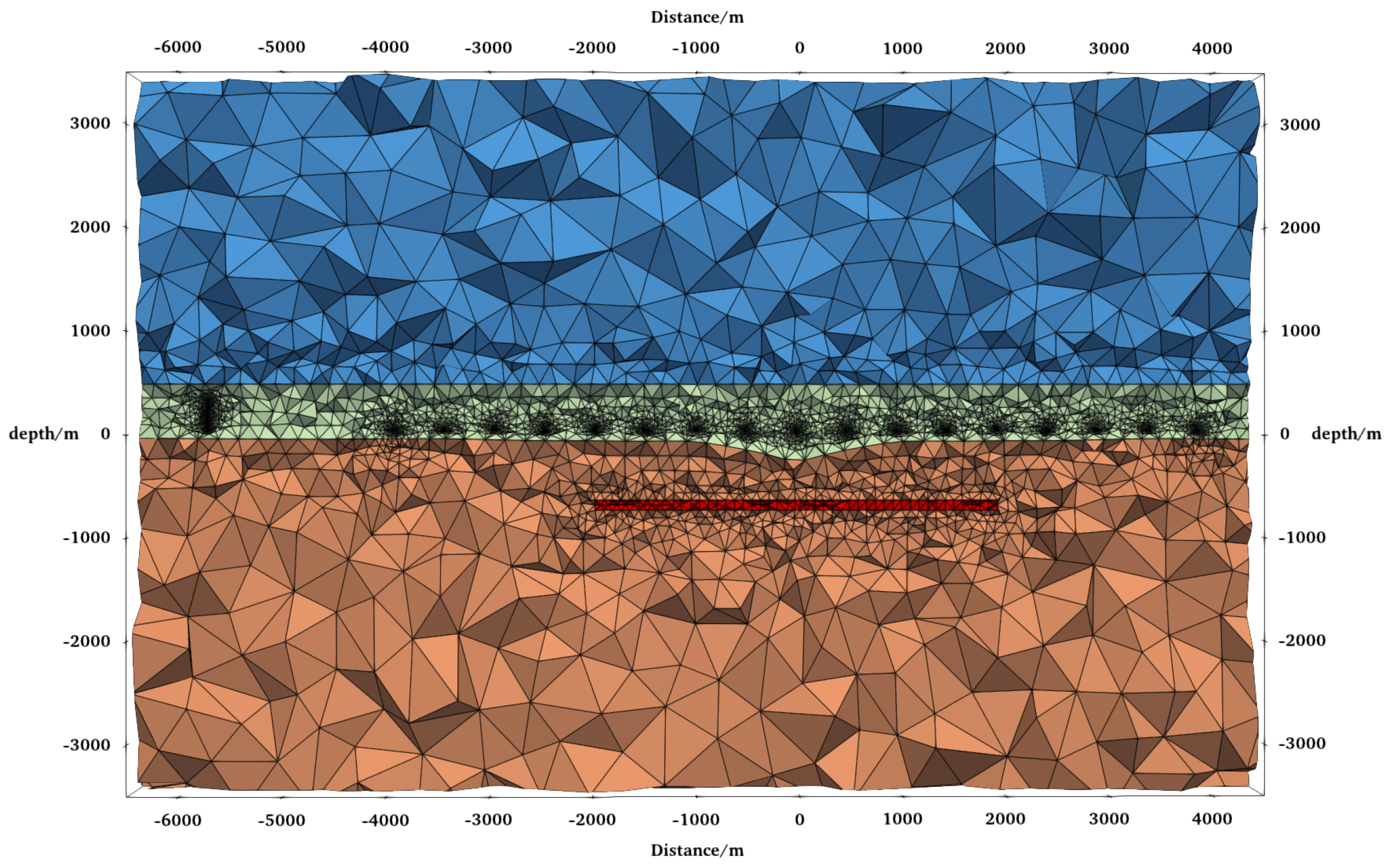

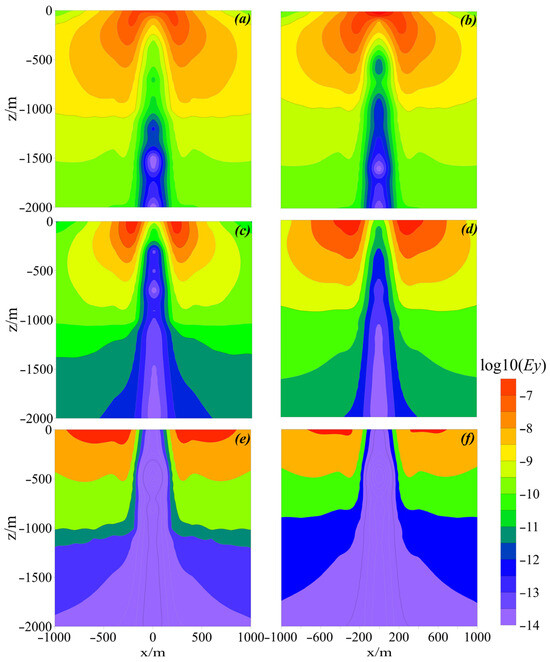

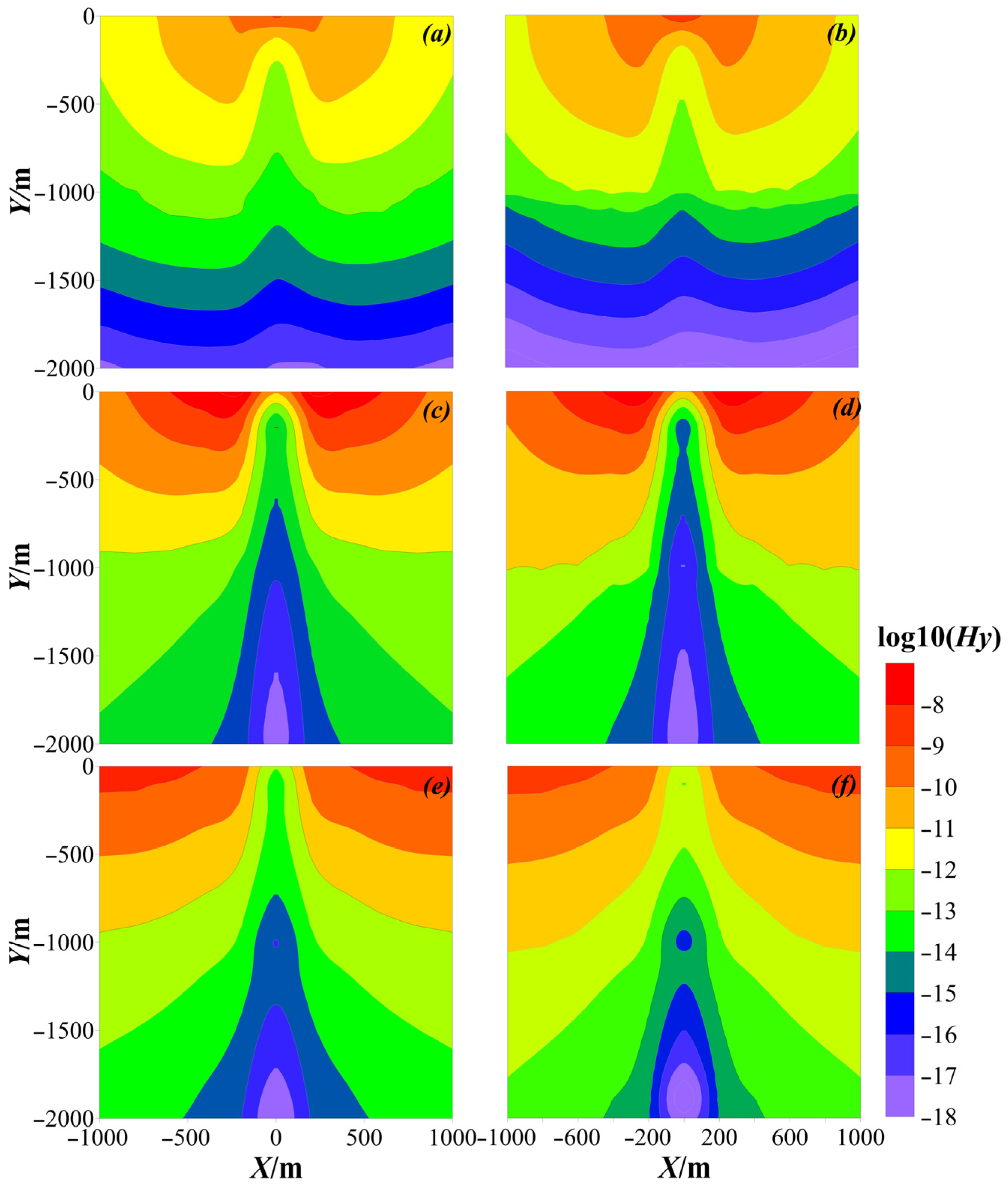

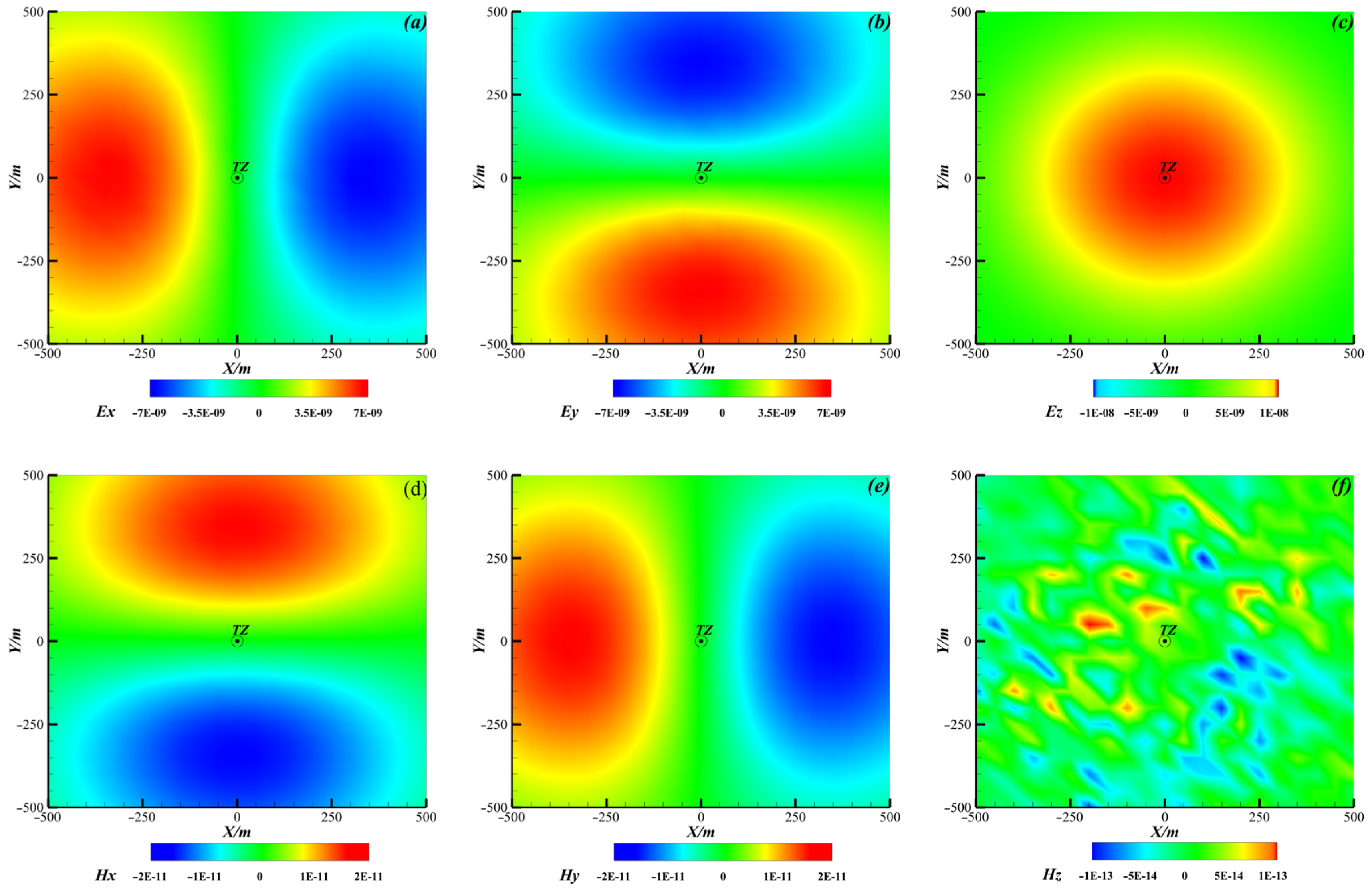

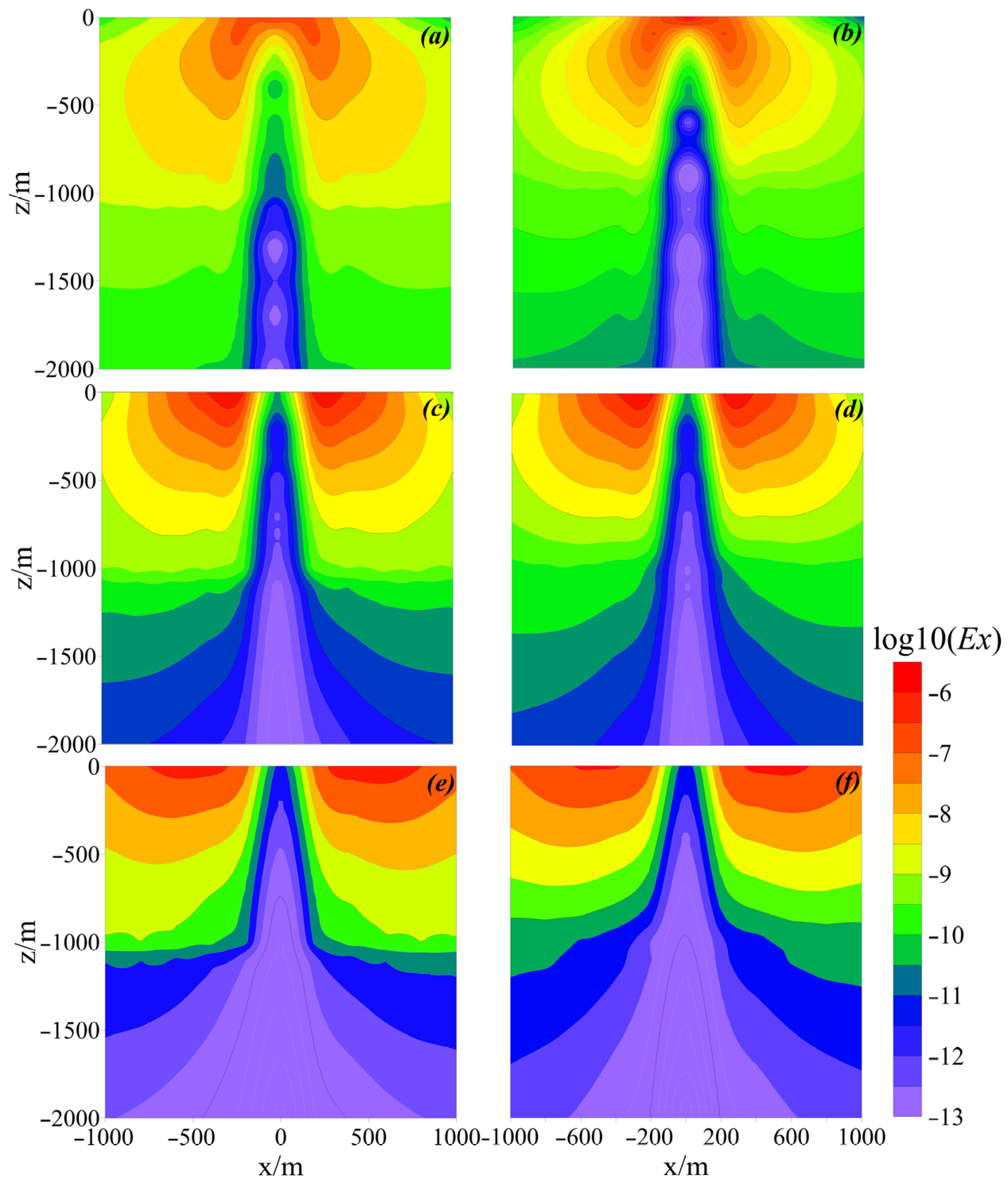

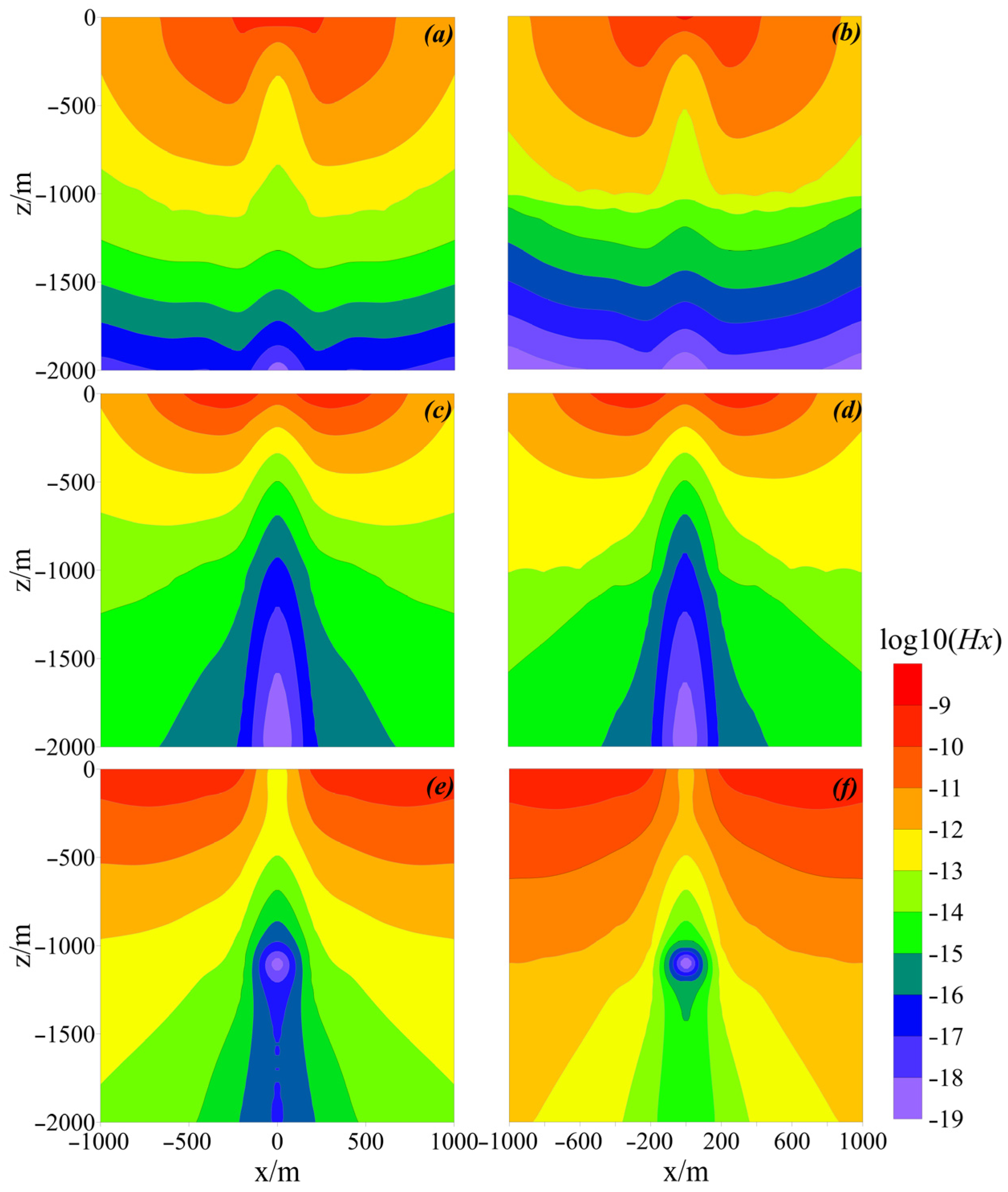

Vertical electric sources serve as an effective method for identifying deep hydrocarbon reservoirs. This involves the ability to generate transverse magnetic fields, concentrate currents at reservoir interfaces, and effectively emphasize resistivity anomalies in late-time domains. Marine geological conditions are often complex, marked by rugged topography and intricate structures. This complexity results in highly complicated electromagnetic response features, presenting significant challenges for data interpretation. This research employs the Time-Domain Finite Element Method (TDFEM) using unstructured meshes to accurately discretize complex geological models. Through the formulation of TDFEM equations, we successfully performed three-dimensional forward modeling of VED transient electromagnetic (VSTEM) responses in intricate geological environments. An analysis was conducted on the diffusion mechanisms and spatial distribution characteristics of VSTEM fields located beneath the seabed. A comparative analysis was conducted on the resolution capabilities of different fields stimulated by horizontal and VED sources. The findings show that the Ex provides enhanced boundary identification for the lateral extent of targets, whereas the Ez displays the greatest anomaly contrast, highlighting its exceptional results in anomaly detection. We investigated how complex seabed topography and geological structures affect the resolution of hydrocarbon targets. The research indicates that complex topography significantly influences electromagnetic fields; however, the proposed method can still effectively identify resistive hydrocarbon reservoirs, even in intricate model scenarios, thus confirming its reliability in challenging marine environments.
