Metamorphic Remnants of the Variscan Orogeny across the Alps and Their Tectonic Significance

Abstract

Lithospheric slices preserving pre-Alpine metamorphic imprints are widely described in the Alps. The Variscan parageneses recorded in continental, oceanic, and mantle rocks suggest a heterogeneous metamorphic evolution across the Alpine domains. In this contribution, we collect quantitative metamorphic imprints and ages of samples that document Variscan tectonometamorphic evolution from 420 to 290 Ma. Based on age distribution and metamorphic imprint, three main stages can be identified for the Variscan evolution of the Alpine region: Devonian (early Variscan), late Devonian–late Carboniferous (middle Variscan), and late Carboniferous–early Permian (late Variscan). The dominant metamorphic imprint during Devonian times was recorded under eclogite and HP granulite facies conditions in the Helvetic–Dauphinois–Provençal, Penninic, and eastern Austroalpine domains and under Ep-amphibolite facies conditions in the Southalpine domain. These metamorphic conditions correspond to a mean Franciscan-type metamorphic field gradient. During the late Devonian–late Carboniferous period, in the Helvetic–Dauphinois–Provençal and central Austroalpine domains, the dominant metamorphic imprint developed under eclogite and HP granulite facies conditions with a Franciscan field gradient. Amphibolite facies conditions dominated in the Penninic and Southalpine domains and corresponded to a Barrovian-type metamorphic field gradient. At the Carboniferous–Permian transition, the metamorphic imprints mainly developed under amphibolite-LP granulite facies conditions in all domains of the Alps, corresponding to a mean metamorphic field gradient at the transition between Barrovian and Abukuma (Buchan) types. This distribution of the metamorphic imprints suggests a pre-Alpine burial of oceanic and continental crust underneath a continental upper plate, in a scenario of single or multiple oceanic subductions preceding the continental collision. Both scenarios are discussed and revised considering the consistency of collected data and a comparison with numerical models. Finally, the distribution of Devonian to Triassic geothermal gradients agrees with a sequence of events that starts with subduction, continues with continental collision, and ends with the continental thinning announcing the Jurassic oceanization.

1. Introduction

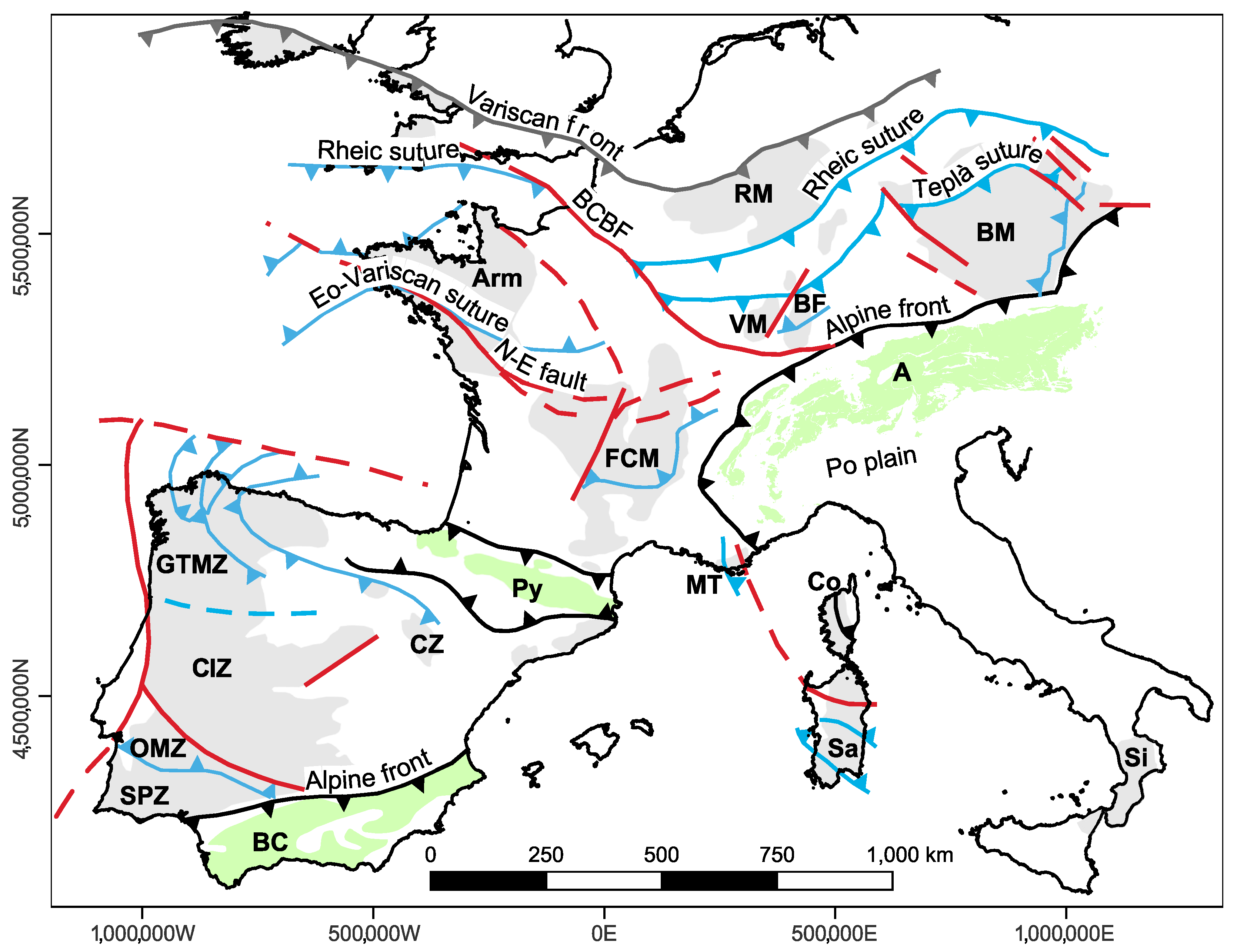

The Variscan belt constitutes the skeleton of the European continental crust and, for this reason, is one of the most investigated orogens in the world. The palaeogeographic-geodynamic reconstructions are numerous and contrasted, and the proposed subdivisions into structural domains (e.g., [1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20]) are rendered incomplete by the Meso–Cenozoic “tectonic disturbance” induced by the Betic Cordillera, the Pyrenees, and the Alps (Figure 1). The resolution of the Variscan structural setting of these domains would allow for correlating the central and the southern part of the European Variscides, possibly solving doubts or helping to overcome misfits. In particular, numerous palaeogeographic-tectonic interpretations have recently been proposed for the Alps, generally based on the lithostratigraphic affinity between lithotectonic units constituting the pre-Alpine continental crust of the chain [21,22,23,24,25,26,27,28]. However, the validity of these reconstructions becomes critical when they are also proposed for the axial zone of the Alps where, differently from the external structural domains, the tectonic reworking was pervasive during the Alpine convergence. In present-day subduction settings [29,30,31], tectonic erosion is one of the main destructive mechanisms that characterize such systems. It implies a significant reorganization of the original structure of the upper plate margins and strongly contributes to the generation of the tectonic mélange that typically characterizes subduction complexes [32]. The latter generally coincide with the axial zones of the orogens, so early remarked by [33] as places in which there are “portions of terrains that are not in their place, lying on an accidental substrate, which is not their original substrate”. In this context, it appears more productive to examine the Variscan metamorphic imprints recorded across internal and external domains of the Alps, which, albeit with a discontinuous record, indicate the potential existence of one or more suture zones, as already attempted for exploring the possible pre-Alpine evolution of the Palaeozoic continental crust with quantitative geodynamic modelling (e.g., [34,35]).

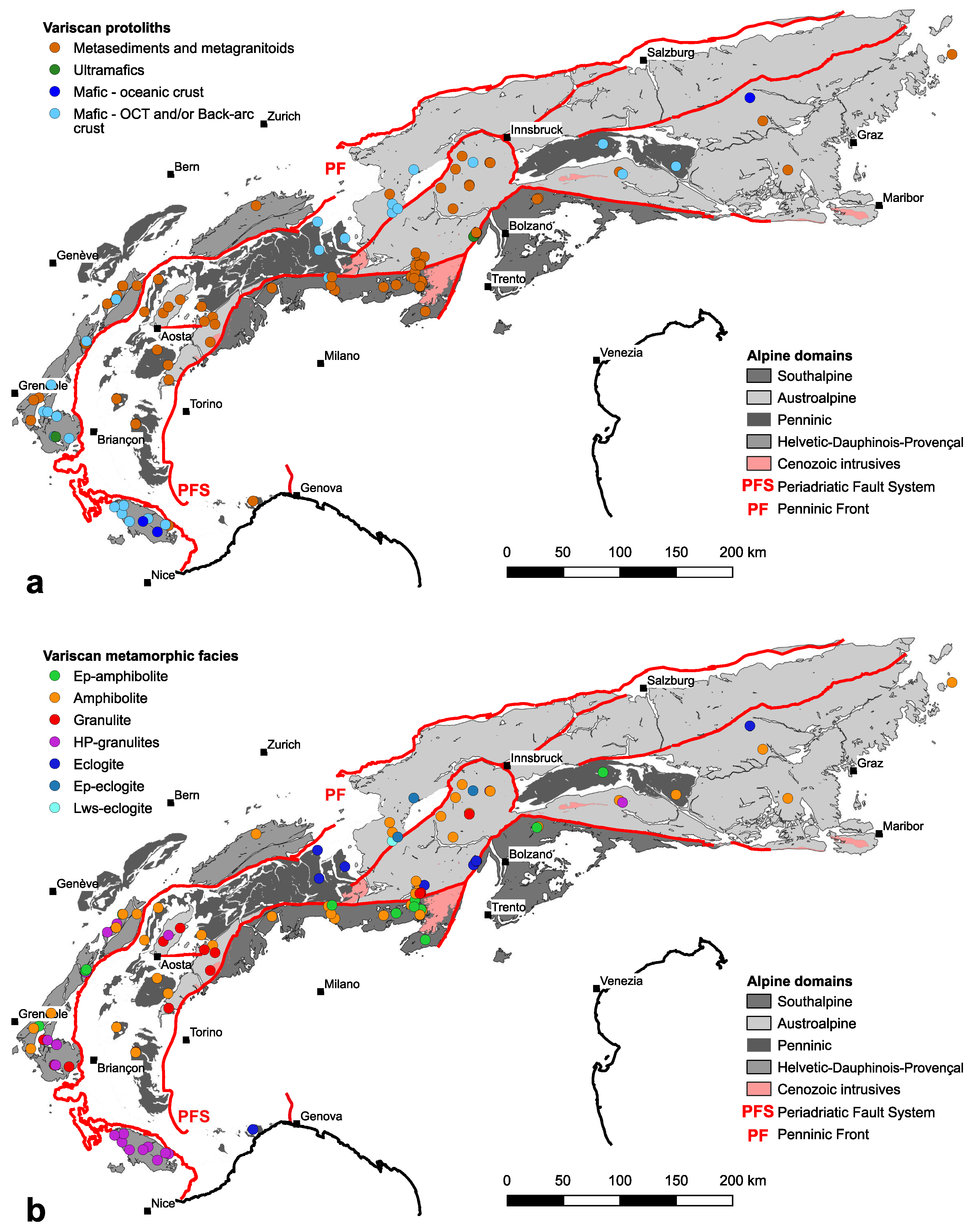

In this light, this contribution shows the distribution of quantitative Variscan metamorphic conditions and the compositional affinity of protoliths across the different structural domains of the Alps. This information will be completed with the age relative to the different Variscan metamorphic imprints that range from Devonian to early Permian. In the end, the Variscan metamorphic signatures and their ages are here discussed in relation to the metamorphic gradients that have largely been used to interpret subduction-collision chains [36,37,38,39,40,41,42,43,44]. Therefore, rather than identifying and unravelling the palaeogeographical origin of lithotectonic units, this study aims at the identification of the link beyond the “Meso-Cenozoic disturbances”, to find relationships between the Variscan subduction-collision metamorphic markers and their distribution across the Alpine suture.

2. Geological Setting

The Alps were generated by the subduction of the Ligurian-Piedmont ocean (Western Tethys) under the Adria continental margin during the Meso–Cenozoic time, followed by the collision of the European passive continental margin. The chain suture stretches from Graz in SE Wien to the Gulf of Genova in NW Italy, south of which it is truncated by the Neogenic Algero-Provençal basin (Figure 2). At its eastern end, it disappears under the Neogene sedimentary rocks of the Pannonian basin system, which separates the Alps from the Carpathians [45,46,47,48].

Along a western section from the Alpine front to the Po plain (Figure 2), the main structural domains are (e.g., [49,50,51]) (a) the European foreland basin, underthrusted by the Alpine belt during the final stages of convergence; (b) the pre-Alpine basement and cover of the Helvetic–Dauphinois–Provençal domain, affected by the inversion of Mesozoic listric faults into a thrust system during Palaeogene Alpine continental collision; (c) the subduction system, between the Penninic Front (PF) and the Periadriatic Fault System (PFS), which is constituted of a mélange of Penninic and Austroalpine continental nappes wrapped by oceanic covers and basement rocks, belonging to the sutured western Tethys ocean; and (d) the Southalpine domain that consists of continental basements and cover units only locally affected by low-grade Alpine metamorphism and involved in a south-verging thrust system active since the Cretaceous period (e.g., [52,53,54]). This domain constitutes the hinterland of the Alpine belt.

The study of the tectonic setting of the area was integrated via the ECORS-CROP-NFP20-TRANSALP seismic project [55], which identified the subduction complex within the axial part of the chain. Such a hidden structure consists of a Cretaceous–Palaeogene rootless crustal prism, which is confined by the PF towards the Helvetic–Dauphinois–Provençal domain and by the PFS towards the Southalpine domain. The rootless crustal prism records Cretaceous to Palaeogene high-pressure and ultra-high-pressure metamorphism (e.g., [16,56,57,58]) and includes continental rocks that were buried in the subduction system through either continental collision or ablative subduction. In the second case, the high-pressure and ultra-high-pressure continental rocks were ablated from the upper continental plate by the subducting oceanic plate before continental collision (e.g., [49,56,59,60]). Consequently, regardless of the chosen interpretation, it clearly appears that in the subduction complex, the possibility of individuating a continuity of pre-Alpine structures and lithostratigraphy, which allows for the reconstruction of Variscan lithotectonic units, is strongly compromised.

Since Variscan metamorphic relicts were found in the pre-Alpine Penninic and Austroalpine continental crust, it is possible to compare their metamorphic imprints with those of the basement rocks of the Helvetic–Dauphinois–Provençal and Southalpine domains, where Alpine tectonics has been less destructive [22,25,34,61,62], and potentially identify scars of the Variscan suture.

3. Rock Types and Metamorphic Imprints

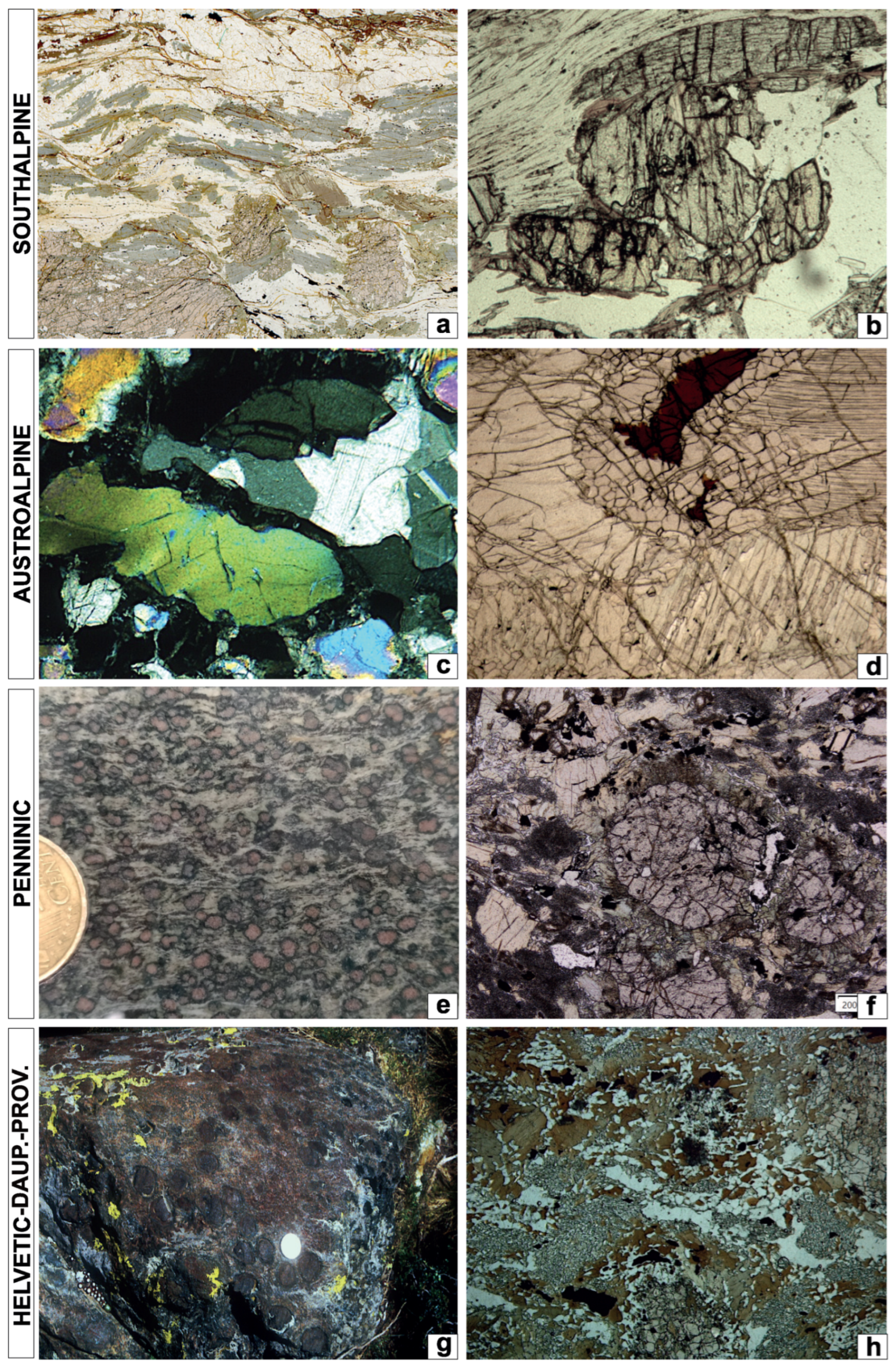

In this section, we describe the rock types from the different domains of the Alps (Southalpine, Austroalpine, Penninic, and Helvetic–Dauphinois–Provençal; Figure 2) that display evidence of Variscan metamorphism over a time frame spanning from early Devonian to early Permian (ca. 420 to 290 Ma; [63]). Data on each rock, including tectonic unit, location, interpreted protolith affinity (continental, oceanic, mantle, or undefined crusts), mineral assemblage, temperature and pressure conditions, and the age of the Variscan metamorphic imprint, are reported in Table 1, Table 2, Table 3 and Table 4, following the different structural domains. The different rock types mainly consist of metasediments or metagranitoids of continental affinity in all domains, although metabasites of oceanic affinity and mantle rocks are also reported in the Austroalpine, Penninic, and Helvetic–Dauphinois–Provençal domains (Figure 2a). The first letter of the sample code in the tables is the domain (S = Southalpine, A = Austroalpine, P = Penninic, and H = Helvetic–Dauphinois–Provençal), and the second is the age (v = Variscan, p = Permian).

3.1. Southalpine Domain

The Southalpine domain represents a well-preserved portion of the pre-Alpine Adria crust, minimally affected by the Alpine metamorphism during the development of an E-W-trending and S-verging fold and thrust system and involving the pre-Alpine basement and Permian–Mesozoic volcanic and sedimentary sequences [52,53,54,64,65,66,67,68,69,70,71,72,73]. The basement rocks (labelled Sv in Table 1) are exposed from the eastern termination of the Southalpine thrust system to the Canavese Line (the westernmost portion of the Periadriatic Fault System).

The Variscan metamorphic rocks of the Southalpine basement include micaschists, paragneisses, metagranitoids, metabasites, quartzites, carbonatic schists, marbles, and pegmatites. The dominant metamorphic imprints (Figure 2b and Figure 3a,b) were quantitatively inferred mainly from metapelites and their ages generally fall between 330 and 340 Ma except for two younger ages in the Ivrea and Dervio–Olgiasca Zones [74,75]. In these rocks, cm sized relicts preserve mineral assemblages of low-temperature and intermediate-pressure conditions (epidote-amphibolite facies imprints; Figure 2b and Figure 3a), recorded during the T-prograde Variscan evolutions and predating the T${}_{max}$ imprint (ca. 385 Ma; [76,77,78,79,80,81]. The late Carboniferous syn-metamorphic structures consist of a regional scale fold system, generally associated with an axial plane foliation marked by greenschist facies minerals, locally mylonitic ([61] and refs therein). The microstructural and petrologic analyses of metamorphic pebbles from the late orogenic–early Permian conglomerates, capping the central Southalpine basement, reveal that coherent metamorphic evolutions were recorded via Variscan rocks, exposed to erosion during early Permian times [80,82,83]. Towards the western termination of the Southalpine basement, a continuous horizon of metabasites, minor paragneisses, metagabbros, retrogressed eclogites, and lenses of ultramafites are comprised in the Serie dei Laghi Complex. Here, the dominant metamorphic imprint under amphibolite facies conditions was dated between 307 and 359 Ma (e.g., [84,85]). This horizon separates two main units of the Serie dei Laghi Complex (Strona-Ceneri and Scisti dei Laghi), and it is interpreted as ophiolitic relicts marking a pre-Variscan suture, successively deformed and re-equilibrated under amphibolite facies conditions together with the surrounding rocks (e.g., [86,87]). The west-ending portion of the Southalpine basement, separated from the subduction complex by the Periadriatic Fault System, corresponds to the Ivrea Zone where the dominant metamorphic imprint in granulite facies is late to post-Variscan (i.e., Permian; [62,74]). Conversely, the eastern sector of the Southalpine basement is mainly constituted of metapelites and metapsammites with intercalations of acidic and basic metavolcanics ([88] and refs therein). In contrast with the central and western Southalpine basement, the dominant metamorphic imprint never exceeds the epidote amphibolite to greenschists facies conditions (Figure 2b), with metamorphic ages comprised between Devonian and Carboniferous. Starting from the Cadore region in the eastern Alps, the Variscan basement consists of non- to low-grade metamorphic sequences of the eastern Palaeocarnic chain [89].

3.2. Austroalpine Domain

The metamorphic basement of the Austroalpine domain is generally referred to the Adriatic margin (e.g., [49]) and is interpreted as belonging to Gondwana before being involved in the Variscan collision [28,90,91]. In the western Austroalpine domain, the Variscan metamorphic imprint is generally preserved in structural relicts, whereas it is better preserved in the central and eastern parts. Here, eclogites and related high-pressure rocks have been detected in metabasite lenses, which are enclosed in high- to medium-grade metapelites. They generally show a polyphasic tectonometamorphic evolution [35,88,92,93,94,95,96,97,98], and their radiometric ages range between early Devonian and Carboniferous (Table 2). High-pressure rocks mainly occur in the Schobergruppe, Oetztal–Stubai, Silvretta, and Languard-Campo nappes (Figure 2). Here, Variscan high-pressure assemblages developed both in mafic and acidic igneous protoliths and in metasediments are variably re-equilibrated mainly under amphibolite facies conditions (Figure 2, [35,61]), and this attests the deep subduction of the continental lithosphere. Eclogite protoliths from Silvretta are of MORB type and have mainly Mississippian metamorphic ages [99]. Variscan eclogitized mantle rocks from the Austroalpine domain (Nonsberg–Ulten Zone) consist of spinel lherzolite evolving to garnet peridotite (Figure 3d), and the inferred pressure prograde path indicates cooling during deep burial in the subduction system [94,96,100,101,102].

3.3. Penninic Domain

The continental crust belonging to the Penninic domain consists of Precambrian to early Palaeozoic polymetamorphic or monometamorphic basement [90,91,103,104] comprising mafic and acidic metaintrusives and metasediments (labelled Pv in Table 3 and Figure 2a). In greater detail, Variscan metamorphic rocks consist of high-grade paragneisses with minor marbles, metagranitoids, and metabasites [105,106,107]. In the Grand St. Bernard nappe garnet-bearing amphibolites, locally preserving eclogite facies mineral assemblages [91,103,108] occur within garnet-, staurolite-, and aluminum silicate-bearing metapelites [103,104,109,110,111,112]. High-pressure rocks and eclogites also occur in the mafic lenses of the polymetamorphic basement of Savona Massif (Figure 3e,f; western Alps), of the Adula and Suretta nappes (central Alps), and of the Tauern Window (eastern Alps) [113,114,115,116,117,118,119,120,121,122]. The Variscan dominant metamorphic imprint generally developed under eclogite or amphibolite facies conditions (Figure 2b). Geochronologic determinations point to early Devonian ages in the Savona Massif, Tauern Window, and Adula Variscan basements and to early Carboniferous in the other Penninic nappes of the western and central Alps (Table 3 and refs therein).

3.4. Helvetic–Dauphinois–Provençal Domain

The Helvetic–Dauphinois–Provençal domain, which derives from the pre-Alpine European passive margin (the lower plate of the Alpine subduction), has only been involved in the Alpine convergent system since the continental collision, and as a result, it has largely avoided most of the structural and metamorphic effects caused by subduction. The metamorphic pre-Alpine basement (labelled Hv in Table 4) is found in the “External Crystalline Massifs” (Argentera, Pelvoux–Belledonne–Grandes Rousses, Mont Blanc–Aiguilles Rouges, and Aar-Gotthard), where pre-Alpine structural and metamorphic features are well preserved (e.g., [23,24,48,106,123,124,125,126,127]). The “External Crystalline Massifs”, exposed in the western Alps, consist of metamorphic rocks with ages ranging from Cambrian to Carboniferous, capped by late Carboniferous to Permian sedimentary sequences and intruded by Permo–Carboniferous granitoids. All of these rocks show a discontinuous Alpine metamorphic and structural signature (e.g., [24,128,129,130,131]). Variscan eclogites, granulites, amphibolites, high-grade metapelites, and metagranitoids [124,126,127,132,133,134,135,136,137,138] document a polyphase metamorphic history, ranging from eclogite–granulite to Ep-amphibolite facies (Figure 2b). Eclogites and high-pressure granulites occur as lenses or boudins (Figure 3g) wrapped by sillimanite biotite-bearing foliations within migmatitic gneisses. The rims of these pods are extensively re-equilibrated under amphibolite or granulite facies conditions (Figure 3h). Radiometric ages related to high-pressure imprints are mainly Carboniferous (Table 4), with some old Devonian determinations whose reliability is questioned today [139]. Variscan high-pressure assemblages have never been detected in the Aar-Gotthard Massif, where Variscan imprints developed under amphibolite facies conditions during early Carboniferous times (Table 4). Late Carboniferous to early Permian granitoid stocks and acidic and mafic dykes crosscut the migmatitic foliations and high-pressure pods [130].

In the Permian–Triassic period, a high temperature-low pressure metamorphism and intense mafic to acidic igneous activity affected the Variscan continental crust of the Penninic, Austroalpine, and Southalpine domains. No similar metamorphic features have been described in the rocks of the Helvetic–Dauphinois–Provençal domain [62,140].

Table 1. Rock type for the Southalpine domain including the metamorphic assemblages, P-T conditions, and Variscan ages. Cc = continental crust; Oc = oceanic crust; Ma = mantle; Un = undefined crust. Geochronological data acquisition: ⊙ mineral separation. See reference coding in Appendix A. Mineral abbreviations are after [141].

Tect. Unit	Location	Group/Rock	Assemblage	Temp (°C)	Pres (GPa)	Age (Ma)	Method	Refs	Code
Serie dei Laghi Complex	Val Cannobbina	Cc metapelite	Qz, Pl, Grt, St, Bt, Hbl	640 ± 50	0.70 ± 0.1	333 ± 26	Ar/Ar (Wm) ⊙	[84,142]	Svc1
Domaso–Cortafò Zone	Como Lake	Cc metapelite	Grt, Bt, Wm, Cld, Pl, Qz			385	K/Ar (Wm) ⊙	[76,77,143,144]	Svco2a
		amphibolite	Amp, Grt, Pl, Qz, Bt, Ilm
Domaso–Cortafò Zone	Como Lake	Cc metapelite	St, Grt, Bt, Ms, Qz, Ky	605 ± 45	0.90 ± 0.2	330 ± 8	K/Ar (Amp) ⊙	[77,144,145,146]	Svco2b
		amphibolite	Amp, Grt, Pl, Qz, Bt, Rt
Monte Muggio Zone	Monte Muggio	Cc metapelite	Qz, Chl, Bt, St, Ky, Ms	570 ± 10	0.80 ± 0.1	330 ± 10	K/Ar (Amp) ⊙	[83,145,146,147,148]	Svc3
Dervio–Olgiasca Zone	Corenno Plinio	Cc metapelite	Ms, Bt, Grt, Pl, Qz, St, Ky	630 ± 30	0.85 ± 0.15	315 ± 3	U/Pb (Mnz) ⊙	[75,144,149]	Svc5a
		amphibolite	Amph, Pl, Qz, Cpx, Bt, Ilm
Dervio–Olgiasca Zone	Corenno Plinio	Cc metapelite	Ms, Bt, Grt, Pl, Qz, St, Ky	560 ± 30	1.0 ± 0.25	330 ± 10	K/Ar (Wm) ⊙	[144,146,149]	Svc5b
		amphibolite	Grt, Amph, Pl, Qz, Rt
Val Vedello Basement	Val Vedello	Cc metapelite	Ms, Bt, Grt, Pl, Qz, St, Ky	629 ± 39	0.90 ± 0.2	330 ± 10	K/Ar (Wm) ⊙	[69,82,146]	Svc4
North-Eastern Orobic Basement (A)	Lago Belviso	Cc metapelite	Grt, St, Bt, Ms, Pl, Qz	615 ± 45	1.00 ± 0.15	330 ± 10	K/Ar (Amp) ⊙	[145,150]	Svc6a
North-Eastern Orobic Basement (A)	Lago Belviso	Cc metapelite	Grt, Cld, Bt, Ms, Pl, Qz	500 ± 20	0.85 ± 0.1	Devonian		[76,150]	Svc6b
North-Eastern Orobic Basement (B)	Edolo	Cc metapelite	Chl, Bt, Grt	495 ± 55	0.55 ± 0.2	330 ± 10	K/Ar (Amp) ⊙	[71,82,145]	Svc7
Eastern Orobic Basement	Val Camonica	Cc metapelite	Qz, Pl, Grt, Bt, Wm, Cld, Rt, Ilm	510 ± 60	0.85 ± 0.15	Devonian		[76,81]	Svc14a
Eastern Orobic Basement	Val Camonica	Cc metapelite	Qz, Pl, Grt, Bt, Wm, St, Ilm	600 ± 50	0.55 ± 0.15	330 ± 10	K/Ar (Amp) ⊙	[81,145]	Svc14b
Eastern Orobic Basement	Val Camonica	Cc metapelite	Qz, Pl, Grt, Bt, Wm, St, And, Ep, Ilm	550 ± 30	0.30 ± 0.1	>late Permian		[81]	Svc14c
Trompia Valley Basement	Passo Maniva	Cc metapelite	Grt, Cld, Ms, Pl, Qz	525 ± 25	1.10 ± 0.2	late Devonian		[78,79,80]	Svc9
Eisacktal	Brixen	Cc metapelite	Qtz, Pl, Bt, Kfs, Grt	625 ± 25	>0.3	Devonian		[151]	Svc10
Eisacktal	Brixen	Cc metapelite	Bt, Crd, Kfs, Pl, Qz, Sil	500 ± 50	0.60 ± 0.05	Carboniferous		[151]	Svc11

Table 1. Rock type for the Southalpine domain including the metamorphic assemblages, P-T conditions, and Variscan ages. Cc = continental crust; Oc = oceanic crust; Ma = mantle; Un = undefined crust. Geochronological data acquisition: ⊙ mineral separation. See reference coding in Appendix A. Mineral abbreviations are after [141].

Tect. Unit	Location	Group/Rock	Assemblage	Temp (°C)	Pres (GPa)	Age (Ma)	Method	Refs	Code
Serie dei Laghi Complex	Val Cannobbina	Cc metapelite	Qz, Pl, Grt, St, Bt, Hbl	640 ± 50	0.70 ± 0.1	333 ± 26	Ar/Ar (Wm) ⊙	[84,142]	Svc1
Domaso–Cortafò Zone	Como Lake	Cc metapelite	Grt, Bt, Wm, Cld, Pl, Qz			385	K/Ar (Wm) ⊙	[76,77,143,144]	Svco2a
		amphibolite	Amp, Grt, Pl, Qz, Bt, Ilm
Domaso–Cortafò Zone	Como Lake	Cc metapelite	St, Grt, Bt, Ms, Qz, Ky	605 ± 45	0.90 ± 0.2	330 ± 8	K/Ar (Amp) ⊙	[77,144,145,146]	Svco2b
		amphibolite	Amp, Grt, Pl, Qz, Bt, Rt
Monte Muggio Zone	Monte Muggio	Cc metapelite	Qz, Chl, Bt, St, Ky, Ms	570 ± 10	0.80 ± 0.1	330 ± 10	K/Ar (Amp) ⊙	[83,145,146,147,148]	Svc3
Dervio–Olgiasca Zone	Corenno Plinio	Cc metapelite	Ms, Bt, Grt, Pl, Qz, St, Ky	630 ± 30	0.85 ± 0.15	315 ± 3	U/Pb (Mnz) ⊙	[75,144,149]	Svc5a
		amphibolite	Amph, Pl, Qz, Cpx, Bt, Ilm
Dervio–Olgiasca Zone	Corenno Plinio	Cc metapelite	Ms, Bt, Grt, Pl, Qz, St, Ky	560 ± 30	1.0 ± 0.25	330 ± 10	K/Ar (Wm) ⊙	[144,146,149]	Svc5b
		amphibolite	Grt, Amph, Pl, Qz, Rt
Val Vedello Basement	Val Vedello	Cc metapelite	Ms, Bt, Grt, Pl, Qz, St, Ky	629 ± 39	0.90 ± 0.2	330 ± 10	K/Ar (Wm) ⊙	[69,82,146]	Svc4
North-Eastern Orobic Basement (A)	Lago Belviso	Cc metapelite	Grt, St, Bt, Ms, Pl, Qz	615 ± 45	1.00 ± 0.15	330 ± 10	K/Ar (Amp) ⊙	[145,150]	Svc6a
North-Eastern Orobic Basement (A)	Lago Belviso	Cc metapelite	Grt, Cld, Bt, Ms, Pl, Qz	500 ± 20	0.85 ± 0.1	Devonian		[76,150]	Svc6b
North-Eastern Orobic Basement (B)	Edolo	Cc metapelite	Chl, Bt, Grt	495 ± 55	0.55 ± 0.2	330 ± 10	K/Ar (Amp) ⊙	[71,82,145]	Svc7
Eastern Orobic Basement	Val Camonica	Cc metapelite	Qz, Pl, Grt, Bt, Wm, Cld, Rt, Ilm	510 ± 60	0.85 ± 0.15	Devonian		[76,81]	Svc14a
Eastern Orobic Basement	Val Camonica	Cc metapelite	Qz, Pl, Grt, Bt, Wm, St, Ilm	600 ± 50	0.55 ± 0.15	330 ± 10	K/Ar (Amp) ⊙	[81,145]	Svc14b
Eastern Orobic Basement	Val Camonica	Cc metapelite	Qz, Pl, Grt, Bt, Wm, St, And, Ep, Ilm	550 ± 30	0.30 ± 0.1	>late Permian		[81]	Svc14c
Trompia Valley Basement	Passo Maniva	Cc metapelite	Grt, Cld, Ms, Pl, Qz	525 ± 25	1.10 ± 0.2	late Devonian		[78,79,80]	Svc9
Eisacktal	Brixen	Cc metapelite	Qtz, Pl, Bt, Kfs, Grt	625 ± 25	>0.3	Devonian		[151]	Svc10
Eisacktal	Brixen	Cc metapelite	Bt, Crd, Kfs, Pl, Qz, Sil	500 ± 50	0.60 ± 0.05	Carboniferous		[151]	Svc11

Table 2. Rock type for the Austroalpine domain including the metamorphic assemblages, P-T conditions, and Variscan age. Cc = continental crust; Oc = oceanic crust; Ma = mantle; Un = undefined crust. Geochronological data acquisition: ⊙ mineral separation; ⊖ mineral separation and trace elements; ⊘ in situ; ⊕ in situ and trace elements. See reference coding in Appendix A. Mineral abbreviations are after [141].

Tect. Unit	Location	Group	Assemblage	Temp (°C)	Pres (GPa)	Age (Ma)	Method	Refs	Code
Dent Blanche	Valpelline	Cc metapelite	Grt, Bt, Sil	703 ± 42	0.55 ± 0.1	289.1 ± 6.3	U/Pb (Zrn) ⊖	[152,153,154]	Avc14
Dent Blanche	Valpelline	Cc metapelite	Fsp, Qz, Bt, Grt, Rt	725 ± 25	0.95 ± 0.05	289.1 ± 6.3	U/Pb (Zrn) ⊖	[153,154,155]	Avc15
Dent Blanche	Valpelline	Cc metapelite	Grt, Bt, Sil	703 ± 42	0.55 ± 0.1	288 ± 3.9	U/Pb (Zrn) ⊖	[152,153,154]	Avc24
II DK Zone	Val Sesia	Cc metapelite	Qz, Wm, Grt, Pl, Kfs, Bt, Zrn, Ilm	623 ± 42.5	0.7 ± 0.1	294 ± 4.1	U/Pb (Zrn) ⊖	[154]	Apc26
Silvretta nappe	Ischgl	Un metabasite	Grt, Omp, Qz, Rt, Ms	625 ± 25	2.60 ± 0.3	Carboniferous		[99]	Avco8
Silvretta nappe	Val Puntota	Un metabasite	Grt, Omp, Qz, Rt, Ms	475 ± 25	2.60 ± 0.1	Carboniferous		[99]	Avco9
Silvretta nappe	Hochnoerderer	Un metabasite	Grt, Hbl, Cpx, Pl, Qz	640 ± 40	0.65 ± 0.1	Carboniferous		[156,157,158]	Avco10
Silvretta nappe	Various	Un metabasite	eclogitic assemblage	655 ± 15	2.80	351 ± 22	Sm/Nd (WR) ⊙	[159]	Avco11
Silvretta nappe	Pischahorn	Cc metapelite	Qz, Ms, And	600	0.20	Carboniferous		[157,160]	Avc11
Languard-Campo	Sondalo	Cc metapelite	Sil, Opx, Kfs, Bt, Qz	660 ± 90	0.5 ± 0.1	290 ± 2	Sm/Nd (WR) ⊙	[161,162]	Apc7
Languard-Campo	Mortirolo	Cc metapelite	Dum, Qz	800 ± 50	2.00	Devonian		[93]	Avc12
Languard-Campo	Mortirolo	Cc metapelite	Di, Grt, Scp, Pl, Qz	850 ± 100	0.77 ± 0.12	Carboniferous		[95]	Avc13
Languard-Campo	Mortirolo	Cc metapelite	Bt, St, Wm, Grt, Pl, Qz, Rt, Ilm, Tur	620 ± 40	0.9 ± 0.2	Dev.-Carb.		[98]	Avc16
Languard-Campo	Mortirolo	Cc metapelite	Bt, Sil, Grt, Pl, Qz, Rt, Ilm	815 ± 35	0.80 ± 0.2	Dev.-Carb.		[98]	Avc17
Languard-Campo	Mortirolo	Cc metapelite	Grt, St, Wm, Bt, Pl, Qz, Ilm	600 ± 20	0.60 ± 0.01	Dev.-Carb.		[163]	Avc18
Oetztal–Stubai	Silandro	Cc metapelite	Grt, Sil, And, Bt, Pl, Qz, Crd	605 ± 35	0.42 ± 0.1	290 ± 17	Rb/Sr (WR) ⊙	[164,165]	Apc9a
Oetztal–Stubai	Lagenfeld	Un metabasite	Grt, Omp	750 ± 50	2.70 ± 0.2	350 ± 8	Sm/Nd (Gr) ⊙	[97,166]	Avo3
Oetztal–Stubai	Burg	Cc metapelite	Grt, Wm, Pl, Qz, St, Ky	600 ± 50	1.20 ± 0.1	355 ± 5	Th/U/Pb (Mnz) ⊕	[167]	Avc4
Oetztal–Stubai	Various	Cc metapelite	Pl, Wm, Bt, Qz, Kfs, Grt, Ky	600 ± 50	0.55 ± 0.15	320 ± 58	Th/U/Pb (Mnz) ⊘	[168]	Avc25
Oetztal–Stubai	Kaunertal	Cc metagranitoid	Qz, Kfs, Pl, Wm, Bt, Grt, Ep, Ilm, Ttn	630	0.75 ± 0.1	335.7 ± 9.6	Sm/Nd (Gr-WR) ⊖	[169]	Avc26
Oetztal–Stubai	Alpeiner Valley	Cc metapelite	Qz, Pl, Wm, Bt, Grt, St, Ilm	680 ± 35	1.20 ± 0.1	327.5 ± 12.5	Th/U/Pb (Mnz) ⊕	[170]	Avc27a
Oetztal–Stubai	Alpeiner Valley	Cc metapelite	Qz, Pl, Wm, Bt, Grt, St, Ilm	600 ± 35	0.40 ± 0.1	310 ± 5	Th/U/Pb (Mnz) ⊕	[170]	Avc27b
Oetztal–Stubai	Soelden-Umhausen	Cc metapelite	Qz, Grt, St, Ky, Pl	600 ± 50	1.20 ± 0.1	365 ± 5	Th/U/Pb (Mnz) ⊕	[167]	Avc28a
Oetztal–Stubai	Soelden-Umhausen	Cc metapelite	Qz, Grt, St, Sil, Pl	700 ± 50	0.50 ± 0.1	323 ± 5	Th/U/Pb (Mnz) ⊕	[167]	Avc28b
Ulten Zone	Samemberg Alm	Cc metapelite	Grt, Bt, Pl, Kfs, Ky, Rt	700 ± 50	1.50 ± 0.5	365	Pb/Pb (Zrn) ⊙	[94,171,172]	Avc5
Ulten Zone	Samemberg Alm	Un metabasite	Grt, Omp, Qz	700 ± 50	1.40 ± 0.2	late Devonian		[94]	Avco6
Ulten Zone	Samemberg Alm	Ma ultramafic	Grt-bearing	790 ± 20	2.50 ± 0.3	330 ± 4	Sm/Nd (Grt-CPx-WR) ⊙	[94,96,101,102]	Avo7
Ulten Zone	Samemberg Alm	Cc metapelite	Ky, Grt, Qz, Pl, Bt, Rt	625 ± 25	1.15 ± 0.05	347 ± 4	Th/U/Pb (Mnz) ⊘	[173,174]	Avc19
Ulten Zone	Samemberg Alm	Cc metapelite	Ky, Grt, Qz, Pl, Bt, Rt	720	0.95 ± 0.05	328 ± 2	Th/U/Pb (Mnz) ⊘	[173,174]	Avc20
Ulten Zone	Hochwart	Cc metabasite	Ol, Opx, Sp, Cpx, Amph	790 ± 20	2.50 ± 0.3	330 ± 6	Sm/Nd (Zrn) ⊖	[175]	Avc29
Schobergruppe	Lienz	Cc metapelite	Grt, Qz, Pl, Ms, Bt, St, Chl, Ky	500		321 ± 14	Th/Pb (Mnz) ⊕	[176]	Avc1
Schobergruppe	Barrenlesee	Un metabasite	Grt, Cpx, Amph, Qz, Wm, Im, Ep, Pl	700 ± 50	1.50 ± 0.2	305 ± 5	Lu/Hf (Grt-WR) ⊙	[177]	Avco12
Woelz Unit	Hochgroessen	Oc metabasite	Grt, Omp, Amp, Rt, Ilm, Ep	700 ± 50	2.00 ± 0.2	397 ± 8	Ar/Ar (Amp) ⊙	[158,178]	Avo2
Rappold Unit	Various	Cc metapelite		540 ± 15	0.66 ± 0.08	Carboniferous		[179,180]	Avc23
Saualpe	Various	Cc metapelite	Qz, Grt, Ky, Wm, Pl, St, Bt	575 ± 75	0.50 ± 0.1	320 ± 16	Th/U/Pb (Mnz) ⊕	[181]	Avc30
Lower Austroalpine	Sopron	Cc metapelite	Bt, And, Sil, Qz, Pl	637 ± 62	0.28 ± 0.1	300 ± 40	Th/U/Pb (Mnz) ⊕	[182]	Apc14

Table 2. Rock type for the Austroalpine domain including the metamorphic assemblages, P-T conditions, and Variscan age. Cc = continental crust; Oc = oceanic crust; Ma = mantle; Un = undefined crust. Geochronological data acquisition: ⊙ mineral separation; ⊖ mineral separation and trace elements; ⊘ in situ; ⊕ in situ and trace elements. See reference coding in Appendix A. Mineral abbreviations are after [141].

Tect. Unit	Location	Group	Assemblage	Temp (°C)	Pres (GPa)	Age (Ma)	Method	Refs	Code
Dent Blanche	Valpelline	Cc metapelite	Grt, Bt, Sil	703 ± 42	0.55 ± 0.1	289.1 ± 6.3	U/Pb (Zrn) ⊖	[152,153,154]	Avc14
Dent Blanche	Valpelline	Cc metapelite	Fsp, Qz, Bt, Grt, Rt	725 ± 25	0.95 ± 0.05	289.1 ± 6.3	U/Pb (Zrn) ⊖	[153,154,155]	Avc15
Dent Blanche	Valpelline	Cc metapelite	Grt, Bt, Sil	703 ± 42	0.55 ± 0.1	288 ± 3.9	U/Pb (Zrn) ⊖	[152,153,154]	Avc24
II DK Zone	Val Sesia	Cc metapelite	Qz, Wm, Grt, Pl, Kfs, Bt, Zrn, Ilm	623 ± 42.5	0.7 ± 0.1	294 ± 4.1	U/Pb (Zrn) ⊖	[154]	Apc26
Silvretta nappe	Ischgl	Un metabasite	Grt, Omp, Qz, Rt, Ms	625 ± 25	2.60 ± 0.3	Carboniferous		[99]	Avco8
Silvretta nappe	Val Puntota	Un metabasite	Grt, Omp, Qz, Rt, Ms	475 ± 25	2.60 ± 0.1	Carboniferous		[99]	Avco9
Silvretta nappe	Hochnoerderer	Un metabasite	Grt, Hbl, Cpx, Pl, Qz	640 ± 40	0.65 ± 0.1	Carboniferous		[156,157,158]	Avco10
Silvretta nappe	Various	Un metabasite	eclogitic assemblage	655 ± 15	2.80	351 ± 22	Sm/Nd (WR) ⊙	[159]	Avco11
Silvretta nappe	Pischahorn	Cc metapelite	Qz, Ms, And	600	0.20	Carboniferous		[157,160]	Avc11
Languard-Campo	Sondalo	Cc metapelite	Sil, Opx, Kfs, Bt, Qz	660 ± 90	0.5 ± 0.1	290 ± 2	Sm/Nd (WR) ⊙	[161,162]	Apc7
Languard-Campo	Mortirolo	Cc metapelite	Dum, Qz	800 ± 50	2.00	Devonian		[93]	Avc12
Languard-Campo	Mortirolo	Cc metapelite	Di, Grt, Scp, Pl, Qz	850 ± 100	0.77 ± 0.12	Carboniferous		[95]	Avc13
Languard-Campo	Mortirolo	Cc metapelite	Bt, St, Wm, Grt, Pl, Qz, Rt, Ilm, Tur	620 ± 40	0.9 ± 0.2	Dev.-Carb.		[98]	Avc16
Languard-Campo	Mortirolo	Cc metapelite	Bt, Sil, Grt, Pl, Qz, Rt, Ilm	815 ± 35	0.80 ± 0.2	Dev.-Carb.		[98]	Avc17
Languard-Campo	Mortirolo	Cc metapelite	Grt, St, Wm, Bt, Pl, Qz, Ilm	600 ± 20	0.60 ± 0.01	Dev.-Carb.		[163]	Avc18
Oetztal–Stubai	Silandro	Cc metapelite	Grt, Sil, And, Bt, Pl, Qz, Crd	605 ± 35	0.42 ± 0.1	290 ± 17	Rb/Sr (WR) ⊙	[164,165]	Apc9a
Oetztal–Stubai	Lagenfeld	Un metabasite	Grt, Omp	750 ± 50	2.70 ± 0.2	350 ± 8	Sm/Nd (Gr) ⊙	[97,166]	Avo3
Oetztal–Stubai	Burg	Cc metapelite	Grt, Wm, Pl, Qz, St, Ky	600 ± 50	1.20 ± 0.1	355 ± 5	Th/U/Pb (Mnz) ⊕	[167]	Avc4
Oetztal–Stubai	Various	Cc metapelite	Pl, Wm, Bt, Qz, Kfs, Grt, Ky	600 ± 50	0.55 ± 0.15	320 ± 58	Th/U/Pb (Mnz) ⊘	[168]	Avc25
Oetztal–Stubai	Kaunertal	Cc metagranitoid	Qz, Kfs, Pl, Wm, Bt, Grt, Ep, Ilm, Ttn	630	0.75 ± 0.1	335.7 ± 9.6	Sm/Nd (Gr-WR) ⊖	[169]	Avc26
Oetztal–Stubai	Alpeiner Valley	Cc metapelite	Qz, Pl, Wm, Bt, Grt, St, Ilm	680 ± 35	1.20 ± 0.1	327.5 ± 12.5	Th/U/Pb (Mnz) ⊕	[170]	Avc27a
Oetztal–Stubai	Alpeiner Valley	Cc metapelite	Qz, Pl, Wm, Bt, Grt, St, Ilm	600 ± 35	0.40 ± 0.1	310 ± 5	Th/U/Pb (Mnz) ⊕	[170]	Avc27b
Oetztal–Stubai	Soelden-Umhausen	Cc metapelite	Qz, Grt, St, Ky, Pl	600 ± 50	1.20 ± 0.1	365 ± 5	Th/U/Pb (Mnz) ⊕	[167]	Avc28a
Oetztal–Stubai	Soelden-Umhausen	Cc metapelite	Qz, Grt, St, Sil, Pl	700 ± 50	0.50 ± 0.1	323 ± 5	Th/U/Pb (Mnz) ⊕	[167]	Avc28b
Ulten Zone	Samemberg Alm	Cc metapelite	Grt, Bt, Pl, Kfs, Ky, Rt	700 ± 50	1.50 ± 0.5	365	Pb/Pb (Zrn) ⊙	[94,171,172]	Avc5
Ulten Zone	Samemberg Alm	Un metabasite	Grt, Omp, Qz	700 ± 50	1.40 ± 0.2	late Devonian		[94]	Avco6
Ulten Zone	Samemberg Alm	Ma ultramafic	Grt-bearing	790 ± 20	2.50 ± 0.3	330 ± 4	Sm/Nd (Grt-CPx-WR) ⊙	[94,96,101,102]	Avo7
Ulten Zone	Samemberg Alm	Cc metapelite	Ky, Grt, Qz, Pl, Bt, Rt	625 ± 25	1.15 ± 0.05	347 ± 4	Th/U/Pb (Mnz) ⊘	[173,174]	Avc19
Ulten Zone	Samemberg Alm	Cc metapelite	Ky, Grt, Qz, Pl, Bt, Rt	720	0.95 ± 0.05	328 ± 2	Th/U/Pb (Mnz) ⊘	[173,174]	Avc20
Ulten Zone	Hochwart	Cc metabasite	Ol, Opx, Sp, Cpx, Amph	790 ± 20	2.50 ± 0.3	330 ± 6	Sm/Nd (Zrn) ⊖	[175]	Avc29
Schobergruppe	Lienz	Cc metapelite	Grt, Qz, Pl, Ms, Bt, St, Chl, Ky	500		321 ± 14	Th/Pb (Mnz) ⊕	[176]	Avc1
Schobergruppe	Barrenlesee	Un metabasite	Grt, Cpx, Amph, Qz, Wm, Im, Ep, Pl	700 ± 50	1.50 ± 0.2	305 ± 5	Lu/Hf (Grt-WR) ⊙	[177]	Avco12
Woelz Unit	Hochgroessen	Oc metabasite	Grt, Omp, Amp, Rt, Ilm, Ep	700 ± 50	2.00 ± 0.2	397 ± 8	Ar/Ar (Amp) ⊙	[158,178]	Avo2
Rappold Unit	Various	Cc metapelite		540 ± 15	0.66 ± 0.08	Carboniferous		[179,180]	Avc23
Saualpe	Various	Cc metapelite	Qz, Grt, Ky, Wm, Pl, St, Bt	575 ± 75	0.50 ± 0.1	320 ± 16	Th/U/Pb (Mnz) ⊕	[181]	Avc30
Lower Austroalpine	Sopron	Cc metapelite	Bt, And, Sil, Qz, Pl	637 ± 62	0.28 ± 0.1	300 ± 40	Th/U/Pb (Mnz) ⊕	[182]	Apc14

Table 3. Rock type for the Penninic domain including the metamorphic assemblages, P-T conditions, and Variscan ages. Cc = continental crust; Oc = oceanic crust; Ma = mantle; Un = undefined crust. Geochronological data acquisition: ⊙ mineral separation; ⊖ mineral separation and trace elements. See reference coding in Appendix A. Mineral abbreviations are after [141].

Tect. Unit	Location	Group	Assemblage	Temp (°C)	Pres (GPa)	Age (Ma)	Method	Refs	Code
Savona Massif	Savona	Cc metabasite	Grt, Omp, Qz, Ms	700 ± 50	1.70	383 ± 9	U/Pb (Zrn) ⊖	[116,120,122]	Pvc1
Clarea Complex	Cottian Alps	Cc metapelite	Grt, Ms, Pl, Ky, Rt, Qz	600 ± 50	0.95 ± 0.15	350 ± 10	Ar/Ar (Wm) ⊙	[111,183]	Pvc2
Dora-Maira Massif	Punta Muret	Cc metapelite	Qz, Wm, Grt, St, Bi, Ilm	650 ± 10	0.70 ± 0.1	324 ± 6	U/Pb (Mnz) ⊖	[184]	Pvc8
Gran Paradiso Massif	Valnontey	Cc metapelite	Grt, St, Ilm, Qtz	625 ± 25	0.60 ± 0.1	Dev.-Carb.		[185]	Pvc3
Monte Rosa Massif	Gressoney Valley	Cc metapelite	Grt, Qz	562 ± 12	0.50 ± 0.1	Dev.-Carb.		[186]	Pvc5
Mischabel nappe	Siviez	Cc metabasite	Hbl, Pl, Qz	600 ± 50	0.55 ± 0.05	Dev.-Carb.		[103,109]	Pvc7
Adula nappe	Trescolmen	Un metabasite	Grt, Omp, Ms, Amp, Qz, Chl	750 ± 75	2.20 ± 0.25	374 ± 28	U/Pb (Zrn) ⊖	[119,121]	Pvco8
Adula nappe	Vals, Confin	Un metabasite	Grt, Omp, Ky, Rt, Ms, Ep, Pl, Qz	640 ± 75	1.70 ± 0.25	329 ± 25	U/Pb (Zrn) ⊖	[119,121]	Pvco9
		metagranitoid	Pl, Qz, Grt, Ms, Ep, Rt
Suretta nappe	Avers	Un metabasite	Grt, Hbl, Cpx, Ep, Qz	683 ± 66	2.00	Dev.-Carb.		[118]	Pvco10
Tauren Window	Frosnitztal	Un metabasite	Grt, Omp, Qz	450 ± 50	1.00 ± 0.2	418.5 ± 18.5	Sm/Nd-U/Pb (WR-Zrn) ⊖	[114,117]	Pvco11
Tauren Window	Mallnitz	Un metabasite	Grt, Omp, Qz	620 ± 100	1.20	418.5 ± 18.5	Sm/Nd-U/Pb (WR-Zrn) ⊖	[113,117]	Pvco12

Table 3. Rock type for the Penninic domain including the metamorphic assemblages, P-T conditions, and Variscan ages. Cc = continental crust; Oc = oceanic crust; Ma = mantle; Un = undefined crust. Geochronological data acquisition: ⊙ mineral separation; ⊖ mineral separation and trace elements. See reference coding in Appendix A. Mineral abbreviations are after [141].

Tect. Unit	Location	Group	Assemblage	Temp (°C)	Pres (GPa)	Age (Ma)	Method	Refs	Code
Savona Massif	Savona	Cc metabasite	Grt, Omp, Qz, Ms	700 ± 50	1.70	383 ± 9	U/Pb (Zrn) ⊖	[116,120,122]	Pvc1
Clarea Complex	Cottian Alps	Cc metapelite	Grt, Ms, Pl, Ky, Rt, Qz	600 ± 50	0.95 ± 0.15	350 ± 10	Ar/Ar (Wm) ⊙	[111,183]	Pvc2
Dora-Maira Massif	Punta Muret	Cc metapelite	Qz, Wm, Grt, St, Bi, Ilm	650 ± 10	0.70 ± 0.1	324 ± 6	U/Pb (Mnz) ⊖	[184]	Pvc8
Gran Paradiso Massif	Valnontey	Cc metapelite	Grt, St, Ilm, Qtz	625 ± 25	0.60 ± 0.1	Dev.-Carb.		[185]	Pvc3
Monte Rosa Massif	Gressoney Valley	Cc metapelite	Grt, Qz	562 ± 12	0.50 ± 0.1	Dev.-Carb.		[186]	Pvc5
Mischabel nappe	Siviez	Cc metabasite	Hbl, Pl, Qz	600 ± 50	0.55 ± 0.05	Dev.-Carb.		[103,109]	Pvc7
Adula nappe	Trescolmen	Un metabasite	Grt, Omp, Ms, Amp, Qz, Chl	750 ± 75	2.20 ± 0.25	374 ± 28	U/Pb (Zrn) ⊖	[119,121]	Pvco8
Adula nappe	Vals, Confin	Un metabasite	Grt, Omp, Ky, Rt, Ms, Ep, Pl, Qz	640 ± 75	1.70 ± 0.25	329 ± 25	U/Pb (Zrn) ⊖	[119,121]	Pvco9
		metagranitoid	Pl, Qz, Grt, Ms, Ep, Rt
Suretta nappe	Avers	Un metabasite	Grt, Hbl, Cpx, Ep, Qz	683 ± 66	2.00	Dev.-Carb.		[118]	Pvco10
Tauren Window	Frosnitztal	Un metabasite	Grt, Omp, Qz	450 ± 50	1.00 ± 0.2	418.5 ± 18.5	Sm/Nd-U/Pb (WR-Zrn) ⊖	[114,117]	Pvco11
Tauren Window	Mallnitz	Un metabasite	Grt, Omp, Qz	620 ± 100	1.20	418.5 ± 18.5	Sm/Nd-U/Pb (WR-Zrn) ⊖	[113,117]	Pvco12

Table 4. Rock type for the Helvetic–Dauphinois–Provençal domain including the metamorphic assemblages, P-T conditions, and Variscan ages. Cc = continental crust; Oc = oceanic crust; Ma = mantle; Un = undefined crust. Geochronological data acquisition: ⊙ mineral separation; ⊖ mineral separation and trace elements. See reference coding in Appendix A. Mineral abbreviations are after [141].

Tect. Unit	Location	Group	Assemblage	Temp (°C)	Pres (GPa)	Age (Ma)	Method	Refs	Code
Argentera Massif	Tinèe	Un metabasite	Grt, Hbl, Cpx, Pl, Qz	735 ± 25	1.30 ± 0.1	Devonian		[134]	Hvco1a
Argentera Massif	Valle Gesso; Valle Stura; Vésubie	Un metabasite	Grt, Hbl, Cpx, Pl, Qz	735 ± 25	1.30 ± 0.1	Devonian		[134]	Hvco1b
Argentera Massif	Passo della Mena, Frisson lakes	Cc metapelite	Grt, Hbl, Cpx, Pl, Qz, Rt/Ilm	735 ± 15	1.38 ± 0.05	340 ± 4	U/Pb (Zrn) ⊖	[137,187]	Hvc2
Argentera Massif	Various	Un metabasite	Grt, Hbl, Cpx, Pl, Qz	735 ± 25	1.30 ± 0.1	Devonian		[134]	Hvco16
Argentera Massif	Various	Un metabasite	Grt, Hbl, Cpx, Pl, Qz	735 ± 25	1.30 ± 0.1	Devonian		[134]	Hvco17
Argentera Massif	Lac Long	Oc metabasite	Cpx, Pl, Amph, Grt, Rt, Ilm	690 ± 55	1.50 ± 0.25	>339.7 ± 12	Ar/Ar (Amp) ⊖	[138]	Hvo17a
Argentera Massif	Lago Valscura	Oc metabasite	Cpx, Pl, Amph, Grt, Rt, Ilm	690 ± 55	1.50 ± 0.25	>339.7 ± 12	Ar/Ar (Amp) ⊖	[138]	Hvo17b
Argentera Massif	Various	Un metabasite	Grt, Hbl, Cpx, Pl, Qz	735 ± 25	1.30 ± 0.1	Devonian		[134]	Hvco18
Argentera Massif	Various	Un metabasite	Grt, Hbl, Cpx, Pl, Qz	735 ± 25	1.30 ± 0.1	Devonian		[134]	Hvco19
Pelvoux Massif	La Lavey	Un metabasite		850 ± 50	1.40 ± 0.1	Devonian		[188,189]	Hvco7
Pelvoux Massif	Peyre Arguet	Un metabasite	Cpx, Grt, Pl, Prg, Rt, Qz	800 ± 50	0.50 ± 0.2	Dev.-Carb.		[188,189,190]	Hvco8
Pelvoux Massif	La Lavey	Un metabasite	Grt, Cpx, Qz, Rt, Pl, Amph, Bt	690 ± 40	1.60 ± 0.1	337.5 ± 7.5	U/Pb (Rt) ⊖	[191]	Hvco21a
Pelvoux Massif	La Lavey	Un metabasite	Cpx, Qz, Pl, Amph	835 ± 35	0.75 ± 0.15	315.5 ± 21.5	U/Pb (Zrn) ⊖	[191]	Hvco21b
Pelvoux Massif	Valgaudemar Valley	Ma ultramafic	Grt-bearing	1055 ± 85	3.50 ± 0.5	Devonian		[192]	Hvco23
Grandes Rousses	Romanche Valley	Un metabasite	Cpx, Grt, Qz, Rt	717 ± 67	0.55 ± 0.15	321 ± 10	Ar/Ar (Amp) ⊙	[193]	Hvco5
Grandes Rousses	Oisan	Un metabasite	Cpx, Grt, Qz, Rt	884 ± 109	1.30 ± 0.4	Dev.-Carb.		[193]	Hvco6
Belledonne	Lac de la Croix	Un	Grt, Cpx, Pl, Qz, Rt	640 ± 30	1.20 ± 0.1	Devonian		[189]	Hvco9
Massif		metabasite	Grt, Hbl, Cpx, Qz, Rt, Zo
Belledonne Massif	Allemond	Cc metapelite	Grt, St, Bt, Ms, Chl, Pl, Qz, Rt	550 ± 50	1.00 ± 0.1	Devonian		[23,194]	Hvc3
Belledonne Massif	Livet	Cc metapelite	Gt, St, Bt, Ms, Pl, Qz, Ilm	590 ± 60	0.80 ± 0.2	352 ± 55	K/Ar (Amp) ⊙	[23,194,195]	Hvc4
Belledonne Massif	Grand Mont	Cc metapelite	Qz, Pl, Bt, Grt, Rt	740 ± 40	1.20 ± 0.2	322 ± 12.5	U/Pb (Zrn) ⊖	[126]	Hvc16b
Belledonne Massif	Grand Mont	Cc metapelite	Qz, Pl, Bt, Grt, Ilm	650 ± 50	0.95 ± 0.15	Carboniferous		[126]	Hvc16a
Belledonne Massif	Grand Mont	Cc metapelite	Qz, Pl, Bt, Grt, Ilm	580 ± 30	0.65 ± 0.15	306 ± 3	U/Pb (Zrn) ⊖	[126]	Hvc16c
Belledonne Massif	Taillefer	Cc metapelite	Qz, Wm, Pl, Bt, St, Grt, Ky	608 ± 14	0.58 ± 0.06	337 ± 7	U/Pb (Zrn) ⊙	[196]	Hvc17
Belledonne Massif	Grand Mont	Un metabasite	Grt, Cpx, Qz, Rt, Amp	715 ± 25	1.50 ± 0.1	340 ± 11	U/Pb (Rt) ⊖	[126]	Hvco20a
Belledonne Massif	Grand Mont	Un metabasite	Grt, Cpx, Amp, Ilm, Pl, Qz	580 ± 30	0.65 ± 0.15	306 ± 3	U/Pb (Zrn) ⊖	[126]	Hvco20b
Aiguilles Rouges	Lac Cornu	Un metabasite	Grt, Cpx, Hbl, Qz, Rt	737 ± 12	1.55 ± 0.05	Devonian		[124,133]	Hvco10
Aiguilles Rouges	Col de Bérard	Cc metapelite	Grt, Ms, Ky, Qz, Pl	650 ± 25	1.30 ± 0.1	Carboniferous		[197]	Hvc11
Aiguilles Rouges	Emosson lake	Cc metapelite	Bt, Qz, Kfs, Pl, Ms, Gt	550 ± 25	0.90 ± 0.1	Carboniferous		[198]	Hvc12a
Aiguilles Rouges	Emosson lake	Cc metapelite	Bt, Qz, Kfs, Pl, Ms, Gt	650 ± 20	0.31 ± 0.01	320 ± 1	U/Pb (Mnz) ⊙	[198,199]	Hvc12b
Aiguilles Rouges	St-Gervais-les-Bains	Cc metapelite		700 ± 50	1.00 ± 0.15	Dev.-Carb.		[200]	Hvc15
Aiguilles Rouges	Lac Cornu	Un metabasite	Amp, Grt, Cpx, Qz, Rt	700 ± 50	1.75 ± 0.15	337.5 ± 2.5	U/Pb (Rt) ⊖	[127]	Hvco22a
Aiguilles Rouges	Lac Cornu	Un metabasite	Amp, Grt, Cpx, Pl, Qz, Ilm	650 ± 50	0.95 ± 0.15	Carboniferous		[127]	Hvco22b
Mont Blanc	Martigny	Cc metabasite	Hbl, Grt, Qz, Pl	544 ± 45	0.68 ± 0.07	321 ± 14	Ar/Ar (Amp) ⊙	[201]	Hvc13
Massif		skarn	Grt, Mag, Di, Hd
Aar Massif	Susten Pass	Cc metapelite				330 ± 3	U/Pb (Zrn) ⊙	[123,202]	Hvc14

Table 4. Rock type for the Helvetic–Dauphinois–Provençal domain including the metamorphic assemblages, P-T conditions, and Variscan ages. Cc = continental crust; Oc = oceanic crust; Ma = mantle; Un = undefined crust. Geochronological data acquisition: ⊙ mineral separation; ⊖ mineral separation and trace elements. See reference coding in Appendix A. Mineral abbreviations are after [141].

Tect. Unit	Location	Group	Assemblage	Temp (°C)	Pres (GPa)	Age (Ma)	Method	Refs	Code
Argentera Massif	Tinèe	Un metabasite	Grt, Hbl, Cpx, Pl, Qz	735 ± 25	1.30 ± 0.1	Devonian		[134]	Hvco1a
Argentera Massif	Valle Gesso; Valle Stura; Vésubie	Un metabasite	Grt, Hbl, Cpx, Pl, Qz	735 ± 25	1.30 ± 0.1	Devonian		[134]	Hvco1b
Argentera Massif	Passo della Mena, Frisson lakes	Cc metapelite	Grt, Hbl, Cpx, Pl, Qz, Rt/Ilm	735 ± 15	1.38 ± 0.05	340 ± 4	U/Pb (Zrn) ⊖	[137,187]	Hvc2
Argentera Massif	Various	Un metabasite	Grt, Hbl, Cpx, Pl, Qz	735 ± 25	1.30 ± 0.1	Devonian		[134]	Hvco16
Argentera Massif	Various	Un metabasite	Grt, Hbl, Cpx, Pl, Qz	735 ± 25	1.30 ± 0.1	Devonian		[134]	Hvco17
Argentera Massif	Lac Long	Oc metabasite	Cpx, Pl, Amph, Grt, Rt, Ilm	690 ± 55	1.50 ± 0.25	>339.7 ± 12	Ar/Ar (Amp) ⊖	[138]	Hvo17a
Argentera Massif	Lago Valscura	Oc metabasite	Cpx, Pl, Amph, Grt, Rt, Ilm	690 ± 55	1.50 ± 0.25	>339.7 ± 12	Ar/Ar (Amp) ⊖	[138]	Hvo17b
Argentera Massif	Various	Un metabasite	Grt, Hbl, Cpx, Pl, Qz	735 ± 25	1.30 ± 0.1	Devonian		[134]	Hvco18
Argentera Massif	Various	Un metabasite	Grt, Hbl, Cpx, Pl, Qz	735 ± 25	1.30 ± 0.1	Devonian		[134]	Hvco19
Pelvoux Massif	La Lavey	Un metabasite		850 ± 50	1.40 ± 0.1	Devonian		[188,189]	Hvco7
Pelvoux Massif	Peyre Arguet	Un metabasite	Cpx, Grt, Pl, Prg, Rt, Qz	800 ± 50	0.50 ± 0.2	Dev.-Carb.		[188,189,190]	Hvco8
Pelvoux Massif	La Lavey	Un metabasite	Grt, Cpx, Qz, Rt, Pl, Amph, Bt	690 ± 40	1.60 ± 0.1	337.5 ± 7.5	U/Pb (Rt) ⊖	[191]	Hvco21a
Pelvoux Massif	La Lavey	Un metabasite	Cpx, Qz, Pl, Amph	835 ± 35	0.75 ± 0.15	315.5 ± 21.5	U/Pb (Zrn) ⊖	[191]	Hvco21b
Pelvoux Massif	Valgaudemar Valley	Ma ultramafic	Grt-bearing	1055 ± 85	3.50 ± 0.5	Devonian		[192]	Hvco23
Grandes Rousses	Romanche Valley	Un metabasite	Cpx, Grt, Qz, Rt	717 ± 67	0.55 ± 0.15	321 ± 10	Ar/Ar (Amp) ⊙	[193]	Hvco5
Grandes Rousses	Oisan	Un metabasite	Cpx, Grt, Qz, Rt	884 ± 109	1.30 ± 0.4	Dev.-Carb.		[193]	Hvco6
Belledonne	Lac de la Croix	Un	Grt, Cpx, Pl, Qz, Rt	640 ± 30	1.20 ± 0.1	Devonian		[189]	Hvco9
Massif		metabasite	Grt, Hbl, Cpx, Qz, Rt, Zo
Belledonne Massif	Allemond	Cc metapelite	Grt, St, Bt, Ms, Chl, Pl, Qz, Rt	550 ± 50	1.00 ± 0.1	Devonian		[23,194]	Hvc3
Belledonne Massif	Livet	Cc metapelite	Gt, St, Bt, Ms, Pl, Qz, Ilm	590 ± 60	0.80 ± 0.2	352 ± 55	K/Ar (Amp) ⊙	[23,194,195]	Hvc4
Belledonne Massif	Grand Mont	Cc metapelite	Qz, Pl, Bt, Grt, Rt	740 ± 40	1.20 ± 0.2	322 ± 12.5	U/Pb (Zrn) ⊖	[126]	Hvc16b
Belledonne Massif	Grand Mont	Cc metapelite	Qz, Pl, Bt, Grt, Ilm	650 ± 50	0.95 ± 0.15	Carboniferous		[126]	Hvc16a
Belledonne Massif	Grand Mont	Cc metapelite	Qz, Pl, Bt, Grt, Ilm	580 ± 30	0.65 ± 0.15	306 ± 3	U/Pb (Zrn) ⊖	[126]	Hvc16c
Belledonne Massif	Taillefer	Cc metapelite	Qz, Wm, Pl, Bt, St, Grt, Ky	608 ± 14	0.58 ± 0.06	337 ± 7	U/Pb (Zrn) ⊙	[196]	Hvc17
Belledonne Massif	Grand Mont	Un metabasite	Grt, Cpx, Qz, Rt, Amp	715 ± 25	1.50 ± 0.1	340 ± 11	U/Pb (Rt) ⊖	[126]	Hvco20a
Belledonne Massif	Grand Mont	Un metabasite	Grt, Cpx, Amp, Ilm, Pl, Qz	580 ± 30	0.65 ± 0.15	306 ± 3	U/Pb (Zrn) ⊖	[126]	Hvco20b
Aiguilles Rouges	Lac Cornu	Un metabasite	Grt, Cpx, Hbl, Qz, Rt	737 ± 12	1.55 ± 0.05	Devonian		[124,133]	Hvco10
Aiguilles Rouges	Col de Bérard	Cc metapelite	Grt, Ms, Ky, Qz, Pl	650 ± 25	1.30 ± 0.1	Carboniferous		[197]	Hvc11
Aiguilles Rouges	Emosson lake	Cc metapelite	Bt, Qz, Kfs, Pl, Ms, Gt	550 ± 25	0.90 ± 0.1	Carboniferous		[198]	Hvc12a
Aiguilles Rouges	Emosson lake	Cc metapelite	Bt, Qz, Kfs, Pl, Ms, Gt	650 ± 20	0.31 ± 0.01	320 ± 1	U/Pb (Mnz) ⊙	[198,199]	Hvc12b
Aiguilles Rouges	St-Gervais-les-Bains	Cc metapelite		700 ± 50	1.00 ± 0.15	Dev.-Carb.		[200]	Hvc15
Aiguilles Rouges	Lac Cornu	Un metabasite	Amp, Grt, Cpx, Qz, Rt	700 ± 50	1.75 ± 0.15	337.5 ± 2.5	U/Pb (Rt) ⊖	[127]	Hvco22a
Aiguilles Rouges	Lac Cornu	Un metabasite	Amp, Grt, Cpx, Pl, Qz, Ilm	650 ± 50	0.95 ± 0.15	Carboniferous		[127]	Hvco22b
Mont Blanc	Martigny	Cc metabasite	Hbl, Grt, Qz, Pl	544 ± 45	0.68 ± 0.07	321 ± 14	Ar/Ar (Amp) ⊙	[201]	Hvc13
Massif		skarn	Grt, Mag, Di, Hd
Aar Massif	Susten Pass	Cc metapelite				330 ± 3	U/Pb (Zrn) ⊙	[123,202]	Hvc14

4. Metamorphic Evolution

The distribution of absolute ages together with evolutionary paths of metamorphism (Figure 4, Figure 5 and Figure 6) identifies three main tectonic stages for the Variscan history of the Alpine area [63]: Devonian (420–370 Ma—early Variscan), late Devonian–late Carboniferous (370–330 Ma—middle Variscan), and late Carboniferous–early Permian (330–290 Ma—late Variscan).

4.1. Devonian (420–370 Ma)

Scarce Devonian tectonometamorphic relicts are found in all the Alpine domains (Figure 4a). Eclogites from the Penninic and Austroalpine domains (Adula nappe, Savona Massif, and Woelz Unit; [116,119,120,121,158,178]), characterized by garnet, omphacite, and rutile mineral association, and metapelites with dumortierite in the Languard-Campo nappe (central Austroalpine domain; [93]) document eclogite facies conditions (Figure 4a,b). Similarly, metabasites containing garnet, clinopyroxene, amphibole, and plagioclase are described in the Argentera, Pelvoux, and Aiguilles Rouges Massifs in the Helvetic–Dauphinois–Provençal domain. The symplectites of clinopyroxene and plagioclase replacing omphacite document the re-equilibration of eclogite facies conditions or HP granulite facies conditions [134,203]. The ages of the majority of these metabasites are only geologically constrained (Table 2, Table 3 and Table 4 and Figure 4a,b). Ep-amphibolite facies conditions are commonly recorded via garnet-chloritoid-biotite-bearing metapelites from the Southalpine domain [71,80,81], garnet-staurolite-biotite-bearing metapelite from the Belledonne Massif [23,194], and metabasite from the Tauren Window [114,117]. In addition, amphibolite facies conditions (Figure 4a,b) are documented via few rocks in the Tauren Window (Penninic domain; [113,117]) and Belledonne Massif (Helvetic–Dauphinois–Provençal domain; [189]).

The Devonian metamorphic imprint developed under a general low to moderate T/P ratio which indicates Franciscan to cold Barrovian metamorphic field gradients (Figure 4c). The coldest thermal states are documented with rocks from the Austroalpine and Penninic domains. Rocks from the Southalpine and Helvetic–Dauphinois–Provençal domains record a cold Barrovian metamorphic field gradient (Figure 4c).

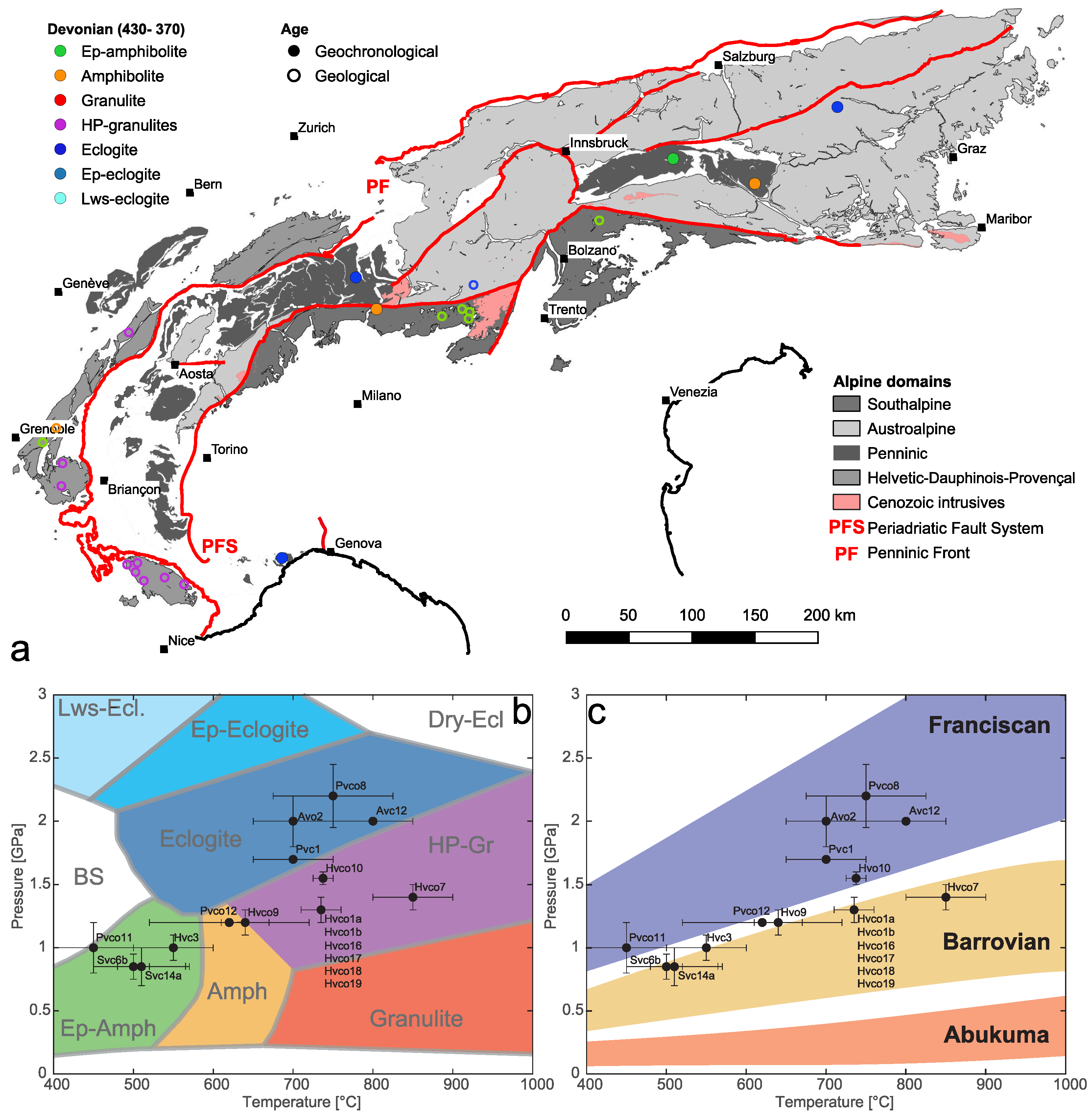

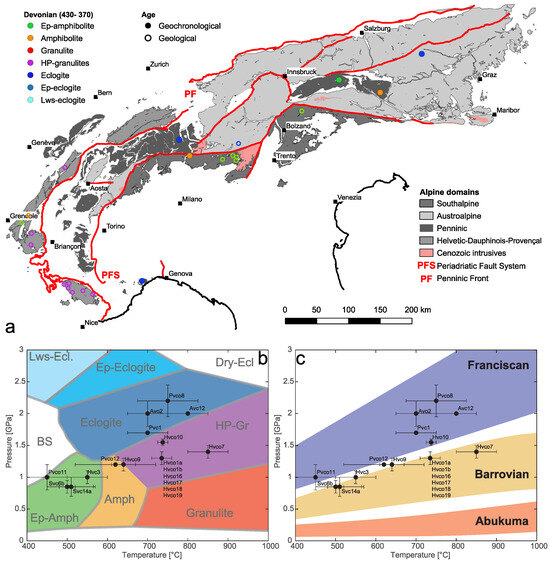

Figure 4. (a) Devonian metamorphic imprints and geochronological and geological ages. (b) PT data of Devonian samples and relative metamorphic facies (modified after [43,204,205]). (c) PT data of Devonian samples and relative metamorphic field gradients (modified after [35,204]). See reference coding in Appendix A and codes information in Table 1, Table 2, Table 3 and Table 4.

Figure 4. (a) Devonian metamorphic imprints and geochronological and geological ages. (b) PT data of Devonian samples and relative metamorphic facies (modified after [43,204,205]). (c) PT data of Devonian samples and relative metamorphic field gradients (modified after [35,204]). See reference coding in Appendix A and codes information in Table 1, Table 2, Table 3 and Table 4.

4.2. Late Devonian–Late Carboniferous (370–330 Ma)

Abundant relicts with a late Devonian to late Carboniferous metamorphic imprint occur in the central and western Alps (Figure 5a). In the Helvetic–Dauphinois–Provençal domain, the metamorphic imprint generally developed under HP granulite facies conditions (Figure 5a,b) with the mineral association characterized by garnet, clinopyroxene, and amphibole in metabasites and quartz, garnet, and kyanite in metapelites (e.g., [77,126,137,138,189]). One sample in the Aiguilles Rouges Massif (Figure 5a,b) still preserves eclogite facies imprints (Lac Cornu—Hvco22a, [127]). Two samples of metapelites in the Belledonne Massif document amphibolite facies conditions (Hvc4 and Hvc17; Figure 5a,b) characterized by quartz, garnet, and staurolite mineral association [194,195,196]. Ep-amphibolite and granulite facies conditions are documented in two cases from the Aiguilles Rouges and Pelvoux Massifs, respectively [188,198], but no radiometric age is available (Figure 5a,b).

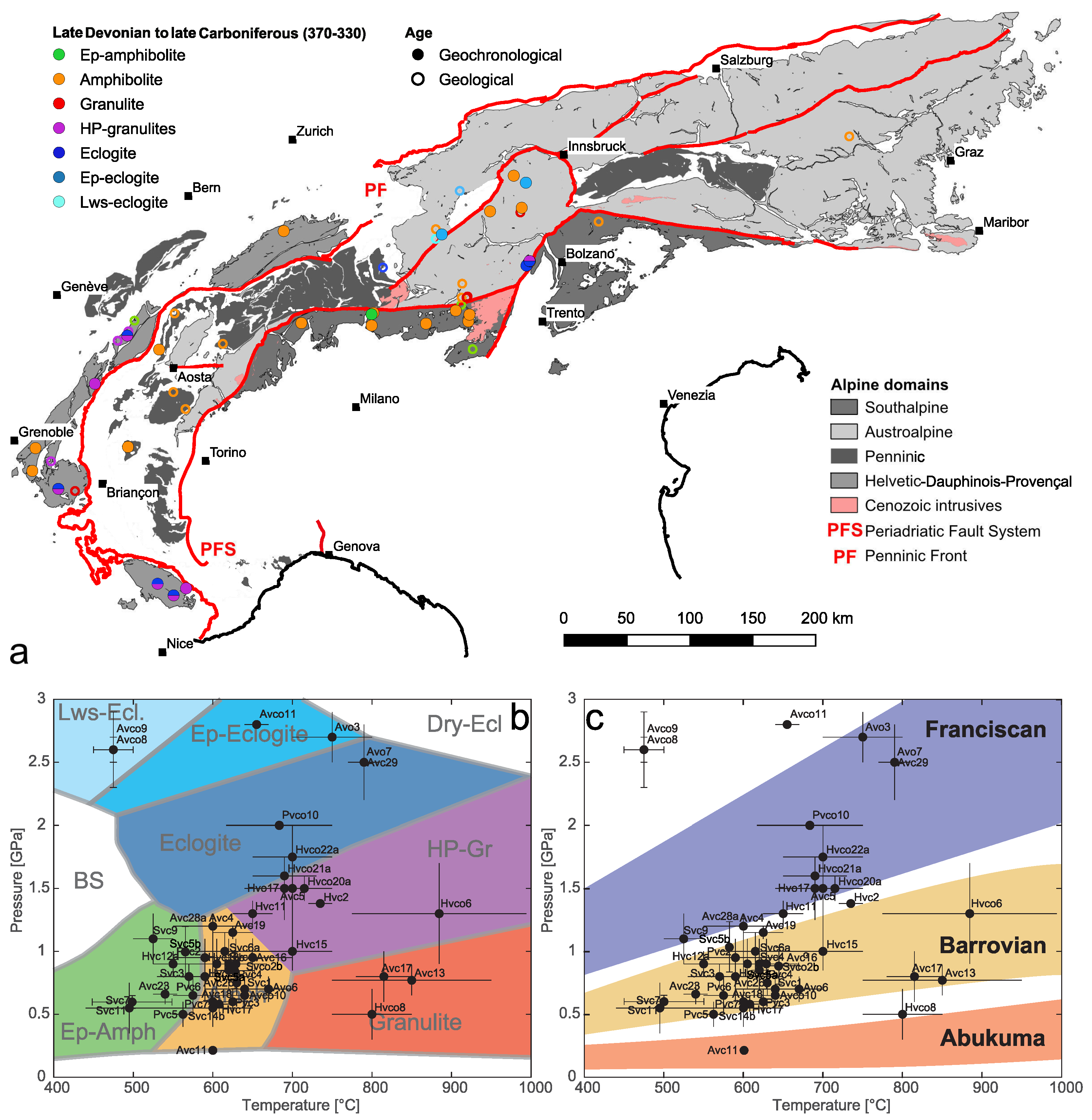

Figure 5. (a) Late Devonian–late Carboniferous metamorphic imprint and age types (geochronological and geological age). (b) PT data of Late Devonian–late Carboniferous samples and relative metamorphic facies (modified after [43,204,205]). (c) PT data of Late Devonian–late Carboniferous samples and relative metamorphic field gradients (modified after [35,204]). See reference coding in Appendix A and codes information in Table 1, Table 2, Table 3 and Table 4.

Figure 5. (a) Late Devonian–late Carboniferous metamorphic imprint and age types (geochronological and geological age). (b) PT data of Late Devonian–late Carboniferous samples and relative metamorphic facies (modified after [43,204,205]). (c) PT data of Late Devonian–late Carboniferous samples and relative metamorphic field gradients (modified after [35,204]). See reference coding in Appendix A and codes information in Table 1, Table 2, Table 3 and Table 4.

Rocks from the Penninic domain commonly indicate amphibolite facies conditions for the late Devonian to late Carboniferous metamorphic imprints (Figure 5a,b) with metapelites characterized by quartz, garnet, and staurolite assemblages [110,183,185,186,206] and metabasites by garnet, amphibole, and clinopyroxene mineral associations [103,109,118]. In the Austroalpine domain, the late Devonian to late Carboniferous metamorphic imprint lies in different conditions. Eclogite, Ep-eclogite, and Lws-eclogite facies conditions are documented with metabasites from the Oetztal–Stubai Complex and Silvretta nappe (Figure 5a,b), all supported by radiometric age [92,94,99,101,102,159,166,175]. Amphibolite facies conditions are instead documented with metapelites and metabasites from the same units and from the Languard-Campo nappe [94,98,156,158,163,167,169,173,179]. In the latter unit, granulite facies conditions are recorded with metapelites in the Mortirolo area, but their age is estimated only by geological constraints [95,98]. In the Southalpine domain, amphibolite and Ep-amphibolite facies conditions are documented with metapelites across the Orobic basement and Strona-Ceneri unit, characterized by quartz, garnet, biotite, staurolite, and minor kyanite mineral associations [71,78,80,81,82,84,142,144,146,148].

The late Devonian–late Carboniferous metamorphic imprint developed under a general moderate T/P ratio, especially in the Penninic and Southalpine domains, resulting in a Barrovian metamorphic field gradient (Figure 5c). However, some rocks in the central Austroalpine and Helvetic–Dauphinois–Provençal domains document a colder thermal state that points to the Franciscan metamorphic field gradient (Figure 5c).

4.3. Late Carboniferous–Early Permian (330–290 Ma)

Most of the rocks that recorded late Carboniferous to early Permian metamorphism are derived from the continental crust (metapelites and paragneisses). The metamorphic imprint during this period was dominated by (HP) granulites and amphibolites facies conditions (Figure 6a,b), with only a few exceptions such as the record of Ep-amphibolite facies in the Belledonne Massif from the Helvetic–Dauphinois–Provençal domain [126]. A unique case is represented by the metabasite from Vals in the Adula nappe (Penninic domain) that documents eclogite facies conditions (Figure 6a,b, [119,121]). However, the radiometric estimate of 329 ± 25 Ma suggests a possible early Carboniferous age for the metamorphism recorded with this rock.

Therefore, the late Carboniferous to early Permian metamorphic imprint developed under a moderate to high T/P ratio that indicates a Barrovian to Abukuma metamorphic field gradient (Figure 6c). Two exceptions are represented by rocks from the Adula nappe in the Penninic domain and Schobergruppe in the Austroalpine domain that point to a Franciscan metamorphic field gradient (Figure 6c).

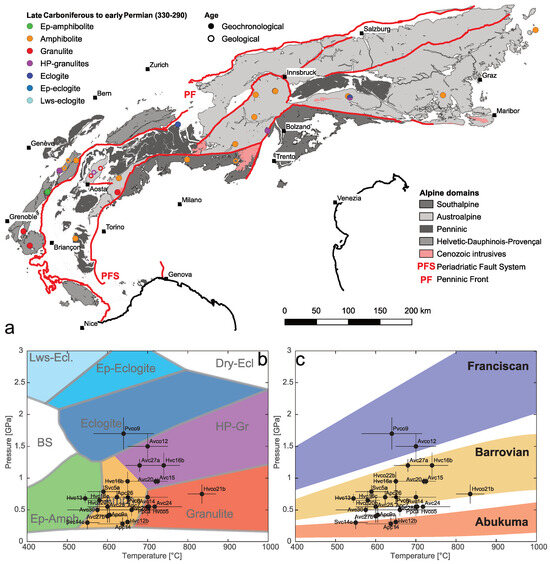

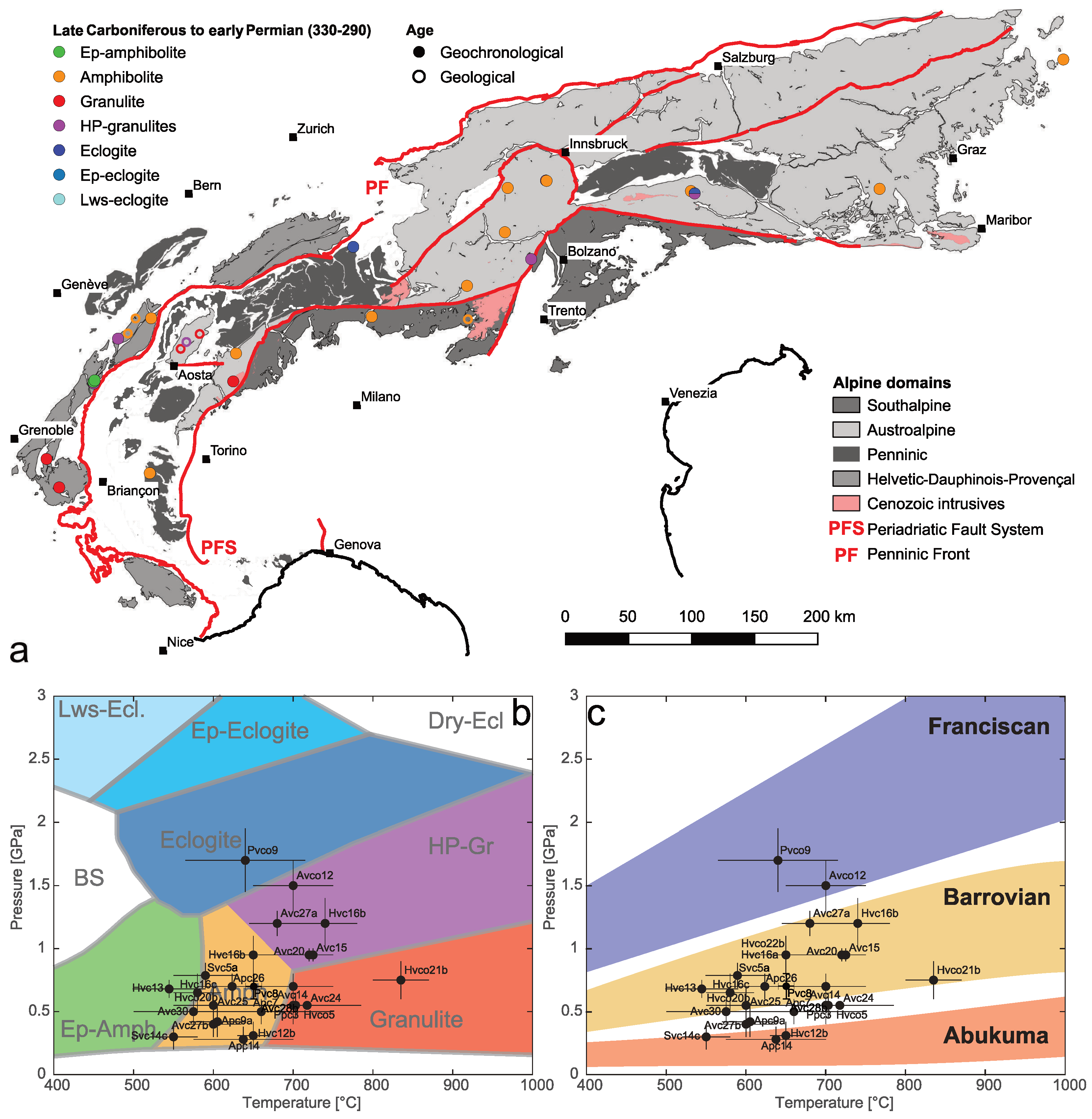

Figure 6. (a) Late Carboniferous–early Permian metamorphic imprint and age types (geochronological and geological age). (b) PT data of Late Carboniferous–early Permian samples and relative metamorphic facies (modified after [43,204,205]). (c) PT data of Late Carboniferous–early Permian samples and relative metamorphic field gradients (modified after [35,204]). See reference coding in Appendix A and codes information in Table 1, Table 2, Table 3 and Table 4.

Figure 6. (a) Late Carboniferous–early Permian metamorphic imprint and age types (geochronological and geological age). (b) PT data of Late Carboniferous–early Permian samples and relative metamorphic facies (modified after [43,204,205]). (c) PT data of Late Carboniferous–early Permian samples and relative metamorphic field gradients (modified after [35,204]). See reference coding in Appendix A and codes information in Table 1, Table 2, Table 3 and Table 4.

4.4. Metamorphic Field Gradients

The Franciscan field gradient is the typical gradient that characterizes the subduction zones (e.g., [36,205,207]). The PT conditions of Variscan rocks documenting a Franciscan field gradient indicate a thermal gradient lower than 20 °C/km (blue area in Figure 7) and plot over the PT estimates from worldwide exhumed blueschists and eclogites of subduction complexes (Figure 8). This field gradient characterizes the Devonian evolution of Variscan rocks in the majority of the Alpine domains. The Barrovian field gradient (yellow in Figure 7), which is traditionally interpreted as the effect of crustal thickening during continental collision (e.g., [41,205,208,209,210,211,212]), is recorded in all domains of the Alps since the late Devonian period. The Abukuma field gradient (red in Figure 7) testifies to an abnormally high thermal regime typical of arc systems, ridge settings [42,205,213,214], or thinned lithosphere [205,215] and preferentially developed during the late Carboniferous–early Permian period.

In particular, during the Devonian time, rocks from the eastern Austroalpine and Penninic domains developed under Franciscan-type conditions (Figure 9a), whereas rocks from the Helvetic–Dauphinois–Provençal and Southalpine domains fell along the upper Barrovian field gradient (Figure 9b). However, in the case of the Helvetic–Dauphinois–Provençal domain, the radiometric estimates are rather old and obtained with obsolete methods [203], and they may represent a mixing of different ages [139], whereas in the Southalpine domain, the ages are mainly constrained on geological criteria.

During the late Devonian–late Carboniferous time, the majority of central Austroalpine and Helvetic–Dauphinois–Provençal rocks still recorded Franciscan-type imprints that are also testified to via one rock from the Southalpine and one from the Penninic domain (Figure 9a). On the contrary, the majority of Southalpine and Penninic rocks re-equilibrated under Barrovian-type conditions that also affected a few rocks from the Austroalpine and Helvetic–Dauphinois–Provençal domains (Figure 9b).

Finally, for the late Carboniferous–early Permian time, only one rock from the eastern Austroalpine domain documents a Franciscan-type imprint, whereas a Barrovian field gradient is recorded via rocks from the Helvetic–Dauphinois–Provençal domain. Rocks from the eastern and western Austroalpine domain document metamorphic field gradients at the transition between low Barrovian and Abukuma, together with a few rocks from the Southalpine and Helvetic–Dauphinois–Provençal domains (Figure 9c).

5. Discussion

The compilation of PT data from Variscan rocks from the Alps highlights the high variability of geothermal gradients as a function of timing and location across the chain even within a single tectonic domain (Figure 9). This variability is clearly the result of transposition, deformation, translation, and metamorphic overprinting caused by successive tectonic events that characterized the Alpine area from the Permian period to the present day. In particular, Variscan rocks were restructured during the Permian–Mesozoic continental rifting and oceanization and subsequent Alpine subduction and collision. In contrast, other parts of the European Variscan orogen are either not affected or only partially affected by successive tectonometamorphic events, allowing for the preservation of tectonic domains that can be correlated though the different portions of the Variscan belt across Europe. Taking into account the tectonometamorphic fragmentation consequent to successive tectonic events, we tentatively compare the metamorphic imprints and field gradients of Variscan rocks in the different Alpine domains with those in the European domains across three main tectonic stages individuated in Variscan history: Devonian, late Devonian–late Carboniferous, and late Carboniferous–early Permian (Table 5).

During the Devonian period, eclogite and HP granulite facies conditions, developed under Franciscan and upper-Barrovian gradients, dominated the rocks in the Helvetic–Dauphinois–Provençal, Penninic, and Austroalpine domains. Similar metamorphic conditions are described in rocks from the allochthon of the European Variscan massifs, except for the Vosges–Black Forest. In the Southalpine domain, Ep-amphibolite and amphibolite facies conditions dominated during the Devonian period, indicating a general Barrovian metamorphic gradient, which is not described in the European Variscan domains for this period. However, most of the age data in the Southalpine domain are based on geological criteria, with the only geochronological data obtained more than four decades ago [76].

During the late Devonian–late Carboniferous period, HP granulite and eclogite facies conditions still dominated the rocks in the Helvetic–Dauphinois–Provençal and Austroalpine domains, and similar conditions are recorded in rocks from the allochthon of the Vosges–Black Forest and Maures–Estérel–Corsica–Sardinia massifs. For the same period, amphibolite facies conditions, developed under a Barrovian metamorphic field gradient, are recorded in rocks from the Penninic and Southalpine domains and, in the latter, an eclogite facies imprint is not described. The metamorphic outline of the Southalpine domain is similar to that recorded via rocks from the relative autochthon of the Bohemian and Vosges–Black Forest massifs and in the para-autochthon of the Maures–Estérel–Corsica–Sardinia and of the French Central massifs. It must be underlined that exclusively in the relative autochthon of the Bohemian Massif eclogite facies imprint was recorded for the Variscan evolution.

During the late Carboniferous–early Permian period, Variscan rocks in the Helvetic–Dauphinois–Provençal, Austroalpine, and Southalpine domains were characterized by the occurrence of granulite facies conditions and Barrovian to Abukuma metamorphic field gradients. Similar conditions were recorded in rocks from the allochthon of the Vosges–Black Forest and Maures–Estérel–Corsica–Sardinia Massifs, as well as in all domains of the French Central Massif. Amphibolite facies conditions and Barrovian metamorphic field gradients dominate the Variscan rocks from the Penninic domain as well as the allochthon of the Bohemian Massif.

As previously mentioned, the comparison between Variscan rocks in the Alps and European massifs is challenging due to the very different tectonic evolutions that characterized these areas from the Permian period to the present day. Based on metamorphic imprints and field gradients recorded in Variscan rocks, we note that the Helvetic–Dauphinois–Provençal, Austroalpine, and part of the Penninic domains show an evolution roughly similar to that of the mid-Variscan allochthon units, while the evolution of the Southalpine domain is more similar to that of the autochthon units of the European massifs, excluding the eclogite-bearing Bohemian Massif. The Penninic domain lacks late Carboniferous–early Permian granulite facies conditions, consistent with the relative autochthon units of the Vosges–Black Forest Massif and para-autochthon of the Maures–Estérel–Corsica–Sardinia Massif, as well as all domains of the Bohemian Massif.

An interesting output of this review includes the comparison between the Variscan tectonic evolution suggested via metamorphic imprints and field gradients of rocks from the Alps with the scenarios proposed for the evolution of the Variscan orogen in Europe. A Franciscan field gradient (Figure 7; 5–15 °C/km), suggesting the evolution of rocks within a subduction zone, developed during the Devonian period preferentially in the eastern Alps. In the central-western Alps, this gradient mainly developed during the late Devonian to late Carboniferous period (Figure 9a). The oldest age determinations (>380 Ma) are at present considered outdated, given recent estimates in the Helvetic–Dauphinois–Provençal domain [126,138,191,196] and in the other European Variscan massifs (e.g., [139,217,218,219]).

Table 5. Dominant metamorphic facies and field gradients for the Variscan rocks in Alpine and main European Variscan domains. The > symbol indicates a decrease in the relative abundance of rocks recording the indicated metamorphic conditions.

		ALPINE TECTONIC DOMAINS				VARISCAN TECTONIC DOMAINS
		ALPS				BOHEMIAN MASSIF		VOSGES–BLACK FOREST		FRENCH CENTRAL MASSIF		MAURES–ESTÉREL–CORSICA–SARDINIA
		HDP	P	A	S	Mid-Variscan	Relative	Mid-Variscan	Relative	Mid-Variscan	Para-Autochton/	Mid-Variscan	Para-Autochton/
						Allochton	Autochton	Allochton	Autochton	Allochton	Autochton	Allochton	Autochton
Devonian	Facies	HPG>EA-A	E>EA-A	E	EA>A	E>G>A	E>A>EA>Gs			E>HPG>A		E?
(420–365)	Field gradient	uB>F	F>uB	F	uB-B	F-uB	F-B			F-uB		F?
Late Devonian–late Carboniferous	Facies	HPG-E>A>EA	A>E	E>A>G>HPG	A>EA>Gs-LG-UnM	HPG>A>EA	A>EA>Gs	A>HPG>E>EA>Gs	A>EA>Gs	A>HPG>G>Gs	Gs	A>HPG>E>EA	A>EA>Gs
(365–330)	Field gradient	F>uB>B>A	B>uB>F	F>uB-B>A	uB-B>F	B-uB	B	F-uB-B	B	B>uB	B	F-uB-B	B
Late Carboniferous–Early Permian	Facies	A>G>EA>HPG	A>E	A>G>HPG>E	A-Gs>G	A>EA	Gs	A>EA>G	Gs	A>EA>G>Gs	Gs>EA>G>E	A>EA>G	Gs
(330–290)	Field gradient	B>A	B>F	B-uB>A>F	B-A	B	B	A-B	B	B>A	B>A>uB	A-B	B
References		See references in Table 1, Table 2, Table 3 and Table 4 of this work				[9,220,221,222,223,224,225,226,227]	[220,224,228,229,230,231]	[232,233,234,235,236,237,238]	[9,11,16,220,239,240,241,242,243,244]	[9,11,16,217,240,244]	[9,11,245,246,247,248]	[249,250,251,252,253,254,255]	[253,256,257,258,259,260]
						[18,19,63,244,261,262,263,264,265,266]	[18,19,63,244,267]	[18,19,20,241,243,244,268]	[18,19,20,35,217,218,269,270,271]	[9,11,16,217,240,244]	[16,18,19,20,219,244,272]	[19,273,274,275,276,277,278]	[19,274,279,280,281,282]

Symbols legend. Alpine tectonic domains: HDP = Helvetic–Dauphinois–Provençal; P = Penninic; A = Austroalpine; S = Southalpine. Metamorphic facies: EA = Ep-amphibolite; A = amphibolite; G = granulite; HPG = HP granulite; E = Eclogite + Ep eclogite + Lws eclogite; GS = greenschist; LG = low grade; UnM = nonmetamorphic. Metamorphic field gradients: F = Franciscan; B = Barrovian; uB = upper Barrovian; A = Abukuma-Buchan.

Table 5. Dominant metamorphic facies and field gradients for the Variscan rocks in Alpine and main European Variscan domains. The > symbol indicates a decrease in the relative abundance of rocks recording the indicated metamorphic conditions.

		ALPINE TECTONIC DOMAINS				VARISCAN TECTONIC DOMAINS
		ALPS				BOHEMIAN MASSIF		VOSGES–BLACK FOREST		FRENCH CENTRAL MASSIF		MAURES–ESTÉREL–CORSICA–SARDINIA
		HDP	P	A	S	Mid-Variscan	Relative	Mid-Variscan	Relative	Mid-Variscan	Para-Autochton/	Mid-Variscan	Para-Autochton/
						Allochton	Autochton	Allochton	Autochton	Allochton	Autochton	Allochton	Autochton
Devonian	Facies	HPG>EA-A	E>EA-A	E	EA>A	E>G>A	E>A>EA>Gs			E>HPG>A		E?
(420–365)	Field gradient	uB>F	F>uB	F	uB-B	F-uB	F-B			F-uB		F?
Late Devonian–late Carboniferous	Facies	HPG-E>A>EA	A>E	E>A>G>HPG	A>EA>Gs-LG-UnM	HPG>A>EA	A>EA>Gs	A>HPG>E>EA>Gs	A>EA>Gs	A>HPG>G>Gs	Gs	A>HPG>E>EA	A>EA>Gs
(365–330)	Field gradient	F>uB>B>A	B>uB>F	F>uB-B>A	uB-B>F	B-uB	B	F-uB-B	B	B>uB	B	F-uB-B	B
Late Carboniferous–Early Permian	Facies	A>G>EA>HPG	A>E	A>G>HPG>E	A-Gs>G	A>EA	Gs	A>EA>G	Gs	A>EA>G>Gs	Gs>EA>G>E	A>EA>G	Gs
(330–290)	Field gradient	B>A	B>F	B-uB>A>F	B-A	B	B	A-B	B	B>A	B>A>uB	A-B	B
References		See references in Table 1, Table 2, Table 3 and Table 4 of this work				[9,220,221,222,223,224,225,226,227]	[220,224,228,229,230,231]	[232,233,234,235,236,237,238]	[9,11,16,220,239,240,241,242,243,244]	[9,11,16,217,240,244]	[9,11,245,246,247,248]	[249,250,251,252,253,254,255]	[253,256,257,258,259,260]
						[18,19,63,244,261,262,263,264,265,266]	[18,19,63,244,267]	[18,19,20,241,243,244,268]	[18,19,20,35,217,218,269,270,271]	[9,11,16,217,240,244]	[16,18,19,20,219,244,272]	[19,273,274,275,276,277,278]	[19,274,279,280,281,282]

Symbols legend. Alpine tectonic domains: HDP = Helvetic–Dauphinois–Provençal; P = Penninic; A = Austroalpine; S = Southalpine. Metamorphic facies: EA = Ep-amphibolite; A = amphibolite; G = granulite; HPG = HP granulite; E = Eclogite + Ep eclogite + Lws eclogite; GS = greenschist; LG = low grade; UnM = nonmetamorphic. Metamorphic field gradients: F = Franciscan; B = Barrovian; uB = upper Barrovian; A = Abukuma-Buchan.

The preservation of a Variscan subduction zone in the Alpine area is also supported by the age (333–364 Ma; [283,284]) and magmatic arc signature [285] of the gabbroic body of the Ivozio Complex in the Austroalpine domain of the western Alps and by the coeval spinel–garnet transition in Ulten lherzolites. Moreover, the contamination of the subcontinental mantle caused by the Variscan subduction is still identifiable in the distinctive geochemical signature of the Triassic magmatism in the Southalpine domain [286,287]. The coexistence of HP granulite and amphibolite facies assemblages with the eclogite facies assemblage of Franciscan type does not contradict the occurrence of a Carboniferous subduction.

In fact, recent thermomechanical simulations indicate that contrasting metamorphic conditions can simultaneously be observed in different regions of the subduction system [20,205]. The Barrovian field gradient (15–35 °C/km), which is typical for rocks evolving within collisional contexts, developed from Carboniferous to Permian times after the Franciscan gradients or as the re-equilibration of older lower-T relicts (Figure 9b) and is recorded via rocks from all parts of the Alps (Figure 9b). Therefore, all the data indicate a diachronous subduction-related metamorphism, followed by continental collision re-equilibration.

Considering the geodynamic evolution of the Variscan orogeny, there is a general agreement on the closure of an oceanic domain, so called Rheic, and located north of the peri-Gondwanian microblocks (or continental ribbons) during Devonian times [19,288,289]. However, two scenarios are still debated: (i) a single oceanic closure or (ii) several and successive oceanic closures (e.g., the closures of the Rheic, the Saxothuringian, and the Rhenohercynian oceans) [16,17,18,35,63,224,290].

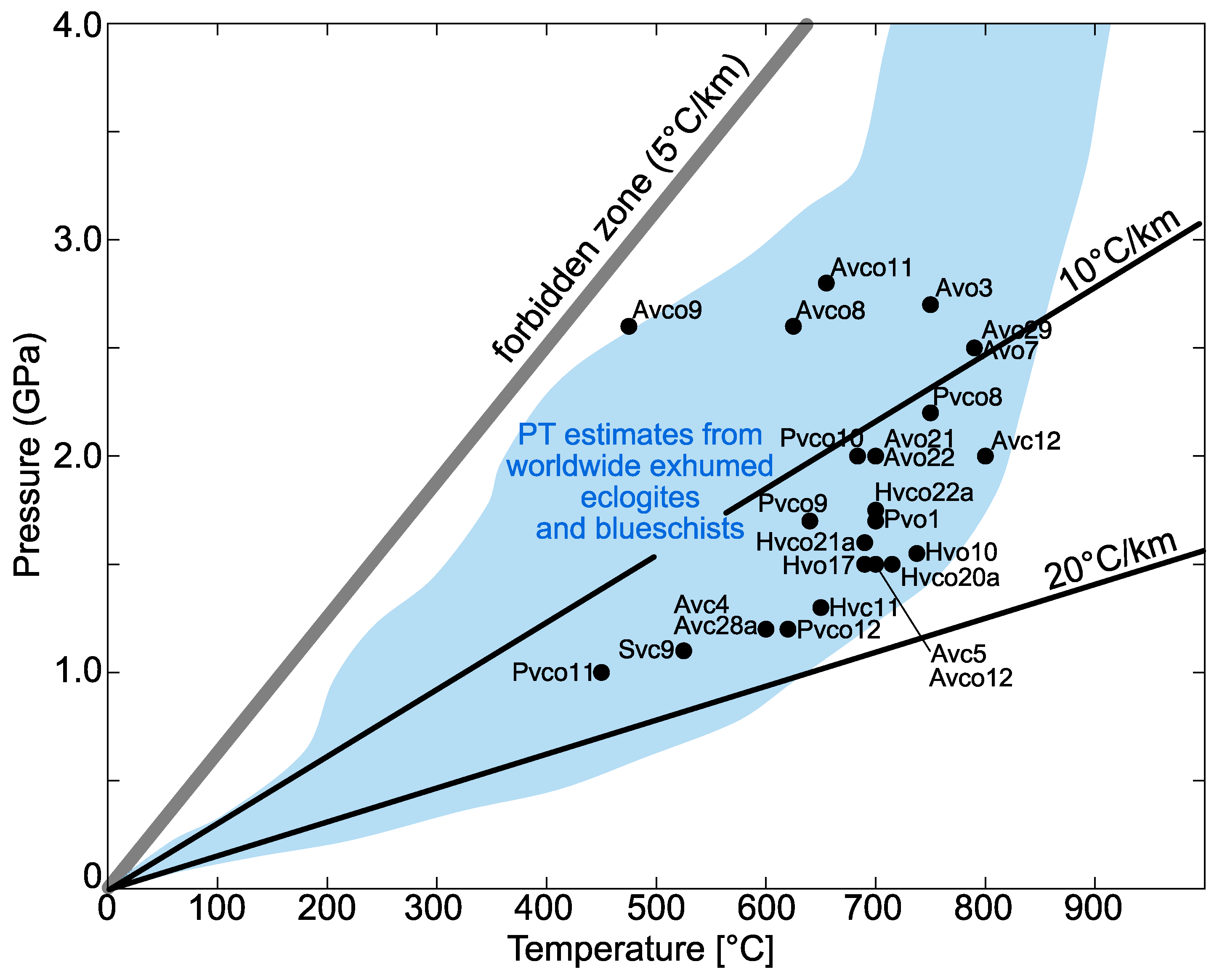

The Devonian to Carboniferous Franciscan-type assemblages recorded in the Variscan rocks of the Alps may agree with a single oceanic closure characterized by an oceanic subduction with a diachronous burial and exhumation starting from the east, where the oldest Franciscan records occur, and moving westward, where Franciscan records are Carboniferous in age (Figure 9a). This agrees also with the older age of the Barrovian field gradient (i.e., collision) in the central Alps (mainly early Carboniferous) with respect to the western Alps (mainly late Carboniferous; Figure 9b). The monocyclic scenario as proposed for the Bohemian and French massifs accounts for the occurrence of an arc and back-arc system located at present to the north of the Alpine front [271] that would not agree with the records of subduction-type metamorphism in the Variscan rocks of the Alps. Therefore, a more complex subduction geometry has to be considered and tested.

On the other hand, the distribution in age of the Franciscan-type imprints may agree even with a scenario involving several oceanic closures, in which the subduction of an older ocean is testified to in the Penninic and eastern Austroalpine domains of the Alps and the successive subduction of the Saxothuringian ocean is testified to in the central Austroalpine and Helvetic–Dauphinois–Provençal domains (Figure 9a). However, a comparison between P-T-t data and numerical models of mono- and polycyclic scenarios indicates that the latter is the preferred scenario for describing the Variscan orogeny in the Alps [35]. The polycyclic scenario implies that during the Variscan time, the Austroalpine domain was separated into different portions that occupied different palaeogeographic positions. In particular, the eastern Austroalpine domain would have derived from Gondwana or southern Armorica, while the central Austroalpine domain would have belonged to northern Armorica or possibly to Saxothuringian terrains. In the Pelvoux Massif, the Carboniferous age (337 Ma) of HP granulites and the relatively warm thermal gradient estimated for their thermal peak conditions (12–13 °C/km) are interpreted as the thickening of a relatively hot continental crust, presumably caused by the inversion of a Devonian back-arc during the collision [191], rather than a subduction context. However, the obtained PT conditions cannot rule out the possible role of subduction, as PT estimates from worldwide exhumed blueschists and eclogites indicating geothermal gradients from 6 to 20 °C/km for subduction zones (Figure 8). Furthermore, the young U/Pb ages of high-pressure rocks may be subject to uncertainties due to the resetting of the U–Pb system of eclogite facies zircon grains, particularly when they are enclosed within high-temperature country rocks [219]. A similar geothermal gradient has been inferred for Variscan eclogites in the southern Argentera–Mercantour Massif that derives from MORB-type protoliths [138]. This eclogite re-equilibrated under amphibolite facies conditions resulting from the oceanic subduction-related metamorphism developed in this portion of the Helvetic–Dauphinois–Provençal domain [138].

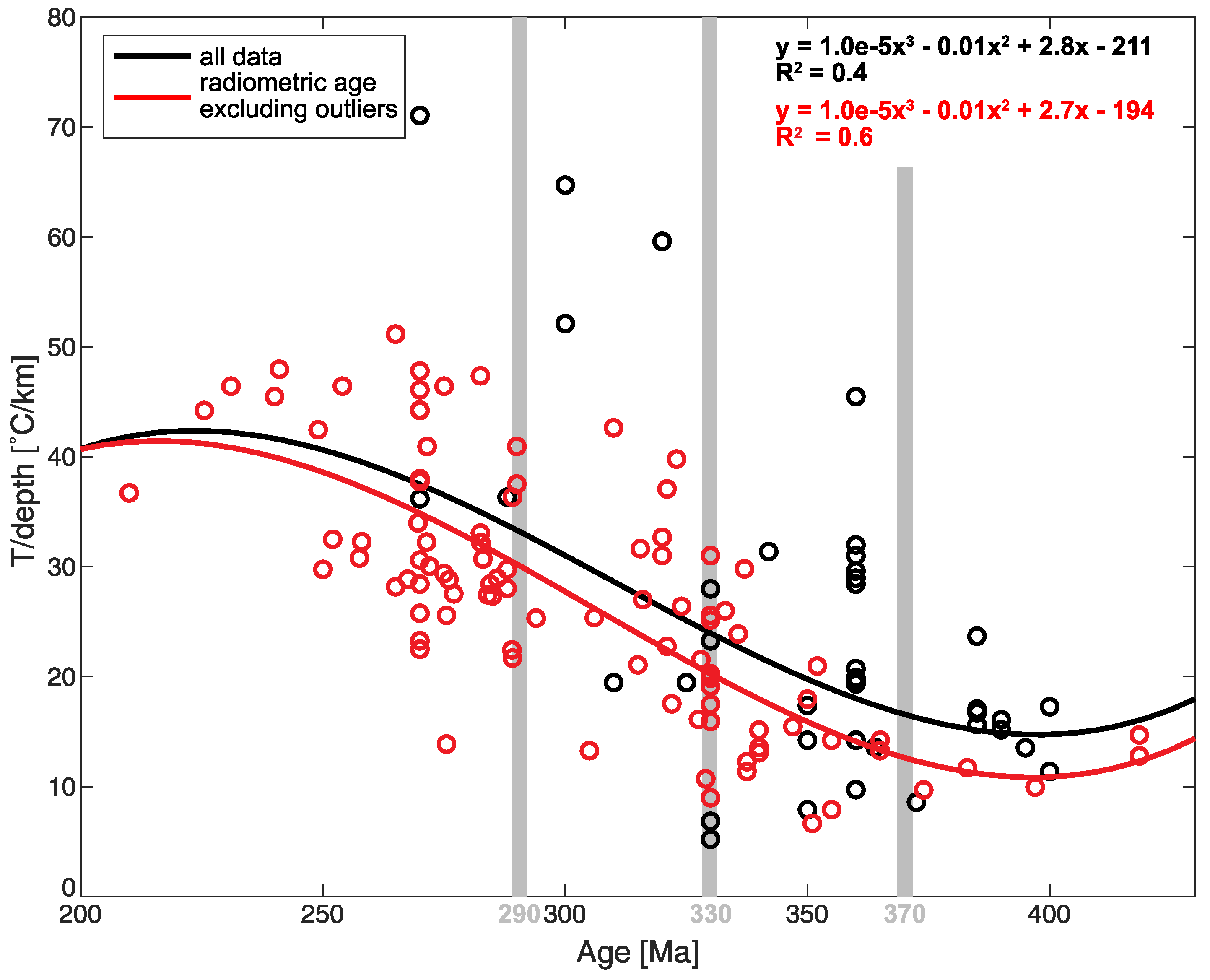

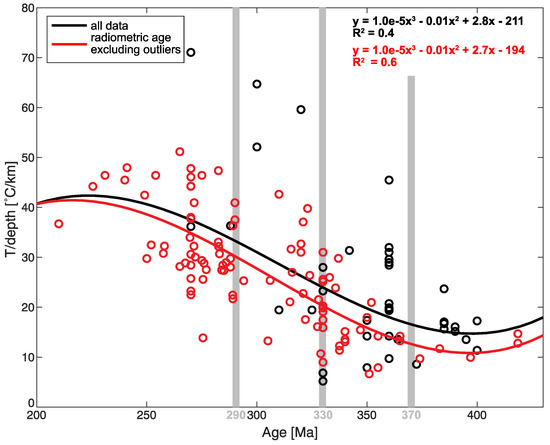

In Figure 10, the geothermal gradients obtained from the PT conditions of Variscan remnants in the Alps, extended up to Triassic times, are reported. From 420 to 370 Ma, the distribution of thermal gradients with age is rather constant around the average value of 15 °C/km. The geothermal gradients almost linearly increase from 370 Ma to reaching the maximum value at ca. 250 Ma and then remain almost constant over the whole Triassic period. This distribution clearly agrees with a sequence of events that starts with subduction (420–370 Ma), continues with continental collision (370–290 Ma), and ends with the continental thinning that resulted in Pangea rifting and the successive drifting of the Alpine Tethys ocean at ca. 160 Ma [61,62,291].

During convergent tectonics, after continental collision and thickening, a phase of gravitational collapse is usually predicted with a thermal balance between deformation-induced and radioactive heat production and heat advection related to continental subduction, orogenic deformation, and magma transfer [215] that results in a decrease, or a reduction of the increase, in geothermal gradients [292]. Interestingly, between 370 and 250 Ma, a significant change in the slope of the interpolation curve is not observed (Figure 10), suggesting the absence of a clear phase of gravitational collapse from the geothermal gradients. This observation leads to different interpretations of the Variscan and post-Variscan evolution in the Alps. One possibility is that it was characterized by a gradual switch from convergence to extension as a result of continental redistribution triggered by the opening of the southern Atlantic ocean [293]. Alternatively, the thermal signature of the gravitational collapse is not recorded in the Alpine rocks, or it is indistinguishable from the thermal signature of the collision.

6. Conclusions

The compilation of quantitative PT conditions and ages of Variscan rocks from the Alps documents a variable metamorphic evolution across the Alpine domains, spanning from the Devonian to early Permian times. Eclogite and HP granulite facies conditions characterized by geothermal gradients typical of subduction zones occurred in the Penninic and eastern Austroalpine domains during the Devonian period and in the Helvetic–Dauphinois–Provençal and central Austroalpine domains during late Devonian–late Carboniferous time. From the Carboniferous to Permian periods, Barrovian metamorphic field gradients, typical of continental collision, were established in all the Alpine domains.

This metamorphic distribution suggests a pre-Alpine burial of oceanic and continental crust at convergent plate margins, during one or successive oceanic closures. In the single subduction scenario, a diachronic oceanic subduction started from the east and moved westward. In the other scenario, the Devonian subduction of the older ocean was recorded via rocks in the Penninic and eastern Austroalpine domains of the Alps, and the successive Carboniferous subduction of the Saxothuringian ocean was recorded via rocks in the central Austroalpine and Helvetic–Dauphinois–Provençal domains. In either case, the distribution of geothermal gradients from Devonian to Triassic times agree with a sequence of events that starts with subduction, continues with continental collision, and ends with the continental extension that resulted in the Pangea breakup. Whatever the preferred scenario, this review shows that subduction-related metamorphic relicts indicate the occurrence of a Variscan suture in the Alpine domain, and this cannot be neglected in the definition of the tectonic evolution of the European Variscides.
