# On Two Formulations of Polar Motion and Identification of Its Sources

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

**lod**), or the equivalent rotation velocity of Earth, and changes in the geographical location of the pole of rotation, that is the place where the rotation axis intersects the Earth surface. A thorough treatment is in the Treatise of celestial mechanics of Pierre-Simon de Laplace (1749–1827; [1]) where the great scientist derives the system of differential equations that fully describes the motions of the rotation axis of any celestial body, among others Earth. This system has come to be known as Liouville-Euler after mathematicians Leonhard Euler (1707–1783) and Joseph Liouville (1809–1882). The theory has been confirmed and elaborated on by a number of authors, Poincaré [2] among them. Recent formulations are found in many papers and textbooks. In the present note, we focus on that of Lambeck [3]. In a first section, we recall the theoretical derivations of Laplace and Lambeck and show aspects in which they are formally identical, but also differences that can be significant and need to be explained. The main point is the identification of the sources (or excitation functions) of polar motion and length of day (lod). Very clearly, in the Laplace’s theory all the Earth’s masses are not only excited by luni-solar torques but also by all the other planetary torques (e.g., [4,5,6,7]). That is why, for example, we found a strong link between the Gleissberg solar cycle [8] and the Earth’s Markowitz drift [9]. In the point of view of modern’s theory, supported by Lambeck, apart from Earth tides all mass movements, e.g., atmospheric as oceanic, are only forced by terrestrial phenomena (cf. Lambeck [3], Chapter 7). In a second section, we illustrate these differences by applying the theory to modern data of polar motion and lod. We discuss them and draw some conclusions in the final section.

## 2. Two Formulations of the Liouville-Euler Equations

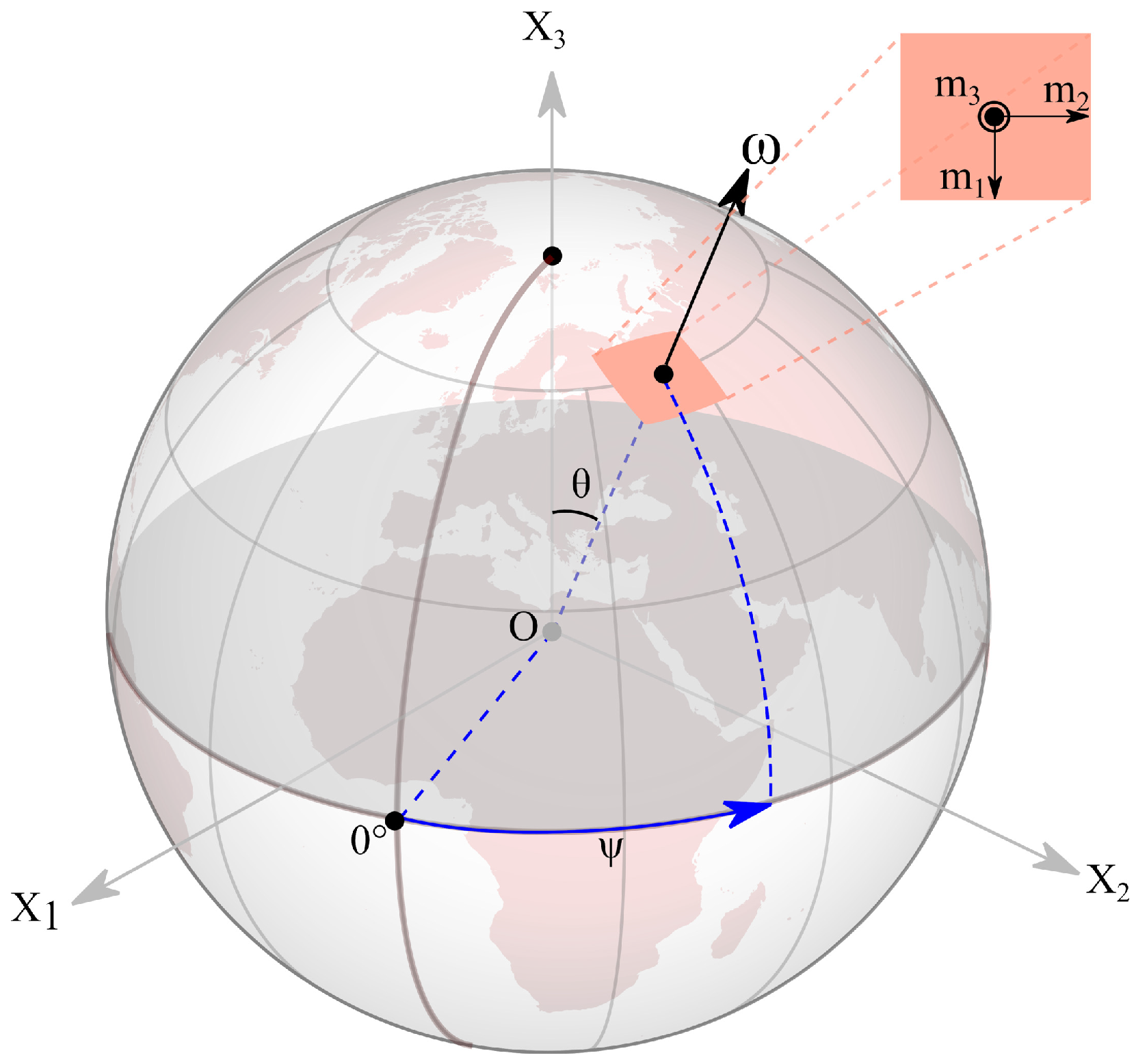

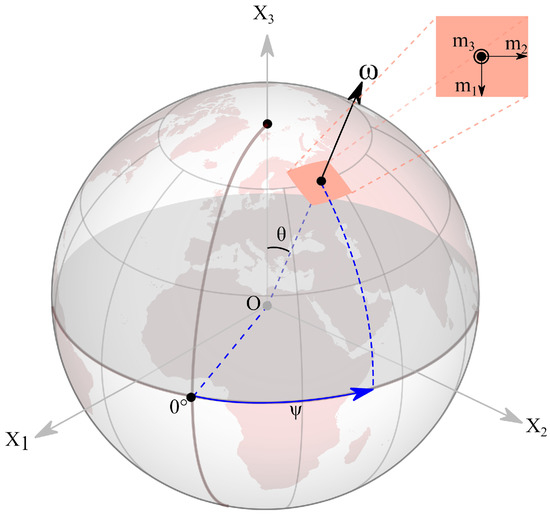

^{−5}rad/s) is the Earth’s mean rotation velocity today computed on the last 3 decades. Applying the theorem of kinetic momentum to the rotation of a non-rigid body and following Lambeck [3], Chapter 3, Equations (1) lead to the set of Liouville-Euler equations (system 3.2.9 in Lambeck [3]):

^{37}kg m

^{2}and 8.010 × 10

^{37}kg m

^{2}, [10]). In this derivation, the behavior of the pole position (m

_{1}, m

_{2}) and m

_{3}have been fully separated. Through σ

_{r}, (m

_{1}, m

_{2}) involve the (internal) terrestrial data C and A. Lambeck [3], page 34, writes: “m

_{1}and m

_{2}are the components of the polar motion or wobble and $\mathsf{\Omega}{\displaystyle \frac{d{\omega}_{3}}{dt}}$ is nearly the acceleration in diurnal rotation”. The generally accepted reading (physical interpretation) of this formulation is that polar motion (m

_{1}, m

_{2}) is linked to geophysical excitation such as atmospheric or oceanic circulation, lithospheric and mantle convection or electromagnetic coupling, and that the m

_{3}component is linked to astronomical phenomena such as tides. Lambeck [3], p. 36) concludes: “Equations (3.2.6) clearly separate the astronomical and geophysical problems”.

_{1}. Equation (3) becomes:

_{t}, M

_{t}and N

_{t}(not to be mistaken for N in (3)) can be external or internal to the Earth. For the Laplace formulation, one must take into account all planets that can produce effects one wants to account for. For instance, Laplace gives the full equations with the Sun and Moon included:

## 3. Confronting the Theory with the Observations

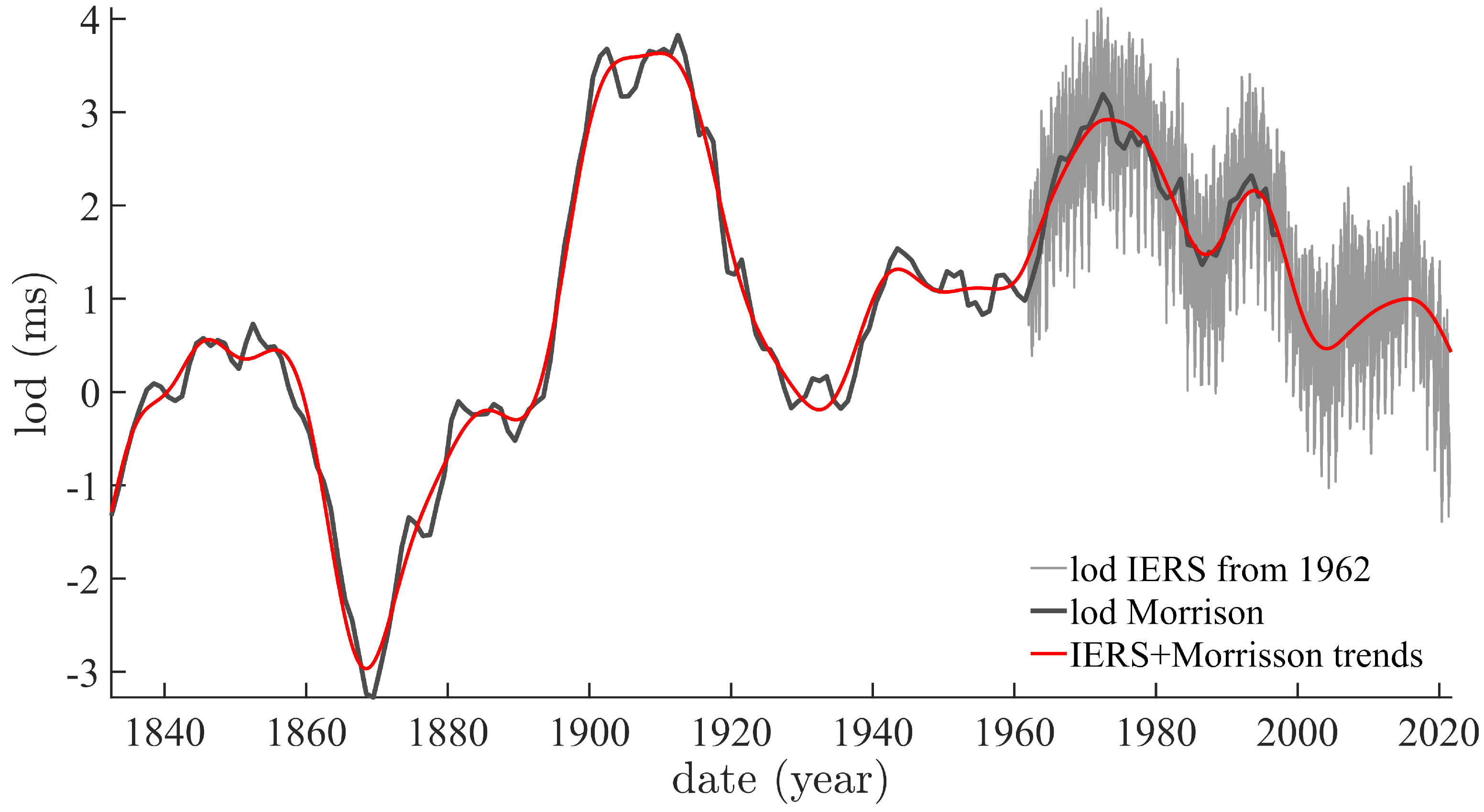

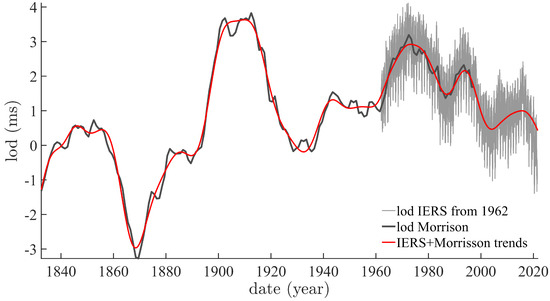

**IERS**(International Earth Rotation Service) since 1962 (https://www.iers.org/IERS/EN/DataProducts/data.html, accessed on 22 February 2022). Figure 2 shows the two data sets, and their (smoother) trends (the red curve). In order to determine these trends, we have applied iterative Singular Spectrum Analysis (

**iSSA**; see [24,25,26,27]). The trends are the first, leading (in terms of pseudo-period and amplitude) components of the data series. The trends of the two series are smoothly continuous where they meet (1962).

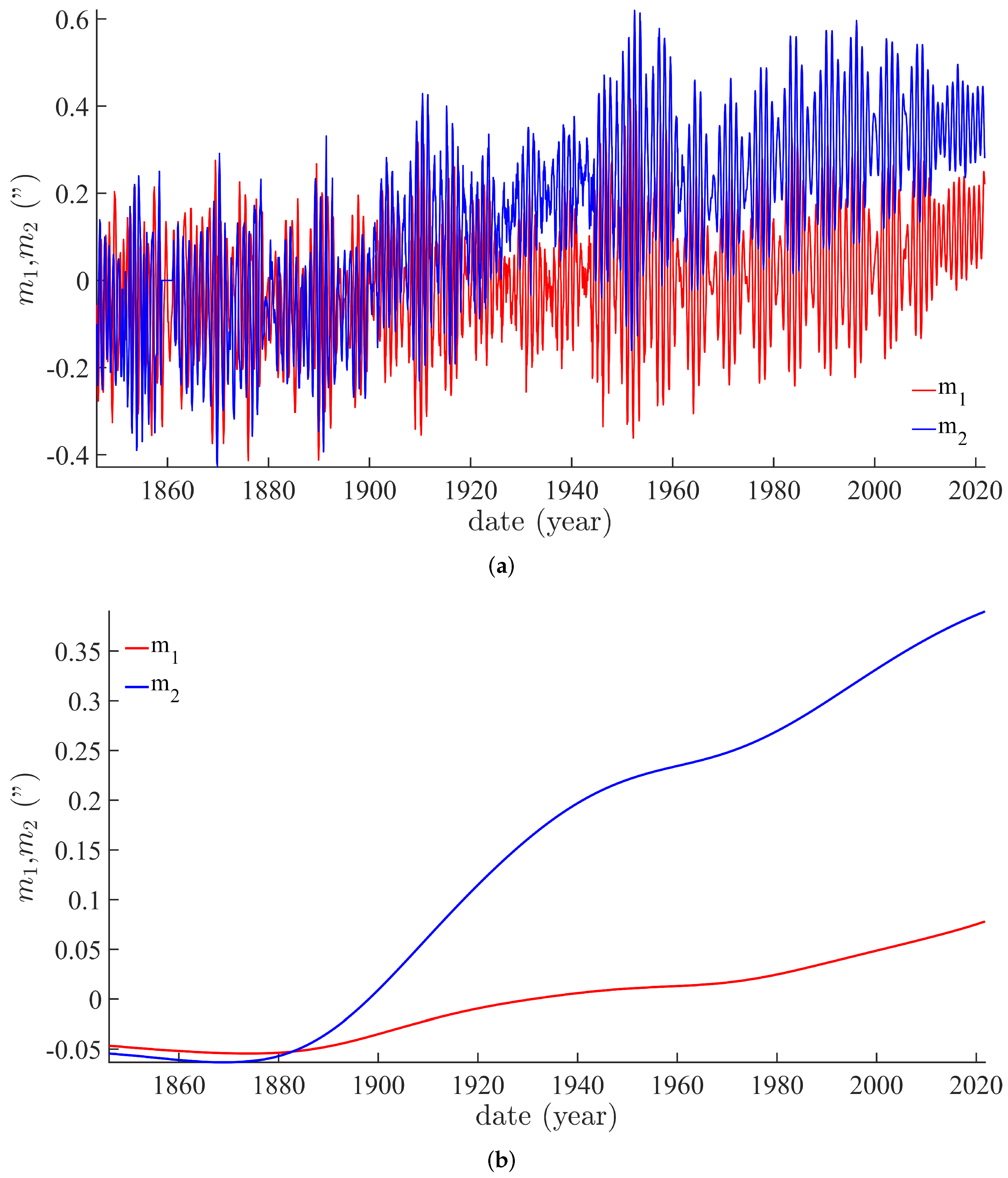

**IERS**and are shown in Figure 3a. Their respective trends, extracted by

**iSSA**, are shown in Figure 3b. ${m}_{1}$ and ${m}_{2}$ are used to compute a global trend of

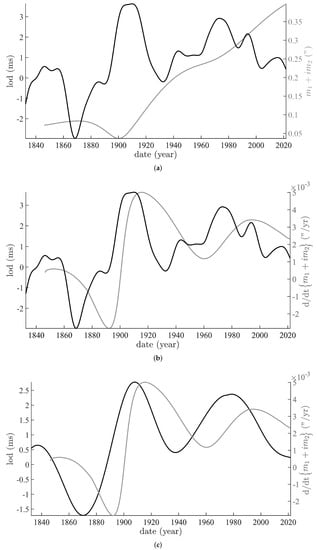

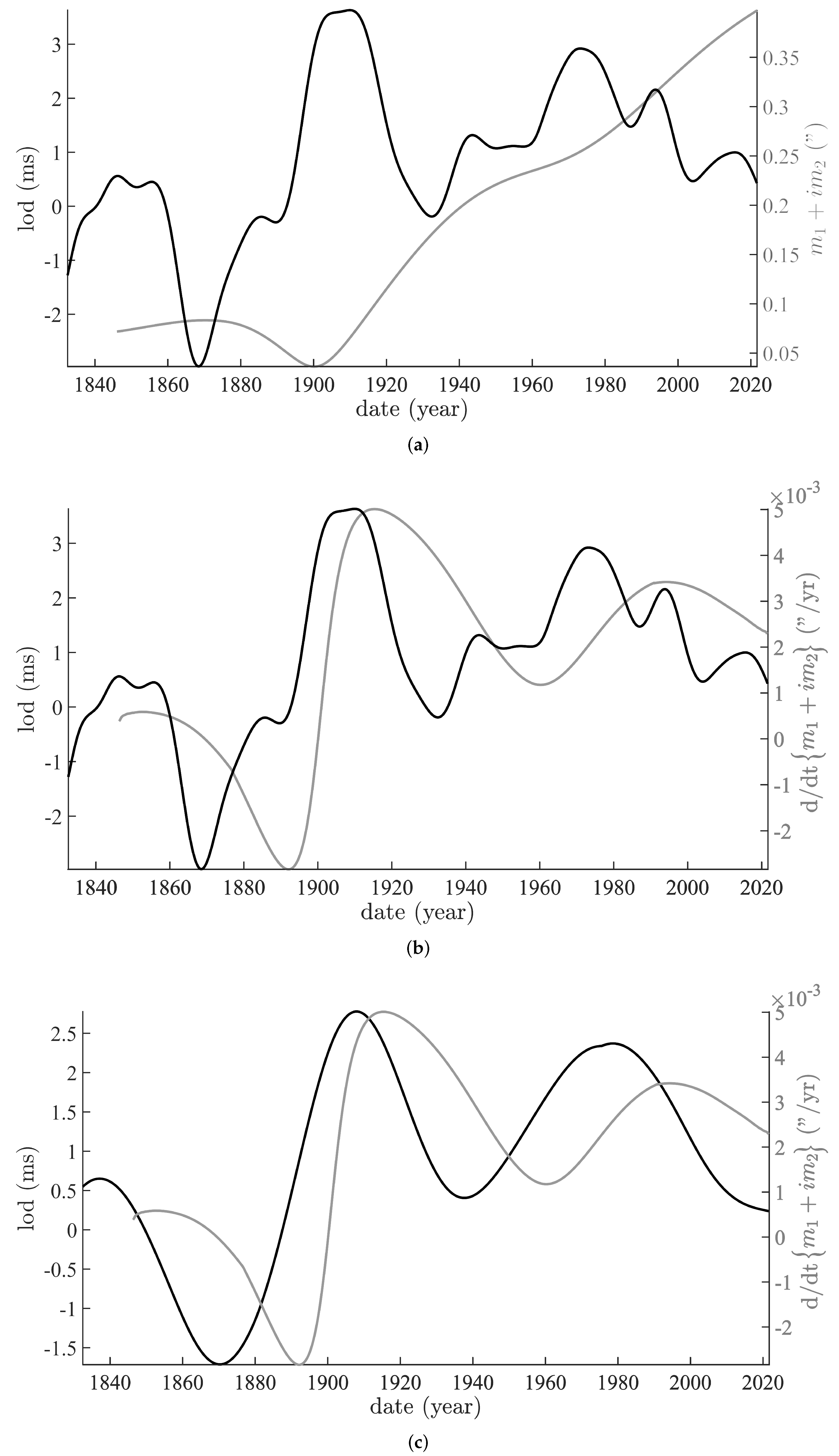

**m**($={m}_{1}+i{m}_{2}$), called the Markowitz drift ([28]). This is displayed in Figure 4a as a thinner gray curve, and compared to the Morrison/IERS trend of lod (thicker black curve). These curves are in excellent agreement with previous determinations (e.g., [29,30]), though they are smoother due to

**SSA**extraction. We recall that the Markowitz drift is one of the three main components of polar motion along with the Chandler free oscillation and the forced annual oscillation (e.g., [7,31,32]). The magnitude of the Markowitz drift is on the same order as plate tectonic velocities, that originally made it quite difficult to detect.

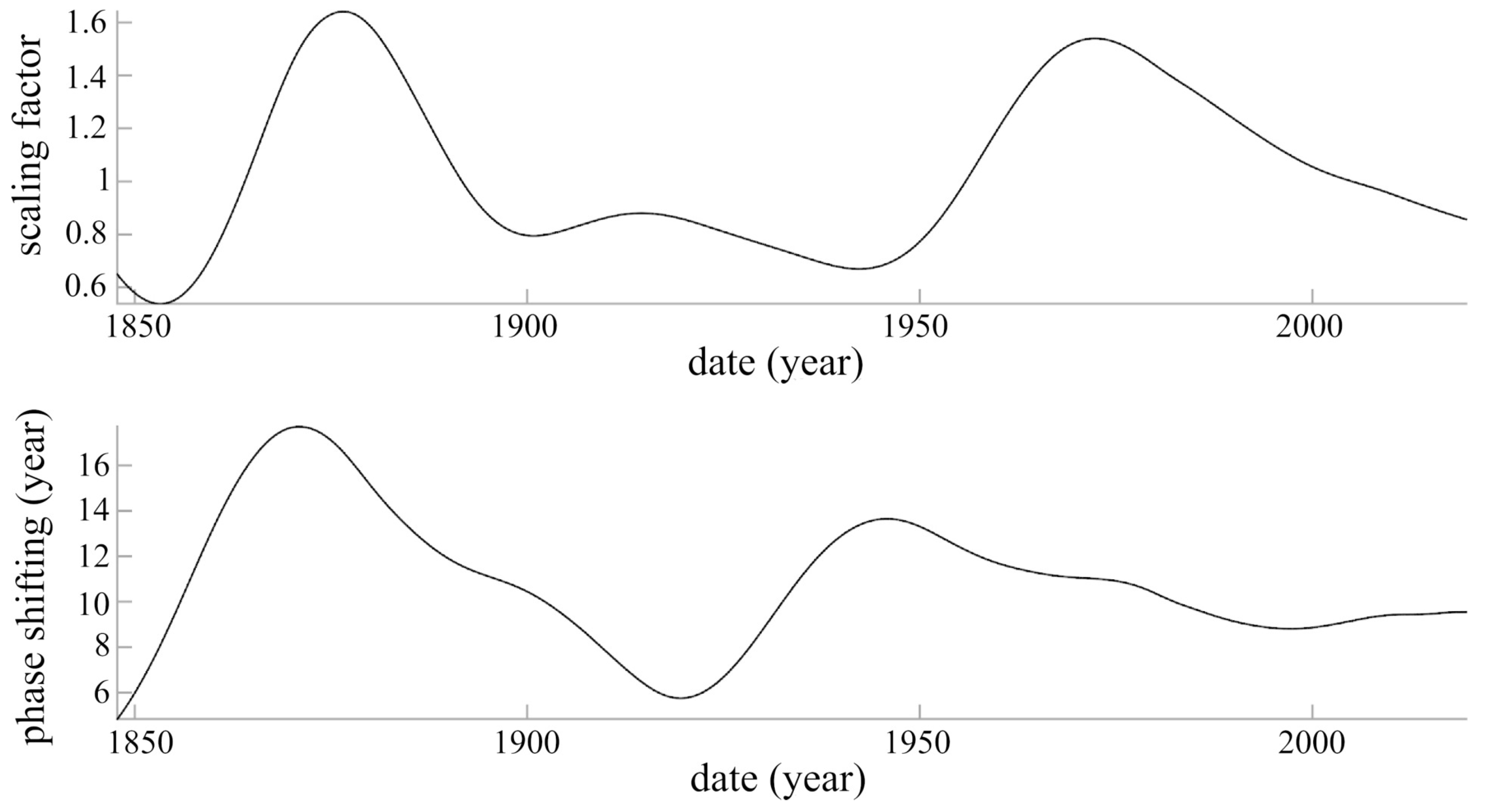

**m**and lod evolve in parallel. The larger differences occur between 1870 and 1890, and a century later between 1970 and 1990 (Figure 5 top). The largest “jump” in both lod (4 ms) and pole motion (8 × 10

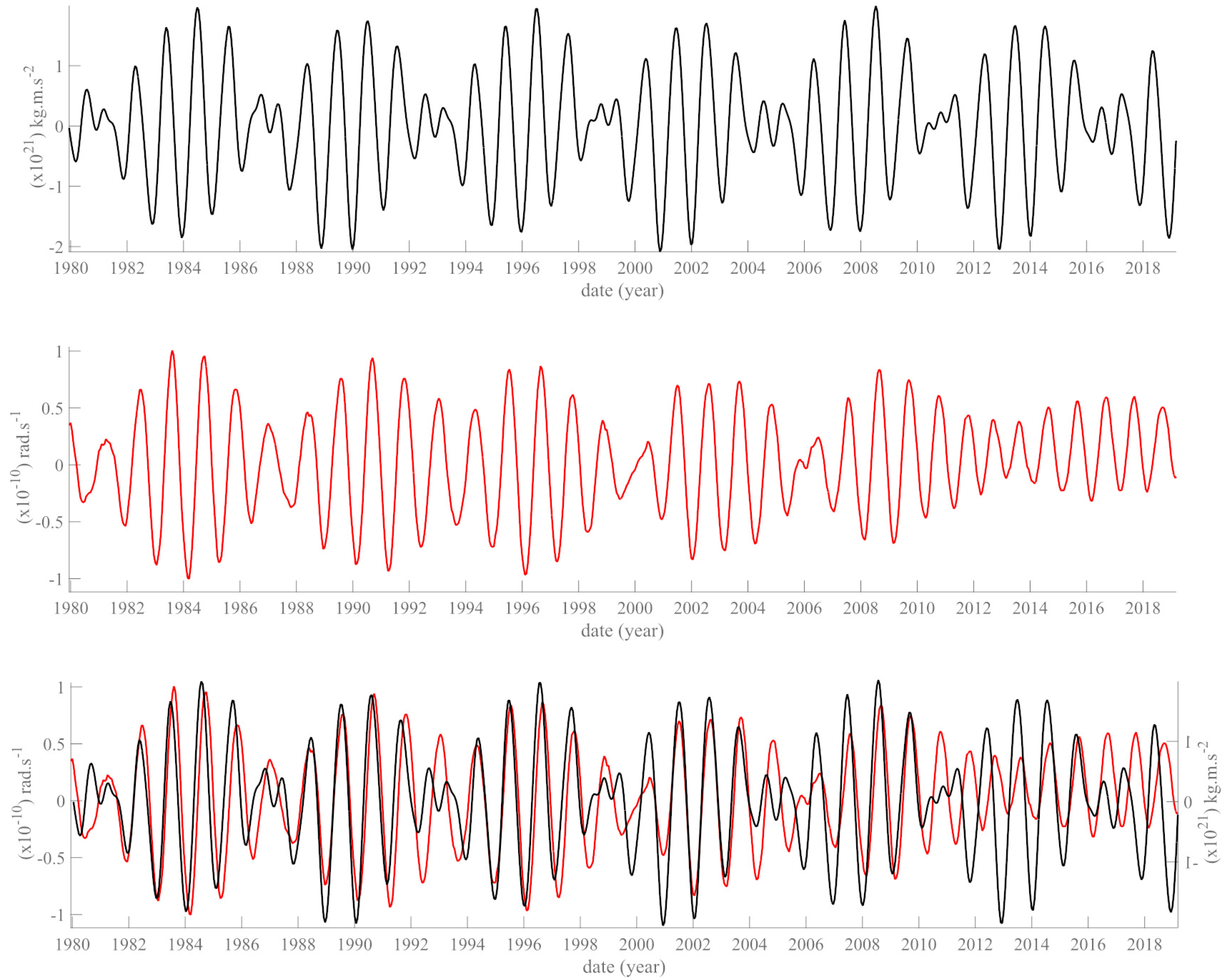

^{−3}″/yr) takes place between 1870 and 1900 (Figure 4c). The phase shift of that operator ranges between 6 and 16 years and averages 10.7 ± 3.0 yr. Note that during the period between 1920 and 1940, when the amplitude factor is close to a minimum (∼0.7), the Chandler free oscillation of polar motion suffers a well-known phase jump of $\pi $.

## 4. Discussion and Concluding Remarks

**SSA**analysis of lod using more than 50 years of

**IERS**observations, Le Mouël et al. [16] find nine components, all likely astronomical—thus external to the Earth (“trend”, ∼80 yr, 18.6 yr, 11 yr, 1 year, 0.5 yr, 27.54 days, 13.66 days, 13.63 days, 9.13 days). The QBO at 2.36 yr is interpreted as a Sun-related oscillation. The lunar components at 13.63 and 13.66 days could contain a solar contribution. The longer periods, 1 yr, 11 yr, 18.6 yr and ∼80 yr (Markowitz, Figure 4c) are common to lod and polar motion. If the link between the two is as established by Laplace [1], then the straightening of the inclination of the axis of rotation swould should accompany a decrease in lod, and indeed the Earth currently s.The Earth indeed straightens up (cf. Stoyko [29] and Figure 3b). Also, if this link is valid, all the components with extraterrestrial periods should be present in the series of sunspots; and indeed they are (e.g., Courtillot et al. [6]). As far as quasi annual components of sunspots are concerned, there is no exact 1 yr line, but two nearby lines with periods 0.93 and 1.05 yr (Le Mouël et al. [34], Table 1),that could be luni-solar commensurabilities (365.25-28)/365.25 = 0.92 and (365.25 + 28)/365.25 = 1.07, 28 days being the Moon’s synodic period (cf. Courtillot et al. [6]; Lopes et al. [7]; Bank and Scafetta [35]). Can a sufficiently strong source of energy be found? Indeed it has been known for some time (e.g., Dickman [36]; Chao et al. [37]; Varga et al. [38]) and confirmed recently by Le Mouël [16] that the components with luni-solar periods found above account for 95% of the total variance of the lod signal.
