Comparison of Applications to Evaluate Groundwater Recharge at Lower Kelantan River Basin, Malaysia

Abstract

Groundwater has supported 70% of the water supply at the Lower Kelantan River Basin (LKRB) since the 1930s and demand for groundwater increases annually. Groundwater has been abstracted from shallow and deep aquifers. However, a comprehensive study on groundwater recharge estimation has never been reported. This study evaluated various methods to quantify recharge rate using chloride mass balance (CMB), water table fluctuation (WTF), temperature–depth profiles (TDP), and groundwater modelling coupled with water balance (GM(WB)). Recharge estimation using CMB, WTF, TDP, and GM(WB) showed high variability within 8% to 68% of annual rainfall. CMB is range from 16% to 68%, WTF 11% to 19%, TDP 8% to 11%, and GM(WB) 7% to 12% of annual rainfall, respectively. At 11%, recharge from GM(WB) was the best method for estimation because the model was constructed and calibrated using locally derived input parameters. GM(WB) is the only method involved with calibration and validation process to reduce the uncertainty. The WTF method based on long-term hydrological records gives a reasonable recharge value, in good agreement with GM(WB) and these methods can be paired to ensure the reliability of recharge value approximation in the same ranges. Applying various methods has given insight into methods selection to quantify recharge at LKRB and it is recommended that a lysimeter is installed as a direct method to estimate recharge.

1. Introduction

Groundwater resources are used by approximately 2.5 billion people in the world to support their daily needs [1]. Groundwater has been abstracted ~986 km³/year (60%) worldwide and most of this for agricultural, domestic, and industrial uses [2]. Over exploitation of groundwater has introduced unprecedented groundwater stress problems in some regions. The greatest stress on groundwater occurred mostly in arid and semi-arid areas of the world [3,4,5,6]. In the tropical region, groundwater stress has triggered or exacerbated land subsidence, aquifer compaction, groundwater depletion, salt water intrusion, arsenic contamination, and groundwater quality deterioration, as reported for the Chao Phraya River Basin, Mekong River Basin, the Greater Jakarta Basin, Irrawaddy Delta, Bengal Mega Delta, and others [7,8,9,10]. The stress becomes worse especially during periods of drought. The projection of global groundwater depletion during the twenty first century according to the influence of groundwater extraction costs and resources, ranges from 180 km³/year to 480 km³/year (restricted renewable water) and 110 km³/year to 210 km³/year (expanded renewable water), which is lower than the 2050 prediction and also less than models predicted by [11,12] detailed in [13]. The stresses on groundwater are still increasing and present considerable risk and uncertainty. Whether there will be a sufficient groundwater in the future with good quality is still undetermined.

One of the key elements for sustainable groundwater resource management is groundwater recharge. Groundwater recharge is the process where water infiltrates into subsurface until it reaches the water tables forming an addition to the groundwater reservoir [14,15,16]. Recharge processes can occur either as diffused recharge or focused recharge [16]. It is challenging to measure the natural recharge directly and accurately because the processes vary in spatial and temporal variability, climate, soil and geology, surface topography, hydrology, vegetation, and land use of the study area [17,18,19,20,21]. Climate change and urbanization are the main factors that can reduce the groundwater recharge rate [6,22,23,24]. Information related to groundwater recharge will help to manage an over extraction of groundwater and prevent groundwater stress in order to sustain the resources. In some regions, managed aquifer recharge (MAR) has successfully overcome and improved the quantity and quality of groundwater [25,26].

Numerous methods or techniques have been applied and developed to estimate the recharge either using water budget, surface water data, modelling, physical (unsaturated and saturated), and tracers (chemical, isotopes, or heat) [19,20,27,28,29,30,31,32,33]. Reference [16] has compiled and provided detailed explanation on critical evaluation or understanding of the theory and assumption that underlie each method for estimating groundwater recharge in various hydrologic zones and climates. Through reviews, methods are widely applied in arid and semi-arid regions but less in humid and sub-humid regions. In addition to the methods described above, and not included by [16], the application of remote sensing and geographic information system (GIS) for estimates of groundwater dynamics has gained much interest and attention from researches [4,5,6,34,35]. References [4,6] utilized water manager data along with satellite information from GRACE (NASA) and model simulations to predict groundwater fluctuations and to estimate how the cascading effect of the hydrologic cycle results in groundwater depletion and recharge, respectively. Reference [5] monitored the land subsidence caused from both short-term and long-term groundwater depletion and recharge based on satellite data. Spatial decision-making technique, which is a combination of remote sensing, GIS, and analytic hierarchy process (AHP), has been applied in groundwater management studies to solve complex groundwater related problems (e.g., mapping the groundwater recharge suitability zones) [34,35]. Most of the studies applied multi-methods to quantify the recharge rate. The use of various methods enables us to improve understanding of recharge in the hydrogeological system locally and regionally that can provide a more reliable recharge estimation even though different methods have their own assumptions and limitations. Consideration of data availability for method selection is important as many regions often have insufficient data on record from either primary or secondary sources [16,18,36].

In Malaysia, the utilization of groundwater is relatively low at only 3% [37] because surface water is the main source of water supply. Therefore, there are no comprehensive studies related to groundwater recharge estimation for Malaysia except using water balance study. In Kelantan, especially at LKRB, groundwater resources have been utilised since 1935 [37] and the groundwater demand has risen till the present time with 70% utilization. In order to meet the increase in water demand usage, water operator, Air Kelantan Sdn. Bhd. (AKSB), has constructed a river bank filtration (RBF) system in a few places and is planning to construct river barrage and subsurface storage dam (groundwater dam) within the basin in the future [38]. The aim of this study was to apply and compare various methods to quantify recharge rate using chloride mass balance (CMB), water table fluctuation (WTF), temperature–depth profiles (TDP), and groundwater modelling coupled with water balance (GM(WB)) and to evaluate the best methods to be applied to quantify the recharge rate that is suitable for tropical humid areas. The paper comprehensively contributes to the field of hydrogeological research justifying the confidence level regarding the rates of recharge component into the regional aquifer. The detailed studies on the groundwater recharge are essential to improve the understanding and estimation of this climatic variable. These results will be valuable as a baseline study to enlighten the understanding of groundwater recharge rate for sustainable groundwater resources management at LKRB and throughout Malaysia.

2. Study Area

2.1. Location and Climate Condition

Lower Kelantan River Basin (LKRB) is situated in the northeast coast of the Malaysian Peninsula with an area of approximately 1450 km². The basin is bounded by Thailand at the northwest, South China Sea in the north and east, and Southern Kelantan area in the south as shown in Figure 1a. LKRB has flat topography with mean elevation of 7 m above sea level (ASL). The maximum elevation in the basin of the hilly area is located at the southwest with an elevation about 40 m ASL while the elevation is approximately 100 and 192 m ASL at the southeast. LKRB experiences a humid tropical climate, controlled by two monsoon seasons. The southwest Monsoon occurs between April to October often bringing less rainfall whereas the northeast Monsoon from November to March frequently generates high rainfall intensity over the study area. The annual rainfall recorded from 22 rainfall stations varies between 2400–3110 mm with mean annual of 2774 mm. The mean annual temperature (1968–2013) is 27 °C ranging from 26.2 °C to 27.9 °C, while the mean relative humidity (1968–2013) is 82% ranging from 79% to 85%. The mean surface wind speed (1979–2013) is 2.2 m/s ranging from 1.3 m/s to 2.7 m/s. The river discharge of Kelantan River is estimated from Gulliemard Bridge station about 22 km along the reaches outside the study area boundary. This is the only station close to the LKRB. The mean annual river discharge from 1979 to 2013 was 478 m³/s ranging from 308 m³/s to 679 m³/s.

2.2. Geology and Hydrogeology Conditions

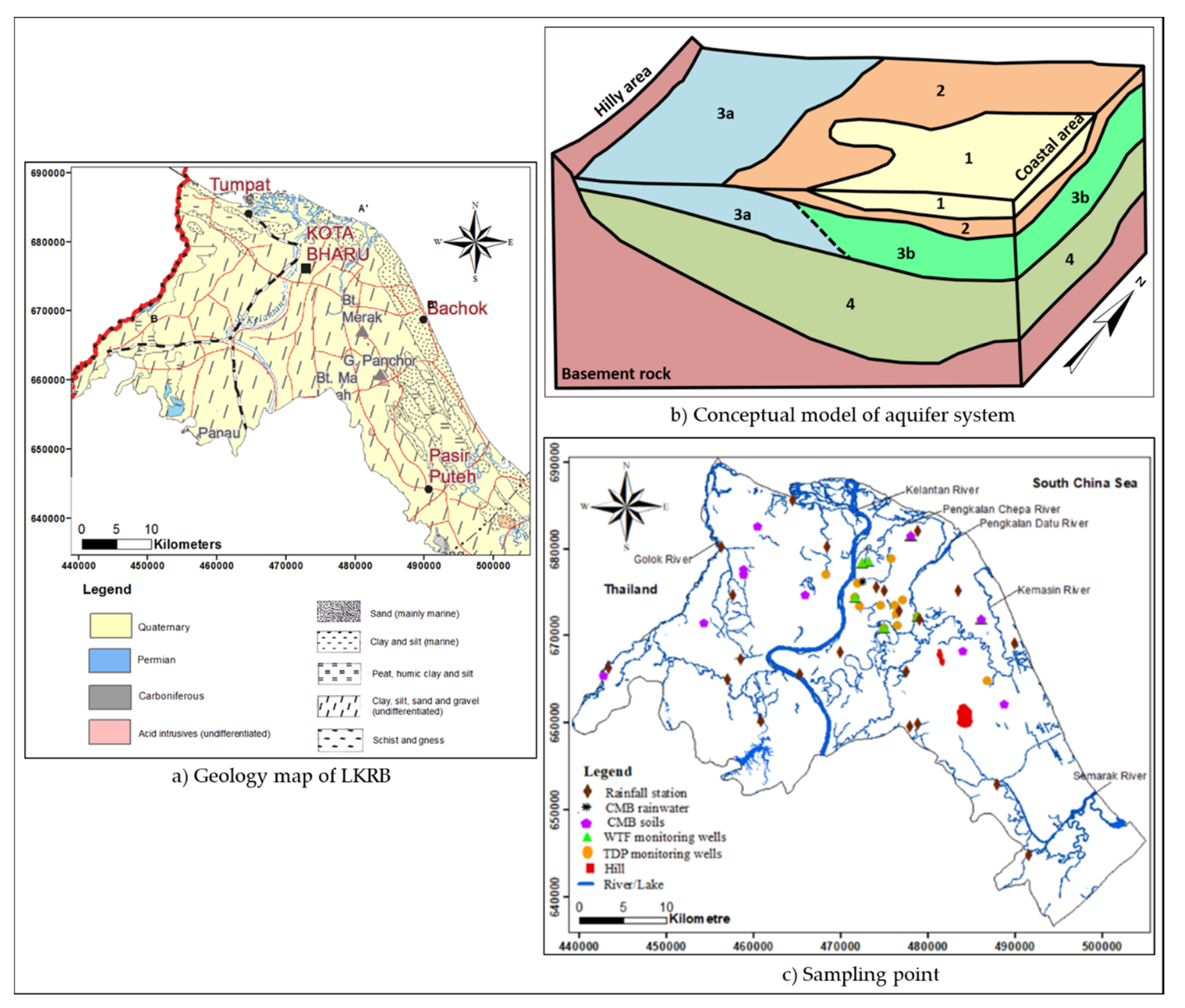

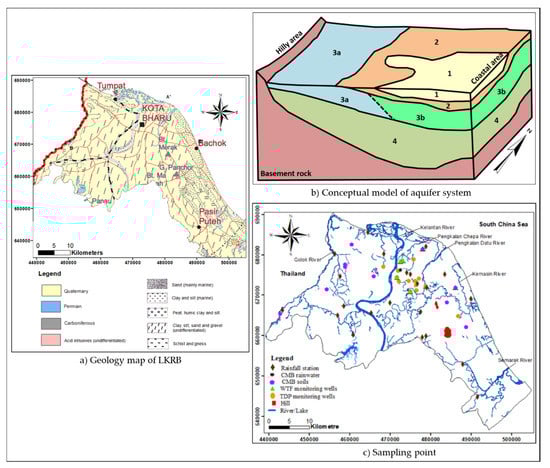

The study area is covered by alluvium deposits of Quaternary age as shown in Figure 1a and underlain by granite and metamorphic as bedrock. The deposits of Pleistocene and Holocene mainly consist of unconsolidated to semi consolidated gravel, sand, clay, and silts that occupy in the north of Kelantan state and along the river valley [39]. The first 13 to 15 m deposit is recent in age [40,41] and composed of silty to clay. Towards the coast, the thickness of alluvium may reach up to more than 200 m [42] and it forms a shape like a thick wedge towards the sea. This sediment is complicated and made up of interstratified and intercalated deposit with marine and non-marine strata [43]. The mixtures of marine and non-marine sediment build of due to sea level changes during the Quaternary age [44].

According to the hydrogeological map, this area is indicated as fresh water and classified as a very high aquifer potential area [45]. The aquifer system consists of four aquifer units [46] as shown in Figure 1b. This conceptual model aquifer system is proposed in groundwater modelling (see Section 3.4 and Section 4.4). The aquifer system consists of four aquifer units [46] as shown in Figure 1b. Unit 1 is the shallow unconfined aquifer, followed by Unit 2, which is the protective clay layer, Unit 3a and 3b which are the gravely sand and sandy silty clay, respectively, and then Unit 4, which is the coarse sand confined aquifer. The hydraulic conductivity ranges from 10⁻² to 10⁻³ m/s, 10⁻⁶ to 10⁻⁸ m/s, 10⁻⁴ to 10⁻⁶ m/s, 10⁻⁵ to 10⁻⁷ m/s, and 10⁻⁴ m/s, for units 1, 2, 3a, 3b, and 4 [46].

3. Materials and Methods

This study applied four methods to quantify groundwater recharge, which are chloride mass balance, water table fluctuation, temperature–depth profiles, and groundwater modelling coupled with water balance. The following section will briefly explain sampling, analysis, and data collection related to each method.

3.1. Chloride Mass Balance, CMB

CMB has been widely applied especially in arid and semi-arid areas [48,49,50,51,52,53] because of its simplicity and inexpensiveness. Chloride ion is known as a conservative natural tracer because of its property, which neither leaches from, nor is absorbed by, the sediment particles, is highly soluble (high solubility) in water, and is rarely found in solid phase. It does not react with geochemical or biochemical reaction processes during its movements through an unsaturated zone to at saturated zone and is not taken up by plants (root zones) during evapotranspiration process that will contributes to an accumulation of chloride in soil moisture [16,54,55,56]. The sources of atmospheric chloride are from wet and dry deposition in which wet deposition occurs when chloride ions are entrained in rainwater or snow while dry deposition is from the sea breeze [16,57]. Chloride ions from dry deposition are able to deposit up to 100 km inland from coastal area and can be negligible or low in effect because the aerosol size are washed out by precipitation especially in tropical areas with high rainfall intensity [57,58,59]. The only source of chloride in soil and groundwater is assumed from precipitation and not from weathering or anthropogenic sources [60]. If this assumption is valid, it follows that the chloride ion can adequately trace groundwater recharge processes and can thus provide reasonable estimates of groundwater recharge for understanding of the hydrological system. Its reliability therefore, hinges on the compatibility of the precipitation event that recharged the system under the study and recent precipitation [61]. Equation (1) was used to estimate recharge (R) using CMB method.

R = P × (Cl_P/Cl_uz)

(1)

where R is recharge (mm/year), P is annual average rainfall (mm/year), Cl_P is the weighted average of chloride concentration (mg/L) in rainfall, and Cl_uz is the average chloride concentration in pore water of the unsaturated zone profile (mg/L) and/or in groundwater. The weighted average chloride in rainfall (Cl_P) was calculated according to the following equation:

Cl_P = P₁ × C₁+.......+ P_n × C_n / (P₁ +.........+ P_n)

(2)

where P₁ is the first rainfall event (mm) and C₁ is the corresponding chloride concentration in the rainfall (mg/L) in the area for 1 to n events. To determine the weighted chloride average for each hydrological year, the chloride concentration of each rainfall event is first multiplied by the amount of rainfall. The summation of these individual components is then divided by the total annual rainfall. There are several potential limitations of the CMB application [62]. The mass flux of chloride flowing on or off the terrain feature at the sampling area is uncertainly quantified. The aquifer system is probably not in the steady-state condition for input mass flux of chloride. CMB does not measure the total recharge as the unmeasured component that possibly occurs through leakages from other aquifers.

A total of 11 samples were collected for chloride analysis: 1 sample of rainwater and 10 samples of soil from the unsaturated zone within the basin as shown in Figure 1c. The data were collected between 2012 and 2015. Rainwater was collected at LRA Kg. Puteh using simple and temporary rain gauge of 25 L and 500 mL with paraffin oil used to prevent evaporation of rainwater. Chloride concentration in rainwater was measured at LRA Kg. Puteh laboratory and at the Department of Geology, University of Malaya. The soil samples were collected using hand auger and soil cores until reaching the water table. The soil samples were removed from steel cores at the Department of Civil Engineering, University of Malaya, then were sliced at 10 cm each and dried at 105 °C for 48 h. Dry soil samples were separated for 1) grain size analysis and 2) chloride concentration analysis [63]. Grain size analysis was performed according to the BS1377 (1990) method using a mechanical sieve apparatus to determine the distribution of the coarser particles. The fine particle (<63 micron) content was analyzed using a MALVERN MasterSizer (Malvern Instruments Ltd., UK). For chloride analysis, the dry soils needed to be grained to produce homogenised samples using pestel and mortar and automatic grinder (Retsch, Germany). Ultra-pure water (UPW) was added to the grained soil samples in a 1:1 or 2:1 ratio. Samples then were agitated on a reciprocal shaker table for 8 h. This was followed by samples centrifugation at 5000 rpm for 10 min at the Department of Mechanical Engineering, University of Malaya. The supernatant was filtered through 0.45 μm filters and chloride concentration was analyzed using ion chromatography (Metrohm, Switzerland).

3.2. Water Level Fluctuation, WTF

WTF has been applied by many researchers and modified in time series analysis for estimating groundwater recharge [64,65,66,67,68,69] within different climate conditions. The application of the WTF method requires knowledge of the specific yield and changes in groundwater levels caused by recharging aquifer [16,70]. Because of the abundance of available groundwater level data and the simplicity of estimating recharge rates from temporal or spatial patterns of water level, [70] had attributed a wide use of this method. The WTF method is best applied in estimating recharge over a short time period in an area with shallow unconfined aquifer that shows a sharp rise and fall of groundwater levels [18,69,70] due to rainfall events. This method is simple, easy to use, and there is no assumption made on the mechanism of water movement through the unsaturated zone. The occurrence of preferential flow path does not limit the application and the estimated recharge rates are able to represent an area of several to thousand square meters. The recharge estimate using WTF method gives the actual value and it is more reliable compared to potential recharge estimation by other methods [68]. Because of the simplicity of the method, many approaches for WTF have been studied and modified in time series analysis for estimating groundwater recharge [67,71,72,73] in order to improve the accuracy of the estimation. The WTF was applied to estimate groundwater recharge in saturated zones from groundwater level time series data. WTF is based on the premise that rises in groundwater levels in unconfined aquifers are due to recharge water arriving at the water tables [16]. The recharge was calculated as below:

ΔSgw = R = SyΔhΔt

(3)

where ΔSgw: changes in storage, R: recharge, Sy: specific yield, Δh: changes in water table, and Δt: period of time interval. The graphical approach was used to determine the groundwater level rise (Δh). The equation assumes that the water arriving at the water table goes immediately into storage and all other water-budget components are zero during the period of recharge. For each individual water level rise an estimation of total or gross recharge will generated. To determine the total recharge, Δh is set equal to the difference between the peak of the rise and low point of the extrapolated antecedent recession curve at the time of peak. The difference between recharge and net recharge in subsurface storage is equal to the sum of evapotranspiration from groundwater, baseflow and net subsurface flow from the site. The antecedent recession curves are extrapolated manually based on visual inspection of the entire data set. This approach involves more subjectivity and different users no doubt would produce slightly different recession curves [65]. The application of WTF has a few limitations [74]. The WTF method generally quantifies the recharge under a natural condition without considering changes of water table from pumping activities. The specific yield (Sy) of aquifer has to be known beforehand. The process to acquire the parameter is related to pumping tests.

In total, 14 monitoring wells (Figure 1c) belonging to the Mineral and Geosciences Department (MGD) were selected to quantify the recharge. All monitoring well sites were in shallow aquifer (Layer 1) with depth ranging from 9.4 m to 17 m. The wells were selected based on long-term groundwater level data availability within 1991 to 2008. Only monitoring wells with 96% and 100% of available data were used to estimate the groundwater recharge. Seven water years (WY) were identified; 1991–1992, 1992–1993, 1993–1994, 1994–1995, 2000–2001, 2004–2005, and 2007–2008, each from May until the following April, respectively.

3.3. Temperature-Depth Profiles, TDP

Research on the use of temperature started way back in the 1960s [75,76,77,78]. Since then, the number of studies has increased in the application of temperature to study groundwater–surface interaction within the streambed [79,80,81], climate (past and future), and land use (deforestation/urbanization) changes [82,83,84,85,86] and groundwater flow (recharge and discharge) [31,87,88,89]. Heat flow in the subsurface is closely related with the movement of water because groundwater transports thermal energy and disturbs the subsurface thermal regime not only by conduction but also by advection caused by the groundwater movement [90,91]. Various analytical solution such as 1-dimensional (1D), 2-dimensional (2D), and 3-dimensional (3D) and groundwater modelling have been applied and improved to examine the behavior of subsurface temperature profiles [76,78,86,90].

Heat in subsurface layers is principally distributed by conduction and advection caused by recharging or discharging water flow. The upward heat from the interior is influenced by the high aquifer temperature compared to the ground surface temperature. The governing equation representing the heat exchange of subsurface in response to an incompressible fluid flow through homogenous porous media is expressed as Equation (4) [88,92,93].

$$\frac{{\partial }^{2}T}{\partial z^2}-\left(\frac{U}{\alpha }\right)\frac{\partial T}{\partial z}-\left(\frac{1}{\alpha }\right)\frac{\partial T}{\partial t}=0$$

(4)

where T denotes the temperature, z represents the depth below the ground surface (positive downward), t signifies the time, α is the thermal diffusivity of the aquifer, and $U=v{c}_0{\rho }_0/c\rho$, in which v is the vertical groundwater flux and $c_0{\rho }_0$ and $c\rho$ are the heat capacity of water and aquifer, respectively. Under the condition of a linear increase in subsurface temperature, the analytical solution for one-dimensional heat conduction–convection found in [78] was applied as Equation (5). The modelling is limited to semi-infinite layers with only vertical conduction and convection, and vertical groundwater flux is assumed to be constant with depth [88].

$$\begin{array}{ll}T(z,t)=& T_0+T_G\left(z-Ut\right)+\left[\left(b+T_G\right)/2U\right]\{\left(z+Ut\right)e^{Uz/\alpha }erfc\left[\left(z+Ut\right)/2{\left(\alpha t\right)}^{1/2}\right]\\ & +\left(Ut-z\right)erfc\left[\left(z-Ut\right)/2{\left(\alpha t\right)}^{1/2}\right]\}\end{array}$$

(5)

The T₀ is set as 27 °C and this is considered as the mean annual surface air temperature because there is no available long-term data on ground surface temperature at LKRB. Surface temperature usually changes according to the change in air temperature [88]. The geothermal gradient, T_G, of 0.045 °C/m is used in the calculation based on the ranges of geothermal gradient at Penyu basin 0.036 °C/m to 0.055 °C/m [94]. The thermal diffusivity, α is 6.5 × 10⁻⁷ m²s⁻¹ is adapted from [95]. One hundred years (t) is considered as the time after semi equilibrium and the increase in surface temperature at LKRB; b is 0.0162 °C/year. U = vc₀ρ₀/cρ where v is the vertical groundwater flux, c₀ρ₀ is the heat capacity of water, and cρ is the heat capacity of aquifer while erfc is the complementary error function. Different U values were used to compute the calculated TDP. The positive U value will show the downward movement of groundwater flow (recharge) while the negative U value will represent the upward movement of groundwater flow (discharge). The limitations of the TDP method are notified [96]. The vertical groundwater flux is constant throughout the unlimited depth. The assumption does not take into account that the flux along the vertical direction is decreasingly reduced in depth and along high-hydraulic-conductivity aquifer materials. The groundwater flux is set at the steady state even if the subsurface temperature is in the transient condition. The assumption does not consider the fact that the groundwater flux seasonally varies leading to the limitation of heat transfer application. The TDP method constrains the vertical heat transfer; however, the lateral heat advection and diffusion due to groundwater flow or fracture flow significantly invalidate the application. The thermal properties of subsurface media are homogenously generalized, but the vertical thermal properties of aquifer materials are varied. Therefore, the accuracy of TDP method is possibly affected by the assumption.

In total, 21 MGD monitoring wells were used for subsurface temperature profile studies as shown in Figure 1c. The temperature within wells was measured at a depth interval of 1 m. The well depth ranged from 15 m to 150 m with screen length ranging from 1 m to 9 m and well diameter of 2” to 6”. A small diameter of wells will ensure that there is no significant occurrence of free convective flow [87]. Most of the monitoring wells were drilled before the 1980s and included wells lid. Therefore, the water temperature in the wells represents the temperature of groundwater surrounding the wells.

3.4. Groundwater Modelling, GM(WB)

The groundwater flow model has been widely applied as a useful tool for professional hydrogeologists to solve the governing partial differential equations of groundwater flow, salute transport, and heat transport processes for the past three decades [97,98,99,100]. The application of groundwater flow models has been tested in this study. The groundwater model of Visual MODFLOW Classic Interface 4.6.0.168 from Waterloo Hydrogeologic was applied to analyze the recharge. The modular finite-different flow model (MODFLOW) established by the United States Geological Survey (USGS) is one of the components of the software. MODFLOW was developed based on the principle equations of Darcy’s Law and conservation mass equations. The governing partial-differential equation for the groundwater movement with constant density in a confined aquifer is described as Equation (6) [101].

$$\frac{\partial }{\partial x}\left(K_{xx}\frac{\partial h}{\partial x}\right)+\frac{\partial }{\partial y}\left(K_{yy}\frac{\partial h}{\partial y}\right)+\frac{\partial }{\partial z}\left(K_{zz}\frac{\partial h}{\partial z}\right)+W=S_s\frac{\partial h}{\partial t}$$

(6)

where h is the groundwater head in (L); t is the time (T); S_s is the specific storage of the aquifer material (L⁻¹); W represents volumetric flux per unit volume of sources and/sinks of water as W < 0 for outflow from the groundwater system and W > 0 for inflow into the system (T⁻¹); and K_xx, K_yy, and K_zz are the hydraulic conductivity along x, y, and z coordinate axes (L/T), respectively. Equation (6) is developed into the finite-difference form based on the aquifer domain discretised into rows, columns, and layers [101]. Waterloo Hydrogeologic Solver (WHS) iteratively approximates the solution of the finite-difference equation of groundwater flow through a Bi-Conjugate Gradient Stabilized (Bi-CGSTAB) acceleration routine [102]. In GM(WB) application, there are several limitations to implement the method. Hydrogeological variables are comprehensively considered; however, GM(WB) depends significantly on a complexity of groundwater flow equation representing the groundwater flux in the system. For the MODFLOW code, the groundwater recharge is predefined as an input parameter. The justified rate contributes to the calibrated and validated simulation. On the other hand, MODFLOW-SURFACT improved code of MODFLOW is able to handle the groundwater flow in unsaturated and saturated zones, i.e., the groundwater recharge is spatially and temporally quantified [103,104].

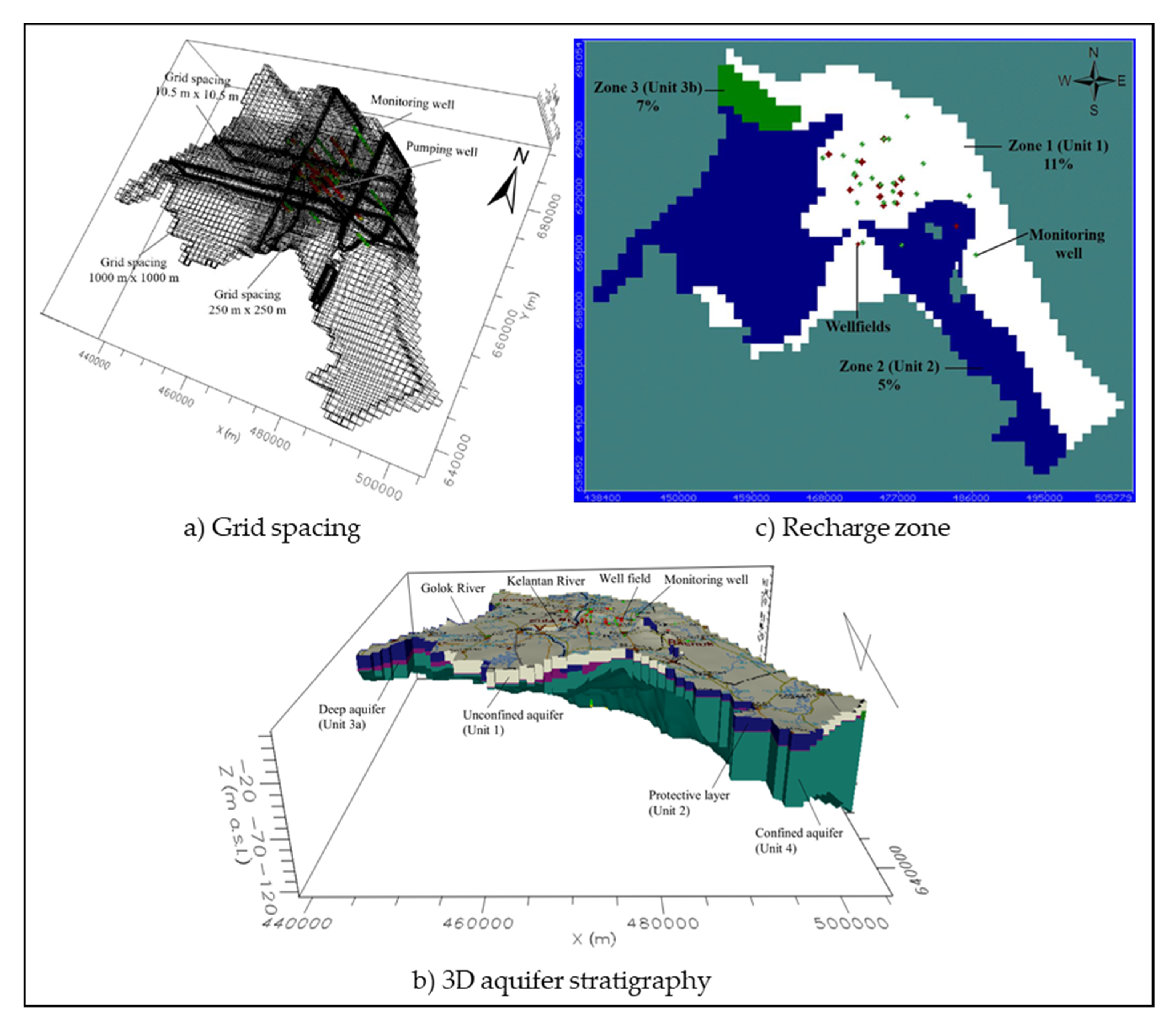

The regional LKRB boundary (Figure 1a) was used as a model area in the simulation. The model area discretization consisted of 155 columns and 144 rows as shown in Figure 2a. The general grid size was 1000 m × 1000 m. The grid was refined into 250 m uniform spacing between nodes around the active pumping wellfields and 10.5 m uniform spacing between nodes in the area around Kg. Chap and Pintu Geng wellfields. The grid spacing was refined into smaller grid size especially near the area of interest. The 3D distribution of aquifer stratigraphic units representing the natural heterogeneous condition of the aquifer system in the numerical simulation is presented in Figure 2b (see Section 2.2).

In the numerical simulation, two types of boundary conditions (BC) were assigned: Dirichlet-type BC (Constant head BC) and Neumann-type BC (Recharge BC, river BC, and no-flow BC). As in Figure 1a, the South China Sea in the north-eastern boundary of the modelled area was assigned as constant head BC as well as Lemal River connected to Tok’ Uban Lake. River BCs were assigned at the western side of the study area (Golok River) and rivers in the area, e.g., Kelantan River, Pengkalan Chepa River, Pengkalan Datu River, Kemasin River, Mulong River, Ketereh River, Semarak River, Lemal River, and Meranti River. All riverbed materials were suggested to have the hydraulic conductivity (Kr = 10⁻⁴ m/s). Tok’ Uban Lake has been assigned as River BC with the different value of riverbed conductivity (Kr = 10⁻⁶ m/s) because it is an artificial reservoir where the bed materials are the protective unit (Unit 2). The southern part of the modelled area and both mountains were assigned as no-flow BC.

For the recharge BC, it is recommended that a value between 5 to 20% of the annual rainfall is a reasonable percentage for the groundwater recharge [105]. Recharge BC was assigned accordingly on the available aquifer units that were exposed on the ground surface which were zone 1 of Unit 1, zone 2 of Unit 2, and zone 3 of Unit 3b, respectively, as shown in Figure 2c. The recharge used in this groundwater modelling is estimated from a water balance study [106] by considering 11% of annual rainfall. The mean annual rainfall recorded from 22 rainfall station (1989–2000) was 2708.95 mm/yr. 11% of recharge was assigned for zone 1, while for zone 2 and zone 3 the percentages of recharge were lower than for zone 1, depending on the hydraulic conductivity (see Section 2.2).

The location of monitoring wells and well fields is shown in Figure 2b. In total, forty-nine (49) piezometer head of MGD monitoring wells were with long-term records from 1989 to 2000. The total withdrawal of groundwater from 14 wellfields was approximately 256,777 m³/d. The accumulated pumping rates were used in the model calibration processes.

Model calibration was carried out under steady-state condition resulting in changes or refinement in the conceptual model. Model input parameters were changed to achieve a better representation of the physical system [107] or in other words, to match the field conditions at a site so it was properly characterized. Calibration was run repeatedly following the standard trial-and-error method [108]. After the model was calibrated, it was validated using a new data set to test the calibrated model. Sensitivity analysis was performed on calibrated model to determine the effect of parameter variation on the model results by quantifying the uncertainty in the calibrated model caused by uncertainty in the estimates of aquifer parameters, stresses, and boundary conditions. This is a method to identify the most influenced parameters on the model simulation and helps to achieve better calibration results that give satisfaction to the modeller themself. This analysis will provide a modeller with an understanding of the level of confidence in model results and is used to identify data deficiencies [107]. The performance of calibrated and validated model and sensitivity analysis were considered through the graphical fit between calculated heads and observed heads or statistical comparison of root mean squared (RMS), correlation coefficient (R²), residual mean (RM), and absolute residual mean (ARM) [108].

4. Results

4.1. Chloride Mass Balance, CMB

The only source of chloride deposition is from the rainwater. No data of chloride via dry deposition has been recorded at LKRB. It is believed that with the high amount of rainfall in the basin, dry chloride deposition (aerosol) can be rained out from the cloud or washed out by the falling rain drops [58]. The highest chloride deposition was measured in the month of April with 10.33 mg/L and the lowest was measured in November with 1.77 mg/L. It can be said that chloride deposition is high during the dry season and vice-versa, which indicated that circulation of the south-west monsoon brings along high chloride aerosol to be deposited at LKRB. The weighted average of chloride concentration in rainwater (Cl_P) was calculated using Equation (2). The weighted mean annual chloride, Cl_P concentration in rainwater was 1.18 mg/L. This value was used as an input parameter to estimate the groundwater recharge using Equation (1).

Table 1. Summary of soil samples depth to water level, chloride concentration and percentage of particle size.

Code	Depth to Water Level (m)	Chloride Concentration, Cuz (mg/L)	Particle Size Distribution (%)
			Sand	Silt	Clay
2013
S1	1.71	8.38–11.60	92.47–98.85	0.68–1.83	0.47–5.70
S2	0.65	13.27–17.12	48.26–98.12	0.28–17.13	1.60–34.61
S3	1.30	2.83–10.36	94.78–97.45	0.37–0.58	2.18–4.82
S4	0.80	5.88–10.89	87.63–96.74	0.63–3.07	2.63–9.30
S5	1.26	1.66–3.34	97.83–98.86	1.02–2.03	0.12–0.31
2015
S1	1.42	2.06–13.27	91.42–98.47	0.39–1.95	1.02–6.63
S2	0.51	1.40–7.63	39.05–99.53	0.10–19.44	0.37–41.51
S3	1.5	0.21–15.04	93.44–97.14	0.22–0.50	2.54–6.12
S5	1.13	0.53–17.60	78.91–98.39	0.16–6.34	1.45–14.75
S6	1.65	0.05–10.16	43.25–98.99	0.19–18.97	0.82–51.38
S7	1.96	0.23–6.00	31.75–99.80	0.02–27.82	0.18–50.06
S8	0.76	0.57–4.97	6.61–51.90	8.10–26.56	34.56–81.98
S9	1.22	0.46–9.82	9.18–80.24	3.39–35.17	12.56–55.65
S10	0.71	0.99–6.71	63.34–93.50	1.04–9.63	5.47–27.02

summarises the soil profiles of depth to water level, chloride concentration, and percentage of particle size. The depth to water level of soil profiles, ranging from 0.65 m to 1.71 m, were recorded in a 2013 sampling campaign while 0.51 m to 1.96 m were recorded in 2015. In 2013, the sand particle ranges were from 48% to 99%, silt from 0.3% to 17%, and clay from 0.12% to 35%, while in 2015, the particle size can be divided into two groups: Group 1 had sand particle between 39% and 99%, silt between 0.10% and 19%, and clay between 0.40% and 42%. For group 2, sand particle were between 7% and 99%, silt between 0.02% and 35%, and clay between 0.2% and 82%, respectively. Group 1 is considered as an unsaturated soil profiles that contains more sandy texture covering the area of the eastern part (S1–S4) and upper (S5) and lower (S10) western parts of the LKRB. Group 2 contains more clayey silt in texture that covers the middle area of the western part (S6–S9) of the basin. This texture will slow the process of infiltrating rainfall into deeper zones in soil profiles [109]. Chloride concentration was between 1.66 mg/L to 17.12 mg/L in 2013, while in 2015 the range was from 0.21 mg/L to 17.60 mg/L. The variation of chloride concentration in soil profiles could be related to the changes of chloride input due to chloride deposition or man-made influenced [60]. The anthropogenic effects were not considered in this study. During rainfall events, chloride ions percolate with infiltrating water into unsaturated zones. The chloride ions in porewater tend to increase with depth through the root zone as a result of evapotranspiration because plants will exclude the chloride during the process and water will return to the atmosphere through bare-soil evaporation that is pure [16]. The concentrated chloride in the root zone later will be flushed downward by infiltrating rainfall which increases the chloride in the deeper profiles [110]. The downward movement and accumulation of chloride ions is influenced by the soil textures where profiles comprised of predominantly clay and silt will have slow process [109,110].

Recharge values were quantified using Equation (1). The percentage of annual recharge varies within the LKRB ranging from 13% to 68% of annual rainfall with a mean of 36% as presented in

Table 2. Recharge estimated using chloride mass balance (CMB) at different location.

Code	“Mean Chloride in Unsaturated Zone, Cuz (mg/L)”	Mean Weighted Chloride in Rainwater, CP (mg/L)	Rainfall * (mm)	Recharge (mm/yr)	Percent of Rainfall (%)
S1	7.48	1.18	2235.77	352.70	16
S2	9.31		2235.77	283.37	13
S3	7.51		2235.77	351.29	16
S4	2.15		2538.97	1393.00	55
S5	8.12		2235.77	324.90	15
S6	2.18		1932.56	1046.06	54
S7	1.74		1932.56	1310.59	68
S8	2.07		1932.56	1101.30	57
S9	2.97		1932.56	767.82	40
S10	3.72		1932.56	612.48	32
Mean				754.35	36

* Rainfall 2235.77 mm (average 2013 and 2015) while 1932.56 mm (2015 only).

. The distribution of recharge can be separated into the centre area of the western part that shows high recharge percentage ranging from 40% to 68% of rainfall while the eastern part, that includes the upper and lower area of western part, shows a low recharge percentage with 13% to 32% of annual rainfall, respectively. The mean recharge estimated in this study is within the range of humid tropical of 15% to 47% of the annual rainfall as studied by [111] at Phuket, Thailand, and Takounjou, Ndam Ngoupayou, Riotte, Takem, Mafany, Maréchal and Ekodeck [30], at Yaounde, Cameroon.

4.2. Water Level Fluctuation, WTF

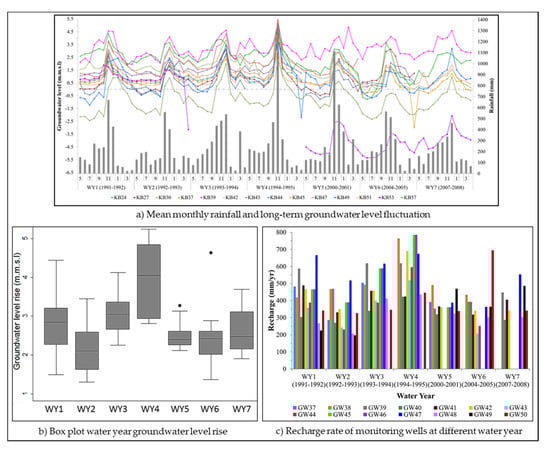

The fluctuation of groundwater in monitoring wells corresponds well with the monthly amount of rainfall received in the basin within 1991 to 2008 (Figure 3a). High groundwater levels can be seen through when rainfall is high and vice-versa. In general, the range of each groundwater level at sites was between −5.36 m to 5.53 m with a mean of −2.20 m to 3.18 m. The highest monthly rainfall is usually received in November and December when the north-east monsoon begins and causes flooding in several area within the basin. During the rainfall infiltration through the unsaturated zone, possible entrapment of air within the unsaturated zone can cause the “Lisse” effect at a depth of less than 1.3 m [67,70,112]. However, this effect can be negligible within the basin as most of the groundwater fluctuations are above 1.3 m below the ground surface and the effect is less in the coastal sandy environment.

Box plots of groundwater level rise (Δh) for each water cycle (Figure 3b), after having been extrapolated using graphical approach [65] (see Section 3.2), show ranges of groundwater level rise (Δh) for WY1, WY2, WY3, WY4, WY5, WY6, and WY7 of 1.50 m to 4.44 m with a mean of 2.80 ± 0.80 m, 1.31 m to 3.45 m with a mean of 2.18 ± 0.67 m, 2.26 m to 4.12 m with a mean of 3.12 ± 0.63 m, 2.81 m to 5.24 m with a mean of 3.97 ± 0.96 m, 2.12 m to 3.27 m with a mean of 2.52 ± 0.37 m, 1.37 m to 4.63 m with a mean of 2.46 ± 0.84 m, and 1.91 to 3.69 m with a mean of 2.63 ± 0.63 m, respectively. The annual rainfall of WY1, WY2, WY3, WY4, WY5, WY6, and WY7 was 2382 mm, 2297 mm, 2895 mm, 3521 mm, 3509 mm, 2590 mm and 2426 mm, respectively, with mean of a 2803 mm. Specific yield, Sy, value reported at LKRB ranges from 0.06 to 0.3 [41,46,113]. A constant Sy value of 0.15 was used to represent the LKRB to estimate the recharge. Using Equation (3) (see Section 3.2), the estimated recharge ranges were between 225 to 666 mm/yr representing 11% to 28% of annual rainfall, 197 to 518 mm/yr representing 9% to 23% of annual rainfall, 339 to 618 mm/yr representing 12% to 21% of annual rainfall, 422 to 786 mm/yr representing 12% to 22% of annual rainfall, 319 to 490 mm/yr representing 9% to 14% of annual rainfall, 206 to 694 mm/yr representing 8% to 27% of annual rainfall, and 287 to 554 mm/yr representing 12% to 23% of annual rainfall, respectively, for W1 to WY7 as shown in Figure 3c. The average recharge estimated according to monitoring wells ranged from 321 mm/yr to 540 mm/yr with a mean recharge of 425 ± 79 mm/yr representing 11% to 19% with 15% of the long term mean annual rainfall (2790 mm), as tabulated in

Table 3. Summary of estimated groundwater recharge (mm/yr and %).

Code	Rainfall (mm)	Recharge (mm/yr)	Percent of Rainfall (%)
GW37	2771	416	15
GW38	2866	510	18
GW39	2803	497	18
GW40	2803	333	12
GW41	2803	398	14
GW42	2803	429	15
GW43	2737	345	13
GW44	2737	370	14
GW45	2774	502	18
GW46	2921	540	18
GW47	2803	540	19
GW48	2803	321	11
GW49	2641	348	13
GW50	2803	404	14
Mean	2790	425 ± 79	15

.

The finding of a mean recharge of 15% annual rainfall is considered within the ranges reported for part of a humid area of Pampa plain, Argentina, with a range of 4% to 33% of annual rainfall and a mean of 14% and 18% at different Sy of 0.07 and 0.09, respectively [72]. [30] at Younde, Cameroon, which has a recharge that ranges from 1.4% to 12.3% with a mean 5.7% of annual rainfall and with the mean recharge of 20% annual rainfall was estimated for both Holocene and Pleistocene aquifer at Hanoi, Vietnam [73].

4.3. Temperature–Depth Profiles, TDP

The long-term mean annual air temperature recorded from 1968 to 2015 at Kota Bharu station has shown a linear increased trend of 0.76 °C/47 years (R² of 0.431) as shown in Figure 4a. This long-term record shows a warming trend following the general trend of global warming [114]. The increase of local warming trends is influenced by the urbanization process, especially in the Kota Bharu area where the growth of the urban population has resulted in redevelopment of agricultural land for urban use. There was no significant trend in the annual rainfall (mean annual 2619 mm) with increase of air temperature (Figure 4a). However, any anomalous annual rainfall amount might disturb the subsurface temperature by changing the groundwater recharge/discharge rates [85].

The depth to water level (bgl) was measured at sites in 2014 and 2015 and ranged from 1.60 m to 8.97 m with Layer 1 ranging from 1.60 m to 8.97 m, Layer 2 ranging from 2.86 m to 4.70 m, and Layer 3 ranging from 2.95 m to 5.50 m, respectively. According to the literature, most of the groundwater flux studies from steady state temperature–depth profiles are from deep aquifers with a depth of more than 200 m [31,82,90,115,116]. Therefore, the same concept is applied even though the maximum depth at LKRB is only up to 150 m and wells are not spatially distributed within the basin. The measured TDP is presented in Figure 4b with a range of subsurface temperature from 27.0 °C to 32 °C. An increase in temperature trend as the depth increases can be seen from the Figure 4b. This similar trend can be found in studies related to subsurface temperature [31,117,118]. The changes in the slope of the temperature–depth profile can possibly be attributed to the different thermal of aquifer layer [86].

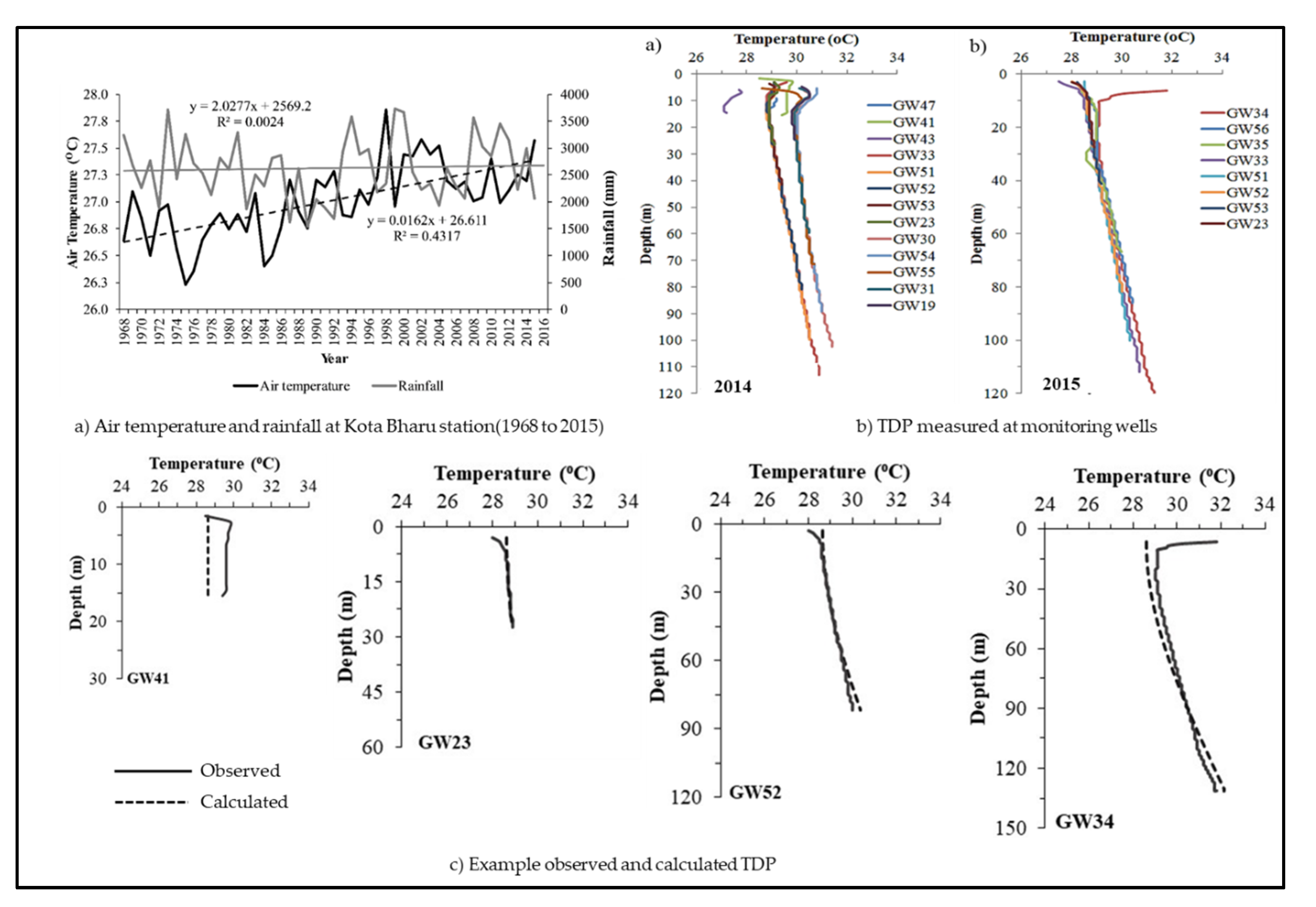

Figure 4c shows examples of calculated TDP with the observed TDP. The calculated profiles represent the best shape of the observed profiles at shallow and deep aquifer. The misfit in the profiles may result from a difference of thermal properties (thermal conductivity and thermal diffusivity) of the aquifer materials which may affect heat convection within the aquifer [31,86].

Table 4. Groundwater recharge estimated using TDP method.

Well ID	Aquifer Layer	Flux Rate, U (mm/yr)	Type *	RMSE *
2014
GW47	L1	250	R	0.49
GW41	L1	200	R	0.99
GW43	L1	300	R	1.24
GW53	L2	110	R	0.29
GW23	L2	190	R	0.38
GW33	L3	100	R	0.35
GW51	L3	100	R	0.27
GW52	L3	110	R	0.21
2015
GW19	L2	100	R	0.10
GW31	L3	100	R	0.15
GW55	L3	150	R	0.29
GW54	L3	140	R	0.26
GW30	L3	120	R	0.31
GW34	L3	180	R	0.85
GW56	L3	150	R	0.22
GW35	L3	100	R	0.18

* R: recharge; RSME: root mean square error.

list the best-calculated U values for monitoring well profiles in 2014 and 2015, which ranges from 100 mm/yr to 300 mm/yr with RMSE value of 0.10 to 1.43. The positive U values indicates all monitoring wells are recharge type with downward groundwater flow system in the basin [119]. The root mean square error (RMSE) of the observed and calculated profiles ranged from 0.10 to 1.43. Considering the long-term mean annual rainfall of 2619 mm, the percentage of rainfall for Layer 1 ranged from 8% to 11% with a mean of 10%, whereas for Layer 2, the percentage ranged from 4% to 8% with a mean of 6%, while for Layer 3 it was from 2% to 7% with a mean of 5%. In general, the average values for percentage of rainfall show a decreasing trend from Layer 1 to Layer 3 from 10% to 6%, respectively. This study has indicated the spatial variation of subsurface temperature at LKRB by the presence of shallow and deep groundwater flow systems.

The effects of surface air temperature were not considered during groundwater recharge interpretation. Groundwater temperatures down to the depth of ~25 m was strongly affected by seasonal variations in surface temperature [120]. The fluctuation of surface temperature creates a temperature wave which propagates down into the subsurface rather than the heat convection caused by groundwater flow [88,121,122]. Reference [115] have shown that shallow subsurface temperature (up to 75 m) is closely related to the surface air temperature during non-seasonal ground freezing and this correlation was confirmed by modelling results using synthetic transient temperature–depth profiles at the northern plain of USA [123]. Reference [90] stated that groundwater fluxes in shallow aquifers are more complex as they are influenced by changes in surface air temperature and aquifers are actively used as resources.

4.4. Groundwater Modelling, GM(WB)

The water balance of the aquifer system studied by [106] considered rainfall, potential evapotranspiration and river discharge of 3.09 × 10¹⁰ m³/yr, 1.23 × 10¹⁰ m³/yr, and 1.53 × 10¹⁰ m³/yr, respectively. The estimated value of change in storage was 3.26 × 10⁹ m³/yr (11%). This 11% value, which is equivalent to recharge into the basin, was used in the model simulation. The model was successfully converged after maximum outer and inner iterations of 100 and 50 with head change and residual criterion of 0.01. A scatter plot of the best fit between the observed heads and calculated heads of the calibration simulation is shown in Figure 5a with RM, RMSE, NRMSE, and R² of 0.003 m, 1.460 m, 13.54% and 79.2%, respectively. Then, the model was validated with RM, RMSE, NRMSE, and R² of 0.806 m, 2.097 m, 15.841% and 78.8%, respectively (Figure 5b). The RMSE of the validated simulation was higher (at 0.637 m) than the calibrated simulation, it remains within the 2–3 m acceptable ranges of heads decreased.

To further determine the acceptable water balance recharge value, a sensitivity analysis was performed manually by standardising the 10% increment and decrement of each recharge zone. The results for the sensitivity analysis are presented in Figure 5c. The relationship between RMSE and change in recharge shows a slight decrease from 1.457 m to 1.465 m when the percentage of recharge decreased from 10% to 40%, while RMSE values increased from 1.465 m to 1.496 m when the percentage of recharge increased from 10% to 40%. The relationship between residual mean (RM) and change in recharge shows a linear increasing and decreasing trend of residual mean (RM) as the recharge percentage is increased and decreased within 10% to 40%. This indicates that recharge is a sensitive parameter and the value selection, or its representation, is very crucial in the model calibration processes. Sensitivity analysis is a good measure to quantify the uncertainty of the calibrated model especially when the model was developed with limited data [124]. This is caused by the uncertainty of the aquifer parameters and sometimes by the model boundary conditions (e.g., hydraulic conductivity and recharge).

5. Discussion

Various method of recharge estimation using CMB, WTF, TDP, and GM(WB) have been used at LKRB. Selection of these methods was dependent on the existing and accessible data that were available within the period of study. Explanation on the comparison of methods is based on percentage of annual rainfall because each method that was applied in this study has a different range of annual rainfall. The ranges of recharge estimation are summarised in

Table 5. Summary of recharge estimation using different methods.

Method	Recharge, % (Percentage of Rainfall) *
CMB	13–68 (36)
WTF	11–19 (15)
TDP	8–11 (10)
GM(WB)	6.6–12.1 [11]

*() average value; [] WB value.

.

CMB method shows a large variation in recharge estimation ranging from 13% to 68% with a mean of 36% of annual rainfall, as tabulated in Table 5. In the CMB method, rainfall amount and chloride concentration measured in rainfall, and unsaturated zone (soils) are used to estimate the recharge. An assumption that the primary source of recharge is rainfall has met CMB’s application criteria at LKRB, with rainfall recorded at over 1000 mm annually. Uncertainty arises when determining the concentration of chloride in rainfall and soils. The available data of rainfall chloride was collected only for a short period of less than three years. The rainfall chloride data should be for a period of at least five years monitoring [125] and should provide the most representative rainfall chloride data for the basin which is not available in the study area. Rainfall chloride of wet deposition is the only source of chloride: the atmospheric chloride of dry deposition was not accounted because no data has been recorded within the basin. Dry deposition can be neglected because heavy rainfall will wash out the dry deposition [58,59]. Even though it can be negligible, determination of dry deposition will be a good practice as the dry deposition has potential to be deposited within 100 km from the coastal area [58,59]. Consideration of both wet and dry chloride can improve the recharge estimates.

Caution during soil sample preparation to extract the chloride and to conduct particles size analysis [126] will reduce the error level. Following the assumption in CMB method, chloride in soils are not from weathering or anthropogenic sources. Soil texture play a significant role in holding chloride concentration [109,110] along the soil profiles. Infiltrated rainfall will flush and take the chloride ions deeper downward. Changes of soil texture from clay silt materials to coarse materials are expected to result in high recharge value [53,54]. The variation in chloride concentration and soil texture in the soil profiles has shown the heterogeneity within the basin. Therefore, to have a good recharge estimation using CMB, rainfall and soil samples must spatially represent the basin and repeated sampling data is a must to reduce the uncertainty of the method.

The recharge estimation using the WTF method ranges from 11% to 19% with a mean of 15% of annual rainfall, as tabulated in Table 5. In the WTF method, components of specific yield, Sy, and groundwater level rise are used to calculate recharge. The availability of long-term groundwater water level data at LKRB gives an advantage in using WTF. The groundwater level data shows a quick response of recharge as the fluctuation of water level corresponds well with the rainfall events (Figure 3a). The Lisse effect [67,70,112] at LKRB can be said to be negligible or minimal within the basin because the depth to water table in shallow aquifer is more than 1.30 m and LKRB itself is coastal sandy aquifer. Currently, LKRB is actively pumping but there is no indication of a sharp difference in water level fluctuation based on the long-term data [127] or that ground settlement has occurred in the basin [128]. The uncertainty may come during the extrapolation of water cycle hydrograph via graphical approach [65] to identify the groundwater level rise. An Sy value of 0.15 was set to be constant throughout the aquifer following a common practice of researchers [65] because the Sy value is difficult to determine even with proper planning [16]. Sy values actually vary with depth and location [129] and this applies to LKRB as well as a heterogeneous aquifer. Assumption of a constant Sy value may lead to either overestimates or underestimates of recharge. The scarcity of monitoring wells that are not spatially distributed within the basin has influenced the Sy value and groundwater level data with incomplete temporal record.

Like the WTF method, the TDP method also give a small range of recharge estimation from 8% to 11% with mean of 10% of annual rainfall as shown in Table 5. TDP results indicate that LKRB is dominated by the downward movement groundwater flux of recharge type for both shallow and deep aquifer systems. Recharge area is recognised to have a low thermal gradient [130]. In the TDP method, recharge estimation was calculated using Equation (5). The uncertainty is induced by input parameters of the equation in the initial condition [86]. To apply this TDP method, some of the parameter values were adopted from the literature [94,95] due to unavailable data related to LKRB, which might give an overestimation or underestimation of recharge. The effect of surface air temperature in wells caused by seasonal changes was not accounted [88,90,120,121], especially in shallow aquifer which can reflect the recharge quantification. Lacking in the number of monitoring wells that represent the basin and aquifer layer has limited the interpretation of temporal and spatial variation of recharge estimation and also an understanding the groundwater flow pattern. The need for repeated measurement of temperature–depth profiles and measurement of the local thermal properties perhaps will also improve the recharge estimation and reduce the uncertainty.

GM(WB) applied 11% of recharge from the water balance (WB) study [106]. The steady state model was constructed using available local data input for the basin. The model was successfully calibrated and validated with correlation coefficients of 79.2% and 78.8%. The calibration processes reduced the uncertainty within the model. The sensitivity analysis result indicates that recharge WB is sensitive during parameter adjustment of 10% increment and decrement in the model. The model is sensitive to recharge because rainfall is the primary input source of the model. Uncertainty in GM(WB) usually arises during the construction of the conceptual model. The model input parameters still need to be improved or updated because a lack in data inputs will produce an unreasonable model. Modeller knowledge is also important as this helps to increase understanding of the model. The advantages of using GM(WB) are that it can be used to predict future recharge that will help in groundwater resources management and that the model can be used to represent a range of scales from point to regionally [131,132].

Table 5 summarised the recharge estimations quantified using four methods. Generally, recharge ranges showed high variability within 6.6% to 68% of annual rainfall. CMB ranged from 16% to 68%, WTF ranged from 11% to 19%, TDP ranged from 8% to 11%, and GM(WB) based on WB value of 11% of annual rainfall, giving a range 6.6% to 12.1% (sensitivity analysis) of annual rainfall, respectively. The average recharge of CMB, WTF, and TDP methods is 20% of annual rainfall with diversion as compared to average values ranging from 12% to 48%. A wide range of recharge is evidenced to different factors subject to inherent principles and assumptions in the methods applied, data quality and quantity, and geological condition. All methods are sensitive to the input parameters; therefore, it is essential to reduce the uncertainty and errors inherent in quantifying recharge estimation from any single method as discussed above.

Based on results of the four methods applied at LKRB, 11% of recharge shows GM(WB) to be the best method to estimate groundwater recharge for this humid tropical basin. The 11% derived from WB quantified the potential recharge considering the basic information of inflow and outflow. By coupling the WB recharge with GM, the value become model-generated recharge, which is actual recharge, as the GM(WB) model has constructed and calibrated using locally derived data input parameters. GM(WB) is the only method that involved a calibration process by comparing the observed and calculated values. Recharge is sensitive to the adjustment of parameters as rainfall is the primary source in steady-state model simulation. WTF gives a reasonable recharge value to be used together with GM(WB) to ensure the reliability of recharge value approximately in the same range. WTF based on long-term hydrological data records and the method itself, quantify potential recharge of change in aquifer storage. The recharge fluctuates accordingly to the fluctuation of water table in shallow aquifer due to seasonal rainfall input at LKRB. Even though TDP gave a mean recharge of 10% close to that from GM(WB), this method is not suitable to be paired together. The recharge quantified by TDP is potential recharge that is dependent on temperature, as temperature fluctuates in response to the heat flows. Since there is no thermal aquifer property information for LKRB, the adopted values from the literatures were used, which were from an area with active volcanic activity which differs from LKRB. Thus, the recharge may not be appropriate to represent the basin. In an area with active volcanism, the thermal properties always represent the current state of heat flow in the aquifer. A value of 36% for mean recharge by CMB does not mean this value is inaccurate because CMB is point estimation; therefore, different areas will have different recharge values, as the basin is not homogenised. CMB based on chloride as a conservative tracer quantifies the potential recharge in an unsaturated zone. The heterogeneity of the aquifer and data points should be considered to provide spatial information of recharge in the basin so that the recharge estimates are more reliable.

6. Conclusions

This study has highlighted the importance of applying various methods in quantification of recharge estimation. The variability of recharge range is evidenced by different factors subject to inherent principles and assumptions in the methods applied, data quality and quantity, and geological conditions within the basin. The reliability and suitability of recharge estimates can be improved by obtaining reliable and spatiotemporal data within LKRB that are applicable to the method used. The comparison of groundwater recharge applications in the study area leads to a recommendation of the WTF method, complementing GW(WB), as the best method to enable quantification of actual recharge at LKRB. Methods can be accepted as long as climate and land use are not changing dramatically in the basin. Spatial distribution of recharge can imply better recharge proxy that is good for future urban planning at LKRB, which was limited in this study as data were lacking in number of representative points of sampling or monitoring wells to represent the aquifer layer and basin area. In addition, there is the need for repeated sampling and frequency of measurement. This study has provided insight into quantification of groundwater recharge and method selection for humid tropical areas of LKRB and is useful as a baseline study for groundwater resources management at LKRB, in particular and for Malaysia as a whole. Lysimeter as a direct and best method to quantify groundwater recharge was unable to be installed during the studies due to difficulty in obtaining approval and permission from the land-owner.
