Constraints on Martian Chronology from Meteorites

Institute of Meteoritics, University of New Mexico, Albuquerque, NM 87131, USA
Author to whom correspondence should be addressed.
Geosciences 2020, 10(11), 455;
Received: 16 September 2020 / Revised: 5 November 2020 / Accepted: 10 November 2020 / Published: 12 November 2020
(This article belongs to the Special Issue Martian Meteorites and Mars Exploration)


Martian meteorites provide the only direct constraints on the timing of Martian accretion, core formation, magmatic differentiation, and ongoing volcanism. While many radiogenic isotope chronometers have been applied to a wide variety of Martian samples, few, if any, techniques are immune to secondary effects from alteration and terrestrial weathering. This short review focuses on the most robust geochronometers that have been used to date Martian meteorites and geochemically model the differentiation of the planet, including 147Sm/143Nd, 146Sm/142Nd, 176Lu/176Hf, 182Hf/182W, and U-Th-Pb systematics.

1. Introduction

It is generally agreed that the inner solar system planets were formed by the collisional agglomeration of dust particles into cm- or m-sized objects which then grew into planetesimals up to 100 km in size via turbulent accretion triggered by gravitational instability. Gravitational interactions between planetesimals caused them to collide and produce Mars-sized planetary embryos, which then formed terrestrial planets via giant impacts [1,2]. Under this paradigm, Mars is a leftover planetary embryo which escaped the giant impacts that formed the other terrestrial planets [3]. The timescales of the accretion, core formation, and silicate differentiation of Mars are best constrained using the radiometric isotope systematics of the only available samples from the planet, Martian meteorites.
Since these meteorites are generally hot or cold desert finds that have spent a considerable amount of time exposed to terrestrial surface conditions, they are often heavily weathered [4]. Isotopic chronometers can be highly sensitive to disruption by weathering, and for this reason this short review only focuses on the most pristine and uncompromised chronological data. Emphasis is placed on recent measurements employing the most robust chronometers. Isotopic systems employed include Sm-Nd, Lu-Hf, Hf-W, Ar-Ar, U-Th-Pb, and various noble gas exposure age chronometers such as cosmogenic 3He, 21Ne, and 38Ar. All ages discussed below are reported with their two sigma uncertainties.

2. Overview of Martian Meteorites

The SNC (shergottite, nakhlite, chassignite) meteorite clan has been confirmed as originating from Mars on the basis of trapped noble gas compositions that match that of the Martian atmosphere [5]. These meteorites also plot along their own mass-dependent fractionation line in triple-oxygen isotope space, with a Δ17O of ~0.3 [6]. There are, to date, 150 meteorite pairing groups of Martian origin. While the traditional classification system divides these meteorites into shergottites (basalts constituting 89% of Martian meteorites [7]), nakhlites (clinopyroxene-rich cumulates), and chassignites (dunites) [8], additional samples have contributed to the variety of the Martian igneous record. Allan Hills (ALH) 84001 is an orthopyroxene cumulate [9], Northwest Africa (NWA) 7034 and its pairs are polymict breccias [10], and NWA 8159 and NWA 7635 are augite-rich shergottites with unique ages [11,12]. Together, the crystallization ages of these meteorites roughly span the age of the planet (Figure 1).
The shergottites, which represent the overwhelming majority of Martian meteorites, are subdivided into additional categories based on petrological and geochemical characteristics. Basaltic shergottites contain pyroxene and plagioclase in varying proportions and span grain sizes from gabbroic to fine-grained. Olivine-phyric shergottites are similar to basaltic shergottites but contain olivine phenocrysts, megacrysts, or xenocrysts, and poikilitic shergottites are mafic to ultramafic plutonic rocks with large-grained olivine and pyroxenes [13]. Geochemically, shergottites are divided into enriched, intermediate, and depleted categories based on the level of depletion of their light rare earth elements (LREE) and their Sm-Nd and Hf-W radiogenic isotope systematics [14,15,16]. While the majority of shergottites are young (<600 Ma), NWA 7635 and 8159 are 2.4 Ga exceptions [11,12] which extend the age of shergottite volcanism to encompass nearly the entire Amazonian Period (3.0–0 Ga). The nakhlites and chassignites, on the other hand, are geochemically distinct from the shergottites and could represent melts and cumulates from a single differentiated igneous body [17,18] or from several lava flows or shallow sills associated with a single volcano [19,20]. Allen Hills 84001 is an orthopyroxene cumulate with an age of 4.09 Ga [9] that gives unique insight into the Noachian Period (4.1–3.7 Ga) of Martian history [9], during which liquid water precipitated secondary carbonate [21]. Finally, igneous clasts and zircons in the Martian regolith breccias NWA 7034 and its pairs record evidence of an ancient crust that must have formed on Mars within the first 20 Ma of the planet’s formation [22].
Analyses from orbital and surface missions have greatly expanded the compositional diversity of Martian igneous rocks. With the exception of NWA 7034 and its pairs, Martian meteorites are all basaltic to ultramafic. Orbital measurements of volcanic provinces by Gamma Ray Spectroscopy (GRS) aboard Mars Odyssey show that the average Martian crust is basaltic to trachybasaltic [23,24]. The igneous rocks at Gusev Crater examined by the Mars Exploration Rover (MER) Spirit are roughly basaltic but have much higher ranges of total alkalis than the SNC meteorites [25]. The Mars Science Laboratory (MSL) has analyzed igneous rocks in Gale Crater and identified diorites, trachytes, trachyandesites, and quartz diorites [26]. Such diverse measurements suggest that Martian igneous geology is much more varied than is implied by the SNC meteorites, involving large degrees of differentiation and fractional crystallization.

3. Crystallization and Ejection Ages

The radiometric age dating of Martian meteorites has been used to constrain the timing of Martian core formation and early silicate differentiation into distinct magmatic reservoirs. The subsequent melting and possible interaction of these reservoirs created the petrogenetic diversity of the Martian meteorite suite [13]. Since Mars is a planet with a significant gravity well, large impacts and their associated shock pressures are required to loft material from the planet [29,30]. Most Martian meteorites are moderately to heavily shocked [31], resulting in partial melting and transformation of their plagioclase to the shock phase maskelynite. As the 40Ar/39Ar chronometer is sensitive to such disruptions [32], the 40Ar/39Ar dating of Martian material must be carefully evaluated in regard to crystallization ages. Likewise, because most Martian meteorites are desert finds, the 87Rb/87Sr chronometer is often disrupted by calcite deposition which contains terrestrial alkali and alkaline elements. Similarly, chronometers that employ the Sm-Nd system are susceptible to fluid mobilization and addition of these elements (as well as the rest of the rare earth elements) [4,33]. Figure 2 summarizes the 147Sm/143Nd dating that has been performed on Martian meteorites.
147Sm/143Nd, 87Rb/87Sr, and 176Lu/176Hf dating of the shergottites has shown crystallization ages that cluster according to their geochemical enrichment. The enriched shergottites have ages between ~165 and ~200 Ma [34,35,36,37,38,39,40,41,42]. The intermediate shergottites have overlapping and older crystallization ages between ~150 and ~350 Ma [43,44,45,46,47,48,49]. Depleted shergottites are the oldest group, with crystallization ages between ~327 and ~2400 Ma [11,12,50,51,52,53,54,55]. Prior to two recent studies, the depleted shergottites were all thought to have been younger than ~600 Ma. NWA 7635, with a 147Sm/143Nd crystallization age of 2403 ± 140 Ma [12], and NWA 8159, with a 147Sm/143Nd crystallization age of 2300 ± 250 Ma [11], have greatly extended the potential magmatic history of the shergottites. Ejection ages for shergottites are all under 5 Ma [56] with the exceptions of Dhofar 019 (18 Ma). Depleted shergottites and NWA 7635 have been suggested to originate from the same igneous body based on their nearly identical ejection ages of ~1.1 Ma [12,56,57], and this suggests the existence of continuous Martian volcanism for half of the planet’s history.
An additional complication in the Martian crystallization story is the “Old Shergottite Paradox.” While the 147Sm/143Nd, 87Rb/87Sr, and 176Lu/176Hf chronometers show Amazonian ages for the shergottites, the Pb-Pb system has consistently yielded concordant ages older than 4 Ga [58,59,60]. Given that aside from some young basaltic lava flows, the Martian surface appears to be predominantly ancient (>4 Ga) [61], the Pb-Pb ages of shergottites have been suggested to reflect primary crystallization of these ancient terrains. This would argue that the younger ages produced by the other chronometers were a result of later disruptions such as impact resetting, fluid percolation, the drying of lakes, or even the combination of impacts and wet soil, creating superheated steam which would more effectively reset phosphate-based chronometers [60].
Recent studies have called the old ages of the shergottites into question, disputing the presence of any >4 Ga Pb-Pb “isochron” with crystallization age significance. Secondary ion mass spectrometry (SIMS) Pb-Pb measurements of maskelynite grains in ALH 84001 and some enriched shergottites, interpreted to reflect initial Pb isotopic compositions since plagioclase incorporates very little U, showed significantly differing values, presumably due to crystallization ages separated by ~4 Ga [62]. In-situ SIMS Pb-Pb analyses of different phases in Chassigny revealed a three-component mixing array between initial Pb, radiogenic Pb along a 1.39 Ga isochron, and an unsupported radiogenic reservoir [63]. This reservoir was heterogeneously present in phases whose major element compositions were otherwise homogenous, and its Pb composition plotted off the 1.39 Ga reservoir. Thus, it could not be explained by in-situ accumulation of radiogenic Pb and must represent non-igneous introduction of a likely crustal Martian reservoir. A hypothetical composition for this high µ reservoir is provided by the Martian regolith breccias [64], which the phases in Chassigny skew towards [63].
The 147Sm/143Nd and 87Rb/87Sr dating of nakhlites and chassignites have yielded crystallization ages around ~1300 Ma [27,65,66,67,68], with a mean age of 1340 ± 40 Ma [19]. The ejection ages of most nakhlites and Chassigny cluster around ~10 Ma [20,56]. Additionally, nakhlites and chassignites share similar trace elements [19,69] and volatile-bearing phosphate [17] compositions. These lines of evidence and their similar petrologic texture suggest that they were formed in separate flows, sills, and dikes as part of the same overall igneous complex [19] whose magmatic source reservoir is distinct from that of the shergottites.
The discovery of additional unique Martian meteorites has further complicated the magmatic history derived from study of the SNC suite. The 147Sm/143Nd ages determined for the orthopyroxene cumulate ALH 84001 have converged at ~4400 Ma [44]. However, 176Lu/176Hf dating found a younger age of 4091 ± 30 Ma which concords with its 40Ar/39Ar and U-Pb ages [9]. The older ages were likely due to extensive alteration, but controversy over the true crystallization age still exists.
NWA 7034 and its pairs, the Martian regolith breccias, represent the oldest age dates yet found in Martian meteorites. Secondary ion mass spectrometry (SIMS) U-Pb dating of zircons in monzonitic clasts within one of its pairs, NWA 7533, revealed a discordia line with two intercepts at 4428 ± 25 Ma and 1712 ± 85 Ma, suggesting that the igneous clasts in the meteorite are sourced from an evolved Martian crust from the first ~100 Ma of solar system history [70]. The 1.7 Ga age is similar to a 2.1 Ga 87Rb/87Sr age [10], suggesting a major disturbance around that time. U-Pb dating of phosphates within the matrix also found a younger age of 1357 ± 81 Ga, while Pb-Pb analyses of feldspars in igneous clasts identified a high µ (238U/204Pb) reservoir at least 4428 Ma in age [64], providing further evidence for an ancient enriched crust. 147Sm/143Nd dating of the igneous components of the regolith breccia provided additional confirmation with an age of 4420 ± 70 Ma [71]. Additional analyses of zircons within igneous clasts and matrix found two discrete sets of concordant U-Pb ages at 4431 ± 27 Ma and 1502 ± 98 Ma [72]. Cl-apatite from igneous clasts and matrix analyses in the same study revealed a U-Pb age of 1495 ± 88 Ma, suggesting a breccia-wide thermal event at that time such as an impact or volcanism.
The most precise zircon analyses conducted on the Martian regolith breccia, using acid dissolution and thermal ionization mass spectrometry (TIMS) instead of in-situ methods, yielded crystallization ages between 4476.3 ± 0.9 and 4429.7 ± 1.0 Ma [22]. Since the meteorite is only mildly shocked (<15 GPa) [73], 40Ar/39Ar analyses could also be used to extract reliable age information other than shock ages, as with the rest of the SNC suite. 40Ar/39Ar analysis of whole-rock fragments found several coherent plateau ages between 1319 ± 16 and 1191 ± 32 Ma [28]. Rather than thermal metamorphism resulting from an impact, which would cool in a few 10s of Ma or less [74], these plateaus, along with the overlapping U-Pb ages, suggest a protracted period of metamorphism that varied spatially and temporally, such as that resulting from contact metamorphism due to volcanism [28]. An even younger event of ~225 Ma or earlier was identified via U-Th-Sm/He chronometry, suggested to be an impact that resulted in the brecciation and consolidation of the meteorites in their current form [28]. Finally, an ejection event of ~5 Ma [75] brought the breccia into an Earth-crossing orbit. In summary, NWA 7034 and its pairs sample an ancient, evolved Noachian crust, distinct Amazonian volcanic and impact events, and a unique and recent ejection event, none of which are evident via the rest of the Martian meteorite suite.

4. Differentiation

Since they represent the only samples available from Mars, the Martian meteorite suite has been used in attempts to understand the large-scale magmatic processes that have shaped the planet’s geologic history. For instance, the major and trace element compositions and isotopic systematics of shergottites have been used as constraints to test petrogenetic models of the magmatic differentiation of silicate Mars. One way to explain the geochemical diversity of shergottites is by assuming they formed by crustal assimilation and fractional crystallization (AFC) of mantle-derived magmas [78]. However, the shergottites’ bulk 87Sr/86Sr and 87Rb/86Sr values have been shown to plot along the ~4.5 Ga isochron known as the basaltic achondrite best initial (BABI) line [39,79]. The AFC model would thus require the crustal assimilated material to have an age of ~4.5 Ga and remain undisturbed through the crystallization ages of all of the shergottites, which is unlikely [43] given the history of impact and volcanism experienced by the planet. In addition, the shergottites’ incompatible trace element abundances, ratios, and isotopic compositions do not correlate well with their mineralogical or geochemical indices of differentiation, such as SiO2 content or Mg# (molar Mg/(Mg + Fe)) [14]. The Martian regolith breccia, as its zircons and igneous fragments represent an enriched ancient crust, was likewise found to deviate from the shergottite mixing line in ε143Nd-µ142Nd space (discussed further below), invalidating its role as an enriched end-member for shergottite crustal assimilation [80].
Another model invoked to explain Martian basaltic volcanism involves equilibrium and fractional crystallization of the Martian magma ocean (MMO) into cumulate piles and enriched residual liquids [14]. The cumulate piles were then melted and mixed in varying proportions with the residual liquids to produce the diverse parent liquids of the shergottites. This two-stage model proposed a mixing relationship between geochemically enriched and depleted shergottite source regions early in Martian geologic history, which would satisfy the constraints imposed by the shergottites’ bulk Rb-Sr systematics [14]. The compositions of cumulate packages were constrained using the bulk composition of Mars [81,82] and petrological melting experiments at estimated pressures of the crystallizing MMO that included majoritic garnet as a near-liquidus phase [83]. Partial melting of the cumulate piles was able to reproduce the major element concentrations and radiogenic parent/daughter ratios of the calculated parent liquid of ALH 77005 [84]. Since this liquid was the most mafic of the Martian basalts, it was used as a least-differentiated end member in the model. More evolved compositions could then be reached through olivine fractionation. The trace incompatible element abundances of Martian basaltic liquids were reproduced by including a small fraction of residual liquid, solidified in the final stages of MMO crystallization, in the partial melting phase.
The combinations of several radiogenic isotope systems have been used to constrain the results of differentiation modeling. The short-lived isotope 146Sm decays to 142Nd with a half-life of ~103 Ma and thus imparts a 142Nd anomaly on material that differentiated early enough in solar system history that it was still a live nuclide. (This age has recently been questioned by a study that found half-life of 68 Ma [85]. Despite this, the present paper assumes the canonical value in reporting literature ages. The IUGS-IUPAC recommends using both half-lives to calculate ages until the discrepancy is resolved [86]. For discussion see [87].) When 146Sm-142Nd is combined with longer-lived isotopic systems such as 87Rb/87Sr and 147Sm/143Nd, the timing of both source differentiation and liquid crystallization can be constrained in a single model [14,52]. For example, the ε142Nd ((142Nd/144Ndsample/142Nd/144Ndstandard − 1) × 10,000) of the basaltic shergottite Queen Alexandra Range (QUE) 94201 was found to be high enough to require fractionation of its source from bulk Mars no later than 33 Ma after the planet’s formation [52]. However, its calculated initial ε143Nd ((143Nd/144Ndsample initial/143Nd/144NdCHUR at T − 1) × 10,000) required that its source remained relatively inactive until its crystallization age of ~327 Ma because any intermittent melting would have made the ε143Nd value too high [52].
Early models of shergottite source crystallization combined the 146Sm-142Nd and 147Sm-143Nd chronometers for multiple Martian samples by plotting their initial ε143Nd values, recalculated at 175 Ma, the average crystallization age of several shergottites, against their present-day measured ε142Nd values [50]. Several enriched and depleted shergottites formed an isochron that intersected with the chondritic uniform reservoir (CHUR) and converged on an age of ~4510 Ma, interpreted as the age of MMO differentiation from CHUR into geochemically enriched and depleted reservoirs. Other samples, such as the nakhlites and chassignites, plotted off this isochron, implying derivation from separate reservoirs or more complex igneous history [14].
The coupled 142Nd-143Nd chronometer was later refined in regard to shergottites with higher precision measurements of 142Nd and additional sample measurements. An updated plot of enriched, intermediate, and depleted shergottites on the ε143Nd vs. ε142Nd graph formed a mixing line that missed the origin and thus is not likely to be an isochron (for an example of such a plot see Figure 3) [15]. Instead, the coupled isotopic systematics for depleted and enriched shergottites were interpreted to constrain earlier and later Sm/Nd fractionation events, at ~4535 Ma and ~4457 Ma, respectively. The calculated 147Sm/144Nd of the shergottite sources was found to be higher for each meteorite than the 147Sm/144Nd of the meteorites themselves, and this is the opposite of what is expected during partial melting since Nd is a more incompatible element than Sm [15]. Therefore, the source of the shergottites likely underwent a partial melting event immediately before melting to produce the shergottites, and the enriched and intermediate shergottites incorporated varying amounts of this depleted source and a distinct enriched source.
Additional analyses of shergottites have cast doubts on the need for multiple melting and differentiation events. The linear mixing line [15] found between enriched and depleted shergottites in 147Sm-144Nd space has been obscured by newer data [54,88] showing variation in bulk rock 147Sm/144Nd in meteorites with similar calculated source 147Sm/144Nd values [87]. Newer models showed that two separate three-stage petrogenetic models using shergottite bulk rock 142Nd, 147Sm, and 143Nd measurements converged on a source differentiation age of 4504 ± 6 Ma [87]. The first model formed an isochron by plotting the measured bulk rock 142Nd/144Nd of the shergottites against their source 147Sm/144Nd, calculated from measured 143Nd/144Nd values. The second plotted the 142Nd/144Nd of each meteorite against their present-day source ε143Nd, calculated from each meteorite’s initial 143Nd/144Nd (see Figure 3). Importantly, neither model relied on an assumed initial 142Nd/144Nd for bulk Mars, and both allowed for binary mixing between depleted and enriched shergottite end members early in Martian history.
The Sm-Nd data from nakhlites and chassignites have been shown to diverge significantly from any model age isochrons formed by the shergottites [89]. Thus, the variation in Sm and Nd isotopic compositions between shergottites and nakhlites cannot be attributed to a single differentiation event early in Martian geologic history. Likewise, the crustal breccia NWA 7034 diverges from the shergottite mixing line in 142Nd-143Nd space, using either measured values from the meteorite or ones calculated for its source (Figure 3) [80]. This suggests that it does not represent an enriched crustal end member for shergottite differentiation, and it casts doubts on the idea that the shergottite mixing line is in fact an isochron.
The extinct 182Hf-182W chronometer, which has a half-life of 9 Ma, has been coupled with the 142Nd/144Nd system to refine the time scale of magmatic source differentiation [16]. The combined 182W-143Nd chronometer showed that instead of forming a binary contemporaneous mixing line between depleted and enriched shergottite sources, the shergottite source differentiation was instead spread between ~20–25 and ~40 m.y. after solar system formation (Figure 4) [16]. This was due primarily to a larger range in ε182W identified among depleted shergottites (+0.8 to +1.8). 142Nd measurements of NWA 7034 and ALH 84001 also showed that these samples reflected the most enriched and early to differentiate (~20–25 Ma) source reservoir yet identified on Mars [16]. The early differentiation of an enriched source coincides with modeling results obtained from U-Pb and Lu-Hf analyses performed on zircons in NWA 7034, which required an andesitic, rather than basaltic, crustal reservoir to differentiate from CHUR in order to satisfy the 176Lu/177Hf values of concordant zircons [22]. The U-Pb ages of these zircons converged at 4475 Ma, while their Lu-Hf systematics suggested that an andesitic crust must have formed no later than 4547 Ma. This early crust was completely reworked by impacts, including the one likely to be responsible for the formation of the Martian crustal dichotomy [90].
As this early crust predates meteorite magmatic source differentiation, its age also suggests that this differentiation did not occur under the regime of a crystallizing magma ocean. Instead, the crystallization of the MMO must have happened earlier, resulting in a stratified mantle susceptible to overturn, decompression melting of cumulate material, and extraction of an evolved andesitic crust [22,91,92]. Alternatively, the MMO may not have existed at all, as a recent study has found hydrogen isotopic heterogeneities within Martian mantle source reservoirs [93]. A series of later differentiation events must have formed the source reservoirs of the other Martian meteorites. The nakhlites, which have significantly more radiogenic ε182W values (~3) [94,95], must have originated from a separate but roughly coeval magmatic source. The positive ε182W and ε142Nd values of SNC meteorites require that their sources formed from a garnet- and clinopyroxene-bearing mantle, since these phases fractionate Hf/W as well as Sm/Nd [96]. The ongoing magmatism resulting from these differentiation events, along with impacts, completely resurfaced the planet.

5. Core Formation

Because W is a much more siderophile element than Hf, it fractionates completely from Hf during metal–silicate separation. The timing of the core formation of planetary bodies is constrained by measuring 182W anomalies from primitive chondritic values in silicates derived from material that underwent core formation while 182Hf was still extant. Measuring the ε182W of Martian meteorites showed a small range in values for the shergottites (0.3 to 0.7) and a distinct and uniform value of ~3 for the nakhlites [94]. By plotting ε142Nd values against ε182W values for the shergottites and solving the best-fit line for chondritic 142Nd, a primitive Martian mantle (PMM) ε182W of 0.34 ± 0.7 was determined (see Figure 4). This value allowed for a two-stage model age for the Martian core formation of 11.6 ± 0.4 m.y. after solar system formation [94]. Other estimates for Martian core formation using W isotopes have ranged from ~3 to ~15 m.y. after solar system formation [95,97].
A more recent study has found more variation in ε182W among the shergottites and that this variation correlates with ε142Nd [16]. However, the new measurements did little to modify the bulk Mars ε182W value, since the Martian meteorites whose ε142Nd spanned the range of estimated bulk Mars ε142Nd values [15,87] were relatively constrained in ε182W. Thus, the new PMM ε182W was found to be +0.37 ± 0.04 (Figure 4), within the error of the old one. Combining this value with the bulk Martian 180Hf/184W ratio of 4.0 ± 0.5 [98] yielded a two-stage model age for core formation of 4.1 ± 2.7 m.y. after solar system formation (Figure 4) [16]. This is consistent with the accretion timescale of a stranded planetary embryo, in which Mars attained half of its mass in ~2 m.y. or less [16,98].

6. Conclusions

It is clear at this point that the 150 unpaired Martian samples that are currently available for study vastly undersample the igneous history of the planet Mars. The identification of petrologically diverse and evolved material by rovers suggests that the shergottites, nakhlites, chassignites, ALH 84001, and the Martian regolith breccias only offer a small window into the magmatic evolution of the planet (Table 1), and thus the need for sample return missions is highlighted by the study of Martian meteorites. There is now significant petrological and geochemical evidence that both the nakhlites and chassignites as a group, as well as the depleted shergottites, both originate from their own unique magma bodies. The Martian regolith breccias also sample a unique magmatic reservoir and possibly an ancient enriched crust that was later modified by impacts. These sources must have been separated since the earliest differentiation of Mars shortly after the birth of the solar system and stayed separate through the crystallization of the Martian igneous suite.
The need to better define the magmatic reservoirs present on Mars is another urgent reason to increase sample diversity. The Martian mantle is clearly heterogeneous, and its igneous products show a great deal of diversity in isotopic systematics, such that the timing for major events in the planet’s history is likely to be subject to change (Figure 5). This diversity is reflective of a silicate Mars that was inefficiently mixed during its early history. More unique magmatic source reservoirs are likely waiting to be discovered with additional samples from the planet. The wealth of research that the discovery of the Martian regolith breccias has generated is a testament to this, and new potential Noachian and Hesperian samples will likely again completely redefine our understanding of Martian igneous history.

Author Contributions

Conceptualization, methodology, software, validation, formal analysis, investigation, resources, data curation, writing—original draft preparation, visualization, supervision, project administration, funding acquisition, Z.V.; writing—review and editing, Z.V., C.A. All authors have read and agreed to the published version of the manuscript.


This research received no external funding.


The authors are thankful for two anonymous reviewers for helping to improve the quality of this manuscript.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Chambers, J.E. Planetary accretion in the inner Solar System. Earth Planet. Sci. Lett. 2004, 223, 241–252. [Google Scholar] [CrossRef]
  2. Raymond, S.N.; O’Brien, D.P.; Morbidelli, A.; Kaib, N.A. Building the terrestrial planets: Constrained accretion in the inner Solar System. Icarus 2009, 203, 644–662. [Google Scholar] [CrossRef][Green Version]
  3. Dauphas, N.; Chaussidon, M. A Perspective from Extinct Radionuclides on a Young Stellar Object: The Sun and Its Accretion Disk. Annu. Rev. Earth Planet. Sci. 2011, 39, 351–386. [Google Scholar] [CrossRef][Green Version]
  4. Crozaz, G.; Floss, C.; Wadhwa, M. Chemical alteration and REE mobilization in meteorites from hot and cold deserts. Geochim. Cosmochim. Acta 2003, 67, 4727–4741. [Google Scholar] [CrossRef]
  5. Treiman, A.H.; Gleason, J.D.; Bogard, D.D. The SNC meteorites are from Mars. Planet. Space Sci. 2000, 48, 1213–1230. [Google Scholar] [CrossRef]
  6. Clayton, R.N.; Mayeda, T.K. Oxygen isotope studies of achondrites. Geochim. Cosmochim. Acta 1996, 60, 1999–2017. [Google Scholar] [CrossRef]
  7. Udry, A.; Howarth, G.H.; Herd, C.; Day, J.; Lapen, T.J.; Filiberto, J. What martian meteorites reveal about the interior and surface of Mars. Earth Sp. Sci. Open Arch. 2020, 55. [Google Scholar] [CrossRef]
  8. McSween, H.Y. SNC meteorites: Clues to martain petrogenic evolution? Rev. Geophys. 1985, 23, 391–416. [Google Scholar] [CrossRef]
  9. Lapen, T.J.; Righter, M.; Brandon, A.D.; Debaille, V.; Beard, B.L.; Shafer, J.T.; Peslier, A.H. A younger age for ALH84001 and Its geochemical link to shergottite sources in mars. Science 2010, 328, 347–351. [Google Scholar] [CrossRef][Green Version]
  10. Agee, C.B.; Wilson, N.V.; McCubbin, F.M.; Ziegler, K.; Polyak, V.J.; Sharp, Z.D.; Asmerom, Y.; Nunn, M.H.; Shaheen, R.; Thiemens, M.H.; et al. Unique meteorite from early Amazonian Mars: Water-rich basaltic breccia Northwest Africa 7034. Science 2013, 339, 780–785. [Google Scholar] [CrossRef]
  11. Herd, C.D.K.; Walton, E.L.; Agee, C.B.; Muttik, N.; Ziegler, K.; Shearer, C.K.; Bell, A.S.; Santos, A.R.; Burger, P.V.; Simon, J.I.; et al. The Northwest Africa 8159 martian meteorite: Expanding the martian sample suite to the early Amazonian. Geochim. Cosmochim. Acta 2017, 218, 1–26. [Google Scholar] [CrossRef]
  12. Lapen, T.J.; Righter, M.; Andreasen, R.; Irving, A.J.; Satkoski, A.M.; Beard, B.L.; Nishiizumi, K.; Jull, A.J.T.; Caffee, M.W. Two billion years of magmatism recorded from a single Mars meteorite ejection site. Sci. Adv. 2017, 3, 1–7. [Google Scholar] [CrossRef][Green Version]
  13. Papike, J.J.; Karner, J.M.; Shearer, C.K.; Burger, P.V. Silicate mineralogy of martian meteorites. Geochim. Cosmochim. Acta 2009, 73, 7443–7485. [Google Scholar] [CrossRef]
  14. Borg, L.E.; Draper, D.S. A petrogenetic model for the origin and compositional variation of the martian basaltic meteorites. Meteorit. Planet. Sci. 2003, 38, 1713–1731. [Google Scholar] [CrossRef]
  15. Debaille, V.; Brandon, A.D.; Yin, Q.Z.; Jacobsen, B. Coupled 142Nd-143Nd evidence for a protracted magma ocean in Mars. Nature 2007, 450, 525–528. [Google Scholar] [CrossRef]
  16. Kruijer, T.S.; Kleine, T.; Borg, L.E.; Brennecka, G.A.; Irving, A.J.; Bischoff, A.; Agee, C.B. The early differentiation of Mars inferred from Hf–W chronometry. Earth Planet. Sci. Lett. 2017, 474, 345–354. [Google Scholar] [CrossRef]
  17. McCubbin, F.M.; Elardo, S.M.; Shearer, C.K.; Smirnov, A.; Hauri, E.H.; Draper, D.S. A petrogenetic model for the comagmatic origin of chassignites and nakhlites: Inferences from chlorine-rich minerals, petrology, and geochemistry. Meteorit. Planet. Sci. 2013, 48, 819–853. [Google Scholar] [CrossRef][Green Version]
  18. Shearer, C.K.; Messenger, S.; Sharp, Z.D.; Burger, P.V.; Nguyen, A.N.; McCubbin, F.M. Distinct chlorine isotopic reservoirs on Mars. Implications for character, extent and relative timing of crustal interactions with mantle-derived magmas, evolution of the martian atmosphere, and the building blocks of an early Mars. Geochim. Cosmochim. Acta 2018, 234, 24–36. [Google Scholar] [CrossRef]
  19. Udry, A.; Day, J.M.D. 1.34 billion-year-old magmatism on Mars evaluated from the co-genetic nakhlite and chassignite meteorites. Geochim. Cosmochim. Acta 2018, 238, 292–315. [Google Scholar] [CrossRef]
  20. Cohen, B.E.; Mark, D.F.; Cassata, W.S.; Lee, M.R.; Tomkinson, T.; Smith, C.L. Taking the pulse of Mars via dating of a plume-fed volcano. Nat. Commun. 2017, 8, 1–8. [Google Scholar] [CrossRef][Green Version]
  21. Borg, L.E.; Connelly, J.N.; Nyquist, L.E.; Shih, C.Y.; Wiesmann, H.; Reese, Y. The age of the carbonates in martian meteorite ALH84001. Science 1999, 286, 90–94. [Google Scholar] [CrossRef][Green Version]
  22. Bouvier, L.C.; Costa, M.M.; Connelly, J.N.; Jensen, N.K.; Wielandt, D.; Storey, M.; Nemchin, A.A.; Whitehouse, M.J.; Snape, J.F.; Bellucci, J.J.; et al. Evidence for extremely rapid magma ocean crystallization and crust formation on Mars. Nature 2018, 558, 586–589. [Google Scholar] [CrossRef][Green Version]
  23. Taylor, G.J.; Martel, L.M.V.; Karunatillake, S.; Gasnault, O.; Boynton, W.V. Mapping Mars geochemically. Geology 2010, 38, 183–186. [Google Scholar] [CrossRef]
  24. Filiberto, J. Geochemistry of Martian basalts with constraints on magma genesis. Chem. Geol. 2017, 466, 1–14. [Google Scholar] [CrossRef]
  25. McSween, H.Y.; Ruff, S.W.; Morris, R.V.; Bell, J.F.; Herkenhoff, K.; Gellert, R.; Stockstill, K.R.; Tornabene, L.L.; Squyres, S.W.; Crisp, J.A.; et al. Alkaline volcanic rocks from the Columbia Hills, Gusev crater, Mars. J. Geophys. Res. E Planets 2006, 111, 1–15. [Google Scholar] [CrossRef][Green Version]
  26. Cousin, A.; Sautter, V.; Payré, V.; Forni, O.; Mangold, N.; Gasnault, O.; Le Deit, L.; Johnson, J.; Maurice, S.; Salvatore, M.; et al. Classification of igneous rocks analyzed by ChemCam at Gale crater, Mars. Icarus 2017, 288, 265–283. [Google Scholar] [CrossRef]
  27. Borg, L.; Drake, M.J. A review of meteorite evidence for the timing of magmatism and of surface or near-surface liquid water on Mars. J. Geophys. Res. E Planets 2005, 110, 1–10. [Google Scholar] [CrossRef][Green Version]
  28. Cassata, W.S.; Cohen, B.E.; Mark, D.F.; Trappitsch, R.; Crow, C.A.; Wimpenny, J.; Lee, M.R.; Smith, C.L. Chronology of martian breccia NWA 7034 and the formation of the martian crustal dichotomy. Sci. Adv. 2018, 4, eaap8306. [Google Scholar] [CrossRef][Green Version]
  29. Head, J.N.; Melosh, H.J.; Ivanov, B.A. Martian meteorite launch: High-speed ejecta from small craters. Science 2002, 298, 1752–1756. [Google Scholar] [CrossRef][Green Version]
  30. Artemieva, N.; Ivanov, B. Launch of martian meteorites in oblique impacts. Icarus 2004, 171, 84–101. [Google Scholar] [CrossRef]
  31. Fritz, J.; Artemieva, N.; Greshake, A. Ejection of Martian meteorites. Meteorit. Planet. Sci. 2005, 40, 1393–1411. [Google Scholar] [CrossRef]
  32. Kunz, J.; Falter, M.; Jessberger, E.K. Shocked meteorites: Argon-40-argon-39 evidence for multiple impacts. Meteorit. Planet. Sci. 1997, 32, 647–670. [Google Scholar] [CrossRef]
  33. Crozaz, G.; Wadhwa, M. The terrestrial alteration of saharan shergottites dar al ganid 476 and 489: A case study of weathering in a hot desert environment. Geochim. Cosmochim. Acta 2001, 65, 971–978. [Google Scholar] [CrossRef]
  34. Marks, N.E.; Borg, L.E.; Gaffney, A.M.; DePaolo, D. The Relationship of Northwest Africa 4468 to the Other Incompatible Element-enriched Shergottites Inferred from its Rb-Sr and Sm-Nd Isotopic Systematics. In Proceedings of the 41st Lunar and Planetary Science Conference, Woodlands, TX, USA, 1–5 March 2010. [Google Scholar]
  35. Shafer, J.T.; Brandon, A.D.; Lapen, T.J.; Righter, M.; Peslier, A.H.; Beard, B.L. Trace element systematics and 147Sm-143Nd and 176Lu-176Hf ages of Larkman Nunatak 06319: Closed-system fractional crystallization of an enriched shergottite magma. Geochim. Cosmochim. Acta 2010, 74, 7307–7328. [Google Scholar] [CrossRef]
  36. Shih, C.-Y.; Nyquist, L.E.; Reese, Y. Rb-Sr and Sm-Nd Studies of Olivine-Phyric Shergottites RBT 04262 and LAR 06319: Isotopic Evidence for Relationship to Enriched Basaltic Shergottites. Lunar Planet. Inst. Sci. Conf. Abstr. 2009, 40, 1360. [Google Scholar]
  37. Shih, C.-Y.; Nyquist, L.E.; Wiesmann, H.; Barrat, J.A. Age and Petrogenesis of Picritic Shergottite NWA1068: Sm-Nd and Rb-Sr Isotopic Studies. In Proceedings of the 34th Annual Lunar and Planetary Science Conference, Woodlands, TX, USA, 21 August 2003; p. 1439. [Google Scholar]
  38. Ferdous, J.; Brandon, A.D.; Peslier, A.H.; Pirotte, Z. Evaluating crustal contributions to enriched shergottites from the petrology, trace elements, and Rb-Sr and Sm-Nd isotope systematics of Northwest Africa 856. Geochim. Cosmochim. Acta 2017, 211, 280–306. [Google Scholar] [CrossRef]
  39. Shih, C.Y.; Nyquist, L.E.; Bogard, D.D.; McKay, G.A.; Wooden, J.L.; Bansal, B.M.; Wiesmann, H. Chronology and petrogenesis of young achondrites, Shergotty, Zagami, and ALHA77005: Late magmatism on a geologically active planet. Geochim. Cosmochim. Acta 1982, 46, 2323–2344. [Google Scholar] [CrossRef]
  40. Borg, L.E.; Edmunson, J.E.; Asmerom, Y. Constraints on the U-Pb isotopic systematics of Mars inferred from a combined U-Pb, Rb-Sr, and Sm-Nd isotopic study of the Martian meteorite Zagami. Geochim. Cosmochim. Acta 2005, 69, 5819–5830. [Google Scholar] [CrossRef]
  41. Combs, L.M.; Udry, A.; Howarth, G.H.; Righter, M.; Lapen, T.J.; Gross, J.; Ross, D.K.; Rahib, R.R.; Day, J.M.D. Petrology of the enriched poikilitic shergottite Northwest Africa 10169: Insight into the martian interior. Geochim. Cosmochim. Acta 2019, 266, 435–462. [Google Scholar] [CrossRef]
  42. Moser, D.E.; Chamberlain, K.R.; Tait, K.T.; Schmitt, A.K.; Darling, J.R.; Barker, I.R.; Hyde, B.C. Solving the Martian meteorite age conundrum using micro-baddeleyite and launch-generated zircon. Nature 2013, 499, 454–457. [Google Scholar] [CrossRef]
  43. Borg, L.E.; Nyquist, L.E.; Wiesmann, H.; Reese, Y. Constraints on the petrogenesis of Martian meteorites from the Rb-Sr and Sm-Nd isotopic systematics of the lherzolitic shergottites ALH77005 and LEW88516. Geochim. Cosmochim. Acta 2002, 66, 2037–2053. [Google Scholar] [CrossRef]
  44. Nyquist, L.E.; Bogard, D.D.; Shih, C.Y.; Greshake, A.; Stöffler, D.; Eugster, O. Ages and geologic histories of martian meteorites. Space Sci. Rev. 2001, 96, 105–164. [Google Scholar] [CrossRef]
  45. Liu, T.; Li, C.; Lin, Y. Rb-Sr and Sm-Nd isotopic systematics of the lherzolitic shergottite GRV 99027. Meteorit. Planet. Sci. 2011, 46, 681–689. [Google Scholar] [CrossRef]
  46. Nyquist, L.E.; Bogard, D.D.; Shih, C.Y.; Park, J.; Reese, Y.D.; Irving, A.J. Concordant Rb-Sr, Sm-Nd, and Ar-Ar ages for Northwest Africa 1460: A 346 Ma old basaltic shergottite related to “lherzolitic” shergottites. Geochim. Cosmochim. Acta 2009, 73, 4288–4309. [Google Scholar] [CrossRef][Green Version]
  47. Misawa, K.; Park, J.; Shih, C.Y.; Reese, Y.; Bogard, D.D.; Nyquist, L.E. Rb-Sr, Sm-Nd, and Ar-Ar isotopic systematics of lherzolitic shergottite Yamato 000097. Polar Sci. 2008, 2, 163–174. [Google Scholar] [CrossRef][Green Version]
  48. Morikawa, N.; Misawa, K.; Kondorosi, G.; Premo, W.R.; Tatsumoto, M.; Nakamura, N. Rb-Sr isotopic systematics of lherzolitic shergottite. Antarct. Meteor. Res. 2001, 14, 47–60. [Google Scholar]
  49. Shih, C.Y.; Nyquist, L.E.; Reese, Y.; Misawa, K. Sm-Nd and Rb-Sr studies of lherzolitic shergottite Yamato 984028. Polar Sci. 2011, 4, 515–529. [Google Scholar] [CrossRef][Green Version]
  50. Borg, L.E.; Nyquist, L.E.; Wiesmann, H.; Shih, C.Y.; Reese, Y. The age of Dar al Gani 476 and the differentation history of the martian meteorites inferred from their radiogenic isotopic systematics. Geochim. Cosmochim. Acta 2003, 67, 3519–3536. [Google Scholar] [CrossRef]
  51. Symes, S.J.; Borg, L.E.; Shearer, C.K.; Asmerom, Y.; Irving, A.J. Geochronology of NWA 1195 based on Rb-Sr and Sm-Nd Isotopic Systematics. In Proceedings of the 36th Annual Lunar and Planetary Science Conference, Woodlands, TX, USA, 14–18 March 2005; p. 1435. [Google Scholar]
  52. Borg, L.E.; Nyquist, L.E.; Taylor, L.A.; Wiesmann, H.; Shih, C.Y. Constraints on Martian differentiation processes from Rb-Sr and Sm-Nd isotopic analyses of the basaltic shergottite QUE 94201. Geochim. Cosmochim. Acta 1997, 61, 4915–4931. [Google Scholar] [CrossRef]
  53. Shih, Y.; Nyquist, L.E.; Reese, Y. Rb-Sr and Sm-Nd Isotopic Studies of Martian Depleted Shergottites SaU 094/005. In Proceedings of the 38th Annual Lunar and Planetary Science Conference, Woodlands, TX, USA, 1 January 2007. Abstract 1745. [Google Scholar]
  54. Brennecka, G.A.; Borg, L.E.; Wadhwa, M. Insights into the Martian mantle: The age and isotopics of the meteorite fall Tissint. Meteorit. Planet. Sci. 2014, 49, 412–418. [Google Scholar] [CrossRef]
  55. Shih, C.-Y.; Nyquist, L.E.; Wiesmann, H.; Misawa, K. Rb-Sr and Sm-Nd Isotopic Studies of Shergottite Y980459 and a Petrogenetic Link Between Depleted Shergottites and Nakhlites. In Proceedings of the 35th Lunar and Planetary Science Conference, Woodlands, TX, USA, 15–19 March 2004; pp. 8–9. [Google Scholar]
  56. Herzog, G.F.; Caffee, M.W. Cosmic-Ray Exposure Ages of Meteorites. In Treatise on Geochemistry; Elsevier Ltd.: Amsterdam, The Netherlands, 2014; Volume 1–9, pp. 419–453. [Google Scholar]
  57. Wieler, R.; Huber, L.; Busemann, H.; Seiler, S.; Leya, I.; Maden, C.; Masarik, J.; Meier, M.M.M.; Nagao, K.; Trappitsch, R.; et al. Noble gases in 18 Martian meteorites and angrite Northwest Africa 7812-Exposure ages, trapped gases, and a re-evaluation of the evidence for solar cosmic ray-produced neon in shergottites and other achondrites. Meteorit. Planet. Sci. 2016, 51, 407–428. [Google Scholar] [CrossRef][Green Version]
  58. Bouvier, A.; Blichert-Toft, J.; Vervoort, J.D.; Albarède, F. The age of SNC meteorites and the antiquity of the Martian surface. Earth Planet. Sci. Lett. 2005, 240, 221–233. [Google Scholar] [CrossRef]
  59. Bouvier, A.; Blichert-Toft, J.; Vervoort, J.D.; Gillet, P.; Albarède, F. The case for old basaltic shergottites. Earth Planet. Sci. Lett. 2008, 266, 105–124. [Google Scholar] [CrossRef]
  60. Bouvier, A.; Blichert-Toft, J.; Albarède, F. Martian meteorite chronology and the evolution of the interior of Mars. Earth Planet. Sci. Lett. 2009, 280, 285–295. [Google Scholar] [CrossRef]
  61. Hartmann, W.K.; Neukum, G. Cratering chronology and the evolution of Mars. Space Sci. Rev. 2001, 96, 165–194. [Google Scholar] [CrossRef]
  62. Bellucci, J.J.; Nemchin, A.A.; Whitehouse, M.J.; Snape, J.F.; Bland, P.; Benedix, G.K. The Pb isotopic evolution of the Martian mantle constrained by initial Pb in Martian meteorites. J. Geophys. Res. Planets 2015, 120, 2224–2240. [Google Scholar] [CrossRef][Green Version]
  63. Bellucci, J.J.; Nemchin, A.A.; Whitehouse, M.J.; Snape, J.F.; Kielman, R.B.; Bland, P.A.; Benedix, G.K. A Pb isotopic resolution to the Martian meteorite age paradox. Earth Planet. Sci. Lett. 2016, 433, 241–248. [Google Scholar] [CrossRef][Green Version]
  64. Bellucci, J.J.; Nemchin, A.A.; Whitehouse, M.J.; Humayun, M.; Hewins, R.; Zanda, B. Pb-isotopic evidence for an early, enriched crust on Mars. Earth Planet. Sci. Lett. 2015, 410, 34–41. [Google Scholar] [CrossRef][Green Version]
  65. Nakamura, N.; Unruh, D.M.; Tatsumoto, M.; Hutchison, R. Origin and evolution of the Nakhla meteorite inferred from the Sm-Nd and U-Pb systematics and REE, Ba, Sr, Rb and K abundances. Geochim. Cosmochim. Acta 1982, 46, 1555–1573. [Google Scholar] [CrossRef]
  66. Shih, C.-Y.; Nyquist, L.E.; Reese, Y.; Wiesmann, H. The Chronology of the Nakhlite, Lafayette: Rb-Sr and Sm-Nd Isotopic Ages. In Proceedings of the 29th Lunar and Planetary Science Conference, Woodlands, TX, USA, 16–20 March 1998; Volume 1, pp. 14–15. [Google Scholar]
  67. Shih, C.Y.; Nyquist, L.E.; Wiesmann, H. Samarium-neodymium and rubidium-strontium systematics of nakhlite Governador Valadares. Meteorit. Planet. Sci. 1999, 34, 647–655. [Google Scholar] [CrossRef]
  68. Misawa, K.; Shih, C.Y.; Reese, Y.; Bogard, D.D.; Nyquist, L.E. Rb-Sr, Sm-Nd and Ar-Ar isotopic systematics of Martian dunite Chassigny. Earth Planet. Sci. Lett. 2006, 246, 90–101. [Google Scholar] [CrossRef]
  69. Treiman, A.H. The nakhlite meteorites: Augite-rich igneous rocks from Mars. Geochemistry 2005, 65, 203–270. [Google Scholar] [CrossRef]
  70. Humayun, M.; Nemchin, A.; Zanda, B.; Hewins, R.H.; Grange, M.; Kennedy, A.; Lorand, J.P.; Göpel, C.; Fieni, C.; Pont, S.; et al. Origin and age of the earliest Martian crust from meteorite NWA 7533. Nature 2013, 503, 513–516. [Google Scholar] [CrossRef] [PubMed]
  71. Nyquist, L.E.; Shih, C.Y.; Mccubbin, F.M.; Santos, A.R.; Shearer, C.K.; Peng, Z.X.; Burger, P.V.; Agee, C.B. Rb-Sr and Sm-Nd isotopic and REE studies of igneous components in the bulk matrix domain of Martian breccia Northwest Africa 7034. Meteorit. Planet. Sci. 2016, 51, 483–498. [Google Scholar] [CrossRef]
  72. McCubbin, F.M.; Boyce, J.W.; Novák-Szabó, T.; Santos, A.R.; Tartèse, R.; Muttik, N.; Domokos, G.; Vazquez, J.; Keller, L.P.; Moser, D.E.; et al. Geologic history of Martian regolith breccia Northwest Africa 7034: Evidence for hydrothermal activity and lithologic diversity in the Martian crust. J. Geophys. Res. Planets 2016, 121, 2120–2149. [Google Scholar] [CrossRef]
  73. Moser, D.E.; Arcuri, G.A.; Reinhard, D.A.; White, L.F.; Darling, J.R.; Barker, I.R.; Larson, D.J.; Irving, A.J.; McCubbin, F.M.; Tait, K.T.; et al. Decline of giant impacts on Mars by 4.48 billion years ago and an early opportunity for habitability. Nat. Geosci. 2019, 12, 522–527. [Google Scholar] [CrossRef]
  74. Abramov, O.; Kring, D.A. Impact-induced hydrothermal activity on early Mars. J. Geophys. Res. E Planets 2005, 110, 1–19. [Google Scholar] [CrossRef][Green Version]
  75. Cartwright, J.A.; Ott, U.; Herrmann, S.; Agee, C.B. Modern atmospheric signatures in 4.4 Ga Martian meteorite NWA 7034. Earth Planet. Sci. Lett. 2014, 400, 77–87. [Google Scholar] [CrossRef][Green Version]
  76. Borg, L.E.; Gaffney, A.M.; DePaolo, D. Preliminary Age of Martian Meteorite Northwest Africa 4468 and Its Relationship to the Other Incompatible-Element-enriched Shergottites. In Proceedings of the 39th Lunar and Planetary Science Conference, Woodlands, TX, USA, 10–14 March 2008; p. 1851. [Google Scholar]
  77. Carlson, R.W.; Irving, A.J. Pb-Hf-Sr-Nd isotopic systematics and age of nakhlite NWA 998. In Proceedings of the 35th Lunar and Planetary Science Conference, Woodlands, TX, USA, 15–19 March 2004; p. A1442. [Google Scholar]
  78. Herd, C.D.K.; Borg, L.E.; Jones, J.H.; Papike, J.J. Oxygen fugacity and geochemical variations in the martian basalts: Implications for martian basalt petrogenesis and the oxidation state of the upper mantle of Mars. Geochim. Cosmochim. Acta 2002, 66, 2025–2036. [Google Scholar] [CrossRef]
  79. Papanastassiou, D.A.; Wasserburg, G.J. Initial strontium isotopic abundances and the resolution of small time differences in the formation of planetary objects. Earth Planet. Sci. Lett. 1968, 5, 361–376. [Google Scholar] [CrossRef]
  80. Armytage, R.M.G.; Debaille, V.; Brandon, A.D.; Agee, C.B. A complex history of silicate differentiation of Mars from Nd and Hf isotopes in crustal breccia NWA 7034. Earth Planet. Sci. Lett. 2018, 502, 274–283. [Google Scholar] [CrossRef][Green Version]
  81. Dreibus, G.; Wanke, H. Mars, a volatile-rich planet. Meteoritics 1985, 20, 367–381. [Google Scholar] [CrossRef]
  82. Lodders, K.; Fegley, B. An oxygen isotope model for the composition of Mars. Icarus 1997, 126, 373–394. [Google Scholar] [CrossRef]
  83. Draper, D.S.; Xirouchakis, D.; Agee, C.B. Trace element partitioning between garnet and chondritic melt from 5 to 9 GPa: Implications for the onset of the majorite transition in the martian mantle. Phys. Earth Planet. Inter. 2003, 139, 149–169. [Google Scholar] [CrossRef]
  84. McSween, H.Y.J.; Lundberg, L.; Crozaz, G. Crystallization of the ALHA77005 Shergottite: How is a Closed System. In Proceedings of the 19th Lunar and Planetary Science Conference, Woodlands, TX, USA, 14–18 March 1988. [Google Scholar] [CrossRef]
  85. Kinoshita, N.; Paul, M.; Kashiv, Y.; Collon, P.; Deibel, C.M.; DiGiovine, B.; Greene, J.P.; Henderson, D.J.; Jiang, C.L.; Marley, S.T.; et al. A shorter 146Sm half-life measured and implications for 146Sm-142Nd chronology in the solar system. Science 2012, 335, 1614–1617. [Google Scholar] [CrossRef][Green Version]
  86. Villa, I.M.; Holden, N.E.; Possolo, A.; Ickert, R.B.; Hibbert, D.B.; Renne, P.R. IUPAC-IUGS recommendation on the half-lives of 147Sm and 146Sm. Geochim. Cosmochim. Acta 2020, 285, 70–77. [Google Scholar] [CrossRef]
  87. Borg, L.E.; Brennecka, G.A.; Symes, S.J.K. Accretion timescale and impact history of Mars deduced from the isotopic systematics of martian meteorites. Geochim. Cosmochim. Acta 2016, 175, 150–167. [Google Scholar] [CrossRef][Green Version]
  88. Caro, G.; Bourdon, B.; Halliday, A.N.; Quitté, G. Super-chondritic Sm/Nd ratios in Mars, the Earth and the Moon. Nature 2008, 452, 336–339. [Google Scholar] [CrossRef]
  89. Debaille, V.; Brandon, A.D.; Oneill, C.; Yin, Q.Z.; Jacobsen, B. Early martian mantle overturn inferred from isotopic composition of nakhlite meteorites. Nat. Geosci. 2009, 2, 548–552. [Google Scholar] [CrossRef]
  90. Andrews-Hanna, J.C.; Zuber, M.T.; Banerdt, W.B. The Borealis basin and the origin of the martian crustal dichotomy. Nature 2008, 453, 1212–1215. [Google Scholar] [CrossRef]
  91. Elkins-Tanton, L.T.; Hess, P.C.; Parmentier, E.M. Possible formation of ancient crust on Mars through magma ocean processes. J. Geophys. Res. E Planets 2005, 110, 1–11. [Google Scholar] [CrossRef][Green Version]
  92. Scheinberg, A.; Elkins-Tanton, L.T.; Zhong, S.J. Timescale and morphology of Martian mantle overturn immediately following magma ocean solidification. J. Geophys. Res. E Planets 2014, 119, 454–467. [Google Scholar] [CrossRef]
  93. Barnes, J.J.; McCubbin, F.M.; Santos, A.R.; Day, J.M.D.; Boyce, J.W.; Schwenzer, S.P.; Ott, U.; Franchi, I.A.; Messenger, S.; Anand, M.; et al. Multiple early-formed water reservoirs in the interior of Mars. Nat. Geosci. 2020, 13, 260–264. [Google Scholar] [CrossRef]
  94. Foley, C.N.; Wadhwa, M.; Borg, L.E.; Janney, P.E.; Hines, R.; Grove, T.L. The early differentiation history of Mars from 182W-142Nd isotope systematics in the SNC meteorites. Geochim. Cosmochim. Acta 2005, 69, 4557–4571. [Google Scholar] [CrossRef]
  95. Kleine, T.; Mezger, K.; Münker, C.; Palme, H.; Bischoff, A. 182Hf-182W isotope systematics of chondrites, eucrites, and martian meteorites: Chronology of core formation and early mantle differentiation in Vesta and Mars. Geochim. Cosmochim. Acta 2004, 68, 2935–2946. [Google Scholar] [CrossRef]
  96. Righter, K.; Shearer, C.K. Magmatic fractionation of Hf and W: Constraints on the timing of core formation and differentiation in the Moon and Mars. Geochim. Cosmochim. Acta 2003, 67, 2497–2507. [Google Scholar] [CrossRef]
  97. Nimmo, F.; Kleine, T. How rapidly did Mars accrete? Uncertainties in the Hf-W timing of core formation. Icarus 2007, 191, 497–504. [Google Scholar] [CrossRef]
  98. Dauphas, N.; Pourmand, A. Hf-W-Th evidence for rapid growth of Mars and its status as a planetary embryo. Nature 2011, 473, 489–492. [Google Scholar] [CrossRef]
  99. Bellucci, J.J.; Nemchin, A.A.; Whitehouse, M.J.; Snape, J.F.; Bland, P.; Benedix, G.K.; Roszjar, J. Pb evolution in the Martian mantle. Earth Planet. Sci. Lett. 2018, 485, 79–87. [Google Scholar] [CrossRef][Green Version]
  100. Debaille, V.; Yin, Q.Z.; Brandon, A.D.; Jacobsen, B. Martian mantle mineralogy investigated by the 176Lu-176Hf and 147Sm-143Nd systematics of shergottites. Earth Planet. Sci. Lett. 2008, 269, 186–199. [Google Scholar] [CrossRef]

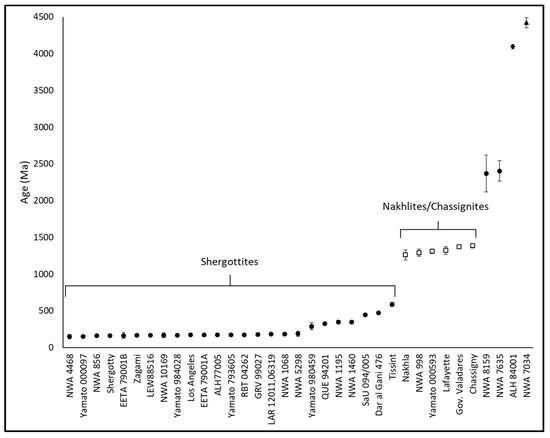

Figure 1. Crystallization ages of shergottites (black circles), nakhlites and chassignites (white squares), Northwest Africa (NWA) 7034 (black), Allan Hills (ALH) 84001 (black diamond), and NWA 7034 (black triangle). The age shown for NWA 7034 corresponds to the oldest measured igneous clasts. Data are from [11,12,19,22,27,28] and references therein.
Figure 1. Crystallization ages of shergottites (black circles), nakhlites and chassignites (white squares), Northwest Africa (NWA) 7034 (black), Allan Hills (ALH) 84001 (black diamond), and NWA 7034 (black triangle). The age shown for NWA 7034 corresponds to the oldest measured igneous clasts. Data are from [11,12,19,22,27,28] and references therein.
Geosciences 10 00455 g001

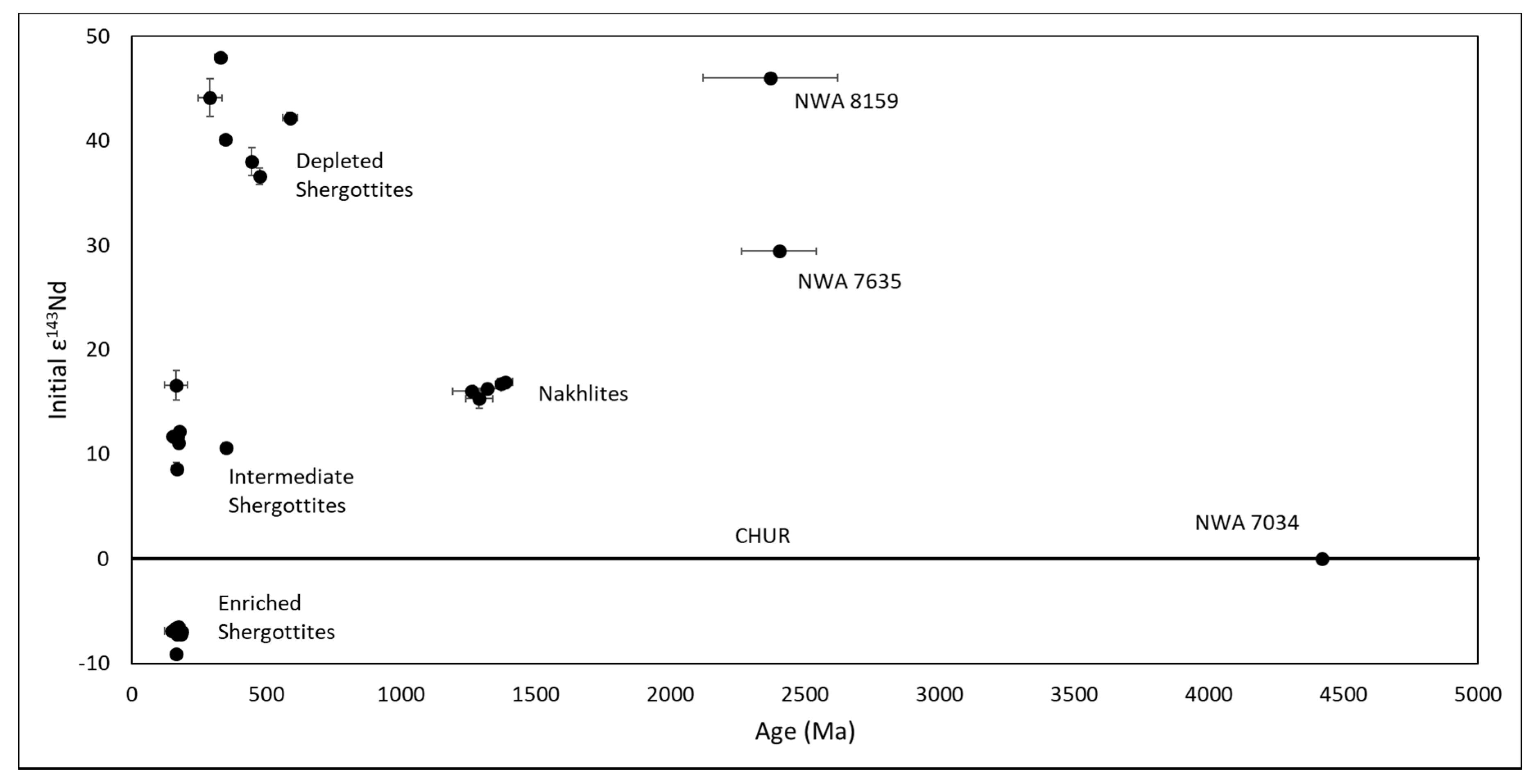

Figure 2. 147Sm/143Nd ages and calculated initial εNd values for Martian meteorites [11,12,35,36,37,38,39,40,43,44,45,46,47,48,49,50,51,52,53,54,55,65,66,67,68,71,76,77].
Figure 2. 147Sm/143Nd ages and calculated initial εNd values for Martian meteorites [11,12,35,36,37,38,39,40,43,44,45,46,47,48,49,50,51,52,53,54,55,65,66,67,68,71,76,77].
Geosciences 10 00455 g002

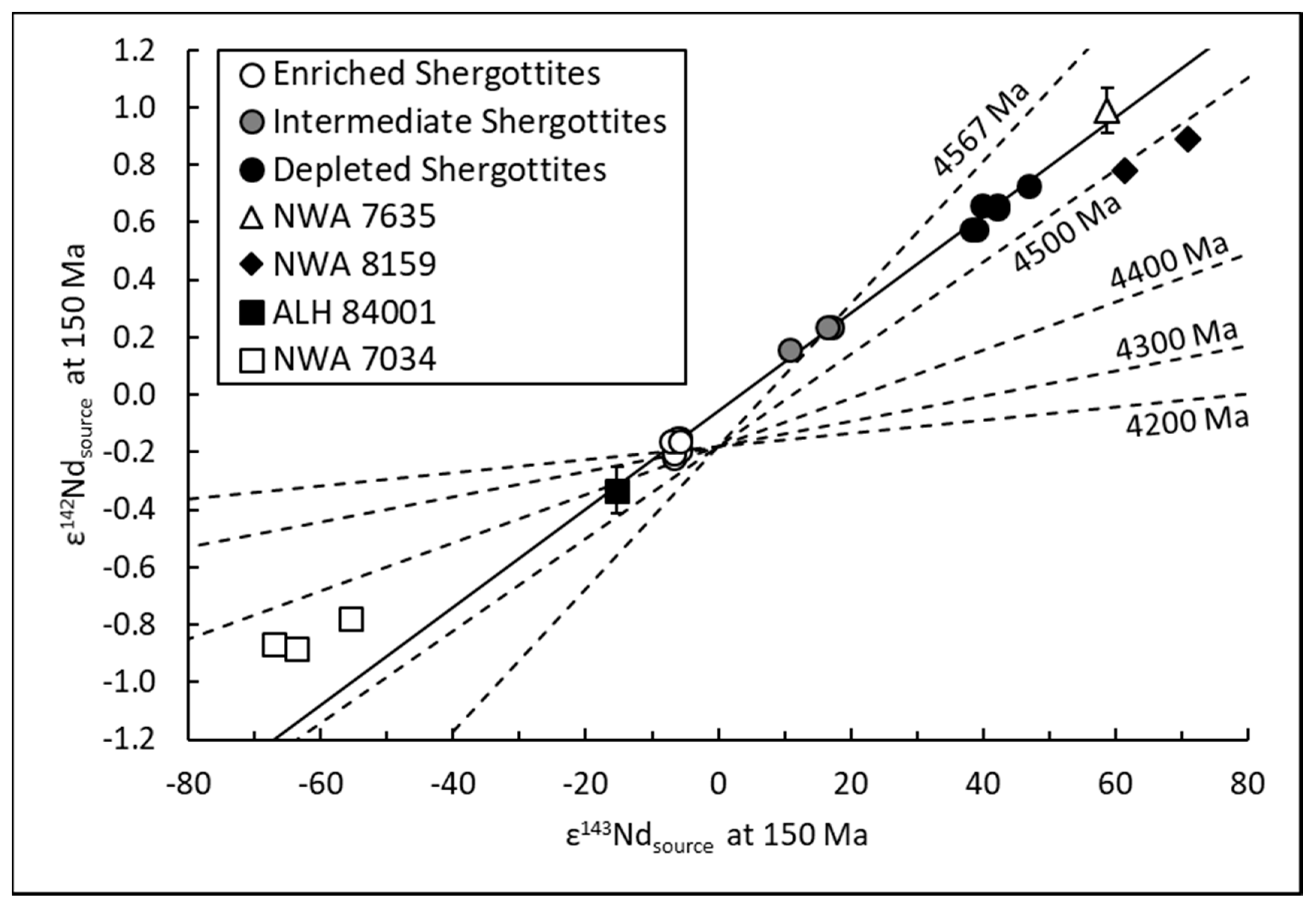

Figure 3. Calculated source ε142Nd vs. ε143Nd at 150 Ma for Martian meteorites. ε142Nd values for ALH 84001 and the Martian regolith breccia sources are corrected for radiogenic growth of 142Nd. Solid black line is the shergottite source regression line (SSRL) whose slope reflects the age of shergottite source differentiation (4506 ± 6 Ma [87]). Dotted lines are model age isochrons which pass through the chondritic ε142Nd value of −0.18 [15]. Since the SSRL does not intersect the model age origin, either it is not an isochron, or Mars’ initial 142Nd composition was not chondritic [87]. The source of Martian regolith breccia does not intersect the SSRL, suggesting that the shergottite differentiation event was not a planet-wide event such as crystallization and overturn of a magma ocean. Data and models are from refs. [80,87] and references within. Errors are plotted when symbol is smaller than error.
Figure 3. Calculated source ε142Nd vs. ε143Nd at 150 Ma for Martian meteorites. ε142Nd values for ALH 84001 and the Martian regolith breccia sources are corrected for radiogenic growth of 142Nd. Solid black line is the shergottite source regression line (SSRL) whose slope reflects the age of shergottite source differentiation (4506 ± 6 Ma [87]). Dotted lines are model age isochrons which pass through the chondritic ε142Nd value of −0.18 [15]. Since the SSRL does not intersect the model age origin, either it is not an isochron, or Mars’ initial 142Nd composition was not chondritic [87]. The source of Martian regolith breccia does not intersect the SSRL, suggesting that the shergottite differentiation event was not a planet-wide event such as crystallization and overturn of a magma ocean. Data and models are from refs. [80,87] and references within. Errors are plotted when symbol is smaller than error.
Geosciences 10 00455 g003

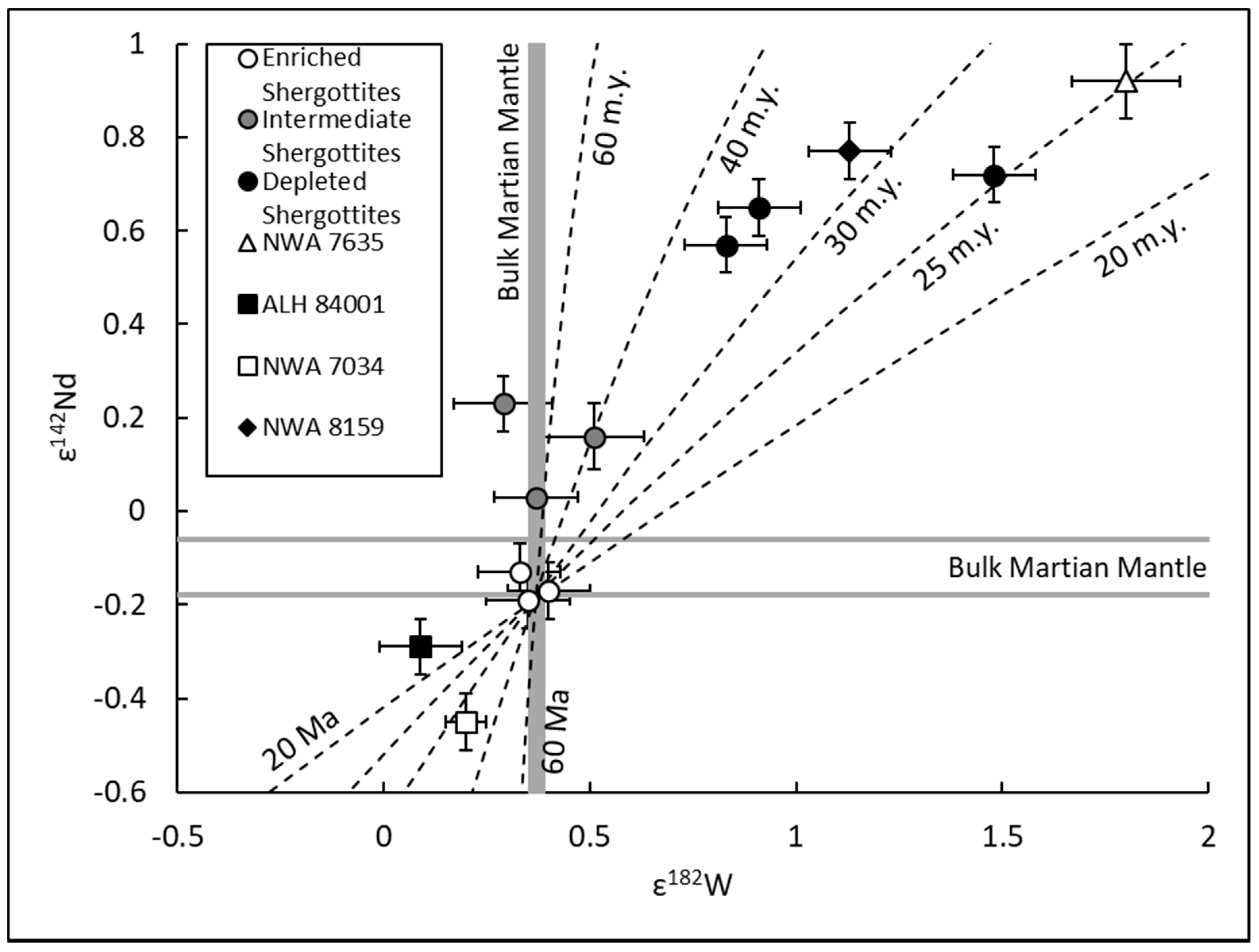

Figure 4. ε182W vs. ε142Nd for Martian meteorites. Grey horizontal lines are the ranges of potential Martian bulk ε142Nd values [15,87], and grey vertical line is the range of Martian bulk ε182W, deduced from these values and Martian meteorite ε182W. Dashed lines represent model times for source differentiation after solar system formation. Data and model calculations from ref. [16] and references within.
Figure 4. ε182W vs. ε142Nd for Martian meteorites. Grey horizontal lines are the ranges of potential Martian bulk ε142Nd values [15,87], and grey vertical line is the range of Martian bulk ε182W, deduced from these values and Martian meteorite ε182W. Dashed lines represent model times for source differentiation after solar system formation. Data and model calculations from ref. [16] and references within.
Geosciences 10 00455 g004

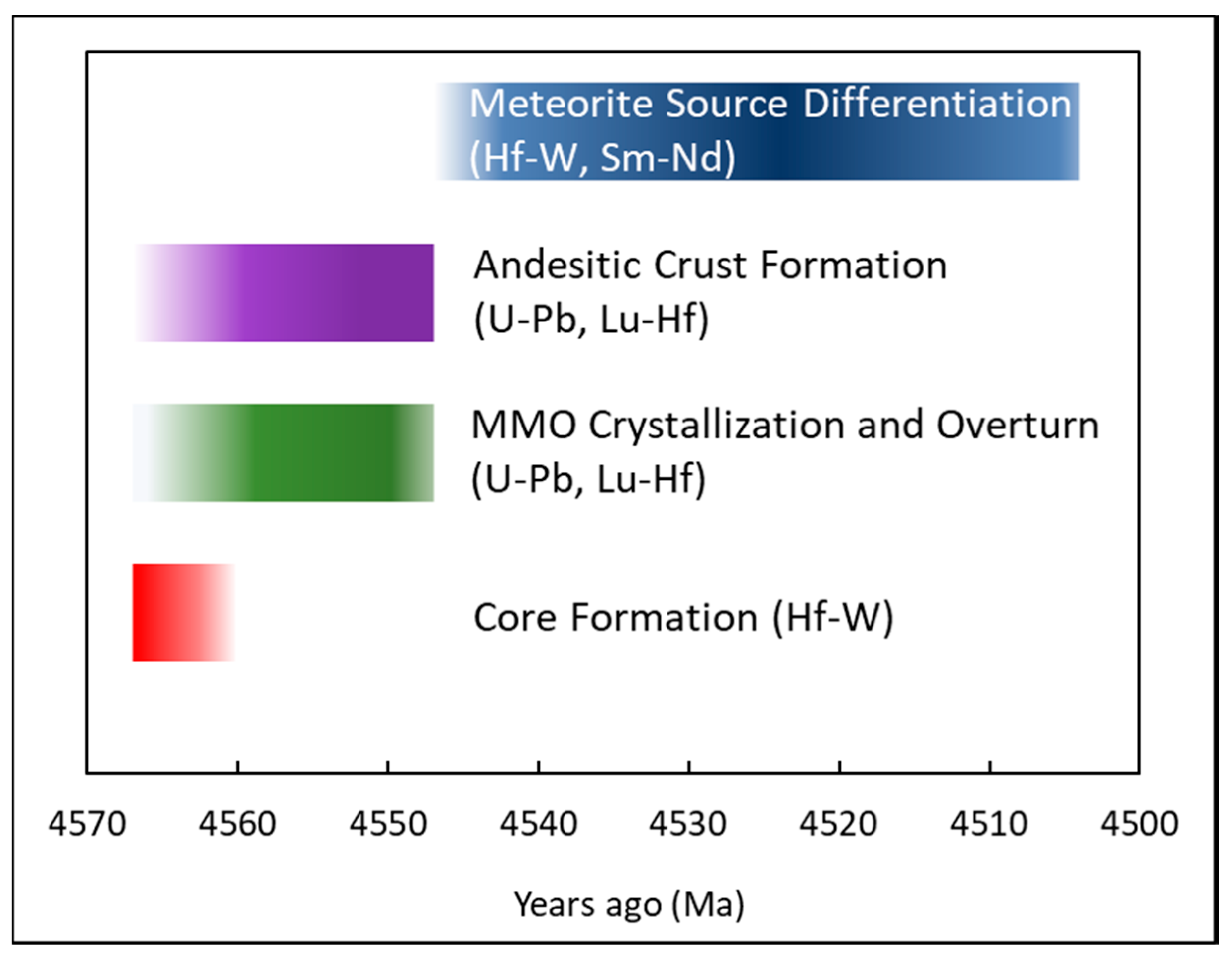

Figure 5. Summary of early Martian events based on various chronometers [16,22,87,89,94,99,100].
Figure 5. Summary of early Martian events based on various chronometers [16,22,87,89,94,99,100].
Geosciences 10 00455 g005
Table 1. Summary table of Martian meteorite ages, rock types, and geochemistry.
Table 1. Summary table of Martian meteorite ages, rock types, and geochemistry.
MeteoritesAgesRock Type(s)Geochemistry
Shergottites~150–600 Ma; ~2400 MaGabbro, diabase, basaltDepleted to Enriched in LREE
Nakhlites~1300 MaAugite and olivine cumulateEnriched in REE and LREE
Chassignites~1300 MaDuniteEnriched in LREE
NWA 8159~2300 MaAugite basaltDepleted in LREE
ALH 84001~4100 MaOrthopyroxeniteNearly chondritic REE
NWA 7034 and pairs~4500 MaPolymict igneous brecciaEnriched in REE and LREE
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Váci, Z.; Agee, C. Constraints on Martian Chronology from Meteorites. Geosciences 2020, 10, 455.

AMA Style

Váci Z, Agee C. Constraints on Martian Chronology from Meteorites. Geosciences. 2020; 10(11):455.

Chicago/Turabian Style

Váci, Zoltán, and Carl Agee. 2020. "Constraints on Martian Chronology from Meteorites" Geosciences 10, no. 11: 455.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
