Histomorphological Comparisons and Expression Patterns of BOLL Gene in Sheep Testes at Different Development Stages

Simple Summary

Boule homolog, RNA binding protein (BOLL), an ancestral member of the DAZ (deleted in azoospermia) gene family, is required for testicular function, maintenance, and spermatogenesis in males. However, in sheep, little is known about the expression profiles and molecular function of BOLL. In In this study, obvious seminiferous tubule lumens and various spermatogenic cells, including spermatogonia, primary and secondary spermatocytes, round spermatids, elongated spermatids, and spermatozoa, were observed in the testes of sheep aged 1 year and older. Our results showed that BOLL was expressed exclusively in sheep testes. Moreover, significant BOLL expression at the transcript and protein levels were discovered in 1- and 2-year-old sheep testes, in comparison with testes from 0-day-, 2-month-, and 5-month-old sheep. BOLL protein was located in spermatogenic cells, ranging from primary spermatocytes to round spermatids, as well as in spermatozoa with intensive immunoexpression. A preliminary study demonstrated that the sheep BOLL gene is critical for meiosis and sperm maturity. This study contributes to further understanding the regulatory mechanisms of the BOLL gene during spermatogenesis.

Abstract

BOLL is implicated in mammalian testicular function maintenance and spermatogenesis. To understand the expression patterns and biological functions of sheep BOLL, we examined the expression and immunolocalization of BOLL in the developing testes of Small-Tail Han sheep aged 0 days (D0), 2 months (2M), 5 months (5M), 1 year (1Y), and 2 years (2Y), by qPCR, Western blot, and immunohistochemistry methods. Firstly, morphological studies revealed that, in addition to spermatogonia, ordered and clear spermatocytes, as well as round and elongated spermatids and sperm, were found in the 1Y and 2Y testicular seminiferous tubules of the sheep testes, compared with the D0, 2M, and 5M testes, as analyzed by hematoxylin and eosin (H&E) staining. The diameter and area of the seminiferous tubules, epithelial thickness, and the area and perimeter of the tubule lumens gradually increased with age. BOLL was specifically expressed in testes and upregulation of BOLL transcript expression was higher in the testes of the 1Y and 2Y groups than in those of the D0, 2M, and 5M groups. Similarly, BOLL protein was expressed mainly in the 1Y and 2Y testes, ranging from primary spermatocytes to round spermatids, as well as in the spermatozoa. This study is the first demonstration that sheep BOLL might serve as a key regulator of the spermiogenesis involved in sperm maturity, in addition to its role as a crucial meiotic regulator.

1. Introduction

Spermatogenesis in mammals is a complex, continuous, and tightly coordinated physiological process that is largely regulated by many genes whose expression varies at the levels of transcription and translation during different stages [1,2,3]. The DAZ family genes are germ cell-specific RNA-binding proteins (RBPs) which are implicated in male spermatogenesis [4,5]. During mammalian spermatogenesis, there are many RBPs in mammalian testis that play important roles in regulating gene expression at the post-transcriptional level, in order to control differentiation of the spermatogenic cells, especially of the round spermatids [6,7]. The DAZ family consists of three known members, including two autosomal genes, BOLL and DAZL(DAZ-like), and one Y chromosome gene, DAZ [8,9,10,11].

BOLL (Boule), an ancestral gene of the DAZ family, is evolutionarily conserved in all metazoans [5,12]. Numerous studies have shown that the BOLL gene plays an important role in testicular function, maintenance, and spermatogenesis and that loss of the gene may cause male dyszoospermia and infertility [9,13,14,15,16]. In females, BOLL may regulate human embryonic stem cells to enter into meiotic phase and produce meiotic germ cells which are further induced to form ovarian follicle-like cells by expressing DAZL and BOLL with recombinant GDF9 and BMP15 [17]. Expression of BOLL mRNA is significantly decreased and BOLL protein is completely lacking in the testes of infertile men, when compared to healthy men [14,15,18]. Of note, BOLL expression is progressively reduced with the increasing severity of testicular failure [18]. The downregulation of BOLL expression in male gonads is related to its methylation degree and, consequently, with meiotic arrest and infertility. A long CpG island in the BOLL promoter was hypermethylated in the testes of cattle–yak hybrids (male sterility) with extremely low BOLL expression, compared with cattle testes [19]. For males with complete spermatogenesis, the methylation degree of the BOLL promoter is also inversely associated with its expression level. For example, the methylation level of the BOLL promoter in normal human testes, with high BOLL expression, is significantly lower than that in somatic tissues with lacking or extremely low BOLL expression [9]. The same results are reported for other mammals, such as goats [20], pigs [9], and mice [9].

The transcription of the BOLL gene during adult mice spermatogenesis is regulated by insulin-like growth factor 1 (IGF1), through extracellular signal-regulated kinases 1 and 2 (ERK1/2) signaling and T-independent pathways [10]. In males, deletion or mutation of BOLL may block production of functional sperm, thereby leading to infertility [5,14,21]. However, blocked stages of spermatogenesis are different among various species. In Drosophila melanogaster, for example, the mutation of Boule results in meiotic arrest during spermatogenesis [22]. Similar findings have been published in studies of infertility in mammalian testes from human [14,15,18] and cattle–yak [23]. However, in Boule null mice testes, meiotic divisions proceed normally, but spermatogenic cells undergo arrest at the subsequent stage of round spermatid, prior to deformation, and do not further differentiate into mature spermatozoa [24]. By contrast, the overexpression of BOLL is able to promote the development and differentiation of male germ cells. Li et al. [25] reported that the overexpression of BOLL in male dairy goat germline stem cells can elevate the expression of meiosis-associated genes, such as STRA8, SCP3, CDC25A, CDC2, and VASA, promoting meiosis and spermatogenesis. In vitro, overexpression of BOLL may effectively promote the transdifferentiation of goat bone marrow mesenchymal stem cells into early germ cells through spermatogenesis [26]. Additionally, experiments in male mice have proven that Boll is involved in regulating the formation of stress granules (SGs) in germ cells under heat stress, to protect those cells from heat-induced apoptosis [27]. SGs are an assembly of untranslated messenger ribonucleoproteins that form from cytoplasmic mRNAs stalled in translation initiation under stress conditions, such as heat, hypoxia, and oxidative stress, etc. (reviewed in [28,29]), which can inhibit pro-apoptotic factors and thereby prevent cell damage [29].

Until now, most reports on the BOLL gene in male mammals have focused on human, cattle and mouse, but the regulatory mechanisms are not exactly the same in different species, considering the entire range and wide variety. Sheep are an economically important livestock animal with considerable agricultural significance, however, little is known about the expression profiles and biological functions of BOLL in sheep testes. Accordingly, it is important to elucidate the mechanisms of sheep spermatogenesis by investigating the expression patterns and regulatory roles of BOLL in developing sheep testes.

2. Materials and Methods

2.1. Experimental Animals and Design

All of the animals in this investigation were managed according to the animal care and experimental procedure guidelines established by the Ministry of Science and Technology of the People’s Republic of China (Approval No. 2006-398) and the study was approved by the Animal Care Committee of Gansu Agricultural University. A total of fifteen purebred Small-Tail Han sheep, from five developmental stages—0 days old (D0; n = 3), 2 months old (2M; n = 3), 5 months old (5M; n = 3), 1 year old (1Y; n = 3), and 2 years old (2Y; n = 3)—were provided by Sanyang Sheep Breeding Farm (Jingtai, Gansu, China). Samples from the same section of the right testis, heart, liver, spleen, lung, kidney, and longissimus dorsi muscle were obtained from each sheep. Duplicated samples were collected for all tissues: one sample was immediately placed in liquid nitrogen and stored at −80 °C for the preparation of total RNA and protein, and the other was fixed with 4% paraformaldehyde for up to 48 h, then embedded in paraffin for hematoxylin and eosin (H&E) staining and immunohistochemistry.

2.2. H&E Staining

Sections from testis tissues at different developmental stages were initially stained using the H&E method, then dehydrated and dewaxed using conventional histological methods, as described by Hara et al. [30] with some modifications. Sections were observed under a microscope (Sunny Optical Technology Co. Ltd., Ningbo, China).

2.3. Total RNA Extraction and cDNA Synthesis

Total RNA from the selected tissue samples was extracted using TRIzol Reagent (TransGen Biotech, Beijing, China), as previously described [31]. The purity, concentration, and integrity of RNA samples were determined using a spectrophotometer (Nanodrop ND-2000, Thermo Scientific, Niederelbert, Germany) and 1% agarose gel electrophoresis, respectively. Using random and anchored oligo(dT)₁₈ primers (1:5 ratio), first-strand cDNA was synthesized for each sample using 500 ng RNA, according to the manufacturer′s instructions (TransGen Biotech, Beijing, China).

2.4. qPCR

The BOLL gene was amplified (LightCycler 96 Real-Time System, Roche, Switzerland) using optimized qPCR assay conditions, specifically, 1 cycle of 94 °C for 30 s; 40 cycles of 94 °C for 5 s, 40 cycles of 60 °C for 30 s. β-actin was used as an internal control for the normalization of BOLL mRNA expression. cDNA (1 μL) was added to 20 μL of the amplification reaction system used for qPCR, comprised of 0.4 μL of forward primer, 0.4 μL of reverse primer, 10 μL of 2 × TransStart^® Tip Green qPCR SuperMix (TransGen Biotech, Beijing, China), and 8.2 μL of ddH₂O. The relative expression level of BOLL mRNA was calculated according to the 2^−ΔΔCt method [32]. Each experiment was biologically replicated three times, with four technical replicates each. The BOLL mRNA expression results, taken from an average across tissue samples, were presented in the form of bar charts. The qPCR primers, used in the present study, are shown in

Table 1. List of the primers used in qPCR.

Gene	Accession No.	Primer Sequence (5′–3′)	Product Length
BOLL	XM_004004798.3	F: AGCAGAGAGGAAGATGGAGACC	122 bp
		R: GGGCACTCGTTGGGTTATTC
β-actin	NM_001009784.1	F: CTTCCAGCCTTCCTTCCTGG	180 bp
		R: GCCAGGGCAGTGATCTCTTT

.

2.5. Western Blot

Testicular tissues at different development stages were homogenized and lysed using a radio immunoprecipitation assay (RIPA) protein extraction kit (Solarbio, Beijing, China), according to the operating instructions. Protein concentrations within the testis samples were determined using a commercial bicinchoninic acid (BCA) Protein Assay kit (Beyotime, Shanghai, China). Twenty micrograms of the denatured protein samples were separated by 12% sodium dodecyl sulfate polyacrylamide gel electrophoresis (SDS-PAGE) and then transferred onto polyvinylidene difluoride (PVDF) blotting membranes (Beyotime, Shanghai, China). After blocking in phosphate buffered saline tween-20 (PBST) containing 5% non-fat milk, the membranes were incubated overnight at 4 °C with either rabbit anti-BOLL polyclonal antibody (1:500, Bioss, Beijing, China) or anti-beta-actin polyclonal antibody (1:1500, Bioss, Beijing, China). After washing, the membranes were incubated with goat anti-rabbit IgG/HRP antibody (1:5000, Bioss, Beijing, China). Enhanced chemiluminescence signals were visualized in an X-ray room. This experiment was biologically repeated three times. Band intensities were quantified using AlphaEaseFC software (Protein Simple, Santa Clara, CA, USA). The BOLL protein expression results, from an average across tissues, were presented as bar charts.

2.6. Immunohistochemistry

Immunoreactivity for the BOLL protein was visualized in 5 μm sections from testicular tissues at postnatal development stages using a Histostain™-Plus kit (Bioss, Beijing, China), as previous described [31]. In brief, the endogenous peroxidase activity from testicular sections was eliminated with 3% H₂O₂ and then incubated with rabbit polyclonal anti-BOLL antibody (1:120, Bioss, Beijing, China) in a wet box, overnight, at 4 °C. The negative controls were generated by replacing the primary antibody with PBS. The positive signals (brown) of the BOLL protein in sections were visualized using a DAB kit (Bioss, Beijing, China) and then observed using a Sunny EX31 biological microscope (Sunny, Ningbo, China). This experiment was biologically replicated three times.

2.7. Image Analysis and Data Statistics

H&E staining and immunohistochemistry images for testicular cross sections were captured using ImageView software (Sunny, Ningbo, China). The morphological parameters of 35 randomly selected seminiferous tubules from the 200× magnification of H&E sections were measured using MvImage software (Sunny, Ningbo, China). The integral optical density of immunostaining for the BOLL protein was calculated by analyzing four random 400× microscope magnification levels in independently replicated sections using Image-Pro Plus 6.0 software (Media Cybernetics, Rockville, MD, USA). The data were statistically analyzed using one-way analysis of variance, with p < 0.05 considered as statistically significant. All displayed values, in the form of bar charts, were the mean ± SD.

3. Results

3.1. Comparison of Morphological Differences between Sheep Testes at Different Ages

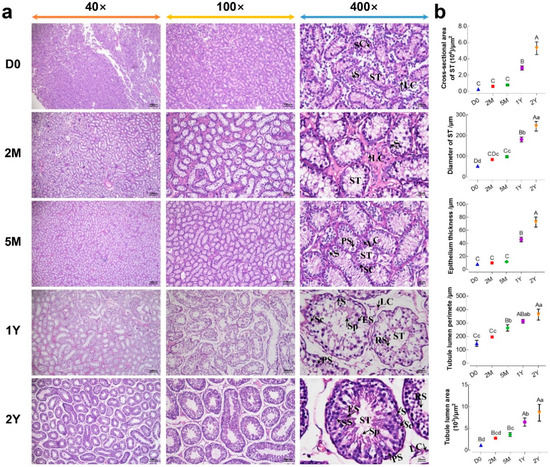

The morphological observation of sheep testes at different ages, using H&E staining, were presented in Figure 1a. As the results show, testicular tissues were mainly composed of Sertoli cells and various kinds of germ cells within seminiferous tubules, as well as Leydig cells localized in the seminiferous tubule interspaces. In the D0 and 2M groups, spermatogonias were observed only in the seminiferous tubules near basement membranes. In the 5M group, a small number of primary spermatocytes were observed in the seminiferous tubules, in addition to spermatogonia. In the 1Y and 2Y groups, the spermatogenic cell layer was noticeably increased in seminiferous tubules, and various spermatogenic cells—including spermatogonia, primary spermatocytes, secondary spermatocytes, round spermatids, elongated spermatids, and sperm—were observed in an orderly and distinct arrangement. Furthermore, the morphological variables in the seminiferous tubules of the testes, at different stages of development, were summarized in Figure 1b. The cross-sectional area and diameter of the seminiferous tubules, epithelial thickness, and the area and perimeter of the tubule lumen gradually increased with age. Of note, the histomorphological parameters in the above 1Y and 2Y groups were significantly increased compared to those in the D0, 2M and 5M groups (p < 0.05).

3.2. Expression Patterns of the BOLL Gene at the Different Developmental Stages of Sheep Testes

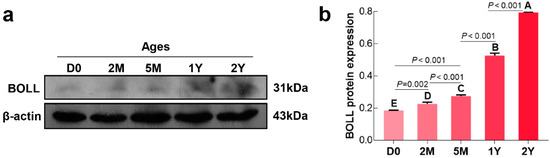

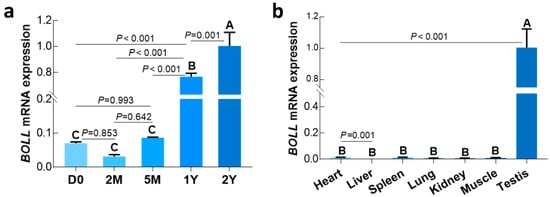

We first examined the temporal expression of BOLL transcript and protein in postnatal sheep testes using qPCR and Western blot, respectively. Here, we found that expression of BOLL was relatively low in sheep testes from the D0 to 5M groups, but was dramatically upregulated in the 1Y and 2Y groups (Figure 2a). Similarly, BOLL protein expression steadily increased in the testes from the D0 to 2Y groups, with the highest expression observed in the 2Y group (Figure 3).

3.3. Expression Patterns of BOLL in Various Tissues of 1-Year-Old Sheep Testes

To understand whether sheep BOLL was expressed in other tissues in addition to testis, we subsequently used qPCR to characterize the expression patterns of BOLL transcript in multiple tissues of 1-year-old sheep, including the testis, heart, liver, spleen, lung, kidney, and longissimus dorsi muscle. As expected, BOLL mRNA was only expressed exclusively in the testis, while no expression was detected in somatic tissues such as the heart, liver, etc. (Figure 2b).

3.4. Immunolocalization of BOLL Protein in Postnatal Developmental Sheep Testes

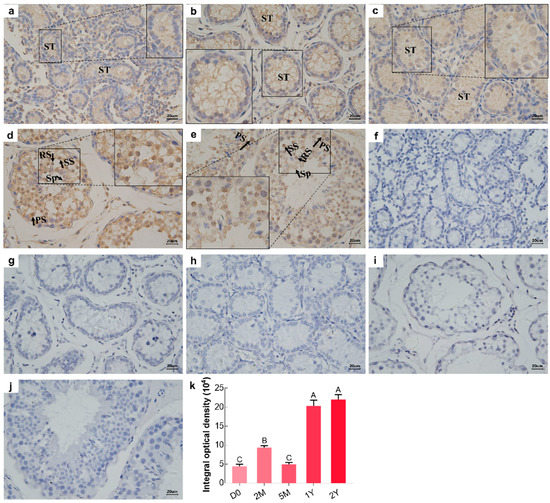

Immunostaining patterns for the BOLL protein in all testicular tissue sections, from sheep at different development stages, was analyzed by immunohistochemistry using a primary antibody to BOLL. The representative results are provided in Figure 4. The strength of positive reactions of the BOLL protein in testicular tissues ranged from weak to intense, increasing with age. Specifically, positive staining patterns corresponding to localization of the BOLL protein in the D0, 2M, and 5M groups were similar and showed its presence in the epithelia of seminiferous tubules, with relatively low expression (Figure 4a–c,k), whereas intense BOLL protein staining was mainly observed in the primary spermatocytes, secondary spermatocytes, round spermatids, and spermatozoa in the 1Y and 2Y groups (Figure 4d,e,k).

4. Discussion

Small-Tail Han sheep are an excellent genetic germplasm resource and economic breed in China. Therefore, studying sheep testicular histomorphology, as well as gene expression and regulation during testis development, has an important significance for understanding sheep fertility. In the present study, Small-Tail Han sheep testes were obtained from five postnatal developmental stages: D0 (new birth), 2M (weaning), 5M (pre-puberty), 1Y (sexual maturity), and 2Y (adult). When compared to the D0 and 2M testes, histomorphological observation showed that spermatocytes initially appeared in the seminiferous tubules beside the spermatogonia in 5M testes, indicating that Small-Tail Han sheep have an earlier age of sexual maturity. All levels of spermatogenic cells, from spermatogonia to spermatozoa, could be seen in the seminiferous tubules, most obviously in the tubules from the 1Y and 2Y testes. The measurement of the histomorphological parameters in the cross sections of testicular seminiferous tubules, at different development stages, indicated that the area and diameter of the seminiferous tubules, epithelial thickness, and the area and perimeter of the tubule lumen became gradually larger with testicular development. A significant increase was found in the 1Y and 2Y testes.

BOLL is a marker of germ cell development and meiosis, and previous studies in some male mammals have indicated that BOLL expression is restricted to the gonads and implicated in spermatogenesis through regulating spermatocyte meiosis and the male gamete formation required for fertility [5,14,33]. BOLL expression was examined in adult testes from cattle and yaks—low expression was detectable in testes of cattle–yaks, but there was no expression in other tissues, including the epididymis, kidney, spleen, stomach, hypothalamus, and pituitary tissues from cattle, yak, and cattle–yak [34]. In addition, two alternative splice variants of Boule, namely Boule1 and Boule2, were also found to be exclusively expressed in yak testes, while no expression was observed in other examined tissues, including ovary, muscle, kidney, and spleen [23]. Similarly, testis-specific expression for BOLL is also well-documented in male humans [9], dairy goats [25], pigs [9], mice [9] and chickens [9,33]. In addition, BOLL expression was only present in male and female gonads for fish such as Asian seabass (Lates calcarifer) [35], Chinese sturgeon (Acipenser sinensis) [36], and medaka (Oryzias latipes) [37]. In this study, BOLL was specifically expressed in the testes of 1-year-old sheep, but was completely lacking in other male somatic tissues, such as heart, liver, spleen, lung, kidney, and muscle, as analyzed by qPCR, which is consistent with previous studies on cattle [34], goats [25], and mice [9]. The results suggest a function for BOLL in sheep testes which might be related to its previously reported role in testicular development or spermatogenesis.

The expression patterns and regulation mechanisms of BOLL are not the same in the testes of different species nor in the same species at different development stages. In mice, Zhang et al. [9] report that Boll expression is barely detectable from postnatal 3- to 14-day-old testes, but its expression was significantly upregulated at 12-days-old and later. In goats, the expression of BOLL in the testes was observed to be lacking, or low, during the embryonic and pre-pubertal stages, but gradually increased during postnatal progression with a significant expression in mature testes [25,26]. Moreover, BOLL expression in adult dairy goat testes with complete spermatogenesis was significantly higher than that in testes with azoospermia or male intersex [25], which demonstrates that BOLL is crucial for male fertility. Herein, we first examined the expression patterns of the BOLL gene at the mRNA and protein level during postnatal sheep testis development, as analyzed using qPCR and Western blot. Consistent with previous studies [9,26], BOLL mRNA and protein expression were observed to be at extremely low levels in sheep testes from the D0, 2M, and 5M groups, but dramatically increased expression was detectable in the 1Y and 2Y groups. One can speculate that the BOLL gene is crucial for the testicular development of postnatal sheep and, particularly, for post-pubertal sheep.

BOLL is a testis-specific gene that regulates spermatogenesis in males, but its distribution in the testis varies between different species and between different development stages. Positive BOLL protein is restricted to spermatocytes in the testes of normal adult men, but it is completely lacking in the testes of infertile men, which is reported by Luetjens et al. [14]. For primates, positive BOLL protein is originally observed in zygotene spermatocytes, reaching its maximal expression in pachytene spermatocytes. It is also found in the secondary spermatocytes and earlier round spermatids of pygmy chimpanzee and gray mouse lemur testes, but it is distributed only in pachytene spermatocytes in common marmoset testis [38]. In adult mice, immunostaining of the BOLL protein has been observed in spermatocytes and round spermatids, as reported by two previous papers [10,27]. Also, the same results are reported in adult goat testes [26]. Moreover, positive BOLL cells were mainly located in primary spermatocytes, with a relatively low immunoexpression in secondary spermatocytes in the adult testes of Asian seabass [35] and medaka [37]. To understand the patterns of localization of BOLL-positive cells in developing sheep testes, BOLL protein immunoreactions were further assessed using immunohistochemistry. As a result, BOLL protein was detectable in sheep testes throughout different stages of development, with weak expression in the epithelia of seminiferous tubules from new birth to the pre-pubertal stages of development, but with intense expression in primary spermatocytes, secondary spermatocytes, round spermatids, and sperm from the post-pubertal developmental stage of sheep testes. High immunoexpression patterns in testicular spermatocytes and round spermatids of post-pubertal sheep were basically in agreement with previous studies that examined fertile men [14], primates (except the common marmoset) [38], goats [26], and mice [10,27]. In contrast to previously published studies, we also observed the presence of BOLL protein in sperm from the seminiferous tubules of post-pubertal testes, which may be due to the different species as well as developmental stages investigated in this study. Taken together, these results suggest that BOLL might play several important roles in the meiotic phase and spermiogenesis of mature sheep.

5. Conclusions

In conclusion, our study investigated the expression patterns and cellular localization of BOLL, an ancestral gene of the DAZ family, in sheep testes at different ages. Our data showed that BOLL demonstrates an extremely low level of expression and is confined to the seminiferous epithelium in testes, from birth through to the pre-pubertal stages. However, its expression demonstrates a significant upregulation in post-pubertal testes, with strong positive signals observed in the spermatocytes, round spermatids, and spermatozoa. These results indicate that BOLL plays a key role in sheep spermatogenesis, especially during meiosis and spermiogenesis. Future studies will be implemented to investigate the specific molecular mechanisms of BOLL gene expression during sheep spermatogenesis.
