Article

Effect of Oral Supplementation of Healthy Pregnant Sows with Sucrosomial Ferric Pyrophosphate on Maternal Iron Status and Hepatic Iron Stores in Newborn Piglets

by
Rafał Mazgaj
1,
Mateusz Szudzik
1,
Paweł Lipiński
1,*,
Aneta Jończy
1,
Ewa Smuda
1,
Marian Kamyczek
2,
Beata Cieślak
3,
Dorine Swinkels
4,5,
Małgorzata Lenartowicz
6 and
Rafał R. Starzyński
1,*
1
Department of Molecular Biology, Institute of Genetics and Animal Biotechnology, PAS, 05-552 Jastrzębiec, Poland
2
Pig Hybridization Centre, National Research Institute of Animal Production, Pawłowice 64-122, Poland
3
LabSoft Ltd, 02-844 Warsaw, Poland
4
Department of Laboratory Medicine (TLM 830), Radboud University Nijmegen Medical Center, 6525 GA Nijmegen, The Netherlands
5
Hepcidin Analysis, Department of Laboratory Medicine, Radboud University Medical Center, 6525 GA Nijmegen, The Netherlands
6
Department of Genetics and Evolutionism, Institute of Zoology and Biomedical Research, Jagiellonian University, 30-387 Kraków, Poland
*
Authors to whom correspondence should be addressed.
Animals 2020, 10(7), 1113; https://doi.org/10.3390/ani10071113
Submission received: 27 May 2020 / Revised: 22 June 2020 / Accepted: 25 June 2020 / Published: 29 June 2020
Browse Figures
Review Reports Versions Notes

Abstract

:

Simple Summary

In most mammals, including humans, the need for iron increases rapidly in the last period of pregnancy. Therefore, in compliance with World Health Organization (WHO) recommendations, iron supplementation has become a standard procedure even in healthy pregnant women although it carries the risk of iron toxicity and dysregulation of systemic iron homeostasis. Due to physiological and genomic similarities between swine and humans, pigs constitute an useful animal model in nutritional studies during pregnancy. Here, healthy pregnant sows were supplemented with sucrosomial ferric pyrophosphate (SFP), a new non-heme iron formulation, to study its effect on their iron metabolism and that of their progeny. In particular, we aimed at verifying whether supplementation of pregnant sows with SFP will increase the level of low hepatic iron stores in newborn piglets. Results of our study show that SFP does not significantly alter neither systemic iron homeostasis in pregnant sows, nor hepatic iron stores in newborn piglets, which can be used during neonatal period for the maintenance of hematological status. We hypothesize that supplemental iron given orally to pregnant sows is poorly transferred across the placenta.

Abstract

Background: The similarities between swine and humans in physiological and genomic patterns, as well as significant correlation in size and anatomy, make pigs an useful animal model in nutritional studies during pregnancy. In humans and pigs iron needs exponentially increase during the last trimester of pregnancy, mainly due to increased red blood cell mass. Insufficient iron supply during gestation may be responsible for the occurrence of maternal iron deficiency anemia and decreased iron status in neonates. On the other hand, preventive iron supplementation of non-anemic mothers may be of potential risk due to iron toxicity. Several different regimens of iron supplementation have been applied during pregnancy. The majority of oral iron supplementations routinely applied to pregnant sows provide inorganic, non-heme iron compounds, which exhibit low bioavailability and intestinal side effects. The aim of this study was to check, using pig as an animal model, the effect of sucrosomial ferric pyrophosphate (SFP), a new non-heme iron formulation on maternal and neonate iron and hematological status, placental transport and pregnancy outcome; Methods: Fifteen non-anemic pregnant sows were recruited to the experiment at day 80 of pregnancy and randomized into the non-supplemented group (control; n = 5) and two groups receiving oral iron supplementation—sows given sucrosomial ferric pyrophosphate, 60 mg Fe/day (SFP; n = 5) (SiderAL®, Pisa, Italy) and sows given ferrous sulfate 60 mg Fe/day (Gambit, Kutno, Poland) (FeSO4; n = 5) up to delivery (around day 117). Biological samples were collected from maternal and piglet blood, placenta and piglet tissues. In addition, data on pregnancy outcome were recorded.; Results: Results of our study show that both iron supplements do not alter neither systemic iron homeostasis in pregnant sows nor their hematological status at the end of pregnancy. Moreover, we did not detect any changes of iron content in the milk and colostrum of iron supplemented sows in comparison to controls. Neonatal iron status of piglets from iron supplemented sows was not improved compared with the progeny of control females. No statistically significant differences were found in average piglets weight and number of piglets per litter between animals from experimental groups. The placental expression of iron transporters varied depending on the iron supplement.

1. Introduction

In humans, maternal and fetal iron needs exponentially accelerate during the last trimester of pregnancy [1]. Most of gestational iron demand results from the increase in maternal red blood cell (RBC) mass and placental and fetal growth [2]. To meet iron requirements during pregnancy, both absorption of dietary iron and mobilization of this microelement from hepatic stores are enhanced. Iron deficiency during pregnancy is associated with growth retardation, premature birth, low birth weight, muscle dysfunction and low physical capacity [3,4,5,6]. Even in developed countries many women enter pregnancy with insufficient iron stores and dietary iron intake during pregnancy remains consistently below nutritional recommendations [7]. Nowadays, the World Health Organization (WHO) recommends daily iron supplementation for all pregnant women [8]. However, it is questionable whether iron supplements given to healthy, non-anemic women may improve maternal iron status (concentration of iron in colostrum, milk and hepatic iron stores), influence fetus development and neonatal Apgar score [9,10].
The pig is being increasingly used in biomedical research for studies of human diseases that are not accurately represented by rodent models [11,12,13]. For example, the pig model of neonatal iron deficiency anemia (IDA) meticulously reflects the main etiological factor of this defect observed in pre-term human neonates, that is, those having critically low iron content in their livers [14]. Since the molecular potential of iron uptake from the diet in neonates is greatly reduced [15] hepatic iron stores established through maternal-fetal transfer represents the primary source of this microelement to cope with the metabolic demands of developing organisms in the neonatal period. In both, pig term and human preterm neonates insufficient initial iron stores are considered a primary and probably most important etiological factor in the development of neonatal IDA. However, while in preterm human neonates the shortage of stored iron results from shortened period of iron deposition in the fetal liver, in term newborn piglets the main reason is the physiological inability of pregnant sow to meet iron demand for the greater number of fetuses. Several studies have attempted to increase the level of iron hepatic iron stores in fetuses by treating pregnant sows with iron supplements [16,17,18,19,20,21,22]. However, supplementation of sows at various stages of pregnancy, using various iron supplements administered orally or parenterally has no significant impact on the improvement of the iron status of newborn piglets and thus does not prevent suckling animals from becoming anemic (reviewed in Reference [23]).
Recently, liposomal, Sucrosomial® technology became a powerful and promising new formula of sucrosomial ferric pyrophosphate (SFP), non-heme iron characterized by increased bioavailability and reduced toxicity [24,25]. SFP represents an innovative oral iron-containing carrier in which ferric pyrophosphate is protected by a phospholipid bilayer membrane mainly from sunflower lecithin and sucrester matrix [26]. Sucrester is a surfactant derived from the esterification of fatty acids with sucrose (sucrose esters), which has recently been shown to behave as absorption enhancer, because of its ability to reduce intestinal barrier resistance. So far, very promising experiment regarding efficacy of SFP supplementation during human pregnancy has been performed [27].
This study was conducted to determine whether daily oral supplementation of healthy pregnant sows with SFP containing 60 mg Fe/kg of feed during pregnancy is a safe and effective procedure, improving iron status of sows and assuring a rise in the content of iron in hepatic stores in their offspring. Considering that mechanisms of iron transfer across the placenta are far from being fully elucidated in pigs, in our study we also aimed at investigating pathways of iron trafficking across the placenta. Finally, we evaluated pregnancy outcomes in SFP supplemented sows compared with females given ferrous iron sulfate (FeSO4) and non-supplemented controls.

2. Materials and Methods

2.1. Sows and Piglets, Experimental Design and Biological Sample Collection

The experiment was conducted at the Pig Hybridization Centre in Pawłowice belonging to the National Research Institute of Animal Production (Balice, Poland). As shown in Figure 1, total of 15 healthy, non-anemic pregnant 990 line sows (according to veterinary examination and hematological indices shown in Table 1.) and their offspring (sows were mate with the same boar) housed in standard conditions (70% humidity and a temperature of 22 °C in cages with straw bedding) were used. The sows during gestation were in gestation cage (dimensions 2.2 × 0.65 × 1.8 m). Sows were taken to the farrowing cages at 110th day of gestation (dimensions 2.4 × 3.4 m). A gestation crate is used for pregnant sows, which can effectively prevent them from fighting for food, biting and is conducive to sow miscarriage, Sows were fed individually within these cages and at gestation sows were fed 3.0 kg/day of fed given in two portions and water was available ad libitum. Sows used in experiment were in second parity order and had an average weight of 213.90 ± 22.49 kg. Sows were randomly allotted to control and 2 iron supplemented groups. Control females were offered until delivery a standard fodder for pregnant sows routinely used in swine industry (containing 80 mg Fe/1 kg as estimated by flame spectrometry). Fodder was designed to fulfill the National Research Council (NRC) [27] iron requirements for pregnant sows (Supplementary Table S1). In the first experimental group, sows were fed with standard fodder and starting from day 80 of pregnancy up to delivery were orally supplemented with additional iron in the form of sucrosomial ferric pyrophosphate (SFP) (SiderAL®, PharmaNutra, Pisa, Italy) and given in the amount of 60 mg Fe daily. In the second experimental group, pregnant sows were supplemented with iron in the form of ferrous sulfate (FeSO4, Gambit, Kutno, Poland) added to the standard fodder and given to sows according to the same timing and dosage as in the SFP group. Blood from sows was drawn on days 80 and 115 of gestation by venipuncture of the jugular vein (Vena jugularis externa). Blood and tissue samples from piglets were collected 24 hours after birth. Piglets were euthanized by intracardiac injection of 0.5 mL/kg body weight of Morbital® (133.3 mg/mL of sodium pentobarbital + 26.7 mg/mL of pentobarbital; Biowet, Puławy, Poland). The blood samples from sows and piglets were collected into tubes coated with heparin as an anticoagulant, centrifuged (1200× g, 10 min, 4°C) to separate the plasma. Plasma samples were immediately aliquoted and stored at −80 °C. Tissue samples collected from piglets for molecular analyses were rinsed with PBS and snap frozen in liquid nitrogen then stored at −80 °C. Placenta samples were collected immediately after parturition, snap frozen in liquid nitrogen for molecular analyses, other placenta samples were fixed with paraformaldehyde for immunofluorescence analyses. Colostrum samples were collected immediately after delivery and milk samples 48h after delivery, both were stored at −20 °C until further analysis.

2.2. Measurement of Red Blood Cell Indices and Plasma Iron Level

Hematological indices were determined using an automated ADVIA 2010 analyzer (Siemens, Erlangen, Germany). The plasma iron concentration was determined by colorimetric measurement of an iron-chromazurol complex according to the manufacturer’s protocol (Biomaxima S.A., Lublin, Poland) as previously described [28].

2.3. Measurement of Non-Heme Iron Content in Tissues

The non-heme iron content of liver, spleen (100 mg wet tissue; wt) and milk and colostrum (1 mL) were determined by acid digestion of the samples at 100 °C for 10 min, followed by colorimetric measurement of the absorbance of the iron-ferrozine complex at 560 nm as previously described [29].

2.4. Plasma Hepcidin-25 Measurement

Piglet plasma hepcidin-25 measurements were performed by a combination of weak cation exchange chromatography and time-of-flight mass spectrometry (WCX-TOF MS), as described previously for pig plasma [30] and urine [31]. Peptide spectra were generated on a Microflex LT matrix-enhanced laser desorption/ionization TOF MS platform (Bruker Daltonics, Billerica, MA, USA).

2.5. Real-Time Quantitative RT-PCR

Total cellular RNA was extracted from liver and placental tissue (20 mg) using Trizol reagent (Invitrogen) according to the manufacturer’s protocol. Two micrograms of total DNAse-treated RNA were reverse transcribed using a Transcriptor First Strand cDNA Synthesis Kit (Roche Diagnostics, Mannheim, Germany). Real-time quantitative polymerase chain reaction (PCR) analysis was performed in a Light Cycler U96 (Roche Diagnostics, Mannheim, Germany) using gene-specific primer pairs (Supplementary Table S2. The amplified products were detected using SYBR Green I (Roche Diagnostics, Mannheim, Germany) as described previously [32]. To confirm amplification specificity, the PCR products were subjected to melting curve analysis and agarose gel electrophoresis. Light Cycler U96 Software (Roche Diagnostics, Mannheim, Germany) was used for data analysis. Transcript levels were normalized relative to the control reference gene selected using NormFinder software (Aarhus, Denmark) [33] (https://moma.dk/normfinder-software).

2.6. Immunofluorescence (IF) Analysis and Confocal Microscopy of Placental Sections

After delivery, pig placentas were immediately dissected and fixed in 4% paraformaldehyde (Sigma-Aldrich, Poznan, Poland) in phosphate-buffered saline (PBS) at 4 °C for 24 hours. Following two 30 min washes in PBS, the tissues were successively soaked in 12.5 and 25% sucrose (Bioshop, Burlington, Ontario, ON, Canada) for 24 h and 7 days, respectively, at 4 °C. Placenta was embedded in Cryomatrix medium (Thermo Fisher Scientific, Warsaw, Poland), frozen in liquid nitrogen and sectioned in 10-μm slices using a cryomicrotome (Shandon, London, UK).
The sections were washed in PBS for 10 min and permeabilized by bathing in PBS/0.1% Triton X-100 (Sigma-Aldrich, Poznan, Poland) for 20 min. Non-specific antibody binding was blocked by incubating the tissue sections in PBS/5% Bovine Serum Albumin (BSA) (Bioshop, Burlington, Ontario, ON, Canada) for 1 h. For protein detection, sections were incubated overnight at room temperature with primary antibodies diluted in PBS/5% BSA. As a negative control, some sections were incubated without primary antibody. The primary and fluorochrome-conjugated secondary antibodies used in IF analysis are described in Supplementary Table S2. Next, the sections were washed for 5 × 6 min with PBS/0.1% Triton X-100 and incubated for 1 h with secondary antibody diluted in PBS/5% BSA at RT. Finally, sections were washed for 5 × 6 min in PBS and additionally stained with Hoechst (Thermo Fisher Scientific, Warsaw, Poland) for 2 min then washed 2 times with PBS and mounted in glycerol based medium. The antibodies used can be found in Supplementary Table S3.

2.7. Placental Samples and Fixation for Transmission Electron Microscopy (TEM)

Five placentas per experimental group were obtained from sows following normal, uncomplicated births and pregnancies. Small pieces of basal plate (10 × 10 × 2 mm) were excised within minutes of delivery (expelled placentas) and fixed for 1 h in 4% paraformaldehyde, 0.4% glutaraldehyde in sodium cacodylate trihydrate (Acros organics, Geel, Belgium) pH 7.2, followed by 1% OsO4 (Thermo Fisher, Kandel, Germany) for 16 h in 4 °C. Samples were then dehydrated through an ethanol series (30; 50; 70%). Samples were dried using Leica EM CPD300 Critical Point Dryer (Leica, Wetzlar, Germany) and sputtered with gold using Low Vacuum Coater Leica EM ACE200 (Leica, Wetzlar, Germany). Transmission electron microscopy was conducted using COXEM EM-30AXplus SEM (Yuseong-gu, Daejeon, Korea) microscope. Transmission Electron Microscopy (TEM) images can be found in supplementary data—Supplementary Figure S1.

2.8. Ethic Statement

The experimental procedures used in this study were in compliance with the European Union (EU) guidelines for the care and handling of research animals (EU Directive2010/63/EU for animal experiments). Second Local Ethical Committee on Animal Testing at the Warsaw University of Life Sciences in Warsaw (Poland) granted a formal waiver of the ethical approval because the only procedure involved in the study was piglets euthanasia and blood collection from pregnant sows. All these procedures are the routine veterinary procedures. Moreover, administration of a dietary supplement such as sucrosomial ferric pyrophosphate (SFP) is not categorized as a research procedure.

2.9. Statistical Analysis

Statistical analysis of iron supplementation in one-day-old piglets was performed using one-way analysis of variance (ANOVA) with type of supplementation as the factor followed by Tukey’s multiple comparisons test. The results from sows with iron supplementation were calculated by two-way ANOVA, using type of supplementation and time as the factors followed by Sidak’s multiple comparisons test. Statistical analysis and figures were prepared using GraphPad Prism version 8.00 for Windows (GraphPad Software, La Jolla, CA, USA). p-value, p ≤ 0.05 and p ≤ 0.01 were considered significant and are denoted with asterisks * and ** respectively.

3. Results

3.1. Preganant Sows Supplemented with SFP and FeSO4 Show No Changes in Hematological and Iron Status Compared with Non-Suplemented Controls

At the starting point of the experiment, that is, on day 80 of pregnancy, values of red blood cell (RBC) indices measured in all sows involved in the study were similar (Table 1). Likewise, sows from different experimental groups showed no differences in plasma iron parameters at this stage of pregnancy (Table 1). As pregnancy progressed (day 114) RBC indices remained unchanged with the exception of some fluctuations in RBC count and hemoglobin level in FeSO4 supplemented sows. In contrast, in advanced pregnancy, a concerted, statistically significant decrease in plasma iron, ferritin and hepcidin levels was observed in sows from all experimental groups. Changes in these parameters indicate decrease in iron stores in sows from all experimental groups (regardless of iron supplementation) at the end of pregnancy. At the same time, on day 114 of pregnancy there were no differences in plasma iron status between control and iron supplemented sows.

3.2. Supplementation of Pregnant Sows with Iron Did Not Influence Iron Content in the Colostrum and Milk

To verify whether supplementation of pregnant sows with iron increases the concentration of this microelement in the milk and colostrum, we evaluated this parameter in sows from all experimental groups. Iron content in these biological fluids was not significantly affected by oral administration of neither SFP nor FeSO4 to pregnant sows compared with non-treated females (Figure 2). Although a slight up regulation of iron content in supplemented groups was observed but it is was not statistically significant.

3.3. Red Blood Cell Indices and Plasma Iron Status in Piglets from Control and Iron-Supplemented Sows

Results shown in Table 2. clearly demonstrate that supplementation of pregnant sows either with SFP or FeSO4 did not improve RBC indices and plasma iron status of their piglets. Importantly, on day 1 after birth hemoglobin concentration in all newborn piglets was above the threshold value of anemia in this range of age, 8 g/dL) [33].

3.4. Supplementation of Pregnant Sows with SFP or FeSO4 Does Not Alter neither Iron Content in the Placenta nor Hepatic and Splenic Iron Status of their Progeny

Importantly in context to pig farming and fattening, the number of piglets in the litter remains unchanged regardless of iron supplementation procedure in comparison to untreated sows. Similarly, piglets from sows receiving different iron supplementations or without iron treatment showed an equal body weight, measured one day after delivery (Supplementary Figure S2). Iron transfer across the placenta is the only pathway providing this microelement from mother to developing fetuses. Although non-heme iron content in the placenta of sows supplemented with SFP or FeSO4 showed a downward trend compared with control females, no statistically significant differences were found (Figure 3). This indicates that despite administration to sows of various iron supplements, iron flux through the placental barrier remained similar in sows from all experimental groups. This is reflected in almost equal iron accumulation in piglets’ liver and spleen, key organs for handling systemic iron (Figure 3).

3.5. Increased Hepcidin and Bone Morphogenetic Protein 6 (BMP6) Expression in the Placenta and in the Liver of Piglets from Sows Supplemented with SFP

Hepcidin, the master regulator of systemic iron metabolism, is mainly synthesized and released by hepatocytes in response to increased body iron concentration [34,35,36,37,38,39,40,41]. Hepcidin expression has been also reported in many other mammalian cells including placenta [42,43,44,45,46,47,48,49]. Although the function of tissue-specific hepcidin remains unknown it has been suggested that local autocrine regulation based on locally produced hepcidin may operate in several tissues [50]. To evaluate the effect of oral administration of pregnant sows with SFP on hepcidin expression, we measured hepcidin mRNA abundance in the liver of piglets and in the placenta. In tissues collected form the group of SFP-treated sows, hepcidin expression was increased in the liver (statistically significant difference) and in the placenta (a strong upward trend) compared with tissues obtained from control animals (Figure 4). In contrast to the effect of SFP on hepcidin hepatic mRNA expression in piglets, no induction of hepcidin mRNA expression was observed in livers from piglets derived from mothers supplemented with FeSO4 (Figure 4). To check whether hepatic expressional pattern of hepcidin is reflected in the level of hepcidin peptide circulating in the blood, we measured the concentration of active hepcidin-25 in the blood plasma of piglets. We found a similar trend in plasma hepcidin concentration, that is, strong increase in piglets from SFP-treated sows compared with controls and basic level in piglets from pregnant sows supplemented with FeSO4 (Figure 4).
Bone morphogenetic protein 6 (BMP6) is a central regulatory factor that increases hepatic hepcidin expression in response to iron. Sinusoidal hepatic endothelial cells are the predominant source of BMP6 in the liver, which acts in a paracrine manner by binding to complex BMP6 receptor on hepatocytes to induce hepcidin transcription [51]. Therefore, we attempted to answer whether BMP6 is involved in hepcidin regulation in the placenta and in the liver of 1-day old piglets after iron supplementation of sows. We found that in both tissues expression pattern of BMP6 perfectly overlaps that of hepcidin in animals from all analyzed groups. This strongly suggests the involvement of BMP6 in the regulation of hepcidin expression under our experimental conditions.

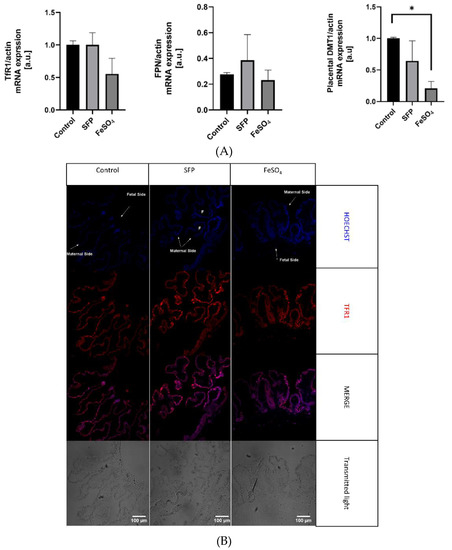

3.6. The Effect of Oral Iron Supplementation on Placental Morphology and Expression of Iron Transporters

The placenta serves as the interface between mother and fetus and it mediates nutrient transport to the fetus including the transport of iron. Uni-directional transfer of iron transported by the placenta from the maternal to the fetal circulation is effected by transferrin receptor 1 (TfR1), divalent metal transporter 1 (DMT1) and ferroportin (Fpn), located on the apical and basolateral membrane of syncytiotrophoblats, respectively [52]. To determine the influence of supplementation of pregnant sows with SFP on iron transporters expression and localization in the placenta, we analyzed mRNA abundance of TfR1, DMT1 and Fpn as well as localization of these three proteins responsible for iron flow across the placenta. Administration of SFP to pregnant sows had no significant effect on the level of transcripts encoding TfR1, DMT1 and Fpn compared with controls. In contrast, we observed a downward tendency in the expression of analyzed genes in the placenta from sows supplemented with FeSO4. In the case of DMT1, this downregulation was statistically significant compared to controls (Figure 5A). We also showed that in placentas from three experimental groups principal transporters mediating cellular iron uptake and efflux are abundantly and equally expressed in syncytiotrophoblasts (STB) on the maternal and fetal sides, respectively (Figure 5B–D). This indicates that the efficiency of iron transport across the placentas from sows from all groups is similar.
To check the potential effect of SFP on the integrity and morphology of placenta we performed an exhaustive analysis of placenta using scanning electron microscopy at different scanning resolutions. We did not observe any visible morphological damages/changes at the surface of syncytiotrophoblasts collected from sows either supplemented with SFP or FeSO4 compared with controls. (Supplementary Table S1). This result is consistent with previous studies indicating low toxicity SFP [24,53,54].

4. Discussion

The pig is an interesting experimental animal model for studying iron supplementation during pregnancy. While pregnant sows of most contemporary pig breeds are usually iron replete and do not manifest symptoms of iron deficiency, their progeny regularly develops IDA approximately 3–4 days after birth [23,55,56,57]. The fundamental cause of neonatal anemia in pigs is a drastic imbalance between poor iron supply and high iron demand. Poor availability of iron in newborn piglets occurs due to extremely low level of hepatic iron stores (the lowest in mammalian neonates) [14,29,55,58,59,60,61,62] and low iron content in the colostrum/milk [63], accompanied by inefficient absorption of dietary iron [55]. On the other hand, high iron needs are determined by unusually rapid rate growth of piglets (they increase 10-fold their body mass within 6 weeks of birth) [15,55,60,61,64]. The concept of replacing routine, largely non-physiological postnatal parenteral supplementation of piglets with iron dextran [65] by administration of iron to pregnant sows to prevent suckling animals from becoming anemic has emerged in several studies [66]. The rationale behind such a procedure is to increase iron status of pregnant females, intensify iron transfer across the placenta from the mother to the fetuses, consequently increasing hepatic iron content, which can serve as a source of this microelement in piglets during early postnatal development. Among potential benefits of this treatment include reduction of the labor input and improving the welfare of supplemented young animals. However, this treatment is highly challenging considering its possible adverse effects on sow’s iron metabolism, the risk of iron toxicity and insufficiency of the molecular machinery involved in transplacental iron transport. Indeed, supplementation of sows at various stages of pregnancy, using various iron supplements (iron salts/chelates, iron dextran) administered orally or parenterally has no significant impact on the improvement of iron status of newly born piglets and has not been proven in prophylaxis of neonatal IDA in piglets [16,19,20,21,67,68,69,70,71,72]. Despite these negative results, in this study we attempted to test the efficacy of prenatal oral supplementation with SFP through administration of this compound to pregnant sows. SFP is an innovative preparation of ferric pyrophosphate, covered by phospholipids plus sucrester matrix, with high bioavailability, capacity to overcome gastrointestinal barriers and tolerability [23,24,25,26,53,54]. Importantly, the efficacy and no side effects of SFP administration have been reported in pregnant women with iron deficiency [26]. Here, we show that despite supplementation of sows from day 80 of pregnancy with SFP, their iron status few days before delivery was decreased similarly to sows supplemented with FeSO4 or fed with control diet. However, this moderate decrease did not compromise RBC status of pregnant females. An uniform drop in ferritin plasma levels (in sows from all experimental groups), a marker of hepatic iron stores [73], strongly indicates that to maintain erythropoietic activity of pregnant females, iron is preferentially released from the liver. Similarly, decrease in the concentration of plasma hepcidin observed in sows from all groups on day 114 of pregnancy results from, at least, partial depletion of iron stores. It is known that under conditions of enhanced erythropoiesis observed in late pregnancy [74,75,76], hepcidin is down-regulated independently from iron deficiency by erythroid factors produced by erythroblasts that act on hepatocytes to suppress hepcidin synthesis [77]. Indeed, it has been reported that not only anemic mothers [77] but also mothers with iron-replete stores [78] show low hepcidin expression at delivery [79]. The possible explanation for hepcidin suppression in pregnant females (even in those supplemented with iron) is the need to increase endogenous maternal iron supply for extra gestational requirements by enhanced iron mobilization from stores, increased iron absorption and accelerated recycling of iron derived from senescent erythrocytes.
Most importantly for this study, supplementation of sows with SFP failed to reinforce iron stores in newborn piglets. All iron indexes such as hepatic and splenic iron content, blood plasma iron parameters attest ineffectiveness of SFP supplementation of sows to improve iron status in piglets. These results collectively with aligned non-anemic RBC pattern of piglets from all experimental groups, confirm previous reports demonstrating that 1-day old piglets born from sows either supplemented with iron preparations or not, do not yet show symptoms of IDA [47]. We hypothesize that the failure in the reinforcement of piglets iron status in response to SFP administration to pregnant sows is associated with the limited molecular potential of the placenta to increase iron transport from the mother to fetuses. Immunofluorescent analysis of 3 main iron transporters such as TfR1, DMT1 and Fpn clearly shows their analogous distribution and similar intensity of fluorescent signal in placentas from all experimental groups. Accordingly, loading pregnant mice with iron showed no influence on the protein level of TfR1 and Fpn in the E18.5 placenta compared with the placenta from females fed standard iron diet [78]. Surprisingly, we noticed that administration of SFP to pregnant sows consequently induced hepcidin expression in the placenta (increase in the mRNA level) and in piglets (increase in the hepatic mRNA level and in the concentration of circulating peptide in the blood) and overlapped the rise in the expression of placental and hepatic BMP6, factor that increases hepatic hepcidin in response to iron [34]. This set of data strongly suggest the involvement of discreetly increased signaling (regulatory) intratissular iron pool, which was not detectable using our analytical methods. Up-regulation of hepcidin may be a part of control mechanisms protecting fetuses and newborns from excessive iron transport through ferroportin from the placenta to the fetal circulation and therefore from exacerbated iron toxicity associated with iron overload [80]. Alternatively, it is likely a consequence of the ancestral regulation of iron transport across the placenta functioning in wild boar. In contrast to domestic pig progeny, hepatic iron stores in wild boar piglets are adequate to meet iron needs for erythropoiesis probably because during pregnancy iron transferred from the wild boar mother has to be distributed among only 4–6 fetuses [81] instead of 10–14 in domestic pig sows of high performance contemporary breeds.

5. Conclusions

In conclusion, it seems that SFP is an efficient iron supplement only in iron deficient subjects [25,26,53,54] including iron deficient pregnant mothers as it has been demonstrated in humans [26]. When pregnant females are iron replete or show slightly decreased iron status as is the case of pregnant sows, supplementation with SFP is inefficient. The mechanism of prevention of excessive iron accumulation in the body upon treatment with SFP in purpose to increase iron stores is an interesting challenge for future research. Taken together, the results of this study demonstrate the effectiveness of daily oral dose of 60 mg SFP on occurrence and prevention of anemia during swine pregnancy. In perspective the research challenge is to use oral iron supplementation to treat IDA during pregnancy in a pig model of maternal anemia. The importance of iron for feto-maternal health and fetal development during pregnancy cannot be overestimated. Therefore the question of how iron is transported from mother to fetus is still open. There are still candidates for placental iron transport, such as ZIP8, ZIP14 or FLVCRa and b or heme iron transporters, whose altered expression may be associated with fetal or maternal iron status [82,83]. One should not forget about the possibilities of non-transferrin bound iron (NTBI) transport through the placenta. Such iron appears in the blood mostly in hemochromatic patients when saturation of transferrin exceeds 70% or 80%. There are also evidence that in pregnant woman taking iron supplements NTBI may rise [84]. Thus future research should take into account both the above-mentioned transporters as well as should explain the mechanisms of iron transport across the placenta and their effect on the regulation of iron metabolism during healthy and complicated pregnancy.

Supplementary Materials

The following are available online at https://www.mdpi.com/2076-2615/10/7/1113/s1, Table S1. The composition and chemical analysis of the basal diet for pregnant sows, Table S2: Gene specific primers sequences used in RT-PCR analyses, Table S3: Antibodies used in immunofluorescence analyses, Figure S1. Illustration of the surface of placental tissues acquired using T.E.M microscopy, Figure S2. Pregnancy outcome.

Author Contributions

Funding acquisition, R.R.S.; Investigation, R.M., M.S., A.J., E.S. and D.S.; Methodology, P.L., A.J., E.S., M.K., B.C., D.S. and M.L.; Supervision, P.L. and R.R.S.; Writing—original draft, R.M. and R.R.S.; Writing—review and editing, R.M., P.L. and R.R.S. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by The National Science Centre, Poland, grant no. 2017/25/B/NZ9/01707.

Acknowledgments

We would like to thank Germano Tarantino from Pharmanutra S.p.a., Pisa PI, Italy for providing SiderAL®. We also thank Agata Humańska from Gambit, Kutno, Poland for gratuitous providing ferrous iron.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses or interpretation of data; in the writing of the manuscript or in the decision to publish the results.

References

  1. Koenig, M.D.; Tussing-Humphreys, L.; Day, J.; Cadwell, B.; Nemeth, E. Hepcidin and iron homeostasis during pregnancy. Nutrients 2014, 6, 3062–3083. [Google Scholar] [CrossRef]
  2. Bothwell, T.H. Iron requirements in pregnancy and strategies to meet them. Am. J. Clin. Nutr. 2000, 72, 257S–264S. [Google Scholar] [CrossRef] [PubMed]
  3. Murphy, J.F.; Newcombe, R.G.; O’Riordan, J.; Coles, E.C.; Pearson, J.F. Relation of haemoglobin levels in first and second trimesters to outcome of pregnancy. Lancet 1986, 327, 992–995. [Google Scholar] [CrossRef]
  4. Scholl, T.O.; Hediger, M.L. Anemia and iron-deficiency anemia: Compilation of data on pregnancy outcome. Am. J. Clin. Nutr. 1994, 59, 492s–501s. [Google Scholar] [CrossRef] [PubMed]
  5. Singh, K.; Fong, Y.F.; Arulkumaran, S. Anaemia in pregnancy—A cross-sectional study in Singapore. Eur. J. Clin. Nutr. 1998, 52, 65–70. [Google Scholar] [CrossRef] [Green Version]
  6. Yip, R. Significance of an abnormally low or high hemoglobin concentration during pregnancy: Special consideration of iron nutrition. Am. J. Clin. Nutr. 2000, 72, 272–279. [Google Scholar] [CrossRef]
  7. Oliver, M.H.; Jaquiery, A.L.; Bloomfield, F.H.; Harding, J.E. The effects of maternal nutrition around the time of conception on the health of the offspring. Soc. Reprod. Fertil. Suppl. 2007, 64, 397–410. [Google Scholar] [CrossRef]
  8. World Health Organization (WHO). Daily Iron and Folic Acid Supplementation During Pregnancy; WHO: Geneva, Switzerland, 2018. [Google Scholar]
  9. Peña-Rosas, J.P.; Viteri, F.E. Effects and safety of preventive oral iron or iron + folic acid supplementation for women during pregnancy. Cochrane Database Syst. Rev. 2009, 4. [Google Scholar] [CrossRef]
  10. Apgar, V. A proposal for a new method of evaluation of the newborn infant. Anesth. Analg. 2015, 120, 1056–1059. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  11. Bassols, A.; Costa, C.; Eckersall, P.D.; Osada, J.; Sabrià, J.; Tibau, J. The pig as an animal model for human pathologies: A proteomics perspective. Proteom. Clin. Appl. 2014, 8, 715–731. [Google Scholar] [CrossRef] [PubMed]
  12. Roura, E.; Koopmans, S.J.; Lallès, J.P.; Le Huerou-Luron, I.; De Jager, N.; Schuurman, T.; Val-Laillet, D. Critical review evaluating the pig as a model for human nutritional physiology. Nutr. Res. Rev. 2016, 29, 60–90. [Google Scholar] [CrossRef] [PubMed]
  13. Swindle, M.M.; Makin, A.; Herron, A.J.; Clubb, F.J.; Frazier, K.S. Swine as models in biomedical research and toxicology testing. Vet. Pathol. 2012, 49, 344–356. [Google Scholar] [CrossRef] [PubMed]
  14. McPherson, R.L.; Ji, F.; Wu, G.; Blanton, J.R.; Kim, S.W. Growth and compositional changes of fetal tissues in pigs. J. Anim. Sci. 2004, 82, 2534–2540. [Google Scholar] [CrossRef] [PubMed]
  15. Novais, A.K.; da Silva, C.A.; Silva dos Santos, R.D.K.; Dias, C.P.; Callegari, M.A.; de Oliveira, E.R. The effect of supplementing sow and piglet diets with different forms of iron. Rev. Bras. Zootec. 2016, 45, 615–621. [Google Scholar] [CrossRef] [Green Version]
  16. Zhao, P.; Upadhaya, S.D.; Li, J.; Kim, I. Comparison effects of dietary iron dextran and bacterial-iron supplementation on growth performance, fecal microbial flora, and blood profiles in sows and their litters. Anim. Sci. J. 2015, 86, 937–942. [Google Scholar] [CrossRef] [PubMed]
  17. Buffler, M.; Becker, C.; Windisch, W.M. Effects of different iron supply to pregnant sows (Sus scrofa domestica L.) on reproductive performance as well as iron status of new-born piglets. Arch. Anim. Nutr. 2017, 71, 219–230. [Google Scholar] [CrossRef]
  18. Li, Y.; Yang, W.; Dong, D.; Jiang, S.; Yang, Z.; Wang, Y. Effect of different sources and levels of iron in the diet of sows on iron status in neonatal pigs. Anim. Nutr. 2018, 4, 197–202. [Google Scholar] [CrossRef]
  19. Barros, C.A.; Pascoal, L.A.F.; Watanabe, P.H.; Martins, T.D.D.; Andrade, T.S.; Ribeiro, J.E.S. Dietary iron chelate for sows and effects on iron supplementation in piglet. An. Acad. Bras. Cienc. 2019, 91, 1–9. [Google Scholar] [CrossRef]
  20. Wan, D.; Zhang, Y.M.; Wu, X.; Lin, X.; Shu, X.G.; Zhou, X.H.; Du, H.T.; Xing, W.G.; Liu, H.N.; Li, L.; et al. Maternal dietary supplementation with ferrous N-carbamylglycinate chelate affects sow reproductive performance and iron status of neonatal piglets. Animal 2018, 12, 1372–1379. [Google Scholar] [CrossRef]
  21. Bhattarai, S.; Framstad, T.; Nielsen, J.P. Iron treatment of pregnant sows in a Danish herd without iron deficiency anemia did not improve sow and piglet hematology or stillbirth rate. Acta Vet. Scand. 2019, 61, 1–9. [Google Scholar] [CrossRef]
  22. Szudzik, M.; Starzyński, R.R.; Jończy, A.; Mazgaj, R.; Lenartowicz, M.; Lipiński, P. Iron supplementation in suckling piglets: An ostensibly easy therapy of neonatal iron deficiency anemia. Pharmaceuticals 2018, 11, 128. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Asperti, M.; Gryzik, M.; Brilli, E.; Castagna, A.; Corbella, M.; Gottardo, R.; Girelli, D.; Tarantino, G.; Arosio, P.; Poli, M. Sucrosomial® iron supplementation in mice: Effects on blood parameters, hepcidin, and inflammation. Nutrients 2018, 10, 1349. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Fabiano, A.; Brilli, E.; Mattii, L.; Testai, L.; Moscato, S.; Citi, V.; Tarantino, G.; Zambito, Y. Ex vivo and in vivo study of sucrosomial® iron intestinal absorption and bioavailability. Int. J. Mol. Sci. 2018, 19, 2722. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Parisi, F.; Berti, C.; Mandò, C.; Martinelli, A.; Mazzali, C.; Cetin, I. Effects of different regimens of iron prophylaxis on maternal iron status and pregnancy outcome: A randomized control trial. J. Matern. Neonatal Med. 2017, 30, 1787–1792. [Google Scholar] [CrossRef] [PubMed]
  26. Szudzik, M.; Lipiński, P.; Jończy, A.; Mazgaj, R.; Pieszka, M.; Kamyczek, M.; Smuda, E.; Starzyński, R.R. Long-term effect of split iron dextran/hemoglobin supplementation on erythrocyte and iron status, growth performance, carcass parameters, and meat quality of Polish Large White and 990 Line Pigs. Biol. Trace. Elem. Res. 2020, 196, 472–480. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Council, N.R. Nutrient Requirements of Swine; The National Academies Press: Washington, DC, USA, 2012; ISBN 978-0-309-48903-4. [Google Scholar]
  28. Torrance, J.D.; Bothwell, T.H.; Cook, J.D. Tissue iron stores. Iron Methods Hematol. 1980, 1, 90–115. [Google Scholar]
  29. Starzyński, R.R.; Laarakkers, C.M.M.; Tjalsma, H.; Swinkels, D.W.; Pieszka, M.; Styś, A.; Mickiewicz, M.; Lipiński, P. Iron supplementation in suckling piglets: How to correct iron deficiency anemia without affecting plasma hepcidin levels. PLoS ONE 2013, 8, 1–7. [Google Scholar] [CrossRef] [Green Version]
  30. Staroń, R.; Van Swelm, R.P.L.; Lipiński, P.; Gajowiak, A.; Lenartowicz, M.; Bednarz, A.; Gajewska, M.; Pieszka, M.; Laarakkers, C.M.M.; Swinkels, D.W.; et al. Urinary hepcidin levels in iron-deficient and iron-supplemented piglets correlate with hepcidin hepatic mRNA and serum levels and with body iron status. PLoS ONE 2015, 10, 1–12. [Google Scholar] [CrossRef] [Green Version]
  31. Starzynski, R.R.; Canonne-Hergaux, F.; Lenartowicz, M.; Krzeptowski, W.; Willemetz, A.; Stys, A.; Biera, J.; Pietrzak, P.; Dziaman, T.; Lipínski, P. Ferroportin expression in haem oxygenase 1-deficient mice. Biochem. J. 2013, 449, 69–78. [Google Scholar] [CrossRef] [Green Version]
  32. Andersen, C.L.; Jensen, J.L.; Ørntoft, T.F. Normalization of real-time quantitative reverse transcription-PCR data: A model-based variance estimation approach to identify genes suited for normalization, applied to bladder and colon cancer data sets. Cancer Res. 2004, 64, 5245–5250. [Google Scholar] [CrossRef] [Green Version]
  33. Sangkhae, V.; Nemeth, E. Regulation of the iron homeostatic hormone hepcidin. Adv. Nutr. An. Int. Rev. J. 2017, 8, 126–136. [Google Scholar] [CrossRef] [PubMed]
  34. Beaumont, C.; Nicolas, G.; Vaulont, S. Hepcidin, a key regulator of iron metabolism. Hematologie 2003, 9, 27–36. [Google Scholar]
  35. Hentze, M.W.; Muckenthaler, M.U.; Galy, B.; Camaschella, C. Two to tango: Regulation of mammalian iron metabolism. Cell 2010, 142, 24–38. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Ganz, T. Hepcidin, a key regulator of iron metabolism and mediator of anemia of inflammation. Blood 2003, 102, 783–788. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Ganz, T.; Nemeth, E. Hepcidin and iron homeostasis. Biochim. Biophys. Acta Mol. Cell Res. 2012, 1823, 1434–1443. [Google Scholar] [CrossRef] [Green Version]
  38. Wang, C.Y.; Babitt, J.L. Liver iron sensing and body iron homeostasis. Blood 2019, 133, 18–29. [Google Scholar] [CrossRef] [Green Version]
  39. Rishi, G.; Subramaniam, V.N. The liver in regulation of iron homeostasis. Am. J. Physiol. Gastrointest. Liver Physiol. 2017, 313, G157–G165. [Google Scholar] [CrossRef] [Green Version]
  40. Anderson, E.R.; Shah, Y.M. Iron homeostasis in the liver. Compr. Physiol. 2013, 3, 315–330. [Google Scholar]
  41. Cao, C.; Fleming, M.D. The placenta: The forgotten essential organ of iron transport. Nutr. Rev. 2016, 74, 421–431. [Google Scholar] [CrossRef] [Green Version]
  42. Merle, U.; Fein, E.; Gehrke, S.G.; Stremmel, W.; Kulaksiz, H. The iron regulatory peptide hepcidin is expressed in the heart and regulated by hypoxia and inflammation. Endocrinology 2007, 148, 2663–2668. [Google Scholar] [CrossRef] [Green Version]
  43. Sangkhae, V.; Nemeth, E. Placental iron transport: The mechanism and regulatory circuits. Free Radic. Biol. Med. 2019, 133, 254–261. [Google Scholar] [CrossRef] [PubMed]
  44. Cardaropoli, S.; Todros, T.; Nuzzo, A.M.; Rolfo, A. Maternal serum levels and placental expression of hepcidin in preeclampsia. Pregnancy Hypertens. 2018, 11, 47–53. [Google Scholar] [CrossRef] [PubMed]
  45. Duck, K.A.; Connor, J.R. Iron uptake and transport across physiological barriers. BioMetals 2016, 29, 573–591. [Google Scholar] [CrossRef] [Green Version]
  46. Lipiński, P.; Styś, A.; Starzyński, R.R. Molecular insights into the regulation of iron metabolism during the prenatal and early postnatal periods. Cell. Mol. Life Sci. 2013, 70, 23–38. [Google Scholar] [CrossRef] [Green Version]
  47. Fisher, A.L.; Nemeth, E. Iron homeostasis during pregnancy. Am. J. Clin. Nutr. 2017, 106, 1567S–1574S. [Google Scholar] [CrossRef] [PubMed]
  48. Evans, P.; Cindrova-Davies, T.; Muttukrishna, S.; Burton, G.J.; Porter, J.; Jauniaux, E. Hepcidin and iron species distribution inside the first-trimester human gestational sac. Mol. Hum. Reprod. 2011, 17, 227–232. [Google Scholar] [CrossRef] [Green Version]
  49. Zlatanova, I.; Pinto, C.; Bonnin, P.; Mathieu, J.R.R.; Bakker, W.; Vilar, J.; Lemitre, M.; Voehringer, D.; Vaulont, S.; Peyssonnaux, C.; et al. Iron regulator hepcidin impairs macrophage-dependent cardiac repair after injury. Circulation 2019, 139, 1530–1547. [Google Scholar] [CrossRef]
  50. Canali, S.; Zumbrennen-Bullough, K.B.; Core, A.B.; Wang, C.Y.; Nairz, M.; Bouley, R.; Swirski, F.K.; Babitt, J.L. Endothelial cells produce bone morphogenetic protein 6 required for iron homeostasis in mice. Blood 2017, 129, 405–414. [Google Scholar] [CrossRef] [Green Version]
  51. Bastin, J.; Drakesmith, H.; Rees, M.; Sargent, I.; Townsend, A. Localisation of proteins of iron metabolism in the human placenta and liver. Br. J. Haematol. 2006, 134, 532–543. [Google Scholar] [CrossRef]
  52. Elli, L.; Ferretti, F.; Branchi, F.; Tomba, C.; Lombardo, V.; Scricciolo, A.; Doneda, L.; Roncoroni, L. Sucrosomial iron supplementation in anemic patients with celiac disease not tolerating oral ferrous sulfate: A prospective study. Nutrients 2018, 10, 330. [Google Scholar] [CrossRef] [Green Version]
  53. Gómez-Ramírez, S.; Brilli, E.; Tarantino, G.; Muñoz, M. Sucrosomial® iron: A new generation iron for improving oral supplementation. Pharmaceuticals 2018, 11, 97. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Buchanan, M.L.; Lasley, E.; Bolin, D.W. Anemia in Suckling Pigs; Agricultural Experiment Station, North Dakota State University: Fargo, ND, USA, 1949; Volume 11, p. 106. [Google Scholar]
  55. Lipiński, P.; Starzyński, R.R.; Canonne-Hergaux, F.; Tudek, B.; Oliński, R.; Kowalczyk, P.; Dziaman, T.; Thibaudeau, O.; Gralak, M.A.; Smuda, E.; et al. Benefits and risks of iron supplementation in anemic neonatal pigs. Am. J. Pathol. 2010, 177, 1233–1243. [Google Scholar] [CrossRef] [PubMed]
  56. Peters, J.C.; Mahan, D.C. Effects of neonatal iron status, iron injections at birth, and weaning in young pigs from sows fed either organic or inorganic trace minerals. J. Anim. Sci. 2008, 86, 2261–2269. [Google Scholar] [CrossRef] [PubMed]
  57. Hill, G.M.; Miller, E.R.; Whetter, P.A.; Ullrey, D.E. Concentration of minerals in tissues of pigs from dams fed different levels of dietary zinc. J. Anim. Sci. 1983, 57, 130–138. [Google Scholar] [CrossRef] [Green Version]
  58. Svoboda, M.; Píšťková, K. Oral iron administration in suckling piglets—A review. Acta Vet. Brno 2018, 87, 77–83. [Google Scholar] [CrossRef] [Green Version]
  59. Collard, K.J. Iron homeostasis in the neonate. Pediatrics 2009, 123, 1208–1216. [Google Scholar] [CrossRef]
  60. John, B.Y.; Mcgowan, P.; Crichton, A. Iron deficiency in pigs. Biochem. J. 1924, 18, 265–272. [Google Scholar]
  61. Szabo, P.; Bilkei, G. Iron deficiency in outdoor pig production. J. Vet. Med. Ser. A Physiol. Pathol. Clin. Med. 2002, 49, 390–391. [Google Scholar] [CrossRef]
  62. Venn, J.A.J.; Mccance, R.A.; Widdowson, E.M. Iron metabolism in piglet anaemia. J. Comp. Pathol. Ther. 1947, 57, 314–325. [Google Scholar] [CrossRef]
  63. Csapó, J.; Martin, T.G.; Csapó-Kiss, Z.S.; Házas, Z. Protein, fats, vitamin and mineral concentrations in porcine colostrum and milk from parturition to 60 days. Int. Dairy J. 1996, 6, 881–902. [Google Scholar] [CrossRef]
  64. Rauw, W.M.; Kanis, E.; Noordhuizen-Stassen, E.N.; Grommers, F.J. Undesirable side effects of selection for high production efficiency in farm animals: A review. Livest. Prod. Sci. 1998, 56, 15–33. [Google Scholar] [CrossRef]
  65. Nash, C.M.; Allen, V.M. The use of parenteral iron therapy for the treatment of postpartum anemia. J. Obstet. Gynaecol. Can. 2015, 37, 439–442. [Google Scholar] [CrossRef] [Green Version]
  66. Pond, W.G.; Lowrey, R.S.; Maner, J.H.; Loosli, J.K. Parenteral iron administration to sows during gestation or lactation. J. Anim. Sci. 1961, 20, 747–750. [Google Scholar] [CrossRef]
  67. Peña-Rosas, J.P.; De-Regil, L.M.; Malave, H.G.; Flores-Urrutia, M.C.; Dowswell, T. Intermittent oral iron supplementation during pregnancy. Cochrane Database Syst. Rev. 2015, 2015. [Google Scholar] [CrossRef]
  68. Jahan, M.; Kracht, S.; Ho, Y.; Haque, Z.; Bhattachatyya, B.N.; Wynn, P.C.; Wang, B. Dietary lactoferrin supplementation to gilts during gestation and lactation improves pig production and immunity. PLoS ONE 2017, 12, 1–15. [Google Scholar] [CrossRef] [Green Version]
  69. Chaney, C.H.; Barnhart, C.E. The effect of iron supplementation on the prevention of anemia in baby. Am. J. Vet. Res. 1964, 25, 420–423. [Google Scholar]
  70. Nath, M.K.; Mahanta, P.N.; Nath, D.R. Prevention and control of piglet anaemia by oral supplementation of ferrocom in sows and their piglets. AARJMD Asian Acad. Res. J. Multidiscip. 2015, 1. [Google Scholar] [CrossRef]
  71. Loudenslager, M.J.; Ku, P.K.; Whetter, P.A.; Ullrey, D.E.; Whitehair, C.K.; Stowe, H.D.; Miller, E.R. Importance of diet of dam and colostrum to the biological antioxidant status and parenteral iron tolerance of the pig. J. Anim. Sci. 1986, 63, 1905–1914. [Google Scholar] [CrossRef] [Green Version]
  72. Bertechini, A.G.; Fassani, E.J.; de Brito, J.Á.G.; Barrios, P.R. Effects of dietary mineral bioplex in pregnant and lactating sow diets on piglet performance and physiological characteristics. Rev. Bras. Zootec. 2012, 41, 624–629. [Google Scholar] [CrossRef] [Green Version]
  73. Knovich, M.A.; Storey, J.A.; Coffman, L.G.; Torti, S.V.; Torti, F.M. Ferritin for the clinician. Blood Rev. 2009, 23, 95–104. [Google Scholar] [CrossRef]
  74. Choi, J.W.; Pai, S.H. Change in erythropoiesis with gestational age during pregnancy. Ann. Hematol. 2001, 80, 26–31. [Google Scholar] [CrossRef] [PubMed]
  75. Cavill, I. Iron and erythropoiesis in normal subjects and in pregnancy. J. Perinat. Med. 1995, 23, 47–50. [Google Scholar] [CrossRef] [PubMed]
  76. Letsky, E.A. Erythropoiesis in pregnancy. J. Perinat. Med. 1995, 23, 39–46. [Google Scholar] [CrossRef] [PubMed]
  77. Van Santen, S.; Kroot, J.J.C.; Zijderveld, G.; Wiegerinck, E.T.; Spaanderman, M.E.A.; Swinkels, D.W. The iron regulatory hormone hepcidin is decreased in pregnancy: A prospective longitudinal study. Clin. Chem. Lab. Med. 2013, 51, 1395–1401. [Google Scholar] [CrossRef]
  78. Sangkhae, V.; Fisher, A.L.; Wong, S.; Koenig, M.D.; Tussing-Humphreys, L.; Chu, A.; Lelić, M.; Ganz, T.; Nemeth, E. Effects of maternal iron status on placental and fetal iron homeostasis. J. Clin. Invest. 2020, 130, 625–640. [Google Scholar] [CrossRef]
  79. Rehu, M.; Punnonen, K.; Ostland, V.; Heinonen, S.; Westerman, M.; Pulkki, K.; Sankilampi, U. Maternal serum hepcidin is low at term and independent of cord blood iron status. Eur. J. Haematol. 2010, 85, 345–352. [Google Scholar] [CrossRef]
  80. Papanikolaou, G.; Pantopoulos, K. Iron metabolism and toxicity. Toxicol. Appl. Pharmacol. 2005, 202, 199–211. [Google Scholar] [CrossRef]
  81. Gayet, T.; Devillard, S.; Gamelon, M.; Brandt, S.; Say, L.; Baubet, E. On the evolutionary consequences of increasing litter size with multiple paternity in wild boar (Sus scrofa scrofa). Evolution 2016, 70, 1386–1397. [Google Scholar] [CrossRef]
  82. Nebert, D.W.; Gálvez-Peralta, M.; Hay, E.B.; Li, H.; Johansson, E.; Yin, C.; Wang, B.; He, L.; Soleimani, M. ZIP14 and ZIP8 zinc/bicarbonate symporters in Xenopus oocytes: Characterization of metal uptake and inhibition. Metallomics 2012, 4, 1218–1225. [Google Scholar] [CrossRef]
  83. Jaacks, L.M.; Young, M.F.; Essley, B.V.; McNanley, T.J.; Cooper, E.M.; Pressman, E.K.; McIntyre, A.W.; Orlando, M.S.; Abkowitz, J.L.; Guillet, R.; et al. Placental expression of the heme transporter, feline leukemia virus subgroup C receptor, is related to maternal iron status in pregnant adolescents. J. Nutr. 2011, 141, 1267–1272. [Google Scholar] [CrossRef] [Green Version]
  84. Baron, J.; Ben-David, G.; Hallak, M. Changes in non-transferrin-bound iron (NTBI) in pregnant women on iron supplements. Eur. J. Obstet. Gynecol. Reprod. Biol. 2008, 140, 281–282. [Google Scholar] [CrossRef] [PubMed]
Animals 10 01113 g001 550

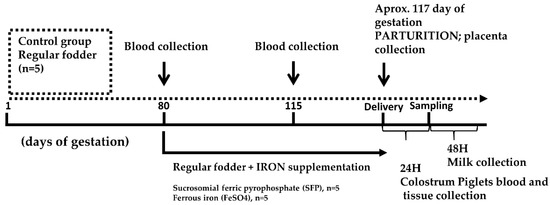

Figure 1. Experimental design scheme. Pregnant sows were allotted to 3 groups: (i) control group receiving a standard fodder; (ii) group supplemented with ferrous iron sulfate (FeSO4); (iii) group supplemented with sucrosomial ferric pyrophosphate (SFP). Both supplementations were applied daily between day 80 of pregnancy and delivery (approximately day 117 of pregnancy). Blood samples were collected from sows on days 80 and 115 of pregnancy. Samples of placenta were collected immediately after delivery. Tissue and blood samples from piglets were collected 24 h after birth.
Figure 1. Experimental design scheme. Pregnant sows were allotted to 3 groups: (i) control group receiving a standard fodder; (ii) group supplemented with ferrous iron sulfate (FeSO4); (iii) group supplemented with sucrosomial ferric pyrophosphate (SFP). Both supplementations were applied daily between day 80 of pregnancy and delivery (approximately day 117 of pregnancy). Blood samples were collected from sows on days 80 and 115 of pregnancy. Samples of placenta were collected immediately after delivery. Tissue and blood samples from piglets were collected 24 h after birth.
Animals 10 01113 g001
Animals 10 01113 g002 550

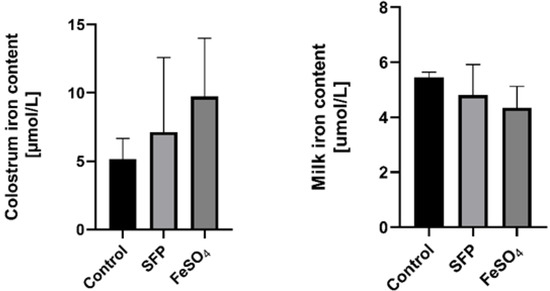

Figure 2. Effect of ferrous iron sulfate (FeSO4)and sucrosomial ferric pyrophosphate (SFP) oral supplementation of pregnant sows on milk and colostrum iron concentrations. The non-heme iron content was measured in colostrum and milk as described in the Materials and Methods section. Values are expressed as the means ± S.D. for 1 mL samples obtained from sows immediately (colostrum) and 24 h after delivery (milk) (n = 15).
Figure 2. Effect of ferrous iron sulfate (FeSO4)and sucrosomial ferric pyrophosphate (SFP) oral supplementation of pregnant sows on milk and colostrum iron concentrations. The non-heme iron content was measured in colostrum and milk as described in the Materials and Methods section. Values are expressed as the means ± S.D. for 1 mL samples obtained from sows immediately (colostrum) and 24 h after delivery (milk) (n = 15).
Animals 10 01113 g002
Animals 10 01113 g003 550
Figure 3. Non-heme iron content in placenta from sows after ferrous iron sulfate (FeSO4) and sucrosomial ferric pyrophosphate (SFP) supplementation and hepatic and splenic non-heme iron content from 1-day old piglets. Non-heme iron content in analyzed tissue was measured as described in Materials and Methods. Values are expressed as the mean and SD (standard deviation) for samples obtained from 9 piglets in each experimental group. Non-heme iron content was expressed as mg Fe/kg of wet tissue.
Figure 3. Non-heme iron content in placenta from sows after ferrous iron sulfate (FeSO4) and sucrosomial ferric pyrophosphate (SFP) supplementation and hepatic and splenic non-heme iron content from 1-day old piglets. Non-heme iron content in analyzed tissue was measured as described in Materials and Methods. Values are expressed as the mean and SD (standard deviation) for samples obtained from 9 piglets in each experimental group. Non-heme iron content was expressed as mg Fe/kg of wet tissue.
Animals 10 01113 g003
Animals 10 01113 g004 550
Figure 4. Changes in placental and fetal hepatic and plasma hepcidin and Bone Morphogenetic Protein 6 (BMP6) levels under different oral iron supplementations. Fetal hepatic and placental hepcidin and BMP6 mRNAs levels were measured using Real Time polymerase chain reaction (PCR) and normalized to actin/Hypoxanthine Phosphoribosyltransferase (HPRT) mRNA. Hepcidin-25 (p-hepcidin) measurements in sows and piglets plasma were performed by peptide enrichment through weak cation exchange chromatography coupled to time-of-flight mass spectrometry (WCX-TOF MS) (Bruker Daltonics, Billerica, Massachusetts, United States) [29,30]. * and ** asterisks denote statistically significant differences between parameters in control and ferrous iron sulfate (FeSO4) or sucrosomial ferric pyrophosphate (SFP) supplemented group at p < 0.05 and p < 0.01 respectively.
Figure 4. Changes in placental and fetal hepatic and plasma hepcidin and Bone Morphogenetic Protein 6 (BMP6) levels under different oral iron supplementations. Fetal hepatic and placental hepcidin and BMP6 mRNAs levels were measured using Real Time polymerase chain reaction (PCR) and normalized to actin/Hypoxanthine Phosphoribosyltransferase (HPRT) mRNA. Hepcidin-25 (p-hepcidin) measurements in sows and piglets plasma were performed by peptide enrichment through weak cation exchange chromatography coupled to time-of-flight mass spectrometry (WCX-TOF MS) (Bruker Daltonics, Billerica, Massachusetts, United States) [29,30]. * and ** asterisks denote statistically significant differences between parameters in control and ferrous iron sulfate (FeSO4) or sucrosomial ferric pyrophosphate (SFP) supplemented group at p < 0.05 and p < 0.01 respectively.
Animals 10 01113 g004
Animals 10 01113 g005a 550Animals 10 01113 g005b 550
Figure 5. (A). Regulation of placental iron transporters after oral administration of ferrous iron sulfate (FeSO4) or sucrosomial ferric pyrophosphate (SFP) to pregnant sows. Placental iron transporters mRNA expression measured using Real time PCR normalized to actin mRNA. * asterisk denote statistically significant differences between parameters in control and SFP or FeSO4 supplemented group at p < 0.05. (B). Localization of placental iron transporters after oral administration of ferrous iron sulfate (FeSO4) or sucrosomial ferric pyrophosphate (SFP) to pregnant sows. Representative immunofluorescence staining for placental iron transporters: TfR1. Scale bars correspond to = 100µm. Cell nuclei were counterstained with Hoechst (blue). Arrows indicate maternal or fetal site of syncytiotrophoblast (STB). Series sections of placental tissue from 15 sows was analyzed and representative immunofluorescence photos were prepared. (C). Localization of placental iron transporters after oral administration of ferrous iron sulfate (FeSO4) or sucrosomial ferric pyrophosphate (SFP) to sows. Representative immunofluorescence staining for placental iron transporters: DMT1. Scale bars correspond to = 100µm. Cell nuclei were counterstained with Hoechst (blue). (D). Localization of placental iron transporters after oral administration of ferrous iron sulfate (FeSO4) or sucrosomial ferric pyrophosphate (SFP) to pregnant sows. Representative immunofluorescence staining for placental iron transporters: Fpn. Scale bars correspond to = 100µm. Cell nuclei were counterstained with Hoechst (blue).
Figure 5. (A). Regulation of placental iron transporters after oral administration of ferrous iron sulfate (FeSO4) or sucrosomial ferric pyrophosphate (SFP) to pregnant sows. Placental iron transporters mRNA expression measured using Real time PCR normalized to actin mRNA. * asterisk denote statistically significant differences between parameters in control and SFP or FeSO4 supplemented group at p < 0.05. (B). Localization of placental iron transporters after oral administration of ferrous iron sulfate (FeSO4) or sucrosomial ferric pyrophosphate (SFP) to pregnant sows. Representative immunofluorescence staining for placental iron transporters: TfR1. Scale bars correspond to = 100µm. Cell nuclei were counterstained with Hoechst (blue). Arrows indicate maternal or fetal site of syncytiotrophoblast (STB). Series sections of placental tissue from 15 sows was analyzed and representative immunofluorescence photos were prepared. (C). Localization of placental iron transporters after oral administration of ferrous iron sulfate (FeSO4) or sucrosomial ferric pyrophosphate (SFP) to sows. Representative immunofluorescence staining for placental iron transporters: DMT1. Scale bars correspond to = 100µm. Cell nuclei were counterstained with Hoechst (blue). (D). Localization of placental iron transporters after oral administration of ferrous iron sulfate (FeSO4) or sucrosomial ferric pyrophosphate (SFP) to pregnant sows. Representative immunofluorescence staining for placental iron transporters: Fpn. Scale bars correspond to = 100µm. Cell nuclei were counterstained with Hoechst (blue).
Animals 10 01113 g005aAnimals 10 01113 g005b
Table
Table 1. Red blood cell (RBC) indices and plasma iron status in sows at days 80 and 114 of pregnancy.
Table 1. Red blood cell (RBC) indices and plasma iron status in sows at days 80 and 114 of pregnancy.
Experimental GroupsGestational DaysSupplementation Time Supplementation * Timep-Value 80 vs. 114 Day
Day 80Day 114
Fp-ValueFp-ValueFp-Value
Hb (g/dL)
Control12.2 ± 0.811.7 ± 1.96.5390.0311*0.13840.72270.58690.58510.9519
SFP9.8 ± 2.911.0 ± 0.60.9993
FeSO411.1 ± 0.8810.2 ± 2.240.7189
RBC (mln/mm3)
Control6.2 ± 0.65.8 ± 1.16.4800.0317*1.5040.26600.52450.6167>0.9999
SFP5.3 ± 1.75.6 ± 0.30.8496
FeSO45.7 ± 0.66.9 ± 4.60.5106
MCV (µm3)
Control61.2 ± 3.163.2 ± 2.70.26330.776938.230.0008 **1.4090.31500.192
SFP58.4 ± 4.962.8 ± 3.50.0132*
FeSO462.4 ± 4.964.5 ± 4.50.0198*
Plasma iron level (µmol/L)
Control15.6 ± 312.3 ± 4.30.020660.97964.7670.07170.15940.85620.8294
SFP14.4 ± 4.712.8 ± 2.80.4135
FeSO415.3 ± 1.812.8 ± 1.30.5222
Plasma ferritin concentration (ng/mL)
Control514.3 ± 117.4199.8 ± 570.82940.480829.200.0017**0.74310.51480.0597
SFP557.9 ± 67.5231.1 ± 56.40.0218*
FeSO4402.7 ± 180.4176.4 ± 85.30.1831
Plasma hepcidin level (nM)
Control2.33 ± 0.80.8 ± 0.423.9790.079441.620.0007 **4.5060.06380.5571
SFP6.3 ± 1.580.96 ± 0.360.0115 *
FeSO47.2 ± 2.431 ± 0.450.0055 **
Data are presented as mean values ± SD. Statistical analysis of two factors have been performed by two-way ANOVA for repeated measurement. Two factors analyzed in two-way ANOVA were “Time,” “Supplementation” and their interaction. SFP = sucrosomial ferric pyrophosphate, FeSO4 = ferrous iron sulfate RBC = red blood cell count, Hb = hemoglobin level, MCV = mean corpuscular volume, F = variance of the group means/mean of the within group variances. All parameters were determined for 5 sows from each experimental group. * and ** asterisks denote statistically significant differences at p < 0.05 and p < 0.01.
Table
Table 2. Red blood cell indices and plasma iron status in 1-day old piglets from control and SFP and FeSO4-supplemented sows.
Table 2. Red blood cell indices and plasma iron status in 1-day old piglets from control and SFP and FeSO4-supplemented sows.
Blood ParametersControlSFPFeSO4p-Value
Control vs. ….
Hb (g/dL)9.4 ± 1.49.8 ± 19 ± 1.3SFP 0.6906FeSO4 0.7161
RBC mln/mm34.9 ± 0.75.1 ± 0.94.69 ± 0.6SFP 0.8252FeSO4 0.7332
MCV (µm3)60 ± 2.763.1 ± 3.761.6 ± 4SFP 0.1301FeSO4 0.5538
Serum Iron (µmol/L)14.8 ± 9.910.5 ± 8.418 ± 8.1SFP 0.2284FeSO4 0.9994
Serum Ferritin (ng/mL)823.5 ± 161.4906.2 ± 75.1772.7 ± 137.6SFP 0.3656FeSO4 0.6631
Effect of ferrous iron sulfate (FeSO4) and sucrosomial ferric pyrophosphate (SFP) oral supplementation on blood parameters in one day old piglets. RBC—red blood cell count, Hb—hemoglobin level, MCV—mean corpuscular volume. All parameters were determined for 5 sows from each experimental group. n = 9 piglets per experimental group.

Share and Cite

MDPI and ACS Style

Mazgaj, R.; Szudzik, M.; Lipiński, P.; Jończy, A.; Smuda, E.; Kamyczek, M.; Cieślak, B.; Swinkels, D.; Lenartowicz, M.; Starzyński, R.R. Effect of Oral Supplementation of Healthy Pregnant Sows with Sucrosomial Ferric Pyrophosphate on Maternal Iron Status and Hepatic Iron Stores in Newborn Piglets. Animals 2020, 10, 1113. https://doi.org/10.3390/ani10071113

AMA Style

Mazgaj R, Szudzik M, Lipiński P, Jończy A, Smuda E, Kamyczek M, Cieślak B, Swinkels D, Lenartowicz M, Starzyński RR. Effect of Oral Supplementation of Healthy Pregnant Sows with Sucrosomial Ferric Pyrophosphate on Maternal Iron Status and Hepatic Iron Stores in Newborn Piglets. Animals. 2020; 10(7):1113. https://doi.org/10.3390/ani10071113

Chicago/Turabian Style

Mazgaj, Rafał, Mateusz Szudzik, Paweł Lipiński, Aneta Jończy, Ewa Smuda, Marian Kamyczek, Beata Cieślak, Dorine Swinkels, Małgorzata Lenartowicz, and Rafał R. Starzyński. 2020. "Effect of Oral Supplementation of Healthy Pregnant Sows with Sucrosomial Ferric Pyrophosphate on Maternal Iron Status and Hepatic Iron Stores in Newborn Piglets" Animals 10, no. 7: 1113. https://doi.org/10.3390/ani10071113

APA Style

Mazgaj, R., Szudzik, M., Lipiński, P., Jończy, A., Smuda, E., Kamyczek, M., Cieślak, B., Swinkels, D., Lenartowicz, M., & Starzyński, R. R. (2020). Effect of Oral Supplementation of Healthy Pregnant Sows with Sucrosomial Ferric Pyrophosphate on Maternal Iron Status and Hepatic Iron Stores in Newborn Piglets. Animals, 10(7), 1113. https://doi.org/10.3390/ani10071113

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
