Article

Arbuscular Mycorrhizal Fungi Increase Pb Uptake of Colonized and Non-Colonized Medicago truncatula Root and Deliver Extra Pb to Colonized Root Segment

by
Haoqiang Zhang
1,†,
Wei Ren
1,†,
Yaru Zheng
1,
Yanpeng Li
1,
Manzhe Zhu
1 and
Ming Tang
1,2,*
1
College of Forestry, Northwest A&F University, Yangling 712100, China
2
State Key Laboratory of Conservation and Utilization of Subtropical Agro-Bioresources, Lingnan Guangdong Laboratory of Modern Agriculture, Guangdong Key Laboratory for Innovative Development and Utilization of Forest Plant Germplasm, College of Forestry and Landscape Architecture, South China Agricultural University, Guangzhou 510642, China
*
Author to whom correspondence should be addressed.
†
Both authors were equally contributed to this manuscript.
Microorganisms 2021, 9(6), 1203; https://doi.org/10.3390/microorganisms9061203
Submission received: 8 May 2021 / Revised: 30 May 2021 / Accepted: 31 May 2021 / Published: 2 June 2021
(This article belongs to the Special Issue Interaction between Inorganic Pollutants and Microbiota in the Environment)
Browse Figures
Versions Notes

Abstract

:
Arbuscular mycorrhizal (AM) fungi establish symbiosis and improve the lead (Pb) tolerance of host plants. The AM plants accumulate more Pb in roots than their non-mycorrhizal counterparts. However, the direct and long-term impact of AM fungi on plant Pb uptake has been rarely reported. In this study, AM fungus (Rhizophagus irregularis) colonized and non-colonized roots of Medicago truncatula were separated by a split-root system, and their differences in responding to Pb application were compared. The shoot biomass accumulation and transpiration were increased after R. irregularis inoculation, whereas the biomass of both colonized and non-colonized roots was decreased. Lead application in the non-colonized root compartment increased the R. irregularis colonization rate and up-regulated the relative expressions of MtPT4 and MtBCP1 in the colonized root compartments. Rhizophagus irregularis inoculation increased Pb uptake in both colonized and non-colonized roots, and R. irregularis transferred Pb to the colonized root segment. The Pb transferred through the colonized root segment had low mobility and might be sequestrated and compartmented in the root by R. irregularis. The Pb uptake of roots might follow water flow, which is facilitated by MtPIP2. The quantification of Pb transfer via the mycorrhizal pathway and the involvement of MtPIP2 deserve further study.

1. Introduction

Heavy metal contamination in soil is a worldwide issue due to rapid urbanization, mining, sewage sludge, application of fertilizers, and other anthropogenic activities [1,2,3]. Lead (Pb) is one of the most common heavy metal pollutants in China [4] and is a non-essential element that poses an immense risk especially for children [5,6]. Phytoremediation is an efficient and non-invasive way to remediate contaminated soils [7,8]. The application of microorganisms in the phytoremediation of Pb has received extensive attention [9,10,11,12].
Arbuscular mycorrhizal (AM) fungi can establish mutualistic symbioses with more than 80% of terrestrial plants in different ecosystems [13,14], including Pb polluted areas [15,16]. With AM fungal colonization, plants usually have higher biomass [17,18], increased antioxidant enzyme activities and photosynthetic rates, and improved Pb tolerance [18,19]. Moreover, the establishment of AM symbiosis leads to the enhancement of host plant photosynthetic rates, transpiration flow, and water uptake [18,20,21,22,23]. The water transport from soil to leaves requires the participation of aquaporins (AQPs), which are a class of membrane intrinsic proteins. Aquaporins mediate water transport across membranes following an osmotic gradient [24] and participate in hydraulic conductance regulation [25,26]. Plant AQPs include plasma membrane intrinsic proteins (PIPs), tonoplast intrinsic proteins (TIPs), NOD26-like intrinsic proteins (NIPs), small basic intrinsic proteins, and uncategorized intrinsic proteins [25]. In AM plants, the uptake of water and nutrients was suggested via two pathways. One pathway (plant root pathway) relies on plant root, and the other pathway (mycorrhizal pathway) relies on the AM fungal hyphae [27,28]. It has been confirmed that nutrient transportation via the mycorrhizal pathway to plants requires the participation of aquaporin [29].
In previous studies, the AM plants accumulated more Pb in roots and less Pb in shoots than their non-mycorrhizal counterparts [18,30,31]. However, the direct and long-distance impact of AM fungi on plant Pb uptake has not been reported. Medicago truncatula, as a pre-eminent model plant for studying symbiotic relationships between plants and their symbiotic microbes, has been widely used to understand the effect of AM fungi on plant lead stress [19,32]. The split-root system, which separates the AM fungi colonized and non-colonized root segments, is beneficial to compare the direct and long-distance impact of AM fungi on the plant [33,34]. In this study, we used a split-root system (Figure 1a) to separate the AM fungi colonized and non-colonized root segments of Medicago truncatula and investigated the influence of AM fungi on root Pb uptake and Pb transfer from roots to shoots. We hypothesized that: (1) AM fungi increase Pb uptake in colonized and non-colonized root segment through the improvement of plant transpiration; (2) AM fungi deliver Pb to colonized root segment; and (3) plant Pb uptake involves the participation of plant aquaporin. To our knowledge, this is the first study using a split-root system to verify the contribution of AM fungi to plant Pb uptake.

2. Materials and Methods

2.1. Plant Material, Split-Root System, Growth Substrate, and AM Fungal Inoculum

Seeds of M. truncatula (Jemalong A17) were kindly provided by Prof. Philipp Franken (Plant Physiology Department, Humboldt University of Berlin). The seeds were soaked in concentrated sulfuric acid for 10 min and washed 5 times using sterile distilled water. Sterilized seeds were germinated in Petri dishes with water agar (0.7%; w/v) at 4 °C for 4 days, and at room temperature in darkness for 2 days. After placed at room temperature for 1 d in the light, the seeds were germinated [32].
Germinated seeds were transplanted into plastic pots (10 cm in diameter, 12 cm in height) with sterilized sand (<2 mm) to grow roots, and each pot contained one germinated seed. After 8 weeks, uniform seedlings were selected for the pot experiment. The roots were washed with tap water and split in half evenly and then planted in a split-root system consisting of 2 adjoining compartments with one root half in each (as Figure 1a). Each root compartment was filled with 0.8 kg growth substrate. The split-root system was made of acrylic plate bonded with ABS plastic adhesive. The 2 compartments of the system were separated by an acrylic plate to prevent the transfer of Pb and AM fungal inoculum between compartments.
The growth substrate was a mixture of sand and vermiculite (1:1; v:v), and the contents of available nitrogen, available phosphorus, and available potassium were 10.78 mg/kg, 2.49 mg/kg, and 24.00 mg/kg, respectively. The sand was sieved through a 2 mm sieve, thoroughly washed with tap water, and sterilized at 170 °C for 4 h. The vermiculite was autoclaved at 121 °C (0.11 MPa) for 2 h for sterilization. The vermiculite was a clay mineral with a 2:1 crystalline structure that contained 2 silica tetrahedral sheets with a central alumina octahedral layer [35].
The AM inoculum of Rhizophagus irregularis (Bank of Glomales in China, No. BGC BJ09), which consisted of a sandy substrate that contained spores (approximately 21 spores per gram), mycelium, and colonized root fragments, was provided by the Beijing Academy of Agriculture and Forestry Sciences (Beijing, China).

2.2. Experimental Design

The experiment consisted of 5 treatments (Figure 1b) that were neither AM inoculum nor Pb application in root compartment (CK), only AM inoculum application in 1 root compartment (OA), only Pb application in 1 root compartment (OP), AM inoculum and Pb applications in separated root compartments (SE), and AM inoculum and Pb applications in the same root compartment together (TO). The seedling roots in different root compartments were also named according to their position, AM status, and Pb status (as in Figure 1b). Ten grams of inoculum was applied underneath the root of M. truncatula seedlings upon transplanting into the split-root system in mycorrhizal treatments, whereas sterilized inoculum (170 °C for 4 h) was applied in the non-mycorrhizal treatments. Pb was applied 4 weeks after the AM inoculum application to ensure AM fungal colonization. It was accomplished by applying 32 mL 20 g L−1 Pb(NO3)2 solution to the junction of root and growth substrate by syringe to reach 800 mg kg−1 Pb in growth substrate. Four seedlings were merged into 1 sample as 1 biological replication. Each treatment contained 3 biological replications.
Seedlings were grown in a greenhouse at 28 °C/24 °C day/night temperatures under 16 h daylight and 40–60% humidity. Twenty milliliters of modified Hoagland’s nutrient solution [36] containing 10% phosphate (0.1 mM KH2PO4) was added twice a week to each root compartment before Pb application. After Pb application, only water (20 mL) was added to the root compartment of all treatments once every 2 days to avoid direct precipitation of Pb.

2.3. Plant Sampling, Biomass, and AM Fungal Colonization

At harvest (8 weeks after Pb treatment), the biomass of shoots and roots and the fresh-to-dry mass ratio [37] were measured. After measuring fresh weights, parts of the leaves were dried in an oven at 105 °C with forced air circulation for 15 min to inactivate enzymes and then at 65 °C until they reached a constant weight for Pb content measurement. The remaining parts of the leaves were immediately frozen in liquid nitrogen and stored at −80 °C. Roots were soaked with water for root structure scanning (EPSON EXPRESSION 1680, Seiko Epson Corporation, Japan). After root structure scanning, parts of roots were fixed in FAA solution (37% formaldehyde: glacial acetic acid: 95% ethanol, 9:0.5:0.5, v:v:v) for assessment of AM colonization [38]. Total colonization and arbuscular colonization were measured using the magnified cross-section method [39]. Parts of the roots were dried in an oven at 105 °C for 15 min and then at 65 °C with forced air circulation until they reached a constant weight for Pb concentration measurement. The remaining parts of the roots were immediately frozen in liquid nitrogen and stored at −80 °C.

2.4. Concentrations of Pb and P

The dry sample was ground in a mortar and placed in the digestion tube (50 mL) with a 5 mL mixture of HNO3 plus HClO4 (4:1) to digest at a temperature that gradually increased to 220 °C. Lead concentrations were measured using flame atomic absorption spectrometry (PinAAciie 900F, American), and P concentration was measured using the Molybdenum yellow colorimetric method [40]. Lead content was calculated using Pb concentration, fresh-to-dry mass ratio, and plant biomass [37]. The ratio of root Pb concentration to root surface area was calculated to indicate the root surface’s contribution to Pb absorbing capacity.

2.5. Photosynthesis

The fifth leaf of each plant was used for the measurements. On the harvest day from 8:00 to 11:30 a.m., the net photosynthetic rate (Pn), intercellular CO2 concentration (Ci), transpiration rate (Tr), and conduction to H2O (Gs) were measured using a Li-6400 portable open flow gas-exchange system (Li Corporation, American) and converted with measured leaf area. Leaf area was measured by ImageJ 1.38 (National Institutes of Health, American) after being photographed by a camera. The measurement conditions were as follows: photosynthetically active irradiation, 1000 μmol m−2 s−1; temperature, 22 °C; relative humidity, 30%; and CO2 concentration of sample cell, 419 μmol mol−1.

2.6. Gene Relative Expression

Root samples stored at −80 °C were ground and homogenized with mortar and pestle with liquid nitrogen. Total RNA was isolated from root samples by E.Z.N.A.TM Plant RNA Kit (Omega Biotech, Norcross, GA, USA) following the supplier’s instructions. After quantification of RNA yield by Nanodrop 2000 (Thermo Scientific, Pittsburgh, PA, USA), cDNA was synthesized from 1000 ng of RNA using FastKing RT Kit with gDNase (TIANGEN Biotech, Beijing, China). The synthesized cDNA was diluted 5-fold and used as the template for PCR reactions.
The primers used in the qRT-PCR were as in [26] and are listed in Supplementary Table S1. Gene relative expression was normalized to the M. truncatula housekeeping gene MtEF1α. The relative expressions of MtPT4 and MtBCP1 were used as the indicator of functional arbuscules and their quantity [41,42]. The qRT-PCR reaction was conducted using the CFX96 real-time PCR detection system (Bio-Rad Laboratories, Hercules, CA, USA) and contained 5 μL ChamQTM Universal SYBR® qPCR Master Mix (Vazyme Biotech, Nanjing, China), 0.5 μL (10 μM) of each primer, 1 μL a cDNA, and 3 μL ddH2O. The PCR procedure consisted of a 3 min denaturation at 95 °C; 40 cycles of denaturation at 95 °C for 10 s; annealing at the annealing temperature (Supplementary Table S1) for 20 s; extension at 72 °C for 20 s; followed by heating from 60 to 95 °C to check the specificity of the PCR amplification. All samples were technically replicated twice. Negative controls without cDNA were run within each analysis. The relative quantity of transcripts was determined using the 2−ΔCT method [43].

2.7. Statistical Analysis

Statistical analysis was performed using the SPSS 19.0 statistical program (SPSS Inc., Chicago, IL, USA). Data were compiled with the assumption of a normal distribution, and the variance equality was also tested. Multiple comparisons were tested by LSD. Correlation analyses were performed using Spearman’s correlation (Supplementary Table S2). Figures were drawn with Origin 2018 (Origin Lab, Northampton, MA, USA). Heatmap and cluster analysis of relative genes were performed using MetaboAnalyst 4.0 [44].

3. Results

3.1. Biomass and Colonization

Eight weeks after Pb application in root compartments, the biomass of shoot and root in different compartments was recorded (Figure 2a). In the CK treatment, the biomass of roots in the two compartments showed no difference, which indicated that the split-root system divided the roots into two parts evenly. Inoculation of R. irregularis in one root compartment (comparing OA treatment with CK treatment) increased the shoot biomass (not significantly), but reduced root biomass both locally (OA-RAN) and systemically (OA-LNN). Application of Pb in one root compartment (comparing treatment OP with CK) significantly reduced shoot biomass and root biomass in the other root compartment (OP-LNN). When plants received inoculations of R. irregularis and Pb (together and separately), the shoot biomass was not affected significantly (comparing treatment SE and TO with CK), but the root biomass was reduced in both compartments.
No AM fungal feature was observed in roots from the non-mycorrhizal treatment (Figure 2b,c). Over 60% of root in the OA-RAN treatment was colonized, and the typical feature (arbuscules) was observed. Application of Pb showed little limitation to the total colonization of R. irregularis in the treatment TO (not significantly), but it significantly promoted the total and arbuscular colonization in the treatment SE. The relative expressions of MtPT4 and MtBCP1 that were used as the indicator of functional arbuscules and their quantity [41,42] resembled the colonization results (Supplementary Figure S1).

3.2. Root Structure, Pb Concentration, and Content

In the CK treatment, root surface, length, and average diameter in the two compartments showed no difference (Figure 3a–c), which indicated that the spilt-root system divided roots into two parts evenly. Inoculation of R. irregularis or Pb application in the OA treatment and OP treatment did not show local or systemic influence on root surface area, length, or average diameter, except for the OA-RAN treatment, in which the average root diameter was locally reduced. The results described above indicated that inoculation of R. irregularis directly reduced average root diameter. The root surface area, length, and average diameter were reduced (compared to the CK treatment) when plant roots received R. irregularis inoculation and Pb application separately (SE treatment) or together (TO treatment).
Environmental Pb existed and could not be eliminated as in a previous study [32]. To evaluate the effect of R. irregularis on Pb extract and stimulation, both Pb concentration and content were calculated. The lowest concentration and content of Pb in root and shoot were shown in the CK treatment (Figure 4a,b). Solely Pb application increased local root Pb concentration (comparing OP-RNP to CK-RNN by t-test, p = 0.007) and shoot Pb concentration. The highest concentration and content of Pb in the shoot were shown in the SE treatment. The highest concentration of Pb in the root segment was shown in the SE-LNP root compartment, and the highest content of Pb in the root segment was shown in the TO-RAP root compartment. Inoculation of R. irregularis in one root compartment increased Pb concentration in root segments from the other compartment to which extra Pb solution had been added (comparing SE-LNP to OP-RNP) or not (comparing OA-LNN and TO-LNN to CK-RNN; OA-LNN was compared to CK-LNN by t-test, p = 0.027). The Pb concentrations and contents in root segments from compartments that received Pb were increased compared to CK. Especially, the increases in Pb concentration and content in the root segment were higher when inoculation of R. irregularis was involved (comparing SE-LNP and TO-RAP to OP-RNP). In addition, the Pb content in the root segment that had direct contact with R. irregularis (TO-RAP) was much higher than that in the root segment that had indirect contact with R. irregularis (SE-LNP).
The ratio of root Pb concentration to root surface area was calculated to evaluate the contribution of the plant root surface to Pb uptake (Figure 4c). Compared with CK, increased ratios were observed in the root compartment that received extra Pb (SE-LNP and TO-RAP) and in the root compartment that was inoculated with R. irregularis (SE-RAN) in the SE treatment. The highest ratio was shown in the root compartment (SE-RAN) that received Pb and R. irregularis in different root compartments.

3.3. Photosynthesis

Compared to the CK, solely R. irregularis inoculation increased Pn but decreased Ci (Figure 5a,b). Lead application (only Pb) increased Tr, while only Pb applied and Pb applied with R. irregularis together increased Ci and Gs (Figure 5b–d). When Pb and R. irregularis inoculum were applied together in the same root compartment, the Gs was higher than when they were applied separately in different root compartments.

3.4. Relative Expressions of Aquaporins

To test the hypothesis that inoculation of R. irregularis improves the capacity of Pb uptake in M. truncatula with the help of aquaporins, the relative expressions of aquaporins were detected (Figure 6). Inoculation of R. irregularis locally increased the relative expressions of MtAQP1 in root compartment SE-RAN, MtPIP2 in root compartment TO-RAP, and MtNIP1 in root compartments OA-RAN and TO-RAP (compared to CK). Inoculation of R. irregularis also systemically increased the relative expression of MtPIP1 in root compartment OA-LNN. Application of Pb locally increased the relative expression of MtAQP1 in root compartment OP-RNP, MtPIP2 in root compartment TO-RAP, and MtNIP1 in root compartment TO-RAP (compared to CK). The relative expression of MtNIP4 was higher in root compartment OA-RAN than that in root compartment TO-RAP.

3.5. Correlation Analysis

From the Spearman correlation analysis (Supplementary Table S2), Pb concentration and content in shoot and root showed negative correlations with root biomass, root surface area, and root length, but positive correlations with the relative expression of MtPIP2 in the root. Moreover, root Pb concentration showed a positive correlation with the relative expression of MtPT4. The ratio of root Pb concentration to root surface area showed positive correlations with Pb concentration and content of shoot and root. Additionally, the ratio of root Pb concentration to root surface area showed positive correlations with the relative expression of MtPT4, MtBCP1, and MtPIP2 in the root.

4. Discussion

Arbuscular mycorrhizal fungi can survive in various environments including Pb polluted areas and improve growth and stress tolerance of host plants [15,32,45]. Under Pb stress, AM fungi colonized plants were reported to have better growth [17,18,46] and accumulate more Pb in root than in shoot [31]. To verify the influence of AM fungi on plant root Pb uptake, a split-root system was established to separate the colonized and non-colonized root segments and compare their differences in Pb uptake.
The evenly distributed root biomass in two root compartments of CK treatment demonstrated the success of the split-root system. A similar split-root system was used in other studies of the systemic influence of AM fungi in M. truncatula [33,34]. When root segments of M. truncatula were only colonized in one root compartment, the AM fungi showed improvement on plant shoot growth and systemic reduction of plant root growth (Figure 2a) as reported previously [33]. The systemic influence of AM fungi on root growth reduction was due to the carbon investment of plants in AM fungal hyphae, which require less carbon than root to acquire nutrients and water from soil [47]. Plant carbon expenditure on AM fungi was more economic than expenditure on root growth in terms of improving P uptake [48]. Application of Pb had a negative effect on the biomass accumulation of non-AM plants, confirming the sensitivity of M. truncatula to Pb toxicity in the treated concentration [19]. The beneficial effect and alleviation of Pb toxicity by AM fungi, which was indicated by the higher shoot biomass of AM plants than those of the non-AM plants, was consistent with previous studies [18,30,32].
Inoculation with R. irregularis successfully established AM symbiosis in the root compartments and set the basis for this study. The colonization rate showed a similar tendency with the relative expression of MtPT4 and MtBCP1 in the root segment, and this supported the view that the expressions of these two genes were indicators of AM symbiosis in the root of M. truncatula [34,41,42]. When Pb and R. irregularis were applied in different root compartments, the colonization rate of R. irregularis increased [49] and the relative expressions of MtPT4 and MtBCP1 were up-regulated. This might be because AM symbiosis maintains the balance of plant mineral element uptake, which was disturbed by Pb through hindering permeability of root cell plasma membrane [50,51], by increased reliance of plant on AM symbiosis [27,52]. Nevertheless, when Pb and R. irregularis were applied in the same root compartment, the extension of extraradical hyphae was inhibited. Moreover, the reliance of plants on AM symbiosis was limited, and the colonization rate was restored. Heavy metal presence in the substrate can reduce AM fungal hyphae extension during spore germination in vitro [53]. This could have happened when Pb and R. irregularis were applied in the same root compartment. The extension of extraradical hyphae may have been inhibited by Pb with the reliance of the plant on AM symbiosis being limited, and the colonization rate being restored to the OA-RAN compartment value.
Although Pb is a non-essential element, the uptake of Pb by a plant is inevitable [5,6,54]. The application of Pb in one root compartment hardly affected the root Pb concentration in the other root compartment, but increased the shoot Pb concentration as [55] shown with Cd. Compared with non-mycorrhizal plants, mycorrhizal plants usually had higher shoot Pb content under Pb stress. This is related to R. irregularis which improves plant growth and reduces Pb toxicity. When R. irregularis and Pb were applied in different root compartments, the Pb concentration and content in the shoot were also increased, and this indicated an improvement of Pb transfer from non-colonized root segment to shoot by AM symbiosis [17]. However, the Pb concentration and content in the shoot of TO treatment was lower than those of SE treatment (Figure 4a,b), implying an inhibitory effect of R. irregularis on Pb translocation.
In the root, Pb application increased the Pb concentration and content (Figure 4a,b). The increase in Pb concentration and content in colonized and non-colonized M. truncatula root segments by R. irregularis (comparing TO-RAP and SE-LNP to OP-RNP) (Figure 4a,b) followed a previous study showing that AM plants accumulated more Pb in root than non-mycorrhizal plants [30]. The increased root Pb concentration and content by R. irregularis might be due to the increased water and nutrient uptake, which was proven by the higher shoot biomass and lower root biomass of SE and TO treatments compared to those of OP treatment (Figure 2a) and by the positive correlations of the relative expression of MtPT4 and root Pb content. Moreover, the increase in root Pb content by R. irregularis in colonized root segment was higher than that in the non-colonized root segment (comparing TO-RAP with SE-LNP) (Figure 4a). It might be due to the mycorrhizal diluting effect [56]. This indicated an increased Pb accumulation capability of AM fungi colonized root segment, which has two nutrient and water uptake pathways [27,28].
The Pb accumulation capability of different root segments was compared through the ratio of root Pb concentration to root surface area. The ratio was positively correlated with the relative expressions of MtPT4 and MtBCP1. This result further confirmed that the AM fungi increased the Pb accumulation capability of plant roots. However, the Pb concentration and content in the shoot of TO treatment was lower than those of SE treatment (Figure 4a,b) and the ratio of root Pb concentration to root surface area in TO-RAP treatment was lower than that in SE-LNP treatment (Figure 4c), implying an inhibitory effect of AM fungi on Pb translocation. It may due to the increase in P by AM fungi (Supplementary Figure S2). Pb(PO4)2 is a stable environmental soil Pb form that may form rapidly when adequate phosphate is present [57]. The retention of Pb by AM fungi might also be the result of sequestration by their cell walls and proteins and compartmentation in vacuoles [27,58]. The AM fungi colonized root segments with the mycorrhizal pathway transferred less Pb to shoot than non-colonized root segments without the mycorrhizal pathway. Thus, the Pb supplied by the colonized root segment with the mycorrhizal pathway to plant root has lower mobility than Pb absorbed from growth substrate by plant root itself (Figure 7).
The nutrient delivery of the mycorrhizal pathway was ascertained to follow the water flow [29,59], which involves the participation of aquaporins [25]. The increased effect of AM fungi on Pb and P showed a similar phenomenon. (Supplementary Figure S2). The AM fungi inoculation both systemically and locally increased root P uptake. The increased P uptake from AM fungi inoculation was inhibited by Pb, especially in SE-LNP (not significant). This also indicated that AM plant might have promoted Pb uptake as P uptake by providing more transpiration flow.
The relative expression of gene encoding MtPIP2, which was suggested to have higher water permeability than PIP1 and form a heterotetramer with PIP1 [60], was up-regulated in root compartment TO-RAP (Figure 6) and was positively correlated with the Pb content and concentration in root and shoot and with the ratio of root concentration to root surface area. This result fitted the hypothesis that Pb uptake by plant root follows water flow (Figure 7). The specific role of MtPIP2 in Pb uptake is under study.

5. Conclusions

To summarize, inoculation with R. irregularis had a beneficial effect on M. truncatula and could alleviate Pb toxicity. AM symbiosis increased Pb uptake in both colonized and non-colonized plant root segments, whereas AM fungi might transfer extra Pb to the colonized root segment. The Pb uptake through the colonized root segment had low mobility moving from root to shoot, and might be sequestrated and compartmented by AM fungi. The Pb uptake of plant roots might follow water flow, which is facilitated by the aquaporin MtPIP2. Further research will quantify the Pb that is directly transferred from R. irregularis to plant root, and decipher the role of MtPIP2 in root Pb uptake.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/microorganisms9061203/s1, Figure S1: Effects of Pb and R. irregularis inoculation on the expressions of MtPT4 (a) and MtBCP1 (b) in the root of M. truncatula, Figure S2: Effects of Pb and R. irregularis inoculation on the concentration of P in roots and shoots of M. truncatula. Table S1: Primer list of RT-qPCR. Table S2: Correlation analysis between Pb and AM fungi colonization in root with biomass, root structure, nutritive element concentrations, and the relative expressions of genes in M. truncatula plants in different treatments.

Author Contributions

Conceptualization, H.Z. and W.R.; methodology and investigation, W.R., Y.Z., Y.L. and M.Z.; data curation, W.R. and Y.Z.; writing—original draft preparation, W.R.; writing—review and editing, H.Z. and M.T.; supervision and project administration, M.T.; funding acquisition, M.T. and H.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Key projects of Guangzhou science and technology plan, grant number 201904020022, the National Natural Science Foundation of China, grant number 31700530, and the State Key Laboratory for Conservation and Utilization of Subtropical Agro-bioresources.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Fan, Y.Z.; Xu, Z.H.; Huang, Y.K.; Wang, T.B.; Zheng, S.K.; De Pasquale, A.; Brueckner, C.; Lei, Y.; Li, B.K. Long-term continuous and real-time in situ monitoring of Pb(II) toxic contaminants in wastewater using solid-state ion selective membrane (S-ISM) Pb and pH auto-correction assembly. J. Hazard. Mater. 2020, 400, 123299. [Google Scholar] [CrossRef] [PubMed]
  2. Gonzalez-Alcaraz, M.N.; Loureiro, S.; van Gestel, C.A.M. Toxicokinetics of Zn and Cd in the earthworm Eisenia andrei exposed to metal-contaminated soils under different combinations of air temperature and soil moisture content. Chemosphere 2018, 197, 26–32. [Google Scholar] [CrossRef]
  3. Sidhu, G.P.S.; Singh, H.P.; Batish, D.R.; Kohli, R.K. Tolerance and hyperaccumulation of cadmium by a wild, unpalatable herb Coronopus didymus (L.) Sm. (Brassicaceae). Ecotoxicol. Environ. Saf. 2017, 135, 209–215. [Google Scholar] [CrossRef]
  4. Li, Z.Y.; Ma, Z.W.; van der Kuijp, T.J.; Yuan, Z.W.; Huang, L. A review of soil heavy metal pollution from mines in China: Pollution and health risk assessment. Sci. Total Environ. 2014, 468, 843–853. [Google Scholar] [CrossRef]
  5. Baloch, S.; Kazi, T.G.; Baig, J.A.; Afridi, H.I.; Arain, M.B. Occupational exposure of lead and cadmium on adolescent and adult workers of battery recycling and welding workshops: Adverse impact on health. Sci. Total Environ. 2020, 720, 137549. [Google Scholar] [CrossRef]
  6. Wang, C.R.; Rong, H.; Zhang, X.B.; Shi, W.J.; Hong, X.; Liu, W.C.; Cao, T.; Yu, X.X.; Yu, Q.F. Effects and mechanisms of foliar application of silicon and selenium composite sols on diminishing cadmium and lead translocation and affiliated physiological and biochemical responses in hybrid rice (Oryza sativa L.) exposed to cadmium and lead. Chemosphere 2020, 251, 126347. [Google Scholar] [CrossRef] [PubMed]
  7. Chang, Q.; Diao, F.W.; Wang, Q.F.; Pan, L.; Dang, Z.H.; Guo, W. Effects of arbuscular mycorrhizal symbiosis on growth, nutrient and metal uptake by maize seedlings (Zea mays L.) grown in soils spiked with Lanthanum and Cadmium. Environ. Pollut. 2018, 241, 607–615. [Google Scholar] [CrossRef] [PubMed]
  8. Ma, Y.; Rajkumar, M.; Oliveira, R.S.; Zhang, C.; Freitas, H. Potential of plant beneficial bacteria and arbuscular mycorrhizal fungi in phytoremediation of metal-contaminated saline soils. J. Hazard. Mater. 2019, 379, 120813. [Google Scholar] [CrossRef]
  9. Gonzalez-Chavez, M.C.; Carrillo-Gonzalez, R.; Gutierrez-Castorena, M.C. Natural attenuation in a slag heap contaminated with cadmium: The role of plants and arbuscular mycorrhizal fungi. J. Hazard. Mater. 2009, 161, 1288–1298. [Google Scholar] [CrossRef] [PubMed]
  10. Hachani, C.; Lamhamedi, M.S.; Cameselle, C.; Gouveia, S.; Zine El Abidine, A.; Khasa, D.P.; Bejaoui, Z. Effects of ectomycorrhizal fungi and heavy metals (Pb, Zn, and Cd) on growth and mineral nutrition of Pinus halepensis seedlings in North Africa. Microorganisms 2020, 8, 2033. [Google Scholar] [CrossRef] [PubMed]
  11. Jan, S.; Parray, J.A. Use of mycorrhiza as metal tolerance strategy in plants. In Approaches to Heavy Metal Tolerance in Plants; Springer: Singapore, 2016; pp. 57–68. [Google Scholar] [CrossRef]
  12. Jia, X.; Zhao, Y.H.; Liu, T.; Huang, S.P.; Chang, Y.F. Elevated CO2 increases glomalin-related soil protein (GRSP) in the rhizosphere of Robinia pseudoacacia L. seedlings in Pb- and Cd-contaminated soils. Environ. Pollut. 2016, 218, 349–357. [Google Scholar] [CrossRef]
  13. Davison, J.; Moora, M.; Opik, M.; Adholeya, A.; Ainsaar, L.; Ba, A.; Burla, S.; Diedhiou, A.G.; Hiiesalu, I.; Jairus, T.; et al. Global assessment of arbuscular mycorrhizal fungus diversity reveals very low endemism. Science 2015, 349, 970–973. [Google Scholar] [CrossRef] [Green Version]
  14. Parniske, M. Arbuscular mycorrhiza: The mother of plant root endosymbioses. Nat. Rev. Microbiol. 2008, 6, 763–775. [Google Scholar] [CrossRef] [PubMed]
  15. Faggioli, V.; Menoyo, E.; Geml, J.; Kemppainen, M.; Pardo, A.; Salazar, M.J.; Becerra, A.G. Soil lead pollution modifies the structure of arbuscular mycorrhizal fungal communities. Mycorrhiza 2019, 29, 363–373. [Google Scholar] [CrossRef]
  16. Zhang, X.Y.; Lou, X.; Zhang, H.Q.; Ren, W.; Tang, M. Effects of sodium sulfide application on the growth of Robinia pseudoacacia, heavy metal immobilization, and soil microbial activity in Pb-Zn polluted soil. Ecotoxicol. Environ. Saf. 2020, 197. [Google Scholar] [CrossRef] [PubMed]
  17. Chen, X.; Wu, C.H.; Tang, J.J.; Hu, S.J. Arbuscular mycorrhizae enhance metal lead uptake and growth of host plants under a sand culture experiment. Chemosphere 2005, 60, 665–671. [Google Scholar] [CrossRef]
  18. Huang, L.; Zhang, H.Q.; Song, Y.Y.; Yang, Y.R.; Chen, H.; Tang, M. Subcellular compartmentalization and chemical forms of lead participate in lead tolerance of Robinia pseudoacacia L. with Funneliformis mosseae. Front. Plant Sci. 2017, 8, 517. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Zhang, X.Y.; Zhang, H.Q.; Lou, X.; Tang, M. Mycorrhizal and non-mycorrhizal Medicago truncatula roots exhibit differentially regulated NADPH oxidase and antioxidant response under Pb stress. Environ. Exp. Bot. 2019, 164, 10–19. [Google Scholar] [CrossRef]
  20. Gavito, M.E.; Jakobsen, I.; Mikkelsen, T.N.; Mora, F. Direct evidence for modulation of photosynthesis by an arbuscular mycorrhiza-induced carbon sink strength. New Phytol. 2019, 223, 896–907. [Google Scholar] [CrossRef] [Green Version]
  21. Kaschuk, G.; Kuyper, T.W.; Leffelaar, P.A.; Hungria, M.; Giller, K.E. Are the rates of photosynthesis stimulated by the carbon sink strength of rhizobial and arbuscular mycorrhizal symbioses? Soil Biol. Biochem. 2009, 41, 1233–1244. [Google Scholar] [CrossRef]
  22. Mortimer, P.E.; Pérez-Fernández, M.A.; Valentine, A.J. The role of arbuscular mycorrhizal colonization in the carbon and nutrient economy of the tripartite symbiosis with nodulated Phaseolus vulgaris. Soil Biol. Biochem. 2008, 40, 1019–1027. [Google Scholar] [CrossRef]
  23. Puschel, D.; Bitterlich, M.; Rydlova, J.; Jansa, J. Facilitation of plant water uptake by an arbuscular mycorrhizal fungus: A Gordian knot of roots and hyphae. Mycorrhiza 2020, 30, 299–313. [Google Scholar] [CrossRef]
  24. Li, G.W.; Santoni, V.; Maurel, C. Plant aquaporins: Roles in plant physiology. Biochim. Biophys. Acta 2014, 1840, 1574–1582. [Google Scholar] [CrossRef]
  25. Maurel, C.; Boursiac, Y.; Luu, D.T.; Santoni, V.; Shahzad, Z.; Verdoucq, L. Aquaporins in Plants. Physiol. Rev. 2015, 95, 1321–1358. [Google Scholar] [CrossRef]
  26. Watts-Williams, S.J.; Cavagnaro, T.R.; Tyerman, S.D. Variable effects of arbuscular mycorrhizal fungal inoculation on physiological and molecular measures of root and stomatal conductance of diverse Medicago truncatula accessions. Plant Cell Environ. 2019, 42, 285–294. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Ferrol, N.; Tamayo, E.; Vargas, P. The heavy metal paradox in arbuscular mycorrhizas: From mechanisms to biotechnological applications. J. Exp. Bot. 2016, 67, 6253–6265. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Smith, S.E.; Smith, F.A. Roles of arbuscular mycorrhizas in plant nutrition and growth: New paradigms from cellular to ecosystem scales. Annu. Rev. Plant Biol. 2011, 62, 227–250. [Google Scholar] [CrossRef] [Green Version]
  29. Kikuchi, Y.; Hijikata, N.; Ohtomo, R.; Handa, Y.; Kawaguchi, M.; Saito, K.; Masuta, C.; Ezawa, T. Aquaporin-mediated long-distance polyphosphate translocation directed towards the host in arbuscular mycorrhizal symbiosis: Application of virus-induced gene silencing. New Phytol. 2016, 211, 1202–1208. [Google Scholar] [CrossRef] [Green Version]
  30. Sudova, R.; Vosatka, M. Differences in the effects of three arbuscular mycorrhizal fungal strains on P and Pb accumulation by maize plants. Plant Soil 2007, 296, 77–83. [Google Scholar] [CrossRef]
  31. Yang, Y.R.; Liang, Y.; Han, X.Z.; Chiu, T.Y.; Ghosh, A.; Chen, H.; Tang, M. The roles of arbuscular mycorrhizal fungi (AMF) in phytoremediation and tree-herb interactions in Pb contaminated soil. Sci. Rep. 2016, 6, 20469. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Zhang, X.Y.; Zhang, H.J.; Zhang, Y.X.; Liu, Y.Q.; Zhang, H.Q.; Tang, M. Arbuscular mycorrhizal fungi alter carbohydrate distribution and amino acid accumulation in Medicago truncatula under lead stress. Environ. Exp. Bot. 2020, 171, 103950. [Google Scholar] [CrossRef]
  33. Liu, J.Y.; Maldonado-Mendoza, I.; Lopez-Meyer, M.; Cheung, F.; Town, C.D.; Harrison, M.J. Arbuscular mycorrhizal symbiosis is accompanied by local and systemic alterations in gene expression and an increase in disease resistance in the shoots. Plant J. 2007, 50, 529–544. [Google Scholar] [CrossRef]
  34. Zhang, H.Q.; Franken, P. Comparison of systemic and local interactions between the arbuscular mycorrhizal fungus Funneliformis mosseae and the root pathogen Aphanomyces euteiches in Medicago truncatula. Mycorrhiza 2014, 24, 419–430. [Google Scholar] [CrossRef]
  35. Dos Anjos, V.E.; Rohwedder, J.R.; Cadore, S.; Abate, G.; Grassi, M.T. Montmorillonite and vermiculite as solid phases for the preconcentration of trace elements in natural waters: Adsorption and desorption studies of As, Ba, Cu, Cd, Co, Cr, Mn, Ni, Pb, Sr, V, and Zn. Appl. Clay Sci. 2014, 99, 289–296. [Google Scholar] [CrossRef]
  36. Hoagland, D.R.; Arnon, D.I. The Water-Culture Method for Growing Plants without Soil, 2nd ed.; California Agricultural Experiment Station: Berkeley, CA, USA, 1950; Volume 347. [Google Scholar] [CrossRef]
  37. Ma, Y.L.; He, J.L.; Ma, C.F.; Luo, J.; Li, H.; Liu, T.X.; Polle, A.; Peng, C.H.; Luo, Z.B. Ectomycorrhizas with Paxillus involutus enhance cadmium uptake and tolerance in Populus x canescens. Plant Cell Environ. 2014, 37, 627–642. [Google Scholar] [CrossRef] [PubMed]
  38. Koske, R.E.; Gemma, J.N. A modified procedure for staining roots to detect VA mycorrhizas. Mycol. Res. 1989, 92, 486–488. [Google Scholar] [CrossRef]
  39. McGonigle, T.P.; Miller, M.H.; Evans, D.G.; Fairchild, G.L.; Swan, J.A. A new method which gives an objective measure of colonization of roots by vesicular-arbuscular mycorrhizal fungi. New Phytol. 1990, 115, 495–501. [Google Scholar] [CrossRef] [PubMed]
  40. Sheng, M.; Chen, X.D.; Zhang, X.L.; Hamel, C.; Cui, X.W.; Chen, J.; Chen, H.; Tang, M. Changes in arbuscular mycorrhizal fungal attributes along a chronosequence of black locust (Robinia pseudoacacia) plantations can be attributed to the plantation-induced variation in soil properties. Sci. Total Environ. 2017, 599, 273–283. [Google Scholar] [CrossRef] [PubMed]
  41. Javot, H.; Penmetsa, R.V.; Terzaghi, N.; Cook, D.R.; Harrison, M.J. A Medicago truncatula phosphate transporter indispensable for the arbuscular mycorrhizal symbiosis. Proc. Natl. Acad. Sci. USA 2007, 104, 1720–1725. [Google Scholar] [CrossRef] [Green Version]
  42. Parádi, I.; Tuinen, D.V.; Morandi, D.; Ochatt, S.; Robert, F.; Jacas, L.; Dumas-Gaudot, E. Transcription of two blue copper-binding protein isogenes is highly correlated with arbuscular mycorrhizal development in Medicago truncatula. Mol. Plant Microbe Interact. 2010, 23, 1175–1183. [Google Scholar] [CrossRef] [Green Version]
  43. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2(T) (-Delta Delta C) method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef]
  44. Chong, J.; Soufan, O.; Li, C.; Caraus, I.; Li, S.Z.; Bourque, G.; Wishart, D.S.; Xia, J.G. MetaboAnalyst 4.0: Towards more transparent and integrative metabolomics analysis. Nucleic Acids Res. 2018, 46, 486–494. [Google Scholar] [CrossRef] [Green Version]
  45. Yang, Y.R.; Liang, Y.; Ghosh, A.; Song, Y.Y.; Chen, H.; Tang, M. Assessment of arbuscular mycorrhizal fungi status and heavy metal accumulation characteristics of tree species in a lead-zinc mine area: Potential applications for phytoremediation. Environ. Sci. Pollut. Res. 2015, 22, 13179–13193. [Google Scholar] [CrossRef] [PubMed]
  46. Dhawi, F.; Datta, R.; Ramakrishna, W. Mycorrhiza and heavy metal resistant bacteria enhance growth, nutrient uptake and alter metabolic profile of sorghum grown in marginal soil. Chemosphere 2016, 157, 33–41. [Google Scholar] [CrossRef] [PubMed]
  47. Chen, W.L.; Koide, R.T.; Adams, T.S.; DeForest, J.L.; Cheng, L.; Eissenstat, D.M. Root morphology and mycorrhizal symbioses together shape nutrient foraging strategies of temperate trees. Proc. Natl. Acad. Sci. USA 2016, 113, 8741–8746. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Zhu, Y.G.; Smith, F.A.; Smith, S.E. Phosphorus efficiencies and responses of barley (Hordeum vulgare L.) to arbuscular mycorrhizal fungi grown in highly calcareous soil. Mycorrhiza 2003, 13, 93–100. [Google Scholar] [CrossRef] [PubMed]
  49. Punamiya, P.; Datta, R.; Sarkar, D.; Barber, S.; Patel, M.; Das, P. Symbiotic role of Glomus mosseae in phytoextraction of lead in vetiver grass [Chrysopogon zizanioides (L.)]. J. Hazard. Mater. 2010, 177, 465–474. [Google Scholar] [CrossRef]
  50. Sharma, P.; Dubey, R.S. Lead toxicity in plants. Braz. J. Plant Physiol. 2005, 17, 35–52. [Google Scholar] [CrossRef] [Green Version]
  51. Yadav, S.K. Heavy metals toxicity in plants: An overview on the role of glutathione and phytochelatins in heavy metal stress tolerance of plants. S. Afr. J. Bot. 2010, 76, 167–179. [Google Scholar] [CrossRef] [Green Version]
  52. Zheng, S.; Wang, C.; Shen, Z.; Quan, Y.; Liu, X. Role of extrinsic arbuscular mycorrhizal fungi in heavy metal-contaminated wetlands with various soil moisture levels. Int. J. Phytoremediat. 2015, 17, 208–214. [Google Scholar] [CrossRef]
  53. Weissenhorn, I.; Leyval, C.; Berthelin, J. Cd-tolerant arbuscular mycorrhizal (Am) fungi from heavy-metal polluted soils. Plant Soil 1993, 157, 247–256. [Google Scholar] [CrossRef]
  54. Yabe, J.; Nakayama, S.M.M.; Ikenaka, Y.; Yohannes, Y.B.; Bortey-Sam, N.; Kabalo, A.N.; Ntapisha, J.; Mizukawa, H.; Umemura, T.; Ishizuka, M. Lead and cadmium excretion in feces and urine of children from polluted townships near a lead-zinc mine in Kabwe, Zambia. Chemosphere 2018, 202, 48–55. [Google Scholar] [CrossRef]
  55. Xin, J.L.; Dai, H.W.; Huang, B.F. Assessing the roles of roots and shoots in the accumulation of cadmium in two sweet potato cultivars using split-root and reciprocal grafting systems. Plant Soil 2017, 412, 413–424. [Google Scholar] [CrossRef]
  56. Weissenhorn, I.; Leyval, C. Root colonization of maize by a cd-sensitive and a cd-tolerant Glomus Mosseae and cadmium uptake in sand culture. Plant Soil 1995, 175, 233–238. [Google Scholar] [CrossRef]
  57. Ruby, M.V.; Davis, A.; Nicholson, A. In Situ formation of lead phosphates in soils as a method to immobilize lead. Environ. Sci. Technol. 1994, 28, 646–654. [Google Scholar] [CrossRef] [PubMed]
  58. Salazar, M.J.; Menoyo, E.; Faggioli, V.; Geml, J.; Cabello, M.; Rodriguez, J.H.; Marro, N.; Pardo, A.; Pignata, M.L.; Becerra, A.G. Pb accumulation in spores of arbuscular mycorrhizal fungi. Sci. Total Environ. 2018, 643, 238–246. [Google Scholar] [CrossRef] [PubMed]
  59. Cooper, K.M.; Tinker, P.B. Translocation and transfer of nutrients in vesicular-arbuscular mycorrhizas: IV. Effect of environmental variables on movement of phosphorus. New Phytol. 1981, 88, 327–339. [Google Scholar] [CrossRef]
  60. Jozefkowicz, C.; Sigaut, L.; Scochera, F.; Soto, G.; Ayub, N.; Pietrasanta, L.I.; Amodeo, G.; Flecha, F.L.G.; Alleva, K. PIP water transport and its pH dependence are regulated by tetramer stoichiometry. Biophys. J. 2016, 110, 1312–1321. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Microorganisms 09 01203 g001 550

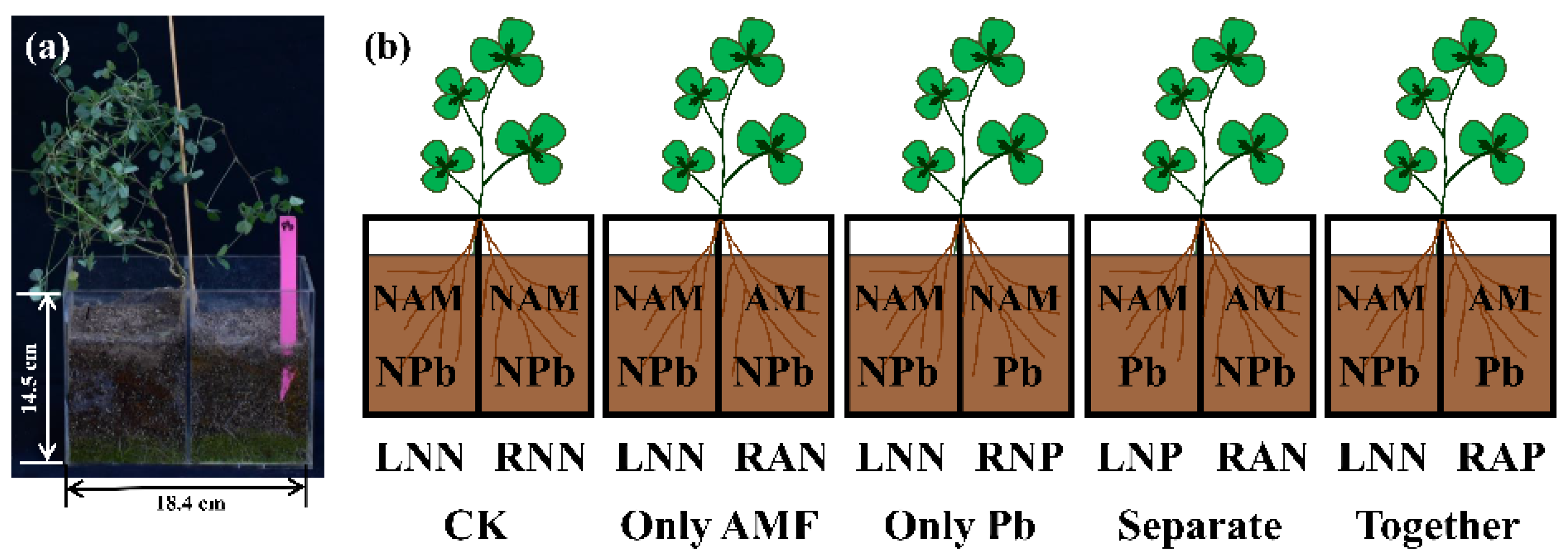

Figure 1. (a) Split root system used for the study of the influence of R. irregularis on Pb uptake by M. truncatula. (b) The 2 compartments of the root systems inoculated with/without R. irregularis, and 2 compartments with/without Pb applied after 4 weeks of mycorrhizal colonization. NAM = non-mycorrhizal treatment; AM = arbuscular mycorrhizal fungi inoculation; Pb = Pb treatment; NPb = non-Pb treatment. CK = control treatment. Only Pb = Pb was added to only 1 compartment; Only AMF = AM fungi was added to only 1 compartment; Separate = Pb and AM fungi were added into the split-root system in the 2 compartments separately; Together = Pb and AM fungi were added into the split-root system in the same compartment together. LNN = no AM fungi or Pb was added to the left compartment; RNN = no AM fungi or Pb was added to the right compartment; RAN = AM fungi was added to the right compartment without Pb; RNP = Pb was added to the right compartment without AM fungi; LNP = Pb was added to the left compartment without AM fungi; RAP = AM fungi and Pb were added to the right compartment.
Figure 1. (a) Split root system used for the study of the influence of R. irregularis on Pb uptake by M. truncatula. (b) The 2 compartments of the root systems inoculated with/without R. irregularis, and 2 compartments with/without Pb applied after 4 weeks of mycorrhizal colonization. NAM = non-mycorrhizal treatment; AM = arbuscular mycorrhizal fungi inoculation; Pb = Pb treatment; NPb = non-Pb treatment. CK = control treatment. Only Pb = Pb was added to only 1 compartment; Only AMF = AM fungi was added to only 1 compartment; Separate = Pb and AM fungi were added into the split-root system in the 2 compartments separately; Together = Pb and AM fungi were added into the split-root system in the same compartment together. LNN = no AM fungi or Pb was added to the left compartment; RNN = no AM fungi or Pb was added to the right compartment; RAN = AM fungi was added to the right compartment without Pb; RNP = Pb was added to the right compartment without AM fungi; LNP = Pb was added to the left compartment without AM fungi; RAP = AM fungi and Pb were added to the right compartment.
Microorganisms 09 01203 g001
Microorganisms 09 01203 g002 550
Figure 2. Effects of Pb and R. irregularis inoculation on fresh weight of shoots and roots (a), total colonization (b), and arbuscular colonization (c) in M. truncatula. The data are shown as means ± standard error (n = 3). Different uppercase and lowercase letters above the columns indicate a significant difference among the means by LSD test (p < 0.05), respectively. ND = not detected. The abbreviations are consistent with Figure 1.
Figure 2. Effects of Pb and R. irregularis inoculation on fresh weight of shoots and roots (a), total colonization (b), and arbuscular colonization (c) in M. truncatula. The data are shown as means ± standard error (n = 3). Different uppercase and lowercase letters above the columns indicate a significant difference among the means by LSD test (p < 0.05), respectively. ND = not detected. The abbreviations are consistent with Figure 1.
Microorganisms 09 01203 g002
Microorganisms 09 01203 g003 550

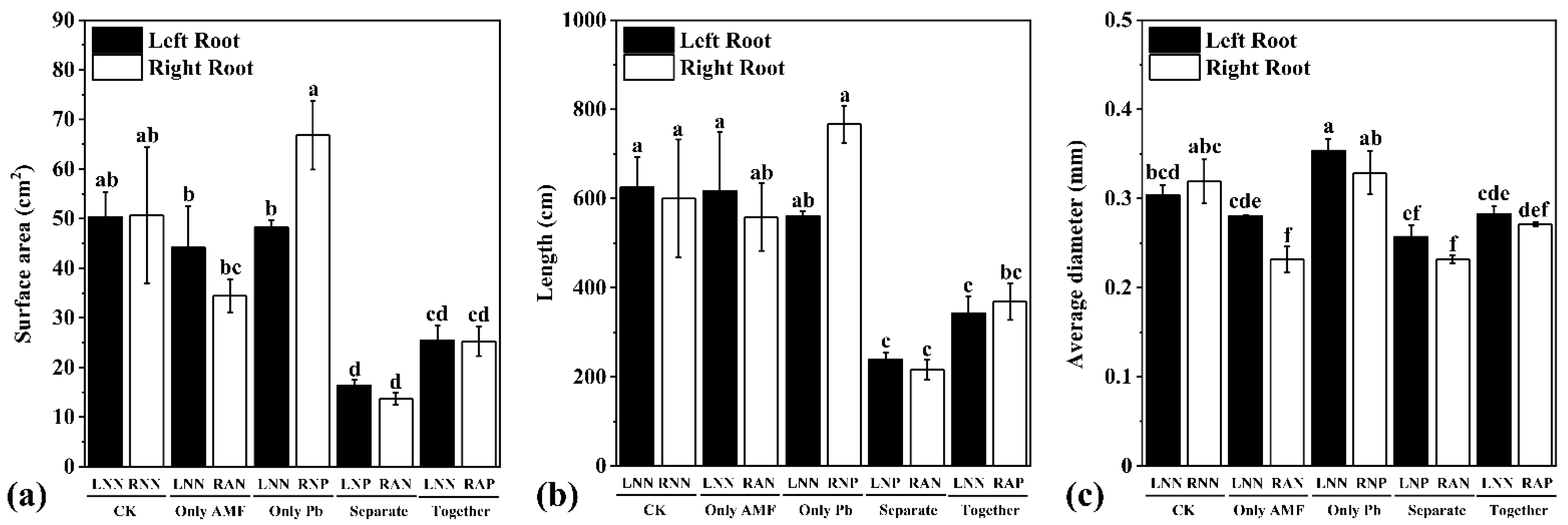

Figure 3. The root surface area (a), length (b), and average diameter (c) of M. truncatula in different treatments. The data are the means ± standard error (n = 3). Different letters above the columns indicate a significant difference among the means by LSD test (p < 0.05), respectively. The abbreviations are consistent with Figure 1.
Figure 3. The root surface area (a), length (b), and average diameter (c) of M. truncatula in different treatments. The data are the means ± standard error (n = 3). Different letters above the columns indicate a significant difference among the means by LSD test (p < 0.05), respectively. The abbreviations are consistent with Figure 1.
Microorganisms 09 01203 g003
Microorganisms 09 01203 g004 550
Figure 4. The Pb content (a), total Pb concentration (b), and the ratio of Pb concentration to surface (c) in M. truncatula plants in different treatments. The data are the means ± standard error (n = 3). Different uppercase and lowercase letters above the columns indicate significant differences among the means by LSD test (p < 0.05), respectively. The abbreviations are consistent with Figure 1.
Figure 4. The Pb content (a), total Pb concentration (b), and the ratio of Pb concentration to surface (c) in M. truncatula plants in different treatments. The data are the means ± standard error (n = 3). Different uppercase and lowercase letters above the columns indicate significant differences among the means by LSD test (p < 0.05), respectively. The abbreviations are consistent with Figure 1.
Microorganisms 09 01203 g004
Microorganisms 09 01203 g005 550
Figure 5. Effects of Pb and R. irregularis inoculation on net photosynthetic rate Pn (a), intercellular CO2 concentration Ci (b), transpiration rate Tr (c), and stomatal conductance Gs (d) in leaves of M. truncatula. The data are the means ± standard error (n = 3). The different letters above the columns indicate significant differences among the means by LSD test (p < 0.05), respectively. The abbreviations are consistent with Figure 1.
Figure 5. Effects of Pb and R. irregularis inoculation on net photosynthetic rate Pn (a), intercellular CO2 concentration Ci (b), transpiration rate Tr (c), and stomatal conductance Gs (d) in leaves of M. truncatula. The data are the means ± standard error (n = 3). The different letters above the columns indicate significant differences among the means by LSD test (p < 0.05), respectively. The abbreviations are consistent with Figure 1.
Microorganisms 09 01203 g005
Microorganisms 09 01203 g006 550
Figure 6. Effects of Pb and R. irregularis inoculation on the expression of MtAQP1, MtPIP1, MtPIP2, MtNIP1, and MtNIP4 in root of M. truncatula. Expression of MtEFα in the root of M. truncatula was used for normalization. Different letters within each gene indicate significant differences by LSD test (p < 0.05), respectively. The abbreviations are consistent with Figure 1.
Figure 6. Effects of Pb and R. irregularis inoculation on the expression of MtAQP1, MtPIP1, MtPIP2, MtNIP1, and MtNIP4 in root of M. truncatula. Expression of MtEFα in the root of M. truncatula was used for normalization. Different letters within each gene indicate significant differences by LSD test (p < 0.05), respectively. The abbreviations are consistent with Figure 1.
Microorganisms 09 01203 g006
Microorganisms 09 01203 g007 550
Figure 7. AM fungi can immobilize Pb that R. irregularis in the inoculated compartment as a sifter reduced the content of Pb in a plant.
Figure 7. AM fungi can immobilize Pb that R. irregularis in the inoculated compartment as a sifter reduced the content of Pb in a plant.
Microorganisms 09 01203 g007
