Genome-Wide Mapping Reveals Complex Regulatory Activities of BfmR in Pseudomonas aeruginosa

Abstract

BfmR is a response regulator that modulates diverse pathogenic phenotypes and induces an acute-to-chronic virulence switch in Pseudomonas aeruginosa, an important human pathogen causing serious nosocomial infections. However, the mechanisms of action of BfmR remain largely unknown. Here, using chromatin immunoprecipitation followed by high-throughput sequencing (ChIP-seq), we showed that 174 chromosomal regions of P. aeruginosa MPAO1 genome were highly enriched by coimmunoprecipitation with a C-terminal Flag-tagged BfmR. Integration of these data with global transcriptome analyses revealed that 172 genes in 106 predicted transcription units are potential targets for BfmR. We determined that BfmR binds to and modulates the promoter activity of genes encoding transcriptional regulators CzcR, ExsA, and PhoB. Intriguingly, BfmR bound to the promoters of a number of genes belong to either CzcR or PhoB regulon, or both, indicating that CzcRS and PhoBR two-component systems (TCSs) deeply feed into the BfmR-mediated regulatory network. In addition, we demonstrated that phoB is required for BfmR to promote the biofilm formation by P. aeruginosa. These results delineate the direct BfmR regulon and exemplify the complexity of BfmR-mediated regulation of cellular functions in P. aeruginosa.

1. Introduction

Pseudomonas aeruginosa is a major cause of nosocomial infections worldwide and, in some case, the primary cause of death [1,2]. The World Health Organization has categorized P. aeruginosa as a critical priority pathogen and declared an urgent need of new antibiotics [3,4]. Understanding the molecular mechanisms involved in making P. aeruginosa a successful pathogen may allow for the development of novel strategies for the prevention and treatment of infections caused by this formidable pathogen [5,6,7,8].

As an opportunistic pathogen, P. aeruginosa can thrive in a wide range of habitats [9]. This is achieved, at least in part, by precisely regulating gene expression in response to environmental changes via two-component systems (TCSs), a prevalent signal transduction mechanism in bacteria [10]. P. aeruginosa genomes encode one of the largest groups of TCS proteins (i.e., ~130 in PAO1 strain) identified in bacteria, and this is thought to confer exceptional adaptability of this bacterium to a wide range of hosts [7,11,12,13]. TCS typically consists of a membrane-bound histidine kinase (HK) that senses a specific environmental stimulus and a corresponding response regulator (RR) that mediates the cellular response [14,15]. Usually, the response regulator is a DNA binding protein, which contributes directly to the control of gene expression [14,15]. Many TCSs have been described as having a key role during the infection process, whereas only a few have been characterized in great detail in P. aeruginosa [13,16].

P. aeruginosa BfmRS TCS is comprised of HK BfmS and the RR BfmR (Biofilm maturation Regulator) [7,11,17]. The system got its name from its role in the maturation of biofilm that serves as a hallmark of chronic infections [17]. BfmR is essential for the P. aeruginosa biofilm development, most likely via activating the expression of phdA that encodes prevent-host-death family protein A (PhdA) [18]. In addition to inducing biofilm formation, BfmR inhibits Rhl quorum-sensing (QS) system and decreases the ability of P. aeruginosa to cause infection in lettuce leaf and in animal infection models [7,11]. Intriguingly, BfmR activation was sufficient to direct P. aeruginosa toward a chronic infection state (i.e., decreased QS signal production, attenuation of acute virulence, and enhanced biofilm formation) and can also account for adaptive gene expression changes in P. aeruginosa DK2 lineage [7], a transmissible clone isolated from chronically infected Danish patients with CF over a period of 38 years [19,20,21]. However, the mechanisms of action of BfmR in P. aeruginosa remain poorly understood, and only a handful of BfmR targets (e.g., bfmRS operon, pa4103-pa4104 operon, pa4107-pa4106-pa4105 operon, rhlR, and phdA) have been identified so far [11,18].

In this study, we used high-throughput methods to identify BfmR targets. We showed at least 172 genes in 106 predicted transcription units (TUs) are likely under the direct control of BfmR. We provided evidence that BfmR works cooperatively with two-component response regulators CzcR and PhoB, in regulating the transcription of a number of P. aeruginosa genes. Our results also highlight a complex role of BfmRS in regulation of biofilm formation and Rhl QS in P. aeruginosa.

2. Materials and Methods

2.1. Bacterial Strains, Plasmids, and Growth Conditions

The bacterial strains and plasmids used in this study are listed in Table S1. P. aeruginosa MPAO1 [22] and its derivatives were grown in Luria–Bertani (LB) broth, Pyocyanin production broth (20 g peptone, 1.4 g MgCl₂, 10 g K₂SO4, 20 mL glycerol per liter; pH 7.0) [23], M8-based minimal (MM) medium (6 g Na₂HPO₄, 3 g KH₂PO4, 0.5 g NaCl, 0.2% glucose (w/v), 0.24 g MgSO₄, 0.5 g glutamate per liter; pH 7.4) [24], or in low-phosphate M8-based minimal (LPM) medium (45.6 mg K₂HPO₄, 13.6 mg KH₂PO4, 1.6 g NaCl, 0.2% glucose (w/v), 0.24 g MgSO₄, 0.5 g glutamate per liter; pH 7.0). Escherichia coli cultures were grown in Luria–Bertani (LB) broth. All cultures were incubated at 37 °C with shaking (250 rpm). For plasmid maintenance, antibiotics were used at the following concentrations where appropriate: for E. coli, carbenicillin at 100 μg/mL, kanamycin at 50 μg/mL, tetracycline at 10 μg/mL, gentamicin at 10 μg/mL; for P. aeruginosa, carbenicillin at 100 μg/mL, and kanamycin at 150 μg/mL, gentamicin at 30 μg/mL in LB and 150 μg/mL in Pseudomonas Isolation Agar (PIA, BD), tetracycline at 30 μg/mL in LB and 150 μg/mL in PIA.

2.2. Construction of Vectors

Genomic DNA from P. aeruginosa MPAO1 was used as a template for the polymerase chain reactions (PCRs). For generating pAK1900-phoB (p-phoB), a ~0.8 kb PCR product covering 70 bp of the phoB upstream region, the phoB gene, and 90 bp downstream of phoB was amplified using the primer pair comp-phoB-F/R (BamHI/KpnI) (Table S2). For generating pAK1900-czcS (p-czcS), a ~1.5 kb PCR product covering 101 bp of czcS upstream region and the czcS gene of czcS was amplified using the primer pair comp-czcS-F/R (HindIII/BamHI) (Table S2). All the PCR products were digested with corresponding enzymes and cloned into pAK1900 [25] in the same orientation as plac.

For generating mini-phoB-flag (Table S1), a ~1.3 kb PCR product covering 561 bp of the phoB upstream region, the phoB gene (not including the stop codon) was amplified using primers pair mini-phoB-flag-F/R (HindIII/BamHI) (Table S2), generating p-phoB-flag, and then p-phoB-flag were cloned into integrated vector mini-CTX-lacZ [26]. For generating mini-phoB-D-flag (a mini-phoB-flag variant with deletion of GACACA in the BfmR-binding site of the phoB promoter) (Table S1), the DNA fragment was amplified using primers mini-phoB-flag-F/R (HindIII/BamHI) (Table S2) and cloned into pMD19-T by TA-cloning method. Subsequently, primer pair mini-phoB-D-flag-F/R and a QuikChange II site-directed mutagenesis kit (StrataGene, catalog^#: 200518) were used to generate p-(D)-phoB-flag, which was further clone into the mini-CTX-lacZ HindIII-BamHI site.

To construct czcC-lux, the czcC promoter region (−825 to +135 of the start codon of czcC) was amplified using the prime pair mini-czcC-lux-F/R (HindIII/BamHI). The DNA fragments were further inserted into the mini-CTX-lux plasmid, and the orientation of the czcC promoter was in the same direction as the promoterless luxCDABE. Similarly, to generate czcR-lux, a DNA fragment covering the promoter region of czcR (−647 to +313 of the start codon of czcR) was amplified with prime pair mini-czcR-lux-F/R (HindIII/BamHI) and cloned into mini-CTX-lux. For generating exsA-lux, the exsA promoter region (−366 to +26 of the start codon of exsA) was amplified using prime pair mini-exsA-lux-F/R (HindIII/BamHI) (Table S2) and cloned into mini-CTX-lux (Table S1).

All constructs were sequenced to ensure that no unwanted mutations resulted.

2.3. Construction of P. aeruginosa ΔczcRS and ΔphoBΔbfmS Mutants

To construct ΔczcRS and ΔphoBΔbfmS mutants (Table S1), a SacB-based strategy was employed as previously described [27]. For the construction of the czcRS null mutant (ΔczcRS), PCRs were performed in order to amplify sequences upstream (~1.1 kb) and downstream (~1.0 kb) of the intended deletion (+60 of czcR to +1478 of czcS). The upstream fragment was amplified from MPAO1 genomic DNA using primers pair D-czcRS-up-F/R (EcoRI/BamHI) (Table S2), while the downstream fragment was amplified with primers pair D-czcRS-down-F/R (BamHI/HindIII) (Table S2). The two PCR products were digested and then cloned into the EcoRI/HindIII-digested gene replacement vector pEX18Ap, yielding pEX18Ap::czcRSUD. Subsequently, a 1.8 kb gentamicin resistance cassette cut from pPS858 (Table S1) with BamHI was cloned into pEX18Ap::czcRSUD, yielding pEX18Ap::czcRSUGD (Table S1). The resultant plasmid, pEX18Ap::czcRSUGD, was electroporated into WT MPAO1 with selection for gentamicin resistance. Colonies were screened for resistance to gentamicin and sucrose and sensitivity to carbenicillin, which typically indicates a double-cross-over event, and thus of gene replacement occurring. The gentamicin resistance cassette of the ΔczcRS::Gm mutant was further excised by using the plasmid pFLP2 that encoded Flp recombinase, yielding the ΔczcRS mutant. The deletion of czcRS in MPAO1 was further confirmed by PCR.

To construct the ΔphoBΔbfmS mutants, firstly phoB null mutant (ΔphoB) was constructed and a similar strategy as described above was used. PCRs were performed in order to amplify sequences upstream (~1.0 kb) and downstream (~1.0 kb) of the intended deletion (+11 to +700 of phoB). The upstream fragment was amplified from MPAO1 genomic DNA using primers pair D-phoB-up-F/R (EcoRI/BamHI) while the downstream fragment was amplified with primers pair D-phoB-down-F/R (BamHI/HindIII) (Table S2). The gentamicin resistance cassette of the ΔphoB::Gm mutant was further excised by using the plasmid pFLP2 that encoded Flp recombinase, yielding the ΔphoB mutant. For the construction of ΔphoBΔbfmS, the pEX18Ap::bfmSUGD plasmid (Table S1) was electroporated into the ΔphoB mutant. The ΔphoBΔbfmS mutant was subsequently selected and confirmed by PCR.

2.4. Expression and Purifications of Recombinant Proteins CzcR-His₆ and His₆-BfmR

Proteins were expressed in E. coli strain BL21 star (DE3) and purification was performed as described in previous studies [28,29]. Generally, bacteria were grown at 37 °C overnight in 10 mL of LB medium with shaking (250 rpm). The cultures were transferred into 1 L of LB medium (containing 50 µg/mL kanamycin) incubated at 37 °C with shaking (200 rpm) until the OD₆₀₀ reached 0.6, and then IPTG (isopropyl-1-thio-β-d-galactopyranoside) was added to a final concentration of 1.0 mM. After 20 h incubation at 16 °C with shaking (200 rpm), the cells were harvested by centrifugation and stored at –80 °C.

To purify N-terminal His₆-tagged BfmR (i.e., His₆-BfmR), the cells were lysed at 4 °C by sonication in buffer A (10 mM Tris/HCl, pH 8; 150 mM NaCl, 1 mM DTT, 20 mM imidazole). The whole cell fraction was subjected to centrifugation at 4 °C at 12,000 rpm for 25 min to remove insoluble material and the membrane fraction. Clarified cell lysate was loaded onto a HisTrap HP column (GE Healthcare, #17-5247-01), equilibrated with buffer A, and eluted with a 0–100% gradient of buffer B (10 mM Tris/HCl, pH 8; 150 mM NaCl, 1 mM DTT, 400 mM imidazole). The fractions containing recombinant proteins were collected and loaded onto a HisTrap Desalting 5 × 5 mL (Sephadex G-25 S) (GE Healthcare, #17-1408-01) and eluted with a running condition of 10 mM Tris/HCl, pH 8; 150 mM NaCl and 1 mM DTT to remove the imidazole. The purified proteins were >90% pure as estimated by a 10% (w/v) SDS-PAGE gel followed by Coomassie blue staining.

A similar strategy as described above was used to purify C-terminal His₆-tagged CzcR (i.e., CzcR-His₆) expressed from 22b-CzcR-His₆ (Table S1). For generating 22b-CzcR-His₆, the PCR primer pair 22b-czcR-F/R (NdeI/XhoI) (Table S2) was designed to allow in-frame fusion at the C-terminal end with the His tag from pET22b (Novagen), and the construct was sequenced to ensure that no unwanted mutations resulted.

2.5. Chromatin Immunoprecipitation (ChIP)

For generating ΔbfmRS::bfmR-flag strain (Table S1), we introduced mini-bfmR-flag (Table S1) into ΔbfmRS mutant (Table S1), and the construct was intergraded into the attB site through a diparental mating using E. coli S17 λ-pir as the donor as described previously [7,11].

Chromatin immunoprecipitation was modified from existing protocol [30,31]. For BfmR ChIP under LPM-6h condition, we performed the experiments with three biological replicates. Overnight LPM cultures of ΔbfmRS::bfmR-flag were diluted to OD₆₀₀ ≈ 0.05 with fresh LPM medium and grown in a 250 mL Erlenmeyer flask with a flask volume-to-medium volume ratio of 5:1, shaking with 250 rpm at 37 °C. After culturing for 6 h, protein-DNA complexes were cross-linked by addition of formaldehyde (final concentration 1%) and incubated at 37 °C for ten minutes shaking with 250 rpm. Crosslinking was stopped by addition of glycine (final concentration 125 mM). The final OD₆₀₀ was 0.5 and cells were collected from 60 mL culture via centrifugation and washed twice with Tris-buffered saline (20 mM Tris-HCl pH 8.0, 150 mM NaCl). Pellets were re-suspended in 1.5 mL Immunoprecipitation buffer (IP buffer) (50 mM HEPES-KOH pH 8.0, 150 mM NaCl, 1 mM EDTA, 1% Triton X-100, 0.1% SDS, protease inhibitor cocktail) and sonicated to shear DNA to an average size of 200–700 bp. Samples were sonicated on JY92-IIDN Ultrasonic Homogenizer (Scientz) with the following conditions: total output 10%, 1-s on, 2-s off, for 39 min on ice. Insoluble cellular debris was removed by centrifugation (14,000 rpm, 25 min, and 4 °C) and the supernatant was transferred to clear tubes. For preparing the ChIP-DNA, the protein A beads (Smart-Lifesciences, catalog^#: SA015C) were blocked at 4 °C in IP buffer for four hours with 10 μL anti-Flag monoclonal antibody (Cat#: AGM12165, Aogma), and approximately 1.0 mL of the supernatant was incubated overnight at 4 °C on a rotating wheel with protein A beads and 10 μL anti-Flag antibodies. The protein A beads were then collected and washed once with immunoprecipitation buffer, once with immunoprecipitation buffer plus 500 mM NaCl, once with immunoprecipitation buffer plus 500 mM LiCl, and once with Tris-EDTA buffer (pH 8.0). Then, 100 μL elution buffer 1 (50 mM Tris-HCl pH 8.0, 10 mM EDTA, 1% SDS) was added to the beads and incubated at 65 °C for 20 min. The supernatants were saved after spin. After which, 150 μL elution buffer 2 (0.67% Tris-EDTA buffer) was added into the remaining beads. The elution buffer 1 and elution buffer 2 were combined, and then incubated for overnight at 65 °C to reverse crosslinking. The supernatants were then treated with RNase A by incubation for 1 h at 37 °C and 2 h at 65 °C in elution buffer plus 100 µg proteinase K. DNA was extracted twice with phenolchloroform, precipitated and re-suspended in 20 μL of water, named ChIP-DNA. For preparing the Input-DNA, 200 μL of supernatant was incubated with protein A beads in the absence of antibody, and then a similar strategy described as above was used.

For BfmR ChIP under LPM-24 h condition, we performed the experiments with two biological replicates. Overnight LPM cultures of ΔbfmRS::bfmR-flag strain were diluted to OD₆₀₀ ≈ 0.05 with fresh LPM medium and grown in a 250 mL Erlenmeyer flask with a flask volume-to-medium volume ratio of 5:1, shaking with 250 rpm at 37 °C. After culturing for 24 h, a similar strategy as described above was used to perform the ChIP experiments.

For BfmR ChIP under PB-6h condition, we performed the experiments with two biological replicates. Overnight PB cultures of ΔbfmRS::bfmR-flag were diluted to OD₆₀₀ ≈ 0.05 with fresh PB medium and grown in a 250 mL Erlenmeyer flask with a flask volume-to-medium volume ratio of 5:1, shaking with 250 rpm at 37 °C. After culturing for 6 h, the ChIP experiment was performed with the similar strategy as describe above.

To perform CzcR ChIP, a ΔczcRS::czcR-flag/p-czcS strain (ΔczcRS mutant harboring p-czcS plasmid and integrated vector mini-czcR-flag) was constructed. For generating mini-czcR-flag (Table S1), a ~1.2 kb PCR product covering the region from 512 bp upstream and the czcR gene (not including the stop codon) was amplified using the primer pair mini-czcR-flag-F/R (HindIII/BamHI) (Table S2), and then the PCR products were cloned into the integrated vector mini-CTX-lacZ. For generating the ΔczcRS::czcR-flag/p-czcS strain, plasmid p-czcS was electroporated into the ΔczcRS mutant, yielding ΔczcRS/p-czcS strain, and then the mini-czcR-flag was further integrated into the attB site though a diparental mating using E. coli S17 λ-pir as the donor [11] (Table S1). After that, overnight LB cultures of ΔczcRS::czcR-flag/p-czcS strain were diluted to OD₆₀₀ ≈ 0.05 with fresh LB medium and the diluted cultures were grown in a 250 mL Erlenmeyer flask with a flask volume-to-medium volume ratio of 5:1, shaking with 250 rpm at 37 °C for 3 h. A similar strategy as described above was used to perform CzcR ChIP with three biological replicates.

2.6. ChIP-seq Library Construction, Sequencing, and Data Analysis

DNA fragments (150–300 bp) were selected for library construction, and sequencing libraries were prepared using the NEBNext Ultra II DNA Library Prep kit (NEB, catalog^#: E7103). The final DNA libraries were validated with Agilent 2100 Bioanalyzer (Agilent Technologies, Palo Alto, CA, USA), then the libraries were sequenced using the HiSeq X ten system (Illumina). Each ChIP-seq experiment generated about 20 million reads, and subsequently, the ChIP-seq reads were mapped to the P. aeruginosa PAO1 genomes using Bowtie (Version 2.26) [32] with default parameter. The enriched peaks were identified using Model-based Analysis of ChIP-seq 2 (MACS2) software [33], which was followed by Multiple EM for Motif Elicitation (MEME) analyses [33] to generate the BfmR-binding or the CzcR-binding motif. A tiled data file (TDF) file was also created for each sample for visualization in Integrative Genomics Viewer (IGV) (Broad Institute, version 2.4.6). We filtered peaks called by MACS2 by requiring an adjusted score (i.e., -log10 p-value) of at least 50 in order to ensure that we had a high quality peak annotation, and peaks with a fold enrichment lower than 3-fold changes were also filtered out. The BfmR ChIP-seq data files have been deposited in National Center of Biotechnology Information’s Gene Expression Omnibus (GEO) and can be accessed through GEO Series accession number GSE154264, with the following BioSample accession numbers: GSM4668034 to GSM4668042. The CzcR ChIP-seq data files can be accessed through GEO Series accession number GSE154265, with the following BioSample accession numbers: GSM4668046 to GSM4668049.

2.7. Motif Detection

To study the conserved sites of BfmR binding DNA, sequences of 101 bp centered on the peak summit covering the top 30 or all 174 peaks were used for motif analysis using MEME [34] with parameters as default. For studying the CzcR binding sites, sequences of 101 bp centered on the peak summit covering the top ten peaks were used for motif analysis using MEME with default parameters except that the minimum width was set as 3.

2.8. RNA-seq and Data Analysis

Overnight LPM cultures of P. aeruginosa strains were washed three times (adjusted to OD600 ≈ 1.0 with fresh LPM) and diluted 1:50 into 20 mL LPM in a 100 mL flask. The liquid cultures were grown at 37 °C with shaking (250 rpm). After 24 h incubation, the cells were collected. Total RNA was immediately stabilized with RNA protect Bacteria Reagent (Qiagen) and then extracted by using a Qiagen RNeasy kit (catalog^#: 74104) following the manufacturer’s instructions. Ribosomal RNA removal, cDNA library construction, and paired-end sequencing with the Illumina HiSeq2500 were completed by Biomarker Technologies CO., LTD (Beijing, China). The DESeq Package was used to detect differentially expressed genes (DEGs) [35]. A fold change ≥2 and a false discovery rate (FDR) ≤ 0.01 were used as threshold to determine the DEGs. All RNA-seq data (two biological replicates for ΔbfmS and ΔbfmRS, respectively) have been submitted to the NCBI Sequence Read Archive (SRA) (https://ncbi.nlm.nih.gov/sra/) (accessed on 10 December 2019) under the BioProject accession PRJNA504928, with the BioSample accession numbers SAMN10408230 and SAMN10408231.

2.9. ChIP-Quantitative Polymerase Chain Reaction (ChIP-qPCR)

ChIP-qPCR was carried out in the Bio-Rad 96 well Real-Time PCR System and 1 μL of each ChIP-DNA and Input-DNA dilution from ChIP assay with the Hieff^® qPCR SYBR Green Master Mix (YEASEN, Lot:H7901050) and 200 nM primers following the manufacturer’s instructions. Dissociation curve analysis was performed for verification of product homogeneity. The gene-specific primer pairs used for ChIP-qPCR for czcR, phzA1 and oprD are RT-czcR-F/RT-czcR-R, RT-phzA1-F/RT-phzA1-R, RT-oprD-F/RT-oprD-R, respectively (Table S2). The coding sequence of phoB (RT-phoB-F/RT-phoB-R) was used as a negative control. ChIP-DNA enrichment levels of interest genes were calculated by the relative quantification method (2^−ΔΔCt method) [36,37,38,39] and reported as fold-change. The statistics comparison was done by Student’s two-tailed t-test in GraphPad Prism (version 7.0).

2.10. Electrophoretic Mobility Shift Assay (EMSA)

The electrophoretic mobility shift experiments were performed as described in our previous studies with some modifications [11,40]. Briefly, 12 μL of the DNA probe mixture (30 to 50 ng) and purified proteins in binding buffer (10 mM Tris-Cl, pH 8.0; 1 mM DTT; 10% glycerol; 5 mM MgCl₂; 10 mM KCl) were incubated for 30 min at 37 °C. 50 mM acetyl phosphate was added to the solution. Native polyacrylamide gel (6%) was run in 0.5 × TBE buffer at 85 V at 4 °C. The gel was stained with GelRed nucleic acid staining solution (Biotium) for 10 min, and then the DNA bands were visualized by gel exposure to 260-nm UV light.

DNA probes were PCR-amplified from P. aeruginosa MPAO1 genomic DNA using the primers listed in Table S2, and the DNA fragments were listed in Table S2.

All PCR products were purified by using a QIAquick gel purification kit (QIAGEN, catalog^#: 28104).

2.11. Dye Primer-Based DNase I Footprinting Assay

The DNase I footprinting assays to determine BfmR-binding sites were performed as previously described with some modifications [11]. Briefly, PCR was used to generate FAM (carboxyfluorescein)-labeled DNA fragments. Subsequently, a 50-μL reaction mixture containing 300 ng FAM-labeled DNA and 6 μM His_6­-BfmR (or indicated) and binding buffer (10 mM Tris-Cl, pH 8.0; 1 mM DTT; 10% glycerol; 5 mM MgCl₂; 10 mM KCl; 50 mM acetyl phosphate) up to a volume of 50 μL was incubated at room temperature for 30 min. 0.01 unit of DNase I (Promega Biotech Co., Ltd, Cat#:137017) was added to the reaction mixture and incubated for an additional 5 min. The DNAse I digestion was terminated by adding 90 μL of quenching solution (200 mM NaCl, 30 mM EDTA, 1% SDS), and then the mixture was extracted with 200 μL of phenol-chloroform-isoamyl alcohol (25:24:1). The digested DNA fragments were isolated by ethanol precipitation. Then, 5.0 μL of digested DNA was mixed with 4.9 mL of HiDi formamide and 0.1 mL of GeneScan-500 LIZ size standards (Applied Biosystems). A 3730XL DNA analyzer detected the sample, and the result was analyzed with GeneMapper software. The dye primer based Thermo SequenaseTM Dye Primer Manual Cycle Sequencing Kit (Thermo, Lot:4313199) was used in order to more precisely determine the sequences of the BfmR protection region after the capillary electrophoresis results of the reactions were aligned, and the corresponding label-free promoter DNA fragment was used as template for DNA sequencing. Electropherograms were then analyzed with GeneMarker v1.8 (Applied Biosystems).

For the DNase I footprinting assay of the czcC-czcR intergenic region, a 372-bp FAM-labeled promoter DNA (nucleotide −434 to nucleotide −63 relative to the start codon of czcR) was generated using the primer pair czcR-FT (BfmR)-F (FAM)/czcR-FT (BfmR)-R. For the DNase I footprinting assay of phoB promoter DNA, a 339-bp FAM labeled promoter DNA (nucleotide −199 to nucleotide −140 relative to the start codon of phoB) was generated using the primer pair phoB-FT-F/phoB-FT-R(FAM). For the DNase I footprinting assay of oprP promoter DNA, a 287 bp FAM-labeled promoter DNA (nucleotide −318 to nucleotide −32 relative to the start codon of oprP) was generated using the primer pair oprP-FT-F/oprP-FT-R(FAM). For the DNase I footprinting assay of oprO promoter DNA, a 421 bp FAM-labeled promoter DNA (nucleotide −421 to nucleotide -1 relative to the start codon of oprO) was generated using the primer pair oprO-FT-F/oprO-FT-R(FAM).

A similar strategy as described above was used to perform the DNase I footprinting assays for the identification of the CzcR-binding sites. Briefly, 300 ng promoter DNA and CzcR-His₆ (18 μM or indicated) were used in reactions. For the DNase I footprinting assay of the czcC-czcR intergenic region, a 401-bp FAM-labeled promoter DNA (nucleotide −392 to nucleotide +9 relative to the start codon of czcR), was generated using the primer pair czcR-FT (CzcR)-F (FAM)/czcR-FT (CzcR)-R. For the DNase I footprinting assay of phzA1 promoter DNA, a 410-bp FAM labeled promoter DNA (nucleotide −491 to nucleotide −82 relative to the start codon of phzA1), was generated using the primer pair phzA1-FT-F (FAM)/phzA1-FT-R.

2.12. Monitoring Gene Expression by lux-Based Reporters

The plasmids czcC-lux, czcR-lux, and exsA-lux (Table S1) were conjugated into P. aeruginosa strains and the construct was integrated into the attB site as described previously though a diparental mating using E. coli S17 λ-pir as the donor [11]. Parts of the mini-CTX-lux vector containing the tetracycline resistance cassette in P. aeruginosa were deleted using a flippase (FLP) recombinase encoded on the pFLP2 plasmid [41].

The expression of promoter fusion genes was also carried out using a flask culture method. Briefly, overnight M8-glutamate minimal medium cultures of P. aeruginosa strains were diluted to OD₆₀₀ of 0.05 with fresh minimal medium, and the diluted cultures were further incubated in a 100 mL conical flask with a volume-to-medium ratio of 5:1, shaking with 250 rpm at 37 °C. Promoter activities at 6 h of bacterial growth were measured as counts per second (CPS) of light production with a Synergy 2 Multi-Mode Microplate Reader as described previously [7,11]. Relative light units were calculated by normalizing CPS to OD₆₀₀. The statistics comparison was done by Student’s two-tailed t-test in GraphPad Prism (version 7.0).

2.13. Western Blot Analysis

The Western blot analysis were performed as described previously with some modifications [42,43,44]. Generally, to examine the production of fusion proteins (i.e., p-PhoB-Flag, p-(D)-PhoB-Flag) in P. aeruginosa, overnight LPM cultures of the indicated strains were diluted to OD₆₀₀ ≈ 0.05 with fresh LPM medium. The diluted cultures were grown in a 20 mL tube with a tube volume-to-medium volume ratio of 5:1, shaking with 250 rpm at 37 °C for about 6 h. Then approximately 1.5 × 10⁹ cells were harvested, pelleted by centrifugation at 14,000 rpm for 5 min. The samples were resuspended in 100 μL solution containing distilled water and mixed with 5 x sodium dodecyl sulfate (SDS)-polyacrylamide gel electrophoresis (PAGE) loading buffer (250 mM Tris-HCl, pH 6.8; 2% SDS; 0.1% bromophenol blue; 4% mercaptoethanol; 50% glycerol; 100 mM dithiothreitol (DTT)) and then heated at 100 °C for 15 min. Then, 10 μL sample as described above was loaded onto a 10% polyacrylamide gel, and then, SDS-PAGE was carried out at 90 V for 10 min followed by 120 V for 90 min. The proteins on gel were transferred to polyvinylidene fluoride (PVDF) (Bio-Rad, Cat^#: 1620171) membranes through Semi-Dry Electrophoretic Transfer Cell (Bio-Rad) for 30 min at room temperature. Then, the membrane was incubated with the primary antibody followed by the secondary antibody. The antibodies were diluted with TBST buffer (10 mM Tris/HCl, pH 7.5, 150 mM NaCl, and 0.1% Tween 20) containing 5% (wt/vol) skimmed milk powder.

PhoB-Flag proteins were detected by Western blot analysis using a mouse anti-Flag monoclonal antibody (Aogma, catalog^#: AGM12165) followed by a secondary, sheep anti-mouse IgG antibody conjugated to horseradish peroxidase (HRP) (GE Healthcare, Code^#: NA931). For detection of RNAP protein, anti-RNAP (Neoclone, #WP003) antibody and anti-mouse IgG antibody conjugated to horseradish peroxidase (HRP) (GE Healthcare, Code^#: NA931). Immunoblots for RNAP served as loading control. The images were taken using Tanon-5200 Multi (Tanon, Shanghai, China), according to the manufacturer’s recommendation. When appropriate, the relative abundance was determined by densitometric analysis using the ImageQuant software (Molecular Dynamics, Sunnyvale, CA, USA) and the expression was normalized to the indicated loading control (results are reported as fold changes with control bacteria set to 1, as indicated).

2.14. Measurement of Inorganic Phosphate Level and Bacteria Growth in the Medium

Firstly, we prepared a standard phosphate solution contain 2 μg of potassium dihydrogen phosphate (KH₂PO₄) per 1 mL. We added 0, 5, 10, 30, 50, 100, and 150 μL of standard phosphate solution to Eppendorf (EP) tubes, then respectively diluted into 500 μL with distilled water. Subsequently, we mixed 500 μL of dilution with 10 μL of 10% ascorbic acid and incubated for 30 s at room temperature, 20 μL ammonium heptamolybdate was added and incubated at room temperature for about 15 min. Then we measured the absorbance at 700 nm and drew a KH₂PO₄ standard curve using zero phosphate solution as the control.

A similar strategy as described above was used to measure the inorganic phosphate level and bacteria growth in the medium. Overnight LPM cultures of P. aeruginosa strains were washed three times with fresh LPM medium and diluted into 20 mL LPM in a 100 mL flask (adjusted to OD₆₀₀ ≈ 0.05). The liquid cultures were grown at 37 °C with shaking (250 rpm). After 24 h of culturing, a 100 μL sample was added to the 96-well plate with transparent bottom. The absorption of OD₆₀₀ was detected by a Synergy 2 Multi-Mode Microplate Reader. Meanwhile, 1 mL of the culture was centrifuged, and the supernatant was transferred to EP tubes. Then we mixed 500 μL supernatant with 10 μL of 10 % ascorbic acid at room temperature for 30 s, 20 μL ammonium heptamolybdate was added and incubated at room temperature for about 15 min. Then, 100 μL sample was transferred to a 96-well plate, and the absorbance at 700 nm was measured with the plate reader. The inorganic phosphate concentration of each sample was calculated by comparison to the KH₂PO₄ standard curve. The statistics comparison was done by Student’s two-tailed t-test in GraphPad Prism (version 7.0).

2.15. Measurement of Intracellular Polyphosphate (polyP)

Overnight LPM cultures of P. aeruginosa strains were washed three times with fresh LPM medium and diluted into 20 mL LPM in a 100 mL flask (adjusted to OD₆₀₀ ≈ 0.05). After incubation at 37 °C for 24 h, 10 mL cultures were harvested, and the cell pellets were washed three times with 100 mM Tris-HCl (pH 7.4). 4′,6-diamidino-2-phenylindole (DAPI) at 10 μM was added to 2 mL cell suspensions (OD₆₀₀ ≈ 0.2) in 100 mM Tris-HCl (pH 7.4). After 5 min of agitation at room temperature in the dark, the DAPI fluorescence spectra (excitation: 450 nm; emission: 450 to 650 nm) were recorded using a Synergy 2 Multi-Mode Microplate Reader. The fluorescence of the DAPI-polyP complex at 550 nm was used to measure intracellular polyP concentration because fluorescence emission from DAPI and DAPI-DNA are minimal at this wavelength [45]. The polyP level was calculated by normalizing fluorescence to OD₆₀₀. The statistics comparison was done by Student’s two-tailed t-test in GraphPad Prism (version 7.0).

2.16. Biofilm Formation Assays

The biofilm formation were measured by detecting the ability of the cells to attach to the wells of polystyrene Stripwell^TM Microplate (1 X 8 Flat Bottom; Corning incorporated, Costar, Code#: 42592) as previously described with minor modifications [7,46]. Briefly, an overnight PB culture was diluted to a final OD₆₀₀ of 0.05 in fresh PB medium and dispensed 100 μL into per well. The plates were incubated under static conditions for 72 h at 37 °C. In order to measure the degree of attachment, non-adhered cells were removed, and the biofilms rinsed with distilled water. Biofilms were stained by 150 μL of 1% crystal violet (Cat#: 3603, Sigma-Aldrich) for 15 min. Photos were taken and crystal violet was solubilized in 150 μL of 30% acetic acids, the extent of biofilm formation was quantified by measuring the OD₅₉₅ of the resulting solution. The statistics comparison was done by Student’s two-tailed t-test in GraphPad Prism (version 7.0).

3. Results

3.1. Genome-Wide Binding Patterns of BfmR in P. aeruginosa MPAO1

To explore the BfmR regulon in P. aeruginosa, we performed ChIP-seq analysis with a ΔbfmRS::BfmR-Flag strain [11] expressing a functional C-terminally tagged BfmR protein (BfmR-flag) under three following growth conditions: (1) in defined low-phosphate minimal (LPM) medium for 6 h (LPM-6 h), (2) in LPM medium for 24 h (LPM-24 h), (3) in complex pyocyanin production broth (PB) medium for 6 h (PB-6 h). Using the peak-calling software MACS2, we identified 172 reproducible enriched regions (fold enrichment ≥ 3, p-value ≤ 1 × 10^-5) in the LPM-6 h samples, while 76 reproducible enriched regions were found in LPM-24h samples and only 16 were identified in the PB-6h samples (Data set 1, sheet 1–6).

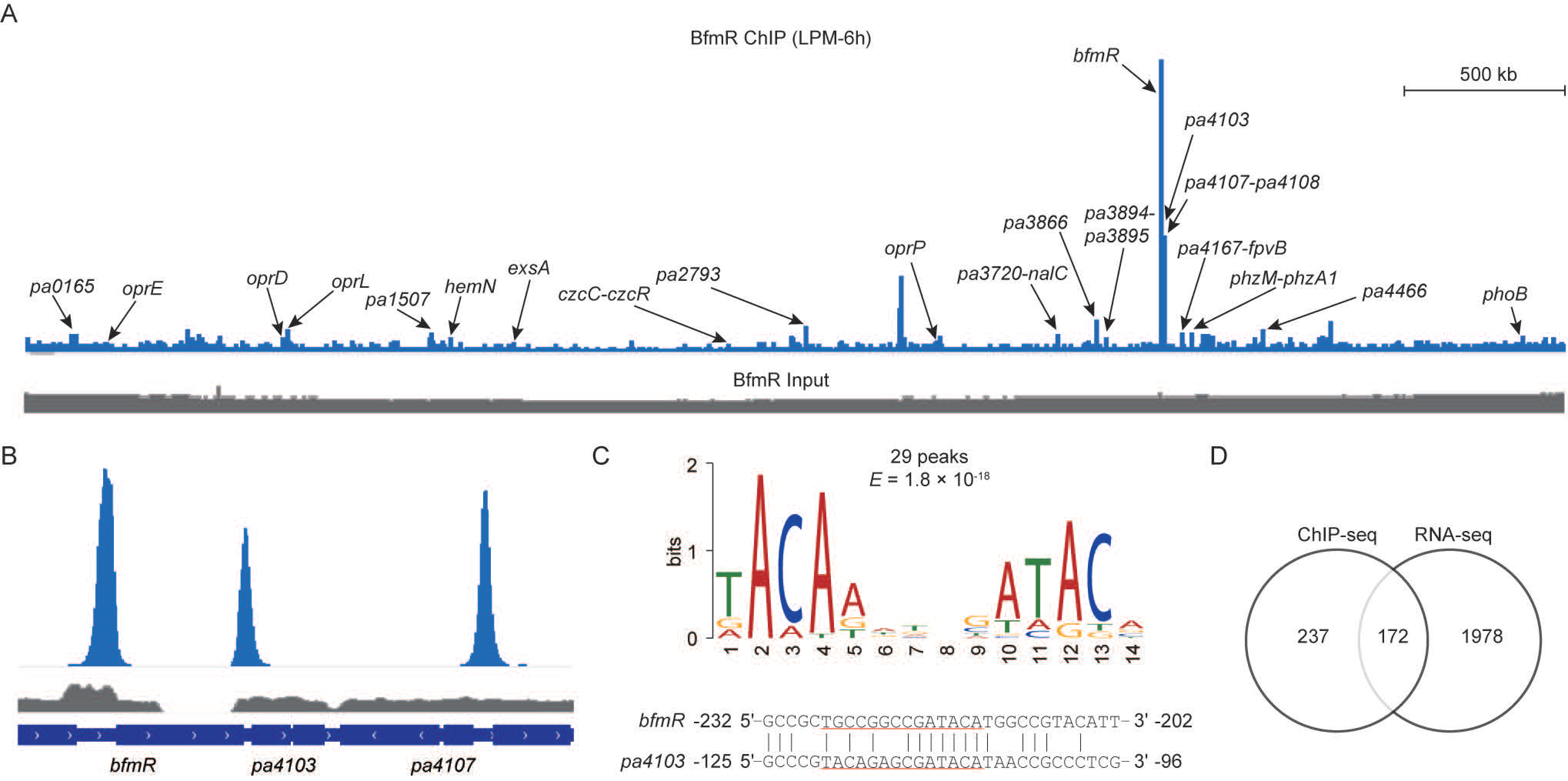

The ChIP-seq peaks for BfmR revealed broad occupancy over the P. aeruginosa PAO1 chromosome (Figure 1). According to the ChIP-seq data under the three different bacterial growth conditions, the top three most enriched regions were located in the promoter regions of genes (i.e., bfmR, pa4103, and pa4107) that were previously shown to be directly regulated by BfmR (Figure 1B; Data set 1, sheet 2, 4, and 6), supporting the effectiveness of the ChIP-seq procedure. Most of the binding sites (74 out of 76) occupied under LPM-24 conditions overlap those under LPM-6 conditions (Data set 1, sheet 4). Comparison of enriched ChIP-seq peaks revealed that 16 peak regions are common between the three growth conditions (Figure S1A, Data set 1, sheet 6). In total, 174 BfmR-enriched regions were identified (Figure S1A, Data set 2).

To identify the BfmR-binding motif, we searched the 101-bp sequences centered around each peak summit using the Multiple EM for Motif Elicitation (MEME) web tool [47]. With the top 30 peak sequences for the LPM-6h sample (Data set 1, sheet 1), we identified a 14-bp consensus sequence characterized by a conserved motif TACAA-N₃-GATACA (Figure 1C), while only half of this motif (5′-GATACA-3′) was detected when we used all of the 174 peak sequences (Figure S1B). In each case, the MEME algorithm located the motif in the promoters of bfmR and pa4103 at the position of the BfmR-binding sites previously identified by DNase I footprinting [11] (Figure 1C; Figure S1B), suggesting that the determination of BfmR-binding consensus sequence was carried out successfully. Out of the 174 enriched peaks (Data set 2), 161 (93%) displayed 101 bp fragment centered on the peak summits located at intergenic regions (Figure S1C, Data set 2), indicating a high enrichment of BfmR-binding sites at regulatory regions since approximately 90% of the P. aeruginosa MPAO1 genome is composed of coding sequences [48].

3.2. Identification of BfmR-Regulated Genes

Since some enriched regions are flanked by divergently transcribed genes (or presumptive operons), BfmR binding within those 174 regions could potentially control the expression of 409 genes in 239 predicted TUs (Data set 2), given that bacterial genes can be remotely regulated (over 1 kb upstream of the translation start site) by transcriptional regulators [49]. For the promoter of each potential BfmR-targeted TUs, we determined the distance between the translational start site and the corresponding BfmR ChIP-seq peak summit, obtaining a binding distribution that pointed to a preferential localization between 20 and 300 bp upstream the start codons (Data set 2, sheet 1 and 2). Interestingly, BfmR bound to the promoters of genes encoding a variety of transcriptional regulators including CzcR, ExsA, PhoB, NalC, and MvfR (PqsR) (Data set 2), suggesting that BfmR may have a profound effect on the gene regulatory networks in P. aeruginosa.

Very recently, we have identified 826 BfmR-regulated genes in P. aeruginosa MPAO1 grown in M8-glutamate minimal medium at 37 °C for 6 h [7]. To further define the BfmR-regulated genes, we compared the transcript levels between ΔbfmS mutant (deficient in bfmS) and ΔbfmRS mutant (deficient in both bfmR and bfmS) grown in LPM medium at 37 °C for 24 h, a culture condition which allows BfmR to exert strong repressing activity against the Rhl QS system of P. aeruginosa [11]. As a result, a total of 1639 genes were differentially expressed (≥2-fold change, FDR ≤ 0.01) (Data set 3), indicating that the effect of BfmR on the expression of P. aeruginosa genes was much more profound than we previously thought. Indeed, integration of these results with our previously published transcriptome data sets [7,11] revealed that BfmR is capable of directly or indirectly modulating the expression of 2150 genes, representing 37.7% of the total number of annotated genes (i.e., 5697) in the P. aeruginosa PAO1 genome.

To characterize genes under the direct control of BfmR, we compared the 409 potential BfmR-targeted genes obtained from ChIP-seq experiments (Data set 2) with RNA-seq results. We observed that a total of 172 genes in 106 predicted transcription units appear to be directly regulated by BfmR (Figure 1D, Data set 2). Moreover, there are 79 chromosomal regions at which BfmR binding was observed but for which RNA-seq experiments revealed no genes was significantly influenced by BfmR (Data set 2). Possible explanations for this observation are (i) the binding by BfmR was not physiologically significant; (ii) the gene was differentially expressed but did not meet the criteria for selecting differentially expressed genes.

Collectively, by combining ChIP-seq data and RNA-seq analysis, we found that a total of 172 BfmR-targeted genes represents high-confidence members of the BfmR regulon and includes known target genes such as pa4103, pa4104, pa4105, pa4106, and pa4107 (Data set 2). Functional analyses indicate that those BfmR-targeted genes are involved in different biological processes including oxidative phosphorylation (e.g., cyoABCDE operon), metabolism (e.g., phhABC operons), antibiotic resistance (e.g., mexB, oprM, nalC, and mexJK operon), virulence (e.g., lasA, aprA, phzC1, and phzG1), phosphate uptake (e.g., phoB), and quorum sensing (e.g., pqsABCDE operon and mvfR) (Data set 2).

3.3. BfmR Binds to the Promoters of CzcR-Targeted Genes

Among the 174 BfmR-binding sites identified by ChIP-seq experiments, 4 are located in the promoters of well-known CzcR targets (i.e., czcR, czcCBA operon, oprD, and phzA1) (Data set 1, sheet 2 and 8). In Pseudomonas species, CzcR is the response regulator of zinc-responsive CzcRS TCS that confers resistance to zinc, cadmium, and cobalt, and antibiotic imipenem [50,51,52,53,54]. Intrigued by these observations, we sought to investigate to what extent the targets overlap between BfmR and CzcR. To accomplish this, we performed the ChIP-seq experiments to determine the CzcR-binding sites. We found that 16 chromosomal regions were enriched (fold enrichment ≥ 3, p-value ≤ 1 × 10^-5) by coimmunoprecipitation with a C-terminally tagged CzcR protein from all three biological replicates under growth condition of 37 °C for 3 h in Luria-Bertani (LB) broth supplemented with ZnCl₂ (Figure 2A; Data set 1, sheet 7 and 8). Chromatin immunoprecipitation-quantitative polymerase chain reaction (ChIP-qPCR) experiments showed that CzcR binds to the promoter of czcR, phzA1, and oprD (Figure S2A), and this is consistent with the ChIP-seq results (Figure 2A). Moreover, using electrophoretic mobility shift assay (EMSA) and DNase I Footprinting assay, we validated that both phzA1 promoter and czcC-czcR intergenic region are bound by CzcR (Figure S2B–E).

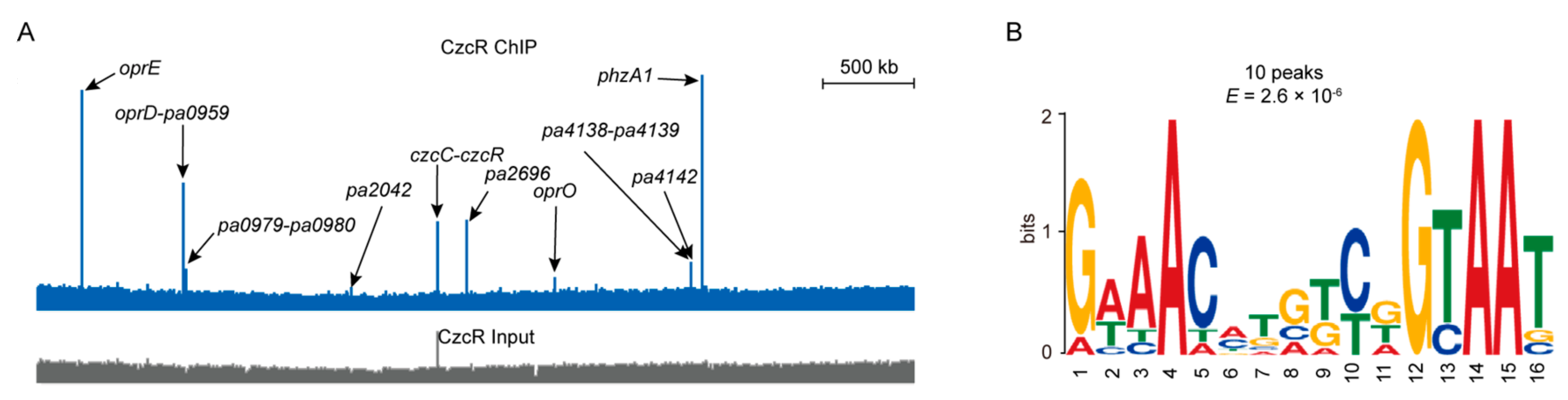

Using MEME, we identified a 16-bp motif (i.e., GAAAC-N₆-GTAAT) (Figure 2B) that was found in each of the top10 enriched peaks (average fold enrichment ≥ 10) (Data set 1, sheet 7). Inspection of the alignment reveals similarity to the CzcR conserved motif ATTAC-N₆-GTAAT reported previously in Pseudomonas stutzeri [53]. In this case, the AC-N₆-GTAAT was highly conserved, indicating that it may represent the core binding site for CzcR in these two different Pseudomonas species.

Annotation of the 16 CzcR-enriched regions according to their positions showed that a total of 47 genes in 24 predicted TUs is likely to be directly regulated by CzcR (Data set 4, sheet 1 and 2). Interestingly, 11 out of the 24 CzcR-targeted promoters were also bound by BfmR (Data set 4, sheet 1). Moreover, the ChIP-seq signal of BfmR was also observed for CzcR-targets such as the promoters of oprO (with an average fold-enrichment of 2.2) (Figure S3A), pa4138 (with an average fold-enrichment of 2.0) (Figure S3B), pa4142 (with an average fold-enrichment of 2.1) (Figure S3B), and pa2936 (with an average fold-enrichment of 2.7) (Figure S3C), although it does not meet the threshold (fold enrichment ≥ 3 and p-value ≤ 1 × 10^-5) for defining the BfmR-targeted sites. Nonetheless, these results suggest that BfmR regulon overlaps with the CzcR regulon extensively.

Using EMSA and DNase I Footprinting assays, we verified that BfmR is able to bind to the intergenic region of czcR and czcC (Figure 3A–D). We also observed that when compared to wild-type MPAO1, the ΔbfmS mutant but not the ΔbfmRS mutant exhibited a decreased promoter activity of both czcC and czcR (Figure 3E,F), which implies that BfmR might directly negatively control the expression of czcCBA and czcRS. Moreover, our RNA-seq experiments showed that additional 9 CzcR-target genes (i.e., pa0959, czcR, pa2696, oprO, algE, pa4139, phzM, phzC1, and phzG1) are regulated by BfmR (Data set 4, sheet 3), indicating that BfmR may have a profound effect on the expression of the CzcR regulon in a CzcR-dependent and -independent manner.

3.4. BfmR Binds to and Induces exsA Promoter

As aforementioned, BfmR binds to the promoters of a number of genes encoding regulatory proteins including ExsA (Data set 1, sheet 2), which is the central regulator of T3SS gene expression and is encoded by the last gene in the exsCEBA operon [55,56]. The expression of exsA is driven by a promoter upstream of exsC; however, the intergenic region between exsB and exsA also displayed promoter activity [55,56,57]. In our ChIP-seq experiments, we showed that BfmR directly bound to the region immediately upstream of exsA with an average fold-enrichment larger than 10 in LPM-6h sample (Figure S4A, Data set 1, sheet 2). In line with this observation, our EMSA assays also showed that BfmR binds to a DNA sequence locating 366 bp upstream of the exsA (Figure S4B).

To determine whether the expression of exsA is regulated by BfmR in P. aeruginosa, we constructed an exsA promoter-lux fusion (exsA-lux, Table S1) and measured its activity in P. aeruginosa wild-type MPAO1, the ΔbfmS mutant, and the ΔbfmRS mutant. The activity of exsA-lux in the ΔbfmS mutant was about fourfold higher than that of either the wild-type MPAO1 or the ΔbfmRS mutant (Figure S4C). Introduction of p-bfmS plasmid into the ΔbfmS mutant restored the exsA-lux activity to the wild-type level (Figure S4C). Additionally, we found that complementation of ΔbfmRS double mutant with a plasmid-borne bfmR (i.e., p-bfmR) causes a twofold increase in the activity of exsA-lux (Figure S4C). Based on these results, we concluded that BfmR can activate the expression of exsA directly, although our RNA-seq experiments failed to identify exsA as a BfmR-regulated gene (Data set 2) [7]. These observations also suggest that the number of BfmR-targeted genes revealed by ChIP-seq and RNA-seq experiments (Data set 2) might be underestimated.

3.5. BfmR Binds to the Promoter of a Number of PhoB-Targeted Genes

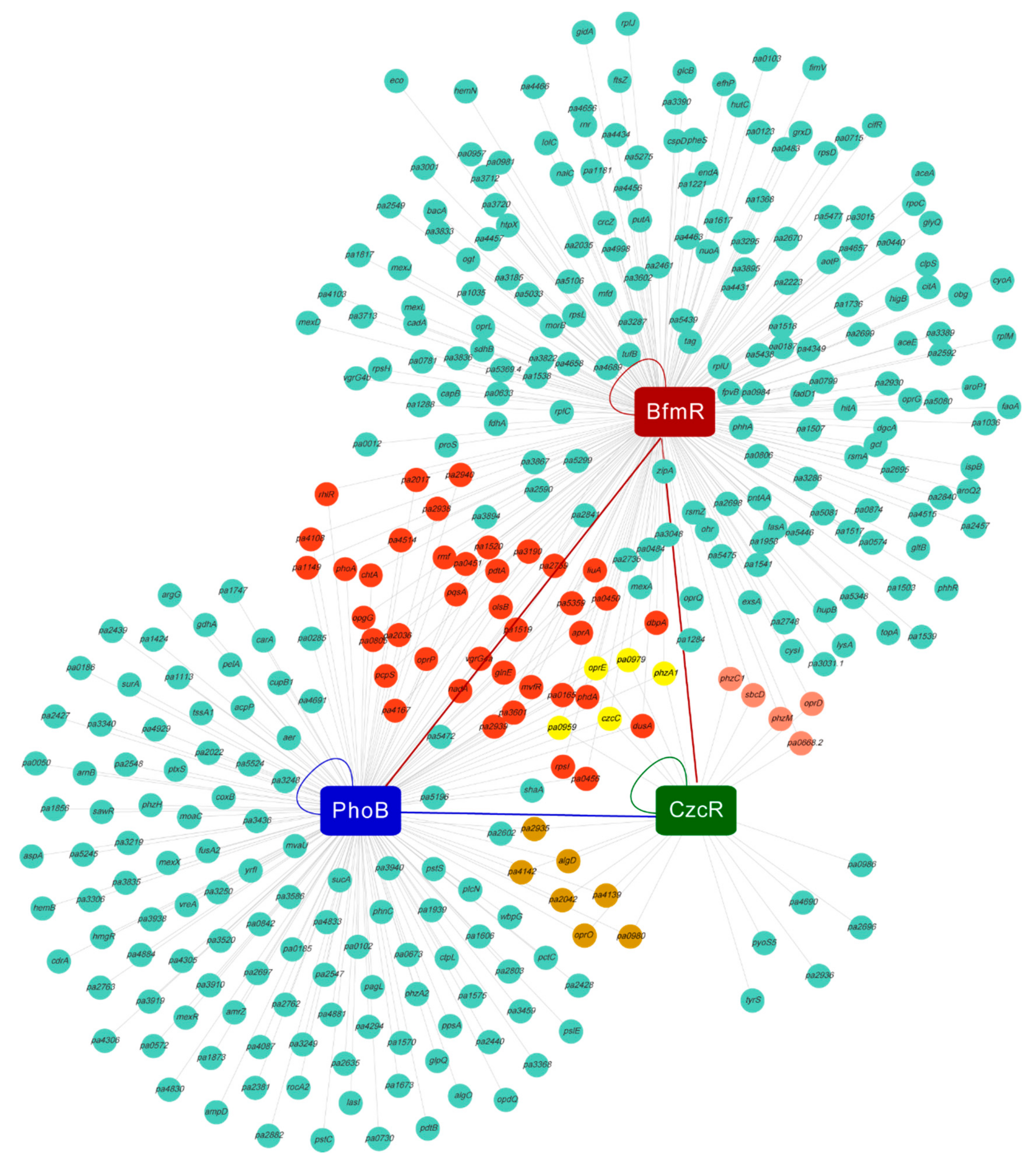

Our ChIP-seq experiments showed that BfmR binds to several well-known PhoB-targeted genes including phoB, oprO, oprP, pdtA, mvfR, and phzA1 (Figure 4; Data set 4, sheet 1) [59,60,61,62,63]. In P. aeruginosa, PhoB is the response regulator of PhoBR TCS that modulates genes expression in response to Pi-limiting environments [64,65]. Currently, a total of 180 genes in 164 TUs have been characterized as PhoB regulon in P. aeruginosa PAO1 based on strong experimental and computational evidence [58,59,64] (Data set 4, sheet 1 and 4). To further investigate the relationship between the BfmR and PhoB regulons, we examined the BfmR ChIP-seq signals in the promoter of PhoB-targeted transcription (i.e., gene or operon). We observed that the promoter regions of 28.6% (47 out of 164) of PhoB-targeted transcription units were bound by BfmR (Figure 4, Data set 4, sheet 1). Furthermore, ChIP-seq signal of BfmR was also observed for the promoters of at least 34 PhoB-targeted transcription units (e.g., amrZ, vreAIR operon, and oprO) (Data set 4, sheet 1); although, it does not meet the threshold for defining BfmR targets. These findings suggest that there is a wide distribution of DNA binding sites for BfmR in the promoters of PhoB-targeted genes in P. aeruginosa.

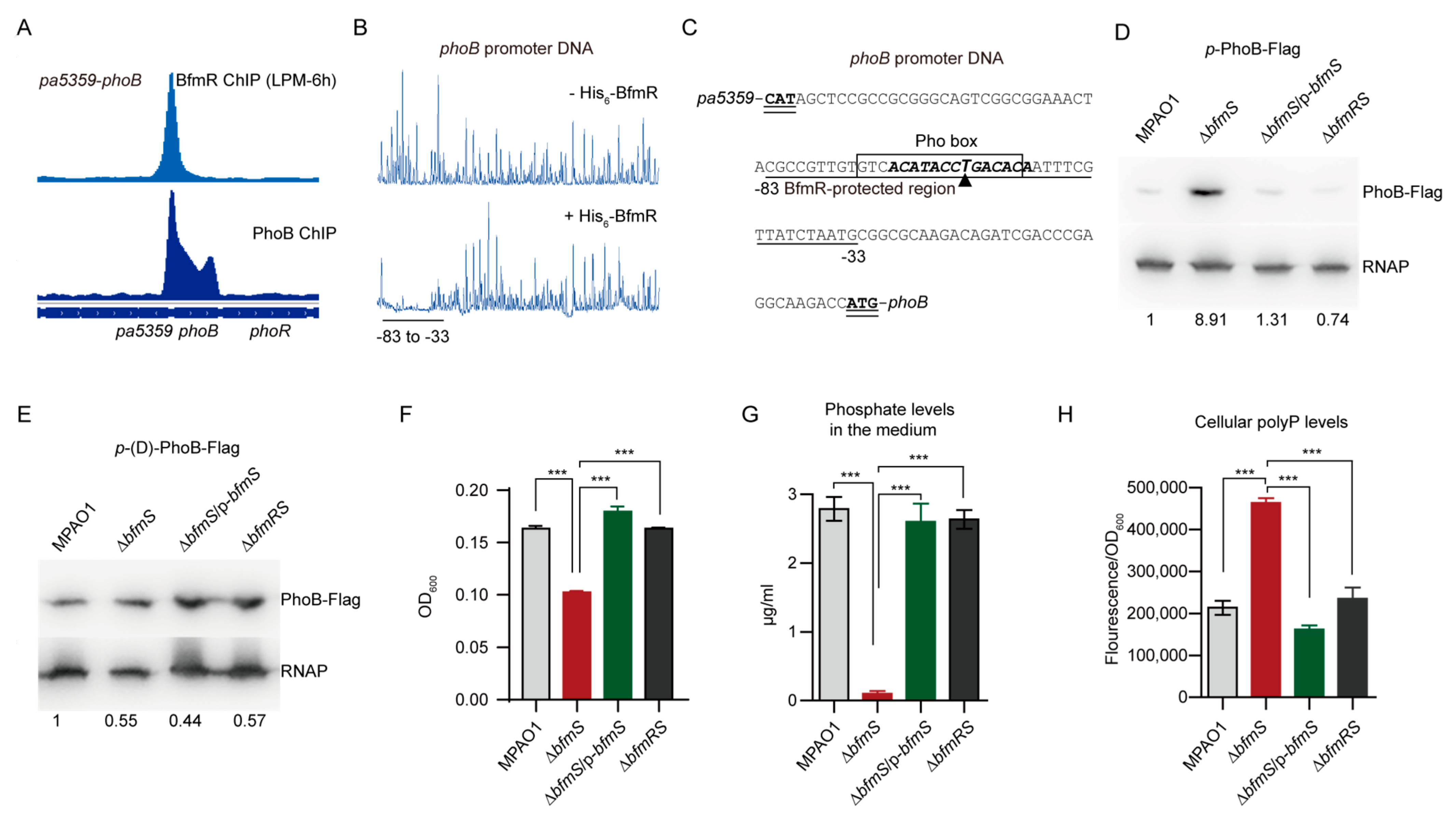

In line with the results obtained with ChIP-seq experiments (Figure 5A; Figure S5A), EMSA and DNase I Footprinting assays showed that BfmR does bind to the promoters of the well-known PhoB-targeted genes including phoB, oprO, and oprP (Figure 5B, C; Figure S5B–G). In addition, we observed that 66 out of the 180 PhoB regulon genes exhibited differentially expressed level in ΔbfmS mutant compared to the ΔbfmRS mutant (Data set 4, sheet 4 and 5), suggesting that BfmR has profound effect on the expression of PhoB-targeted genes.

3.6. BfmR Directly Activates phoB

To examine whether BfmR influences the activity of phoB promoter, we performed Western blot analysis of the expression of Flag-tagged PhoB, driven by its native promoter, in wild-type MPAO1 strain, ΔbfmS mutant, its complemented strain (ΔbfmS/p-bfmS), and the ΔbfmRS mutant. The ΔbfmS mutant strain exhibited about ninefold higher PhoB production than the wild-type strain (Figure 5D). Complementation of the ΔbfmS mutant with a plasmid-borne bfmS (ΔbfmS/p-bfmS) decreased the production of PhoB-Flag to wild-type levels (Figure 5D). Moreover, the production of PhoB-Flag in the ΔbfmRS mutant was similar to that of the wild-type MPAO1 strain (Figure 5D), suggesting that in P. aeruginosa the effect of bfmS deletion on the promoter activity of phoB requires BfmR.

To determine if the BfmR-binding motif (TACAA-N₃-GATACA) is involved in the BfmR-mediated activation of the phoB promoter, we deleted the six residues (i.e., GACACA) located at position 9–14 of the BfmR-binding motif and examined the ability of the mutant phoB promoter to permit the induction of the reporter protein PhoB-Flag in a ΔbfmS strain. As shown, the production of PhoB-Flag in the ΔbfmS strain was similar to that observed in the wild-type MPAO1 strain (Figure 5E), indicating that the six residues (GACACA) in the BfmR-binding site is crucial for BfmR-mediated regulation of phoB.

3.7. BfmR Boosts Pi Depletion and Inorganic Polyphosphate (polyP) Accumulation

To further examine the role of BfmR in the activation of phoB, we performed inorganic phosphate (Pi) depletion assays because the uptake of Pi is controlled by PhoB, which induces the transcription of phosphate uptake genes under low-phosphate conditions [66,67]. As can be seen in Figure 5F,G, although ΔbfmS mutant suffered a decrease in biomass production, it showed a 28-fold increase of Pi depletion when compared to the wild-type MPAO1 (Figure 5G). The spent medium from ΔbfmRS mutant culture exhibited the residual Pi levels similar to that of the wild-type MPAO1 strain (Figure 5G), indicating that BfmR increases the uptake of Pi in the ΔbfmS mutant. We also observed that introduction of a plasmid-borne bfmS into the ΔbfmS mutant significantly decreases the ability of ΔbfmS mutant to remove Pi from the medium (Figure 5G), supporting the notion that BfmS negatively regulates BfmR [7,11]. Additionally, ΔbfmS mutant accumulated higher levels of inorganic polyphosphate (polyP) compared to either the WT MPAO1 strain, the complemented strain of the ΔbfmS mutant, or the ΔbfmS mutant (Figure 5H), and these results are in consistent with the observation that BfmR directly upregulates phoB (Figure 5D,E) and that the polyphosphate is synthesized in a PhoB-dependent manner [68]. Thus, BfmR boosts Pi removal and polyP accumulation, supporting the notion that the expression of phoB can be activated by BfmR (Figure 5D; Data set 2).

3.8. PhoB Is Required for BfmR-Dependent Biofilm Formation

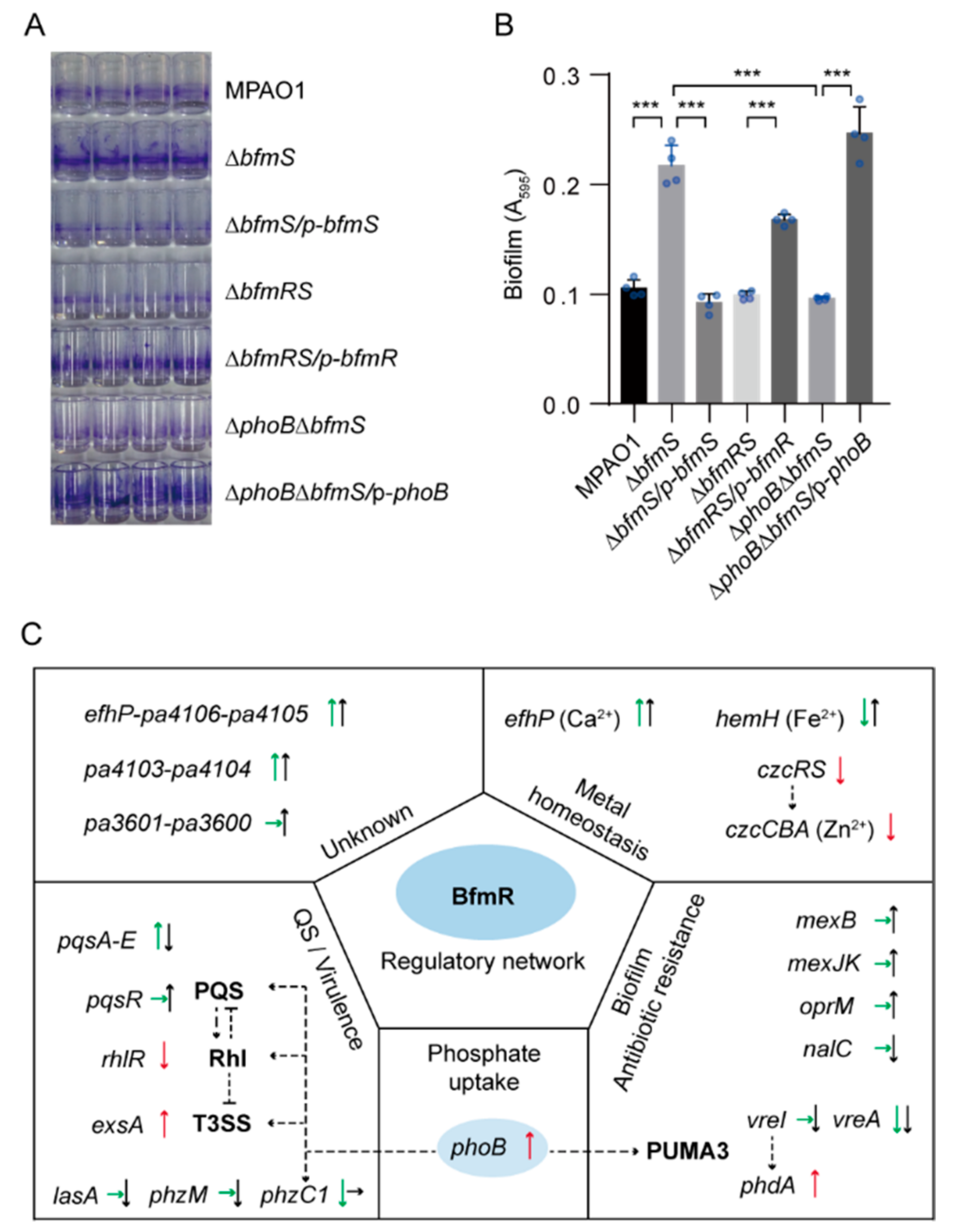

It has been shown that BfmR regulates biofilm development through activating phdA [18], a PhoB-dependent gene [61,62]. We thus asked whether PhoB has a role in regulating the biofilm formation in the ΔbfmS mutant, for which an enhanced biofilm formation phenotype was observed due to the activation of BfmR [11]. To this end, we created a phoB deletion mutant in the ΔbfmS background and performed biofilm formation assays in the microtiter plates with P. aeruginosa strains including WT MPAO1 strain, ΔbfmS mutant, and the ΔphoBΔbfmS double mutant. As expected, deletion of bfmS alone resulted in a 2.3-fold increase in the biofilm formation, while deletion of both bfmS and bfmR has no obvious effect (Figure 6A,B). Importantly, ΔphoBΔbfmS double mutant produced significantly lesser biofilm than the ΔbfmS mutant (a 2.2-fold decrease) (Figure 6A,B). Complementation of ΔphoBΔbfmS double mutant with a plasmid-borne WT phoB restored biofilm formation to a level similar to that of the ΔbfmS (Figure 6A,B). Collectively, these results suggest that phoB plays an essential role in BfmR-dependent biofilm formation in P. aeruginosa, at least under our testing condition.

4. Discussions

Here, we provide the first genome-wide analysis of the regulon of P. aeruginosa BfmR and a broader view of the cellular processes influenced by this important RR. Our work confirms several BfmR target genes as defined previously [11,18] and significantly expands our understanding of the BfmR-regulated genes, highlighting the complexity of gene regulation by the BfmRS TCS in P. aeruginosa (Figure 6C).

Using ChIP-seq experiments, we identified a total of 174 BfmR binding sites in P. aeruginosa MPAO1 (Data set 2). The number of BfmR binding sites are variable in different bacterial growth conditions (Data set 1, sheet 2, 4, and 6). A possible explanation for these observations is that the phosphorylation levels of BfmR may be different under these test conditions. Indeed, only 16 of 174 sites occupied by BfmR under our three test conditions (Figure S1A), presumably represent sites bound by BfmR that are of particularly high affinity. Of note, the top 3 BfmR enriched regions correspond to the promoters of known BfmR-targeted transcripts including pa4107 (efhP)-pa4106-pa4105, pa4103-pa4104, and pa4101-pa4102 (bfmRS) operons [11], supporting that these operons are the major targets of BfmR. A weak ChIP-seq signal was also observed for the promoter of another two known BfmR targets (i.e., rhlR and pdhA), although the degree of enrichment did not meet the criteria for the selection of a BfmR binding sites (Figures S6 and S7). Therefore, the number of BfmR binding sites (Data set 2) may be underestimated in this study due to relatively stringent criteria used.

Our RNA-seq data showed that efhP, the first gene of the pa4107 (efhP)-pa4106-pa4105, is the most highly activated gene by BfmR (11, 268-fold increase) (Data set 3). This result is in consistent with our previous findings [7,11]. In P. aeruginosa, efhP encodes an EF-Hand protein that is important for Ca²⁺ homeostasis and bacterial virulence [69]. It has also been reported that, like the activation of BfmR [11], calcium was capable of inducing a switch from the acute to the chronic virulence state of the P. aeruginosa [70]. These findings suggest that BfmR-mediated activation of efhP may contribute to Ca²⁺ homeostasis and thus the host adaptation by P. aeruginosa. Moreover, BfmR activates the promoter of czcR encoding the response regulator of CzcRS TCS involved in heavy metal resistance (Figure 3E) [13,50], reinforcing the likelihood that BfmRS has a profound effect on the metal homeostasis in P. aeruginosa (Figure 6C).

BfmR is a negative regulator of the Rhl QS system [7,11]. In line with this, our RNA-seq data showed that a number of Rhl-regulated genes (e.g., rhlR, rhlI, and rhlA) were repressed by BfmR (Data set 3). Interestingly, activation of BfmR also caused an impairment of the Pqs QS system in P. aeruginosa, as evidenced by the fact that the expression level of pqsABCDE operon, which is required for the synthesis of PQS autoinducer, was significantly decreased (range from 3.7-fold to 7.4-fold) in the ΔbfmS mutant compared to the ΔbfmRS (Data set 3). Thus, BfmR-mediated inhibition of the Pqs QS system may contribute to the attenuation of Rhl QS system in the ΔbfmS mutant because the Rhl QS system is activated by the Pqs QS [59]. Interestingly, our ChIP-seq experiments showed that BfmR binds to the promoter of pqsABCDE (Figure S8), which suggests that this operon is under the direct control of BfmR.

Like in the case of Rhl QS, BfmR appears to modulate P. aeruginosa biofilm formation through different mechanism of actions (Figure 6C). Petrova et al. have reported that BfmR controls P. aeruginosa biofilm development through direct regulation of phdA [18], a PhoB-dependent gene [61,62]. In this study, we showed that BfmR activates phoB to promote the biofilm formation by P. aeruginosa (Figure 5 and Figure 6A,B). Given these, BfmR may contribute to biofilm development by activating phdA directly or indirectly through phoB, or both (Figure 6C). In addition, it has been shown that the availability of phosphate enhances biofilm formation independent of the inhibiting activity of the PhoB regulon [71]. It also has been reported that PhoB modulates P. aeruginosa QS systems [63,66] that affect the biofilm formation by P. aeruginosa [72,73,74,75]. Thus, BfmR-mediated regulation of biofilm formation and QS may be very complicated, via multiple signaling pathways that are regulated by various environmental signals (Figure 6C). Further studies are required to determine how the biofilm formation and QS are regulated by BfmR in the context of infections.

In summary, in this study we provided a snapshot of the regulatory network of BfmR and demonstrated that BfmR-mediated activation of phoB is a mechanism by which P. aeruginosa promotes the formation of biofilm (Figure 6C). Our findings also emphasize that more work needs to be done to increase our understanding of the regulation of virulence evolution and biofilm formation in P. aeruginosa during chronic infections.
