Mycotoxins, Pesticide Residues, and Heavy Metals Analysis of Croatian Cereals

by
Marija Kovač
1,
Mateja Bulaić
1,
Jasna Jakovljević
1,
Ante Nevistić
1,
Tomislav Rot
1,
Tihomir Kovač
2,3,*,
Ivana Dodlek Šarkanj
4 and
Bojan Šarkanj
4
1
Inspecto Ltd., Industrijska Zona Nemetin, Vukovarska Cesta 239b, 31000 Osijek, Croatia
2
Faculty of Food Technology, Josip Juraj Strossmayer University of Osijek, Franje Kuhača 20, 31000 Osijek, Croatia
3
Department of Agrobiotechnology (IFA-Tulln), Institute of Bioanalytics and Agro-Metabolomics, University of Natural Resources and Life Sciences Vienna (BOKU), Konrad Lorenzstr. 20, 3430 Tulln, Austria
4
Department of Food Technology, University North, Trg dr. Žarka Dolinara 1, 48000 Koprivnica, Croatia
*
Author to whom correspondence should be addressed.
Microorganisms 2021, 9(2), 216; https://doi.org/10.3390/microorganisms9020216
Submission received: 5 December 2020 / Revised: 13 January 2021 / Accepted: 19 January 2021 / Published: 21 January 2021
(This article belongs to the Section Environmental Microbiology)
Browse Figures
Versions Notes

Abstract

:
Cereals are still one of the most important food and feed sources, thus determining cereal’s safety, i.e., compliance with legislation, is extremely important. As systematic investigations of nowadays unavoidable secondary fungal metabolites and other common legally regulated contaminants occurrence in Croatian cereals are still lacking, this research aims to monitor the contamination levels of nation-wide crops by mycotoxins, pesticide residues, and heavy metals by employing UHPLC-MS/MS, GC-MS/MS, and atomic absorption spectrometer (AAS) validated analytical methods. The most common secondary fungal metabolites were found to be Fusarium mycotoxins, with DON being the most occurring present in 73.7% of the samples. At least one pesticide residue was found in 331.8% of the samples, and Hg and Cd were the most occurring heavy metals. A total of 8.5% of the samples was non-compliant to the European Union (EU) legislation for food regarding the found mycotoxins concentrations, 4.5% regarding pesticide residues and none regarding heavy metals. The unusual presence of certain pesticide residue and heavy metal indicates the importance of systematic control of the contaminant presence, in order to gather enough occurrence data for proper risk assessment that these contaminants represent for the consumer’s health.

1. Introduction

The safety of cereals, and thus the quality, is of great importance since they represent one of the world’s most important source of food and feed [1]. In Republic of Croatia, according to the Paying Agency for Agriculture, Fisheries and Rural Development, maize and wheat are the most represented agricultural crops, followed by barley, oats, rye, and triticale, which are usually less cultivated. Cereal safety can be compromised by various contaminants, entering any point of food chain, including production, storage, processing, and transport. Treatment of crops with plant protective agents may leave pesticides residues in products of plant origin and indirectly animal origin. Natural toxins, such as mycotoxins, may be biosynthesized in feed- and foodstuff, while heavy metals can be introduced through water, air, or soil, thus contaminating cereals and products thereof [2]. When assessing the risks associated with cereal consumption, mycotoxins, pesticide residues and heavy metals need to be regularly monitored from the field to end-use product and their interaction must be taken into account [3,4]. If further genetic traits of individuals are taken into account with all xenobiotics that it was exposed to, the exposome can be characterized [5,6,7].
Mycotoxins are secondary metabolites of low-amount toxicity produced by various toxigenic fungi species in a field and/or during storage, most important of them being Aspergillus, Fusarium, Alternaria, and Penicillium [8,9]. The most relevant mycotoxins for agricultural production worldwide are aflatoxins B1 (AFT B1), B2 (AFT B2), G1 (AFT G1), and G2 (AFT G2), deoxynivalenol (DON), fumonisins B1 (FB1) and B2 (FB2), zearalenone (ZEN), T-2 and HT-2 toxins, and ochratoxin A (OTA), regulated within the European Union (EU) via Commission Regulation (EC) No 1881/2006 [10](EC, 2006a), Commission Recommendation 2013/165/EU [11] (EC, 2013), Commission Recommendation 2006/576/EC [12] (EC, 2006b) and Directive 2002/32/EC [13] (EC, 2002a) in the terms of the highest permitted levels in certain foodstuff and feedstuff. The mycotoxin species and concentrations are found to be in a correlation with meteorological conditions in the year of crop harvest, thus some species prefer warm weather and moisture, while the other prefer hot and drought season [14,15,16,17,18,19,20].
Plant protective agents containing different active substances are frequently used in agriculture to protect plants from insects, pests and pathogens, as well as to improve the amount and quality of harvest [21]. As a result, it is possible that pesticide residues accumulate in both raw materials and food products, possessing various toxic effects on human and animal health [22,23]. Within the EU, pesticide residues levels in certain food and feed of plant and animal origin have been set by the Commission (EC) No 396/2005. The information regarding their maximum residue limit (MRL) and toxicity is also included in the EU Pesticide database of the European Commission [24].
Heavy metals contamination of crops arises from irrigation with contaminated water, the usage of fertilizers and metal-based plant protective agents, rapid industrialization and urbanization of agricultural regions [21,25]. Heavy metals, including lead (Pb), cadmium (Cd), arsenic (As), and mercury (Hg), have no biological roles in a living organism and may induce numerous toxic effects, especially in children and embryos [25,26]. Accordingly, their concentrations in certain foodstuff and feedstuff are regulated within the EU via Commission Regulation (EC) No 1881/2006 [10] and Directive 2002/32/EC [13], setting the highest permitted levels in mg/kg.
Considering possible harmful effects of those contaminants groups, the usage of confirmatory analytical techniques such as liquid and gas chromatography (LC and GC) or inductively coupled plasma (ICP) coupled to (tandem) mass spectrometry (MS) in food safety control is crucial for unambiguous identification and quantification [27]. If such instruments are not available, the use of other instruments, as in our case the atomic absorption spectrometer (AAS) for the determination of metals, may be acceptable as long as they have satisfactory performance. However, mass spectrometry is preferred in a multi-contaminant analysis of food and feed. Due to its selectivity, mass spectrometry requires no extensive clean-up steps and is particularly useful for simultaneous determination of multiple compounds which ensures fast, easy and inexpensive determination, and at the same time, analytical parameters that meet the quality criteria required by regulations [28].
The toxicological relevance of the above mentioned contaminants and residues is well established, however the total health impact of combined exposure to various mycotoxins, pesticide residues and heavy metals, which is nowadays unavoidable, is difficult to assess, and thus remains largely unknown [3,4,29]. Monitoring the incidence of these pollutants is crucial for proper health risk assessment, especially if considering the possibility of their combined (possibly synergistic) effect, as showed for the combination of mycotoxins, pesticides (chlorpyriphos, pyrimiphos-methyl) and heavy metals (Cd, As) [3]. As systematic investigations of their occurrence in Croatian cereals are still lacking, this research aims to monitor the multiple contamination levels of nation-wide crops by mycotoxins, pesticide residues and heavy metals. In addition, it is set to compare the found levels of contaminants to the tolerance values set by the EU legislation and determine compliance/non-compliance of the tested cereal samples.

2. Materials and Methods

2.1. Sample Collection

Samples of cereals characteristic for the climate of the Republic of Croatia were selected to analyze and determine the occurrence of certain contaminants. A total of 118 cereal samples grown in the Croatian fields, including maize (61) and wheat (57), were collected from all Croatian counties, making sure that at least one sample originates from each county and the rest according to the representation, i.e., planting of agricultural areas with a certain cereal type. The sampling was carried out in warehouses/silos by trained manufacturer’s personnel in accordance with the methods set out in Commission Regulation (EC) No 401/2006 [30]. Upon arrival at the laboratory, the samples were briefly stored (up to 48 h) in a dry and dark place until milling to avoid subsequent production of mycotoxins as well as sample degradation in general. Samples were ground before analysis to obtain a homogeneous particle size (sieve pore size 0.5 mm) using Romer RAS mill (Romer Labs, Austria). After milling, the samples were stored in a freezer at −18 °C until analysis. All determination procedures applied for mycotoxins, pesticide residues and heavy metals analysis were previously successfully in-house validated and fitted to purpose.

2.2. Chemicals, Reagents, and Standards

Certified standards of mycotoxins were produced by Romer Labs Biopure (Romer Labs, Tulln, Austria), while certified pesticide and heavy metal standard solutions were obtained from CPAchem (CPAchem, Stara Zagora, Bulgaria). All standard solutions were stored according to manufacturer’s instructions and tempered to room temperature before use. LC-MS and HPLC grade acetonitrile and methanol were produced by J.T. Baker (J.T. Baker, Deventer, The Netherlands). LC-MS grade formic acid, LC-MS ammonium formate, nitric acid (65.0%) of trace analysis grade and hydrogen peroxide (30%) of extra purity were produced by Sigma–Aldrich (Sigma-Aldrich, St. Louis, MO, USA). Ultrapure water was generated by Niro VV system (Nirosta d.o.o., Osijek, Croatia). A QuEChERS (Quick, Easy, Cheap, Effective, Rugged, and Safe) buffer-salt mixture was produced by Agilent (Agilent Technologies, Santa Clara, CA, USA) and each portion consisted of 1 g trisodium citrate dihydrate, 1 g sodium chloride, 0.5 g disodium hydrogen citrate sesquihydrate, and 4 g of anhydrous magnesium sulfate. dSPE salt mixture was obtained from the same producer and consisted of 900 mg of anhydrous magnesium sulfate, 150 mg of primary secondary amine, and 150 mg graphitized carbon black.

2.3. Mycotoxins Determination

A dilute and shoot multimycotoxin LC-MS/MS method was used to determine 11 mycotoxins regulated in cereals by the above-mentioned EU legislative: AFB1, AFB2, AFG1, AFG2, DON, FB, FB2, ZEA, T-2, HT-2, and OTA. Sample preparation procedure used for analysis was adapted from Sulyok et al., (2020) [28]. Sample portion of 5 g was weighed into centrifuge tubes and extracted by solvent mixture 79/20/1 acetonitrile/ultrapure water/formic acid (v/v/v) using mechanical shaker for 90 min. Aliquot of the raw extract was afterwards diluted using 20/79/1 acetonitrile/ultrapure water/formic acid (v/v/v), filtered through 0.22 µm nylon filter and without further clean-up injected into a LC-MS/MS system. Waters Acquity H-class UPLC system (Waters, Milford, MA, USA) was employed to perform chromatographic separation of selected mycotoxins by using a HSS T3 column (100 × 2.1 mm, 1.8 µm particle size) (Waters, Milford, MA, USA) maintained at 40 °C. Gradient elution was carried out with eluent A consisting of an aqueous solution of ammonium formate (5 mM) and eluent B being methanol at constant flow rate of 0.3 mL/min. The volume of injected sample was 10 µL. The separation started with 95% A followed by linearly decrease to 50% A in 6 min and in the next 4 min to 5% A with a hold time of 5 min, afterwards switching to 95% A and column equilibration to initial conditions in the next 3 min. The UPLC system was coupled to Waters Xevo TQD tandem mass spectrometer (Waters, Milford, MA, USA) equipped with an electrospray ionization interface (ESI) operating in both positive and negative ionization mode. ESI-MS/MS analysis was performed in multiple reaction monitoring (MRM) mode meaning that for each compound at least one precursor and two product ions were used for both identification and quantification purposes, selecting the most abundant product ion for quantification and the second one for confirmation purposes. Cone voltage and collision energy values were optimized for each precursor ion and different product ions. The ionization source parameters were: capillary voltage 1.5 kV, extractor voltage 3 V, source temperature 150 °C, desolvation temperature 400 °C, cone gas flow 0 L/h, and desolvation gas flow 650 L/h (both gases were nitrogen). Collision-induced dissociation was performed using argon as collision gas at a pressure of 4 × 10−3 mbar in the collision cell. Data acquisition was performed using MassLynx and TargetLynx software (v. 4.1., Waters, Milford, MA, USA). The MRM transitions for each mycotoxin and the applied cone voltages and collision energies are summarized in Table A1 in Appendix A.
Upon mycotoxin content determination and data analysis, the most relevant cereal samples containing very high or very low mycotoxin levels were selected (at least one from each county) and further subjected to pesticides and heavy metals analysis.

2.4. Pesticide Residues Determination

Standardized QuEChERS method (EN 15662) was employed in sample preparation procedure for pesticide residues (listed in Table A2 and Table A3, Appendix A) determination. Samples (portions of 5 g) were weighed into 50 mL centrifuge tubes and soaked in 10 mL of ultrapure water, followed by 1 min extraction using 10 mL of acetonitrile and 1 min extraction by addition of QuEChERS buffer-salt mixture. Sample tubes were then centrifuged for 5 min at 3000× g at room temperature using Restek Q-sep 3000 centrifuge (Restek, Bellefonte, PA, USA). An aliquot of the organic phase (6 mL) from each sample was transferred into a 15 mL centrifuge tube containing dSPE salt mixture, shaken vigorously for 0.5 min and afterwards centrifuged at 3000× g for 5 min at room temperature. The clean extract was filtered through 0.22 µm nylon filter, transferred to a glass vial, and finally analyzed by LC-MS/MS and GC-MS/MS.
For LC-MS/MS determination, Xevo TQD tandem mass spectrometer (Waters, USA) equipped with ESI source and Acquity H-class UPLC system (Waters, USA) was used. For chromatographic separation Ultra Aqueous C18 column (100 × 2.1 mm, 3 µm particle size) (Restek, USA) with a gradient elution consisting of eluent A (aqueous 4 mM ammonium formate/0.1% formic acid) and eluent B (4 mM ammonium formate/0.1% formic acid in methanol) was used. The analysis started with 90% A, held for 1.5 min, increased to 60% B in 2.5 min and in the next 4 min to 70% B, and then to 100% B in 3 min with a 1 min hold, followed by 3 min return to initial conditions, to give a total run time of 15 min. The flow rate was set to 0.5 mL/min and the column temperature was maintained at 50 °C, while the injection volume was 10 µL. For analyte detection, MRM mode was applied and for each analyte at least two transitions were monitored (Table A2). The capillary voltage was 3.5 kV, the source temperature was 150 °C, and the desolvation gas temperature was 400 °C. The desolvation gas flow was 650 L/h, while the cone gas flow was 10 L/h (both nitrogen). Collision-induced dissociation was performed using argon as the collision gas at a pressure of 3.7 × 10−3 mbar in the collision cell. The MassLynx and TargetLynx software (v. 4.1., Waters, USA) were used for the instrument control, data acquiring, and processing.
GC-MS/MS used for pesticide determination was Trace 1300 gas chromatograph coupled to TSQ 8000 Evo tandem mass spectrometer (Thermo Scientific, Waltham, MA, USA) equipped with split/splitless injector operating in a splitless mode (40 mL/min) at 200 °C with injection volume of 1 µL and TG-XLBMS chromatographic column (30 m × 0.25 mm × 0.25 µm) (Thermo Scientific, USA). The instrument control, data acquisition, and processing were conducted by TraceFinder software (v. 3.3, Thermo Scientific, Waltham, MA, USA). The gas carrier was helium (6.0) maintained at constant flow of 1.2 mL/min. Temperature program used for chromatographic separation was ranging from 40 to 300 °C in four stages as follows: starts with 40 °C (hold time 1.5 min), rises with rate of 25 °C/min to 90 ° C (1.5 min hold) and then to 180 °C (0 min hold), 5 °C/min to 280 °C (0 min hold) and finally with 10 °C/min to 300 °C (hold 10 min). For ionization, electron impact ionization in positive mode was applied, with ion source temperature of 300 °C and MS transfer line temperature of 250 °C. MRM mode was used for analyte detection, with the MS conditions optimized for each compound, as stated in Table A3.

2.5. Heavy Metals Determination

A Perkin Elmer AAnalyst 600 was used for determination of traces of heavy metals including Pb, Cd, As, and Hg. For the analysis of Pb, Cd, and As, the graphite furnace performance was used, while for Hg analysis hydride technique was applied. Sample preparation procedure was based on sample degradation using microwave-assisted digestion and nitric acid (HNO3)/hydrogen peroxide (H2O2) as digestion reagents. Samples were accurately weighed by using plastic equipment to avoid cross-contamination (portion of 0.5 g) into microwave tubes, 7 mL of 65% HNO3, and 2 mL of H2O2 were added to each sample, followed by microwave digestion. Digestion program included 15 min heating procedure to 210 °C, holding at the achieved temperature for 20 min and cooling for the next 10 min. Afterwards, samples were quantitatively transferred to volumetric flask by rinsing the tubes with ultrapure water. Aliquots (1 µL) of prepared cereal samples were injected into the AAS. The instrument operating conditions for the determination of heavy metals were as follows: Pb-wavelength 283.3 nm, slit width 0.7 nm; Cd-wavelength 228.8 nm, slit width 0.7 nm; As-wavelength 193.7 nm, slit width 0.7 nm; Hg-wavelength 253.7 nm, slit width 0.7 nm.

2.6. Method Validation

Method validation for was carried according to the requirements of the accreditation standard ISO/IEC 17025 standard and relevant EU legislation [27,30,31,32].
Accuracy and precision for each method were estimated by means of recovery experiments at different spiking levels. Method procedures were applied to blank cereal samples spiked at three different concentration levels of each analyte and each sample was prepared in triplicate and injected in triplicate. Method accuracy was expressed as average recovery (R%) and method precision (measurement repeatability) as relative standard deviation (RSD%). The obtained results were satisfactory with most of the recoveries being between 70% and 120% and RSD below 20%. Validation data on representative cereal (wheat), including achieved limits of detection (LOD) and quantification (LOQ) is shown in Table A4, Table A5 and Table A6. Beside in-house validation, methods were also confirmed externally (measurement reproducibility) by successful participation in a proficiency testing schemes expressed by z-scores within range |z| ≤ ± 2 presented in Table A7 in Appendix B.

3. Results and Discussion

A total of 118 samples of Croatian cereals were collected from all twenty Croatian counties and analyzed for mycotoxins contamination levels, with the most significant samples regarding the mycotoxin content submitted to pesticides residues and heavy metals analyses. Previously in-house validated methods, fitted for purpose, were employed for all the contaminants determination procedures. The found compounds were quantified using external calibration (linear calibration polynomial type) in a solvent or appropriate matrix, with the measured concentrations corrected for method recovery analyzed within each batch if not within the range of 90–110% allowed for mycotoxins by Commission Regulation (EC) No 401/2006 [30], and within the range 70–120% allowed for pesticide residues by SANTE/11813/2017 [31].

3.1. Mycotoxins in Croatian Cereals

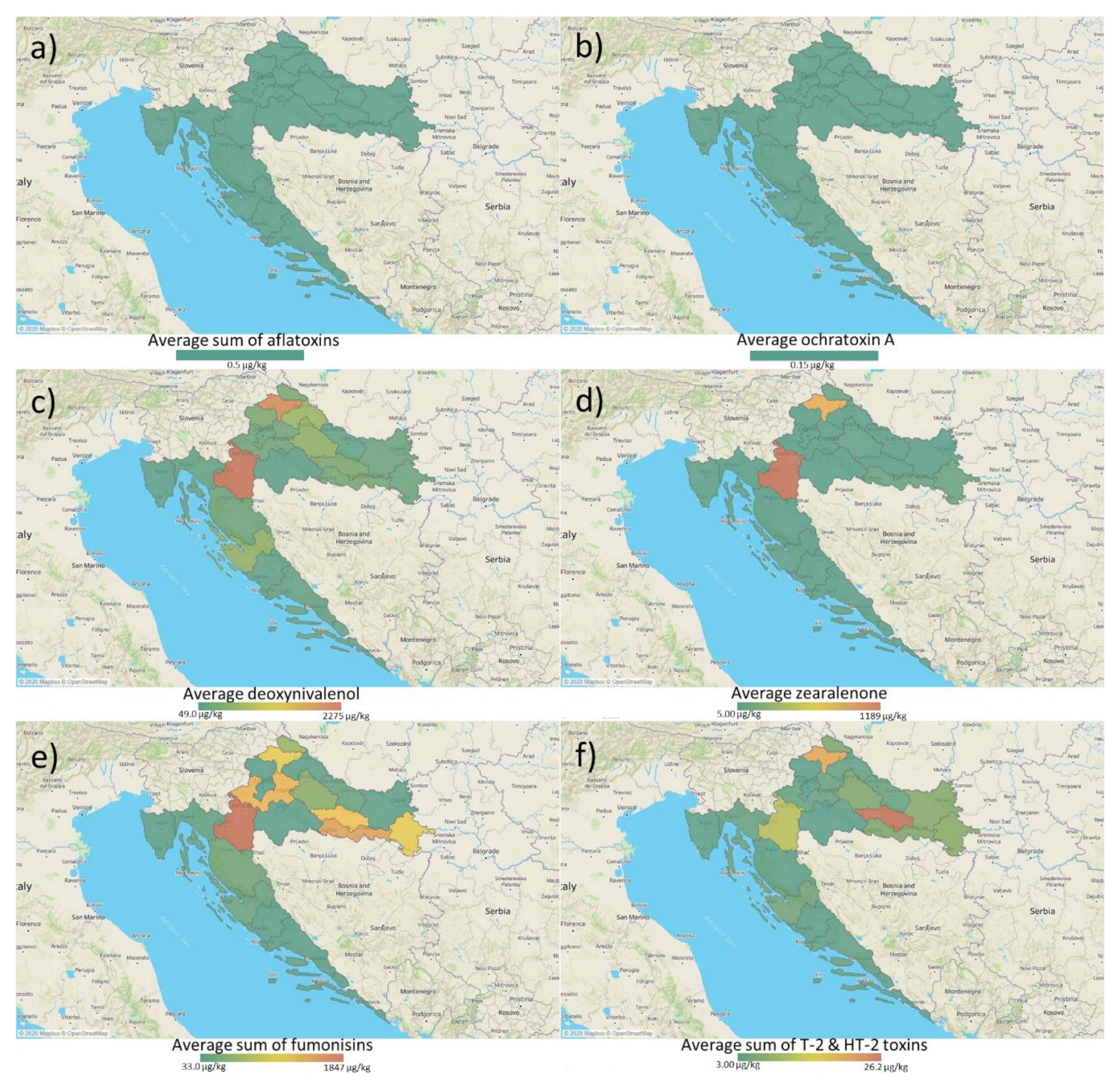

The results of mycotoxin occurrence investigation are shown in the Table 1. The most common mycotoxins found in all collected samples of different cultures at concentrations above LOD were Fusarium mycotoxins. The incidence of mycotoxins found in all analyzed samples was as follows: DON 73.7% (63–4902 µg/kg), HT-2 45.8% (3–41 µg/kg), FB1 43.2% (61–9344 µg/kg), ZEA 36.4% (10–2068 µg/kg), FB2 33.9% (49–2442 µg/kg), T-2 16.9% (3–73 µg/kg), while AFB1, AFB2, AFG1, AFG2, and OTA were not detected. The average value of all positive samples for the presence of the most common mycotoxin DON was 589 µg/kg, and the highest value of 4902 µg/kg was found in the maize sample. A total of 10 cereal samples (all maize) did not comply with the highest permitted values for mycotoxins in foodstuff given in Commission Regulation (EC) No. 1881/2006 [10] and Commission Recommendation 2013/165/EU [11]. Distribution of mycotoxin occurrence is shown in Figure 1.
The dominant occurrence of DON in cereals from Croatian field was confirmed by other authors. Španić et al. (2019) [18] investigated Fusarium head blight in different wheat varieties of the seasons 2015/2016 and 2016/2017. Among determined Fusarium mycotoxins, DON was quantified in all of the control samples. Habshied et al. (2019) [19] studied the occurrence of regulated and unregulated Fusarium mycotoxins in six barley cultivars during the years 2016–2018. Among investigated mycotoxins, DON proved to be the most dominant, however, found levels were not exceeding the EU regulation. Pleadin et al. (2017) [33] investigated the occurrence of selected regulated mycotoxins in Croatian cereals of 2015 harvest. DON was found to be the most frequent mycotoxin and maize the most contaminated cereal with 46% of samples non-compliant to the EU legislation. According to the authors, occurrence and found levels of mycotoxins can be correlated with weather conditions varying from year to year: in the case of Fusarium mycotoxins, their occurrence is favored by periods of rain accompanied with moderate air temperature during plant flowering. Earlier studies showed significant contamination of Croatian cereals and feedstuff with aflatoxins, namely AFB1, associated with climatic conditions, i.e., periods of extremely hot and dry weather during the critical stages of plant growth [16,34,35].

3.2. Pesticide Residues in Croatian Cereals

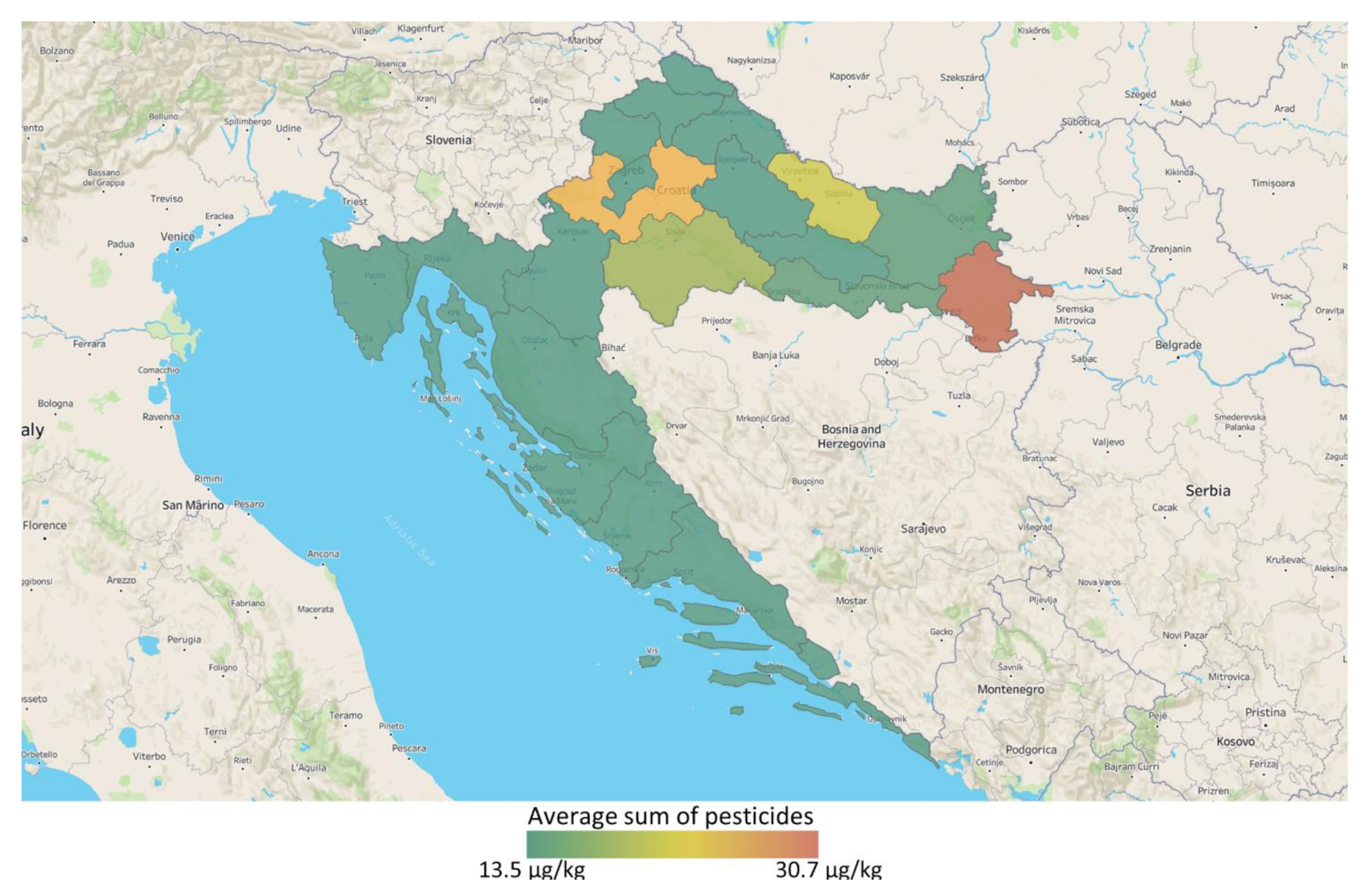

Out of 333 analyzed substances, at least one pesticide residue was found and quantified in 31.8% of the cereal samples tested for pesticides, including fungicides carboxin, epoxiconazole and tebuconazole, insecticides chlorpyrifos, cypermethrin, pirimiphos-methyl, thiamethoxam, and thiofanox, as well as pesticide synergist piperonyl butoxide (Table 2). Piperonyl butoxide and cypermethrin were the most occurring substances both present in 9.1% of the analyzed samples in concentrations of 0.015–0.028 mg/kg and 0.055–0.058 mg/kg, respectively, followed by epoxiconazole (0.020), pyrimiphos-methyl (0.021), carboxin (0.077 mg/kg), tebuconazole (0.010 mg/kg), chlorpyrifos (0.010 mg/kg), thiamethoxam (0.010 mg/kg), and thiofanox (0.083 mg/kg) present in 4.5% of all cereal samples. Distribution of sum of pesticide residues occurrence is represented in Figure 2. The sum of pesticide residue was used, as there was always maximum one pesticide positive sample per county.
The sample with highest pesticide residues contamination was maize, containing four of the nine quantified substances: thiofanox at 0.083 mg/kg, tebuconazole 0.010 mg/kg, thiamethoxam 0.010 mg/kg, and carboxin 0.077 mg/kg. Out of all analyzed samples, the mentioned maize sample, originating from Vukovar-Srymia county, did not comply with the EU legislation regarding the maximum pesticide residue level permitted [24], containing elevated level of insecticide thiofanox (0.083 mg/kg).
The (elevated) presence of residue thiofanox is considered unusual, since it is an unapproved active substance according to the EU Pesticide database and plant protection agent containing thiofanox is not on the List of registered plant protection products according to the Croatian Ministry of Agriculture. Piperonyl butoxide, a semi-synthetic synergist, is particularly used in natural pyrethrum and synthetic pyrethroid insecticides, but it can occur in other agents and as such it is used for crop treatments, stored grain protection, disinfestation of grain storage facilities and indoor uses [36], thus having a possibility of contaminating cereal-based food. Its presence in various products clearly indicates the usage of plant protective agents, which is particularly important in the control of organic food production. In cereal samples, piperonyl butoxide was co-occurring with insecticide pyrimiphos-methyl. The quantified fungicides carboxin, epoxiconazole, and tebuconazole are found to affect the growth of certain mycotoxigenic fungi, and thus the occurrence of certain mycotoxins [37]. The fact that the analyzed samples containing the above-mentioned active substances were contaminated with low concentrations of the regulated mycotoxins confirms the finding of their fungicidal action. The occurrence of pyrimiphos-methyl and chlorpyriphos in wheat is especially worrying since they have shown high cytotoxinc effect in study by Clarke et al. (2015) [3].
Investigation of the pesticide residues in foodstuff from Croatian markets, including cereals and products thereof, conducted by Miloš et al. (2014) [38], showed a small percentage of non-compliant samples regarding the EU established MRLs, and none of the cereals samples. Pesticide residue levels in foods on the European market is annually reported by EFSA, based on data from the official national control activities carried out by EU Member States, Iceland, and Norway, and includes a subset of data from the EU-coordinated control program. In 2016, out of 608 cereal sample analyzed, 34.9% contained one or several pesticides in quantifiable concentrations. The residue concentrations exceeded the MRLs in 0.7% of the samples, containing pirimiphos-methyl, permethrin, hexaconazole or dichlorvos. In total, 19 different pesticide residues were quantified [24]. For year 2017, EFSA (2019) [39] reported multiple residues in 12.9% of analyzed rye samples, and 16.3% of analyzed rice samples. The residue concentrations exceeded the MRLs in 5.1% of the rice samples for 12 different pesticides, including not approved active substances acephate, carbendazim, hexaconazole, methamidophos, permethrin, profenofos, and triazophos. In rye samples, the residue concentrations exceeded the MRLs in 1.9% of the analyzed samples, containing chlorpyrifos, glyphosate, permethrin, pirimiphos-methy, and tebuconazole. A total of 676 unprocessed cereal samples were analyzed in 2018, of which 24.7% were characterized as non-compliant, with active substance tricyclazole being the most occurring [40]. Comparing the abovementioned data with the occurrence data gathered in our investigation, insecticides were the most commonly found pesticide residues in cereals in both cases, and often the reason for exceeding the EU MRLs. Even though a significant occurrence of pesticide residues was observed (up to 34.9%), only a small percentage of samples was reported as non-compliant, roughly to the value of 5%, which is in accordance with our investigation results.

3.3. Heavy Metals in Croatian Cereals

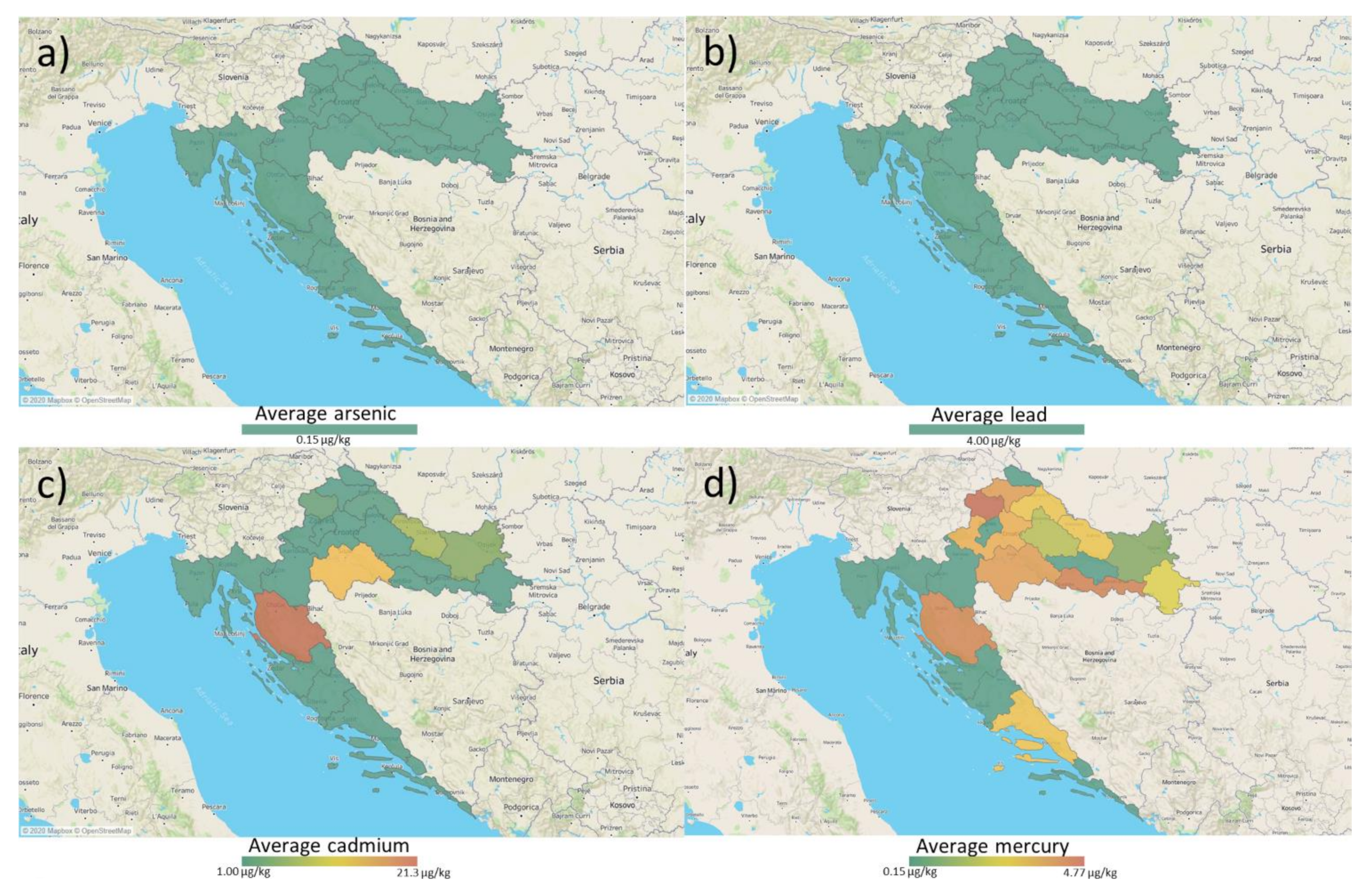

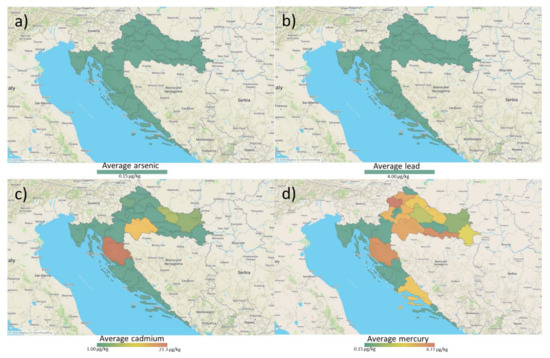

The majority (90.9%) of cereal samples analyzed for heavy metals contained Hg in concentrations above LOQ (0.009–0.016 mg/kg), with highest concentrations found in analyzed maize samples. Cd was quantified in 27.3% of samples (0.007–0.080 mg/kg), all of which were wheat originating from all Croatian regions, while Pb and As were not found. Regarding the determined concentrations of heavy metals, all of the analyzed cereal samples complied with the highest permitted levels for cereals set by the EU legislation [10], which are 0.20 mg/kg for Pb, 0.10, and 0.20 mg/kg for Cd. Although levels of Hg and As are not regulated for cereals, they are often sought to be analyzed when food and feed safety is to be determined. The results of heavy metals occurrence investigation are represented in Table 3 and the County specific occurrence data distribution shown in Figure 3.
According to the annual reports of Rapid Alert System for Feed and Feed for years 2016, 2017 and 2018, Hg, Pb and Cd are predominately notified [41,42,43], however the risk posed by heavy metals is mainly related to fish and fish products. To the best of our knowledge, data on heavy metals occurrence in Croatian cereals are lacking.

4. Conclusions

An occurrence investigation study of mycotoxins, pesticide residues, and heavy metals in Croatian cereals was performed using validated analytical UHPLC-MS/MS, GC-MS/MS and AAS methods. Fusarium mycotoxins were the most common mycotoxins found in all collected samples of different cultures, with DON being the most frequent mycotoxin occurring in the 73.7% of samples, while aflatoxins and OTA were not found. Among heavy metals, Hg and Cd were the most occurring, while Pb and As were not detected. A total of 31.8% of samples analyzed for pesticides contained at least one pesticide residue, with synergist piperonyl butoxide and insecticide cypermethrin being the most occurring residues each present in 9.1% of the samples.
Only a small percentage of the samples was non-compliant to the EU legislation for food: 8.5% regarding mycotoxins, 4.5% regarding pesticide residues, but none regarding heavy metals. In addition, the unusual presence of thiofanox, not approved active substance according to the EU Pesticide database, and the unusual presence of Hg in all analyzed samples was recorded. Accordingly, the results of the conducted multi-contaminant analysis of Croatian cereals indicate the importance and necessity of constant and continuous control of food and feed safety, including contaminant analysis, in order to collect enough occurrence data for proper risk assessment that these contaminants represent for the consumer’s health.
This very valuable data can serve as the identified mixture of food contaminants for further toxicological studies and better risk assessment for the consumers.

Author Contributions

Conceptualization, methodology and visualization, M.K., T.K., I.D.Š. and B.Š.; validation, formal analysis and investigation, M.K., M.B., J.J., T.R. and A.N.; resources and supervision, A.N.; writing—original draft preparation, M.K. and M.B.; writing—review and editing, T.K., I.D.Š. and B.Š. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are openly available.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Table
Table A1. UHPLC–MS/MS parameters optimized for mycotoxin determination.
Table A1. UHPLC–MS/MS parameters optimized for mycotoxin determination.
Compound NameRetention
Time
(min)		Precursor
Ion
(m/z)		Cone
Voltage
(V)		Primary
Production
(m/z)		Collision
Energy
(V)		Secondary
Production
(m/z)		Collision
Energy
(V)
Aflatoxin B18.7313.060241.038285.023
Aflatoxin B28.5315.060259.030287.025
Aflatoxin G18.1329.060243.028311.024
Aflatoxin G27.8331.060313.024313.024
Deoxynivalenol4.7297.025231.025249.010
Fumonisin B19.4722.420334.340352.340
Fumonisin B210.4706.450336.240318.240
Zearalenone10.5317.1−58131.0−30175.0−20
T-2 toxin10.1484.725185.030215.020
HT-2 toxin9.6442.625263.410215.315
Ochratoxin A9.5404.130215.315239.024
Table
Table A2. UHPLC–MS/MS parameters optimized for pesticide residues determination.
Table A2. UHPLC–MS/MS parameters optimized for pesticide residues determination.
Compound NameRetention Time
(min)		Precursor Ion
(m/z)		Cone Voltage (V)Primary Production
(m/z)		Collision
Energy (V)		Secondary Production (m/z)Collision
Energy (V)
Acephate1.7184.11849.018143.08
Acetamiprid4.8223.023126.02056.115
Acibenzolar-S-metil6.6210.943135.92991.020
Aldicarb4.9208.016116.1689.112
Aldicarb sulfone3.3240.018148.01486.020
Aldicarb sulfoxide3.5207.024132.0689.012
Ametryn6.0228.145186.11896.030
Aminocarb3.0209.135152.014137.125
Amitraz7.8294.040148.01891.145
Azoxystrobin6.4404.125372.015344.025
Benalaxyl7.8326.130148.02091.035
Bendiocarb5.2224.124167.08109.018
Benzoximate8.3364.018199.110105.020
Bifenazate6.8301.125198.08170.020
Bitertanol8.4338.11599.116269.210
Boscalid6.6342.935307.018139.918
Bromuconazole 17.0378.040159.02570.020
Bromuconazole 28.1378.040159.02570.020
Bupirimate7.1317.032108.030166.026
Buprofezin9.3306.126201.011116.216
Butafenacil6.8492.025331.025180.045
Butocarboxim4.9213.03575.015116.010
Butoxycarboxim3.2223.027106.08166.08
Carbaryl5.5202.024145.010127.024
Carbendazim3.9192.135160.117132.128
Carbetamide5.0237.022192.08118.012
Carbofuran5.3222.126165.112123.021
Carbofuran-3-hidroxy4.4238.027163.016181.011
Carboxin5.4236.032143.01687.024
Carfentrazone-ethyl7.4412.045346.020366.015
Chlorantraniliprole6.0483.825285.818452.816
Chlorfluazuron11.0539.838382.922158.022
Chlorotoluron5.8213.03372.01646.015
Chloroxuron7.2291.13672.018218.125
Chlorpyrifos9.9349.92997.032198.018
Clethodim8.8360.026164.020268.111
Clofentezine8.7303.025138.015102.035
Clomazone6.2240.030125.01889.046
Clothianidin4.4250.025169.015132.017
Cyazofamid7.2325.024107.913261.010
Cycluron6.2199.03689.11469.221
Cymoxanil4.6199.020128.08111.018
Cyproconazole6.8292.23270.220125.125
Cyprodinil7.5226.04093.03377.038
Cyromazine1.4167.04085.01860.018
Desmedipham5.8318.125182.010154.022
Diclobutrazol7.5328.03570.02559.125
Dicrotophos4.4238.024112.09193.011
Diethofencarb6.2268.021226.010124.032
Difenoconazole9.3406.035251.125253.125
Diflubenzuron7.4311.130158.114141.030
Dimethoate4.4230.125199.010125.020
Dimethomorph6.9388.138300.922165.028
Dimoxystrobin7.5327.122205.210116.118
Diniconazole8.4326.04570.225159.035
Dinotefuran3.3203.022129.014157.06
Dioxacarb4.5224.125123.117167.18
Diuron5.6233.03272.11646.314
Doramectin11.4916.620593.410331.220
Emamectin benzoate b1a10.4886.670158.040126.040
Emamectin benzoate b1b10.0872.668158.238126.248
Epoxiconazole7.5330.030101.045121.025
Eprinomectin11.1915.620186.035154.035
Etaconazole7.5328.145159.030205.015
Ethiofencarb5.5226.120107.015164.08
Ethiprole6.3414.112350.925396.99
Ethirimol4.9210.148140.02298.028
Ethofumesate6.1287.136121.116259.19
Etoxazole10.6360.136141.03657.232
Famoxadone8.0392.220331.18238.018
Fenamidone6.3312.12692.023236.112
Fenarimol7.1331.045268.02281.032
Fenazaquin11.3307.23557.222161.015
Fenbuconazole7.5337.04070.120125.030
Fenhexamid6.8302.16097.22555.338
Fenobucarb6.1208.02694.914152.08
Fenoxycarb7.4302.130116.11088.017
Fenpropimorph6.2304.250147.12857.230
Fenpyroximat11.0422.235366.115138.135
Fenuron4.5165.02771.91645.914
Fipronil7.0436.842367.816290.026
Flonicamid3.4230.140203.118174.016
Fluazinam9.7462.7−45415.7−20397.8−15
Flubendiamide7.4683.122408.012274.129
Fludioxonil6.4247.0−42126.0−35180.0−28
Flufenacet6.8364.020152.119194.110
Flufenoxuron10.7489.136158.022141.048
Fluomethuron5.7233.23472.21646.415
Fluoxastrobin7.2459.040427.015188.038
Fluquinconazole7.0376.045348.816306.928
Flurochloridone6.7312.040292.020145.050
Flusilazole7.6316.040247.020165.025
Flutolanil6.4324.138242.12465.042
Flutriafol5.7302.13070.218123.135
Forchlorfenuron5.9248.132129.01693.031
Fuberidazol4.6185.045157.02265.040
Furalaxyl6.2302.12595.025242.015
Furathiocarb9.5383.230194.918252.012
Halofenozide6.1331.115104.920275.05
Hexaconazole8.2314.03570.120159.035
Hexythiazox10.1353.032228.114168.124
Hydramethylnon10.6495.278323.330151.160
Imazalil5.7297.040159.01869.020
Imidacloprid4.6256.126209.120175.118
Indoxacarb8.8528.032150.025218.024
Ipconazole9.1334.24070.028125.040
Iprovalicarb6.6321.126119.118203.18
Isocarbofos5.7307.112230.915291.1 > 231.113
Isoprocarb5.6194.12495.114137.18
Isoproturon6.0207.23672.11946.116
Ivermectin11.6892.615307.220569.415
Kresoxim-methyl7.4314.120206.020116.05
Linuron6.5249.135160.018182.016
Lufenuron10.6511.240158.022141.048
Mandipropamid6.5412.335328.214356.210
Mefenacet7.0299.028148.014120.026
Mepanipyrim7.2224.150106.02577.035
Mepronil6.4270.130119.02591.038
Mesotrione4.8340.138104.030228.118
Metaflumizone10.1507.154178.122287.122
Metalaxyl5.8280.126220.114192.118
Metconazole8.3320.13670.022125.035
Methabenzthiazuron6.1222.030165.015150.032
Methamidophos1.3142.02893.914124.914
Methiocarb6.4226.026169.08121.018
Methomyl3.8163.116106.01088.110
Methoprotryne6.1272.236198.222240.219
Methoxyfenozide6.5369.115149.120313.25
Metobromuron5.8259.131148.115170.019
Metolachlor7.1284.122252.116176.126
Metribuzin5.2215.038187.11984.119
Mevinphos4.5225.124127.112193.16
Mexacarbate4.2223.234166.115151.024
Monocrotophos4.1224.124127.11898.112
Monolinuron5.6215.030126.017148.014
Moxidectin11.5640.525528.410498.315
Myclobutanil6.9289.14070.218125.135
Neburon7.5275.03588.016114.014
Nitenpyram3.7271.135224.912125.935
Novaluron9.8493.034158.022141.044
Nuarimol6.3315.045252.02081.120
Omethoate2.6214.124183.112125.122
Oxadixyl5.1279.038219.010132.028
Oxamyl3.7237.01572.01290.08
Paclobutrazol6.4294.12870.222125.128
Penconazole8.2284.03570.125159.025
Pencycuron8.4329.135125.022218.015
Pendimethalin10.0282.218212.212194.118
Phenmedipham6.0301.232168.08107.932
Picoxystrobin7.4368.018145.122205.18
Piperonyl butoxide9.8356.320176.910119.036
Pirimicarb5.3239.13472.021182.117
Prochloraz8.6376.025308.01070.025
Promecarb6.5208.125109.016151.08
Prometon5.7226.042142.02286.328
Prometryn6.5242.045158.022200.118
Propamocarb2.8189.134102.018144.012
Propargite10.3368.222231.110175.116
Propham5.5180.014138.08120.016
Propiconazole8.3342.04569.020159.035
Propoxur5.2210.018111.015168.07
Prothioconazole7.8344.024125.130188.922
Pymetrozine3.7218.030105.03079.015
Pyracarbolid5.3218.132125.12097.128
Pyraclostrobin8.3388.124193.912163.026
Pyridaben11.0365.125147.126309.112
Pyrimethanil6.4200.052107.02482.028
Pyriproxifen9.9322.13096.020185.022
Quinoxyfen10.4308.065197.030161.945
Rotenone7.6395.045213.125192.125
Secbumeton5.8226.238170.218100.226
Siduron6.2233.03893.822137.016
Simetryn5.5214.044124.02095.926
Spinetoram10.3748.558142.23598.170
Spinosad A9.7732.640142.03098.160
Spinosad D10.3746.550142.02898.158
Spirodiclofen10.5411.12571.210313.015
Spiromesifen10.2371.115273.110255.125
Spirotetramat6.9374.235330.215302.218
Spiroxamine6.7298.040144.018100.030
Sulfentrazone5.3387.050307.120146.044
Tebuconazole7.9308.04070.125125.035
Tebufenozid7.2353.118133.018297.16
Tebufenpyrad9.8334.060117.035145.025
Tebuthiuron5.6229.038172.018116.026
Teflubenzuron10.1380.935158.015140.940
Temephos10.1467.135125.036418.918
Terbumeton5.8226.138170.118114.126
Terbuthylazine6.5231.931176.016134.025
Terbutryn6.7242.136186.11991.028
Tetraconazole7.1372.045159.03070.120
Thiabendazole4.6202.050175.024131.032
Thiacloprid5.1253.035126.02090.136
Thiamethoxam4.1292.019211.013181.022
Thidiazuron5.2221.025101.91493.915
Thiobencarb8.4258.230125.02389.046
Thiofanox5.4235.928142.91042.932
Thiophanate-methyl5.2343.025151.020311.012
Triadimefon6.6294.13569.320197.214
Triadimenol6.6296.112227.11599.115
Trichlorfon4.2257.026109.01679.026
Tricyclazole5.3190.032163.020136.028
Trifloxystrobin8.9409.030186.020145.050
Triflumizole9.3346.024277.91043.124
Triflumuron8.3359.028156.133139.116
Triticonazole7.1318.12570.125124.930
Vamidothion4.6288.024146.011118.024
Zoxamide7.7336.038187.120159.040
Table
Table A3. GC–MS/MS parameters optimized for pesticide residues determination.
Table A3. GC–MS/MS parameters optimized for pesticide residues determination.
Compound NameRetention
Time (min)		Precurso Ion
(m/z)		Productio Ion
(m/z)		Collisio Energy (V)Precurso Ion
(m/z)		Productio Ion
(m/z)		Collisio Energy (V)Precurso Ion
(m/z)		Productio Ion
(m/z)		Collision Energy (V)
2,4-DDD20.1237.1165.120235.0165.220
2,4-DDE18.6248.0176.230246.1176.230
2,4’-DDT21.2236.8165.120235.0165.120235.0199.015
4,4’-DDD21.6237.0165.125235.0165.220235.0199.115
4,4’-DDE19.9318.0248.020246.0176.130317.8246.020
4,4’-DDT22.6236.8165.022165.1164.315235.019.510
Aldrin16.4262.9190.935262.7191.030262.9193.030
Atrazine13.2215.1200.05200.0132.08200.1122.210
Atrazine-desethyl12.1172.069.115172.094.115172.0104.115
Azinphos-ethyl27.0160.077.016132.051.026132.077.012
Benfluralin11.9292.1160.120276.1202.115292.1264.010
Bifenox25.2341.1281.012172.9137.916311.0216.025
Bifenthrin23.8181.2165.225165.1163.624181.0179.012
Bromfenvinphos-methyl17.9294.979.130109.079.06294.9109.016
Bromophos-ethyl18.4302.7284.81496.965.01696.978.912
Bromophos-methyl17.1331.0286.025328.9313.814328.9313.920
Bromopropylate24.1340.8185.014184.975.530184.9156.912
Carbophenothion22.1342.0157.010157.045.012199.0142.910
Chlorbufam13.2127.065.03553.127.110127.0100.015
Chlordene14.066.139.12066.140.11566.165.110
Chlorfenapyr20.6248.9112.02459.129.11059.131.15
Chlorfenprop-methyl11.4196.0165.110165.0102.018165.0137.010
Chlorfenson19.7177.0113.110111.075.115175.0111.010
Chlorfenvinphos17.8323.0266.914266.9159.016266.9203.010
Chlorobenzilate20.8139.074.926111.075.114139.0111.012
Chlorothalonil15.6265.8133.036228.8168.08265.8170.024
Chlorpropham12.0213.0127.014171.0127.08213.0171.06
Chlorpyrifos-methyl15.1285.993.020125.047.012125.079.06
Chlordane cis19.1376.6268.020372.9266.120374.9265.820
Chlordane trans18.9374.7265.922271.7236.812373.0264.120
Cyanazine16.8198.055.124198.091.010198.0157.08
Cyanophenphos22.3169.077.122157.077.122169.0141.08
Cyanophos13.8243.0109.010125.079.060125.096.96
Cyflutrin beta29.0163.065.126163.091.112163.0127.16
Cyflutrin gama29.1206.0151.118163.091.112163.0127.06
Cyhalofop butyl26.1256.091.124256.0120.010256.0157.830
Cyhalothrin gamma25.9208.1151.828181.0151.922208.1180.98
Cyhalothrin lambda25.5208.1180.98180.9151.922197.0141.110
Cypermethrin ion 129.3180.9152.120163.091.112163.0127.16
Cypermethrin ion 229.5180.9151.918163.091.112163.0127.06
Cypermethrin ion 329.6163.091.012163.0127.06163.0152.112
Cypermethrin ion 429.7180.9152.220163.091.112163.0127.16
Demeton O11.4171.1115.01088.159.8689.161.08
Demeton S12.8170.0114.08114.081.014142.5114.96
Diallate12.4234.1150.02086.143.15234.1192.110
Diazinon13.4179.1121.526137.154.120137.184.112
Dichlorvos8.4186.993.012109.079.06185.093.012
Diclofop-methyl23.0340.0253.010252.9126.936253.0162.115
Dicloran13.5205.9147.920175.9148.010205.9176.010
Dicofol17.2250.0139.010111.075.015139.0111.015
Dieldrin20.0277.0240.08262.7193.039262.9191.038
Dinitramine13.9260.7194.718215.9196.08260.7241.08
Dioxabenzofos12.4216.0138.08183.0153.08216.0201.08
Diphenylamine11.9167.1139.426167.1140.118167.1166.116
Disulfoton13.9185.996.91688.045.01888.059.86
Endosulfan alpha19.2240.9170.020194.7125.022194.7159.48
Endosulfan beta21.8240.9205.915158.9123.012194.7159.08
Endosulfan sulfate23.1271.8237.010238.9204.015271.7235.012
Endrin20.8280.0245.08245.0173.022262.0192.030
Endrin Aldehyde22.2344.9281.08173.0138.116249.8214.924
EPTC9.3189.143.116128.143.110189.1128.16
Esfenvalerate31.3181.1152.120125.089.022167.0125.012
Ethalfluralin11.8315.9276.18276.0202.014276.0248.18
Ethion20.9230.9128.922153.097.010230.9174.912
Ethoprophos11.7200.0158.06157.996.916157.9113.96
Fenamiphos19.2303.1195.28154.0139.010216.9202.012
Fenchlorphos15.4287.0272.020124.979.06169.0110.46
Fenitrothion16.0277.0109.016125.079.08277.0260.06
Fenpropathrin24.3181.0126.82897.155.16181.0151.922
Fensulfothion21.1307.996.926293.097.016293.0125.010
Fenthion16.5278.0109.018245.3125.012278.0169.014
Fenvalerate31.0225.0119.018125.089.022167.0125.012
Flucythrinate cis29.8451.0199.010157.0107.015199.0157.010
Flucythrinate trans30.1451.0199.010157.0107.015199.0157.010
Folpet18.7262.0130.015104.076.010130.0102.012
Formothion14.8170.093.08125.079.08126.193.06
HCH alpha12.9218.9182.98216.9180.98216.9180.98
HCH beta13.8218.9182.98109.049.025182.9147.010
HCH delta15.3218.9182.910181.0145.015
HCH gamma (Lindane)14.6218.9182.98180.9145.010216.9180.98
Heptachlor15.4273.8238.815100.065.110271.8236.915
Heptachlor epoxide17.8354.9264.91081.153.110352.9262.910
Heptenophos11.0215.0200.08124.062.928124.089.012
Hexachlorobenzene13.1285.8213.930283.8213.930283.8248.920
Isodrin17.4194.9159.02066.165.110192.9123.030
Isofenphos17.5213.0121.014185.0121.010213.0185.06
Malaoxon14.9127.099.0699.071.08127.0109.012
Malathion15.9173.199.01292.863.08125.079.08
Mefenpyr-diethyl23.4299.0253.110253.0127.736253.0189.322
Methacrifos10.3240.0180.010125.079.08180.093.010
Methidathion18.7302.6284.914145.058.014145.085.06
Methoxychlor24.4227.1141.135227.0184.020227.1169.125
Mirex26.1273.8238.915236.8142.920271.8236.915
Nitrofen21.1285.0164.020202.0139.021283.0162.120
Oxychlordane17.8388.8262.915184.984.926184.9121.012
Oxyfluorfen20.1300.0167.025252.0196.120300.0223.020
Paraoxon-ethyl15.6149.091.110109.081.010149.0102.016
Parathion-ethyl16.8291.0109.012109.081.010124.997.06
Parathion-methyl15.4263.0109.012124.947.012124.979.06
Pentachloroaniline15.0264.8193.920262.9191.920264.8229.910
Pentachlorobenzene11.0249.9214.915247.9142.040247.9212.915
Pentanochlor16.1143.1106.12571.143.15141.077.130
Permethrin cis27.4183.1153.012163.091.112183.1168.012
Permethrin trans27.7183.0153.014183.0165.110183.0168.110
Phorate12.4260.075.0875.047.08121.065.08
Phosalone26.0182.074.830121.165.010182.0111.014
Phosphamidon14.6264.1127.012127.094.916127.0109.012
Pirimiphos-ethyl16.7318.1166.112304.0168.112318.1182.110
Pirimiphos-methyl15.5305.1180.18290.1125.020290.1233.08
Procymidone18.2283.096.11096.053.01696.167.110
Propanil15.3219.0163.010160.9125.716161.099.025
Prothiofos19.3308.9239.014266.7220.918266.7238.98
Pyrazophos26.6231.9204.110221.0148.714221.0193.18
Quinalphos17.9157.1102.022146.0118.110157.1129.014
Quintozene13.8248.8213.915236.8119.025236.8142.925
Resmethrin22.9143.1128.110123.181.110128.1127.120
Simazine13.2186.091.08172.7138.06172.7172.28
Sulprofos21.6322.0156.110156.0108.030156.0141.014
Tetrachlorvinphos18.8330.8109.018109.079.06328.9109.018
Thiometon12.8125.047.01488.059.86125.079.08
Tolclofos-methyl15.3266.8252.012265.0219.920265.0250.012
Triallate13.9268.0183.91886.143.36268.0226.012
Trichloronate16.9297.0269.012268.9222.920270.8224.922
Trifluralin11.8306.1159.720306.1206.010306.1264.18
Vinclozolin15.0286.9214.015241.158.112241.1184.110

Appendix B

Table
Table A4. Average recovery, relative standard deviation (RSD), limit of detection (LOD), and limit of quantification (LOQ) in representative cereal (wheat) for mycotoxins.
Table A4. Average recovery, relative standard deviation (RSD), limit of detection (LOD), and limit of quantification (LOQ) in representative cereal (wheat) for mycotoxins.
Compound NameAverage Recovery %Repeatability RSD%LOD µg/kgLOQ µg/kg
Aflatoxin B199.15.40.301.0
Aflatoxin B2101.213.90.150.5
Aflatoxin G1104.97.80.301.0
Aflatoxin G296.95.80.150.5
Deoxynivalenol111.14.861200
Fumonisin B1101.43.646150
Fumonisin B2100.43.346150
Zearalenone97.24.0930
T-2 toxin97.37.4310
HT-2 toxin93.513.8310
Ochratoxin A94.36.00.301.0
Table
Table A5. Average recovery, RSD, LODs, and LOQs in representative cereal (wheat) for found pesticide residues.
Table A5. Average recovery, RSD, LODs, and LOQs in representative cereal (wheat) for found pesticide residues.
Compound NameAverage Recovery %Repeatability RSD%LOD µg/kgLOQ µg/kg
Piperonyl butoxide89.814.80.0030.010
Chlorpyriphos70.66.80.0030.010
Epoxiconazole94.87.40.0030.010
Thiofanox82.89.80.0030.010
Tebuconazole93.09,80.0030.010
Thiametoxam72.86.50.0030.010
Carboxin83.119.20.0030.010
Cypermethrin I80.711.40.0030.010
Cypermethrin II87.619.0
Cypermethrin III72.215.2
Cypermethrin IV82.45.3
Pyrimiphos-methyl86.314.80.0030.010
Table
Table A6. Average recovery, RSD, LODs, and LOQs in representative cereal (wheat) for heavy metals.
Table A6. Average recovery, RSD, LODs, and LOQs in representative cereal (wheat) for heavy metals.
AnalyteAverage Recovery %Repeatability RSD%LOD µg/kgLOQ µg/kg
Lead103.81.870.0080.025
Cadmium90.13.880.0020.006
Arsenic97.82.770.00030.01
Mercury98.84.840.00030.001
Table
Table A7. Proficiency testing results for cereals.
Table A7. Proficiency testing results for cereals.
Proficiency Testing SchemeMatrixAnalytez-Score
Romer Labs CSSMY014–M18161DZWheatDeoxynivalenol0.3
Zearalenone1.6
Bipea 03-0531BarleyAflatoxin B1−1.48
Aflatoxin B20
Aflatoxin G1−0.08
Aflatoxin G20.35
T-2 toxin−0.21
HT-2 toxin0.15
Romer Labs CSSMY017-M19411AFMaizeAflatoxin B1−1.7
Aflatoxin B2−1
Aflatoxins sum−1.6
Fumonisin B1−0.4
Fumonisin B2−0.4
Fumonisin sum−0.7
Bipea 19b-342MaizeAzoxystrobin1.38
Boscalid0.4
Piperonyl butoxide0.36
Metalaxyl1.85
Propiconazole0.73
Pirimicarb0.6
EUPT-CF11Oat flourAzoxystrobin−0.6
Carbendazim2.1
Chlordane trans0.3
Chlorpyrifos−0.7
Cyhalothrin lambda−1.8
Cyproconazole−3.8
Cyprodinil−0.8
Endosulfan alpha0.9
Fenbuconazole0.7
Fenpropimorph−0.3
Fludioxonil−0.2
Flusilazole0.7
Flutolanil−1
Metconazole0.9
Prothiofos0.0
Pyraclostrobin0.1
Tebuconazole0.3
Bipea 32a-90WheatCadmium−1.18
Lead−1.07
Fapas 07307Rice CakesArsenic0.0
Cadmium0.0
Lead1.6

References

  1. Cheli, F.; Battaglia, D.; Gallo, R.; Dell’Orto, V. EU legislation on cereal safety: An update with a focus on mycotoxins. Food Control 2014, 37, 315–325. [Google Scholar] [CrossRef]
  2. Mol, H.G.J.; Plaza-Bolaños, P.; Zomer, P.; De Rijk, T.C.; Stolker, A.A.M.; Mulder, P.P.J. Toward a generic extraction method for simultaneous determination of pesticides, mycotoxins, plant toxins, and veterinary drugs in feed and food matrixes. Anal. Chem. 2008, 80, 9450–9459. [Google Scholar] [CrossRef] [PubMed]
  3. Clarke, R.; Connolly, L.; Frizzell, C.; Elliott, C.T. Challenging conventional risk assessment with respect to human exposure to multiple food contaminants in food: A case study using maize. Toxicol. Lett. 2015, 238, 54–64. [Google Scholar] [CrossRef] [PubMed]
  4. Pose-Juan, E.; Fernández-Cruz, T.; Simal-Gándara, J. State of the art on public risk assessment of combined human exposure to multiple chemical contaminants. Trends Food Sci. Technol. 2016, 55, 11–28. [Google Scholar] [CrossRef]
  5. Dennis, K.K.; Marder, E.; Balshaw, D.M.; Cui, Y.; Lynes, M.A.; Patti, G.J.; Rappaport, S.M.; Shaughnessy, D.T.; Vrijheid, M.; Barr, D.B. Biomonitoring in the era of the exposome. Environ. Health Perspect. 2017, 125, 502–510. [Google Scholar] [CrossRef]
  6. Warth, B.; Spangler, S.; Fang, M.; Johnson, C.H.; Forsberg, E.M.; Granados, A.; Martin, R.L.; Domingo-Almenara, X.; Huan, T.; Rinehart, D.; et al. Exposome-scale investigations guided by global metabolomics, pathway analysis, and cognitive computing. Anal. Chem. 2017, 89, 11505–11513. [Google Scholar] [CrossRef]
  7. Wild, C.P. The exposome: From concept to utility. Int. J. Epidemiol. 2012, 41, 24–32. [Google Scholar] [CrossRef]
  8. Kovač, M.; Šubarić, D.; Bulaić, M.; Kovač, T.; Šarkanj, B. Yesterday masked, today modified; what do mycotoxins bring next? Arch. Ind. Hyg. Toxicol. 2018, 69, 196–214. [Google Scholar] [CrossRef] [Green Version]
  9. Kovač, T.; Šarkanj, B.; Borišev, I.; Djordjevic, A.; Jović, D.; Lončarić, A.; Babić, J.; Jozinović, A.; Krska, T.; Gangl, J.; et al. Fullerol C60(OH)24 Nanoparticles Affect Secondary Metabolite Profile of Important Foodborne Mycotoxigenic Fungi In Vitro. Toxins 2020, 12, 213. [Google Scholar] [CrossRef] [Green Version]
  10. European Commission. Commission Regulation (EC) No 1881/2006 of 19 December 2006 setting maximum levels for certain contaminants in foodstuffs. Off. J. Eur. Union 2006, 364, 5–24. [Google Scholar]
  11. European Commission. Commission Recomendation of the 27 March 2013 on the presence of T-2 and HT-2 toxin in cereals and cereal products. Off. J. Eur. Union 2013, 91, 12–15. [Google Scholar] [CrossRef]
  12. European Commission. Commission Recommendation of 17 August 2006 on the presence of deoxynivalenol, zearalenone, ochratoxin A, T-2 and HT-2 and fumonisins in products intended for animal feeding. Off. J. Eur. Union 2006, 229, 7–9. [Google Scholar]
  13. European Commission. Directive 2002/32/EC of the European Parliament and of the Council of 7 May 2002 on undesirable substances in animal feed. Luxemb. Off. J. Eur. Communities 2002, 31, 166–177. [Google Scholar]
  14. Pleadin, J.; Sokolović, M.; Perši, N.; Zadravec, M.; Jaki, V.; Vulić, A. Contamination of maize with deoxynivalenol and zearalenone in Croatia. Food Control 2012, 28, 94–98. [Google Scholar] [CrossRef]
  15. Pleadin, J.; Zadravec, M.; Perši, N.; Vulić, A.; Jaki, V.; Mitak, M. Mould and mycotoxin contamination of pig feed in northwest Croatia. Mycotoxin Res. 2012, 28, 157–162. [Google Scholar] [CrossRef]
  16. Pleadin, J.; Vulić, A.; Perši, N.; Škrivanko, M.; Capek, B.; Cvetnić, Ž. Aflatoxin B1 occurrence in maize sampled from Croatian farms and feed factories during 2013. Food Control 2014, 40, 286–291. [Google Scholar] [CrossRef]
  17. Spanic, V.; Marcek, T.; Abicic, I.; Sarkanj, B. Effects of fusarium head blight on wheat grain and malt infected by fusarium culmorum. Toxins 2018, 10, 17. [Google Scholar] [CrossRef] [Green Version]
  18. Spanic, V.; Zdunic, Z.; Drezner, G.; Sarkanj, B. The pressure of fusarium disease and its relation with mycotoxins in the wheat grain and malt. Toxins 2019, 11, 198. [Google Scholar] [CrossRef] [Green Version]
  19. Habschied, K.; Krska, R.; Sulyok, M.; Šarkanj, B.; Krstanović, V.; Lalić, A.; Šimić, G.; Mastanjević, K. Screening of various metabolites in six barley varieties grown under natural climatic conditions (2016–2018). Microorganisms 2019, 7, 532. [Google Scholar] [CrossRef] [Green Version]
  20. Habschied, K.; Šarkanj, B.; Klapec, T.; Krstanović, V. Distribution of zearalenone in malted barley fractions dependent on Fusarium graminearum growing conditions. Food Chem. 2011, 129, 329–332. [Google Scholar] [CrossRef]
  21. Reinholds, I.; Pugajeva, I.; Bavrins, K.; Kuckovska, G.; Bartkevics, V. Mycotoxins, pesticides and toxic metals in commercial spices and herbs. Food Addit. Contam. Part B Surveill. 2017, 10, 5–14. [Google Scholar] [CrossRef] [PubMed]
  22. Cozma, P.; Apostol, L.C.; Hlihor, R.M.; Simion, I.M.; Gavrilescu, M. Overview of human health hazards posed by pesticides in plant products. In Proceedings of the Institute of Electrical and Electronics Engineers IEEE, Sinaia, Romania, 22–24 June 2017. [Google Scholar]
  23. Choudhary, S.; Raheja, N.; Kumar, S.; Kamboj, M.; Sharma, A. A review: Pesticide residue: Cause of many animal health problems. J. Entomol. Zool. Stud. 2018, 6, 330–333. [Google Scholar]
  24. European Food Safety Authority. The 2016 European Union report on pesticide residues in food. EFSA J. 2018, 16. [Google Scholar] [CrossRef] [Green Version]
  25. Wodaje, A.T. Assessment of some heavy metals concentration in selected cereals collected from local markets of Ambo City, Ethiopia. J. Cereal. Oilseeds 2015, 6, 8–13. [Google Scholar] [CrossRef]
  26. Jaishankar, M.; Tseten, T.; Anbalagan, N.; Mathew, B.B.; Beeregowda, K.N. Toxicity, mechanism and health effects of some heavy metals. Interdiscip. Toxicol. 2014, 7, 60–72. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. European Commission. Commission Decision of 14 August 2002 implementing Council Directive 96/23/EC concerning the performance of analytical methods and the interpretation of results. Off. J. Eur. Communities 2002, 21, 8–36. [Google Scholar]
  28. Sulyok, M.; Stadler, D.; Steiner, D. Validation of an LC-MS/MS-based dilute-and-shoot approach for the quantification of >500 mycotoxins and other secondary metabolites in food crops: Challenges and solutions. Anal. Bioanal. Chem. 2020, 412, 2607–2620. [Google Scholar] [CrossRef] [Green Version]
  29. Eskola, M.; Kos, G.; Elliott, C.T.; Hajšlová, J.; Mayar, S.; Krska, R. Worldwide contamination of food-crops with mycotoxins: Validity of the widely cited ‘FAO estimate’ of 25%. Crit. Rev. Food Sci. Nutr. 2019, 60, 1–17. [Google Scholar] [CrossRef]
  30. European Commission. Commission Regulation (EC) No 401/2006 of 23 February 2006 laying down the methods of sampling and analysis for the official control of the levels of mycotoxins in foodstuffs. Off. J. Eur. Union 2006, 70, 12–34. [Google Scholar]
  31. Guidance SANTE. Guidance Document on Analytical Quality Control and Method Validation Procedures for Pesticides Residues Analysis in Food and Feed; European Commission SANTE/11813/2017; European Commission: Brussels, Beligum, 2017; pp. 1–46. [Google Scholar]
  32. European Commission. Commission Regulation (EU) 2016/582 of 15 April 2016 amending Regulation (EC) No 333/2007 as regards the analysis of inorganic arsenic, lead and polycyclic aromatic hydrocarbons and certain performance criteria for analysis. Off. J. Eur. Union 2016, 59, 3–6. [Google Scholar]
  33. Pleadin, J.; Staver, M.M.; Markov, K.; Frece, J.; Zadravec, M.; Jaki, V.; Krupić, I.; Vahčić, N. Mycotoxins in organic and conventional cereals and cereal products grown and marketed in Croatia. Mycotoxin Res. 2017, 33, 219–227. [Google Scholar] [CrossRef] [PubMed]
  34. Pleadin, J.; Vulić, A.; Perši, N.; Škrivanko, M.; Capek, B.; Cvetnić, Ž. Annual and regional variations of aflatoxin B1 levels seen in grains and feed coming from Croatian dairy farms over a 5-year period. Food Control 2015, 47, 221–225. [Google Scholar] [CrossRef]
  35. Kovač, T.; Borišev, I.; Kovač, M.; Lončarić, A.; Čačić Kenjerić, F.; Djordjevic, A.; Strelec, I.; Ezekiel, C.N.; Sulyok, M.; Krska, R.; et al. Impact of fullerol C60(OH )24 nanoparticles on the production of emerging toxins by Aspergillus flavus. Sci. Rep. 2020, 10, 1–10. [Google Scholar] [CrossRef] [PubMed]
  36. Marchand, P.A.; Dimier-Vallet, C.; Vidal, R. Biorational substitution of piperonyl butoxide in organic production: Effectiveness of vegetable oils as synergists for pyrethrums. Environ. Sci. Pollut. Res. 2018, 25, 29936–29942. [Google Scholar] [CrossRef] [PubMed]
  37. Köycü, N.D. Effect on Fusarium Culmorum of Fungicides Used in Wheat Seed. In Proceedings of the International Congress on Engineering And Life Sciences ICELS, Kastamonu, Turkey, 26–19 April 2018; pp. 593–601. [Google Scholar]
  38. Miloš, S.; Jurković, Z.; Raspudić, E.; Lončarić, Z. Risk Assessment of Pesticide Residues in Food on Croatian Market: Should We Worry? J. Hyg. Eng. Des. 2014, 8, 77–81. [Google Scholar]
  39. European Food Safety Authority (EFSA). The 2017 European Union report on pesticide residues in food. EFSA J. 2019, 17. [Google Scholar] [CrossRef] [Green Version]
  40. Medina-Pastor, P.; Triacchini, G. The 2018 european union report on pesticide residues in food. EFSA J. 2020, 18, 1–103. [Google Scholar] [CrossRef] [Green Version]
  41. The Rapid Alert System for Food and Feed (RASFF). 2016 Annual Report; Publications Office of the EU: Luxembourg, 2017; ISBN 978-92-79-68053-6. [Google Scholar]
  42. The Rapid Alert System for Food and Feed (RASFF). 2017 Annual Report; Publications Office of the EU: Luxembourg, 2018; ISBN 978-92-79-80317-8. [Google Scholar]
  43. The Rapid Alert System for Food and Feed (RASFF). 2018 Annual Report; Publications Office of the EU: Luxembourg, 2019; ISBN 978-92-76-02637-2. [Google Scholar]
Microorganisms 09 00216 g001 550
Figure 1. Distribution of regulated mycotoxin occurrence in Croatian cereals: (a) sum of aflatoxins (not detected); (b) ochratoxin A; (c) deoxynivalenol; (d) zearalenone; (e) sum of fumonisin B1 and B2; (f) sum of T-2 and HT-2 toxins. The map shows the averages of detected mycotoxins per county.
Figure 1. Distribution of regulated mycotoxin occurrence in Croatian cereals: (a) sum of aflatoxins (not detected); (b) ochratoxin A; (c) deoxynivalenol; (d) zearalenone; (e) sum of fumonisin B1 and B2; (f) sum of T-2 and HT-2 toxins. The map shows the averages of detected mycotoxins per county.
Microorganisms 09 00216 g001
Microorganisms 09 00216 g002 550
Figure 2. Occurrence of pesticides in Croatian cereals. The map shows the averages of sum of all detected pesticides per County.
Figure 2. Occurrence of pesticides in Croatian cereals. The map shows the averages of sum of all detected pesticides per County.
Microorganisms 09 00216 g002
Microorganisms 09 00216 g003 550
Figure 3. Distribution of heavy metals occurrence in Croatian cereals: (a) Arsenic (below limit of detection); (b) Lead (below limit of detection; (c) Cadmium; (d) Mercury. The map shows the averages of detected heavy metals per County.
Figure 3. Distribution of heavy metals occurrence in Croatian cereals: (a) Arsenic (below limit of detection); (b) Lead (below limit of detection; (c) Cadmium; (d) Mercury. The map shows the averages of detected heavy metals per County.
Microorganisms 09 00216 g003
Table
Table 1. Occurrence of regulated mycotoxins in Croatian cereals.
Table 1. Occurrence of regulated mycotoxins in Croatian cereals.
CompoundMaize (n = 61)Wheat (n = 57)
F% (n)Median conc. µg/kg (min.–max. conc.) F% (n)Median conc. µg/kg (min.–max. conc.)
Aflatoxin B1<LOD<LOD<LOD<LOD
Aflatoxin B2<LOD<LOD<LOD<LOD
Aflatoxin G1<LOD<LOD<LOD<LOD
Aflatoxin G2<LOD<LOD<LOD<LOD
Deoxynivalenol78.7 (48)356 (68–4902)68.4 (39)175 (63–867)
Fumonisin B183.6 (51)427 (61–9344)<LOD<LOD
Fumonisin B265.6 (40)170 (49–2442)<LOD<LOD
Zearalenone73.8 (43)21 (10–2068)<LOD<LOD
T-2 toxin32.8 (20)4 (3–73)<LOD<LOD
HT-2 toxin88.5 (54)5 (3–41)<LOD<LOD
Ochratoxin A<LOD<LOD<LOD<LOD
n—number of samples; F—frequency (occurrence), number of samples with mycotoxin concentration above detection limit; <LOD—below detection limit.
Table
Table 2. Occurrence of the found pesticide residues in Croatian cereals.
Table 2. Occurrence of the found pesticide residues in Croatian cereals.
CompoundMaize (n = 15)Wheat (n = 7)
F% (n)Median conc. mg/kg
(min.–max. conc.)		F% (n)Median conc. mg/kg
(min.–max. conc.)
Piperonyl butoxide13.3 (2)0.022 (0.015–0.028)<LOD<LOD
Chlorpyriphos<LOD<LOD14.3 (1)0.010
Epoxiconazole<LOD<LOD14.3 (1)0.020
Thiofanox6.7 (1)0.083<LOD<LOD
Tebuconazole6.7 (1)0.010<LOD<LOD
Thiametoxam6.7 (1)0.010<LOD<LOD
Carboxin6.7 (1)0.077<LOD<LOD
Cypermethrin6.7 (1)0.05514.3 (1)0.058
Pyrimiphos-methyl6.7 (1)0.021<LOD<LOD
n—number of samples; F—frequency (occurrence), number of samples with mycotoxin concentration above detection limit; <LOD—below detection limit.
Table
Table 3. Heavy metals occurrence in Croatian cereals.
Table 3. Heavy metals occurrence in Croatian cereals.
CompoundMaize (n = 15)Wheat (n = 7)
F% (n)Median conc. mg/kg (min.–max. conc.)F% (n)Median conc. mg/kg (min.–max. conc.)
Lead<LOD<LOD<LOD<LOD
Cadmium<LOD<LOD85.7 (6)0.042 (0.007–0.080)
Arsenic<LOD<LOD<LOD<LOD
Mercury86.7 (13)0.014 (0.011–0.016)100.0 (7)0.012 (0.009–0.014)
n—number of samples; F—frequency (occurrence), number of samples with mycotoxin concentration above detection limit; <LOD—below detection limit.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Kovač, M.; Bulaić, M.; Jakovljević, J.; Nevistić, A.; Rot, T.; Kovač, T.; Dodlek Šarkanj, I.; Šarkanj, B. Mycotoxins, Pesticide Residues, and Heavy Metals Analysis of Croatian Cereals. Microorganisms 2021, 9, 216. https://doi.org/10.3390/microorganisms9020216

AMA Style

Kovač M, Bulaić M, Jakovljević J, Nevistić A, Rot T, Kovač T, Dodlek Šarkanj I, Šarkanj B. Mycotoxins, Pesticide Residues, and Heavy Metals Analysis of Croatian Cereals. Microorganisms. 2021; 9(2):216. https://doi.org/10.3390/microorganisms9020216

Chicago/Turabian Style

Kovač, Marija, Mateja Bulaić, Jasna Jakovljević, Ante Nevistić, Tomislav Rot, Tihomir Kovač, Ivana Dodlek Šarkanj, and Bojan Šarkanj. 2021. "Mycotoxins, Pesticide Residues, and Heavy Metals Analysis of Croatian Cereals" Microorganisms 9, no. 2: 216. https://doi.org/10.3390/microorganisms9020216

APA Style

Kovač, M., Bulaić, M., Jakovljević, J., Nevistić, A., Rot, T., Kovač, T., Dodlek Šarkanj, I., & Šarkanj, B. (2021). Mycotoxins, Pesticide Residues, and Heavy Metals Analysis of Croatian Cereals. Microorganisms, 9(2), 216. https://doi.org/10.3390/microorganisms9020216

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
