Population Dynamics between Erwinia amylovora, Pantoea agglomerans and Bacteriophages: Exploiting Synergy and Competition to Improve Phage Cocktail Efficacy

by
Steven Gayder
1,2,
Michael Parcey
1,2,
Darlene Nesbitt
2,
Alan J. Castle
3 and
Antonet M. Svircev
2,*
1
Centre for Biotechnology, Brock University, St. Catharines, ON L2S 3A1, Canada
2
Agriculture and Agri-Food Canada, Vineland Station, ON L0R 2E0, Canada
3
Department of Biological Sciences, Brock University, St. Catharines, ON L2S 3A1, Canada
*
Author to whom correspondence should be addressed.
Microorganisms 2020, 8(9), 1449; https://doi.org/10.3390/microorganisms8091449
Submission received: 21 August 2020 / Revised: 15 September 2020 / Accepted: 17 September 2020 / Published: 22 September 2020
(This article belongs to the Special Issue Understanding Phage Particles)
Browse Figures
Review Reports Versions Notes

Abstract

:
Bacteriophages are viruses capable of recognizing with high specificity, propagating inside of, and destroying their bacterial hosts. The phage lytic life cycle makes phages attractive as tools to selectively kill pathogenic bacteria with minimal impact on the surrounding microbiome. To effectively harness the potential of phages in therapy, it is critical to understand the phage–host dynamics and how these interactions can change in complex populations. Our model examined the interactions between the plant pathogen Erwinia amylovora, the antagonistic epiphyte Pantoea agglomerans, and the bacteriophages that infect and kill both species. P. agglomerans strains are used as a phage carrier; their role is to deliver and propagate the bacteriophages on the plant surface prior to the arrival of the pathogen. Using liquid cultures, the populations of the pathogen, carrier, and phages were tracked over time with quantitative real-time PCR. The jumbo Myoviridae phage ϕEa35-70 synergized with both the Myoviridae ϕEa21-4 and Podoviridae ϕEa46-1-A1 and was most effective in combination at reducing E. amylovora growth over 24 h. Phage ϕEa35-70, however, also reduced the growth of P. agglomerans. Phage cocktails of ϕEa21-4, ϕEa46-1-A1, and ϕEa35-70 at multiplicities of infections (MOIs) of 10, 1, and 0.01, respectively, no longer inhibited growth of P. agglomerans. When this cocktail was grown with P. agglomerans for 8 h prior to pathogen introduction, pathogen growth was reduced by over four log units over 24 h. These findings present a novel approach to study complex phage–host dynamics that can be exploited to create more effective phage-based therapies.

1. Introduction

Bacteriophages, or phages, are bacterial viruses that infect and replicate within their host [1]. Lytic phages subsequently rupture and kill their bacterial host, releasing new phage progeny that can infect other nearby hosts to continue this life cycle. Phages can identify their host with great specificity and therefore play a large role in shaping microbial communities [1]. The overuse of antibiotics has led to a global health crisis of widespread antibiotic resistance and has significantly impacted the environment via the soil and its associated microbial communities [2,3]. Phages have therefore seen a recent resurgence of interest for their potential use as antimicrobial agents to replace or supplement antibiotics for the control of human, animal, and plant pathogens [3,4,5]. Understanding the factors that determine the success or failure of phage therapy is important for the development of successful therapeutic applications [4]. Phage–host interactions such as host range, burst size, adsorption rate, and time to lysis are often critical determinants in choosing phages for cocktails or mixtures, while mathematical models have sought to understand how these factors interact to achieve successful control [4,6].
The plant pathogen Erwinia amylovora causes the disease commonly referred to as fire blight in apples, pears, and other members of the Rosaceae. Originally native to North America, E. amylovora has spread worldwide and is present in many fruit-growing regions of the world [7]. Infection of trees commences when the nutrient-rich stigma of open blossoms is exposed to E. amylovora and the pathogen begins to replicate. The pathogen continues to colonize the stigma until high humidity or a wetting event washes cells into the nectarthodes located in the floral cup [8]. This allows the bacteria to enter the tree and spread throughout the vasculature of the host plant, leading to wilt, necrosis, and potential death of the entire tree [9]. Temporal factors and weather conditions can make effective control with biological control agents or biologicals very challenging. Open blossoms can be rapidly colonized by upwards of 30 bacterial phyla of epiphytic microbes [10,11]. From the initial blossom opening to petal fall, this microbial diversity is greatly reduced as Proteobacteria come to make up >99% of the microbiota, most of which is also almost entirely Enterobacteriaceae and Pseudomonadaceae [10]. Management of fire blight largely consists of alteration of the microbiota resulting in pathogen reduction on the open blossoms [10]. Antibiotics are the preferred means of control for growers, but as some countries ban their use and antimicrobial resistance spreads there is a growing interest in the use of biologicals within integrated pest management (IPM) strategies [5,12].
Pantoea agglomerans is an epiphytic bacterium found in the orchard ecosystem or phyllosphere. P. agglomerans has shown antagonistic properties against E. amylovora through competitive exclusion and production of antimicrobials [13]. P. agglomerans strain E325 is the active ingredient of the commercial biological product Bloomtime [14]. Additionally, Erwinia lytic phages are capable of infecting P. agglomerans, and together have been studied for their potential as an additional means of E. amylovora control [15]. In this phage-mediated biological control system, phage infected P. agglomerans strains (termed the carrier) are applied to the blossom. These carrier cells are used to increase the phage population in vivo and any non-infected cells may act as a biological control agent [15]. Therefore, understanding the dynamics and interactions between P. agglomerans antagonism and phage lysis is critical to harness any potential synergy for E. amylovora control.
The lytic phages of E. amylovora in our collection belong to four species: the Kolesnikvirus Erwinia virus Ea214 and Agricanvirus Erwinia virus Ea35-70 of the Myoviridae family, and the Eracentumvirus Erwinia virus Era103 and Johnsonvirus Erwinia virus Ea9-2 of the Podoviridae family. The biggest known determinant of host range is the exopolysaccharide (EPS) production, particularly amylovoran [16,17]. Erwinia virus Era103 phages require amylovoran for infection and prefer hosts with higher EPS production while Erwinia virus Ea214 phages prefer lower producers of EPS [16,17]. The effect of EPS preferences on phage production is greater in strains from the Western regions of North America, but the cause of this is not known [16]. The Erwinia virus Ea35-70 phage does not follow these trends and is generally much less successful at infecting E. amylovora, and therefore even less is known about its infection strategy [16].
Studies of in vitro phage–host interactions in liquid culture commonly use optical density to compare bacterial growth dynamics in response to different phage treatments [18,19,20,21,22,23]. Optical density measurements are quick and amenable to high-throughput comparison using 96-well incubating spectrophotometers, and hosts can even be fluorescently labeled to allow differentiation [24]. However, phage quantification in these cultures, especially those with phage mixtures, is frequently avoided due to the extra effort required and inability to quantitatively differentiate multiple phages. Real-time quantitative PCR (qPCR) is a rapid and reproducible alternative to the double agar overlay for phage quantification [25]. qPCR makes it possible, by differentially quantifying the genomes in solution, to individually track multiple bacteria and phages in mixed cultures. Previously, we used qPCR to determine the host range of 10 phages against a global collection of E. amylovora [16] and to create a molecular profile of phage infection to measure adsorption, burst size, latency period, and time to burst [26].
The objective of this study was to investigate the complex dynamics between the pathogen E. amylovora, the epiphytic phage carrier P. agglomerans, and several combinations of Erwinia spp. phages. The aim was to identify possible interspecies phage interactions that could enhance the control of the pathogen E. amylovora or survival of the carrier P. agglomerans. Growth of combinations of different species of Myoviridae and Podoviridae, and of E. amylovora and P. agglomerans were assessed by qPCR. This work represents the first step in understanding the complex interactions between phage, pathogen, and epiphyte in the orchard.

2. Materials and Methods

2.1. Bacterial Isolates

All bacterial strains used in this study are listed in Table 1. All cultures were stored at −80 °C in Microbank cryobeads (Pro-Bank Diagnostics, Richmond Hill, ON, Canada). Cultures were initially spread onto 2.3% Difco nutrient agar (NA; BD, Sparks, MD, USA) using one cryobead. These cultures were grown overnight at 27 °C and stored at 4 °C for 1 to 2 weeks. Working subcultures were obtained from the initial cultures, plated onto NA, and grown at 27 °C overnight or over 2 to 3 days at room temperature.

2.2. Bacteriophage Propagation

A bacterial suspension of the phage’s specific propagation host (Table 2) was created by scraping cells from a NA plate into 3 mL of 0.8% nutrient broth (NB; BD, Sparks, MD, USA) and adjusting to an OD600 of 0.6. Using a 250 mL baffled Erlenmeyer flask, we added 100 µL bacterial suspension to 75 mL NB, which was incubated at 27 °C and 125 rpm for 3–4 h. To this culture, we added 100 µL of phage stock, and the mixture was incubated overnight. The following morning, we added 1 mL chloroform to the flask, which was shaken at 125 rpm for about 5 min. The culture was centrifuged at 8500× g at 4 °C for 15 min, and the supernatant was filtered through a 0.22 µm Steriflip filter (Millipore, Billerica, MA, USA). These working phage stocks were stored at 4 °C in dark amber glass vials.
Titers of working phage stocks were determined with qPCR (Section 2.3) after treatment with DNase I to remove non-encapsidated genomes. To 10 µL phage lysate, we added a mix of 1 µL 2000 U/mL DNase I (M0303S, NEB, Ipswich, MA, USA), 2 µL 10X DNase buffer (B0303S, NEB, Ipswich, MA, USA), and 7 µL water. This was incubated for 40 min at 37 °C and then 20 min at 80 °C. Phage stocks for the host range experiments (Section 2.5) were not treated with DNase prior to qPCR. In all subsequent experiments, we serially diluted phages in NB such that the addition of 100 µL of diluted phage would achieve the intended multiplicity of infection (MOI), or number of phages per host cell.

2.3. Quantitative Real-Time PCR (qPCR)

Genome quantification with qPCR was performed as per the study in [16]. Briefly, each 20 µL reaction consisted of 4 µL 5X EVOlution Probe qPCR Mix (Montreal Biotech Inc., Montreal, QC, Canada), 200 nM of each primer, 100 mM probe, and 2 µL template. Primer and probe sequences are given in Table S1. Reaction conditions began with 10 min at 95 °C, followed by 40 cycles of 10 s at 95 °C and 45 s at 54 °C. The plasmid pTotalStdA [16] contains amplicons for E. amylovora and P. agglomerans, and the phages ϕEa21-4, ϕEa46-1-A1, ϕEa9-2, and ϕEa35-70. Dilutions of pTotalStdA at 1011, 108, and 105 copies/mL were included in every run to generate the standard curve. Raw population quantities (genomes/mL) were calculated from their Ct values relative to the Ct values and copies/mL of the pTotalStdA standard curve. Populations of bacteria and phage were directly interpreted from this curve on the assumption that each cell or phage capsid contained a single genome. qPCR quantification related to the host range (Section 2.5) was performed with a Stratagene Mx3005P qPCR System (Agilent Technologies, Santa Clara, CA, USA) and all others were performed with a qTower3 qPCR System (Analytik Jena, Jena, Germany).

2.4. Population Dynamics of E. amylovora, P. agglomerans, and Different Phage Cocktails

Initial liquid bacterial cultures were prepared to an OD600 of approximately 0.1, or 108 CFU/mL, in 10 mL of NB. NA working subcultures were scraped into 3 mL NB to an OD600 of 0.6, or 109 CFU/mL. In a 50 mL conical tube, we added 100 µL cell suspension to 10 mL refrigerated NB. In order to produce fresh and exponentially growing cells for the early morning, we incubated these cultures in a programmable shaking incubator (New Brunswick Innova 44R, Eppendorf, Mississauga, ON, Canada), which was maintained at 4 °C at 0 rpm most of the night and switched to 27 °C at 175 rpm in the early morning to give roughly 5 h growth. The OD600 was measured until 0.1 was achieved, at which time these cultures were stored on ice until they were used to prepare the experimental cultures.
Experimental cultures throughout Section 3.1 and Section 3.3 contain different bacterial and phage populations but were prepared in a modular fashion following a consistent methodology. Hosts tested include individual or combined cultures of Ea17-1-1, EaD7, 20060013, 20070126, Pa31-4, and Pa39-7. PaMix, EaMix, and EaWest were equal combinations of Pa31-4 and Pa39-7, Ea17-1-1 and EaD7, and 20060013 and 20070126, respectively. Phages tested include ϕEa21-4, ϕEa46-1-A1, and ϕEa35-70 individually and in combination. The bacteria and phages tested in each experiment are indicated within each figure. Into a 50 mL conical tube, we pre-aliquoted 9.5–9.9 mL NB such that the final culture volume was 10 mL after 100 µL of all host cultures and phages were each added individually. First, phage dilutions were added such that the intended MOI would be achieved. Except where indicated within the figure, the intended MOI for all phages was 1. Then, 100 µL of the bacterial cultures were added such that the cultures initially contained 106 CFU/mL total P. agglomerans or 106 CFU/mL total E. amylovora. Cultures were grown at 27 °C and 175 rpm for 24 h. Samples of 100 µL were taken at 0, 2, 4, 6, 8, and 24 h into microcentrifuge tubes; heated at 80 °C for 20 min; then frozen until qPCR analysis. DNA isolation and DNase treatment were not performed prior to qPCR. Samples were thawed before qPCR, and 2 µL was used as template following the qPCR methodology in Section 2.3. All tests were performed with three experimental replicates, each measured with qPCR once.

2.5. Phage Host Range Assay

Phage host range was studied as per the work in [16], with the exception that phage were initially added at a starting concentration of 106 genomes/mL. Hosts tested included all strains of P. agglomerans, Pantoea eucalypti, Erwinia gerundensis, Rahnella aquatilis, and Pantoea sp. in Table 1 with all 10 phages listed in Table 2. Host cultures were scraped from working subculture NA plates into 3 mL NB to an OD600 of 0.6. In a 2 mL microcentrifuge tube, we added 100 µL host cells and 100 µL phage to 800 µL NB. These cultures were incubated at 27 °C and 200 rpm for 8 h. Cultures were heated for approximately 10 min over 70 °C to lyse the cells, stopping growth and releasing genomic DNA, and were then frozen until qPCR analysis. DNA isolation and DNase treatment were not performed prior to qPCR. Samples were thawed before qPCR, and 2 µL was used as a template following the qPCR methodology in Section 2.3. All combinations of host and phage were performed with three experimental replicates, each measured with qPCR once.

2.6. Phage and Carrier Combinations for E. amylovora Reduction

Experimental cultures were prepared the same as per Section 2.4, with the exception that EaMix was added to the culture either immediately (0 h) or after 2 or 8 h of culture growth. Cultures were grown at 27 °C and 175 rpm. Samples of 100 µL were taken upon addition of EaMix and 24 h after EaMix was added. These samples were heated at 80 °C for 20 min, then frozen until qPCR analysis. DNA isolation and DNase treatment were not performed prior to qPCR. Samples were thawed before qPCR, and 2 µL was used as template following the qPCR methodology in Section 2.3. All experiments were performed with three experimental replicates, each measured with qPCR once.

2.7. Genomic Sequencing of P. agglomerans and other Epiphytes

Genomic DNA was isolated from overnight bacterial cultures using the Bacterial Genomic DNA Isolation Kit (17900; Norgen Biotek Corp., Thorold, ON, Canada). Paired-end library prep and MiSeq Illumina sequencing were performed by Genome Québec. Low-quality paired end reads were trimmed using Sickle, version 1.33 [32,33]. Sequences were assembled de novo using SPAdes assembler, version 3.11.1, in careful mode. The genomes were uploaded to GenBank and species identity was confirmed upon submission.

2.8. Data Analysis

Data analysis was performed in R version 3.5.1 [34]. Data manipulation and calculations were performed using the dplyr package, version 0.7.6 [35]. Genome quantities were log10 transformed before calculating mean population titers and bacterial reductions. Bacterial reductions at each time point were calculated as the difference between the log10 quantities of the treated sample and the untreated control. MOIg, a genomic interpretation of MOI in real time, was calculated by dividing the untransformed genome quantity of phage by that of bacteria. In mixed cultures, the MOIg can be determined for each phage individually or as a sum of all phage genomes and for both bacterial host species separately. Linear regression was performed between the log10 OD600 and log10 total host genome quantity of measured 24 h samples. The linear equation was then used to calculate the predicted genomic titer from the sample OD600 values and was compared to the qPCR measured quantities of E. amylovora in the presence and absence of P. agglomerans. Figures were generated with ggplot2, version 3.0.0 [36], using the packages scales, version 1.0.0 [37], and ggthemes, version 4.0.1 [38]. Statistical comparisons were performed using ANOVA followed by post hoc multiple comparison with Tukey’s test, and differences were considered significant when p < 0.05.

3. Results

3.1. Population Dynamics of E. amylovora and Different Phage Cocktails

The growth of both bacteria and phage can be monitored with qPCR as an increase in their respective genomes. Populations of different strains of E. amylovora infected with different phage cocktails were measured over time. In liquid culture at 27 °C, the growth of all uninfected E. amylovora strains were similar, reaching 109 genomes/mL after 8 h and not exceeding 1010 genomes/mL after 24 h (Figure 1). Different strains were variably affected by the composition of the phage cocktails. The log10 reduction of each culture compared to the control was also determined (Figure S1). Reduction of Ea17-1-1 began after 8 h but only when ϕEa21-4 was present in the cocktail (●,●,●,●; p < 0.05). The reduction of EaD7 began within 4 h in all cultures where ϕEa46-1-A1 was present (●,●,●,●; p < 0.05). Additionally, no culture’s growth was affected by the presence of ϕEa35-70 alone (●; p > 0.05). However, significant reduction after 24 h of Ea17-1-1 and EaD7 was only maintained when ϕEa35-70 was combined with ϕEa21-4 (●,●; p < 0.05) and ϕEa46-1-A1 (●,●; p < 0.05), respectively. In a mixture of the two strains (EaMix), no single phage effectively reduced growth, and only cocktails containing both ϕEa21-4 and ϕEa46-1-A1 started to slow growth after 6 h (●,●; p < 0.05). This remained consistent until 24 h, and here additional synergy was observed with the inclusion of ϕEa35-70 (●; p < 0.05).
In liquid cultures, the phage populations were tracked alongside the bacterial hosts. The phage ϕEa21-4 was able to grow to over 1 × 1010 genomes/mL with Ea17-1-1 and EaMix in 8 h and maintain this titer until 24 h (Figure 1). The growth of ϕEa21-4 was also not influenced by the presence of other phages if Ea17-1-1 was also present. ϕEa21-4 grew slower on EaD7 and did not reach a growth plateau by 8 h. The initial growth of ϕEa21-4 was reduced in the presence of ϕEa46-1-A1 (●,●), and by 8 h was 2.41 log units less than ϕEa21-4 alone (●). Whereas ϕEa46-1-A1 reduced ϕEa21-4 growth only up to 8 h, both ϕEa46-1-A1 and ϕEa35-70 together reduced ϕEa21-4 growth until 24 h, at which time it only reached a titer of 1 × 107 genomes/mL (●). Notably, the growth of ϕEa21-4 mirrored the growth of EaD7, whereby a reduction of EaD7 resulted in a reduction of ϕEa21-4 (Figure 1). ϕEa46-1-A1, with its preferred host EaD7, increased nearly three log units in the first 2 h, the fastest increase seen in any of the phage–host combinations (Figure 1). On Ea17-1-1, the phage took 4 h to increase the same amount, and on EaMix, production was similar to that of EaD7 and increased by 2.5 log units in the first 2 h. ϕEa35-70 grew similarly in all cultures, reaching around 109–1010 genomes/mL at 8 h with reductions in cultures where host cell numbers were also reduced.
With populations of both host and phages measured simultaneously using qPCR, we inferred the changing MOI as the ratio of phage genomes per host genome (MOIg). The control of E. amylovora (Figure S1) and the MOIg (Figure S2) are potentially linked. The time required to reduce the E. amylovora population by 0.25 log units was phage–host-dependent: phage ϕEa21-4 with Ea17-1-1 and ϕEa46-1-A1 with EaD7 taking 6 and 2 h, respectively. These times coincided with the time at which the MOIg approached 100 in each reaction. This was phage–host-dependent where only ϕEa21-4 and ϕEa46-1-A1 reached this level on Ea17-1-1 and EaD7, respectively. With EaMix, the MOIg of ϕEa46-1-A1 only increased to 22 in 2 h, while ϕEa21-4 continued to reach an MOIg of 100 in 6 h (Figure S2). Reduction of the E. amylovora population in EaMix only exceeded 0.25 log units at 4 h in cocktails containing ϕEa46-1-A1 (●,●,●,●). Of these cocktails, only the two with ϕEa21-4 (●,●) continued to further reduce the E. amylovora population to 6 and 8 h and only the three-phage cocktail (●) continued to control EaMix until 24 h. By 24 h, the three-phage cocktail (●) reduced the E. amylovora population by an additional log unit further than the ϕEa21-4 + ϕEa46-1-A1 cocktail (●).
Next, we investigated whether higher-starting MOIs would inhibit the growth of EaMix earlier (Figure 2). Moreover, we investigated whether this phage combination would still be effective against a mix of E. amylovora strains 20060013 and 20070126 from Utah, USA (EaWest), which we previously found to have some resistance to phages ϕEa46-1-A1 and ϕEa21-4, respectively [16]. EaWest was still reduced by this phage combination, but significant control at 24 h required starting MOIs of 10 or 100 (p < 0.05). Interestingly, the maximal phage titers and initial rate of replication decreased as the starting MOI increased.

3.2. Host Range of Phages on Potential Carriers

To identify which strains of P. agglomerans would be effective phage carriers, we performed a host range assay of 30 strains of P. agglomerans and other epiphytic bacteria with 10 phages [16]. The Podoviridae phages ϕEa10-7, ϕEa31-3, and ϕEa46-1-A2 were the only phages that did not increase by at least two log units (>108 genomes/mL) on any hosts tested (Figure 3). Only two hosts (Pa17-1 and Pa39-7) were able to propagate at least one phage from each species to over 108 genomes/mL.
Myoviridae phage ϕEa21-4 was propagated to over 109 genomes/mL in 10 hosts, including all four strains of Erwinia gerundensis and six strains of P. agglomerans (Figure 3). Interestingly, of those six strains of P. agglomerans, four were not hosts of Myoviridae phage ϕEa35-70. Additionally, of the 26 hosts that propagated phages ϕEa21-4 or ϕEa35-70 to over 108 genomes/mL, only seven hosts enriched both phages. In contrast, all five of the hosts that enriched ϕEa46-1-A1 over 108 genomes/mL were good hosts of the other Podoviridae phage ϕEa9-2. We chose to further investigate Pa39-7 as the carrier of the phages and Pa31-4 to grow unaffected by the phages. We hypothesized that in combination these two P. agglomerans strains would synergize to maximize control of E. amylovora.

3.3. Population Dynamics of P. agglomerans and Different Phage Cocktails

The growth of P. agglomerans was affected by the composition of phage cocktails (Figure 4, Figure S3). The growth of carrier Pa31-4 was not significantly affected by the presence of any phages (p > 0.05), whereas Pa39-7 was reduced by an average of 1.94 log units in cocktails containing ϕEa35-70 by 8 h (●,●,●,●; p < 0.05). Unexpectedly, the growth of the two carriers in combination (PaMix) was also affected by the presence of ϕEa35-70, with an average log reduction of 1.64 at 8 h (p < 0.05). Instead of Pa31-4 growing while only Pa39-7 was inhibited, which was what we expected, Pa31-4 growth was also reduced in this environment. After 24 h, populations were no longer different (p > 0.05).
On carrier Pa31-4, ϕEa21-4 reached nearly 1010 genomes/mL by 8 h and maintained this titer until 24 h (●; Figure 4). Moreover, ϕEa21-4 growth was unaffected by the presence of other phages in the cocktail. Both ϕEa46-1-A1 (●) and ϕEa35-70 (●) grew minimally on Pa31-4, and in the presence of ϕEa21-4 (●,●,●) their final titers after 24 h were less than their initial titers. On Pa39-7, ϕEa21-4 (●) growth was perturbed in the presence of ϕEa35-70 (●,●) by 1.27 log units by 8 h, which coincided with a reduction of the Pa39-7. ϕEa35-70 growth (●) was affected by ϕEa21-4 (●,●) starting at 6 h, and also by ϕEa46-1-A1 (●) at 24 h. Growth of phages and hosts were similar for both Pa39-7 and PaMix (Figure 4).
Reduction of P. agglomerans populations (Figure S3) again coincided with the ratio of phage genomes to bacterial genomes (Figure S4). On Pa31-4, which was not reduced by any phage, only the MOIg of ϕEa21-4 increased over time but never exceeded 10 throughout (Figure S4). On Pa39-7, the MOIg of ϕEa35-70 surpassed 100 at 4 h, at which point the reduction of Pa39-7 exceeded 0.5 log units. The total MOIg remained over 100 until 8 h, and the reduction continually increased to an average 1.94 log units at 8 h. Notably, on PaMix, the total MOIg only reached 56.9 at 4 h with ϕEa35-70-containing cocktails but the P. agglomerans population was still reduced by 0.48 log units. While not as repressed as Pa39-7 alone, PaMix was still reduced by 1.64 log units by 8 h by cocktails containing ϕEa35-70. Despite the high MOIg, Pa39-7 and PaMix were able to recover and grow to the control by 24 h (Figure 4).
We then investigated whether we could further perturb ϕEa35-70 enough to allow carrier growth to continue unaffected. We chose MOIs of 10, 1, and 0.01 of ϕEa21-4, ϕEa46-1-A1, and ϕEa35-70, respectively, with PaMix (3ϕMOI) to compare against the MOI of 1 (3ϕ), which was used in the previous experiments (Figure 5). The growth of PaMix with 3ϕ was again reduced from 4-8 h (p < 0.05) but with 3ϕMOI was nearly identical to the uninfected control over 24 h (p > 0.05). The phage ϕEa21-4 genomic titer in the 3ϕMOI cocktail remained approximately one log unit higher than 3ϕ for the first 8 h, but by 24 h the titers of ϕEa21-4 on both had reached 1011 genomes/mL. Phage ϕEa46-1-A1 was mostly unaffected by the change in MOI of the other phage, with differences not exceeding 0.5 log units. Unfortunately, ϕEa35-70 in 3ϕMOI on PaMix did not reach 107 when it reached its maximum after 4 h and slowly declined thereafter. Considering that ϕEa35-70 began at 104 initially, there was still considerable phage production (Figure 5).

3.4. Phage and Carrier Combinations for E. amylovora Reduction

To model how this chosen MOI (3ϕMOI) would impact the survival of PaMix and subsequently control pathogen populations, we grew these treatments for different times before E. amylovora was introduced. When co-introduced (0 h), PaMix alone reduced EaMix by 0.83 log units over 24 h (Figure 6). Treatments containing phage were more effective than PaMix alone, and the addition of PaMix with phage was no more effective than phage alone. With 2 h treatment growth before EaMix was added, none of the treatments were significantly more effective than they were at 0 h, and only PaMix + 3ϕMOI was more effective than PaMix alone. After 8 h prior treatment growth, PaMix + 3ϕ became less effective, but not significantly, when compared with PaMix alone, while PaMix + 3ϕMOI was the most effective treatment overall. Synergy between phage and carrier was seen only with 3ϕMOI at 2 and 8 h, wherein the treatment was more effective than phage or PaMix alone, reducing EaMix by 4.3 log units at 8 h (Figure 6).

3.5. Comparison of qPCR and Spectrophotometry for Quantification of Mixed Bacterial Populations

Measuring the optical density of a culture is a common alternative to directly counting viable colonies, especially when multiple measurements are made over time. To show that measuring host genomes with qPCR is comparable to optical density for bacterial quantification, we measured the OD600 of 90 experimental cultures at 24 h at the time they were sampled for qPCR. We plotted these OD600 values against the sum of all bacterial genomes detected with qPCR (Figure 7A). A regression of the total genomes determined with qPCR and OD600 of cultures showed that these were strongly correlated with an R2 of 0.93. Because optical density cannot differentiate bacterial species in liquid culture, we compared the qPCR titers of E. amylovora to the predicted bacterial genome titers calculated from the OD600 using the regression (Figure 7B). In cultures where EaMix was the only bacteria, optical density and qPCR populations were comparable between 107–1010 genomes/mL, with an average difference of only 0.026 log units. However, when PaMix was also present, P. agglomerans often greatly outgrew E. amylovora by 24 h, and optical density populations were an average of 1.97 log units higher than qPCR-determined titers of E. amylovora. This showed that not only is qPCR quantification highly comparable to optical density for cell quantification, but it can quantitatively differentiate different hosts in the culture, which is not easily done with optical density.

4. Discussion

One of the greatest challenges in creating effective phage therapies is the translation of results from in vitro model systems to in vivo applications [4]. The goal of phage therapy is to modify the local microbiome in a way that prevents the pathogen from establishing within its niche and thereby preventing disease progression. To this end, model systems are first developed to gain a better understanding of the population dynamics within complex natural settings. As metagenomics and molecular technologies become more sophisticated, so too should the models of phage therapy. The aim of this study was to elucidate the dynamics between the pathogen E. amylovora, the carrier P. agglomerans, and cocktails of three potential therapeutic phages to facilitate the design of an effective phage and carrier combination treatment.
The effective control of a mixed E. amylovora population required the use of multiple phages (Figure 1, Figure S1). In previous work, phage ϕEa35-70 showed no potential individually as an effective phage for biocontrol [16]. While ϕEa21-4 and ϕEa46-1-A1 were each only effective against one strain, Ea17-1-1 and EaD7, respectively, ϕEa35-70 synergized with both phages against their respective preferred host. Against a mixture of both strains (EaMix), ϕEa35-70 also provided enhanced control with ϕEa21-4 and ϕEa46-1-A1 together, maintaining the highest control at 24 h. The reason for this synergy is unknown, but further investigation into the large genome and infection strategy of ϕEa35-70 could yield novel insights into phage interactions. We also found this combination of phages to be effective at reducing the population of phage-resistant E. amylovora strains (Figure 2). This is essential to the continued effectivity of a phage-mediated biocontrol to prevent the development of phage resistance, given that different geographic regions, such as the west coast of North America, show varying levels of sensitively to these phages [16].
To maximize the biocontrol potential of a phage-carrier system, it is imperative that the carrier can quickly colonize the stigma surface. This is necessary for both competitive exclusion of E. amylovora and efficient production of the therapeutic phage. However, while including ϕEa35-70 in the cocktail gave synergistic control of E. amylovora, this phage greatly impaired growth of P. agglomerans. Because we observed phage ϕEa21-4 slowed replication of ϕEa35-70 without affecting the growth of P. agglomerans (Figure 4), we chose the MOIs of 10, 1, and 0.01 for ϕEa21-4, ϕEa46-1-A1, and ϕEa35-70, respectively, to further investigate this dynamic. This optimized cocktail (3ϕMOI) no longer inhibited the planktonic growth of PaMix compared to the three-phage cocktail with equal MOIs of 1 (3ϕ). Unsurprisingly, phage production in PaMix was also affected proportionally by the change in starting MOI (Figure 5). The higher ϕEa21-4 production in 3ϕMOI is potentially ideal for E. amylovora control, but the reduced titers of ϕEa35-70 could lead to decreased synergistic effects.
To emulate how biocontrol would occur in the field, we allowed our P. agglomerans and phage treatments to grow for 0, 2, and 8 h prior to addition of the pathogen (Figure 6). When co-introduced with EaMix, PaMix alone was least effective, but became more effective as it had more time to grow. While the addition of 3ϕ to PaMix was more effective than PaMix alone at 0 h, there was no significant advantage over only 3ϕ. Furthermore, any benefit from 3ϕ was lost over time as it became less effective than PaMix alone by 8 h. Conversely, the optimization of the MOI of 3ϕ (3ϕMOI) precluded the growth inhibition of the carrier, allowing the antagonistic effects of both P. agglomerans and the phages for enhanced control of the pathogen. As such, PaMix with 3ϕMOI was the most effective treatment at all time points.
The use of qPCR allowed the simultaneous tracking of pathogen, carrier, and phage populations in the growing cultures. This level of detail granted insights into the complex dynamics and interactions that occurred. While some studies or applications may require quantification of intact and infectious particles in specific environments through plaque assays, measuring the replication of phage genomes is an accurate and efficient way of observing changes in a mixed phage population. We showed previously that our qPCR methodology strongly correlates with dilution plating methods for quantification of both E. amylovora and P. agglomerans [26]. Here, we show this is also the case with optical density measurements of bacterial cultures (Figure 7A). Additionally, we show that optical density is not able to accurately quantify the minority population in mixed cultures (Figure 7B). While our qPCR methodology can differentiate E. amylovora and P. agglomerans, it is not specific enough to distinguish strains of the same species. Experimentation using mixed strain cultures is important for several reasons. The amount of capsular exopolysaccharides (EPS) produced by E. amylovora strains is known to significantly impact phage preference and infection [16,17]. EaMix consists of Ea17-1-1 and EaD7, which produce low and high amounts of EPS, respectively, and is therefore meant to represent the presence of both extremes found in natural populations. For example, choosing EaD7 exclusively would have resulted in high levels of control within in vitro experiments, but would be poorly representative of natural mixed infections found in vivo.
Pa31-4 and Pa39-7 in PaMix were chosen on the basis of the hypothesis that Pa39-7 would replicate the phages while Pa31-4, being phage resistant, would grow uninhibited and enhance the antagonistic effect against E. amylovora. It was therefore unexpected that Pa31-4 would be perturbed when combined with Pa39-7 and exposed to phage cocktails, which included ϕEa35-70 (Figure 4). We observed that ϕEa35-70 was rapidly produced, presumably by Pa39-7, to an MOIg high enough that it inhibited Pa31-4 (Figure S4). This interaction highlights how phages can exhibit unexpected cascading effects on more diverse microbial populations, similar to how Hsu et al. showed phages applied to a gut microbiota induced cascading effects on non-target bacteria, and subsequently on gut metabolites as well.
The use of non-pathogenic strains or related species as phage carriers has been investigated but has generally received very little attention [15,39,40]. The host range of many phages are not as broad as the Erwinia phages studied here, and finding another wild-type host may be challenging [41]. Altered phage isolation methods can help find broader host range phages [41], or their host range can be directly modified with targeted mutagenesis [42] or editing phage tail genes [43,44]. Moreover, as more methods are developed for identifying the host genes necessary for phage infection [45], host genomes could also be edited to make them possible phage carriers [46]. Carriers could also be edited to provide additional antagonistic properties, potentially achieving new means of pathogen control [47]. Death of the bacterial carrier could also be a hindrance, but as we showed here this can be avoided or reduced with a greater understanding of the dynamics and interactions involved.
The roles that phages play in microbiomes remains under-investigated, especially in those of plants [48]. In animal hosts, phages have been shown to be linked to pathogenic microbial dysbiosis and can even interact with eukaryotic host cells directly [48,49]. Given the parallels between animal gut and rhizosphere microbiomes, it is suggestive of a larger, unrecognized role played by phages in plant health [48]. Recently, it was shown that phage alone affected the metabolism of Brassica oleracea var. gongylodes [50]. Given the continually emerging evidence that phages play a significant role in shaping microbial populations, a better understanding of the complex dynamics will be crucial for better implementations of phages in therapeutic applications. We have shown that even in our rudimentary model system there is enormous complexity in the dynamics and interactions that can be observed. The interactions that phages have on each other was of particular significance.
While we aimed to investigate the dynamics of complex populations, only a small fraction of the complexity of the actual microbiome on the blossom surface was the focal point of these studies. It remains unknown as to how these results will translate from liquid culture to the microenvironment of the blossom surface. To follow up with our findings, we aim to study these populations on the blossom surface in blossom assays and field experiments. Of particular importance is whether the 3ϕMOI cocktail will still allow the carrier to grow adequately in planta to cover the stigma surface and whether it will still synergize with the phages present. Additionally, further studies with more controlled and targeted changes to these cocktail and carrier combinations will allow us to further understand their interactions, allowing us to strive to maximize their potential therapeutic activity.

5. Conclusions

Our use of qPCR to study complex populations in liquid cultures made it possible to observe several unexpected dynamics that were exploited to create a phage and carrier combination for the control of E. amylovora. The jumbo Myoviridae phage ϕEa35-70, while ineffective alone, synergized with both ϕEa21-4 and ϕEa46-1-A1 for increased control of E. amylovora over 24 h. However, at equal MOIs, this phage cocktail also reduced the growth of the bacterial carrier and antagonist P. agglomerans. To avoid this, we exploited the competition between ϕEa21-4 and ϕEa35-70 and chose to infect P. agglomerans with MOIs of 10, 1, and 0.01 for ϕEa21-4, ϕEa46-1-A1, and ϕEa35-70, respectively. This modified phage combination no longer inhibited the growth of P. agglomerans and subsequently provided enhanced control of the pathogen. From these data, we observed examples of interspecies phage competition, synergy between multiple phages, and synergy between phages and a bacterial antagonist. All of these interactions could be significant factors to consider when designing phage cocktails or incorporating phages into IPM strategies.

Supplementary Materials

The following are available online at https://www.mdpi.com/2076-2607/8/9/1449/s1.

Author Contributions

Conceptualization, S.G., A.J.C., and A.M.S.; methodology, S.G. and D.N.; validation, S.G.; formal analysis, S.G.; investigation, S.G.; resources, A.J.C. and A.M.S.; data curation, S.G. and M.P.; writing—original draft preparation, S.G.; writing—review and editing, S.G., M.P., A.J.C., and A.M.S.; visualization, S.G.; supervision, A.J.C. and A.M.S.; project administration, A.J.C. and A.M.S.; funding acquisition, A.J.C. and A.M.S. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the RGPIN-2016-05590 Natural Sciences and Engineering Research Council of Canada and Agriculture and Agri-Food Canada Growing Canadian Agricultural Partnership A-base grant.

Acknowledgments

We would like to thank Elton Pinto for his contributions to this work and Larry Pusey (retired, United States Department of Agriculture) for his generous donation of P. agglomerans E325 and its mutant strains. Genomic sequencing was performed by the Centre d’Expertise et de Services Génome Québec.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Clokie, M.R.; Millard, A.D.; Letarov, A.V.; Heaphy, S. Phages in nature. Bacteriophage 2011, 1, 31–45. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Cycon, M.; Mrozik, A.; Piotrowska-Seget, Z. Antibiotics in the soil environment-degradation and their impact on microbial activity and diversity. Front. Microbiol. 2019, 10, 338. [Google Scholar] [CrossRef] [PubMed]
  3. Gordillo Altamirano, F.L.; Barr, J.J. Phage therapy in the postantibiotic era. Clin. Microbiol. Rev. 2019, 32, e00066-18. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Bull, J.J.; Gill, J.J. The habits of highly effective phages: Population dynamics as a framework for identifying therapeutic phages. Front. Microbiol. 2014, 5, 618. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Svircev, A.; Roach, D.; Castle, A. Framing the future with bacteriophages in agriculture. Viruses 2018, 10, 218. [Google Scholar] [CrossRef] [Green Version]
  6. Krysiak-Baltyn, K.; Martin, G.J.; Stickland, A.D.; Scales, P.J.; Gras, S.L. Computational models of populations of bacteria and lytic phage. Crit. Rev. Microbiol. 2016, 42, 942–968. [Google Scholar] [CrossRef]
  7. van der Zwet, T.; Orolaza-Halbrendt, N.; Zeller, W. Spread and current distribution of fire blight. In Fire Blight: History, Biology, and Management; The American Phytopathological Society: Saint Paul, MN, USA, 2016; pp. 15–36. [Google Scholar]
  8. Pusey, P.L. The role of water in epiphytic colonization and infection of pomaceous flowers by Erwinia amylovora. Phytopathology 2000, 90, 1352–1357. [Google Scholar] [CrossRef] [Green Version]
  9. van der Zwet, T.; Orolaza-Halbrendt, N.; Zeller, W. The disease cycle of fire blight. In Fire Blight: History, Biology, and Management; The American Phytopathological Society: Saint Paul, MN, USA, 2016; pp. 155–182. [Google Scholar]
  10. Cui, Z.; Huntley, R.B.; Zeng, Q.; Steven, B. Temporal and spatial dynamics in the apple flower microbiome in the presence of the phytopathogen Erwinia amylovora. bioRxiv 2020. [Google Scholar] [CrossRef] [Green Version]
  11. Steven, B.; Huntley, R.B.; Zeng, Q. The influence of flower anatomy and apple cultivar on the apple flower phytobiome. Phytobiomes. J. 2018, 2, 171–179. [Google Scholar] [CrossRef] [Green Version]
  12. Stockwell, V.; Duffy, B. Use of antibiotics in plant agriculture. Rev. Sci. Tech. 2012, 31, 199–210. [Google Scholar] [CrossRef]
  13. Pusey, P.L.; Stockwell, V.O.; Mazzola, M. Epiphytic bacteria and yeasts on apple blossoms and their potential as antagonists of Erwinia amylovora. Phytopathology 2009, 99, 571–581. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Pusey, P.L.; Stockwell, V.O.; Reardon, C.L.; Smits, T.H.; Duffy, B. Antibiosis activity of Pantoea agglomerans biocontrol strain E325 against Erwinia amylovora on apple flower stigmas. Phytopathology 2011, 101, 1234–1241. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Lehman, S.M. Development of a Bacteriophage-Based Biopesticide for Fire Blight. Ph.D. Thesis, Biological Sciences, Brock University, St. Catharines, ON, Canada, 2007. [Google Scholar]
  16. Gayder, S.; Parcey, M.; Castle, A.J.; Svircev, A.M. Host range of bacteriophages against a world-wide collection of Erwinia amylovora determined using a quantitative PCR assay. Viruses 2019, 11, 910. [Google Scholar] [CrossRef] [Green Version]
  17. Roach, D.R.; Sjaarda, D.R.; Castle, A.J.; Svircev, A.M. Host exopolysaccharide quantity and composition impact Erwinia amylovora bacteriophage pathogenesis. Appl. Environ. Microbiol. 2013, 79, 3249–3256. [Google Scholar] [CrossRef] [Green Version]
  18. Alves, D.R.; Gaudion, A.; Bean, J.E.; Perez Esteban, P.; Arnot, T.C.; Harper, D.R.; Kot, W.; Hansen, L.H.; Enright, M.C.; Jenkins, A.T. Combined use of bacteriophage K and a novel bacteriophage to reduce Staphylococcus aureus biofilm formation. Appl. Environ. Microbiol. 2014, 80, 6694–6703. [Google Scholar] [CrossRef] [Green Version]
  19. Alves, D.R.; Perez-Esteban, P.; Kot, W.; Bean, J.E.; Arnot, T.; Hansen, L.H.; Enright, M.C.; Jenkins, A.T. A novel bacteriophage cocktail reduces and disperses Pseudomonas aeruginosa biofilms under static and flow conditions. Microb. Biotechnol. 2016, 9, 61–74. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  20. Chan, B.K.; Sistrom, M.; Wertz, J.E.; Kortright, K.E.; Narayan, D.; Turner, P.E. Phage selection restores antibiotic sensitivity in MDR Pseudomonas aeruginosa. Sci. Rep. 2016, 6, 26717. [Google Scholar] [CrossRef]
  21. Islam, M.S.; Zhou, Y.; Liang, L.; Nime, I.; Yan, T.; Willias, S.P.; Mia, M.Z.; Bei, W.; Connerton, I.F.; Fischetti, V.A.; et al. Application of a broad range lytic phage LPST94 for biological control of Salmonella in foods. Microorganisms 2020, 8, 247. [Google Scholar] [CrossRef] [Green Version]
  22. Xie, Y.; Wahab, L.; Gill, J.J. Development and validation of a microtiter plate-based assay for determination of bacteriophage host range and virulence. Viruses 2018, 10, 189. [Google Scholar] [CrossRef] [Green Version]
  23. Zaczek-Moczydlowska, M.A.; Young, G.K.; Trudgett, J.; Plahe, C.; Fleming, C.C.; Campbell, K.; O’Hanlon, R. Phage cocktail containing Podoviridae and Myoviridae bacteriophages inhibits the growth of Pectobacterium spp. under in vitro and in vivo conditions. PLoS ONE 2020, 15, e0230842. [Google Scholar] [CrossRef] [Green Version]
  24. Kifelew, L.G.; Warner, M.S.; Morales, S.; Thomas, N.; Gordon, D.L.; Mitchell, J.G.; Speck, P.G. Efficacy of lytic phage cocktails on Staphylococcus aureus and Pseudomonas aeruginosa in mixed-species planktonic cultures and biofilms. Viruses 2020, 12, 559. [Google Scholar] [CrossRef] [PubMed]
  25. Duyvejonck, H.; Merabishvili, M.; Pirnay, J.P.; De Vos, D.; Verbeken, G.; Van Belleghem, J.; Gryp, T.; De Leenheer, J.; Van der Borght, K.; Van Simaey, L.; et al. Development of a qPCR platform for quantification of the five bacteriophages within bacteriophage cocktail 2 (BFC2). Sci. Rep. 2019, 9, 13893. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Parcey, M.; Gayder, S.; Castle, A.J.; Svircev, A.M. Molecular profile of phage infection: A novel approach for the characterization of Erwinia phages through qPCR. Int. J. Mol. Sci. 2020, 21, 553. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Evans, C.K. Survey results of Erwinia amylovora in Utah for resistance to streptomycin and investigations comparing kasugamycin (kasumin) to streptomycin and oxytetracycline for control of fire blight. Acta Hortic. 2008, 793, 433–437. [Google Scholar] [CrossRef]
  28. Roach, D.R.; Sjaarda, D.R.; Sjaarda, C.P.; Ayala, C.J.; Howcroft, B.; Castle, A.J.; Svircev, A.M. Absence of lysogeny in wild populations of Erwinia amylovora and Pantoea agglomerans. Microb. Biotechnol. 2015, 8, 510–518. [Google Scholar] [CrossRef] [PubMed]
  29. Gill, J.J.; Svircev, A.M.; Smith, R.; Castle, A.J. Bacteriophages of Erwinia amylovora. Appl. Environ. Microbiol. 2003, 69, 2133–21388. [Google Scholar] [CrossRef] [Green Version]
  30. Lehman, S.M.; Kropinski, A.M.; Castle, A.J.; Svircev, A.M. Complete genome of the broad-host-range Erwinia amylovora phage ϕEa21-4 and its relationship to Salmonella phage Felix O1. Appl. Environ. Microbiol. 2009, 75, 2139–2147. [Google Scholar] [CrossRef] [Green Version]
  31. Yagubi, A.I.; Castle, A.J.; Kropinski, A.M.; Banks, T.W.; Svircev, A.M. Complete genome sequence of Erwinia amylovora bacteriophage vB_EamM_Ea35-70. Genome Announc. 2014, 2, e00413–e00414. [Google Scholar] [CrossRef] [Green Version]
  32. Del Fabbro, C.; Scalabrin, S.; Morgante, M.; Giorgi, F.M. An extensive evaluation of read trimming effects on Illumina NGS data analysis. PLoS ONE 2013, 8, e85024. [Google Scholar] [CrossRef] [Green Version]
  33. Joshi, N.A.; Fass, J.N. Sickle: A Sliding-Window, Adaptive, Quality-Based Trimming Tool for FastQ Files, Version 1.33; 2011. Available online: https://github.com/najoshi/sickle. (accessed on 4 March 2019).
  34. R Core Team. R: A Language and Environment for Statistical Computing; Version 3.5.1; R Foundation for Statistical Computing: Vienna, Austria, 2018. [Google Scholar]
  35. Wickham, H.; François, R.; Henry, L.; Müller, K. dplyr: A Grammar of Data Manipulation, R Package Version 0.7.6; 2018. Available online: https://CRAN.R-project.org/package=dplyr (accessed on 13 September 2018).
  36. Wickham, H. ggplot2: Elegant Graphics for Data Analysis; R Package Version 3.0.0; Springer-Verlag: New York, NY, USA, 2016. [Google Scholar]
  37. Wickham, H. Scales: Scale Functions for Visualization, R Package Version 1.0.0; 2018. Available online: https://CRAN.R-project.org/package=scales (accessed on 6 October 2018).
  38. Arnold, J.B. ggthemes: Extra Themes, Scales and Geoms for ‘ggplot2’, R Package Version 4.0.1; 2018. Available online: https://CRAN.R-project.org/package=ggthemes (accessed on 6 October 2018).
  39. Danelishvili, L.; Young, L.S.; Bermudez, L.E. In vivo efficacy of phage therapy for Mycobacterium avium infection as delivered by a nonvirulent mycobacterium. Microb. Drug Resist. 2006, 12, 1–6. [Google Scholar] [CrossRef]
  40. Tanaka, H.; Negishi, H.; Maeda, H. Control of tobacco bacterial wilt by an avirulent strain of Pseudomonas solanacearum M4S and its bacteriophage. Jpn. J. Phytopathol. 1990, 56, 243–246. [Google Scholar] [CrossRef] [Green Version]
  41. Ross, A.; Ward, S.; Hyman, P. More is better: Selecting for broad host range bacteriophages. Front. Microbiol. 2016, 7, 1352. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Yehl, K.; Lemire, S.; Yang, A.C.; Ando, H.; Mimee, M.; Torres, M.T.; de la Fuente-Nunez, C.; Lu, T.K. Engineering phage host-range and suppressing bacterial resistance through phage tail fiber mutagenesis. Cell 2019, 179, 459–469. [Google Scholar] [CrossRef] [PubMed]
  43. Yosef, I.; Goren, M.G.; Globus, R.; Molshanski-Mor, S.; Qimron, U. Extending the host range of bacteriophage particles for DNA transduction. Mol. Cell 2017, 66, 721–728. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Ando, H.; Lemire, S.; Pires, D.P.; Lu, T.K. Engineering modular viral scaffolds for targeted bacterial population editing. Cell Syst. 2015, 1, 187–196. [Google Scholar] [CrossRef] [Green Version]
  45. Rousset, F.; Cui, L.; Siouve, E.; Becavin, C.; Depardieu, F.; Bikard, D. Genome-wide CRISPR-dCas9 screens in E. coli identify essential genes and phage host factors. PLoS Genet. 2018, 14, e1007749. [Google Scholar] [CrossRef] [Green Version]
  46. Zeng, Z.; Salmond, G.P.C. Bacteriophage host range evolution through engineered enrichment bias, exploiting heterologous surface receptor expression. Environ. Microbiol. 2020. [Google Scholar] [CrossRef]
  47. Jensen, D.F.; Karlsson, M.; Sarrocco, S.; Vannacci, G. Biological control using microorganisms as an alternative to disease resistance. In Plant Pathogen Resistance Biotechnology; Collinge, D.B., Ed.; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2016; pp. 341–363. [Google Scholar]
  48. Pratama, A.A.; Terpstra, J.; de Oliveria, A.L.M.; Salles, J.F. The role of rhizosphere bacteriophages in plant health. Trends Microbiol. 2020, 28, 709–718. [Google Scholar] [CrossRef]
  49. Barr, J.J. A bacteriophages journey through the human body. Immunol. Rev. 2017, 279, 106–122. [Google Scholar] [CrossRef]
  50. Papaianni, M.; Paris, D.; Woo, S.L.; Fulgione, A.; Rigano, M.M.; Parrilli, E.; Tutino, M.L.; Marra, R.; Manganiello, G.; Casillo, A.; et al. Plant dynamic metabolic response to bacteriophage treatment after Xanthomonas campestris pv. campestris infection. Front. Microbiol. 2020, 11, 732. [Google Scholar] [CrossRef]
Microorganisms 08 01449 g001 550

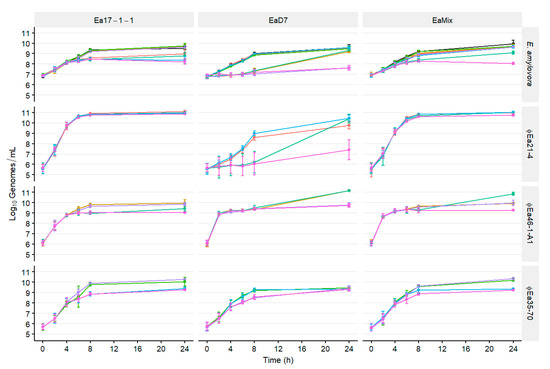

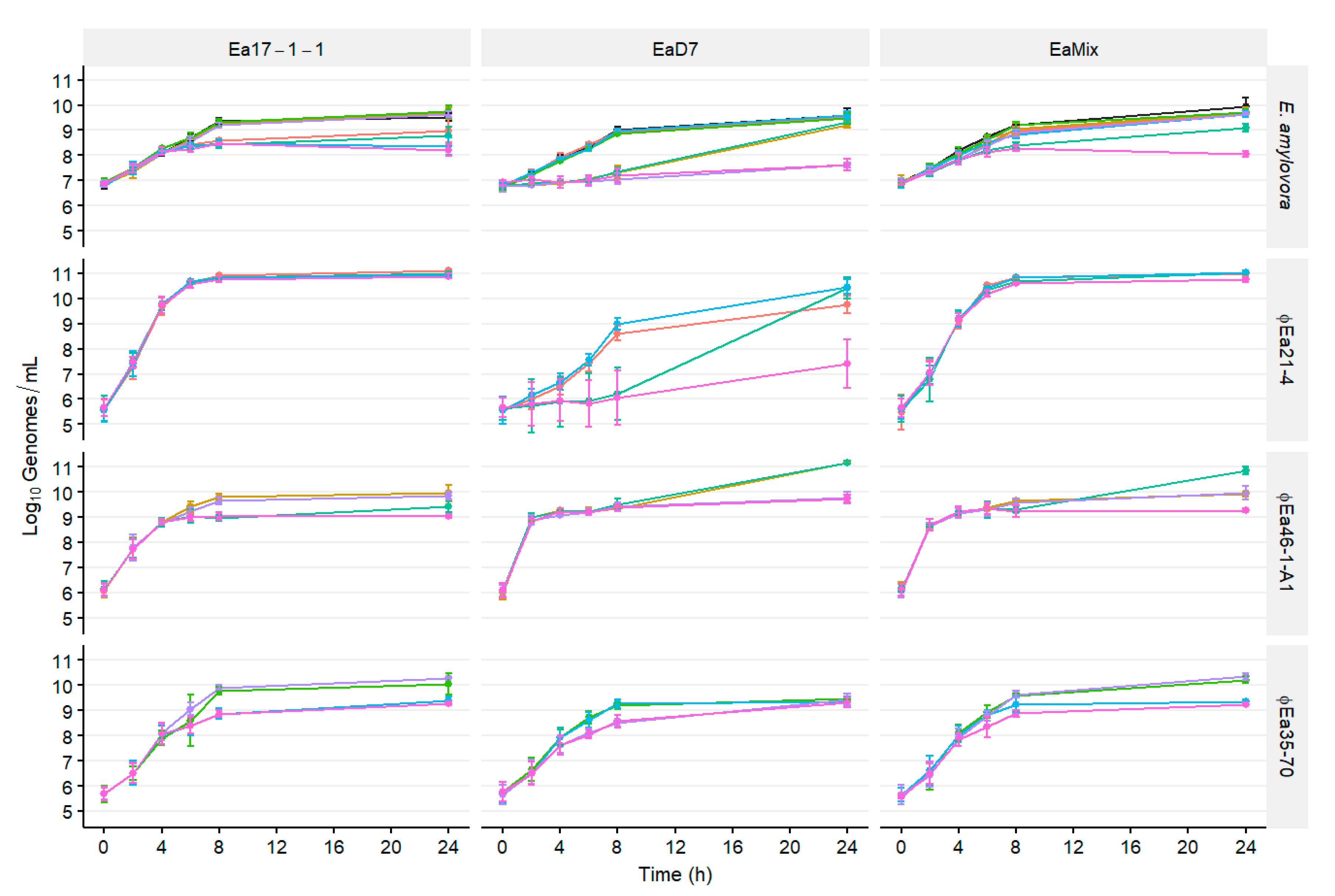

Figure 1. Populations of E. amylovora infected with different phage combinations over time. The infected strains Ea17-1-1, EaD7, and an equal mixture of both (EaMix) are indicated in the top banners. The banners on the right indicate the host or phage quantified. Each host was infected by all possible phage combinations, which are indicated by color: ϕEa21-4 (●), ϕEa46-1-A1 (●), ϕEa35-70 (●), ϕEa21-4 + ϕEa46-1-A1 (●), ϕEa21-4 + ϕEa35-70 (●), ϕEa46-1-A1 + ϕEa35-70 (●), ϕEa21-4 + ϕEa46-1-A1 + ϕEa35-70 (●), no phage (●). Genomic titers of E. amylovora and each phage were determined with qPCR. Data are the mean ± SD of three replicates.
Figure 1. Populations of E. amylovora infected with different phage combinations over time. The infected strains Ea17-1-1, EaD7, and an equal mixture of both (EaMix) are indicated in the top banners. The banners on the right indicate the host or phage quantified. Each host was infected by all possible phage combinations, which are indicated by color: ϕEa21-4 (●), ϕEa46-1-A1 (●), ϕEa35-70 (●), ϕEa21-4 + ϕEa46-1-A1 (●), ϕEa21-4 + ϕEa35-70 (●), ϕEa46-1-A1 + ϕEa35-70 (●), ϕEa21-4 + ϕEa46-1-A1 + ϕEa35-70 (●), no phage (●). Genomic titers of E. amylovora and each phage were determined with qPCR. Data are the mean ± SD of three replicates.
Microorganisms 08 01449 g001
Microorganisms 08 01449 g002 550

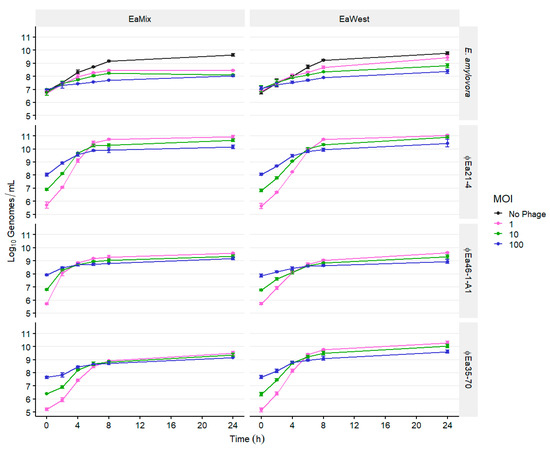

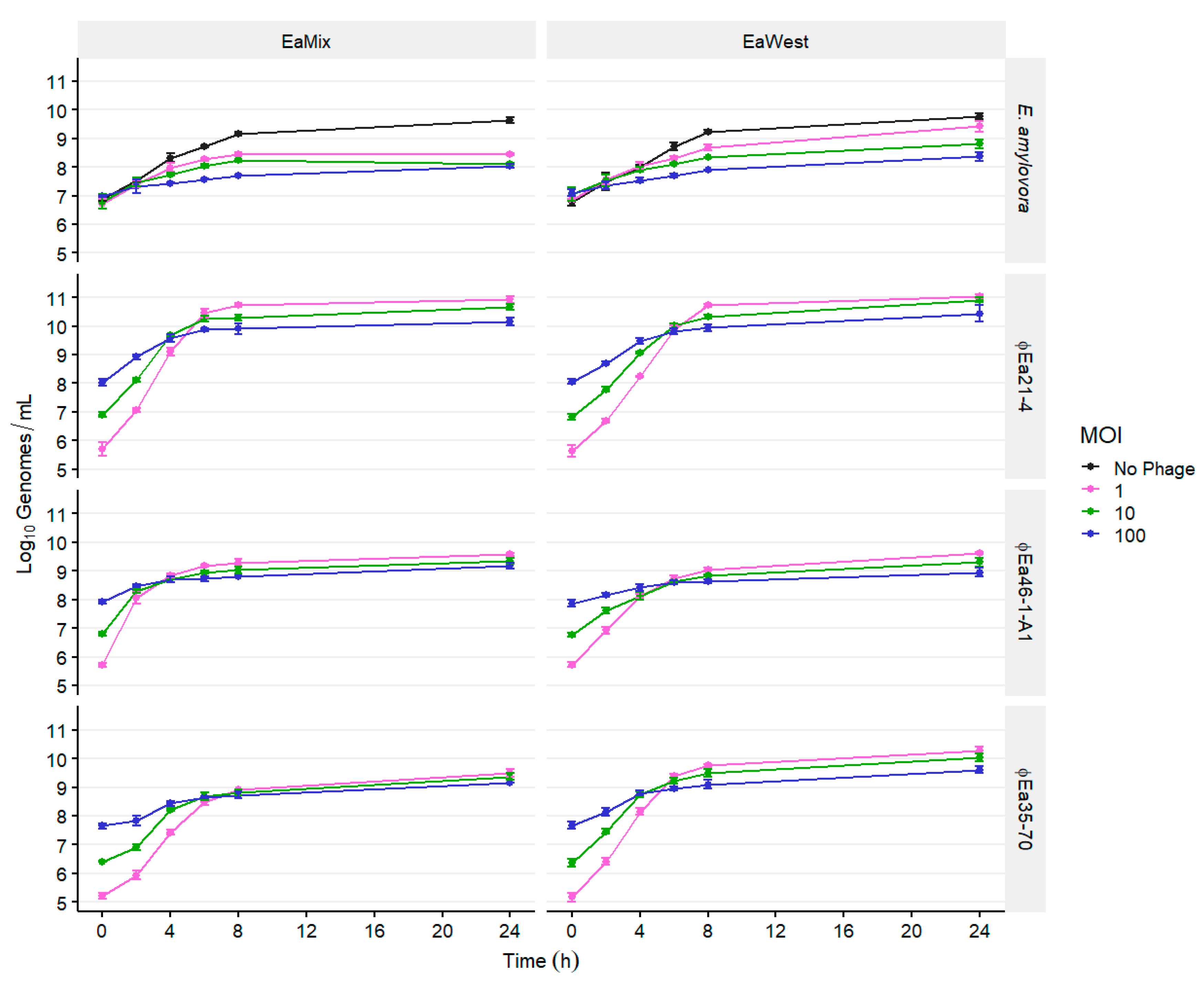

Figure 2. Populations over time of E. amylovora cultures infected with the three-phage cocktail at different starting multiplicities of infections (MOIs). The infected cultures were an equal combination of Ea17-1-1 and EaD7 (EaMix), and 20060013 and 20070126 (EaWest), and are indicated in the top banners. The banners on the right indicate the host or phage quantified. Each culture was infected simultaneously by the phages ϕEa21-4, ϕEa46-1-A1, and ϕEa35-70, each at the indicated MOI. Genomic titers of E. amylovora and each phage were determined with qPCR. Data are the mean ± SD of three replicates.
Figure 2. Populations over time of E. amylovora cultures infected with the three-phage cocktail at different starting multiplicities of infections (MOIs). The infected cultures were an equal combination of Ea17-1-1 and EaD7 (EaMix), and 20060013 and 20070126 (EaWest), and are indicated in the top banners. The banners on the right indicate the host or phage quantified. Each culture was infected simultaneously by the phages ϕEa21-4, ϕEa46-1-A1, and ϕEa35-70, each at the indicated MOI. Genomic titers of E. amylovora and each phage were determined with qPCR. Data are the mean ± SD of three replicates.
Microorganisms 08 01449 g002
Microorganisms 08 01449 g003 550

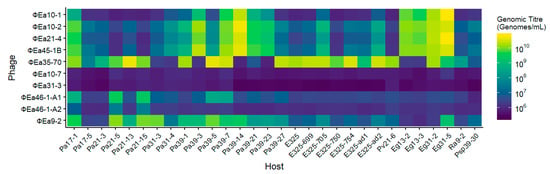

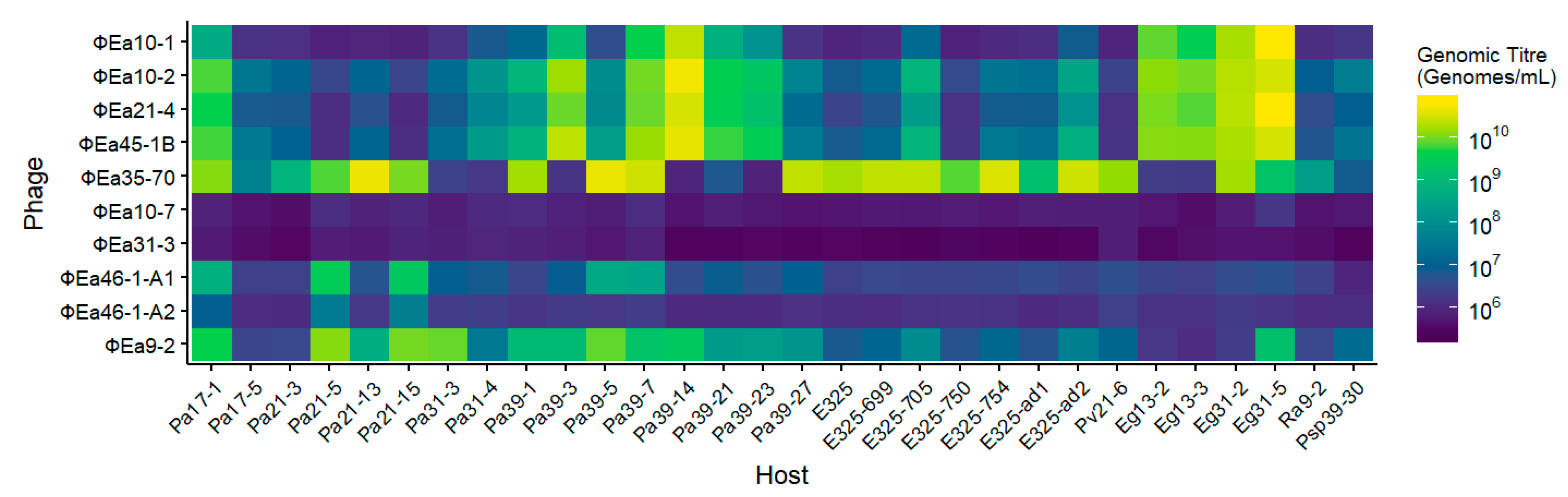

Figure 3. Host range of 10 E. amylovora phages against 30 strains of P. agglomerans and other epiphytic bacteria. The growth of phage is indicated by color, where yellow shows phage grew to 1011 genomes/mL and blue indicates no growth beyond the initial titer of 106 genomes/mL after 8 h incubation. All hosts were initially identified as P. agglomerans through detection with PCR primers and subsequently corrected with genomic sequence data. Host species are indicated by their initial lettering: Pa and E325 (P. agglomerans); Pv (P. eucalypti); Eg (E. gerundensis); Ra (R. aquatilis); Psp (Pantoea sp.). Indicated titers are the geometric mean of three replicates.
Figure 3. Host range of 10 E. amylovora phages against 30 strains of P. agglomerans and other epiphytic bacteria. The growth of phage is indicated by color, where yellow shows phage grew to 1011 genomes/mL and blue indicates no growth beyond the initial titer of 106 genomes/mL after 8 h incubation. All hosts were initially identified as P. agglomerans through detection with PCR primers and subsequently corrected with genomic sequence data. Host species are indicated by their initial lettering: Pa and E325 (P. agglomerans); Pv (P. eucalypti); Eg (E. gerundensis); Ra (R. aquatilis); Psp (Pantoea sp.). Indicated titers are the geometric mean of three replicates.
Microorganisms 08 01449 g003
Microorganisms 08 01449 g004 550

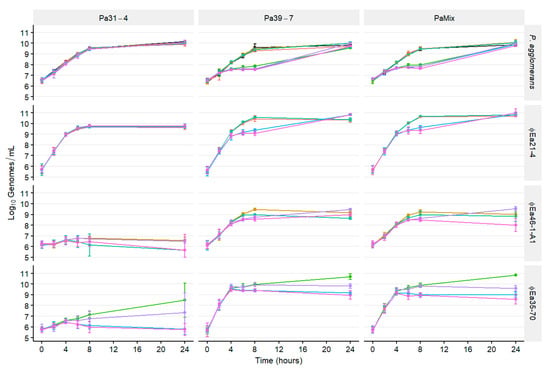

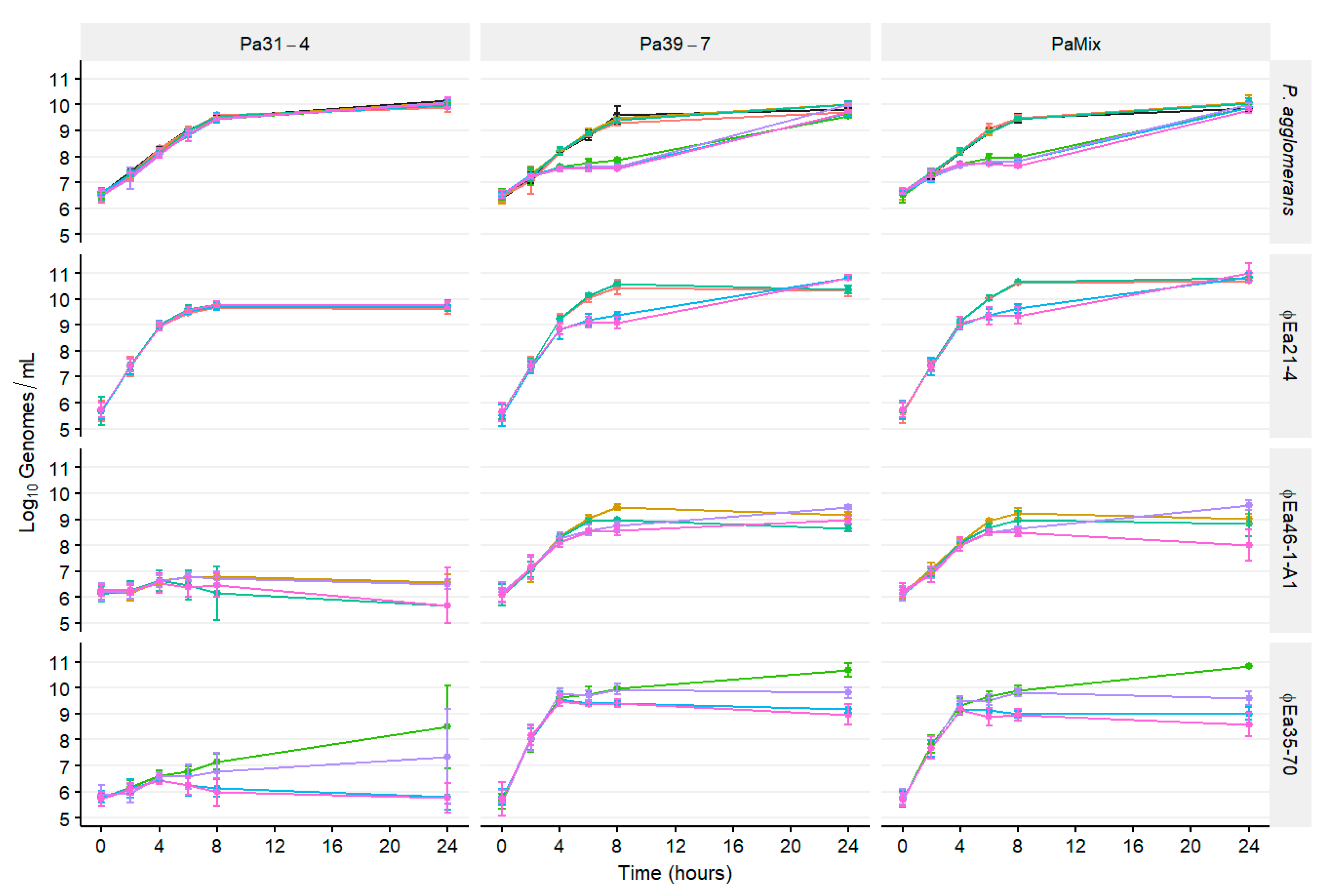

Figure 4. Populations over time of P. agglomerans cultures infected with different phage combinations. The infected strains Pa31-4, Pa39-7, and an equal combination of both (PaMix) are indicated in the top banners. The banners on the right indicate the host or phage quantified. Each host was infected by all possible phage combinations, which are indicated by color: ϕEa21-4 (●), ϕEa46-1-A1 (●), ϕEa35-70 (●), ϕEa21-4 + ϕEa46-1-A1 (●), ϕEa21-4 + ϕEa35-70 (●), ϕEa46-1-A1 + ϕEa35-70 (●), ϕEa21-4 + ϕEa46-1-A1 + ϕEa35-70 (●), no phage (●). Genomic titers of P. agglomerans and each phage were determined with qPCR. Data are the mean ± SD of three replicates.
Figure 4. Populations over time of P. agglomerans cultures infected with different phage combinations. The infected strains Pa31-4, Pa39-7, and an equal combination of both (PaMix) are indicated in the top banners. The banners on the right indicate the host or phage quantified. Each host was infected by all possible phage combinations, which are indicated by color: ϕEa21-4 (●), ϕEa46-1-A1 (●), ϕEa35-70 (●), ϕEa21-4 + ϕEa46-1-A1 (●), ϕEa21-4 + ϕEa35-70 (●), ϕEa46-1-A1 + ϕEa35-70 (●), ϕEa21-4 + ϕEa46-1-A1 + ϕEa35-70 (●), no phage (●). Genomic titers of P. agglomerans and each phage were determined with qPCR. Data are the mean ± SD of three replicates.
Microorganisms 08 01449 g004
Microorganisms 08 01449 g005 550
Figure 5. Effect of MOI on the growth of PaMix over 24 h. PaMix was grown with no phage, or infected with the three phages ϕEa21-4, ϕEa46-1-A1, and ϕEa35-70, each at an MOI of 1 (3ϕ) or at 10, 1, and 0.01, respectively (3ϕMOI). The banners on the right indicate the host or phage quantified. Genomic titers of P. agglomerans and each phage were determined with qPCR. Data are the mean ± SD of three replicates. The missing data point for ϕEa35-70 at 0 h (●) was below the limit of detection.
Figure 5. Effect of MOI on the growth of PaMix over 24 h. PaMix was grown with no phage, or infected with the three phages ϕEa21-4, ϕEa46-1-A1, and ϕEa35-70, each at an MOI of 1 (3ϕ) or at 10, 1, and 0.01, respectively (3ϕMOI). The banners on the right indicate the host or phage quantified. Genomic titers of P. agglomerans and each phage were determined with qPCR. Data are the mean ± SD of three replicates. The missing data point for ϕEa35-70 at 0 h (●) was below the limit of detection.
Microorganisms 08 01449 g005
Microorganisms 08 01449 g006 550

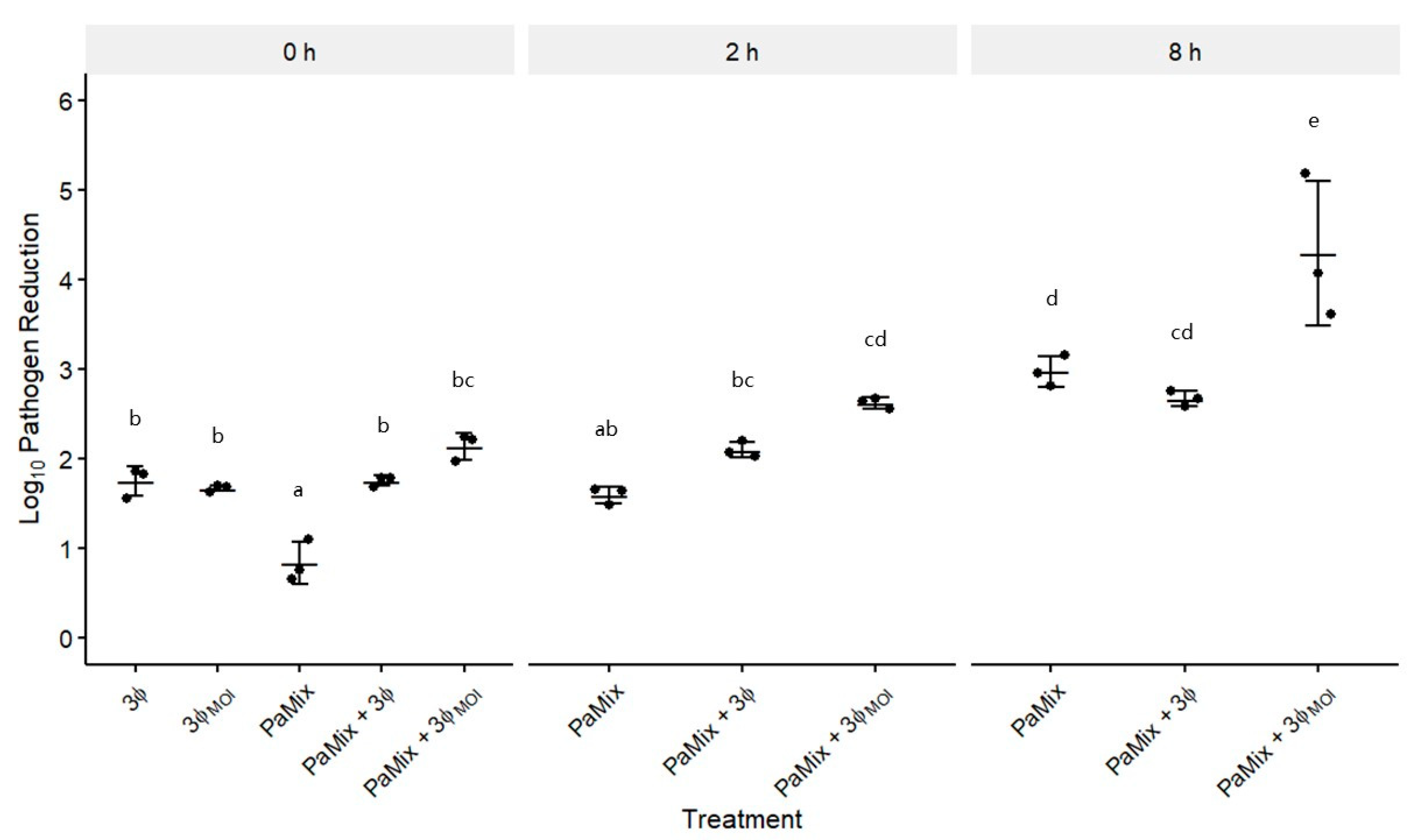

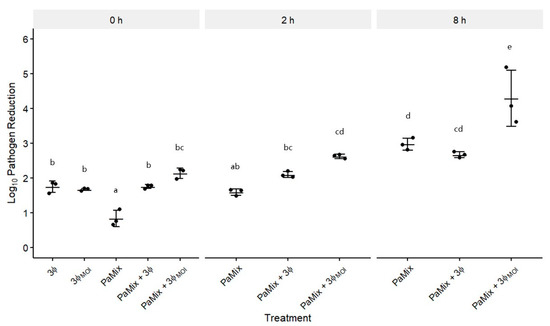

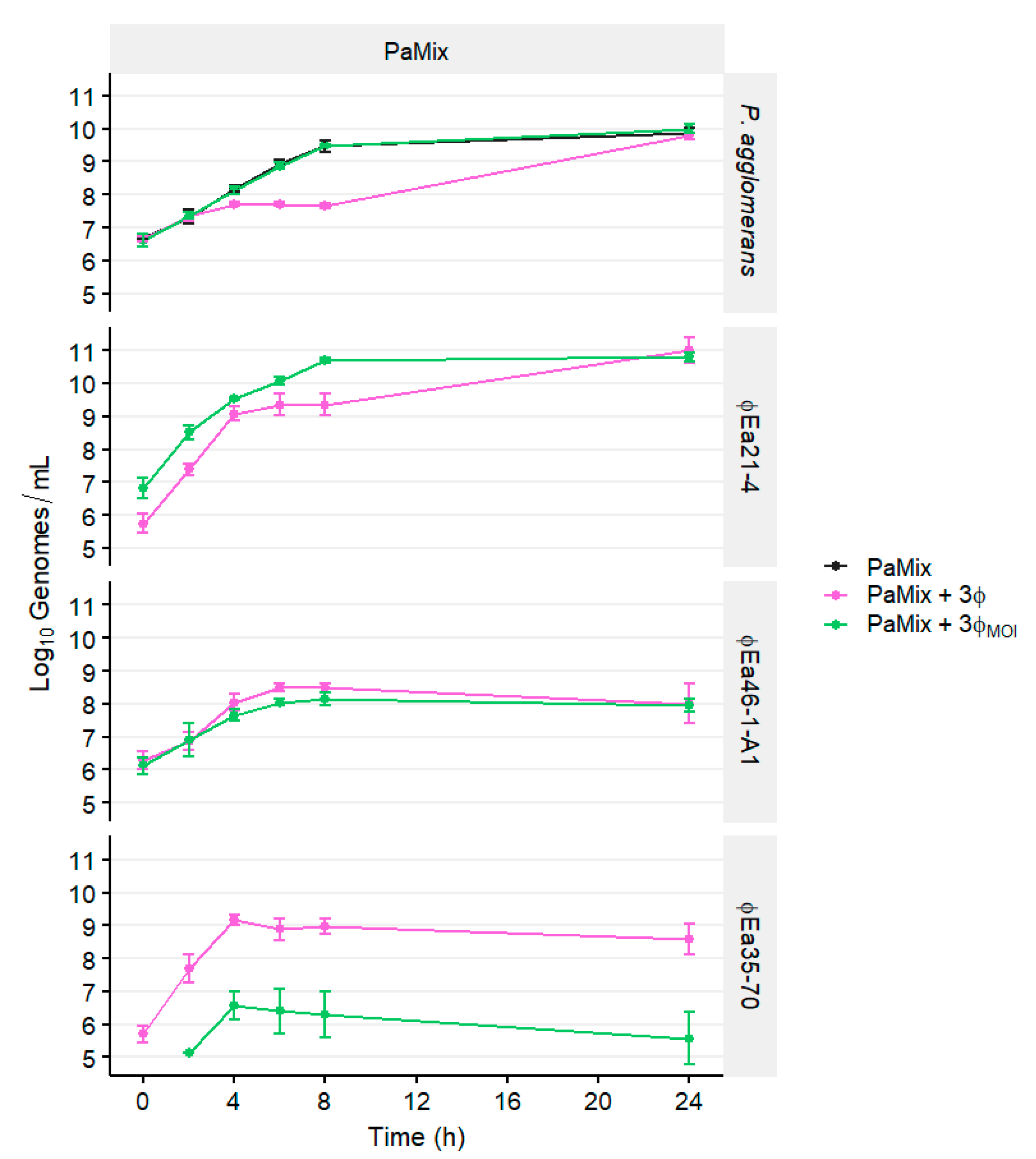

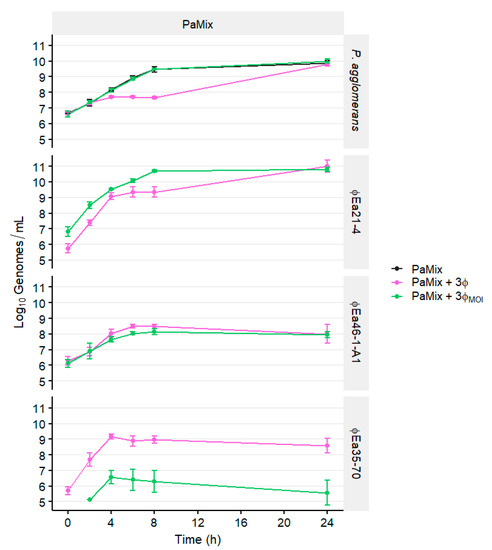

Figure 6. Effect of a designed MOI on the efficacy of PaMix and phage treatment at controlling E. amylovora. Treatments were grown for 0 (co-inoculated), 2, or 8 h before EaMix inoculation. The three phages ϕEa21-4, ϕEa46-1-A1, and ϕEa35-70, each at an MOI of 1 (3ϕ) or at 10, 1, and 0.01, respectively, (3ϕMOI) were tested alone at 0 h or with PaMix at each time comparison. E. amylovora populations were measured 24 h after inoculation, and reduction was relative to EaMix growth alone. Data are the mean ± SD of three replicates.
Figure 6. Effect of a designed MOI on the efficacy of PaMix and phage treatment at controlling E. amylovora. Treatments were grown for 0 (co-inoculated), 2, or 8 h before EaMix inoculation. The three phages ϕEa21-4, ϕEa46-1-A1, and ϕEa35-70, each at an MOI of 1 (3ϕ) or at 10, 1, and 0.01, respectively, (3ϕMOI) were tested alone at 0 h or with PaMix at each time comparison. E. amylovora populations were measured 24 h after inoculation, and reduction was relative to EaMix growth alone. Data are the mean ± SD of three replicates.
Microorganisms 08 01449 g006
Microorganisms 08 01449 g007 550

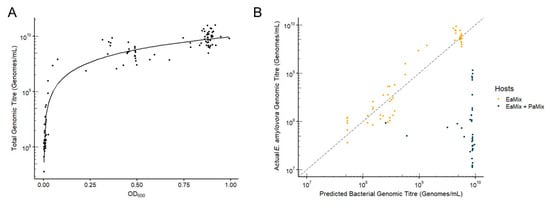

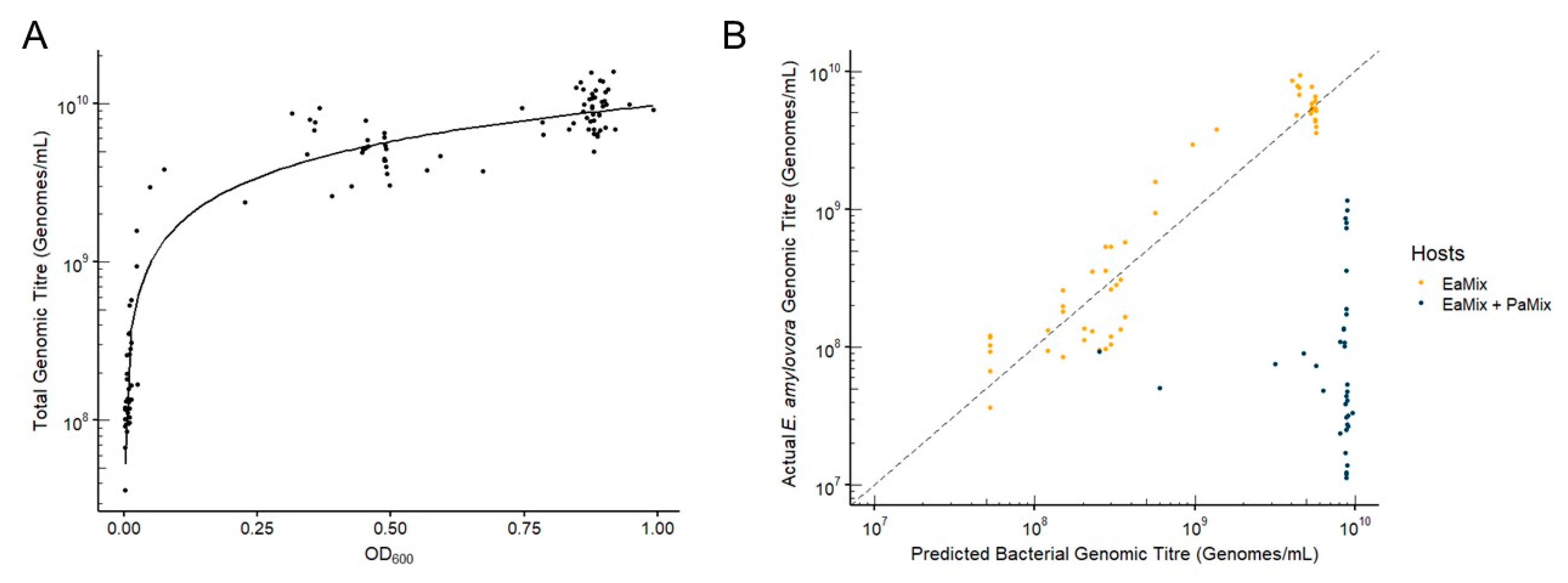

Figure 7. Correlation between OD600 and qPCR for quantification of E. amylovora in liquid culture. (A) A regression of total bacterial genomes (E. amylovora + P. agglomerans) in solution compared to OD600 was used to show the correlation and accuracy of qPCR (R2 = 0.93). (B) The regression was used to calculate the predicted titer of bacterial genomes on the basis of the OD600 of the solution, and this was compared to the actual qPCR-determined titer of E. amylovora genomes when E. amylovora was the only bacterium in solution (●) and when P. agglomerans was also present (●). The dotted line represents a 1:1 correlation between the predicted bacterial genomic titer calculated from the OD600 and the qPCR titer of E. amylovora.
Figure 7. Correlation between OD600 and qPCR for quantification of E. amylovora in liquid culture. (A) A regression of total bacterial genomes (E. amylovora + P. agglomerans) in solution compared to OD600 was used to show the correlation and accuracy of qPCR (R2 = 0.93). (B) The regression was used to calculate the predicted titer of bacterial genomes on the basis of the OD600 of the solution, and this was compared to the actual qPCR-determined titer of E. amylovora genomes when E. amylovora was the only bacterium in solution (●) and when P. agglomerans was also present (●). The dotted line represents a 1:1 correlation between the predicted bacterial genomic titer calculated from the OD600 and the qPCR titer of E. amylovora.
Microorganisms 08 01449 g007
Table
Table 1. Strains of bacteria used in this study.
Table 1. Strains of bacteria used in this study.
StrainAccession NumberReference
Erwinia amylovora
Ea17-1-1JAAEVW000000000[16]
EaD7JAAEUT000000000[16]
Ea6-4JAAEVD000000000[16]
Ea29-7JAAEVM000000000[16]
20060013JAAEXH000000000[16,27]
20070126JAAEXF000000000[16,27]
Pantoea agglomerans
Pa17-1JACSXN000000000[28]
Pa17-5JACSXM000000000[28]
Pa21-3JACSXL000000000[28]
Pa21-5JACSXK000000000[28]
Pa21-13JACSXI000000000[28]
Pa21-15JACSXH000000000[28]
Pa31-3JACSXF000000000[28]
Pa31-4JACSXE000000000[28]
Pa39-1JACSXC000000000[28]
Pa39-3JACSXB000000000[28]
Pa39-5JACSXA000000000[28]
Pa39-7JACSWZ000000000[28]
Pa39-14JACSWY000000000[28]
Pa39-21JACSWX000000000[28]
Pa39-23JACSWW000000000[28]
Pa39-27JACSWV000000000[28]
E325JACSWT000000000[14]
E325-699JACSWS000000000[14]
E325-705JACSWR000000000[14]
E325-750JACSWQ000000000[14]
E325-754JACSWP000000000[14]
E325-ad1JACSWO000000000[14]
E325-ad2JACSWN000000000[14]
Pantoea eucalypti
Pv21-6JACSXJ000000000[28]
Erwinia gerundensis
Eg13-2JACSXP000000000[28]
Eg13-3JACSXO000000000[28]
Eg31-2JACSXG000000000[28]
Eg31-5JACSXD000000000[28]
Rahnella aquatilis
Ra9-2JACSXQ000000000[28]
Pantoea sp.
Psp39-30JACSWU000000000[28]
Table
Table 2. Phages used in this study.
Table 2. Phages used in this study.
PhageFamilyGenusSpeciesAccession Number aPropagation HostReference
ϕEa10-1MyoviridaeKolesnikvirusErwinia virus Ea214NAEa17-1-1[29]
ϕEa10-2 NAEa6-4[29]
ϕEa21-4 NC_011811.1Ea6-4[29,30]
ϕEa45-1B NAEa6-4[29]
ϕEa35-70 AgricanvirusErwinia virus Ea35-70NC_023557.1Pa39-7[29,31]
ϕEa10-7PodoviridaeEracentumvirusErwinia virus Era103NAEa29-7[29]
ϕEa31-3 NAEa29-7[29]
ϕEa46-1-A1 NAEaD7[29]
ϕEa46-1-A2 NAEaD7[29]
ϕEa9-2 JohnsonvirusErwinia virus Ea9-2NC_023579.1Ea17-1-1[29]
NA: No accession number available, genomes are not deposited. a The accession number for ϕEra103 is NC_009014.1.

Share and Cite

MDPI and ACS Style

Gayder, S.; Parcey, M.; Nesbitt, D.; Castle, A.J.; Svircev, A.M. Population Dynamics between Erwinia amylovora, Pantoea agglomerans and Bacteriophages: Exploiting Synergy and Competition to Improve Phage Cocktail Efficacy. Microorganisms 2020, 8, 1449. https://doi.org/10.3390/microorganisms8091449

AMA Style

Gayder S, Parcey M, Nesbitt D, Castle AJ, Svircev AM. Population Dynamics between Erwinia amylovora, Pantoea agglomerans and Bacteriophages: Exploiting Synergy and Competition to Improve Phage Cocktail Efficacy. Microorganisms. 2020; 8(9):1449. https://doi.org/10.3390/microorganisms8091449

Chicago/Turabian Style

Gayder, Steven, Michael Parcey, Darlene Nesbitt, Alan J. Castle, and Antonet M. Svircev. 2020. "Population Dynamics between Erwinia amylovora, Pantoea agglomerans and Bacteriophages: Exploiting Synergy and Competition to Improve Phage Cocktail Efficacy" Microorganisms 8, no. 9: 1449. https://doi.org/10.3390/microorganisms8091449

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
