Transcriptome Profiling of Potato (Solanum tuberosum L.) Responses to Root-Knot Nematode (Meloidogyne javanica) Infestation during A Compatible Interaction

by
Teresia N. Macharia
,
Daniel Bellieny-Rabelo
† and
Lucy N. Moleleki
*
Department of Biochemistry, Genetics and Microbiology, Forestry and Agricultural Biotechnology Institute, University of Pretoria, Pretoria 0002, South Africa
*
Author to whom correspondence should be addressed.
†
Current address: Department of Ecology and Environmental Sciences, Umea University, 90187 Umea, Sweden.
Microorganisms 2020, 8(9), 1443; https://doi.org/10.3390/microorganisms8091443
Submission received: 17 August 2020 / Revised: 4 September 2020 / Accepted: 10 September 2020 / Published: 21 September 2020
(This article belongs to the Section Plant Microbe Interactions)
Browse Figures
Review Reports Versions Notes

Abstract

:
Root-knot nematode (RKN) Meloidogyne javanica presents a great challenge to Solanaceae crops, including potato. In this study, we investigated transcriptional responses of potato roots during a compatible interaction with M. javanica. In this respect, differential gene expression of Solanum tuberosum cultivar (cv.) Mondial challenged with M. javanica at 0, 3 and 7 days post-inoculation (dpi) was profiled. In total, 4948 and 4484 genes were detected, respectively, as differentially expressed genes (DEGs) at 3 and 7 dpi. Functional annotation revealed that genes associated with metabolic processes were enriched, suggesting they might have an important role in M. javanica disease development. MapMan analysis revealed down-regulation of genes associated with pathogen perception and signaling suggesting interference with plant immunity system. Notably, delayed activation of pathogenesis-related genes, down-regulation of disease resistance genes, and activation of host antioxidant system contributed to a susceptible response. Nematode infestation suppressed ethylene (ET) and jasmonic acid (JA) signaling pathway hindering JA/ET responsive genes associated with defense. Genes related to cell wall modification were differentially regulated while transport-related genes were up-regulated, facilitating the formation of nematode feeding sites (NFSs). Several families of transcription factors (TFs) were differentially regulated by M. javanica infestation. Suggesting that TFs play an indispensable role in physiological adaptation for successful M. javanica disease development. This genome-wide analysis reveals the molecular regulatory networks in potato roots which are potentially manipulated by M. javanica. Being the first study analyzing transcriptome profiling of M. javanica-diseased potato, it provides unparalleled insight into the mechanism underlying disease development.

1. Introduction

Potato, Solanum tuberosum (L), belongs to the Solanaceae family, which comprises several economically important crops such as tomato, pepper, aubergine, and tobacco. Plant parasitic nematodes, particularly root-knot nematodes (RKNs) are among the most destructive and economically important pests of potatoes worldwide [1,2]. In this context, Meloidogyne spp. are obligate and highly polyphagous pests that form an intricate relationship with their host, causing drastic morphological and physiological changes in plant cell architecture [3].
A typical life cycle of RKNs spans between 4–6 weeks depending on the nematode species and environmental conditions. Following the embryonic phase, the infective second-stage juveniles (J2s) hatch from the egg. At 3 dpi, the nematodes have already penetrated the host root tips and migrating towards the elongation zone [4]. At this stage, the J2s select target cells to initiate reprogramming of host cells to giant cells (GCs). The nematodes are completely dependent on the induced GCs for their supply of nutrients. During the induction stage, the parasitic J2 abandons its migratory lifestyle, becomes sedentary to concentrate on feeding, development, and reproduction [5]. As the GCs enlarge, surrounding cells undergo rapid division causing swelling of roots and discontinuity of the vascular tissue. The sedentary nematode further molts into J3 and J4 stages, and finally into the adult stage when the nutrient acquisition stage commences from 7 dpi onwards. At the nutrient acquisition, the developing nematode, GCs, and surrounding tissue all contribute to the formation of typical RKN symptoms. These symptoms resemble large tumor-like galls that are readily visible to the naked eye [5]. Analogous to other plant pathogens, nematode secretions play a crucial role in manipulation of the host cellular function. Secreted molecules suppress host defense to initiate a successful infection process, including the establishment and maintenance of NFSs [6]. In the genus Meloidogyne, several effectors have been reported such as MiLSE5, which interferes with host metabolic and signaling pathways, or MjTTL5, Misp12, and MgGPP, which suppress the host immune responses facilitating successful nematode parasitism [7].
Due to their capability to infest plant species from diverse families, RKN species pose a great challenge to crop production globally [8]. In 2014, 22 species of RKN were reported in Africa causing damage to various vegetable and field crops. For decades, the use of nematicides has been effective in managing RKN populations. However, their usage is coupled with adverse effects on the ecosystem. This has led to the withdrawal of the most effective nematicides from the agro-markets, further aggravating crop losses due to RKN [9]. Plant host resistance through the use of resistant cultivars is an effective and environmentally safe alternative method of controlling RKN species [9]. Nevertheless, the current cultivated potato cultivar lacks resistance against RKN [10]. Thus, studies involving plant–nematode interactions will deepen our understanding of the molecular regulatory networks associated with resistance or susceptibility. The insights drawn from such studies will be useful in breeding programs to develop novel target-specific control strategies against nematodes.
RNA-Sequencing has become a powerful instrument for gene expression profiling and detection of novel genes [11,12] which has been used widely to study the expression profiles of RKN diseased Solanaceae plants [13,14]. RNA-seq profiling has been used to decipher potato responses to various abiotic [15,16] and biotic stresses [17,18] where large sets of genes and pathways associated with either biotic and abiotic stress were revealed. To date, most research has focused on potato gene expression in response to potato cyst nematodes [19,20,21] while potato responses to RKN infestation remain poorly understood. Here, we set out to evaluate the molecular basis of Potato-RKN compatible interaction, we employed RNA-Seq to analyze differential gene expression patterns in S. tuberosum cv. Mondial subjected to M. javanica infestation at two early stages (3 and 7 dpi).

2. Materials and Methods

2.1. Plant Material and Meloidogyne javanica Inoculations

Certified potato seed (tubers) of seven South African commercial potato cultivars were evaluated for resistance to M. javanica under greenhouse conditions. The seed tubers were pre-germinated in the dark 20 ± 3 °C for seven days to allow sprouting. Stocks of M. javanica were originally obtained from Dr. Pofu (ARC Roodeplaat, Pretoria, South Africa) and maintained on a susceptible tomato cultivar, S. lycorpersicum cv. Floradade in the glasshouse at 24–30 °C, for eight weeks. M. javanica eggs were extracted from infested roots as described [22]. Egg suspension was poured onto an extraction tray for the collection of second-stage juvenile (J2s) nematodes. Five-week-old potato seedlings were inoculated with 1000 freshly hatched J2s per plant and control plants mock-inoculated with sterile water. Taylor et al. [23] ranking scale was used to determine susceptibility while Sasser et al. [24] reproduction factor (RF) formula was used to assess the host status of potato cultivars. For RNA experiments, whole root tissues of a compatible potato cultivar were collected at 0, 3, and 7 days post-inoculation (dpi) with two biological replicates per time point. Samples were washed and immediately frozen in liquid nitrogen to prevent RNA degradation and later stored at −80 °C until RNA extraction.

2.2. RNA Extraction, Library Preparation, and Sequencing

RNA extraction, library preparation, and sequencing were carried out at Novogene (HK) Company Limited. Total RNA for individual time course and replicates was extracted using TiaGen extraction kit (Biotech Beijing Co., Ltd., Beijing, China) and treated with sigma DNase1 (D5025). RNA degradation and contamination was measured on 1% agarose gel while RNA purity was assessed using the NanoPhotometer® spectrophotometer (IMPLEN, Westlake Village, CA, USA). RNA concentration and integrity were assessed using Qubit® RNA Assay kit in Qubit® 2.0 Fluorometer (Life Technologies, Carlsbad, CA, USA) and RNA Nano 6000 Assay Kit of the Bioanalyzer 2100 system (Agilent Technologies, Santa Clara, CA, USA), respectively. Three micrograms of RNA samples were used as input for library construction. Libraries were constructed using NEBNext® Ultra™ RNA Library Prep Kit for Illumina® (NEB, Ipswich, MA, USA) according to the manufacturer’s instructions and index codes were added to attribute sequences to each sample. Finally, PCR products were purified using AMPure XP system and quality of the library assessed using the Agilent Bioanalyzer 2100 system. A cBot Cluster Generation System using HiSeq PE Cluster Kit cBot-HS (Illumina) was used to cluster the index-coded samples. After cluster generation, the library preparations were sequenced on an Illumina Hiseq platform 2500 generating 150-bp paired-end reads.

2.3. Transcriptomic Data Analysis

Quality analysis of sequenced reads were initially analyzed using FASTQC package (https://www.bioinformatics.babraham.ac.uk/projects/fastqc). Clean reads were obtained by removing reads containing adapter reads with poly-N and low-quality reads from raw data. Trimming of low-quality regions was performed using Trimmomatic v 0.36 [25]. All the subsequent downstream analyses were based on high-quality data. Solanum tuberosum genome v4.03 [26] was used for reference-guided mapping of RNA-seq reads. Paired-end clean reads were aligned to the potato genome using hisat2 v 2.1.0 software [27]. Unmapped reads were progressively trimmed at the 3′end and re-mapped to the genome. Next, featureCounts package [28] was used to perform raw-reads counts in R environment (https://www.r-project.org/). The read counts were then used for differential expression analysis using edgeR package [29]. Further, to investigate the responses at different time points (3 dpi and 7 dpi), the expression profiles were compared to mock-inoculated (0 dpi) data sets. The transcripts were then classified as differentially expressed genes (DEGs) based on both (a) false discovery rate (FDR) [30] cut-off of 0.05 and (b) log2 fold change ≥ 1 or ≤−1 for induced and repressed genes, respectively.

2.4. Gene Ontology (GO) and Enrichment Analysis

The GO and enrichment analysis were performed using agriGO v.2.0 [31] and categorized by WEGO v 2.0 tool [32]. Parametric gene set enrichment analysis based on differential expression levels (log2 fold change) was performed and FDR correction was performed using the default parameters to adjust the p-value. Functional annotations and pathway analyses were obtained through sequence search performed on eggNOG database utilizing eggmapper [33]. Annotations from eggNOG were then integrated with Kyoto Encyclopedia of Genes and Genomes (KEGG) database to reach pathway annotation level. In addition, we used MapMan software to visualize the biotic stress pathway to identify the genes that are known to be part of the cascade of defense signals in response to pathogen or pest invasion [34].

2.5. Validation for DEGs by qRT-PCR

For qRT-PCR, first-strand cDNA was done from total RNA using Superscript IV First-Strand cDNA Synthesis SuperMix Kit (Invitrogen, Carlsbad, CA, USA) following manufacturer’s protocol. Quantitative real-time PCR was performed using SYBR Green Master Mix in the QuantStudio 12k Flex Real-Time PCR system (Life Technologies, Carlsbad, CA, USA) to validate DEGs. Two micrograms of the sample (concentration) were added to 5 μL of Applied Biosystems SYBR Green Master Mix and primers at a concentration of 0.4 μM. The amplification cycle consisted of the following: initial denaturation at 50 °C for 5 min and 95 °C for 2 min followed by 45 cycles of 95 °C for 15 s and 60 °C for 60 s. Each sample was run in triplicates. Specific qRT-PCR primers for six target genes were designed using an online tool Prime-Blast (http://www.ncbi.nlm.nih.gov/tools/primer-blast) (Table S1). Each sample was run in triplicates. The 18S rRNA and elongation factor 1-α (PGSC0003DMG400020772,ef1α), [35] were used as the reference genes for normalization, and the mock-treated samples used as calibrators. The comparative 2−∆∆Ct method was used to determine the relative fold change according to Schmittgen and Livak [36]. Despite the two techniques (RNA-seq and qRT-PCR) being different, the expression patterns of selected genes upon nematode infestation was consistent between the two procedures (Figure S1).

2.6. Data Access

Both raw and processed sequencing data have been deposited to the Gene Expression Omnibus (GEO) repository at the National Center for Biotechnology Information (NCBI) with accession no. GSE134790.

2.7. Statistical Analyses

To identify differentially expressed genes with significant differences between the control (0 dpi) and 3 and 7 dpi infestation stages, statistical analyses were performed in R environment using edgeR package. The p-values were corrected using the Benjamini and Yekutieli [30] approach.

3. Results and Discussion

3.1. Analysis of Meloidogyne javanica Infestation and Functional Annotation of Differentially Expressed Genes

To establish whether Solanum tuberosum cv. Mondial is susceptible or tolerant to M. javanica, five-week-old potato plants were inoculated with 1000 J2s eggs and the control mock-inoculated with sterile water. At eight weeks post-inoculation, the results showed that S. tuberosum cv. Mondial plants infested with M. javanica have a reproduction factor (Rf > 1) of 3.11 and galling index of 5 (Figure 1A).
Based on the GI (>100 per root system) S. tuberosum cv. Mondial potato cultivar was classified as highly susceptible. Figure 1B,C illustrate mature galls at eight weeks after inoculation exhibited either as single or egg masses, confirming M. javanica infectivity and ability to reproduce and complete their life cycle on this potato cultivar.
To understand the molecular basis of this compatible interaction between M. javanica and S. tuberosum cv. Mondial, RNA sequencing was performed at two infestation stages: 3 and 7 dpi. These time points correspond to nematode stages of induction of feeding sites at 3 dpi and nutrient acquisition stage that starts from 7 dpi to 8 weeks after infestation [5]. Approximately 1.3 billion paired-end reads were generated yielding an average of 23 million high-quality reads for individual samples. Successfully mapped reads onto the S. tuberosum reference genome (v4.03) [26] accounted for 78–86% of the total number of reads generated per sample (Table S2). Log2 fold change ≥ ±1 and adjusted p-value (FDR) < 0.05 were used as cut off values to obtain DEGs through pairwise comparison between the mock-inoculated and infested samples at 3 and 7 dpi. Overall, 4948 genes were differentially expressed at 3 dpi. Of these, 2867 were down-regulated and 2081 up-regulated. At 7 dpi, fewer genes (4484) were differentially expressed compared to 3 dpi. The number of down-regulated genes at 7 dpi (2871) was similar to that observed at 3 dpi (2867); however, there were 22% fewer genes up-regulated at 7 dpi compared to those at 3 dpi (Figure 2A and Table S3).
Collectively, 3108 genes were differentially regulated at both 3 and 7 dpi: 2069 down- and 1022 up-regulated. For both time points, a total of 3652 out of 6324 (57.75%) of the DEGs were down-regulated compared to only 42.25% which were up-regulated (Figure 2A,B and Table S3). One possible explanation of this scenario is that down-regulation of genes might be essential for proper formation of galls induced by RKN as reported previously by Jammes et al. [37]. Secondly, as an obligate biotroph, M. javanica establishes an intricate relationship with its host; therefore, a larger suppression of defense-related genes is also plausible.
GO enrichment analyses revealed the main regulatory trends in root tissues in response to M. javanica infestation. The GO terms were grouped into three main functional categories at adjusted p-value < 0.05 and categorized using WEGO software [32]. Within the biological process class, the highest percentage of the DEGs was down-regulated and fell under metabolic process category. Within this category, we found the following sub-categories: Primary and cellular metabolic process, biosynthetic and oxidation-reduction process as well as regulation of metabolic processes. Other significant GO terms in this category include response to stimulus, cellular process, localization and signalling processes, and regulation of biological processes (Figure 3 and Table S4).
Further, MapMan analysis using the biotic stress overview classified potato genes putatively involved in mediating responses to nematode attack. A total of 1471 and 1408 genes at 3 and 7 dpi, respectively, belonging to hormone signaling, cell wall organization, proteolysis, redox homeostasis, signaling, transcriptional regulation as well as defense-related genes (secondary metabolites, PR proteins, heat shock proteins, and proteinase inhibitors) were found to be under differential regulation following M. javanica infestation (Figure 4A,B).
Genes related to redox state, signaling, beta-glucanase and cell wall displayed similar expression patterns at both stages 3 and 7 dpi. Genes encoding for peroxidases, ERF, and WRKY were down-regulated mostly at 7 dpi compared to the 3-dpi infestation stage. Genes related to secondary metabolism and proteolysis exhibited a general up-regulation at 3 dpi in comparison to 7dpi (Figure 4A,B).

3.2. Pathogen Perception and Regulation of Defense Response Genes by Meloidogyne javanica Infestation

Plant recognition of M. javanica presence, migration, and feeding is the initial step in triggering activation of downstream signaling cascades to induce defense responses. Large arsenals of plant receptors are responsible for recognition of phytonematodes and subsequent induction of basal plant defenses [38,39]. Eight genes encoding for membrane-localized proteins, mildew resistance locus o (MLO) family protein were down-regulated at 3 and/or 7 dpi (Figure 5, Table S5).
Additionally, an important group of pattern recognition receptors (PRRs) was differentially regulated with the highest proportion down-regulated (62.86% of 175 genes). These include leucine-rich repeat receptor-like protein kinase (LRR-RLK), receptor-like protein kinases (RLP), and wall-associated receptor kinases (WAKs) (Table S5) indicating the importance of PRRs in mediating plant immunity to M. javanica. Among the down-regulated LRR-RLK genes were two genes encoding for BAK1-interacting receptor-like kinase 1. Further, we found an LRR-RLK encoding gene, polygalacturonase inhibiting protein 2 (PGIP 2) down-regulated 7-fold at 3 dpi and 4-fold at 7 dpi (Figure 5 and Table S5). In addition to suppression of a cell wall-associated kinase, plant elicitor peptides (PEP1 receptor, three genes) encoding genes that perceive damage-associated molecular proteins (DAMPs) were down-regulated at both 3 and 7 dpi (Figure 5 and Table S5). These results suggest that M. javanica likely interferes with DAMP-mediated immunity subduing activation defense response.
Transmission of perceived signals from the PRRs is mediated through the MAPK cascade and calcium (Ca2+) signaling pathway which transfers downstream components of plant immunity. In this regard, we found the expression of MAPKs genes was largely repressed (9 out of 11 genes) by nematode infestation (Figure 5 and Table S5). Furthermore, M. javanica repressed 88% of the genes involved in Ca2+ signaling pathway (66 out of 75 genes) (Table S5).
The intracellular nucleotide-binding domain leucine-rich repeat (NBS-LRR) proteins are important in recognizing PPNs effectors leading to effector-triggered immunity. The majority of these NBS-LRR proteins are a major class of disease resistance (R) proteins encoding resistance R-genes [39]. In the current study, we identified 32 genes encoding for either toll-interleukin 1 receptor (TIR) domain or coiled-coil (CC), which are the two subgroups of NBS-LRR proteins. Of these, 20 genes were down-regulated at 3 and/or 7 dpi following nematode infestation interfering with the host immune response (Figure 5 and Table S5).
PTI activation is associated with expression of pathogenesis-related (PR) proteins which defense-related genes expressed upon infection by diverse pathogens including nematode pests. These PR proteins contribute to systemic acquired resistance (SAR) and are induced through the action of signaling compounds such as SA, JA, and ET [40]. Generally, we detected a delayed activation of the PR genes as the majority of the PR encoding genes were up-regulated at 7 dpi (Figure 5 and Table S5). This could reflect a strategy adopted by the M. javanica to suppress defense response associated with PR proteins at early stages of invasion to ensure successful nematode infection. However, the induction of these PR proteins at 7dpi could have other roles in mediating a successful M. javanica infestation. For instance, we identified nine genes coding osmotin34 (PR-5), where 7 genes were up-regulated at 7 dpi (Figure 5 and Table S5). Additionally, 11 genes encoding basic chitinase and chitinase-like family protein (PR-3 and PR-4) were detected with nine genes up-regulated at 7dpi (Figure 5 and Table S5).
Rapid generation of reactive oxygen species (ROS) is one of the early PTI cellular events that trigger several defense responses such as activation of several defense genes and cell wall reinforcement [39]. In this study, respiratory burst homolog (RBOHs) and Riboflavin synthase-like superfamily which are important players in production of ROS in plants, were down-regulated both at 3 and/or 7 dpi (Figure 5 and Table S5). In a resistant tomato genotype, ROS was strongly induced in response to RKN infestation mediating the R-gene resistant response [41]. Moreover, genes coding for peroxidases (50 genes) were detected mostly down-regulated (70%) during disease development. Emerging evidence shows that RKN can utilize the host ROS scavenging system to reduce the damaging effects of oxygen species [42,43]. Here, we detected one gene encoding for peroxiredoxin (PGSC0003DMG401002721), the main detoxifying antioxidant enzyme in the plant–nematode interface [44], being up-regulated at both time points. Glutathione S transferase (GSTs) encoding genes were also identified in this study. The majority of these were up-regulated at both time points (of these, 19 genes out of 25 were up-regulated (Figure 5 and Table S5).
The production of anti-nematode compounds in the form of secondary metabolites play a critical role in induced plant immune responses against PPNs [39]. Analysis of genes related to secondary metabolism alterations was revealed in phenlyprononaids, lignin, flavonoids, isoprenoid, and phenols biosynthetic pathways (Figure S2). The three genes encoding for key enzymes (phenylalanine ammonia-lyase (PAL), cinnamate 4-hydroxylase (CH4), and 4-coumarate CoA-ligase 2 (4CL) essential for the synthesis of phenylpropanoids and downstream synthesis of other metabolites such as flavonoids, lignin, and SA [45] were down-regulated in this study (Table S5). Other downstream genes detected to be differentially regulated include chalcone synthase, chalcone-flavone, and cinnamyl alcohols dehydrogenase involved in flavonoids and lignin pathway (Table S5). This can imply that nematode interacts with phenylpropanoid metabolism to interfere with defense compounds that originate from this biosynthetic pathway.
Further, genes encoding for enzymes involved in isoprenoid biosynthetic pathway such as hydroxymethylglutaryl-CoA synthase and hydroxy methylglutaryl CoA reductase 1 were identified with more genes detected at 7 dpi than 3 dpi. A higher proportion of these genes were largely up-regulated, 34 out of 48 genes (Table S5). Studies show that isoprenoids have various key roles in plant physiology including synthesis of key phytohormones (cytokinins, abscisic acid, gibberellins, and brassinosteroids) as well as plant defense compounds [46]. Taken together, we can hypothesize that M. javanica alters isoprenoid biosynthetic pathway to modulate hormone signaling which determines the outcome of plant–nematode interaction as reviewed by Gheysen and Mitchum [47]. Furthermore, up-regulation of genes related to secondary metabolism suggests mounting of a defense response as a result of damage caused by M. javanica feeding.

3.3. Nematode Responsive Phytohormones and Transcription Factors

Plant hormones are key players in mediating plant defense following nematode attack. Similarly, in this study M. javanica infestation influenced the expression of several genes associated with the synthesis and signaling of JA, SA, ET, auxin, abscisic acid (ABA), and brassinosteroids (BR) (Figure 4 and Figure 6).
The salicylic acid pathway is effective against biotrophic parasites while JA and ET pathway synergy is associated with enhanced resistance against necrotrophic microbes and herbivorous insects [48]. In this study, 9 out of 12 genes associated with SA biosynthesis were up-regulated (Figure 6A). Moreover, genes encoding for PR-1 (five genes) a robust marker of SA responsive genes expression were up-regulated at 3 and/or 7 dpi (Figure 5D and Table S5), indicating activation of systemic induced resistance. Genes encoding for enzymes involved in the JA synthesis allene oxide synthase (AOS 2 genes), allene oxide cyclase (AOC, one gene), lipoxygenase (LOX, four genes), and 12-oxophytodienoate (12-OPR, three genes) were down-regulated at both time points (Figure 6B and Table S5). Consequently, down-regulation of LOX and 12-OPR enzymes might have played a role in initiating a susceptible interaction through interfering with JA-mediated defense pathway. The LOX pathway mediates resistance against phytopathogens including nematodes [49]. Plants incapable of producing JA or 12-oxo-phytodieonoic acid (OPDA) are more susceptible to phytonematodes [50]. Moreover, four protease inhibitors coding genes were down-regulated in this study at 3 and 7 dpi (Figure 5D and Table S5). Jasmonic acid enhances expression of protease inhibitors which prevent proteolytic activity of the insect’s enzymes to debilitate their growth and reproduction. Nematodes essentially, depend on proteases to acquire nutrients as their source of food [47]. Hence, it is likely that JA plays a role in mediating defense against M. javanica. The antagonistic effect of SA on the JA pathway is often expressed at the gene transcription level, where SA targets the JA signaling. For instance, WRKY50 plays a role in SA mediated suppression [48] was up-regulated in the current study (Figure 7C and Table S5). Furthermore, TGA, sub-class of basic leucine zipper (bZIP) family of TFs are important molecular players in mediate JA suppression through SA. In this study, two genes coding for TGA4 were up-regulated (Table S5) further signifying suppression of JA pathway through induction of SA signaling pathway. Taken together, we can deduce that M. javanica adopts the strategy of targeting the SA pathway which concurrently suppresses JA-dependent defense responses resulting in potato susceptibility.
In addition to suppression of JA defense pathway, genes involved in ET synthesis, 1-aminocyclopropane-1-carboxylate synthase, and 1-aminocyclopropane-1-carboxylate were differentially regulated in this study with 4 and 5 genes down-regulated, respectively (Figure 7C and Table S5). We also detected a gene encoding for ETHYLENE RESPONSE SENSOR 1 up-regulated (Figure 7C and Table S5) which acts as negative regulators of ET responses suggesting ET suppression. Previous research demonstrated that ET inhibits RKN infestation, probably through a decrease in nematode attraction to the roots [47]. In the same way, rice resistant plants show more up-regulation of ET biosynthesis and response genes than susceptible plants infested with RKN [14,51].
Transcriptional reprogramming is a key hallmark of plant innate immunity. Members of several families of TFs (WRKY, bZIP, bHLH, NAC, MYB, and AP2/ERF) are well-known in regulating plant immune response [52]. In this study, we detected differential regulation of genes encoding for ERF, WRKY, MYB, bZIP, and DOF family of TFs among others (Figure 7A). Classification and identification of the differentially expressed TFs was attained from the Plant Transcription Factor Database (http://planttfdb.cbi.pku.edu.cn/ v.4.0) [53]. Most of the differentially expressed TFs in the current data set were down-regulated (298/532) after nematode infestation (Table S6). The importance of TFs in mediating potato disease resistance to Pectobacterium brasiliense 1692 and Phytophthora infestans infestation has been reported previously [17,18]. This is an indication that TFs are key regulators of potato immune response to various biotic stresses.
In this study, most of the genes (70.37%) encoding for AP2/ERF TF family were down-regulated at both 3 and/or 7 dpi. In addition, 15 genes were suppressed to a greater extent at 7 than 3 dpi (Figure 7B and Table S6).
This could be ascribed to the secretion of nematode effectors and subsequent suppression of defense response associated with the activation of AP2/ERF TFs. The ERF subfamily of AP2/ERF TFs are important transcriptional regulators of genes responsive to biotic stress, particularly genes related to the JA and ET hormone signaling pathway [52]. Interestingly, we found three genes encoding for ERF6 up-regulated following M. javanica infestation (Figure 7B and Table S6). This could imply that ERF6 TFs have a negative role in mediating potato susceptibility to M. javanica. Furthermore, seven genes coding for DREB were down-regulated in this study (Figure 7B and Table S6).
It is generally accepted that pathogen-directed modulation of WRKY genes in plants is an important aspect that enhances success rates of pathogen infestation. Cyst nematode’s successful infestation process in A. thaliana roots was attributed to the nematode’s control over the expression of WRKY genes [54]. In agreement with this notion, we found 23 genes down-regulated WRKY-encoding genes, including WRKY40, WRKY23, and WRKY29 both infection stages (Figure 7C and Table S6). The MYB TFs have been characterized as an important regulator of both biotic and abiotic stresses [55]. Among the 34 down-regulated MYB TFs in this study, we found genes encoding for MYB108 (3 genes), MYB105, and MYB 14 at 3 and 7 dpi (Figure 7D and Table S6).
We also identified genes encoding for DNA-binding with one finger (DOF) TFs (14 out 17 genes up-regulated (Figure 7E and Table S6), transcriptional regulators acting on the formation and function of vascular tissues [56]. This further highlights the importance of vascular-related genes in establishment and formation of NFSs, therefore successful M. javanica colonization. Overall, the large number of differentially expressed TFs in this study reflects the complexity associated with plant defense regulation which orchestrates plant immunity leading to physiological alteration of the host to favor M. javanica infestation.

3.4. Cell Wall Organisation and Transport Processes Regulation by Meloidogyne javanica

This study showed that genes related to cell wall synthesis, degradation, modification, and cell wall proteins were differentially expressed following nematode attack (Figure 8A and Table S6).
In addition, genes encoding for hydrolytic enzymes involved in pectin degradation such as polygalacturonase (PG), pectate lyases (PL), and pectin esterase (PE) were differentially expressed at 3 and 7 dpi by nematode infestation (Table S5). Further, genes encoding for pectin methylesterase inhibitor (PMEI) were largely down-regulated (10 out of 12 genes) (Figure 8A and Table S5). More PMEI genes were suppressed at 7 dpi compared to 3 dpi. Repression of PMEI by nematode attack shows that the activity of PME was activated leading to the breakdown of pectin bonds, increasing the vulnerability of the cell wall to microbial pectic enzymes, and other degrading enzymes, culminating to a susceptible response. We also detected xyloglucan endotransglucosylase/hydrolase and expansin encoding genes, cell wall modifying enzymes under differential regulation following nematode attack. Of these, 19 out of 21 genes encoding for xyloglucan endotransglucosylase/hydrolase were suppressed. Two genes (PGSC0003DMG400004670 and PGSC0003DMG400021877) were down-regulated at 3 dpi were up-regulated at 7dpi. Moreover, 4 genes encoding for expansin and expansin-like were precisely up-regulated at 7 dpi (Figure 8A and Table S5). Xyloglucan endotransglucosylase/hydrolase and expansin enzymes have cell wall loosening properties required for plant cell wall expansion during plant development. Therefore, we can hypothesis that M. Javanica induces cell wall modifying enzymes at 7 dpi for expansion and enlargement of GCS a crucial event for nematode development. Further, we identified the alternation of genes related to beta-glucanase, 18 out of 29 genes down-regulated during disease progression (Figure 8A and Table S5). Plant cell wall modification, the deposition of callose a 1,3-β glucan cell wall polymer, is associated with cell wall thickening at the site of pathogen attack acting as a physical barrier derailing further pathogen invasion [57]. Therefore, suppression of beta-glucanase genes is probable to interfere with plant cell wall reinforcement to ward off further nematode invasion, hence successful M. javanica colonization.
With the increased demand for nutrients in nematode feeding cells, nematodes deploy specialized membrane transporters to control the flow of nutrients in and out of the NFS [58]. Several genes encoding for peptide transporters (31 genes), major intrinsic proteins (22 genes), amino acid transporters (32 genes), metabolite transporters (27 genes), and sugar transporters (16 genes) were differentially expressed. Overall, we found that 55.29% of transporter encoding genes in the DEGs were up-regulated following nematode infestation (Figure 8B and Table S5). The activation of genes encoding amino acid transporters (17 genes) and sugar transporters (7 genes) indicates regulation of amino acid and carbohydrate metabolism, respectively. Similarly, the induction of sugar transporters increases soluble sugar content in RKN infested tomato plants, which is crucial for nematode development [59]. Furthermore, multidrug transporter-encoding genes were differentially expressed in our samples which encompasses ATP- binding cassette (ABC, 42 genes) and multidrug and toxin extrusion proteins (MATE, 17 genes) (Figure 8B and Table S5). These results may suggest that M. javanica recruits some of these transporters to flush out toxic secondary metabolites or to disperse nematode effectors produced during the infestation process.

3.5. Regulation of Proteolysis Processes by Meloidogyne javanica

Gene Ontology enrichment analyses showed that genes involved in primary metabolism were overrepresented among the down-regulated genes (Table S5). Protein degradation was among the significantly altered processes involved in metabolism. In this study, genes coding for various classes of proteolytic enzymes were identified as differentially expressed include cysteine proteases, aspartate proteases, AAA-type, metacaspase, metalloprotease, subtilases, and serine proteases. The immense turnover of cellular proteins during nematode feeding can enhance a compatible nematode interaction due to regulation of plant immunity associated with proteolysis process.
Further, we found several genes involved in ubiquitin-proteasome system (UPS), the main protein degradation pathway in a cell. Various classes of E3 ubiquitin ligases enzymes that play a central role during protein ubiquitination process were differentially expressed. This includes SKP1-CUL1-F-box-protein (SCF) and the U-box domain RING finger protein-encoding genes which were co-regulated, 102 down- and 105 genes up-regulated (Table S5). The fact that the UPS regulates degradation of many proteins in the cell affecting various cellular processes such as signal transduction, hormone signaling, and immune responses [60], makes it an attractive target for pathogen virulence factors including nematode effectors [61,62].
Collectively, this study uncovers the molecular networks regulated during compatible interaction between potato and M. javanica. Our results lay a foundation for functional studies in the future for genes highlighted to have a role in mediating susceptibility to M. javanica infestation to reveal their precise role in this interaction. In addition to providing further insights on plant–nematode interactions, further studies in the area development of target-specific control strategies against Meloidogyne species will originate.

Supplementary Materials

The following are available online at https://www.mdpi.com/2076-2607/8/9/1443/s1, Table S1: List of primer used for RT-qPCR for validation of RNA-seq results; Table S2: Mapping summary of RNA-Seq reads from Solanum tuberosum samples using the reference genome (v4.03); Table S3: Differentially expressed genes induced by Meloidogyne javanica at 3 and 7 dpi; Table S4: Gene ontology enrichment analysis; Table S5: Differentially expressed biotic stress-related genes induced by Meloidogyne javanica at 3 and 7 dpi as defined by Mapman analysis; Table S6: Classification of differentially expressed transcription factors; Figure S1: The expression profile of genes experimentally validated using real-time qPCR in response to Meloidogyne javanica infestation; Figure S2: Mapman visualization of genes involved in secondary biosynthetic pathways at (A) 3 dpi and (B) 7 dpi after challenge by Meloidogyne javanica.

Author Contributions

L.N.M. conceived, designed this study, funding acquisition, and supervision. T.N.M. set-up the experiment for nematode inoculations, analyzed and visualized data, and wrote the original draft. D.B.-R. carried out the bioinformatics work. L.N.M. and D.B.-R. revised the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research study was funded by the National Research Foundation (NRF), South Africa through Competitive Funding for Rated Researchers (CFRR) 98993, Bioinformatics and Functional Genomics (BFG) 93685, and Potatoes South Africa (PSA). DB-R was supported by the University of Pretoria Post-Doctoral Fellowship. TM was funded by Potato South Africa and the NRF Scarce Skills/Innovation Scholarships. Any findings and/or recommendations expressed here are those of the author(s) and the NRF does not accept any liability in this regard.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Scurrah, M.; Niere, B.; Bridge, J. Nematode parasites of solanum and sweet potatoes. In Plant Parasitic Nematodes in Subtropical and Tropical Agriculture; CABI: Wallingford, UK, 2005; pp. 193–219. [Google Scholar]
  2. Jones, R.K.; Storey, S.G.; Knoetze, R.; Fourie, H. Nematode pests of potato and other vegetable crops. In Nematology in South Africa: A View from the 21st Century; Springer: Berlin/Heidelberg, Germany, 2017; pp. 231–260. [Google Scholar]
  3. Gheysen, G.; Fenoll, C. Gene expression in nematode feeding sites. Annu. Rev. Phytopathol. 2002, 40, 191–219. [Google Scholar] [CrossRef]
  4. Castaneda, N.E.N.; Alves, G.S.C.; Almeida, R.M.; Amorim, E.P.; Ferreira, C.F.; Togawa, R.C.; Costa, M.M.D.C.; Grynberg, P.; Santos, J.R.P.; Cares, J.E. Gene expression analysis in Musa acuminata during compatible interactions with Meloidogyne incognita. Ann. Bot. 2017, 119, 915–930. [Google Scholar] [PubMed] [Green Version]
  5. Bartlem, D.G.; Jones, M.G.; Hammes, U.Z. Vascularization and nutrient delivery at root-knot nematode feeding sites in host roots. J. Exp. Bot. 2013, 65, 1789–1798. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Hewezi, T.; Baum, T.J. Manipulation of plant cells by cyst and root-knot nematode effectors. Mol. Plant-Microbe Interact. 2013, 26, 9–16. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Vieira, P.; Gleason, C. Plant-parasitic nematode effectors—Insights into their diversity and new tools for their identification. Curr. Opin. Plant Biol. 2019, 50, 37–43. [Google Scholar] [CrossRef] [PubMed]
  8. Sasser, J.; Freckman, D. A world perspective on nematology: The role of the society. In Vistas on Nematology; Society of Nematologists: Hyatsville, MD, USA, 1987; pp. 7–14. [Google Scholar]
  9. Onkendi, E.M.; Kariuki, G.M.; Marais, M.; Moleleki, L.N. The threat of root-knot nematodes (Meloidogyne spp.) in A frica: A review. Plant Pathol. 2014, 63, 727–737. [Google Scholar] [CrossRef] [Green Version]
  10. Dinh, P.T.; Zhang, L.; Mojtahedi, H.; Brown, C.R.; Elling, A.A. Broad Meloidogyne resistance in potato based on RNA interference of effector gene 16D10. J. Nematol. 2015, 47, 71. [Google Scholar] [PubMed]
  11. Wang, Z.; Gerstein, M.; Snyder, M. RNA-Seq: A revolutionary tool for transcriptomics. Nat. Rev. Genet. 2009, 10, 57–63. [Google Scholar] [CrossRef]
  12. Ozsolak, F.; Milos, P.M. RNA sequencing: Advances, challenges and opportunities. Nat. Rev. Genet. 2011, 12, 87–98. [Google Scholar] [CrossRef]
  13. Li, X.; Xing, X.; Tian, P.; Zhang, M.; Huo, Z.; Zhao, K.; Liu, C.; Duan, D.; He, W.; Yang, T. Comparative Transcriptome Profiling Reveals Defense-Related Genes against Meloidogyne incognita Invasion in Tobacco. Molecules 2018, 23, 2081. [Google Scholar] [CrossRef] [Green Version]
  14. Shukla, N.; Yadav, R.; Kaur, P.; Rasmussen, S.; Goel, S.; Agarwal, M.; Jagannath, A.; Gupta, R.; Kumar, A. Transcriptome analysis of root-knot nematode (Meloidogyne incognita)-infected tomato (Solanum lycopersicum) roots reveals complex gene expression profiles and metabolic networks of both host and nematode during susceptible and resistance responses. Mol. Plant Pathol. 2018, 19, 615–633. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Zuluaga, A.P.; Sole, M.; Lu, H.; Gongora-Castillo, E.; Vaillancourt, B.; Coll, N.; Buell, C.R.; Valls, M. Transcriptome responses to Ralstonia solanacearum infection in the roots of the wild potato Solanum commersonii. BMC Genom. 2015, 16, 246. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Gálvez, J.H.; Tai, H.H.; Lagüe, M.; Zebarth, B.J.; Strömvik, M.V. The nitrogen responsive transcriptome in potato (Solanum tuberosum L.) reveals significant gene regulatory motifs. Sci. Rep. 2016, 6, 26090. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Kwenda, S.; Motlolometsi, T.V.; Birch, P.R.; Moleleki, L.N. RNA-seq profiling reveals defense responses in a tolerant potato cultivar to stem infection by Pectobacterium carotovorum ssp. brasiliense. Front. Plant Sci. 2016, 7, 1905. [Google Scholar] [CrossRef]
  18. Yang, X.; Guo, X.; Yang, Y.; Ye, P.; Xiong, X.; Liu, J.; Dong, D.; Li, G. Gene Profiling in Late Blight Resistance in Potato Genotype SD20. Int. J. Mol. Sci. 2018, 19, 1728. [Google Scholar] [CrossRef] [Green Version]
  19. Jolivet, K.; Grenier, E.; Bouchet, J.-P.; Esquibet, M.; Kerlan, M.-C.; Caromel, B.; Mugniéry, D.; Lefebvre, V. Identification of plant genes regulated in resistant potato Solanum sparsipilum during the early stages of infection by Globodera pallida. Genome 2007, 50, 422–427. [Google Scholar] [CrossRef]
  20. Walter, A.J.; Willforss, J.; Lenman, M.; Alexandersson, E.; Andreasson, E. RNA seq analysis of potato cyst nematode interactions with resistant and susceptible potato roots. Eur. J. Plant Pathol. 2018, 152, 531–539. [Google Scholar] [CrossRef] [Green Version]
  21. Kooliyottil, R.; Dandurand, L.-M.; Kuhl, J.C.; Caplan, A.; Xiao, F.; Mimee, B.; Lafond-Lapalme, J. Transcriptome analysis of Globodera pallida from the susceptible host Solanum tuberosum or the resistant plant Solanum sisymbriifolium. Sci. Rep. 2019, 9, 1–8. [Google Scholar] [CrossRef]
  22. Hussey, R. A comparison of methods of collecting inocula of Meloidogyne spp., including a new technique. Plant Dis. Rep. 1973, 57, 1025–1028. [Google Scholar]
  23. Taylor, A.L.; Sasser, J.N. Biology, Identification, and Control of Root-Knot Nematodes (Meloidogyne Species); Dept. of Plant Pathology, North Carolina State University and the United States Agency for International Development: Raleigh, NC, USA, 1978. [Google Scholar]
  24. Sasser, J.N.; Carter, C.C.; Hartman, K.M. Standardization of Host Suitability Studies and Reporting of Resistance to Root-Knot Nematodes; Dept. of Plant Pathology, North Carolina State University: Raleigh, NC, USA, 1984. [Google Scholar]
  25. Bolger, A.M.; Lohse, M.; Usadel, B. Trimmomatic: A flexible trimmer for Illumina sequence data. Bioinformatics 2014, 30, 2114–2120. [Google Scholar] [CrossRef] [Green Version]
  26. Consortium, P.G.S. Genome sequence and analysis of the tuber crop potato. Nature 2011, 475, 189. [Google Scholar]
  27. Kim, D.; Langmead, B.; Salzberg, S.L. HISAT: A fast spliced aligner with low memory requirements. Nat. Methods 2015, 12, 357. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Liao, Y.; Smyth, G.K.; Shi, W. FeatureCounts: An efficient general purpose program for assigning sequence reads to genomic features. Bioinformatics 2014, 30, 923–930. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  29. Robinson, M.D.; McCarthy, D.J.; Smyth, G.K. edgeR: A Bioconductor package for differential expression analysis of digital gene expression data. Bioinformatics 2010, 26, 139–140. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  30. Benjamini, Y.; Yekutieli, D. False Discovery Rate–Adjusted Multiple Confidence Intervals for Selected Parameters. J. Am. Stat. Assoc. 2005, 100, 71–81. [Google Scholar] [CrossRef]
  31. Tian, T.; Liu, Y.; Yan, H.; You, Q.; Yi, X.; Du, Z.; Xu, W.; Su, Z. agriGO v2.0: A GO analysis toolkit for the agricultural community, 2017 update. Nucleic Acids Res. 2017, 45, W122–W129. [Google Scholar] [CrossRef]
  32. Ye, J.; Zhang, Y.; Cui, H.; Liu, J.; Wu, Y.; Cheng, Y.; Xu, H.; Huang, X.; Li, S.; Zhou, A. WEGO 2.0: A web tool for analyzing and plotting GO annotations, 2018 update. Nucleic Acids Res. 2018, 46, W71–W75. [Google Scholar] [CrossRef]
  33. Huerta-Cepas, J.; Forslund, K.; Coelho, L.P.; Szklarczyk, D.; Jensen, L.J.; von Mering, C.; Bork, P. Fast Genome-Wide Functional Annotation through Orthology Assignment by eggNOG-Mapper. Mol. Biol. Evol. 2017, 34, 2115–2122. [Google Scholar] [CrossRef] [Green Version]
  34. Rotter, A.; Usadel, B.; Baebler, Š.; Stitt, M.; Gruden, K. Adaptation of the MapMan ontology to biotic stress responses: Application in solanaceous species. Plant Methods 2007, 3, 10. [Google Scholar] [CrossRef] [Green Version]
  35. Nicot, N.; Hausman, J.F.; Hoffmann, L.; Evers, D. Housekeeping gene selection for real-time RT-PCR normalization in potato during biotic and abiotic stress. J. Exp. Bot. 2005, 56. [Google Scholar] [CrossRef]
  36. Schmittgen, T.D.; Livak, K.J. Analyzing real-time PCR data by the comparative C T method. Nat. Protoc. 2008, 3, 1101. [Google Scholar] [CrossRef] [PubMed]
  37. Jammes, F.; Lecomte, P.; de Almeida-Engler, J.; Bitton, F.; Martin-Magniette, M.L.; Renou, J.P.; Abad, P.; Favery, B. Genome-wide expression profiling of the host response to root-knot nematode infection in Arabidopsis. Plant J. 2005, 44, 447–458. [Google Scholar] [CrossRef]
  38. Teixeira, M.A.; Wei, L.; Kaloshian, I. Root-knot nematodes induce pattern-triggered immunity in Arabidopsis thaliana roots. New Phytol. 2016, 211, 276–287. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Sato, K.; Kadota, Y.; Shirasu, K. Plant Immune Responses to Parasitic Nematodes. Front. Plant Sci. 2019, 10, 1165. [Google Scholar] [CrossRef] [Green Version]
  40. van Loon, L.C.; Rep, M.; Pieterse, C.M. Significance of inducible defense-related proteins in infected plants. Annu. Rev. Phytopathol. 2006, 44, 135–162. [Google Scholar] [CrossRef] [Green Version]
  41. Zhou, J.; Xu, X.C.; Cao, J.J.; Yin, L.L.; Xia, X.J.; Shi, K.; Zhou, Y.H.; Yu, J.Q. Heat Shock Factor HsfA1a Is Essential for R Gene-Mediated Nematode Resistance and Triggers H2O2 Production(1). Plant Physiol. 2018, 176, 2456–2471. [Google Scholar] [CrossRef] [Green Version]
  42. Lin, B.; Zhuo, K.; Chen, S.; Hu, L.; Sun, L.; Wang, X.; Zhang, L.H.; Liao, J. A novel nematode effector suppresses plant immunity by activating host reactive oxygen species-scavenging system. New Phytol. 2016, 209, 1159–1173. [Google Scholar] [CrossRef] [PubMed]
  43. Guan, T.; Shen, J.; Fa, Y.; Su, Y.; Wang, X.; Li, H. Resistance-breaking population of Meloidogyne incognita utilizes plant peroxidase to scavenge reactive oxygen species, thereby promoting parasitism on tomato carrying Mi-1 gene. Biochem. Biophys. Res. Commun. 2017, 482, 1–7. [Google Scholar] [CrossRef]
  44. Goverse, A.; Smant, G. The activation and suppression of plant innate immunity by parasitic nematodes. Annu. Rev. Phytopathol. 2014, 52, 243–265. [Google Scholar] [CrossRef]
  45. Vogt, T. Phenylpropanoid biosynthesis. Mol. Plant 2010, 3, 2–20. [Google Scholar] [CrossRef] [Green Version]
  46. Tarkowská, D.; Strnad, M. Isoprenoid-derived plant signaling molecules: Biosynthesis and biological importance. Planta 2018, 247, 1051–1066. [Google Scholar] [CrossRef] [PubMed]
  47. Gheysen, G.; Mitchum, M.G. Phytoparasitic nematode control of plant hormone pathways. Plant Physiol. 2019, 179, 1212–1226. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Pieterse, C.M.; Van der Does, D.; Zamioudis, C.; Leon-Reyes, A.; Van Wees, S.C. Hormonal modulation of plant immunity. Annu. Rev. Cell Dev. Biol. 2012, 28, 489–521. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  49. Gao, X.; Starr, J.; Göbel, C.; Engelberth, J.; Feussner, I.; Tumlinson, J.; Kolomiets, M. Maize 9-lipoxygenase ZmLOX3 controls development, root-specific expression of defense genes, and resistance to root-knot nematodes. Mol. Plant-Microbe Interact. 2008, 21, 98–109. [Google Scholar] [CrossRef] [Green Version]
  50. Gleason, C.; Leelarasamee, N.; Meldau, D.; Feussner, I. OPDA has key role in regulating plant susceptibility to the root-knot nematode Meloidogyne hapla in Arabidopsis. Front. Plant Sci. 2016, 7, 1565. [Google Scholar] [CrossRef] [Green Version]
  51. Kumari, C.; Dutta, T.K.; Banakar, P.; Rao, U. Comparing the defence-related gene expression changes upon root-knot nematode attack in susceptible versus resistant cultivars of rice. Sci. Rep. 2016, 6, 1–13. [Google Scholar] [CrossRef] [Green Version]
  52. Tsuda, K.; Somssich, I.E. Transcriptional networks in plant immunity. New Phytol. 2015, 206, 932–947. [Google Scholar] [CrossRef]
  53. Jin, J.; Tian, F.; Yang, D.-C.; Meng, Y.-Q.; Kong, L.; Luo, J.; Gao, G. PlantTFDB 4.0: Toward a central hub for transcription factors and regulatory interactions in plants. Nucleic Acids Res. 2016, 45. [Google Scholar] [CrossRef] [Green Version]
  54. Ali, M.A.; Wieczorek, K.; Kreil, D.P.; Bohlmann, H. The beet cyst nematode Heterodera schachtii modulates the expression of WRKY transcription factors in syncytia to favour its development in Arabidopsis roots. PLoS ONE 2014, 9, e102360. [Google Scholar] [CrossRef] [Green Version]
  55. Ambawat, S.; Sharma, P.; Yadav, N.R.; Yadav, R.C. MYB transcription factor genes as regulators for plant responses: An overview. Physiol. Mol. Biol. Plants 2013, 19, 307–321. [Google Scholar] [CrossRef] [Green Version]
  56. Le Hir, R.; Bellini, C. The plant-specific dof transcription factors family: New players involved in vascular system development and functioning in Arabidopsis. Front. Plant Sci. 2013, 4, 164. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Voigt, C.A. Callose-mediated resistance to pathogenic intruders in plant defense-related papillae. Front. Plant Sci. 2014, 5, 168. [Google Scholar] [CrossRef] [PubMed]
  58. Rodiuc, N.; Vieira, P.; Banora, M.Y.; de Almeida Engler, J. On the track of transfer cell formation by specialized plant-parasitic nematodes. Front. Plant Sci. 2014, 5, 160. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  59. Zhao, D.; You, Y.; Fan, H.; Zhu, X.; Wang, Y.; Duan, Y.; Xuan, Y.; Chen, L. The role of sugar transporter genes during early infection by root-knot nematodes. Int. J. Mol. Sci. 2018, 19, 302. [Google Scholar] [CrossRef] [Green Version]
  60. Sharma, B.; Joshi, D.; Yadav, P.K.; Gupta, A.K.; Bhatt, T.K. Role of ubiquitin-mediated degradation system in plant biology. Front. Plant Sci. 2016, 7, 806. [Google Scholar] [CrossRef]
  61. Rehman, S.; Postma, W.; Tytgat, T.; Prins, P.; Qin, L.; Overmars, H.; Vossen, J.; Spiridon, L.-N.; Petrescu, A.-J.; Goverse, A. A secreted SPRY domain-containing protein (SPRYSEC) from the plant-parasitic nematode Globodera rostochiensis interacts with a CC-NB-LRR protein from a susceptible tomato. Mol. Plant-Microbe Interact. 2009, 22, 330–340. [Google Scholar] [CrossRef] [Green Version]
  62. Chronis, D.; Chen, S.; Lu, S.; Hewezi, T.; Carpenter, S.C.; Loria, R.; Baum, T.J.; Wang, X. A ubiquitin carboxyl extension protein secreted from a plant-parasitic nematode Globodera rostochiensis is cleaved in planta to promote plant parasitism. Plant J. 2013, 74, 185–196. [Google Scholar] [CrossRef]
Microorganisms 08 01443 g001 550
Figure 1. Responses of Solanum tuberosum cv. Mondial potato cultivar to Meloidogyne javanica infestation. (A) Reproductive factor and the number of galls induced by Meloidogyne javanica (B) and (C) displays nematode damage on potato roots, the egg masses stained pink and a mature gall, respectively.
Figure 1. Responses of Solanum tuberosum cv. Mondial potato cultivar to Meloidogyne javanica infestation. (A) Reproductive factor and the number of galls induced by Meloidogyne javanica (B) and (C) displays nematode damage on potato roots, the egg masses stained pink and a mature gall, respectively.
Microorganisms 08 01443 g001
Microorganisms 08 01443 g002 550

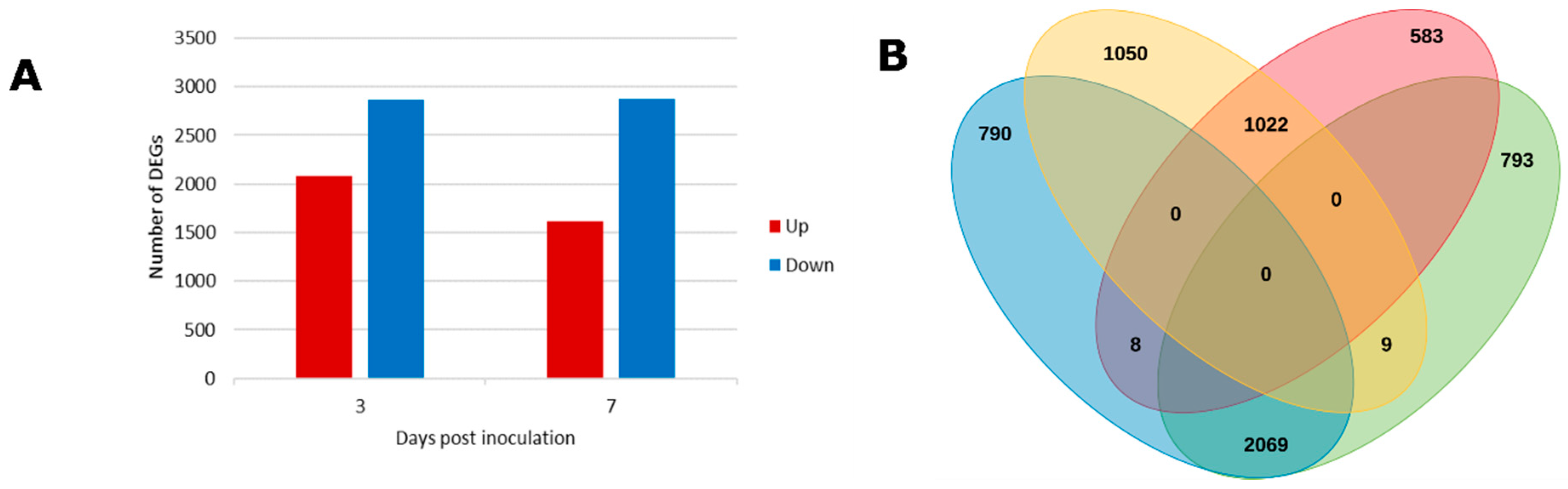

Figure 2. Schematic representation of differentially expressed genes in potato roots following Meloidogyne javanica infestation (A) Number of differentially expressed genes detected at 3 and 7 dpi compared to the mock-inoculated samples. ‘Down’ designates down-regulated genes. ‘Up’ designates up-regulated genes. (B) Venn diagram of the distribution of differentially expressed genes between 3 and 7 dpi. Yellow and blue ovals represent up-regulated and down-regulated differentially expressed genes at 3 dpi, respectively. Red and green ovals indicate the genes up-regulated and down-regulated at 7 dpi, respectively.
Figure 2. Schematic representation of differentially expressed genes in potato roots following Meloidogyne javanica infestation (A) Number of differentially expressed genes detected at 3 and 7 dpi compared to the mock-inoculated samples. ‘Down’ designates down-regulated genes. ‘Up’ designates up-regulated genes. (B) Venn diagram of the distribution of differentially expressed genes between 3 and 7 dpi. Yellow and blue ovals represent up-regulated and down-regulated differentially expressed genes at 3 dpi, respectively. Red and green ovals indicate the genes up-regulated and down-regulated at 7 dpi, respectively.
Microorganisms 08 01443 g002
Microorganisms 08 01443 g003 550
Figure 3. A representation of Gene Ontology analysis demonstrates the percentage of differentially expressed genes enriched within the biological process category.
Figure 3. A representation of Gene Ontology analysis demonstrates the percentage of differentially expressed genes enriched within the biological process category.
Microorganisms 08 01443 g003
Microorganisms 08 01443 g004 550

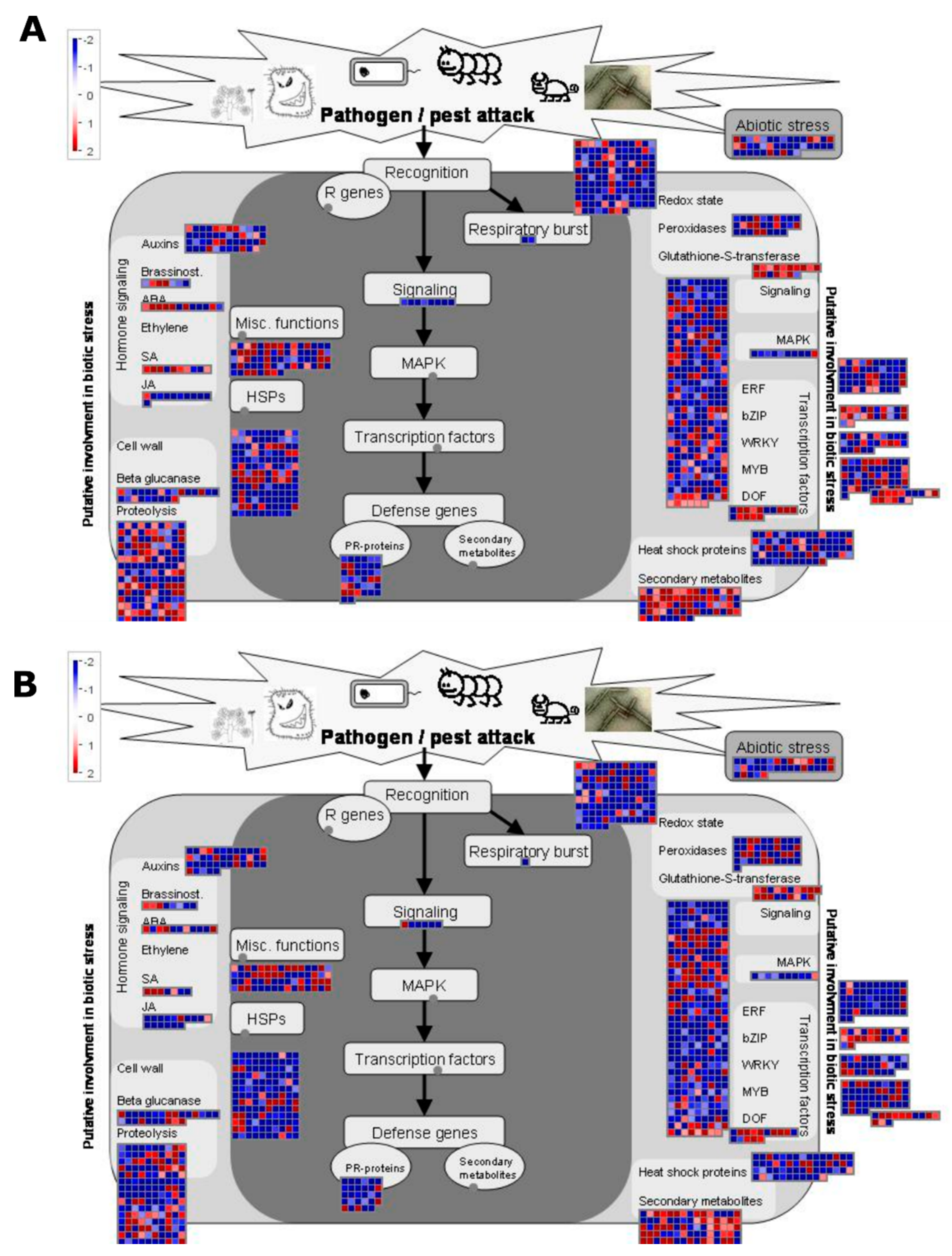

Figure 4. Transcriptional changes during responses of Solanum tuberosum cv. Mondial to Meloidogyne javanica infestation. ManMap visualization of genes related to biotic stress responses at 3 dpi (A) and 7 dpi (B). The modulation of 1471 and 1408 genes at 3 and 7 dpi, respectively, represents a set of genes important for early Meloidogyne javanica parasitism. The color-scale shown on the top left: red, up-regulated, and blue, down-regulated depicts the log2 fold-change of gene expression signal. The grey filled circle represents functional classifications to which no genes were mapped.
Figure 4. Transcriptional changes during responses of Solanum tuberosum cv. Mondial to Meloidogyne javanica infestation. ManMap visualization of genes related to biotic stress responses at 3 dpi (A) and 7 dpi (B). The modulation of 1471 and 1408 genes at 3 and 7 dpi, respectively, represents a set of genes important for early Meloidogyne javanica parasitism. The color-scale shown on the top left: red, up-regulated, and blue, down-regulated depicts the log2 fold-change of gene expression signal. The grey filled circle represents functional classifications to which no genes were mapped.
Microorganisms 08 01443 g004
Microorganisms 08 01443 g005 550
Figure 5. Heat map representation of selected differentially expressed genes associated with pathogen perception (A). Mitogen-activated protein kinase (MAPK) signaling pathways and calcium signaling pathways (B). Oxidative stress (C). Pathogenesis-related proteins and proteinase inhibitors (D). (The heat map illustrates a subset of genes from each group. Refer supporting information for all differentially expressed genes in each group).
Figure 5. Heat map representation of selected differentially expressed genes associated with pathogen perception (A). Mitogen-activated protein kinase (MAPK) signaling pathways and calcium signaling pathways (B). Oxidative stress (C). Pathogenesis-related proteins and proteinase inhibitors (D). (The heat map illustrates a subset of genes from each group. Refer supporting information for all differentially expressed genes in each group).
Microorganisms 08 01443 g005
Microorganisms 08 01443 g006 550

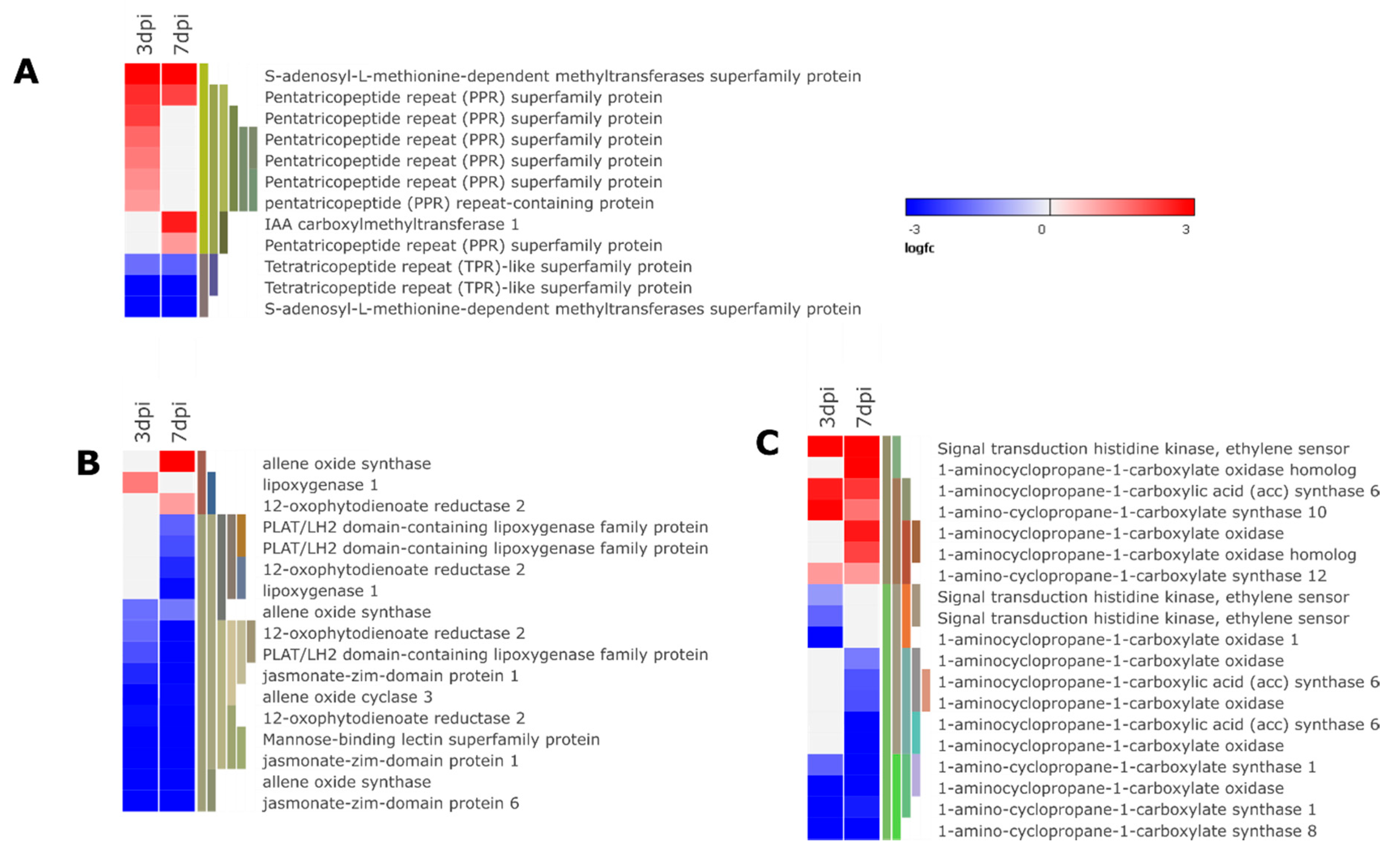

Figure 6. Heat map illustration of differentially expressed genes involved in hormone signal transduction. (A) Salicylic signaling pathway. (B) Jasmonic signaling pathway. (C) Ethylene signaling pathway. (The heat map illustrates a subset of genes from each group. Refer supporting information for all differentially expressed genes in each group).
Figure 6. Heat map illustration of differentially expressed genes involved in hormone signal transduction. (A) Salicylic signaling pathway. (B) Jasmonic signaling pathway. (C) Ethylene signaling pathway. (The heat map illustrates a subset of genes from each group. Refer supporting information for all differentially expressed genes in each group).
Microorganisms 08 01443 g006
Microorganisms 08 01443 g007 550
Figure 7. Heat map representation of differential regulation of transcription factors. (A) Represents various families of TFs under the regulation of Meloidogyne javanica. (B) AP2/ERF family. (C) WRKY family. (D) MYB family. (E) DOF family (The heat map represents a subset of the differentially expressed family of TFs. Refer to supporting information for all transcription factors family displaying differential expression).
Figure 7. Heat map representation of differential regulation of transcription factors. (A) Represents various families of TFs under the regulation of Meloidogyne javanica. (B) AP2/ERF family. (C) WRKY family. (D) MYB family. (E) DOF family (The heat map represents a subset of the differentially expressed family of TFs. Refer to supporting information for all transcription factors family displaying differential expression).
Microorganisms 08 01443 g007
Microorganisms 08 01443 g008 550
Figure 8. Heat map representation of gene expression patterns of genes associated with cell wall architecture (A) and transport activity (B). (The heat map illustrates a subset of genes from each group. Refer to supporting information for all differentially expressed genes in each group).
Figure 8. Heat map representation of gene expression patterns of genes associated with cell wall architecture (A) and transport activity (B). (The heat map illustrates a subset of genes from each group. Refer to supporting information for all differentially expressed genes in each group).
Microorganisms 08 01443 g008

Share and Cite

MDPI and ACS Style

Macharia, T.N.; Bellieny-Rabelo, D.; Moleleki, L.N. Transcriptome Profiling of Potato (Solanum tuberosum L.) Responses to Root-Knot Nematode (Meloidogyne javanica) Infestation during A Compatible Interaction. Microorganisms 2020, 8, 1443. https://doi.org/10.3390/microorganisms8091443

AMA Style

Macharia TN, Bellieny-Rabelo D, Moleleki LN. Transcriptome Profiling of Potato (Solanum tuberosum L.) Responses to Root-Knot Nematode (Meloidogyne javanica) Infestation during A Compatible Interaction. Microorganisms. 2020; 8(9):1443. https://doi.org/10.3390/microorganisms8091443

Chicago/Turabian Style

Macharia, Teresia N., Daniel Bellieny-Rabelo, and Lucy N. Moleleki. 2020. "Transcriptome Profiling of Potato (Solanum tuberosum L.) Responses to Root-Knot Nematode (Meloidogyne javanica) Infestation during A Compatible Interaction" Microorganisms 8, no. 9: 1443. https://doi.org/10.3390/microorganisms8091443

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
