Synthetic Biology Toolkit for a New Species of Pseudomonas Promissory for Electricity Generation in Microbial Fuel Cells

by
Franciene Rabiço
1,†,
Matheus Pedrino
1,†,
Julia Pereira Narcizo
2,
Adalgisa Rodrigues de Andrade
2,
Valeria Reginatto
2 and
María-Eugenia Guazzaroni
1,*
1
Department of Biology, Faculty of Philosophy, Sciences and Letters of Ribeirão Preto, University of São Paulo, Ribeirão Preto 14040-901, Brazil
2
Department of Chemistry, Faculty of Philosophy, Sciences and Letters of Ribeirão Preto, University of São Paulo, Ribeirão Preto 14049-900, Brazil
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Microorganisms 2023, 11(8), 2044; https://doi.org/10.3390/microorganisms11082044
Submission received: 26 June 2023 / Revised: 4 August 2023 / Accepted: 7 August 2023 / Published: 9 August 2023
(This article belongs to the Special Issue Synthetic Biology Applied to Environmental Microorganisms)
Browse Figures
Review Reports Versions Notes

Abstract

:
Microbial fuel cells (MFCs) offer sustainable solutions for various biotechnological applications and are a crucial area of research in biotechnology. MFCs can effectively treat various refuse, such as wastewater and biodiesel waste by decomposing organic matter and generating electricity. Certain Pseudomonas species possess extracellular electron transfer (EET) pathways, enabling them to transfer electrons from organic compounds to the MFC’s anode. Moreover, Pseudomonas species can grow under low-oxygen conditions, which is advantageous considering that the electron transfer process in an MFC typically leads to reduced oxygen levels at the anode. This study focuses on evaluating MFCs inoculated with a new Pseudomonas species grown with 1 g.L−1 glycerol, a common byproduct of biodiesel production. Pseudomonas sp. BJa5 exhibited a maximum power density of 39 mW.m−2. Also, the observed voltammograms and genome analysis indicate the potential production of novel redox mediators by BJa5. Additionally, we investigated the bacterium’s potential as a synthetic biology non-model chassis. Through testing various genetic parts, including constitutive promoters, replication origins and cargos using pSEVA vectors as a scaffold, we assessed the bacterium’s suitability. Overall, our findings offer valuable insights into utilizing Pseudomonas spp. BJa5 as a novel chassis for MFCs. Synthetic biology approaches can further enhance the performance of this bacterium in MFCs, providing avenues for improvement.

1. Introduction

Bioelectrochemical systems (BESs) are an emerging sustainable technology for the simultaneous production of energy and wastewater treatment that has significantly increased during the past fifteen years [1,2]. Applications of BESs include microbial desalination cells (MDCs) for water desalting and microbial fuel cells (MFCs), which use microbial metabolism to generate energy from organic materials. Thus, microorganisms act as catalysts that provide a promising alternative for renewable energy generation [3,4,5,6,7]. Additionally, BESs present unique opportunities for the efficient and clean manufacture of high-value chemicals and fuels employing microorganisms, and, in addition, have great promise for the effective treatment of recalcitrant and harmful contaminants [8]. This process is called bioelectrochemical treatment (BET) or microbial electroremediation [9]. Due to its highly interdisciplinary approach, BESs have produced extensive research in various fields such as microbiology, electrochemistry, bioelectrochemistry, biotechnology, environmental science, and materials science.
BESs systems work from the redox potentials of an oxidation reaction at the anode and a reduction reaction at the cathode providing a potential difference that acts as a catalyst for the spontaneous flow of electrons from a low to a high potential [10]. In addition, when an external voltage is introduced to that system, the electrons flow in the opposite direction from the way they did previously and, as a result, electricity is transformed into chemical energy [11,12]. Microorganisms are called bioanodes and biocathodes, respectively, depending on whether they catalyze anodic or cathodic processes [2,6]. The MFCs, which are the focus of our study, are a specific type of device that produces energy through the decomposition of organic material in the anode component. Bioelectricity is produced when organic material is oxidized at the anode at a low-redox potential and when oxygen is reduced at the cathode at a high-redox potential. The cathode potentials in microbial electrolysis cells (MECs) are subjected to chemical synthesis by the application of an external voltage [13].
MFCs can be classified into two different types, depending on how the electrons are transferred from the microorganisms to the anode. In MFCs that use synthetic mediators, electron carriers are added, while in mediator-free MFCs, no external mediators are added [14]. The exogenous synthetic mediators used to perform electron transfer are usually dyes [15,16,17]. However, toxicity and instability of the added mediators can limit their applications in MFCs [18]. In mediator-free MFCs, microorganisms employ electrochemically active cytochromes that facilitate electron transfer. Among these electrogenic microbes, we can mention Geobacter sp. [19] Shewanella sp. [20], Clostridium sp. [21], Aeromonas sp. [22] and Pseudomonas sp. [23] that can transfer electrons to extracellular electron acceptors such as oxidized metals and electrodes [24]. The extracellular electron transfer rate (EET) can be measured using MFCs, in which electrogenic microorganisms are grown as biofilm on the anode [25,26]. Some bacteria, such as Pseudomonas aeruginosa, are considered weak electrogens, meaning that they are capable of EET at a low rate [27]. In this case, EET is mediated by phenazines and pyoverdines [28].
Pseudomonas is a metabolically versatile genus that can be found in a variety of environments, including soil, water, human tissue and infected animals. As a result, it can grow on a variety of substrates in complex ecosystems and in oxygen-rich and anoxic environments [23]. Some Pseudomonas species, such as P. aeruginosa, are of interest due to their diverse metabolic activity, application in waste treatment generated in production and conversion of biodiesel, and their ability to produce compounds of importance such as antibiotics, siderophores and surfactants [29]. Their electrogenic properties are mainly due to phenazine-type molecules, which undergo reversible redox reactions [14]. Pyocyanin (PYO) is the most well-known phenazine from P. aeruginosa [30,31,32]. Its structure resembles pyoverdines, which are green fluorescent siderophore peptides widely found in the Pseudomonas genus. Pyoverdins are iron chelating molecules that supply this mineral to cells and whose predominant form occurs at neutral pH and in oxygenated environments [33]. While the need for oxygen may limit the use of these microbes in anoxic bioanodes, it was shown that alternating aerobic and anaerobic conditions can be sufficient to induce the production of these EET molecules and the growth of P. aeruginosa biofilm on the electrodes [34].
Due to the production of some natural mediator molecules and the metabolic ability of this microorganism to decompose pollutant oxidizable substrates and recover energy, Pseudomonas sp. are promising biocatalysts, being reported as one of the most representative genera in electrogenic biofilm consortia in MFCs in medium with acetate [35,36] or glycerol [37]. In addition to these natural characteristics, Pseudomonas can be easily modified with several synthetic engineering techniques and tools that can be useful to increase productivity in MFCs, such as increasing power density and current density [23,24,25,26,27,28]. Moreover, by synthetic biology techniques, EET kinetics can be improved, which is useful for microbial anodic electro-respiration and to promote pollutant removal at both the anode and cathode [1]. Additionally, it is possible to stimulate the growth of a biofilm on the electrode, increasing the number of microorganisms that can be used for subsequent catalytic reactions [38]. Moreover, in the context of pollutant decomposition, synthetic biology approaches offer the potential to enhance and regulate the production of enzymes in bacteria that are involved in the breakdown of various pollutants [39].
Here, we evaluated the aptness of a new electrogenic and environmental strain of Pseudomonas sp. named BJa5. In this work, it was seen that Pseudomonas sp. BJa5 has a promising performance in MFCs, so it is important to study the suitability of this strain to be used as a synthetic biology chassis under usual laboratory conditions. Thus, establishing the experimental protocols for the successful use of molecular tools in BJa5 would allow genetically modifying this bacterium, enabling the enhancement of BJa5 function in MFCs. For example, BJa5 could be used as a carrier chassis for synthetic circuits to enhance its external electron transfer capacity by adding or modulating the expression of mediator molecule synthesis operons, such as phenazines and pyoverdines. In the same way, BJa5 could be genetically modified to be more resistant to low oxygen environments and to the presence of toxic chemical compounds by adding genes that confer resistance to biomass hydrolysate inhibitors.

2. Materials and Methods

2.1. Bacteria Strains, Synthetic Biology Tools and Growth Conditions

The Pseudomonas sp. BJa5 strain was prospected from soil localized in Ribeirão Preto, Brazil (21°10′40″ S; 47°48′36″ W). Escherichia coli DH5α and Pseudomonas spp. strains were grown aerobically at 200 rpm and 25 °C, in M9 medium (47.7 mM Na2HPO4, 22 mM KH2PO4, 8.6 mM NaCl2, 18.7 mM NH4Cl, 2 mM, MgSO4, 0.1 mM CaCl2) or in Luria-Bertani (LB) medium, according to the method used in each assay. As appropriate, 50 μg/mL Kanamycin (Km) was added to the media. Bacterial strains and plasmids used in this study are detailed in Table 1.

2.2. Microbial Fuel Cell Design and Operation

The L-shaped, double-chamber MFC was made of glass with an anode compartment volume of 35 mL, containing the working electrode, which consisted of a 9 cm2 carbon cloth suspended by a platinum wire. The 16 cm2 cathode (gas-diffusing layer-type carbon cloth, 0.3 mg cm−2 PtC 40%) was hot-pressed at 130 °C and 35 kgf cm−2 for 180 s with a proton exchanger membrane (Nafion 117), creating an air-breathing cathode. The external circuit was connected to a 2200 Ω resistor and an Arduino Mega 2560 (Arduino, Turin, Italy) microcontroller board (C++ language) coupled to a computer for the acquisition of voltage. There was no control of O2(g) diffusion in the anodic chamber. The culture medium employed was described by [44], containing in (g.L−1): NaHCO3 2.5, Na2HPO4 0.6, NaH2PO4.H2O 0.74, CaCl2.2H2O 0.1, KCl 0.1, NH4Cl 1.5, NaCl 0.1, MgCl2.6H2O 0.1, MgSO4.7H2O 0.1, MnCl2.4H2O 0.005, Na2Mo4.2H2O 0.001, yeast extract 0.05 and glycerol at 1.0 as carbon source.

2.3. Electrochemical Measurements

Cyclic voltammetry (CV) was recorded using AUTOLAB PGSTAT 30 (Metrohm/Eco Chemie, Herisau, Switzerland) potentiostat controlled with NOVA 1.11 software. Analyzes were conducted on the MFC in the presence of an Ag/AgCl reference electrode. The scan speed was set at 20 mV.s−1, and the investigated potential window ranged from −0.6 to 0.6 V.

2.4. Coulombic Efficiency

The Coulombic efficiency (CE) was defined as the ratio of actual charge, which was produced in MFC, to the theoretical possible Coulombs from glycerol. The actual charge or Coulombs (Cp) was determined by integrating the MFC current over time. The theoretical Coulombs (CTi) that can be produced from glycerol was calculated as [45],
C Ti = Fb i S i   v M i
where F is Faraday’s constant (98.485 C/mol of electrons), bi is the number of mol of electrons produced per mol of glycerol (14), Si (g/L) is the consumed substrate concentration, v (L) the anode compartment liquid volume, and Mi the molecular weight of the substrate (92.09 g/mol).
So, the Coulombic efficiency for the MFC was calculated as follows,
CE = Cp C Ti × 100 %

2.5. Transformation of Pseudomonas sp. Strains

Electrocompetent Pseudomonas sp. BJa5 and P. putida KT2440 were prepared after three washes with a solution of 20 mM sucrose. Each strain was cultivated in LB at 30 °C for overnight (16 h). Then, 10 mL of each culture was centrifuged at 16,000 rpm 1 min at 4 °C; cells were washed three times with 5 mL with a cold solution of 20 mM glucose and resuspended in 400 μL of the same solution on ice. All processes were realized at a chill temperature and the electroporation occurred immediately. A 50 μL volume of electrocompetent cells was transformed with 2 ng of plasmid in a MicroPulser Electroporator (BioRad, Sao Paulo, Brazil) using program Ec1 (V = 1.8 kV) and 0.1 mm cuvettes. After electroporation, 950 μL of LB was added and mixed with the freshly transformed cells. Next, cells were incubated for 1 h at 30 °C. Seventy microliters were plated in a LBKm.

2.6. Growth Curves

Pseudomonas sp. BJa5 and P. putida KT2440 were characterized under four carbon sources to compare their metabolic abilities. Single colonies of each strain were cultivated in M9 medium supplemented with sole carbon sources (0.2% acetate, 0.3% benzoate, 1% citrate and 1% glycerol) at 30 °C and 200 rpm for 16 h. Then, each inoculum was diluted at OD600nm ~ 0.05 in a 12-well plate with M9 medium 0.2% acetate, 0.3% benzoate, 1% citrate and 1% glycerol and incubated at 30 °C in a VICTOR® NivoTM Multimode Microplate Reader (Perkin-Elmer, Waltham, MA, USA) for 24 h. OD600nm measurements were taken at each 2 h. The growth curves were constructed using three biological replicates for each strain. The specific growth rates (μ) were calculated for each strain in all conditions tested using the linear method [46,47].

2.7. Plasmid Replication, and Structural and Segregational Stability

In order to design a suitable vector for a broad range of bacterial hosts, the origin of replication must be recognized by them. For this purpose, we evaluated the suitability of origins RK2, pBBR1 and pRO1600 derived from the Standard European Vector Architecture (SEVA) [48] (http://seva.cnb.csic.es/, accessed on 20 March 2023). The pSEVA plasmids are modular vectors that contain three exchangeable modules: replication origin, selection marker, and cargo. For all of the constructs used in this work, the selection marker was Km and the replication origins were as follows: RK2 origin (plasmid pSEVA228), pBBR1 origin (plasmid pSEVA231 and pSEVA232) and pRO1600 origin (plasmid pSEVA247Y). All plasmids were introduced in Pseudomonas spp. by electroporation, and transformation efficiency was determined for each origin of replication.
To determine segregational stability, all the strains were cultivated in LBKm at 30 °C for 16 h, diluted at OD600nm ~ 0.1 in LB without antibiotics, and cultivated at 30 °C for 2, 4, 7 and 24 h. The diluted strains were plated in LB agar at each point. After growth, 12 colonies containing each replication origin for each time were selected from LB plates, then plated on LB with and without Km. Then, the percentage of cells retaining Km resistance was determined. The experiment was performed with three independent replicates using three biological replicates.
The structural stability of plasmids was evaluated from those 12 colonies plated in LBKm at 24 h. For this, three colonies were selected for each construct, and cultivated in LBKm at 30 °C for 16 h. Next, plasmids were extracted, digested with PacI and SpeI restriction enzymes (New England Biolabs Inc., Ipswich, MA, USA), and the restriction patterns were analyzed by electrophoresis on agarose gels.

2.8. Fluorescence Protein (mCherry and GFPlva) Expression in BJa5

For evaluation, the fluorescence protein expression used the vector pVANT and pSEVA231 harboring the mCherry and GFPlva protein, respectively, as previously described by Siqueira, Guazzaroni and Amarelle et al. [42,43]. The pVANT vector was designed using the pSEVA231 with Km as selection marker and pBBR1 replication origin. In order to determine whether Pseudomonas sp. BJa5 recognizes canonical constitutive promoters, we tested BBa_J23100 (Pj100, a high-strength promoter), BBa_J23106 (Pj106, a medium-strength promoter with 50% activity compared to BBa_J23100), and BBa_J23114 (Pj114, a low-strength promoter with 10% activity compared to BBa_J23100) sequences of E. coli (http://parts.igem.org/Promoters/Catalog/Anderson, accessed on 20 March 2023). To construct the reporter vectors, the mCherry gene was cloned between the HindIII and SpeI restriction sites in the pVANT vector and the GFP gene was cloned between the EcoRI and HindIII in the pSEVA231 [43]. After this, the promoters’ sequence was introduced into the plasmid via Gibson assembly. A promoterless vector was used as a negative control (referred as “no pr”). All of the plasmids were introduced by electroporation into Pseudomonas sp. BJa5 and P. putida KT2440.

2.8.1. Promoter Activity as a Function of Genomic Context

Bacterial strains were grown in LBKm at 30 °C for 16 h. All cultures were normalized to an OD600nm ~ 1, and 20 μL drops were spotted in LBKm plates. Cultures were incubated at 30 °C, and promoter activity was observed on spots by red fluorescent protein, derived from DsRed (mCherry). The emission was detected using the Safe Imager 2.0 blue-light transilluminator (Invitrogen, Carlsbad, CA, USA). The experiment was repeated three times with different biological replicates.

2.8.2. Quantification of Promoter Activity

Strains were grown in M9 medium with 1% citrate at 30 °C for 16 h. Next, all cultures were normalized to an OD600nm ~ 0.05 and incubated at 30 °C in a VICTOR® NivoTM Multimode Microplate Reader (Perkin-Elmer) for 6 h. mCherry fluorescence was detected using a 580 nm excitation filter/625 nm emission filter with D500 optical mirrors. Quantitative relative fluorescence was expressed as fluorescence emission normalized by OD (625 nm/OD600nm). Fluorescence analysis was performed using three biological replicates.

2.9. Heterologous Expression of an Endoglucanase Cel5A

The plasmid containing the endoglucanase 5A (Cel5A) from Bacillus subtilis 168 coding sequence was previously constructed by [40] in pSEVA232 as a cloning vector. pSEVA232-Cel5A was introduced in Pseudomonas sp. strains by electroporation and transformants were selected in LBKm plates. An empty vector was used as negative control. To determine the activity of the Cel5A enzyme, a qualitative assay was performed with carboxymethyl cellulose (CCM) and trypan blue. In this assay, Pseudomonas sp. BJa5 and P. putida KT2440 were cultivated in LBKm at 30 °C for 16 h; cell cultures were normalized at OD600nm ~ 1. Drops of 10 μL were placed in LBKm plates, supplemented with 2.5% (w/v) carboxymethyl cellulose and 0.01% (w/v) trypan blue solution [49]. Plates were incubated at 30 °C and Cel5A activity was evidenced as a halo formed around the drops after 48 h. E. coli DH5α strain expressing Cel5A was used as a positive control. The halos of each strain with the Cel5A plasmid were measured and represented in centimeters. The experiment was repeated three times with different biological replicates.

2.10. Genome Sequencing

Total DNA of Pseudomonas sp. BJa5 strain was extracted using the GeneJET Genomic Purification Kit (Thermo Fischer Scientific, Waltham, MA, USA), according to the manufacturer’s instructions. The concentration of DNA was determined fluorometrically using the Qubit® 3.0 (Qubit® dsDNA Broad Range Assay Kit, Life Technologies, Carlsbad, CA, USA). The DNA library was prepared using the Nextera XT DNA Library Prep Kit (Illumina, San Diego, CA, USA), assessed for quality using the 2100 Bioanalyzer (Agilent Genomics, Santa Clara, CA, USA), and subsequently submitted to sequencing using the Illumina HiSeq (2 × 150 bp) platform (Illumina, San Diego, CA, USA). Paired-end reads were trimmed and assembled using SPAdes v.3.15.4 [50,51]. The completeness, quality, and contamination were assessed using Type Strain Genome Server (TYGS) [52]. Draft genomes were annotated using Prokka v.1.14.5. The Pseudomonas sp. BJa5 genome is available at NCBI under GenBank accession number JALRNG000000000.1.
The identification of electrogenic-associated genes (phzA1-B1, phzA2-B2, and pvd) was first performed by gene annotation followed by BLASTn. Subsequently, the gene sequences were extracted, aligned, and compared to reference strain P. aeruginosa PAO1 genome (GenBank accession number AE004091) using Geneious Prime® v. 2023.1.2 (Biomatters Ltd. Auckland, New Zealand).

2.11. Taxonomic Affiliation of Pseudomonas sp. BJa5

The phylogenetic analysis of Pseudomonas sp. BJa5 strain was performed using the whole-genome sequencing data. The phylogenetic identification of the strain was performed using the TYGS platform and the classification was based on Digital DNA-DNA hybridization (dDDH) values [52]. Bootstrap analyses (1000 replicates) were performed to assess the reliability of the inferred branches.

3. Results and Discussion

3.1. Production of Bioelectricity and Electrochemical Activity of Strain BJa5 Is Mediated by Potential New Redox Molecules

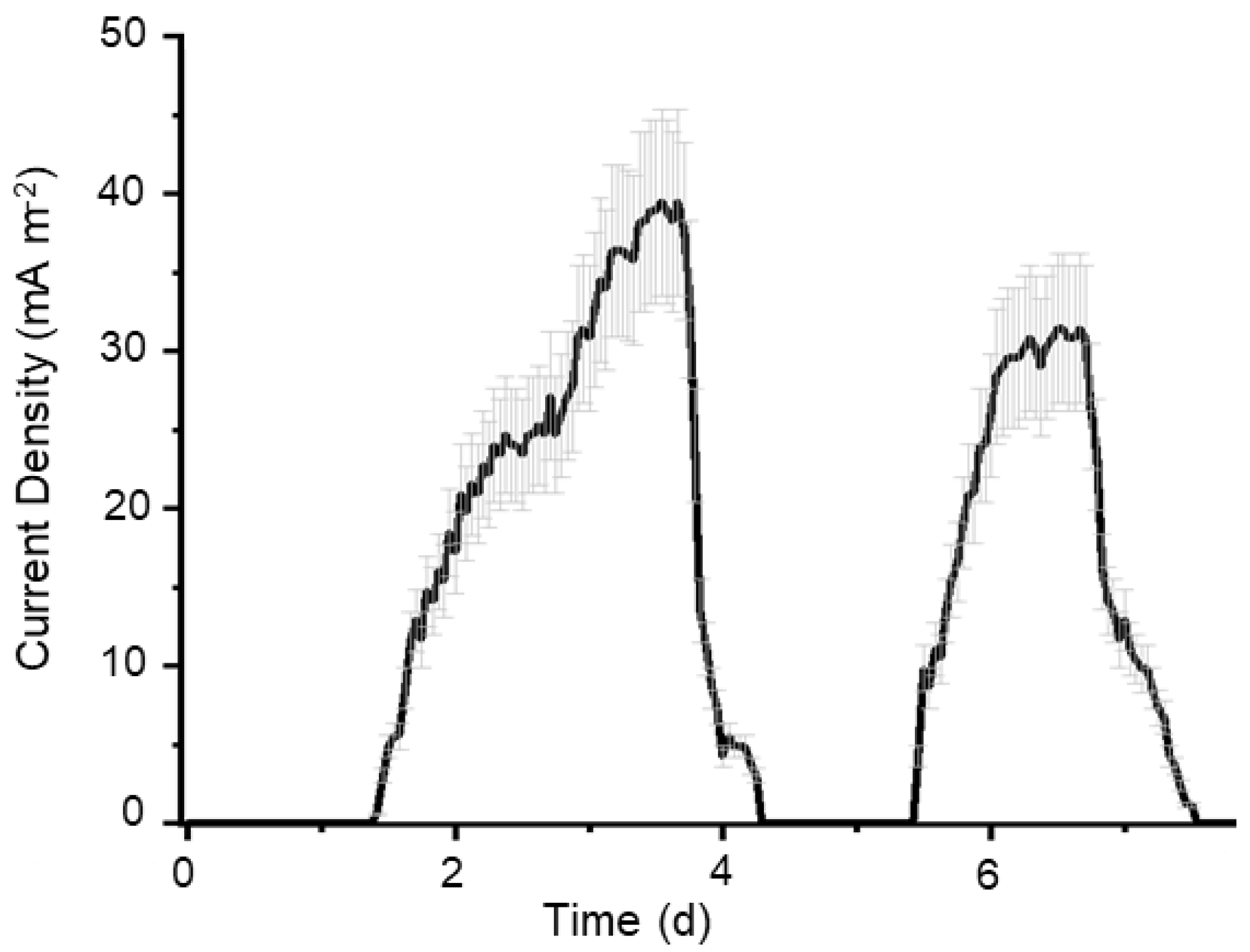

In order to know Pseudomonas sp. BJa5 suitability to transfer electrons from organic compounds to the anode of an MFC, we tested the BJa5 strain as a biocatalyst in MFC fed with glycerol. We monitored the production of electric current in the MFC, with an external resistance of 2200 Ω, during two feeding cycles. In the absence of bacteria, no current was recorded in the MFC. After 24 h from inoculation on the anodic compartment with the strain BJa5, electricity could be recorded (Figure 1). This period might be associated with bacterial growth and the concentration of redox mediators that help in the external transfer of electrons. The average electric current and CE, based on electron recovery from consumed glycerol, during a stable operation cycle of the MFC were, 38.8 ± 5.8 mA.m−2 and 0.6%, respectively.
Several factors affect the performance of an MFC, particularly the electronic transfer mechanism from the biocatalysts to the electrode, substrate type, charge and reactor design [53]. P. aeruginosa is the representative species of the genus Pseudomonas as a biocatalyst in MFCs. For example, Ali et al. (2017) [54] achieved 0.26 mA.m−2 with a P. aeruginosa strain from a domestic sewage using sucrose as carbon source. In another study, Yong et al. (2017) [34] obtained 23 mA.m−2 by testing the strain P. aeruginosa CGMCC1860 with glucose. Thus, glycerol oxidation performed by the BJa5 strain demonstrated promising results compared to those reported for P. aeruginosa, using sugar as substrate. Moreover, glycerol is the main constituent of the most abundant residue generated by biodiesel production [55]. Thus, the possibility to oxidize glycerol in MFC can afford energy generation from a residue, making this an environmentally friendly approach.

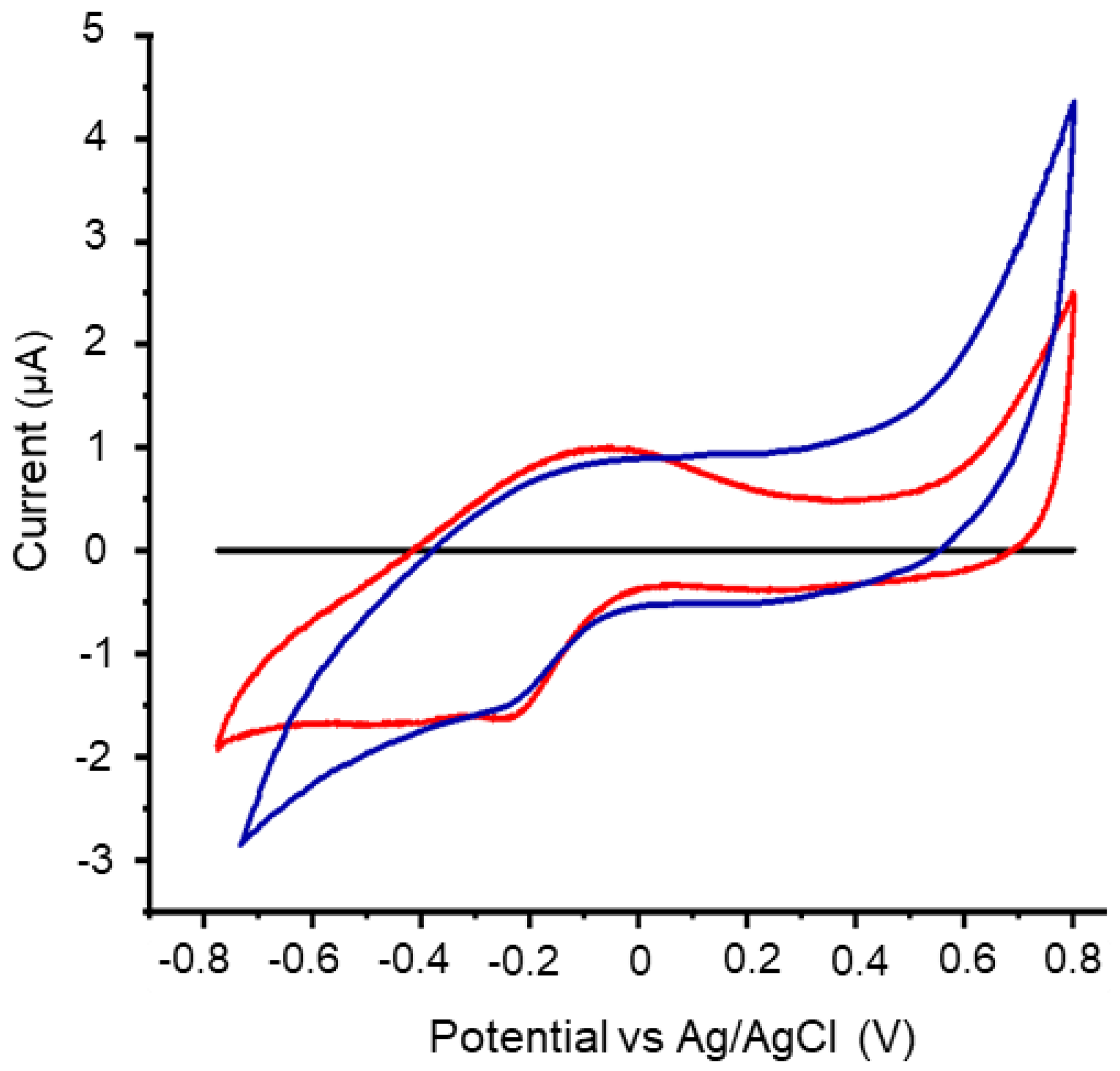

The CV of the anode can shed some light into the electrochemical activity and the electron transfer mechanism of the bacteria to the electrode. Thus, the CV assay was performed in the anodic compartment under two different conditions (Figure 2): first, the anode was clean, without the biofilm, and only the planktonic cells and their metabolites were left in the anodic compartment; and the second condition was with the anode with biofilm in a fresh and sterile medium. In the presence of planktonic cells (Figure 2, red line), the oxidation and reduction peaks were observed at −0.070 and −0.24 V (vs. Ag/AgCl), respectively. When biofilm was used as an anode (Figure 2, blue line), the oxidation peak is less evident, however, occurs at the same potential region observed with the planktonic cells, suggesting a similar electrochemical signal, e.g., electrons are transferred by mediated electron transfer (MET). In MET, redox-active molecules that act as mediators of electron transfer are reduced on the external surface of the cell and oxidized when donating electrons to the electrode [56]. A considerable number of Pseudomonas species produce phenazine derivatives, such as PYO and phenazine-1-carboxamide (PCA) [57], which act as electron carriers [34]. In addition, pyoverdins, a class of yellowish-green siderophores, also exhibit redox properties and were reported as EET mediators in MFC [28]. Unfortunately, the redox signals observed in the voltammograms and the analysis of the BJa5 genome do not suggest that phenazine and pyoverdin are the redox-active species produced by BJa5.
Moreover, we could not identify either the phenazine biosynthesis genes (phzA1-A2, phzB1-B2) and the complete pyoverdine region (pvd locus), which are intimately associated with MET in Pseudomonas genus. On the other hand, we identified the pvdA and pvdQ genes involved, respectively, with chromophore incorporation in siderophores and maturation [58]. PvdA protein acts in cytoplasm giving the basis of PYO incorporating chromophores or other moieties [31]. On the other hand, PvdQ protein is localized in periplasm and participates in biochemical reactions involved in maturation of PYO to a fluorescent-form, culminating in ferribactin production [59]. As we could not identify the pvd genes that act directly in PYO chain biosynthesis, we suggest that pvdA and pvdQ might be accessory genes to produce new redox mediators. Due to broad activity, these genes might act in (i) secondary reactions that generate essential precursors or in (ii) maturation of molecules to produce new redox fluorescent mediators that are not directly associated with classical MET and PYO production. Notably, future efforts must be employed in identifying and elucidating the molecular mechanisms of these potential new redox molecules.

3.2. BJa5 Strain Is a Potential New Pseudomonas Species

Considering the bioelectrochemical potential of strain BJa5 described in MCFs, we decided to obtain more information about this bacterium using genomic approaches. Pseudomonas sp. BJa5 is an environmental isolate obtained from soil samples in the region of Ribeirão Preto, Brazil. The final draft assembly of the genome contained 425 contigs with a mapping coverage of 300×. Also, the genome contains 4978 coding sequences and 71 RNAs, of which 67 were tRNAs, 3 were rRNAs and 1 was tmRNA.
Based on TYGS analysis and digital DNA–DNA hybridization (dDDH) values, we confirmed that BJa5 belongs to the genus Pseudomonas (Figure 3). The Pseudomonas sp. BJa5 is in the same monophyletic group as Pseudomonas vranovensis and closely related to the Pseudomonas alkylphenolica and Pseudomonas hutmensis species with a 100% bootstrap. However, BJa5 genome has a maximum dDDH4 value around 30% when compared with other Pseudomonas sp. genomes (Figure 3). Thus, according to dDDH4 genomic metrics, Pseudomonas sp. BJa5 is a potential new Pseudomonas species [60].
The size and GC content of BJa5 genome was estimated to be, respectively, 5,650,681 Mb and 63.56% (Figure 3). It is considered that both GC content and genome size are important taxonomic markers, especially for genus. Genome size differences vary within genus, as does the corresponding gene content, and in this case, genome size is directly related to the number of coding sequences (CDS). According to the current literature, in Pseudomonas genus, GC content ranges from 48.3% to 68.3% [61,62] and coding genes range from 2803 (genome size 3.03 Mb) to 6895 (genome size 7.38 Mb) [63]. Therefore, both the genome size, CDS number, and GC content of the BJa5 genome are within the expected ranges for bacteria belonging to the genus Pseudomonas.
Microorganisms 11 02044 g003

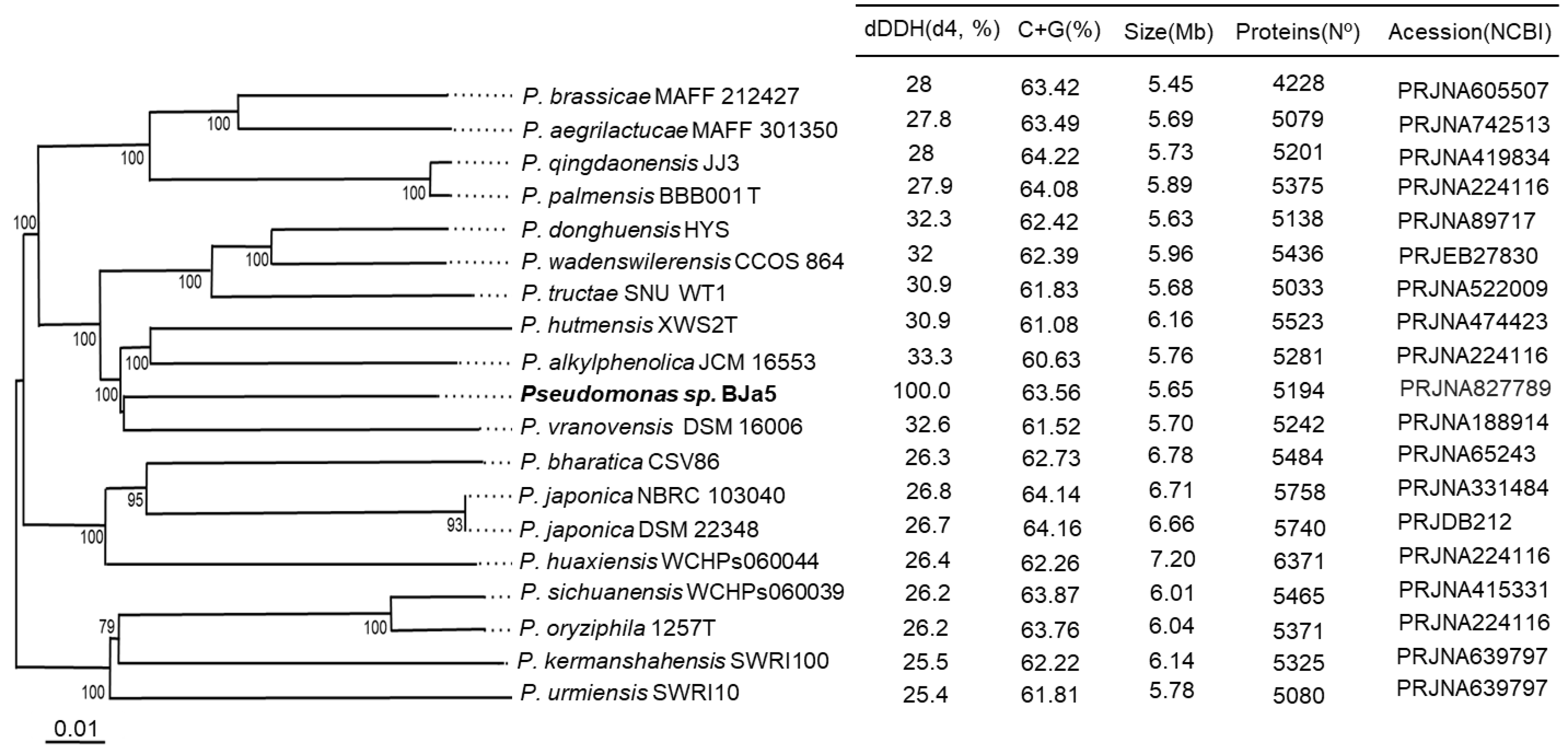

Figure 3. Taxonomic affiliation of Pseudomonas sp. strain BJa5 (highlighted in bold letter). Dendrogram of BJa5 and related species inferred with FastME [64] from Genome BLAST Distance Phylogeny method (GBDP) distances calculated from genome sequences. Branch lengths are scaled in terms of GBDP distance formula d5; numbers above branches are GBDP pseudo-bootstrap support values from 100 replications. The dendrograms were constructed using the TYGS tool.
Figure 3. Taxonomic affiliation of Pseudomonas sp. strain BJa5 (highlighted in bold letter). Dendrogram of BJa5 and related species inferred with FastME [64] from Genome BLAST Distance Phylogeny method (GBDP) distances calculated from genome sequences. Branch lengths are scaled in terms of GBDP distance formula d5; numbers above branches are GBDP pseudo-bootstrap support values from 100 replications. The dendrograms were constructed using the TYGS tool.
Microorganisms 11 02044 g003

3.3. BJa5 Can Grow on Different Carbon Sources of Organic Acids

Free-living bacteria have a versatile metabolism that facilitates many compounds with carbon in their structure, which can be used as an energy source. This ability facilitates survival in different habitats and adaptation to changing environmental conditions. An example of these bacteria is Pseudomonas, which are ubiquitous in various environmental conditions [65]. A common characteristic of all of them is their considerable metabolic versatility, being able to assimilate a wide range of compounds. The preferred carbon sources of Pseudomonas are organic acids or amino acids [66], and there is a sequential ranking in which some organic acids and amino acids are the preferred consumed compounds and hydrocarbons are the least preferred compounds, such as glucose. The hierarchy of substrate preferences for Pseudomonas are generally succinate, followed by citrate, lactate, acetate, some amino acids, and finally glucose [66,67]. As organic acids are typically found in waste residues, its utilization by Pseudomonas species aligns with eco-friendly processes by promoting waste management, renewable energy production, and reduced environmental impact. Furthermore, organic acids are a cheap and highly available carbon source for industrial bioprocesses.

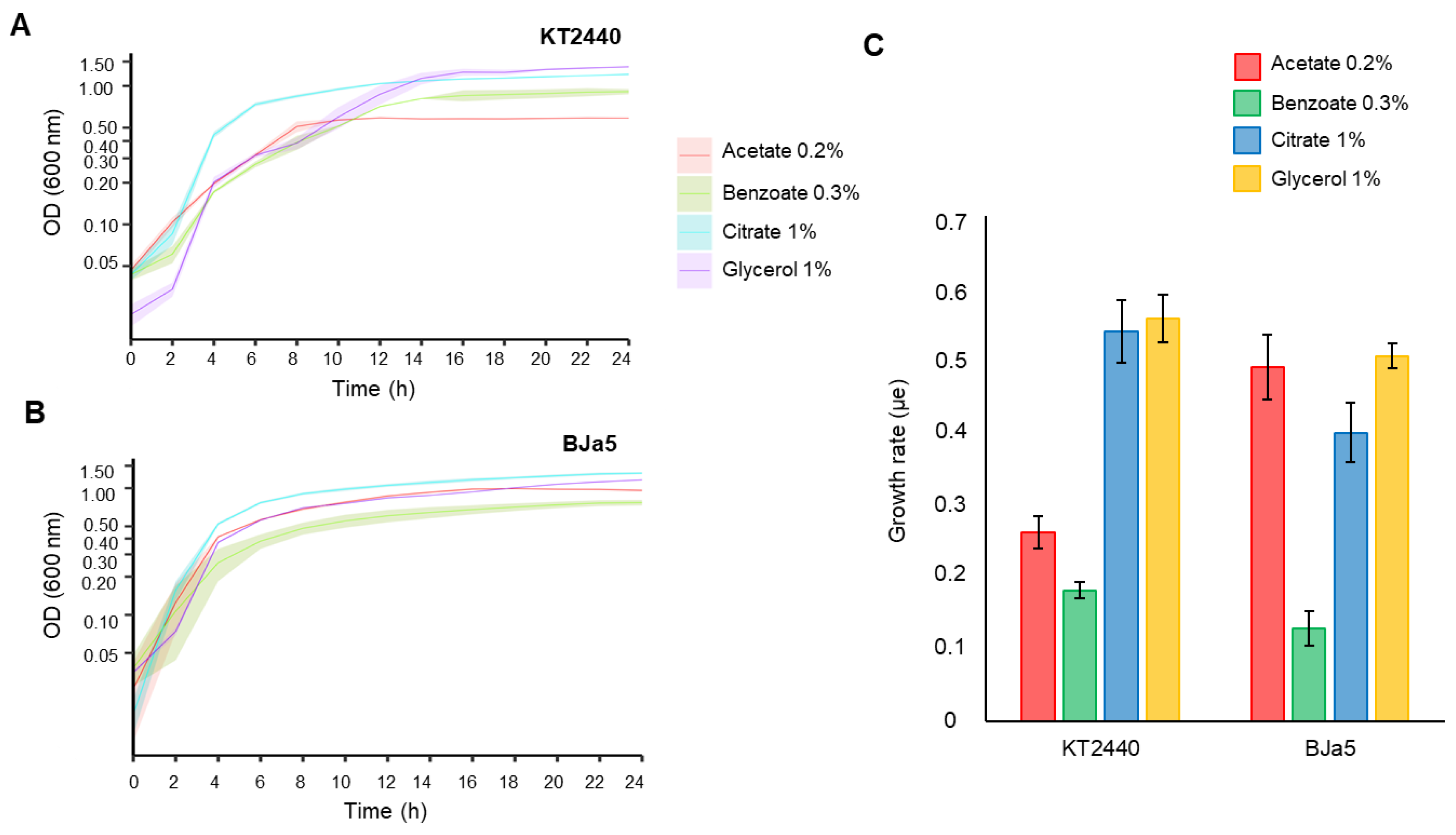

Based on this, we tested four different carbon sources (acetate, benzoate, citrate, and glycerol) that were used to identify the most suitable condition for Pseudomonas sp. BJa5 growth in comparison with the well-known reference strain P. putida KT2440 [42]. The fastest growth of each strain was observed when using the M9 medium with 1% citrate (Figure 4A,B). In both strains, we observed a rapid exponential growth that started after a short-lag phase of approximately 2 h for KT2440 and 3 h for BJa5.
Pseudomonas sp. BJa5 shows similar growth to P. putida KT2440 when both are cultivated in medium containing citrate as carbon source. Citric acid is a ubiquitous compound in nature, being present in fruits and in human tissues such as teeth, and acts as a key cellular intermediate [68]. In P. putida and P. aeruginosa, citrate enters carbon metabolism directly into the tricarboxylic acid (TCA) cycle through the gluconeogenic pathway [69,70]. Thus, as seen in other Pseudomonas, citrate is well assimilated and utilized as a carbon source in BJa5.
Also, the other carbon sources tested were able to maintain the growth of both strains. However, BJa5 strain showed a higher growth on the medium with 0.2% acetate and a similar growth as strain KT2440 on the medium containing 0.3% sodium benzoate and 1% glycerol (Figure 4A,B). These differences in growth can be better observed when we compare the growth rates of both strains (Figure 4C). Therefore, we stated that the BJa5 strain is a new potential species able to grow on a variety of carbon sources that are cheap and abundant, with no restriction in this regard.
An interesting finding about BJa5 strain is that it obtained the highest growth rate when fed with acetate: a microbial growth inhibitor. In the tested conditions of this study, a concentration of 2 g/L of acetate was used, however, in the literature, it was shown that a contraction greater than 5 g/L can inhibit cell growth [67,71]. However, acetate is a promising substrate due to its economic advantage [72] and sustainability, as it is present in lignocellulosic biomass hydrolysates [73]. Furthermore, acetate was used as a substrate for the production of polyhydroxyalkanoates (PHA) [74]. P. putida KT2440, although able to produce PHA [75], has limited and slow growth when acetate is used as the unique carbon source [76]. Thus, the insufficient assimilation of this compound by P. putida KT2440 hinders the development of this strain as an efficient microbial cell factory [77]. Therefore, Pseudomonas sp. BJa5 might be interesting as a future model to produce PHA from acetate.

3.4. Modular pSEVA Plasmids Are Appropriate Vectors for Pseudomonas sp. BJa5

To use a non-model chassis successfully in biotechnological applications, tools and protocols customized to the specific microorganism must be developed. One of the most important steps is finding suitable replication origins. Here, we tested three different replication origins in the Pseudomonas sp. BJa5 strain: RK2, pBBR1 and pRO1600. When transformed with each of these replication origins, the BJa5 strain obtained high-efficiency levels (approximately 107−108 CFU/μg DNA, Table S1).
Besides the requirement of being capable of introduction and replication within the host cell, a vector must also possess the ability to maintain its intact structure without integrating into the bacterial genome for multiple generations. Considering this, the structural and segregational stability of plasmids with different replication origins was evaluated. Resistance to the antibiotic kanamycin was maintained for all clones and plasmids analyzed in the BJa5 strain (Figure S1A) and also in the KT2440 strain. Accordingly, plasmids were successfully maintained extrachromosomally without undergoing structural changes in both strains, as confirmed through plasmid extraction and restriction analysis by PacI and SpeI enzymes (Figure S1B).
Hence, in both tested bacterial strains, the pSEVA plasmids carrying various origins exhibited notably high-transformation efficiencies and consistently preserved their structural integrity across successive generations. This versatility and ability to recognize diverse replication origins represent significant progress towards utilizing BJa5 strain in BESs. Given these characteristics, the pSEVA plasmids emerge as an excellent vector choice for Pseudomonas sp. BJa5.

3.5. Pseudomonas sp. BJa5 Recognizes the Pj100 Canonical Promoter

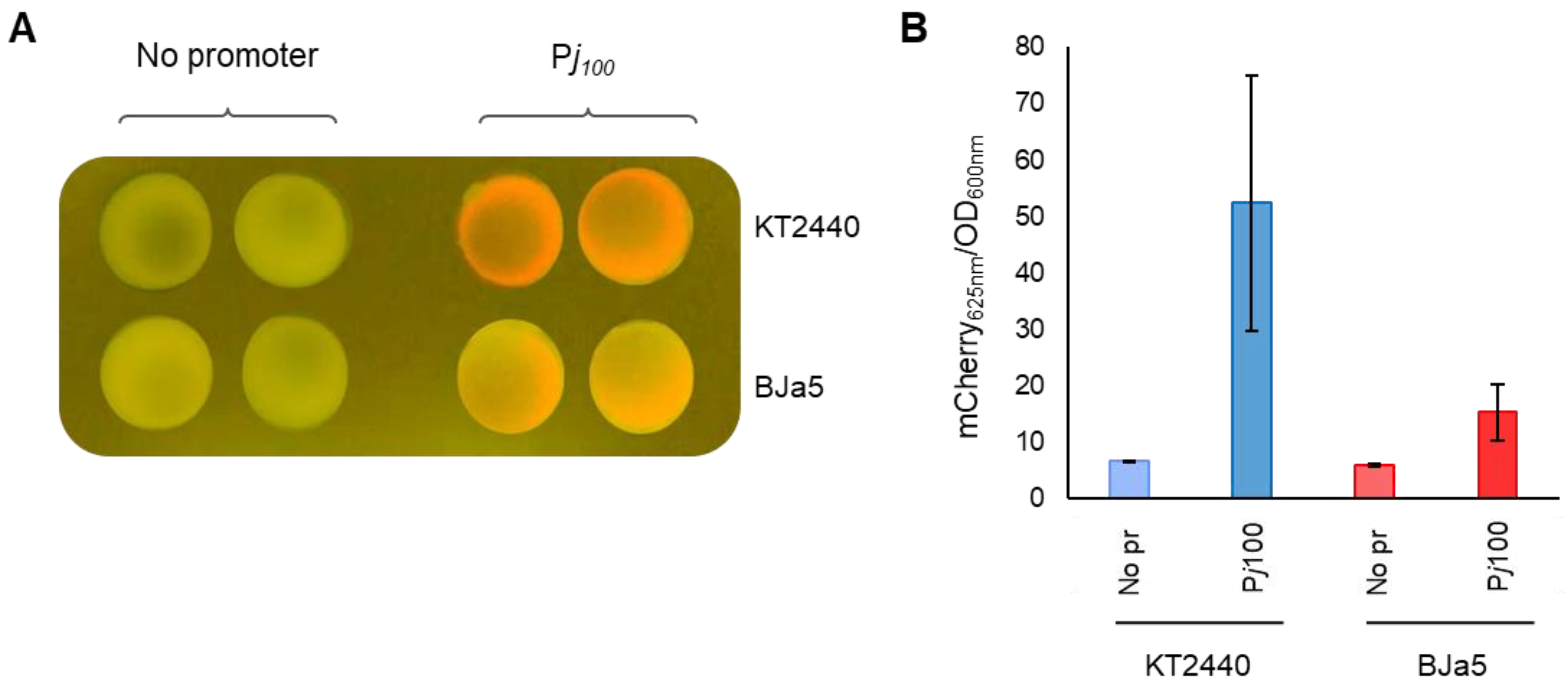

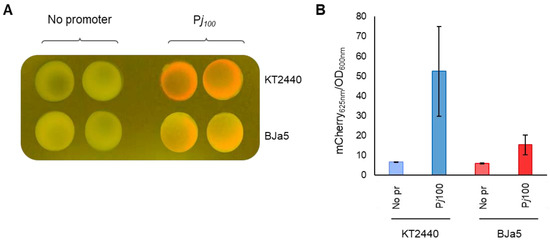

Promoter sequences are also important tools for synthetic biology considering that the expression of a heterologous gene depends on the recognition of these regions by the host transcriptional machinery. In this work, we tested the canonical constitutive promoter sequence BBBa_J23100 (Pj100), which is considered a strong promoter in E. coli [78] and was shown to be functional also in other environmental Pseudomonas spp. strains [42,79]. Thus, promoter Pj100 was cloned in the pVANT vector to control expression of the mCherry reporter gene and tested in P. putida KT2440 and Pseudomonas sp. BJa5. As shown in Figure 5A, the Pj100 promoter sequence is functional in both strains and it is possible to visualize the fluorescence of the mCherry protein after incubation at 30 °C for 16 h. However, reporter gene expression is lower in the BJa5 strain compared to P. putida KT2440 (Figure 5B). In addition, expression of medium (Pj106) and low (Pj114) constitutive promoters with the GFP reporter gene was tested in both strains, although no fluorescent signal was observed in the BJa5 strain for both promoters (Figure S2). In the case of P. putida KT2440, the fluorescent signal was weakly observed only with the medium strength promoter Pj106, similar to that obtained by Amarelle et al. (2023) [42]. Considering these results, we can conclude that the BJa5 strain can efficiently recognize the Pj100 promoter, thus allowing the expression of synthetic circuits in this host. Nevertheless, we observed that the fluorescence signals were not consistently stable during extended periods of passage culture in BJa5. Consequently, standardization of current protocols is still necessary to identify the optimal conditions for this assay.

3.6. Pseudomonas sp. BJa5 Strain Expresses the Heterologous Enzyme Cel5A

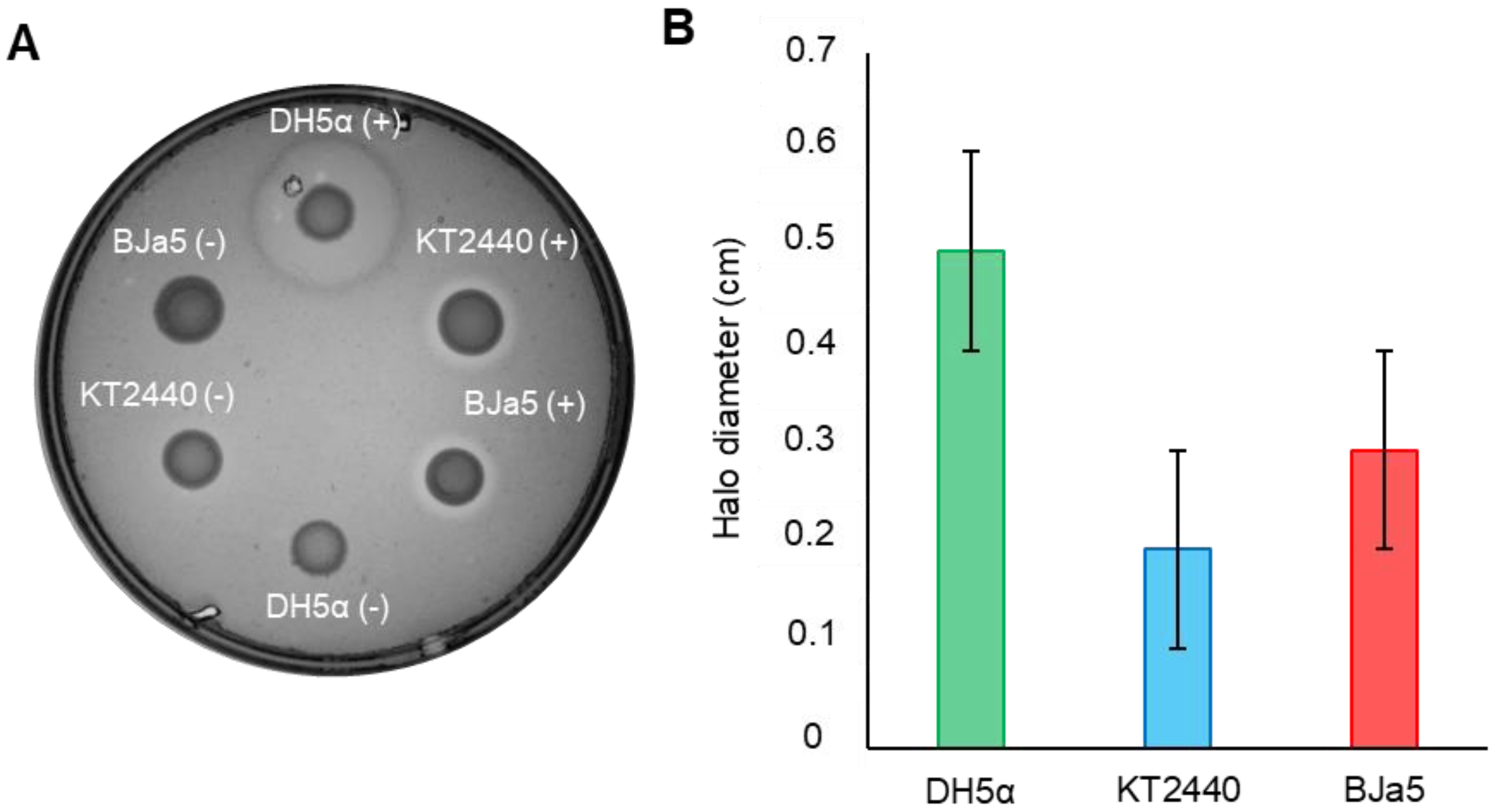

An experiment was carried out as a proof of concept to verify whether expression and functionality of heterologous genes occurs in the strain Pseudomonas sp. BJa5. For this, a plasmid containing an endoglucanase (pSEVA232-Cel5A) was introduced into P. putida KT2440 and Pseudomonas sp. BJa5. As shown in Figure 6A, both Pseudomonas strains were able to express Cel5A after 48 h of incubation. The halos formed in each strain were measured relative to Cel5A expression. The DH5α strain exhibited the highest magnitude of Cel5A expression, followed by BJa5 and KT2440 in decreasing order (Figure 6B). Thus, the BJa5 strain was able to express a functional Cel5A enzyme under usual conditions (30 °C), in comparison with the reference bacterium P. putida KT2440.
As expected, E. coli is an ideal host for recombinant protein expression, demonstrated by higher Cel5A activity, which might be attributed to well-characterized transcriptional machinery, and an ability to render higher levels of protein production [80]. However, microbial hosts with new abilities, especially related to secretion, are promising candidates for recombinant expression such as Pseudomonas spp. For example, cellulases expressed in P. putida KT2440 showed similar bioactivity compared with E. coli, even for a wide range of temperatures and pH [81]. In this context, the BJa5 strain was able to express a functional Cel5A enzyme under usual conditions (30 °C) in comparison with the reference bacterium P. putida KT2440: a trait that could be explored in future efforts to address its functionality in recombinant protein expression.

4. Conclusions

The discovery of novel bacteria capable of serving as chassis in bioelectrochemical systems holds significant potential. As an emerging field, the quest for new bacteria to enhance and optimize these systems is crucial. In addition to demonstrating the bioelectricity production of the novel Pseudomonas sp. BJa5 through glycerol oxidation, which shows promising results compared to sugar-based substrates commonly used by P. aeruginosa [54,55], our study highlights the potential of glycerol oxidation in microbial fuel cells (MFCs) as an environmentally friendly approach for energy generation from residues. Moreover, the observed voltammograms and BJa5 genome analysis indicate the potential production of novel redox mediators by BJa5, distinct from the phenazine and pyoverdin classes commonly found in the Pseudomonas genus.
In addition, synthetic biology tools can be used to modify existing biological systems to perform specific functions [82]. This includes the selection or modification of microorganisms to increase their ability to transfer electrons, improve the efficiency of bioelectrochemical reactions, and the production of specific compounds that can be used as substrates for energy generation. As an example, synthetic biology is being used to perform faster processes using EET pathways by refactoring split ferredoxins as switchable electron gates [83]. In summary, the results obtained in this work proved that Pseudomonas sp. BJa5 is a suitable new chassis that can be implemented in MCFs using pSEVA plasmids. The tested toolbox includes three different replication origins (RK2, pBBR1 and pRO1600), a selection marker (Km), two cargos, and a canonical constitutive promoter (Pj100). In addition to these toolboxes, we successfully tested the expression of the reporter gene mCherry and also the enzyme Cel5A in the two Pseudomonas assayed. In the future, these tools can be further developed and utilized to design synthetic genetic circuits aimed at enhancing energy generation efficiency in Pseudomonas sp. BJa5. This will enable significant improvements in the performance of this bacterium within MFCs.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/microorganisms11082044/s1. Figure S1. Segregational and structural stability of the tested plasmids as a function of replication origin in Pseudomonas sp. BJa5 strain. The strains P. putida KT2440 and Pseudomonas sp. BJa5 were grown in LB liquid medium without antibiotics for 2, 4, 7 and 24 h at 30 °C. After each of the periods, a solution of the diluted culture to 10−6 was plated on LB to obtain a countable number of CFU. Twelve colonies from each strain with the different plasmids were selected in each period, and their growth was evaluated on LB and LBKm plates. In Figure S1A, it can be seen that all selected colonies of BJa5 grew on the LBKm plates. The assay was performed three times independently with equal results. In the Figure S1B, the colonies from the 24 h period, had the plasmid DNA extracted and then digested with PacI and SpeI enzymes. The pattern obtained was analyzed by electrophoresis on agarose gels. The restriction patterns of BJa5 were compared with those obtained from plasmid from P. putida KT2440 and were found to be similar. This analysis was repeated twice independently; Figure S2: Activity of the canonical Pj100, Pj106 and Pj114 promoter at 30 °C. The functionality of the canonical promoters BBa_J23100 (Pj100), BBa_J231006 (Pj106) and BBa_J23114 (Pj114) was evaluated at 30 °C in P. putida KT2440 and in Pseudomonas sp. BJa5 using the GFP reporter gene and the empty vector pSEVA231. The plasmid containing GFP without promoter (No promoter) was used as a negative control. The assay was performed three times and similar results were obtained. KT2440 and were found to be similar. This analysis was repeated twice independently; Table S1. Transformation efficiencies of plasmids in the BJa5 strain (UFC/μg DNA).

Author Contributions

M.-E.G. and V.R. designed the project. F.R. and M.P. performed and analyze the synthetic biology experiments. J.P.N. carried out the MFCs assays. J.P.N., V.R. and A.R.d.A. analyze the MFCs assays. F.R. wrote the manuscript. All authors critically revised the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the São Paulo State Foundation (FAPESP, award # 2014/50924-4, 2021/01748-5; 2021/01134-7 and 2022/04024-0) and by The National Council for Scientific and Technological Development (CNPq, INCT-DATREM 465571/2014-0). FR and JPN are beneficiary of CNPq scholarships and MP of a FAPESP fellowship (2021/09375-3). JPN is beneficiary of a CNPq scholarship (167515/2022-5). MEG and VR were supported by CNPq Research Productivity Scholarship (award # 302750/2020-7, and 306601/2022-2, respectively).

Data Availability Statement

Data available upon request to the corresponding author.

Acknowledgments

The authors would like to thank the lab technician Thalita Riul Prado for her invaluable assistance in the course of this work.

Conflicts of Interest

The authors declare that no conflict of interest could be perceived as prejudicial to the impartiality of the reported research.
