Article

Novel Virus Air Sampler Based on Electrostatic Precipitation and Air Sampling of SARS-CoV-2

by
Kyohei Fukuda
1,†,
Hiroaki Baba
2,*,†,
Mie Yoshida
1,
Kouichi Kitabayashi
1,
Shinjirou Katsushima
1,
Hiroki Sonehara
3,
Kazue Mizuno
4,5,
Hajime Kanamori
2,
Koichi Tokuda
2,
Atsuhiro Nakagawa
6 and
Akira Mizuno
1,4
1
AMANO Co., Ltd., 275 Mamedocho, Kohoku-ku, Yokohama 222-8558, Japan
2
Department of Infectious Diseases, Internal Medicine, Tohoku University Graduate School of Medicine, 2-1 Seiryo-machi, Aoba-ku, Sendai 980-8574, Japan
3
Genome Clinic Co., Ltd., 2-5-1 Chuo, Chuo-ku, Chiba 260-0013, Japan
4
MRC LLC, 5-29-12, Hongo, Bunkyo-ku, Tokyo 113-0033, Japan
5
Preferred Networks, Inc., 1-6-1 Otemachi Building, Otemachi, Chiyoda-ku, Tokyo 100-0004, Japan
6
Department of Neurosurgery, Tohoku University Graduate School of Medicine, 2-1 Seiryo-machi, Aoba-ku, Sendai 980-8574, Japan
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Microorganisms 2023, 11(4), 944; https://doi.org/10.3390/microorganisms11040944
Submission received: 27 February 2023 / Revised: 23 March 2023 / Accepted: 31 March 2023 / Published: 4 April 2023
(This article belongs to the Special Issue Emerging Infectious Diseases and Strategies for Their Prevention and Control 2.0)
Browse Figures
Review Reports Versions Notes

Abstract

:
The assessment of airborne viruses in air is a critical step in the design of appropriate prevention and control measures. Hence, herein, we developed a novel wet-type electrostatic air sampler using a viral dissolution buffer containing a radical scavenging agent, and verified the concentration of severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2) RNA in the air of hospital rooms inhabiting coronavirus disease 2019 (COVID-19) patients and public areas. RNA damage caused by corona discharge was negligible when Buffer AVL was used as the collecting electrode. The viral RNA concentration in the air of the room varied by patient: 3.9 × 103 copy/m3 on the 10th day after onset in a mild case and 1.3 × 103 copy/m3 on the 18th day in a severe case. Viral RNA levels were 7.8 × 102 and 1.9 × 102 copy/m3 in the air of the office and food court, respectively, where people removed their masks when eating and talking, but it remained undetected in the station corridor where all the people were wearing masks. The assessment of airborne SARS-CoV-2 RNA using the proposed sampler can serve as a basis for the safe discontinuation of COVID-19 isolation precautions to identify exposure hotspots and alert individuals at increased infection risks.

1. Introduction

The global spread of severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2), which causes coronavirus disease 2019 (COVID-19), has resulted in a global public health crisis [1]. SARS-CoV-2 can be transmitted through the air via aerosol particles emitted by coughing, sneezing, or breathing [2,3,4]. The assessment of airborne viruses in the air is a critical step toward understanding the transmission behavior and designing the appropriate prevention and control measures; however, there is no standard protocol for air sampling [5].
An appropriate, easy-to-use sampler is necessary to obtain more accurate data of airborne transmission. Currently, impingers and filter-type air samplers are generally used to measure virus concentrations in the air [6,7,8]; however, there are drawbacks. In particular, the collection efficiency of impingers is significantly low, and post-treatments, such as the elution of collected viruses, are necessary for filter-type samplers that use gelatin filters. In addition, high-pressure air pumps with loud operation noises are required for impingers and filter-type air samplers, because the pressure drops of these samplers are larger than those of electrostatic samplers.
Electrostatic precipitation has been extensively used for industrial air cleaning [9]. The sampling of bio-particles using electrostatic precipitation has advantages such as low pressure drops, high collection efficiencies for fine particles [10], and collection into liquid for smooth processing, to conduct polymerase chain reaction (PCR) detection [9,11,12,13]. However, corona discharge that occurs in electrostatic precipitation can damage the viral nucleic acid due to oxidative radicals [8,14,15,16,17].
In this study, we developed a novel wet-type electrostatic sampler using a viral dissolution buffer containing a radical scavenging agent as a collecting electrode instead of a dry metal electrode, and used it to verify the concentration of SARS-CoV-2 RNA in the air of a hospital room inhabiting COVID-19 patients, in addition to public areas. The objective was to establish the efficacy of the developed sampler in enabling highly efficient, simple, and low-noise sampling, in addition to its potential contribution to an improved understanding of SARS-CoV-2 viral shedding, and to enhance surveillance efforts in the current global COVID-19 pandemic.

2. Material and Methods

2.1. Structure and Performance of the Developed Air Sampler

The wet-type electrostatic precipitator air sampler consisted of an electrostatic sampling unit, a blower-type fan, and a battery-operated high voltage power supply (Figure 1A). The size of it was 300 mm × 300 mm × 150 mm. The electrostatic sampling unit comprised a commercially available vial bottle with an inner diameter of 40 mm, and insulating chloroprene rubber cover with a stainless tube at the center (diameter of 20 mm) and 10 holes arranged around it (Figure 1B). The vial bottle contained 2.9 mL of liquid electrode comprising 1.12 mL of viral lysis buffer (Buffer AVL, QIAGEN, Tokyo, Japan) that contained guanidinium thiocyanate at a concentration of 50–70%, and 1.78 mL of distilled water (DW). The conductivity of the Buffer AVL ranged from 41.49 to 45.52 mS/cm (1/10 dilution), and the pH ranged from 7.30 to 7.50. Ten corona discharge electrodes made of a bundle of fine fibers of stainless steel (100 fibers with fiber diameters of 12 µm) [13] were attached at the tip of the stainless tube.
A blower-type fan with an operating voltage of 5 V and a current of 0.4 A was placed at the outlet of the vial bottle, with a minimum diameter of 10 mm. The pressure drop of the system was 11 Pa, and the operating noise of the air sampler was 31 dB. Air that flowed into the vial bottle through the stainless tube of the cover, was exposed to the corona discharge, and then exhausted through the holes of the bottle cover.

2.2. Measurement of the Particle Collection Efficiency of the Developed Air Sampler When Compared with an Impinger and a Filter-Type Air Sampler

To determine the optimal air sampler flow rate, the particle collection efficiency was measured three times for each flow rate of 10 L/min, 20 L/min, and 40 L/min, at room temperature of 20 °C and a relative humidity level of 50%. The corona discharge was unstable due to the roughness of the liquid surface, as induced by the air flow when the flow rate was over 40 L/min. A high voltage of −6 kV was applied to the corona discharge electrodes. The discharge current was measured at the beginning and end of the sampling period. A particle counter (Model 3888, Kanomax Japan Inc., Osaka, Japan) was connected to the developed air sampler to count the number of suspended particles in the air (Figure 1B). Given that the size of the SARS-CoV-2 particles released from the human body and present in the air is ≤1.0 μm [18], the target size of the particles was set at 0.3–0.5 μm. The collection efficiency was determined by comparing the counts with and without corona discharges. The following equation was used to calculate the collection efficiency.
H   ( % ) = ( 1 − c o u n t   o f   t h e   p a r t i c l e   a t   t h e   o u t l e t   w i t h   c o r o n a   d i s c h a r g e c o u n t   o f   t h e   p a r t i c l e   a t   t h e   o u t l e t   w i t h o u t   c o r o n a   d i s c g a r g e ) × 100
As a comparison, the particle collection efficiencies of an impinger and a gelatin filter-type sampler were measured three times each. The SPC Midget Impinger Type G-1 Single (Shibata Scientific Technology Ltd., Saitama, Japan) was used with a solution volume of 20 mL and a flow rate of 5 L/min. Three impingers were connected in series to measure the collection efficiency, because the efficiency of the single impinger was very low. The gelatin filter-type sampler was the MD8 Airport (Sartorius AG, Göttingen, Germany) with a flow rate of 40 L/min. Both samplers were used according to the standards of the Japan Electrical Manufacturers’ Association [19]. The following equation was used to calculate the collection efficiency.
η   ( % ) = ( 1 − c o u n t   o f   t h e   p a r t i c l e   a t   t h e   o u t l e t c o u n t   o f   t h e   p a r t i c l e   a t   t h e   i n l e t ) × 100

2.3. Evaluation of the Protective Effect of the Viral Lysis Buffer on RNA from Damage Caused by Exposure to Corona Discharge

We evaluated the protective effect of the viral lysis buffer on RNA from the damage caused by exposure to corona discharge by comparing the real-time quantitative PCR (RT-qPCR) threshold (Ct) values of bacteriophage RNA in the Buffer AVL before and after exposure to the corona discharge as follows: (1) the mixture of bacteriophage MS2 (NBRC 102619) and Escherichia coli (NBRC 13965) was incubated overnight at 35 °C in a liquid LB medium. (2) Thereafter, 4 mL of the SM buffer and 40 µL of chloroform were added to the mixture, which was set aside at 25 °C for 30 min. (3) The bacteriophage MS2 suspension with a concentration of 5 × 107 PFU/µL, as obtained by filtering the mixture with a pore size of 0.22 µm, was added to 2.9 mL of the viral lysis buffer comprising 1.12 mL of Buffer AVL and 1.78 mL of distilled water, to prevent salt deposition caused by evaporation during exposure. (4) Bacteriophage MS2 RNA was extracted from the mixture before and after exposure to corona discharge in the proposed sampler for 90 min, using the QIAamp Viral RNA mini kit (QIAGEN, Tokyo, Japan), and RT-qPCR was performed (Supplementary Method S1). The Ct values of bacteriophage MS2 RNA before and after exposure to the corona discharge were measured five times each and compared using the Student’s t-test.

2.4. Measurement of the Concentration of SARS-CoV-2 RNA in the Air of Hospital Rooms Inhabiting COVID-19 Patients and Public Spaces

The proposed air sampler was used to measure the concentration of SARS-CoV-2 RNA in the air of hospital rooms inhabiting COVID-19 patients. The target patients were a total of 10 patients hospitalized for COVID-19 and diagnosed between February and August, 2022, by positive SARS-CoV-2 PCR tests based on the nasopharyngeal swab fluid. All participants provided verbal informed consent after being informed of the study and the methodology employed for sampling. All 10 patients underwent one-step RT-qPCR SARS-CoV-2 testing of nasopharyngeal swabs with GeneXpert® Xpress SARS-CoV-2 (Cepheid, Sunnyvale, CA, USA) upon admission, and the Ct values were calculated [20]. The sequencing analysis of the S1 region was performed using the Sanger method [21], and lineages were determined based on the sequence data using the Nextclade web application [22]. Patient information, such as the patient age, gender, vaccination history, and outcome, were collected from the electronic medical record. Patients were classified into three severity levels based on their worst respiratory status during the course, as follows: (1) mild: patients who did not require oxygen administration; (2) moderate: patients who required oxygen administration, but not ventilatory support; (3) severe: patients who required any ventilatory support. All patients were admitted to the same single-patient room with dimensions of 4.5 m × 3.2 m × 2.5 m (length × width × height) and an interior volume of 36 m3 (Figure 2) at different time periods. The sampler was placed 1.8 m from the head of the patient and 0.83 m above the floor. Sampling was performed for 90 min for each patient. Patients were informed that sampling could be stopped immediately if noise or other factors interfered with their hospital stay.
The proposed air sampler was used to measure the concentration of SARS-CoV-2 RNA in the air of public spaces, including an office room during the working hours, the food court of a shopping mall during lunch time on a holiday, and a station corridor during morning and evening commuting hours. For measurements in public places, three samplers were used simultaneously. The volumes of the office room and food court were 340 m3 and 2000 m3, respectively, and contained approximately 30 and 300 people, respectively (11 m3/people and 6.7 m3/people, respectively), who removed their masks when eating, drinking, and talking. The station corridor was 1500 m3 in size and contained 100 people (15 m3/people) all wearing masks, who were walking during sampling. The sampling was performed from 12 to 18 September 2021, when the proportion of new COVID-19 patients was five per 100,000 people in the region [23].
Viral RNA was extracted from the collected samples using QIAamp Viral RNA mini kit, and RT-qPCR was performed targeting the N2 region (Supplementary method S2). To generate positive controls for the calibration curve, SARS-CoV-2 RNA fragments were PCR-amplified from 5.0 copies, 5.0 × 101 copies, 5.0 × 102 copies, and 5.0 × 103 copies. Based on the calibration curve, the amount of RNA in the PCR tube was calculated, and the concentration of viral RNA per 1 m3 of sampled air was determined using the following equation:
Cv   ( c o p i e s / m 3 ) = N R N A × Q e x t r a c t Q × V A i r × 100 η
NRNA: Number of RNA fragments in the PCR tube (copies/tube)
Qextract: Volume of the extract (µL)
QPCR: Volume of sample added to PCR tube (µL/tube)
VAir: Volume of sampled air (m3)
η: collection efficiency of particles between 0.3 and 0.5 µm diameter (%)

3. Results

3.1. Particle Collection Efficiency of the Developed Electrostatic Air Sampler Compared with That of an Impinger and a Filter-Type Air Sampler

At the flow rates of 10 L/min, 20 L/min, and 40 L/min, the average collection efficiencies of the proposed electrostatic air sampler were 85% (SD 2%), 63% (SD 3%), and 46% (SD 4%), respectively. The flow rate × collection efficiencies, which are proportional to the number of particles collected, were 850, 1260, and 1840, respectively, with the maximum at a flow rate of 40 L/min. Therefore, the measurement of SARS-CoV-2 RNA concentration in the air in this study was performed at a flow rate of 40 L/min. The discharge current decreased from 65 μA initially to 50 μA at the end of the sampling period. The collection efficiencies of the impinger and the gelatin filter-type sampler were 11% (SD 8%) and 97% (SD 1%), respectively.

3.2. Evaluation of the Protective Effect of the Viral Lysis Buffer on RNA from Damage Caused by Exposure to Corona Discharge

Figure 3 presents the RT-qPCR Ct values of bacteriophage M2 RNA in Buffer AVL before and after exposure to corona discharge. The Ct values of 25.69, 25.76, 25.6, 25.42, and 25.26 (mean [SD] of 25.5 [0.2]) after exposure were not significantly different from those of 25.43, 25.28, 25.76, 25.06 and 25.32 (mean [SD] of 25.4 [0.3]) before exposure (p > 0.05).

3.3. Measurement of the of SARS-CoV-2 RNA Concentration in the Air of Hospital Rooms Inhabiting COVID-19 Patients and Public Spaces

Patient information and the concentration of SARS-CoV-2 RNA in the air of the hospital rooms of the patients are summarized in Table 1. No patients requested for sampling to be stopped during the sampling process. SARS-CoV-2 RNA was detected in the air of hospital rooms of all patients, including patient no. 10, who had a negative nasopharyngeal SARS-CoV-2 PCR result upon admission. Virus concentrations varied from 3.0 × 102 copies/m3 in patient no. 6 (moderate case) with Omicron 21K/Ba2, to 1.1 × 103 copies/m3 in patient no. 2 (severe case) with Delta 21A on day 2, 1.0 × 103 copies/m3 in patient no. 5 (moderate case), to 2.4 × 104 copies/m3 in patient no. 8 (mild case) with both Omicron 21K/Ba1.1 on day 3, 0 copies/m3 in patient no. 7 (moderate case) with Omicron BA.5, to 1.7 × 103 copies/m3 in patient no. 8 (mild case) on day 4, 0 copies/m3 in patient no. 8 (mild case), to 4.7 × 103 copies/m3 in patient no. 4 (moderate case) with Omicron 21K/Ba1.1 on day 5, and 0 copies/m3 in patient no. 5 (moderate case), to 1.2 × 103 copies/m3 in patient no. 6 (moderate case) on day 6 after symptom onset. Among patients with Omicron 21K/Ba1.1 on day 5, the viral concentration in the air of the hospital room of unvaccinated patient no. 9 (mild case) (1.0 × 102 copies/m3) was lower than those of patients no. 4, 5, and 6 (moderate case) who received two and three vaccine doses, respectively (4.7 × 103 copies/m3, 1.0 × 103 copies/m3, and 9.2 × 102 copies/m3, respectively). Viral RNA at a concentration of 1.3 × 103 copies was detected in the hospital room of patient no. 1, who was a man in his 80s with a severe case of Omicron 21K/Ba1.1 on day 18, i.e., the day prior to his death.
Table 2 presents the sampling results for the public places. In particular, SARS-CoV-2 RNA was detected at 7.8 × 102 and 1.9 × 102 copy/m3 in the air of the office and food court, respectively, and it was not detected in the station corridor.

4. Discussion

The novel wet-type electrostatic air sampler using a viral dissolution buffer as a collecting electrode could detect SARS-CoV-2 RNA in the air of a hospital room inhabiting COVID-19 patients and public areas. This study demonstrated that the wet-type electrostatic air sampler is useful for sampling SARS-CoV-2 in the air.
In this study, there was no significant increase in the RT-qPCR Ct values of bacteriophage MS2 RNA in Buffer AVL before and after exposure to the corona discharge in the proposed sampler, thus suggesting that RNA damage caused by radicals generated by the corona discharge was negligible when Buffer AVL was used as a collecting electrode in the proposed sampler. The Buffer AVL contains guanidinium thiocyanate, which acts as an antioxidant against radicals [24]. The radicals produced by corona discharge were removed via the reaction with guanidinium thiocyanate. Buffer AVL contains ribonuclease (RNase) inhibitor, which prevents RNA degradation by RNase in airborne dust and pollen that may contaminate the sampled air [25]. Therefore, RNase may also be collected by the sampler; however, the Buffer AVL allows for the collected viral RNA to be maintained.
Although the impinger sampler had a particle collection efficiency of only 11%, the wet-type electrostatic air sampler demonstrated a maximum particle collection efficiency of 85% at a flow rate of 10 L/min, which is the second highest particle collection efficiency after that of the gelatin filter sampler at 97%. In addition, the wet-type electrostatic sampler directly collects viruses in the buffer and was convenient for PCR detection. A wet-type electrostatic air sampler was previously developed and used to sample influenza viruses in the air at high efficiencies; however, the sampler maximum collection efficiency was reported to be only 47%, and its low flow rate of 6.8 L/min makes it difficult to measure viral RNA in the air of hospital rooms and public areas [26].
The observed decrease in the discharge current from the beginning to the end of the sampling period may have resulted in a reduction in the particle collection efficiency. This decrease in the current may have been caused by the reduction of liquid electrode volume and level due to spontaneous evaporation and an increase in the separation distance between the discharge electrode tip and the liquid surface. Evaporation rates increase in environments with high temperature and low humidity, leading to a decrease in collection efficiency. Controlling liquid electrode evaporation during sampling and maintaining a consistent liquid level pose potential future challenges for the proposed sampler.
The proposed sampler has a low pressure drop of 11 Pa, given that the minimum diameter of the air duct was 10 mm at the air outlet, thus allowing for air suction using a small 5 V/0.4 A blower-type fan with an operating noise of 31 dB, which is almost the same as the WHO recommended noise level of 30 dB for bedrooms [27]. Moreover, this value is lower than those of the alternative impinger-type biosampler (SKC Inc, Eighty Four, Pennsylvania, USA) and the MD8 air sampler with a gelatin filter, which exhibit noise levels of 61–66 dB [28,29] and 48 dB [30], respectively. Notably, no patients in this study complained about the noise during sampling. The proposed sampler enabled sampling of SARS-CoV-2 RNA in the hospital room air of patients undergoing treatment, without disturbing the calmness and recovery of patients.
The proposed sampler could detect SARS-CoV-2 RNA in the air of the hospital rooms of all the COVID-19 patients at concentrations ranging from 1.3 × 102 to 2.4 × 104 copy/m3, which is consistent with previously reported concentrations of 2.0 × 103 to 5.2 × 104 copy/m3 in the air of patient rooms [31,32,33]. However, the proposed sampler revealed that the concentration of RNA varied with respect to the patient and the timing of measurements. Previous reports indicated that the number of viruses in the breathed air sample and nasopharyngeal samples peaked at days 2–3 after onset [34,35]. Severe cases of COVID-19 have higher nasopharyngeal viral loads and longer periods of viral shedding than the mild/moderate cases [36]; however, viral loads and shedding dynamics are influenced by host factors, including patient age and sex, individual susceptibility and immunity from previous infections or vaccination, patient symptoms, and protective measures, including mask wearing [37]. In the hospital room air of a male patient in his 80s (patient no.1, severe case) with Omicron 21K/Ba1.1 and an unknown vaccination history, the RNA of SARS-CoV-2 was detected at 1.3 × 103 copy/m3 until the 18th day after onset, when the patient passed away. By contrast, in the air around an unvaccinated female patient in her 30s (patient no. 10, mild case), viral RNA was detected at 3.9 × 103 copy/m3 on the 10th day after onset, despite negative nasopharyngeal PCR testing. Given that airborne SARS-CoV-2 RNA shedding can be prolonged regardless of the severity of the patient illness, and airborne viral RNA shedding can continue even when nasopharyngeal PCR is negative, the assessment of airborne SARS-CoV-2 RNA using the proposed sampler can serve as a basis for the safe discontinuation of COVID-19 isolation precautions.
In public spaces, the proposed sampler detected RNA in the office and food court, but not in the station corridor. This is partly because all the people in the station corridor were wearing masks that inhibited the release of aerosol particles containing SARS-CoV-2 RNA into the air [38], whereas those in the office and food court removed their masks when eating, drinking, and talking [39]. Conte et al. reported that no airborne viral RNA was detected in food courts and train stations in major Italian cities during the second wave of the COVID-19 epidemic, during which physical distancing and the wearing of masks were mandatory [40]. Given that SARS-CoV-2 RNA concentrations in the air of the office and food court were calculated as 7.8 × 102 and 1.9 × 102 copy/m3, respectively, breathing at 10 L/min in these locations would result in the inhalation of over 1000 viral copies within several hours, and could result in an infection risk [41]. The assessment of airborne viral RNA in public spaces using the proposed sampler is a promising method for identifying exposure hotspots, and could be used to alert individuals at increased risks of infection to practice infection prevention measures. Furthermore, it can supplement other public health surveillance strategies, including contact tracing.
A major drawback of the proposed sampler is the use of the RT-qPCR to detect viral RNA, which fails to determine virus infectivity, because PCR can detect both live viral and non-infectious viral RNA [42]. Although viral cultures are the gold standard to determine viral infectivity and activity, they are time-consuming and labor-intensive, require a biosafety Level 3 laboratory, and cannot be implemented in clinical settings [43]. Previous studies revealed that RT-qPCR can be a surrogate for live viruses [44]. More rapid viral RNA detection methods were recently developed [45], which may allow for more real-time assessments of viral RNA in the air.

5. Conclusions

The novel wet-type electrostatic air sampler using a viral dissolution buffer containing radical scavenging agent, as developed in this study, can efficiently verify the concentration of SARS-CoV-2 RNA in the air of a hospital room inhabiting COVID-19 patients and public areas via a simple procedure, without disturbing the calmness of the patient and causing significant RNA damage. The proposed sampler revealed prolonged SARS-CoV-2 RNA shedding independent of patient severity and from patients with negative nasopharyngeal PCR test results. The assessment of airborne SARS-CoV-2 RNA using the proposed sampler can serve as a basis for the safe discontinuation of COVID-19 isolation precautions, to identify exposure hotspots, and alert individuals at increased risks of infection. To standardize and generalize the sample results obtained from the proposed sampler, long-term validation in different SARS-CoV-2 epidemic situations with different human densities and activities, such as restaurants, schools, and public transportation, such as buses and trains, should be conducted in future research, in addition to comparative studies of airborne and live virus RNA concentrations. Nevertheless, the proposed sampler significantly contributes to an improved understanding of SARS-CoV-2 viral shedding and can facilitate public health interventions, with respect to the prevention and control of the spread of COVID-19.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/microorganisms11040944/s1, Supplementary Method S1: The real-time quantitative PCR (RT-qPCR) for bacteriophage MS2 RNA detection; Supplementary Method S2: Real-time qPCR (RT-qPCR) for the detection of SARS-CoV-2 RNA.

Author Contributions

Conceptualization, K.F., H.B., M.Y., K.K., S.K., H.S., K.M., H.K., K.T., A.N. and A.M.; methodology, K.F., H.B., M.Y., K.K., S.K. and A.M.; validation, K.F., H.B. and M.Y.; formal analysis, K.F. and H.B.; investigation, K.F., H.B. and M.Y.; data curation, K.F., H.B. and M.Y.; writing—original draft preparation, K.F. and H.B.; writing—review and editing, H.B. and A.M.; visualization, K.F., H.B. and M.Y.; supervision, S.K. and K.T.; funding acquisition, S.K.. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding except that H.B., H.K. and K.T. have received research grants from AMANO Co., Ltd. under project No. J210003156. K.F., M.Y., K.K., S.K. and A.M. were supported by AMANO Co., Ltd. in the form of salaries.

Institutional Review Board Statement

The study was conducted in accordance with the Declaration of Helsinki and approved by the Institutional Review Board of Tohoku University Graduate School of Medicine (IRB no. 2021-1-1223).

Informed Consent Statement

Verbal informed consent was obtained from all subjects involved in the study.

Data Availability Statement

All publicly available datasets were analyzed in this study.

Acknowledgments

We would like to thank S. Katsura and Associate M. Oshige from Gunma University for their valuable comments.

Conflicts of Interest

The authors declare no conflict of interest. The funder, AMANO Co., Ltd. provided for authors H.B., H.K., K.T., K.F., M.Y., K.K., S.K. and A.M., but did not have any additional role in the study design, data collection and analysis, decision to publish, or preparation of the manuscript.

References

  1. McVernon, J.; Liberman, J. WHO keeps covid-19 a public health emergency of international concern. BMJ 2023, 380, 504. [Google Scholar] [CrossRef] [PubMed]
  2. Alsved, M.; Matamis, A.; Bohlin, R.; Richter, M.; Bengtsson, P.E.; Fraenkel, C.J.; Medstrand, P.; Löndahl, J. Exhaled respiratory particles during singing and talking. Aerosol Sci. Technol. 2020, 54, 1245–1248. [Google Scholar] [CrossRef]
  3. Cai, J.; Sun, W.; Huang, J.; Gamber, M.; Wu, J.; He, G. Indirect Virus Transmission in Cluster of COVID-19 Cases, Wenzhou, China, 2020. Emerg. Infect. Dis. 2020, 26, 1343. [Google Scholar] [CrossRef] [PubMed]
  4. Tang, J.W.; Marr, L.C.; Li, Y.; Dancer, S.J. Covid-19 has redefined airborne transmission. BMJ 2021, 373, 913. [Google Scholar] [CrossRef]
  5. Dinoi, A.; Feltracco, M.; Chirizzi, D.; Trabucco, S.; Conte, M.; Gregoris, E.; Barbaro, E.; La Bella, G.; Ciccarese, G.; Belosi, F.; et al. A review on measurements of SARS-CoV-2 genetic material in air in outdoor and indoor environments: Implication for airborne transmission. Sci. Total Environ. 2022, 809, 151137. [Google Scholar] [CrossRef]
  6. Nakanishi, A.; Saiki, A.; Ohta, K.; Tanimura, Y.; Yasuda, H.; Mizuno, A. Evaluation Method on Removability of Airborne Virus—Evaluation Method Using Bacteriophage φX 174-. J. Inst. Electrostat. JPN 2011, 35, 108–113. [Google Scholar]
  7. Fabian, P.; McDevitt, J.J.; Houseman, E.A.; Milton, D.K. Airborne influenza virus detection with four aerosol samplers using molecular and infectivity assays: Considerations for a new infectious virus aerosol sampler. Indoor Air 2009, 19, 433–441. [Google Scholar] [CrossRef] [Green Version]
  8. Haig, C.W.; Mackay, W.G.; Walker, J.T.; Williams, C. Bioaerosol sampling: Sampling mechanisms, bioefficiency and field studies. J. Hosp. Infect. 2016, 93, 242–255. [Google Scholar] [CrossRef]
  9. Mizuno, A.; Yasuda, H. Damages of Biological Components in Bacteria and Bacteriophages Exposed to Atmospheric Non-thermal Plasma. In Plasma for Bio-Decontamination, Medicine and Food Security (NATO Science for Peace and Security Series A: Chemistry and Biology); 2012th ed.; Machala, Z., Hensel, K., Akishev, Y., Eds.; Springer: Dordrecht, The Netherlands, 2012; pp. 79–92. [Google Scholar]
  10. Kisanuki, Y.; Fukuda, K.; Makishima, Y.; Kitabayashi, K.; Katsushima, S.; Debacher, N.; Takashima, K.; Mizuno, A. Corona Discharge with Bundle of Fine Conductive Fibers for Electrostatic Precipitation of Fine Smoke Particles. Int. J. Plasma Environ. Sci. Technol. 2019, 13, 21–25. [Google Scholar]
  11. Kim, H.R.; An, S.; Hwang, J. High air flow-rate electrostatic sampler for the rapid monitoring of airborne coronavirus and influenza viruses. J. Hazard. Mater. 2021, 412, 125219. [Google Scholar] [CrossRef]
  12. Roux, J.M.; Kaspari, O.; Heinrich, R.; Hanschmann, N.; Grunow, R. Investigation of a New Electrostatic Sampler for Concentrating Biological and Non-Biological Aerosol Particles. Aerosol Sci. Technol. 2013, 47, 463–471. [Google Scholar] [CrossRef] [Green Version]
  13. Ladhani, L.; Pardon, G.; Moons, P.; Goossens, H.; van der Wijngaart, W. Electrostatic Sampling of Patient Breath for Pathogen Detection: A Pilot Study. Front. Mech. Eng. 2020, 6, 40. [Google Scholar] [CrossRef]
  14. Abdel-Salam, M.; Nakano, M.; Tanino, M.; Mizuno, A. Culturing of cells as influenced by exposure to AC and DC fields. J. Phys. Conf. Ser. 2008, 142, 012051. [Google Scholar] [CrossRef]
  15. Tanaka, Y.; Yasuda, H.; Kurita, H.; Takashima, K.; Mizuno, A. Analysis of the Inactivation Mechanism of Bacteriophage φX174 by Atmospheric Pressure Discharge Plasma. IEEE Trans. Ind. Appl. 2014, 50, 1397–1401. [Google Scholar] [CrossRef]
  16. Yasuda, H.; Hashimoto, M.; Rahman, M.; Takashima, K.; Mizuno, A. States of Biological Components in Bacteria and Bacteriophages during Inactivation by Atmospheric Dielectric Barrier Discharges. Plasma Process. Polym. 2008, 5, 615–621. [Google Scholar] [CrossRef]
  17. Yasuda, H.; Miura, T.; Kurita, H.; Takashima, K.; Mizuno, A. Biological Evaluation of DNA Damage in Bacteriophages Inactivated by Atmospheric Pressure Cold Plasma. Plasma Process. Polym. 2010, 7, 301–308. [Google Scholar] [CrossRef]
  18. Santarpia, J.L.; Herrera, V.L.; Rivera, D.N.; Ratnesar-Shumate, S.; Reid, S.P.; Denton, P.W.; Martens, J.W.S.; Fang, Y.; Conoan, N.; Callahan, M.V.; et al. The size and culturability of patient-generated SARS-CoV-2 aerosol. J. Expo. Sci. Environ. Epidemiol. 2022, 32, 706–711. [Google Scholar] [CrossRef]
  19. The Japan Electrical Manufacturers’ Association. Airborne Viruses Removal Performance of Air Purifiers. Available online: https://www.jema-net.or.jp/Japanese/ha/kuusei/hyoukashiken/hyouka1.pdf (accessed on 23 March 2023).
  20. Mostafa, H.H.; Carroll, K.C.; Hicken, R.; Berry, G.J.; Manji, R.; Smith, E.; Rakeman, J.L.; Fowler, R.C.; Leelawong, M.; Butler-Wu, S.M.; et al. Multicenter Evaluation of the Cepheid Xpert Xpress SARS-CoV-2/Flu/RSV Test. J. Clin. Microbiol. 2021, 59, e02955-20. [Google Scholar] [CrossRef]
  21. Shirato, K.; Nao, N.; Katano, H.; Takayama, I.; Saito, S.; Kato, F.; Katoh, H.; Sakata, M.; Nakatsu, Y.; Mori, Y.; et al. Development of Genetic Diagnostic Methods for Novel Coronavirus 2019 (nCoV-2019) in Japan. Jpn. J. Infect. Dis. 2020, 73, 304–307. [Google Scholar] [CrossRef] [Green Version]
  22. Hadfield, J.; Megill, C.; Bell, S.M.; Huddleston, J.; Potter, B.; Callender, C.; Sagulenko, P.; Bedford, T.; Neher, R.A. Nextstrain: Real-time tracking of pathogen evolution. Bioinformatics 2018, 34, 4121–4123. [Google Scholar] [CrossRef] [Green Version]
  23. Ministry of Health, Labour and Welfare. Visualizing the Data: Information on COVID-19 Infections. Available online: https://covid19.mhlw.go.jp/en/ (accessed on 19 February 2023).
  24. Wang, Y.X.; Su, W.C.; Wang, Q.; Lin, Y.F.; Zhou, Y.; Lin, L.F.; Ren, S.; Li, Y.T.; Chen, Q.X.; Shi, Y. Antityrosinase and antioxidant activities of guanidine compounds and effect of guanylthiourea on melanogenesis. Process. Biochem. 2019, 85, 84–96. [Google Scholar] [CrossRef]
  25. Blow, J.A.; Mores, C.N.; Dyer, J.; Dohm, D.J. Viral nucleic acid stabilization by RNA extraction reagent. J. Virol. Methods 2008, 150, 41–44. [Google Scholar] [CrossRef] [PubMed]
  26. Ladhani, L.; Pardon, G.; Meeuws, H.; van Wesenbeeck, L.; Schmidt, K.; van der Stuyver, L.; Wijngaart, W. Sampling and detection of airborne influenza virus towards point-of-care applications. PLoS ONE 2017, 12, e0174314. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Berglund, B.; Lindvall, T.; Schwela, D.H.; World Health Organization; Occupational and Environmental Health Team. Guidelines for Community Noise. Available online: https://apps.who.int/iris/handle/10665/66217 (accessed on 19 February 2023).
  28. BioSampler® Bioaerosol Collection Device. Cat. No. 225 Series. Available online: https://www.skcinc.com/media/documents/KnowledgeCenter/Technical%20Information/Product%20Publications/Operating%20Instructions/BioSampler%20Bioaerosol%20Collection%20Device%20225%20Series%20OI.pdf (accessed on 21 February 2023).
  29. BioLite+ Air Sampling Pump. Operating Instructions. Available online: https://www.skcinc.com/media/documents/KnowledgeCenter/Technical%20Information/Product%20Publications/Operating%20Instructions/BioLite%20Sample%20Pump%20228-9615%20OI.pdf (accessed on 21 February 2023).
  30. AirPort MD8. The New Portable Air Sampler. Available online: https://assets.fishersci.com/TFS-Assets/CCG/EU/Sartorius-Stedim-Biotech/brochures/SAR058_EN%20Broch_MD8_Airport.pdf (accessed on 21 February 2023).
  31. Santarpia, J.L.; Rivera, D.N.; Herrera, V.L.; Morwitzer, M.J.; Creager, H.M.; Santarpia, G.W.; Crown, K.K.; Brett-Major, D.M.; Schnaubelt, E.R.; Broadhurst, M.J.; et al. Aerosol and surface contamination of SARS-CoV-2 observed in quarantine and isolation care. Sci. Rep. 2020, 10, 13892. [Google Scholar] [CrossRef] [PubMed]
  32. Stern, R.A.; Al-Hemoud, A.; Alahmad, B.; Koutrakis, P. Levels and particle size distribution of airborne SARS-CoV-2 at a healthcare facility in Kuwait. Sci. Total Environ. 2021, 782, 146799. [Google Scholar] [CrossRef]
  33. Guo, Z.D.; Wang, Z.Y.; Zhang, S.F.; Li, X.; Li, L.; Li, C.; Cui, Y.; Fu, R.B.; Dong, Y.Z.; Chi, X.Y.; et al. Aerosol and Surface Distribution of Severe Acute Respiratory Syndrome Coronavirus 2 in Hospital Wards, Wuhan, China, 2020. Emerg. Infect. Dis. 2020, 26, 1583–1591. [Google Scholar] [CrossRef]
  34. Kim, K.S.; Ejima, K.; Iwanami, S.; Fujita, Y.; Ohashi, H.; Koizumi, Y.; Asai, Y.; Nakaoka, S.; Watashi, K.; Aihara, K.; et al. A quantitative model used to compare within-host SARS-CoV-2, MERS-CoV, and SARS-CoV dynamics provides insights into the pathogenesis and treatment of SARS-CoV-2. PLoS Biol. 2021, 19, e3001128. [Google Scholar] [CrossRef]
  35. Young, B.E.; Ong, S.W.X.; Kalimuddin, S.; Low, J.G.; Tan, S.Y.; Loh, J.; Ng, O.T.; Marimuthu, K.; Ang, L.W.; Mak, T.M.; et al. Epidemiologic Features and Clinical Course of Patients Infected with SARS-CoV-2 in Singapore. JAMA 2020, 323, 1488–1494. [Google Scholar] [CrossRef] [Green Version]
  36. Liu, Y.; Yan, L.M.; Wan, L.; Xiang, T.X.; Le, A.; Liu, J.M.; Peiris, M.; Poon, L.L.M.; Zhang, W. Viral dynamics in mild and severe cases of COVID-19. Lancet Infect. Dis. 2020, 20, 656–657. [Google Scholar] [CrossRef] [Green Version]
  37. Puhach, O.; Meyer, B.; Eckerle, I. SARS-CoV-2 viral load and shedding kinetics. Nat. Rev. Microbiol. 2023, 21, 147–161. [Google Scholar] [CrossRef]
  38. Ueki, H.; Furusawa, Y.; Iwatsuki-Horimoto, K.; Imai, M.; Kabata, H.; Nishimura, H.; Kawaoka, Y. Effectiveness of Face Masks in Preventing Airborne Transmission of SARS-CoV-2. mSphere 2020, 5, e00637-20. [Google Scholar] [CrossRef] [PubMed]
  39. Coleman, K.K.; Wen Tay, D.J.; Tan, K.S.; Xiang Ong, S.W.; Son, T.T.; Koh, M.H.; Chin, Y.Q.; Nasir, H.; Mak, T.M.; Chu, J.J.H.; et al. Viral Load of Severe Acute Respiratory Syndrome Coronavirus 2 (SARS-CoV-2) in Respiratory Aerosols Emitted by Patients with Coronavirus Disease 2019 (COVID-19) While Breathing, Talking, and Singing. Clin. Infect. Dis. 2022, 74, 1722–1728. [Google Scholar] [CrossRef] [PubMed]
  40. Conte, M.; Feltracco, M.; Chirizzi, D.; Trabucco, S.; Dinoi, A.; Gregoris, E.; Barbaro, E.; La Bella, G.; Ciccarese, G.; Belosi, F.; et al. Airborne concentrations of SARS-CoV-2 in indoor community environments in Italy. Environ. Sci. Pollut. Res. Int. 2022, 29, 13905–13916. [Google Scholar] [CrossRef] [PubMed]
  41. Schijven, J.; Vermeulen, L.C.; Swart, A.; Meijer, A.; Duizer, E.; de Roda Husman, A.M. Quantitative Microbial Risk Assessment for Airborne Transmission of SARS-CoV-2 via Breathing, Speaking, Singing, Coughing, and Sneezing. Environ. Health Perspect. 2021, 129, 47002. [Google Scholar] [CrossRef] [PubMed]
  42. Strong, J.E.; Feldmann, H. The Crux of Ebola Diagnostics. J. Infect. Dis. 2017, 216, 1340–1342. [Google Scholar] [CrossRef]
  43. Xu, Y.; Cheng, M.; Chen, X.; Zhu, J. Current approaches in laboratory testing for SARS-CoV-2. Int. J. Infect. Dis. 2020, 100, 7–9. [Google Scholar] [CrossRef]
  44. Funk, D.J.; Bullard, J.; Lother, S.; Grande, G.V.; Garnett, L.; Doan, K.; Dust, K.; Kumar, A.; Poliquin, G.; Strong, J. Persistence of live virus in critically ill patients infected with SARS-COV-2: A prospective observational study. Crit. Care 2022, 26, 10. [Google Scholar] [CrossRef]
  45. Shinoda, H.; Taguchi, Y.; Nakagawa, R.; Makino, A.; Okazaki, S.; Nakano, M.; Muramoto, Y.; Takahashi, C.; Takahashi, I.; Ando, J.; et al. Amplification-free RNA detection with CRISPR–Cas13. Commun. Biol. 2021, 4, 476. [Google Scholar] [CrossRef]
Microorganisms 11 00944 g001 550

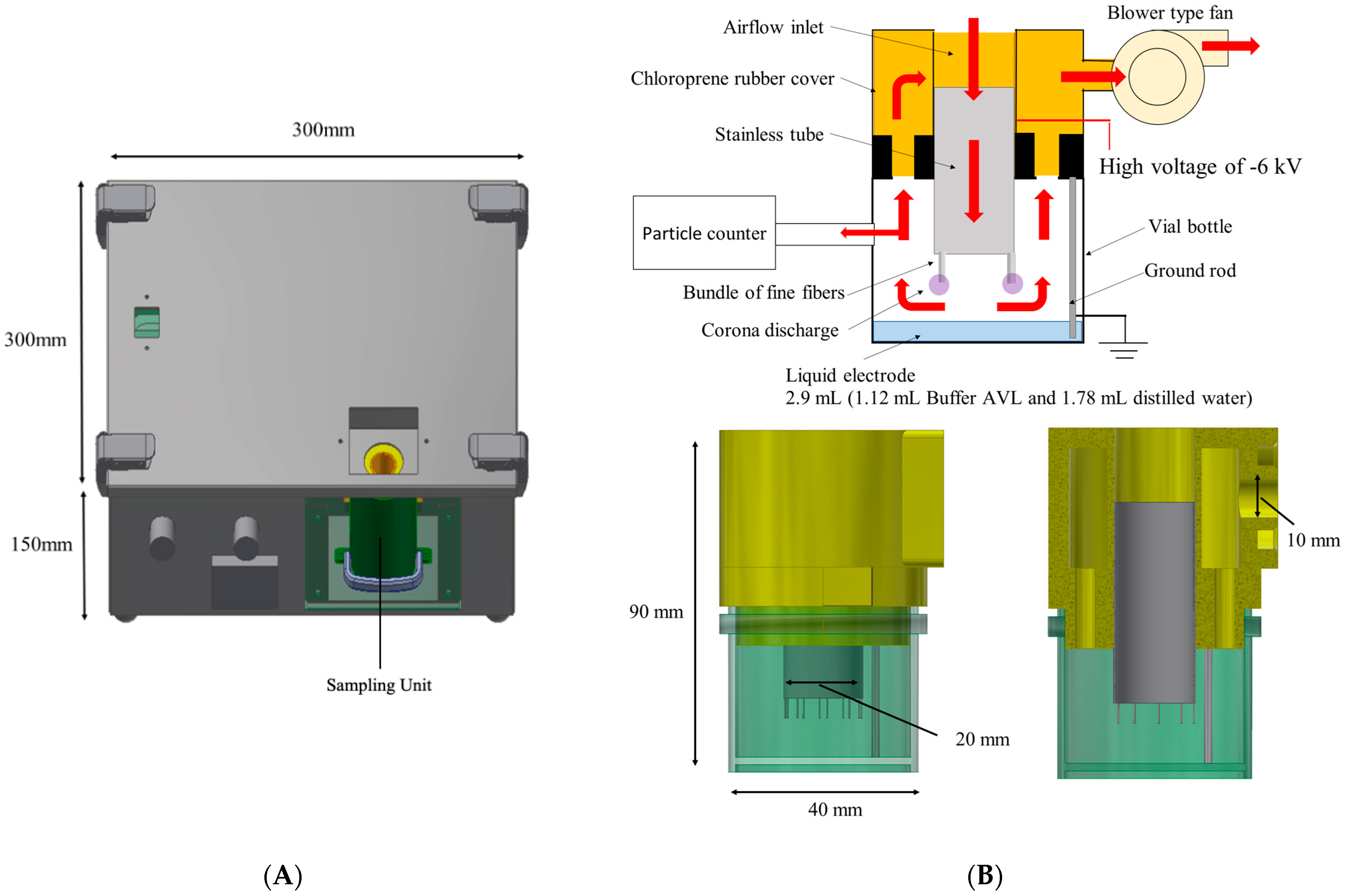

Figure 1. Schematic diagram of the developed electrostatic air sampler. (A) Exterior view of the air sampler. (B) Schematic diagram of the electrostatic sampling unit. Red arrows indicate the flow of air. The particle counter was installed to measure the particle collection efficiency.
Figure 1. Schematic diagram of the developed electrostatic air sampler. (A) Exterior view of the air sampler. (B) Schematic diagram of the electrostatic sampling unit. Red arrows indicate the flow of air. The particle counter was installed to measure the particle collection efficiency.
Microorganisms 11 00944 g001
Microorganisms 11 00944 g002 550

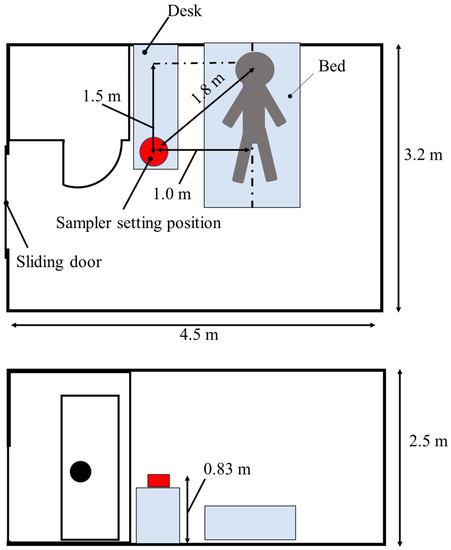

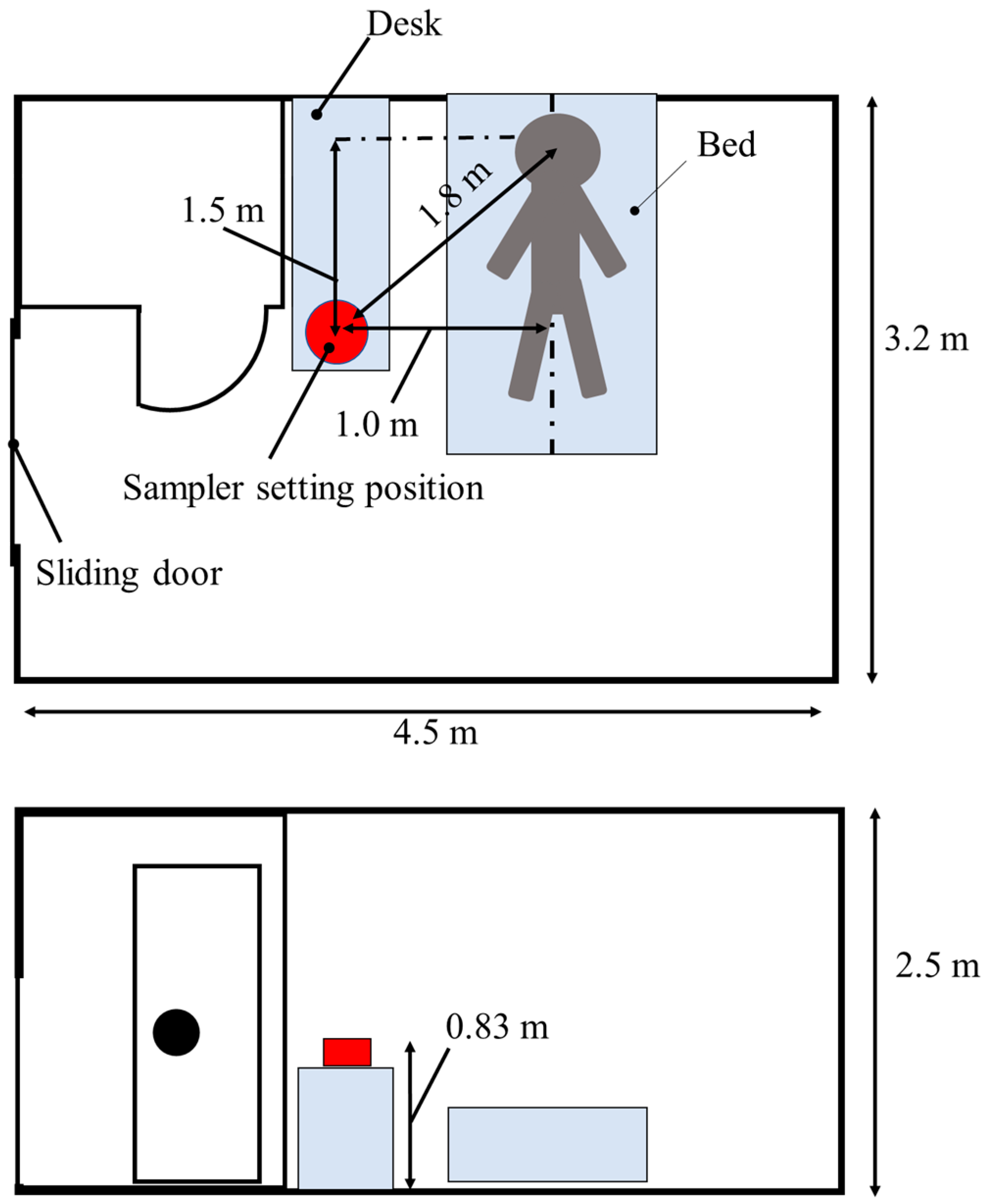

Figure 2. Schematic diagram of the patient room. All patients were admitted to the same single-patient room with dimensions of 4.5 m × 3.2 m × 2.5 m (length × width × height) and an interior volume of 36 m3. The sampler was placed 1.8 m from the head of patient and 0.83 m above the floor.
Figure 2. Schematic diagram of the patient room. All patients were admitted to the same single-patient room with dimensions of 4.5 m × 3.2 m × 2.5 m (length × width × height) and an interior volume of 36 m3. The sampler was placed 1.8 m from the head of patient and 0.83 m above the floor.
Microorganisms 11 00944 g002
Microorganisms 11 00944 g003 550

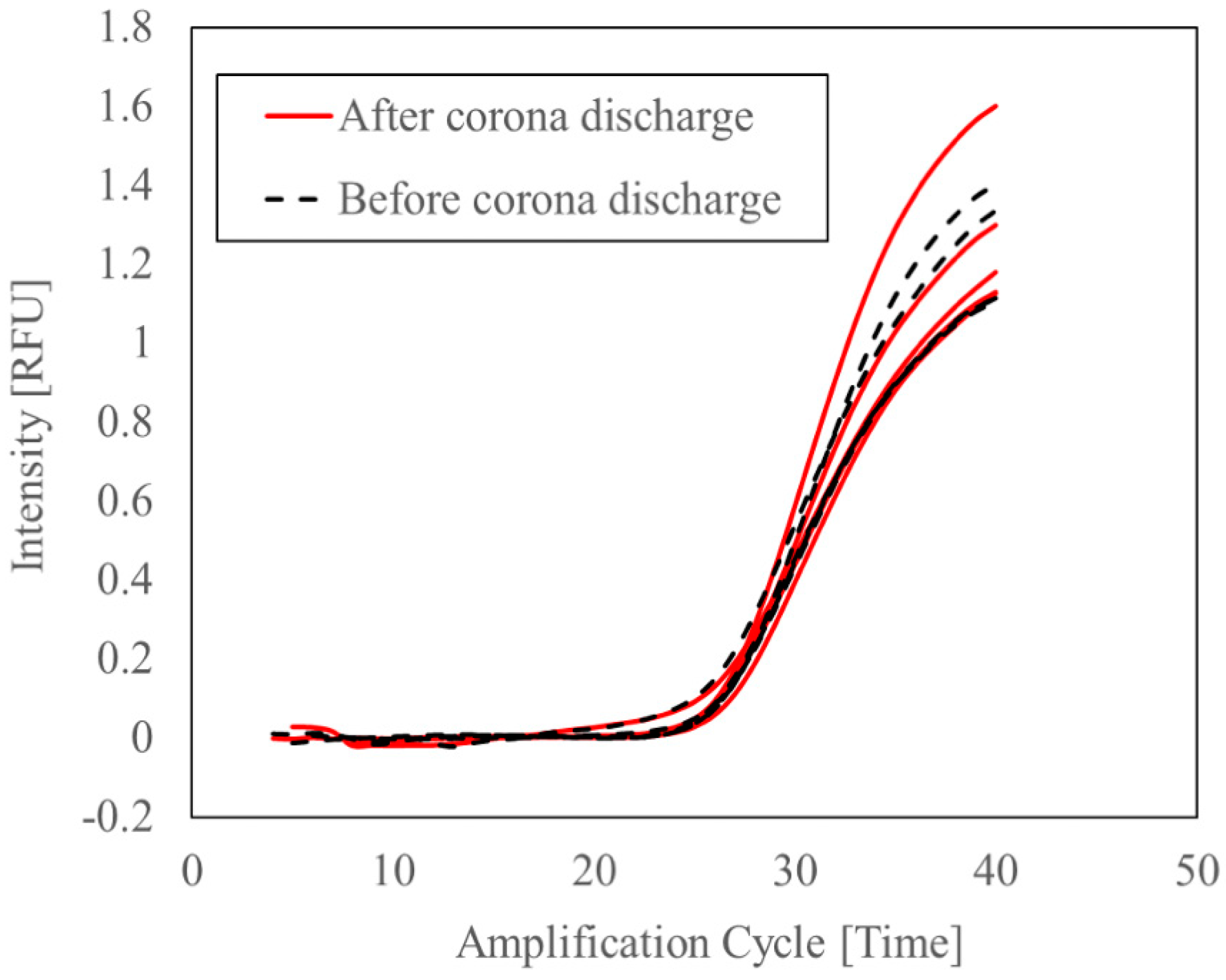

Figure 3. Real-time quantitative PCR (RT-qPCR) threshold (Ct) values of bacteriophage RNA in Buffer AVL before and after exposure to corona discharge, and Ct values of bacteriophage MS2 RNA before (dashed lines) and after (solid lines) exposure to corona discharge were measured five times each.
Figure 3. Real-time quantitative PCR (RT-qPCR) threshold (Ct) values of bacteriophage RNA in Buffer AVL before and after exposure to corona discharge, and Ct values of bacteriophage MS2 RNA before (dashed lines) and after (solid lines) exposure to corona discharge were measured five times each.
Microorganisms 11 00944 g003
Table
Table 1. Clinical characteristics of the patients and SARS -CoV-2 viral RNA concentrations in the hospital room air.
Table 1. Clinical characteristics of the patients and SARS -CoV-2 viral RNA concentrations in the hospital room air.
Patient ID12345678910
Age80s80s30s50s70s60s80s30s30s30s
GenderMaleFemaleFemaleMaleFemaleMaleMaleFemaleMaleFemale
SeveritySevereSevereModerateModerateModerateModerateModerateMildMildMild
VariantOmicron
21K/BA1.1		Delta
21A		Omicron
21K/BA1.1		Omicron
21K/BA1.1		Omicron
21K/BA1.1		Omicron
21K/Ba2		Omicron
BA.5		Omicron
21K/BA1.1		Omicron
21K/BA1.1		ND **
VaccinationUnknownNoneNone2 times3 times3 timesUnknownUnknownNoneNone
Ct value *31.52729.921.326.314.417.917.617.1ND **
Days after
symptom
onset		Viral concentration
(copies/m3)
0
1
2 1.1 × 103 3.0 × 1023.1 × 102
3 1.0 × 103 2.4 × 104
4 (dead) 9.3 × 1021.0 × 103 01.7 × 103
5 4.7 × 1031.0 × 1039.2 × 1021.8 × 10201.0 × 102
6 6.0 × 102 01.2 × 103 1.2 × 102
7 1.3 × 103
8 00
9 0
102.5 × 102 0 3.9 × 102
110 (discharge) (discharge)
12 (discharge) (discharge)
132.2 × 102 (discharge)
14
15
16 (discharge)
171.4 × 102
181.3 × 103 (discharge)
19(dead)
20
The gray shaded columns indicate the hospitalization period. * Ct value: cycle threshold values of nasopharyngeal SARS-CoV-2 PCR on admission. ND **: not detected.
Table
Table 2. RT-qPCR detection results of SARS-CoV-2 in the indoor environment and suspended concentrations.
Table 2. RT-qPCR detection results of SARS-CoV-2 in the indoor environment and suspended concentrations.
OfficeFood CourtStation Corridor
Space volume (m3)34020001500
Number of people30300100
m3/people116.715
Ct value33.736.3ND **
Virus RNA concentration (copy/m3)7.8 × 1021.9 × 102ND **
ND **: not detected.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Fukuda, K.; Baba, H.; Yoshida, M.; Kitabayashi, K.; Katsushima, S.; Sonehara, H.; Mizuno, K.; Kanamori, H.; Tokuda, K.; Nakagawa, A.; et al. Novel Virus Air Sampler Based on Electrostatic Precipitation and Air Sampling of SARS-CoV-2. Microorganisms 2023, 11, 944. https://doi.org/10.3390/microorganisms11040944

AMA Style

Fukuda K, Baba H, Yoshida M, Kitabayashi K, Katsushima S, Sonehara H, Mizuno K, Kanamori H, Tokuda K, Nakagawa A, et al. Novel Virus Air Sampler Based on Electrostatic Precipitation and Air Sampling of SARS-CoV-2. Microorganisms. 2023; 11(4):944. https://doi.org/10.3390/microorganisms11040944

Chicago/Turabian Style

Fukuda, Kyohei, Hiroaki Baba, Mie Yoshida, Kouichi Kitabayashi, Shinjirou Katsushima, Hiroki Sonehara, Kazue Mizuno, Hajime Kanamori, Koichi Tokuda, Atsuhiro Nakagawa, and et al. 2023. "Novel Virus Air Sampler Based on Electrostatic Precipitation and Air Sampling of SARS-CoV-2" Microorganisms 11, no. 4: 944. https://doi.org/10.3390/microorganisms11040944

APA Style

Fukuda, K., Baba, H., Yoshida, M., Kitabayashi, K., Katsushima, S., Sonehara, H., Mizuno, K., Kanamori, H., Tokuda, K., Nakagawa, A., & Mizuno, A. (2023). Novel Virus Air Sampler Based on Electrostatic Precipitation and Air Sampling of SARS-CoV-2. Microorganisms, 11(4), 944. https://doi.org/10.3390/microorganisms11040944

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
