The Epichloë festucae Antifungal Protein Efe-AfpA Has Activity against Numerous Plant Pathogens

by
Patrick A. Fardella
,
Bruce B. Clarke
and
Faith C. Belanger
*
Department of Plant Biology, Rutgers University, New Brunswick, NJ 08901, USA
*
Author to whom correspondence should be addressed.
Microorganisms 2023, 11(4), 828; https://doi.org/10.3390/microorganisms11040828
Submission received: 23 February 2023 / Revised: 17 March 2023 / Accepted: 22 March 2023 / Published: 24 March 2023
(This article belongs to the Special Issue Advanced Research on Biological Control of Plant Disease or Microbial Interactions)
Browse Figures
Versions Notes

Abstract

:
Fungal plant pathogens can present major problems for most crop species. Currently, control of fungal diseases relies heavily on the use of fungicides. However, there are problems associated with fungicide use, including potential toxicity to non-target organisms and the development of resistance in the target fungus. New strategies are being sought to reduce fungicide use. One area of active research is the potential use of antifungal proteins from various fungal species as alternatives or complements to traditional fungicides. An antifungal protein, Efe-AfpA, from the fungal endophyte Epichloë festucae was previously found to protect plants from the pathogen Clarireedia jacksonii, the causal agent of dollar spot disease. Here we report that Efe-AfpA also has inhibitory activity against other important plant pathogens. These results suggest that it may be possible to develop Efe-AfpA as a biofungicide to target a broad range of destructive plant pathogens.

1. Introduction

Management of fungal plant pathogens is challenging for many crops. Current management strategies rely heavily on the use of fungicides, which are considered critical for global food security [1,2]. Fungicides are also used heavily on amenity crops such as turfgrasses [3]. Although deemed critical for disease management, there are several problems associated with fungicide use, including potential toxicity to non-target organisms and the development of resistance in the target fungus [1]. Strategies to reduce fungicide usage include the breeding of more disease-tolerant cultivars [4,5] as well as genetic modification of plants to enhance disease resistance [6]. Improved cultural management strategies can also help to improve disease control and reduce fungicide usage [7].
Another strategy is the development of alternatives or complements to synthetic fungicides that have reduced potential for causing toxicities to the environment or non-target organisms. This approach can involve the application of biological control organisms or products derived from living organisms to plants to reduce disease severity [8]. One area of active research is the potential use of antifungal proteins from various fungal species as biofungicides. The most extensively researched antifungal proteins are PAF and PAFB from Penicillium chrysogenum, and AFP and NFAP from Aspergillus spp. [9,10,11,12]. These proteins have been tested against a variety of fungi, yeasts, and bacteria to determine their efficacy in inhibiting growth, showing both stark differences and striking similarities in their effectiveness [10,13,14,15]. This underscores the importance of continuing to test these and additional antifungal proteins to determine their repertoire of sensitive microorganisms. This information would allow for the selection of appropriate antifungal proteins to help control specific plant pathogens [16].
We are interested in the potential development of an antifungal protein from the endophytic fungus Epichloë festucae, which infects the grass strong creeping red fescue (Festuca rubra subsp. rubra), as a possible alternative or complement to fungicides for the control of important plant pathogens. Strong creeping red fescue is a commercially important turfgrass species [17]. Epichloë spp. are common endophytic symbionts of many cool-season grass species, often conferring insect resistance to the hosts due to the production of toxic alkaloids [18]. In addition to insect resistance, E. festucae infection is known to confer field-level disease resistance in strong creeping red fescue against both dollar spot disease (Clarireedia jacksonii) and red thread disease (Laetisaria fuciformis) [19,20]. This endophyte-mediated disease resistance is unique to the E. festucae/fine fescue symbiosis and has not been seen in other Epichloë spp./commercial grass species interactions [20,21,22]. The genome of E. festucae isolates that infect strong creeping red fescue contains a gene encoding an antifungal protein [23]. The E. festucae antifungal protein gene is designated Efe-afpA and the protein is designated Efe-AfpA [24]. Such a gene is not present in the genomes of most Epichloë spp. for which whole genome sequencing is available, including other strains of E. festucae [21,23] This suggested that the E. festucae antifungal protein is a likely factor in the endophyte-mediated disease resistance observed in strong creeping red fescue. To validate the presumption that Efe-AfpA was a major component of this endophyte-mediated disease resistance, Efe-AfpA was produced in a Pe. chrysogenum expression system and tested against Cl. jacksonii. Purified Efe-AfpA inhibited the growth of Cl. jacksonii in culture and direct application to Cl. jacksonii-inoculated plants reduced the severity of disease symptoms on endophyte-free strong creeping red fescue and creeping bentgrass (Agrostis stolonifera) [25].
These results support the original hypothesis that Efe-AfpA is a major contributor to the dollar spot resistance seen in endophyte-infected strong creeping red fescue plants and suggested that Efe-AfpA may have potential as a biofungicide. It was therefore of interest to determine if Efe-AfpA also had activity against other plant pathogens. The objective of this work was to assay Efe-AfpA activity on important plant fungal pathogens in culture. We also assayed the Pe. chrysogenum antifungal protein PAF since we previously found differences between the activities of Efe-AfpA and PAF against Cl. jacksonii [25]. In particular, we focused on historically and economically important plant pathogens and major turfgrass pathogens, as Efe-AfpA is from a turfgrass endophyte. Efe-AfpA did have inhibitory activity against several other plant pathogens, expanding its potential usefulness beyond Cl. jacksonii.

2. Materials and Methods

2.1. Fungi and Culture Conditions

Pe. chrysogenum paf, an isolate over-expressing paf, and Pe. chrysogenumEfe-AfpA, an isolate expressing Efe-afpA, were maintained on PcMM (Penicillium chrysogenum Minimal Media) [25,26] supplemented with 200 μg mL−1 nourseothricin and 0.6 μg mL−1 pyrithiamine. All other fungi were maintained on potato dextrose agar (PDA) (HiMedia Laboratories, Mumbai, India). To generate conidia for Pyricularia oryze, a fungal plug grown on PDA was subcultured onto ryegrass-amended plates and grown for at least 2 weeks. Ryegrass-amended plates were made by autoclaving ryegrass clippings, approximately 20 g in 500 mL of distilled water twice. The clippings were removed by filtering through cheesecloth. The volume of the filtered solution was brought back up to 500 mL with distilled water, agar was added to a final concentration of 1.5%, and the solution was autoclaved.

2.2. Purification of Efe-AfpA from Pe. chrysogenumEfe-AfpA and PAF from Pe. chrysogenum paf

The protein purification method was previously described in detail [25]. Briefly, for purification of Efe-AfpA 2 × 108 conidia of Pe. chrysogenumEfe-AfpA were added to 200 mL Aspergillus nidulans Complete Media and shaken at 200 rpm for 48 h. The mycelium was then harvested by filtering the culture through cheesecloth, which was then resuspended in 200 mL PcMM and incubated for 72 h while shaking at 200 rpm. The culture supernatant was collected by filtering through cheesecloth to remove mycelia, and any excess debris was pelleted by centrifugation at 10,000 rpm for 10 min. The cleared culture supernatant was applied to a carboxymethyl cellulose (CMC52) (Biophoretics, Sparks, NV, USA) column pre-equilibrated with 10 mM NaPO4, 25 mM NaCl, 0.15 mM EDTA, pH 6.6. The column was then washed with excess buffer and Efe-AfpA was eluted with increasing salt concentrations from 0.1 to 0.5 M NaCl. Similarly, for purification of PAF, 2 × 108 conidia of Pe. chrysogenum paf was added to 200 mL PcMM and shaken for 72 h at 200 rpm. The culture supernatant was then processed as described above for Efe-AfpA.
Eluted fractions from both purifications were evaluated for the presence of the protein utilizing their respective molecular weights and extinction coefficients at A280 measured by using a Nanodrop ND-1000 spectrophotometer (Thermo Fisher Scientific, Waltham, MA, USA). Efe-AfpA molecular weight: 6.278 kDa, extinction coefficient: 5220 M−1 cm−1. PAF molecular weight: 6.25 kDa, extinction coefficient: 4845 M−1 cm−1. Protein-containing fractions were filtered through a 30 kDa Amicon® Ultra-15 Centrifugal Filter (MilliporeSigma, Burlington, MA, USA) to remove high molecular weight proteins. The proteins were then concentrated and desalted on a 3 kDa Amicon® Ultra-15 Centrifugal Filter with sterile distilled water. The protein samples were finally sterilized by filtering through a 0.2 μm polyethersulfone syringe filter (Corning Inc., Corning, NY, USA).

2.3. Antifungal Activity Assays

For fungi that easily produced spores (B. cinerea, Co. graminicola, F. graminearum PH1, Py. oyzae), antifungal activities of Efe-AfpA and PAF were assayed in 24 and 96-well plates. For the 24-well plate activity assays, spores were harvested in Spore Buffer (0.9% NaCl, 0.01% Tween 20), washed twice in Spore Buffer, washed once in sterile distilled water, and resuspended in sterile distilled water. Spores were counted using a hemocytometer and diluted to 2 × 105 conidia mL−1. Five μL of spores was plated onto 500 μL of PDA amended with increasing concentrations of Efe-AfpA or PAF (0, 0.75, 1.5, 3, 6, 12, 25, 500, 100 μg mL−1) in a 24-well plate. Plates were incubated for 72 to 96 h, depending on the growth rate of the fungus. Assays were performed in duplicate and the experiment was completed twice.
For 96-well activity assays, spores were harvested in Spore Buffer, washed twice in Spore Buffer, washed once in 2 × low cation media (LCM) (1 × LCM is 2 g L−1 glucose, 0.1 g L−1 yeast extract, 0.05 g L−1 peptone), and resuspended in fresh 2 × LCM. Spores were counted on a hemocytometer and diluted to 2 × 104 conidia mL−1 with 2 × LCM. One hundred μL of spores and 100 μL of water containing increasing concentrations of Efe-AfpA or PAF were incubated in each well to final concentrations of 0, 0.3, 0.6, 1.2, 5, 10, 20, 30, 40, 50, and 100 μg mL−1 antifungal protein. Plates were incubated at room temperature for 24 to 48 h, depending on how fast the fungi grew. Growth was monitored at A620 using a microtiter plate reader (Absorbance 96, Byonoy GmbH, Hamburg, Germany). Optical density at A620 was measured at 0 h and subtracted from subsequent readings to correct for background absorbance. The corrected absorbance of untreated control conidia was considered 100% growth. The percent inhibition by each protein was calculated by comparing the conidia growth of the treated samples to the untreated samples. Wells were visualized microscopically (EVOS M5000, Invitrogen, Waltham, MA, USA). Each treatment had 3 replicates and the experiment was completed twice.
Fungi that did not produce spores easily (Cr. parasitica Ep155, L. fuciformis, R. solani) had their sensitivity to Efe-AfpA and PAF determined using fungal plugs. These fungi were grown from 4 to 10 days on PDA, depending on the growth rate of the fungus, prior to being subcultured. A 5 mm plug of each fungus was placed in the center of 8 mL PDA plates amended with increasing concentrations of Efe-AfpA or PAF (0, 0.5, 1, 10, 20, 30, 40, 50, 100 μg mL−1). Cross-sectional fungal diameter was measured, and plates were photographed daily. Each treatment had three replicates and the experiment was completed twice.

3. Results

3.1. Botrytis cinerea

Botrytis cinerea is a necrotrophic ascomycete responsible for gray mold on over 200 crop species worldwide. Although it causes disease issues in the field and in greenhouses, it is also a considerable post-harvest problem because the fungus can remain quiescent for extended periods of time before becoming active [27]. B. cinerea was listed as the second most important fungal plant pathogen and causes between $10 to $100 billion in losses annually worldwide [28,29]. Previous work reported variable activity of PAF against B. cinerea, which could be due to differences in experimental assays used [30,31,32]. In the current study, Efe-AfpA had a minimal inhibitory concentration (MIC) against B. cinerea of 0.6 μg mL−1 (Figure 1 and Figure S1, Table 1). MIC is defined as the minimal concentration resulting in at least 90% inhibition of the growth of the target organism. PAF did have activity against B. cinerea but its activity did not result in 90% inhibition at any of the concentrations tested (Figure 1, Table 1).

3.2. Colletotrichum cereale

Colletotrichum spp. are common and destructive pathogens on many plant species and are particularly destructive on most agricultural crops. They are ranked the eighth most important fungal pathogens of plants [28]. Co. cereale is responsible for anthracnose on turfgrasses such as Poa annua and Agrostis species, where the disease occurs as either a foliar blight or basal rot [33]. Both Efe-AfpA and PAF had activity against Co. cereale that resulted in greater than 90% inhibition, with MIC concentrations of 1.2 and 40 μg mL−1, respectively (Figure 2 and Figure S2, Table 1).

3.3. Cryphonectria parasitica

Cryphonectria parasitica EP155 is the causal agent of chestnut blight, which nearly eliminated the American chestnut tree (Castanea dentata) worldwide [34]. Current methods of alleviating the disease and restoring the American chestnut to its native range include the development of interspecific hybrids, backcross breeding, and genetic engineering [35]. Since Cr. parasitica produces spores slowly, taking 3 to 4 weeks [36], the inhibitory activity of the antifungal proteins was determined in 8 mL agar plate assays using fungal mycelium plugs. Both Efe-AfpA and PAF were active against Cr. parasitica, with the same MIC value of 0.5 μg mL−1 (Figure 3, Figures S3 and S4, Table 1). Since there was nearly complete inhibition at the lowest concentration tested, 0.5 μg mL−1, higher concentrations are not shown in the graphs in Figure 3.

3.4. Fusarium graminearum

Fusarium graminearum PH1 causes both Fusarium head blight on wheat as well as barley and Fusarium stalk and ear rot on maize and was considered the fourth most important fungal plant pathogen [28,37]. In addition to its destructive impact on wheat and barley, F. graminearum produces mycotoxins detrimental to human and animal health, such as deoxynivalenol (DON) [38]. Both Efe-AfpA and PAF had activity against F. graminearum, but only Efe-AfpA had an activity that resulted in greater than 90% inhibition, with a MIC of 10 μg mL−1 (Figure 4 and Figure S5, Table 1).

3.5. Pyricularia oryzae

Pyricularia oryzae (previously Magnaporthe oryzae) is the causal agent of rice blast and was voted the number one fungal plant pathogen from a scientific and economic perspective [28,39]. Rice (Oryza sativa) is an economically and agriculturally important crop that feeds about half the world’s population, and from 10 to 30% of yield can be lost annually due to rice blast disease [40]. Py. oryzae also causes gray leaf spot of many genera of turfgrass including Cynodon, Eremochloa, Festuca, Lolium, Paspalum, Pennisetum, and Stenotaphrum [33]. Gray leaf spot was also recently identified on the turfgrass Festuca brevipila (hard fescue), which had not previously been reported to be sensitive to Py. oryzae [41]. As the pathogen presents problems on both rice and turf, new mechanisms of plant protection are needed. The well-studied antifungal proteins AFP from A. niger and PAF from Pe. chrysogenum have been tested against Py. oryzae. AFP was highly effective at completely inhibiting growth at the low concentration of 4 μM but PAF was less effective, requiring a concentration greater than 200 μg mL−1 (approximately 32 μM) to completely inhibit growth [32,42]. Here, both Efe-AfpA and PAF did have activity against Py. oryzae, but their activities did not result in 90% inhibition at any of the concentrations tested (Figure 5 and Figure S6, Table 1).

3.6. Laetisaria fuciformis and Rhizoctonia solani

Laetisaria fuciformis causes red thread of turfgrasses, and is particularly damaging to Lolium perenne (perennial ryegrass) and Festuca rubra [33]. F. rubra has been shown to have enhanced tolerance to red thread when infected by the fungal endophyte E. festucae [19]. Rhizoctonia spp. cause several diseases in different types of turfgrass species. R. solani causes brown patch in cool-season turf and large patch in warm-season turf [33]. Efe-AfpA had some activity against L. fuciformis but none against R. solani (Figure 6 and Figure 7, Table 1, Figures S7–S10). PAF was ineffective against both L. fuciformis and R. solani. Only the two highest concentrations tested are shown in Figure 6 and Figure 7 since there was negligible inhibitory activity at the lower concentrations.

4. Discussion

Here, we evaluated the antifungal activity of Efe-AfpA and PAF against some important fungal plant pathogens in culture. Both proteins were effective at inhibiting the growth of some of the pathogens, but there were some clear differences in their activity levels despite the sequence similarity of the two proteins. The amino acid sequences of the two proteins are 65% identical. Efe-AfpA and PAF were previously found to differ in activity against Cl. jacksonii, the causal agent of dollar spot disease on turfgrasses [25]. Efe-AfpA inhibited the growth of Cl. jacksonii but PAF had no inhibitory activity against the pathogen. Antifungal proteins have been identified from numerous fungal species and differences in the activity of other similar antifungal proteins have previously been reported [43,44]. Here, both Efe-AfpA and PAF had activity against all the Ascomycete fungi tested but the level of inhibition varied. Efe-AfpA had some activity against the Basidiomycete L. fuciformis whereas PAF had no activity. Neither protein had activity against the Basidiomycete R. solani.
The differences in activities of Efe-AfpA and PAF against the pathogens tested may reflect the different environments in which E. festucae and Pe. chrysogenum exist and the roles of these antifungal proteins in the biology of two fungi. E. festucae is a fungal endophyte of grasses and does not exist in nature independently of its grass host. PAF was originally reported from Pe. chrysogenum [9], which is commonly found in indoor environments and is a food spoilage fungus [45]. It is unknown if the antifungal activities of the two proteins are their main functions. If so, their differences in activity could be the result of evolutionary changes resulting from different competing fungi present in their environments. However, additional functions for both Efe-AfpA and PAF have been suggested, which could also contribute to the sequence differences that result in activity differences. Efe-AfpA was suggested to be critical for the interaction of the fungus with its host grass [46]. PAF was proposed to have roles in conidiation and autophagy [47,48]. AfpB from Pe. digitatum is another similar antifungal protein, but is also active against its parent strain. AfpB may play a role in regulating the Pe. digitatum population, as well as other fungal populations [49].
New strategies are needed to combat plant pathogens and the development of antifungal proteins could provide some alternatives or complements to traditional fungicides. The data presented here indicate that specific antifungal proteins could be developed to target particular plant pathogens. Since Efe-AfpA had activity against numerous other important plant pathogens, in addition to its activity against Cl. jacksonii, it could be developed to target a broader range of destructive pathogens in both turfgrass and agronomic systems.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/microorganisms11040828/s1, Figure S1: Effect of Efe-AfpA and PAF on Botrytis cinerea growth; Figure S2: Effect of Efe-AfpA and PAF on Colletotrichum cereale growth; Figure S3: Effect of Efe-AfpA on Cryphonectria parasitica EP155 growth; Figure S4: Effect of PAF on Cryphonectria parasitica EP155 growth; Figure S5: Effect of Efe-AfpA and PAF on Fusarium graminearum Ph1 growth; Figure S6: Effect of Efe-AfpA and PAF on Pyricularia oryzae growth; Figure S7: Effect of Efe-AfpA on Laetisaria fuciformis growth; Figure S8: Effect of PAF on Laetisaria fuciformis growth; Figure S9: Effect of Efe-AfpA on Rhizoctonia solani growth; Figure S10: Effect of PAF on Rhizoctonia solani growth.

Author Contributions

Conceptualization, P.A.F., B.B.C. and F.C.B.; methodology, P.A.F., B.B.C. and F.C.B.; investigation, P.A.F.; data curation, P.A.F.; writing—original draft preparation, P.A.F. and F.C.B.; writing—review and editing, P.A.F., B.B.C. and F.C.B.; visualization, P.A.F.; supervision, F.C.B.; project administration, F.C.B.; funding acquisition, B.B.C. and F.C.B. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported with funds provided by the United States Golf Association Davis Program, the Rutgers Center for Turfgrass Science, and the USDA National Institute of Food and Agriculture Hatch project accession number 1024790 through the New Jersey Agricultural Experiment Station, Hatch project NJ12108.

Data Availability Statement

All data supporting the findings of this study are available within the paper and within its Supplementary Materials published online.

Acknowledgments

We thank Florentine Marx for providing the Penicillium chrysogenum paf knockout and overexpressing isolates and the pSK275paf plasmid. We would like to thank the following labs and researchers for providing the fungal pathogens for our experiments: Bruce Clarke (Colletotrichum cereale, Pyricularia oryzae, Laetisaria fuciformis, Rhizoctonia solani), John McLaughlin (Fusarium graminearum PH1), Bradley Hillman (Cryphonectria parasitica), and Thomas Gianfagna (Botrytis cinerea). We also thank the Rutgers University Core Facility in Foran Hall for the variety of instruments accessible for use.

Conflicts of Interest

Rutgers University has filed a provisional patent concerning the purification and use of Efe-AfpA for fungal pathogen disease control. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Zubrod, J.P.; Bundschuh, M.; Arts, G.; Bruhl, C.A.; Imfeld, G.; Knabel, A.; Payraudeau, S.; Rasmussen, J.J.; Rohr, J.; Scharmuller, A.; et al. Fungicides: An overlooked pesticide class? Environ. Sci. Technol. 2019, 53, 3347–3365. [Google Scholar] [CrossRef]
  2. Steinberg, G.; Gurr, S.J. Fungi, fungicide discovery and global food security. Fungal Genet. Biol. 2020, 144, 103476. [Google Scholar] [CrossRef] [PubMed]
  3. Morton, V.; Staub, T.A. Short history of fungicides. APSnet Features 2008, 308, 1–12. [Google Scholar] [CrossRef]
  4. Nelson, R.; Wiesner-Hanks, T.; Wisser, R.; Ballint-Kurti, P. Navigating complexity to breed disease-resistant crops. Nat. Rev. Genet. 2018, 19, 21–33. [Google Scholar] [CrossRef]
  5. Sanchez-Martin, J.; Keller, B. Contribution of recent technological advances to future resistance breeding. Theor. Appl. Genet. 2019, 132, 713–732. [Google Scholar] [CrossRef] [PubMed]
  6. van Esse, H.P.; Reuber, T.L.; van der Does, D. Genetic modification to improve disease resistance in crops. New Phytol. 2020, 225, 70–86. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Green, K.K.; Stenberg, J.A.; Lankinen, A. Making sense of integrated pest management (IPM) in the light of evolution. Evol. Appl. 2020, 13, 1791–1805. [Google Scholar] [CrossRef] [PubMed]
  8. Ons, L.; Bylemans, D.; Thevissen, K.; Cammue, P.A. Combining biocontrol agents with chemical fungicides for integrated plant fungal disease control. Microorganisms 2020, 8, 1930. [Google Scholar] [CrossRef]
  9. Marx, F.; Haas, H.; Reindl, M.; Stoffler, G.; Lottspeich, F.; Redl, B. Cloning, structural organization and regulation of expression of the Penicillium chrysogenum paf gene encoding an abundantly secreted protein with antifungal activity. Gene 1995, 167, 167–171. [Google Scholar] [CrossRef]
  10. Huber, A.; Galgoczy, L.; Varadi, G.; Holzknecht, J.; Kakar, A.; Malanovic, N.; Leber, R.; Koch, J.; Keller, M.A.; Batta, G.; et al. Two small, cysteine-rich and cationic antifungal proteins from Penicillium chrysogenum: A comparative study of PAF and PAFB. Biochim. Biophys. Acta Biomembr. 2020, 1862, 183246. [Google Scholar] [CrossRef]
  11. Wnendt, S.; Ulbrich, N.; Stahl, U. Molecular cloning, sequence analysis and expression of the gene encoding an antifungal-protein from Aspergillus giganteus. Curr. Genet. 1994, 25, 519–523. [Google Scholar] [CrossRef] [PubMed]
  12. Kovacs, L.; Viragh, M.; Tako, M.; Papp, T.; Vagvolgyi, C.; Galgoczy, L. Isolation and characterization of Neosartorya fischeri antifungal protein (NFAP). Peptides 2011, 32, 1724–1731. [Google Scholar] [CrossRef] [PubMed]
  13. Theis, T.; Wedde, M.; Meyer, V.; Stahl, U. The antifungal protein from Aspergillus giganteus causes membrane permeabilization. Antimicrob. Agents Chemother. 2003, 47, 588–593. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Marx, F. Small, basic antifungal proteins secreted from filamentous ascomycetes: A comparative study regarding expression, structure, function and potential application. App. Microbiol. Biotechnol. 2004, 65, 133–142. [Google Scholar] [CrossRef]
  15. Toth, L.; Boros, E.; Poor, P.; Ordog, A.; Kele, Z.; Varadi, G.; Holzknecht, J.; Bratschun-Khan, D.; Nagy, I.; Toth, G.K.; et al. The potential use of the Penicillium chrysogenum antifungal protein PAF, the designed variant PAFopt and its γ-core peptide Pγopt in plant protection. Microb. Biotechnol. 2020, 13, 1403–1414. [Google Scholar] [CrossRef] [Green Version]
  16. Leiter, E.; Gall, T.; Csernoch, L.; Pocsi, I. Biofungicide utilizations of antifungal proteins of filamentous ascomycetes: Current and foreseeable future developments. BioControl 2017, 62, 125–138. [Google Scholar] [CrossRef]
  17. Braun, R.C.; Patton, A.J.; Watkins, E.; Koch, P.L.; Anderson, N.P.; Bonos, S.A.; Brilman, L.A. Fine fescues: A review of the species, their improvement, production, establishment, and management. Crop Sci. 2020, 60, 1142–1187. [Google Scholar] [CrossRef] [Green Version]
  18. Schardl, C.L.; Young, C.A.; Hesse, U.; Amyotte, S.G.; Andreeva, K.; Calie, P.J.; Fleetwood, D.J.; Haws, D.C.; Moore, N.; Oeser, B.; et al. Plant-symbiotic fungi as chemical engineers: Multi-genome analysis of the Clavicipitaceae reveals dynamics of alkaloid loci. PLoS Genet. 2013, 9, e1003323. [Google Scholar] [CrossRef] [Green Version]
  19. Bonos, S.A.; Wilson, M.M.; Meyer, W.A.; Funk, C.R. Suppression of red thread in fine fescues through endophyte-mediated resistance. Appl. Turfgrass Sci. 2005, 10, 1094. [Google Scholar] [CrossRef]
  20. Clarke, B.B.; White, J.F., Jr.; Hurley, R.H.; Torres, M.S.; Sun, S.; Huff, D.R. Endophyte-mediated suppression of dollar spot disease in fine fescues. Plant Dis. 2006, 90, 994–998. [Google Scholar] [CrossRef] [Green Version]
  21. Tian, Z.; Wang, R.; Ambrose, K.V.; Clarke, B.B.; Belanger, F.C. The Epichloë festucae antifungal protein has activity against the plant pathogen Sclerotinia homoeocarpa, the causal agent of dollar spot disease. Sci. Rep. 2017, 7, 5643. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Heineck, G.C.; Qiu, Y.; Ehlke, N.J.; Watkins, E. The fungal endophyte Epichloë festucae var. lolii plays a limited role in mediating crown rust severity in perennial ryegrass. Crop Sci. 2020, 60, 1090–1104. [Google Scholar] [CrossRef]
  23. Ambrose, K.V.; Belanger, F.C. SOLiD-SAGE of endophyte-infected red fescue reveals numerous effects on host transcriptome and an abundance of highly expressed fungal secreted proteins. PLoS ONE 2012, 7, e53214. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Schardl, C.L.; Scott, B. Recommendations for gene nomenclature for Epichloë species and related Clavicipitaceae. In Epichloae, Endophytes of Cool Season Grasses: Implications, Utilization and Biology; Young, C.A., Aiken, G.E., McCulley, R.L., Strickland, J.R., Schardl, C.L., Eds.; The Samuel Roberts Noble Foundation: Ardmore, OK, USA, 2012; pp. 84–87. [Google Scholar]
  25. Fardella, P.A.; Tian, Z.; Clarke, B.B.; Belanger, F.C. The Epichloë festucae antifungal protein Efe-AfpA protects creeping bentgrass (Agrostis stolonifera) from the plant pathogen Clarireedia jacksonii, the causal agent of dollar spot disease. J. Fungi 2022, 8, 1097. [Google Scholar] [CrossRef] [PubMed]
  26. Sonderegger, C.; Galgoczy, L.; Garrigues, S.; Fizil, A.; Borics, A.; Manzanares, P.; Hededus, N.; Huber, A.; Marcos, J.F.; Batta, G.; et al. A Penicillium chrysogenum-based expression system for the production of small, cysteine-rich antifungal proteins for structural and functional analyses. Microb. Cell Factories 2016, 15, 192. [Google Scholar] [CrossRef] [Green Version]
  27. Williamson, B.; Tudzynski, B.; Tudzynski, P.; Van Kan, J.A.L. Botrytis cinerea: The cause of grey mould disease. Mol. Plant Pathol. 2007, 8, 561–580. [Google Scholar] [CrossRef]
  28. Dean, R.; Van Kan, J.A.L.; Pretorius, Z.A.; Hammond-Kosack, K.E.; Di Pietro, A.; Spanu, P.D.; Rudd, J.J.; Dickman, M.; Kahmann, R.; Ellis, J.; et al. The top 10 fungal pathogens in molecular plant pathology. Mol. Plant Pathol. 2012, 13, 414–430. [Google Scholar] [CrossRef] [Green Version]
  29. Weiberg, A.; Wang, M.; Lin, F.M.; Zhao, H.; Zhang, Z.; Kaloshian, I.; Huang, H.D.; Jin, H. Fungal small RNAs suppress plant immunity by hijacking host RNA interference pathways. Science 2013, 342, 118–123. [Google Scholar] [CrossRef] [Green Version]
  30. Kaiserer, L.; Oberparleiter, C.; Weiler-Görz, R.; Burgstaller, W.; Leiter, E.; Marx, F. Characterization of the Penicillium chrysogenum antifungal protein PAF. Arch. Microbiol. 2003, 180, 204–210. [Google Scholar] [CrossRef]
  31. Marx, F.; Binder, U.; Leiter, É.; Pócsi, I. The Penicillium chrysogenum antifungal protein PAF, a promising tool for the development of new antifungal therapies and fungal cell biology studies. Cell. Mol. Life Sci. 2008, 65, 445–454. [Google Scholar] [CrossRef]
  32. Garrigues, S.; Gandía, M.; Popa, C.; Borics, A.; Marx, F.; Coca, M.; Marcos, J.F.; Manzanares, P. Efficient production and characterization of the novel and highly active antifungal protein AfpB from Penicillium digitatum. Sci. Rep. 2017, 7, 14663. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Tredway, L.P.; Tomaso-Peterson, M.; Kerns, J.P.; Clarke, B.B. Compendium of Turfgrass Diseases, 4th ed.; APS Press: St. Paul, MN, USA, 2022. [Google Scholar]
  34. Crouch, J.A.; Dawe, A.; Aerts, A.; Barry, K.; Churchill, A.C.L.; Grimwood, J.; Hillman, B.I.; Milgroom, M.G.; Pangilinan, J.; Smith, M.; et al. Genome sequence of the chestnut blight fungus Cryphonectria parasitica EP155: A fundamental resource for an archetypical invasive plant pathogen. Phytopathology 2020, 110, 1180–1188. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Newhouse, A.; Powell, W. Intentional introgression of a blight tolerance transgene to rescue the remnant population of American chestnut. Conserv. Sci. Pract. 2020, 3, e348. [Google Scholar] [CrossRef]
  36. Yue, Q.; Miller, C.J.; White, J.P.; Richardson, M.D. Isolation and characterization of fungal inhibitors from Epichloë festucae. J. Agric. Food Chem. 2000, 48, 4687–4692. [Google Scholar] [CrossRef] [PubMed]
  37. King, R.; Urban, M.; Hammond-Kosack, M.C.U.; Hassani-Pak, K.; Hammond-Kosack, K.E. The completed genome sequence of the pathogenic ascomycete fungus Fusarium graminearum. BMC Genom. 2015, 16, 544. [Google Scholar] [CrossRef] [Green Version]
  38. Leplat, J.; Friberg, H.; Abid, M.; Steinberg, C. Survival of Fusarium graminearum, the causal agent of Fusarium Head Blight. A review. Agron. Sustain. Dev. 2013, 33, 97–111. [Google Scholar] [CrossRef]
  39. Luo, J.; Zhang, N. Magnaporthiopsis, a new genus in Magnaporthaceae (Ascomycota). Mycologia 2013, 105, 1019–1029. [Google Scholar] [CrossRef]
  40. Skamnioti, P.; Gurr, S.J. Against the grain: Safeguarding rice from rice blast disease. Trends Biotechnol. 2009, 27, 141–150. [Google Scholar] [CrossRef] [Green Version]
  41. Vines, P.L.; Daddio, R.M.; Luo, J.; Wang, R.; Murphy, J.A.; Zhang, N.; Clarke, B.B.; Meyer, W.A.; Bonos, S.A. Pyricularia oryzae incites gray leaf spot disease on hard fescue (Festuca brevipila). Int. Turfgrass Soc. Res. J. 2022, 14, 997–1002. [Google Scholar] [CrossRef]
  42. Vila, L.; Lacadena, V.; Fontanet, P.; Martinez del Pozo, A.; San Segundo, B. A Protein from the mold Aspergillus giganteus is a potent inhibitor of fungal plant pathogens. Mol. Plant-Microbe Interact. 2001, 14, 1327–1331. [Google Scholar] [CrossRef] [Green Version]
  43. Gandia, M.; Kakar, A.; Giner-Llorca, M.; Holzknecht, J.; Martinez-Culebras, P.; Galgoczy, L.; Marx, F.; Marcos, J.F.; Manzanares, P. Potential of antifungal proteins (AFPs) to control Penicillium postharvest fruit decay. J. Fungi 2021, 7, 449. [Google Scholar] [CrossRef] [PubMed]
  44. Martinez-Culebras, P.V.; Gandia, M.; Boronat, A.; Marcos, J.F.; Manzanares, P. Differenial susceptibility of mycotoxin-producing fungi to distinct antifungal proteins (AFPs). Food Microbiol. 2021, 97, 103760. [Google Scholar] [CrossRef] [PubMed]
  45. Houbraken, J.; Frisvad, J.C.; Samson, R.A. Fleming’s penicillin producing strain is not Penicillium chrysogenum but P. rubens. IMA Fungus 2011, 2, 87–95. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Wang, R.; Luo, S.; Clarke, B.B.; Belanger, F.C. The Epichloë festucae antifungal protein Efe-AfpA is also a possible effector protein required for the interaction of the fungus with its host grass Festuca rubra subsp. rubra. Microorganisms 2021, 9, 140. [Google Scholar] [CrossRef]
  47. Hegedus, N.; Sigl, C.; Zadra, I.; Pocsi, I.; Marx, F. The paf gene product modulates asexual development in Penicillium chrysogenum. J. Basic Microbiol. 2011, 51, 253–262. [Google Scholar] [CrossRef] [Green Version]
  48. Kovacs, B.; Hegedus, N.; Balint, M.; Szabo, Z.; Emri, T.; Kiss, G.; Antal, M.; Pocsi, I.; Leiter, E. Penicillium antifungal protein (PAF) is involved in the apoptotic and autophagic processes of the producer Penicillium chrysogenum. Acta Microbiol. Immunol. Hung. 2014, 61, 379–388. [Google Scholar] [CrossRef]
  49. Bugeda, A.; Garrigues, S.; Gandia, M.; Manzanares, P.; Marcos, J.F.; Coca, M. The antifungal protein AfpB induces regulated cell death in its parental fungus Penicillium digitatum. MSphere 2020, 5, e00595-20. [Google Scholar] [CrossRef]
Microorganisms 11 00828 g001 550

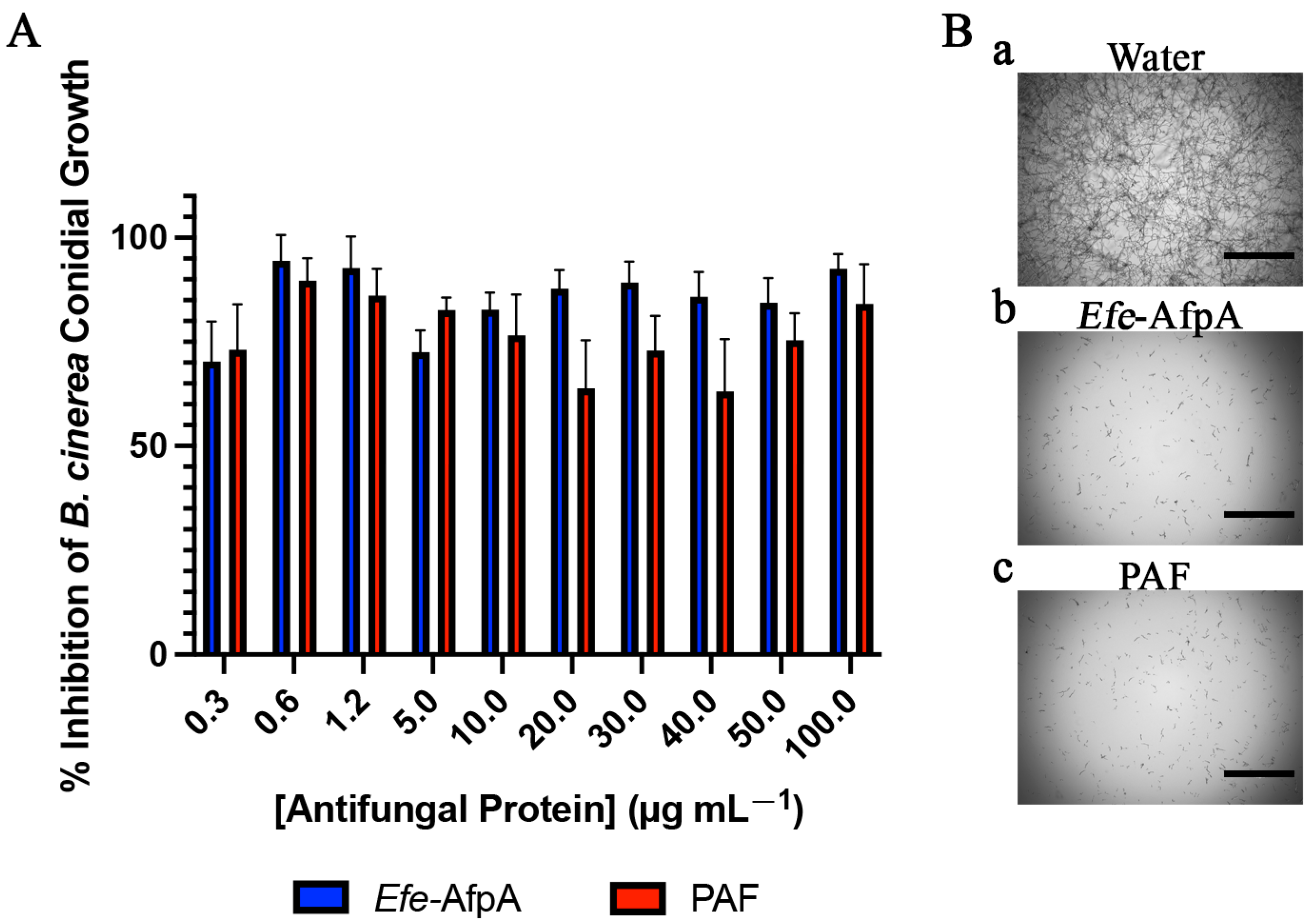

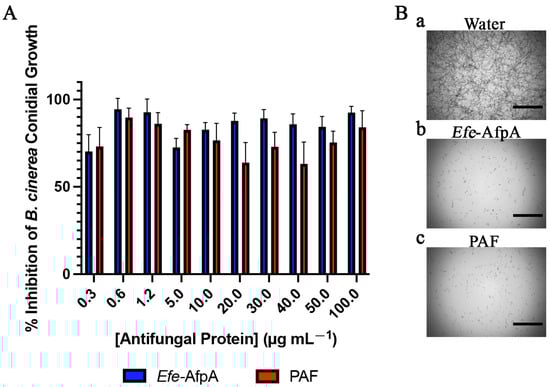

Figure 1. Activity of Efe-AfpA and PAF against B. cinerea conidial growth. (A). Growth inhibition of B. cinerea conidia treated with increasing concentrations of either Efe-AfpA or PAF incubated at room temperature for 30 h. The data presented are the means and standard deviations of three replicates. (B) Microscopy of B. cinerea conidia treated with water or 0.6 μg mL−1 of either Efe-AfpA or PAF. Bars are 750 μm.
Figure 1. Activity of Efe-AfpA and PAF against B. cinerea conidial growth. (A). Growth inhibition of B. cinerea conidia treated with increasing concentrations of either Efe-AfpA or PAF incubated at room temperature for 30 h. The data presented are the means and standard deviations of three replicates. (B) Microscopy of B. cinerea conidia treated with water or 0.6 μg mL−1 of either Efe-AfpA or PAF. Bars are 750 μm.
Microorganisms 11 00828 g001
Microorganisms 11 00828 g002 550

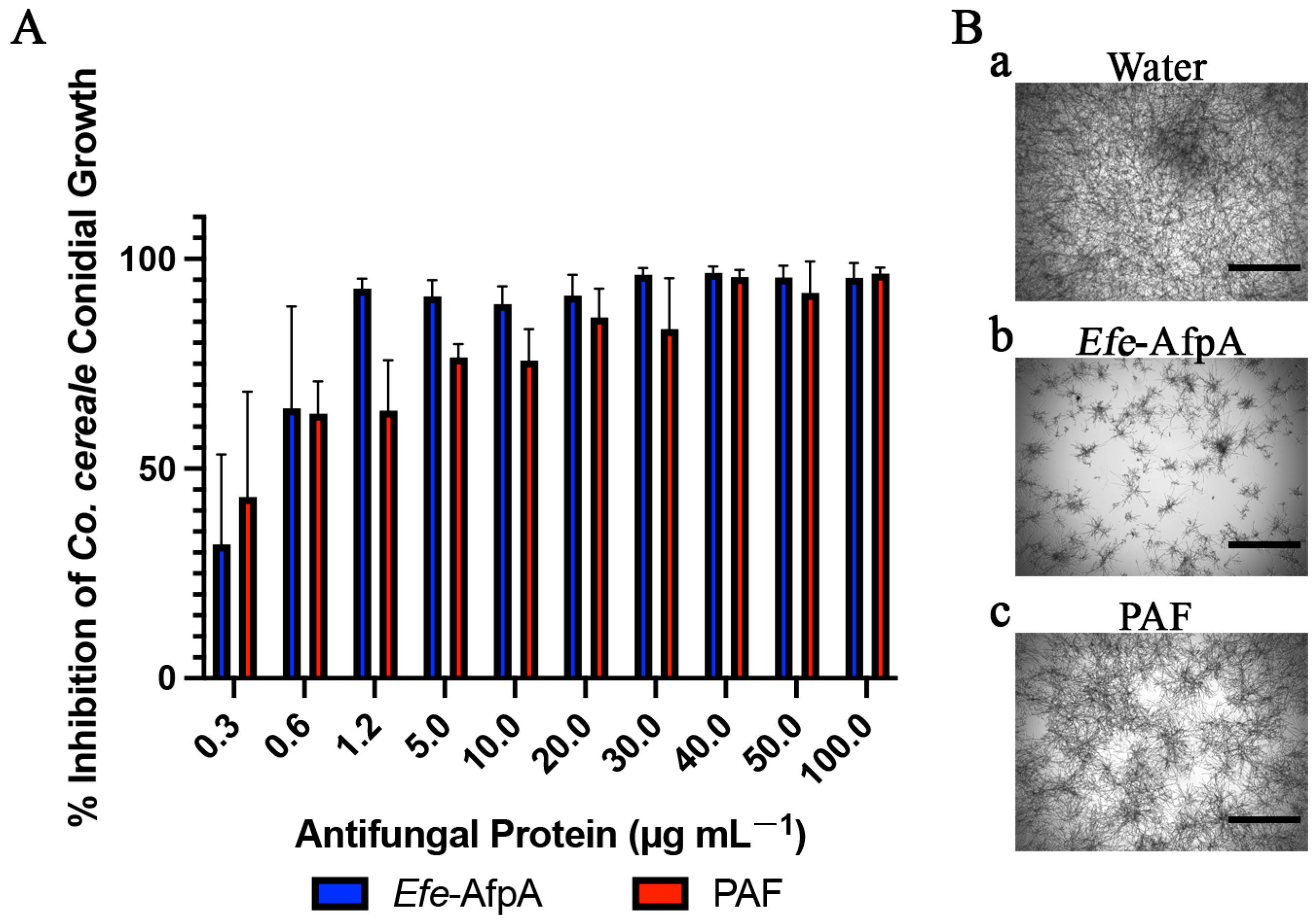

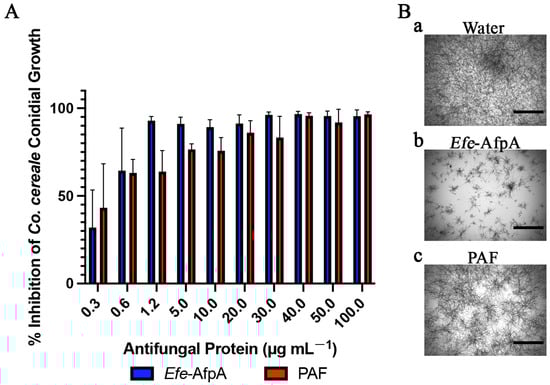

Figure 2. Activity of Efe-AfpA and PAF against Co. cereale conidial growth. (A) Growth inhibition of Co. cereale conidia treated with increasing concentrations of either Efe-AfpA or PAF incubated at room temperature for 48 h. The data presented are the means and standard deviations of three replicates. (B) Microscopy of Co. cereale conidia treated with water or 1.2 μg mL−1 of either Efe-AfpA or PAF. Bars are 750 μm.
Figure 2. Activity of Efe-AfpA and PAF against Co. cereale conidial growth. (A) Growth inhibition of Co. cereale conidia treated with increasing concentrations of either Efe-AfpA or PAF incubated at room temperature for 48 h. The data presented are the means and standard deviations of three replicates. (B) Microscopy of Co. cereale conidia treated with water or 1.2 μg mL−1 of either Efe-AfpA or PAF. Bars are 750 μm.
Microorganisms 11 00828 g002
Microorganisms 11 00828 g003 550

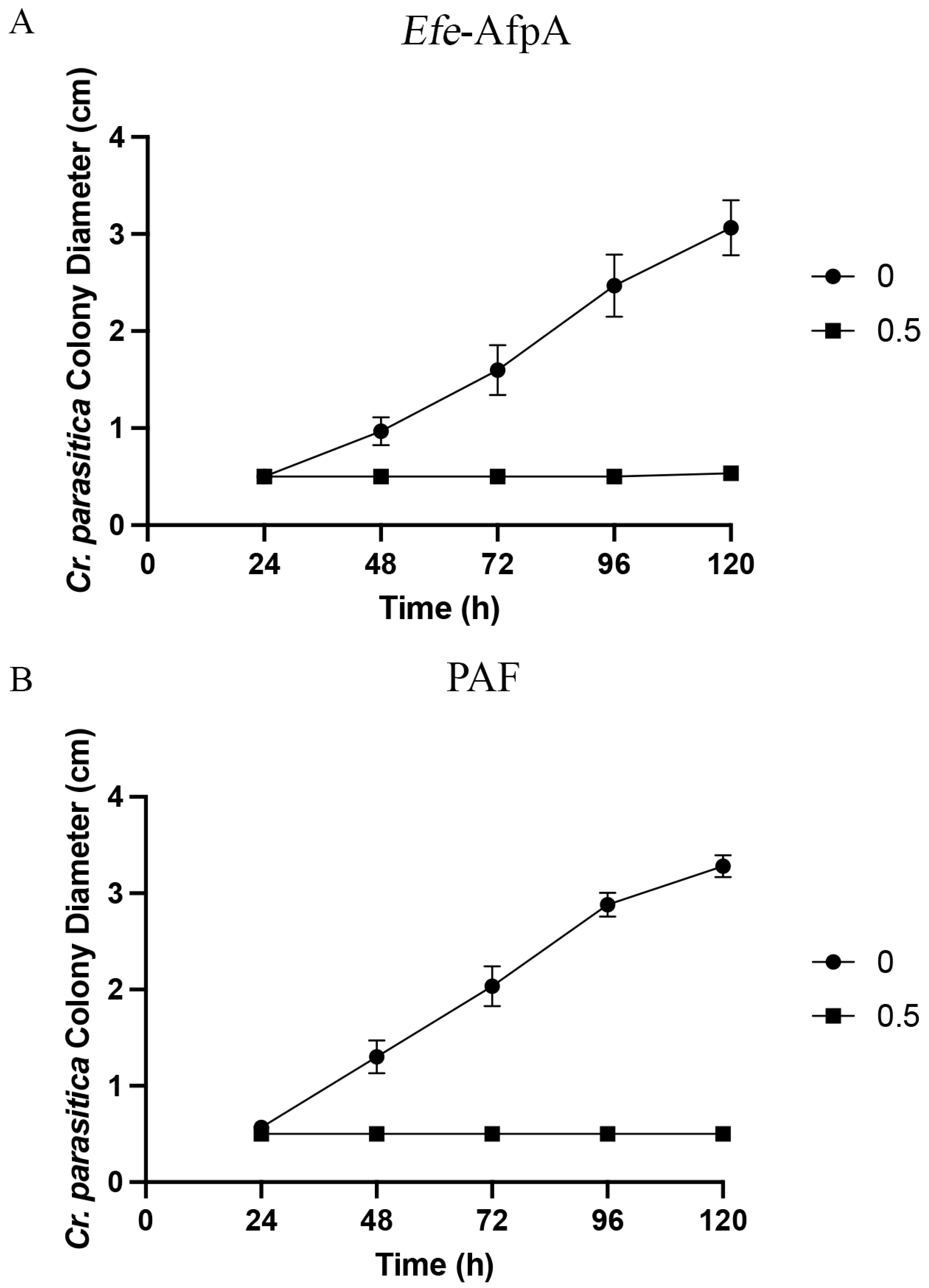

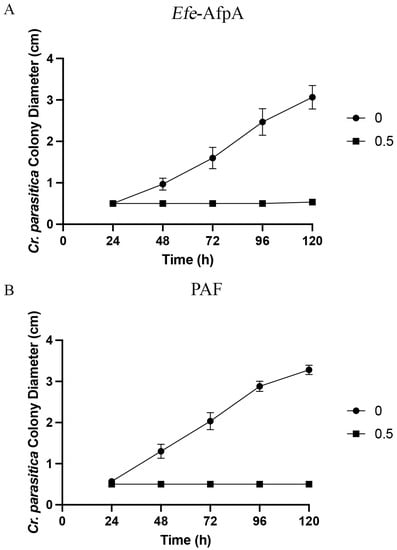

Figure 3. Activity of (A) Efe-AfpA and (B) PAF against Cr. parasitica mycelial growth. Cr. parasitica mycelial plugs were subcultured onto PDA plates amended with 0.5 μg mL−1 of Efe-AfpA or PAF. The colony diameters were measured daily. The data presented are the means and standard deviations of three replicates.
Figure 3. Activity of (A) Efe-AfpA and (B) PAF against Cr. parasitica mycelial growth. Cr. parasitica mycelial plugs were subcultured onto PDA plates amended with 0.5 μg mL−1 of Efe-AfpA or PAF. The colony diameters were measured daily. The data presented are the means and standard deviations of three replicates.
Microorganisms 11 00828 g003
Microorganisms 11 00828 g004 550

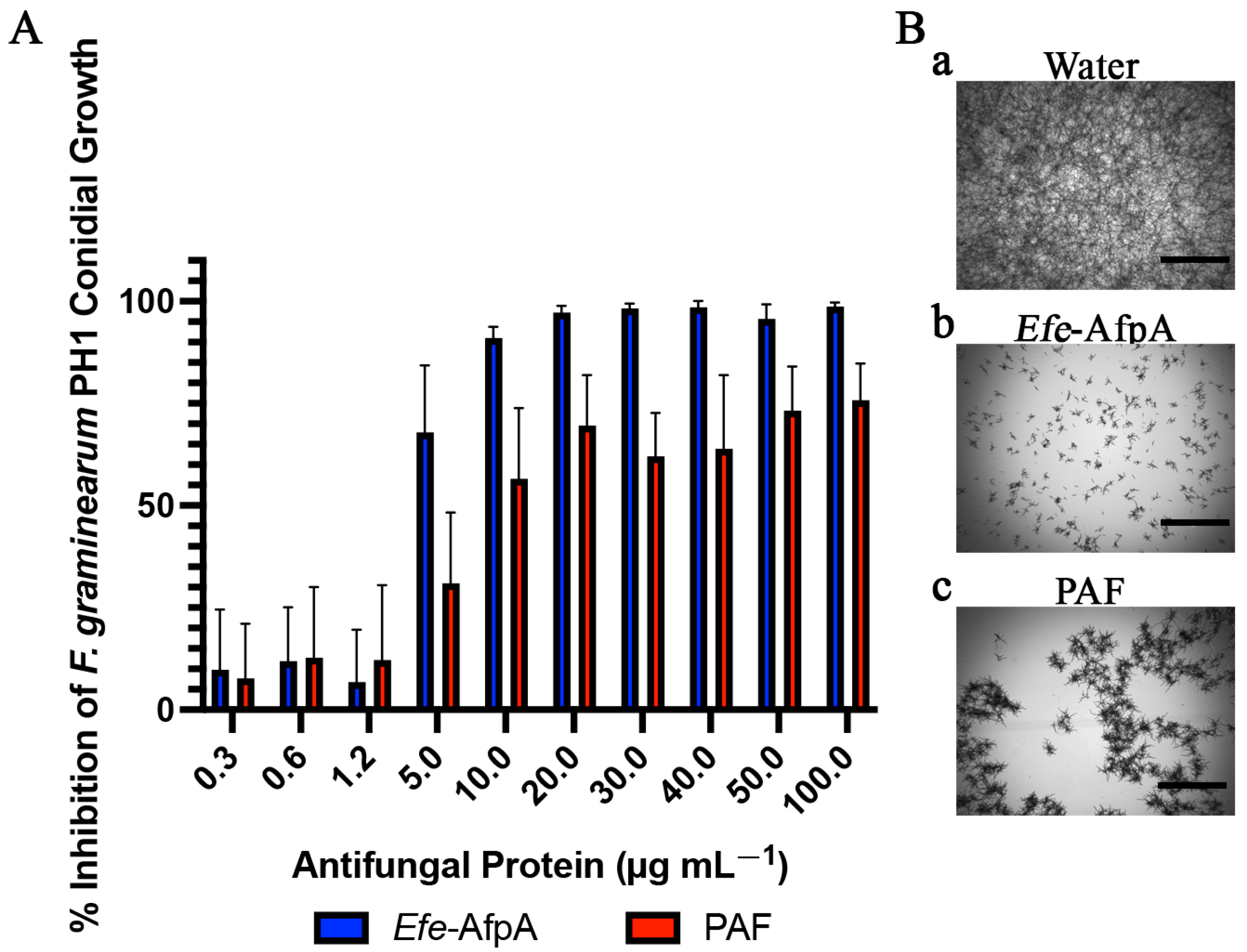

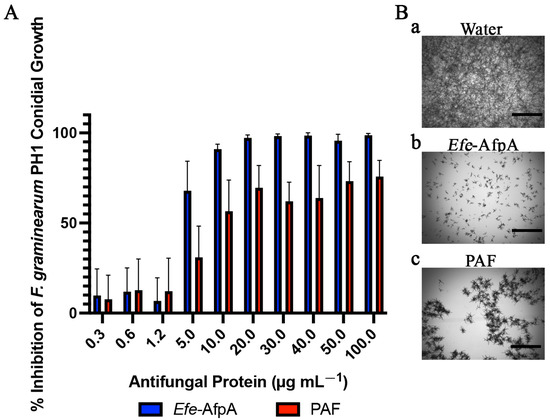

Figure 4. Activity of Efe-AfpA and PAF against F. graminearum PH1 conidial growth. (A) Growth inhibition of F. graminearum conidia treated with increasing concentrations of either Efe-AfpA or PAF incubated at room temperature for 30 h. The data presented are the means and standard deviations of three replicates. (B) Microscopy of F. graminearum conidia treated with water or 10 μg mL−1 of either Efe-AfpA or PAF. Bars are 750 μm.
Figure 4. Activity of Efe-AfpA and PAF against F. graminearum PH1 conidial growth. (A) Growth inhibition of F. graminearum conidia treated with increasing concentrations of either Efe-AfpA or PAF incubated at room temperature for 30 h. The data presented are the means and standard deviations of three replicates. (B) Microscopy of F. graminearum conidia treated with water or 10 μg mL−1 of either Efe-AfpA or PAF. Bars are 750 μm.
Microorganisms 11 00828 g004
Microorganisms 11 00828 g005 550

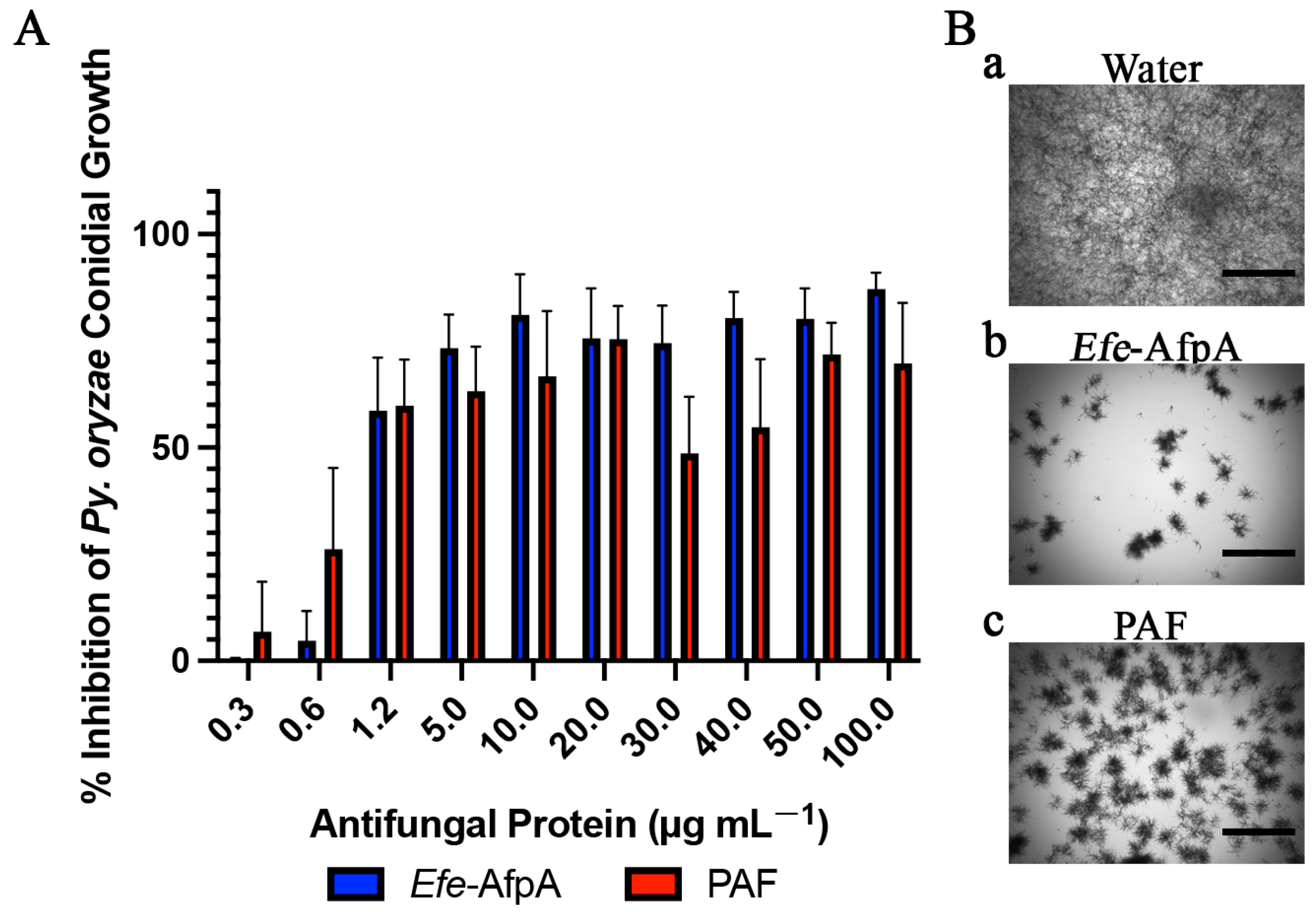

Figure 5. Activity of Efe-AfpA and PAF against Py. oryzae conidial growth. (A) Growth inhibition of Py. oryzae conidia treated with increasing concentrations of either Efe-AfpA or PAF incubated at room temperature for 48 h. The data presented are the means and standard deviations of three replicates. (B) Microscopy of Py. oryzae conidia treated with water or 100 μg mL−1 of either Efe-AfpA or PAF. Bars are 750 μm.
Figure 5. Activity of Efe-AfpA and PAF against Py. oryzae conidial growth. (A) Growth inhibition of Py. oryzae conidia treated with increasing concentrations of either Efe-AfpA or PAF incubated at room temperature for 48 h. The data presented are the means and standard deviations of three replicates. (B) Microscopy of Py. oryzae conidia treated with water or 100 μg mL−1 of either Efe-AfpA or PAF. Bars are 750 μm.
Microorganisms 11 00828 g005
Microorganisms 11 00828 g006 550

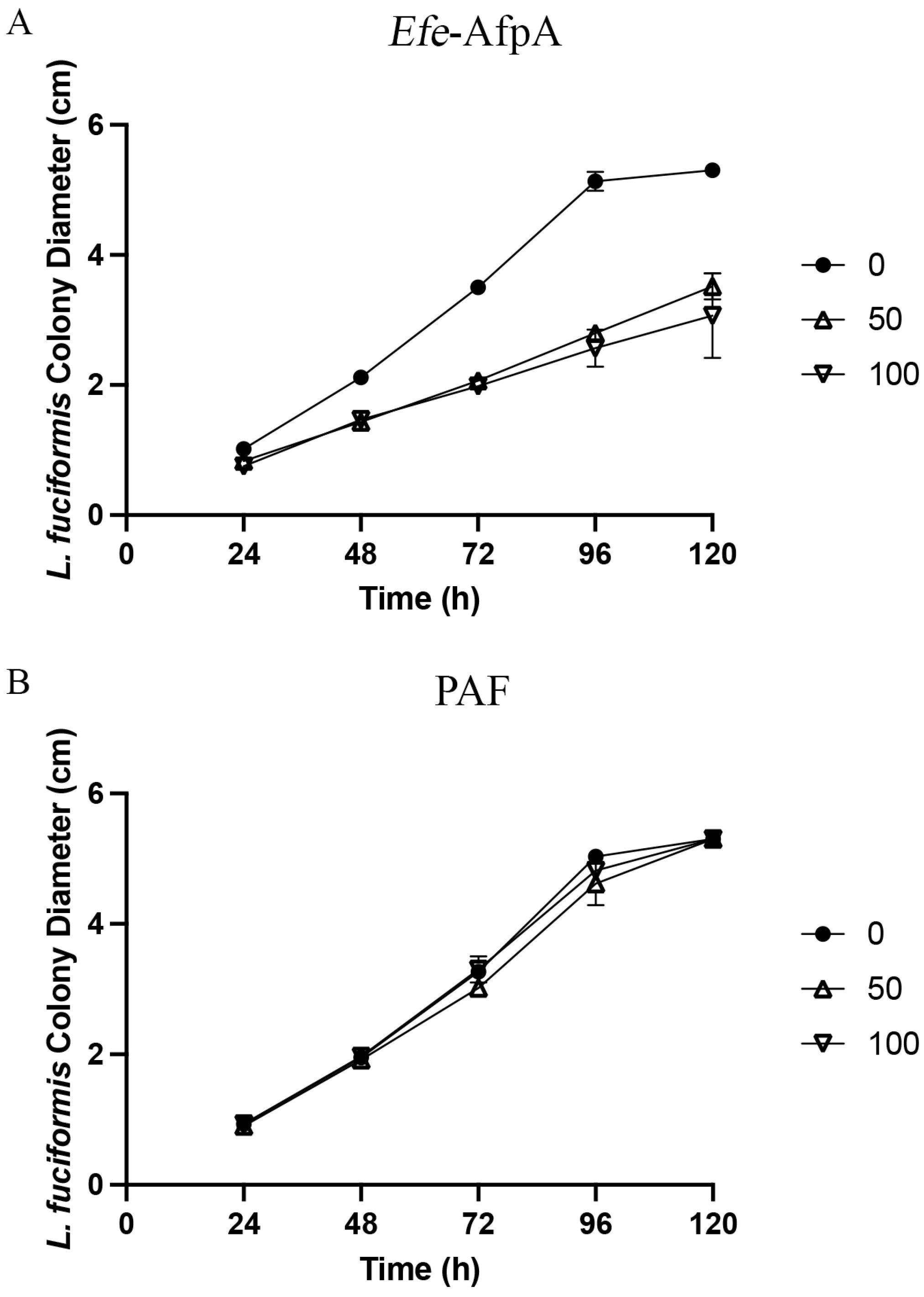

Figure 6. Activity of (A) Efe-AfpA and (B) PAF against L. fuciformis mycelial growth. L. fuciformis mycelial plugs were subcultured onto PDA plates amended with increasing concentrations of Efe-AfpA or PAF. The colony diameters were measured daily. The data presented are the means and standard deviations of three replicates.
Figure 6. Activity of (A) Efe-AfpA and (B) PAF against L. fuciformis mycelial growth. L. fuciformis mycelial plugs were subcultured onto PDA plates amended with increasing concentrations of Efe-AfpA or PAF. The colony diameters were measured daily. The data presented are the means and standard deviations of three replicates.
Microorganisms 11 00828 g006
Microorganisms 11 00828 g007 550

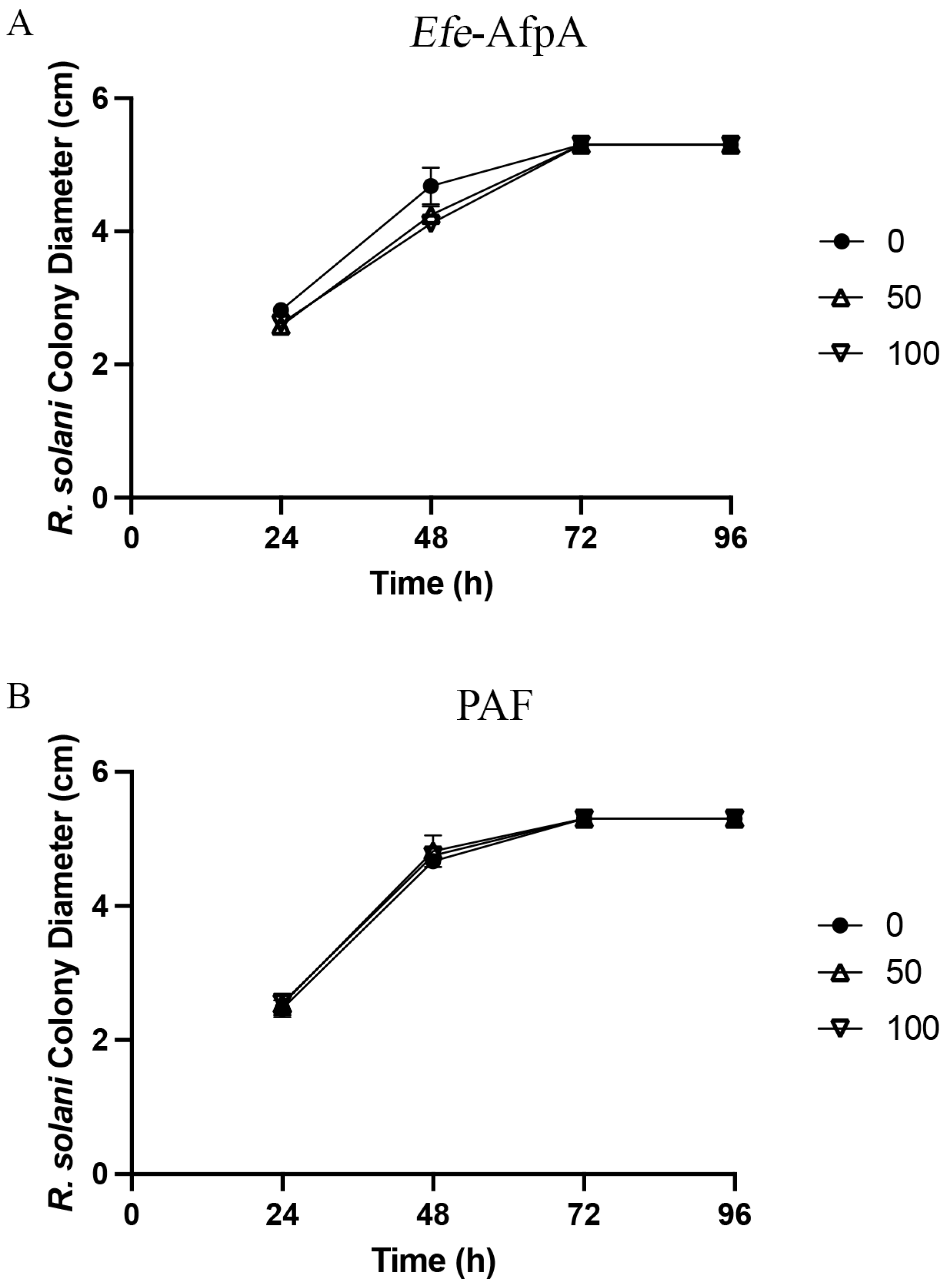

Figure 7. Activity of (A) Efe-AfpA and (B) PAF against R. solani mycelial growth. R. solani mycelial plugs were subcultured onto PDA plates amended with increasing concentrations of Efe-AfpA or PAF. The colony diameters were measured daily. The data presented are the means and standard deviations of three replicates.
Figure 7. Activity of (A) Efe-AfpA and (B) PAF against R. solani mycelial growth. R. solani mycelial plugs were subcultured onto PDA plates amended with increasing concentrations of Efe-AfpA or PAF. The colony diameters were measured daily. The data presented are the means and standard deviations of three replicates.
Microorganisms 11 00828 g007
Table
Table 1. Minimal and maximum inhibitory concentrations of Efe-AfpA and PAF against fungal plant pathogens.
Table 1. Minimal and maximum inhibitory concentrations of Efe-AfpA and PAF against fungal plant pathogens.
Minimal Inhibitory Concentration 1Maximum Inhibitory Concentration 2
Efe-AfpAPAFEfe-AfpAPAF
Organismµg mL−1% Inhibitionµg mL−1% Inhibitionµg mL−1% Inhibitionµg mL−1%
Inhibition
Ascomycetes
B. cinerea0.694.4−−0.694.40.689.6
Co. cereale1.292.94095.64096.610096.4
Cr. parasitica0.598.80.51000.598.80.5100
F. graminearum1091−−10098.710075.7
P. oryzae−−−−10087.12075.3
Basidiomycetes
L. fuciformis−−−−10046.5−−
R. solani−−−−−−−−
1 The minimal inhibitory concentration is defined as the concentration needed for 90% inhibition. “−” indicates activity did not result in 90% inhibition at any of the concentrations tested. 2 The maximum inhibitory concentration is defined as the highest inhibition obtained at any concentration tested. “−” indicates activity did not result in inhibition at any of the concentrations tested.
