Inactivation of Opportunistic Pathogens Acinetobacter baumannii and Stenotrophomonas maltophilia by Antimicrobial Photodynamic Therapy

by
Irina Buchovec
1,*,
Laurita Klimkaitė
2,
Edita Sužiedėlienė
2 and
Saulius Bagdonas
3
1
Institute of Photonics and Nanotechnology, Faculty of Physics, Vilnius University, LT-10257 Vilnius, Lithuania
2
Institute of Biosciences, Life Sciences Center, Vilnius University, LT-10257 Vilnius, Lithuania
3
Laser Research Center, Faculty of Physics, Vilnius University, LT-10257 Vilnius, Lithuania
*
Author to whom correspondence should be addressed.
Microorganisms 2022, 10(3), 506; https://doi.org/10.3390/microorganisms10030506
Submission received: 28 January 2022 / Revised: 17 February 2022 / Accepted: 23 February 2022 / Published: 25 February 2022
(This article belongs to the Special Issue Photodynamic Therapy: Applications against Microorganisms)
Browse Figures
Versions Notes

Abstract

:
Acinetobacter baumannii and Stenotrophomonas maltophilia are opportunistic pathogens causing hospital infections with limited treatment options due to bacterial multidrug resistance. Here, we report that antimicrobial photodynamic therapy (aPDT) based on the natural photosensitizers riboflavin and chlorophyllin inactivates A. baumannii and S. maltophilia. The riboflavin and chlorophyllin photostability experiments assessed the photomodifications of photosensitizers under the conditions subsequently used to inactivate A. baumannii and S. maltophilia. A. baumannii planktonic cells were more sensitive to riboflavin-aPDT, while biofilm bacteria were more efficiently inactivated by chlorophyllin-aPDT. S. maltophilia planktonic and biofilm cells were more susceptible to chlorophyllin-aPDT compared to riboflavin-aPDT. The results suggest that riboflavin- and chlorophyllin-aPDT can be considered as a potential antimicrobial treatment for A. baumannii and S. maltophilia inactivation.

1. Introduction

Infections caused by antibiotic-resistant bacteria are a global problem urgently requiring new antibacterial agents or alternative antibacterial strategies [1]. During the last decade, the important clinical concern worldwide became nosocomial infections caused by Gram-negative opportunistic pathogens resistant to most clinically used antibiotics [2,3]. Opportunistic infections are hazardous to patients with compromised immunity, and are characterized by high morbidity and mortality [4]. The bacterium Acinetobacter baumannii is among the top infection agents for which new antimicrobial therapies are needed [5]. Genome plasticity and horizontal gene transfer enable successful A. baumannii adaptation to the clinical environment, the development of antibiotic resistance and virulence [6]. The prevalence of carbapenem-resistant A. baumannii in Europe reached 80% [7,8], creating the challenge of addressing these pathogen infections. Another newly emerging Gram-negative opportunistic pathogen causing serious concern is Stenotrophomonas maltophilia [9,10]. Although this bacterium is commonly found in nature, it also becomes dangerous to patients with deficient immunity [11,12]. S. maltophilia exhibits numerous virulence factors [13], as well as resistance to multiple antimicrobial agents [14]. Susceptibility against trimethoprim/sulfamethoxazole, the first-choice treatment for S. maltophilia infections, generally remains high (varying from 79 to 96%). However, mortality rates for patients with resistant S. maltophilia infections can range from 14 to 69% [15].
Among the important virulence features responsible for pathogen survival and spread in a hospital environment is their ability to form biofilms on abiotic (medical equipment) and biotic (tissues and cells of the host) surfaces [16]. Bacteria in biofilm structures are surrounded by an extracellular matrix consisting of polysaccharides, DNA and proteins. Therefore, biofilms are significantly more resistant to antibiotic treatment, disinfectants, physical stress and host immunity [17]. Clinical A. baumannii and S. maltophilia isolates are characterized by their strong ability to form biofilms [13,18]. Mechanical, chemical and physical methods are used for biofilm control, but they all have limitations. Therefore, there is a need for more efficient approaches to biofilm inactivation [19].
Antimicrobial photodynamic therapy (aPDT) is a modern biophotonic technology which can be used as a viable alternative for inactivating antibiotic-resistant pathogens [20]. aPDT is based on the interaction of a photosensitizer (PS), molecular oxygen and low doses of light applied at suitable spectral region to match the PS absorption peak [21,22]. Usually, after light excitation, the triplet-state of PS interacts with molecular oxygen, electron donors or electron acceptors, and can produce reactive oxygen species (ROS), thereby triggering photo-oxidative reactions which initiate various types of cellular damage and can destroy bacterial cells [23]. The efficacy of aPDT depends on many factors, but most significantly on the photophysical properties of the used PS. PSs can be divided into several main groups based on their structure and origin—synthetic dyes, nanostructures, and natural PSs [24]. Natural PSs, such as riboflavin (RF) and chlorophyllin (Chl), are safe and environmentally sustainable [22]. However, data on natural PS-based aPDT perspectives in the control of emerging multidrug resistant hospital infection agents and their biofilms remain scarce. For A. baumannii aPDT inactivation, only a few natural PSs [25,26,27,28] have been analyzed, although none of these studies addressed biofilm inactivation. Furthermore, no research has been performed on S. maltophilia aPDT inactivation, neither with natural nor with other PSs. In this study we aim to investigate whether natural PS riboflavin- and chlorophyllin-based aPDT can efficiently inactivate antibiotic-resistant A. baumannii and S. maltophilia bacteria and their biofilms.

2. Materials and Methods

2.1. Solutions

For the aPDT experiments, a stock solution of riboflavin (RF) (MW = 376.36 g/mol, Sigma-Aldrich, St. Louis, MO, USA) (0.11 mM, pH 6.8) was prepared by stirring RF in distilled water at 50 °C for 4 h [29]. The solution was sterilized by a 0.22 µm syringe filter and stored at 4 °C in the dark before use. A stock solution of non-copperized chlorophyllin sodium salt (Chl) (MW = 684.9 g/mol, Carl Roth, Karlsruhe, Germany) (1.5 mM, pH 7.2) was prepared by pipetting Chl at room temperature for about 60 s without any heating or shaking [30]. All working solutions were freshly prepared by diluting them with 0.01 M PBS buffer on the day of use.

2.2. Bacterial Strains and Growth Conditions

A. baumannii clinical isolate II-a [31] and S. maltophilia clinical isolate SM3 [32] were chosen for the aPDT approach study. In all experiments, A. baumannii was grown in Luria-Bertani (LB) and S. maltophilia was grown in Tryptone soya broth (TSB) medium; both isolates were grown at 37 °C.

2.3. Light Source for aPDT

The LED-based light source for the photoinactivation of bacteria was constructed at the Institute of Photonics and Nanotechnology of Vilnius University (Figure 1). It consisted of an illumination chamber and a supply unit. The illumination chamber size was optimized for even illumination of microplates (96 wells) or Petri dishes by the light of a selectable predefined spectrum.
The illumination routines and timing were controlled by an integrated microcontroller unit (MCU), which comprises three types of LEDs emitting at the near-UV (402 nm), blue (440 nm), and white (4000 K) spectral regions. Two types of LEDs (402 nm and 440 nm) with emission peaks near the maximum absorption of RF and Chl were used (Figure 2).
The light irradiance at the surface of the samples (7 cm from the light source) reached 25, 42 and −4 mW/cm2. A cooling system was integrated into the light source to dissipate heat and minimize the heating of the sample. The illumination dose (J/cm2) was calculated as irradiance (mW/cm2) multiplied by illumination time (s). The illumination doses used in experiments are shown in Table 1.

2.4. Spectrophotometric Assessment

The absorption spectra of the PSs solutions were recorded by means of a LAMBDA 950 UV-VIS-NIR spectrophotometer in the spectral region of 300–600 nm and 300–700 nm (for RF and Chl, respectively). Polymethyl methacrylate cuvettes of 1 cm were used for the measurements. All measurements were performed at 20 ± 2 °C. The solutions of 0.011 mM RF (pH 7.4) and 0.015 mM Chl (pH 7.4) in 0.01 M PBS were illuminated with an LED-based light source for analysis of the photostability of the PSs. The changes in the absorption spectra of RF and Chl were investigated after LED illumination at 440 nm or 402 nm. For this purpose, 200 µL of the PSs were transferred to microplates (16 wells) and exposed to 42 and 44 mW/cm2 irradiance. After each illumination dose was applied separately, the samples (3 mL) were collected into cuvettes and used for spectrophotometric measurements.

2.5. Effect of aPDT on the A. baumannii and S. maltophilia Planktonic Cells

The overnight cultures of A. baumannii and S. maltophilia were diluted 1000 times with a fresh medium and grown until reaching OD600 = 0.65 for A. baumannii and OD600 = 0.45 for S. maltophilia (1–5 × 108 colony forming units (CFU)/mL). Then, the bacteria were harvested by centrifugation (10 min, 6 °C, 7000× g), suspended in the 0.01 M PBS and immediately used for the riboflavin-based aPDT (RF-aPDT) and chlorophyllin-based aPDT (Chl-aPDT) experiments using LED illumination at 440 nm and 402 nm, respectively. The bacterial cultures (~1 × 107 CFU/mL) were suspended with 0.011 mM RF or 0.015 mM Chl in the dark at room temperature. For the photoinactivation, 200 μL of the samples (control and with PSs) were placed into sterile, flat-bottom wells and exposed to LED light for different periods (Table 1). Light and dark controls of A. baumannii and S. maltophilia were also included, and some were incubated in the dark (0 ÷ 30 min) while the other samples were irradiated. The antibacterial effects of aPDT were evaluated by the microdilution method [33], where 10 μL of appropriate dilutions of bacterial test culture after treatment was applied to a separate LB plate and incubated at 37 °C for 24 h. After incubation, the colonies were counted and an average value was calculated for every point (from 3 to 6 experiments) and expressed as log of CFU/mL.

2.6. Inactivation of A. baumannii and S. maltophilia Biofilms with aPDT

For biofilm formation, overnight A. baumannii II-a and S. maltophilia SM3 cultures were diluted 1000 times and 100 μL aliquots (1–5 × 107 CFU/mL) were transferred to sterile 96-well microtiter polystyrene plates and incubated at 37 °C for 24 h. After the incubation, the medium was discarded and the wells were gently washed three times with sterile PBS (pH 7.4). For aPDT, biofilm wells were filled with 200 µL of 0.11 mM RF or 0.15 mM Chl solutions. The control wells contained 200 µL of PBS. To maximize PS adsorption to the biofilms, the plates were incubated in the dark at room temperature (aprox. 25 °C) for 60 min. When illumination was not applied, the biofilms were detached immediately after incubation. For aPDT of biofilms with RF or Chl as well as in the case of the control, the wells were illuminated for 60 min with 440 nm LEDs (44 mW/cm2) or 402 nm LEDs (42 mW/cm2) appropriate for RF and Chl, respectively. After illumination, bacterial biofilms were mechanically detached from the wells and vigorously vortexed. aPDT efficacy against A. baumannii and S. maltophilia biofilms was evaluated by determining the CFU on LB plates (microdrop method), as described previously [33].

2.7. Statistical Analysis

The aPDT inactivation experiments were repeated at least 3–6 times. A standard deviation was estimated for every experimental point, as marked in the figure as an error bar. Data were processed with Origin Pro 9.1 software (OriginLab Corporation, Northampton, MA, USA) and were statistically analyzed using One-way Analysis of Variance (ANOVA). The post hoc Bonferroni test was used for the comparison between the experimental groups and the control group. The level of significance was set at p < 0.05.

3. Results

3.1. Photostability of Riboflavin and Chlorophyllin

Almost all PSs are degraded during the light illumination through oxygen mediated processes. Therefore, it is important to assess PSs photostability. Fast photobleaching can be a disadvantage in aPDT, as the PS cannot form enough ROS to kill bacteria. To assess photostability under different illumination doses, we analyzed the changes in the absorption characteristics of riboflavin (RF) and chlorophyllin (Chl), after illumination with 402 nm or 440 nm LED light.
Figure 3A shows the spectra recorded after illumination of 0.015 mM Chl solution in PBS at 42 mW/cm2 for different time periods (0–30 min, which corresponds to 0–75.6 J/cm2 illumination doses). The absorption peak of Chl at 403 nm rapidly decreased to about 20% after illumination for 3 min (7.56 J/cm2) and reached 12% of its magnitude after 10 min (25.2 J/cm2). The illumination at 440 nm diminished the peak magnitude to the same extent only after 20–30 min (79.8 J/cm2), which was consistent with the reduced absorbance intensity of the Chl in this spectral region (Figure 3B).
Figure 4 illustrates the changes in spectra of the 0.011 mM RF solution after illumination with 440 nm (44 mW/cm2) or 402 nm light (42 mW/cm2) for various periods (0–30 min, which correspond to illumination doses of 0–79.8 J/cm2). The absorbance of RF at 373 and 444 nm decreased unevenly after LED illumination at 440 nm for 2 min (5.3 J/cm2) (Figure 4A). Notably, the absorption band at 444 nm vanished after 10 min (26.4 J/cm2). The same decrease in intensity of the main absorption band was observed only after 15 min of LED illumination at 402 nm. Meanwhile, the absorption changes induced at 373 nm under these illumination doses showed opposite tendencies for two used LED types. In contrast to Chl photodegradation, these spectroscopic data revealed the photomodification of the RF in buffered solutions at pH 7.2. Thus, after illumination doses of 26.4 J/cm2 and 37.8 J/cm2 at 440 nm or 402 nm, respectively, the main absorption peak at 444 nm disappeared, while a second peak at 373 nm transformed into one at 353 nm. Such spectral features imply that the RF underwent phototransformation to a lumichrome photoproduct [34,35,36].
These experiments also allowed us to test the phototransforming efficacy of the light from two different LEDs being applied on both PSs at chosen irradiances in order to set the appropriate conditions for the comparison of the antibacterial activity of Chl and RF. Based on the obtained photostability data, the highest illumination doses were determined in the case of each light source.

3.2. Inactivation of Planktonic A. baumannii and S. maltophilia Cells with aPDT

First, we evaluated the dark toxicity of Chl and RF on the viability of A. baumannii and S. maltophilia. Planktonic bacterial cells were dark-incubated with 0.015 mM of Chl and 0.011 mM of RF for different time periods, and then viability was assessed as described in the Materials and Methods. As can be seen in Figure 5, incubation with Chl and RF had no impact on A. baumannii and S. maltophilia, viability indicating that the used PSs are nontoxic without irradiation.
Next, the effects of 402 nm near-UV and 440 nm blue LED light on the viability of planktonic cells were analyzed. The light alone did not significantly impair A. baumannii viability when the illumination dose was 50.4 J/cm2 (402 nm) and 45 J/cm2 (440 nm) (Figure 6A). However, a decrease in S. maltophilia viability (1.3 log10) was apparent after the same 402 nm light exposure, indicating the photosensitivity of S. maltophilia SM3 isolate to near-UV light (Figure 6B).
Next, the aPDT-based inactivation of the planktonic bacterial cells was investigated. The applied illumination doses ranged from 12.6 to 79.8 J/cm2 using 440 nm and 402 nm LED light for the RF and Chl, respectively (Figure 6). The aPDT results showed that A. baumannii was more sensitive to RF-aPDT, which resulted in 5 log10 inactivation with the 45 J/cm2 illumination dose compared to Chl-aPDT, where only 3.4 log10 inactivation was observed after similar 50.4 J/cm2 of illumination (Figure 6A). Conversely, S. maltophilia was more sensitive to Chl-aPDT than to RF-aPDT, resulting in a decrease in CFU by 4.2 log10 after illumination with 50.4 J/cm2, whereas RF-aPDT yielded only a 1.5 log10 decrease in CFU under a similar 52.8 J/cm2 exposure (Figure 6B). Moreover, the application of a higher illumination dose of 79.8 J/cm2 in RF-aPDT still resulted in a lower S. maltophilia inactivation 3.1 log10 compared to the effect observed for Chl-aPDT with 50.4 J/cm2 (4.2 log10) (Figure 6B).

3.3. Inactivation of A. baumannii and S. maltophilia Biofilm Cells with aPDT

We next investigated the efficiency of the Chl-aPDT and RF-aPDT treatments on A. baumannii and S. maltophilia biofilms (Figure 7). Bacterial biofilms are known to be more resistant to aPDT treatment [37], therefore, for inactivation of A. baumannii, and S. maltophilia biofilms we used 10 times higher PSs concentrations compared to those used for treatment of planktonic cells. In addition, to maximize adsorption of PSs to the biofilms, the microplates with formed biofilms were incubated with PS in the dark at room temperature for 60 min. Incubation with PS only did not affect the viability of biofilm bacteria, similar to the effect observed for planktonic cells of A. baumannii and S. maltophilia (Figure 7). However, light illumination using 440 nm (158.4 J/cm2) and 402 nm (151.2 J/cm2) significantly reduced cell viability. The A. baumannii CFU number decreased by 1.34 log10 and 2.94 log10 after the 440 nm and 402 nm light treatments, respectively. The irradiation effect was even more pronounced for the S. maltophilia biofilms, resulting in a reduction of CFU by 1.9 log10 after 440 nm irradiation and by 4 log10 after 402 nm light irradiation.
RF-aPDT and Chl-aPDT resulted in a reduction of A. baumannii CFU numbers by 2.92 log10 and 4.34 log10, respectively (Figure 7A). Interestingly, while planktonic A. baumannii cells were more sensitive to RF-aPDT inactivation, biofilm bacteria were more efficiently inactivated by the Chl-aPDT. Treatment of biofilm S. maltophilia with RF-aPDT and Chl-aPDT resulted in a reduction of viable cell numbers by 4.5 log10 (158.4 J/cm2) and 5.3 log10 (151.2 J/cm2), respectively (Figure 7B).

4. Discussion

The emergence of antibiotic resistance amongst nosocomial bacterial infection agents is one of the most pressing worldwide health issues. These infection agents have developed the ability to survive in the hospital environment and gained virulent features required for efficient infection of the host [18,38]. The opportunistic pathogens A. baumannii and S. maltophilia are critically important multidrug resistant bacteria which cause severe infections to immunocompromised patients. S. maltophilia and A. baumannii are most frequently obtained from patients with pneumonia and bloodstream infections [39]. S. maltophilia infections are also associated with cystic fibrosis patients [40]. The ability to form biofilms is one of the most important virulence factors for both pathogens, and the majority of clinical isolates are biofilm producers [41]. It was shown that S. maltophilia biofilms were up to 128 times more resistant to trimethoprim/sulfamethoxazole and levofloxacin treatment compared with planktonic cells [42]. Biofilm-mediated antibiotic resistance in clinical A. baumannii strains was also described [43]. Therefore, as S. maltophilia and A. baumannii possess multiple resistance mechanisms and a strong capacity to form biofilms, the available options to treat infections caused by these infection agents are limited.
aPDT based on natural photoactive compounds and illumination with 402–440 nm light has the potential to be applied as an antimicrobial technique against antibiotic-resistant planktonic bacteria and biofilms [22]. The main advantages of such an approach are that there is no risk to the patients and the absence of bacterial resistance formation [44]. The interaction of PS and light in the presence of oxygen results in many cytotoxic photooxidative reactions, yielding various ROS [21,23], consequently inducing selective destruction and death of the target bacteria. The antibacterial efficacy of aPDT is influenced by many factors, especially by the physical and chemical properties of the used PSs. However, not all compounds with photosensitizing properties are suitable for aPDT [45,46]. The RF and Chl used in this study were selected due to a number of positive and suitable characteristics [22]. RF (or vitamin B2) and Chl are also known as the non-toxic food colorants E-101 and E-140ii, respectively. In addition, they have a status of “Generally Recognized as Safe” (GRAS) and are regarded as not harmful for human consumption [47].
RF is a neutral water-soluble compound that is heat-stable, but quickly degrades under light exposure, especially UV irradiation. RF has three absorption peaks in the UV region (at 223, 267 and 373 nm) and one peak at visible region (444 nm) [48,49]. Another relatively new PS used in this study is non-copperrized chlorophyllin sodium salt (Chl) with Mg2+ in the center of the ring. Chl is known as a water-soluble negatively charged (anionic) chlorophyll derivative with a main absorption maximum at 405 ± 2 nm, that exhibits antimicrobial activity that generates ROS after exposure to visible light [30,50,51]. The absorption spectra showed that RF and Chl in PBS solutions (7.4 pH) have main absorption bands at about 402 nm and 444 nm, respectively. Therefore, an LED-based combined light sourc, emitting at 440 nm and 402 nm was used in experiments for the optimal excitation of RF and Chl.
The photostability experiments helped us to assess the RF and Chl photomodifications under the conditions subsequently used to inactivate A. baumannii and S. maltophilia. It is known that during irradiation, RF in aqueous solutions is prone to degradation, resulting in various photoproducts such as formylmethylflavin, lumichrome, lumiflavin, carboxymethylflavin, 2,3-butanedione, a β-keto acid and a di-keto compound [48,49,52]. The types of photoproducts depend on the solvent, pH, buffer type, PS concentration, oxygen content, applied light intensity and spectral region [48]. We showed that irradiation of RF in PBS buffer (pH 7.4), resulted in the disappearance of absorbance peak at 444 nm and the transformation of 373 nm peak to 353 nm (Figure 4). Other studies reported same RF spectral changes under similar conditions (neutral pH and visible light irradiation) and identified lumichrome as the main RF photodegradation product [34,35,52]. Lumichrome is known to be an efficient PS [53]. Therefore, its photoactivation during RF-aPDT under chosen conditions and its subsequent contribution to bactericidal efficiency cannot be ruled out.
In this study, we demonstrate for the first time that RF and Chl-based aPDT inactivate the opportunistic pathogens A. baumannii and S. maltophilia and their biofilms. We found that A. baumannii planctonic cells were highly susceptible to RF-aPDT treatment using a 0.01 mM RF concentration, yielding a reduction of viable bacteria by 5 log10 after exposition with 45 J/cm2. Maish et al. [28] showed that the positively charged RF derivatives FLASH-01a and FLASH-07a (0.01 mM), irradiated with 9 J/cm2 and 3 J/cm2 expositions (50 mW/cm2), reduced A. baumannii CFU by 5.7 log10 and 5.8 log10 using source emitting non-coherent 380–600 nm light. Another natural PS, Aloe emodin, after irradiation of 0.1 mM PS solution with 435 nm ± 10 nm (80 mW/cm2) at a 96 J/cm2 illumination dose, reduced the CFU of clinical A. baumannii from 4.5 to 6.89 log10, depending on the bacterial isolate [25]. The A. baumannii inactivation efficiency shown for RF-aPDT in our study, is similar to that reported for Aloe emodin, although the former was achieved applying a ten-times higher dye concentration and a twice-higher illumination dose. Chang et al. [26] reported 97.5% inhibition of imipenem-resistant A. baumannii planktonic cells with curcumin-based aPDT. The effect was achieved by applying a 0.2 mM PS concentration and blue light irradiation using a 5.4 J/cm2 illumination dose (3 mW/cm2). aPDT using 1.25 mM 5-ALA, a precursor of PS protoporphyrin IX, reduced the number of viable A. baumannii planktonic cells by 2.95 log10 only after 4 h preincubation with 5-ALA, followed by 402 nm blue light irradiation with 23.4 J/cm2 illumination dose [27].
The literature review showed that there are no studies analyzing inactivation of A. baumannii biofilms with natural PS-based aPDT. Z. Fekrirad et al. [54] analyzed the inactivation of biofilms formed by two clinical A. baumannii isolates by applying aPDT mediated by anionic PS erythrosine B, although only 0.1 mM erythrosine B complex with chitosan (12.5 mg/mL) and acetic acid (0.01%) with an 80 J/cm2 illumination dose resulted in >3 log10 reduction of biofilm bacteria. In our study, anionic Chl alone caused a >4 log10 reduction of A. baumannii biofilm bacteria, albeit by applying a two-times higher illumination dose with a 402 nm LED light (Figure 7A).
To the best of our knowledge, there is no published data about aPDT-caused inactivation of S. maltophilia pathogen. While planktonic S. maltophilia cells were more sensitive to Chl-aPTD compared to RF-aPDT (Figure 6B), the inactivation of biofilms using RF-aPDT and Chl-aPDT produced similar results of 4.5 log10 and 5.3 log10, respectively (Figure 7B). On the contrary, while A. baumannii planktonic cells were more sensitive to RF-aPDT (Figure 6A), the biofilm bacteria were more susceptible to Chl-aPDT, similarly to the inactivation of S. maltophilia biofilms. Interestingly, 402 nm near-UV light alone significantly reduced the viability of biofilm cells, for instance the S. maltophilia inactivation efficiency using 402 nm light was close to that of RF-aPDT (440 nm light) under similar illumination dose. According to our observations, more than a two-times higher illumination dose and ten-times higher PS concentrations are required to achieve the inactivation effect on A. baumannii and S. maltophilia biofilm cells, comparable to that observed for planktonic cells. Compared to RF-aPDT, Chl-aPDT has a stronger inactivation effect on biofilms of both A. baumannii and S. maltophilia, while for the planktonic cells, the inactivation results were different. A. baumannii was more sensitive to RF-aPDT while S. maltophilia was more sensitive to Chl-aPTD. RF-aPDT and Chl-aPDT may be an optional antimicrobial method for control of these pathogens.
In summary, all the analyzed results suggest that RF-aPDT and Chl-aPDT can be used as a potential antimicrobial treatment for A. baumannii and S. maltophilia inactivation, both for planktonic and biofilm cells. Biofilm cells of both pathogens were more susceptible to near-UV light, indicating that Chl-aPDT with 402 nm LED light illumination is more suitable to inactivate A. baumannii and S. maltophilia biofilms.

Author Contributions

I.B., E.S. and S.B. conceived and designed the experiments; I.B. performed the experiments; I.B., L.K., E.S. and S.B. analyzed the data; I.B. and L.K. wrote the paper. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the European Social Fund under the No 09.3.3-LMT-K-712 “Development of Competences of Scientist, other Researchers and Students through Practical Research Activities” measure.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. European Centre for Disease Prevention and Control. Antimicrobial Resistance Surveillance in Europe 2016. Available online: https://www.ecdc.europa.eu/en/publications-data/antimicrobial-resistance-surveillance-europe-2016 (accessed on 30 December 2021).
  2. Rice, L.B. Federal Funding for the Study of Antimicrobial Resistance in Nosocomial Pathogens: No ESKAPE. J. Infect. Dis. 2008, 197, 1079–1081. [Google Scholar] [CrossRef]
  3. Monegro, A.F.; Muppidi, V.; Regunath, H. Hospital Acquired Infections. In StatPearls [Internet]; StatPearls Publishing: Treasure Island, FL, USA, 2021. [Google Scholar] [PubMed]
  4. Cassini, A.; Högberg, L.D.; Plachouras, D.; Quattrocchi, A.; Hoxha, A.; Simonsen, G.S.; Colomb-Cotinat, M.; Kretzschmar, M.E.; Devleesschauwer, B.; Cecchini, M.; et al. Attributable deaths and disability-adjusted life-years caused by infections with antibiotic-resistant bacteria in the EU and the European Economic Area in 2015: A population-level modelling analysis. Lancet Infect. Dis. 2019, 19, 56–66. [Google Scholar] [CrossRef] [Green Version]
  5. Chuang, Y.-C.; Sheng, W.-H.; Li, S.-Y.; Lin, Y.-C.; Wang, J.-T.; Chen, Y.-C.; Chang, S.-C. Influence of Genospecies of Acinetobacter baumannii Complex on Clinical Outcomes of Patients with Acinetobacter Bacteremia. Clin. Infect. Dis. 2010, 52, 352–360. [Google Scholar] [CrossRef]
  6. Eveillard, M.; Kempf, M.; Belmonte, O.; Pailhoriès, H.; Joly-Guillou, M.-L. Reservoirs of Acinetobacter baumannii outside the hos-pital and potential involvement in emerging human community-acquired infections. Int. J. Infect. Dis 2013, 17, e802–e805. [Google Scholar] [CrossRef] [Green Version]
  7. Karakonstantis, S.; Kritsotakis, E.I.; Gikas, A. Treatment options for K. pneumoniae, P. aeruginosa and A. baumannii co-resistant to carbapenems, aminoglycosides, polymyxins and tigecycline: An approach based on the mechanisms of resistance to car-bapenems. Infection 2020, 48, 835–851. [Google Scholar] [CrossRef]
  8. Suetens, C.; Latour, K.; Kärki, T.; Ricchizzi, E.; Kinross, P.; Moro, M.L.; Jans, B.; Hopkins, S.; Hansen, S.; Lyytikäinen, O.; et al. Prevalence of healthcare-associated infections, estimated incidence and composite antimicrobial resistance index in acute care hospitals and long-term care facilities: Results from two European point prevalence surveys, 2016 to 2017. Eurosurveillance 2018, 23, 1800516. [Google Scholar] [CrossRef] [Green Version]
  9. Singhal, L.; Kaur, P.; Gautam, V. Stenotrophomonas maltophilia: From Trivial to Grievous. Indian J. Med. Microbiol. 2017, 35, 469–479. [Google Scholar] [CrossRef]
  10. Pompilio, A.; Crocetta, V.; Confalone, P.; Nicoletti, M.; Petrucca, A.; Guarnieri, S.; Fiscarelli, E.; Savini, V.; Piccolomini, R.; Di Bonaventura, G. Adhesion to and biofilm formation on IB3-1 bronchial cells by Stenotrophomonas maltophilia isolates from cystic fibrosis patients. BMC Microbiol. 2010, 10, 102. [Google Scholar] [CrossRef] [Green Version]
  11. Brooke, J.S. New strategies against Stenotrophomonas maltophilia: A serious worldwide intrinsically drug-resistant opportun-istic pathogen. Expert Rev. Anti. Infect. Ther. 2014, 12, 1–4. [Google Scholar] [CrossRef]
  12. Chang, Y.-T.; Lin, C.-Y.; Chen, Y.-H.; Hsueh, P.-R. Update on infections caused by Stenotrophomonas maltophilia with particular attention to resistance mechanisms and therapeutic options. Front. Microbiol. 2015, 6, 893. [Google Scholar] [CrossRef]
  13. Trifonova, A.; Strateva, T. Stenotrophomonas maltophilia—a low-grade pathogen with numerous virulence factors. Infect. Dis. 2018, 51, 168–178. [Google Scholar] [CrossRef]
  14. Sánchez, M.B. Antibiotic resistance in the opportunistic pathogen Stenotrophomonas maltophilia. Front. Microbiol. 2015, 6, 658. [Google Scholar] [CrossRef] [Green Version]
  15. Gibb, J.; Wong, D.W. Antimicrobial Treatment Strategies for Stenotrophomonas maltophilia: A Focus on Novel Therapies. Antibiotics 2021, 10, 1226. [Google Scholar] [CrossRef]
  16. Høiby, N. A short history of microbial biofilms and biofilm infections. APMIS 2017, 125, 272–275. [Google Scholar] [CrossRef] [Green Version]
  17. Satpathy, S.; Sen, S.K.; Pattanaik, S.; Raut, S. Review on bacterial biofilm: An universal cause of contamination. Biocatal. Agric. Biotechnol. 2016, 7, 56–66. [Google Scholar] [CrossRef]
  18. Lin, M.-F.; Lan, C.-Y. Antimicrobial resistance in Acinetobacter baumannii: From bench to bedside. World J. Clin. Cases 2014, 2, 787–814. [Google Scholar] [CrossRef]
  19. Galiè, S.; García-Gutiérrez, C.; Miguélez, E.M.; Villar, C.J.; Lombó, F. Biofilms in the Food Industry: Health Aspects and Control Methods. Front. Microbiol. 2018, 9, 898. [Google Scholar] [CrossRef]
  20. Wainwright, M. Photodynamic antimicrobial chemotherapy (PACT). J. Antimicrob. Chemother. 1998, 42, 13–28. [Google Scholar] [CrossRef]
  21. St Denis, T.G.; Hamblin, M.R. An Introduction to Photoantimicrobials: Photodynamic Therapy as a Novel Method of Microbial Pathogen Eradication. In Science against Microbial Pathogens: Communicating Current Research and Technological Advances; Méndez-Vilas, A., Ed.; Formatex Research Center: Badajoz, Spain, 2011; pp. 675–683. [Google Scholar]
  22. Buchovec, I.; Gricajeva, A.; Kalėdienė, L.; Vitta, P. Antimicrobial Photoinactivation Approach Based on Natural Agents for Control of Bacteria Biofilms in Spacecraft. Int. J. Mol. Sci. 2020, 21, 6932. [Google Scholar] [CrossRef]
  23. Wainwright, M.; Maisch, T.; Nonell, S.; Plaetzer, K.; Almeida, A.; Tegos, G.P.; Hamblin, M.R. Photoantimicrobials—Are we afraid of the light? Lancet Infect. Dis. 2017, 17, e49–e55. [Google Scholar] [CrossRef]
  24. Ghorbani, J.; Rahban, D.; Aghamiri, S.; Teymouri, A.; Bahador, A. Photosensitizers in antibacterial photodynamic therapy: An overview. Laser Ther. 2018, 27, 293–302. [Google Scholar] [CrossRef] [Green Version]
  25. Li, J.; Qin, M.; Liu, C.; Ma, W.; Zeng, X.; Ji, Y. Antimicrobial photodynamic therapy against multidrug-resistant Acinetobacter bau-mannii clinical isolates mediated by aloe-emodin: An in vitro study. Photodiagnosis Photodyn. Ther. 2020, 29, 101632. [Google Scholar] [CrossRef]
  26. Chang, K.; Cheng, Y.; Lai, M.; Hu, A. Identification of carbonylated proteins in a bactericidal process induced by curcumin with blue light irradiation on imipenem-resistant Acinetobacter baumannii. Rapid Commun. Mass Spectrom. 2019, 34, e8548. [Google Scholar] [CrossRef]
  27. Maliszewska, I.; Goldeman, W. Pentamidine enhances photosensitization of Acinetobacter baumannii using diode lasers with emission of light at wavelength of ʎ = 405 nm and ʎ = 635 nm. Photodiagnosis Photodyn. Ther. 2021, 34, 102242. [Google Scholar] [CrossRef]
  28. Maisch, T.; Eichner, A.; Späth, A.; Gollmer, A.; Koenig, B.; Regensburger, J.; Bäumler, W. Fast and Effective Photodynamic Inactivation of Multiresistant Bacteria by Cationic Riboflavin Derivatives. PLoS ONE 2014, 9, e111792. [Google Scholar] [CrossRef] [Green Version]
  29. Mazzotta, C.; Caragiuli, S.; Caporossi, A. Riboflavin and the Cornea and Implications for Cataracts. In Handbook of Nutrition, Diet and the Eye; Academic Press: London, UK, 2014; pp. 123–130. [Google Scholar]
  30. Buchovec, I.; Lukseviciūtė, V.; Kokstaite, R.; Labeikyte, D.; Kaziukonyte, L.; Luksiene, Z. Inactivation of Gram (−) bacteria Salmo-nella enterica by chlorophyllin-based photosensitization: Mechanism of action and new strategies to enhance the inactivation efficiency. J. Photochem. Photobiol. B 2017, 172, 1–10. [Google Scholar] [CrossRef]
  31. Skerniškytė, J.; Krasauskas, R.; Péchoux, C.; Kulakauskas, S.; Armalytė, J.; Sužiedėlienė, E. Surface-Related Features and Virulence Among Acinetobacter baumannii Clinical Isolates Belonging to International Clones I and II. Front. Microbiol. 2019, 9, 3116. [Google Scholar] [CrossRef] [Green Version]
  32. Klimkaitė, L.; Armalytė, J.; Skerniškytė, J.; Sužiedėlienė, E. The Toxin-Antitoxin Systems of the Opportunistic Pathogen Stenotrophomonas maltophilia of Environmental and Clinical Origin. Toxins 2020, 12, 635. [Google Scholar] [CrossRef]
  33. Naghili, H.; Tajik, H.; Mardani, K.; Razavi Rouhani, S.M.; Ehsani, A.; Zare, P. Validation of drop plate technique for bacterial enumeration by parametric and nonparametric tests. Vet. Res. Forum 2013, 4, 179–183. [Google Scholar]
  34. Ahmad, I.; Fasihullah, Q.; Vaid, F.H.M. Effect of phosphate buffer on photodegradation reactions of riboflavin in aqueous solu-tion. J Photochem. Photobiol. B 2005, 78, 229–234. [Google Scholar] [CrossRef]
  35. Ahmad, I.; Fasihullah, Q.; Vaid, F.H.M. Effect of light intensity and wavelengths on photodegradation reactions of riboflavin in aqueous solution. J. Photochem. Photobiol. B 2006, 82, 21–27. [Google Scholar] [CrossRef]
  36. Ahmad, I.; Fasihullah, Q.; Vaid, F.H.M. A study of simultaneous photolysis and photoaddition reactions of riboflavin in aqueous solution. J. Photochem. Photobiol. B 2004, 75, 13–20. [Google Scholar] [CrossRef]
  37. Hu, X.; Huang, Y.-Y.; Wang, Y.; Wang, X.; Hamblin, M.R. Antimicrobial Photodynamic Therapy to Control Clinically Relevant Bio-film Infections. Front. Microbiol. 2018, 9, 1299. [Google Scholar] [CrossRef] [Green Version]
  38. Looney, W.J.; Narita, M.; Mühlemann, K. Stenotrophomonas maltophilia: An emerging opportunist human pathogen. Lancet Infect. Dis. 2009, 9, 312–323. [Google Scholar] [CrossRef]
  39. Gales, A.C.; Seifert, H.; Gur, D.; Castanheira, M.; Jones, R.N.; Sader, H.S. Antimicrobial Susceptibility of Acinetobacter calcoaceti-cus-Acinetobacter baumannii Complex and Stenotrophomonas maltophilia Clinical Isolates: Results From the SENTRY Anti-microbial Surveillance Program (1997–2016). Open Forum Infect. Dis. 2019, 6, S34–S46. [Google Scholar] [CrossRef] [Green Version]
  40. Waters, V.; Yau, Y.; Prasad, S.; Lu, A.; Atenafu, E.; Crandall, I.; Tom, S.; Tullis, E.; Ratjen, F. Stenotrophomonas maltophilia in cystic fibrosis: Serologic re-sponse and effect on lung disease. Am. J. Respir. Crit. Care Med. 2011, 183, 635–640. [Google Scholar] [CrossRef]
  41. Di Bonaventura, G.; Spedicato, I.; D’Antonio, D.; Robuffo, I.; Piccolomini, R. Biofilm formation by Stenotrophomonas maltophilia: Modulation by quinolones, trimethoprim-sulfamethoxazole, and ceftazidime. Antimicrob. Agents Chemother. 2004, 48, 151–160. [Google Scholar] [CrossRef] [Green Version]
  42. Pompilio, A.; Ranalli, M.; Piccirilli, A.; Perilli, M.; Vukovic, D.; Savic, B.; Krutova, M.; Drevinek, P.; Jonas, D.; Fiscarelli, E.V.; et al. Biofilm Formation among Stenotrophomonas maltophilia Isolates Has Clinical Relevance: The ANSELM Prospective Multicenter Study. Microorganisms 2021, 9, 49. [Google Scholar] [CrossRef]
  43. Shenkutie, A.M.; Yao, M.Z.; Siu, G.K.-H.; Wong, B.K.C.; Leung, P.H.-M. Biofilm-Induced Antibiotic Resistance in Clinical Acinetobacter baumannii Isolates. Antibiotics 2020, 9, 817. [Google Scholar] [CrossRef]
  44. Liu, Y.; Qin, R.; Zaat, S.A.J.; Breukink, E.; Heger, M. Antibacterial photodynamic therapy: Overview of a promising approach to fight antibiotic-resistant bacterial infections. J. Clin. Transl. Res. 2015, 1, 140–167. [Google Scholar]
  45. Klausen, M.; Ucuncu, M.; Bradley, M. Design of Photosensitizing Agents for Targeted Antimicrobial Photodynamic Therapy. Molecules 2020, 25, 5239. [Google Scholar] [CrossRef] [PubMed]
  46. Yin, R.; Hamblin, M. Antimicrobial Photosensitizers: Drug Discovery Under the Spotlight. Curr. Med. Chem. 2015, 22, 2159–2185. [Google Scholar] [CrossRef] [PubMed]
  47. CFR—Code of Federal Regulations Title 21. Available online: https://www.accessdata.fda.gov/scripts/cdrh/cfdocs/cfcfr/CFRSearch.cfm?fr=184.1695 (accessed on 30 December 2021).
  48. Sheraz, M.A.; Kazi, S.H.; Ahmed, S.; Anwar, Z.; Ahmad, I. Photo, thermal and chemical degradation of riboflavin. Beilstein J. Org. Chem. 2014, 10, 1999–2012. [Google Scholar] [CrossRef] [PubMed]
  49. Astanov, S.; Sharipov, M.Z.; Fayzullaev, A.R.; Kurtaliev, E.N.; Nizomov, N. Spectroscopic study of photo and thermal destruction of riboflavin. J. Mol. Struct. 2014, 1071, 133–138. [Google Scholar] [CrossRef]
  50. Buchovec, I.; Lukseviciute, V.; Marsalka, A.; Reklaitis, I.; Luksiene, Z. Effective photosensitization-based inactivation of Gram (−) food pathogens and molds using the chlorophyllin–chitosan complex: Towards photoactive edible coatings to preserve strawberries. Photochem. Photobiol. Sci. 2016, 15, 506–516. [Google Scholar] [CrossRef]
  51. Žudytė, B.; Velička, M.; Šablinskas, V.; Lukšienė, Ž. Understanding Escherichia coli damages after chlorophyllin-based photosensitization. J. Biophotonics 2020, 13, e202000144. [Google Scholar] [CrossRef]
  52. Kim, E.; Kim, M.H.; Song, J.H.; Kang, C.; Park, W.H. Dual crosslinked alginate hydrogels by riboflavin as photoinitiator. Int. J. Biol. Macromol. 2020, 154, 989–998. [Google Scholar] [CrossRef]
  53. Bergh, V.J.V.; Tønnesen, H.H. Interaction between the photosensitizer lumichrome and human serum albumin: Effect of excipients. Pharm. Dev. Technol. 2017, 22, 992–1000. [Google Scholar] [CrossRef]
  54. Fekrirad, Z.; Darabpour, E.; Kashef, N. Eradication of Acinetobacter baumannii Planktonic and Biofilm Cells Through Erythro-sine-Mediated Photodynamic Inactivation Augmented by Acetic Acid and Chitosan. Curr. Microbiol. 2021, 78, 879–886. [Google Scholar]
Microorganisms 10 00506 g001 550

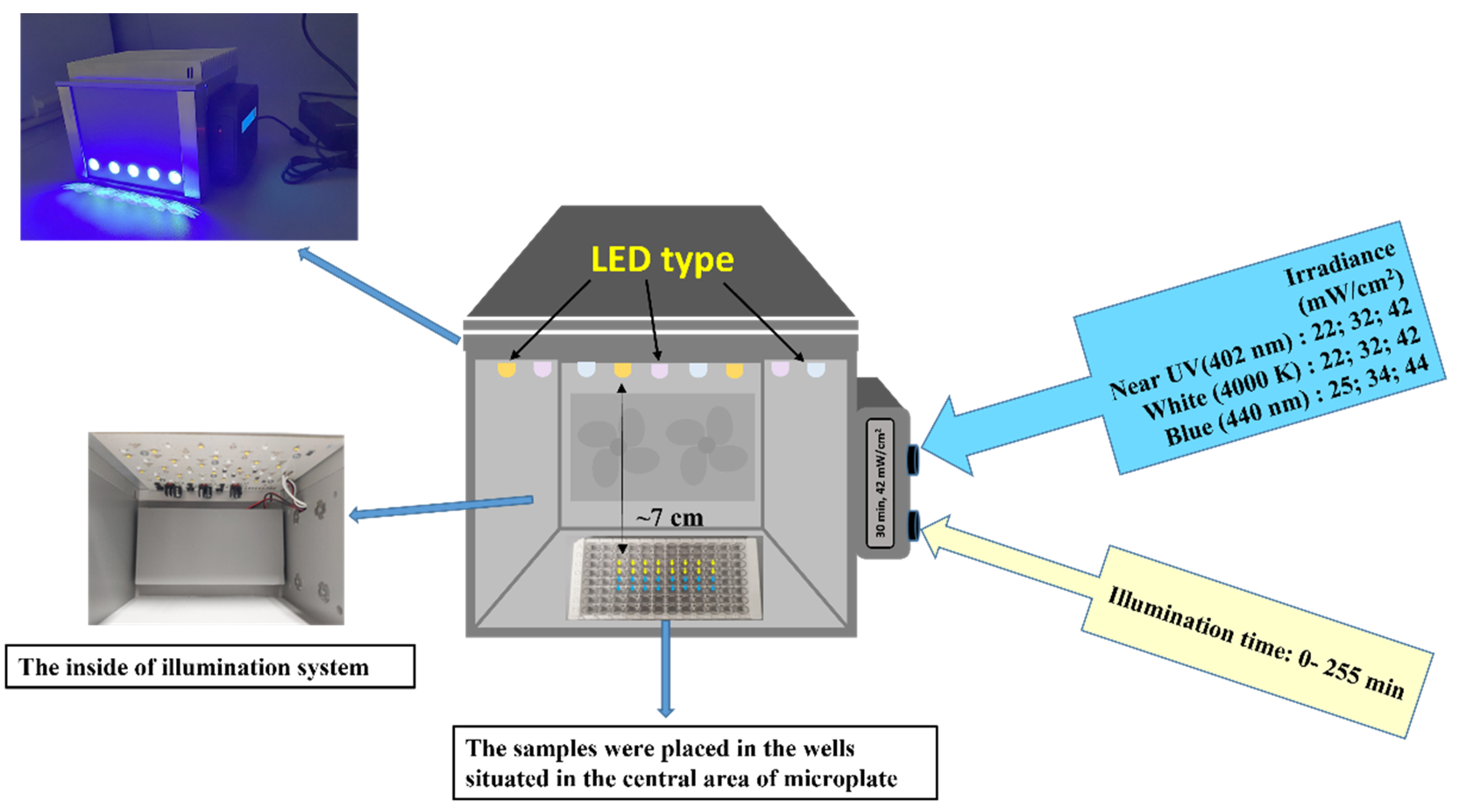

Figure 1. The illumination system used in the aPDT experiments.
Figure 1. The illumination system used in the aPDT experiments.
Microorganisms 10 00506 g001
Microorganisms 10 00506 g002 550

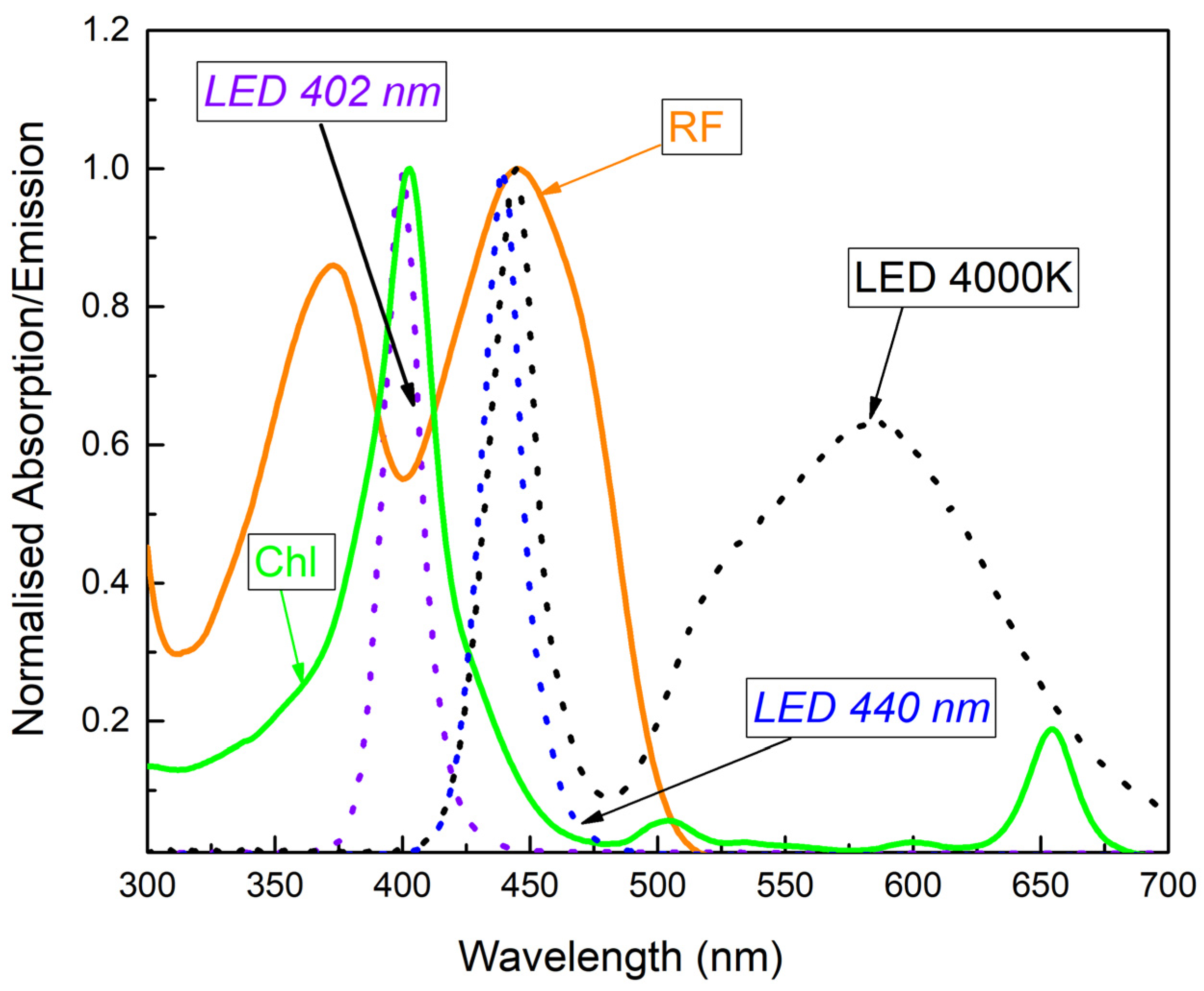

Figure 2. Normalized absorption spectra of RF and Chl in 0.01 M PBS, as well as emission spectra of the selected 402 nm and 440 nm LED. LED 4000 K was not used in the study.
Figure 2. Normalized absorption spectra of RF and Chl in 0.01 M PBS, as well as emission spectra of the selected 402 nm and 440 nm LED. LED 4000 K was not used in the study.
Microorganisms 10 00506 g002
Microorganisms 10 00506 g003 550

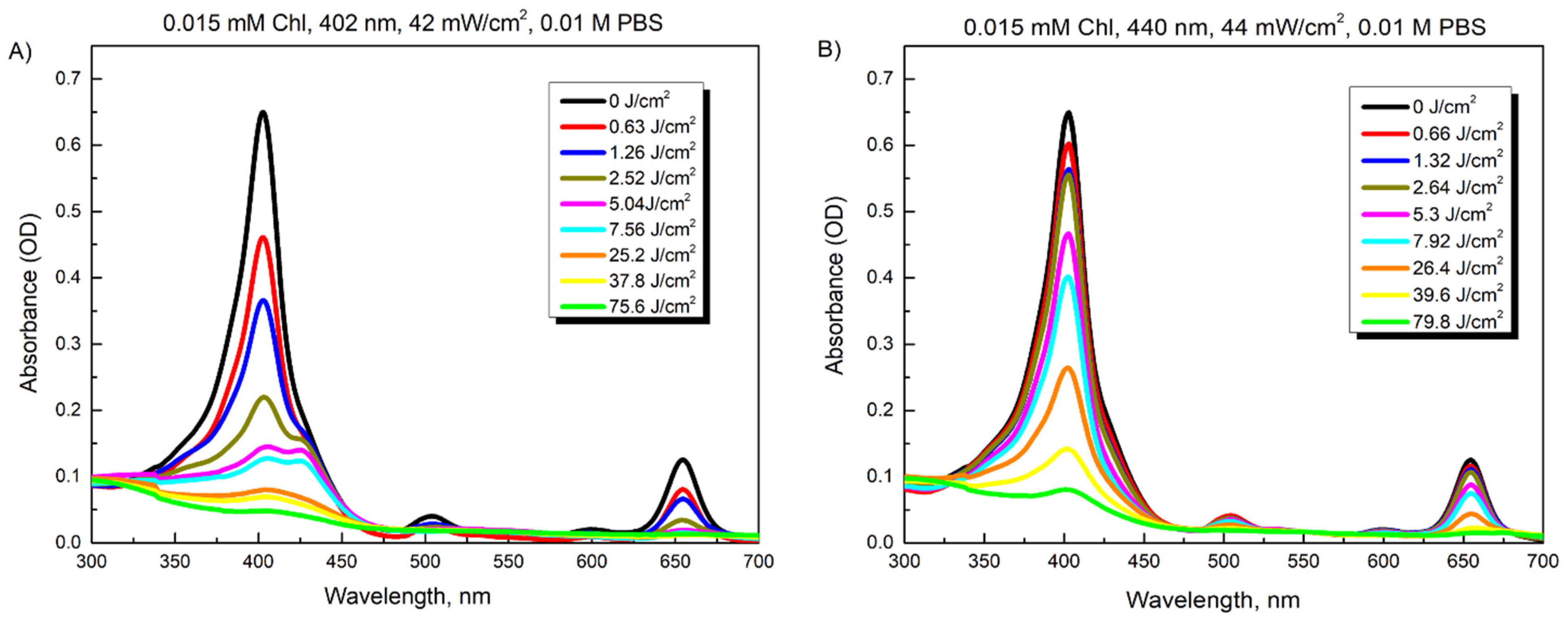

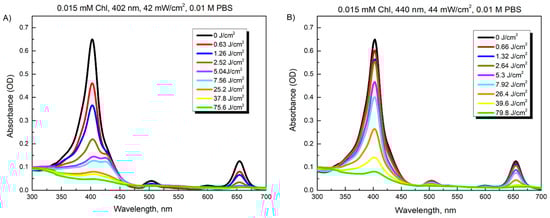

Figure 3. Changes in absorption spectra of 0.015 mM Chl after increasing illumination with 402 nm (A) and 440 nm (B) light.
Figure 3. Changes in absorption spectra of 0.015 mM Chl after increasing illumination with 402 nm (A) and 440 nm (B) light.
Microorganisms 10 00506 g003
Microorganisms 10 00506 g004 550

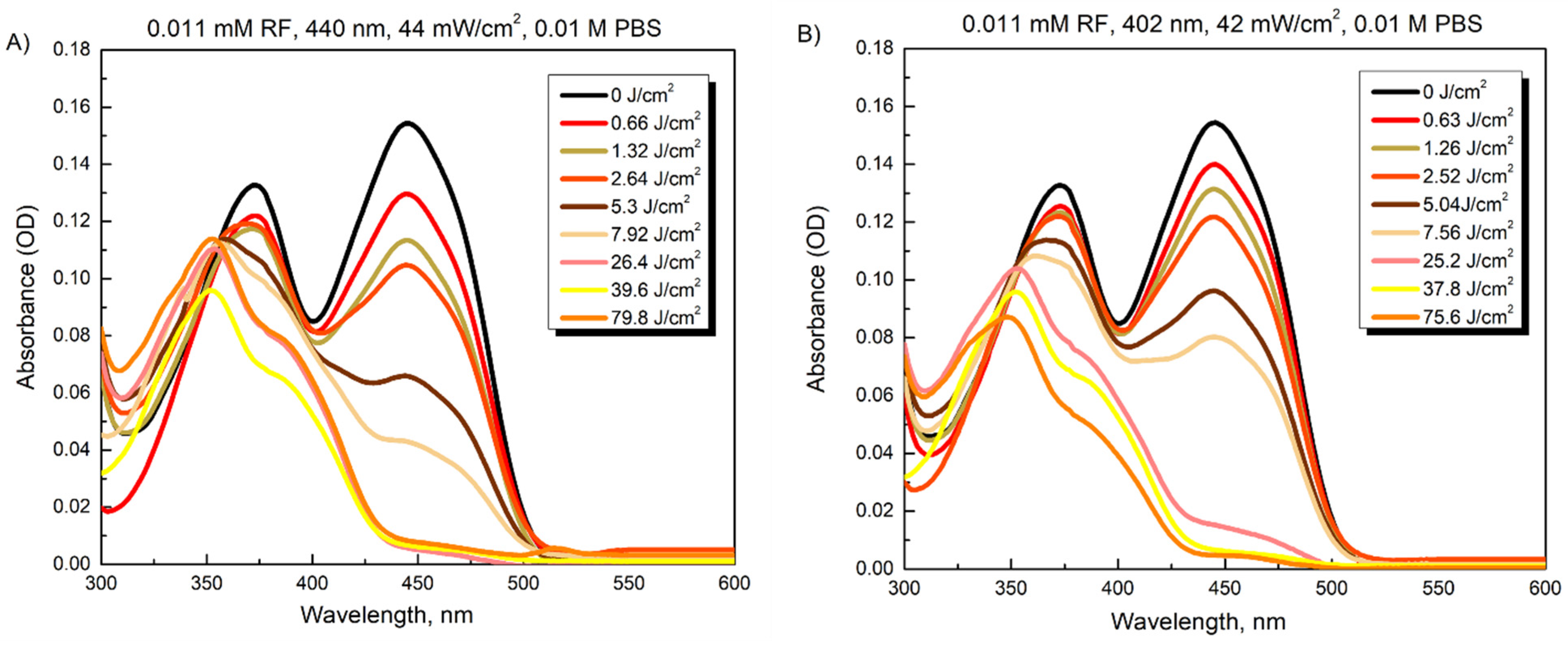

Figure 4. Changes in absorption spectra of 0.011 mM RF after exposures with 440 nm (A) and 402 nm (B) light.
Figure 4. Changes in absorption spectra of 0.011 mM RF after exposures with 440 nm (A) and 402 nm (B) light.
Microorganisms 10 00506 g004
Microorganisms 10 00506 g005 550

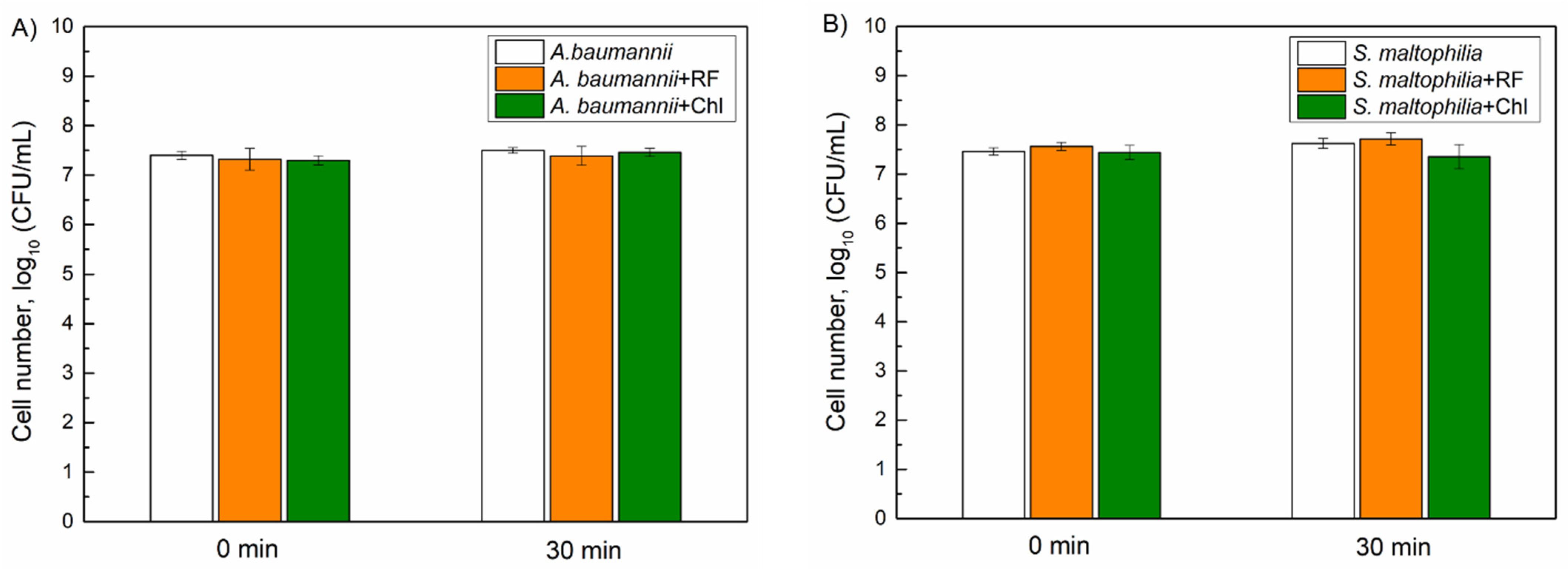

Figure 5. Dark toxicity of 0.015 mM chlorophyllin (Chl) and 0.011 mM riboflavin (RF) on the viability of A. baumannii (A) and S. maltophilia (B) planktonic cells. CFU values present the average of 3–6 experiments, error bars indicate standard deviation.
Figure 5. Dark toxicity of 0.015 mM chlorophyllin (Chl) and 0.011 mM riboflavin (RF) on the viability of A. baumannii (A) and S. maltophilia (B) planktonic cells. CFU values present the average of 3–6 experiments, error bars indicate standard deviation.
Microorganisms 10 00506 g005
Microorganisms 10 00506 g006 550

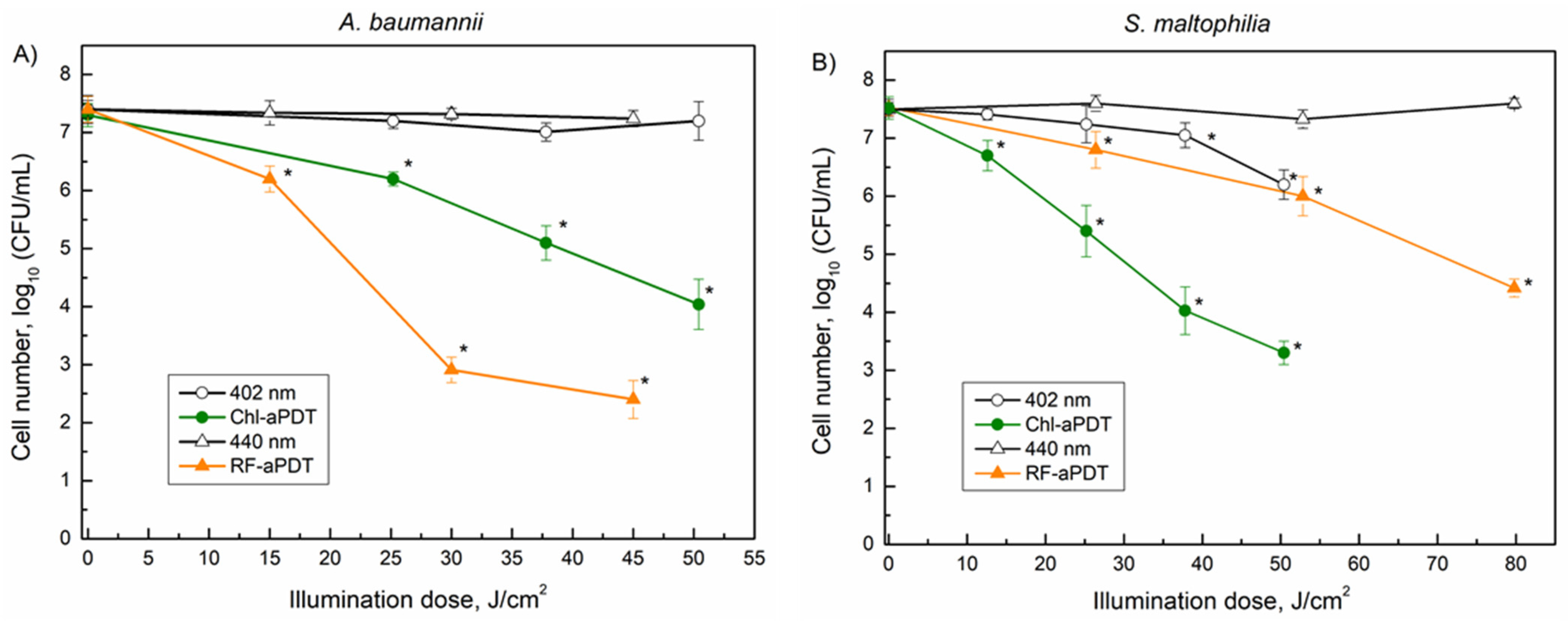

Figure 6. Inactivation of A. baumannii (A) and S. maltophilia (B) planktonic cells by aPDT as function of illumination doses: 402 nm and Chl-aPDT (0.015 mM Chl)—irradiance 42 mW/cm2 (A,B); 440 nm and RF-aPDT (0.011 mM RF)—irradiance 25 mW/cm2 (A); 440 nm and RF-aPDT (0.011 mM RF—irradiance 44 mW/cm2 (B). Every point is the average of 3–6 experiments, error bars indicate standard deviation. * indicates statistical significance compared to control culture, p < 0.05.
Figure 6. Inactivation of A. baumannii (A) and S. maltophilia (B) planktonic cells by aPDT as function of illumination doses: 402 nm and Chl-aPDT (0.015 mM Chl)—irradiance 42 mW/cm2 (A,B); 440 nm and RF-aPDT (0.011 mM RF)—irradiance 25 mW/cm2 (A); 440 nm and RF-aPDT (0.011 mM RF—irradiance 44 mW/cm2 (B). Every point is the average of 3–6 experiments, error bars indicate standard deviation. * indicates statistical significance compared to control culture, p < 0.05.
Microorganisms 10 00506 g006
Microorganisms 10 00506 g007 550

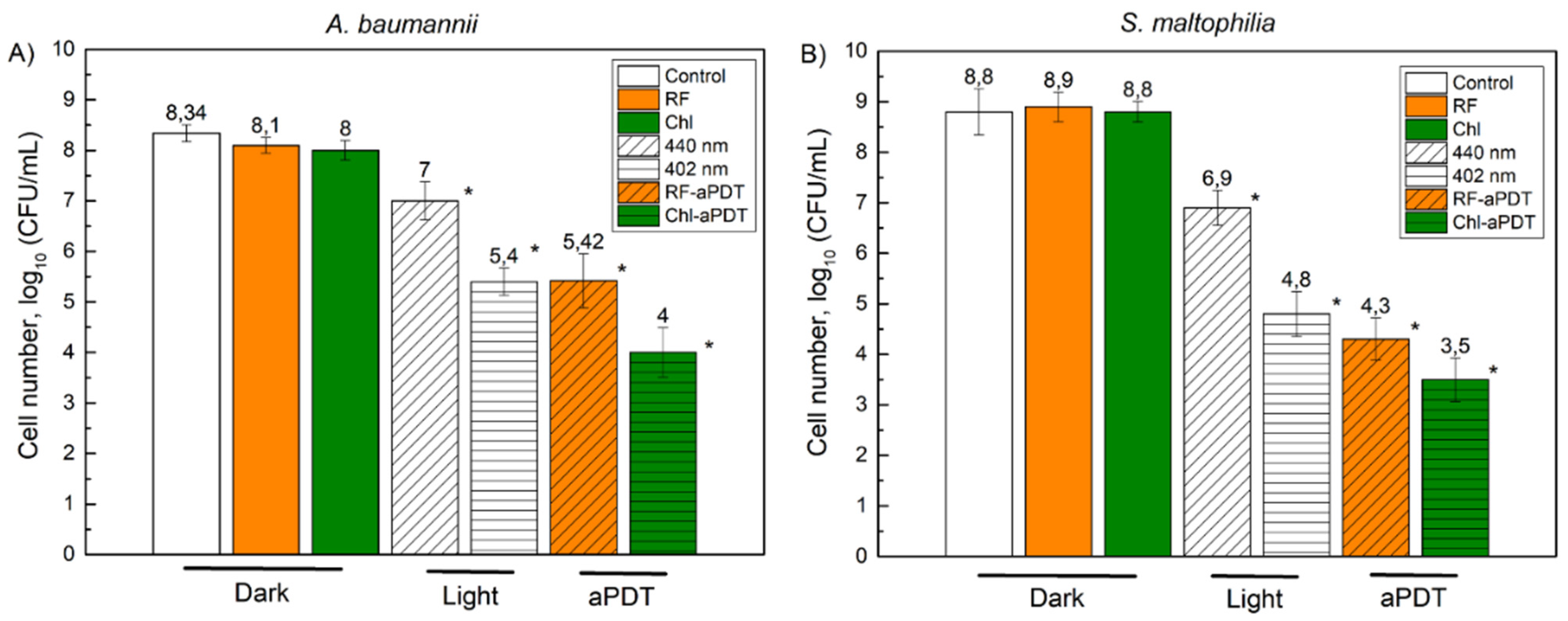

Figure 7. Photodynamic inactivation of A. baumannii (A) and S. maltophilia (B) biofilms using 0.11 mM riboflavin (RF) and 0.15 mM chlorophyllin (Chl) after 60 min of incubation followed by 60 min of illumination (440 nm and RF-aPDT with illumination dose 158.4 J/cm2; 402 nm Chl-aPDT, with illumination dose 151.2 J/cm2). The treatment conditions are indicated as dark, light and aPDT. CFU values present the average of 3 experiments, error bars indicate standard deviation. * shows statistical significance compared to the control culture, p < 0.05. The numbers above the columns are the average of log10 (CFU/mL).
Figure 7. Photodynamic inactivation of A. baumannii (A) and S. maltophilia (B) biofilms using 0.11 mM riboflavin (RF) and 0.15 mM chlorophyllin (Chl) after 60 min of incubation followed by 60 min of illumination (440 nm and RF-aPDT with illumination dose 158.4 J/cm2; 402 nm Chl-aPDT, with illumination dose 151.2 J/cm2). The treatment conditions are indicated as dark, light and aPDT. CFU values present the average of 3 experiments, error bars indicate standard deviation. * shows statistical significance compared to the control culture, p < 0.05. The numbers above the columns are the average of log10 (CFU/mL).
Microorganisms 10 00506 g007
Table
Table 1. Illumination doses used in experiments.
Table 1. Illumination doses used in experiments.
Time (min)Illumination Dose (J/cm2)
440 nm
Irradiance 25 mW/cm2		402 nm
Irradiance 42 mW/cm2		440 nm
Irradiance 44 mW/cm2
0.25-0.630.66
0.5-1.261.32
1-2.522.64
2-5.045.28
3-7.567.92
5-12.6-
101525.226.4
15-37.839.6
203050.452.8
304575.679.8
60-151.2158.4
