Design and Analysis of a Novel Actuator with a Double-Roller Gear Drive

Abstract

In recent years, with the development of robot transmission technology, the market demand for high-performance actuators, which can be applied to lower limb exoskeleton assist robots, is increasing. These robots help achieve human–robot interaction through rigid and flexible coupling, and they can ensure the flexibility of the elderly or patients in daily walking and rehabilitation training. A novel actuator with a double-roller gear drive structure is proposed with high bearing capability and high transmission efficiency due to multi-tooth rolling contact with small tooth difference such that friction is greatly reduced in the transmission process compared to what occurs in involute planetary transmission. The bearing capacity of the tooth surface was analyzed by using the loaded contact analysis method. Finally, a prototype was manufactured with the 3D printer, and the maximum output torque of the developed actuator was tested with an experimental setup. The results show that this novel actuator, with its double-roller gear drive, has huge potential for use in the hip joint of an exoskeleton robot.

1. Introduction

Robots play a significant role in human life, enhancing productivity and efficiency, and improving the quality of life. They assist us in various tasks and industries including manufacturing, healthcare, agriculture, and even personal assistance. One particular type of robot, the exoskeleton robot, has a profound impact on human life. Exoskeleton robots, also known as wearable robots, are designed to enhance the physical capabilities of humans. An exoskeleton robot consists of a wearable framework and actuators that provide support and augment the user’s strength and endurance. The actuators in exoskeleton robots are crucial components that enable motion and force transmission, and they must meet specific requirements for exoskeleton robots including reliability, durability, and power efficiency. They should be capable of providing precise and controlled motion to assist and enhance a user’s movements. Moreover, they need to be lightweight and ergonomic to ensure user comfort and avoid excessive fatigue during prolonged use. Orion [1] et al. developed an auxiliary hand exoskeleton that has good flexibility because of using silicone resin, which can reduce impact and improve dimensional accuracy. The Research Institute of the University of Pisa in Italy designed a full-body exoskeleton robot system (Body Extender), which drove a robot to walk through impedance control. There are a total of six force sensors in this robot. The laboratory at the University of California, has proposed an exoskeleton (BLEEX) [2,3] that can withstand body weight and external loads and includes hydraulic actuators, 30 sensors, and a drive power supply. Onen [4] et al. developed a wearable exoskeleton robot (WSE) driven by a DC servo motor that uses electric actuators to provide power because of its compact and lightweight design requirements. The mechanism, drive, and power transmission of most upper-limb exoskeleton robots are classified, compared, and summarized [5]. Electric actuators, which utilize electrical energy to generate motion, offer precise control and high torque and are suitable for applications requiring fine movements and accuracy. The hydraulic actuator, which [6] has a large output torque and power density, has a certain flexibility, meeting the demand for explosive torque during the startup of an exoskeleton robot for the lower limbs. However, controlling the gait to fit the natural posture is challenging because of the large inertia and obvious hysteresis effect. The power of the actuator can be dominated by external retroaction. When the series elastic actuator (SEA) measures the elastomer to regulate the drift, a strain instrument is applied to the lower-limb exoskeleton robot actuator to record force and torque [7].

Gear transmission systems play crucial roles in robot actuators by enabling power transmission and motion transmission and providing positioning and precision control. The effective design and optimization of gear transmission systems are essential for optimizing the performance and functionality of robots. To avoid motor power transfer loss, the actuation system must have a high torque efficiency and mechanical bandwidth for high torque transmission. Additionally, when an exoskeleton robot is used for human walking, it should reduce the human burden as much as possible, and so, a light and compact drive system is designed to meet the requirements. However, low control capacity and rest friction are still not resolved [8]. The cycloid reducer reduces speed by utilizing the tooth difference. Compared with the harmonic drive, with an identical speed-reducing ratio, the cycloid reducer, with a high reducing ratio, has better carrying capacity [9]. The cycloid reducer can achieve a low speed-reducing ratio and high reducing ratio because the cycloid reducer has a wider speed-reducing ratio range. The cycloid reducer has become the widely applied type of reducer for industrial robots. However, it is difficult to directly apply traditional ready-made cycloid reducers to exoskeleton robots because of their large sizes and high weights [10]. The design of a portable cycloid reducer, which can be effectively applied to exoskeleton robots, is put forward. Li et al. introduced unloaded tooth contact analysis to determine instantaneous meshing information. Combining the Boussinesq force–displacement relationship in elastic half space with the influence coefficient method, a tooth flexibility model considering tooth contact deformation was established. Then, the loads, contact patterns, and loaded transmission error were calculated by enforcing the compatibility and equilibrium conditions [11,12,13]. Sensinger [14] put forward the idea of a cycloid reducer that uses roller bearing with modest attrition factors to take the place of a free roller. In order to devise an efficient cycloid reducer, a compact needle bearing was used instead of a ball bearing [15,16]. The type of contact between a cycloid and pinion is point contact, rather than theoretical line contact, which greatly improves mechanical efficiency [17]. High energy efficiency at a low speed-reducing ratio is a cycloid reducer’s main advantage; then, an actuator model was set up by assembling an electrical motor with high torque density. There is an increasing demand for high-performance gear drives, and these can achieve larger reduction ratios. In contrast, the reduction ratios provided by mainstream harmonic drives in the market cannot meet the demand of the market. Therefore, planetary, wolfrom, cycloidal, and various other types of transmission structures have been promoted [18,19,20]. Cycloidal reducers [21] allow robots to exhibit excellent performance (i.e., high robustness, torsional stiffness, mechanical efficiency). The main reason for their generating these performances is their large stress area and rolling contact [22]. Many researchers have analyzed various parameters of cycloidal gears [23,24]. In order to further optimize the design, researchers have considered tooth profile modification to reduce machining errors. The use of needle roller bearings instead of free rollers greatly improves mechanical efficiency and reduces friction losses [25]. A compact low deceleration cycloidal transmission has been developed that is low-cost, capable of 3D printing, and uses ready-made bearings and steel structures [26]. Jea-Luc set up a theoretical approach for estimating cycloidal gear reducers’ effectivenesses; after experimental verification, the error was relatively small compared to the actual situation [27]. Pablo López García et al. proposed an evaluation criterion strongly constrained by HRI applications and used it to evaluate the performance of traditional and emerging robot transmission technologies, particularly in terms of weight and efficiency [28]. The cycloidal reducers proposed above can also be connected to an electric motor that can be applied to an exoskeleton robot.

The rest of this paper is set as follows: The Section 2 provides a brief explanation of the fundamental geometric design and operating mechanism of a novel actuator with a double-roller gear drive. The Section 3 addresses a semi-analytical load distribution model based on an investigation of tooth contact under loaded and unloaded conditions. A gear tooth flexibility model is created by integrating the Boussinesq force–displacement relationship in elastic half space with the effect coefficient approach. The impacts of various torque sizes on contact stress, load transmission error, and transmission ratio are studied by using the suggested model in the Section 4, which also presents an experimental verification. The entire text is distilled in the Section 5.

2. Mechanical Structure and Gear Geometry Design

2.1. Explosion Diagram and Working Principle

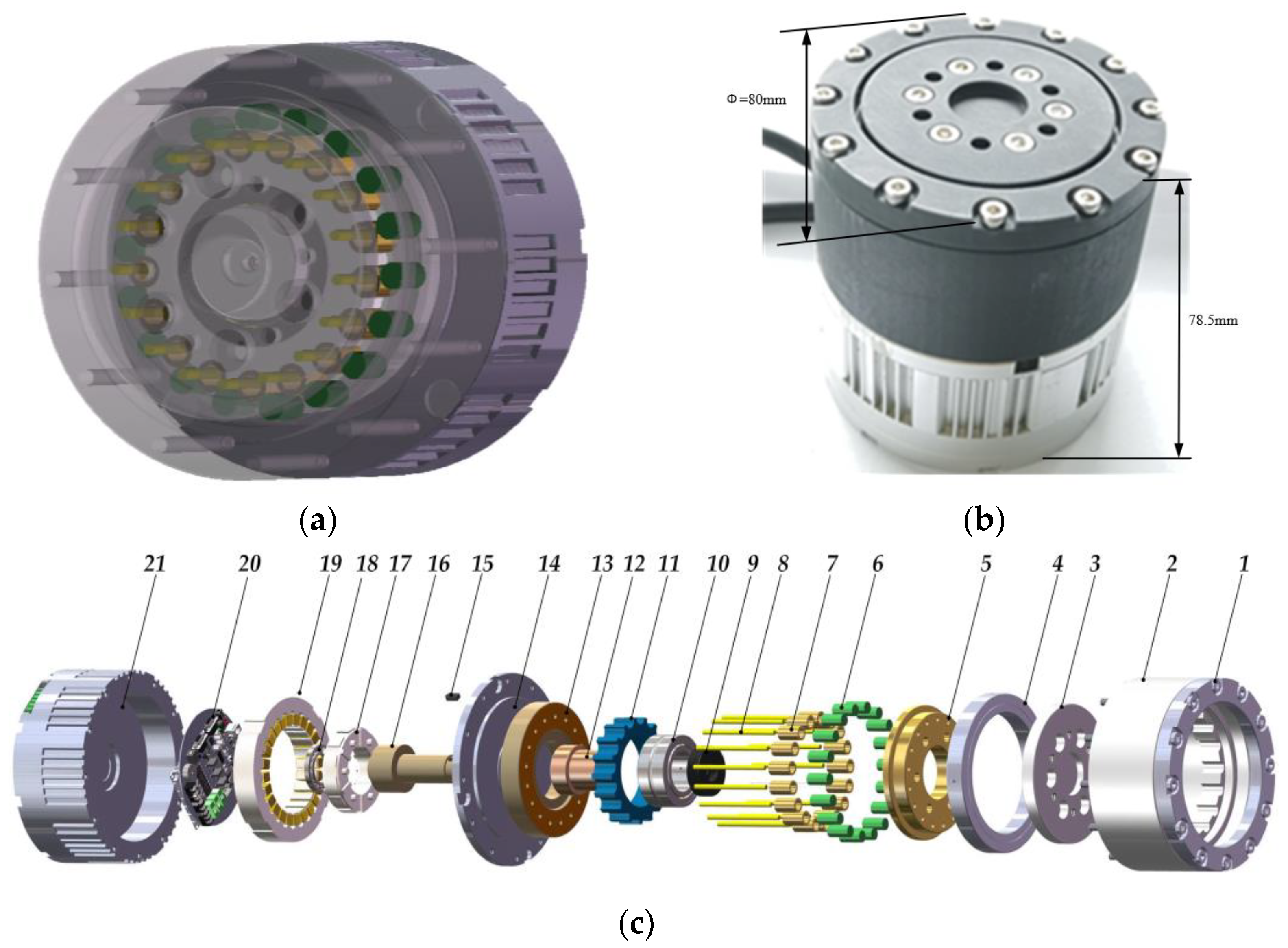

Figure 1 shows the three-dimensional model and physical prototype of the novel actuator. Its diameter is 80 mm and its height is 78.5 mm. It mainly consists of a hexagon socket cylindrical bolt (1), drive housing (2), retaining ring (3), cross roller bearing (4), output end (5), inner needle (6), sleeve (7), outer needle roller (8), retaining ring (9), solid needle roller bearing (10), retainer (11), eccentric sleeve (12), right side of holder (13), motor front end cap (14), C-type flat key (15), motor shaft (16), rotor (17), deep groove ball bearing (18), determinant (19), magnetic encoder (20), and motor housing (21). Unlike common involute gear drives, it is a complex eccentric rotating planetary transmission structure.

The input shaft drives the platform’s rolling and the eccentric sleeve maintains the disc’s touching with the rollers. The disc’s rotational movement is sent to the output axis through output spaces situated on the retainer and the needles surrounding the output disc. The advantage of this mechanism is that the meshing pair possesses the characteristic of rolling contact to reduce the loss of meshing power, improve traditional efficiency, and simultaneously have the characteristics of multiple-tooth contact of planetary transmission with small tooth difference. Compared with involute planetary transmission, the double-roller structure has the benefits of compact size, low weight, high transmission ratio, high positioning accuracy, and better bearing capacity due to the small difference in the number of teeth and multi-tooth contact features [29].

2.2. Geometric Parameters of the Double-Roller Gear Pair

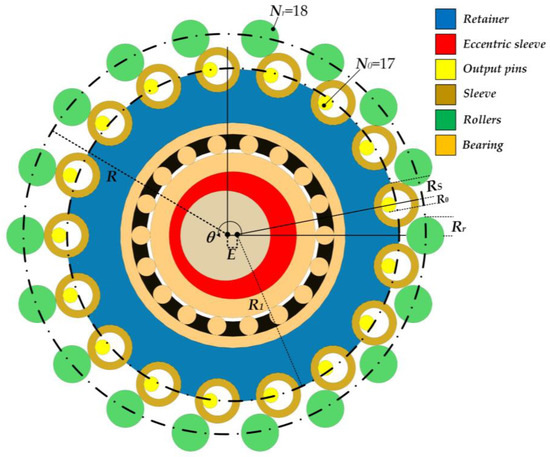

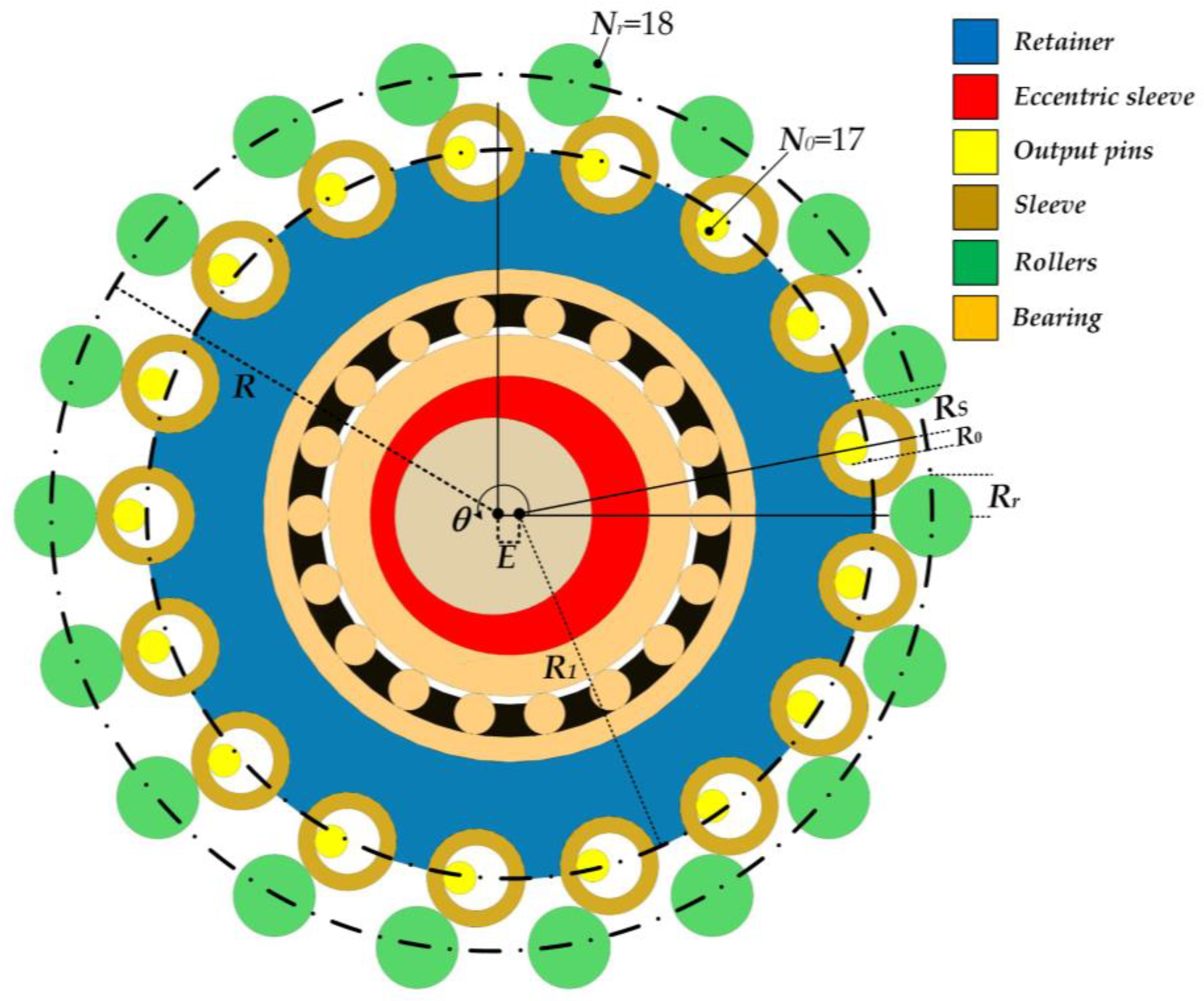

The basic geometric shape is expressed in Figure 2. The 17 sleeves (expressed in beige) roll over the rollers (here 18, displayed in green) on the outer circumference with a radius of R, with each roller having a radius of R_r. The sleeve (beige) and retainer (blue) come into contact with the eccentric sleeve (red) through the bearing (gold). Then, they are driven by an eccentric sleeve on the input axis (brown) that rotates around the input shaft with an eccentricity of E related to the rotation shaft. Finally, the required moment is transmitted to the output axis through the output pins (yellow).

The ordinary representation for the ratio of transmission (N) of the double needle roller structure with $N_s$ sleeves and $N_r$ rollers is as follows:

$$N=\frac{N_S}{N_r-N_S}$$

(1)

where the contrast $N_r-N_S=1$ guarantees the maximum meeting region for power transmission. Therefore, substituting $N_S=N_r-1$, the above expression can be simplified thus:

$$N=N_r-1.$$

(2)

The sleeve motion profile can be ingeniously represented thus:

$$\begin{array}{l}{s}_x(\theta )=R\cos (\theta )-R_r\cos (\theta +\alpha )-E\cos (N_r\theta )\\ s_y(\theta )=-R\sin (\theta )+R_r\sin (\theta +\alpha )+E\sin (N_r\theta )\end{array}$$

(3)

where $\alpha$ denotes the inclination of the sleeve in relation to the roller:

$$\alpha ={\tan }^{-1}\left[\frac{\sin ((N_r-1)\theta )}{\cos ((N_r-1)\theta )-\frac{R}{E{N}_r}}\right]$$

(4)

and $\theta \in \left[0,2\pi \right]$ represents the angle around the input axis.

3. Model for the Load Distribution

In this part, a load distribution model of a double-roller gear drive is developed, and this is seen as a three-dimensional resilient contact question to exactly describe the influence of flank profile and lengthways modification. The semi-analytic model is proposed and assayed under the ensuing assumptions:

• The force spread on a pair of teeth does not influence stretch variations on nearby tooth couples.
• In a quasi-static process, the rotating speed and inertia forces of the locomotor components are ignored.
• It is assumed that the curved shape of gear tooth exteriors in the meeting area remains invariable.
• The friction that exists between contact tooth couples is ignored.

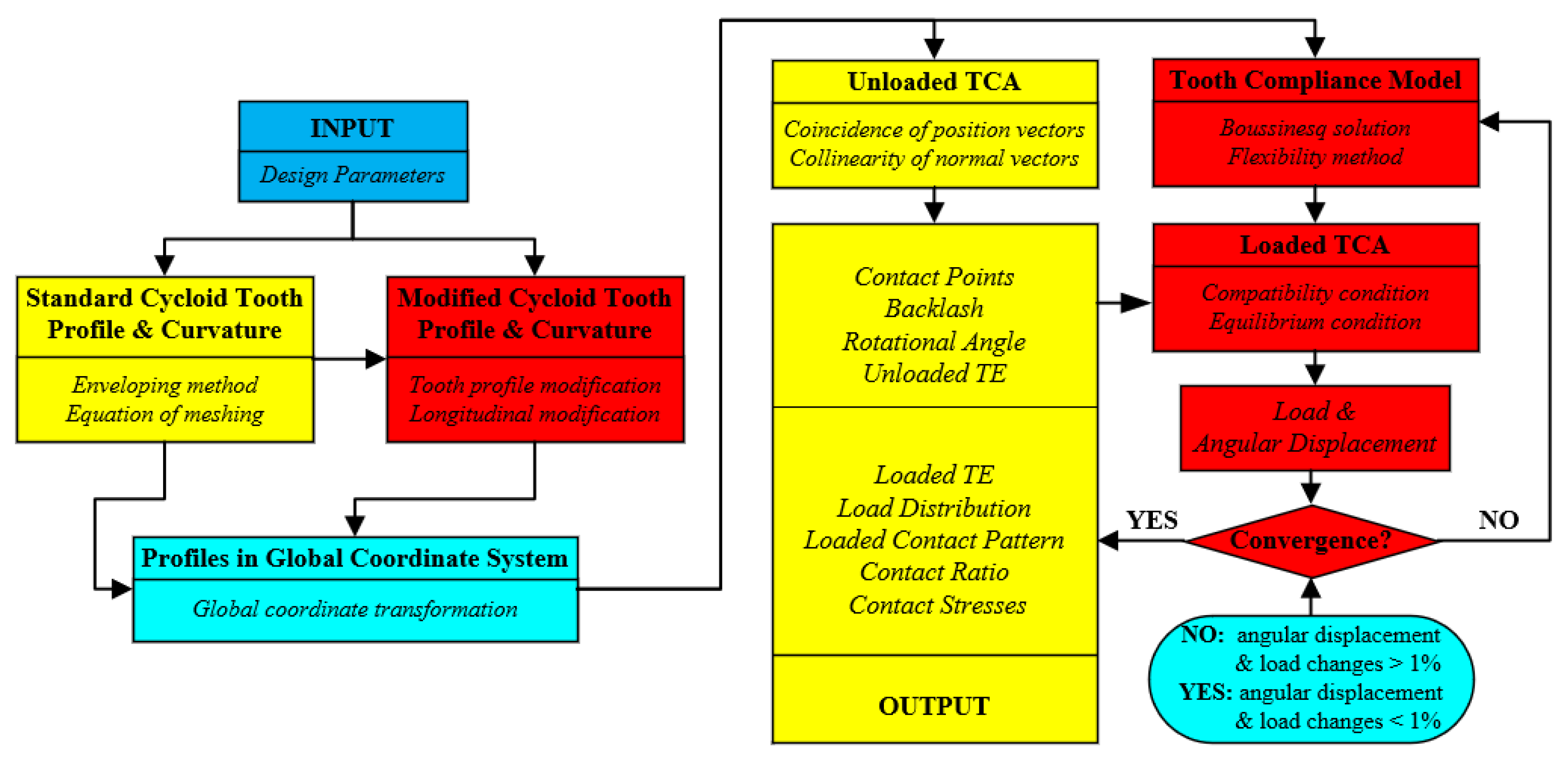

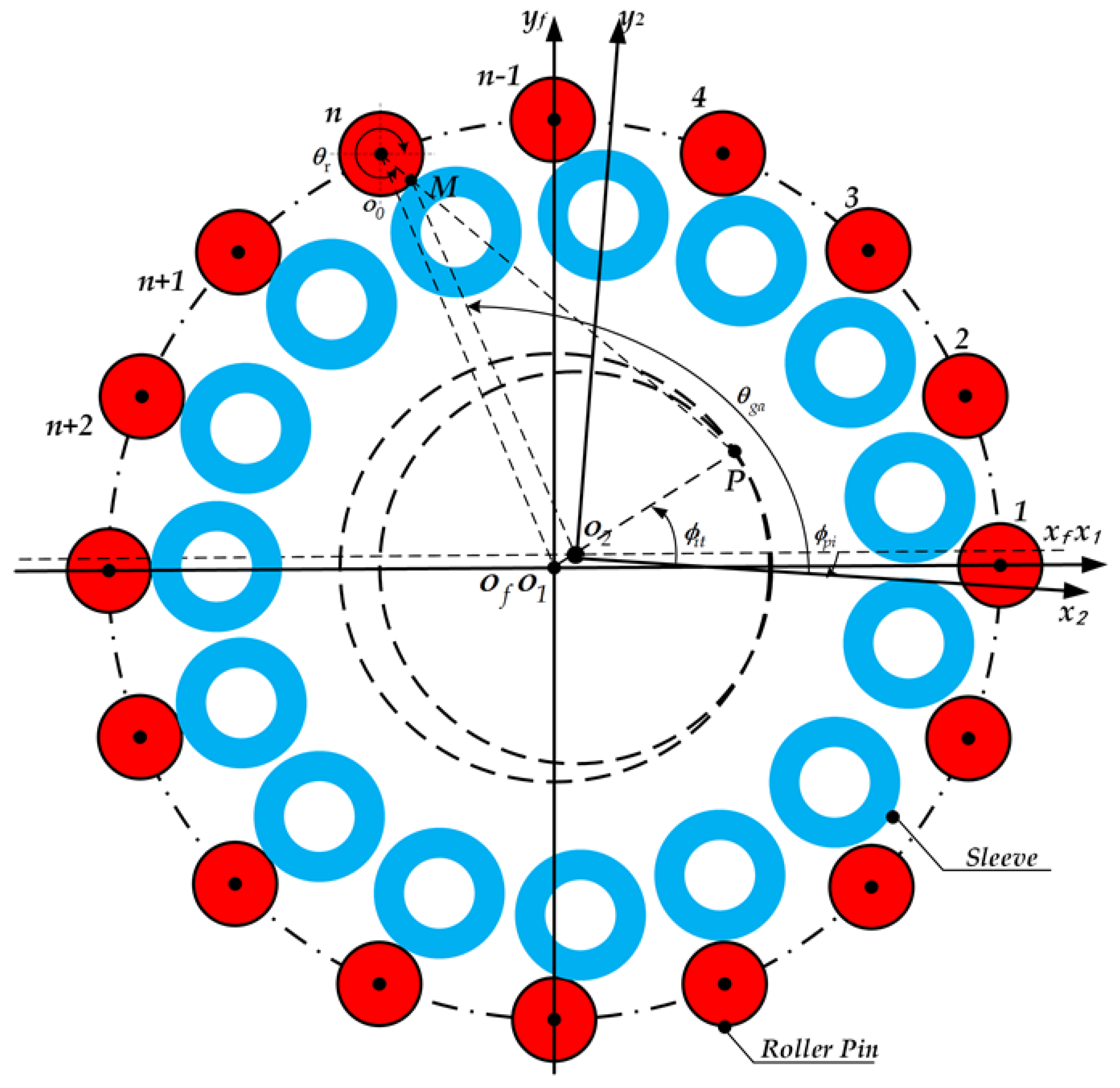

Figure 3 depicts the general layout of the mentioned semi-analytic model based on the aforementioned assumptions. The design size, modification, material attributes, and inflicted force are the initial arguments for the model previously mentioned. The tooth profile and roller profile expressed by the foregoing arguments are converted into an overall coordinate frame to execute unloaded tooth contact analysis for obtaining the meshing information. Then, the Boussinesq force–displacement relationship in the elastic half-space is expressed by using the influence coefficient method, and a tooth compliant model that takes into account tooth contact deformity is set up. The final step is to offer a series of balancing and coordination criteria, which are utilized to estimate the loads, load transmission error (LTE), contact relationship, contact pressure, and transmission ratio during the transmission process.

3.1. Analysis of the Unloaded Tooth Contact

Unloaded tooth contact analysis is carried out in both dimensions to precisely establish the immediate center point for possible meshing areas. The ordinate frames for unloaded TCA (Tooth Contact Analysis) are displayed in Figure 4. $S_1(x_1,y_1)$ and $S_2(x_2,y_2)$ are fixedly attached to the needle roller and cycloidal gear, respectively, and the fixed axis system $S_f(x_f,y_f)$ that coincides with $S_1$ is fastened on the rack in an exact manner. The location vector ${\mathit{r}}_f^{(1)}({\theta }_r)$ and its unit normal vector ${\mathit{n}}_f^{(1)}({\theta }_r)$ are expressed in $S_f$ thus:

$${\mathit{r}}_f^{(1)}({\theta }_r)=\left[\begin{array}{c}R\cos (n{\sigma }_r)+R_r\cos ({\theta }_r)\\ R\sin (n{\sigma }_r)-R_r\sin ({\theta }_r)\\ 0\\ 1\end{array}\right],$$

(5)

$${\mathit{n}}_f^{(1)}({\theta }_r)=\frac{\frac{{\mathit{r}}_f^{(1)}({\theta }_r)}{\partial {\theta }_r}\times \mathit{k}}{\left|\frac{{\mathit{r}}_f^{(1)}({\theta }_r)}{\partial {\theta }_r}\times \mathit{k}\right|},$$

(6)

where $n$ is the total number of rollers, ${\sigma }_r$ is an indexing angle of the needles and its value is ${\sigma }_r=\frac{2\pi }{N_r}$, k = [0, 0, 1] is an unit normal vector, and ${\theta }_r$ is the angle argument of the roller profile.

The position vector $r_f^{(2)}({\theta }_{ga},{\varphi }_{pi},{\varphi }_{it},{\theta }_c)$ and its unit normal vector $n_f^{(2)}({\theta }_{ga},{\varphi }_{pi})$ are expressed in $S_f$ in an equal manner:

$$\begin{array}{l}{\mathit{r}}_f^{(2)}({\theta }_{ga},{\varphi }_{pi},{\varphi }_{it},{\theta }_c)=\left[\begin{array}{c}\begin{array}{l}[R_1\cos (n{\theta }_{ga}-{\theta }_{ga}/2)+R_s\cos {\theta }_c]\cos ({\varphi }_{pi})+[R_1\sin (n{\theta }_{ga}-{\theta }_{ga}/2)\\ +R_s\sin {\theta }_c]\sin ({\varphi }_{pi})+E\cos ({\varphi }_{it})\end{array}\\ \begin{array}{l}[R_1\sin (n{\theta }_{ga}-{\theta }_{ga}/2)+R_s\sin {\theta }_c]\cos ({\varphi }_{pi})-[R_1\cos (n{\theta }_{ga}-{\theta }_{ga}/2)\\ +R_s\cos {\theta }_c]\sin ({\varphi }_{pi})+E\sin ({\varphi }_{it})\end{array}\\ 0\\ 1\end{array}\right]\\ \end{array}$$

(7)

$${\mathit{n}}_f^{(2)}({\theta }_{ga})=\frac{\frac{{\mathit{r}}_f^{(2)}({\theta }_{ga})}{\partial {\theta }_{ga}}\times \mathit{k}}{\left|\frac{{\mathit{r}}_f^{(2)}({\theta }_{ga})}{\partial {\theta }_{ga}}\times \mathit{k}\right|},$$

(8)

where ${\varphi }_{pi}$ is the rotation angle, ${\varphi }_{it}$ is the crank axle’s input angle, ${\theta }_c$ is an included angle between the articulated line from the sleeve center to engagement point M and the horizontal line, and ${\theta }_{ga}$ is an angle argument.

Two requirements must be met for it to be possible to perform the unloaded TCA: the radius vectors must be coincident and the convergence of the normal vectors of the gear and roller contours must occur at the same meeting locations [15,30]. Hence,

$$\begin{array}{l}{\mathit{n}}_f^{(1)}({\theta }_r)={\mathit{n}}_f^{(2)}({\theta }_{ga},{\varphi }_{pi})\\ {\mathit{r}}_f^{(1)}({\theta }_r)={\mathit{r}}_f^{(2)}({\theta }_{ga},{\varphi }_{pi},{\varphi }_{it})\end{array}$$

(9)

To calculate the unit normal vectors, $\left|n_f^{(1)}\right|=\left|n_f^{(2)}\right|=1$, three formulas that are not linear with a few unknowns (${\theta }_r$, ${\theta }_{ga}$, ${\varphi }_{pi}$ and ${\varphi }_{it}$) can be set up. The input crank axle angle ${\varphi }_{it}$ is given, and the other three unknown arguments can be computed.

Then, the backlash ${\varphi }_{ali}$ and the angle of rotation ${\varphi }_d$ are expressed as below [15,31]:

$$\begin{array}{l}{\varphi }_{ali}={\varphi }_d-{\varphi }_{pi}\\ {\varphi }_d=\max ({\varphi }_{pi})\end{array}$$

(10)

where the backlash ${\varphi }_{ali}$ is the maximum revolve angle for all possible melding gear transmission pairs and the revolve angle ${\varphi }_d$ is the peak value in the rotation angles.

3.2. Tooth Compliance Model

After defining the source sites of the probable meeting area in the no-load TCA, the subsequent phase is to ascertain the tooth adaptability of the contact components. The tooth depth is shorter because the tooth thickness of the dedendum is larger, and the contribution of contact deformation to tooth deformation is much greater than that of bending deformation and shear deformation. Therefore, only considering contact deformation is enough for applications in engineering [32]. This paper introduces the Boussinesq solution to tooth contact deformation in the elastic half space [33,34].

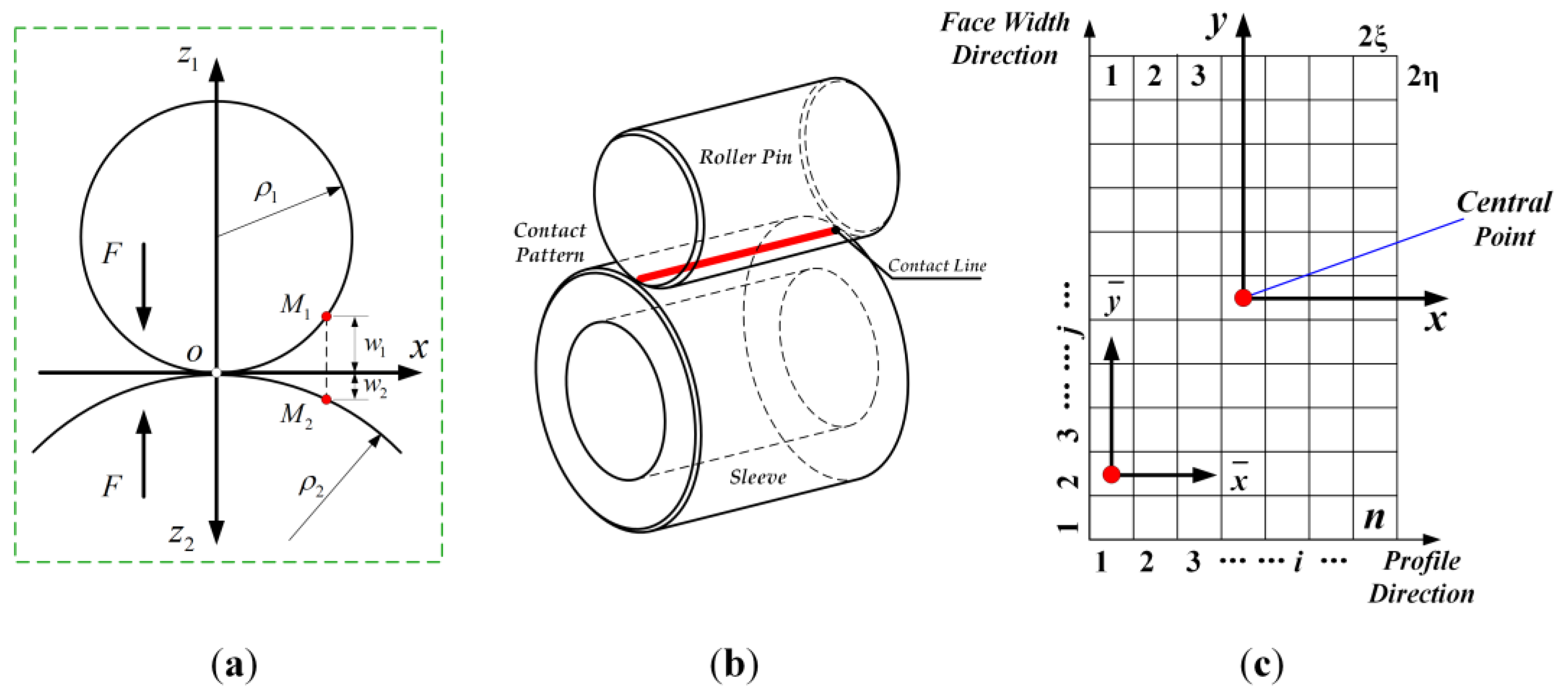

Figure 5 reveals the meeting situation of the double needle structure. From the lateral view, the two coordinate frames are defined at the same base point at the beginning meeting point (area) as expressed in Figure 5a. In Figure 5b, the actual contact pattern and contact line between the roller pin and sleeve are depicted. As illustrated in Figure 5c, the tooth flank is illustrated in the coordinate frame, where x and y stand for the gear outline and width directions, respectively. The possible meeting region is split into an interface lattice, and each grid element is represented by a single meeting point. The meeting area of each gear pair is split into b mesh elements with the same diameter in the outline orientation. In the width direction, the same possible meeting area is segmented into c mesh elements. Every meeting mesh element’s region is ${\mathsf{\Omega }}^{\prime }=2\xi \times 2\eta$. The meeting deformation ${\delta }_c$ at a point $(x_i,y_i)$ can be expressed as follows:

$${\delta }_c=(\frac{1-{\mu }_1^2}{\pi E_1}+\frac{1-{\mu }_2^2}{\pi E_2}){\displaystyle \underset{\mathsf{\Omega }}{\iint }\frac{b(x^{\prime },y^{\prime })}{{[{(x-x^{\prime })}^2+{(y-y^{\prime })}^2]}^{1/2}}}d{x}^{\prime }d{y}^{\prime },$$

(11)

where ${\mu }_{}$ and $E$ stand for the Poisson’s ratio and Young’s modulus, respectively, and indexes 1 and 2 indicate roller pin and sleeve, respectively. $b(x^{\prime },y^{\prime })$ is the dispersed stress in the meeting region $\mathsf{\Omega }$.

The preliminary spacings between both sides are set as ${\omega }_{1ij}$ and ${\omega }_{2ij}$, and they are able to be expressed thus:

$${\omega }_{1ij}={\left\{{\rho }_1^2-{[2\xi i-2\xi (b/2+1)]}^2\right\}}^{1/2}-\left|{\rho }_1\right|,i=1,2,\cdots ,b;j=1,2,\cdots ,c,$$

(12)

$${\omega }_{2ij}={\left\{{\rho }_2^2-{[2\xi i-2\xi (b/2+1)]}^2\right\}}^{1/2}-\left|{\rho }_2\right|,i=1,2,\cdots ,b;j=1,2,\cdots ,c,$$

(13)

where ${\rho }_1$ is the curvature semidiameter of the roller and ${\rho }_2$ is the curvature semidiameter of the sleeve at the location of contact.

In the case of PCM (Partially Crowned Modification),

$$\mathsf{\Delta }p(d)=\{\begin{array}{c}{R}_p-\sqrt{R_p{}^2-{(\left|d\right|-L_1/2)}^2},-L/2\le d<-L_1,L_1/2\le d\le L/2\\ 0,-L_1/2\le d\le L_1/2\end{array}.$$

(14)

On the basis of Equation (14), the initial spacing of the sleeve surface can be redrafted thus:

$${\omega }_{2ij}^{PCM}={\omega }_{2ij}+\left\{{\left\{R_P^2-{[2\eta j-2\eta (c/2+1)]}^2\right\}}^{1/2}-R_p\right\}G(x),i=1,2,\cdots ,b;j=1,2,\cdots ,c,$$

(15)

where $G(x)=\{\begin{array}{cc}1,& x>0\\ 0,& x\le 0\end{array}$ and $x=(2j-1)/(c+1)-1-L_1/L$.

In such a case, the improved portability approach’s total formula for the multidimensional flexible contact may be represented as follows:

$${\displaystyle \sum _{k=1}^n{P}_k{f}_{ij}={\delta }_t-{\omega }_{1ij}-}{\omega }_{2ij},k=1,2,\cdots ,n;i=1,2,\cdots ,b;j=1,2,\cdots ,c,$$

(16)

where $f_{ij}$ is the effect factor that is able to be expressed as follows:

$$\begin{array}{l}{f}_{ij}=(\frac{1-{\mu }_1^2}{\pi E_1}+\frac{1-{\mu }_2^2}{\pi E_2})\\ \{(\overline{x}+\xi )\ln [\frac{(\overline{y}+\eta )+\sqrt{{(\overline{y}+\eta )}^2+{(\overline{x}+\xi )}^2}}{(\overline{y}-\eta )+\sqrt{{(\overline{y}-\eta )}^2+{(\overline{x}+\xi )}^2}}]\\ +(\overline{\mathrm{y}}+\eta )\ln [\frac{(\overline{x}+\xi )+\sqrt{{(\overline{y}+\eta )}^2+{(\overline{x}+\xi )}^2}}{(\overline{x}-\xi )+\sqrt{{(\overline{y}+\eta )}^2+{(\overline{x}-\xi )}^2}}],i=1,2,\cdots ,b;j=1,2,\cdots ,c.\\ +(\overline{x}-\xi )\ln [\frac{(\overline{y}-\eta )+\sqrt{{(\overline{y}-\eta )}^2+{(\overline{x}-\xi )}^2}}{(\overline{y}+\eta )+\sqrt{{(\overline{y}+\eta )}^2+{(\overline{x}-\xi )}^2}}]\\ +\begin{array}{c}(\overline{\mathrm{y}}-\eta )\ln [\frac{(\overline{x}-\xi )+\sqrt{{(\overline{y}-\eta )}^2+{(\overline{x}-\xi )}^2}}{(\overline{x}+\xi )+\sqrt{{(\overline{y}-\eta )}^2+{(\overline{x}+\xi )}^2}}]\end{array}\}\\ \end{array}$$

(17)

In addition to displacement requests, two limitations on force are also exerted. The normal force $f$ is computed by using the following formula:

$${\displaystyle \sum _{k=1}^n{P}_k=\frac{f}{4\xi \eta }},P_k\ge 0,k=1,2,\cdots ,n,$$

(18)

where the stress dispersion in the meeting area ought to be nonnegative.

The preceding linear formulas [27,34] with fringe conditions are able to be computed to derive the meeting area, meeting pressure, and meeting deformation. Therefore, the tooth flexibility is expressed as follows:

$$C_c=\frac{{\delta }_c}{f}.$$

(19)

Gear tooth flexibility is a nonlinear formula involving the geometries, powers, and material characters of gear teeth. The numerical values of tooth flexibility and normal force are able to be computed by using a process of iteration, which will be outlined in the next section.

3.3. Loaded Tooth Contact Analysis

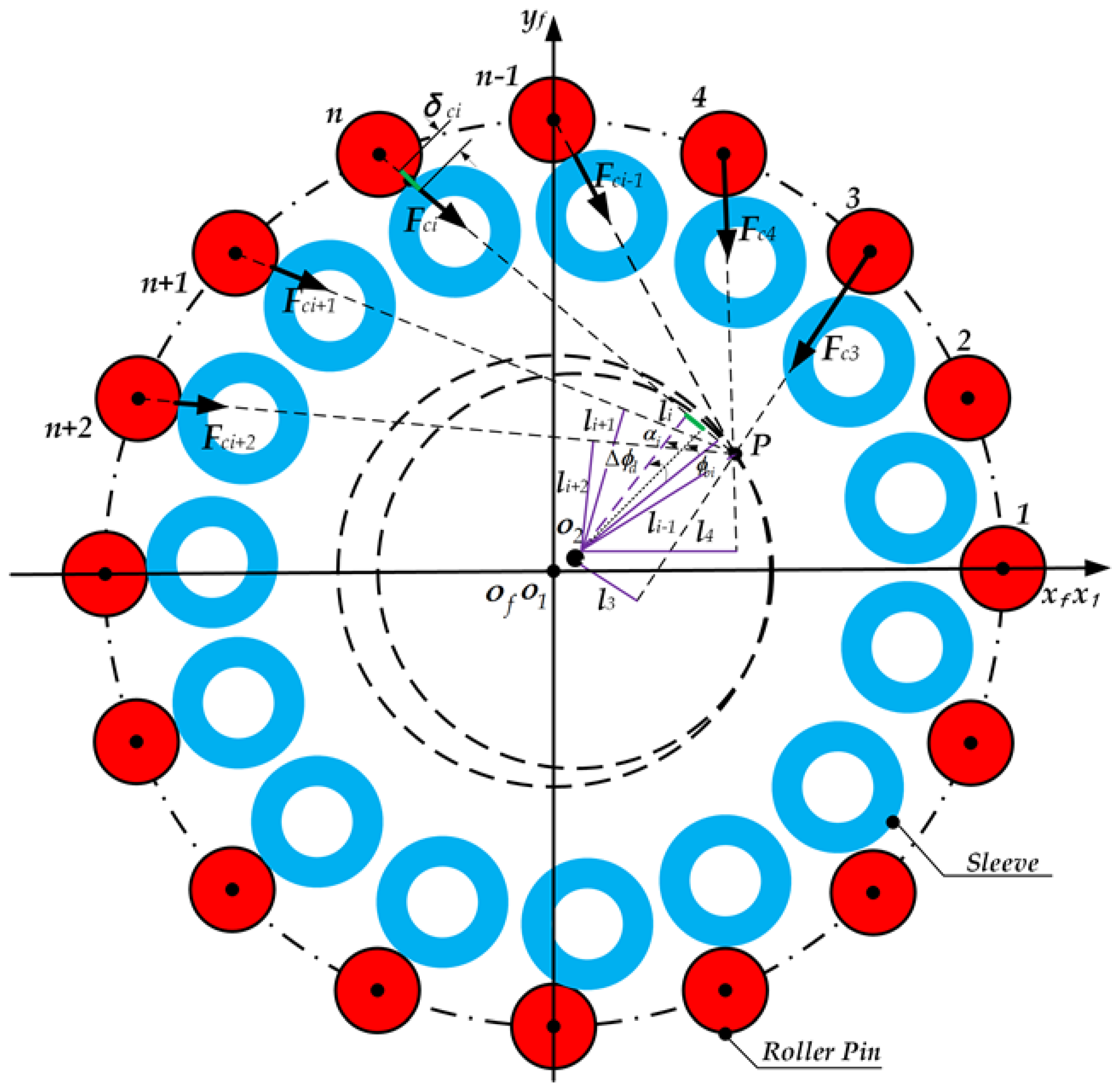

As expressed in Figure 6, the suitability requirements must be met to compute the number of contact tooth pairs that is able to be expressed, as shown below [35]:

$$\begin{array}{l}\\ contact:\mathsf{\Delta }{\varphi }_d>{\varphi }_{ali},{\alpha }_i=\mathsf{\Delta }{\varphi }_d-{\varphi }_{ali}\\ nocontact:\mathsf{\Delta }{\varphi }_d<{\varphi }_{ali},{\alpha }_i=0\\ \end{array}$$

(20)

where $\mathsf{\Delta }{\varphi }_d$ is the augmenter of the revolve angle and ${\alpha }_i$ is the small angular displacement of the gear tooth.

The force–torque stable balance formula is able to be shown thus:

$$T={\displaystyle \sum _{i=1}^{n_1}{\alpha }_i{l}_i^2}/C_{ni},$$

(21)

where the lever arm $l_i$ is able to be exactly expressed as follows:

$$l_i=\frac{-E\tan {\theta }_r\cos {\varphi }_{it}-E\sin {\varphi }_{it}+R\sin n{\sigma }_r+R\tan {\theta }_r\cos n{\sigma }_r}{\sqrt{{\tan }^2{\theta }_r+1}}.$$

(22)

The iterative computation is duplicated to get a solution, as expressed in Figure 3. First of all, two initializations of load and angular displacement can be selected to seek the solution of the connectivity and balance formulas, on the basis of using Equations (12)–(19) simultaneously, and then, the backlash is computed through unloaded TCA. Once the force and angular rotation enter the formula systems, all values are renewed. When the changes in force and angular rotation astriction fall within 2%, the iterative program must be stopped to generate the forces, meeting pressure, meeting model, transmission ratio, and load transmission error (LTE).

4. Theoretical and Experimental Results

The contact stress distribution, load-bearing capacity, and transmission error of the double-roller gear pair of the actuator are simulated by the above calculation model. Assuming that the material properties of the gear pair are the same, Poisson’s ratio is 0.3, and Young’s modulus is 206 GPa, the basic design parameters are shown in

Table 1. Basic design parameters of the double-roller gear pair.

Parameter	Description	Value
N0	Output pin number	17
Nr	Roller number	18
R	The radius of roller position	26.65 mm
Rr	The radius of roller	2.5 mm
E	Eccentricity	1 mm
B	Gear width	10 mm
R1	The radius of sleeve position	22.15 mm
Rs	The radius of sleeve	3 mm

.

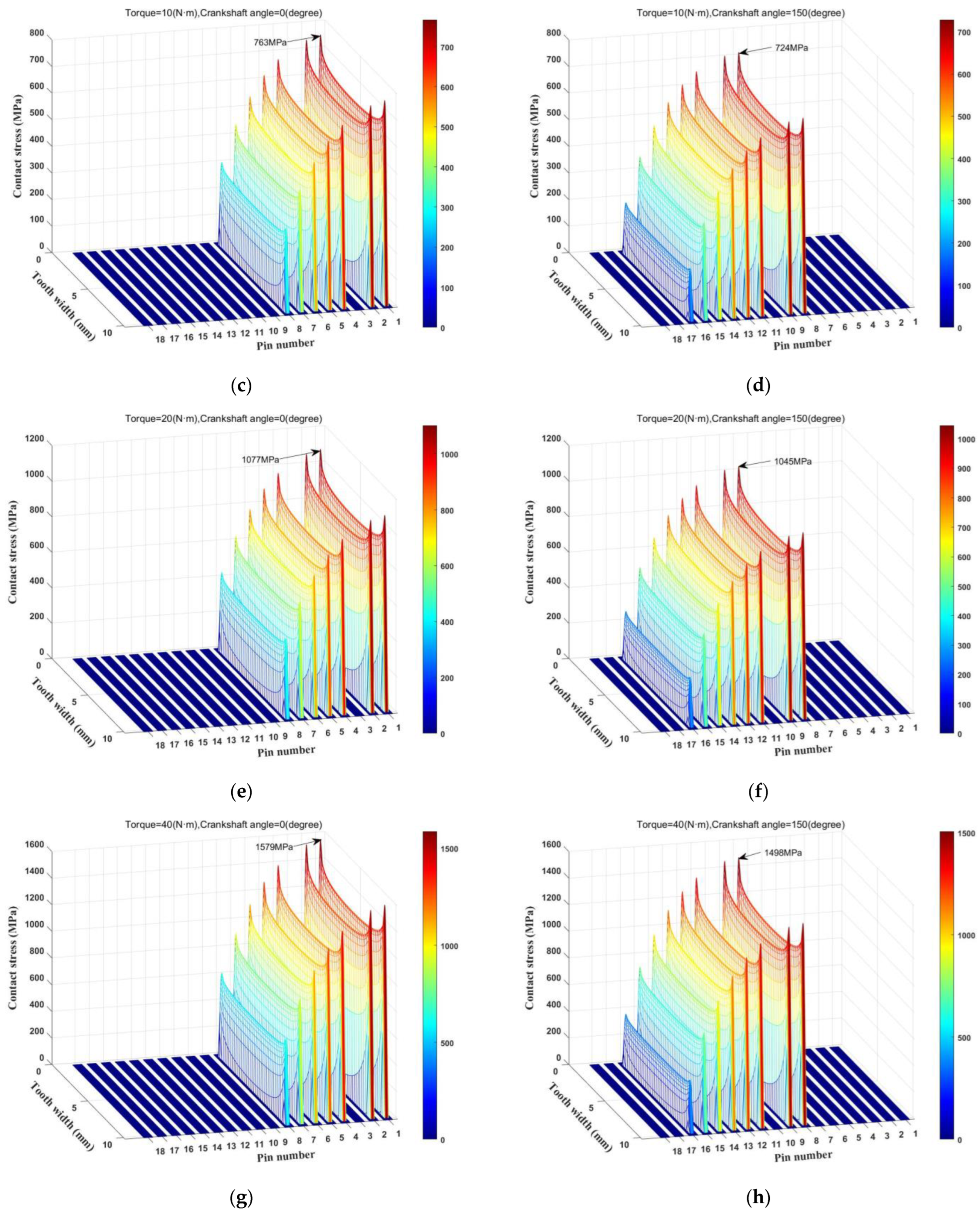

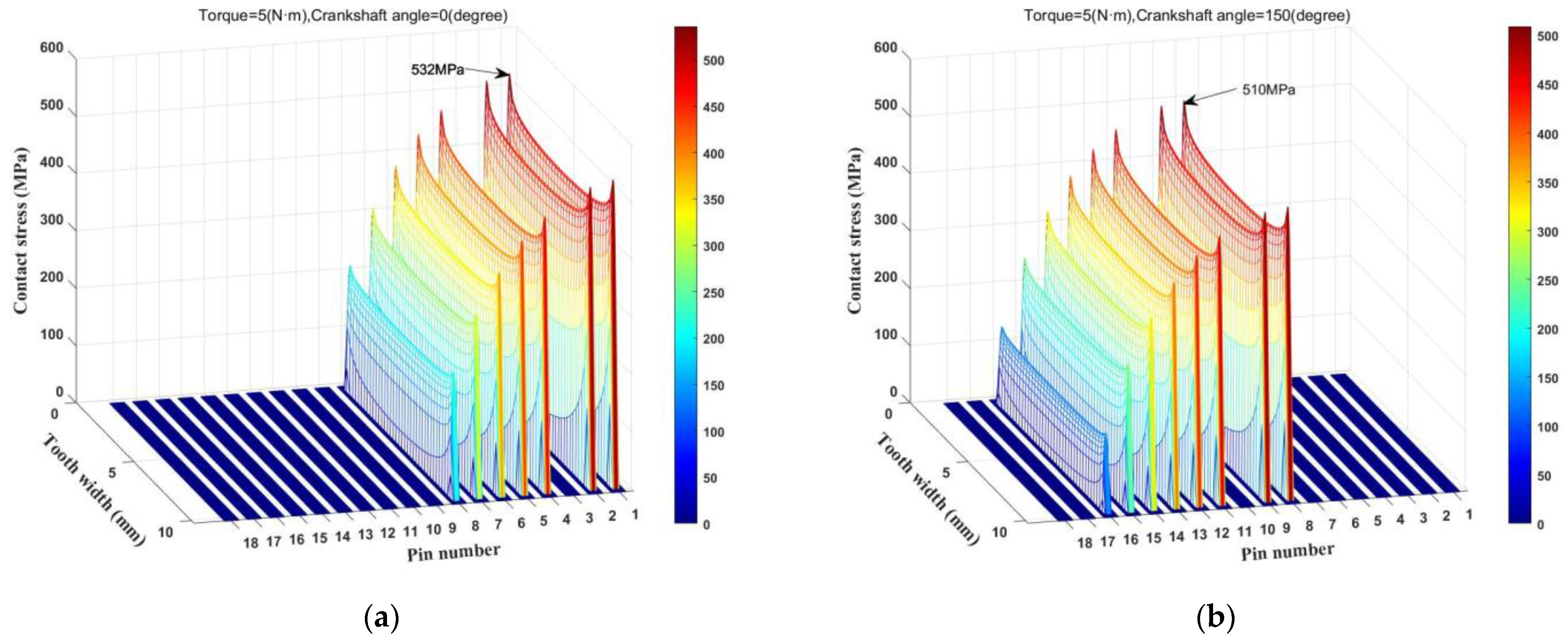

The-load bearing capacity and transmission error are theoretically analyzed by the proposed model. Figure 7 expresses the stress distribution of the gear pairs under different crankshaft angles and torques for the FCM (Fully Crowned Modification) type, illustrated in 3D plots. As expressed in Figure 7a, when it comes to FCM, at a crankshaft angle of 0 degrees, the contact stress in the middle part of a single tooth is relatively small and the stress concentrating on both sides can reach a maximum of 532 MPa. As different teeth mesh, the maximum stresses of different teeth continue to decrease. From the figure, it can be seen that Tooth No. 3 does not mesh due to the systematic errors.

Similarly, as shown in Figure 7b, at a crankshaft angle of 150 degrees, there is also a situation of stress concentration and maximum stress reduction. The maximum stress can reach 510 MPa. Compared to the previous situation with a crank angle of 0 degrees, the maximum stress has decreased. The difference is the meshing gear number starts with Gear No. 8 and ends with Gear No. 16 at 150 degrees. It is obvious that as the angle increases, the first meshing teeth change regularly.

When the applied torque increases, the maximum stress also increases, as expected. In Figure 7c, at an input torque of 10 Nm with a crankshaft angle of 0 degrees, compared to Figure 7a, the maximum stress can reach 763 MPa with a slight increase. Similarly, at a crankshaft angle of 150 degrees, the maximum stress can reach 724 MPa. As expressed in Figure 7e, if the applied torque is 20 Nm with a crankshaft angle of 0 degrees, the maximum stress reaches 1077 MPa. As expressed in Figure 7f, if the applied torque is 20 Nm with a crank angle of 150 degrees, the maximum stress reaches 1045 MPa. As shown in Figure 7g, if the applied torque is 40 Nm with a crank angle of 0 degrees, the maximum stress reaches 1579 MPa. As expressed in Figure 7h, if the applied torque is 40 Nm with a crank angle of 150 degrees, the maximum stress reaches 1498 MPa. The stress distribution shown in the above figures is basically in line with the actual applied torques.

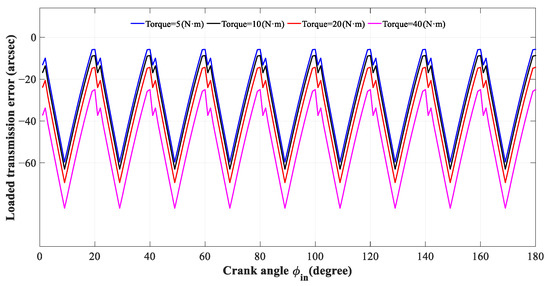

Figure 8 shows the situation of the crankshaft angle and load transmission error under four different torques. From the figure, it can be seen that as the crankshaft angle increases step by step, the load transmission error presents a periodic change similar to a sine wave. Among the load transmission error values, the maximum absolute value of the load transmission error can reach 81 arcsec, and the minimum values is only 6 arcsec. As the applied torque increases, the absolute value increases gradually. When the torque is 40 Nm, the transmission error is the largest. When the applied torque is 5 Nm, the transmission error is the smallest. The image representation still conforms to the real-life situation.

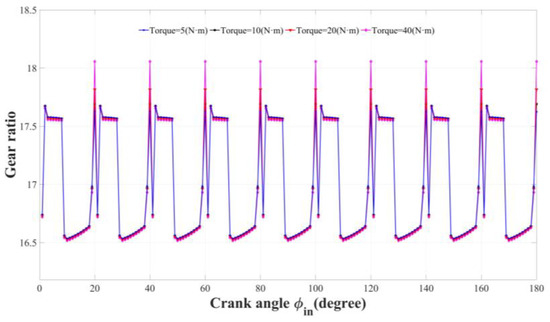

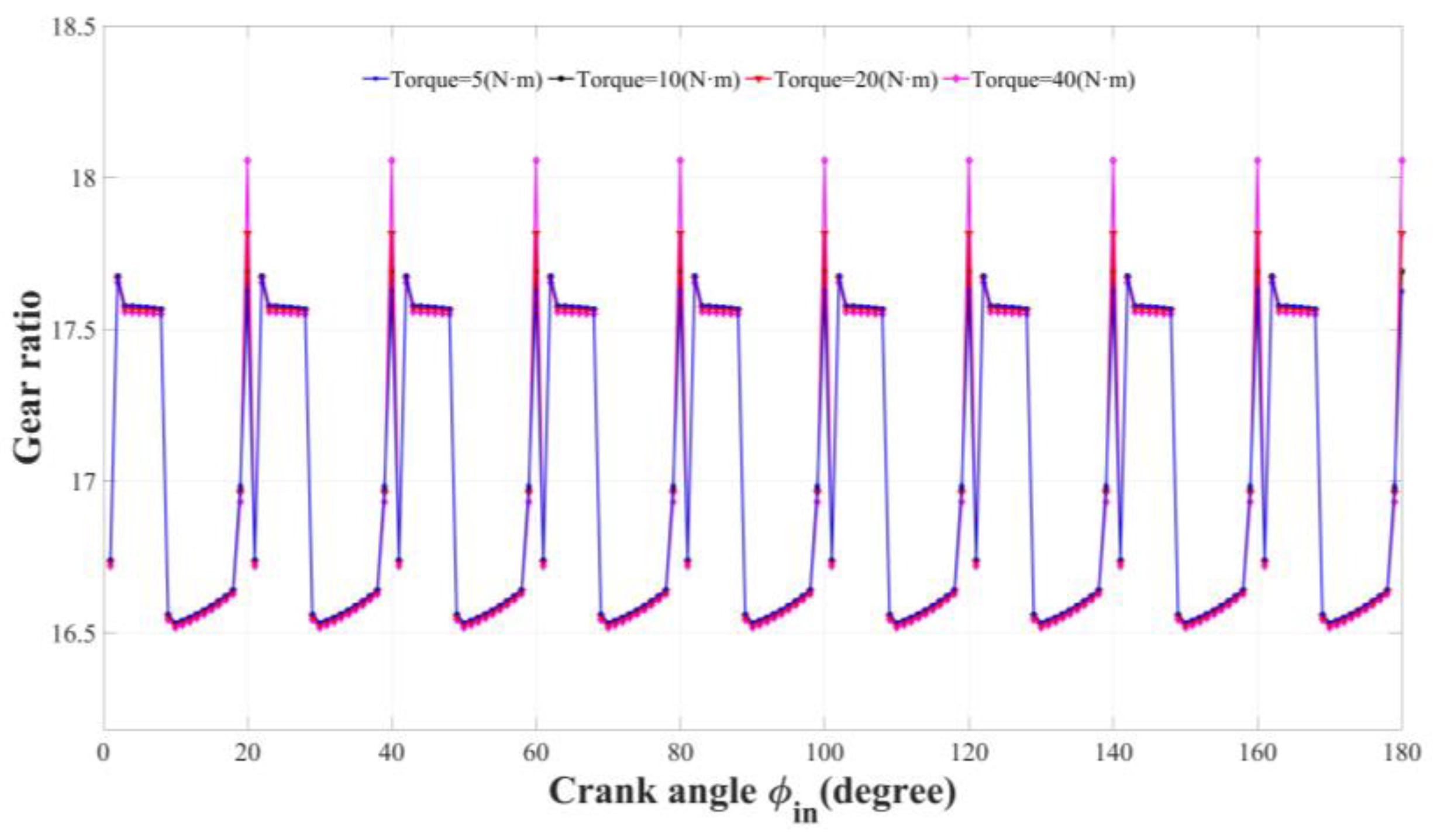

Figure 9 shows the situation of the crank angle ${\varphi }_{\mathrm{in}}$ and gear ratio under four different torques. From the figure, it can be seen that as the crank angle increases step by step, the gear ratio presents periodic changes. The crank angle ranges from 0 to 180 degrees, and the maximum gear ratio can reach 18.1, while the minimum transmission ratio is only 16.5. As the input torque increases, the gear ratio gradually increases. When the output torque is 5 Nm, the fluctuation of the gear ratio is the smallest. When the output torque is 40 Nm, the fluctuation is the maximum, as expected.

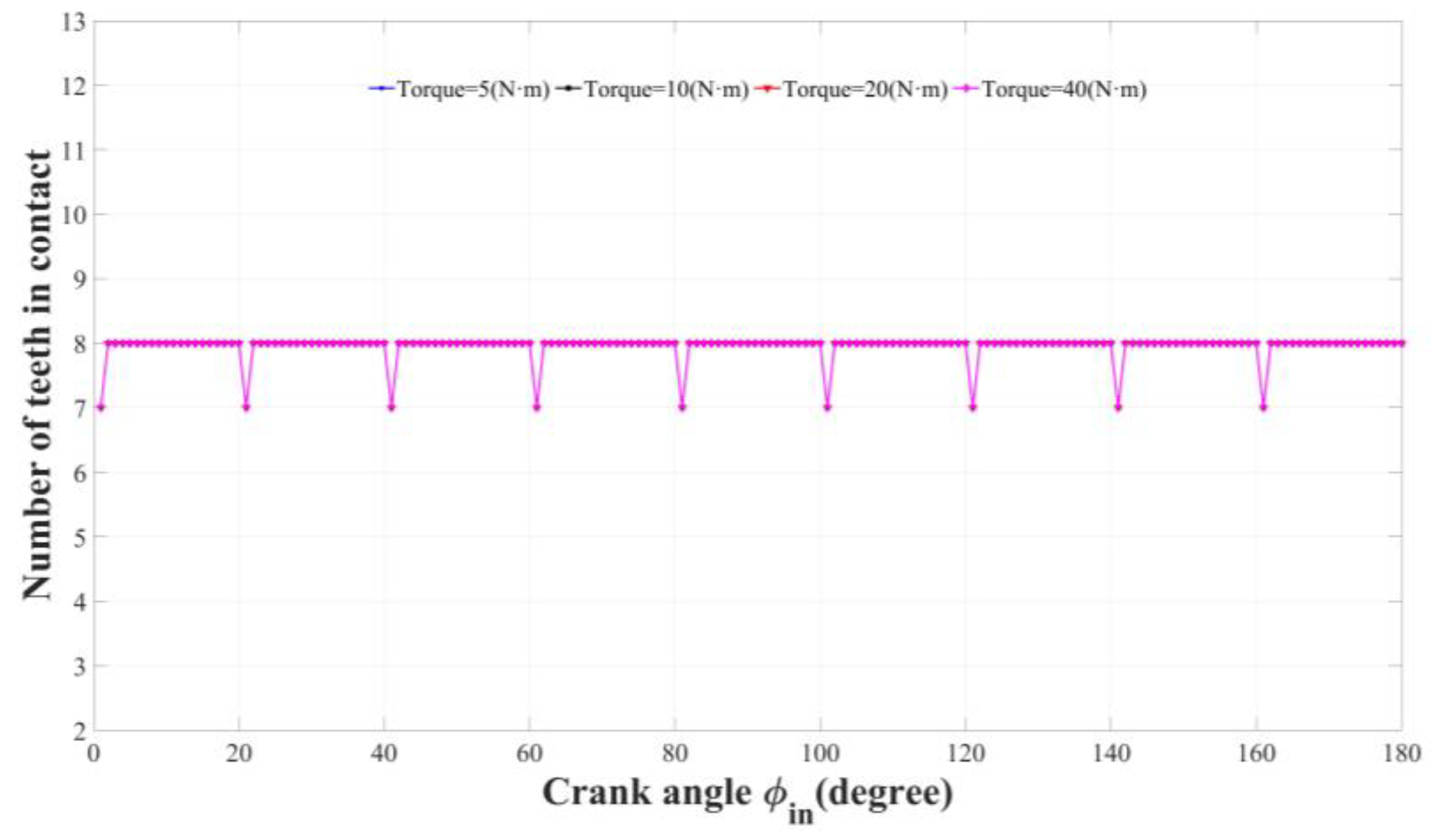

Figure 10 shows the situation of the crank angle ${\varphi }_{\mathrm{in}}$ and number of teeth in contact under four different torques. The figure demonstrates that as the crankshaft angle is steady augmented, the number of touching teeth presents a periodic change similar to a square wave. When the crank angle changes from 0 to 180 degrees, the numbers of contact teeth, mainly, are 7 and 8. Take one cycle as an example: when the crank angle is 0 degrees, the number of touching teeth is 7, and when the crankshaft angle changes from 2 to 18 degrees, the number of touching teeth is 8. Under the performance of four different torques, the four curves basically coincide.

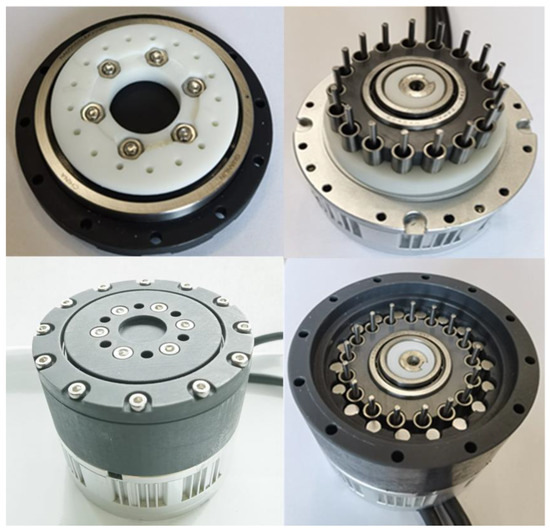

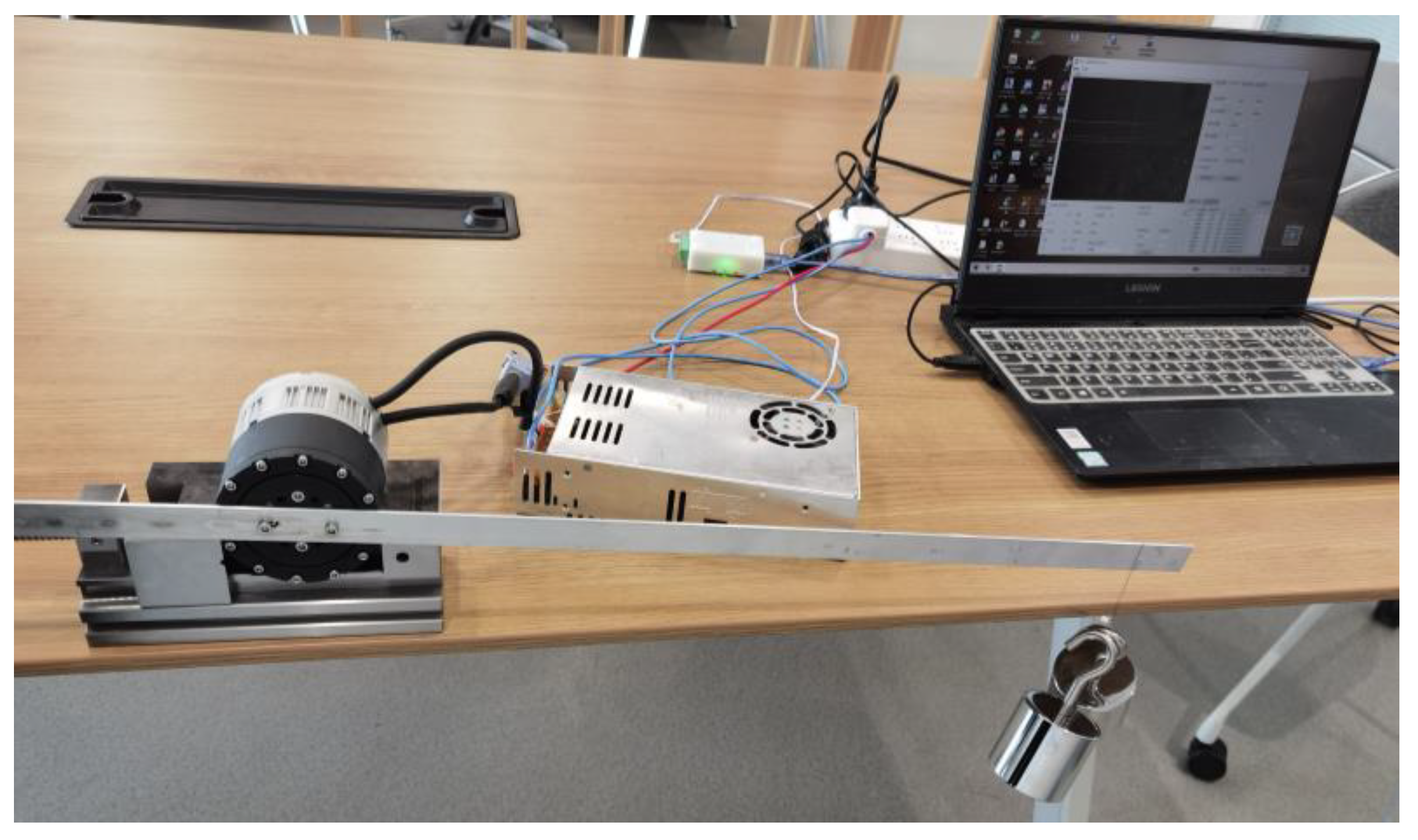

Taken from an experimental test, the assembled prototype is expressed in the following Figure 11. Figure 11 depicts the structure of the external retaining ring, a physical image of the structure of the double-roller gear drive, the overall appearance of the prototype, and the internal components inside the prototype.

The prototype was confirmed through various kinds of tests, and we proved the function of the transmission device and the whole actuator. An experimental device was built as expressed in Figure 12. The entire experimental setup included a workbench bracket, the novel actuator, a supporting rod, a driver power supply, and a heavy lifting hammer. As represented in Figure 12, the novel actuator was driven by a 36 V power supply and the output end was fixed to the rod through two bolts. The right end of the rod was connected to two 2 kg weight hanging hammers through a steel wire, and the output line was connected to an upper computer through a CAN interface. The output torque of the actuator could be verified by controlling the software speed and current of the upper computer to drive the reducer to rotate. The maximum output torque of the actuator could reach about 20 Nm. All experiments were conducted on a 36 V electric source, and the driver joint was connected to the upper computer through a serial interface to detect and record position, speed, and current data.

5. Conclusions

A novel actuator with a double-roller gear drive, which can be applied in exoskeleton robots, was proposed in this paper. The theoretical meshing verification of the gear pair was performed by using the loaded tooth contact analysis model. The three-dimensional model of the gear box was built and its prototype was assembled with components printed by a 3D printer. The experimental test results show a good performance on bearing capacity.

In the process of structure designing, the needle roller bearing was used; this greatly reduces the generation of friction during power transmission, and it can be applied to compact reducers with high mechanical efficiency requirements. In addition, a sleeve was also used as the contact structure of the external needle roller; this greatly reduces energy loss and friction during movement, and greatly improved the mechanical efficiency of the entire actuator. Therefore, it can meet the power requirements of exoskeleton robots.

The internal stiffness and load transmission error have been studied and validated by an experimental test. In the future, in-depth research can be conducted to optimize the various performance indicators of the reducer such as by reducing transmission errors. Therefore, the aforementioned novel actuator has huge potential for use in exoskeleton robots.
