# Real-Time Modeling of Vehicle’s Longitudinal-Vertical Dynamics in ADAS Applications

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

- -
- The longitudinal-vertical dynamics of an autonomous vehicle is modeled using an efficient semi-recursive multibody method. The dynamic properties of all components, e.g., the chassis, suspension, and tires, are considered and modeled.
- -
- The fork-arm removal technique is proposed using the rod-removal technique to further reduce the size of the equations of motion.
- -
- For ADAS applications, dynamic simulations based on a multibody model are executed in real-time on bumpy and sloping roads.
- -
- The accuracy and efficiency of the vehicle model are investigated in depth, and the model’s efficacy is confirmed.

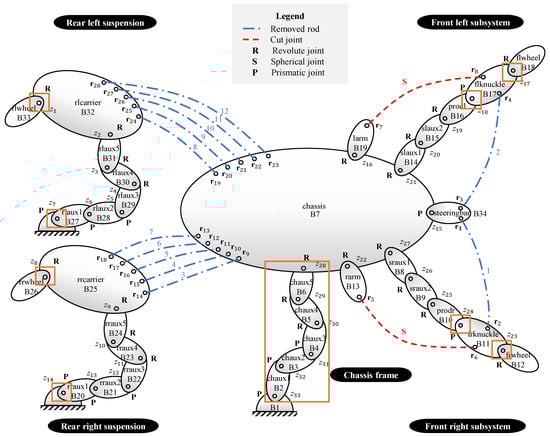

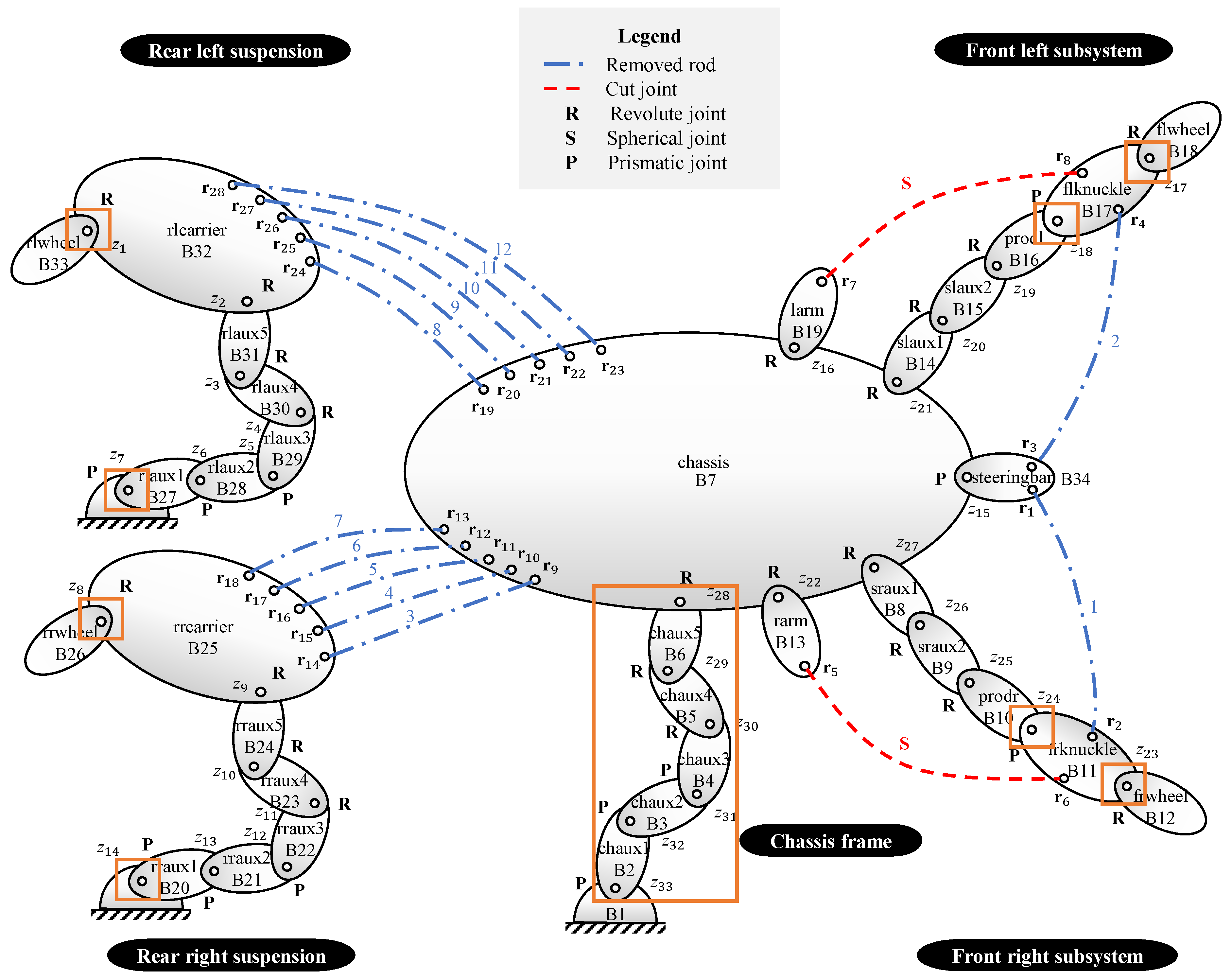

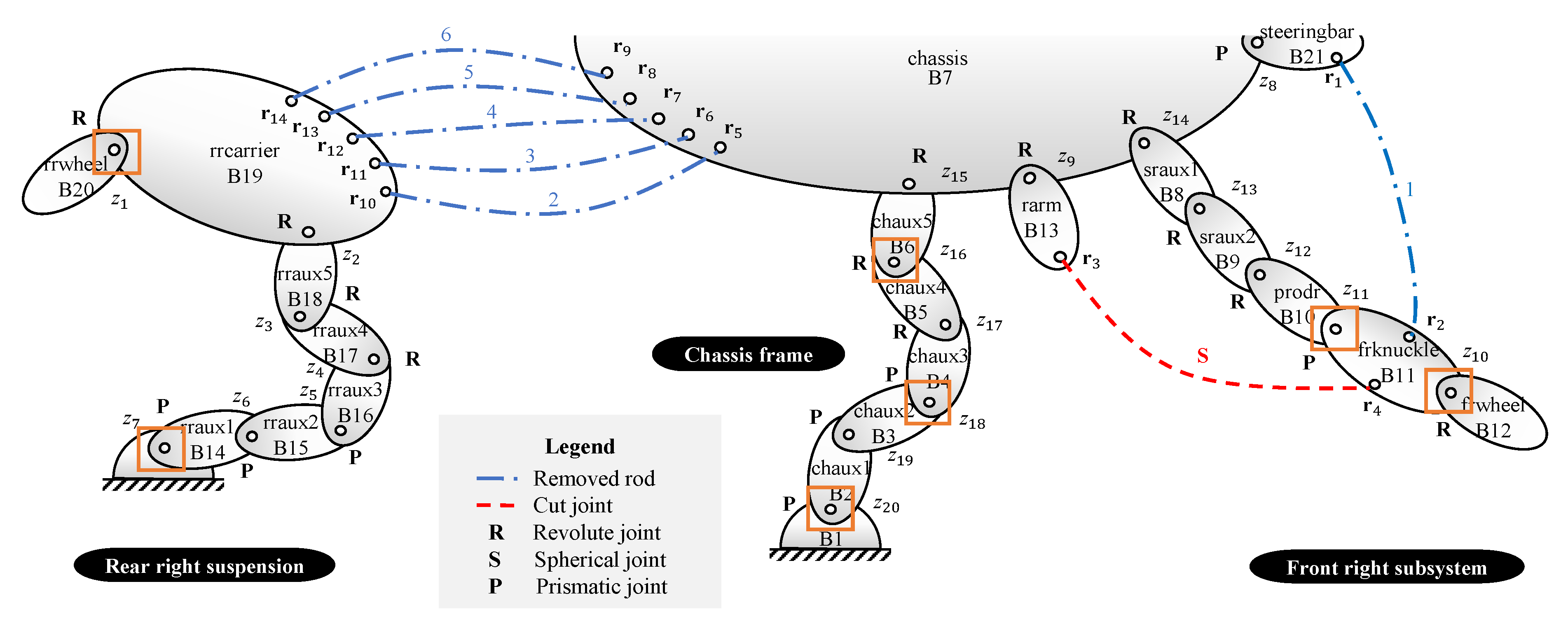

## 2. Modeling of Vehicle Coupling Dynamics

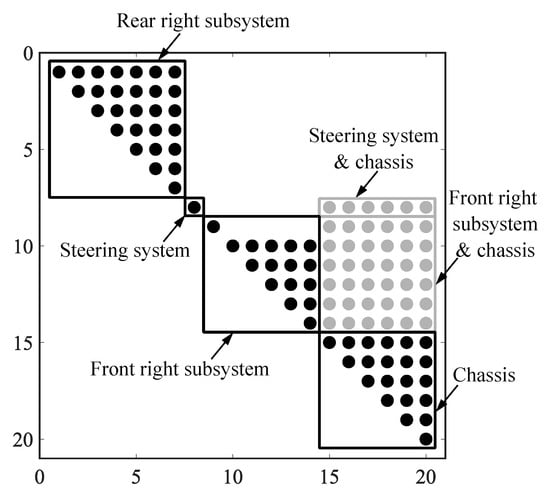

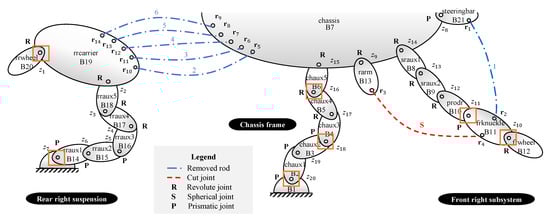

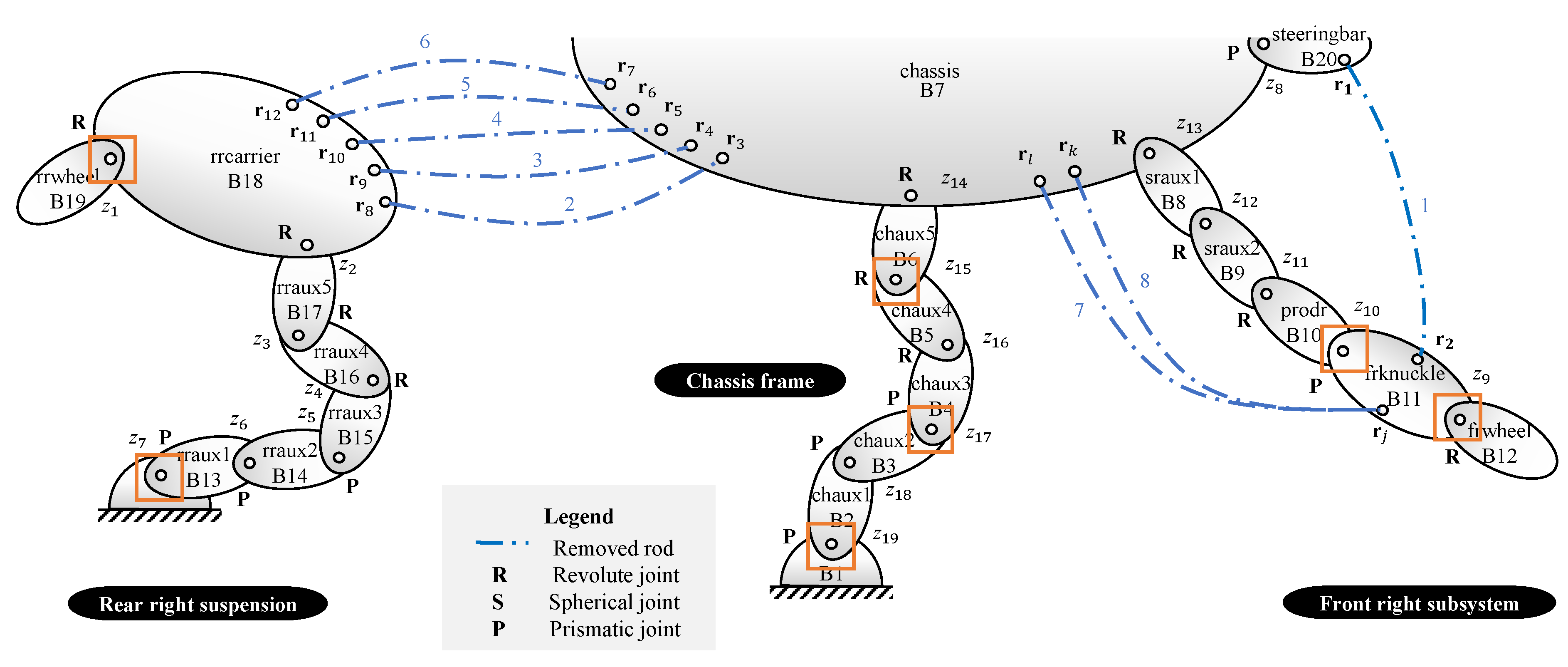

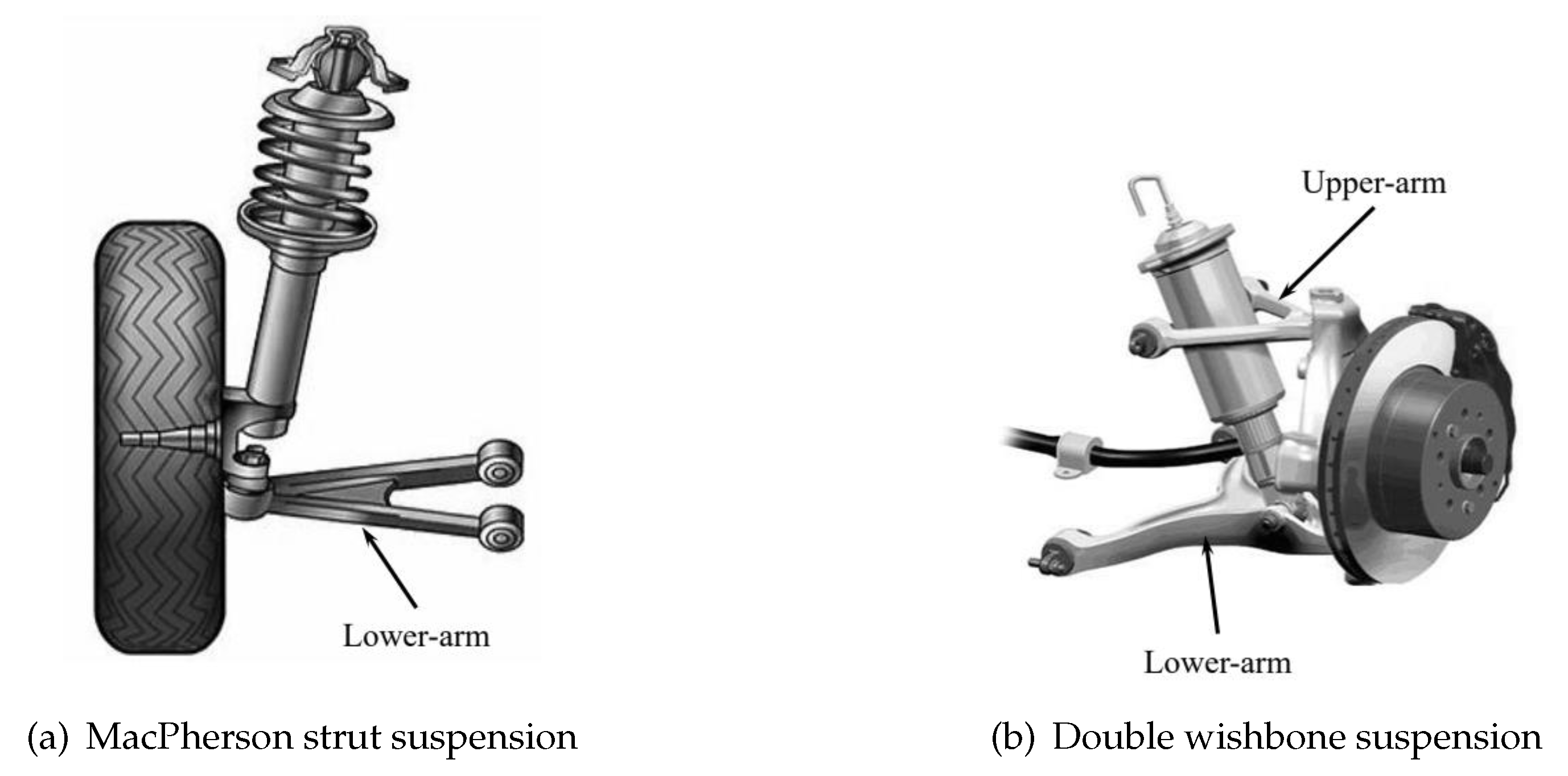

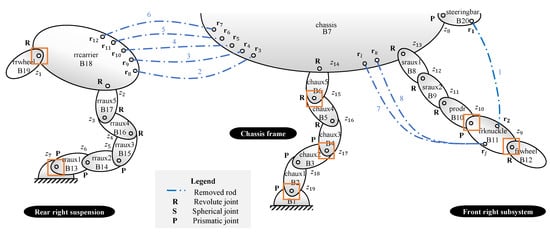

## 3. Fork-Arm Removal Technique

## 4. Results in Accuracy and Efficiency

#### 4.1. Maneuver on a Bumpy Road

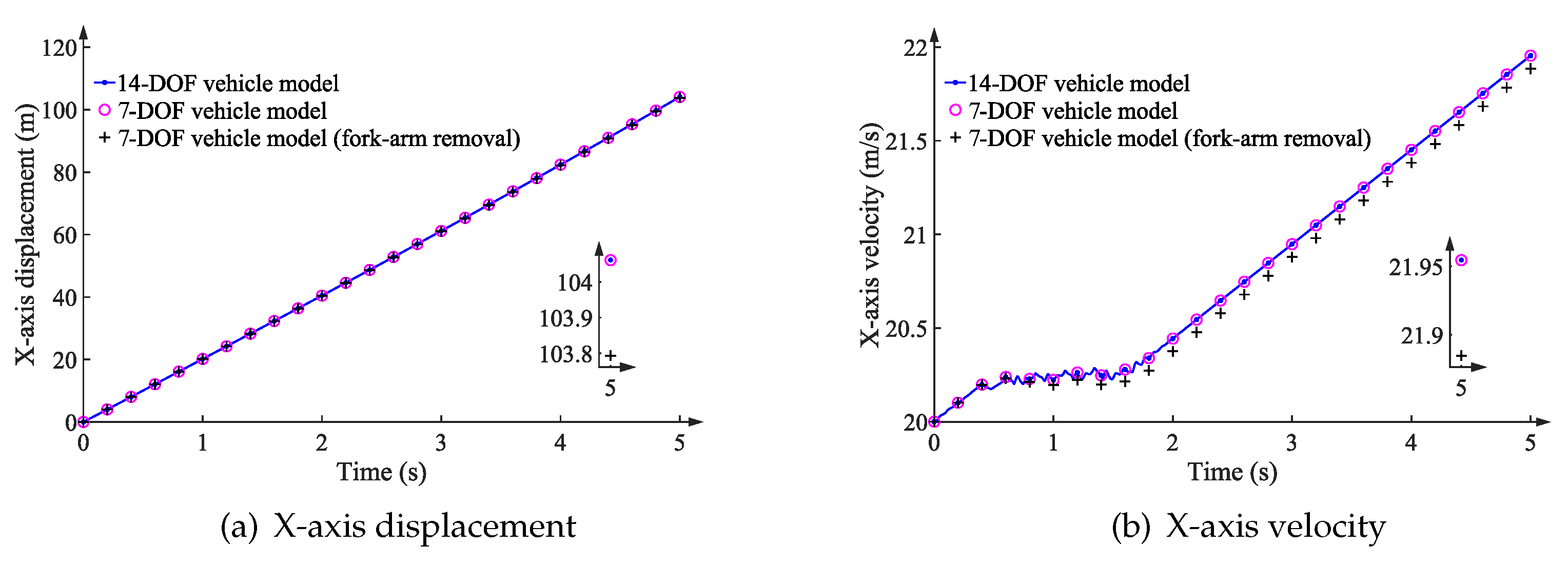

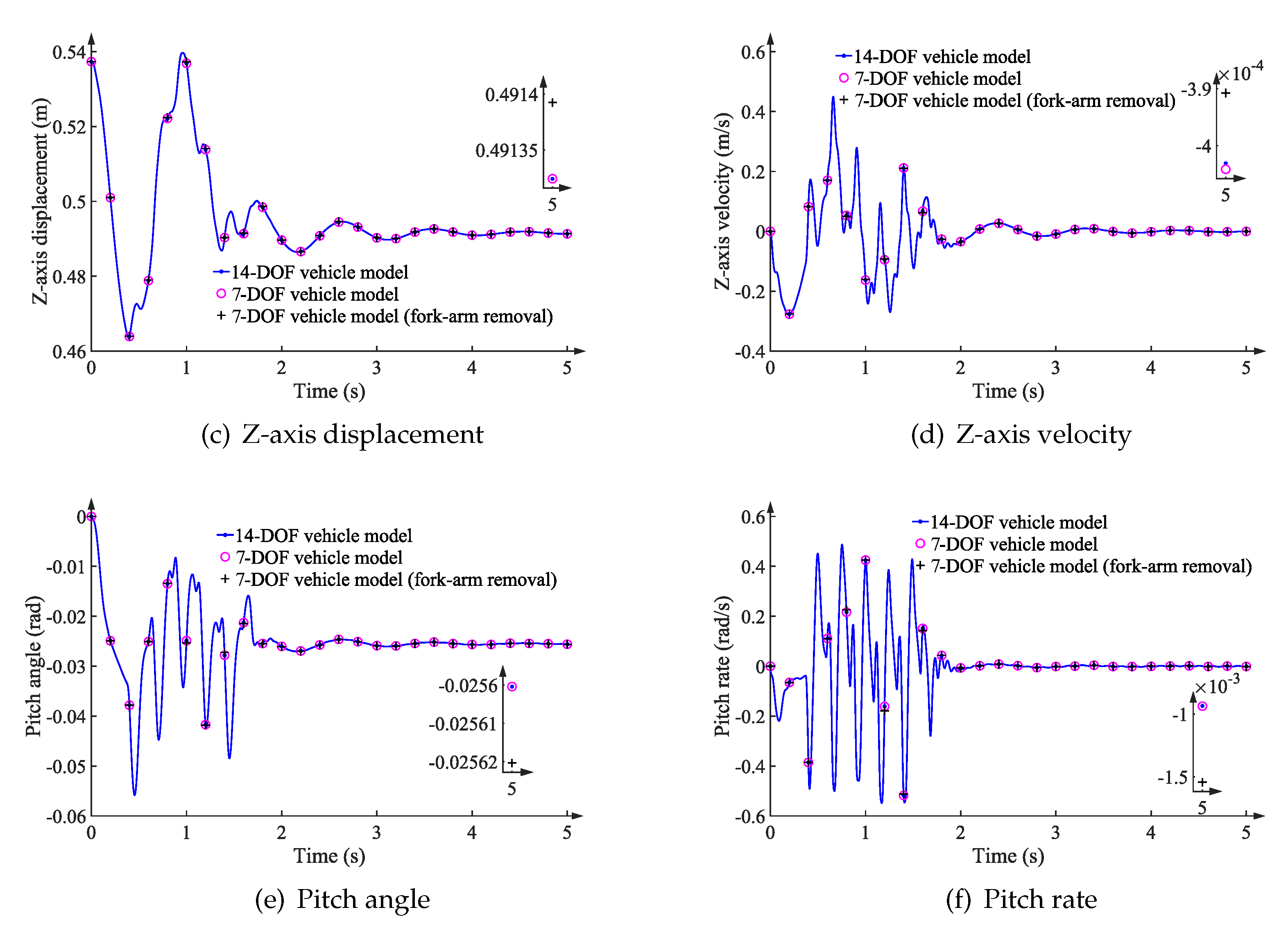

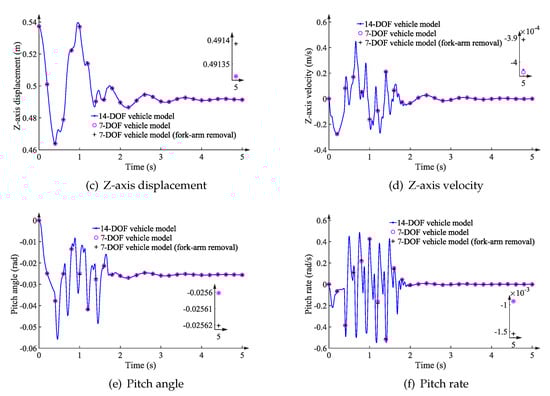

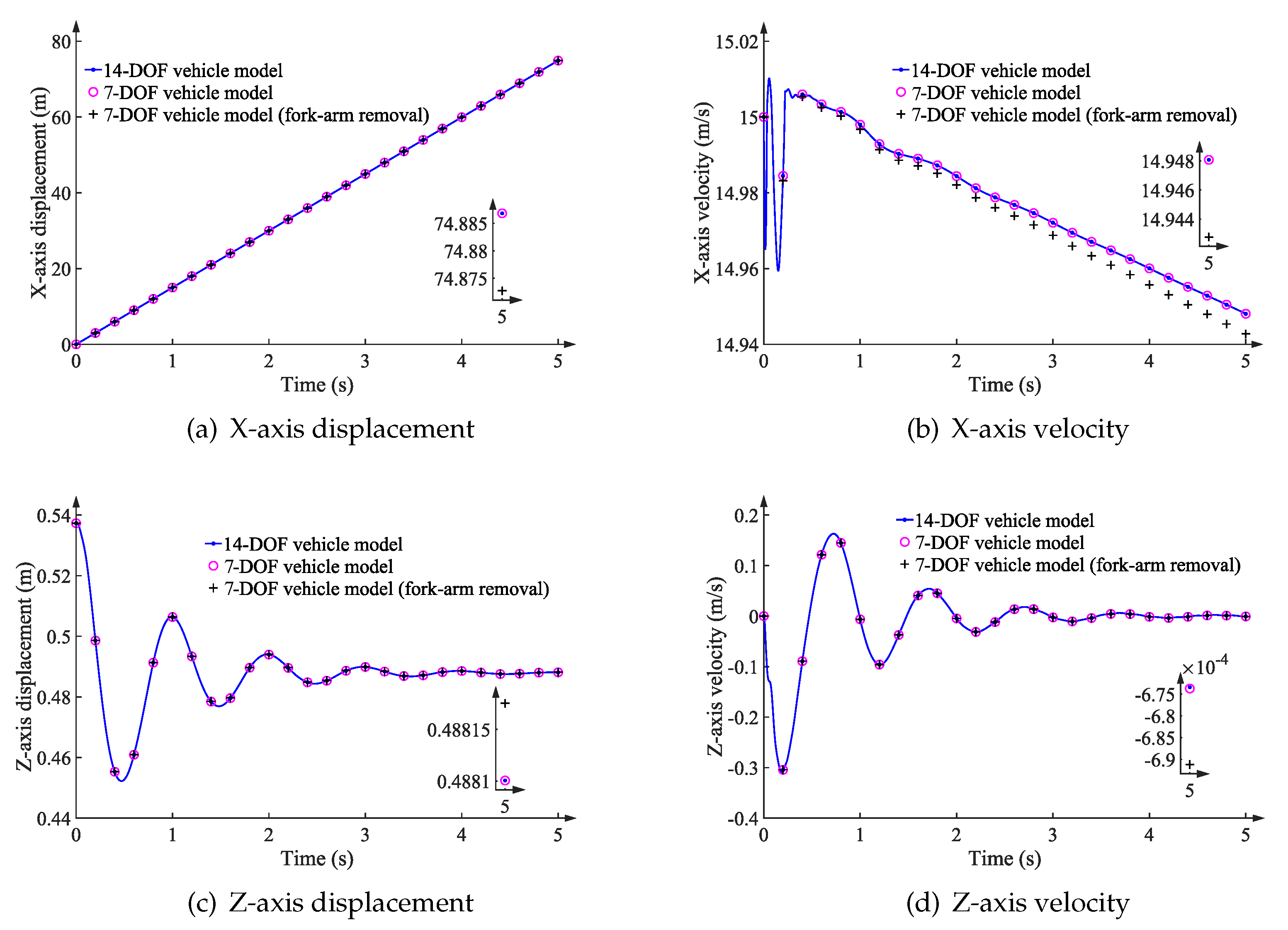

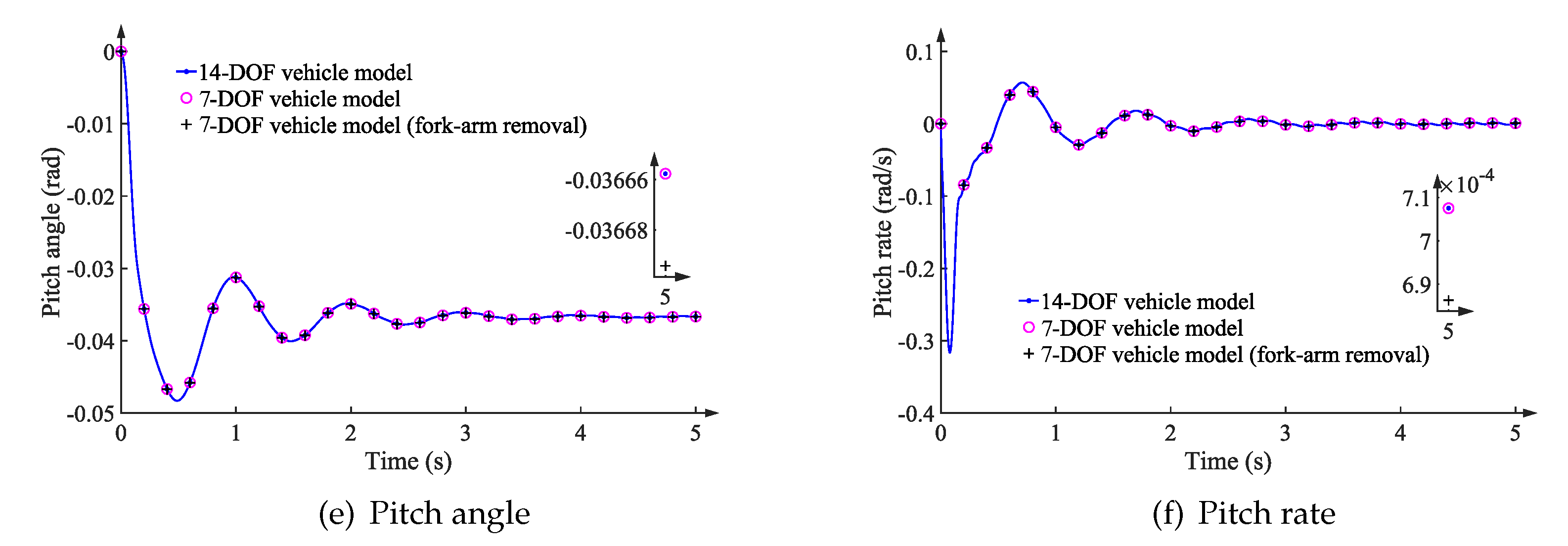

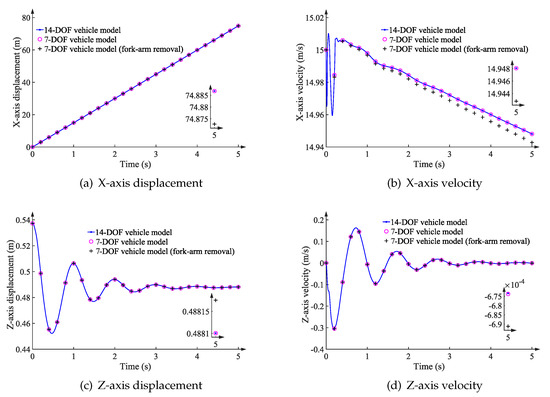

#### 4.2. Maneuver on a Sloping Road

#### 4.3. Discussion

## 5. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Jiménez, F.; Naranjo, J.E.; Anaya, J.J.; García, F.; Ponz, A.; Armingol, J.M. Advanced driver assistance system for road environments to improve safety and efficiency. Transp. Res. Procedia
**2016**, 14, 2245–2254. [Google Scholar] [CrossRef] [Green Version] - Lyu, N.; Deng, C.; Xie, L.; Wu, C.; Duan, Z. A field operational test in China: Exploring the effect of an advanced driver assistance system on driving performance and braking behavior. Transp. Res. Part F Traffic Psychol. Behav.
**2019**, 65, 730–747. [Google Scholar] [CrossRef] - Cheng, S.; Li, L.; Guo, H.Q.; Chen, Z.G.; Song, P. Longitudinal collision avoidance and lateral stability adaptive control system based on MPC of autonomous vehicles. IEEE Trans. Intell. Transp. Syst.
**2019**, 21, 2376–2385. [Google Scholar] [CrossRef] - Zhu, Y.; Ma, L. Composite chattering-free discrete-time sliding mode controller design for active front steering system of electric vehicles. Nonlinear Dyn.
**2021**, 105, 301–313. [Google Scholar] [CrossRef] - Yang, W.; Zhang, X.; Lei, Q.; Cheng, X. Research on longitudinal active collision avoidance of autonomous emergency braking pedestrian system (AEB-P). Sensors
**2019**, 19, 4671. [Google Scholar] [CrossRef] [Green Version] - Xiong, X.; Wang, M.; Cai, Y.; Chen, L.; Farah, H.; Hagenzieker, M. A forward collision avoidance algorithm based on driver braking behavior. Accid. Anal. Prev.
**2019**, 129, 30–43. [Google Scholar] [CrossRef] [Green Version] - Mahdinia, I.; Arvin, R.; Khattak, A.J.; Ghiasi, A. Safety, energy, and emissions impacts of adaptive cruise control and cooperative adaptive cruise control. Transp. Res. Rec.
**2020**, 2674, 253–267. [Google Scholar] [CrossRef] - Liu, W.J.; Ding, H.F.; Ge, M.F.; Yao, X.Y. Cooperative control for platoon generation of vehicle-to-vehicle networks: A hierarchical nonlinear MPC algorithm. Nonlinear Dyn.
**2022**, 108, 3561–3578. [Google Scholar] [CrossRef] - Henning, K.U.; Sawodny, O. Vehicle dynamics modelling and validation for online applications and controller synthesis. Mechatronics
**2016**, 39, 113–126. [Google Scholar] [CrossRef] - Klomp, M.; Jonasson, M.; Laine, L.; Henderson, L.; Regolin, E.; Schumi, S. Trends in vehicle motion control for automated driving on public roads. Veh. Syst. Dyn.
**2019**, 57, 1028–1061. [Google Scholar] [CrossRef] - Xu, S.; Peng, H. Design, analysis, and experiments of preview path tracking control for autonomous vehicles. IEEE Trans. Intell. Transp. Syst.
**2019**, 21, 48–58. [Google Scholar] [CrossRef] - Guo, Z.; Wu, W.; Yuan, S. Longitudinal-vertical dynamics of wheeled vehicle under off-road conditions. Veh. Syst. Dyn.
**2020**, 60, 1–21. [Google Scholar] [CrossRef] - Wang, K.; Wang, Y.; Wang, L.; Du, H.; Nam, K. Distributed Intersection Conflict Resolution for Multiple Vehicles Considering Longitudinal-Lateral Dynamics. IEEE Trans. Veh. Technol.
**2021**, 70, 4166–4177. [Google Scholar] [CrossRef] - Rahman, M.S.; Abdel-Aty, M. Longitudinal safety evaluation of connected vehicles’ platooning on expressways. Accid. Anal. Prev.
**2018**, 117, 381–391. [Google Scholar] [CrossRef] - Calvert, S.; Schakel, W.; van Arem, B. Evaluation and modelling of the traffic flow effects of truck platooning. Transp. Res. Part C Emerg. Technol.
**2019**, 105, 1–22. [Google Scholar] [CrossRef] - Horvath, H.Z.; Takacs, D. Stability and local bifurcation analyses of two-wheeled trailers considering the nonlinear coupling between lateral and vertical motions. Nonlinear Dyn.
**2022**, 107, 2115–2132. [Google Scholar] [CrossRef] - Blundell, M.; Harty, D. Multibody Systems Approach to Vehicle Dynamics; Elsevier: Amsterdam, The Netherlands, 2004. [Google Scholar]
- Bruni, S.; Meijaard, J.; Rill, G.; Schwab, A. State-of-the-art and challenges of railway and road vehicle dynamics with multibody dynamics approaches. Multibody Syst. Dyn.
**2020**, 49, 1–32. [Google Scholar] [CrossRef] [Green Version] - Rodríguez, A.J.; Sanjurjo, E.; Pastorino, R.; Ángel Naya, M. State, parameter and input observers based on multibody models and Kalman filters for vehicle dynamics. Mech. Syst. Signal Process.
**2021**, 155, 107544. [Google Scholar] [CrossRef] - Lan, P.; Li, K.; Yu, Z. Computer implementation of piecewise cable element based on the absolute nodal coordinate formulation and its application in wire modeling. Acta Mech.
**2019**, 230, 1145–1158. [Google Scholar] [CrossRef] - Hu, J.; Wang, T. An efficient high-precision recursive dynamic algorithm for closed-loop multibody systems. Int. J. Numer. Methods Eng.
**2019**, 118, 181–208. [Google Scholar] [CrossRef] - Pan, Y.; Dai, W.; Xiong, Y.; Xiang, S.; Mikkola, A. Tree-topology-oriented modeling for the real-time simulation of sedan vehicle dynamics using independent coordinates and the rod-removal technique. Mech. Mach. Theory
**2020**, 143, 103626. [Google Scholar] [CrossRef] - Ambrósio, J. Selected challenges in realistic multibody modeling of machines and vehicles. In Proceedings of the IUTAM Symposium on Intelligent Multibody Systems–Dynamics, Control, Simulation, Eindhoven, The Netherlands, 21–26 April 1996; Springer: Berlin/Heidelberg, Germany, 2019; pp. 1–39. [Google Scholar]
- Mahalingam, I.; Padmanabhan, C. A novel alternate multibody model for the longitudinal and ride dynamics of a tracked vehicle. Veh. Syst. Dyn.
**2021**, 59, 433–457. [Google Scholar] [CrossRef] - Rong, B.; Rui, X.; Tao, L.; Wang, G. Theoretical modeling and numerical solution methods for flexible multibody system dynamics. Nonlinear Dyn.
**2019**, 98, 1519–1553. [Google Scholar] [CrossRef] - Di Vito, D.; De Palma, D.; Simetti, E.; Indiveri, G.; Antonelli, G. Experimental validation of the modeling and control of a multibody underwater vehicle manipulator system for sea mining exploration. J. Field Robot.
**2021**, 38, 171–191. [Google Scholar] [CrossRef] - Vahedi, A.; Jamali, A. Constraint optimization of nonlinear McPherson suspension system using genetic algorithm and ADAMS software. J. Vib. Control.
**2021**, 10775463211026036. [Google Scholar] [CrossRef] - Franco, Y.; Shani, M.; Gat, G.; Shmulevich, I. Three-dimensional dynamic model for off-road vehicles using discrete body dynamics. J. Terramechanics
**2020**, 91, 297–307. [Google Scholar] [CrossRef] - Murilo, A.; Peixoto, P.J.D.; de Souza, L.C.G.; Lopes, R.V. Real-time implementation of a parameterized Model Predictive Control for Attitude Control Systems of rigid-flexible satellite. Mech. Syst. Signal Process.
**2021**, 149, 107129. [Google Scholar] [CrossRef] - Kim, J.; Jeong, H.; Lee, D. Performance optimization of a passively articulated mobile robot by minimizing maximum required friction coefficient on rough terrain driving. Mech. Mach. Theory
**2021**, 164, 104368. [Google Scholar] [CrossRef] - Malczyk, P.; Frączek, J.; González, F.; Cuadrado, J. Index-3 divide-and-conquer algorithm for efficient multibody system dynamics simulations: Theory and parallel implementation. Nonlinear Dyn.
**2019**, 95, 727–747. [Google Scholar] [CrossRef] [Green Version] - Pan, Y.; Callejo, A.; Bueno, J.L.; Wehage, R.A.; García de Jalón, J. Efficient and accurate modeling of rigid rods. Multibody Syst. Dyn.
**2017**, 40, 23–42. [Google Scholar] [CrossRef] - García de Jalón, J.; Álvarez, E.; de Ribera, F.; Rodríguez, I.; Funes, F. A Fast and Simple Semi-Recursive Formulation for Multi-Rigid-Body Systems. In Advances in Computational Multibody Systems; Ambrósio, J., Ed.; Computational Methods in Applied Sciences; Springer: Dordrecht, The Netherlands, 2005; Volume 2, Chapter 1; pp. 1–23. [Google Scholar]
- Pan, Y.; Dai, W.; Huang, L.; Li, Z.; Mikkola, A. Iterative refinement algorithm for efficient velocities and accelerations solutions in closed-loop multibody dynamics. Mech. Syst. Signal Process.
**2021**, 152, 107463. [Google Scholar] [CrossRef] - García de Jalón, J.; Bayo, E. Kinematic and Dynamic Simulation of Multibody Systems: The Real Time Challenge; Springer-Verlag: New York, NY, USA, 1994. [Google Scholar]
- Pan, Y.; Xiang, S.; He, Y.; Zhao, J.; Mikkola, A. The validation of a semi-recursive vehicle dynamics model for a real-time simulation. Mech. Mach. Theory
**2020**, 151, 103907. [Google Scholar] [CrossRef] - Callejo, A.; Pan, Y.; Ricón, J.L.; Kövecses, J.; García de Jalón, J. Comparison of Semirecursive and Subsystem Synthesis Algorithms for the Efficient Simulation of Multibody Systems. J. Comput. Nonlinear Dyn.
**2017**, 12, 011020. [Google Scholar] [CrossRef] - Pacejka, H. Tire and Vehicle Dynamics; Elsevier: Amsterdam, The Netherlands, 2005. [Google Scholar]
- Antić, B.; Pešić, D.; Vujanić, M.; Lipovac, K. The influence of speed bumps heights to the decrease of the vehicle speed—Belgrade experience. Saf. Sci.
**2013**, 57, 303–312. [Google Scholar] [CrossRef]

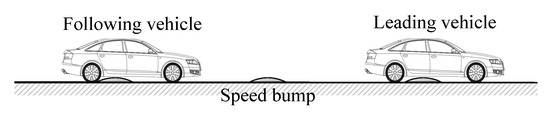

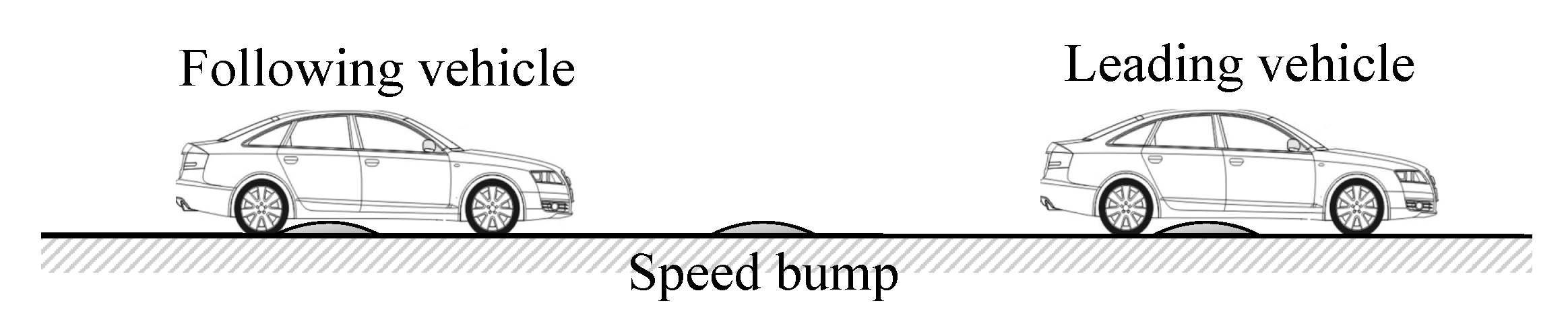

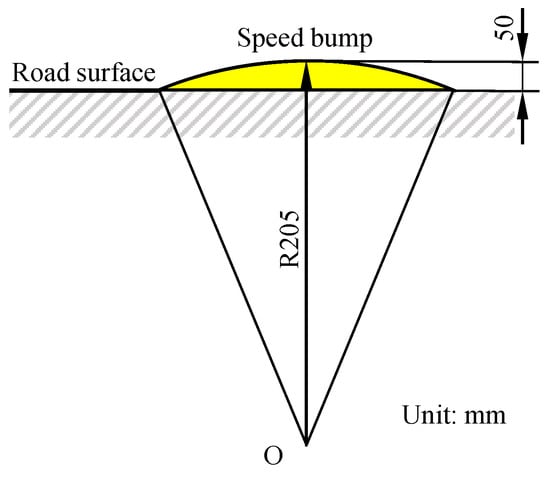

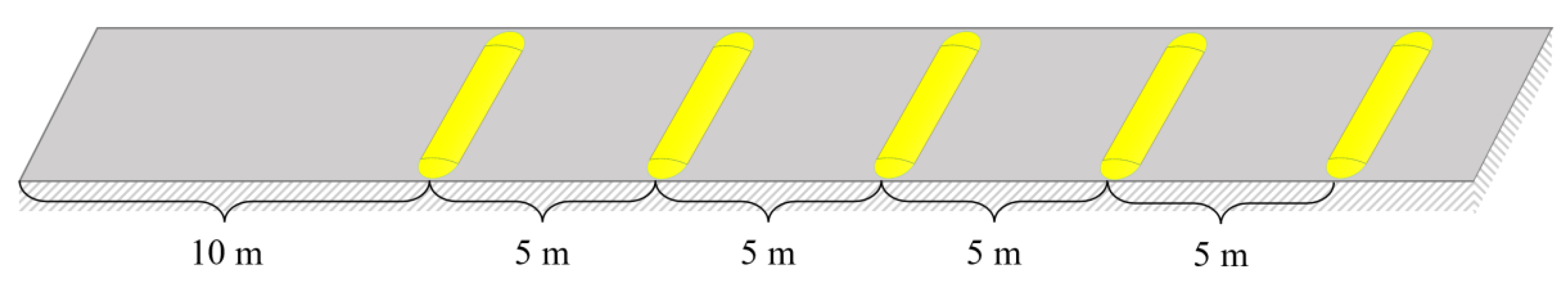

**Figure 6.**The bumpy road environment for forward collision avoidance, adaptive cruise, or platooning.

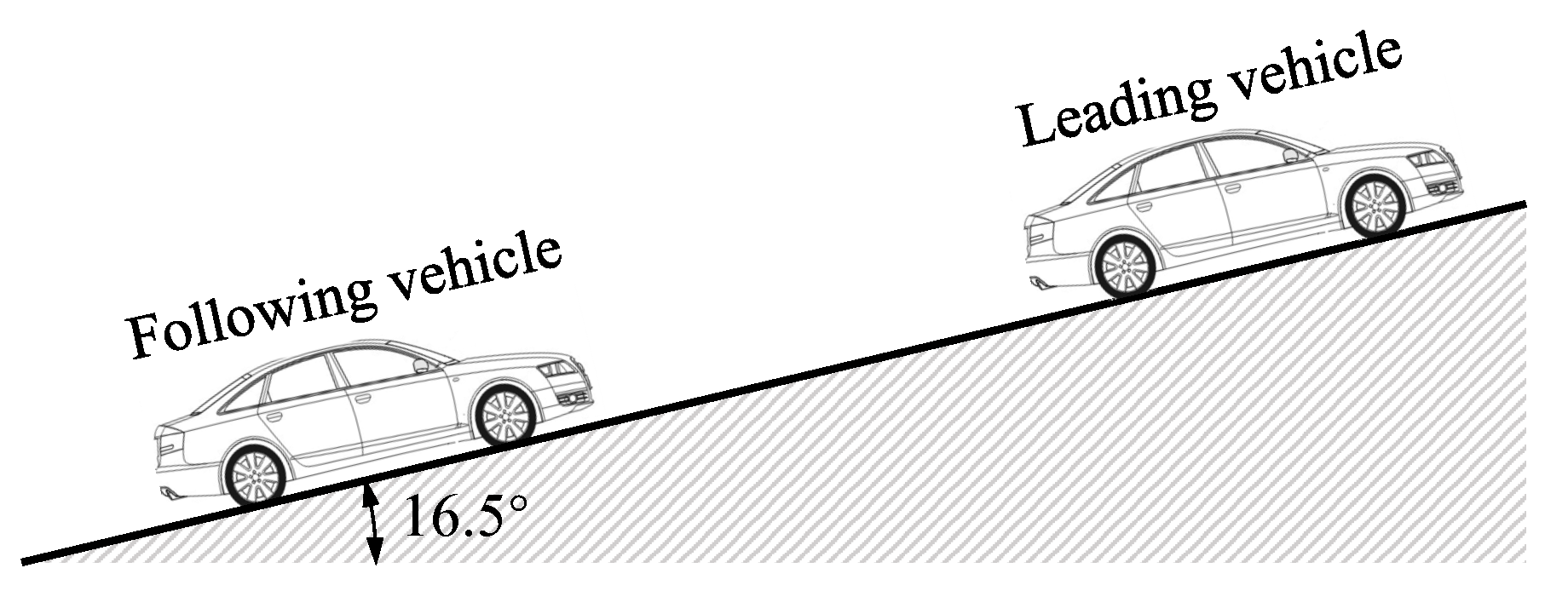

**Figure 10.**The sloping road environment for forward collision avoidance, adaptive cruise, or platooning.

Loop-Closure Techniques | Decrease | Increase | ||||
---|---|---|---|---|---|---|

Constraints | Joints | Bodies | Relative Coordinates | Inertial Forces | External Forces | |

Cut a revolute joint | 5 | 1 | 0 | 1 | Null | Null |

Cut a spherical joint | 3 | 1 | 0 | 3 | Null | Null |

Remove a rigid rod | 1 | 2 | 1 | 6 | ✓ | ✓ |

Models | X-Axis (m and m/s) | Z-Axis (m and m/s) | Pitch (rad and rad/s) | |||
---|---|---|---|---|---|---|

Displacement | Velocity | Displacement | Velocity | Angle | Rate | |

14-DOF | 104.06 | 21.95 | 0.491 | −4.03 × 10${}^{-4}$ | −0.026 | −9.36 × 10${}^{-4}$ |

7-DOF | 104.06 | 21.95 | 0.491 | −4.04 × 10${}^{-4}$ | −0.026 | −9.37 × 10${}^{-4}$ |

7-DOF (fork-arm removal) | 103.79 | 21.88 | 0.491 | −3.91 × 10${}^{-4}$ | −0.026 | −1.50 × 10${}^{-3}$ |

Vehicle Models | |||
---|---|---|---|

14-DOF | 7-DOF | 7-DOF (Fork-Arm Removal) | |

CPU time (s) | 7.436 | 4.806 | 4.921 |

Time saving | 35.37% (↓) | 33.82% (↓) |

Models | X-Axis (m and m/s) | Z-Axis (m and m/s) | Pitch (rad and rad/s) | |||
---|---|---|---|---|---|---|

Displacement | Velocity | Displacement | Velocity | Angle | Rate | |

14-DOF | 74.89 | 14.95 | 0.4881 | −6.73 × 10${}^{-4}$ | −0.0367 | 7.08 × 10${}^{-4}$ |

7-DOF | 74.89 | 14.95 | 0.4881 | −6.7 4× 10${}^{-4}$ | −0.0367 | 7.08 × 10${}^{-4}$ |

7-DOF (fork-arm removal) | 74.89 | 14.94 | 0.4882 | −6.91 × 10${}^{-4}$ | −0.0367 | 6.86 × 10${}^{-4}$ |

Vehicle Models | |||
---|---|---|---|

14-DOF | 7-DOF | 7-DOF (Fork-Arm Removal) | |

CPU time (s) | 7.385 | 4.790 | 4.836 |

Time saving | 35.14% (↓) | 34.16% (↓) |

**Table 6.**Efficiency of a 14-DOF vehicle model with and without the fork-arm removal technique in 20 s simulation.

Techniques | Road Environment | |
---|---|---|

Bumpy Raod | Sloping Road | |

Without fork-arm removal | 7.436 s | 7.385 s |

With fork-arm removal | 7.268 s (2.26% ↓) | 7.237 s (2.00% ↓) |
