Update and New Epidemiological Aspects about Grapevine Yellows in Chile

by
Nicolás Quiroga
1,2,
Camila Gamboa
1,
Daniela Soto
1,
Ana Maria Pino
1,
Alan Zamorano
1,
Juan Campodonico
3,
Alberto Alma
4,
Assunta Bertaccini
5 and
Nicola Fiore
1,*
1
Departamento de Sanidad Vegetal, Facultad de Ciencias Agronómicas, Universidad de Chile, La Pintana, 8820808 Santiago, Chile
2
Programa de Doctorado en Ciencias Silvoagropecuarias y Veterinarias, Campus Sur Universidad de Chile. Santa Rosa 11315, La Pintana, 8820808 Santiago, Chile
3
Ph.D. Program in Science, Ecology and Evolution mention, Facultad de Ciencias, Universidad Austral de Chile, 5091000 Valdivia, Chile
4
Forest and Food Sciences and Technologies, Department of Agricultural, Università di Torino, DISAFA, 10095 Grugliasco (TO), Italy
5
Alma Mater Studiorum, Department of Agricultural and Food Sciences, Università di Bologna, 40127 Bologna, Italy
*
Author to whom correspondence should be addressed.
Pathogens 2020, 9(11), 933; https://doi.org/10.3390/pathogens9110933
Submission received: 27 September 2020 / Revised: 30 October 2020 / Accepted: 3 November 2020 / Published: 11 November 2020
(This article belongs to the Special Issue Diagnosis, Molecular Characterization, Epidemiology and Management Tools for Grapevine Bois noir)
Browse Figures
Review Reports Versions Notes

Abstract

:
To date, phytoplasmas belonging to six ribosomal subgroups have been detected to infect grapevines in Chile in 36 percent of the sampled plants. A new survey on the presence of grapevine yellows was carried out from 2016 to 2020, and 330 grapevine plants from the most important wine regions of the country were sampled and analyzed by nested PCR/RFLP analyses. Phytoplasmas enclosed in subgroups 16SrIII-J and 16SrVII-A were identified with infection rates of 17% and 2%, respectively. The vineyards in which the phytoplasma-infected plants were detected were further inspected to identify alternative host plants and insects of potential epidemiological relevance. Five previously unreported plant species resulted positive for 16SrIII-J phytoplasma (Rosa spp., Brassica rapa, Erodium spp., Malva spp. and Rubus ulmifolius) and five insect species were fully or partially identified (Amplicephalus ornatus, A. pallidus, A. curtulus, Bergallia sp., Exitianus obscurinervis) as potential vectors of 16SrIII-J phytoplasmas. The 16SrVII-A phytoplasmas were not detected in non-grape plant species nor in insects. This work establishes updated guidelines for the study, management, and prevention of grapevine yellows in Chile, and in other grapevine growing regions of South America.

1. Introduction

Viticulture is one of the most important agricultural activities of Chile, where the export of wine and the socio-cultural component are its main characteristics. The total area of vineyards for winemaking is approximately 141,000 hectares. Chile is currently the leading wine exporter of the American continent and the fourth world exporter, with a total of 966.2 million liters exported for a value of US $2066.1 in 2018 (Pizarro, 2019) [1].
The presence of phytoplasmas (grapevine yellows, GY) in vineyards in Chile has been reported since the late 1980s; however, the first molecular studies on their identity and distribution began 20 years later [2,3,4]. These phytoplasmas resulted in being enclosed in six ribosomal groups. The first survey for the identification of phytoplasma in grapevine was carried out from 2002 to 2006 in vineyards located in the regions of Coquimbo, Valparaíso, Libertador General Bernardo O’Higgins, Maule, and Metropolitana, where the main wine production is concentrated. Mixed and single phytoplasma infections were detected in 34 out of the 94 samples collected (36%). The identified phytoplasmas and their prevalence was: 16SrI-B (7.4%), 16SrI-C (‘Candidatus Phytoplasma asteris’) (4.3%), 16SrVII-A (‘Ca. P. fraxini’) (13.8%), and 16SrXII-A (‘Ca. P. solani’) (16.0%). In 2010, the phytoplasmas 16SrIII-J (‘Ca. P. pruni’-related) and 16SrV-A (‘Ca. P. ulmi’) were found infecting two vineyards of cultivars Superior and Syrah, respectively. Out of the six plants analyzed, three with symptoms and three without the presence of phytoplasma was detected only in those symptomatic. It is important to note that the “flavescence dorée” (FD) phytoplasma and its insect vector, the leafhopper Scaphoideus titanus Ball, have never been found in Chile [5,6,7,8]. Epidemiological studies on GY have verified the presence of three phytoplasma reservoir weeds species, Convolvulus arvensis L., Galega officinalis L., and Polygonum aviculare L. [9,10]. Moreover, two insect species, Paratanus exitiosus (Beamer) and Bergallia valdiviana Berg, have been described as vectors of the 16SrIII-J phytoplasma [11]. These insects feed on weeds and only occasionally on grapevine, allowing the transmission of phytoplasmas to this species. In Chile, there are no planthoppers and leafhoppers, which cause direct economic damage to the grapevine.
Since grapevine is economically important for Chile and due to the repeated detection of phytoplasmas in the crop, the present work aimed to provide further epidemiological information about phytoplasmas infecting this plant species in the country. For this purpose, in the new survey conducted, the presence of undescribed potential insect vectors as well as new reservoir plant species in infected vineyards is reported.

2. Results

2.1. Phytoplasma Detection in Grapevine and Other Plant Species in the Vineyard

From the end of January and throughout the autumn, phytoplasma infected grapevine plants showed characteristic GY symptoms that were independent from the phytoplasma identity. The main symptoms were downward rolling and reddening of the leaves and leaf veins (red cultivars) or yellowing of the leaves and leaf veins (white cultivars); drying up of bunches; and incomplete shoot lignification (Figure 1 and Figure 2). Sixty-seven vineyards were sampled: 15 in the Valparaíso region, 14 in O’Higgins, and 38 in Maule, with eight cultivars (Cabernet Sauvignon with 72 samples, País 55, Chardonnay 52, Carménère 51, Sauvignon blanc 41, Pinot noir 29, Tintorera 23, and Semillón with seven). The sampling of shoots and leaves was performed from 330 grapevine plants and 80 different plant species (weed, woody, and shrub) from 2016 to 2020. Amplicons of R16F2n/R2 (1250 bp) from 16S rRNA gene and of ItSSu12pFn/ItSSu12pR2n (820 bp) that amplify the full length of the SSu12p gene and the partial sequence of the SSu7p gene were obtained by PCR and nested PCR from 63 grapevine and 19 non-grape plant species collected in the same vineyards. Consensus sequences obtained from clones were used to perform the phylogenetic and restriction polymorphism analyses. Phytoplasmas belonging to the 16SrIII-J (17%) and 16SrVII-A (2%) ribosomal subgroups were identified in 55 and eight grapevine plants, respectively (Table 1). The 16SrVII-A phytoplasmas were detected only in grapevine plants of the symptomatic Cabernet Sauvignon cultivar (Figure 2). In the other plant species, the 16SrIII-J phytoplasma was detected (Table 2). The symptomatic weeds and bushes that were positive for the 16SrIII-J phytoplasma were Rosa spp. (Family Rosaceae—seven samples), Brassica rapa L. (Fam. Brassicaceae—four samples), Malva spp. (Fam. Malvaceae—two samples), Erodium spp. (Fam. Geraniaceae—three samples), and Rubus ulmifolius Schott (Fam. Rosaceae—three samples) (Table 2). In Rosa spp., witches’ broom, leaf deformation, phyllody, and virescence were observed. In B. rapa and Malva spp., corky texture of the leaves and deformation were also detected. In Erodium spp., redness of the leaves and dwarfism, and finally, in R. ulmifolius, a decrease in the size of the leaves and witches’ broom were observed (Figure 3).

2.2. Phytoplasma Detection in Insects

Insects were captured from three phytoplasma positive vineyards of cultivar Pinot noir in the locality of Casablanca (Valparaiso region), Carménère in San Javier (Maule region) and Cabernet Sauvignon in Marchigue (O’Higgins region). The analyzed insects totaled 1126. The 16SrIII-J phytoplasma was detected in seven leafhopper species: P. exitiosus, B. valdiviana, Bergallia sp., Amplicephalus ornatus Linnavuori, Amplicephalus pallidus Linnavuori, Amplicephalus curtulus Linnavuori & DeLong, and Exitianus obscurinervis Stål (Figure 4). The 16SrVII-A phytoplasma was not detected in any of the insects (Table 2).

2.3. Molecular Characterization of Phytoplasma Strains

Sequences of the 16SrIII-J phytoplasma were 100% identical at the nucleotide level. These sequences were identical to the one of the strain Vc33 from periwinkle in Chile (GenBank accession number LLK01000000). The 16SrIII-J sequences formed a monophyletic group, as shown by neighbor joining analyses (Figure 5). In addition, the sequence of the single grapevine plant infected with 16SVII-A phytoplasma shared 99.9% nucleotide identity with the sequence of the ‘Ca. P. fraxini’ from ash yellows, strain ASHY4 reported in EPPO-QBank (strain number QPh42) for the 16S rRNA gene, and 100% of identity for the SSu12p gene amplicon sequence obtained from an ASHY strain infecting periwinkle from the EPPO-QBank collection maintained at the University of Bologna (GenBank accession number MT161529). The identification of the phytoplasmas found in plants and insects was confirmed through in silico restriction fragment length polymorphism (RFLP) analyses (Figure 6 and Figure 7).

3. Discussion

During this survey, phytoplasmas enclosed in the 16SrIII-J and 16SrVII-A subgroups were detected in vineyards of Chile. Five wild plant species were positive to phytoplasma 16SrIII-J (Rosa spp., B. rapa, Erodium spp., Malva spp., and R. ulmifolius) as well as five insects (A. ornatus, A. pallidus, Bergallia sp., A. curtulus, and E. obscurinervis). These results associate the GY presence exclusively with two phytoplasmas of which 16SrIII-J was prevalent; this result differed from those reported in previous surveys carried out more than 10 years ago [4,5,6]. This finding is very likely related to the wide presence of P. exitiosus and B. valdiviana in the country, and to the wide presence of plant species other than grapevine that harbor the pathogen.
The 16SrIII-J phytoplasma is mainly reported in South America and Mexico [12,13,14,15,16,17,18]. In Chile, historically, this phytoplasma has been detected in sugar beet [19]; however, it is now described as infecting a wide range of herbaceous and woody plant species [10,20,21,22,23]. This phytoplasma is transmitted by two leafhopper species P. exitiosus and B. valdiviana [11].
In this study, the epidemiological survey focused mainly on the Maule region (Maule valley), which has not been previously monitored. In these vineyards, an apparent high activity of P. exitiosus was observed. This was the most abundant insect captured, and 160 out of 220 individuals collected were positive for the 16SrIII-J phytoplasma. A special situation was observed in the red cultivar País, where plants infected by phytoplasma 16SrIII-J only showed downward rolling and yellowing of the leaves, but not reddening of leaves, behaving like the symptoms observed on white cultivars. This could be related to the fact that the cultivar was introduced to Chile in the 16th century, adapting to the edaphoclimatic conditions of the country, thus developing high vigor and tolerance to biotic and abiotic stresses.
In the other regions surveyed, a greater diversity of insect vectors and potential vectors was observed and transmission tests are ongoing to determine the transmission ability of A. curtulus, A. pallidus, A. ornatus, Bergallia sp., and E. obscurinervis.
This is the first report of 16SrIII-J phytoplasma infecting Rosa spp. and R. ulmifolius in Chile. Rosa spp. is used in vineyards as an indicator plant for the foliar fungus Uncinula necator. In addition, it is traditionally planted to decorate the vineyards in central Chile. R. ulmifolius is used as a living fence and sometimes grows spontaneously near the vineyards.
Based on these results, it seems that new species of Auchenorrhyncha could be involved in the transmission of phytoplasmas in the Chilean vineyards. Furthermore, B. campestris, Malva spp., and Erodium spp. are weeds that begin their life cycle after the first autumn rain and stay green until the end of the spring. This means that these weeds may play a relevant role as a reservoir of the 16SrIII-J phytoplasma during the grapevine winter recess, representing a constant source of inoculum.
Several weeds have been described as reservoirs of the 16SrIII-J phytoplasma in Chile such as C. arvensis, P. aviculare, and G. officinalis; these are generally asymptomatic, sometimes showing, however, small yellow leaves [9,21].
The phytoplasma 16SrVII-A has been previously detected in grapevines, weeds, and shrub species from southern Chile [Gaultheria phillyreifolia (Pers.) Sleumer and Ugni molinae Turcz.] and peony (Paeonia lactiflora Pall.). An insect vector for this phytoplasma has not been identified; however, three species of leafhoppers have been reported as potential vectors: P. exitiosus, Carelmapu ramosi Linnavuori, and Carelmapu aureonitens Linnavuori & DeLong [5,6,10,24,25,26]. The drying up of bunches observed in the cv. Cabernet Sauvignon was associated with the presence of 16SrVII-A phytoplasma (Figure 2B), with approximately 6% of product losses.
GY in Chile appears to now be mainly associated with the 16SrIII-J and 16SrVII-A phytoplasmas. It should be emphasized that the infected insect species, vector, and potential vector feed only occasionally in grapevine plants, mainly in late summer when the weeds finish their cycle.
The results of this new survey confirmed the absence of the phytoplasma associated with FD in Chile, and of its insect vector S. titanus. However, the situation must be constantly monitored considering the results of climatic studies indicating that the insect vector would have the optimal conditions to establish in Chile after a possible accidental introduction [27].

4. Materials and Methods

4.1. Grapevine Plants Survey

From September 2016 to April 2019, symptomatic and asymptomatic grapevine samples were collected from the most important wine producing areas of Chile, located in the Valparaíso, Libertador Bernardo O’Higgins, and Maule regions. Each sample corresponded to four 30 cm-long shoots with at least five leaves, collected from a single plant. The samples were transported in thermo regulated containers and stored at 4 °C prior to the extraction of nucleic acids.

4.2. Plants Other than Grapevine and Insect Sampling

From September 2017 to August 2018, three 16SrIII-J infected vineyards were visited every 15 days to capture insects. The vineyard planted with cv. Pinot Noir was located in Casablanca (Valparaiso region), Carménère in San Javier (Maule region), and Cabernet Sauvignon in Marchigüe (O’Higgins region). The insect trapping was carried out through an entomological sweeping net doing 200 sweeping in 20 linear meters. directed at the weeds present in the vineyard. The captured individuals were placed in plastic tubes sealed with a cotton ball; a tiny piece of weed was added inside to avoid dehydration until identification. The insects were moved to the laboratory in a 15 L icebox at 15 °C, separated by morphological characteristics and analyzed in groups of five individuals. Male insects in 70% ethanol were sent to the University of Turin, Italy, and Universidad Austral to be classified based on their genitalia, which were examined using a stereo-microscope. The identification of Auchenorrhyncha and Sternorrhyncha was then obtained primarily using the dichotomous keys of Ribaut (1936, 1952) [28,29]. The nomenclature was reviewed mainly on the basis of della Giustina (1989) [30]. Weeds, shrub, and non-grapevine woody plants from different botanical families present in the vineyards and in their surroundings were randomly collected.

4.3. Phytoplasma Detection

Total nucleic acids were extracted from leaf midribs and insects using a CTAB method [31], dissolved in Tris-EDTA pH 8.0 buffer and maintained at 4 °C. PCR amplification was carried out using 20 ng μL−1 of nucleic acid. Direct and nested PCR assays on the 30 S ribosomal protein SSu12p gene were performed according to the protocol of Cui et al. [32]. Further PCR with primer pair P1/P7 [33,34] and nested PCR with R16F2n/R2 primers amplifying the 16S rRNA gene [35] were performed as described by Schaff et al. [36]. Nested PCR amplicons from both genes were purified using the EZNA Gel Extraction Kit (OMEGA Bio-tek, Norcross, GA, USA). DNA fragments were ligated into the pGEMT-Easy Cloning Kit (Promega, Madison, Wisconsin, USA). Putative recombinant clones were analyzed by colony PCR using at least five colonies, and selected fragments from three colonies per sample were sequenced in both directions at Macrogen USA Corp. The sequences were then aligned with those of identified strains deposited in GenBank using the BLAST engine for local alignment (version BLAST N2.2.12). Phylogenetic trees were constructed in MEGA software v7.0.26 using the neighbor-joining algorithm and maximum composite likelihood method to estimate distances with 1000 bootstrap replicates. Acholeplasma laidlawii was employed as an out-group to root the tree.
The phytoplasma identification was carried out using in silico RFLP analysis with HhaI, BstUI AluI, and TaqI restriction enzymes in the iPhyClassifier online tool (https://plantpathology.ba.ars.usda.gov/cgi-bin/resource/iphyclassifier.cgi), which was also used to calculate the sequence similarity scores [37].

5. Conclusions

16SrIII-J is the main phytoplasma detected in the last five years in the GY infected vineyards in Chile. Two GY insect vector species have been described and through this study, other potentially vector species were found. In addition, new shrub species and reservoir weeds of this phytoplasma were described. This update will allow establishing new guidelines for the study, management, and prevention of GY disease in Chile, and in other grapevine growing regions of South America, mainly Argentina and Peru, that share with Chile an important increase in viticulture and several species of spontaneous flora and insect fauna. Transmission trials are in progress to determine if the Auchenorrhyncha reported as harboring are also vectoring the 16SrIII-J phytoplasma.

Author Contributions

Conceptualization, resources, review and editing, N.F. and A.B.; Data curation, formal analysis, and original draft preparation, N.Q., C.G., D.S., A.Z., and A.M.P.; Bioinformatics analysis, A.Z.; Insect identification, A.A. and J.C. All authors have read and agreed to the published version of the manuscript.

Funding

This work was carried out within the framework of the European Union’s Horizon 2020 research and innovation program under grant agreement no. 727459.

Acknowledgments

The authors thank the Cooperativa Agrícola Vitivinícola Loncomilla, who contributed to the survey in the Maule region and the Chilean National Commission for Scientific and Technological Research (CONICYT) for PhD Scholarship No. 21171998.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Pizarro, M.J. Boletín del vino: Producción, precios y comercio exterior, avance a marzo 2019. In Oficina de Estudios y Políticas Agrarias (ODEPA) del Ministerio de Agricultura, Gobierno de Chile; ODEPA: Santiago, Chile, 2019; p. 29. [Google Scholar]
  2. Caudwell, A. “Bois noir” and “Vergilbungskrankheit”. Other grapevine yellows. In Compendium of Grapes Diseases; Pearson, R.C., Goheen, A.C., Eds.; American Phytopathological Society Press: St. Paul, MN, USA, 1988; pp. 45–47. [Google Scholar]
  3. Herrera, M.G.; Madariaga, V.M. Evidencias inmunológicas, microscópicas y moleculares de la presencia de fitoplasmas en vides. Agric. Téc. 2003, 63. [Google Scholar] [CrossRef]
  4. Bertaccini, A.; Botti, S.; Fiore, N.; Gajardo, A.; Montealegre, J. Identification of a new phytoplasma(s) infecting grapevine with yellows in Chile. In Proceedings of the 15th Congress of IOM, Athens Georgia, GA, USA, 11–16 July 2004; pp. 63–64. [Google Scholar]
  5. Gajardo, A.; Fiore, N.; Prodan, S.; Paltrinieri, S.; Botti, S.; Pino, A.M.; Zamorano, A.; Montealegre, J.; Bertaccini, A. Phytoplasmas associated with grapevine yellows disease in Chile. Plant Dis 2009, 93, 789–796. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Fiore, N.; Prodan, S.; Paltrinieri, S.; Gajardo, A.; Botti, S.; Pino, A.M.; Montealegre, J.; Bertaccini, A. Molecular Characterization of Phytoplasmas in Chilean Grapevines. Bull. Insectology 2007, 60, 331–332. [Google Scholar]
  7. Gonzalez, F.; Zamorano, A.; Pino, A.M.; Fiore, N. Caracterización molecular de nuevos fitoplasmas en la vid en Chile. In Proceedings of the Congreso Sociedad Chilena de Fitopatologia, Santiago, Chile, 9–12 November 2010; Instituto de Investigaciones Agropecuarias: Pucón, Chile, 2010; p. 50. [Google Scholar]
  8. Fiore, N.; Zamorano, A.; Pino, A.M. Identification of phytoplasmas belonging to the ribosomal groups 16SrIII and 16SrV in Chilean grapevines. Phytopathogenic Mollicutes 2015, 5 (Suppl. 1), 32–36. [Google Scholar] [CrossRef]
  9. Gonzalez, F.; Paltrinieri, S.; Calari, A.; Bertaccini, A.; Alma, A.; Picciau, L.; Araya, J.; Fiore, N. Phytoplasmas associated with grapevine in Chile: Potential insect vectors and reservoirs. In Proceedings of the II International Phytoplasma Workshop, La Habana, Cuba, 22–26 September 2008. [Google Scholar]
  10. Longone, V.; González, F.; Zamorano, A.; Pino, A.M.; Araya, J.; Díaz, V.; Paltrinieri, S.; Calari, A.; Bertaccini, A.; Picciau, L.; et al. Epidemiological aspects of phytoplasmas in Chilean grapevines. Bull. Insectology 2011, 64, S91–S92. [Google Scholar]
  11. Quiroga, N.; Longone, V.; González, X.; Zamorano, A.; Pino, A.M.; Picciau, L.; Alma, A.; Paltrinieri, S.; Contaldo, N.; Bertaccini, A.; et al. Transmission of 16SrIII-J phytoplasmas by the leafhoppers Paratanus exitiosus and Bergallia valdiviana. Phytopathol. Mediterr. 2019, 58, 231–237. [Google Scholar]
  12. Montano, H.G.; Davis, R.E.; Dally, E.L.; Pimentel, J.P.; Brioso, P.S.T. Identification and phylogenetic analysis of a new phytoplasma from diseased chayote in Brazil. Plant Dis. 2000, 84, 429–436. [Google Scholar] [CrossRef] [Green Version]
  13. Harrison, N.A.; Boa, E.; Carpio, M.L. Characterization of phytoplasmas detected in Chinaberry trees with symptoms of leaf yellowing and decline in Bolivia. Plant Pathol. 2003, 52, 147–157. [Google Scholar] [CrossRef]
  14. Galdeano, E.; Torres, L.E.; Meneguzzi, N.; Guzmán, F.; Gomez, G.G.; Docampo, D.M.; Conci, L.R. Molecular Characterization of 16S Ribosomal DNA and phylogenetic analysis of two X-disease group phytoplasmas affecting China-tree (Melia azedarach L.) and garlic (Allium sativum L.) in Argentina. J. Phytopathol. 2004, 152, 174–181. [Google Scholar]
  15. Amaral Mello, A.P.; Eckstein, B.; Flores, D.; Kreyci, P.F.; Bedendo, I.P. Identification by computer-simulated RFLP of phytoplasmas associated with eggplant giant calyx representative of two subgroups, a lineage of 16SrIII-J and the new subgroup 16SrIII-U. Int. J. Syst. Evol. Microbiol. 2011, 61, 1454–1461. [Google Scholar] [CrossRef] [PubMed]
  16. Gamarra, D.; Olórtegui, A.; Mayta, E.; Lozada, P.; Ramírez, R.; Cuellar, W.; Bartolini, I.; Pinillos, O. Caracterización molecular y transmisión de fitoplasmas que infectan zanahoria en el Valle del Mantaro. In Proceedings of the XX Reunión Científica ICBAR, Lima, Perú, 16–19 August 2011. [Google Scholar]
  17. Pérez-López, E.; Wei, W.; Wang, J.; Davis, R.E.; Luna-Rodríguez, M.; Zhao, Y. Novel phytoplasma strains of X-disease group unveil genetic markers that distinguish North American and South American geographic lineages within subgroups 16SrIII-J and 16SrIII-U. Ann. Appl. Biol. 2017, 171, 405–416. [Google Scholar] [CrossRef]
  18. Steeger, S.A.; Ehrenfeld, R.; de los Reyes, J.M.P. La Marchitez Amarilla de la Remolacha; Cultivo de la Remolacha en Chile. Relaciones Públicas; IANSA. 1973, Volume 3, p. 32. Available online: http://http://bosques.ciren.cl/handle/123456789/18648 (accessed on 5 November 2020).
  19. Fiore, N.; González, X.; Zamorano, A.; Quiroga, N.; Paillalef, R.; Pino, A.M. Phytoplasmas associated with yellow wilt disease of sugar beet in Chile. Phytopathogenic Mollicutes 2015, 5 (Suppl. 1), S63–S64. [Google Scholar] [CrossRef]
  20. González, F.; Zamorano, A.; Pino, A.M.; Paltrinieri, S.; Bertaccini, A.; Fiore, N. Identification of phytoplasma belonging to X-disease group in cherry in Chile. Bull. Insectology 2011, 64, S235–S236. [Google Scholar]
  21. Zamorano, A.; González, X.; Pino, A.M.; Quiroga, N.; Fiore, N. Detection of 16SrIII-J phytoplasma in Galega officinalis L., a weed commonly associated to pome fruit orchards in Chile. Phytopathogenic Mollicutes 2015, 5 (Suppl. 1), S115–S116. [Google Scholar] [CrossRef]
  22. Quiroga, N.; Bustamante, M.; Gamboa, C.; Molina, J.; Zamorano, A.; Fiore, N. 16SrIII-J phytoplasmas infecting lettuce and Swiss chard crops in Chile. Phytopathogenic Mollicutes 2017, 7, 91–94. [Google Scholar] [CrossRef]
  23. Quiroga, N.; Medina, G.; Zamorano, A.; Acuña, I.; Piña, R.; Fiore, N. New Diseases Associated with 16srIII-J Phytoplasmas in Chile. Phytopathogenic Mollicutes 2019, 9, 15–16. [Google Scholar] [CrossRef]
  24. Arismendi, N.; Gonzales, F.; Zamorano, A.; Andrade, N.; Pino, A.M.; Fiore, N. Molecular identification of ‘Candidatus Phytoplasma fraxini’ in murta and peony in Chile. Bull. Insectology 2011, 64, S95–S96. [Google Scholar]
  25. Arismendi, N.; Carrillo, R.; Andrade, N.; Riegel, R.; Rojas, E. Evaluation of trap color and position on the capture of cicadellids in Gaultheria phillyreifolia (Ericaceae) affected by phytoplasmas. Neotrop. Entomol. 2009, 38, 754–761. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Arismendi, N.; Andrade, N.; Riegel, R.; Carrillo, R. Presence of a phytoplasma associated with witches’-broom disease in Ugni molinae Turcz. and Gaultheria phillyreifolia (Pers.) Sleumer determined by DAPI, PCR, and DNA sequencing. Chil. J. Agric. Res 2010, 70, 26–33. [Google Scholar] [CrossRef]
  27. Quiroga, N.; Ivulic, D.; Lagos, J.; Saavedra, M.; Sandoval-Rodriguez, A.; Fiore, N. Risk analysis of the establishment of Scaphoideus titanus, vector of “flavescence dorée” phytoplasma in grapevine, under current and estimated climate change conditions in Chile. Phytopathogenic Mollicutes 2017, 7, 39–44. [Google Scholar] [CrossRef]
  28. Ribaut, H. Faune de France: Homoptères auchénorhynques I (Typhlocybidae); Lechevalier: Paris, France, 1936; Volume 31, p. 228. [Google Scholar]
  29. Ribaut, H. Faune de France: Homoptères auchénorhynques II (Jassidae); Lechevalier: Paris, France, 1952; Volume 57, p. 474. [Google Scholar]
  30. Della Giustina, W. Homoptères Cicadellidae. Vol III (suplément). In Faune de France 73; FFSSN-INRA: Paris, France, 1989; p. 350. [Google Scholar]
  31. Angelini, E.; Clair, D.; Borgo, M.; Bertaccini, A.; Boudon-Padieu, E. “Flavescence dorée” in France and Italy-occurrence of closely related phytoplasma isolates and their near relationships to Palatinate grapevine yellows and an alder yellows phytoplasma. Vitis 2001, 40, 79–86. [Google Scholar]
  32. Cui, W.; Quiroga, N.; Bertaccini, A.; Zamorano, A.; Fiore, N. Use of 12p and 36p genes as molecular markers in support of subgroup identification of two 16srXIII phytoplasmas associated with strawberry phyllody in Chile. Phytopathogenic Mollicutes 2019, 9, 89–90. [Google Scholar] [CrossRef]
  33. Deng, S.J.; Hiruki, C. Amplification of 16S ribosomal-RNA genes from culturable and nonculturable mollicutes. J. Microbiol. Methods 1991, 14, 53–61. [Google Scholar] [CrossRef]
  34. Schneider, B.; Seemüller, E.; Smart, C.D.; Kirkpatrick, B.C. Phylogenetic classification of plant pathogenic mycoplasmalike organisms or phytoplasmas. In Molecular and Diagnostic Procedures in Mycoplasmology; Razin, S., Tully, J.G., Eds.; Academic Press: San Diego, CA, USA, 1995; pp. 369–380. [Google Scholar]
  35. Gundersen, D.E.; Lee, I.-M. Ultrasensitive detection of phytoplasmas by nested-PCR assays using two universal primer pairs. Phytopathol. Mediterr. 1996, 35, 144–151. [Google Scholar]
  36. Schaff, D.; Lee, I.-M.; Davis, R.E. Sensitive detection and identification of mycoplasma-like organisms by polymerase chain reactions. Biochem. Biophys. Res. Commun. 1992, 186, 1503–1509. [Google Scholar] [CrossRef]
  37. Zhao, Y.; Wei, W.; Lee, I.-M.; Shao, J.; Suo, X.; Davis, R.E. The iPhyClassifier, an interactive online tool forphytoplasma classification and taxonomic assignment. Methods Mol. Biol. 2013, 938, 329–338. [Google Scholar]
Pathogens 09 00933 g001 550
Figure 1. Grapevine leaves showing symptoms associated with the presence of 16SrIII-J phytoplasmas. (A) VN17, cultivar Chardonnay with leaf deformation and yellow vein; (B) VN12 cultivar País with downward rolling of leaves and generalized yellowing; (C) VN29 cultivar Tintorera with downward rolling of leaves and generalized yellowing; (D) VN69 cultivar Semillón with small leaves; and (E) VN32 cultivar Sauvignon blanc with deformation and mild downward rolling of the leaf.
Figure 1. Grapevine leaves showing symptoms associated with the presence of 16SrIII-J phytoplasmas. (A) VN17, cultivar Chardonnay with leaf deformation and yellow vein; (B) VN12 cultivar País with downward rolling of leaves and generalized yellowing; (C) VN29 cultivar Tintorera with downward rolling of leaves and generalized yellowing; (D) VN69 cultivar Semillón with small leaves; and (E) VN32 cultivar Sauvignon blanc with deformation and mild downward rolling of the leaf.
Pathogens 09 00933 g001
Pathogens 09 00933 g002 550
Figure 2. Cabernet Sauvignon symptoms associated to 16SrVII-A phytoplasma presence. (A) VN137 with reddening of leaves and leaf veins at the end of summer; (B) VN315 with reddening of leaves and leaf veins, and drying up of bunches at the end of summer.
Figure 2. Cabernet Sauvignon symptoms associated to 16SrVII-A phytoplasma presence. (A) VN137 with reddening of leaves and leaf veins at the end of summer; (B) VN315 with reddening of leaves and leaf veins, and drying up of bunches at the end of summer.
Pathogens 09 00933 g002
Pathogens 09 00933 g003 550
Figure 3. Symptoms in weeds and shrubs infected with 16SrIII-J phytoplasma. (A) Corky leaves in Malva spp.; (B) deformation and corky texture of leaves in Brassica rapa; (C,D) Rubus ulmifolius showing witches’ broom and leaves deformation; (E,F) witches’ broom, leaves and floral tip deformation in Rosa sp.
Figure 3. Symptoms in weeds and shrubs infected with 16SrIII-J phytoplasma. (A) Corky leaves in Malva spp.; (B) deformation and corky texture of leaves in Brassica rapa; (C,D) Rubus ulmifolius showing witches’ broom and leaves deformation; (E,F) witches’ broom, leaves and floral tip deformation in Rosa sp.
Pathogens 09 00933 g003
Pathogens 09 00933 g004 550
Figure 4. 16SrIII-J phytoplasma-positive leafhopper species. (A) Bergallia sp.; (B) Amplicephalus ornatus; (C) Amplicephalus curtulus; (D) Amplicephalus pallidus; (E) Exitianus obscurinervis.
Figure 4. 16SrIII-J phytoplasma-positive leafhopper species. (A) Bergallia sp.; (B) Amplicephalus ornatus; (C) Amplicephalus curtulus; (D) Amplicephalus pallidus; (E) Exitianus obscurinervis.
Pathogens 09 00933 g004
Pathogens 09 00933 g005 550

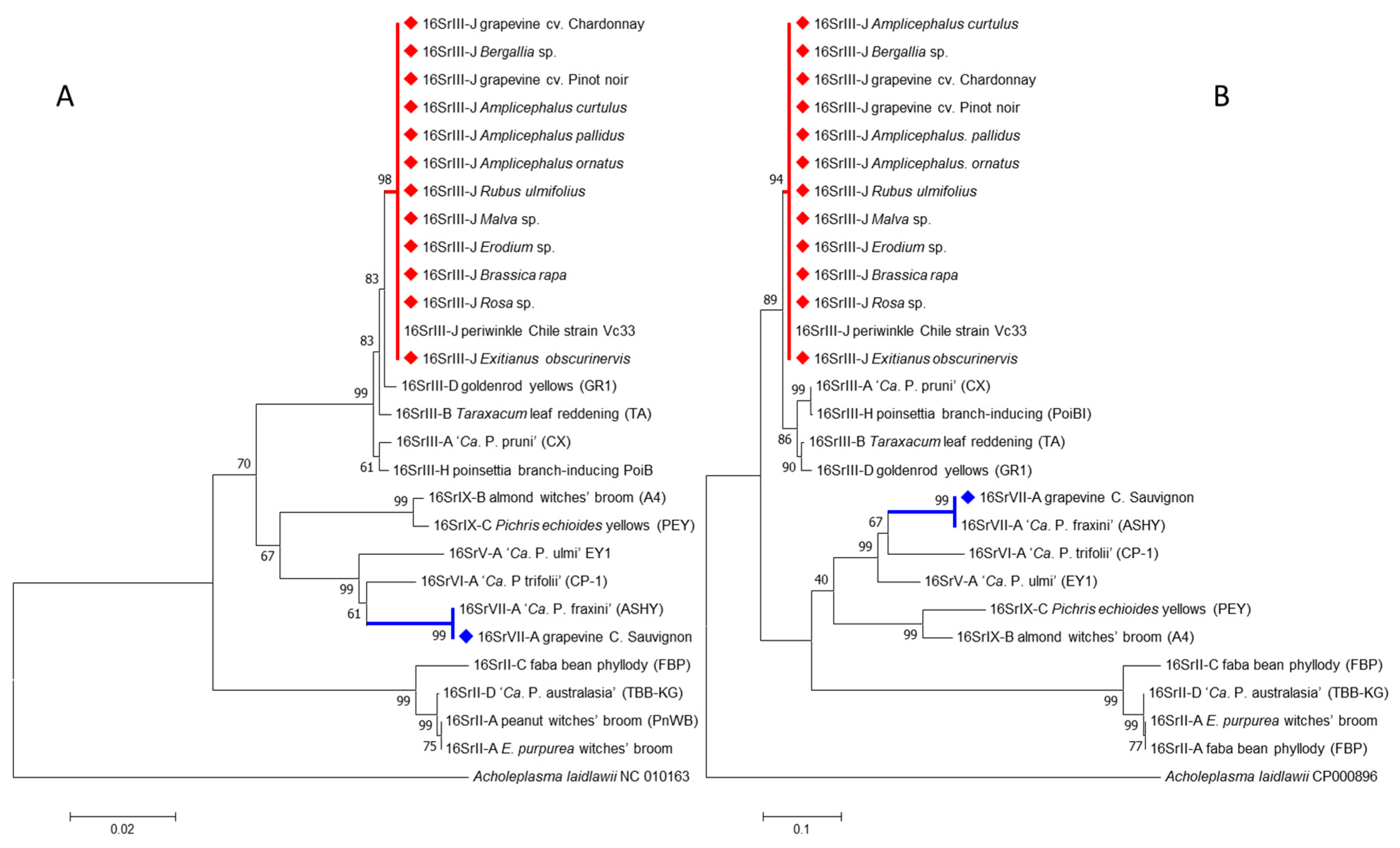

Figure 5. Neighbor-joining analyses of the sequences of 1244 nucleotides obtained from the 16S rRNA gene (A) and 710 nucleotides obtained from the SSu12p gene (B). Samples highlighted with diamonds were obtained in this work. Numbers in nodes represent the bootstrap values obtained from 1000 replicates.
Figure 5. Neighbor-joining analyses of the sequences of 1244 nucleotides obtained from the 16S rRNA gene (A) and 710 nucleotides obtained from the SSu12p gene (B). Samples highlighted with diamonds were obtained in this work. Numbers in nodes represent the bootstrap values obtained from 1000 replicates.
Pathogens 09 00933 g005
Pathogens 09 00933 g006 550

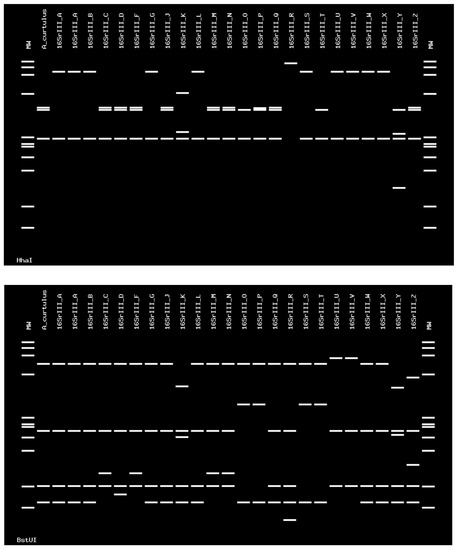

Figure 6. Virtual RFLP profile obtained from the iPhyClassifier, using enzymes HhaI and BstUI. The figure shows identical profiles between the phytoplasma detected in A. curtulus and the strain from chayote witches’ broom, classified in the 16SrIII-J subgroup (GenBank accession number AF147706). The phytoplasma detected in the A. curtulus showed a similarity coefficient of 1.00 with this strain.
Figure 6. Virtual RFLP profile obtained from the iPhyClassifier, using enzymes HhaI and BstUI. The figure shows identical profiles between the phytoplasma detected in A. curtulus and the strain from chayote witches’ broom, classified in the 16SrIII-J subgroup (GenBank accession number AF147706). The phytoplasma detected in the A. curtulus showed a similarity coefficient of 1.00 with this strain.
Pathogens 09 00933 g006
Pathogens 09 00933 g007 550

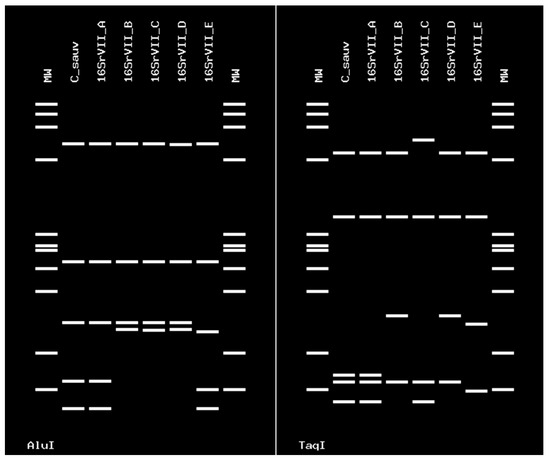

Figure 7. Virtual RFLP profile obtained from the iPhyClassifier, using enzymes AluI and TaqI. The figure shows identical profiles between the phytoplasmas detected in grapevine cv. Cabernet Sauvignon and the ‘Candidatus Phytoplasma fraxini’ 16SrVII-A subgroup (GenBank accession number AF092209). The strain has a similarity coefficient of 1.00 with ‘Ca. P. fraxini’.
Figure 7. Virtual RFLP profile obtained from the iPhyClassifier, using enzymes AluI and TaqI. The figure shows identical profiles between the phytoplasmas detected in grapevine cv. Cabernet Sauvignon and the ‘Candidatus Phytoplasma fraxini’ 16SrVII-A subgroup (GenBank accession number AF092209). The strain has a similarity coefficient of 1.00 with ‘Ca. P. fraxini’.
Pathogens 09 00933 g007
Table
Table 1. Presence of phytoplasmas in grapevine plants.
Table 1. Presence of phytoplasmas in grapevine plants.
RegionGrapevine SamplesPhytoplasma Detected (Number of Positive Samples)
Valparaíso7316SrIII-J (17)
O’Higgins7016SrIII-J (12), 16SrVII-A (5)
Maule18716SrIII-J (26), 16SrVII-A (3)
Table
Table 2. Non-grapevine plant species and insects phytoplasma-positive per vineyard.
Table 2. Non-grapevine plant species and insects phytoplasma-positive per vineyard.
VineyardPositive Non-Grapevine Plant Species *InsectNumber of Captured Individual Insects/Analyzed/Positives **
Casablanca
Valparaíso región		Brassica rapa (1)
Malva spp. (2)
Erodium spp. (3)		Paratanus exitiosus194/190/120
Bergallia valdiviana62/60/45
Bergallia sp.44/40/20
Amplicephalus ornatus22/20/10
Amplicephalus pallidus30/30/10
Amplicephalus curtulus81/80/45
Exitianus obscurinervis24/20/10
Marchigue
Libertador O’Higgins region		Brassica rapa (1)
Rosa spp. (7)
Rubus ulmifolius (3)		Paratanus exitiosus86/85/60
Bergallia sp.36/35/15
Amplicephalus pallidus62/60/10
Amplicephalus curtulus26/25/5
Exitianus obscurinervis104/100/20
San Javier
Maule region		Brassica rapa (2)Paratanus exitiosus224/220/160
Amplicephalus curtulus114/110/20
* ( ) Number of positive plants to 16SrIII-J phytoplasma. ** The insects were analyzed in groups of five individuals.
