Zika Virus (ZIKV) is predominantly transmitted by mosquitoes (Aedes aegypti
] and sexual intercourse [18
]. ZIKV sexual transmission may occur from a male to a female [1
] or to a male [8
]. It has been shown to persist up to 93 days and 11 days after infection in semen and vaginal mucosa, respectively [19
Subcutaneous (sub Q) inoculation of rhesus macaques (RMs) with ZIKV results in widespread systemic infection in multiple organs, including the lymph nodes (LNs), heart, spleen, spinal cord, and the brain [21
]. ZIKV infection is associated with fetal brain abnormalities. Besides microcephaly, ZIKV infection may result in other birth defects collectively referred to as congenital Zika syndrome [22
]. ZIKV infection may also result in abnormalities in the adult brain such as meningoencephalitis and acute flaccid paralysis [23
]. In both fetal and adult brains, ZIKV infects neural progenitor cells which differentiate into neurons or glia [23
]. In the adult ZIKV-infected mouse brain, neural progenitor cells in the subventricular zone and subgranular zone of the hippocampus have decreased proliferation and increased cell death [23
ZIKV can also be transmitted via the vaginal route in mice and macaques. Viral RNA has been detected in the lower reproductive tract up to 7 days postinfection (dpi) in mice [26
]. Importantly, ZIKV vaginal exposure in pregnant mice also resulted in fetal brain infection and restricted intrauterine growth [28
]. Alternatively, Carrol and coworkers found that some RMs were more resistant to ZIKV infection after repeated vaginal exposures to high titers of ZIKV [18
]. Resistance to intravaginal (IVAG) transmission was overcome by administrating progesterone (Depo-Provera) to some RMs before and during IVAG inoculation. Depo-Provera facilitated ZIKV IVAG transmission by inhibiting proinflammatory cytokines [18
]. In order to understand the immunologic/virologic dynamics following IVAG or sub Q ZIKV transmission and tissue-wide distribution, we conducted preliminary studies utilizing a small number of RMs.
In this preliminary study, we aimed to measure ZIKV immune responses and investigate subsequent tissue tropism in IVAG- and sub-Q-inoculated RMs. We successfully infected RMs with ZIKV through IVAG and sub Q inoculation. Infected animals were asymptomatic, with only minor weight loss observed. This finding was in agreement with previously reported studies [1
]. Within the periphery, we observed peak ZIKV viremia between 5–7 dpi following IVAG inoculation versus 5 dpi for sub-Q-inoculated RMs. Our results are comparable to Dudley et al., who found that sub Q ZIKV peaks between 3 to 6 dpi [29

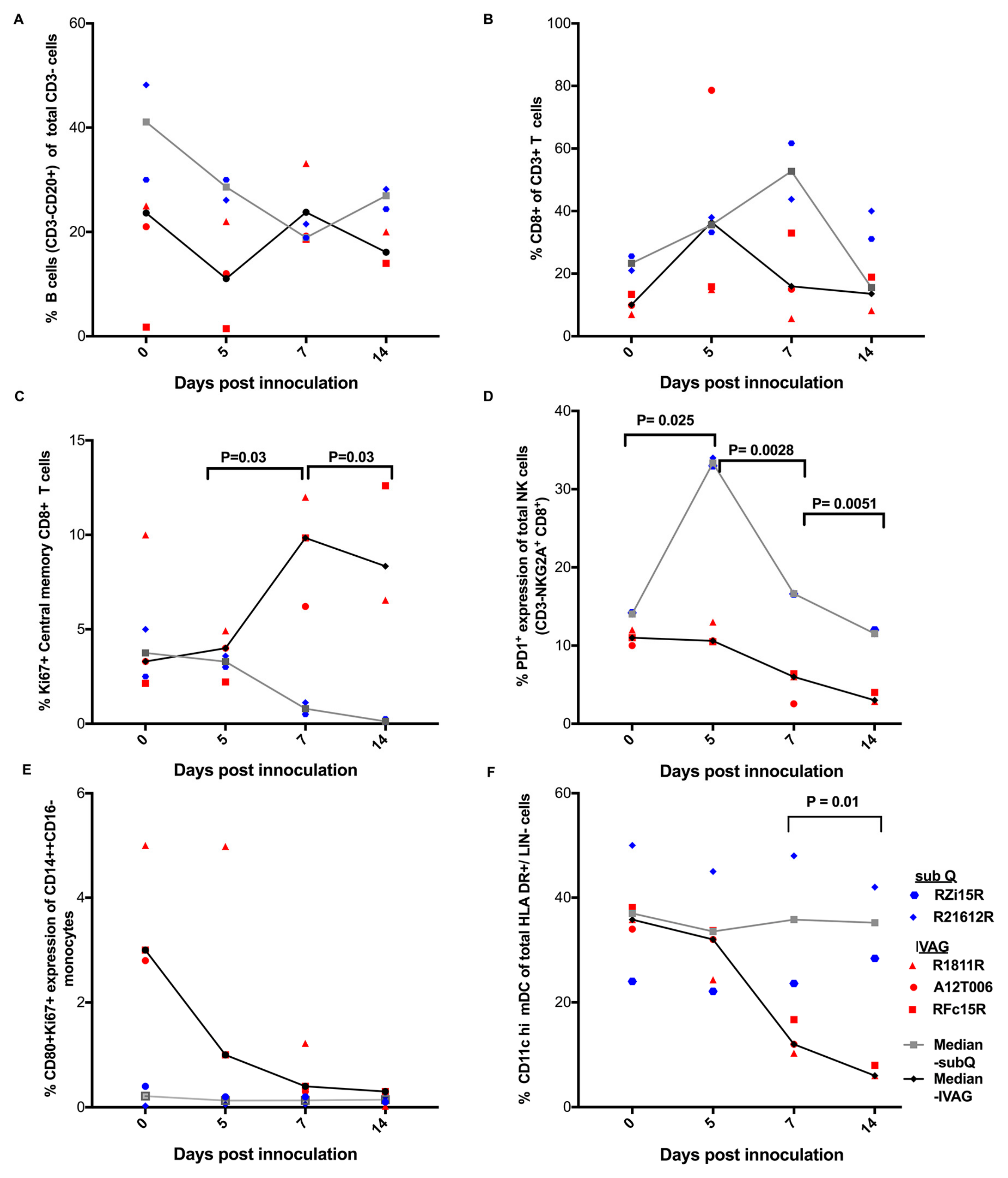

Next, we observed a reduction of CD11C hi mDC population in IVAG-inoculated RMs compared to the sub Q route. In previous studies, ZIKV infection has been reported to inhibit functionality (pathogen recognition, peptide processing, and antigen presentation) and cause apoptosis of mDCs [30
]. We also observed an expansion of proliferating (Ki67+
) central memory CD8+
T cells in IVAG as opposed to sub-Q-inoculated RMs. This is in agreement with Pardy et al., who reported that ZIKV infection causes increased cell activation of CD8+
T cells [32
T cells are responsible for clearing ZIKV infection and reducing viral burden in tissues past peak infection [33
]. These observations are in parallel with Ki67+
T cells that have been previously shown to have superior function and better clinical outcomes during viral infections [34
]. Therefore, we believe that in order to maintain homeostasis within the milieu probably following IVAG transmission, increased proliferation of central memory CD8+
T cells could act as a “buffer” for the turnover of effector memory CD8+
T cells occurring within tissues [37
Next, during sub Q transmission, we also observed that there were higher frequencies of PD-1+ NK cells versus IVAG ZIKV transmission. NK cells are primarily tasked with initiating potent antiviral responses before the onset of the adaptive immune response [38
]. Increased expression of PD-1 on the NK cell surfaces also could reflect exhaustion and probably favors rapid ZIKV pathogenesis and NK cell escape [39
]. ZIKV infection has previously been shown to evade potent NK responses [40
]]. However, additional mechanistic studies are required to delineate the crucial role of PD-1 expression on NK cells during ZIKV pathogenesis. Although we used T
-tests to verify immunological differences in both routes of infection, our small sample size avails us with proof of observation but limits our ability to draw unambiguous conclusions. We present this data with caution as few animals (sub-Q-inoculated RMs (n
= 2), IVAG-inoculated macaques (n
= 3)) were utilized in this study.

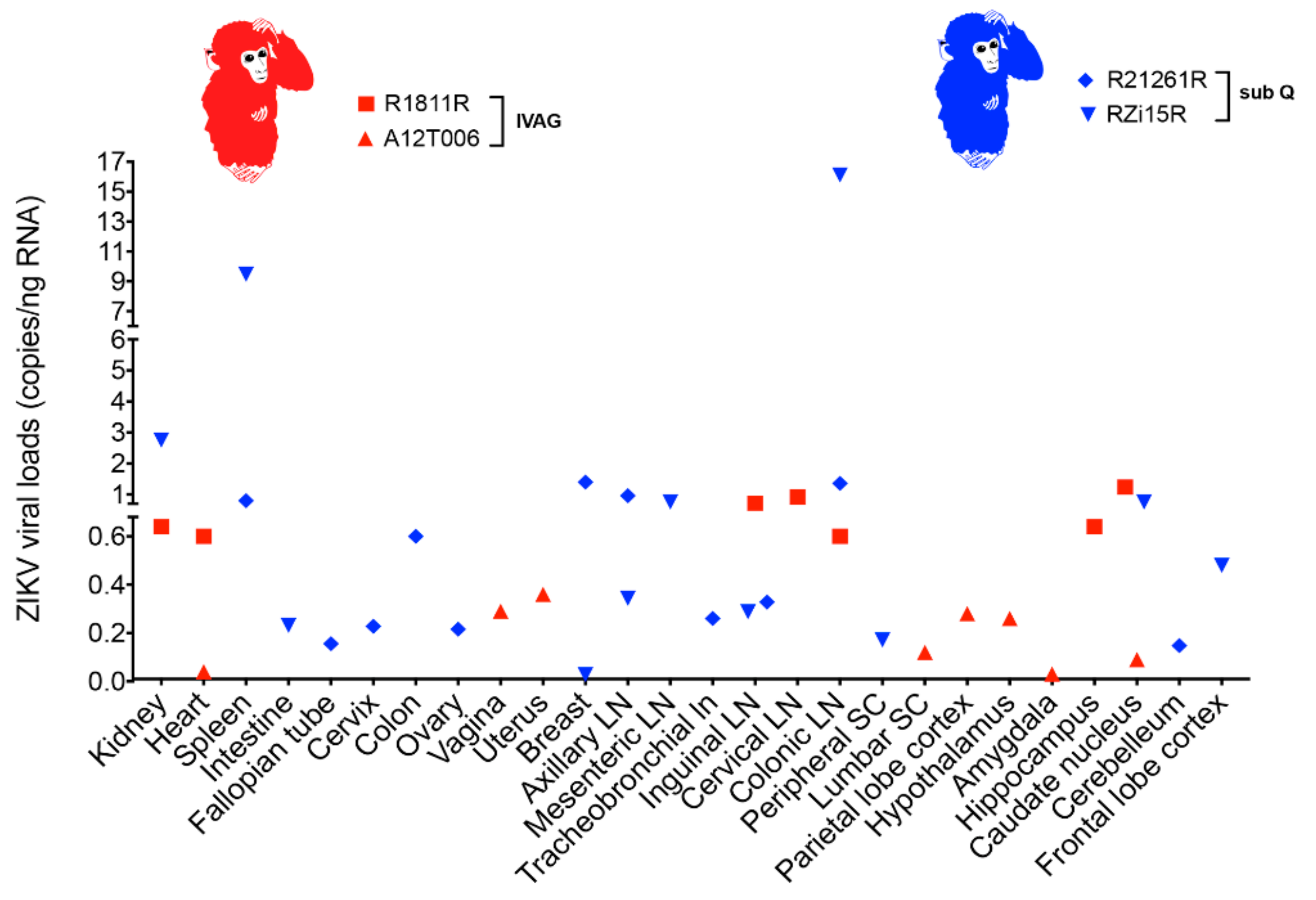

There was rapid ZIKV clearance in the periphery beyond 9 dpi. Despite this, the virus remained detected in multiple tissue sites up to 60 dpi. Based on ZIKV persistence in several tissues, it may be inferred that they could suffer from defects arising from ongoing viral residual replication in various anatomical sites [21
]. Additional studies are necessary to confirm replication competence of ZIKV persisting in various tissues.
The detection of ZIKV RNA in the uterus and vaginal tissue of the IVAG-inoculated RMs was found only in the early sacrificed animal (8 dpi). ZIKV was not detected in the vaginal and uterine tissues of IVAG ZIKV RMs sacrificed at 60 and 110 dpi, respectively. Similarly, we did not find any trace of ZIKV RNA in the uterus and vaginal tissues of the two sub-Q-infected RMs that were sacrificed at 21 dpi, suggesting that the virus may be short lived in female reproductive tissues. These findings are consistent with observations made in an earlier study in which ZIKV RNA was detected in the vagina and uterus at 7 dpi [21
]. Furthermore, at 28 dpi, one out of two RMs was positive for ZIKV in the vagina and uterus [21
], confirming brief persistence in the female reproductive tract.
While most investigations of ZIKV infection in the brain have focused on fetuses, it has been shown that the virus is also capable of infecting adult mice brains. Of note, such infection is associated with cell death and reduced proliferation [23
]. In previous studies involving RMs sub Q inoculated with PRVABC59 strain, ZIKV RNA was detectable in cerebellar granule cells on 5 and 7 dpi [43
]. Also, in agreement with our results showing detection of ZIKV RNA in the hippocampus, ZIKV infection was detectable in the subgranular zone of the hippocampus in mice. This area of the brain is responsible for the maintenance of stem cell populations [23
]. Furthermore, ZIKV has not been previously shown to be detectable in the caudate nucleus. However, calcifications were found in the caudate nucleus of fetal brains from ZIKV-infected fetuses born with microcephaly [20
]. The subependymal zone (SEL), a region rich with neural stem cells [46
], is located near the caudate nucleus. It is possible that the sectioned portion of the caudate nucleus contained proximal portions of the SEL. Therefore, this could possibly account for the ZIKV replication observed in this region. There have been two reported cases of SEL cysts in newborns from mothers infected with ZIKV during their third trimester [47
In the present study, we detected ZIKV RNA in the medulla. This finding is significant because until now, ZIKV RNA was only detected in the medulla of fetal brain samples but not in the adult brain [48
]. In addition, we were able to detect ZIKV RNA in the parietal lobe cortex, amygdala, and hypothalamus in the animal sacrificed at 8 dpi. To the best of our knowledge, this is the first report to demonstrate the presence of ZIKV RNA in these regions of the brain. In earlier studies, calcification and lesions were identified in the medulla but not detectable RNA in ZIKV-infected fetuses [22
Presence of ZIKV RNA in multiple regions of the brain beyond 60 dpi suggests that the brain might be a long-term ZIKV virus reservoir. These observations might have potential implications for central nervous system disorders, particularly if the viruses in these sites are replication competent. In addition, the persistence of ZIKV in the medulla and the caudate nucleus of IVAG-inoculated RMs long after active viral infection could have long-term implications on normal brain function. The striatum of the basal ganglia which contains the caudate nucleus receives signals from the cerebral cortex, thalamus, and the brain stem, including the medulla [50
]. Defects in the caudate nucleus have been linked to motor, emotional, and cognitive impairment [51
]. The long-term effect of ZIKV on brain function following persistence in the caudate nucleus and the medulla needs further studies. Also, these observations raise public health concerns in regions of the world that are endemic to ZIKV, since individuals are constantly exposed to the virus despite appearing asymptomatic.
In summary, we provided preliminary insights into the systemic effects of ZIKV transmission. We showed that ZIKV could be transmitted in RMs via the IVAG/sub Q routes and are able to spread to several areas of the body including the heart, kidney, LNs, and brain. Furthermore, IVAG-transmission results are associated with phenotypic changes in central memory CD8+ T cells and CD11C hi mDCs and lower PD-1+ expression on total NK cells. However, this data needs to be interpreted with caution because we have used a small number of animals and the utilization of a large number of animals is necessary in order to validate our findings.
4. Materials and Methods
4.1. Ethics Statement
A total of five adult female Indian-origin rhesus monkeys (Macaca mulatta) were utilized in this study. All animals were maintained at the Department of Comparative Medicine at the University of Nebraska Medical Center (UNMC) in accordance with the rules and regulations of the Institutional animal Care and Use Committee and according to the guidelines of the Committee on the Care and Use of Laboratory Animals of the Institute of Laboratory Animal Resources, National Research Council, and the Department of Health and Human Services guidelines titled Guide for the Care and Use of Laboratory Animals. All protocols and procedures were performed under approval of the UNMC Institutional Animal Care and Use Committee according to the National Institute of Health guidelines. The animals were fed a monkey diet (Harlan Teklad #2055) supplemented daily with fresh fruits or vegetables and water ad libitum. Additional social enrichment, including the delivery of appropriate safe toys, was provided and overseen by the UNMC enrichment staff. Animal health was monitored daily and recorded by the animal care staff and veterinary personnel, available 24 h a day and 7 days a week. Monkeys were caged in and individually housed throughout the study. Monkeys showing signs of sustained weight loss, disease, or distress were subject to clinical diagnosis based on symptoms and then provided standard dietary supplementation, analgesics, and/or chemotherapy. The UNMC primate housing facility has been fully accredited by the Association for Assessment and Accreditation of Laboratory Animal Care International.
4.2. ZIKV Inoculation and Collection of Blood
Animals were anesthetized with an intramuscular injection of 10 mg/kg of ketamine before initiating any experimental procedure including blood draw. Animals were inoculated IVAG (n = 3) or sub Q (n = 2) with 2 × 106 PFU/mL of ZIKV strain PRVABC59 (obtained through BEI resources). A needleless 1-mL tuberculin syringe was utilized to inoculate virus (1 mL) into the vaginal canal.
After inoculation, animals were kept in an elevated position for 15 min. RMs were evaluated for evidence of any illnesses, changes in appetite, dehydration, diarrhea, depression, rash, conjunctivitis, fever, and inactivity. Blood was drawn from the femoral vein at 0, 3, 5, 7, 9, 14, 21, 28, 60, and 110 dpi. Animals were sacrificed at 8, 21, 60, or 110 dpi by terminal cardiac perfusion.
At necropsy blood and cerebrospinal fluid (CSF) were collected. Organs were harvested and stored in Optimal Cutting Temperature (OCT) compound for RNAscope or snap frozen for RNA extraction (Figure 1
A). Brains were removed from skulls and microdissected. Biopsy punches (HealthLink, Jacksonville, FL, USA) were used to isolate tissue from specific regions of the brain. Surface features of the cerebral cortex were used to identify each of the lobes so that samples could be collected. A brain MacroknifeTM
(CellPath, NewTown Powys, UK) was then used to section the brains into slices. Internal structures were then identified and microdissected as samples.
4.4. Viral Loads Measurements
Plasma and cerebrospinal fluid viral loads were measured by quantitative real-time PCR. Plasma was obtained by centrifugation of whole blood for 6 min at 1200× g
. Viral RNA was isolated using the QIAamp Viral RNA Mini Kit (Qiagen, Valencia, CA, USA) according to the manufacturer’s protocol. Quantitation of viral RNA was performed using the TaqmanTM
RNA-to-Ct 1-Step Kit (Thermo Fisher Scientific, Waltham, MA, USA) according to the manufacturer’s protocol on an Applied Biosystems 7500 Real-Time PCR system (Thermo Fisher, Waltham, MA, USA) using the following cycling conditions: 1 cycle 48 °C for 15 min, 1 cycle 95 °C for 10 min, 40 cycles of 95 °C for 15 s, and 60 °C for 1 min. Primers (400 nM final concentration) and probe (100 nM final concentration) were obtained from IDT [54
]. Sequences: forward: 5′-TTGGTCATGATACTGCTGATTGC-3′, reverse: 5′-CCTTCCACAAAGTCCCTATTGC-3′, probe: 5′-FAM-CGGCATACAGCATCAGGTGCATAGGAG-Iowa Black-3′. Viral loads (copy/mL) were estimated from a standard curve generated using PRVABC59 genomic RNA (BEI resources).
4.5. Droplet Digital PCR
Total RNA was extracted from various tissue samples collected at necropsy using the RNeasy Mini Kit (Qiagen, Valencia, CA, USA) according the manufacturer’s protocol. RNA concentrations were measured using SimpliNano (GE Healthcare Life Sciences, Madison, WI, USA). ZIKV RNA was detected using the QX200 Droplet Digital PCR System (Bio-Rad, Hercules, CA, USA). Primers and probes were the same as those utilized for qPCR to measure viral loads in plasma. A reaction mixture containing 200 ng of DNA was made using the One-Step RT-ddPCR Advanced Kit for Probes (Bio-Rad, Hercules, CA, USA). Microdroplets were generated using the QX200 Automated Droplet Generator (Bio-Rad, Hercules, CA, USA). Plates were sealed with the PX1 PCR Plate Sealer (Bio-Rad, Hercules, CA, USA) prior to PCR. Target DNA was then amplified with the C1000 Touch Thermal Cycler (Bio-Rad, Hercules, CA, USA) using the following conditions: 1 cycle 48 °C for 1 h, 1 cycle 95 °C for 10 min, 40 cycles 95 °C for 30 s and 60 °C for 1 min, and 1 cycle 98 °C for 10 min. After amplification, the plate was read on a QX200 Droplet Reader (Bio-Rad, Hercules, CA, USA) to determine the number of PCR-positive droplets vs. PCR-negative droplets in the original sample. Data acquisition and quantification was performed using QuantaSoft Software (Bio-Rad, Hercules CA, USA).
RNAscope analysis was performed on 7-μM tissue sections from OCT frozen tissue using a predesigned ZIKV probe (Advanced Cell Diagnostics, Hayward, CA, USA). Tissues were subjected to pretreatment, hybridization, and detection according to manufacturer’s instructions, followed by counterstaining using hematoxylin. A RM-specific PPIB probe was utilized as a negative control.
4.7. Peripheral Blood Mononuclear Cell Isolation and Flow Cytometry
Peripheral blood mononuclear cells (PBMCs) were isolated from heparinized whole blood using standard Ficoll-Hypaque centrifugation procedure [55
]. PBMCs were cryopreserved and subsequently thawed for flow cytometry analysis. Briefly, cells were washed with staining buffer containing 1× PBS and 10% FBS. Cells (1 × 106
) were stained with either the UV Blue live dead marker for the T-cell/B-cell/natural killer (NK)-cell panel or Zombie green dyes for the monocyte/dendritic cell/plasmablast panels. Subsequently, for the T-cell/B-cell/NK-cell panel, surface staining was performed using: CD3 Alexa Fluor700 (clone SP34.2), CD8 V450 (clone RPA-T8), NKG2A PE (clone Z199; Beckman Coulter, Brea, CA, USA), CD95 PECy5 (clone DX2), CD38 FITC (clone HB7), PD-1 PECy7 (clone EH12.1), CD20 APC-Cy7 (clone L27), HLA-DR BV500 (clone G46-6), and CD28 PE Texas Red (clone CD28.2; Beckman Coulter, Brea, CA, USA). For this panel, Ki67, PD-1, CD38, and CD95 Fluorescence minus one (FMOs) were prepared to ensure accurate discrimination of these markers. For monocyte/dendritic cell/plasmablast panels, we utilized CD1C/CADM1 (clone 3E1) that was subsequently conjugated to FITC. We also utilized CD11c pe-Cy7 (clone 39), CD16 BV711 (clone 368), CD123 Percp Cy 5.5 (clone 763), CD80 PE (clone L307.4), CD14 Pac Blue (clone M5E2), CD3 Alexa Flour 700 (clone SP34.2), CD20 APC Cy7 (clone L27), HLA-DR PE Texas Red (clone TU36; Thermo Fisher, Waltham, MA, USA), CD8 BV650 (clone RPA-T8), and Ki67 Alexa Flour 647 (clone B56). Fluorescent Minus One (FMO) tubes were created for PD-1, CD38, Ki67, CADM1/CD1C, and CD11C. After staining, both panels were incubated for 30 min in the dark at room temperature. The frequency of T cells, B cells, and monocytes was determined by immunostaining 1 million cells with two different antibody cocktails for 30 min in the dark at room temperature. All antibodies were procured from BD Biosciences, San Jose, CA, USA, unless otherwise indicated. After staining, cells were washed once with FACS wash buffer (1× PBS containing 10% FBS), resuspended in 2% paraformaldehyde, and incubated in the dark for 30 min. Data acquisition was carried out using the BD FACS Diva software on the BD LSRII green flow cytometer within 24 h of staining and fixation. The acquired data was analyzed using FlowJo software version 10.1. The gating strategies for CD11C hi MDCs and monocytes are illustrated in Supplementary Figure S1
. Likewise, the gating strategies for CD8+
T cells and B cells are shown in Supplementary Figure S2
. Lastly, the gating strategies for NK cells are illustrated in Supplementary Figure S3
4.8. Statistical Analysis
To study differences in cellular phenotypes arising from IVAG versus sub Q routes of infection, we carried out multiple T-tests at different time points. The final values obtained were post-test corrected using Benjamini, Krieger, and Yekutieli’s two-stage linear step up procedure. All P values less than 0.05 were considered statistically significant.
4.9. Accession Numbers
ZIKV virus strain PRVABC59; gene bank accession number KU501215.
