Evaluation of Multi-Target Genotyping (ITS-hsp70-cpb) for Detecting Population Heterogeneity Within Mediterranean Leishmania infantum, with a Focus on Zymodeme MON-24

by
Trentina Di Muccio
1,*,
Daniele Tonanzi
2,
Gert Van der Auwera
3,
Eleonora Fiorentino
1,
Luigi Gradoni
1,
Marina Gramiccia
1,† and
Giuseppe La Rosa
2,†
1
Unit of Vector-Borne Diseases, Department of Infectious Diseases, Istituto Superiore di Sanità, Viale Regina Elena 299, 00161 Rome, Italy
2
European Union Reference Laboratory for Parasites, Department of Infectious Diseases, Istituto Superiore di Sanità, Viale Regina Elena 299, 00161 Rome, Italy
3
Institute of Tropical Medicine, 2000 Antwerp, Belgium
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Pathogens 2026, 15(2), 145; https://doi.org/10.3390/pathogens15020145
Submission received: 22 December 2025 / Revised: 23 January 2026 / Accepted: 26 January 2026 / Published: 29 January 2026
(This article belongs to the Section Parasitic Pathogens)
Browse Figure
Versions Notes

Abstract

L. infantum and L. donovani, distinct species in the L. donovani complex, show high phenotypic and genotypic polymorphism and share molecular traits. Therefore, genotyping by a single molecular target can give uncertain results. This study focuses on genotyping a set of L. donovani complex strains, including 18 zymodemes classified according to Montpellier nomenclature (ZMONs) and different clinical forms, by internal transcribed spacer (ITS), heat shock protein 70 (hsp70), and cysteine proteinase b (cpb) sequencing to evaluate their ability in species discrimination. We found an unexpected L. infantum hsp70 variability, with 8 sequence variants. Cpb-PCR could not distinguish L. donovani complex species, due to a L. infantum intraspecific allelic (cpbEF) polymorphism. By combining ITS-hsp70-cpb sequence variants, we obtained different genotypes. ITS(A)-hsp70inf(2)-cpbE identified 69.9% of L. infantum strains representing 12 ZMONs from Mediterranean visceral and cutaneous cases, ITS(A)-hsp70inf(2)-cpbF identified a non-ZMON-1 cluster. Four genotypes represented ZMON-24: ITS(A, B)-hsp70(Y)-cpbF identified a cutaneous cluster from Italy and North Africa, ITS(A, Lombardi)-hsp70(2)-cpbE identified cutaneous and visceral cases from Mediterranean areas. We believe this study contributes to an overview of L. infantum variant populations, and to the discussion on diagnostic targets, in single or multi -target-based approaches, to identify Leishmania populations in the Mediterranean area.

1. Introduction

Leishmaniasis is considered a neglected infectious disease that affects, kills or disables millions of people worldwide [1,2]. The disease affects both humans and animals and is caused by protozoan parasites of phagocytic cells belonging to Leishmania genus (Kinetoplastida, Trypanosomatidae) transmitted by bite of several sandfly Phlebotomus species. In the WHO European Region, the estimated number of visceral (VL) and cutaneous (CL) leishmaniasis cases is 1100–1900 and 10,000–17,000 cases per 100,000 population, respectively [3]. In this region, leishmaniasis is considered emergent and re-emergent due to different epidemiological factors such as human immunodepression, human migration, transport of infected animals, climate and environmental changes which affect the vectorial capacity and geographic distribution of sandfly populations [4,5].
Leishmania infantum (L. donovani complex) is the main agent of zoonotic VL in Mediterranean areas where dogs represent the main reservoir hosts for human infection. It has long been considered a viscerotropic species, but many cutaneous cases have been recorded throughout the Mediterranean basin which were mostly attributed to dermotropic variants of L. infantum, according to isoenzyme based-classification of parasite populations known as Montpellier zymodemes (ZMON) [6,7,8,9,10].
Clinical manifestations of the human leishmaniasis are highly polymorphic including asymptomatic infections, spontaneously healing localized skin nodules or cutaneous ulcers (cutaneous leishmaniasis, CL), multiple nodules (diffuse cutaneous leishmaniasis, DCL), infection of the mucous membranes (mucosal leishmaniasis, ML), and serious systemic visceral forms (visceral leishmaniasis, VL) which have a high mortality rate if not treated. Hosts’ immune response and cell-mediated immunity establish the outcome of the disease. Immunodeficiency syndromes from human immunodeficiency virus (HIV) infection, immunosuppressive treatments, and organ transplantation or malnutrition in childhood are major risk factors for VL by L. infantum [11,12,13]. Occasionally, VL may also exhibit epidemic characteristics among immunocompetent adults without natural acquired immunity to the parasite [3,8,14].
Leishmania identification has important implications both clinical and epidemiological in disease control and prevention, considering the emergence and re-emergence of Leishmania in different Mediterranean areas and the possible introduction of new species and variants [15,16,17,18,19,20,21,22]. Some genetic evidence can affect the molecular identification of Leishmania species. In fact, in this area, L. infantum shows a high polymorphism highlighted in the past by Multilocus Enzyme Electrophoresis (MLEE) typing [6,7,8,9,10] and more recently by molecular and genomic typing tools, such as Multi Locus Sequence Typing (MLST), Multilocus Microsatellite Typing (MLMT), and Next Generation Sequencing (NGS) [23,24,25,26,27,28,29,30,31]. Moreover, different hybrids such as L. infantum/L. major and L. infantum/L. donovani have been also demonstrated [32,33]. Therefore, the single marker-based approach can display uncertain results in close species, such as L. infantum and L. donovani, which are not clearly distinguished from a genetic point of view, given that they are known to form a continuum of populations in L. donovani species complex [34,35]. Consequently, the validation of different molecular targets and approaches should be considered as an ongoing process, and it should be evaluated in different epidemiological and geographical settings, considering phenotypic and genotypic polymorphisms, as well as the high genomic plasticity and adaptive capacity of Leishmania parasites [36,37].
For these reasons, the aim of this study was to genotype L. donovani complex strains by the most widely used diagnostic targets such as internal transcribed spacers ITS1 and ITS2 (ITS), heat-shock protein 70 (hsp70) and cathepsin L-like cysteine proteinase B (cpb) genes [38,39,40,41,42] also by combining ITS-hsp70-cpb sequence variants to gain more informative genetic data on L. infantum populations. For that, we selected a representative set of L. donovani complex strains, isolated over a 30-year period from CL and VL cases, occurred either as sporadic clinical episodes or during disease outbreaks, in order to account not only for the intraspecific variability, but also to rule out geographical bias due to the focal epidemiological aspect of this disease. We believe that our findings can contribute to the discussion on the variability and utility of these specific molecular targets, in single and multi-target-based approaches, in identifying Leishmania populations in the Mediterranean region.

2. Materials and Methods

2.1. Ethics Statement

Ethical review and approval were not required, as genome sequence analysis on Leishmania isolates is part of surveillance activities, conducted within the scope of the public health practice in Italy. Human clinical samples were collected and analyzed within the mandate of the Department of Infectious Diseases of Istituto Superiore di Sanità (ISS) as conferred by the Italian Ministry of Health (Protocol number 33122-14/10/2020-DGPRE-DGPRE-P ‘Prevention and control of Leishmaniasis in Italy’). Patient’s informed written consent was obtained from all subjects at the time of the clinical examination. Patient information was anonymized and de-identified prior to analysis, according to the European Union General Data Protection Regulation (Regulation (EU) 2016/679) (https://eur-lex.europa.eu/eli/reg/2016/679/oj, accessed on 30 November 2023) adopted by ISS (www.iss.it) and in agreement with the Data Protection Officer of ISS.

2.2. Samples

A total of 88 strains has been studied. Eighty-six strains were previously isolated, cultured and cryopreserved at Istituto Superiore di Sanità in Rome, during a period between 1982 and 2017. Leishmania strains originated from different geographical areas, from the main medical forms of Leishmaniases (VL, CL, and DCL), isolated from human cases of all clinical categories (infants, adults, immunocompetent and immune compromised patients); a few strains from animal hosts (dog, cat and Phlebotomus sand flies) were included. As shown in Table S1A, all the strains have been classified by ITS sequencing according to Kuhls et al., 2005 and Chicharro et al., 2013 [14,43]: 82 L. infantum strains from Mediterranean areas (n = 68 from Italy, n = 10 from Spain, n = 1 from Malta, n = 3 from North Africa) and 4 L. donovani strains from Africa (Table S1A). Furthermore, 2 reference strains were included in the analysis: L. infantum MHOM/DZ/82/LIPA59-ISS182 from Algeria, and L. donovani MHOM/IN/80/DD8-ISS46 from India. A total of 72 out 88 strains, previously typed by MLEE, were representative of 15 L. infantum ZMONs and 3 L. donovani ZMONs [7,8]. In Table S1B, we summarized the analyses (MLEE, sequencing, RFLP, dendrogram, PCoA) performed for each strain.

2.3. DNA Extraction and Amplification

The genomic DNA from 106 promastigote cultures in EMTM [44] was prepared by the DNA extraction protocol of the Maxwell® 16 Cell DNA Purification Kit (Promega, Medison, WI, USA) following the manufacturer’s instructions. The DNA concentration was measured spectrophotometrically. The DNA was stored at −80 °C until use.
All the PCRs were performed in volumes of 50 µL of PCR mixture (GoTaq Green Master Mix, 2X Promega) using 2 µL of DNA (5–10 ng) and 1 µL of the appropriate primer pair for each of the three markers selected. The PCRs were performed in the C1000 Thermal Cycler (BIORAD, Hercules, CA, USA). A 2% agarose gel was used to verify the amplified product size.
The ITS1-5.8S-ITS2 cluster (here named ITS) was amplified by LITSV and LITSR primers, according to the amplification conditions described by El Tai et al., (2000) [45] with some modifications: initial denaturation at 95 °C for 5 min followed by 34 cycles consisting of denaturation at 95 °C for 20 s, annealing at 53 °C for 30 s, and extension at 72 °C for 1 min followed by a final extension cycle at 72 °C for 10 min in a single PCR reaction.
For all strains, the F-fragment of the hsp70 gene was amplified by using 20 pmoles of each primer F25 and R1310 [40]. The hsp70-F fragment RFLP assay was performed to discriminate L. donovani and L. infantum, as proposed by Montalvo et al. (2012) [40]. The digestion was performed in a total of 20 μL containing 5 μL of the PCR products in 1x buffer provided by the manufacturers, and 5U restriction enzyme MluI (Promega). The reactions were incubated at 37 °C overnight and analyzed by electrophoresis in 3% agarose gel (Promega). When uncertain, the PCR-RFLP assay was repeated to ensure the repeatability of the results.
Different copies of the cpb gene were amplified by using specific primers CpbEF-for and CpbEF-rev. This PCR was described as discriminative between the L. donovani and L. infantum species, amplifying the copies cpbF (741 bp) and cpbE (702 bp), respectively [46].

2.4. Sequencing and Genetic Analysis

The three markers (ITS, hsp70 and cpb) were amplified in triplicate from each strain and the independent PCR products were sequenced by using the same primers used in the amplification reactions in both directions. The final forward/reverse consensus was produced by CLC Main Workbench software package ver.23 (Qiagen Aarhus A/S). Only the sequences showing reproducible results were submitted in GenBank at NCBI.
The ambiguous nucleotides have been codified using IUPAC code. The heterozy-gous positions, identified by a double peak in the chromatogram, were distinguished from a poor sequence quality if the peaks were of similar height, or the lower peak was at least 50% of the highest or considerably higher than the background noise in the rest of the chromatogram, and if the double peak was present in sequencing results from both directions. All the hsp70 and cpb sequences were aligned using the multiple alignment tool implemented in CLC package and were manually adjusted to maximize identity in presence of microsatellites (ITS) and indels (cpb). Before analysis, the multiple alignments were trimmed at the 3’ and 5’ ends to the sequence fragment shared by all samples.
Each ITS sequence was typed by comparing it to an “ITS-types” set of L. infantum and L. donovani, previously classified by using the sequence polymorphisms of the 12 microsatellite regions, including four sites in ITS1 and eight sites in ITS2 [14,43]. The hsp70 and cpb sequences were compared to well-characterized reference sequences [29,47,48] retrieved from GenBank at NCBI.
A dendrogram of cpb was built to evaluate the genetic relationships among the L. donovani complex strains with respect to this molecular target. Sequences of cpbEF were retrieved from Genbank with BlastN, using as query the sequences obtained in this study. Sequences that showed a similarity of less than 95% with the query, containing frameshift mutations or several ambiguous nucleotides, were not selected for the analysis. Multiple alignment including 61 sequences from Genbank and the 23 from this study were used. The dendrogram was based on p-distances by using the Neighbor-joining method with MEGA version 7.0 (megasoftware.org). The bootstrap value for each node was computed using 2000 replicates.
The Principal Coordinates Analysis (PCoA) was performed to investigate the rela-tionships among the Leishmania strains sub-set including the 23 strains for which ITS, hsp70 and cpb sequences were available. The PCoA does not need any a priori assumption on substitution model for nucleotide evolution and each nucleotide position is treated as a phenetic character with two characters states (presence “1” and absence “0”). The PCoA was performed by Past software version 4.14 [49] using the Jaccard’s index to compute the phenetic similarity matrix among strains. The default value of Transformation Exponent (c = 2) was applied. The input binary data table used to compute the PCoA was produced including as character each variable nucleotide position present in the multiple ITS, hsp70, and cpb alignment and codifying as presence/absence each alternative nucleotide (Table S3). The Indel in cpb, spanning up to 39 bp, was codified as a single character (i.e., single mutational event) and the same was for variable microsatellites in ITS (i.e., occurrence of alternative repeat was considered as a single event). The multidimensional space produced by the analysis and describing the relationships among the Leishmania strain was summarized by the two graphics defined by the three main coordinates (i.e., axes). The sequences of L. infantum MHOM/FR/78/LEM75 strain available in GenBank (accession numbers: AJ634339—ITS, LN907838—hsp70 and AY896781—cpbE) were also included in the analysis as reference.

3. Results

The genetic variability shown by the ITS, hsp70 and cpb sequences was used to address key diagnostic, epidemiological and population genetic issues regarding our 88 strains. The GenBank accession numbers are listed in Table S1A.
ITS displayed well-known L. infantum ITS-A, ITS-B and ITS-Lombardi genotypes, widespread in Mediterranean areas including North Africa, and on the other hand L. donovani ITS-E and ITS-H from East Africa and India [14,43]. Four ITS-B var, A/B var, E var sequence variants were observed (Table S1A).
Eighty-eight hsp70 sequences were obtained. The consensus sequences were identified as belonging to L. donovani complex species by a Blast search in GenBank at NCBI. The multiple sequence alignment of 1019 bp displayed a genetic variability due to nine polymorphic sites that gave 9 sequence variants with respect to the sequence of the reference strains L. donovani MHOM/KE/55/LRC-L53 (MN728785) and L. infantum MHOM/FR/78/LEM75 (LN907838) (Tables S1 and S2). The percentage of identity in intraspecific pairwise comparison was 100% in L. donovani and spanning from 99.75% to 100% in L. infantum. The sequence variants hsp70don(1) (n = 5/5, 100% of the L. donovani strains) and hsp70inf(2) (n = 67/83, 80.7% of the L. infantum strains) displayed 100% identity with L. donovani and L. infantum reference sequences, respectively. In contrast, the sequences inf(3–9) displayed different variant nucleotide positions (Table S2).
The most relevant sequence variants were inf(6–9), which identified 48% (n = 12/25) of the L. infantum ZMON-24 strains. They displayed variant nucleotides in 3 positions (266, 370, and 888) and were characterized by a heterozygous condition with Y (T/C) in the species-specific site 370, present in one of two MluI restriction sites (ACGCGT), proposed by Montalvo et al., (2012) [40] to discriminate L. infantum from L. donovani by RFLP assay (Table S2). Therefore, the reliability of this assay was evaluated on all the samples. The triple band pattern (117, 389, 780 bp), typical of L. infantum sp., was observed in 85.5% (n = 71/83) of the L. infantum strains. A double band pattern (117 and 1169 bp), typical of L. donovani sp., was observed in 100% (n = 5/5) of the L. donovani strains, as expected. In contrast, a L. infantum/L. donovani mixed pattern, with 4 restriction products (117, 389, 780 and 1169 bp) common to the two species, was found in 14.5% (n = 12/83) of L. infantum strains, referring to the sequence variants inf(6–9) (Figure S1). This pattern was due to the possible overlap of two hsp70 alleles, in the heterozygous position Y (Figure S2). For this reason, we referred to the sequence variants inf(6–9) as inf(Y).
The cpb-PCR of the 88 samples evidenced the presence of the copy cpbE (702 bp) in 67 out of 83 (80.7%) L. infantum strains; the copy cpbF (741 bp) was detected, not only in 5 L. donovani strains, as expected, but also in 16 L. infantum strains (19.3%), classified as zy-modems MON-24 (n = 12 strains), MON-187 (n = 1), MON-189 (n = 1), and MON-190 (n = 2) (Table S1A).
By combining the ITS-hsp70 sequence variants and the copies cpbE and cpbF, 14 ITS-hsp70-cpb sequence variants were generated and here indicated as a “genotype” (Table 1).
Geographical distribution of the genotypes A–H was depicted on the MicroReact Map. The whole dataset can be downloaded and explored interactively in the MicroReact platform (https://microreact.org/project/iss, accessed on 30 November 2025) [50]. The genotype C was found in 69.9% (n = 58/83) of L. infantum strains belonging to 12 zymodemes from Mediterranean areas. Furthermore, the genotype H was found in ZMON-187, ZMON-189, and ZMON-190 zymodemes. Interestingly, at least 4 genotypes (C, E, F, and G) represented ZMON-24: F and G identified CL cases from Italy and North Africa, instead the genotypes C and E identified VL and CL cases from Mediterranean areas.
Consequently, in order to provide an accurate overview of the genetic relationships among the ZMON-24 strains, we sequenced cpbE and cpbF for 19 of them, along with one L. infantum ZMON-1 (ISS3176), ZMON-187, L. donovani ZMON-30 (ISS2440), and ZMON-18 (ISS50) strains (the sequence accession number in Table S1A). The alignment of 704 bp displayed a genetic variability due to sixteen polymorphic sites and one 39 bp gap that returned 7 sequence variants: cpbF(1–4) and cpbE(1–3), 5 of them detected in ZMON-24 strains (column CpbEF Seq(var) in Table S1A). Most of the variability was due to the presence of L. donovani strains (ISS50 and ISS2440), differing in identity percentage from all the other L. infantum strains from 98.15% to 98.43%. The identity percentage in the intraspecific pairwise comparison was 100% in L. donovani, while it was between 99.29% and 100% in L. infantum.
As shown in the dendrogram in Figure S3, our strains were grouped into seven clusters of identical sequences. The L. infantum cpbE(1–3) sequence variants clustered with the CL and VL L. infantum cluster (ZMON-1, ZMON-24, ZMON-80) from the Mediterranean area (France, Spain, Tunisia, and Algeria), previously described [47,48]. On the contrary, the sequences cpbF(1) clustered with L. donovani strains from East Africa, whereas the sequence variants cpbF(2–4) were grouped with L. infantum strains from North Africa, among which ZMON-24 CL strains (see Table S5).
By looking at multidimensional PCoA, we observed the genetic relationships among these 23 sequence variants of ITS-hsp70-cpb by studying three coordinates that accounted for 93.3% of the total variance (coordinate 1 = 54.3%, coordinate 2 = 33.9% and coordinate 3 = 5.1%) (Table S3). The most probable groupings are shown in Figure 1a,b. The analysis obtained by using the coordinates 1 vs. 2 (total variance 88.2%) (Figure 1a) grouped the strains into 3 main clusters: Cl 1 including L. donovani strains, characterized by ITS(E)-hsp70don(1)-cpbF(1); Cl 2, including only cutaneous L. infantum ZMON-24 strains from Italy and North Africa, characterized by hsp70inf(Y) and cpbF(3–4); Cl 3, in-cluding ZMON-24 VL, CL and DCL, and ZMON-1 VL cases (including MHOM/FR/78/LEM75 L. infantum reference strain, ZMON-1), characterized by hsp70inf(2) and cpbE(1–2). Finally, the ZMON-187 strain (Cl 4) was separated from the other ones, due to the unique combination of hsp70inf(2) with cpbF(2).
Furthermore, in the graphic obtained by the coordinates 1 vs. 3 (total variance 39.0%) (Figure 1b), Cl 2 was divided in 2 sub-clusters: I, represented by CL strains from Italy, exhibiting cpbF(3), II represented by strains from Italy and North Africa, exhibiting cpbF(4). Cl 3 resulted divided into 3 sub-clusters: I and II, including European L. infantum ZMON-1 and ZMON-24 from Italy and Spain, respectively, all strains with the cpbE(1), while the cluster III included all the L. infantum ZMON-24 from Italy and North Africa, with cpbE(2). Again, the Italian L. infantum ZMON-187 strain remained separated.

4. Discussion

Our study focused on integrating genetic variability data by sequencing diagnostic targets that have been extensively studied in Leishmania, such as ITS, hsp70, and cpb, to identify strains from Mediterranean areas. Moreover, we described different Leishmania populations with a multi-targets-based approach by combining the sequence variants of ITS-hsp70-cpb and obtaining 8 “genotypes” (A–H) (Table 1).
By examining each marker individually, we can highlight some aspects. Our sequence analysis of ITS target allowed a Leishmania species classification of our strains, showing well known geographic L. infantum populations (genotypes ITS-A, ITS-B, and ITS-Lombardi), widespread in the Mediterranean area including North Africa, and L. donovani populations (genotypes ITS-E and ITS-H) from East Africa and India [14,43]. There was no evidence of a clear correlation between ITS genotypes and either enzyme populations, hosts, or clinic.
The hsp70 gene sequence is widely accepted as a tool for discrimination of medically important Leishmania species from the Old and New World, due to the high conservation observed within L. donovani complex genomes from different geographic regions [40,41,51]. In our study, we found an unexpected intraspecific variability in the Mediterranean L. infantum strains, proven by 8 hsp70 F-fragment sequence variants, while confirming hsp70 its validity as a genotyping target of Leishmania species genotyping target. The most represented variant hsp70inf(2), displaying 100% identity with the L. infantum LEM75 reference strain, identified 80.7% of L. infantum strains, including all the 15 zymodemes studied. However, we detected 4 sequences (i.e., inf(6–9)), referred to as inf(Y), that are characterized by their common heterozygous position (Y = C/T) at the species-specific site distinguishing L. donovani from L. infantum. Standard conditions have been applied to perform reliable sequences and exclude sequencing artefacts (see Section 2.4); moreover, the RFPL results supported the proof that this position could highlight the presence of two hsp70 alleles, as already reported in several Leishmania species [32,52]. However, heterozygosity should be further investigated. Therefore, these strains will be analyzed by a low-coverage whole-genome sequencing (WGS) to evaluate the possible hybrid status.
A BLAST search in GenBank at NCBI (https://blast.ncbi.nlm.nih.gov/Blast.cgi, accessed on 28 July 2023) showed the originality of this hsp70-F fragment sequence variants that, according to our analysis, was specific of a ZMON-24 sub-cluster of Italian and African strains (n = 12) with cutaneous feature. Therefore, the sequence hsp70inf(Y) and/or the RFLP assay, which showed a reproducible and specific pattern, can represent possible rapid typing assays able to identify a L. infantum ZMON-24 sub-cluster. The correlation between this hsp70inf(Y) sequence variant, the cutaneous presentation, and geographic origin should be evaluated with additional samples. Meanwhile, we found, from previous works by Gritti et al., (2023, 2025) [53,54] in the Emilia-Romagna region (Italy), some original L. infantum hsp70 fragment sequence variants from CL cases, displaying heterozygous position Y, consistent with ZMON-24, historically present in this area [7,8].
The cpb gene is considered an efficient marker to discriminate between Leishmania species [38,54], based on PCR-size polymorphism. However, we highlighted intraspecific polymorphism (cpbE and cpbF) within our L. infantum strains. In fact, in some L. infantum zymodemes (i.e., ZMON-24, ZMON-187, ZMON-189, ZMON-190) we detected (by cpb-PCR assay) the copy cpbF, known to be specific of L. donovani, as also described in some L. infantum populations in Tunisia, Algeria, and recently in North Italy [48,54,55,56,57]. Therefore, the cpb-PCR size polymorphism is not a useful assay to distinguish L. donovani from L. infantum. The sequencing of 23 L. infantum and L. donovani strains displayed 7 cpbEF sequence variants (Table S1A). As we showed in the cpb dendrogram (Figure S3), the sequences variants cpbE(1–3) indicated an L. infantum cluster of strains from Mediterranean areas, whereas cpbF was not exclusive of L. donovani sp., but indicated a L. donovani complex cluster, with the sequence variants cpbF(1) and cpbF(2–4) identifying L. donovani and L. infantum strains, respectively (Table S5). Therefore, the validity of cpb sequencing as a L. infantum population genetic marker should be evaluated by a more comprehensive study.
The multi-target-based diagnostic approach, obtained by combining the ITS-hsp70 sequence variants and the copies cpbE and cpbF, allowed a more accurate identification of Leishmania populations than the single-target-based approach. We found that the geno-type C was the most represented in our samples, identifying 68.2% of L. infantum strains, which belonged to 12 zymodemes from the Mediterranean area (see Microreact Map at https://microreact.org/project/iss) (accessed on 30 November 2025) [50]. On the contrary, cpbF, in combination with the sequence variant hsp70inf(Y) (genotypes F and G), detected a ZMON-24 sub-cluster of CL cases, not ITS(Lombardi). In addition, cpbF, in combination with the reference sequence hsp70inf(2) (genotype H), identified a non-ZMON-1 cluster (i.e., ZMON-187, ZMON-189, ZMON-190). Due to the rarity of these latter zymodemes [7,8,9,10], it is not easy to increase the number of samples for further analyses in an effort to correlate this genotype to specific zymodemes or clusters of zymodemes. However, as part of collaborations with the Leishmaniasis centers of the Mediterranean Countries, we hope to further explore this issue.
With respect to the correlation of ZMONs with genotypes ITS-hsp70-cpb, we ob-served that L. infantum ZMON-1 was not very heterogeneous, being represented by gen-otype C, detected in 89.3% (n = 25/28) of strains (identical to the reference strain LEM75). In contrast, ZMON-24 (n = 25 strains) seems to be a polymorphic zymodeme, being identified by 6 genotypes, of which the most represented were C, E, F, and G (Table 1).
Moreover, the multi-target approach unveiled additional genetic populations in ZMON-24, whose relationships, also with respect to ZMON-1 and L. donovani, were inferred by PCoA analysis. Heterogeneous clinical, geographic and genetic aspects of the ZMON-24 sub-populations were evaluated: ITS(A)-hsp70inf(2)-cpbE(1, 2) identified all the most serious clinical cases, such as VL (with concomitant CL in HIV co-infection) and DCL, along with ITS(Lombardi)-hsp70inf(2)-cpbE(1), including both CL and VL cases, from all over the Mediterranean area. These genotypes were closer, if not identical, to those of ZMON-1. In contrast, ITS(A, B)-hsp70inf(Y)-cpbF(3, 4) included only ZMON-24 CL cases. The cpbF sequence variants further differentiated the exclusively Italian L. infantum strains, cpbF(3), from those in cluster Italy and North, cpbF(4) (Figure 1). A low-coverage whole-genome sequencing (WGS) of our strains, in particular of ZMON-24, is currently being performed to characterize these L. infantum populations and to evaluate its consistency with our typing by ITS-hsp70-cpb in a more comprehensive study.
Regarding the clinical correlation of ZMON-24 findings, different zymodemes are related to changes in biological features, such as clinical manifestation and virulence [58,59]. ZMON-24, widely spread in South Europe and North Africa, has been considered for a long time an isoenzymatic population with a dermotropic character, causing VL only in HIV-co-infected patients, and sporadically in children [59,60,61,62,63]. Researchers in previous studies, showed that some VL and CL ZMON-24 strains from Tunisia and Algeria, ana-lyzed by MLMT and cpb sequencing [47,48,64], could be divided into two genetic pop-ulations with clinical correlation. They also discussed whether this was a general trait of these populations, or a spurious association caused by geographical sampling bias. Our study, by different molecular targets, seems to confirm these observations. We also draw some conclusions from a speculative point of view.
First, in our sample set, L. infantum ZMON-24 includes two main genetic populations correlated to clinical characteristics. Hsp70inf(Y)-cpbF population could be a distinct evolutionary lineage within the L. donovani complex, originated in Africa and spread across the Mediterranean region (e.g., Algeria, Tunisia, Morocco, and Italy). This population could be a dermotropic variant of a normally viscerotropic species, although it inevitably causes VL in patients with HIV/Leishmania co-infections, such as ISS417 strain [7,57,60,64]. In contrast, the ZMON-24 population hsp70inf(2)-cpbE, closer to ZMON-1, appears virulent, causing VL in adult and children, immunocompetent and, more frequently, HIV-positive patients (8 strains) (Table S1A). These conclusions lead to the hypothesis that the clinical manifestation of ZMON-24 could also depend on its genetics, in addition to the host’s immunological state. Additional strains of different ZMON-24 CL and VL genotypes need to be investigated in order to better understand the role of parasite fitness and host susceptibility.
Second, it must be considered that discriminatory power of MLEE is limited, because genotypes are assayed indirectly, since synonymous nucleotide substitutions may not be observed and different allozymes may have coincident mobility. In contrast, despite identical genotypes, post-translational modifications may influence the electrophoretic mobility of the proteins [65]. Consequently, the ZMON-24 strains with genotype ITS(A, Lombardi)-hsp70inf(2)-cpbE(1) could be considered closer to L. infantum ZMON-1 viscerotropic strains, as highlighted by sequence analysis.
This study has some limitations. As already mentioned, it should be noted that our interpretation of the clinical–genetic correlations of the different molecular Leishmania populations was somehow speculative. Indeed, the correlation of specific molecular traits with zymodemes or clinical features requires more robust evidence, in terms of number of strains, and molecular approaches. More robust approaches will also be needed to assess the heterozygous status of some ZMON-24 strains. Moreover, due to the possible geographical sampling bias of our clinical samples, which are a retrospective collection (not representative of all the Mediterranean endemic areas), the actual spread of the described genotypes is not comprehensive. Nevertheless, this study can provide an overview of different genotypes, which were obtained by a multiple-target-based approach, and address the significance of some L. infantum sequence variants for each target detected in Mediterranean areas, linking them with specific zymodemes.

5. Conclusions

The wide heterogeneity of the Mediterranean L. infantum strains returned a molecular polymorphism through well validated species-specific molecular markers. Our results have confirmed the ITS and hsp70 validity as markers in Leishmania species genotyping; however, new L. infantum hsp70 variants have been described, and their correlation with specific L. infantum populations should be further investigated. On the contrary, PCR-cpb size polymorphism was found to be an ineffective species-specific marker in the Mediterranean area for the L. donovani complex species, showing an L. infantum intra-specific size polymorphism due to the detection of both copies cpbE and cpbF. However, a more comprehensive study will test whether the cpb sequencing can be used as a geographic marker for L. infantum. Although our multi-target approach does not allow for in-depth identification compared to other molecular approaches, it can easily and quickly distinguish several Leishmania populations. Finally, due to the Leishmania genetic heterogeneity detected by hsp70 and cpb, the leishmaniasis typing protocols should, in our view, provide a combination of these markers, associated with ITS, in the Mediterranean areas.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/pathogens15020145/s1, Table S1: (A) Eighty-eight L. donovani complex strains analyzed in this study with information about geographic origin, clinic, biochemical and molecular characterization, and accession numbers at GenBank, (B) Overview of the analyses (MLEE, se-quencing, RFLP, dendrogram, PCoA) performed for each strain; Table S2: Description of the polymorphic nucleotide positions of the hsp70 F-fragment sequence of 88 L. donovani complex strains from the Mediterranean area; Table S3: Data used to analyze the relationships among 24 Leishmania donovani complex strains, (A) Multiple Alignment, (B) Binary Table, (C) Jaccard’s in-dex, (D) PCoA coordinates; Table S4: Addendum of the Figure 1 legend; Table S5: Sequence-related information of the Leishmania strains present in the cpb dendrogram retrieved from Genbank; Figure S1: Hsp70 F-fragment PCR-RFLP analysis; Figure S2: Hsp70 sequence electropherograms with indication of MluI restriction site and heterozygous site; Figure S3: Dendrogram of cpb sequences with indication of sequence types E1–E2 and F1–F4. https://microreact.org/project/iss (accessed on 30 November 2025).

Author Contributions

Conceptualization, T.D.M., G.L.R., M.G.; methodology, T.D.M., D.T., E.F.; software, G.L.R., D.T., G.V.d.A.; formal analysis, T.D.M., G.L.R., G.V.d.A.; resources, T.D.M., M.G., L.G.; data curation, T.D.M., M.G., G.L.R., G.V.d.A.; writing—original draft preparation, T.D.M.; writing—review and editing, G.V.d.A., M.G., G.L.R., L.G., E.F.; visualization, T.D.M., G.L.R., G.V.d.A., D.T.; funding acquisition, GM, T.D.M., G.L.R. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by EU funding within the NextGeneration EU-MUR PNRR Extended Partnership initiative on Emerging Infectious Diseases (Project no. PE00000007, INF-ACT).

Institutional Review Board Statement

The study was conducted in accordance with the Declaration of Helsinki. The study was approved by the ISS and does not require formal approval from the ethics committee.

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

The sequences reported in this paper were deposited in GenBank database: Accession Numbers shown in Table S1.

Acknowledgments

The authors thank all the Italian collaborating teams who, over a period of 30 years, sent diagnostic samples: Aiassa C., Amerio P., Armignacco O., Beltrame A., Cammà C., Cantonetti M., Caorsi R., Carlesimo M., Coppola M.G., Corbellino M., De Gaetano D., Didona B., Di Martino L., Fatuzzo F., Fazio M., Gaeta L., Gargovich A., Gatti S., Grande R., Ioli A., Limodio M., Maggi P., Marangi M., Nunnari A., Occella C., Oliva G., Pagano G., Petrullo L., Pittau G., Poglayen G., Renna S., Riccio G., Rugna G., Sabbatani S., Satta G., Scaglia M., Toma L. Moreover, the authors thank Hailu A. (Addis Ababa University, Ethiopia), Martin-Sanchez J. (Universidad de Granada, Spain), Ben Ismail R. (Institut Pasteurs, Tunis, Tunisia) for the provided strains.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. World Health Organization. Unveiling the Neglect of Leishmaniasis. Available online: https://www.who.int/news-room/fact-sheets/detail/leishmaniasis (accessed on 24 May 2025).
  2. Ruiz-Postigo, J.A.; Jain, S.; Madjou, S.; Maia-Elkhoury, A.N.; Valadas, S.; Warusavithana, S.; Osman, M.; Yajim, A.; Lin, A.; Beshah, A.; et al. Global Leishmaniasis Surveillance: 2019–2020, a Baseline for the 2030 Roadmap; World Health Organization: Geneva, Switzerland, 2022; pp. 575–590. [Google Scholar]
  3. Gradoni, L.; Lopez-Velez, R.; Mokni, M. Manual on Case Management and Surveillance of the Leishmaniases in the WHO European Region; WHO Regional Office for Europe: Copenhagen, Denmark, 2017. [Google Scholar]
  4. European Centre for Disease Prevention and Control (ECDC). Surveillance, Prevention and Control of Leishmaniases in the European Union and Its Neighbouring Countries; ECDC Technical Report; ECDC: Stockholm, Sweden, 2022. [Google Scholar]
  5. Maia, C. Sand fly-borne diseases in Europe: Epidemiological overview and potential triggers for their emergence and re-emergence. J. Comp. Pathol. 2024, 209, 6–12. [Google Scholar] [CrossRef] [PubMed]
  6. Rioux, J.A.; Lanotte, G.; Serres, E.; Pratlong, F.; Bastien, P.; Perieres, J. Taxonomy of Leishmania. Use of isoenzymes. Suggestions for a new classification. Ann. Parasitol. Hum. Comp. 1990, 65, 111–125. [Google Scholar] [CrossRef] [PubMed]
  7. Gramiccia, M. The identification and variability of the parasites causing leishmaniasis in HIV-positive patients in Italy. Ann. Trop. Med. Parasitol. 2003, 97, 65–73. [Google Scholar] [CrossRef]
  8. Gramiccia, M.; Scalone, A.; Di Muccio, T.; Orsini, S.; Fiorentino, E.; Gradoni, L. The burden of visceral leishmaniasis in Italy from 1982 to 2012: A retrospective analysis of the multi-annual epidemic that occurred from 1989 to 2009. Eurosurveillance 2013, 18, e20535. [Google Scholar] [CrossRef] [PubMed]
  9. Pratlong, F.; Dereure, J.; Ravel, C.; Lami, P.; Balard, Y.; Serres, G.; Lanotte, G.; Rioux, J.A.; Dedet, J.P. Geographical distribution and epidemiological features of Old World cutaneous leishmaniasis foci, based on the isoenzyme analysis of 1048 strains. Trop. Med. Int. Health 2009, 14, 1071–1085. [Google Scholar] [CrossRef]
  10. Pratlong, F.; Lami, P.; Ravel, C.; Balard, Y.; Dereure, J.; Serres, G.; Baidouri, F.E.L.; Dedet, J.P. Geographical distribution and epidemiological features of Old World Leishmania infantum and Leishmania donovani foci, based on the isoenzyme analysis of 2277 strains. Parasitology 2013, 140, 423–434. [Google Scholar] [CrossRef] [PubMed]
  11. Antinori, S.; Cascio, A.; Parravicini, C.; Bianchi, R.; Corbellino, M. Leishmaniasis among organ transplant recipients. Lancet Infect. Dis. 2008, 8, 191–199. [Google Scholar] [CrossRef] [PubMed]
  12. Lindoso, J.A.L.; Moreira, C.H.V.; Cunha, M.A.; Queiroz, I.T. Visceral leishmaniasis and HIV coinfection: Current perspectives. HIV AIDS 2018, 15, 193–201. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  13. Nweze, J.A.; Nweze, E.I.; Onoja, U.S. Nutrition, malnutrition, and leishmaniasis. Nutrition 2020, 73, e110712. [Google Scholar] [CrossRef] [PubMed]
  14. Chicharro, C.; Llanes-Acevedo, I.P.; García, E.; Nieto, J.; Moreno, J.; Cruz, I. Molecular typing of Leishmania infantum isolates from a leishmaniasis outbreak in Madrid, Spain, 2009 to 2012. Eurosurveillance 2013, 8, e20545. [Google Scholar] [CrossRef] [PubMed]
  15. Dujardin, J.C.; Campino, L.; Cañavate, C.; Dedet, J.P.; Gradoni, L.; Soteriadou, K.; Mazeris, A.; Ozbel, Y.; Boelaert, M. Spread of vector-borne diseases and neglect of Leishmaniasis, Europe. Emerg. Infect. Dis. 2008, 14, 1013–1018. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  16. Antoniou, M.; Haralambous, C.; Mazeris, A.; Pratlong, F.; Dedet, J.P.; Soteriadou, K. Leishmania donovani leishmaniasis in Cyprus. Lancet Infect. Dis. 2008, 8, 6–7. [Google Scholar] [PubMed]
  17. Antoniou, M.; Gramiccia, M.; Molina, R.; Dvorak, V.; Volf, P. The role of indigenous phlebotomine sandflies and mammals in the spreading of leishmaniasis agents in the Mediterranean region. Eurosurveillance 2013, 18, 54–61. [Google Scholar] [CrossRef]
  18. Di Muccio, T.; Scalone, A.; Bruno, A.; Marangi, M.; Grande, R.; Armignacco, O.; Gradoni, L.; Gramiccia, M. Epidemiology of Imported Leishmaniasis in Italy: Implications for a European Endemic Country. PLoS ONE 2015, 26, e0129418, Erratum in PLoS ONE 2015, 10, e0134885. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  19. Van der Auwera, G.; Davidsson, L.; Buffet, P.; Ruf, M.T.; Gramiccia, M.; Varani, S.; Chicharro, C.; Bart, A.; Harms, G.; Chiodini, P.L.; et al. Surveillance of leishmaniasis cases from 15 European centres, 2014 to 2019: A retrospective analysis. Eurosurveillance 2022, 27, e2002028. [Google Scholar] [CrossRef] [PubMed]
  20. Özbilgin, A.; Harman, M.; Karakuş, M.; Bart, A.; Töz, S.; Kurt, Ö.; Çavuş, İ.; Polat, E.; Gündüz, C.; Van Gool, T.; et al. Leishmaniasis in Turkey: Visceral and cutaneous leishmaniasis caused by Leishmania donovani in Turkey. Acta Trop. 2017, 173, 90–96. [Google Scholar] [CrossRef] [PubMed]
  21. Özbilgin, A.; Tunalı, V.; Akar, Ş.Ş.; Yıldırım, A.; Şen, S.; Çavuş, I.; Zorbozan, O.; Gündüz, C.; Turgay, N.; İnanır, I. Autochthonous transmission of Leishmania donovani and Leishmania major with all the components of infection cycle at Europe’s doorstep. Acta Trop. 2022, 230, e106385. [Google Scholar] [CrossRef] [PubMed]
  22. Şakru, N.; Özbel, Y.; Töz, S. Refugees/Immigrants and leishmaniasis in the world’s largest hosting country, Türkiye: A systematic review. PLoS Negl. Trop. Dis. 2025, 7, e0012947. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  23. Schönian, G.; Mauricio, I.; Gramiccia, M.; Cañavate, C.; Boelaert, M.; Dujardin, J.C. Leishmaniases in the Mediterranean in the era of molecular epidemiology. Trends Parasitol. 2008, 24, 135–142. [Google Scholar] [CrossRef] [PubMed]
  24. Schönian, G.; Kuhls, K.; Mauricio, I.L. Molecular approaches for a better understanding of the epidemiology and population genetics of Leishmania. Parasitol. 2011, 138, 405–425. [Google Scholar] [CrossRef] [PubMed]
  25. Kuhls, K.; Chicharro, C.; Canavate, C.; Cortes, S.; Campino, L.; Haralambous, C.; Soteriadou, K.; Pratlong, F.; Dedet, J.P.; Mauricio, I.; et al. Differentiation and Gene Flow among European Populations of Leishmania infantum MON-1. PLoS Negl. Trop. Dis. 2008, 2, e261. [Google Scholar] [CrossRef] [PubMed]
  26. Kuhls, K.; Alam, M.Z.; Cupolillo, E.; Ferreira, G.E.; Mauricio, I.L.; Oddone, R.; Feliciangeli, M.D.; Wirth, T.; Miles, M.A.; Schönian, G. Comparative microsatellite typing of new world Leishmania infantum reveals low heterogeneity among populations and its recent Old World origin. PLoS Negl. Trop. Dis. 2011, 5, e1155. [Google Scholar]
  27. Gelanew, T.; Cruz, I.; Kuhls, K.; Alvar, J.; Cañavate, C.; Hailu, A.; Schönian, G. Multilocus microsatellite typing revealed high genetic variability of Leishmania donovani strains isolated during and after a Kala-azar epidemic in Libo Kemkem district, northwest Ethiopia. Microbes Infect. 2011, 13, 595–601. [Google Scholar] [CrossRef]
  28. Gouzelou, E.; Haralambous, C.; Amro, A.; Mentis, A.; Pratlong, F.; Dedet, J.P.; Votypka, J.; Volf, P.; Toz, S.O.; Kuhls, K.; et al. Multilocus microsatellite typing (MLMT) of strains from Turkey and Cyprus reveals a novel monophyletic L. donovani sensu lato group. PLoS Negl. Trop. Dis. 2012, 6, e1507. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  29. Van der Auwera, G.; Ravel, C.; Verweij, J.J.; Bart, A.; Schönian, G.; Felger, I. Evaluation of four single-locus markers for Leishmania species discrimination by sequencing. J. Clin. Microbiol. 2014, 52, 1098–1104. [Google Scholar] [CrossRef]
  30. Rugna, G.; Carra, E.; Bergamini, F.; Calzolari, M.; Salvatore, D.; Corpus, F.; Gennari, W.; Baldelli, R.; Fabbi, M.; Natalini, S.; et al. Multilocus microsatellite typing (MLMT) reveals host-related population structure in Leishmania infantum from northeastern Italy. PLoS Negl. Trop. Dis. 2018, 5, e0006595. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  31. Castelli, G.; Bruno, F.; Caputo, V.; Fiorella, S.; Sammarco, I.; Lupo, T.; Migliazzo, A.; Vitale, F.; Reale, S. Genetic tools discriminate strains of Leishmania infantum isolated from humans and dogs in Sicily, Italy. PLoS Negl. Trop. Dis. 2020, 24, e0008465. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  32. Ravel, C.; Cortes, S.; Pratlong, F.; Morio, F.; Dedet, J.P.; Campino, L. First report of genetic hybrids between two very divergente Leishmania species: Leishmania infantum and Leishmania major. Int. J. Parasitol. 2006, 36, 1383–1388. [Google Scholar] [CrossRef]
  33. Bruno, F.; Castelli, G.; Li, B.; Reale, S.; Carra, E.; Vitale, F.; Scibetta, S.; Calzolari, M.; Varani, S.; Ortalli, M.; et al. Genomic and epidemiological evidence for the emergence of a putative L. donovani/L. infantum hybrid with unusual epidemiology in Northern Italy. mBio 2024, 15, e0099524. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  34. Lainson, R.; Shaw, J.J. Evolution classification and geographical distribution. In The Leishmaniases in Biology and Medicine; Peters, W., Killick Kendrick, R., Eds.; Academic Press Inc.: London, UK, 1987. [Google Scholar]
  35. El Baidouri, F.; Diancourt, L.; Berry, V.; Chevenet, F.; Pratlong, F.; Marty, P.; Ravel, C. Genetic structure and evolution of the Leishmania genus in Africa and Eurasia: What does MLSA tell us. PLoS Negl. Trop. Dis. 2013, 7, e2255. [Google Scholar]
  36. Franssen, S.U.; Durrant, C.; Stark, O.; Moser, B.; Downing, T.; Imamura, H.; Dujardin, J.C.; Sanders, M.J.; Mauricio, I.; Miles, M.A.; et al. Global genome diversity of the Leishmania donovani complex. eLife 2020, 9, e51243. [Google Scholar] [CrossRef]
  37. Mauricio, I.L.; Yeo, M.; Baghaei, M.; Doto, D.; Pratlong, F.; Zemanova, E.; Dedet, J.P.; Lukes, J.; Miles, M.A. Towards multilocus sequence typing of the Leishmania donovani complex: Resolving genotypes and haplotypes for five polymorphic metabolic enzymes (ASAT, GPI, NH1, NH2, PGD). Int. J. Parasitol. 2006, 36, 757–769. [Google Scholar] [CrossRef]
  38. Laurent, T.; Van der Auwera, G.; Hide, M.; Mertens, P.; Quispe-Tintaya, W.; Deborggraeve, S.; De Doncker, S.; Leclipteux, T.; Bañuls, A.; Büscher, P.; et al. Identification of Old World Leishmania spp. by specific polymerase chain reaction amplification of cysteine proteinase B genes and rapid dipstick detection. Diagn. Microbiol. Infect. Dis. 2009, 63, 173–181. [Google Scholar] [CrossRef]
  39. Montalvo, A.M.; Fraga, J.; Montano, I.; Monzote, L.; Marín, M.; Van der Auwera, G.; Dujardin, J.C.; Vélez, I.D.; Muskus, C. Differentiation of Leishmania (Viannia) panamensis and Leishmania (V.) guyanensis using BccI for hsp70 PCR-RFLP. Trans. R. Soc. Trop. Med. Hyg. 2010, 104, 364–367. [Google Scholar] [CrossRef] [PubMed]
  40. Montalvo, A.M.; Fraga, J.; Maes, I.; Dujardin, J.C.; Van der Auwera, G. Three new sensitive and specific heat-shock protein 70 PCRs for global Leishmania species identification. Eur. J. Clin. Microbiol. Infect. Dis. 2012, 31, 1453–1461. [Google Scholar] [CrossRef] [PubMed]
  41. Van der Auwera, G.; Bart, A.; Chicharro, C.; Cortes, S.; Davidsson, L.; Di Muccio, T.; Dujardin, J.C.; Felger, I.; Paglia, M.G.; Grimm, F.; et al. Comparison of Leishmania typing results obtained from 16 European clinical laboratories in 2014. Eurosurveillance 2016, 21, e30418. [Google Scholar] [CrossRef]
  42. Akhoundi, M.; Downing, T.; Votýpka, J.; Kuhls, K.; Lukeš, J.; Cannet, A.; Ravel, C.; Marty, P.; Delaunay, P.; Kasbari, M.; et al. Leishmania infections: Molecular targets and diagnosis. Mol. Asp. Med. 2017, 57, 1–29. [Google Scholar] [CrossRef] [PubMed]
  43. Kuhls, K.; Mauricio, I.L.; Pratlong, F.; Presber, W.; Schönian, G. Analysis of ribosomal DNA internal transcribed spacer sequences of the Leishmania donovani complex. Microbes Infect. 2005, 7, 1224–1234. [Google Scholar] [CrossRef] [PubMed]
  44. Evans, D.A. Leishmania. In In Vitro Methods for Parasites Cultivation; Taylor, A.E.R., Baker, J.R., Eds.; Academic Press: New York, NY, USA, 1987; pp. 58–59. [Google Scholar]
  45. El Tai, N.O.; Osman, O.F.; El Fari, M.; Presber, W.; Schönian, G. Genetic heterogeneity of ribosomal internal transcribed spacer in clinical samples of Leishmania donovani spotted on filter paper as revealed by single-strand conformation polymorphisms and sequencing. Trans. R. Soc. Trop. Med. Hyg. 2000, 94, 575–579. [Google Scholar] [CrossRef]
  46. Hide, M.; Bañuls, A.L. Species-specific PCR assay for L. infantum/L. donovani discrimination. Acta Trop. 2006, 100, 241–245. [Google Scholar] [CrossRef] [PubMed]
  47. Benikhlef, R.; Chaouch, M.; Abid, M.B.; Aoun, K.; Harrat, Z.; Bouratbine, A.; BenAbderrazak, S. ITS1 and Cpb genetic polymorphisms in Algerian and Tunisian Leishmania infantum isolates from humans and dogs. Zoonoses Public Health 2023, 70, 201–212. [Google Scholar] [CrossRef] [PubMed]
  48. Chaouch, M.; Fathallah-Mili, A.; Driss, M.; Lahmadi, R.; Ayari, C.; Guizani, I.; Ben Said, M.; Benabderrazak, S. Identification of Tunisian Leishmania spp. by PCR amplification of cysteine proteinase B (Cpb) genes and phylogenetic analysis. Acta Trop. 2013, 125, 357–365. [Google Scholar] [CrossRef] [PubMed]
  49. Hammer, Ø.; Harper, D.A.T.; Ryan, P.D. PAST: Paleontological statistics software package for education and data analysis. Palaeontol. Electron. 2001, 4, 9. [Google Scholar]
  50. Argimón, S.; Abudahab, K.; Goater, R.J.E.; Fedosejev, A.; Bhai, J.; Glasner, C.; Feil, E.J.; Holden, M.T.G.; Yeats, C.A.; Grundmann, H.; et al. Microreact: Visualizing and sharing data for genomic epidemiology and phylogeography. Microb. Genom. 2016, 2, e000093. [Google Scholar] [CrossRef] [PubMed]
  51. Montalvo, A.M.; Fraga, J.; Monzote, L.; Montano, I.; De Doncker, S.; Dujardin, J.C.; Van der Auwera, G. Heat-shock protein 70 PCR-RFLP: A universal simple tool for Leishmania species discrimination in the New and Old World. Parasitol. 2010, 137, 1159–1168. [Google Scholar] [CrossRef] [PubMed]
  52. Odiwuor, S.; De Doncker, S.; Maes, I.; Dujardin, J.C.; Van der Auwera, G. Natural Leishmania donovani/Leishmania aethiopica hybrids identified from Ethiopia. Infect. Genet. Evol. 2011, 11, 2113–2118. [Google Scholar] [CrossRef] [PubMed]
  53. Gritti, T.; Carra, E.; Van der Auwera, G.; Solana, J.C.; Gaspari, V.; Trincone, S.; Ortalli, M.; Rabitti, A.; Reggiani, A.; Rugna, G.; et al. The Skin Leish Rer Network. Molecular Typing of Leishmania spp. Causing Tegumentary Leishmaniasis in Northeastern Italy, 2014–2020. Pathogens 2023, 13, 19. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  54. Gritti, T.; Chicharro, C.; Carrillo, E.; Solana, J.C.; Moreno, J.; Carra, E.; Ortalli, M.; Morselli, S.; Gaspari, V.; Zanazzi, M.; et al. Combination of Cpb-Hsp70 typing methods reveals genetic divergence between Leishmania infantum strains causing human tegumentary leishmaniasis in northern Italy and central Spain: A retrospective study. Infect. Dis. Poverty 2025, 14, e41. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  55. Gadisa, E.; Kuru, T.; Genet, A.; Engers, H.; Aseffa, A.; Gedamu, L. Leishmania donovani complex (Kinetoplastida, Trypanosomatidae): Comparison of deoxyribonucleic acid based techniques for typing of isolates from Ethiopia. Exp. Parasitol. 2010, 126, 203–208. [Google Scholar] [CrossRef] [PubMed]
  56. Rugna, G.; Carra, E.; Corpus, F.; Calzolari, M.; Salvatore, D.; Bellini, R.; Di Francesco, A.; Franceschini, E.; Bruno, A.; Poglayen, G.; et al. Distinct Leishmania infantum Strains Circulate in Humans and Dogs in the Emilia-Romagna Region, Northeastern Italy. Vector Borne Zoonotic Dis. 2017, 17, 409–415. [Google Scholar] [CrossRef] [PubMed]
  57. Gradoni, L.; Gramiccia, M.; Betti, F. Fatal visceral disease caused by a dermotropic Leishmania in a patient with human immunodeficiency virus infection. J. Infect. 1990, 20, 180–182. [Google Scholar] [CrossRef] [PubMed]
  58. Chicharro, C.; Jiménez, M.I.; Alvar, J. Iso-enzymatic variability of Leishmania infantum in Spain. Ann. Trop. Med. Parasitol. 2003, 97, 57–64. [Google Scholar] [CrossRef] [PubMed]
  59. Gramiccia, M.; Ben-Ismail, R.; Gradoni, L.; Ben Rachid, M.S.; Ben Said, M. A Leishmania infantum enzymatic variant, causative agent of cutaneous leishmaniasis in North Tunisia. Trans. R. Soc. Trop. Med. Hyg. 1991, 85, 370–371. [Google Scholar] [CrossRef]
  60. Gradoni, L.; Scalone, A.; Gramiccia, M.; Troiani, M. Epidemiological surveillance of leishmaniasis in HIV-1-infected individuals in Italy. AIDS 1996, 10, 785–791. [Google Scholar] [CrossRef] [PubMed]
  61. Aoun, K.; Bouratbine, A.; Harrat, Z.; Belkaïd, M.; Bel Hadj Ali, S. Profil particulier des zymodèmes de Leishmania infantum causant la leishmaniose viscérale en Tunisie [Particular profile of the zymodemes of Leishmania infantum causing visceral leishmaniasis in Tunisia]. Bull. Soc. Pathol. Exot. 2001, 94, 375–377. [Google Scholar] [PubMed]
  62. Benikhlef, R.; Pratlong, F.; Harrat, Z.; Seridi, N.; Bendali-Braham, S.; Belkaid, M.; Dedet, J.P. Leishmaniose viscérale infantile causée par Leishmania infantum zymodème MON-24 en Algérie [Infantile visceral leishmaniasis caused by Leishmania infantum zymodeme MON-24 in Algeria]. Bull. Soc. Pathol. Exot. 2001, 94, 14–16. [Google Scholar] [PubMed]
  63. Chargui, N.; Amro, A.; Haouas, N.; Schönian, G.; Babba, H.; Schmidt, S.; Ravel, C.; Lefebvre, M.; Bastien, P.; Chaker, E.; et al. Population structure of Tunisian Leishmania infantum and evidence for the existence of hybrids and gene flow between genetically different populations. Int. J. Parasitol. 2009, 39, 801–811. [Google Scholar] [CrossRef] [PubMed]
  64. Alvar, J.; Aparicio, P.; Aseffa, A.; Den Boer, M.; Cañavate, C.; Dedet, J.P.; Gradoni, L.; Ter Horst, R.; López-Vélez, R.; Moreno, J. The relationship between leishmaniasis and AIDS: The second 10 years. Clin. Microbiol. Rev. 2008, 21, 334–359. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  65. Zemanová, E.; Jirků, M.; Mauricio, I.L.; Horák, A.; Miles, M.A.; Lukes, J. The Leishmania donovani complex: Genotypes of five metabolic enzymes (ICD, ME, MPI, G6PDH, and FH), new targets for multilocus sequence typing. Int. J. Parasitol. 2007, 37, 149–160. [Google Scholar] [CrossRef] [PubMed]
Pathogens 15 00145 g001

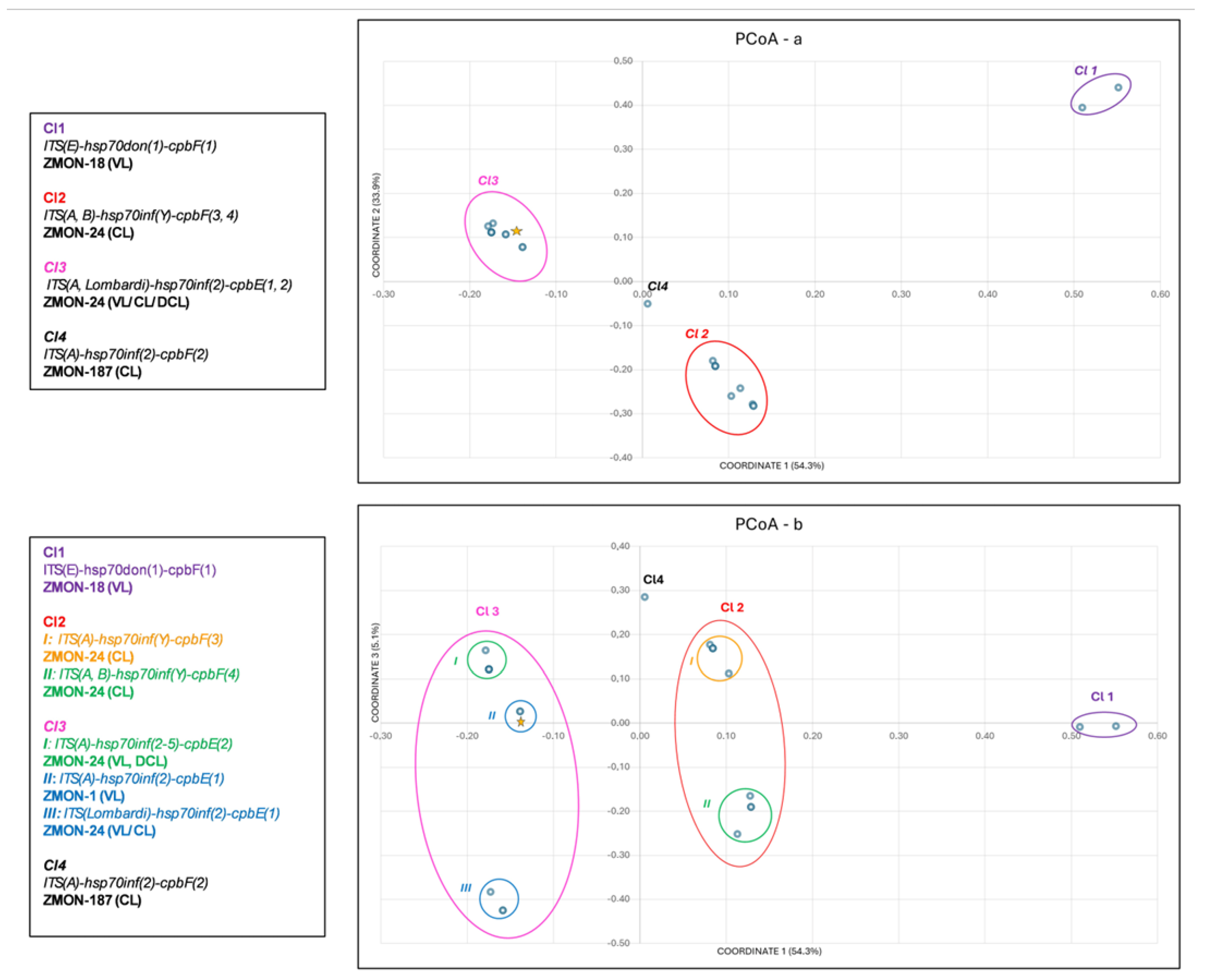

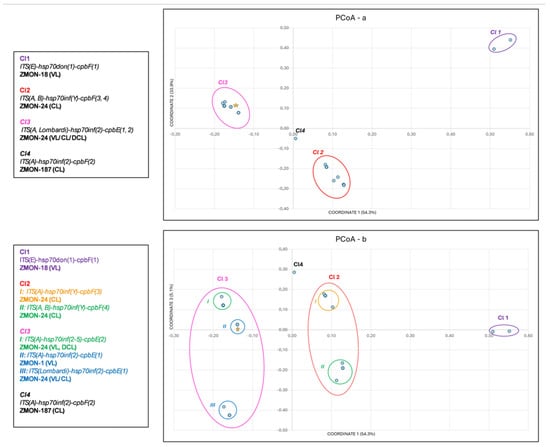

Figure 1. (a,b). Multidimensional analysis (PCoA) displaying the most probable groupings of 24 L. donovani complex strains, including the reference strain L. infantum MHOM/FR/78/LEM75 (star). (a) The coordinates 1 vs. 2 (total variance 88.2%) show 4 clusters (Cl 1–4), depicted by ellipses, including the main ITS-hsp70-cpb sequence variants; (b) the coordinates 1 vs. 3 (total variance 39.0%) show 5 sub-clusters Cl2 (I–II) and Cl3 (I–III), depicted by circles; the color of the circles indicates the geographic origin: green, Italy and North Africa; blue, Europe; orange, Italy; purple, East Africa. All the codes ISS of our 23 strains have been shown in Table S4.
Figure 1. (a,b). Multidimensional analysis (PCoA) displaying the most probable groupings of 24 L. donovani complex strains, including the reference strain L. infantum MHOM/FR/78/LEM75 (star). (a) The coordinates 1 vs. 2 (total variance 88.2%) show 4 clusters (Cl 1–4), depicted by ellipses, including the main ITS-hsp70-cpb sequence variants; (b) the coordinates 1 vs. 3 (total variance 39.0%) show 5 sub-clusters Cl2 (I–II) and Cl3 (I–III), depicted by circles; the color of the circles indicates the geographic origin: green, Italy and North Africa; blue, Europe; orange, Italy; purple, East Africa. All the codes ISS of our 23 strains have been shown in Table S4.
Pathogens 15 00145 g001
Table 1. Genotypes obtained by combining ITS and hsp70 sequence variants and the cpb copies, cpbE and cpbF, of 88 Mediterranean Leishmania strains.
Table 1. Genotypes obtained by combining ITS and hsp70 sequence variants and the cpb copies, cpbE and cpbF, of 88 Mediterranean Leishmania strains.
Sequence Variant ITS/hsp70/cpbGenotypeZMONClinicOriginN. Strains
L. donovani
ITS(H)-hsp70don(1)-cpbFA2 VLIndia1
ITS(Evar)-hsp70don(1)-cpbFunique18 VLAfrica1
ITS(E)-hsp70don(1)-cpbFB30 VLAfrica3
L. infantum
ITS(A)-hsp70inf(2)-cpbEC1, 24, 29, 34, 72, 80, 136, 185, 188, 201, 228VLMediterranean area58
ITS(A)-hsp70inf(4)-cpbED1VLItaly2
ITS(Lombardi)-hsp70inf(2)-cpbEE24 VL, CLSpain3
ITS(A)-hsp70inf(Y)-cpbFF24 CLItaly8
ITS(B)-hsp70inf(Y)-cpbFG24 CLItaly, Africa3
ITS(A/B var)-hsp70inf(Y)-cpbFunique24CLAfrica1
ITS(A)-hsp70inf(5)-cpbEunique24 DCLItaly1
ITS(A)-hsp70inf(2)-cpbFH187, 189, 190VL, CL, DCLItaly, Spain4
ITS(A/B var)-hsp70inf(2)-cpbEunique78VLItaly1
ITS(Bvar)-hsp70inf(2)-cpbEunique1VLItaly/Africa1
ITS(A)-hsp70inf(3)-cpbEunique1VLItaly1
Total 88
In red, the most represented L. infantum genotypes. The genotypes A–H referred to at least two strains or did not present any sequence variant with respect to the reference sequence (i.e., genotype A). In any other case, we considered them as a “unique” genotype.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Di Muccio, T.; Tonanzi, D.; Van der Auwera, G.; Fiorentino, E.; Gradoni, L.; Gramiccia, M.; La Rosa, G. Evaluation of Multi-Target Genotyping (ITS-hsp70-cpb) for Detecting Population Heterogeneity Within Mediterranean Leishmania infantum, with a Focus on Zymodeme MON-24. Pathogens 2026, 15, 145. https://doi.org/10.3390/pathogens15020145

AMA Style

Di Muccio T, Tonanzi D, Van der Auwera G, Fiorentino E, Gradoni L, Gramiccia M, La Rosa G. Evaluation of Multi-Target Genotyping (ITS-hsp70-cpb) for Detecting Population Heterogeneity Within Mediterranean Leishmania infantum, with a Focus on Zymodeme MON-24. Pathogens. 2026; 15(2):145. https://doi.org/10.3390/pathogens15020145

Chicago/Turabian Style

Di Muccio, Trentina, Daniele Tonanzi, Gert Van der Auwera, Eleonora Fiorentino, Luigi Gradoni, Marina Gramiccia, and Giuseppe La Rosa. 2026. "Evaluation of Multi-Target Genotyping (ITS-hsp70-cpb) for Detecting Population Heterogeneity Within Mediterranean Leishmania infantum, with a Focus on Zymodeme MON-24" Pathogens 15, no. 2: 145. https://doi.org/10.3390/pathogens15020145

APA Style

Di Muccio, T., Tonanzi, D., Van der Auwera, G., Fiorentino, E., Gradoni, L., Gramiccia, M., & La Rosa, G. (2026). Evaluation of Multi-Target Genotyping (ITS-hsp70-cpb) for Detecting Population Heterogeneity Within Mediterranean Leishmania infantum, with a Focus on Zymodeme MON-24. Pathogens, 15(2), 145. https://doi.org/10.3390/pathogens15020145

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
