3.1. Bhimbetka (Raisen District)
At Bhimbetka, Wakanker excavated three shelters out of eleven excavated shelters during the years 1971–1975, and pigment nodules of red, yellow ochre and blue-black manganese were found in both Mesolithic and Chalcolithic layers. Also, he found green pigments in the Upper Paleolithic layer; however, green pigments have not been found in any later layers. Three different groups, Bhonrawali, Bhimbetka and Lakhajuar, have green-colored images.

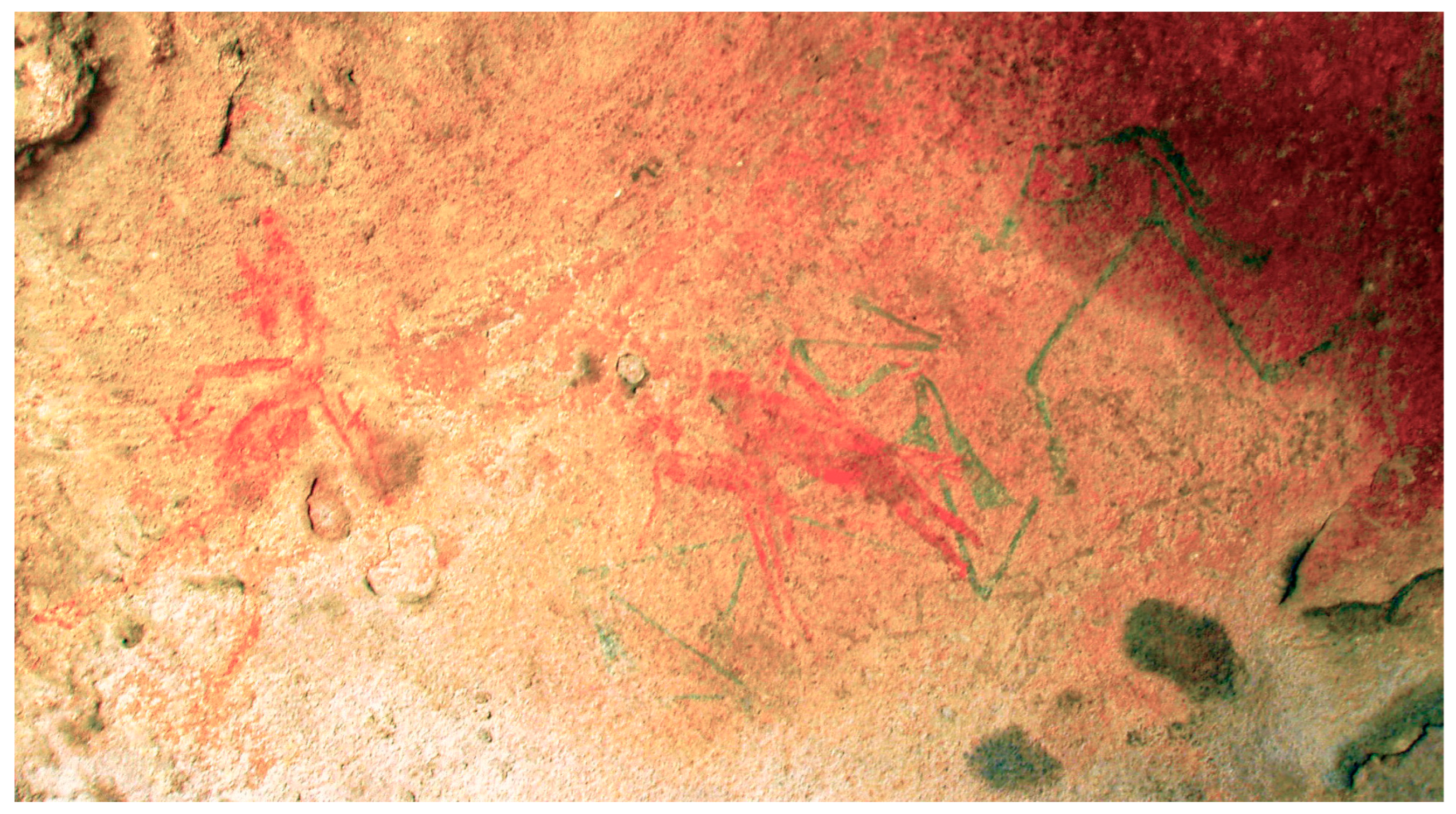

In Bhonrawali, the Boar rock shelter is depicted with three green S-shaped dancers, but only the middle dancer is fully visible; the right-side dancer probably wears a necklace (
Figure 5). Two Mesolithic human figures are superimposed on the green dancers. On the extreme left of these images, a dancer or shaman wearing a bird mask is painted in red.
In Bhimbetka, green images are not so clearly visible. A panel of ten deer in different sizes is composed of overlapping green images. Animals, and not only humans, are also painted in green. There is a line drawing of an animal in green. As per Mathpal, shelter III F1 has many green images, but they are in a very poor state of preservation. “30 fragmented drawings of dark red and emerald green in the right portion of the shelter only ten can be identified as human figures and four as animal figures. Green figures overlap (
Figure 6) the red figures. The animals represented are two bulls, one boar and a fish. The boar and fish are drawn in emerald green. One of the hunters in green wears a horned mask and has a long stick (
Mathpal 1984, p. 78). Many faded traces of green have been observed on the ceiling of III f23. “There are at least ten painted shelters at Bhimbetka in which green paintings are superimposed by paintings which we have classified in Mesolithic” (
Wakankar and Brooks 1976, p. 31). A polychrome painting where red, green and yellow colors were used is covered by an almost opaque thick patina layer. Such images are always mostly fragmentary. The earliest polychrome paintings are found mainly composed of a reddish brown smooth patina. This patina is susceptible to exfoliation (
Neumayer 2012).
Lakhajuar is in the third group of the Bhimbetka area; the shelters of this group have many of the earliest green images. A runner or dancer is shown with green head dress and open mouth, painted in red with green lines. In another image, a hunter with his bow and arrow aims at a peacock sitting on a tree; the image is painted in red with traces of green contours lines around the hunter. A woman is painted in red with traces of green partially preserved. A very interesting dancing scene in green is composed of a long chain of S-shaped dancers (
Figure 7) with open mouths, probably singing or chanting for a ritual or ceremony.
The Jaora site is in the Ratapani Forest Sanctuary, about forty-five kilometers by road from Bhopal city. We have noticed green images in mainly five shelters. The most important one is the biggest shelter (30/35 m long) with an extensive overhang (5 m), which is painted all over. Two huge boulders rather close to the wall have been used to make paintings. White images are superimposed on red ones. There is one distinct green dancer with some outlining in red around the middle of the body (
Figure 8), and at least six other smaller green characters with rounded headgear that seem to be dancing in a group. A curved green line seems to encircle them on top. On their left are red S-shaped dancers. In the bottom part of the panel are many recent crude red horse riders and fighters associated with finger marks. On the roof is a large white animal with a decorated body. Below it and to its left are two clearly visible big red geometric patterns. In the next rock shelter, with two other circular concavities, is a small green animal on top of white figures, just below a red human image.
Another important shelter (12 m × 4 m × 4 m) is similar in orientation to the preceding one. Its main decoration is a beautiful, well-proportioned dark red stag with green lines on its neck, green zigzag lines on its upper body and also straight horizontal lines on the middle part of its inner body (neck to belly). It looks to have been firstly painted with thin green double lines and, later on, outlined in thick dark red on top of the green line. The inner body is also filled with two dark red thick vertical lines (
Figure 9) and its tail is painted with light red. It is beautifully superimposed on the same green figure (!) also superimposed on the early green and white Mesolithic humans and many white and faded red zigzag patterns are clearly visible inside the body. A crude small white bull of a very late time is also painted on it. One can see lots of green traces around the stag.
Some more green dancers (

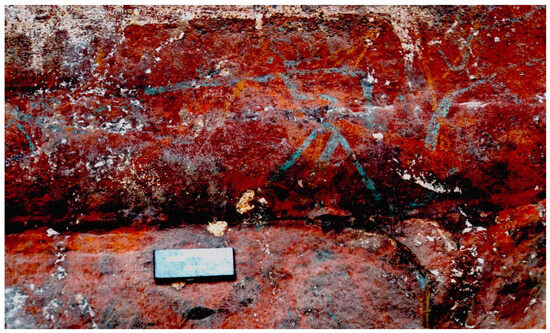

Figure 10) have painted on the lower left side of the stag. There are two white elephants (mother and baby) and two circles, as well as rare animals in green. This particular shelter is nearly full of green traces.
Jhiri is twenty-one kilometers south of Bhopal. It is in the Vindhya Range in the Ratapani Forest Sanctuary. The Betwa River springs from Jhiri, which means “Spring”. We have noticed many green dancing images. Most are not well preserved. Only after enhancing via D-Stretch is green clearly visible in most cases. At this site, nearly all the shelters have traces of green pigment. The Jhiri 2 shelter has a big overhang with a few white, black and red paintings. The decorated shelter facing north is 3 m × 1.30 m. A lower band has a white stag following a red humped bull, white stags, humans and an elephant with riders. Many traces of green below the white and red images can be seen. Jhiri 3 is another huge rock facing east. At the top (±5 m high) are a few white and red images of humans and animals. The lower part of the shelter begins with a fairly deep hollow (with a row of ten dancers and a humped bull inside), and then a rather long (±10 m) north face with apparent black and white images, but also some more ancient art (brownish-red) with traces of many small green animals, particularly cervids. Before Jhiri 10 (6/7 m long) are several concavities with a few figures. The first panel is entirely Mesolithic (except for some white superimpositions) and includes a jumping deer and several humans in different sizes hunting or dancing. More white Mesolithic figures on the right of the panel represent domestic activities. They are superimposed on red images. Then a small sketchy green dancer (
Figure 11) appears over a kind of big, long-legged spotted red animal. The next panel is complex with many red, yellow and green dancers. The next small concavity is painted with many red images of humans and animals on the top of the greens.
Firangi is part of the Jhiri village inside the Ratapani Wildlife Sanctuary. The most important shelter in the group has a length of ±20 m. The roof can be reached at a height of 3.50 m. It contains many layers of paintings from the Mesolithic times. In a representation of four honeycombs, two are on each side of a sketchy tree represented by a vertical line. Further to the right are two other incomplete representations of honeycombs, with many large-size animals like wild boars and hunters superimposed on the roof. One can first make out black dancers with many green traces, and then intricate big red animals and red humans with big headgear. There are quite a few traces of green pigment under the red and white Mesolithic period images.
The Kharwai sites are located in Kharwai village, an area partially covered with sandstone deposits that occasionally form numerous small shelters. Many were used at various times. We noticed similar modern reverence for the sites in many other areas and shelters. A few shelters have very faint green traces. These green images are covered with heavy layers of dust patina, which is a common problem in Raisen district. Many green paintings are almost entirely covered with dust patina. A group of partially visible S-shaped dancers in green seems to have been painted many times during the Prehistoric period (

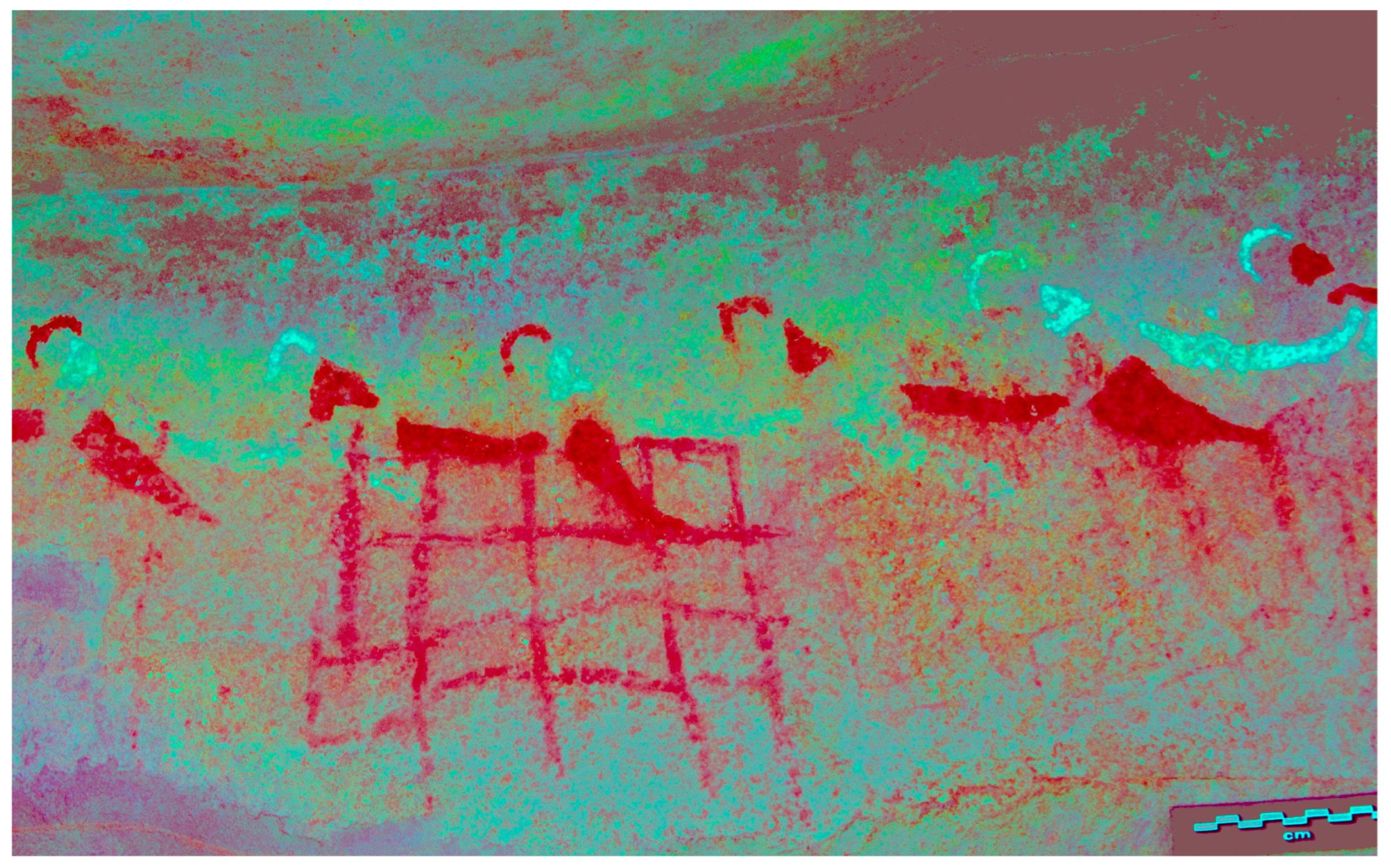

Figure 12). A white animal is also painted on top of green drawings.
In Hathitol/Ramchhajja, a few kilometers from Raisen, a series of small shelters includes many red or white paintings, mostly representing herds of wild bovids and early dancers on the walls and ceilings with green traces. Other animals, like a rhinoceros (an animal that became extinct in Central India by the end of the Chalcolithic, a few thousand years ago), deer, elephants and leopards, are present, as well as S-shaped humans with fantastic head dresses dancing in a row. Many superimpositions occur, and traces of green pigment (

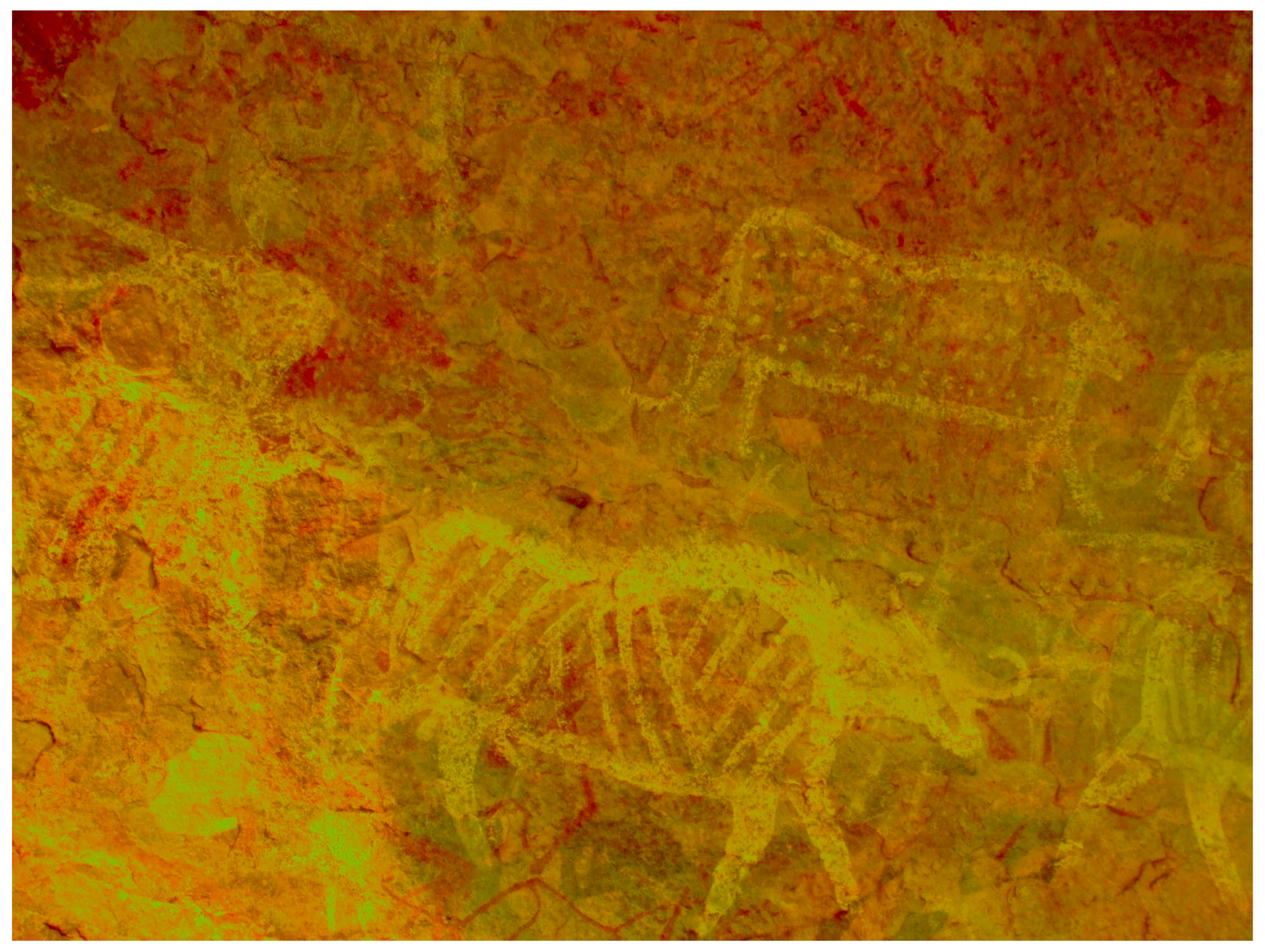

Figure 13) are visible below the white and red images. For example, we noticed four levels of superimpositions involving humans and deer.
In Pangawna, we visited nineteen shelters. Villagers have at times occupied some of them. Nowadays, they keep practising ceremonies and worship. Some of the art is Mesolithic, like a turtle with inside decoration and a big bison. White images are often superimposed on images from earlier periods, with traces of green visible under the white and red images.
Urden is a small village located 43 km northeast of Bhopal. Its total area (about 3 km × 1.5 km) is elongated, and is wider to the northwest and much narrower to the southeast. Along its length, it includes two main geological areas: a wide valley to the north–northeast and sandstone formations to the south–southwest, where the painted shelters are. The techniques used are white or red paint. We saw some green images (
Figure 14), but they were not well preserved. The whites are overlapped on top of the reds, or vice versa. Traces of green images can be seen in some shelters.
Another fairly wide shelter with an extensive rocky ground opens to the west. It was occupied or used by the villagers, with signs of graffiti and erosion. Red and white figures, including a white tree with bee swarms, appear. In the left part of the shelter, there are some more green designs.
The Putli Karar group of painted shelters belongs to the Bhilani village of the Raisen district. Across a small river we saw a line of sandstone rocks overlooking the plain. In all we visited ten sites on three different levels. We have noticed traces of green pigments, superimposed by late period images, at the main shelter in the area. It is very extensive (±35 m long × 6 to 7 m wide × 3 to 4 m high) and includes four parts. From right to left: The first part—the most important one—is about 1.70 m higher as its ground is in fact a huge rock that fell from the cliff. It includes numerous figures, mostly red but some whites or both, with quite a few stags with decorated bodies, sometimes being hunted by archers, and also birds, elephants and a bear. The second part is about 6m long and ends at a deep crack on its left. Mostly white animal figures, except on the right for a big red bull and an archer shooting at it.
To the west-southwest of B, is not well-preserved, with only one band (0.70 to 0.80 m wide) of mostly red paintings along it at about 0.50 m from the ground, with riders, armed warriors, the usual hunting scenes, white dancers. Last one is 8 m × 2 m × 1.50 m high. Many faded green paintings. Superimposed with several decorated squares and rectangles of geometric signs.
3.3. The Sehore District
Kathotiya is located near the Raiyabad village, consists of a long row of painted shelters at about twenty-five kilometres southeast of Bhopal in the Virpur range in the Sehore district. We saw more than forty shelters in the course of many visits because of a tiger roaming in the area. Kathotiya site contains several important shelters with many green images, some of which are visible and some of which are invisible. Many other images, more or less preserved, are in red or in white (a few are in green), with lots of superimpositions.
The second last shelter of this range is a small Mesolithic shelter (±8 m × 4 m). In all, there are four rocky bands, one above the other. First a high band (2.20 to 2.60 m from the ground) with white paintings (humans with round faces and big round eyes with sometimes baskets on their backs, one vertical fish) over hardly visible dark humans probably dancing. A big white animal is on top of a red geometric pattern and is superimposed with red hunters. At its left and at the top is a round-shaped design made up of dots and converging lines (the headgear of a dancing human?). To its left and a little bit below is a row of eight squares, which probably represents the bodies of sketchy humans. Below them is a big snake turned to the left. Some S-shaped dancers are painted green. Faint white figures are painted over them. All are Mesolithic. Other colors for various designs are red and yellow, so that in this small shelter, four colors were used, the later one being red. The scenes represented are dancing, hunting (wild boar) and gathering (filled baskets on backs). In the bottom panel, some later paintings show an elephant followed by eight humped bulls in a row.
A big shelter is at one end of the Kathotiya site. It is well known for a big, long-necked and long-legged bird that looks like an ostrich with its two chicks. The shelter is quite large; it is almost 25 m long and 10 m high with a good overhang. It thus has two levels. The upper level is more interesting, with early paintings in green, red and white. It has many green images, which are clearly visible after enhancing via D-Strech.
The big bird (an ostrich?) with its two chicks is painted on top of green images of two elongated green dancers, who are clearly visible; they are facing each other with open mouths, probably chanting or singing (

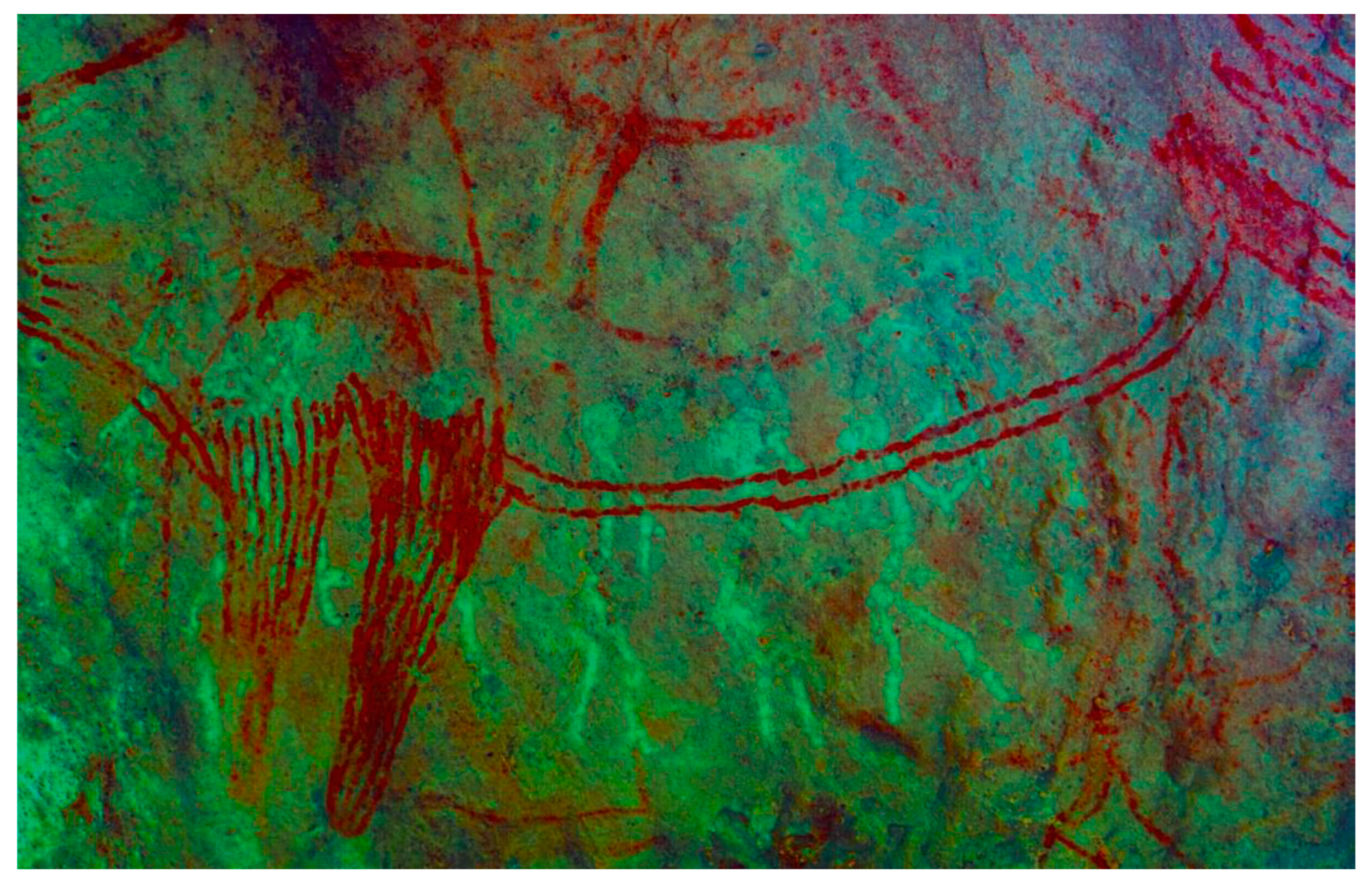

Figure 15a–c) On the lower side of the big bird, a long row of green human figures appears; some of the figures are visible. Two green semi-carved lines are painted on the upper side of these green images. A big pregnant female bison (110 cm × 83 cm) is also superimposed on seven faint green dancers (
Figure 16). Its legs are full of long converging lines. Its horns are filled with red. Its back and belly are represented with double lines. Inside its body one can see its fetus.
One may distinguish at least three layers in the early-style paintings. The first layer includes S-shaped dancers with headgear; hunters (

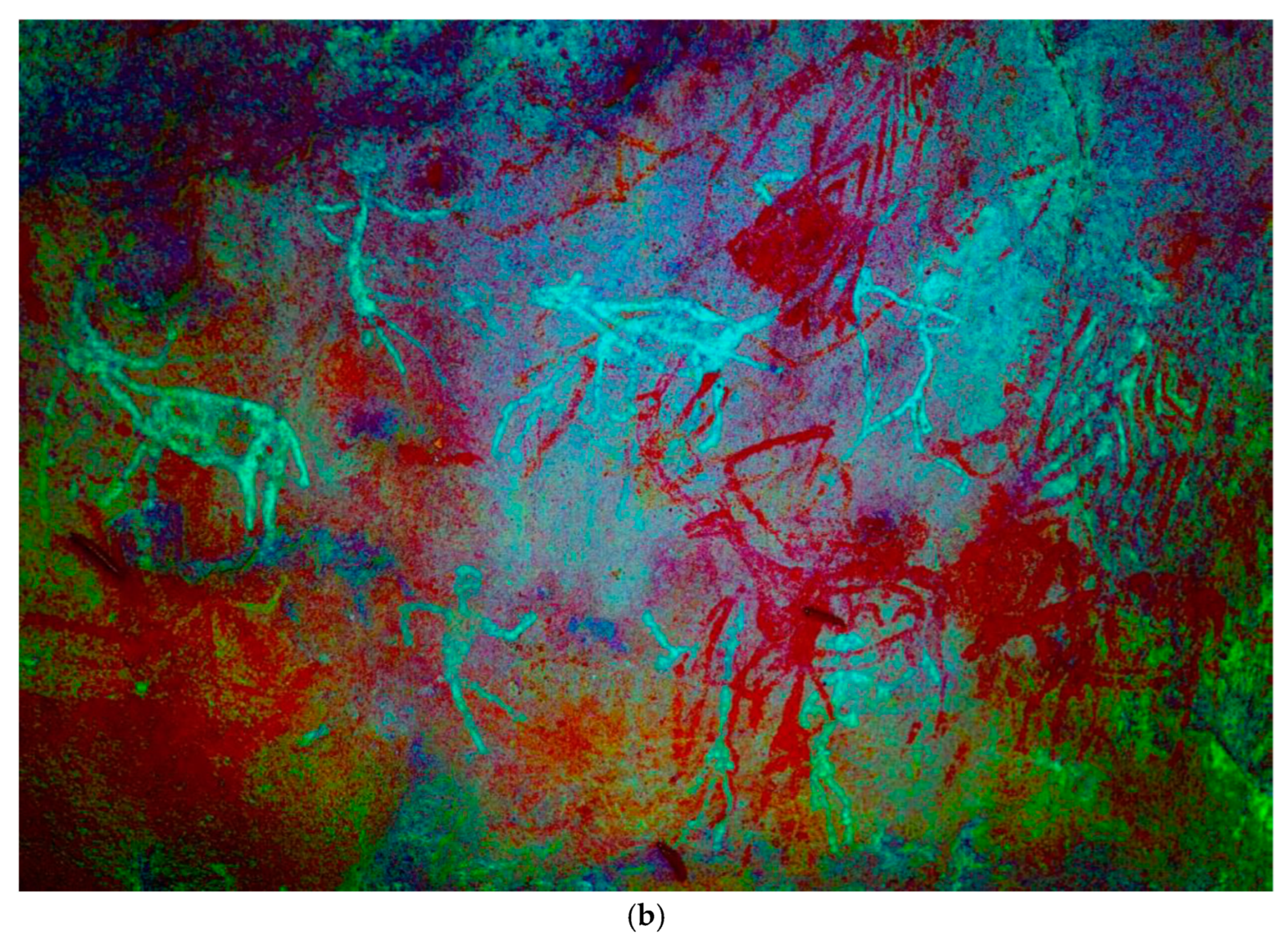

Figure 17a) with spears, bows and arrows; and deer (
Figure 17b), bison and wild boar all in green. Humans are comparatively taller than the animals.
The second layer includes red animals: big bison, deer, stag, wild boar, the above-mentioned ostrich-like bird, dancers and hunters with big bows and barbed arrows. Humans are in typical stick shape, sometimes with headgear, feathers or a basket attached to their buns. Some have a decorated rectangular body with zigzags. Animal bodies are well-decorated with spirals, patterns and lines. The third layer has white animal images with wild boar, deer, another big bird with a long neck and legs and hunters with one or two eyes. On the ceiling are some black animals. Other paintings include white humans with their two eyes represented, wild boar, elephants, deer, peacock, bison, a stag with very long antlers and hunters with bow and arrows. Many paintings are superimposed on green images. Some painted parts of the shelter are badly preserved because of weathering.
Other shelters are also superimposed with red and white images on top of the green traces.
