Renovation of Public Buildings towards nZEB: A Case Study of a Nursing Home
Abstract
:1. Introduction
2. Representative Public Building Design: A Case Study
3. Nearly Zero-Energy Building Concept: Energy Efficiency Measures
4. Cost Analysis
5. Results and Discussion
6. Conclusions
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- Council of the European Union. Directive 2010/31 EU of the European Parliament and the Council of 19 May 2010 on the energy performance of buildings. Off. J. Eur. Union 2010, 153, 13–35. [Google Scholar]
- European Parliament; Council of the European Union. Directive (EU) 2018/844 of the European Parliament and of the Council of 30 May 2018 amending Directive 2010/31/EU on the energy performance of buildings and Directive 2012/27/EU on energy efficiency. Off. J. Eur. Union 2018, 156, 75–91. [Google Scholar]
- Buildings Performance Institute Europe (BPIE). 97% of Buildings in the EU Need to Be Upgraded, Factsheet; Buildings Performance Institute Europe: Brussels, Belgium, 2017. [Google Scholar]
- Buonomano, A.; De Luca, G.; Montanaro, U.; Palombo, A. Innovative technologies for NZEBs: An energy and economic analysis tool and a case study of a non-residential building for the Mediterranean climate. Energy Build. 2016, 121, 318–343. [Google Scholar] [CrossRef]
- Pikas, E.; Thalfeldt, M.; Kurnitski, J. Cost optimal and nearly zero energy building solutions for office buildings. Energy Build. 2014, 74, 30–42. [Google Scholar] [CrossRef]
- Pihelo, P.; Kalamees, T.; Kuusk, K. nZEB Renovation with Prefabricated Modular Panels. Energy Procedia 2017, 132, 1006–1011. [Google Scholar] [CrossRef]
- Liu, Z.; Liu, Y.; He, B.-J.; Xu, W.; Jin, G.; Zhang, X. Application and suitability analysis of the key technologies in nearly zero energy buildings in China. Renew. Sustain. Energy Rev. 2019, 101, 329–345. [Google Scholar] [CrossRef]
- Paoletti, G.; Pascuas, R.P.; Pernetti, R.; Lollini, R. Nearly Zero Energy Buildings: An Overview of the Main Construction Features across Europe. Buildings 2017, 7, 43. [Google Scholar] [CrossRef]
- D’Agostino, D.; Zangheri, P.; Castellazzi, L. Towards Nearly Zero Energy Buildings in Europe: A Focus on Retrofit in Non-Residential Buildings. Energies 2017, 10, 117. [Google Scholar] [CrossRef]
- Tehnički Propis o Racionalnoj Uporabi Energije i Toplinskoj Zaštiti u Zgradama (Translation: Technical Regulation on the Rational Use of Energy and Thermal Insulation in Buildings). “Narodne Novine” Broj 128/15, 70/18, 73/18, 86/18. Available online: https://mgipu.gov.hr/pristup-informacijama/zakoni-i-ostali-propisi/podrucje-energetske-ucinkovitosti/3569 (accessed on 19 June 2019).
- Wu, R.; Mavromatidis, G.; Orehounig, K.; Carmeliet, J. Multiobjective optimisation of energy systems and building envelope retrofit in a residential community. Appl. Energy 2017, 190, 634–649. [Google Scholar] [CrossRef]
- Ma, Z.; Cooper, P.; Daly, D.; Ledo, L. Existing building retrofits: Methodology and state-of-the-art. Energy Build. 2012, 55, 889–902. [Google Scholar] [CrossRef]
- Charisi, S. The Role of the Building Envelope in Achieving Nearly-zero Energy Buildings (nZEBs). Procedia Environ. Sci. 2017, 38, 115–120. [Google Scholar] [CrossRef]
- D’Agostino, D.; Parker, D. Data on cost-optimal Nearly Zero Energy Buildings (NZEBs) across Europe. Data Brief. 2018, 17, 1168–1174. [Google Scholar] [CrossRef] [PubMed]
- Ascione, F.; De Masi, R.F.; De Rossi, F.; Ruggiero, S.; Vanoli, G.P. Optimization of building envelope design for nZEBs in Mediterranean climate: Performance analysis of residential case study. Appl. Energy 2016, 183, 938–957. [Google Scholar] [CrossRef]
- Mora, T.D.; Cappelletti, F.; Peron, F.; Romagnoni, P.; Bauman, F. Retrofit of an Historical Building toward NZEB. Energy Procedia 2015, 78, 1359–1364. [Google Scholar] [CrossRef] [Green Version]
- Paduos, S.; Corrado, V. Cost-optimal approach to transform the public buildings into nZEBs: An European cross-country comparison. Energy Procedia 2017, 140, 314–324. [Google Scholar] [CrossRef]
- Buso, T.; Becchio, C.; Corgnati, S.P. NZEB, cost- and comfort-optimal retrofit solutions for an Italian Reference Hotel. Energy Procedia 2017, 140, 217–230. [Google Scholar] [CrossRef] [Green Version]
- Mora, T.D.; Righi, A.; Peron, F.; Romagnoni, P. Cost-Optimal measures for renovation of existing school buildings towards nZEB. Energy Procedia 2017, 140, 288–302. [Google Scholar] [CrossRef]
- Corrado, V.; Ballarini, I.; Paduos, S.; Primo, E. Refurbishment of the Residential Building Stock toward the Nearly-Zero Energy Target Through the Application of the Building Typology. Energy Procedia 2016, 101, 208–215. [Google Scholar] [CrossRef] [Green Version]
- Desogus, G.; Mura, S.; Ricciu, R. Comparing different approaches to in situ measurement of building components thermal resistance. Energy Build. 2011, 43, 2613–2620. [Google Scholar] [CrossRef]
- Chaffar, K.; Chauchois, A.; Defer, D.; Zalewski, L. Thermal characterization of homogeneous walls using inverse method. Energy Build. 2014, 78, 248–255. [Google Scholar] [CrossRef]
- Ficco, G.; Iannetta, F.; Ianniello, E.; Alfano, F.R.D.; Dell’Isola, M. U-value in situ measurement for energy diagnosis of existing buildings. Energy Build. 2015, 104, 108–121. [Google Scholar] [CrossRef]
- Sunikka-Blank, M.; Galvin, R. Introducing the prebound effect: The gap between performance and actual energy consumption. Build. Res. Inf. 2012, 40, 260–273. [Google Scholar] [CrossRef]
- Pisello, A.L.; Asdrubali, F. Human-based energy retrofits in residential buildings: A cost-effective alternative to traditional physical strategies. Appl. Energy 2014, 133, 224–235. [Google Scholar] [CrossRef]
- Lakeridou, M.; Ucci, M.; Marmot, A. Imposing limits on summer set-points in UK air-conditioned offices: A survey of facility managers. Energy Policy 2014, 75, 354–368. [Google Scholar] [CrossRef]
- Barbosa, J.D.; Azar, E. Modeling and implementing human-based energy retrofits in a green building in desert climate. Energy Build. 2018, 173, 71–80. [Google Scholar] [CrossRef]
- Papadopoulos, S.; Kontokosta, C.E.; Vlachokostas, A.; Azar, E. Rethinking HVAC temperature setpoints in commercial buildings: The potential for zero-cost energy savings and comfort improvement in different climates. Build. Environ. 2019, 155, 350–359. [Google Scholar] [CrossRef]
- Ghahramani, A.; Zhang, K.; Dutta, K.; Yang, Z.; Becerik-Gerber, B. Energy savings from temperature setpoints and deadband: Quantifying the influence of building and system properties on savings. Appl. Energy 2016, 165, 930–942. [Google Scholar] [CrossRef] [Green Version]
- Azar, E.; Menassa, C.C. A comprehensive framework to quantify energy savings potential from improved operations of commercial building stocks. Energy Policy 2014, 67, 459–472. [Google Scholar] [CrossRef]
- Republic of Croatia, Ministry of Environment and Energy. Energy in Croatia 2016—Energy Institute Hrvoje Požar; Republic of Croatia, Ministry of Environment and Energy: Zagreb, Croatia, 2016. [Google Scholar]
- Republic of Croatia, Ministry of Construction and Physical Planning. Proposal of the Long-Term Strategy for Mobilising Investment in the Renovation of the National Building Stock of the Republic of Croatia; Republic of Croatia, Ministry of Construction and Physical Planning: Zagreb, Croatia, 2014. [Google Scholar]
- Marđetko-Škoro, N. Hrvatska i EU—Promjene u zakonodavstvu i implementacija europske direktive o energetskim svojstvima zgrada. Strojarstvo 2009, 51, 491–495. [Google Scholar]
- Access Point Name (APN). System Structure—Energy Management Information System—EMIS. 2019. Available online: http://www.enu.fzoeu.hr/isge/struktura-isge-sustava (accessed on 28 May 2019).
- Access Point Name (APN). Functionality—Energy Management Information System—EMIS. 2019. Available online: http://www.enu.fzoeu.hr/isge/osnovne-funkcije-isge-sustava (accessed on 28 May 2019).
- Krstic, H.; Teni, M. Algorithm for constructional characteristics data cleansing of large-scale public buildings database. In Proceedings of the 2018 International Conference on High Performance and Optimum Design of Structures and Materials, Ljubljana, Slovenia, 11–13 July 2018. [Google Scholar]
- Krstić, H.; Teni, M. Analysis of energy performance and buildings characteristics obtained from Croatian energy management information system. In Proceedings of the 3rd International Conference on Architecture, Materials and Construction (ICAMC 2017), Amsterdam, The Netherlands, 11–13 December 2017. [Google Scholar]
- Krstić, H.; Koški, Ž.; Otković, I.I.; Španić, M. Application of neural networks in predicting airtightness of residential units. Energy Build. 2014, 84, 160–168. [Google Scholar] [CrossRef]
- Tommerup, H.; Svendsen, S. Energy savings in Danish residential building stock. Energy Build. 2006, 38, 618–626. [Google Scholar] [CrossRef]
- Mickaityte, A.; Zavadskas, E.K.; Kaklauskas, A.; Tupenaite, L. THE CONCEPT MODEL OF SUSTAINABLE BUILDINGS REFURBISHMENT. Int. J. Strat. Prop. Manag. 2008, 12, 53–68. [Google Scholar] [CrossRef]
- Koški, Ž.; Ištoka, I.; Miličević, I. Classification of building elements as a function of air permeability measurements. Građevinar 2013, 65, 222–233. [Google Scholar]
- Wong, I.; Eames, P.; Perera, R. A review of transparent insulation systems and the evaluation of payback period for building applications. Sol. Energy 2007, 81, 1058–1071. [Google Scholar] [CrossRef]
- International Organization for Standardization (ISO 13790:2008). Energy Performance of Buildings—Calculation of Energy Use for Space Heating and Cooling; International Organization for Standardization: Geneva, Switzerland, 2008. [Google Scholar]
- Republic of Croatia. Ministry of Construction and Physical Planning. Faktori Primarne Energije/Primary Energy Factors. Available online: https://mgipu.gov.hr/UserDocsImages/dokumenti/EnergetskaUcinkovitost/meteoroloski_podaci/FAKTORI_primarne_energije.pdf (accessed on 19 June 2019).
- Anič, D. Planiranje Uporabnog vijeka građevine—Prijevod norma niza ISO 15686/Translation of ISO 15686 Parts—Buildings and constructed assets—Service life planning. In Građevinski Godišnjak 03/04; Hrvatski Savez Građevinskih Inženjera: Zagreb, Croatia.
Ak | Useful surface area of the building (net area) | m2 |
A | Heated surface area of the building envelope | m2 |
Ve | Heated volume of the building | m3 |
f0 | Building shape factor | m−1 |
Eprim | Specific annual primary energy | kWh/(m2 a) |
Q’’ H,nd | Specific annual energy demands for heating for referential climatic data | kWh/(m2 a) |

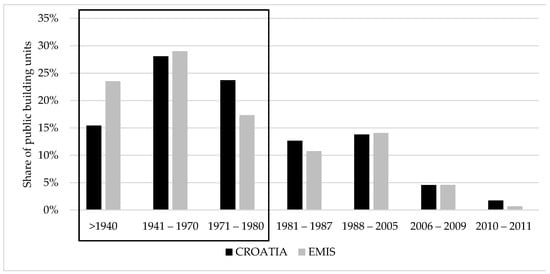

Building A | Building B | Building C | |
---|---|---|---|
Construction period | >1940 | 1941–1970 | 1971–1980 |
Share in national public building stock | 15% | 28% | 24% |
Share of public buildings in EMIS database | 24% | 29% | 17% |
Geometry | Buildings A, B, C | ||
Ak (m2) | 921 | ||
A (m2) | 1634 | ||
Ve (m3) | 3474 | ||
No. of floors | 3 | ||
f0 (m−1) | 0.47 | ||
Window to wall ratio (%) | 12 | ||

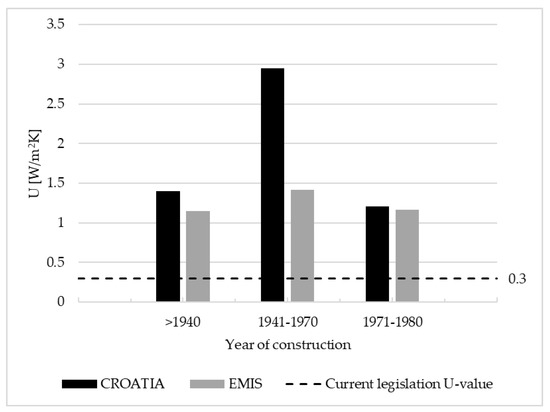

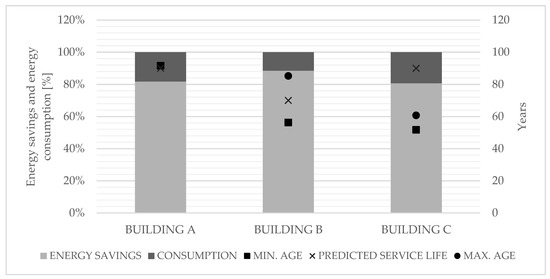

Building envelope | Building A | Building B | Building C |
External walls, U (Wm−2 K−1) | 1.4 | 3.56 | 1.21 |
Floor on the ground, U (Wm−2 K−1) | 2.67 | 2.67 | 0.89 |
Ceiling bordering unheated attic, U (Wm−2 K−1) | 1.46 | 4.20 | 1.41 |
Windows, U (Wm−2 K−1) | 3.6 | 5.2 | 4.0 |
Airtightness, n50 (h−1) | 9.69 | 9.04 | 7.45 |
Energy Efficiency Measures (EEM) | EEM Description | U-Value before Renovation | U-Value after Renovation | Maximum Allowed U-Value | |
---|---|---|---|---|---|
Building A | Thermal insulation of external wall | Mineral wool—22 cm | 1.4 | 0.14 | 0.30 |
Thermal insulation of floor on the ground | Mineral wool—15 cm | 2.67 | 0.23 | 0.40 | |
Thermal insulation of ceiling bordering unheated attic | Mineral wool—20 cm | 1.46 | 0.17 | 0.25 | |
Windows replacement | PVC, triple glazed | 3.6 | 0.96 | 1.6 | |
Building B | Thermal insulation of external wall | Mineral wool—24 cm | 3.56 | 0.14 | 0.30 |
Thermal insulation of floor on the ground | Mineral wool—15 cm | 2.67 | 0.23 | 0.40 | |
Thermal insulation of ceiling bordering unheated attic | Mineral wool—20 cm | 4.2 | 0.17 | 0.25 | |
Windows replacement | PVC, triple glazed | 5.2 | 0.96 | 1.6 | |
Building C | Thermal insulation of external wall | Mineral wool—16 cm | 1.21 | 0.18 | 0.30 |
Thermal insulation of floor on the ground | Mineral wool—15 cm | 0.89 | 0.23 | 0.40 | |
Thermal insulation of ceiling bordering unheated attic | Mineral wool—20 cm | 1.41 | 0.17 | 0.25 | |
Windows replacement | PVC, triple glazed | 4.0 | 0.96 | 1.6 | |
Thermo-technical system replacement | Buildings A, B, C | ||||
Heating and domestic hot water (DHW) system | Thermal solar system with flat plate collectors and condensing boiler with buffer storage tank | ||||
Heating and DHW energy source | Natural gas and renewable energy (solar) | ||||
Cooling system | Local, split systems | ||||
Cooling system energy source | Electricity |
Parameter | Before Renovation | After Renovation | Investment Cost—nZEB (€) | Investment Cost—nZEB (€/m2) | Energy Cost Savings (€/m2 a) |
---|---|---|---|---|---|
Building A | |||||
Eprim (kWh a) | 345,754.94 | 63,025.12 | |||
CO2 (kg a) | 67,282.96 | 12,544.48 | |||
Annual energy cost (€ a) | 15,202.53 | 2630.32 | 171,808.00 | 579.86 | 13.65 |
Q’’ H,nd (kWh/(m2 a))/Energy class | 248.81/F | 43.71/B | |||
Eprim (kWh/(m2 a))/Energy class | 372.15/D | 65.68/A+ | |||
Building B | |||||
Eprim (kWh a) | 555,532.14 | 63,396.60 | |||
CO2 (kg a) | 109,646.11 | 12,618.77 | |||
Energy cost (€ a) | 23,650.97 | 2645.64 | 174,612.89 | 583.24 | 22.81 |
Q’’ H,nd (kWh/(m2 a))/Energy class | 434.17/G | 44.08/B | |||
Eprim (kWh/(m2 a))/Energy class | 595.56/F | 66.06/A+ | |||
Building C | |||||
Eprim (kWh a) | 328,708.96 | 63,205.08 | |||
CO2 (kg a) | 63,830.42 | 12,581.74 | |||
Energy cost (€ a) | 14,521.16 | 2637.10 | 163,393.34 | 569.73 | 12.91 |
Q’’ H,nd (kWh/(m2 a))/Energy class | 233.61/F | 45.55/B | |||
Eprim (kWh/(m2 a))/Energy class | 353.48/D | 65.74/A+ |
Case Study | Payback Period (Years) | Simple Rate of Return |
---|---|---|
Building A | 13.7 | 7% |
Building B | 8.3 | 12% |
Building C | 13.8 | 7% |
