Active BIM Approach to Optimize Work Facilities and Tower Crane Locations on Construction Sites with Repetitive Operations
Abstract
:1. Introduction
2. A Short Overview of Recent Active BIM Approaches, Their Outcomes, and Shortcomings

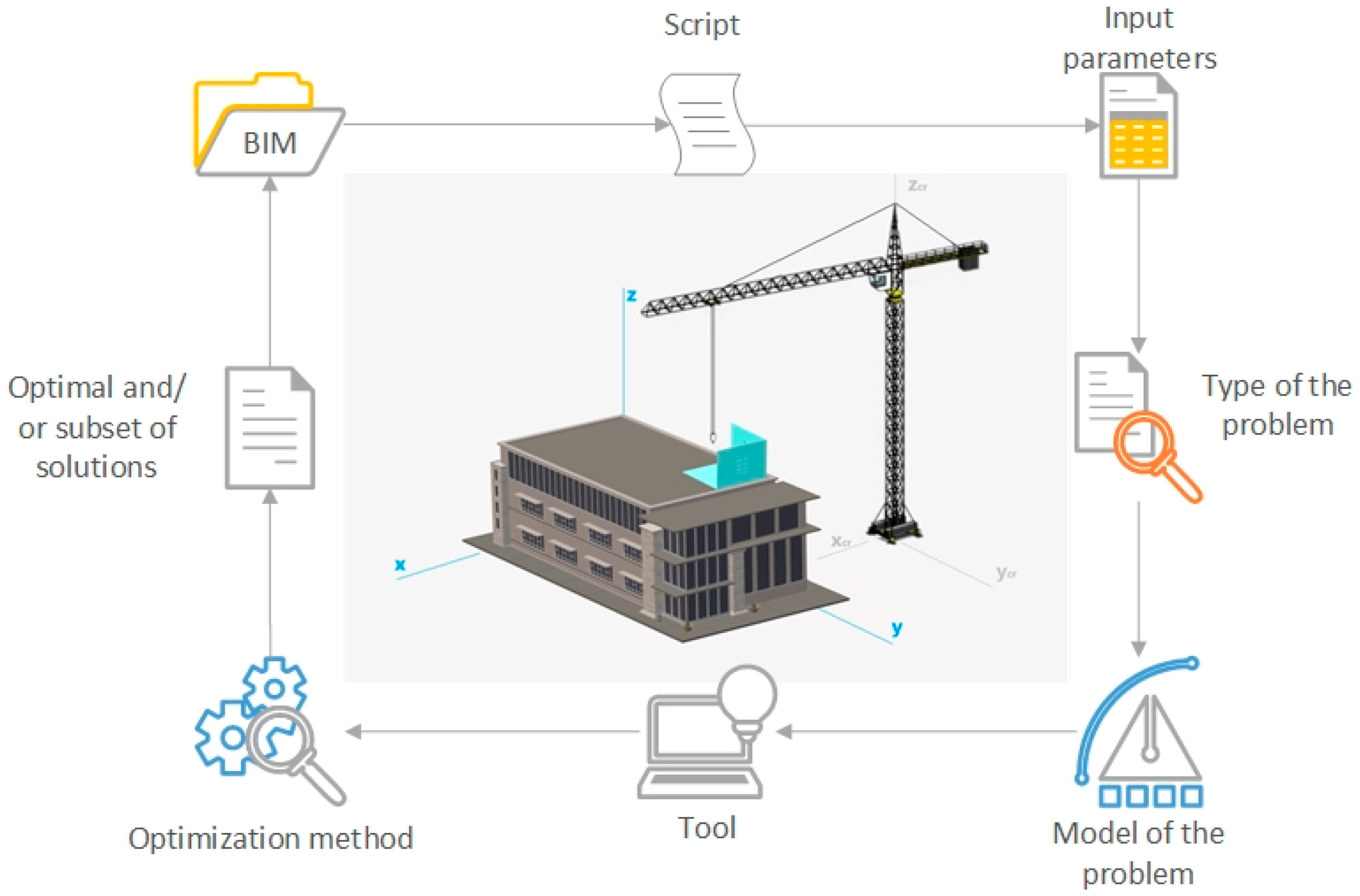

3. Active BIM Approach for the Optimal Positioning of Tower Cranes and Facilities
3.1. Methodology of Structuring the Input Parameters Exported from BIM
3.2. Optimization Model Formulation
3.3. Optimization Problem Solution

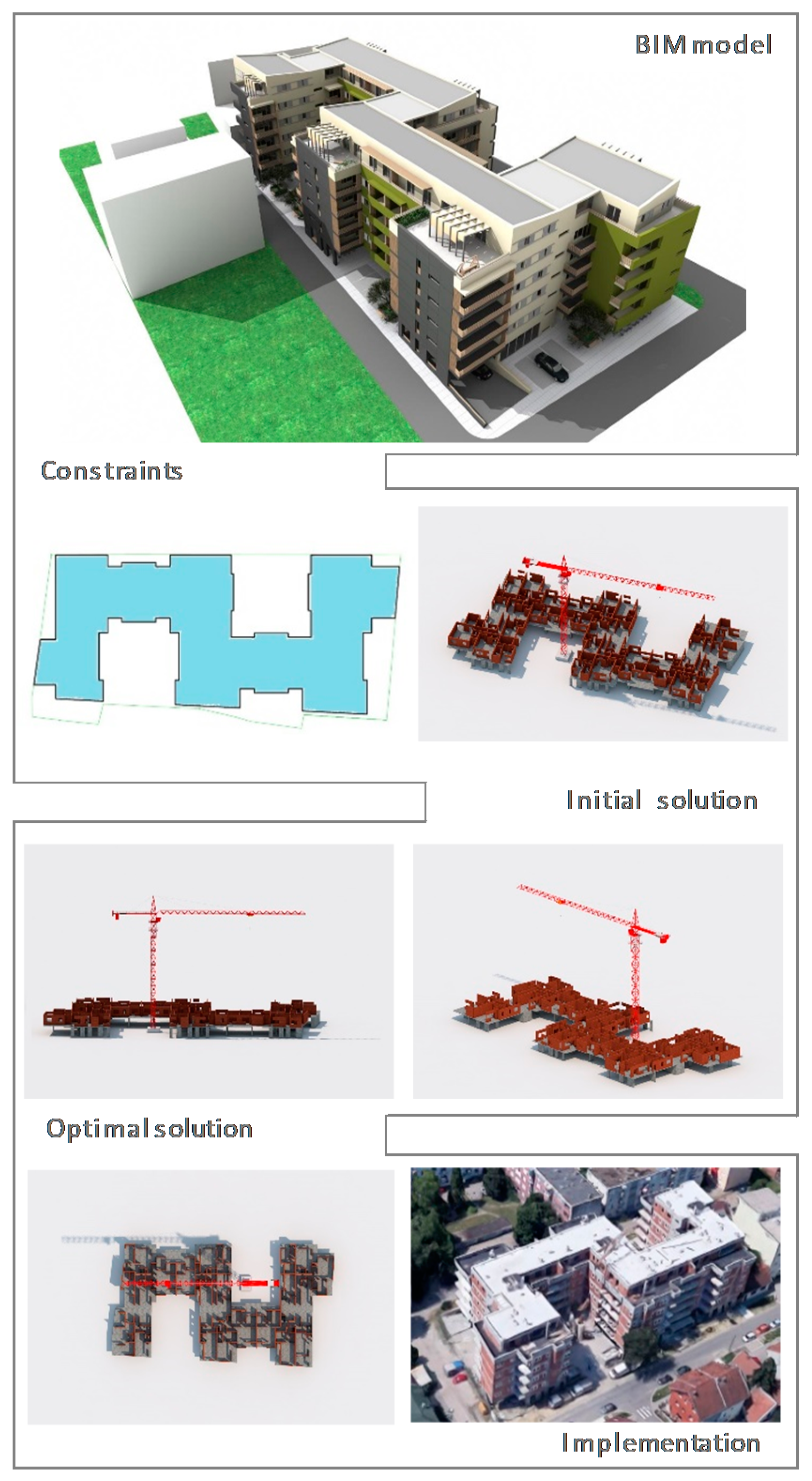

4. Application Example
4.1. General Information and Input Parameters

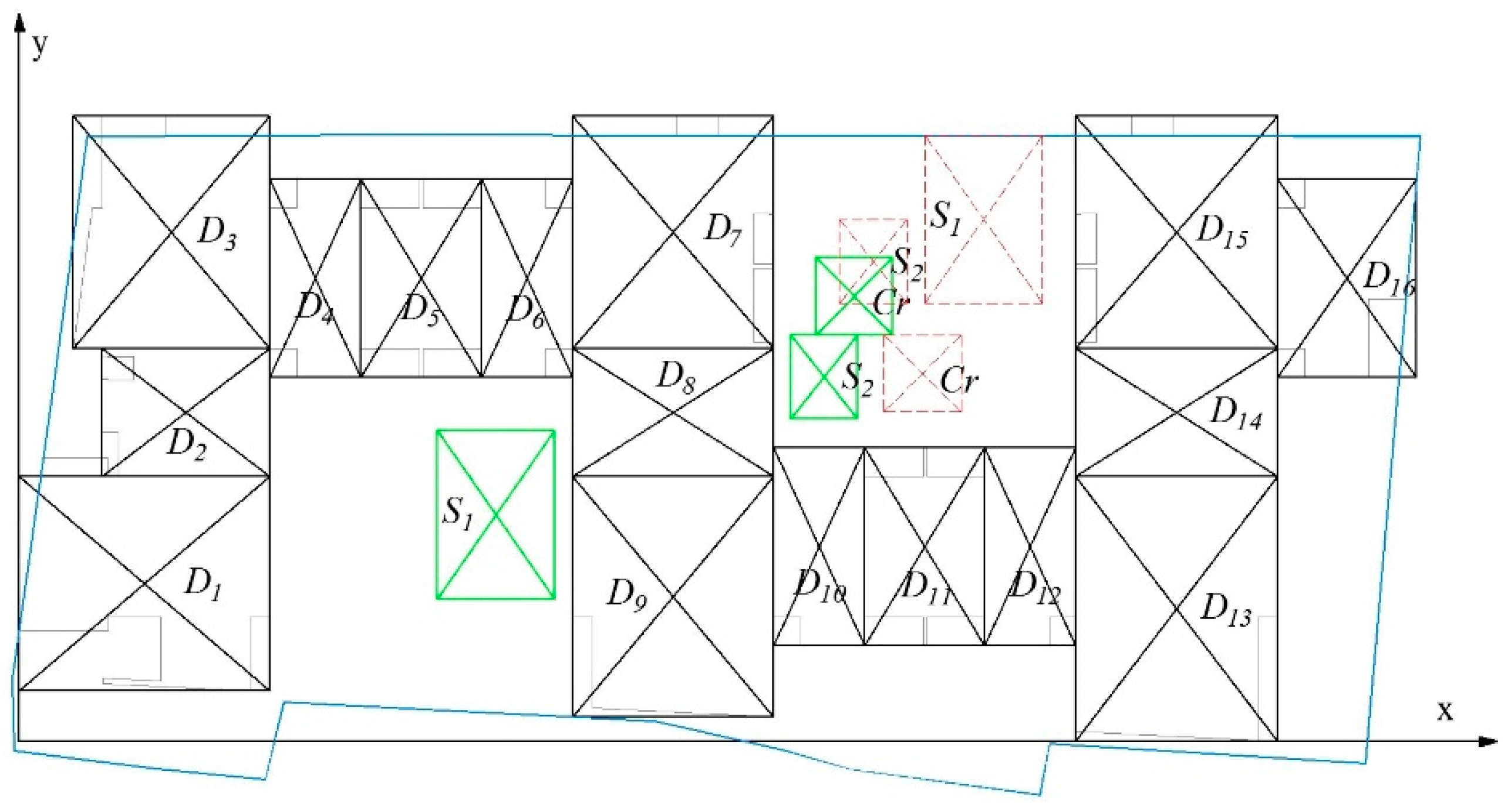

- coordinates, material, and the required quantities of the demand points. In this case, the study materials were the masonry blocks and mortar needed for the construction of the first floor, the layout of which was repeated until the fourth floor (the demand points were the walls with quantities of blocks and mortar that they required. These were structured in 16 demand points in order to keep the variables to a reasonable number),
- coordinates of the feasible tower crane positions. The case study construction site was extremely narrow, which reduced the space for feasible tower crane positions, as well as the positions of the mortar plants (the base of the local coordinate system was set in the far left corner of a land plot),
- number and type of the available tower cranes. Since the case study was an ongoing construction site, the authors used the same tower crane as was used on the construction site (i.e., Liebherr’s 132 EC-H8 Litronic tower crane with technical data obtained from [30]) and used the actual crane’s position as the initial solution of the optimization. It is necessary to underline here that the crane model used in the BIM did not match the one mentioned earlier. However, the model used fit the purpose in terms of its dimensions and physical characteristics. The model of the crane had a static nature in the BIM model; the model also presents ist spatial and physical positioning. The crane’s capacity, with regard to the radius, was modeled as a logical two-part function where the first part is a linear function limited to 8000 kg up to a 15 m radius, while the second part is a cubic polynomial function up to a maximum radius of 55 m when the capacity is 1850 kg. The velocities of the crane’s operations were modeled according to the information given in [30], where the factors of the simultaneous operation relationships, suggested by the authors in [28], were taken into account.
4.2. Optimization and Results
5. Discussion and Conclusions
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- Shapira, A.; Lucko, G.; Schexnayder, C.J. Cranes for building construction projects. J. Constr. Eng. Manag. 2007, 133, 690–700. [Google Scholar] [CrossRef]
- Hasan, S.; Bouferguene, A.; Al-Hussein, M.; Gillis, P.; Telyas, A. Productivity and CO2 emission analysis for tower crane utilization on high-rise building projects. Autom. Constr. 2013, 31, 255–264. [Google Scholar] [CrossRef]
- Muhammed, F. Powering Electric Cranes. In 2013 Build Safe Live Safe Conference; The NYC Department of Buildings: New York, NY, USA, 2013. Available online: https://www1.nyc.gov/assets/buildings/pdf/powering_electric_cranes.pdf (accessed on 30 December 2018).
- Shapira, A.; Ben-David, A. Characteristics of Equipment Planning for Multi-Crane Building Construction Sites. Buildings 2017, 7, 81. [Google Scholar] [CrossRef]
- Kim, Y.W.; Bae, J. Assessing the environmental impacts of a lean supply system: Case study of high-rise condominium construction in Korea. J. Archit. Eng. 2010, 16, 144–150. [Google Scholar] [CrossRef]
- Moon, H.; Kim, H.; Kamat, V.R.; Kang, L. BIM-based construction scheduling method using optimization theory for reducing activity overlaps. J. Comput. Civ. Eng. 2015, 29, 1–16. [Google Scholar] [CrossRef]
- Kim, H.S.; Cho, B.N.; Moon, H.S.; Ju, K.B.; Kang, L.S. Enhancing Interoperability of Construction Data for Managing Integrated Active BIM Features. In Advanced Materials Research; Khalid Al-Bahar, S., Zhao, J.Y., Eds.; Scitec Publications: Switzerland, 2014; Volume 831, pp. 442–445. [Google Scholar]
- Irizarry, J.; Karan, E.P. Optimizing location of tower cranes on construction sites through GIS and BIM integration. J. Inf. Technol. Constr. ITcon. 2012, 17, 351–366. [Google Scholar]
- Irizarry, J.; Karan, E.P.; Jalaei, F. Integrating BIM and GIS to improve the visual monitoring of construction supply chain management. Autom. Constr. 2013, 31, 241–254. [Google Scholar] [CrossRef]
- Wang, J.; Liu, J.; Shou, W.; Wang, X.; Hou, L. Integrating building information modelling and firefly algorithm to optimize tower crane layout. In Proceedings of the 31st International Symposium on Automation and Robotics in Construction and Mining (ISARC 2014), Sydney, Australia, 9–11 July 2014; Ha, Q., Shen, X., Akbarnezhad, A., Eds.; University of Technology Sydney: Ultimo, Australia, 2014. [Google Scholar]
- Wang, J.; Zhang, X.; Shou, W.; Wang, X.; Xu, B.; Kim, M.J.; Wu, P. A BIM-based approach for automated tower crane layout planning. Autom. Constr. 2015, 59, 168–178. [Google Scholar] [CrossRef]
- Ali, N.; Othman, M.A.; Husain, M.N.; Misran, M.H. A review of firefly algorithm. J. Eng. Appl. Sci. 2014, 9, 1732–1736. [Google Scholar]
- Marzouk, M.; Abubakr, A. Decision support for tower crane selection with building information models and genetic algorithms. Autom. Constr. 2016, 61, 1–15. [Google Scholar] [CrossRef]
- Moussavi Nadoushani, Z.S.; Hammad, A.W.; Akbarnezhad, A. Location optimization of tower crane and allocation of material supply points in a construction site considering operating and rental costs. J. Constr. Eng. Manag. 2016, 143, 1–13. [Google Scholar] [CrossRef]
- Shen, X.; Marks, E. Site Location Optimization of a Tower Crane Through Building Information Modeling (BIM). J. Saf. Health Environ. Res. 2017, 13, 330–337. [Google Scholar]
- Ji, Y.; Leite, F. Automated tower crane planning: Leveraging 4-dimensional BIM and rule-based checking. Autom. Constr. 2018, 93, 78–90. [Google Scholar] [CrossRef]
- Kumar, S.S.; Cheng, J.C. A BIM-based automated site layout planning framework for congested construction sites. Autom. Constr. 2015, 59, 24–37. [Google Scholar] [CrossRef]
- Song, S.; Yang, J.; Kim, N. Development of a BIM-based structural framework optimization and simulation system for building construction. Comput. Ind. 2012, 63, 895–912. [Google Scholar] [CrossRef]
- Ciribini, A.L.C.; Ventura, S.M.; Paneroni, M. Implementation of an interoperable process to optimise design and construction phases of a residential building: A BIM Pilot Project. Autom. Constr. 2016, 71, 62–73. [Google Scholar] [CrossRef]
- Choi, B.; Lee, H.S.; Park, M.; Cho, Y.K.; Kim, H. Framework for work-space planning using four-dimensional BIM in construction projects. J. Constr. Eng. Manag. 2014, 140, 1–13. [Google Scholar] [CrossRef]
- Galić, M.; Venkrbec, V.; Chmelik, F.; Feine, I.; Pučko, Z.; Klanšek, U. Survey of accomplishments in BIM implementation in Croatia, the Czech Republic, Germany, and Slovenia. E-GFOS 2017, 8, 23–35. [Google Scholar] [CrossRef]
- Mandičák, T.; Mesároš, P.; Kozlovská, M. Exploitation of cloud computing in management of construction projects in Slovakia. Organ. Technol. Manag. Constr. OTMCJ 2016, 8, 1456–1463. [Google Scholar] [CrossRef]
- Venkrbec, V.; Galić, M.; Klanšek, U. Construction process optimization—Review of methods, tools and applications. Gradevinar 2018, 70, 593–606. [Google Scholar] [CrossRef]
- Abdelmegid, M.A.; Shawki, K.M.; Abdel-Khalek, H. GA optimization model for solving tower crane location problem in construction sites. Alex. Eng. J. 2015, 54, 519–526. [Google Scholar] [CrossRef] [Green Version]
- Trani, M.L.; Cassano, M.; Todaro, D.; Bossi, B. BIM level of detail for construction site design. Procedia Eng. 2015, 123, 581–589. [Google Scholar] [CrossRef]
- Pauwels, P. Supporting decision-making in the building life-cycle using linked building data. Buildings 2014, 4, 549–579. [Google Scholar] [CrossRef]
- Abadie, J.; Carpentier, J. Generalization of the Wolfe Reduced Gradient Method to the Case of Nonlinear Constraints. In Optimization; Fletcher, R., Ed.; Academic Press: New York, NY, USA, 1969; pp. 37–47. [Google Scholar]
- Sirrah-Projekt d.o.o. Technical documentation: Residential Block Humanitas I. Ružina Street: Osijek, Croatia, 2008. (In Croatian) [Google Scholar]
- Allplan Software—A Nemetchek Company. ver. Allplan. 2018.
- Liebherr-Werk Biberach GmbH. Liebherr Turmdrehkran 132 EC-H 8 Litronic. 2014. Available online: https://www.liebherr.com/en/cze/products/construction-machines/tower-cranes/top-slewing-cranes/high-top-ec-h/high-top-ec-h.html (accessed on 3 September 2017).
- Croatian State Geodetic Administration. Available online: http://listovi.dgu.hr/ (accessed on 26 November 2018). (In Croatian).
