Thin Films for Advanced Glazing Applications

School of Engineering and Materials Science, Queen Mary University of London, Mile End Road, London E1 4NS, UK
Materials Research Institute, Queen Mary University of London, Mile End Road, London E1 4NS, UK
Author to whom correspondence should be addressed.
Buildings 2016, 6(3), 37;
Received: 31 May 2016 / Revised: 1 September 2016 / Accepted: 9 September 2016 / Published: 15 September 2016
(This article belongs to the Special Issue Smart Building Materials)


Functional thin films provide many opportunities for advanced glazing systems. This can be achieved by adding additional functionalities such as self-cleaning or power generation, or alternately by providing energy demand reduction through the management or modulation of solar heat gain or blackbody radiation using spectrally selective films or chromogenic materials. Self-cleaning materials have been generating increasing interest for the past two decades. They may be based on hydrophobic or hydrophilic systems and are often inspired by nature, for example hydrophobic systems based on mimicking the lotus leaf. These materials help to maintain the aesthetic properties of the building, help to maintain a comfortable working environment and in the case of photocatalytic materials, may provide external pollutant remediation. Power generation through window coatings is a relatively new idea and is based around the use of semi-transparent solar cells as windows. In this fashion, energy can be generated whilst also absorbing some solar heat. There is also the possibility, in the case of dye sensitized solar cells, to tune the coloration of the window that provides unheralded external aesthetic possibilities. Materials and coatings for energy demand reduction is highly desirable in an increasingly energy intensive world. We discuss new developments with low emissivity coatings as the need to replace scarce indium becomes more apparent. We go on to discuss thermochromic systems based on vanadium dioxide films. Such systems are dynamic in nature and present a more sophisticated and potentially more beneficial approach to reducing energy demand than static systems such as low emissivity and solar control coatings. The ability to be able to tune some of the material parameters in order to optimize the film performance for a given climate provides exciting opportunities for future technologies. In this article, we review recent progress and challenges in these areas and provide a perspective for future trends and developments.

1. Introduction

There are an increasing number of tall glass fronted buildings for both residential and commercial purposes being built. This is principally driven by high land costs in urban centres as well as for aesthetic and comfort reasons [1]. The choice of materials for such buildings is to some extent driven by the mechanical limits of traditional materials such as brick, which may collapse under the weight of the building on top, or cost in the case of employing and maintaining external solid facades [2]. As such, extensive glass facades are a prominent feature in modern architecture for more than just aesthetic reasons. However, there are downsides to such features. For example, the energy demand of such a building will be high. Glass is a poor thermal insulator, as such the use of heating systems in cold climates and air conditioning systems in hotter climates results in higher electricity usage in order to maintain a comfortable internal environment [3]. This in turn leads to the greater increase in building energy demand and therefore a greater use of fossil fuels and higher emissions of carbon dioxide and other pollutant gases [4,5]. The growing amount of carbon dioxide emissions is contributing to the problem of global warming, hence increasing the need for alternative technologies to heating and air conditioning systems [6]. Increasing levels of airborne pollution also poses a significant problem as this may cause fouling of the windows to occur and block the transmission of visible light reducing the aesthetic and comfort aspects of the windows [7]. For taller buildings, this problem becomes more expensive and labour intensive to resolve and for low and mid-rise building leads to a more regular manual cleaning be required to maintain desirable window properties [8].
One strategy to address these challenges is the production of functional metal oxide thin films, which can be used as window glazing coatings to construct ‘smart windows’ (those that have additional layers that improve the performance or enhance the properties of the glazing unit). Such windows have greatest use within constant climates (i.e., those that are largely invariant, e.g., constantly below a comfortable room temperature) [3]. In cold climates windows with high solar transmittance and low thermal emittance are desirable. These allow solar radiation into a building but stop blackbody radiation from escaping and thus warming the building interior. In constantly hot climates, materials that are transparent in the visible region but reflective in the infrared, such as thin metallic coatings can be used to ensure the inside of the building remains cool. However, the materials used in these solutions often require large quantities of indium which is becoming increasingly scarce and more expensive; as such producing such coatings from these traditional materials is becoming unsustainable [9]. Further to this such coatings however, are unsuitable for variable climates such as in the United States of America and central Europe (amongst others) [10]. In these instances, materials that have variable properties that change depending on the local environment are a better solution. These chromogenic materials include several categories in response to an external stimulus, such as thermochromic materials whose properties change depending on their temperature [11].
Thin films of functional metal oxides may also be used to produce coatings of self-cleaning or pollution reducing materials. Such materials utilise sunlight to catalyse the breakdown of organic materials such as airborne pollutants derived from the burning of fossil fuels [8]. They have also been shown to breakdown problematic urban pollutant gases from internal combustion engines such as nitrogen dioxide [12]. Further to this, recent research has shown how thin film dye sensitized solar cells may be made semi-transparent and applied to glass. The potential benefit of such glazing is large, not only will some solar heat gain be absorbed, reducing heating and thus lowering the cooling load, but will also produce electricity that can further reduce the buildings external energy demand in an environmentally friendly manner [13].
This review will discuss some of the latest trends and research in self-cleaning and pollution reducing coatings, energy demand reduction and energy generation for building glazing that has appeared in the literature until early 2015.

2. Self-Cleaning Glazing Applications

Self-cleaning glass is a well-known technology that has been widely developed as a coating material for the external envelopes of buildings within the last decade. Although certain maintenance is required, self-cleaning glazing technology enables great labour saving as well as sustainability and less cleaning chemical products are needed [14].
The fast development of self-cleaning glazing can be partially attributed to the increasing demands of technologically competitive glazing which required the development of multifunctional coatings. In 2001, Pilkington Glass became the pioneer in commercialising self-cleaning windows with Pilkington Activ™ (currently Activ Clear). This product was followed by some other types of self-cleaning glass with additional properties; for example, Pilkington Activ™ Blue and Pilkington Activ™ Bronze combine the benefits of the Pilkington Activ™ Clear coating on body tinted glass to provide some additional solar control to provide some additional solar control functionality to keep the inside of the building cooler. Likewise, Pilkington Activ Sunshade™ Neutral and Pilkington Activ Sunshade™ Blue offer enhanced solar control through the addition of the Pilkington Sunshade™ coating on the inner pane of the glass; ideal for conservatory roofs and walls. After the release of Pilkington Activ™, many other companies started to commercialise self-cleaning glazing as a product itself and also combined with solar control. This was the case for Bioclean™, which is a range of products released by Saint-Gobain Glass. There is a variety of products in the Bioclean™ range with low self-cleaning maintenance properties and high solar control performance [15,16]. Other products such as PPG’s Sunclean™ [17] and Varidian Renew™ [18] self-cleaning coating can be used in conjunction with solar control glass.
Self-cleaning glazing is mainly divided into two categories: hydrophilic and hydrophobic. In both cases, the self-cleaning effect is produced through the action of water by forming water sheets (hydrophilic) or by forming rolling droplets (hydrophobic) that carries away dirt. Nonetheless, hydrophilic coatings have the additional property of breaking down the dirt on the surface under UV irradiation in a chemical process called photocatalysis.
Titanium dioxide is still considered the most suitable material for hydrophilic self-cleaning coating due to its high photocatalytic performance, transparency, chemical stability and low cost. Other coating materials such as vanadium oxide have been reported to show high photocatalytic performance [19] but their low optical transparency make them rather unsuitable for glazing applications. Attempts to improve titania photocatalytic performance have included doping with metals [20], co-doping [21] and coupling with highly conductive semiconductors such as graphene [22].
Hydrophobic surfaces for self-cleaning applications have also been extensively investigated [23,24]. However, these materials have not beaten the advantageous properties of titania thin film hydrophilic surfaces in terms of life expectancy and performance. Whereas hydrophilic surfaces can be used for at least 25 years, hydrophobic surfaces have a much shorter life expectancy of 3–4 years which has been attributed to a result of mechanical abrasion from weathering, necessary maintenance work and to the degradation nature of pollutants. Moreover, after some weathering and in contrast to hydrophilic surfaces, hydrophobic coatings may show poorer self-cleaning performance when compared to untreated float glass [25].
Generally speaking, self-cleaning surfaces encounter the same kind of limitations frequently related to durability, reduction of visual transmittance, functionality and instability at high temperatures [26]. Therefore, future research pathways should aim to overcome these limitations for commercial use in glazing.

2.1. Fundamental Mechanisms in Self-Cleaning

2.1.1. The Hydrophobic Self-Cleaning Mechanism

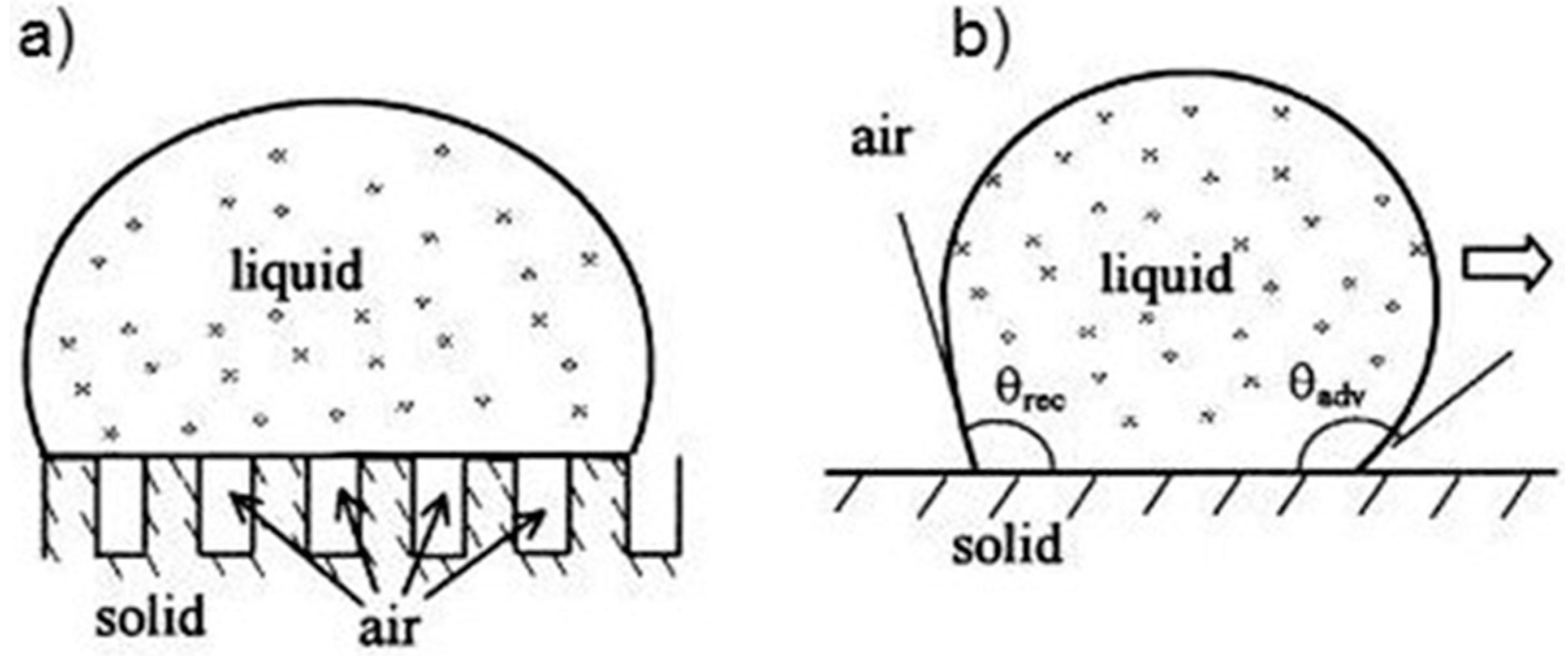

Hydrophobicity is strongly dependent on the surface topography and chemical structure. Cassie and Baxter [27] described a model in which the contact angle is determined by the surface free energies of solid-liquid, solid-gas and liquid-gas boundaries. For heterogeneous surfaces, any water droplet is not entirely in contact with the rough surface and some air bubbles will be trapped at the interface (Figure 1a). The self-cleaning mechanism arises from the poor contact area of dirt particles on the rough surfaces resulting in low adhesion forces. Dirt particles would be easily trapped by water droplets placed on the surface since capillary forces would prevail over adhesion forces of the particle and the surface and, as a result the dirt is washed away [28].
Neinhuis and Barthlott [29] accomplished the first comprehensive experimental study on the self-cleaning action of hydrophobic coatings by investigating different plants and contaminants. They described the hydrophobic self-cleaning process as the Lotus-Effect from the observations of the lotus leaves. Almost perfect spherical droplets of water form on the surface trapping the dirt that will be carried away before the water evaporates. It was observed that in smooth surfaces with high contact angles water droplets tended to disperse contaminants, whereas in rough surfaces with high contact angles, water droplets could trap contaminants and remove them from the surface. The difference between advancing and receding angles is known as hysteresis (Figure 1b) and ideally should be as close as possible to zero. In other words, low hysteresis angles mean that drops would roll easily along the surface at low surface inclination angles. Generally, it is considered that the requirements for a self-cleaning hydrophobic or superhydrophobic surface is a static contact angle >160° and a very low roll-off angle (<10°), i.e., the minimum inclination angle necessary for a droplet to roll off the surface [26].

2.1.2. The Hydrophilic Self-Cleaning Mechanism

Hydrophilic self-cleaning windows are coated with a thin transparent layer of titanium dioxide. The self-cleaning mechanism arises from the combination of two properties; photocatalysis and photo induced hydrophilicity. Thus, photocatalysis causes the chemical break down of the organic matter absorbed on the surface while photo induced hydrophilicity causes water to form sheets, which washes away dirt.
The self-cleaning mechanism can be explained by studying the TiO2 band gap under UV irradiation (Figure 2). When titania absorbs light with the same or greater energy than its band gap (3.2 eV for anatase and 3.0 eV for rutile), an electron-hole pair is generated which may undergo recombination on the surface (a) or in the bulk of the semiconductor (b). On the surface the holes cause the oxidation of nearby organic molecules (c) while the electrons combine with atmospheric oxygen to generate superoxide radicals that also decompose such organic matter (d). This decomposition reaction typically gives CO2 and H2O as products. Likewise, the photo induced hydrophilicity or superhydrophilicity mechanism of titania can be explained by the photo-generated charge carriers. Mills et al. [31] argue that one of the possible mechanisms for this is that photo generated holes get trapped in the titania lattice thereby weakening the bond between titanium and oxygen. As a consequence, an oxygen vacancy is produced and thus the dissociative adsorption of water at the site to make it more hydroxylated. The resulted surface is unstable and, with time, when placed in the dark, the newly formed hydroxyl groups desorb to form hydrogen peroxide or water and oxygen- leaving an oxygen vacancy. Thus, the photo-induced superhydrophilic titania returns to its hydrophilic state when stored for a long time in the dark.

2.2. Hydrophilic Self-Cleaning Glazing Today

The search for improvements in self-cleaning glazing has led to the investigation of new compounds with photocatalytic properties. The combination of hetero-nanostructures such as AgCl/BiOCl [33] and ZnO/In2O3 [34] by chemical co-precipitation methods have been reported to show high photocatalytic performance in the visible. Bismuth germanate compounds (Bi12GeO20) [35] and other compounds such as BaM1/3N2/3O3 (M = Ni, N = Nb, Ta) [36] have reported to give good photocatalytic performance but the potential for self-cleaning glazing is limited as they have been only studied in powder form. Many metal oxides and sulphides such as WO3, ZnO and CdS along with polyoxometallates have been also investigated over the years but none of these have showed better photocatalytic results than titania using light alone [8].

2.2.1. Improvements in TiO2 Self-Cleaning Properties

Novel methods such as electric field assisted chemical vapour deposition of TiO2 thin films have been shown to give excellent photocatalytic results (very fast dye degradation half-life values of 2.5 min) by the induction of changes in the morphology and particle size of the semiconductor microstructure as well as changes in the crystal orientation [37]. In particular, it has been reported that the induction of AC electric fields produces more favourable modifications in titania thin films than DC electric fields [38]. Some other methods aim to increase the photo response in the visible light range such as the incorporation of nanoparticles into TiO2 coating, coupling with visible light absorber semiconductors and doping with different metals.

2.2.2. Phase Separated Semiconductors

The photo activity, as measured by organic material degradation, of TiO2 can be improved through integration with other photoactive materials to form phase-separated semiconductors as incorporated nanoparticles or as a separate layer forming hetero-nanostructures. In both cases, the enhancement of photocatalysis is produced by a compatible coupling of band gaps which favours the effective separation of charged carriers at the interfaces of coupling phases and an increase of the photo response in the visible [39]. Metal nanoparticles can be incorporated into TiO2 assisting photo-catalysis by separating charge carriers. Excited electrons are transferred from the conduction band of the semiconductor to the metal preventing recombination. Electrons accumulated on the metal particle surface can reduce adsorbed species and thus increase photocatalytic rate. At the interface, electrons and holes migrate between phases depending on the relative energies of their conduction and valence bands [8]. Incorporation of silver [40] and gold nanoparticles [41] to mesoporous titania coatings via sol-gel processes have reported to increase the photocatalytic rate by increasing the photo response of TiO2 in visible light. The exposure of nanoparticles to the medium may result in undesirable corrosion or dissolution of metals during repeating photocatalytic reactions which can be avoided by incorporating the metal into titania as core-shell nanocomposite [42].
Hetero-nanostructures formed by coupling titania with visible light absorbing semiconductors, such as bismuth based semiconductors, are another possibility to induce photocatalysis and super-hydrophilicity. Hierarchical flake-like Bi2MoO6 on TiO2 nanoparticle film substrate produced by the solvothermal process showed an important improvement of the photocatalytic performance by enhancing the visible light absorption [43]. This was attributed to a combination of controlled factors such as surface morphology and adequate coupling of both semiconductors band-gap. Bismuth based hetero-nanostructures have been reported as excellent photosensitizers due to their narrow band gap (~1.4 eV) which allows light harvesting in the visible range. In addition, the conduction band energy is approximately 0.26 eV higher than that of TiO2 [44] which allows for fast injection of photo-generated electrons from the bismuth based semiconductor into the TiO2 conduction band [43]. Hetero-nanostructures of other compatible materials in determined structures such as Cu2O-TiO2-ZnO have been also reported to enhance photocatalytic properties by inducing interfacial states and energy band differentials, which favour electron transitions and inhibit photo-generated electron-hole recombination. In this study, it was observed that the photocatalytic performance of the hetero-nanostructure Cu2O-TiO2 remarkably increased with the incorporation of ZnO nanoparticles on the surface which as attributed to an increase of surface area and active sites for photochemical reactions [45].

2.2.3. Doping

Non-metal doping using nitrogen (N) or sulphur (S) has been the most used method to reduce the titanium dioxide band gap in order to increase the absorption of visible light thus improving photocatalytic activity. However, doping has been found to be limited for self-cleaning applications due to an increase of recombination rates resulting in lower photocatalytic activity than pure TiO2 [46,47].
Nitrogen and fluorine co-doping have been reported to produce better photocatalytic performance than pure TiO2 [48]. This has been attributed to a synergy effect between the increase in absorption in the visible by N-atoms and the formation of new active sites by F-atoms [49]. Transparent C-F-N co-doped titanium dioxide thin films produced by the sol-gel method have been reported to show strong visible-light absorption and high photocatalytic performance. In addition, the increase in surface roughness produced by the co-doping induced a superhydrophilicity even under dark conditions [48].

2.3. Multifunctional Hydrophilic Self-Cleaning Coatings

Current investigations aim to further develop integrated self-cleaning coatings with other materials mostly related to building energy cost saving. UV-light cut and low emissivity self-cleaning glazing can be achieved by integrating CeO2 and TiN with TiO2 via sol gel processing [50]. The benefits of integrating antireflective properties with self-cleaning coatings using typically sol-gel processing and sputtering processes have been reported [51,52,53]. It is well known that in photovoltaic cells glass transparency is strictly linked with efficiency which is believed to drop by 33% per 1 g/m2 of dust accumulation on the surface [54]. Other studies on the combination of renewable power generation and destruction of air pollutants in urban environments reported gain of 2.65% after measurements under standard test conditions with antireflective glass [55].

Hydrophilic Self-Cleaning Coatings Today

Nanocomposites of TiO2 nanoparticles in silicon- based polymers produced by sol-gel processes have been reported to show excellent self-cleaning properties and good mechanical properties [56,57] which make them highly suitable for outdoor applications. Similarly, nanocomposites produced from titanium and silicon alkoxides in the presence of oxalic acid have been reported to show excellent photocatalytic properties on stone with potential commercial applications as protective coatings of building materials [58,59]. Further investigations have integrated antireflective, water-repelling and self-cleaning properties from methyl modified SiO2 and TiO2 bilayer highly suitable for photovoltaic cells [23].

2.4. Conclusion and Outlook for Self-Cleaning Glazing

Although important developments have been made in self-cleaning glazing, there are still limitations with existing coatings such as durability, reduction in visual transmittance or function of coatings [26].
The heterogeneity of between the coating and the glass substrate is believed the main cause of the lack of durability of architectural materials [26] which companies such as St. Gobain or Pilkington try to overcome by fusing the coating to the glass substrate while it is molten during the online chemical vapour deposition. The pyrolytic deposition of the coating during the manufacturing process enables a strong chemical bond, which ensures higher durability.
Nevertheless, long-term stability is still a critical challenge for hydrophobic self-cleaning coatings [60]. The micro and nano-scale surfaces are more sensitive to mechanical stress than common surfaces. Affected surfaces can be repaired by passive generation; by self-assembly or active repair process. In the second approach particles are deposited at surface defects and their conglomerates replace the original structure and thus functionality is recovered. However, self-cleaning hydrophobic coatings still face short life expectancy (3–4 years) and low performance for outdoor applications. The main problem for hydrophobic self-cleaning coatings is the mechanical abrasion which is believed to decrease by enhancing hierarchical roughness (Figure 3) [61]. Thus, the Cassie state is stabilised by the presence of roughness at two different scales; robust micro-scale bumps that provide protection against mechanical abrasion to a nanoscale roughness, which ensures the non-wettability of the surface [61].

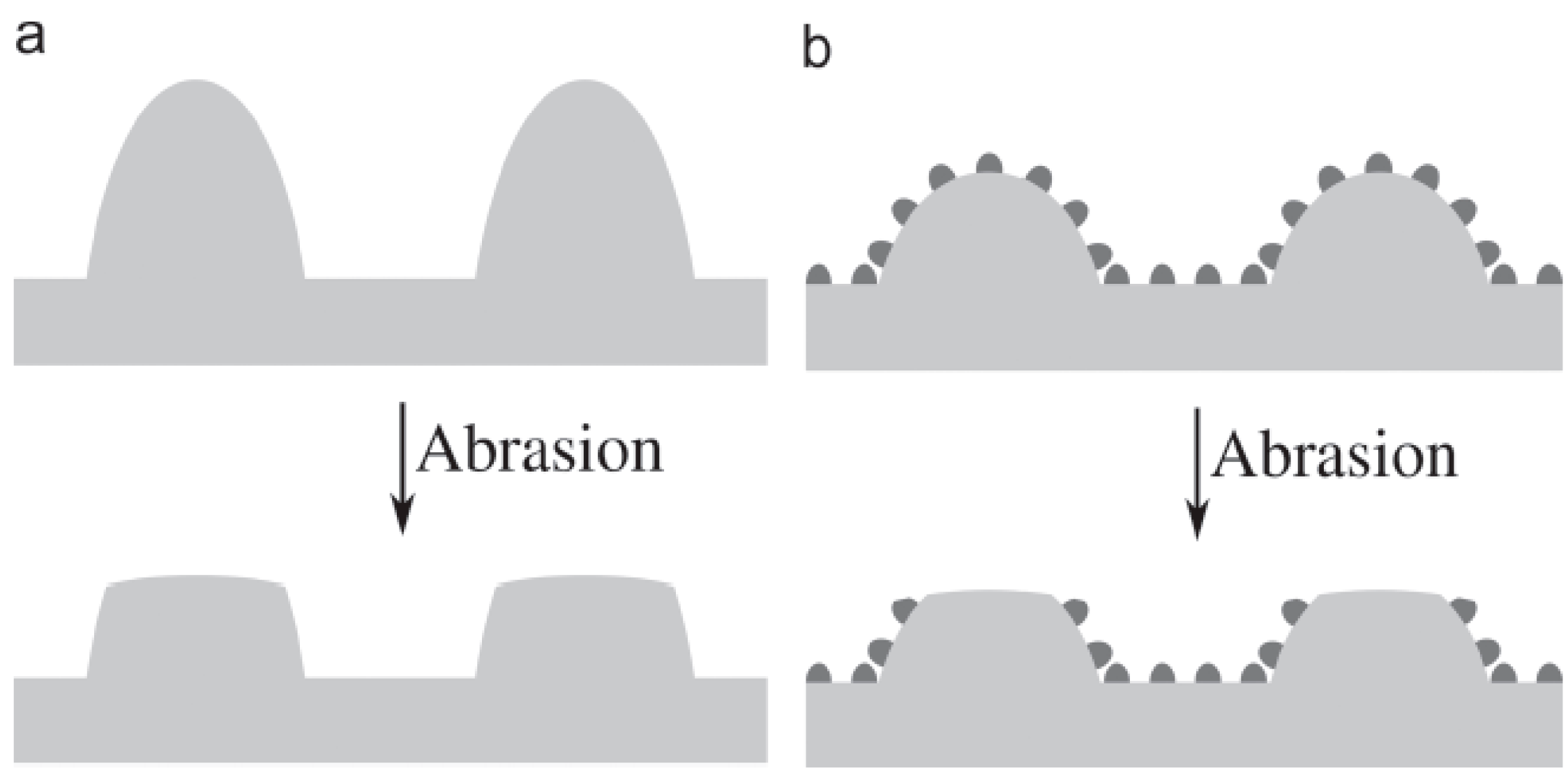

There is a drive to develop new materials that have strong mechanical properties and great absorbance in the ultra-violet and, partially, in the visible spectrum to enhance photocatalysis. Some experts appoint that the development of strong transparent materials is the future in the glazing industry. These materials could be strong enough to replace frames in windows and used in spacers at the same time that allow light go through [25].
Further development of titanium dioxide thin films for self-cleaning applications should also address the breakdown of inorganic matter on the surface. The limited applications to the breakdown of organic matter (but not inorganic matter) make this kind of coating rather unsuitable for coastal areas where salt from sea mist can be deposited in the windows. As such additional cleaning would be necessary for good maintenance of the glazing [8,21]. Glazing for these types of areas also pose a challenge in terms of mechanical strength, as the impact of sand and other inorganic particles on the window surface can deteriorate the glazing much quicker.
However, one facet of the future of the glazing industry will be to produce multi-functional windows, which combine different materials with various functions. This kind of glazing could combine self-cleaning coatings not only with anti-reflection properties but also with chromogenic or photovoltaics properties, depending on the buyers’ needs.
One of the most outstanding applications for self-cleaning surfaces is for use in building integrated photovoltaics (BIPV). This is considered a promising technology due to its dual action as both a building envelope material and a sustainable energy source. BIPVs integrated into windows are called solar glazing, and have the potential to significantly reduce the overall building material costs as well as the resulting building energy generation costs, by offsetting the amount of energy required in the building from non-sustainable sources i.e., fossil fuel burning power stations. However, the maintenance of this technology can be expensive, and this is where self-cleaning technology will prove very useful, as the accumulation of dirt affects the performance of photovoltaic cells. Thus, the integration of self-cleaning technology in solar glazing is highly desirable [25].

3. Energy Efficient Glazing Applications

The energy required for the heating and cooling of modern buildings accounts for around 40% of global energy consumption and 30% of all carbon dioxide emissions [58,59]. These numbers will continue to grow as more areas of the world become developed and more buildings are constructed [62,63,64]. A variety of approaches, such as installing more efficient heating (e.g., heat pump rather than electric hot water systems) [65] and renewable power systems (e.g., solar energy as a power source) [66], have been applied to reduce building energy demand. Moreover, the usage of energy efficient glazing is another important approach because untreated glass is a poor heat insulator whereby windows become a major heat transfer path between the inside and outside of buildings, resulting in unwanted heat transfer [63,64]. This is especially true in modern architecture, where a larger proportion of the exterior wall is designed and constructed with glass façades to be aesthetically pleasing and space efficient, but this also provides an additional challenge to its thermal efficiency [64].
Low emissivity (Low-E) and solar control windows are two types of widely used energy efficient glazing, specifically designed for cold and warm climate dominant areas, respectively. Windows with low thermal emittance are produced by depositing spectrally selective coatings on the glass surface, such as transparent conducting oxides (TCO) or thin metal films, which maintain their transparency in solar wavelength (0.3 to 2.5 μm) and reflective in thermal radiation range (3.0 to 50 μm). For solar control glazing, the coatings are required to be highly reflective since the beginning of near infrared pertinent (0.7 to 50 μm) and also transparent to the visible light (0.3 to 0.7 μm) [67,68], as illustrated in Figure 4.

3.1. TCO Materials as Energy Efficient Coatings

Transparent conducting oxides can be used as energy efficient coatings if they have a wide band gap (usually greater than 3 eV) which enables them to transmit light in the visible spectrum and have a high carrier density (1020 to 1021 cm−3) that can induce plasma reflection at the beginning (solar control application) or middle (Low-E application) range of near infrared light.

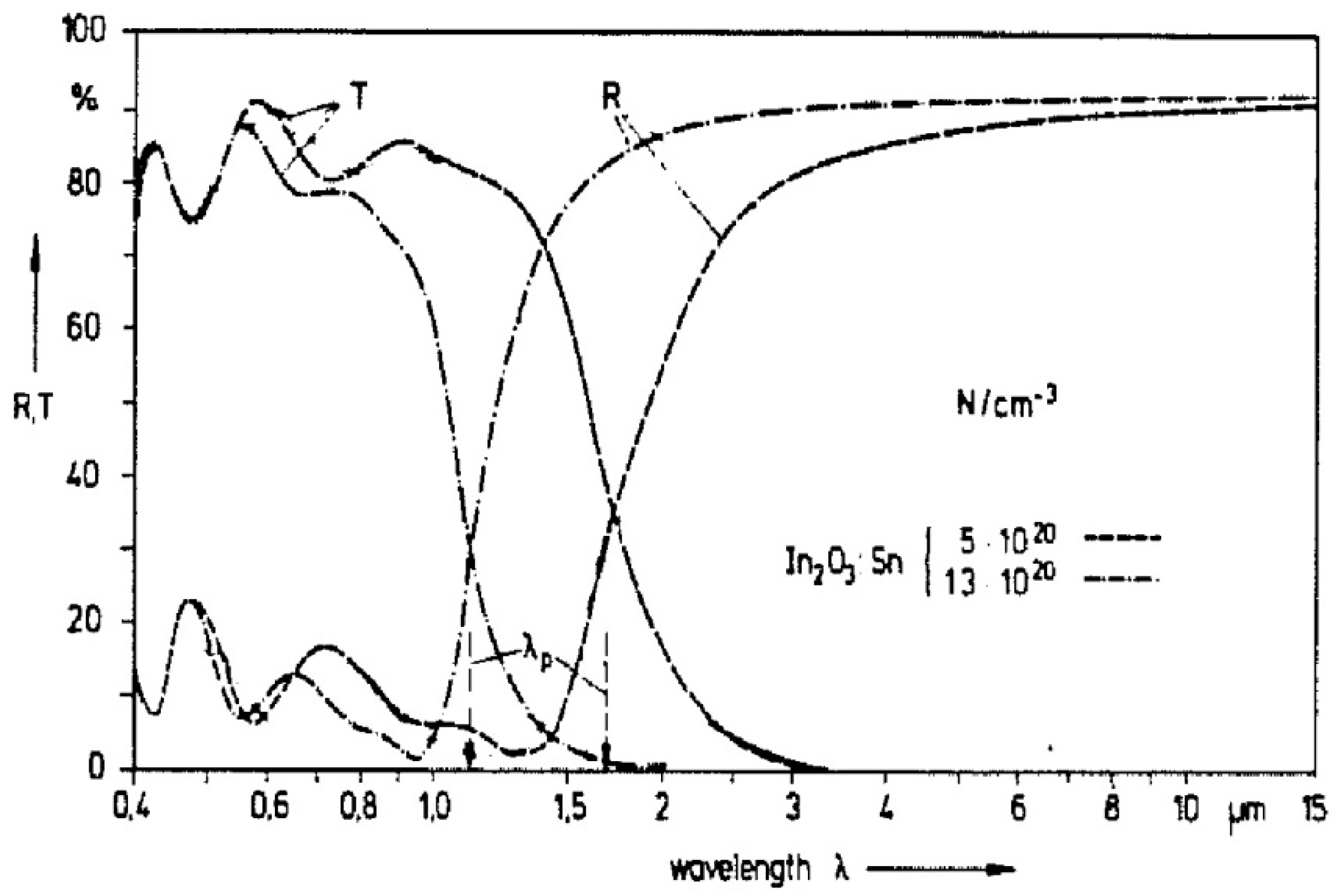

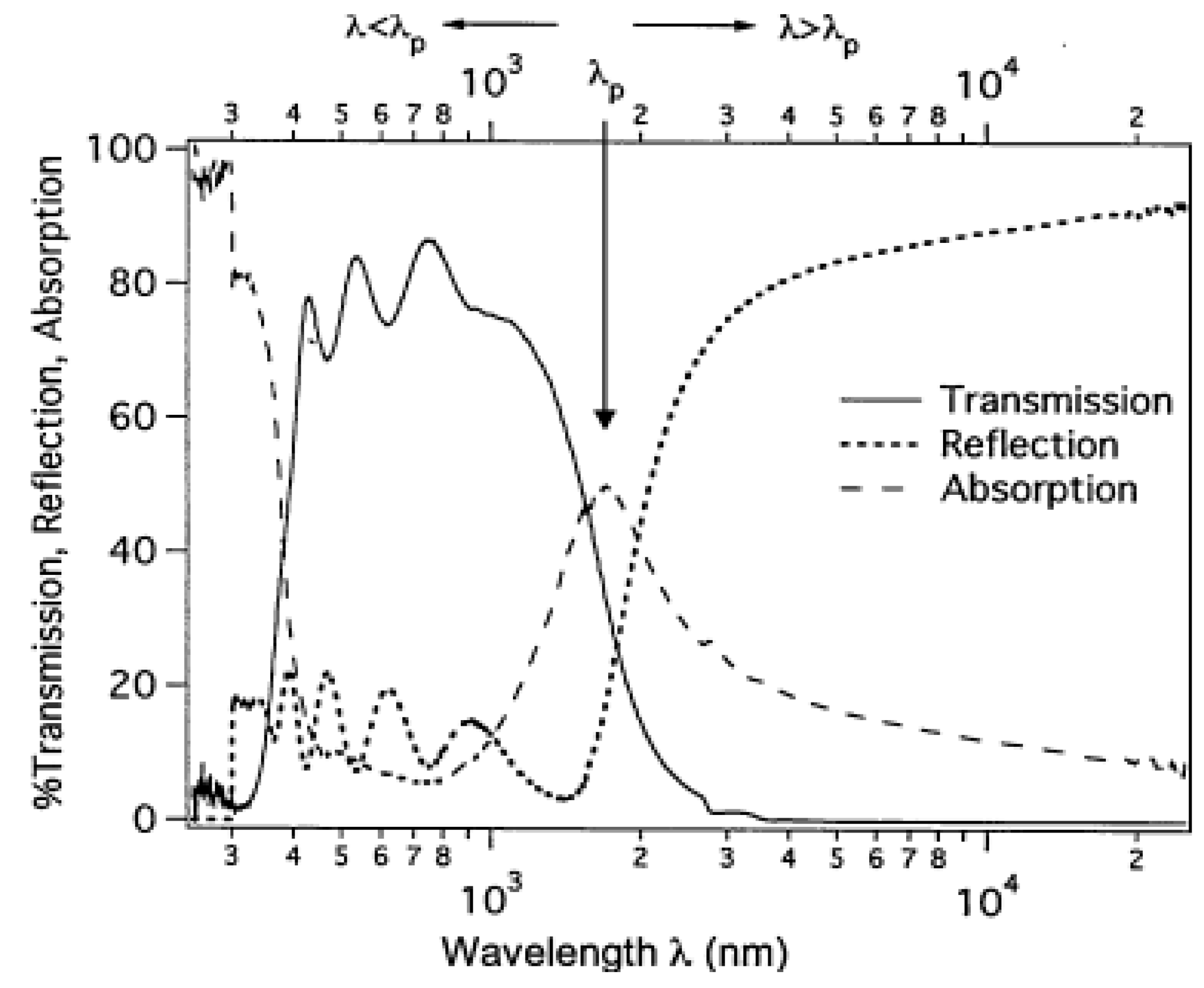

Figure 5 shows the optical spectra of a typical Low-E TCO material, in addition to its good visible transparency, a decrease in transmission and increase in reflection can be observed at longer wavelengths (>1500 nm). This transition, corresponding to a maximum in absorption, is referred to as the plasma wavelength.
Based on the above theories, a large number of doped wide band gap TCO materials can be used for energy efficient coatings. In the following part, three representative transparent conducting oxides, including tin-doped indium oxide (ITO), fluorine-doped tin oxide (FTO) and group-III elements (such as Al and Ga) doped zinc oxide (AZO and GZO), are selected and we will introduce the existing application of these materials in glazing industry as well as recent research highlights.

3.1.1. Tin-Doped Indium Oxide (ITO)

As one of the most popular and earliest studied TCO materials, tin doped indium oxide films (ITO) often exhibit high electrical conductivity, optical transparency and infrared reflectance together, which make them attractive for use in a variety of applications from liquid crystal displays, transparent electrodes in solar cells to heating-reflecting mirrors [70,71].
High quality ITO coatings have been grown by several deposition techniques including magnetron sputtering [72,73], chemical vapour deposition (CVD) [74], sol-gel [75], spray pyrolysis [76], and pulsed laser deposition (PLD) [77] on a glass substrate. For example, Banerijee et al. reported the visible transmission and infrared reflection (at 2100 nm) of magnetron-sputtered ITO films could reach ~90% and ~75%, respectively [72]. In addition, high visible transmittance (>80%) and infrared reflection (~70% at 2500 nm) are observed in ITO thin films prepared by Aerosol Assisted CVD (AACVD) [74]. The plasma wavelength of ITO (~1800 nm) is located in the middle range of near infrared light, so it is suitable for Low-E applications. Rydzek et al. fabricated ITO films with the sol-gel dip coating method and the resultant coatings exhibited good optical transparency (>80%) and a low emittance value (0.19) [75]. Frank et al. reported that, in addition to the good visible transmittance (>80%), the reflectance (at 1500 nm) of spray-deposited ITO films could increase from 10% to more than 80% when the carrier density was enhanced from 5 × 1020 cm−3 to 13 × 1020 cm−3, accompanied by the plasma wavelength shifting from the middle (~1700 nm) to the beginning range (~1120 nm) of near infrared light, as shown in Figure 6 [76]. Moreover, from Kim et al.’s study, the carrier concentration in ITO films prepared by PLD could reach 8–13 × 1020 cm−3 with high visible transmittance (85%–90%) and infrared reflectance (75% to 85% at 2500 nm) [77].
These results all support the use of tin-doped indium oxides as solar control or Low-E coatings, whereby it is easy to control the film performance by changing the deposition method and parameters (such as deposition temperature, film thickness and doping concentration) to meet different energy saving demands. Commercially, most ITO coatings for architectural glazing are deposited by vacuum sputtering, such as in the Yaohua ITO coated glass production line [78].

3.1.2. Fluorine-Doped Tin Oxide (FTO)

In spite of its excellent optoelectronic performances, the scarcity of indium has been regarded as a serious problem for the usage of ITO [79], thus the development of alternative TCO materials has attracted great attention. Fluorine doped tin oxide is a similarly high performing TCO material that has been successfully used in low-E glazing, such as Pilkington K-glass™ [80] and AGC AO™ series glass [81].
Back in the early 1980s, conductive F-doped tin oxide films with high optical transmission (>80%) and infrared reflection (~70% at 2500 nm) had been produced on glass surfaces by spray pyrolysis [82], representing FTO was a good candidate for low-E coating. Nowadays, chemical vapour deposition, especially atmospheric pressure CVD (APCVD), is the most commonly used method for the production of FTO [83]. For example, the F: SnO2 coatings on Pilkington K-glass and AGC AO series glass are all deposited by APCVD on a float glass production line. Aside from these well-established commercial products, in recent years, specific research has been conducted to further improve the optical performance of the FTO coating. Bhachu et al. reported the 1.6 at % F doped SnO2 films deposited by AACVD could show high charge carrier density (5.7 × 1020 cm−3), visible transmittance (~80%) and reflectance in the IR range (80% at 2500) together, which is superior to that of Pilkington-K glass™ (TEC 8) [84].
However, the carrier concentration in Fluorine Tin Oxide cannot be further enhanced, probably due to a doping limit, to enable a shift in the plasma wavelength to the beginning range of infrared light; therefore, FTO, whilst an excellent Low-E material, is not suitable for solar control applications.

3.1.3. Group-III Elementals Doped Zinc Oxide

In the last decade, zinc oxide has been extensively investigated due to its large band gap, high chemical and thermal stability, low cost, no toxicity and ease of fabrication [85,86] As a result, high carrier density based ZnO becomes a promising candidate for new energy efficient coatings. Group-III elements, including Al and Ga, are two common n-type dopants for ZnO, and they have been successfully incorporated in zinc oxide through a variety of deposition methods.

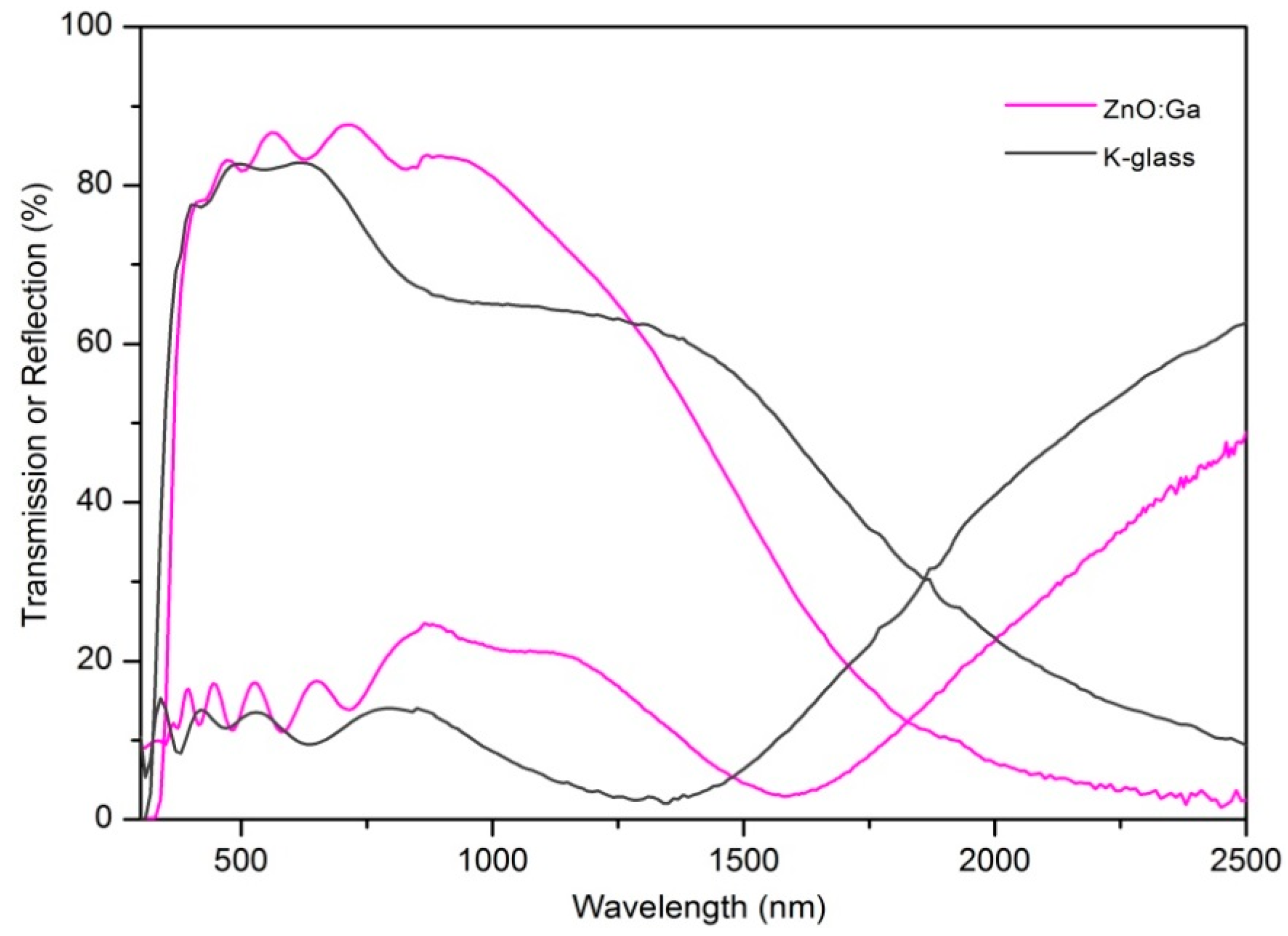

High quality Al or Ga doped ZnO films have been fabricated by CVD techniques since the early 1990s. Hu et al. first prepared Al-doped and Ga-doped ZnO from APCVD, whereby the films exhibit high carrier density (up to 8.0 × 1020 cm−3), visible transmittance (>80%) and infrared reflectance (up to 90% in the far infrared range) [87,88]. However, the precursor they used, such as diethyl zinc and dimethyl zinc, are pyrophoric and quite expensive, so few studies followed on APCVD ZnO after that. Moreover, Bhachu et al. found that the carrier concentration in ZnO:Al films prepared by AACVD could reach 4.35 × 1020 cm−3 combined with favourable visible transmittance (~76%) and infrared reflectance (35% at 2500 nm), but diethyl zinc was still used as a zinc precursor [89]. Several recent studies report transparent conductive GZO films successfully produced by AACVD using low-cost zinc and gallium acetylacetonates, and the best sample could exhibit high carrier concentration (4.22 × 1020 cm−3), visible transparency (84.7%) and infrared reflection (48.9% at 2500 nm), which is close to that of Pilkington-K glass, as shown in Figure 7.
Sputtering is another widely used method to fabricate doped ZnO coatings on glass surfaces. The obtained film performance is often superior to that produced by CVD. Kim et al. prepared AZO films using the R.F. magnetron sputtering method, and the coatings show good optical transparency and high infrared reflection (~70% at 2500 nm) [90]. Ma et al. found that the ZnO:Ga films deposited by DC reactive magnetron sputtering could obtain a 90% visible transmittance and 72% infrared reflectance at 2500 nm. The carrier concentration was as high as 2.5 × 1021 cm−3 and the plasma wavelength (~1340 nm) was near the beginning range of infrared light [91]. In summary, from the perspective of opto-electrical performance, Al or Ga doped ZnO films could meet the requirements for Low-E and solar control applications.

3.2. Conclusion and Outlook for Energy Efficient Glazing

Basing on the above observations, we can see that Indium Tin Oxide and Fluorine Tin Oxide have already been very successfully utilized as energy efficient coatings by the glazing industry. The carrier density in sputtered ITO coatings is easy to be tuned between 1020 and 1021 cm−3 to meet Low-E or solar control applications. However, the scarcity of Indium and high cost of vacuum deposition systems limit its further application. Alternatively, FTO coatings can be produced by APCVD on a float glass production line, making them popular in Low-E glazing but not for solar control window since the carrier concentration in FTO is hard to surpass 1021 cm−3.
Developing new energy saving materials with a cost-effective method is the trend as well as the challenge for future glazing industry. The best candidate for new TCO material could be group-III elements doped zinc oxide. The AZO and GZO films produced by sputtering or CVD method could meet the optical requirement for Low-E coating or solar control application. However, in order to produce these ZnO coatings via the large-scale APCVD route, more research work is needed to develop stable and inexpensive zinc precursors. As to the novel low-cost deposition method, we believe the aerosol assisted chemical vapour deposition could be a potential choice. The main advantage of AACVD compared with other CVD methods is it provides a wider choice and availability of precursors for high quality CVD products [92]. In addition, it is a simple and potentially industrially scalable process with low maintenance and set-up costs [93,94].

4. Solar Cell Glazing Application

With increasing acceptance of the environmental concerns initially expressed by scientists more than 25 years ago [95] coupled with the escalating cost and demand for readily available energy, governmental policy is shifting to place more legislation on the sustainability and environmental impact of new buildings. As a result, more pressure is being placed on architects and manufacturers to design buildings, which are not only energy efficient, but incorporate their own renewable energy supply. One of the most attractive options to achieve this is to use building-integrated photovoltaics (BIPVs). Solar energy is often considered the cleanest and most abundant renewable energy option [96], and with the sun’s irradiation to earth producing about 10,000 times more energy than that required for daily use by mankind it is considered by many to be the most viable option to meet demand [97].
For many years, BIPVs have been limited to single p-n junction devices such as “add-on” monocrystalline silicon solar cell panels on the roof area of buildings, and despite their reducing cost there is significant interest to develop BIPVs, which can be integrated more harmoniously into buildings without affecting the overall aesthetics. The incorporation of semi-transparent solar cells into window glazing is a particularly attractive alternative, potentially enabling visually pleasing building design in combination with solar power generation on a much larger scale. However for this solar glazing to become a truly practical and realistic alternative it must be low cost, semi-transparent, have high power conversion efficiency and be easy to manufacture [98]. Ideally solar glazing should be manufactured in-line utilising existing technologies, such as chemical vapour deposition or sputtering which are already in place within the glazing industry. In addition, transmittance must be optimised whilst maintaining substantial power generation that can offset energy demands in the building.
Currently there is a vast array of research into developing next generation materials for BIPVs that do not rely on the conventional single p-n junction, that are called ‘third-generation’ photovoltaics. For solar glazing, the most successful approaches have utilised dye-sensitized solar cells (DSSCs) and organic photovoltaics (OPVs), which are particularly suitable as they meet all criteria and are made from relatively low cost materials whereby their manufacture can be easily scaled up to an industrial level [98,99]. However, each of these technologies have been subject of intense scrutiny in terms of their potential stability under ‘real-life’ conditions. As a result, there has been a wide range of variations to these technologies, in particular with the DSSC that has produced a rapidly developing area of research into emerging photovoltaic technologies that have the potential to be used in solar glazing, which will be discussed herein.
As window glazing serves a fundamental role in building architecture by visually connecting occupants to the outdoor world while protecting them from the elements, it is understandable that transparency and aesthetic appearance combined with cost-effective energy production are the main priorities in the development of solar cell glazing. This review discusses the recent developments and challenges in producing semi-transparent solar glazing for windows.

4.1. Dye-Sensitized Solar Cells (DSSC)

Since its initial conception in 1991 by Gratzel and O’Regan [100], the DSSC has been a continually attractive method for converting solar light to electric power and has been the subject of many investigations [101,102,103,104,105,106,107]. This considerable interest into the DSSC is a result of its many advantages over traditional solar cell technologies, such as low production cost, simple fabrication methods, easy scale-up ability, architectural and environmental compatibility as well as good performance under weak/diffuse light [108]. However, the efficiency of DSSC technology is currently lower than traditional PVs, at 11.9% for those DSSCs commercially manufactured by Sharp [109] and a maximum of 12.3% for those produced at lab scale [110] and even less for semi-transparent systems (Efficiency < 2%) that may be used in glazing. This in comparison to silicon technology where efficiencies are of the order of 26%.
The DSSC typically consists of a transparent conducting electrode of fluorine-doped tin oxide (FTO) glass, which is coated, with a dye-sensitized mesoporous thin film of TiO2. A photovoltaic effect is then produced at the interface between a redox electrolyte and the thin film of TiO2 when a platinum counter electrode is added to complete the electrochemical cell [110]. For semi-transparent DSSCs it is more common for a counter electrode of glass with an FTO or ITO (Indium-doped tin oxide layer) to be used, as shown in Figure 8. (All picture credit to Bella et al.) [111].
Despite considerable research interest, concerns over the DSSCs long term chemical stability has resulted in limited practical development within industry, whereby the organic dye and redox electrolyte exhibit limited stability under real-life conditions [112]. For use in solar glazing, these issues with stability must be addressed to enable commercial viability. In particular, the liquid electrolyte which usually consists of an iodide/tri-iodide redox couple poses the problem of solvent leakage, low durability and corrosion within the DSSC [113]. In an attempt to combat these problems, many research groups have focused on substituting the liquid electrolyte for other materials, with the main alternatives being either solid or quasi-solid (QS) inorganic or organic hole-transporting materials, such as gel electrolytes prepared by ionic liquids or by the solidification of liquids [114], and polymer electrolytes [115].
It is this research interest in alternative electrolytes for DSSCs that has spawned a large area of research centred on solid-state dye sensitized solar cells (ssDSSC). These solid hole transporting materials used in ssDSSCs typically exhibit small molecular size (~2 nm), high solubility as well as an amorphous structure that enables good impregnation of the photo anode mesopores [116]. At present, the most efficient and widely used organic hole conductors are spiro-OMeTAD (2,2′,7,7′-tetranis-(N,N-di-p-methoxyphenyl-amine)9,9′-spirobifluorene) [117] and bis-EDOT (bis-ethylenedioxythiophene) [118], with efficiencies of 6.08% and 6.1% respectively [111]. For a more detailed description and analysis of the ssDSSC and other variants of DSSC technology the reader is referred to the recent reviews by Upadhyaya et al. [119] and Hardin et al. [120].

4.2. Organic Photovoltaics (OPVs)

As with DSSCs, organic photovoltaics have been the subject of active research for the past 20 years, with benefits arising from their inherent low-cost and potential to be formed on flexible substrates. However, for solar glazing it is their low production costs which make them particularly favourable candidates [121]. There are several organic-based approaches that produce semi-transparent OPV devices that exhibit good electrical performance (Figure 8), whereby they are composed of organic electronic materials, and transparent electrodes based on a wide range of different materials, including conducting polymers [122,123,124,125], thin metal films [126], sputtered transparent conducting oxides of LiCoO2/Al [127], carbon nanotubes [122], graphene [128], and silver nanowires (Ag NWs) [129,130,131,132,133].

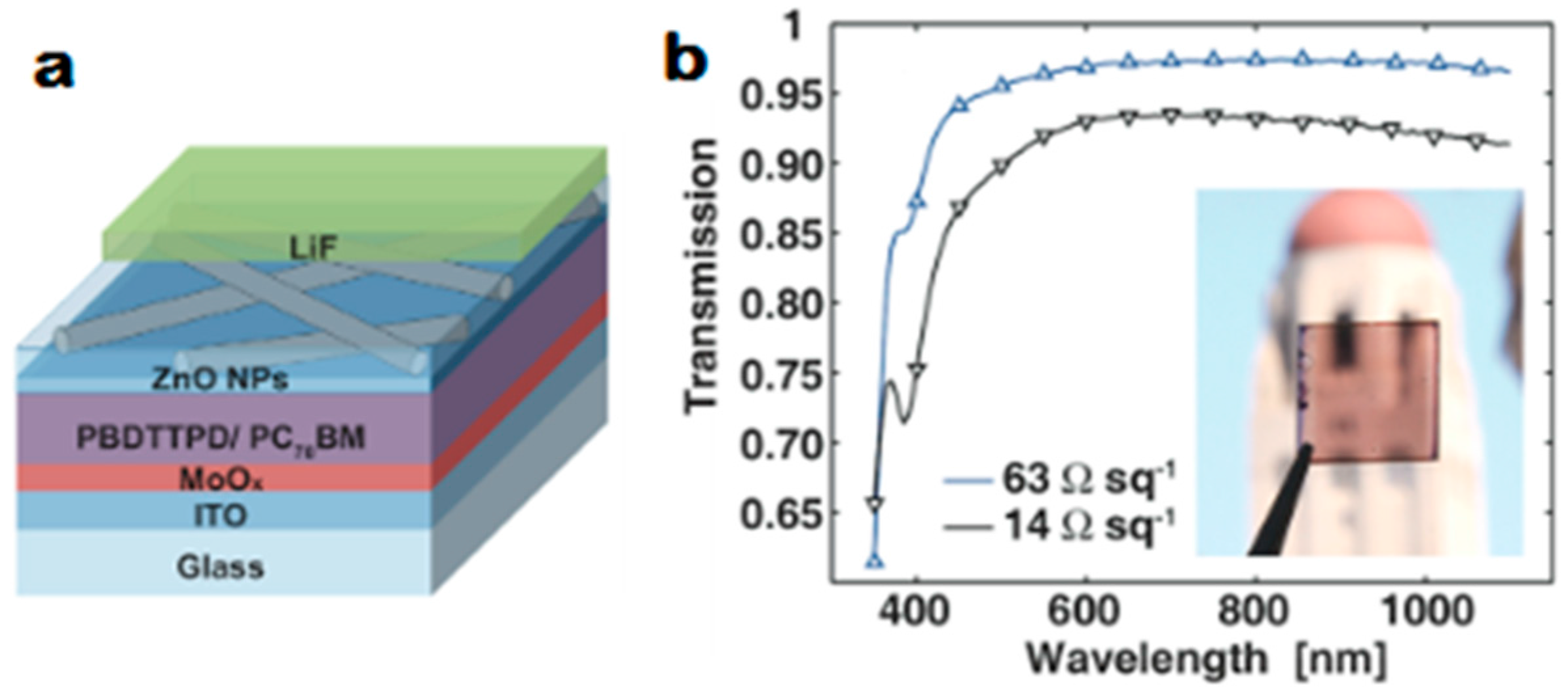

Recently, a study by Beiley et al. [134], has shown the development of a semi-transparent OPV which consists of a silver nanowire (Ag NW) and zinc oxide nanoparticle (ZnO NP) composite top electrode, and has a power conversion efficiency of 5.0%. Additional studies have indicated that Ag NWs can be used as an efficient top electrode for semi-transparent OPV systems where P3HT:PCBM is used [129].
This Ag NW ZnO NP composite top electrode produced by Beiley et al. [134] shows great compatibility for solar glazing production, whereby it has low sheet resistance (14 Ω·sq−1) required for large scale module manufacturing, and it is also processed in solution, making it particularly suitable for low-cost, high throughput fabrication techniques that are favoured in the glazing industry.
Commercially, semi-transparent OPVs for solar glazing have been developed by New Energy Technologies Inc. and are called SolarWindow™ coatings (New Energy Technologies Inc., Columbia, MD, USA). This technology utilises ultra-small organic solar cells that are made of natural polymers so can be dissolved into liquid for easy application including screen printing, ink-jet printing and spraying. Further details of the technology including power conversion efficiency are held back under patents, although it seems that no large scale testing has been conducted as yet [135].
However, as with DSSCs, the current performance of OPVs is much lower than traditional solar cells, as can be seen in Figure 9 which shows the NREL (National Renewable Energy Laboratory) ‘Best Research-Cell Efficiencies’ whereby OPVs are peaking at around the 11% mark, which is less than half the efficiency of their crystalline silicon counterparts at 27.6% [136]. In addition, OPVs have historically had a poor long-term durability which has limited their applications in solar glazing thus far, however they have now been shown to withstand many thousands of hours under favourable circumstances [137].
Furthermore, semi-transparent OPVs based on the most commonly used active material blends of poly(3-hexylthiophene) (P3HT) and [6,6]-phenyl-C61-butyric acid methyl ester (PCBM) demonstrate relatively low efficiency, and their limited spectral absorption results in a strong colour bias of the transmitted light [138]. Although coloured windows are useful for decorative purposes, for large-scale use more neutral colours are preferred.

4.3. Recent Emerging Photovoltaics (PV)

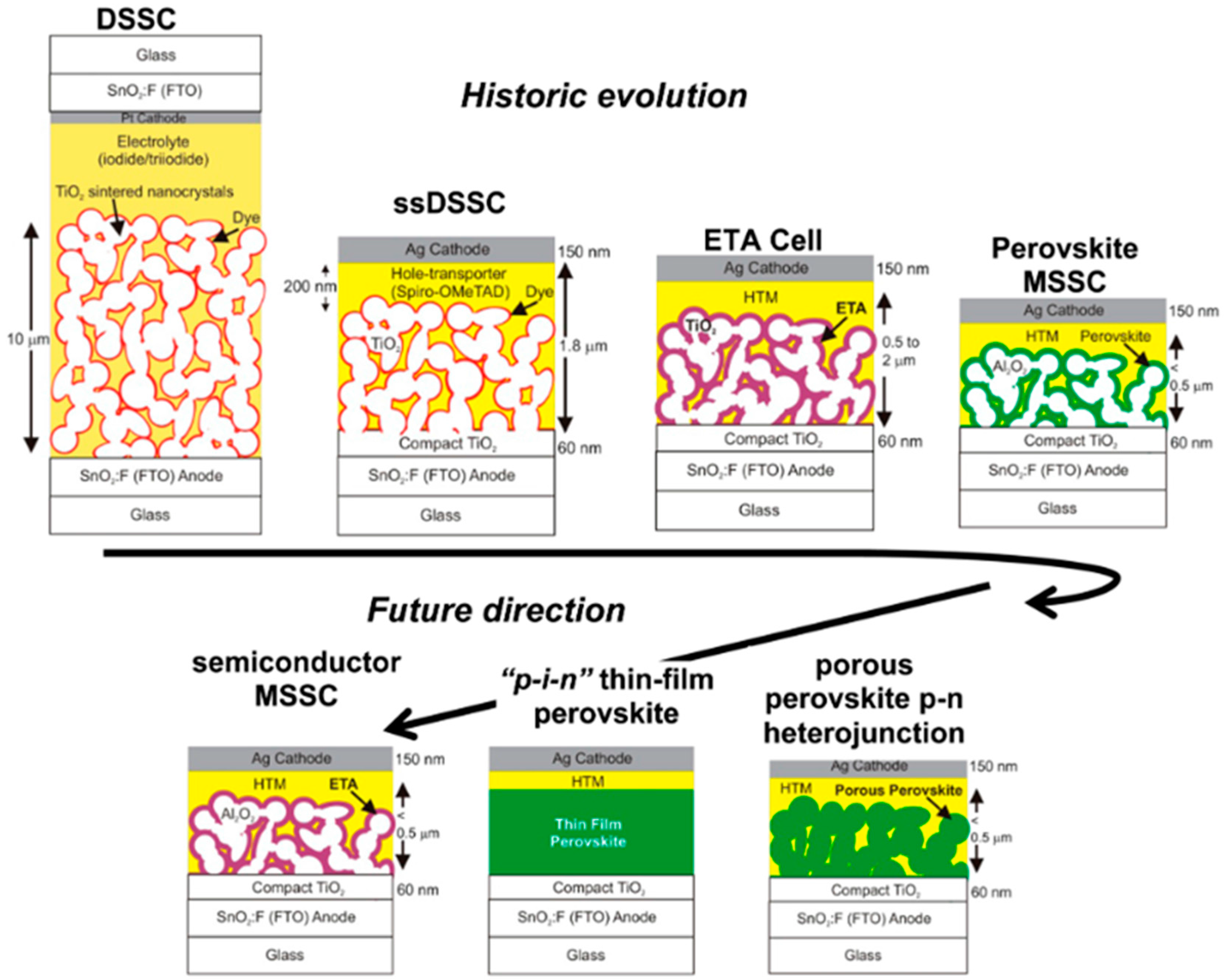

This broad research into DSSC technology has spawned a wide range of DSSC variations, which have been designed with specific targeted improvements in mind. The schematic shown in Figure 10 taken from the perspective review by Snaith [139] shows the historical evolution of the DSSC into ssDSSC technology, as well as the more recent developments into perovskite MSSCs (Mesosuperstructured solar cells) and an indication to future directions in research.
These semi-transparent solar cells based on perovskites have recently emerged as a potential contender for efficient solar glazing in windows due to their rapid increase in power conversion efficiency, whereby in just four years the perovskite cells have exhibited enhanced efficiency from 3.8% in 2009 to 17.9% in early 2015, with expectations to reach even higher efficiencies soon [94,132,140,141]. This demonstrates that understanding of photovoltaic materials has grown considerably since the development of traditional single-crystal solar cells, whose efficiency grew by less than 50% during their first five years of development (See Figure 10) [142].
Perovskite semi-transparent photovoltaics use a thin layer of semiconducting perovskite, which can be produced, at low temperatures using inexpensive and abundant materials. However, despite their promising efficiencies, these photovoltaic cells suffer with the same aesthetic undesirability which is typical of conventional semiconductors in that they have an inherent red-brown tint [143]. In addition, significant research is required in order to establish the long-term stability of these PV materials, as all efficiencies quoted are for small-scale lab-based modules, and currently, to the author’s knowledge, there has been no such investigation into their potential stability to withstand ‘real-life’ conditions on a larger scale, and no expected lifetime. For this technology to be truly viable as solar glazing considerations into the desirability of tinted solar glazing as well as the long-term durability will have to be addressed, however these new materials show great promise due to their rapid increase in efficiency over recent years.

4.4. Conclusion and Outlook for Solar Cell Glazing

In comparison with other BIPV products that have reached the commercialisation stage, solar glazing materials can be considered as still in their infancy. A state-of-the-art review by Jelle et al. [144] on BIPV products includes several appendices on current BIPV modules available on the market, including those for solar glazing applications to which the reader is referred.
As one of the main criteria of solar glazing (in addition to good transparency) is to enable a sufficient energy offset for the entire building, studies have shown that buildings which incorporate solar glazing technology can exhibit overall electricity consumption reductions of up to 55% compared to standard single glazed windows [7,140,141]. As solar glazing BIPVs enable sustainable generation of electricity, reduction in solar heat gain for the implementation of day lighting schemes that save lighting energy consumption and heating requirements within a building, they can be described as a development in building architecture that can be installed in order to offset overall construction and building running costs [145].
However, the main factor holding back the integration of solar glazing into buildings on a wider scale is a combination of the initial start-up cost and resulting efficiency. The majority of solar modules currently available commercially use a technology which involves spraying a thin coating of silicon nanoparticles onto the window which then works as a solar cell, and can be customised to suit efficiency needs from 5% to 22% [14]. These materials are still relatively expensive in comparison to the solar glazing technologies discussed within this review, and the efficiency is variable depending on the level of transparency desired. To date there is very limited availability to buy the cheaper modules based on thin film or PV technologies such as DSSC, OPVs or perovskites commercially. This is because despite their promising efficiencies and good visible transparency, these technologies are still too juvenile to demonstrate their stability over a longer time period under real-life conditions. Aside from the fine balance of enhancing transparency without diminishing power conversion, enhancing stability is the main issue to be addressed to enable the development of a solar glazing product based on these technologies that is suitable for market. Future research into the technologies discussed here will aim to target this issue of stability, as well as to increase understanding and development of the materials used within these devices.
Despite the challenges facing solar glazing research, increasing commercial interest into emerging semi-transparent photovoltaics is continually driving the sector forward. Building manufacturers and architects are beginning to use transparent BIPV modules such as that shown in Figure 11, with acceptable aesthetic results, and the demand and desirability for solar glazing is growing. If the issues regarding stability can be properly addressed, then it seems highly likely that solar glazing will be the next to follow.

5. Thermochromic Glazing

Thermochromic (TC) glazing can potentially help in reducing the energy demand of buildings that seems to be ever increasing [146,147]. Thermochromic glazing changes its optical properties in a dynamic manner in response to eternal temperature [148].

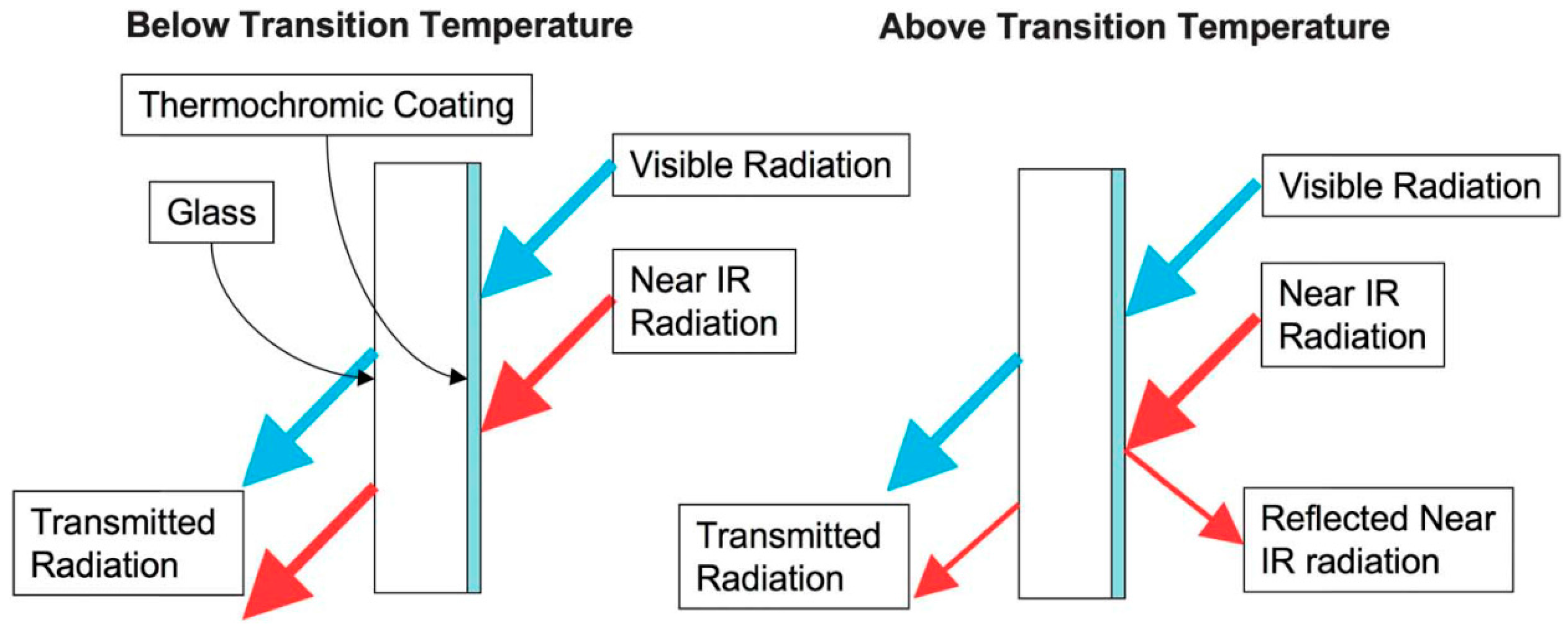

Glazing’s based on thermochromic coatings are designed to intelligently control the amount of light and heat (mainly in the near infra-red region) upon a change in the temperature. A number of transition metal compounds, including Fe3O4, FeSi2, NbO2, NiS, Ti2O3, Ti4O7, Ti5O, V2O3 and VO2, have been found to have thermochromic properties. Even though they offer good transmittance modulation in the visible region, they generally do not offer proper switching in the near IR range of the spectrum or have transitions at suitable temperatures [149]. Among them, vanadium dioxide (VO2) based thin films have been emerged as suitable candidates for TC intelligent glazing applications since they exhibit a sharp transition temperature (Tc) close to room temperature (68 °C) [150].

5.1. Thermochromic VO2

First noticed in 1959 by Morin [151], a single pure VO2 crystal exhibits a semiconductor to metal transition from low temperature monoclinic phase (VO2 M) to high temperature rutile phase (VO2 R). At the temperatures below Tc, the material is transparent in both the infra-red (IR) and visible part of the spectrum, therefore it allows solar radiation to pass through the window by maximising the heating effect of sunlight and minimising black body radiation within the building [152]. On the other hand, at temperatures above Tc these glazing’s are transparent in the visible but become reflective in the IR part of the spectrum [153] (Figure 12) [62]. This characteristic prevents the thermal part of solar radiation from heating the building interior. In other words, in the hot climates VO2 glazing can block much of the incident near infra-red (NIR) solar radiation; thus reducing solar heating of the inside of the building and reducing cooling requirements [154,155]. For cooler weather conditions on the other hand, this types of glazing allows the light in the NIR region to pass through the coating thus warming the building and reducing the need for additional heating [156]. As such thermochromic materials allow for a greater use of natural light, which is highly desirable as internal lighting, they make a further contribution towards reducing the building energy demand [11].

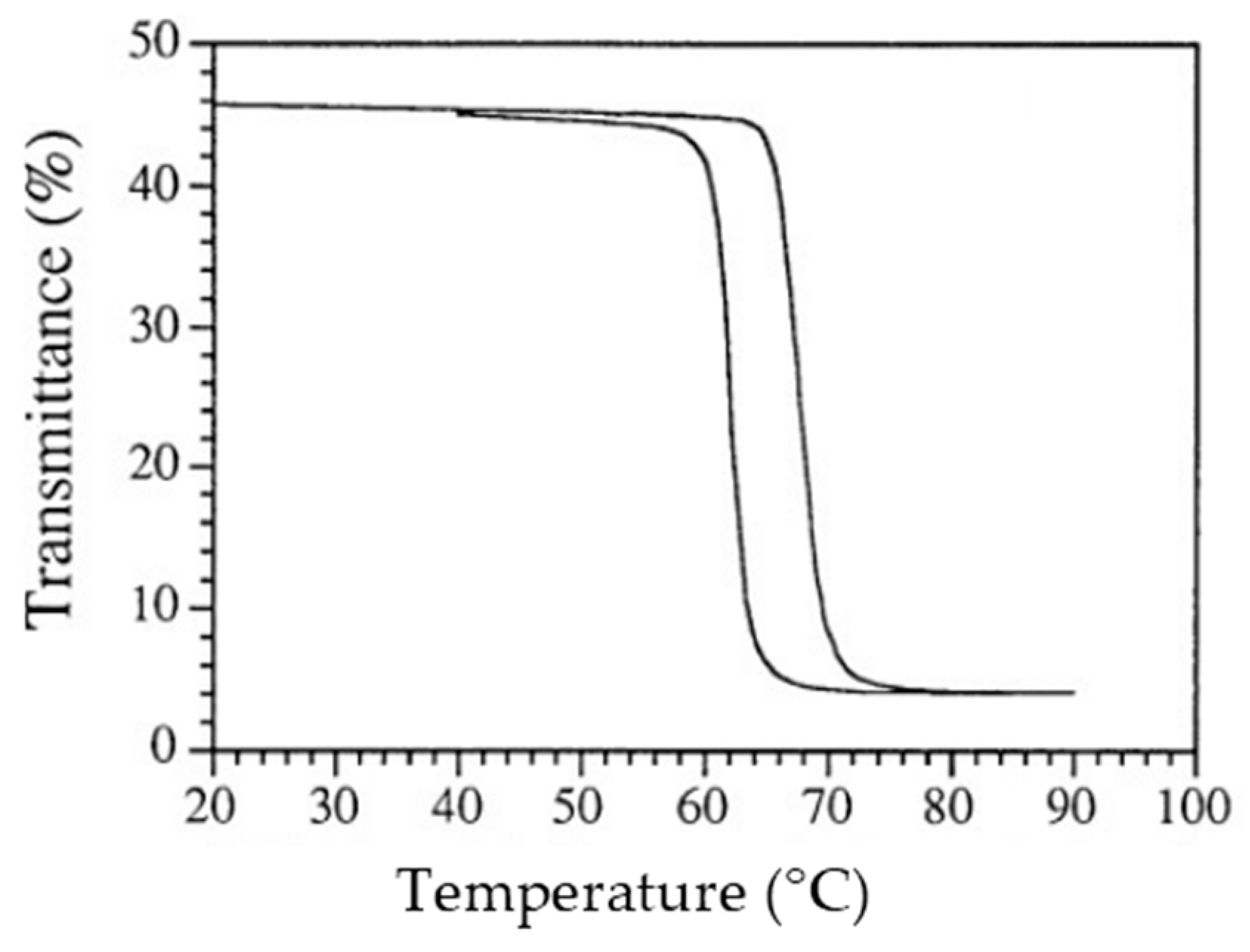

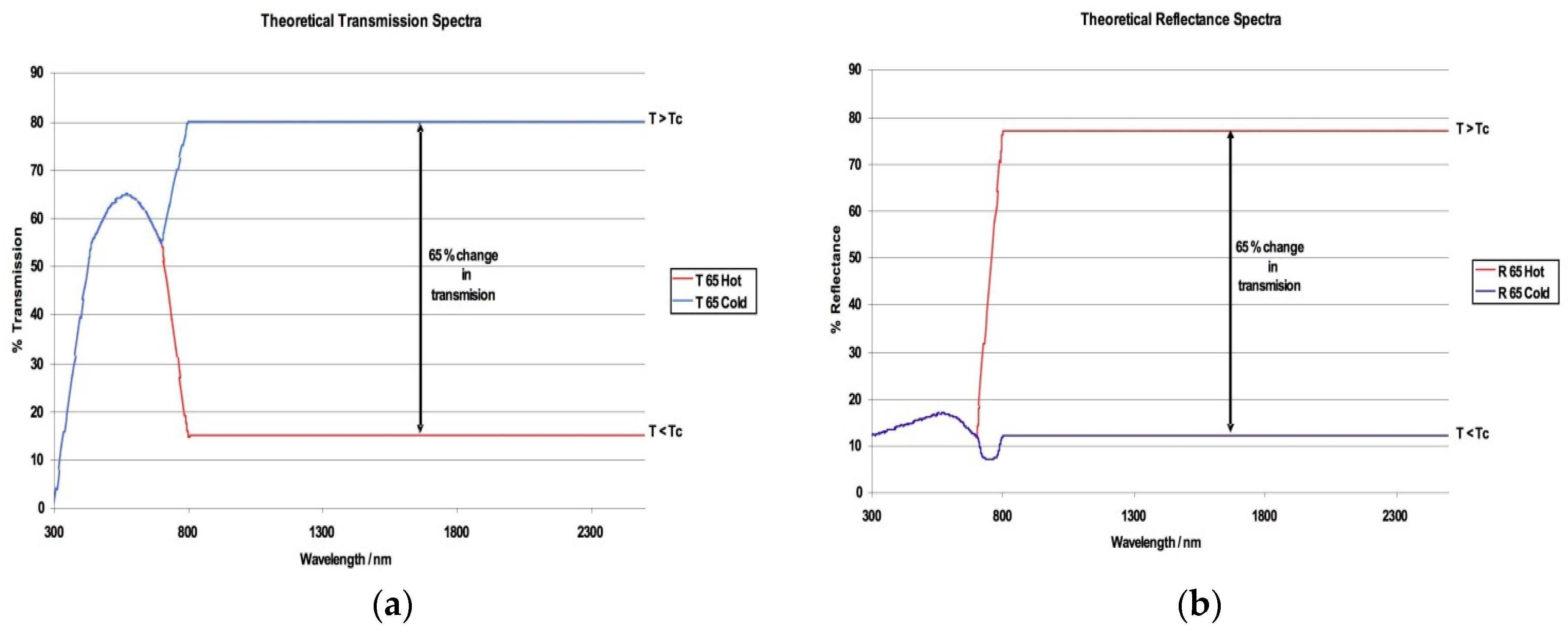

Thermochromic properties of the films are characterised by the critical transition temperature (Tc), change in the percentage of transmittance (∆T) and reflectance (∆R) values, as shown in Equations (1) and (2) where Tcoloured and Ttransparent denotes transmittance changes and Rcoloured and Rtransparent denotes reflectance modulations between coloured and transparent states, respectively. Wavelength integrated luminous and solar transmittance values are expressed in Equation (3), where τ indicates the thickness of VO2 thin film, ϕ is the spectral sensitivity of the light adapted eye and λ the wavelength of light [156,157]. These integrated values allow an assessment for visual and energy-related performance of the thermochromic thin films.
Δ T ( % ) = T c o l o u r e d T t r a n s p a r e n t
Δ R ( % ) = R c o l o u r e d R t r a n s p a r e n t
T l u m , s o l ( τ ) = d λ φ l u m , s o l ( λ ) T ( λ , τ ) d λ φ l u m , s o l ( λ )
In all glazing systems visible transmittance of at least 60% is desirable so as to allow enough light to the building. There ought be a large decrease in the transmittance (Figure 13a) and a large increase in the reflectance (Figure 13b) in the near infra-red region of the solar spectrum (Figure 4) [158]. An idealized optical response shown by a thermochromic VO2 film, below and above its critical transition temperature is summarized in the Table 1.

5.2. Challenges Related to Thermochromic VO2 Glazing

The thin films of VO2 have been the subject of significant research efforts and so many reports show that VO2 exhibits promising characteristics of thermochromic transition for intelligent glazing applications. Nevertheless, practical implementation of thermochromic VO2 films as architectural windows has been hampered by the following performance deficiencies:
  • Principally, thermochromic transition temperature of VO2 is 68 °C. However, a thermochromic window with an energy-efficient benefit should have an ideal transition temperature between 20 and 25 °C with a high visible transmittance and solar modulation ability. Since this critical temperature (Tc) for is too high to be effective to be utilized, efforts need to be made to reduce it to near room temperature [158].
  • The second difficulty associated with the VO2 films is the thermochromic efficiency of the transition (Figure 14). In order to mitigate the solar heat gain efficiently, the thermochromic transition should take place quickly; it means that the gradient of the thermochromic transition hysteresis should be steep and that the hysteresis loop width should be as narrow as possible [157]. A smaller hysteresis width is also preferred to acquire larger response to temperature and a higher efficiency [159].
  • A further undesirable aspect which has to be improved of VO2 coating is the yellow colour of vanadium dioxide films that disturbs the aesthetic appearance of the windows (Figure 15) and makes the films difficult to market [155]. As a result of this colouration, the luminous transmittance values of the VO2 films are often lower than desired (around 30%–40%) which is a significant obstacle to employ these films for windows coatings applications.
The production of VO2 films with high visible transmittance, efficient optical NIR transition and reflection modulation properties, lower Tc values, along with narrower and sharper hysteresis loop widths, remains a worthy pursuit as a significant energy benefit can be derived from such materials [149].
In order to achieve optimal thermochromic performance of the VO2 films, several strategies have been employed, including the implementation of a variety of deposition methods, the preparation of multi-layered films, and the introduction of dopants.

5.2.1. Reducing the Transition Temperature

The transition temperature of pure VO2 is 68 °C, this should be ideally as close to room temperature as possible for optimal thermochromic control in buildings. The majority of previous investigations have looked at the doping the films with high valence transition metal ions. This causes a reduction in Tc to lower values as the metal dopant causes a partial disruption to the crystal structure, effectively lowering the energy required for the phase transition [150]. Tungsten has been found to be the most efficient dopant, lowering Tc by 7 °C per at % [160], 19 °C per at %, 20 °C per 2 at % [161], and by 23 °C per at % W [162]. Molybdenum doping has also been explored and found to decrease Tc by 3 °C [152] and by 15 °C [163] per at % doping. Doping with 3 mol % Mo lowered Tc to 42 °C [164]. Niobium has also been investigated, but it was found to be less effective than tungsten. The Tc of the films was typically decreased by 2 °C per at % doping [164], by 13 °C per 0.4% at [165] and by 15 °C per 2 at % Nb doping [166]. Other dopants explored include magnesium [167] and cerium [168] which decreased Tc by 3 °C and 4.5 °C, respectively per at % doping each. Fluorine has also been incorporated, 3 at % reduced Tc to 35 °C [169].
It has also been shown that a reduction in the crystallite size causes strain and lowers Tc [170]; nanostructured VO2 films of great interest for this reason. Warwick et al. [171] used electric field assisted chemical vapour deposition to deposit VO2 films, and observed that increasing the field strength reduced the average crystallite size, leading to a complex surface morphology and a lower Tc. A significantly low transition temperature of 29 °C has been obtained by Chen et al. [172] who produced nanostructured VO2 films with average crystallite sizes between 20 and 50 nm.

5.2.2. Improving Thermochromic Efficiency

The optimum thermochromic performance of VO2 films can only be realised by minimising transition hysteresis loop width. This characterized by analysing the speed and temperature range at which the thermochromic material can transfer between the rutile (hot) and monoclinic (cold) states. Some modelling studies have been done to investigate the extent of energy saving potential of the VO2 based thin films. These studies revealed that, a greater energy saving potential can be achieved by obtaining a narrow hysteresis loop width (2–3 °C) or the sharpest possible hysteresis gradient [157]. For a warm Mediterranean climate; a low transition temperature along with a sharp hysteresis gradient has been calculated to reduce the energy demand of a building by up to 51% compared to a standard glazing unit [10].
Numerous studies indicate that, the thermochromic efficiency of vanadium dioxide is dependent on a large number of different parameters, such as substrate temperature [173], annealing temperature [170,171,172,173], microstructure [155,174,175] and surface morphology [170,174,176,177,178,179]. The situation is further complicated as doping with high valency metals also impacts upon the thermochromic efficiency, usually in a detrimental manner [179,180,181,182,183]. The use of polymer templates and surfactants has also been shown to change the surface microstructure and thus the thermochromic efficiency [176,184]. In some cases VO2 films that consisted of nanoparticles have been found to result in wider hysteresis widths (10–20 °C), although they tended to have lower critical transition temperatures (~40 °C) [150], it has been suggested that the hysteresis width is inversely proportional to the average crystallite and grain sizes of the materials [185,186] however, this is not found to be the case in all studies [163].

5.2.3. Improving the Aesthetics of Thermochromic Films

A visible transparency in excess of 60% is highly desirable with modern fenestration. Typically, thin films of vanadium dioxide with the optimal transition properties have a maximum visible transmission in the region of 50%; therefore, several methods of addressing this problem have been attempted. So far, the main techniques used for this purpose were regulation of film thickness [166,167,168,169,170,171,172,173,174,175,176,177,178,179,180,181,182,183,184,185,186,187,188], mixtures or composites [189,190] the deposition of antireflection layers [189] and doping [153,159,191].
Previous studies have shown that either Mg [167] or F [192,193] doping can lead to a visible transmittance increase of the VO2 films in greater than 10%. However fluorine doping is not favourable for smart windows glazing applications, as it is known to cause poor transition behaviour, this has been attributed to a strong distortion of the host lattice caused by the anion size [161]. Magnesium, doping on the other hand, resulted in widening the fundamental band gap [191] and improved luminous transmittance (Tlum) of the VO2 films (to ca. 51%) [167]. Further attempts to improve the film aesthetics have been attempted with the introduction of gold nanoparticles into the vanadium dioxide film matrix, lead to a significant change in film colour due to surface plasmon resonance of the gold nanoparticles [194,195,196]. In addition to the use of single dopants, co doping approaches have also been tried. Magnesium and tungsten co-doped VO2 films increased the Tlum to ca. 80% however, the doping had a deleterious effect on the thermochromic efficiency of the transition [193].
Another effective method to increase Tlum of the VO2 films is to use multi-layered structures by utilising high refractive-index dielectric top or under layers [194]. In the last few decades, substantial efforts have been reported to fabricate thermochromic VO2 coatings with very thin layer of such an anti-reflection coating. This has generally served to improve luminous transmittances (Tlum) of the VO2 films, without disturbing the existing thermochromic properties. Lee and Cho [195,196] prepared SiO2 antireflection coatings which exhibited an increase in the Tlum values from ca. 40% to 50%–55% at 650 nm with 100 nm anti reflection coating. ZrO2 over layer anti reflection coatings have also been used, where a Tlum of 55% was obtained [197]. Particularly good properties have been obtained by multilayer films consisting of TiO2 and VO2; Tazawa et al. [198] demonstrate that in addition to improving the visible light transparency of the films, production of TiO2 anti reflection layers can also offer multifunctional properties, combining thermochromic response with self-cleaning properties. Before addition of TiO2 over layers, VO2 films exhibited Tlum values of around 30%. TiO2 (40 nm) on VO2 (50 nm) increased Tlum to 49% [198]. The same group later prepared double layered anti reflection coatings of TiO2 (25 nm)/VO2 (50 nm)/TiO2 (25 nm) which exhibited an enhanced Tlum of 57.6%. Chen et al. [199] later reported higher Tlum of 61.5.%. The durability of the VO2 films has also been improved by the addition of an Al2O3 over layer which was shown to provide protection against heat (300 °C for one day) and relative humidity of 95% [200].

5.2.4. Recent Advances in Thermochromic Glazing

Recent work has further explored the use of Mg doping in thermochromic vanadium dioxide on low emissivity substrates. The incorporation of magnesium was found to enhance the films visible transmittance and to help reduce the thermochromic transmission temperature to 49.2 °C [201]. Increasingly VO2 films are being combined with other functional layers as a way of adding multi-functionality. Miller et al. have recently demonstrated the use of an ITO/VO2/TiO2 stack. The layers gave low-emissivity, thermochromic and anti-reflection functionality. The authors were able to demonstrate that such a stack retained thermochromic possibilities, although these were some way from the ideal, indicating further work needs to be done to optimise the system [202]. The investigation of periodic porous structures is a very recent development in thermochromic thin films. This involves templating the film growth with silica spheres that are then etched or burnt away post film growth. By varying the growth time a variety of structures can be deposited ranging from nanonet like structures to inverse opal arrangements [203,204].
The use of bioinspired structures, such as moth eye type structures, has demonstrated that visible light transmittance can be dramatically increased to in excess of 75% whilst retaining reasonable thermochromic performance [205,206]. There has been further work in the area of nanothermochromics and the use of nanoparticle systems. These show promise as routes to lowering the thermochromic transition temperature without the deleterious effect of metal doping [207]. Work by Greek researchers has demonstrated that amorphous VO2 still exhibits thermochromic properties although it is noted that the transition width and gradient of such films are wide and sloping and therefore suboptimal for use in energy saving systems [208].

5.3. Conclusion and Outlook for Thermochromic Glazing

Vanadium (IV) oxide is the most studied thermochromic material due to its transition temperature being the closest to room temperature, and as such exhibits the greatest potential for application in thermochromic devices and “intelligent” glazing systems. However, significant challenges must be overcome in order to manufacture a commercial window coating include factors such as colour, scale-up, and thermal cycling.
A transition temperature of 68 °C is still too high, applications such as “intelligent” thermochromic glass require switching temperatures between 18 and 25 °C. The precise switching temperature can be tuned, by doping the material. Tungsten (VI) has been found to be the most promising reducing the transition temperature by 22 °C per atomic % incorporated.
Incorporating gold nanoparticles into the films via a hybrid aerosol-assisted and atmospheric pressure CVD technique shows potential to improve the colour of the VO2 films, compared to the tungsten doped films, however, the cost of gold is likely to be an issue. Fluorine or magnesium doping or the use of optical stacks may well prove to be the optimal way forward.
The energy-saving performance of the films is predominantly controlled by the thermochromic switching temperature and number of hours the film spends in the hot state. Simulation results show that, in warmer climates, a lower transition temperature leads to energy savings, thus reduction of the Tc to around room temperature will lead to further energy-saving behaviour.
A possible drawback to this new technology is that availability of the resources needed in order to produce these coatings. One must not forget that this will be a large-scale production of new technology and issues such as accessibility of the raw materials needed should be considered. Nevertheless, the current energy situation and future issues, such as population growth and increasing standards of living, will inevitably demand a safe and affordable solution to the shortage of fossil fuels and environmental effects such as global warming. We believe that thermochromic technology and thin film materials can play an important role in finding the appropriate solution.

6. Building Integration Issues

The aesthetics of glazing is very important to its success as a commercial product and has been one of the stumbling blocks for various systems such as electrochromic nickel oxide or thermochromic vanadium dioxide coatings. The films discussed here also have several issues in the area of aesthetics.
The overall levels of visible transmission for DSSC type glazing and thermochromic vanadium dioxide lays in the range 0.45–0.60, somewhat less than what is considered in industry to be required for a saleable product. For glazing products, the general consensus view is that higher visible transmission is desirable in order to reduce lighting loads and improve aesthetics, although there is a trade-off between higher costs for cooling or heating and visible light transmission. Of course one must question what is the point of having a window if it does not allow light through? However, we must ask the question, how much light is enough for a modern functional building? Is something that is subjective and highly dependent on the climate, building position and indeed position within a building itself. We have not attempted to answer that question here but we do suggest that a reduction in transmission may well be worth it in terms of improved energy performance.
Colouration is also an issue; thermochromic vanadium dioxide thin films are a yellow brown colour that it is thought the majority of people would not find aesthetically pleasing. We have outlined several strategies that can address this, although these all add additional complexity and cost into the coatings manufacture.
For DSSC type-glazing integration is somewhat more complicated. The other technologies discussed in this review are passive technologies that can be installed in a standard glazing unit and left to perform. DSSC’s are more complicated requiring additional wiring and components to effectively integrate them into the building. There are further issues with DSSC’s that relate to sealant failure or the electrolyte drying out, both of which would severely hamper the useful working lifetime of the unit.
The key advantage of the self-cleaning, thermochromic and transparent conducting oxide based thin film technologies presented here is that they are produced by atmospheric pressure chemical vapour deposition. This fabrication method can be (and is) incorporated directly into the float glass manufacture process. It allows for on line production of the films with no off line processing steps required. Atmospheric pressure chemical vapour deposition is significantly cheaper than physical vapour deposition methodologies as no expensive vacuum equipment is required. The size of glass that can be coated is limited by the width of the float glass line rather than the size of the vacuum chamber. Additionally, films produced by atmospheric pressure chemical vapour deposition are generally more adherent than those produced from physical vapour deposition methods and will therefore have longer lifetimes. As an example of the benefit of such coating systems consider body tinted absorbing glass, which is produced by adding additional materials into the glass melt that acts as a tint in the final product. This requires careful control of the glass melt in order to obtain consistent and even colouration, it can take up to 100 h before the glass melt has reached an equilibrium state and colouration is consistent. As float glass lines typically produce 800 m of glass an hour, an effective down time of 100 h means the loss of 80 km of glass. Although some of this wastage will be reintroduced into future glass melts this is still a huge amount of loss. Producing absorbing type glasses by applying a coating using atmospheric pressure chemical vapour deposition is therefore highly desirable from an efficiency perspective.

7. Conclusions

This review has discussed the technology of glazing integrated photovoltaics, solar- control Low-E, thermochromic and self-cleaning/anti-pollution materials for functional applications in buildings. Of all these technologies, solar-control and Low-E materials are the most established. These are materials based on spectral selectivity, however angularly selective materials propose the need for further research and development. Solar-control and Low-E materials are suitable for use as smart windows in climates, which are constant. However, these materials typically contain substantial quantities of indium, an element that is in short supply and as such very costly. The latest transparent conducting oxide research presented in Section 3 demonstrates that new materials such as aluminium doped zinc oxide can be a viable replacement for the traditional indium containing materials. In those climates that vary, there is a greater need for chromogenic materials (Section 5). At present the most research has been carried out on chromogenic materials whose optical properties change according to temperature (thermochromic), external voltage (electrochromic) and radiation (photochromic). Currently, thin films have been used in many applications; however, bulk materials such as photochromic glasses and polymers, thermochromic polymers and polymer based cloud gels offer other possibilities, although perhaps less desirable as these systems tend to be more complex in nature. These chromogenic windows offer the possibility of combining comfort for the occupants of the building with the growing need of energy efficiency. Photochromic thin films also pose as a possible contender for ‘smart windows’ as these work in a similar way to electrochromic device however an external voltage is not required. Radiation is used to change the colour of these films and set about photochromic properties within them. The most promising thermochromic materials for window glazing is vanadium (IV) oxide, due to it relativity low transition temperature of 68 °C, however this is still not low enough for it to be actually used on larger scale. The introduction of some particular dopants does in fact lower the Tc however, there are still challenges concerning the aesthetic appearance of these films to overcome.
Glazing integrated photovoltaics based on dye-sensitized solar cells (Section 4) are in a relatively early stage of development. They however offer great potential for reducing energy demand in buildings through the absorption of solar radiation as well as generating usable energy. They also offer the potential of a variety of different colours depending on the dye used, thus affording designers and architects greater choice for their works.
Self-cleaning/anti-pollution coatings (Section 2) have been known for some time but have only recently become a saleable product. Further work remains to be completed to optimise these materials for use in destroying dangerous airborne urban pollutants such as nitrogen dioxide and volatile organic compounds. Efforts are also underway to allow these materials to be used inside buildings.
One potential drawback with regards to these new technologies is that availability of the resources needed in order to produce these coatings. One must not forget that this will be large-scale production of new technology and issues such as accessibility of the raw materials needed should be considered. Nevertheless, the current energy situation and future issues, such as population growth and increased standard of living, will inevitably demand a safe, affordable and sustainable solution to the shortage of fossil fuel and environmental effects such as global warming. Chromogenic technology and thin film materials will play an important role in finding the appropriate solution.


Işıl Top thanks TUBITAK for the provision of funding for a studentship. Shuqun Chen thanks the China Scholarship Council for the provision of a studentship.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Anstock, J.S. Handbook of Glass in Construction; McGraw-Hill Publication: New York, NY, USA, 1997. [Google Scholar]
  2. Watts, A. Modern Construction Envelopes; Springer: Vienna, Austria; New York, NY, USA, 2010. [Google Scholar]
  3. Kanu, S.S.; Binions, R. Thin films for solar control. Proc. R. Soc. Math. Phys. Eng. Sci. 2010, 466, 19–44. [Google Scholar] [CrossRef]
  4. European Comission. Directive 2002/91/EC of the European Parliament and of the Council of 16 December 2002 on the Energy Performance of Buildings; European Comission: Brussells, Belgium, 2002. [Google Scholar]
  5. United Nations. Kyoto Protocol to the United Nations Framework Convention on Climate Change; United Nations: Bonn, Germany, 1997. [Google Scholar]
  6. Granqvist, C.G. Smart windows. Adv. Sci. Technol. 2008, 55, 205–212. [Google Scholar] [CrossRef]
  7. Pilkington Glass Handbook, 2010. Available online: (accessed on 12 September 2016).
  8. Parkin, I.P.; Palgrave, R.G. Self-cleaning coatings. J. Mater. Chem. 2005, 15, 1689–1695. [Google Scholar] [CrossRef]
  9. Warwick, M.E.A.; Ridley, I.; Binions, R. The effect of transition gradient in thermochromic glazing systems. Energy Build. 2014, 77, 80–90. [Google Scholar] [CrossRef]
  10. Stadler, A. Transparent Conducting Oxides—An Up-To-Date Overview. Materials 2012, 5, 661–683. [Google Scholar] [CrossRef]
  11. Warwick, M.E.A.; Binions, R. Chemical vapour deposition of thermochromic vanadium dioxide thin films for energy efficient glazing. J. Solid State Chem. 2014, 214, 53–66. [Google Scholar] [CrossRef]
  12. O’Keeffe, C.; Gannon, P.; Gilson, P.; Kafizas, A.; Parkin, I.P.; Binions, R. Air purification by heterogeneous photocatalytic oxidation with multi-doped thin film titanium dioxide. Thin Solid Films 2013, 537, 131–136. [Google Scholar] [CrossRef]
  13. Miyazaki, T.; Akisawa, A.; Kashiwagi, T. Energy savings of office buildings by the use of semi-transparent solar cells for windows. Renew. Energy 2005, 30, 281–304. [Google Scholar] [CrossRef]
  14. Jelle, B.P.; Hynd, A.; Gustavsen, A.; Arasteh, D.; Goudey, H.; Hart, R. Fenestration of today and tomorrow: A state-of-art review and future research opportunities. Sol. Energy Mater. Sol. Cells 2012, 96, 1–28. [Google Scholar] [CrossRef]
  15. SGG Bioclean Natura. Available online: (accessed on 15 March 2016).
  16. SGG Bioclean Aqua. Available online: (accessed on 15 March 2016).
  17. PPG Sunclean. Available online: (accessed on 15 March 2016).
  18. Viridian Renew. Available online: (accessed on 15 March 2016).
  19. Vernardou, D.; Drosos, H.; Fasoulas, J.; Koudoumas, E.; Katsarakis, N. Photocatalytic properties of chemically grown vanadium oxide at 65 °C. Thin Solid Films 2014, 555, 169–172. [Google Scholar] [CrossRef]
  20. Lim, J.; Monllor-Satoca, D.; Jang, J.S.; Lee, S.; Choi, W. Visible light photocatalysis of fullerol-complexed TiO2 enhanced by Nb doping. Appl. Catal. B Environ. 2014, 152–153, 233–240. [Google Scholar] [CrossRef]
  21. Srinivasan, S.S.; Wade, J.; Stefanakos, E.K.; Goswami, Y. Synergistic effects of sulfation and co-doping on the visible light photocatalysis of TiO2. J. Alloys Compd. 2006, 424, 322–326. [Google Scholar] [CrossRef]
  22. Anandan, S.; Narasinga Rao, T.; Sathish, M.; Rangappa, D.; Honma, I.; Miyauchi, M. Superhydrophilic graphene-loaded TiO2 thin film for self-cleaning applications. ACS Appl. Mater. Interfaces 2012, 5, 207–212. [Google Scholar] [CrossRef] [PubMed]
  23. Faustini, M.; Nicole, L.; Boissière, C.; Innocenzi, P.; Sanchez, C.; Grosso, D. Hydrophobic, antireflective, self-cleaning, and antifogging sol-gel coatings: An example of multifunctional nanostructured materials for photovoltaic cells. Chem. Mater. 2010, 22, 4406–4413. [Google Scholar] [CrossRef]
  24. Mu, Q.; Li, Y.; Zhang, Q. Self organized TiO2 nanorod arrays on glass substrate for self-cleaning antireflection coatings. J. Colloid Interface Sci. 2012, 365, 308–313. [Google Scholar] [CrossRef] [PubMed]
  25. Midtdal, K.; Jelle, B.P. Self-cleaning glazing products: A state-of-the-art review and future research pathways. Sol. Energy Mater. Sol. Cells 2013, 109, 126–141. [Google Scholar] [CrossRef]
  26. Cannavale, A.; Fiorito, F.; Manca, M.; Tortorici, G.; Cingolani, R.; Gigli, G. Multifunctional bioinspired sol-gel coatings for architectural glasses. Build. Environ. 2010, 45, 1233–1243. [Google Scholar] [CrossRef]
  27. Cassie, A.B.D.; Baxter, S. Wettability of porous surfaces. Trans. Faraday Soc. 1944, 40, 546–551. [Google Scholar] [CrossRef]
  28. Marmur, A. Wetting on hydrophobic rough surfaces: To be heterogeneous or not to be? Langmuir 2003, 19, 8343–8348. [Google Scholar] [CrossRef]
  29. Neinhuis, C.; Barthlott, W. Characterization and Distribution of Water-repellent, Self-cleaning Plant Surfaces. Ann. Bot. 1997, 79, 667–677. [Google Scholar] [CrossRef]
  30. Michael, N.; Bhushan, B. Hierarchical roughness makes superhydrophobic states stable. Microelectron. Eng. 2007, 84, 382–386. [Google Scholar] [CrossRef]
  31. Mills, A.; Hill, G.; Bhopal, S.; Parkin, I.P.; O’Neill, S.A. Thick titanium dioxide films for semiconductor photocatalysis. J. Photochem. Photobiol. A Chem. 2003, 160, 185–194. [Google Scholar] [CrossRef]
  32. Nakata, K.; Fujishima, A. TiO2 photocatalysis: Design and applications. J. Photochem. Photobiol. C Photochem. Rev. 2012, 13, 169–189. [Google Scholar] [CrossRef]
  33. Liang, J.; Zhu, G.-Q.; Liu, P.; Xu, C. Highly Visible-Light-Responsive Photocatalytic AgCl/BiOCl Hetero-Nanostructures Synthesized by a Chemical Coprecipitation Method. J. Nanosci. Nanotechnol. 2014, 14, 4185–4190. [Google Scholar] [CrossRef] [PubMed]
  34. Wang, Z.; Huang, B.; Dai, Y.; Qin, X.; Zhang, X.; Wang, P.; Liu, H.; Yu, J. Highly photocatalytic ZnO/In2O3 heteronanostructures synthesized by a coprecipitation method. J. Phys. Chem. C 2009, 113, 4612–4617. [Google Scholar] [CrossRef]
  35. He, C.; Gu, M. Photocatalytic activity of bismuth germanate Bi12GeO20 powders. Scr. Mater. 2006, 54, 1221–1225. [Google Scholar] [CrossRef]
  36. Yin, J.; Zou, Z.; Ye, J. Possible Role of Lattice Dynamics in the Photocatalytic Activity of BaM1/3N2/3O3 (M = Ni, Zn; N = Nb, Ta). J. Phys. Chem. B 2004, 108, 8888–8893. [Google Scholar] [CrossRef]
  37. Romero, L.; Binions, R. Effect of AC electric fields on the aerosol assisted chemical vapour deposition growth of titanium dioxide thin films. Surf. Coat. Technol. 2013, 230, 196–201. [Google Scholar] [CrossRef]
  38. Romero, L.; Binions, R. On the Influence of DC Electric Fields on the Aerosol Assisted Chemical Vapor Deposition Growth of Photoactive Titanium Dioxide Thin Films. Langmuir 2013, 29, 13542–13550. [Google Scholar] [CrossRef] [PubMed]
  39. Mao, L.; Wang, Y.; Zhong, Y.; Ning, J.; Hu, Y. Microwave-assisted deposition of metal sulfide/oxide nanocrystals onto a 3D hierarchical flower-like TiO2 nanostructure with improved photocatalytic activity. J. Mater. Chem. A 2013, 1, 8101–8104. [Google Scholar] [CrossRef]
  40. Andersson, M.; Birkedal, H.; Franklin, N.R.; Ostomel, T.; Boettcher, S.; Palmqvist, A.E.C.; Stucky, G.D. Ag/AgCl-loaded ordered mesoporous anatase for photocatalysis. Chem. Mater. 2005, 17, 1409–1415. [Google Scholar] [CrossRef]
  41. Sonawane, R.S.; Dongare, M.K. Sol-gel synthesis of Au/TiO2 thin films for photocatalytic degradation of phenol in sunlight. J. Mol. Catal. A Chem. 2006, 243, 68–76. [Google Scholar] [CrossRef]
  42. Zhang, N.; Liu, S.; Fu, X.; Xu, Y.J. Synthesis of M@TiO2 (M = Au, Pd, Pt) Core-Shell Nanocomposites with Tunable Photoreactivity. J. Phys. Chem. C 2011, 115, 9136–9145. [Google Scholar] [CrossRef]
  43. Tian, G.; Chen, Y.; Zhai, R.; Zhou, J.; Zhou, W.; Wang, R.; Pan, K.; Tian, C.; Fu, H. Hierarchical flake-like Bi2MoO6/TiO2 bilayer films for visible-light-induced self-cleaning applications. J. Mater. Chem. A 2013, 1, 6961–6968. [Google Scholar] [CrossRef]
  44. Yu, H.; Huang, J.; Zhang, H.; Zhao, Q.; Zhong, X. Nanostructure and charge transfer in Bi2S3-TiO2 heterostructures. Nanotechnology 2014, 25, 215702. [Google Scholar] [CrossRef] [PubMed]
  45. Wang, Y.; Yu, K.; Yin, H.; Song, C.; Zhang, Z.; Li, S.; Shi, H.; Zhang, Q.; Zhao, B.; Zhang, Y.; et al. Facile synthesis, enhanced field emission and photocatalytic activities of Cu2O–TiO2–ZnO ternary hetero-nanostructures. J. Phys. D Appl. Phys. 2013, 46, 175303. [Google Scholar] [CrossRef]
  46. Gohin, M.; Allain, E.; Chemin, N.; Maurin, I.; Gacoin, T.; Boilot, J.P. Sol–gel nanoparticulate mesoporous films with enhanced self-cleaning properties. J. Photochem. Photobiol. A Chem. 2010, 216, 142–148. [Google Scholar] [CrossRef]
  47. Tachikawa, T.; Takai, Y.; Tojo, S.; Fujitsuka, M.; Irie, H.; Hashimoto, K.; Majima, T. Visible Light-Induced Degradation of Ethylene Glycol on Nitrogen-Doped TiO2 Powders. J. Phys. Chem. B 2006, 110, 13158–13165. [Google Scholar] [CrossRef] [PubMed]
  48. Xu, Q.; Wellia, D.V.; Sk, M.A.; Lim, K.H.; Loo, J.S.C.; Liao, D.W.; Amal, R.; Tan, T.T.Y. Transparent visible light activated C–N–F-codoped TiO2 films for self-cleaning applications. J. Photochem. Photobiol. A Chem. 2010, 210, 181–187. [Google Scholar] [CrossRef]
  49. Li, D.; Haneda, H.; Hishita, S.; Ohashi, N. Visible-Light-Driven N–F–Codoped TiO2 Photocatalysts. 2. Optical Characterization, Photocatalysis, and Potential Application to Air Purification. Chem. Mater. 2005, 17, 2596–2602. [Google Scholar] [CrossRef]
  50. Zhao, X.; Zhao, Q.; Yu, J.; Liu, B. Preparation and properties of chalcogenide glasses in the GeS2–Sb2S3–CdS system. J. Non-Cryst. Solids 2008, 354, 462–467. [Google Scholar] [CrossRef]
  51. Kesmez, Ö.; Erdem Çamurlu, H.; Burunkaya, E.; Arpaç, E. Sol–gel preparation and characterization of anti-reflective and self-cleaning SiO2–TiO2 double-layer nanometric films. Sol. Energy Mater. Sol. Cells 2009, 93, 1833–1839. [Google Scholar] [CrossRef]
  52. Prado, R.; Beobide, G.; Marcaide, A.; Goikoetxea, J.; Aranzabe, A. Development of multifunctional sol–gel coatings: Anti-reflection coatings with enhanced self-cleaning capacity. Sol. Energy Mater. Sol. Cells 2010, 94, 1081–1088. [Google Scholar] [CrossRef]
  53. Askar, K.; Phillips, B.M.; Fang, Y.; Choi, B.; Gozubenli, N.; Jiang, P.; Jiang, B. Self-assembled self-cleaning broadband anti-reflection coatings. Colloids Surf. A Physicochem. Eng. Asp. 2013, 439, 84–100. [Google Scholar] [CrossRef]
  54. Verma, L.K.; Sakhuja, M.; Son, J.; Danner, A.J.; Yang, H.; Zeng, H.C.; Bhatia, C.S. Self-cleaning and antireflective packaging glass for solar modules. Renew. Energy 2011, 36, 2489–2493. [Google Scholar] [CrossRef]
  55. Deubener, J.; Helsch, G.; Moiseev, A.; Bornhöft, H. Glasses for solar energy conversion systems. J. Eur. Ceram. Soc. 2009, 29, 1203–1210. [Google Scholar] [CrossRef]
  56. Ding, X.; Zhou, S.; Wu, L.; Gu, G.; Yang, J. Formation of supra-amphiphilic self-cleaning surface through sun-illumination of titania-based nanocomposite coatings. Surf. Coat. Technol. 2010, 205, 2554–2561. [Google Scholar] [CrossRef]
  57. Kapridaki, C.; Maravelaki-Kalaitzaki, P. TiO2–SiO2–PDMS nano-composite hydrophobic coating with self-cleaning properties for marble protection. Prog. Org. Coat. 2013, 76, 400–410. [Google Scholar] [CrossRef]
  58. Kapridaki, C.; Pinho, L.; Mosquera, M.J.; Maravelaki-Kalaitzaki, P. Producing photoactive, transparent and hydrophobic SiO2-crystalline TiO2 nanocomposites at ambient conditions with application as self-cleaning coatings. Appl. Catal. B Environ. 2014, 156–157, 416–427. [Google Scholar] [CrossRef]
  59. PPG SunClean. Available online: (accessed on 15 March 2016).
  60. Wulf, M.; Wehling, A.; Reis, O. Coatings with self-cleaning properties. Macromol. Symp. 2002, 187, 459–468. [Google Scholar] [CrossRef]
  61. Verho, T.; Bower, C.; Andrew, P.; Franssila, S.; Ikkala, O.; Ras, R.H. Mechanically durable superhydrophobic surfaces. Adv. Mater. 2011, 23, 673–678. [Google Scholar] [CrossRef] [PubMed]
  62. Warwick, M.E.A.; Binions, R. Advances in thermochromic vanadium dioxide films. J. Mater. Chem. A 2014, 2, 3275–3292. [Google Scholar] [CrossRef]
  63. Parkin, I.P.; Manning, T.D. Intelligent thermochromic windows. J. Chem. Educ. 2006, 83, 393–400. [Google Scholar] [CrossRef]
  64. Warwick, M.E.A.; Hyett, G.; Ridley, I.; Laffir, F.R.; Olivero, C.; Chapon, P.; Binions, R. Synthesis and energy modelling studies of titanium oxy-nitride films as energy efficient glazing. Sol. Energy Mater. Sol. Cells 2013, 118, 149–156. [Google Scholar] [CrossRef]
  65. Dowling, R.; McGuirk, P.; Bulkeley, H. Retrofitting cities: Local governance in Sydney, Australia. Cities 2014, 38, 18–24. [Google Scholar] [CrossRef][Green Version]
  66. Guan, X.; Xu, Z.; Jia, Q.S. Energy-efficient buildings facilitated by microgrid. IEEE Trans. Smart Grid 2010, 1, 243–252. [Google Scholar] [CrossRef]
  67. Granqvist, C.G. Transparent conductors as solar energy materials: A panoramic review. Sol. Energy Mater. Sol. Cells 2007, 91, 1529–1598. [Google Scholar] [CrossRef]
  68. Jones, A.C.; Hitchman, M.L. Chemical Vapour Deposition: Precursors, Processes and Applications. R. Soc. Chem. Camb. 2009, 48, 7478–7479. [Google Scholar]
  69. Szczyrbowski, J.; Dietrich, A.; Hartig, K. Bendable silver-based low emissivity coating on glass. Sol. Energy Mater. 1989, 19, 43–53. [Google Scholar] [CrossRef]
  70. Pasquarelli, R.M.; Ginley, D.S.; O’Hayre, R. Solution processing of transparent conductors: From flask to film. Chem. Soc. Rev. 2011, 40, 5406–5441. [Google Scholar] [CrossRef] [PubMed]
  71. Hartnagel, H.L.; Dawar, A.L.; Jain, A.K.; Jagadish, H. Semiconducting Transparent Thin Films; Institute of Physics Publishing: Bristol, UK; Philedelphia, PA, USA, 1995. [Google Scholar]
  72. Banerjee, R.; Ray, S.; Basu, N.; Batabyal, A.K.; Barua, A.K. Degradation studies of Indium Tin Oxide films in hydrogen and argon plasma. J. Appl. Phys. 1987, 62, 912–916. [Google Scholar] [CrossRef]
  73. Buchanan, M.; Webb, J.B.; Williams, D.F. Preparation of conducting and transparent thin films of tin-doped indium oxide by magnetron sputtering. Appl. Phys. Lett. 1980, 37, 213–215. [Google Scholar] [CrossRef]
  74. Maki, K.; Komiya, N.; Suzuki, A. Fabrication of thin films of ITO by aerosol CVD. Thin Solid Films 2003, 445, 224–228. [Google Scholar] [CrossRef]
  75. Rydzek, M.; Reidinger, M.; Arduini-Schuster, M.; Manara, J. Comparative study of sol–gel derived tin-doped indium- and aluminum-doped zinc-oxide coatings for electrical conducting and low-emitting surfaces. Prog. Org. Coat. 2011, 70, 369–375. [Google Scholar] [CrossRef]
  76. Frank, G.; Kauer, E.; Köstlin, H.; Schmitte, F.J. Transparent heat-reflecting coatings for solar applications based on highly doped tin oxide and indium oxide. Sol. Energy Mater. 1983, 8, 387–398. [Google Scholar] [CrossRef]
  77. Kim, H.; Horwitz, J.S.; Kushto, G.; Piqué, A.; Kafafi, Z.H.; Gilmore, C.M.; Chrisey, D.B. Effect of film thickness on the properties of indium tin oxide thin films. J. Appl. Phys. 2000, 88, 6021–6025. [Google Scholar] [CrossRef]
  78. China Yaohua Glass Group Corporation. Coated Glass Production Line. Available online: (accessed on 1 April 2016).
  79. Yamada, T.; Makino, H.; Yamamoto, N.; Yamamoto, T. Ingrain and grain boundary scattering effects on electron mobility of transparent conducting polycrystalline Ga-doped ZnO films. J. Appl. Phys. 2010, 107, 123534. [Google Scholar] [CrossRef]
  80. Noor, N.; Parkin, I.P. Enhanced transparent-conducting fluorine-doped tin oxide films formed by Aerosol-Assisted Chemical Vapour Deposition. J. Mater. Chem. C 2013, 1, 984–996. [Google Scholar] [CrossRef]
  81. AGC Solar. Coated Glass. Available online: (accessed on 1 April 2016).
  82. Shanthi, E. Electrical and Optical Properties of Tin Oxide Films Doped with F and (Sb + F). J. Appl. Phys. 1982, 53, 1615–1621. [Google Scholar] [CrossRef]
  83. Batzill, M.; Diebold, U. The Surface and Materials Science of Tin Oxide. Prog. Surf. Sci. 2005, 79, 47–154. [Google Scholar] [CrossRef]
  84. Bhachu, D.S.; Waugh, M.R.; Zeissler, K.; Branford, W.R.; Parkin, I.P. Textured Fluorine-Doped Tin Dioxide Films Formed by Chemical Vapour Deposition. Chemistry 2011, 17, 11613–11621. [Google Scholar] [CrossRef] [PubMed]
  85. Dong, B.Z.; Fang, G.J.; Wang, J.F.; Guan, W.J.; Zhao, X.Z. Effect of Thickness on Structural, Electrical, and Optical Properties of ZnO: Al Films Deposited by Pulsed Laser Deposition. J. Appl. Phys. 2007, 101, 033713. [Google Scholar] [CrossRef]
  86. Zhu, M.W.; Gong, J.; Sun, C.; Xia, J.H.; Jiang, X. Investigation of Correlation between the Microstructure and Electrical Properties of Sol-Gel Derived ZnO Based Thin Films. J. Appl. Phys. 2008, 104, 073113. [Google Scholar] [CrossRef]
  87. Hu, J.; Gordon, R.G. Textured Aluminum-Doped Zinc Oxide Thin Films from Atmospheric Pressure Chemical-Vapor Deposition. J. Appl. Phys. 1992, 71, 880–890. [Google Scholar] [CrossRef]
  88. Hu, J.; Gordon, R.G. Atmospheric Pressure Chemical Vapor Deposition of Gallium Doped Zinc Oxide Thin Films from Diethyl Zinc, Water, and Triethyl Gallium. J. Appl. Phys. 1992, 72, 5381–5392. [Google Scholar] [CrossRef]
  89. Bhachu, D.S.; Sankar, G.; Parkin, I.P. Aerosol Assisted Chemical Vapor Deposition of Transparent Conductive Zinc Oxide Films. Chem. Mater. 2012, 24, 4704–4710. [Google Scholar] [CrossRef]
  90. Kim, I.; Lee, K.S.; Lee, T.S.; Jeong, J.; Cheong, B.; Baik, Y.J.; Kim, W.M. Effect of Fluorine Addition on Transparent and Conducting Al Doped ZnO Films. J. Appl. Phys. 2006, 100, 063701. [Google Scholar] [CrossRef]
  91. Ma, Q.B.; Ye, Z.Z.; He, H.P.; Zhu, L.P.; Huang, J.Y.; Zhang, Y.Z.; Zhao, B.H. Influence of Annealing Temperature on the Properties of Transparent Conductive and near-Infrared Reflective ZnO:Ga Films. Scr. Mater. 2008, 58, 21–24. [Google Scholar] [CrossRef]
  92. Elleuch, R.; Salhi, R.; Maalej, N.; Deschanvres, J.L.; Maalej, R. Structural and Luminescence Correlation of Annealed Er-ZnO/Si Thin Films Deposited by AACVD Process. Mater. Sci. Eng. B 2013, 178, 1124–1129. [Google Scholar] [CrossRef]
  93. Waugh, M.R.; Hyett, G.; Parkin, I.P. Zinc Oxide Thin Films Grown by Aerosol Assisted CVD. Chem. Vap. Depos. 2008, 14, 366–372. [Google Scholar] [CrossRef]
  94. Choy, K.L. Chemical Vapor Deposition. Prog. Mater. Sci. 2001, 48, 57. [Google Scholar] [CrossRef]
  95. World Meteorological Organization (WMO). The Changing Atmosphere: Implications for Global Security; Secretariat of the World Meteorological Organization: Geneva, Switzerland, 1989. [Google Scholar]
  96. Peng, C.; Huang, Y.; Wu, Z. Building-Integrated Photovoltaics (BIPV) in Architectural Design in China. Energy Build. 2011, 43, 3592–3598. [Google Scholar] [CrossRef]
  97. Petter Jelle, B.; Breivik, C.; Drolsum Røkenes, H. A State-of-the-Art Review and Future Research Opportunities. Sol. Energy Mater. Sol. Cells 2012, 100, 69–96. [Google Scholar] [CrossRef]
  98. Eperon, G.E.; Burlakov, V.M.; Goriely, A.; Snaith, H.J. Neutral Color Semitransparent Microstructured Perovskite Solar Cells. ACS Nano 2014, 8, 591–598. [Google Scholar] [CrossRef] [PubMed]
  99. Krebs, F.C.; Tromholt, T.; Jørgensen, M. Upscaling of Polymer Solar Cell Fabrication Using Full Roll-to-Roll Processing. Nanoscale 2010, 2, 873–886. [Google Scholar] [CrossRef] [PubMed]
  100. O’Regan, B.; Grätzel, M. A Low-Cost, High-Efficiency Solar Cell Based on Dye-Sensitized Colloidal TiO2 Films. Nature 1991, 353, 737–740. [Google Scholar] [CrossRef]
  101. Nakade, S.; Kanzaki, T.; Kambe, S.; Wada, Y.; Yanagida, S. Investigation of Cation-Induced Degradation of Dye-Sensitized Solar Cells for a New Strategy to Long-Term Stability. Langmuir 2005, 21, 11414–11417. [Google Scholar] [CrossRef] [PubMed]
  102. Park, N.G.; Van de Lagemaat, J.; Frank, A.J. Comparison of Dye-Sensitized Rutile-and Anatase-Based TiO2 Solar Cells. J. Phys. Chem. 2000, 104, 8989–8994. [Google Scholar] [CrossRef]
  103. Bozic-Weber, B.; Constable, E.C.; Housecroft, C.E. Light Harvesting with Earth Abundant D-Block Metals: Development of Sensitizers in Dye-Sensitized Solar Cells (DSCs). Coord. Chem. Rev. 2013, 257, 3089–3106. [Google Scholar] [CrossRef]
  104. Gutiérrez-Tauste, D.; Zumeta, I.; Vigil, E.; Hernández-Fenollosa, M.A.; Domènech, X.; Ayllón, J.A. New Low-Temperature Preparation Method of the TiO2 Porous Photoelectrode for Dye-Sensitized Solar Cells Using UV Irradiation. J. Photochem. Photobiol. A Chem. 2005, 175, 165–171. [Google Scholar] [CrossRef]
  105. Yella, A.; Lee, H.W.; Tsao, H.N.; Yi, C.; Chandiran, A.K.; Nazeeruddin, M.K.; Diau, E.W.G.; Yeh, C.-Y.; Zakeeruddin, S.M.; Grätzel, M. Porphyrin-Sensitized Solar Cells with Cobalt (II/III)-Based Redox Electrolyte Exceed 12 Percent Efficiency. Science 2011, 334, 629–634. [Google Scholar] [CrossRef] [PubMed]
  106. Kalyanasundaram, K.; Gratzel, M. Applications of Functionalized Transition Metal Complexes in Photonic and Optoelectronic Devices. Coord. Chem. Rev. 1998, 177, 347–414. [Google Scholar] [CrossRef]
  107. Tian, H.; Jiang, X.; Yu, Z. Efficient Organic-Dye-Sensitized Solar Cells Based on an Iodine-Free Electrolyte. Angew. Chem. Int. Ed. Engl. 2010, 49, 7328–7231. [Google Scholar] [CrossRef] [PubMed]
  108. Grätzel, M. Dye-Sensitized Solar Cells. J. Photochem. Photobiol. C Photochem. Rev. 2003, 4, 145–153. [Google Scholar] [CrossRef]
  109. Green, M.A.; Emery, K.; Hishikawa, Y.; Warta, W.; Dunlop, E.D. Solar Cell Efficiency Tables (Version 38). Prog. Photovolt. Res. Appl. 2011, 19, 565–572. [Google Scholar] [CrossRef]
  110. Ito, S.; Zakeeruddin, S.M.; Humphry-Baker, R.; Liska, P.; Charvet, R.; Comte, P.; Nazeeruddin, M.K.; Péchy, P.; Takata, M.; Miura, H.; et al. High-Efficiency Organic-Dye-Sensitized Solar Cells Controlled by Nanocrystalline-TiO2 Electrode Thickness. Adv. Mater. Adv. Mater. 2006, 18, 1202–1205. [Google Scholar] [CrossRef]
  111. Bella, F.; Bongiovanni, R. Photoinduced Polymerization: An Innovative, Powerful and Environmentally Friendly Technique for the Preparation of Polymer Electrolytes for Dye-Sensitized Solar Cells. J. Photochem. Photobiol. C Photochem. Rev. 2013, 16, 1–12. [Google Scholar] [CrossRef]
  112. Tributsch, H. Dye Sensitization Solar Cells: A Critical Assessment of the Learning Curve. Coord. Chem. Rev. 2004, 248, 1511–1530. [Google Scholar] [CrossRef]
  113. Cao, Y.; Zhang, J.; Bai, Y.; Li, R.; Zakeeruddin, S.M.; Grätzel, M.; Wang, P. Dye-Sensitized Solar Cells with Solvent-Free Ionic Liquid Electrolytes. J. Phys. Chem. C 2008, 112, 13775–13781. [Google Scholar] [CrossRef]
  114. Ileperuma, O.A. Gel Polymer Electrolytes for Dye Sensitised Solar Cells: A Review. Mater. Technol. Adv. Perform. Mater. 2013, 28, 65–70. [Google Scholar] [CrossRef]
  115. Nei de Freitas, J.; Nogueira, A.F.; De Paoli, M.A. New Insights into Dye-Sensitized Solar Cells with Polymer Electrolytes. J. Mater. Chem. 2009, 19, 5279–5294. [Google Scholar] [CrossRef]
  116. Tennakone, K.; Perera, V.P.S.; Kottegoda, I.R.M.; Kumara, G.R.R.A. Dye-Sensitized Solid State Photovoltaic Cell Based on Composite Zinc Oxide/tin (IV) Oxide Films. J. Phys. D Appl. Phys. 1999, 32, 374–379. [Google Scholar] [CrossRef]
  117. Cai, N.; Moon, S.J.; Cevey-Ha, L.; Moehl, T.; Humphry-Baker, R.; Wang, P.; Zakeeruddin, S.M.; Grätzel, M. An organic D-π-A dye for record efficiency solid-state sensitized heterojunction solar cells. Nano Lett. 2011, 11, 1452–1456. [Google Scholar] [CrossRef] [PubMed]
  118. Liu, X.; Zhang, W.; Uchida, S.; Cai, L.; Liu, B.; Ramakrishna, S. An efficient organic-dye-sensitized solar cell with in situ polymerized poly(3,4-ethylenedioxythiophene) as a hole-transporting material. Adv. Mater. 2010, 22, E150–E155. [Google Scholar] [CrossRef] [PubMed]
  119. Upadhyaya, H.M.; Senthilarasu, S.; Hsu, M.H.; Kumar, D.K. Recent Progress and the Status of Dye-Sensitised Solar Cell (DSSC) Technology with State-of-the-Art Conversion Efficiencies. Sol. Energy Mater. Sol. Cells 2013, 119, 291–295. [Google Scholar] [CrossRef]
  120. Hardin, B.E.; Snaith, H.J.; McGehee, M.D. The renaissance of dye-synthesized solar cells. Nat. Photon. 2012, 6, 162–169. [Google Scholar] [CrossRef]
  121. Norton, B.; Eames, P.C.; Mallick, T.K.; Huang, M.J.; McCormack, S.J.; Mondol, J.D.; Yohanis, Y.G. Enhancing the performance of building integrated photoviltaics. Sol. Energy 2011, 85, 1629–1664. [Google Scholar] [CrossRef]
  122. Kim, Y.H.; Müller-Meskamp, L.; Zakhidov, A.A.; Sachse, C.; Meiss, J.; Bikova, J.; Cook, A.; Zakhidov, A.A.; Leo, K. Semi transparent small molecule organic solar cells with laminated free-standing carbon nanotube top electrodes. Sol. Energy Mater. Sol. Cells 2012, 96, 244–250. [Google Scholar] [CrossRef]
  123. Czolk, J.; Puetz, A.; Kutsarov, D. Manuel Reinhard, Uli Lemmer, Alexander Colsmann. Inverted Semi-transparent Polymer Solar Cells with Transparency Color Rendering Indices approaching 100. Adv. Energy Mater. 2013, 3, 386–390. [Google Scholar] [CrossRef]
  124. Tang, Z.; George, Z.; Ma, Z. Semi-transparent tandem organic solar cells with 90% Internal Quantum Efficiency. Adv. Energy Mater. 2012, 2, 1467–1476. [Google Scholar] [CrossRef]
  125. Zhou, Y.; Cheun, H.; Choi, S.; Fuentes-Hernandez, C.; Kippelen, B. Optimization of a polymer top electrode for inverted semitransparent organic solar cells. Org. Electron. 2011, 12, 827–831. [Google Scholar] [CrossRef]
  126. Chueh, C.C.; Chien, S.C.; Yip, H.L.; Salinas, J.F.; Li, C.Z.; Chen, K.S.; Chen, F.C.; Chen, W.C.; Jen, A.K.Y. Toward high-performance semi-transparent polymer solar cells: Optimization of ultra-thin light absorbing layer and transparent cathode architecture. Adv. Energy Mater. 2013, 3, 417–423. [Google Scholar] [CrossRef]
  127. Hanisch, J.; Ahlswede, E.; Powalla, M. All sputtered contacts for organic solar cells. Thin Solid Films 2008, 516, 7241–7244. [Google Scholar] [CrossRef]
  128. Park, H.; Chang, S.; Smith, M.; Gradecak, S.; Kong, J. Interface engineering of graphene for universal applications as both anode and cathode in organic photovoltaics. Sci. Rep. 2013, 3, 1581. [Google Scholar] [CrossRef] [PubMed]
  129. Krantz, J.; Stubhan, T.; Richter, M.; Spallek, S.; Litzov, I.; Matt, G.J.; Spiecker, E.; Brabec, C.J. Spray-coated silver nanowires as top electrode layer in semitransparent P3HT:PCBM-based organic solar cell devices. Adv. Funct. Mater. 2013, 23, 1711–1717. [Google Scholar] [CrossRef]
  130. Garnett, E.C.; Cai, W.; Cha, J.J. Self-limited plasmonic welding of silver nanowire junctions. Nat. Mater. 2012, 11, 241–249. [Google Scholar] [CrossRef] [PubMed]
  131. Lee, J.Y.; Connor, S.T.; Cui, Y.; Peumans, P. Semi-transparent organic photovoltaic cells with laminated top electrode. Nano Lett. 2010, 10, 1276–1279. [Google Scholar] [CrossRef] [PubMed]
  132. Guo, F.; Zhu, X.; Forberich, K.; Krantz, J.; Stubhan, T.; Salinas, M.; Halik, M.; Spallek, S.; Butz, B.; Spiecker, E.; et al. ITO-Free and Fully Solution-Processed Semitransparent Organic Solar Cells with High Fill Factors. Adv. Energy Mater. 2013, 3, 1062–1067. [Google Scholar] [CrossRef]
  133. Reinhard, M.; Eckstein, R.; Slobodskyy, A.; Lemmer, U.; Colsmann, A. Solution-processed polymer-silver nanowire top electrodes for inverted semi-transparent solar cells. Org. Electron. 2013, 14, 273–277. [Google Scholar] [CrossRef]
  134. Beiley, Z.M.; Christoforo, M.G.; Gratia, P.; Bowring, A.R.; Eberspacher, P.; Margulis, G.Y.; Cabanetos, C.; Beaujuge, P.M.; Salleo, A.; McGehee, M.D. Semi-Transparent Polymer Solar Cells with Excellent Sub-Bandgap Transmission for Third Generation Photovoltaics. Adv. Mater. 2013, 25, 7020–70226. [Google Scholar] [CrossRef] [PubMed][Green Version]
  135. New Energy Technologies Inc. Solar WindowTM Clearly Electric. Available online: (accessed on 22 April 2016).
  136. National Center for Photovoltaics (NREL). Best Research Cell Efficiencies. Available online: (accessed on 23 April 2016).
  137. Jørgensen, M.; Norrman, K.; Gevorgyan, S.A.; Tromholt, T.; Andreasen, B.; Krebs, F.C. Stability of polymer solar cells. Adv. Mater. 2012, 24, 580–612. [Google Scholar] [CrossRef] [PubMed]
  138. Chen, K.S.; Salinas, J.F.; Yip, H.L.; Huo, L.; Hou, J.; Jen, A.K.Y. Semi-transparent polymer solar cells with 6% PCE, 25% average visible transmittance and a color rendering index close to 100 for power generating window applications. Energy Environ. Sci. 2012, 5, 9551–9557. [Google Scholar] [CrossRef]
  139. Snaith, H.J. Perovskites: The Emergence of a New Era for Low-Cost, High-Efficiency Solar Cells. J. Phys. Chem. Lett. 2013, 4, 3623–3630. [Google Scholar] [CrossRef]
  140. Burschka, J.; Pellet, N.; Moon, S.J.; Humphry-Baker, R.; Gao, P.; Nazeeruddin, M.K.; Graetzel, M. Sequential deposition as a route to high-performance perovskite-sensitized solar cells. Nature 2013, 499, 316–319. [Google Scholar] [CrossRef] [PubMed]
  141. Liu, M.; Johnston, M.B.; Snaith, H.J. Efficient planar heterojunction perovskite solar cells by vapour deposition. Nature 2013, 501, 395–398. [Google Scholar] [CrossRef] [PubMed]
  142. Scanlon, B. NREL Unlocking Secrets of New Solar Material. Available online: (accessed on 15 April 2014).
  143. Kim, H.S.; Lee, C.R.; Im, J.-H.; Lee, K.B.; Moehl, T.; Marchioro, A.; Moon, S.J.; Humphry-Baker, R.; Yum, J.H.; Moser, J.E.; et al. Lead iodide perovskite sensitized all-solid-state submicron thin film mesoscopic solar cell with efficiency exceeding 9%. Sci. Rep. 2012, 2, 591. [Google Scholar] [CrossRef] [PubMed]
  144. Poirazis, H.; Blomsterberg, Å.; Wall, M. Energy simulations for glazed office buildings in Sweden. Energy Build. 2008, 40, 1161–1170. [Google Scholar] [CrossRef]
  145. Li, D.H.W.; Lam, T.N.T.; Cheung, K.L. Energy and cost studies of semi-transparent photovoltaic skylight. Energy Convers. Manag. 2009, 50, 1981–1990. [Google Scholar] [CrossRef]
  146. Pérez-Lombard, L.; Ortiz, J.; Pout, C. A review on buildings energy consumption information. Energy Build. 2008, 40, 394–398. [Google Scholar] [CrossRef]
  147. Feist, W. Schnieders, Energy efficiency—A key to sustainable housing. Eur. Phys. J. Spec. Top. 2009, 176, 141–153. [Google Scholar] [CrossRef]
  148. Saeli, M.; Piccirillo, C.; Parkin, I.P.; Binions, R.; Ridley, I. Energy modelling studies of thermochromic glazing. Energy Build. 2010, 42, 1666–1673. [Google Scholar] [CrossRef]
  149. Hoffmann, S.; Lee, E.S.; Clavero, C. Examination of the technical potential of near-infrared switching thermochromic windows for commercial building applications. Sol. Energy Mater. Sol. Cells 2014, 123, 65–80. [Google Scholar] [CrossRef]
  150. Narayan, J.; Bhosle, V.M. Phase transition and critical issues in structure-property correlations of vanadium oxide. J. Appl. Phys. 2006, 100, 103524–103526. [Google Scholar] [CrossRef]
  151. Morin, F.J. Oxides Which Show a Metal-to-Insulator Transition at the Neel Temperature. Phys. Rev. Lett. 1959, 3, 34–36. [Google Scholar] [CrossRef]
  152. Batista, C.; Ribeiro, R.M.; Teixeira, V. Synthesis and characterization of VO2-based thermochromic thin films for energy-efficient windows. Nanoscale Res. Lett. 2011, 6, 301. [Google Scholar] [CrossRef] [PubMed][Green Version]
  153. Alie, D.; Gedvilas, L.; Wang, Z.; Tenent, R.; Engtrakul, C.; Yan, Y.; Shaheen, S.E.; Dillon, A.C.; Ban, C. Direct synthesis of thermochromic VO2 through hydrothermal reaction. J. Solid State Chem. 2014, 212, 237–241. [Google Scholar] [CrossRef]
  154. Long, L.; Ye, H. Discussion of the performance improvement of thermochromic smart glazing applied in passive buildings. Sol. Energy 2014, 107, 236–244. [Google Scholar] [CrossRef]
  155. Ye, H.; Long, L.; Zhang, H.; Xu, B.; Gao, Y.; Kang, L.; Chen, Z. The demonstration and simulation of the application performance of the vanadium dioxide single glazing. Sol. Energy Mater. Sol. Cells 2013, 117, 168–173. [Google Scholar] [CrossRef]
  156. Li, S.Y.; Niklasson, G.A.; Granqvist, C.G. Nanothermochromics: Calculations for VO2 nanoparticles in dielectric hosts show much improved luminous transmittance and solar energy transmittance modulation. J. Appl. Phys. 2010, 108, 063525. [Google Scholar] [CrossRef]
  157. Saeli, M.; Warwick, M.; Piccirllo, C.; Binions, R. Thermochromic Thin Films: Synthesis, Properties and Energy Consumption Modelling. Formatex Res. Cent. 2013, 736–746. [Google Scholar]
  158. Warwick, M.E.A.; Binions, R. On the effects of electric fields in aerosol assisted chemical vapour deposition reactions of vanadyl acetylacetonate solutions in ethanol. J. Nanosci. Nanotechnol. 2011, 11, 1–6. [Google Scholar] [CrossRef]
  159. Zhang, H.; Wu, Z.; Yan, D.; Xu, X.; Jiang, Y. Tunable hysteresis in metal-insulator transition of nanostructured vanadium oxide thin films deposited by reactive direct current magnetron sputtering. Thin Solid Films 2014, 552, 218–224. [Google Scholar] [CrossRef]
  160. Livage, J.; Beteille, F.; Roux, C.; Chatry, M.; Davidson, P. Sol-gel synthesis of oxide materials. Acta Mater. 1998, 46, 743–750. [Google Scholar] [CrossRef]
  161. Burkhardt, W.; Christmann, T.; Meyer, B.K.; Niessner, W.; Schalch, D.; Scharmann, A. W- and F-doped VO2 films studied by photoelectron spectrometry. Thin Solid Films 1999, 345, 229–235. [Google Scholar] [CrossRef]
  162. Jin, P.; Tanemura, S. Relationship between Transition Temperature and x in V1−xWxO2 Films Deposited by Dual-Target Magnetron Sputtering. Jpn. Soc. Appl. Phys. 1995, 34, 2459–2460. [Google Scholar] [CrossRef]
  163. Hanlon, T.J.; Coath, J.A.; Richardson, M.A. Molybdenum-doped vanadium dioxide coatings on glass produced by the aqueous sol–gel method. Thin Solid Films 2003, 436, 269–272. [Google Scholar] [CrossRef]
  164. Mai, L.Q.; Hu, B.; Hu, T.; Chen, W.; Gu, E.D. Electrical Property of Mo-Doped VO2 Nanowire Array Film by Melting–Quenching Sol–Gel Method. J. Phys. Chem. B 2006, 110, 19083–19086. [Google Scholar] [CrossRef] [PubMed]
  165. Manning, T.; Parkin, I.; Blackman, C.; Qureshi, U. APCVD of thermochromic vanadium dioxide thin films—Solid solutions V2−xMxO2 (M = Mo, Nb) or composites VO2: SnO2. J. Mater. Chem. 2005, 15, 4560–4566. [Google Scholar] [CrossRef]
  166. Piccirillo, C.; Binions, R.; Parkin, I.P. Nb-Doped VO2 Thin Films Prepared by Aerosol-Assisted Chemical Vapour Deposition. Eur. J. Inorg. Chem. 2007, 2007, 4050–4055. [Google Scholar] [CrossRef]
  167. Mlyuka, N.R.; Niklasson, G.A.; Granqvist, C.G. Mg doping of thermochromic VO2 films enhances the optical transmittance and decreases the metal-insulator transition temperature. Appl. Phys. Lett. 2009, 95, 171909. [Google Scholar] [CrossRef]
  168. Song, L.; Zhang, Y.; Huang, W.; Shi, Q.; Li, D.; Zhang, Y.; Xu, Y. Preparation and thermochromic properties of Ce-doped VO2 films. Mater. Res. Bull. 2013, 48, 2268–2271. [Google Scholar] [CrossRef]
  169. Dai, L.; Chen, S.; Liu, J.; Gao, Y.; Zhou, J.; Chen, Z.; Cao, C.; Luo, H.; Kanehira, M. F-doped VO2 nanoparticles for thermochromic energy-saving foils with modified color and enhanced solar-heat shielding ability. Phys. Chem. Chem. Phys. 2013, 15, 11723–11729. [Google Scholar] [CrossRef] [PubMed]
  170. Zhang, Z.; Gao, Y.; Chen, Z.; Du, J.; Cao, C.; Kang, L.; Luo, H. Thermochromic VO2 Thin Films: Solution-Based Processing, Improved Optical Properties, and Lowered Phase Transformation Temperature. Langmuir 2010, 26, 10738–10744. [Google Scholar] [CrossRef] [PubMed]
  171. Warwick, M.E.A.; Binions, R. Thermochromic vanadium dioxide thin films from electric field assisted aerosol assisted chemical vapour deposition. Sol. Energy Mater. Sol. Cells 2015, 143, 592–600. [Google Scholar] [CrossRef]
  172. Wang, B.; Chen, S.; Huang, Z.; Fu, M. Optical nonlinearities of nanostructured VO2 thin films with low phase transition temperature. Appl. Surf. Sci. 2012, 258, 5319–5322. [Google Scholar] [CrossRef]
  173. Guinneton, F.; Sauques, L.; Valmalette, J.C.; Cros, F.; Gavarri, J.R. Optimized infrared switching properties in thermochromic vanadium dioxide thin films: Role of deposition process and microstructure. Thin Solid Films 2004, 446, 287–295. [Google Scholar] [CrossRef]
  174. Kang, L.; Gao, Y.; Zhang, Z.; Du, J.; Cao, C.; Chen, Z.; Luo, H. Effects of Annealing Parameters on Optical Properties of Thermochromic VO2 Films Prepared in Aqueous Solution. J. Phys. Chem. C 2010, 114, 1901–1911. [Google Scholar] [CrossRef]
  175. Zhao, L.; Miao, L.; Tanemura, S.; Zhou, J.; Chen, L.; Xiao, X.; Xu, G. A low cost preparation of VO2 thin films with improved thermochromic properties from a solution-based process. Thin Solid Films 2013, 543, 157–161. [Google Scholar] [CrossRef]
  176. Kang, L.; Xie, L.; Chen, Z.; Gao, Y.; Liu, X.; Yang, Y.; Liang, W. Asymmetrically modulating the insulator–metal transition of thermochromic VO2 films upon heating and cooling by mild surface-etching. Appl. Surf. Sci. 2014, 311, 676–683. [Google Scholar] [CrossRef]
  177. Zhang, H.; Wu, Z.; Wu, X.; Yang, W.; Jiang, Y. Transversal grain size effect on the phase-transition hysteresis width of vanadium dioxide films comprising spheroidal nanoparticles. Vacuum 2014, 104, 47–50. [Google Scholar] [CrossRef]
  178. Xu, Y.; Huang, W.; Shi, Q.; Zhang, Y.; Wu, J.; Song, L. Shape-dependent thermochromic phenomenon in porous nano-structured VO2 films. Mater. Res. Bull. 2013, 48, 4146–4149. [Google Scholar] [CrossRef]
  179. Dai, L.; Cao, C.; Gao, Y.; Luo, H. Synthesis and phase transition behavior of undoped VO2 with a strong nano-size effect. Sol. Energy Mater. Sol. Cells 2011, 95, 712–175. [Google Scholar] [CrossRef]
  180. Minch, R.; Moonoosawmy, K.R.; Solterbeck, C.-H.; Es-Souni, M. The influence of processing conditions on the morphology and thermochromic properties of vanadium oxide films. Thin Solid Films 2014, 556, 277–284. [Google Scholar] [CrossRef]
  181. Xiao, X.; Zhang, H.; Chai, G.; Sun, Y.; Yang, T.; Cheng, H.; Chen, L.; Miao, L.; Xu, G. A cost-effective process to prepare VO2 (M) powder and films with superior thermochromic properties. Mater. Res. Bull. 2014, 51, 6–12. [Google Scholar] [CrossRef]
  182. Kang, L.; Gao, Y.; Luo, H.; Chen, Z.; Du, J.; Zhang, Z. Nanoporous thermochromic VO2 films with low optical constants, enhanced luminous transmittance and thermochromic properties. ACS Appl. Mater. Interfaces 2011, 3, 135–138. [Google Scholar] [CrossRef] [PubMed]
  183. Lopez, R.; Haynes, T.; Boatner, L.; Feldman, L.; Haglund, R. Size effects in the structural phase transition of VO2 nanoparticles. Phys. Rev. B 2002, 65, 224113. [Google Scholar] [CrossRef]
  184. Zhang, H.; Wu, Z.; He, Q.; Jiang, Y. Preparation and investigation of sputtered vanadium dioxide films with large phase-transition hysteresis loops. Appl. Surf. Sci. 2013, 277, 218–222. [Google Scholar] [CrossRef]
  185. Ba, C.O.F.; Bah, S.T.; D’Auteuil, M.; Fortin, V.; Ashrit, P.V.; Vallée, R. VO2 thin films based on active and passive thermochromic thermochromic devices for energy management applications. Curr. Appl. Phys. 2014, 14, 1531–1537. [Google Scholar] [CrossRef]
  186. Balu, R.; Ashrit, P.V. Near-zero IR transmission in the metal-insulator transition of VO2 thin films. Appl. Phys. Lett. 2008, 92, 021904. [Google Scholar] [CrossRef]
  187. Niklasson, G.A.; Li, S.Y.; Granqvist, C.G. Thermochromic vanadium oxide thin films: Electronic and optical properties. J. Phys. Conf. Ser. 2014, 559, 012001. [Google Scholar] [CrossRef]
  188. Du, J.; Gao, Y.; Luo, H.; Zhang, Z.; Kang, L.; Chen, Z. Formation and metal-to-insulator transition properties of VO2–ZrV2O7 composite films by polymer-assisted deposition. Sol. Energy Mater. Sol. Cells 2011, 95, 1604–1609. [Google Scholar] [CrossRef]
  189. Koo, H.; Shin, D.; Bae, S.-H.; Ko, K.-E.; Chang, S.-H.; Park, C. The Effect of CeO2 Antireflection Layer on the Optical Properties of Thermochromic VO2 Film for Smart Window System. J. Mater. Eng. Perform. 2013, 23, 402. [Google Scholar] [CrossRef]
  190. Kiri, P.; Ridley, I.; Binions, R.; Warwick, M.E.A. Fluorine doped vanadium dioxide thin films for smart windows. Thin Solid Films 2011, 520, 1363–1366. [Google Scholar] [CrossRef]
  191. Li, S.Y.; Mlyuka, N.R.; Primetzhofer, D.; Hallén, A.; Possnert, G.; Niklasson, G.A.; Granqvist, C.G. Bandgap widening in thermochromic Mg-doped VO2 thin films: Quantitative data based on optical absorption. Appl. Phys. Lett. 2013, 103, 161907. [Google Scholar] [CrossRef]
  192. Binions, R.; Piccirillo, C.; Palgrave, R.G.; Parkin, I.P. Hybrid Aerosol Assisted and Atmospheric Pressure CVD of Gold-Doped Vanadium Dioxide. Chem. Vap. Depos. 2008, 14, 33–39. [Google Scholar] [CrossRef]
  193. Wang, N.; Liu, S.; Zeng, X.T.; Magdassi, S.; Long, Y. Mg/W-codoped vanadium dioxide thin films with enhanced visible transmittance and low phase transition temperature. J. Mater. Chem. C 2015, 3, 6771–6777. [Google Scholar] [CrossRef]
  194. Zhou, J.; Gao, Y.; Zhang, Z.; Luo, H.; Cao, C.; Chen, Z.; Dai, L.; Liu, X. VO2 Thermochromic Smart Window for Energy Savings and Generation. Sci. Rep. 2013, 3, 3029. [Google Scholar] [CrossRef] [PubMed]
  195. Lee, M.H. Thermochromic glazing of windows with better luminous solar transmittance. Sol. Energy Mater. Sol. Cells 2002, 71, 537–540. [Google Scholar] [CrossRef]
  196. Lee, M.H.; Cho, J.S. Better thermochromic glazing of windows with anti-reflection coating. Thin Solid Films 2000, 365, 5–6. [Google Scholar] [CrossRef]
  197. Xu, G.; Jin, P.; Tazawa, M.; Yoshimura, K. Optimization of antireflection coating for VO2-based energy efficient window. Sol. Energy Mater. Sol. Cells 2004, 83, 29–37. [Google Scholar] [CrossRef]
  198. Jin, P.; Xu, G.; Tazawa, M.; Yoshimura, K. A VO2-Based Multifunctional Window with Highly Improved Luminous Transmittance. Jpn. J. Appl. Phys. 2002, 41, L278–L280. [Google Scholar] [CrossRef]
  199. Chen, X.; Lv, Q.; Yi, X. Smart window coating based on nanostructured VO2 thin film. Opt. Int. J. Light Electron Opt. 2012, 123, 1187. [Google Scholar] [CrossRef]
  200. Ji, Y.X.; Li, S.Y.; Niklasson, G.A.; Granqvist, C.G. Durability of thermochromic VO2 thin films under heating and humidity: Effect of Al oxide top coatings. Thin Solid Films 2014, 562, 568–573. [Google Scholar] [CrossRef]
  201. Gagaoudakis, E.; Kortidis, I.; Michail, G.; Tsagaraki, K.; Binas, V.; Kiriakidis, G.; Aperathitis, E. Study of low temperature rf-sputtered Mg-doped vanadium dioxide thermochromic films deposited on low-emissivity substrates. Thin Solid Films 2016, 601, 99–105. [Google Scholar] [CrossRef]
  202. Miller, M.J.; Wang, J. Multilayer ITO/VO2/TiO2 thin films for control of solar and thermal spectra. Sol. Energy Mater. Sol. Cells 2016, 154, 88–93. [Google Scholar] [CrossRef]
  203. Yang, Y.; Lee, K.; Zobel, M.; Mackovic, M.; Unruh, T.; Spiecker, E.; Schmuki, P. Formation of Highly Ordered VO2 Nanotubular/Nanoporous Layers and Their Supercooling Effect in Phase Transitions. Adv. Mater. 2012, 24, 1571–1575. [Google Scholar] [CrossRef] [PubMed]
  204. Zhou, M.; Bao, J.; Tao, M.; Zhu, R.; Lin, Y.; Zhanga, X.; Xie, Y. Periodic porous thermochromic VO2(M) films with enhanced visible transmittance. Chem. Commun. 2013, 49, 6021–6023. [Google Scholar] [CrossRef] [PubMed]
  205. Qian, X.; Wang, N.; Li, Y.; Zhang, J.; Xu, Z.; Long, Y. Bioinspired multifunctional vanadium dioxide: Improved thermochromism and hydrophobicity. Langmuir 2014, 30, 10766–10771. [Google Scholar] [CrossRef] [PubMed]
  206. Wang, S.; Liu, M.; Kong, L.; Long, Y.; Jiang, X.; Yu, A. Recent progress in VO2 smart coatings: Strategies to improve the thermochromic properties. Prog. Mater. Sci. 2016, 81, 1–54. [Google Scholar] [CrossRef]
  207. Granqvist, C.G. Electrochromics and thermochromics: Toward a new paradigm for energy efficient buildings. Mater. Today Proc. 2016, 3, S2–S11. [Google Scholar] [CrossRef]
  208. Louloudakis, D.; Vernardou, D.; Spanakis, E.; Suchea, M.; Kenanakis, G.; Pemble, M.; Savvakis, C.; Katsarakis, N.; Koudoumas, E.; Kiriakidis, G. Atmospheric pressure chemical vapor deposition of amorphous tungsten doped vanadium dioxide for smart window applications. Adv. Mater. Lett. 2016, 7, 100–150. [Google Scholar] [CrossRef]
Figure 1. (a) Droplet over a patterned heterogenous surface; (b) definition of advancing (θadv) and receding (θrec) contact angles for a moving droplet on an inclined surface (hysteresis) [30].
Figure 1. (a) Droplet over a patterned heterogenous surface; (b) definition of advancing (θadv) and receding (θrec) contact angles for a moving droplet on an inclined surface (hysteresis) [30].
Buildings 06 00037 g001
Figure 2. TiO2 photocatalytic mechanism [32].
Figure 2. TiO2 photocatalytic mechanism [32].
Buildings 06 00037 g002
Figure 3. The effect of abrasion on surfaces with (a) micro roughness alone and (b) surface patterned with mechanically stable micro bumps with nano roughness [61].
Figure 3. The effect of abrasion on surfaces with (a) micro roughness alone and (b) surface patterned with mechanically stable micro bumps with nano roughness [61].
Buildings 06 00037 g003
Figure 4. Solar irradiation spectrum, blackbody radiation spectra and characteristics for ideal low-E (H) and solar-control glass (M) [69] where T and R correspond to Transmission and Reflectance respectively.
Figure 4. Solar irradiation spectrum, blackbody radiation spectra and characteristics for ideal low-E (H) and solar-control glass (M) [69] where T and R correspond to Transmission and Reflectance respectively.
Buildings 06 00037 g004
Figure 5. Transmission, reflection, and absorption spectra of a typical TCO [70].
Figure 5. Transmission, reflection, and absorption spectra of a typical TCO [70].
Buildings 06 00037 g005
Figure 6. The transmittance and reflectance of In2O3:Sn prepared by the hot spray technique [76].
Figure 6. The transmittance and reflectance of In2O3:Sn prepared by the hot spray technique [76].
Buildings 06 00037 g006
Figure 7. Optical transmission and reflection spectra of ZnO:Ga films grown by AACVD.
Figure 7. Optical transmission and reflection spectra of ZnO:Ga films grown by AACVD.
Buildings 06 00037 g007
Figure 8. (a) Schematic of the semi-transparent OPV architecture. The LiF layer is partially removed in the schematic to better show the underlying layers, but covers the entire cell active area in actual devices (b) Transmission of Ag NW–ZnO NP composite electrodes with different sheet resistances. The reflection and absorption of the glass substrate has been subtracted. Inset is photograph of semi-transparent OPV [134].
Figure 8. (a) Schematic of the semi-transparent OPV architecture. The LiF layer is partially removed in the schematic to better show the underlying layers, but covers the entire cell active area in actual devices (b) Transmission of Ag NW–ZnO NP composite electrodes with different sheet resistances. The reflection and absorption of the glass substrate has been subtracted. Inset is photograph of semi-transparent OPV [134].
Buildings 06 00037 g008
Figure 9. NREL Chart showing best research-cell efficiencies [136].
Figure 9. NREL Chart showing best research-cell efficiencies [136].
Buildings 06 00037 g009
Figure 10. Historic evolution of the solar cell technology, starting from the electrolyte-based mesoscopic DSSC, the ssDSSC where the electrolyte is replaced with an organic p-type hole conductor, the ETA cell where the dye is replaced with an ETA semiconductor layer, to the MSSC, where the ETA is replaced with a perovskite absorber and the n-type TiO2 is replaced with a porous insulating scaffold. Three likely future directions for the perovskite technology are indicated: (i) porous perovskite distributed p-n heterojunction solar cells, where the Al2O3 is removed but the perovskite is directly structured to give a porous film subsequently filled in with a charge conductor; (ii) thin-film p–i–n perovskite solar cells where no porosity is required and the device takes on the structure of an intrinsic, or at least ambipolar, thin perovskite film sandwiched between p- and n-type charge-extracting contacts; or (iii) semiconductor MSSCs, where any solution-processed semiconductor, such as SbS, can be structured by the porous scaffold to deliver a MSSC [142].
Figure 10. Historic evolution of the solar cell technology, starting from the electrolyte-based mesoscopic DSSC, the ssDSSC where the electrolyte is replaced with an organic p-type hole conductor, the ETA cell where the dye is replaced with an ETA semiconductor layer, to the MSSC, where the ETA is replaced with a perovskite absorber and the n-type TiO2 is replaced with a porous insulating scaffold. Three likely future directions for the perovskite technology are indicated: (i) porous perovskite distributed p-n heterojunction solar cells, where the Al2O3 is removed but the perovskite is directly structured to give a porous film subsequently filled in with a charge conductor; (ii) thin-film p–i–n perovskite solar cells where no porosity is required and the device takes on the structure of an intrinsic, or at least ambipolar, thin perovskite film sandwiched between p- and n-type charge-extracting contacts; or (iii) semiconductor MSSCs, where any solution-processed semiconductor, such as SbS, can be structured by the porous scaffold to deliver a MSSC [142].
Buildings 06 00037 g010
Figure 11. Glass ceiling with transparent BIPV modules [145].
Figure 11. Glass ceiling with transparent BIPV modules [145].
Buildings 06 00037 g011
Figure 12. Schematic of thermochromic behaviour of thermochromic vanadium dioxide glazing [62].
Figure 12. Schematic of thermochromic behaviour of thermochromic vanadium dioxide glazing [62].
Buildings 06 00037 g012
Figure 13. Idealized UV-Vis spectra for a thermochromic VO2 glazing, with (a) transmittance and (b) reflectance modulations [157].
Figure 13. Idealized UV-Vis spectra for a thermochromic VO2 glazing, with (a) transmittance and (b) reflectance modulations [157].
Buildings 06 00037 g013
Figure 14. An example of hysteresis curve observed for a thermochromic VO2 film [160].
Figure 14. An example of hysteresis curve observed for a thermochromic VO2 film [160].
Buildings 06 00037 g014
Figure 15. Example windows with thermochromic VO2 glazing’s (a) and ordinary (b) [155].
Figure 15. Example windows with thermochromic VO2 glazing’s (a) and ordinary (b) [155].
Buildings 06 00037 g015
Table 1. Optical response of a thermochromic VO2 film below and above its critical transition temperature (Tc).
Table 1. Optical response of a thermochromic VO2 film below and above its critical transition temperature (Tc).
Cold (T < Tc)Hot (T > Tc)
StructureMonoclinic, semiconductingRutile, metallic
WavelengthVisible (%)Near IR (%)Visible (%)Near IR (%)
Transmittance (T)65806515
Reflectance (R)17121777

Share and Cite

MDPI and ACS Style

Anderson, A.-L.; Chen, S.; Romero, L.; Top, I.; Binions, R. Thin Films for Advanced Glazing Applications. Buildings 2016, 6, 37.

AMA Style

Anderson A-L, Chen S, Romero L, Top I, Binions R. Thin Films for Advanced Glazing Applications. Buildings. 2016; 6(3):37.

Chicago/Turabian Style

Anderson, Ann-Louise, Shuqun Chen, Luz Romero, Işıl Top, and Russell Binions. 2016. "Thin Films for Advanced Glazing Applications" Buildings 6, no. 3: 37.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
