Structural Damage Detection Technique of Secondary Building Components Using Piezoelectric Sensors

Abstract

With demand for the long-term continued use of existing building facilities, structural health monitoring and damage detection are attracting interest from society. Sensors of various types have been practically applied in the industry to satisfy this need. Among the sensors, piezoelectric sensors are an extremely promising technology by virtue of their cost advantages and durability. Although they have been used in aerospace and civil engineering, their application for building engineering remains limited. Remarkably, recent catastrophic seismic events have further reinforced the necessity of rapid damage detection and quick judgment about the safe use of facilities. Faced with these circumstances, this study was conducted to assess the applicability of piezoelectric sensors to detect damage to building components stemming from concrete cracks and local buckling. Specifically, this study emphasizes structural damage caused by earthquakes. After first applying them to cyclic loading tests to composite beam component specimens and steel frame subassemblies with a folded roof plate, the prospective damage positions were also found using finite element analysis. Crack propagation and buckling locations were predicted adequately. The piezoelectric sensors provided output when the concrete slab showed tensile cracks or when the folded roof plate experienced local buckling. Furthermore, damage expansion and progression were detected multiple times during loading tests. Results showed that the piezoelectric sensors can detect the structural damage of building components, demonstrating their potential for use in inexpensive and stable monitoring systems.

1. Introduction

In recent times, powerful earthquakes have struck cities worldwide, one after another. Since establishing the Sendai framework at the UN World Conference on Disaster Risk Reduction in 2015, the demand for resilience strengthening of structures is further attracting international researchers’ interest. This situation certainly includes buildings of various types. Structural health monitoring fulfills an important role in the peri-disaster and post-disaster phases during and after disasters, respectively. Building collapse must be prevented even after an earthquake. A recent catastrophic event, the 2015 Gorka earthquake, caused the complete collapse of 500,000 buildings and the partial collapse of 250,000 buildings, according to the Japan International Cooperation Agency (JICA) [1]. Another recent seismic event, the 2023 Turkey–Syria earthquake, caused more than 164,000 buildings to be destroyed or severely damaged, as reported by the Turkish Ministry. Such damage derives from a lack of proper assessment of structural capacity and a lack of rapid seismic strengthening. Findings indicate that continuous efforts at damage prevention must be pursued locally and globally.

Most buildings in countries with strict seismic design criteria, such as those in Japan, can withstand strong ground motions. Nevertheless, several buildings have been reportedly unable to maintain their functions because of damage to secondary building components [2]. Eventually, some buildings became unsafe for use as evacuation shelters during post-disaster phases of recovery [3]. In addition, the durations required for emergent inspections have been raised as a primary concern. In spite of enormous efforts by engineers and public servants, damage inspections after the 2016 Kumamoto earthquake took 57 days to complete [4]. One reason underlying this long period is that there were few engineers able to complete on-site inspections at the municipality level. However, in contrast to restrictions on human resources, demands from society for the continuity of building use are skyrocketing.

Faced with these needs, structural health monitoring and damage detection are attracting interest among researchers and engineers. Generally, they are classifiable as global and local approaches [5]. It is noteworthy that global structural health monitoring uses the following representative methods: (1) natural frequency-based methods, (2) mode shape-based methods, (3) dynamically measured flexibility matrix-based methods, (4) neural network methods, and (5) generic algorithm methods [6]. Ji et al. [7] conducted full-scale shaking table tests as well as monitoring of building vibration. The results obtained by analyzing the shift of natural frequencies of building structures demonstrated the effectiveness of vibration-based damage diagnosis. Okada et al. reported the application of a three-dimensional structural monitoring system for a full-scale six-story RC building [8]. In addition, a cost-efficient method was established to interpolate responses from the limited recorded data. Moreover, Gislason et al. [9] proposed an automated structural health monitoring system based on time history analysis. Through rigorous numerical modeling, it was demonstrated that damage can be identified with story-level precision. The degree of damage can be quantified and accurately based on floor accelerations caused by ambient wind forces. In addition, Alampalli et al. [10] classically investigated the sensitivity of modal characteristics to damage in a laboratory-scaled bridge span. Through the comprehensive investigation, Alampalli et al. [10] concluded that the local damage does not necessarily change mode shapes more significantly at the damage location or near damage locations than in other areas.

Structural health monitoring and damage detection at the local level are also continuing their evolution internationally. For this purpose, sensors of various kinds, such as strain gauges, accelerometers, fiber optical sensors, displacement sensors, piezoelectric sensors, and Doppler vibrometers, have been developed to realize structural health monitoring [11]. The classical technique to detect local damage uses strain gauges. Recently, they have become widely available on the market. However, they are fragile and unsuitable for long-term monitoring. Consequently, they are commonly used for laboratory experiments. The recent development of image sensing has realized damage detection using digital images. Earlier achievements by Chida and Takahashi [4] enabled the detection and evaluation of quantitative damage at the ground level of timber houses using pre-post morphological processing combined with semantic segmentation by deep learning. From a simplified perspective, Kishiki et al. [12] attempted to visualize the residual strength of buckled steel members. The magnitude of buckling deformation was measured during cyclic loading tests. The strength and deformation magnitude were correlated. Ultimately, an evaluation equation was proposed for instant strength evaluation. The recent articles [13,14] revealed that the member performance was degraded by the environmental impact, proving the necessity of long-term monitoring to secure the safety of structures.

Recent efforts at structural health monitoring are being aimed at sensors of novel types, specifically piezoelectric sensors. Such sensors detect the applied force or displacement and then generate a voltage. Compared with other monitoring sensors and techniques, piezoelectric sensors provide numerous benefits such as small size, light weight, low cost, high sensitivity, and availability in various formats [11]. According to previous research [15], the system consisting of the microtremor, computer, and data logger requires 15,000 to 25,000 US dollars per measurement unit. In addition, another system comprised of the laser Doppler velocity meter, computer, and digital displacement gauge costs 45,000 to 60,000 US dollars per unit. The proposed method requires only piezoelectric sensors, computers, and circuits, resulting in less than 1000 US dollars. Therefore, the system established here has a cost advantage. By virtue of these benefits, piezoelectric sensors are applied practically for aerospace and civil engineering structures [16]. Earlier, Harada et al. [17] used piezoelectric sensors to detect crack propagation in steel specimens and RC beams. Conversions of the output voltage and strain are interrelated experimentally and theoretically. Furthermore, Harada et al. [17] reported that a charge amplifier with low energy consumption took stable measurements in a static condition. Therefore, Harada et al. [17] concluded that the piezoelectric sensor is effective, particularly for local and severe damage such as that associated with concrete crack expansion.

In terms of building applications, one of the authors enthusiastically investigated the application of piezoelectric sensors for building components. Earlier, the applicability of the sensor was studied for welded connections between a beam and column [18] because they are prone to being damaged in strong earthquakes. The result demonstrated that the piezoelectric sensor adequately detects structural damage in the inelastic phase. The piezoelectric sensors can resist a greater deformation than the strain gauges. Therefore, the sensors are reusable without replacement, even after a giant earthquake. The piezoelectric sensors, therefore, embrace the advantage of long-term structural health monitoring. Therefore, it was concluded that this sensor is promising for use in an inexpensive and durable health monitoring system.

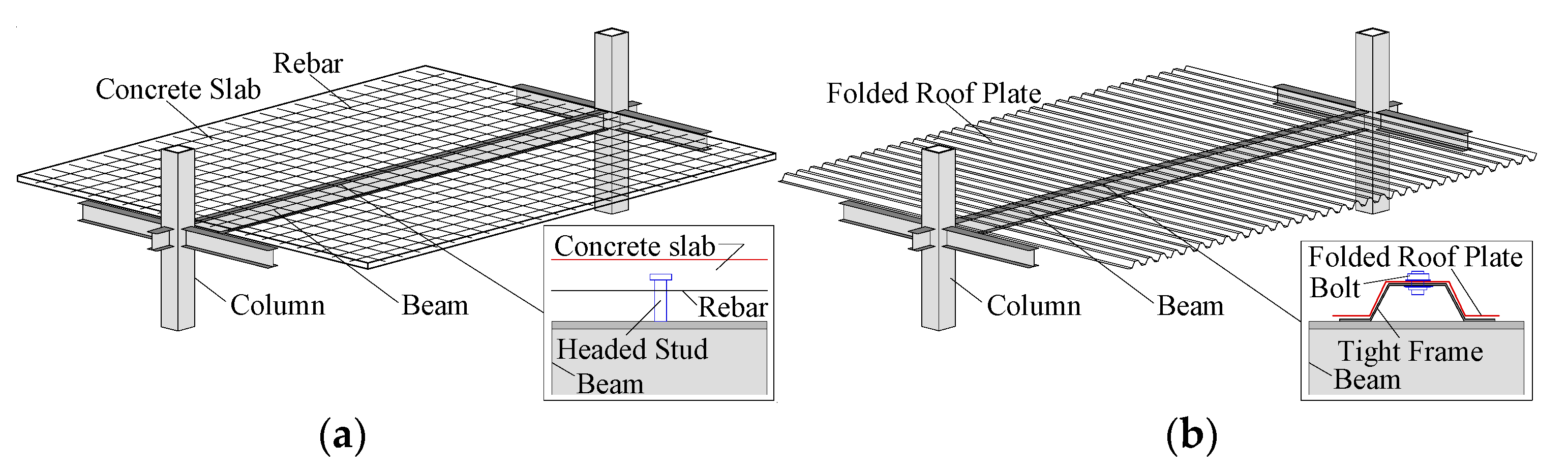

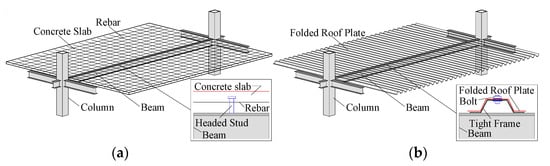

Generally, buildings comprise main structural components (columns, beams, etc.) and secondary components (concrete slabs, folded roof plates, etc.). Earlier reports revealed that the secondary components function as a restraint on the primary structural members. Their restraint performance is generally represented as the spring stiffness or strength [19,20,21,22,23,24,25]. Steel beams are assembled with a concrete slab through shear connectors in an ordinary building with several floors (Figure 1a). It is widely recognized that a concrete slab demonstrates restraint performance along the in-plane direction and out-of-plane direction. Although cracks in the concrete slab originate during cyclically applied stress from the earthquake, enhancement of the buckling strength was confirmed by experimentation [26].

By contrast, single-story buildings (gymnasiums, warehouses, etc.) on the top floor of multiple-story buildings can only have folded roof plates (Figure 1b). According to an earlier experiment, the folded roof plate demonstrates high restraint performance, but its rigidity is much lower than that of a concrete slab. Their buckling strength was derived theoretically and analytically in an earlier study [27]. In addition, the mechanical performance of the folded roof plate was evaluated at the component level [28]. As evaluation methods are becoming more sophisticated, as introduced above, the necessity of securing the designed restraint performance is being raised as an important concern. However, structural health monitoring and damage detection technology are usually intended for the global frame or for the primary structural components. Considering that the bracings are generally damaged before member buckling and subsequent strength deterioration, damage detection of secondary structural components is rather important.

Based on the discussion presented above, this study was conducted to detect concrete slabs and folded roof plate damage using inexpensive yet consistent and reliable measures. Specifically, this study applies piezoelectric sensors. For this purpose, this study applied cyclic loading tests to a component model of composite beam and steel frame subassembly with folded roof plates. Because the prospective damage position must be analyzed in advance, finite element analysis (FEA) is demonstrated for these assessments. The sensor output and the damage state were compared to investigate their adaptability to the damage detection of secondary building components.

The outcome of this research builds the foundation of the novel structural health monitoring system using the piezoelectric sensor. Specifically, this research focuses on the non-structural components more prone to deformation than the primary structural members. Therefore, the structural engineers and building owners can make a proper and prompt decision regarding the continuous use of the facilities.

2. Structural Damage Detection of a Concrete Slab Using Piezoelectric Sensors

2.1. Outline of Experiment

2.1.1. Specimen Configuration

Currently, headed stud shear connectors prevail as the shear connector, and the evaluation equations are available in the design provisions [29,30,31]. Their behavior had been investigated based on push-out specimens [32,33,34] and composite beams [35,36,37]. On the other hand, to demonstrate superior strength and stiffness, novel types of shear connectors are developed as alternatives: perfobond shear connectors [38,39,40], Y-type perfobond rib shear connectors [41,42,43], bar-ring shear connectors [44,45,46], puzzle-shaped shear connectors [47,48,49], and clothoid-shaped shear connectors [50,51,52]. Furthermore, recent research has revealed the innovative shear connectors’ cyclic and fatigue behavior [53,54,55,56,57] and their mechanical performance with damaged concrete [58]. This research examines the clothoid-shaped shear connectors as a representative case of the novel shear connectors mentioned above.

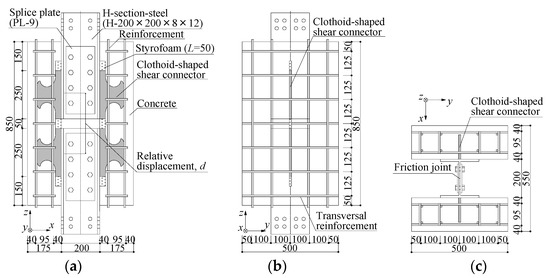

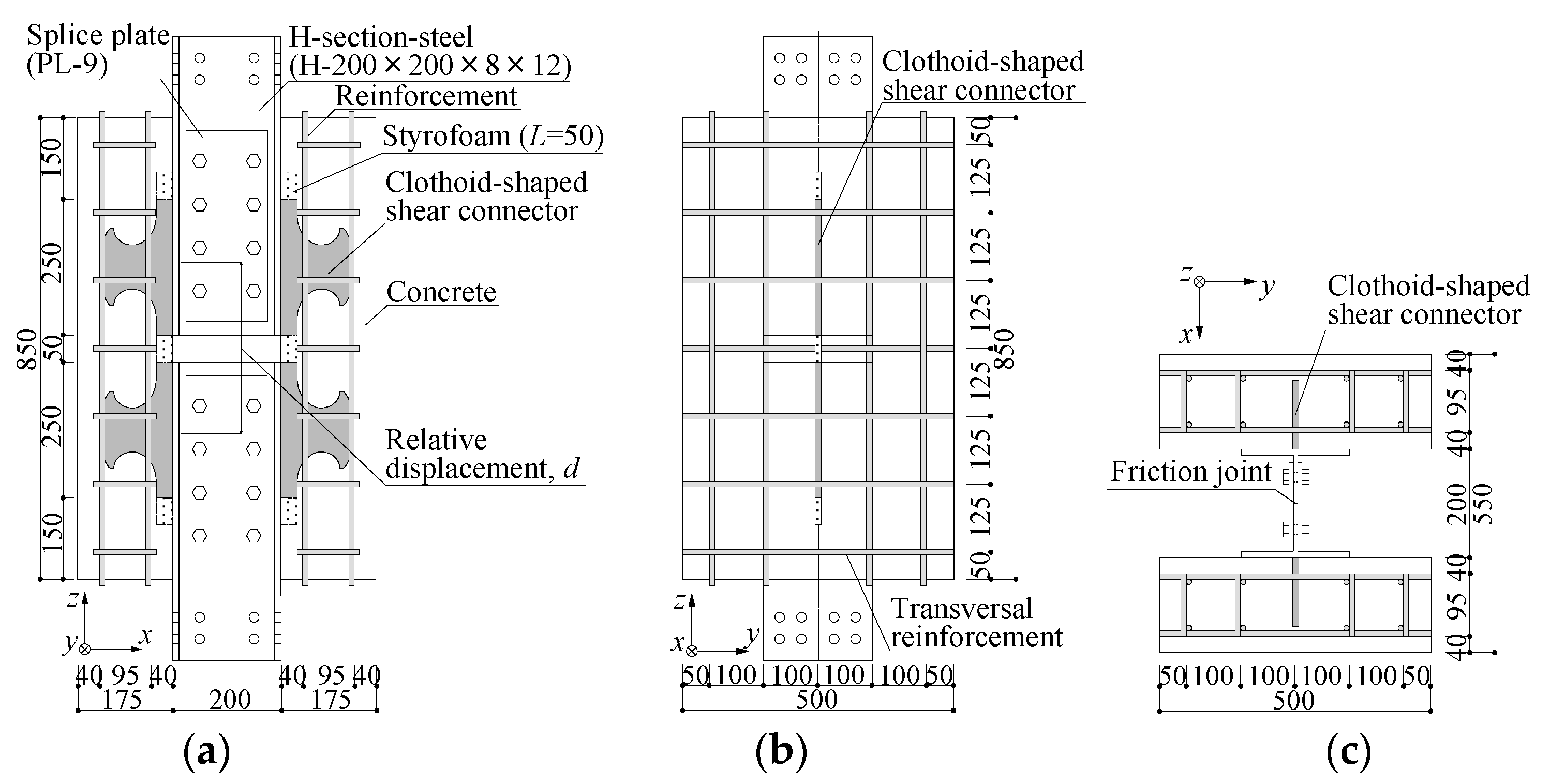

Figure 2 portrays the configuration of the composite beam component model. The specimen was designed for earlier experiments [19,20,21,22,23,24,25]. The specimen comprised two concrete slabs, longitudinal and transversal reinforcements, four clothoid-shaped shear connectors, and two H-section steels. The specimen configuration was designed as symmetric relative to the z-axis to eliminate eccentricity. The clothoid-shaped shear connector thickness was 16 mm. The longitudinal diameter and transversal rebar were 10 mm.

The casting orientation is widely acknowledged as influencing the mechanical performance of the shear connection. Therefore, the Japan Society of Steel Construction (JSSC) recommends replication of the structure concerned when engineers manufacture the shear connection component model [59]. For this study, we therefore poured concrete along the x-axis to model the composite beam. Two specimen parts were assembled using high-strength bolts and splice plates before loading tests.

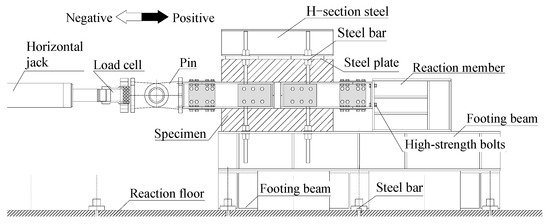

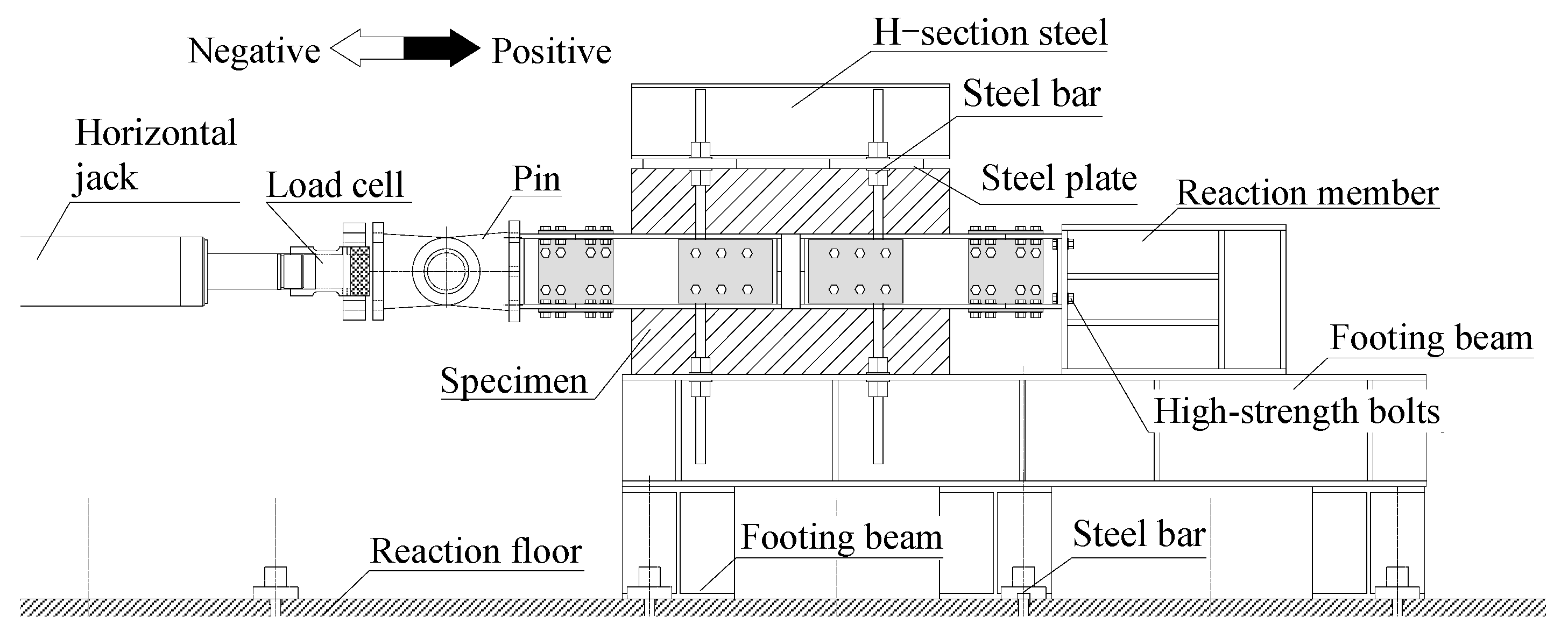

Figure 3 presents an illustration of the loading frame. The specimen was placed widthwise on the footing beam. The single side of H-section steel was connected to the reaction member by high-strength bolts. Then, the imposed shear force was transferred to the reaction floor. The shear force was carried cyclically by a 1000 kN capacity hydraulic jack.

2.1.2. Loading Protocols

For the loading test, the amplitude was controlled based on the relative displacement of two shear connectors (designated as connector relative displacement, d). The loading protocol was fully reversed loading. Compressive and tensile stresses were applied for the concrete slab in positive and negative side loading.

2.1.3. Material Properties

Table 1. Mix proportions.

W/C [%]	s/a [%]	Unit Materials Content [kg/m3]
		Water	Cement	Sand	Gravel	Admixture
53.0	47.5	178	336	829	933	4.36

shows the mix design of the concrete. The water/cement ratio (W/C) was 53.0%. The maximum aggregate size was 20 mm.

Table 2. Material properties (concrete).

Compressive Strength [N/mm2]	Tensile Strength [N/mm2]	Modulus of Elasticity [N/mm2]
26.4	2.1	22,836

,

Table 3. Material properties (steel plate).

Part	Thickness [mm]	Yield Strength [N/mm2]	Ultimate Strength [N/mm2]	Elongation [%]
Connector	16	285	436	46
Web	8	293	458	37
Flange	12	257	440	43

and

Table 4. Material properties (steel bar).

Diameter [mm]	Yield Strength [N/mm2]	Ultimate Strength [N/mm2]	Elongation [%]
10	378	509	28

present the material test results. The material tests of the concrete and steel members were conducted in accordance with JIS A 1108 [60] for the compressive strength test of the concrete, JIS A 1113 [61] for the splitting tensile strength of the concrete, and JIS Z 2241 [62] for the tensile strength test of the steel. The cylinder specimens were used for the material tests on concrete. The compressive and tensile strengths were, respectively, 26.4 N/mm² and 2.1 N/mm² (Table 2). The yield and ultimate strength of the shear connector, web, and flange plates were distributed, respectively, as 257–293 and 436–458 N/mm² (Table 3). The yield strength and the ultimate strength of the reinforcement were, respectively, 378 N/mm² and 509 N/mm² (Table 4).

2.1.4. Curing Conditions

Specimens were demolded on the seventh day after concrete casting. They were air-cured up to the day of the loading test. The concrete specimens for the material tests were cured in the same room to give all of them an identical temperature history.

2.2. Outline of Finite Element Analysis

2.2.1. Configuration of Finite Element Analysis

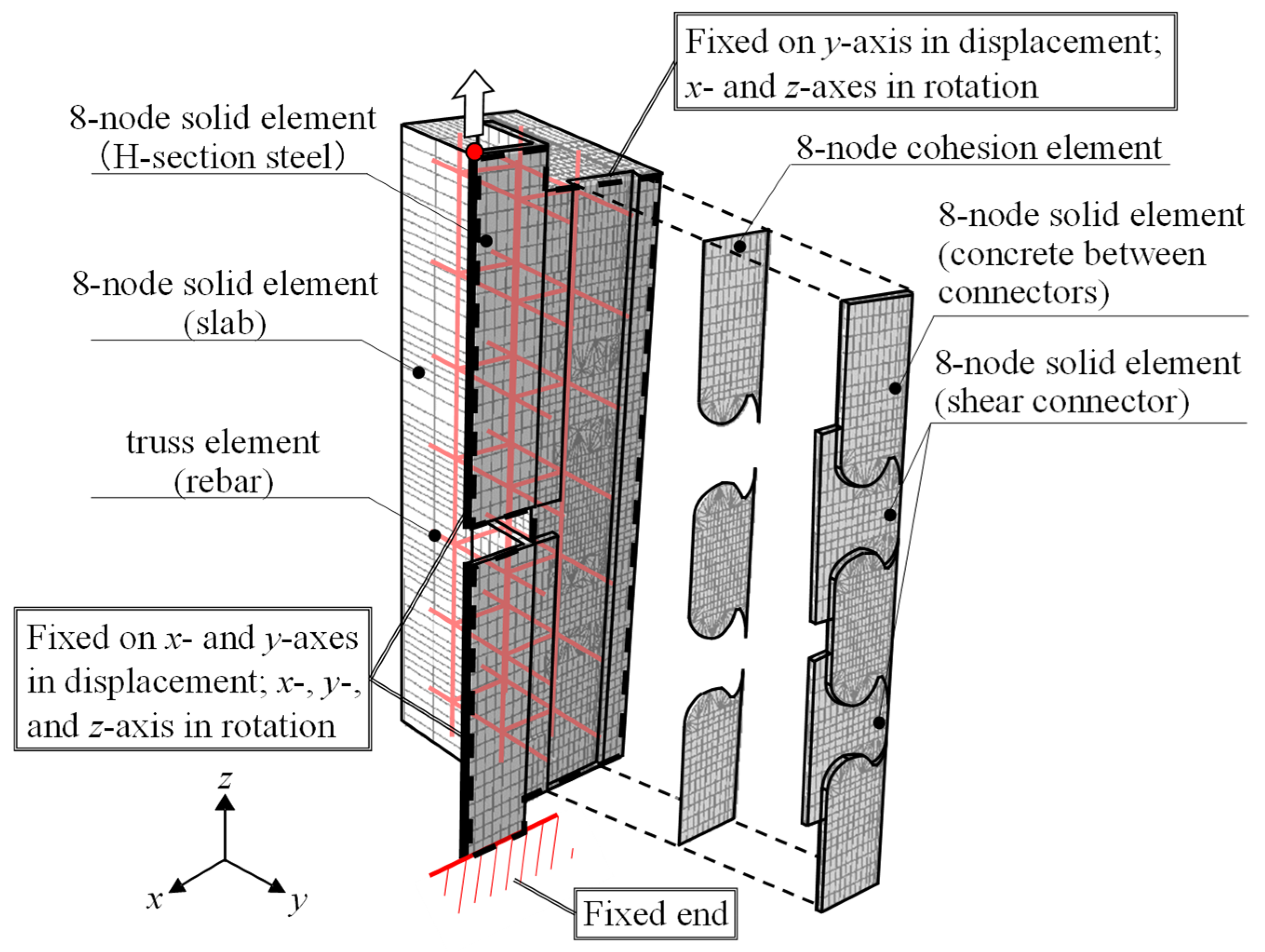

An FEA model was demonstrated to determine the piezoelectric sensor positions. Figure 4 exhibits the FEA model configuration. Using the symmetricity of the specimen configuration, a quarter part of the specimen was extracted for the analysis. ABAQUS (ver. 2021) was used for this simulation. Embracing the advantage of the convergence, an explicit module was used to analyze the composite beam component model.

As exhibited in Figure 4, the H-section steel, shear connector, and concrete slab were built with the solid element. The reinforcements were modeled by the truss elements. The reinforcements were settled to resist the axial force only. Therefore, the analysis intended that the rebar yielded by means of the axial force, not by the combined stress of axial force and bending moment. Hence, the truss elements were adopted in the FEA. Also, the slippage was not observed in the preliminary analysis, justifying disregarding the bond fracture in the simulation. Separation through a tensile crack was represented by the 0.1-mm-thick cohesion element. The element was placed on the interface between the concrete block and the concrete between the shear connectors. The respective sides of the cohesion element were tied to the concrete block and the remaining concrete parts. When the deformation was imposed on the shear connector, the cohesion element deformed and carried the reaction force. According to the constitutive law described later, the cohesion element depleted its strength gradually and vanished in the ultimate state. The concrete blocks were therefore discretized after vanishing. The fine mesh was built near the shear connectors, where the stress transfer occurs prominently. Meanwhile, the mesh became coarse around the edge of the concrete slab to save computation time. The preliminary analysis was carried out, and the convergence was observed in the sensitivity study.

The clamped end constraint was given at the bottom of the H-section steel. The boundary condition to satisfy the symmetricity was provided to the web plate and concrete slab center. Loading was imposed at the top of the H-section steel.

The contact pair was defined between the shear connector-to-concrete and concrete-to-H-section steel. The friction and initial adhesion were not given because the shear connector surfaces were greased for the experiment. Furthermore, the embedded constraint was given to the reinforcements related to the concrete slab.

2.2.2. Constitutive Law of Concrete and Slab Separation

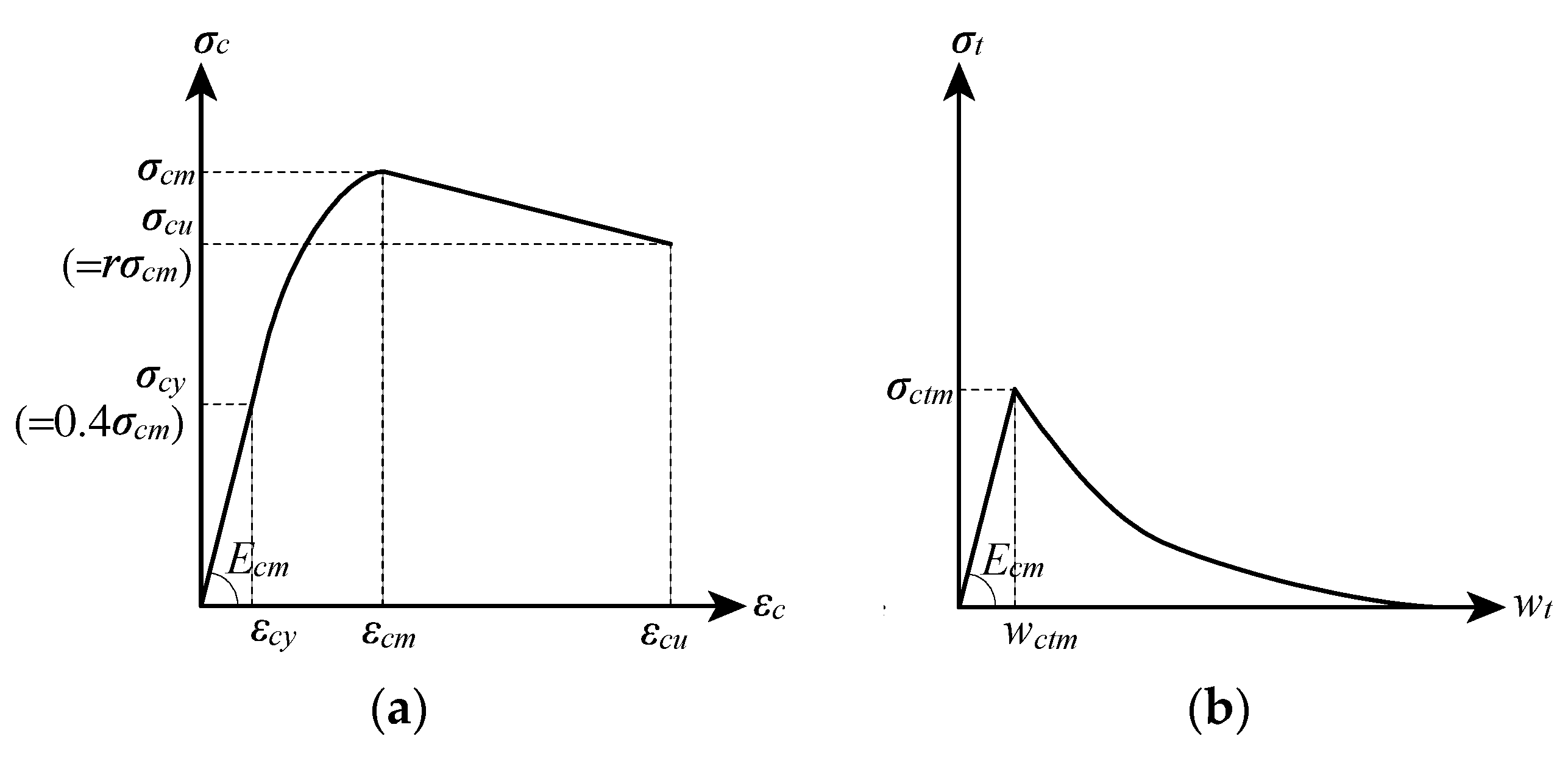

Figure 5a–c respectively presents the constitutive law of concrete under compressive, tensile, and cyclic stresses. The elastic limit was 40% of the maximum strength, as required by Eurocode-2 [63]. The parabolic function from the elastic limit to the maximum strength is presented in Equation (1). In addition, the strain at the peak strength can be computed using Equation (2) as follows:

$${\sigma }_c=\left(\frac{k\left({\epsilon }_c/{\epsilon }_{cm}\right)-{\left({\epsilon }_c/{\epsilon }_{cm}\right)}^2}{1+\left(k-2\right)\left({\epsilon }_c/{\epsilon }_{cm}\right)}\right){\sigma }_{cm}$$

(1)

$${\epsilon }_{cm}=0.07{{\sigma }_{cm}}^{0.31}\le 0.28[\%]$$

(2)

where σ_cm denotes the compressive strength of concrete and ε_cm represents the strain at peak strength. An earlier study [64] showed that the strength dropped linearly to 85% of the ultimate strength at the ultimate strain σ_cu = 0.01.

The stress–strain relation in the tension side was defined by Equation (3) in accordance with an earlier study [65]. The tensile strength was computed using Equation (4) [66]. The fracture energy was calibrated using Equation (5) [67]. In the following equations, the Newton and millimeters are used to compute the respective physical quantities. One should note that the unit of output in Equation (5) is N/m, requiring the unit conversion to substitute Equation (3).

$${\sigma }_t={\sigma }_{ctm}{\left(1+0.5\frac{{\sigma }_{ctm}}{G_F}{w}_t\right)}^{-3}$$

(3)

$${\sigma }_{ctm}=0.291\times {{\sigma }_{cm}}^{0.637}$$

(4)

$$G_F=10\times {d_{max}}^{1/3}\times {{\sigma }_{cm}}^{1/3}$$

(5)

In those equations, σ_t stands for the tensile strength of concrete, w_t expresses the crack width, σ_ctm denotes the ultimate tensile strength, G_F symbolizes the fracture energy, and d_max signifies the maximum size of the aggregate.

Figure 5c depicts the stiffness recovery of the unloading and reloading phases. The degree of stiffness degradation was determined by damage factors d_c and d_t. An earlier study [68] used the following equations for considering the constraint by the steel members. The present study therefore applies the identical equation.

$$d_t=1.24\frac{k_t}{{\sigma }_{ctm}}{w}_t(\le 0.99)$$

(6)

$$d_c=\left\{\begin{array}{c}\frac{k_{ci}{\epsilon }_c}{{\left[1+{\left({\epsilon }_c/{\epsilon }_0\right)}^n\right]}^n}({\epsilon }_c\le 0.0184)\\ 0.3485({\epsilon }_c>0.0184)\end{array}\right.$$

(7)

In these equations, the constants k_ci, ε₀, n, and k_t are given, respectively, as 155, 0.0035, 1.08, and 386 N/mm²/m in accordance with an earlier report [68].

2.2.3. Constitutive Law of Cohesion Element

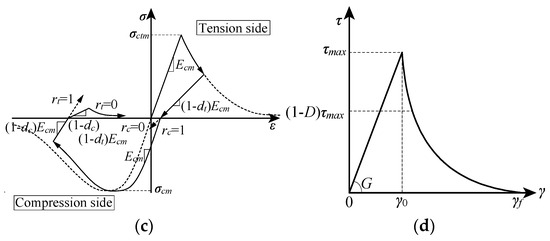

Figure 5d presents the constitutive law of the cohesion element. The shear stress–strain relation was constructed based on earlier experimentally obtained results [69]. The shear stiffness G was calibrated using Equation (8). The damage function D governing strength deterioration was computed using Equation (9). The ultimate shear strength τ_max was calculated using Equation (10).

$$G=43.0\times \left(\omega /{\omega }_r\right)\times {\left({\sigma }_{cm}/{\sigma }_{cm,r}\right)}^{1/3}$$

(8)

$$D=\frac{\gamma -{\gamma }_0}{{\gamma }_f-{\gamma }_0}$$

(9)

$${\tau }_{max}=\frac{{\sigma }_{cm}}{\sqrt{3}}$$

(10)

Therein, ω represents the concrete weight in unit volume, ω_r denotes the concrete weight in a unit volume of reference case (=24 kN/m³), σ_cm,r expresses the concrete strength of reference case (=25.9 N/mm²), γ stands for the shear displacement, γ₀ signifies the effective displacement at damage initiation, and γ_f symbolizes the effective displacement at complete failure.

2.2.4. Constitutive Law of Shear Connector and Rebar

The stress–strain relation of the shear connector is determined by the combined hardening law with the three backstresses. The hardening parameters were set as identical to those reported from earlier research [70,71,72,73,74,75] because the same type of steel was used for this study.

2.2.5. Finite Element Analysis Results and Piezoelectric Sensor Positions

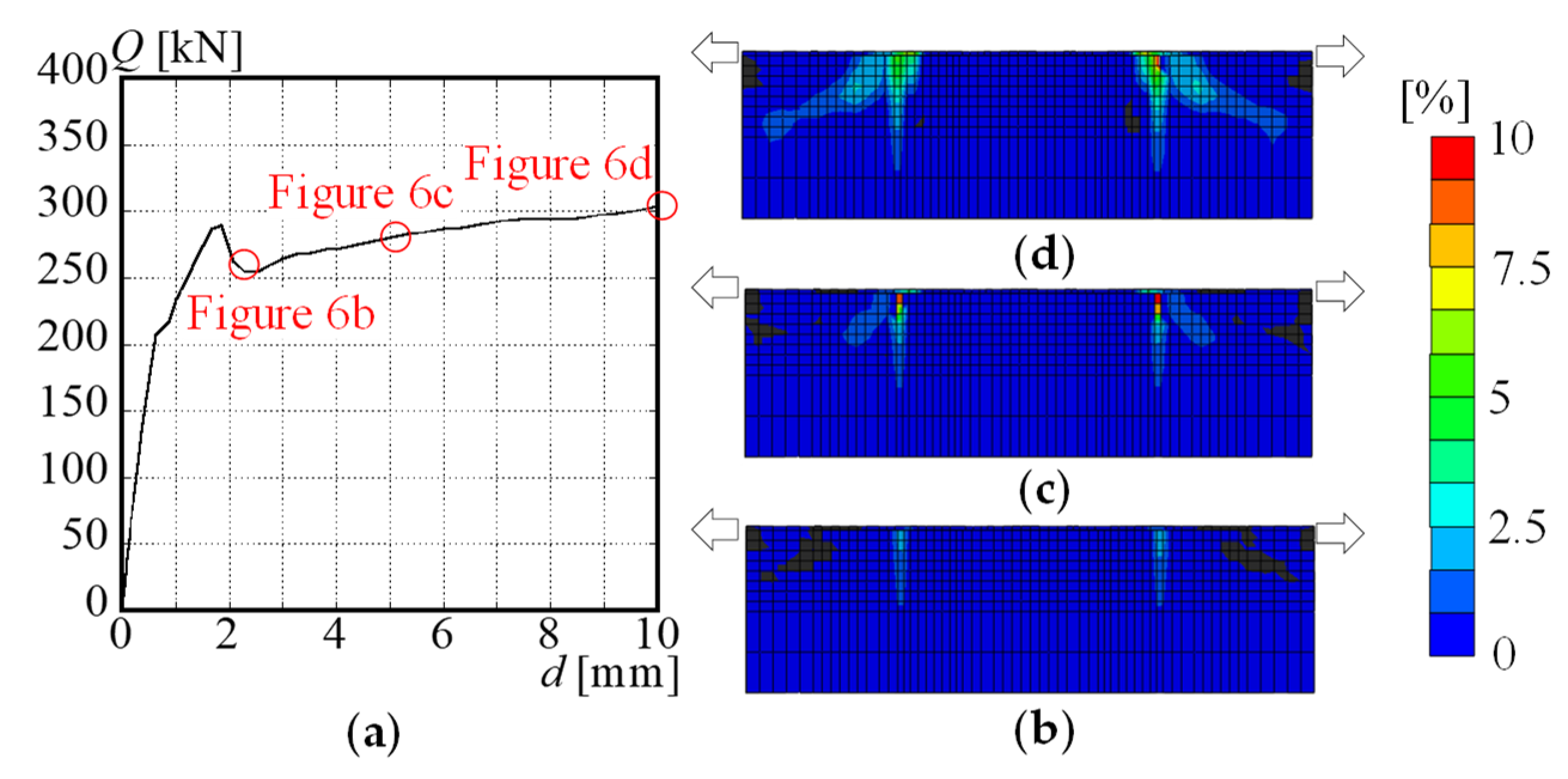

Figure 6 presents an illustration of the load–displacement relation and crack propagation. In Figure 6, the shear force once dropped around the connector relative displacement d of 1.9 mm. This reduction is derived from crack initiation at the embedded position of the shear connector. The plastic tensile strain distribution is presented in Figure 6b,d. The crack propagated toward the transversal direction. The most significant tensile stress concentrates near the shear connectors; hence, the critical position appears at the embedded place in the steel-concrete composite structure. However, the shear force recovered gradually using the stress transfer to the reinforcement. The damage spread with the increase in the loading amplitude (Figure 6c), after which the damage further propagated diagonally (Figure 6d). The observation presented in Figure 6 confirms that the damage should be detected aside from the embedded positions of the shear connectors.

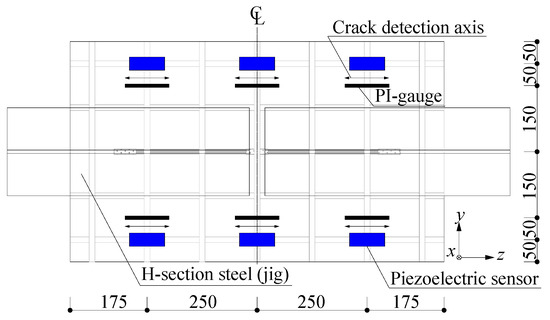

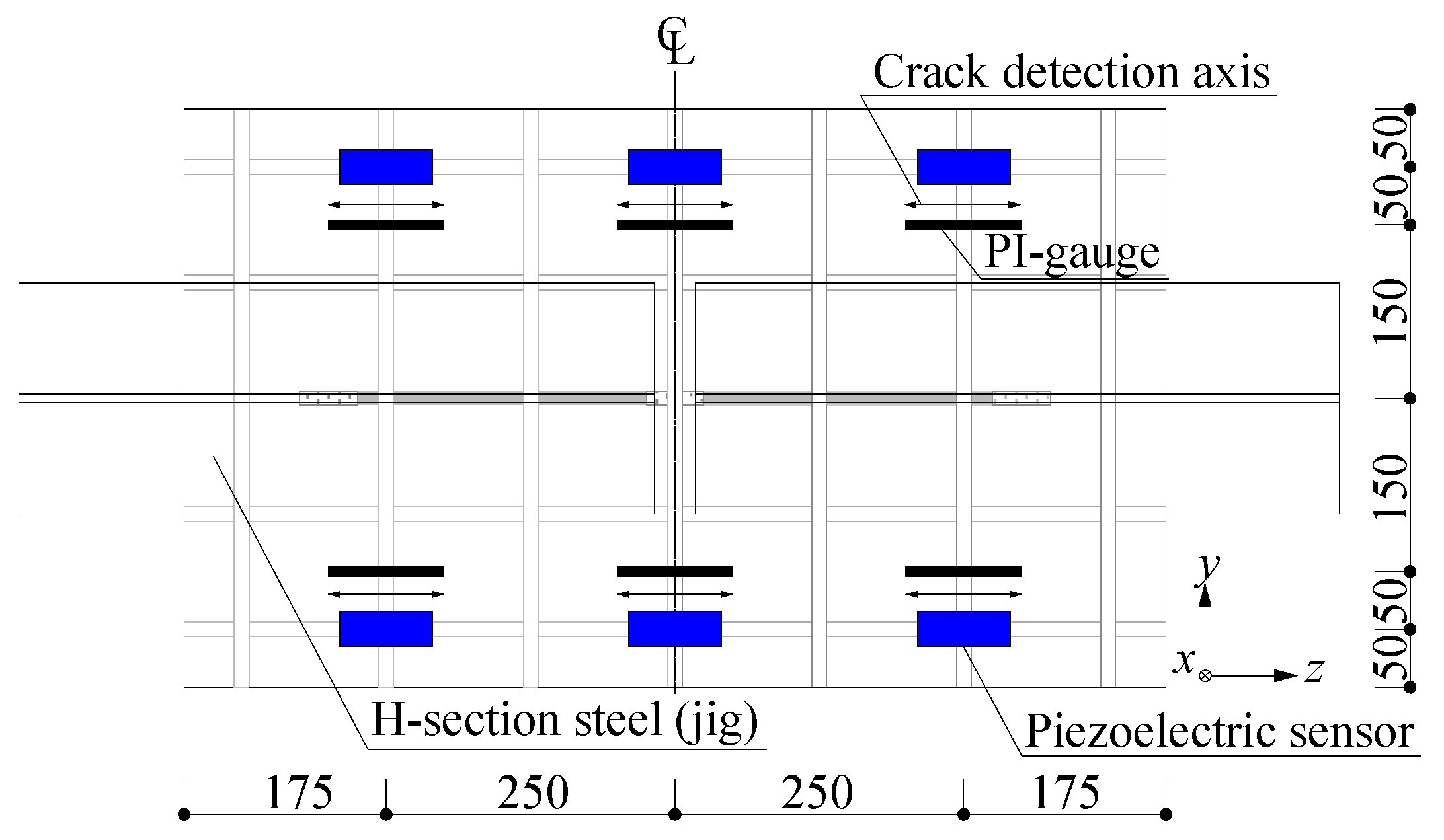

Based on the observations presented above, this study determined the piezoelectric sensor installation position, as presented in Figure 7. The six piezoelectric sensors were attached to capture the tensile cracks. The piezoelectric sensor was expected to output the voltage through the movement by means of crack propagation. In addition, for crack width measurement, the PI gauges were set beside the piezoelectric sensors to ascertain the damage detection sensitivity. For the installation, the concrete slab surface was ground; the sensor was glued rigidly. During loading tests, the sensor was not peeled up to the final loading cycle.

2.3. Results of Experiments and Damage Detection

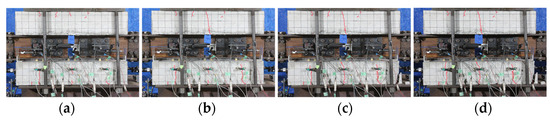

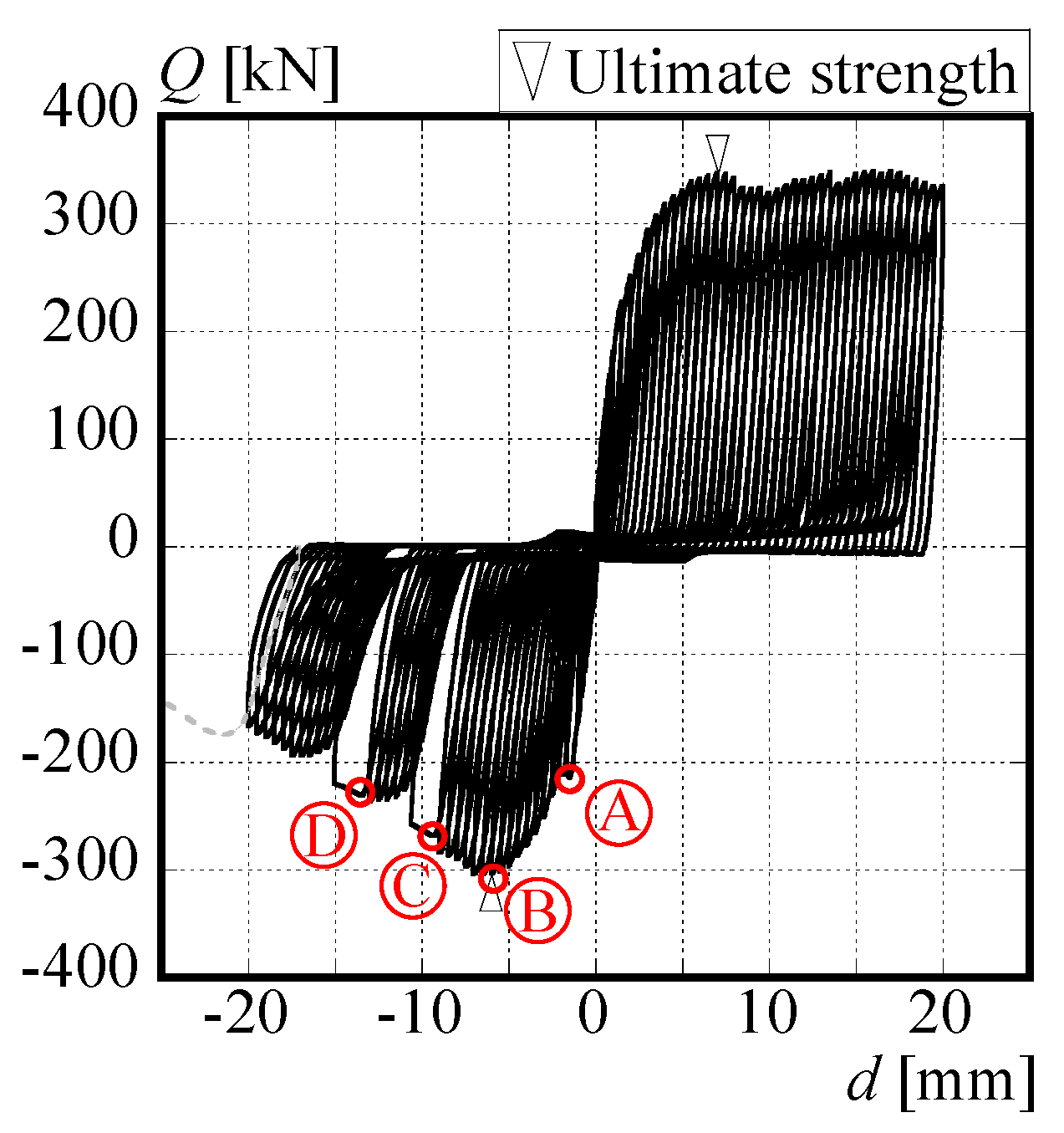

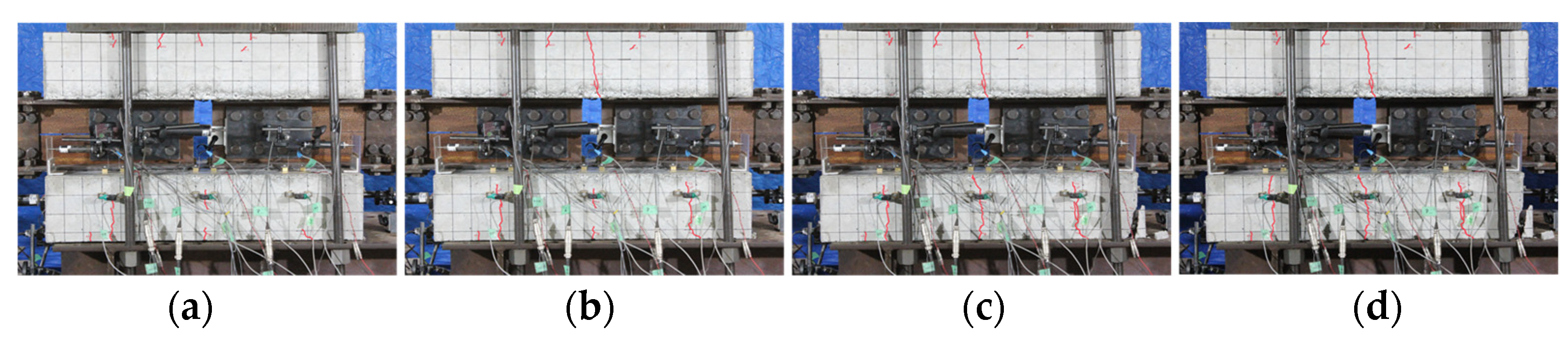

Figure 8 presents an illustration of the experimentally obtained result. Although the hysteresis was stable on the compression (positive) side, the strength deterioration and rapid displacement enlargement occurred several times. The first crack initiation was detected at d = −1.4 mm (point A). Figure 9 displays the fracture process. Although it is noticeable in the load–displacement relation, the cracks are not visible in Figure 9a. This finding corroborates that visual inspection alone presents some difficulty in identifying the concrete damage. The peak strength was performed at d = −6.0 mm (point B). The strength degraded gradually during subsequent loading cycles. The transversal damage at this stage is visible in Figure 9b. Furthermore, rapid strength degradation occurred at around d = −10.0 mm (point C) and d = −13.5 mm (point D).

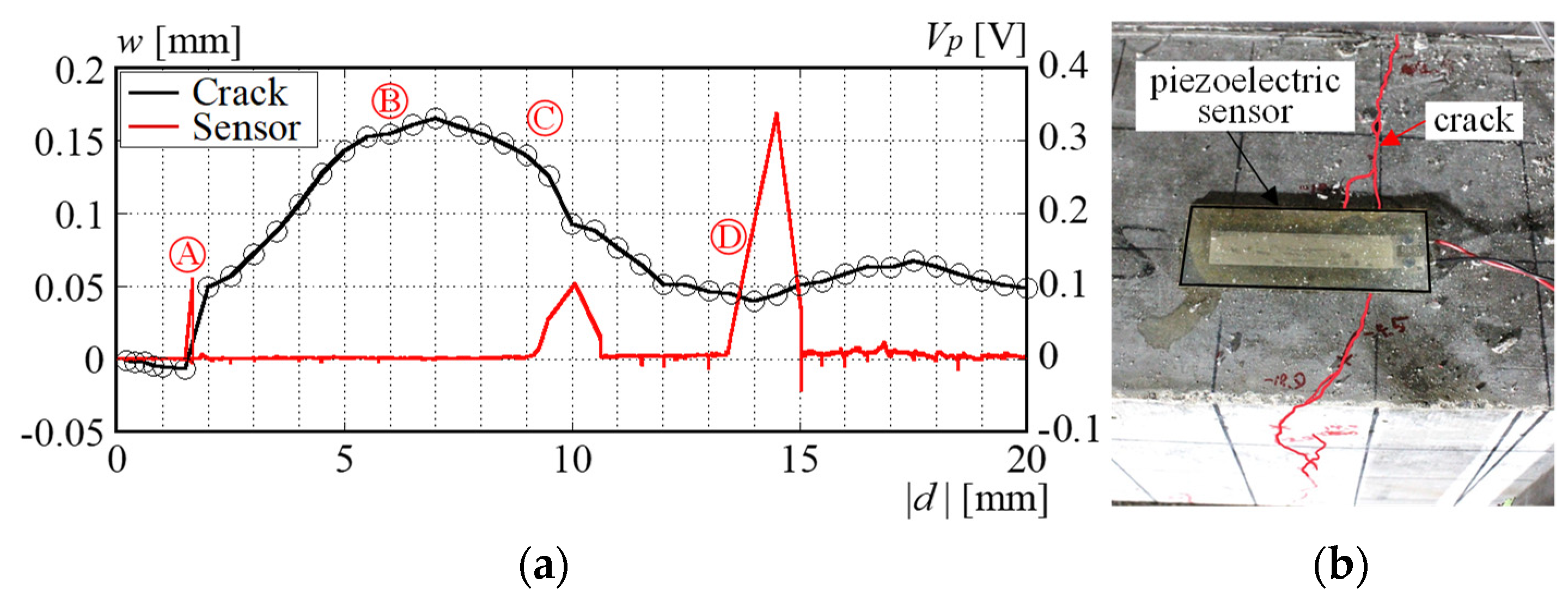

Figure 10 shows the crack width w_c transition and the piezoelectric sensor output V_p. The horizontal axis is the absolute value of the loading amplitude. The skeleton part of the hysteresis curve on the negative side is extracted. In addition, Figure 10b demonstrates that the sensor position appropriately captures the tensile crack, thereby penetrating the sensor transversally. The piezoelectric sensor output is significant at |d| = 1.6 mm (point A), 10.0 mm (point C), and 14.5 mm (point D). In Figure 10, the crack width suddenly increases at point A and hits its peak near the ultimate shear strength (point B). During the subsequent loading cycle, the damage concentrates on the corresponding part. At point D, the position concerned becomes the origin of further damage. Consequently, the crack expands again, developing the prominent sensor output.

To deepen our understanding of piezoelectric sensor behavior, the relation between crack width and sensor output is presented directly for comparison in Figure 11. In Figure 11a, the reaction of the piezoelectric sensor was arranged by the crack width. As one might expect, the apparent relation is not visible in the figure. The noise around the origin was issued from the vibration during the unloading phase. Consequently, the piezoelectric sensor does not provide data related to the degree of concrete damage in the current measurement system. Instead, if the sensor output is arranged by the rate of crack expansion, the relation becomes much more apparent. This outcome corroborates that the piezoelectric sensor is helpful for detecting the damage origin. In future research, the method to convert the sensor output into the crack width will be calibrated, referring to an earlier investigation [8]. Therefore, this is a promising method of replacing the ordinary measurement scheme using strain or PI gauges.

3. Damage Detection of a Folded Roof Plate Using Piezoelectric Sensor

3.1. Test Setup of Cyclic Loading Test on an I-Shaped Beam with a Folded Roof Plate

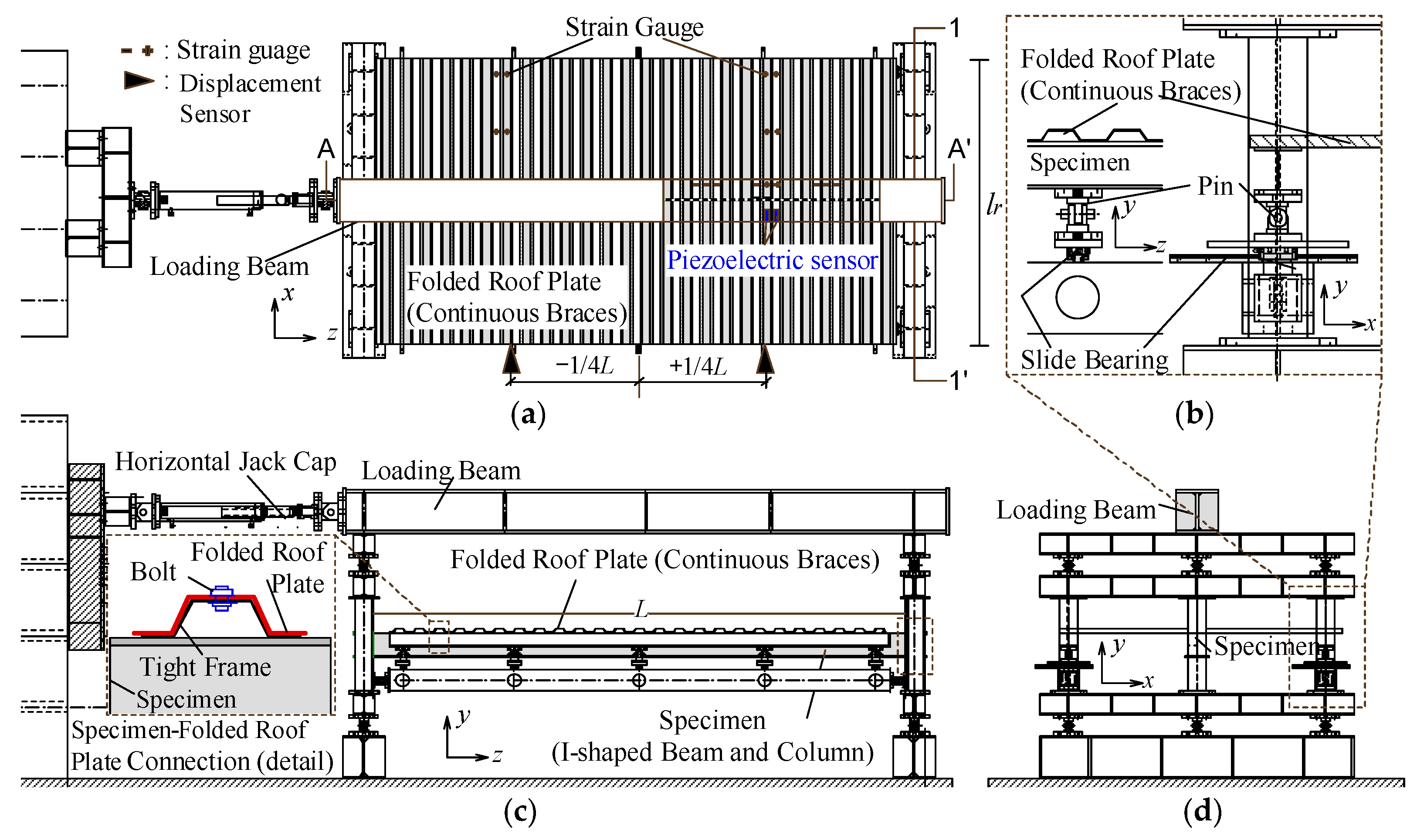

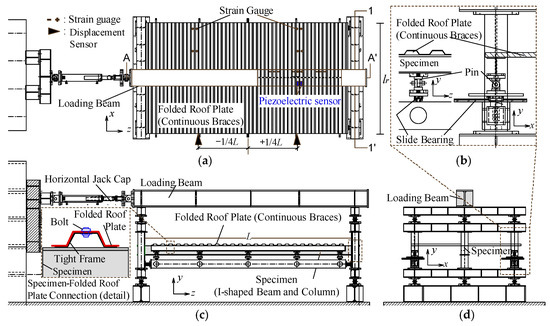

Figure 12 depicts the loading frame and specimen setup. The apparatus was designed in reference to earlier experimentation [76]. The force was imposed on the loading beam through the hydraulic jack. The specimen part, consisting of an I-shaped beam and the folded roof plate, was settled inside the frame. Consequently, the specimen was subjected to non-symmetric bending. In addition, both sides of the folded roof plate were pin-constrained with the slider (Figure 12b). Therefore, the folded roof plate does not carry the axial force.

The two specimens had different beam lengths. The beam heights were 250 mm and 200 mm for specimens No. 1 and No. 2. The respective beam widths were 80 mm and 100 mm. The beam lengths were 3675 mm and 3700 mm, with slenderness ratios of 222 and 166. The connection detail between the folded roof plate and the tight frame is presented in Figure 12c. In conformity with the actual buildings, the folded roof plate was bolted to the tight frame. The tight frame was fillet welded to the flange face. The tight frame had a width of 30 mm and a thickness of 3.2 mm. The material test results are presented in

Table 5. Material test results.

Part	Specimen	Thickness [mm]	Yield Strength [N/mm2]	Ultimate Strength [N/mm2]
Flange	No. 1	6	313.9	465.9
	No. 2	6	294.8	443.5
Web	No. 1	9	368.3	475.1
	No. 2	8	334.1	456.2
Folded roof plate	No. 1	0.5	347.4	393.1
	No. 2	0.5	341.7	389.9

.

The loading amplitude was controlled by the column rotation. The amplitude was standardized by the full plastic rotation angle θ_p, which serves the beam to reach the full plastic moment M_p,b. The full plastic rotation angle θ_p is calculable as shown in Equation (11).

$${\theta }_p=\frac{M_{p,b}L}{6E_b{I}_b}\left(1+\frac{I_{b}H}{2I_{c}L}\right).$$

(11)

In this equation, E_b stands for the elastic modulus of steel, I_b represents the moment of inertia of beam along the strong axis, I_c denotes the moment of inertial of H-section column, and H stands for the column length. The loading protocol was the gradually increased loading. The target amplitude was enlarged to ±0.5θ_p, ±1.0θ_p, ±2.0θ_p, ±3.0θ_p, ±4.0θ_p, ±5.0θ_p, and ±6.0θ_p.

3.2. Preliminary Analysis of Folded Roof Plates and Piezoelectric Sensor Installation

This section describes the preliminary analysis of the folded roof plate that was conducted to ascertain the piezoelectric sensor position. A portion of the folded roof plate was extracted and subjected to the three-point bending test. The loading point was the middle part of the roof plate. The center part of the specimen was coupled with the reference point. The concentration force was given to the reference point. The loading modeled the flexural moment carried by beam rotation. Then, the force was applied monotonically downward.

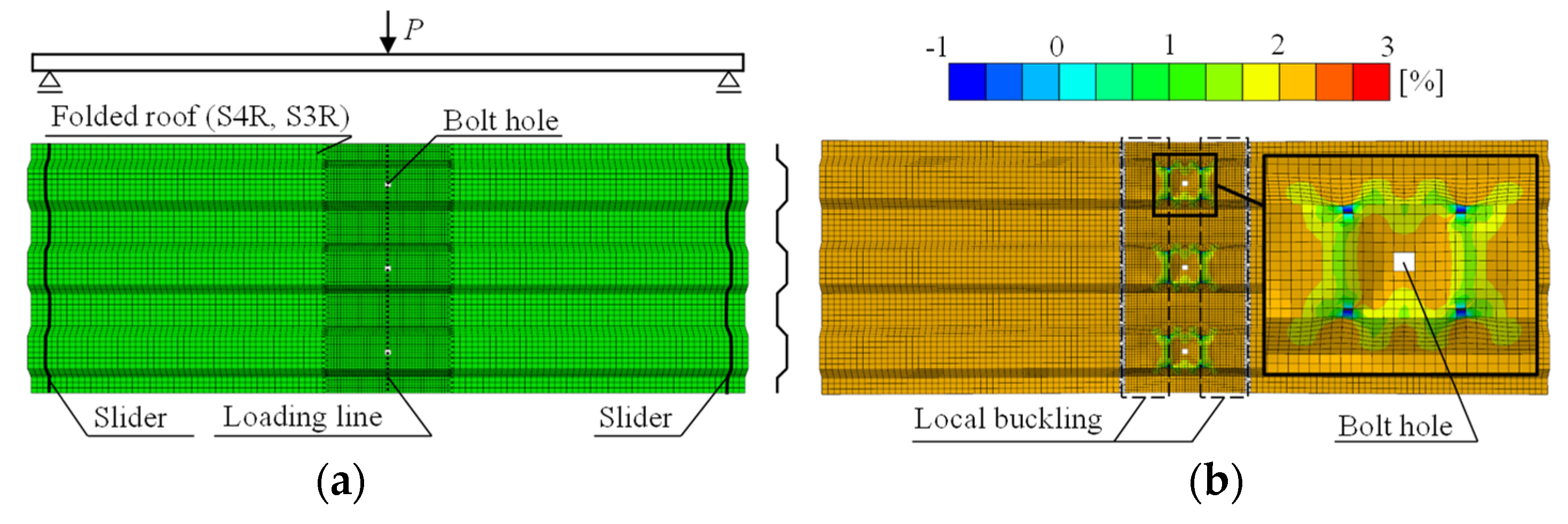

Figure 13a shows the FEA model of a segment of the folded roof plate. The boundary conditions are also presented in Figure 13a. The analysis used ABAQUS (ver. 2021) with the standard solver package. The loading was force-controlled until strength deterioration, employing the originated local buckling. The finer mesh was built around the center part, where the most significant bending moment was carried, to reproduce the buckling behavior accurately. The constitutive law of the material was a simple bilinear model connecting the lower yield point and the ultimate strength of the material test result. The simulation did not consider fracture because the experiment did not observe it.

Figure 13b presents the local buckling deformation. The buckling deformation occurred around the center part, issuing from the bolt hole. When lateral–torsional buckling originates in the I-shaped beam, the folded roof plate is subjected to the rotational moment transferred through the bolt. Ultimately, the folded roof plate starts to buckle. Furthermore, the magnitude of deformation is increased beside the hole. Based on these observations, the sensor location was determined as 100 mm distant from the bolt hole (Figure 12a).

3.3. Results of Cyclic Loading Tests and Piezoelectric Sensor Output

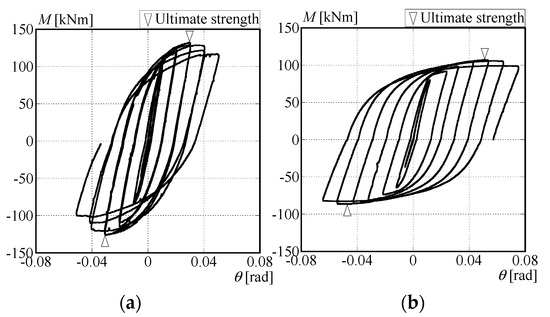

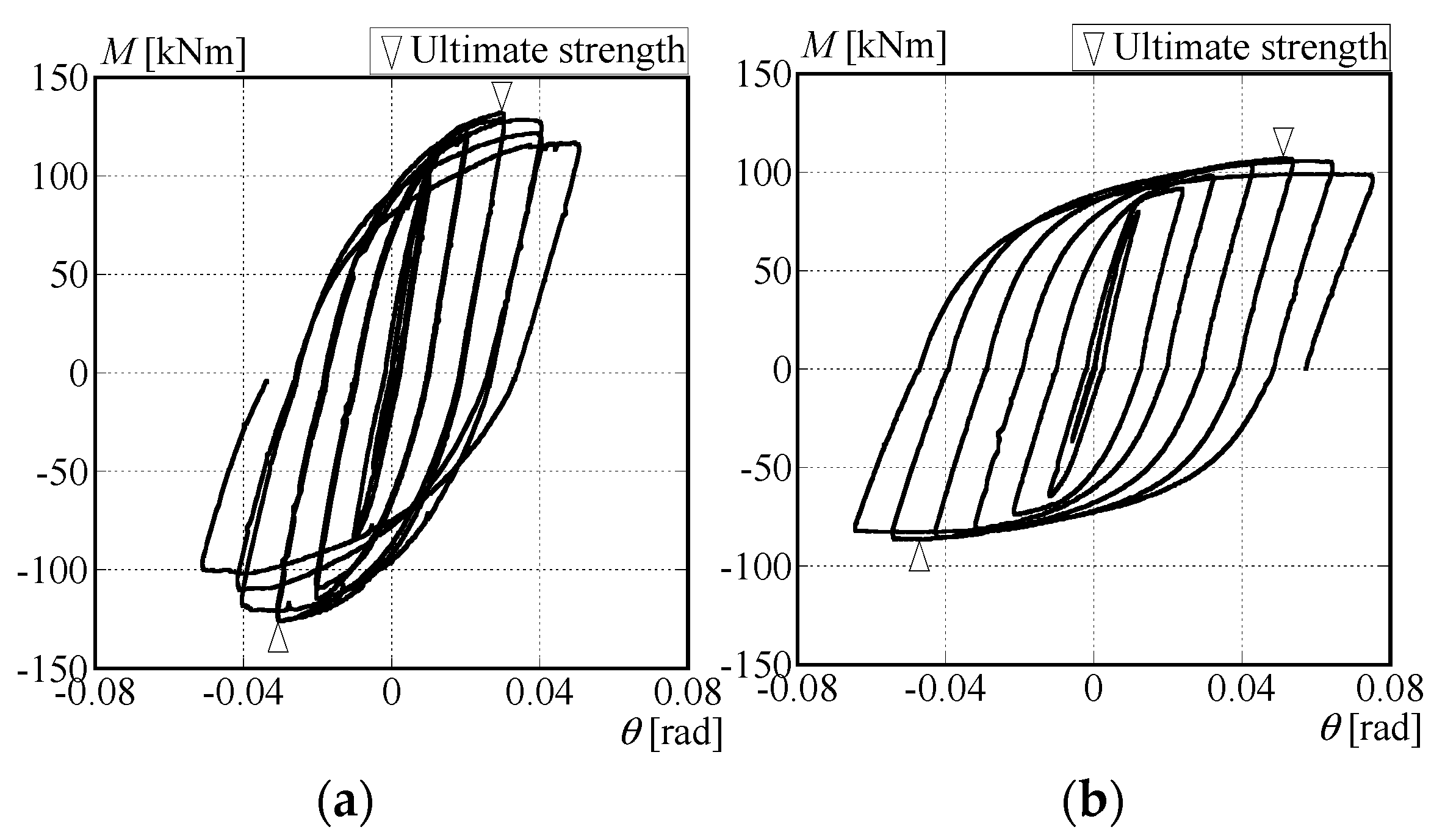

Figure 14a,b shows the cyclic loading test results. The horizontal axis is the column rotation. The vertical axis is the applied bending moment. The specimen demonstrates stable spindle-shaped hysteresis. However, with increasing loading amplitude, the beam failed because of lateral buckling, causing gradual strength deterioration. However, it is noteworthy that the structural performance is enhanced considerably compared to that of a bare steel beam. The superior structural performance stems from the rotational restraint provided by the folded roof plate. This trend reinforces the inference that the restraint from the folded roof plate improves the structural performance of beams that fail because of lateral buckling.

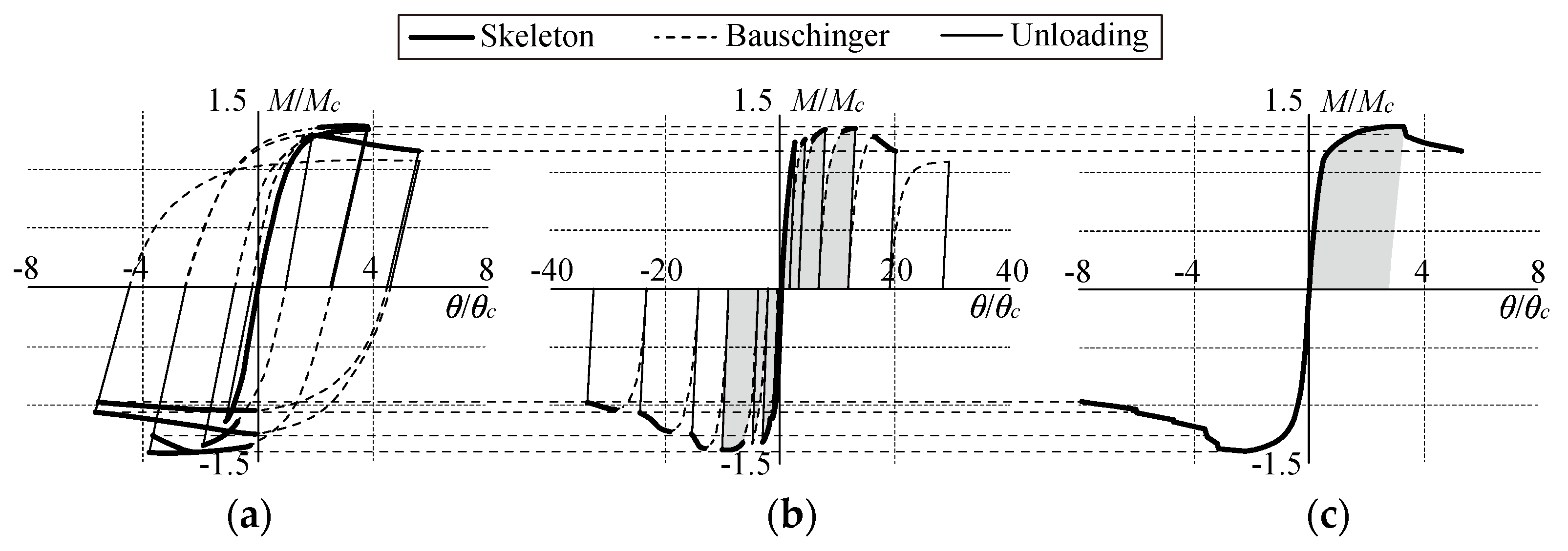

For a better understanding of sensor output, the cyclic hysteresis curve is converted to a skeleton curve. Figure 15 presents the procedure used to draw the skeleton curve. This procedure is identical to that used for earlier research [77]. Figure 15a portrays the hysteresis curve, Figure 15b is the cumulative hysteresis curve, and Figure 15c is the skeleton curve. The hysteresis loop of a steel member can be decomposed into the skeleton part (drawn with bold lines), the Bauschinger part (drawn with dashed lines), and the elastic unloading part (drawn with dotted line). The skeleton part is defined as a part in which the steel member experiences stress for the first time. The Bauschinger parts are areas other than the elastic unloading part.

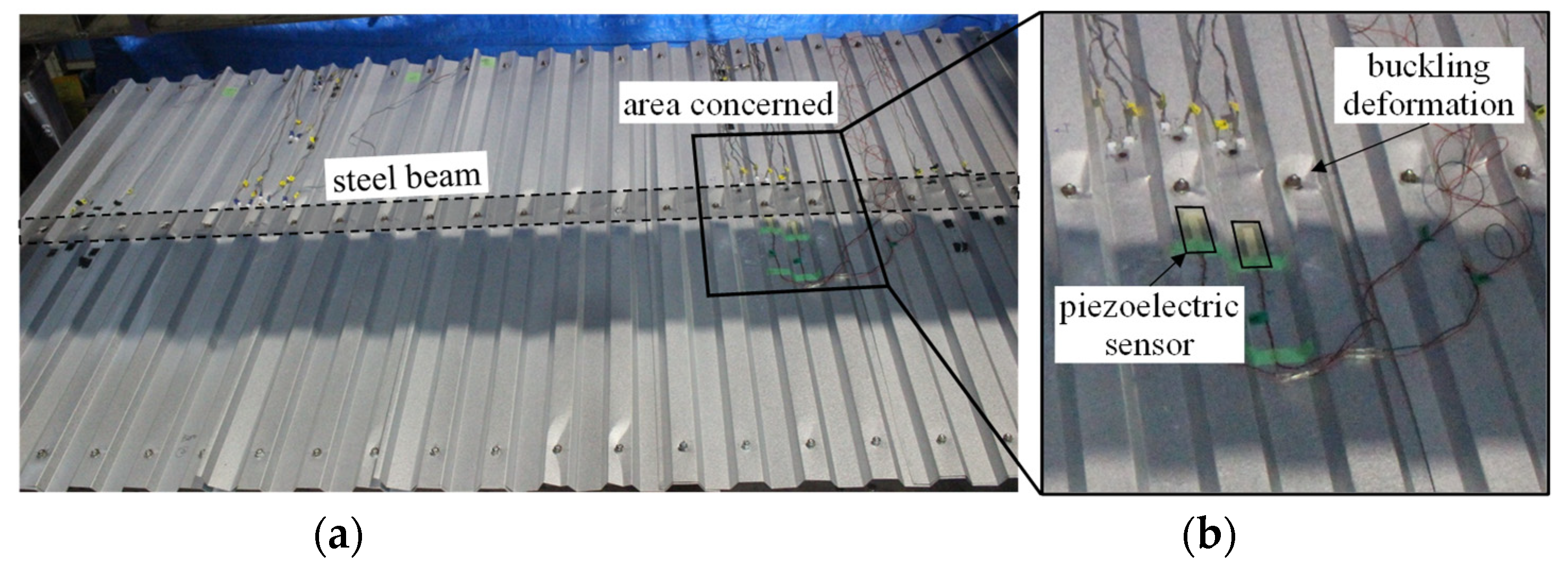

Figure 16 presents the ultimate state of the folded steel plate attached to the specimen. As expected from the preliminary analysis, the buckling deformation became especially pronounced at the connection part. Therefore, the piezoelectric sensor captured the buckling deformation, as presented in Figure 16b.

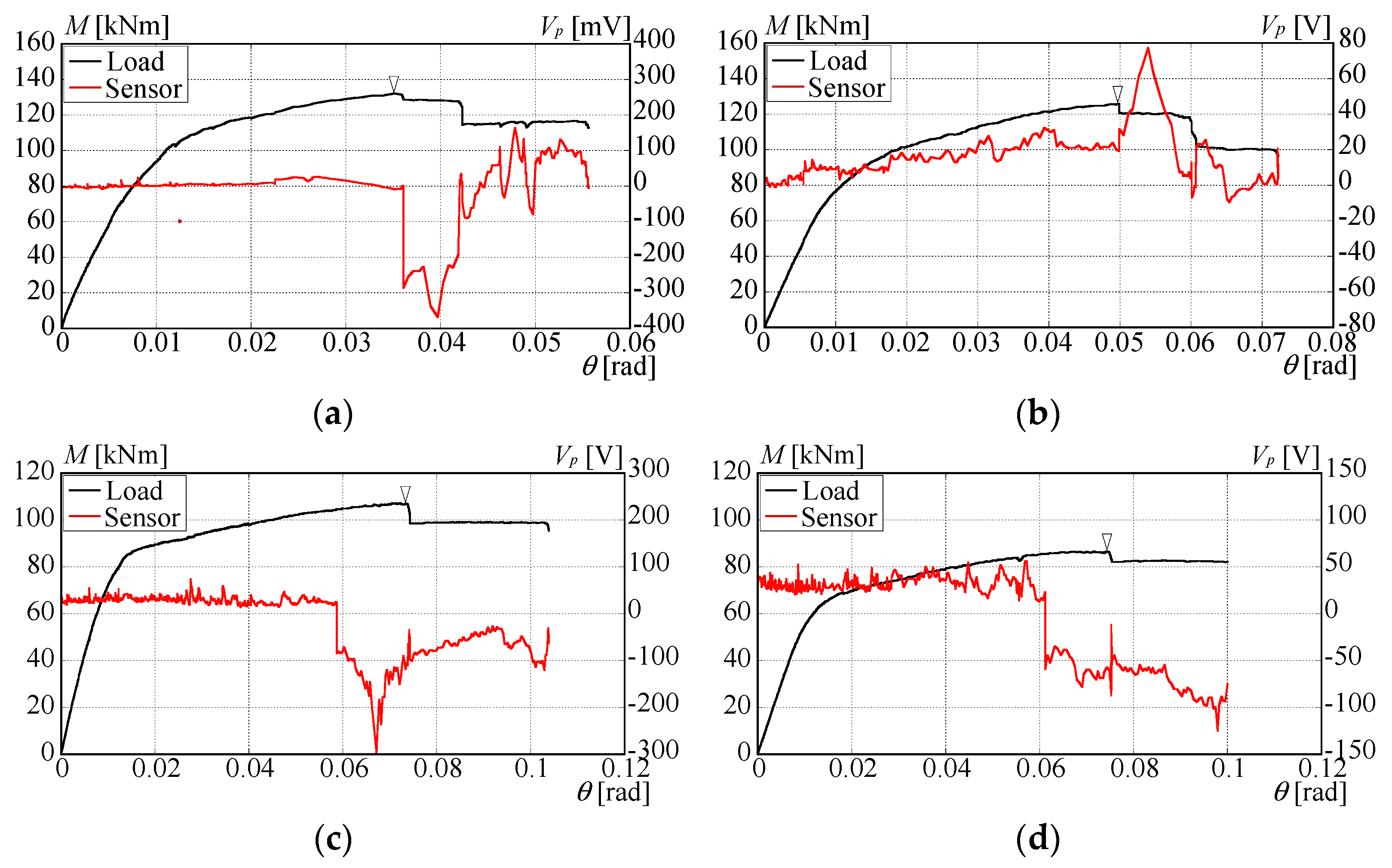

Figure 17 exhibits the skeleton curve and the sensor output at the respective measurement steps. In the initial phase, the significant sensor output was not visible because the out-of-plane deformation did not increase in the small loading amplitude. Instead, the piezoelectric sensor began to present a spike when the beam reached the ultimate state. It seems reasonable that the deformation of the folded steel plate increases after the sidesway of the beam. Therefore, damage detection of the piezoelectric sensor is primarily effective for verifying the possibility of buckling origination and the degradation of the restraint performance of folded roof plates.

3.4. Practical Applications and Future Research

The outcomes of this research emphasize the applicability of piezoelectric sensors for structural damage detection. Piezoelectric sensors are placed on the non-structural components, and the users can prepare a PC to detect the output voltage. In case the voltage exceeds the threshold, the alerting emails can be distributed to the building owners and users.

The configurations concerned in this research are limited to rectangular concrete slabs and thin steel plates. In contrast, the behavior of piezoelectric sensors attached to thick steel plates or circular rods has remained unclear. Further experimental study is necessary to broaden the application of this sensor.

All the loading tests reported in this paper were carried out statically. Therefore, a proper understanding of behavior under dynamic conditions is inevitable. Based on shaking table tests, a simplified system to monitor and alert building damage will be reported and verified for future research. Furthermore, the minimum degree of damage initiation will be quantified by comparing the measured physical quantities and voltage output.

4. Conclusions

This study was conducted to elucidate the applicability of a piezoelectric sensor for damage detection in secondary building components. The first half of the paper presented findings for a concrete slab, exhibiting rapid crack origination and expansion. The latter half described results for a folded roof plate, with bracing against torsional deformation of the I-shaped beam. A cyclic loading test and preliminary analysis were described for both components to elucidate the piezoelectric sensor behavior. A summary of the findings is presented below.

(1)

The optimal sensor location for the concrete slab was determined to be beside the embedded position of the shear connector. That position in the case of the folded roof plate was found to be around the bolt connection.

(2)

The piezoelectric sensor produced a prominent output when the concrete crack penetrated the sensor. Unlike standard strain gauges, the piezoelectric sensor can detect damage occurrence several times, which is a preferable characteristic for long-term monitoring.

(3)

The piezoelectric sensor detected the forced deformation of a folded roof plate by beam torsion, thereby demonstrating the applicability of monitoring lateral buckling origination during the cyclical application of stress.

The application of piezoelectric sensors on the non-structural components possesses the potential to realize a novel scheme of structural health monitoring. The sensor output during the seismic event needs to be checked from the dynamic perspective through the experiment.
