Effect of Coarse Aggregate and Multi-Wall Carbon Nanotubes on Heat Generation of Concrete
Abstract
:1. Introduction
2. Materials and Methods

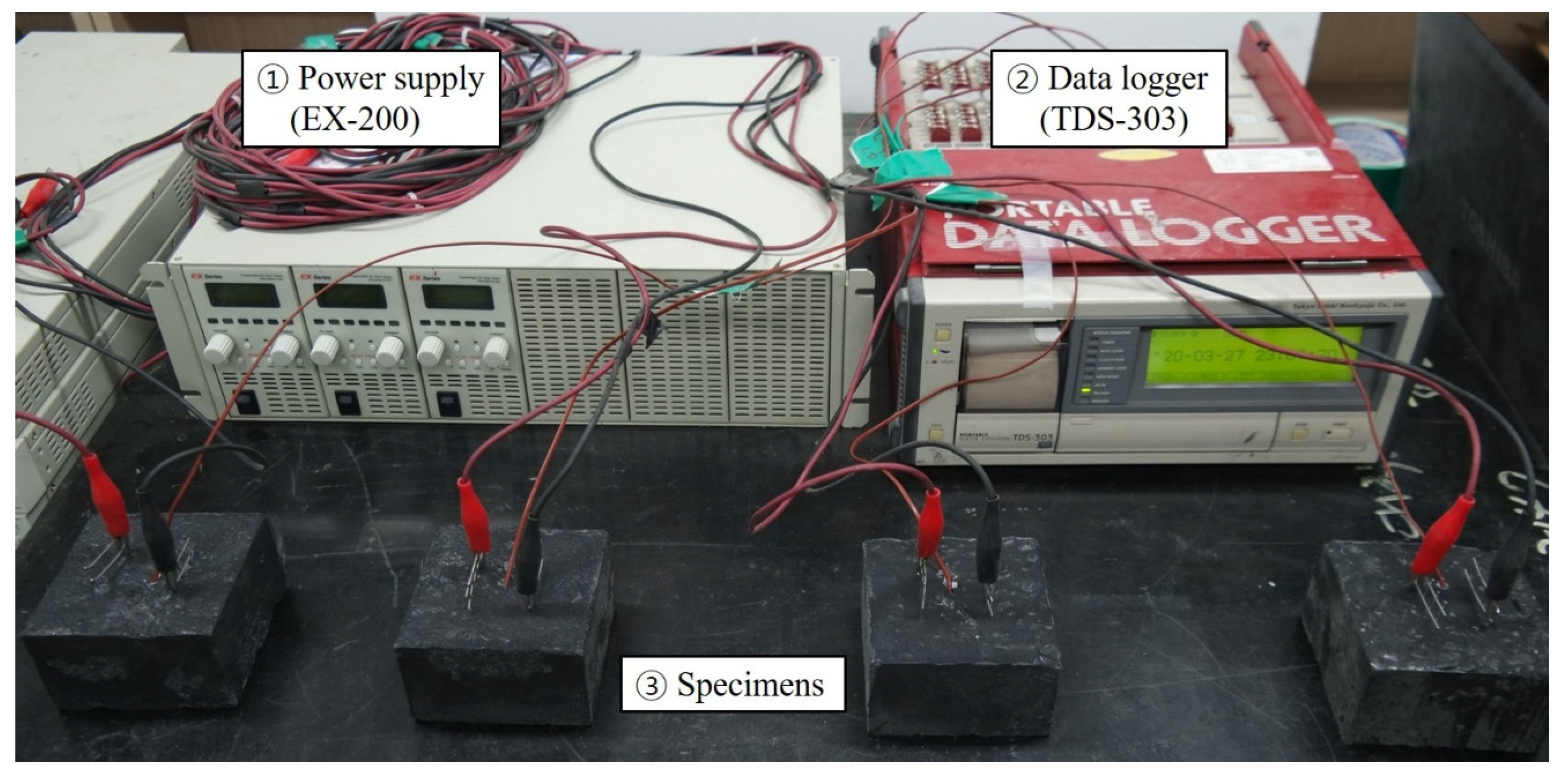

2.1. Heat Generation Test Overview

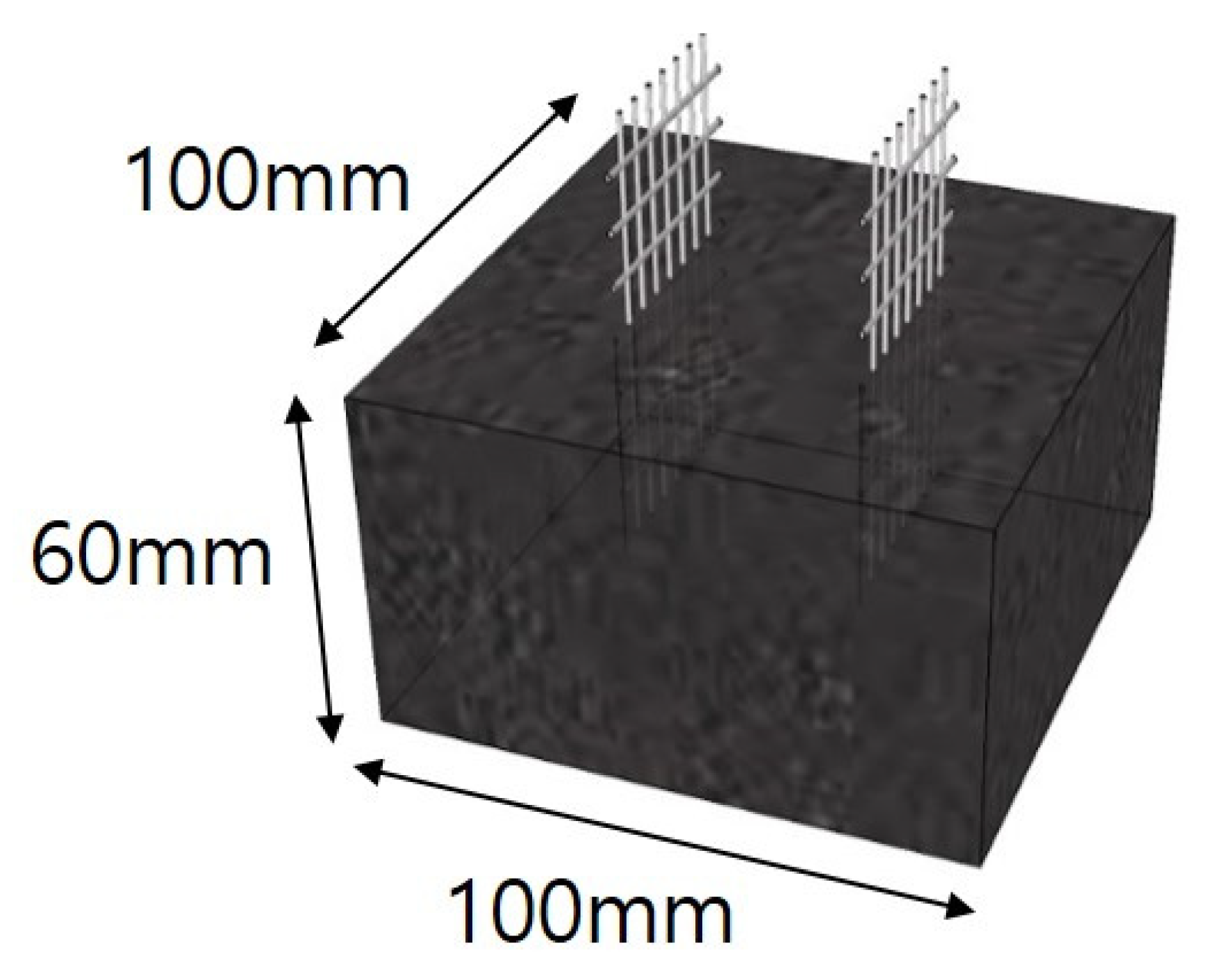

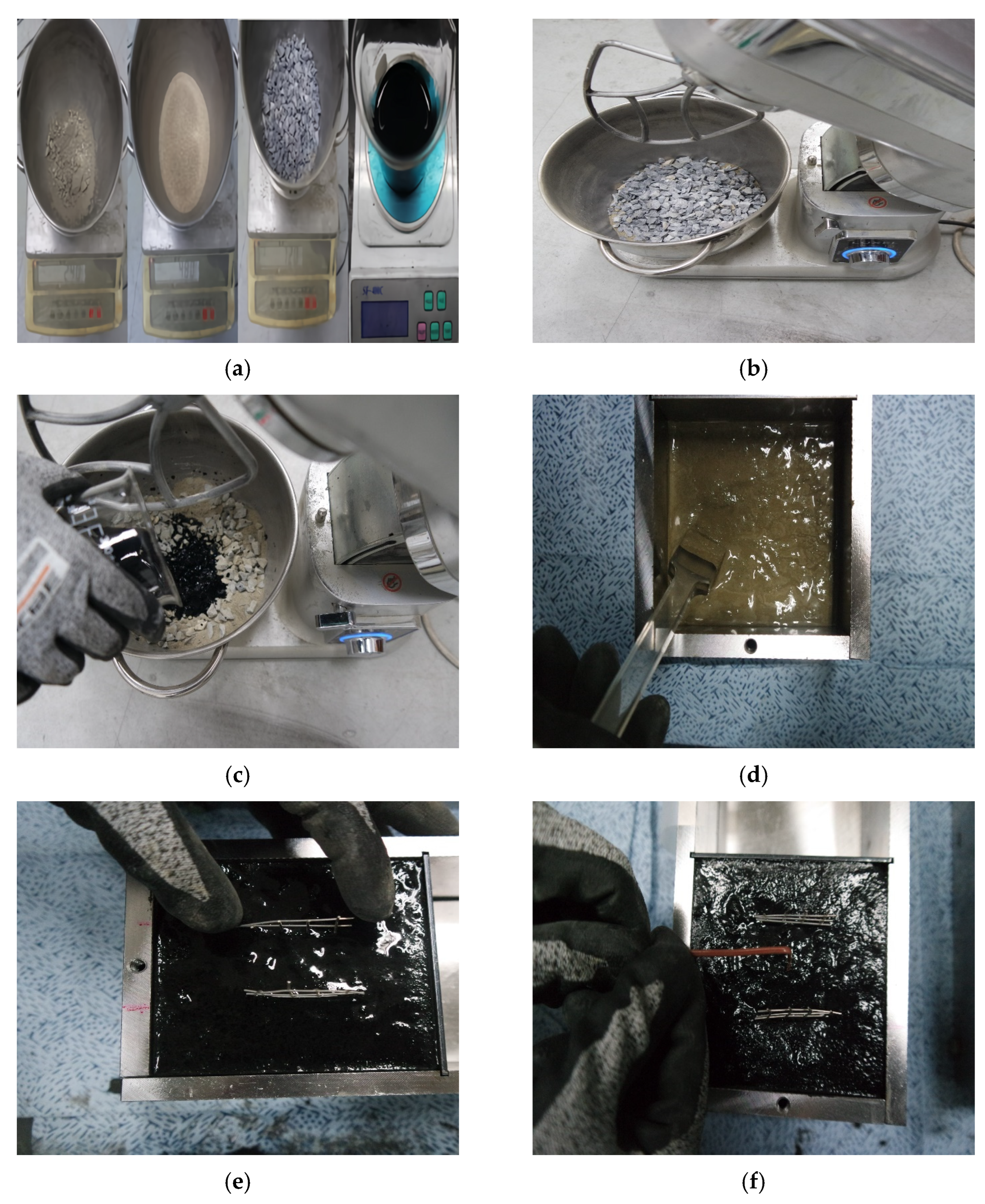

2.2. Specimen Preparation and Heat Generation Test Procedure
3. Results and Discussion
3.1. MWCNT Concentration
3.2. Coarse Aggregate Mixing Ratio
3.3. W/C Ratio
3.4. Presence or Absence of Superplasticizers
4. Conclusions
- The heating performance of the concrete improved as the MWCNT concentration increased. An increased MWCNT concentration resulted in more MWCNT bridge networks forming within the concrete; these bridge networks served as an electron transport pathway, thereby imparting conductivity to the concrete.
- The heating performance of the concrete improved when the coarse aggregate mixing ratio was decreased. A higher mixing ratio of coarse aggregate reduced the space available for MWCNTs to disperse within the specimen, which caused MWCNT agglomeration and the degradation of MWCNT bridge network formation, resulting in weaker heating performance.
- The heating performance of the concrete improved with an increase in the W/C ratio. A high W/C ratio aided in the even dispersion of MWCNTs within the concrete. As the W/C ratio increased, the phenomenon of MWCNT agglomeration decreased, and the even distribution of CNT particles enhanced the electron mobility, thereby improving the heating performance.
- The heating performance of the concrete improved when a superplasticizer (a typical admixture) was added, as it enhanced the dispersibility of the MWCNT particles. Similar to the results obtained for a high W/C ratio, adding a superplasticizer induced an even distribution of CNT particles and improved the heating performance of the concrete.
- FE-SEM imaging confirmed the formation of MWCNT bridge networks connecting the concrete hydrates. The formed MWCNT bridge network acted as an electron transport path and improved the conductivity of the concrete.
- Another promising area for future work is an analysis of how the density of concrete influences thermal characteristics when modified with nanomaterials. This could involve exploring the applicability of such modifications to different types of concrete, such as cellular concrete, lightweight concrete, or denser concrete. By addressing these aspects, a more comprehensive understanding of the broader implications of nanomaterial modifications on concrete properties can be achieved. Furthermore, additional research is planned to verify the applicability of MWCNT concrete to heat generation by applying it to the field.
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest
References
- Li, H.; Zhang, Q.; Xiao, H. Self-deicing road system with a CNFP high-efficiency thermal source and MWCNT/cement-based high-thermal conductive composites. Cold Reg. Sci. Technol. 2013, 86, 22–35. [Google Scholar] [CrossRef]
- Gomis, J.; Galao, O.; Gomis, V.; Zornoza, E.; Garcés, P. Self-heating and deicing conductive cement. Experimental study and modeling. Constr. Build. Mater. 2015, 75, 442–449. [Google Scholar] [CrossRef]
- Kim, G.M.; Naeem, F.; Kim, H.K.; Lee, H.K. Heating and heat-dependent mechanical characteristics of CNT-embedded cementitious composites. Compos. Struct. 2016, 136, 162–170. [Google Scholar] [CrossRef]
- Kim, G.M.; Yang, B.J.; Ryu, G.U.; Lee, H.K. The electrically conductive carbon nanotube (CNT)/cement composites for accelerated curing and thermal cracking reduction. Compos. Struct. 2016, 158, 20–29. [Google Scholar] [CrossRef]
- Lee, H.; Kang, D.; Song, Y.M.; Chung, W. Heating experiment of CNT cementitious composites with single-walled and multiwalled carbon nanotubes. J. Nanomater. 2017, 2017, 3691509. [Google Scholar] [CrossRef]
- Lee, H.; Song, Y.M.; Loh, K.J.; Chung, W. Thermal response characterization and comparison of carbon nanotube-enhanced cementitious composites. Compos. Struct. 2018, 202, 1042–1050. [Google Scholar] [CrossRef]
- Lee, H.; Park, S.; Cho, S.; Chung, W. Correlation analysis of heating performance and electrical energy of multi-walled carbon nanotubes cementitious composites at sub-zero temperatures. Compos. Struct. 2020, 238, 111977. [Google Scholar] [CrossRef]
- Konsta-Gdoutos, M.S.; Metaxa, Z.S.; Shah, S.P. Highly dispersed carbon nanotube reinforced cement based materials. Cem. Concr. Res. 2010, 40, 1052–1059. [Google Scholar] [CrossRef]
- Liew, K.M.; Kai, M.F.; Zhang, L.W. Carbon nanotube reinforced cementitious composites: An overview. Compos. Part A Appl. Sci. Manuf. 2016, 91, 301–323. [Google Scholar] [CrossRef]
- Li, G.Y.; Wang, P.M.; Zhao, X. Pressure-sensitive properties and microstructure of carbon nanotube reinforced cement composites. Cem. Concr. Compos. 2007, 29, 377–382. [Google Scholar] [CrossRef]
- Zou, B.; Chen, S.J.; Korayem, A.H.; Collins, F.; Wang, C.M.; Duan, W.H. Effect of ultrasonication energy on engineering properties of carbon nanotube reinforced cement pastes. Carbon 2015, 85, 212–220. [Google Scholar] [CrossRef]
- Sindu, B.S.; Sasmal, S. Properties of carbon nanotube reinforced cement composite synthesized using different types of surfactants. Constr. Buil. Mater. 2017, 155, 389–399. [Google Scholar] [CrossRef]
- Dong, W.; Li, W.; Wang, K.; Han, B.; Sheng, D.; Shah, S.P. Investigation on physicochemical and piezoresistive properties of smart MWCNT/cementitious composite exposed to elevated temperatures. Cem. Concr. Compos. 2020, 112, 103675. [Google Scholar] [CrossRef]
- Jang, D.; Yoon, H.N.; Seo, J.; Yang, B. Effects of exposure temperature on the piezoresistive sensing performances of MWCNT-embedded cementitious sensor. J. Build. Eng. 2022, 47, 103816. [Google Scholar] [CrossRef]
- Nalon, G.H.; Ribeiro, J.C.L.; Pedroti, L.G.; de Araújo, E.N.D.; de Carvalho, J.M.F.; de Lima, G.E.S.; de Moura Guimarães, L. Residual piezoresistive properties of mortars containing carbon nanomaterials exposed to high temperatures. Cem. Concr. Compo. 2021, 121, 104104. [Google Scholar] [CrossRef]
- Won, J.P.; Kim, C.K.; Lee, S.J.; Lee, J.H.; Kim, R.W. Thermal characteristics of a conductive cement-based composite for a snow-melting heated pavement system. Compos. Struct. 2014, 118, 106–111. [Google Scholar] [CrossRef]
- Sassani, A.; Ceylan, H.; Kim, S.; Arabzadeh, A.; Taylor, P.C.; Gopalakrishnan, K. Development of carbon fiber-modified electrically conductive concrete for implementation in Des Moines International Airport. Case Stud. Constr. Mater. 2018, 8, 277–291. [Google Scholar] [CrossRef]
- Metaxa, Z.S.; Boutsioukou, S.; Amenta, M.; Favvas, E.P.; Kourkoulis, S.K.; Alexopoulos, N.D. Dispersion of Multi-Walled Carbon Nanotubes into White Cement Mortars: The Effect of Concentration and Surfactants. Nanomaterials 2022, 12, 1031. [Google Scholar] [CrossRef]
- Sharma, S.; Kothiyal, N.C. Facile growth of carbon nanotubes coated with carbon nanoparticles: A potential low-cost hybrid nanoadditive for improved mechanical, electrical, microstructural and crystalline properties of cement mortar matrix. Constr. Build. Mater. 2016, 123, 829–846. [Google Scholar] [CrossRef]
- Dalla, P.T.; Tragazikis, I.K.; Trakakis, G.; Galiotis, C.; Dassios, K.G.; Matikas, T.E. Multifunctional cement mortars enhanced with graphene nanoplatelets and carbon nanotubes. Sensors 2021, 21, 933. [Google Scholar] [CrossRef]
- Kim, G.M.; Yoon, H.N.; Lee, H.K. Autogenous shrinkage and electrical characteristics of cement pastes and mortars with carbon nanotube and carbon fiber. Constr. Build. Mater. 2018, 177, 428–435. [Google Scholar] [CrossRef]
- Kaur, R.; Kothiyal, N.C.; Arora, H. Studies on combined effect of superplasticizer modified graphene oxide and carbon nanotubes on the physico-mechanical strength and electrical resistivity of fly ash blended cement mortar. J. Build. Eng. 2020, 30, 101304. [Google Scholar] [CrossRef]
- Han, B.; Yu, X.; Kwon, E. A self-sensing carbon nanotube/cement composite for traffic monitoring. Nanotechnology 2009, 20, 445501. [Google Scholar] [CrossRef] [PubMed]
- Han, B.; Yu, X.; Kwon, E.; Ou, J. Effects of CNT concentration level and water/cement ratio on the piezoresistivity of CNT/cement composites. J. Compos. Mater. 2012, 46, 19–25. [Google Scholar] [CrossRef]
- Jang, S.H.; Hochstein, D.P.; Kawashima, S.; Yin, H. Experiments and micromechanical modeling of electrical conductivity of carbon nanotube/cement composites with moisture. Cem. Concr. Compos. 2017, 77, 49–59. [Google Scholar] [CrossRef]
- Park, H.M.; Kim, G.M.; Lee, S.Y.; Jeon, H.; Kim, S.Y.; Kim, M.; Yang, B.J. Electrical resistivity reduction with pitch-based carbon fiber into multi-walled carbon nanotube (MWCNT)-embedded cement composites. Constr. Build. Mater. 2018, 165, 484–493. [Google Scholar] [CrossRef]
- Udoeyo, F.F.; Iron, U.H.; Odim, O.O. Strength performance of laterized concrete. Constr. Build. Mater. 2006, 20, 1057–1062. [Google Scholar] [CrossRef]
- KCS 14 20 10; Concrete, Korean Construction Specification. Korean Standards Association: Seoul, Republic of Korea, 2016.
- Shi, C.; Wu, Z.; Xiao, J.; Wang, D.; Huang, Z.; Fang, Z. A review on ultra high performance concrete: Part I. Raw materials and mixture design. Constr. Build. Mater. 2015, 101, 741–751. [Google Scholar] [CrossRef]
- ASTM C 109; Standard Test Method for Compressive Strength of Hydraulic Cement Mortars (Using 2-in, or [50-mm] Cube Specimens). ASTM International: West Conshohocken, PA, USA, 2016.
- KS L ISO 679; Methods of Testing Cements–Determination of Strength. Korean Agency for Technology and Standards (KATs): Eumseong, Republic of Korea, 2006.
- ISO 679; Cement–Test Methods–Determination of Strength. ISO (International Organization for Standardization): Geneva, Switzerland, 2009.
- ASTM C 33; Standard Specification for Concrete Aggregates. In Annual Book of ASTM Standards. American Society for Testing and Materials: West Conshohocken, PA, USA, 1997.
- Lee, H.; Jeong, S.; Park, S.; Chung, W. Enhanced mechanical and heating performance of multi-walled carbon nanotube-cement composites fabricated using different mixing methods. Compos. Struct. 2019, 225, 111072. [Google Scholar] [CrossRef]
- Wang, B.; Han, Y.; Liu, S. Effect of highly dispersed carbon nanotubes on the flexural toughness of cement-based composites. Constr. Build. Mater. 2013, 46, 8–12. [Google Scholar] [CrossRef]
- Kim, G.M.; Yang, B.J.; Cho, K.J.; Kim, E.M.; Lee, H.K. Influences of CNT dispersion and pore characteristics on the electrical performance of cementitious composites. Compos. Struct. 2017, 164, 32–42. [Google Scholar] [CrossRef]
- Hu, Y.; Luo, D.; Li, P.; Li, Q.; Sun, G. Fracture toughness enhancement of cement paste with multi-walled carbon nanotubes. Constr. Build. Mater. 2014, 70, 332–338. [Google Scholar] [CrossRef]
- Lee, H.; Yu, W.; Loh, K.J.; Chung, W. Self-heating and electrical performance of carbon nanotube-enhanced cement composites. Constr. Build. Mater. 2020, 250, 118838. [Google Scholar] [CrossRef]
- Kim, H.K.; Nam, I.W.; Lee, H.K. Enhanced effect of carbon nanotube on mechanical and electrical properties of cement composites by incorporation of silica fume. Compos. Struct. 2014, 107, 60–69. [Google Scholar] [CrossRef]
Specimen Name | Coarse Aggregate Ratio (%) | MWCNT Content (wt.%) | W/C Ratio (%) | Superplasticizer (wt.%) |
---|---|---|---|---|
CA60-0.0-50-NSP | 60 | 0.0 | 50 | 0.0 |
CA60-0.25-50-NSP | 60 | 0.25 | 50 | 0.0 |
CA60-0.5-50-NSP | 60 | 0.5 | 50 | 0.0 |
CA60-1.0-50-NSP | 60 | 1.0 | 50 | 0.0 |
CA40-1.0-50-NSP | 40 | 1.0 | 50 | 0.0 |
CA80-1.0-50-NSP | 80 | 1.0 | 50 | 0.0 |
CA60-1.0-55-NSP | 60 | 1.0 | 55 | 0.0 |
CA60-1.0-60-NSP | 60 | 1.0 | 60 | 0.0 |
CA60-1.0-50-SP | 60 | 1.0 | 50 | 1.0 |
Specimen Name | MWCNT | Water | Cement | Fine Aggregate | Coarse Aggregate | Superplasticizer |
---|---|---|---|---|---|---|
CA60-0.0-50-NSP | 0 | 150 | 300 | 300 | 450 | 0 |
CA60-0.25-50-NSP | 0.75 | 150 | 300 | 300 | 300 | 0 |
CA60-0.5-50-NSP | 1.5 | 150 | 300 | 300 | 300 | 0 |
CA60-1.0-50-NSP | 3 | 150 | 300 | 300 | 300 | 0 |
CA40-1.0-50-NSP | 3 | 150 | 300 | 408 | 272 | 0 |
CA80-1.0-50-NSP | 3 | 150 | 300 | 170 | 680 | 0 |
CA60-1.0-55-NSP | 2.85 | 156.75 | 285 | 300 | 450 | 0 |
CA60-1.0-60-NSP | 2.7 | 162 | 270 | 300 | 450 | 0 |
CA60-1.0-50-SP | 3 | 150 | 300 | 300 | 450 | 6 |

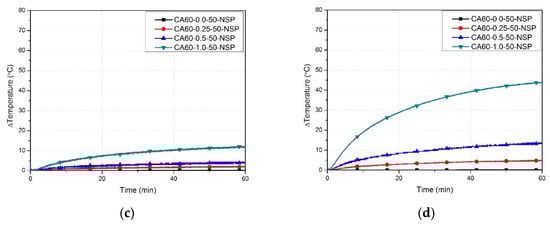

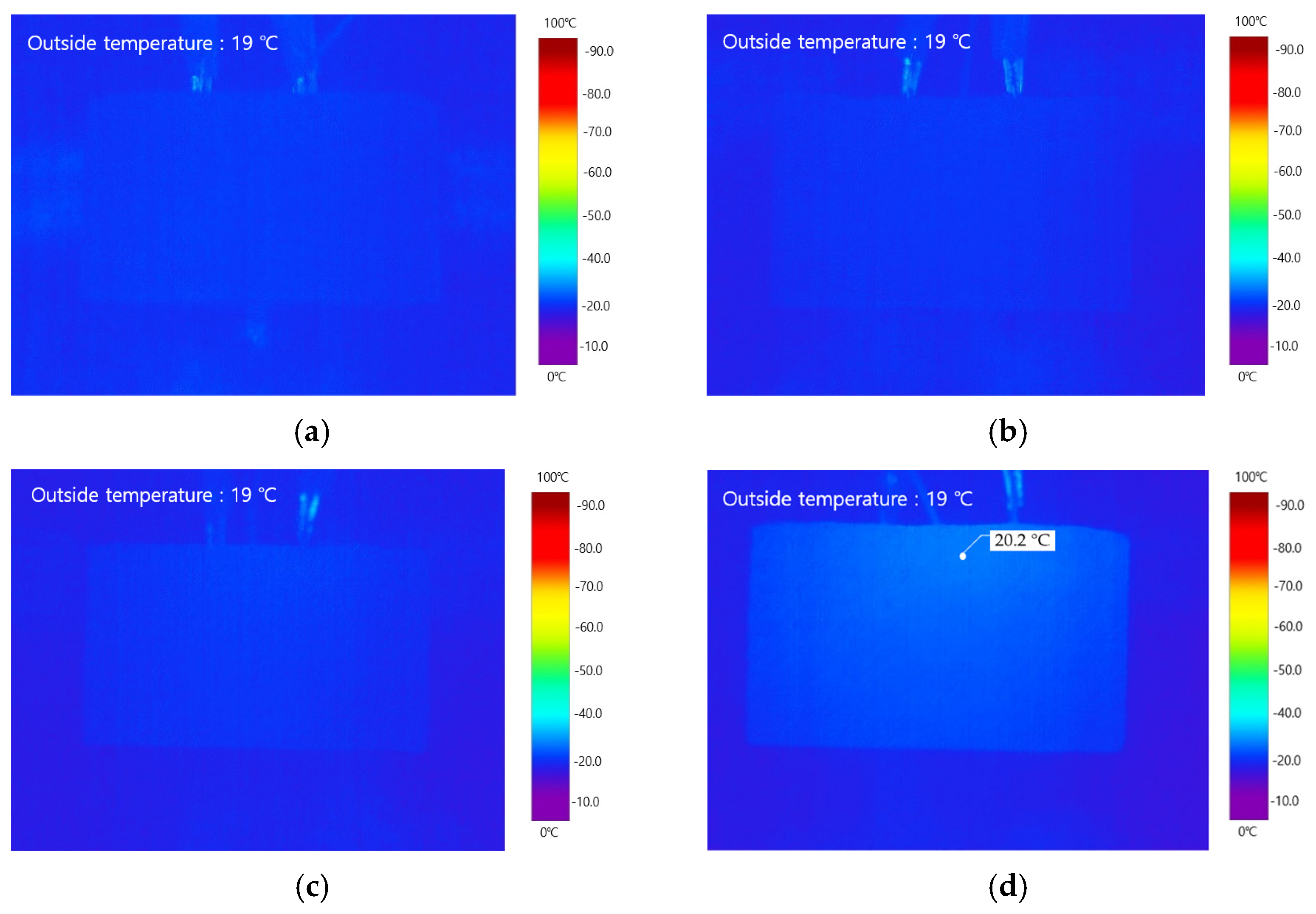

Specimen Name | Maximum Temperature Variation (°C) | |||
---|---|---|---|---|
10 V | 20 V | 30 V | 60 V | |
CA60-0.0-50-NSP | 0.1 | 0.1 | 0.2 | 0.2 |

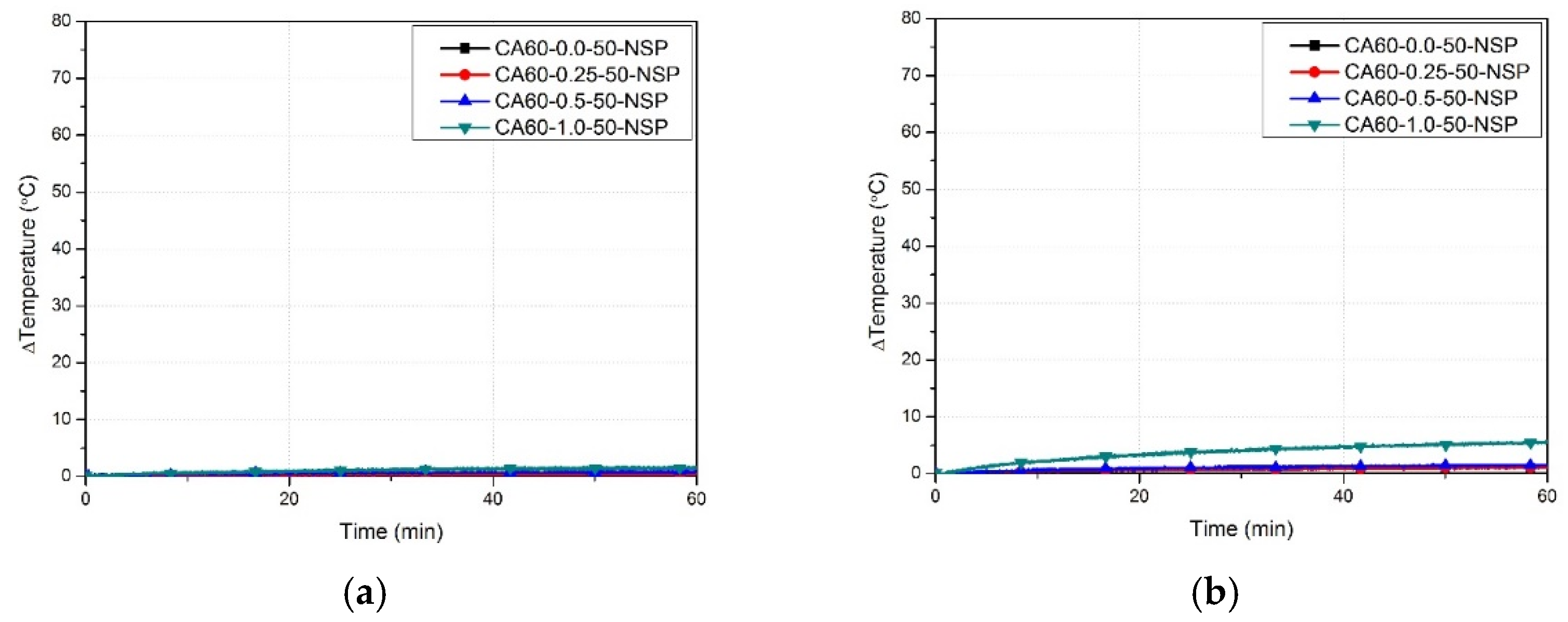

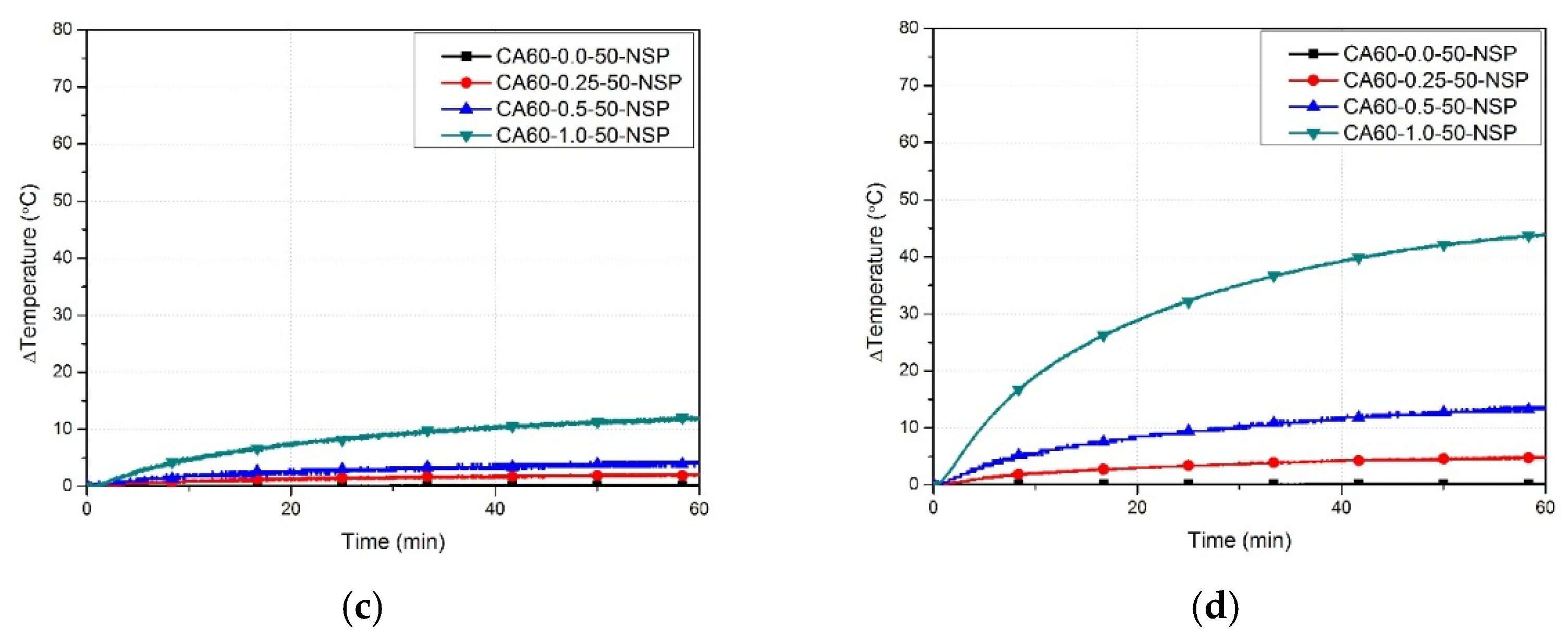

CA60-0.25-50-NSP | 0.4 | 1.2 | 2.1 | 5.1 |
CA60-0.5-50-NSP | 0.9 | 1.7 | 4.3 | 14.2 |
CA60-1.0-50-NSP | 1.6 | 5.3 | 11.8 | 43.8 |

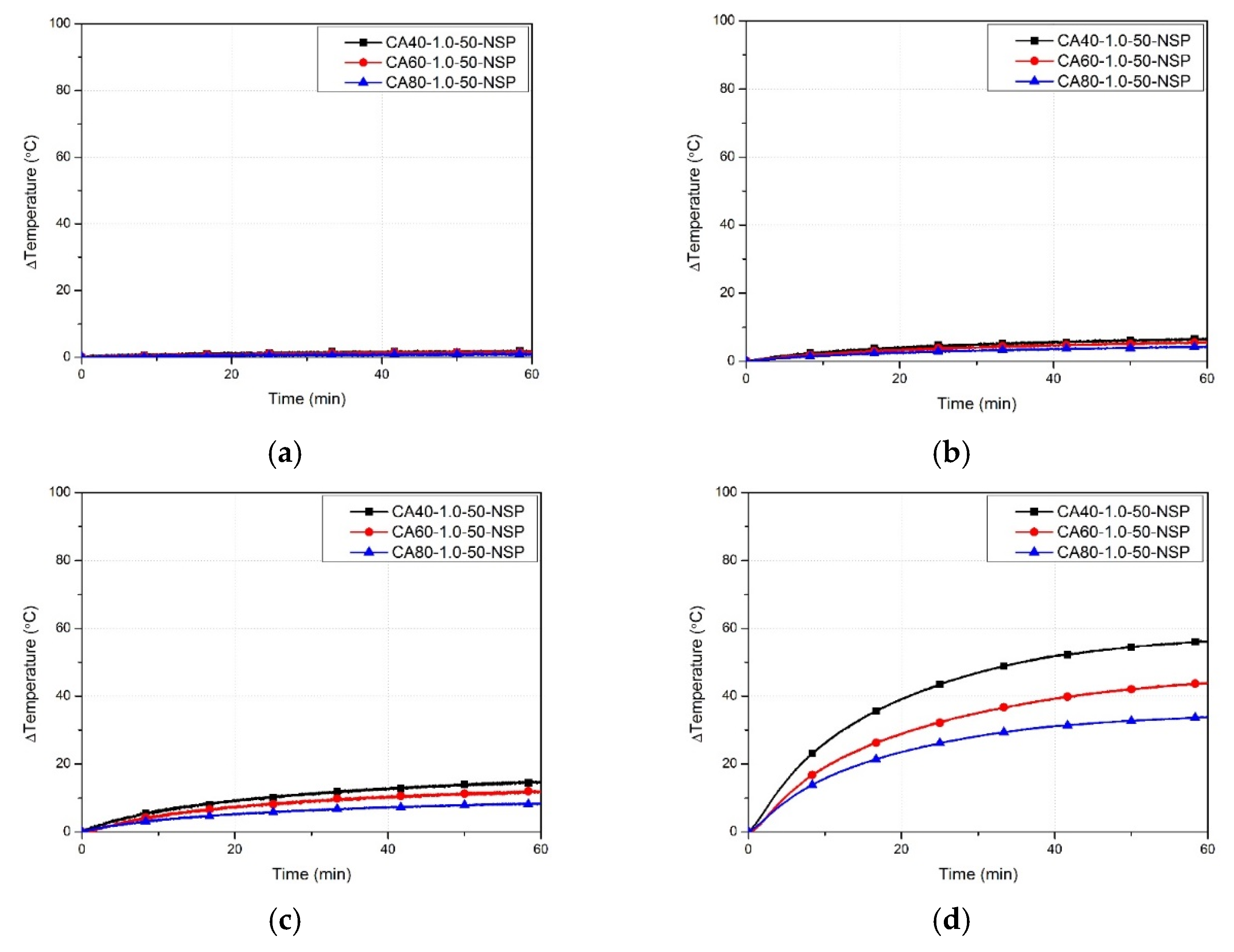

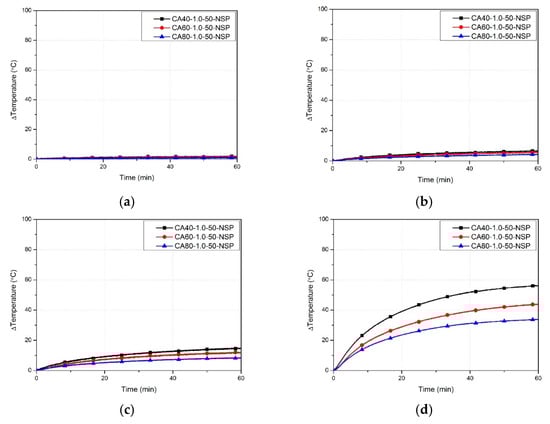

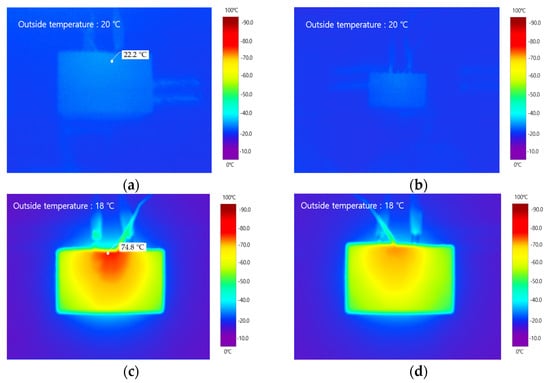

Specimen Name | Maximum Temperature Variation (°C) | |||
---|---|---|---|---|
10 V | 20 V | 30 V | 60 V | |
CA40-1.0-50-NSP | 2.1 | 6.4 | 14.6 | 56.1 |
CA60-1.0-50-NSP | 1.6 | 5.3 | 11.8 | 43.8 |
CA80-1.0-50-NSP | 0.8 | 4.1 | 8.3 | 33.7 |

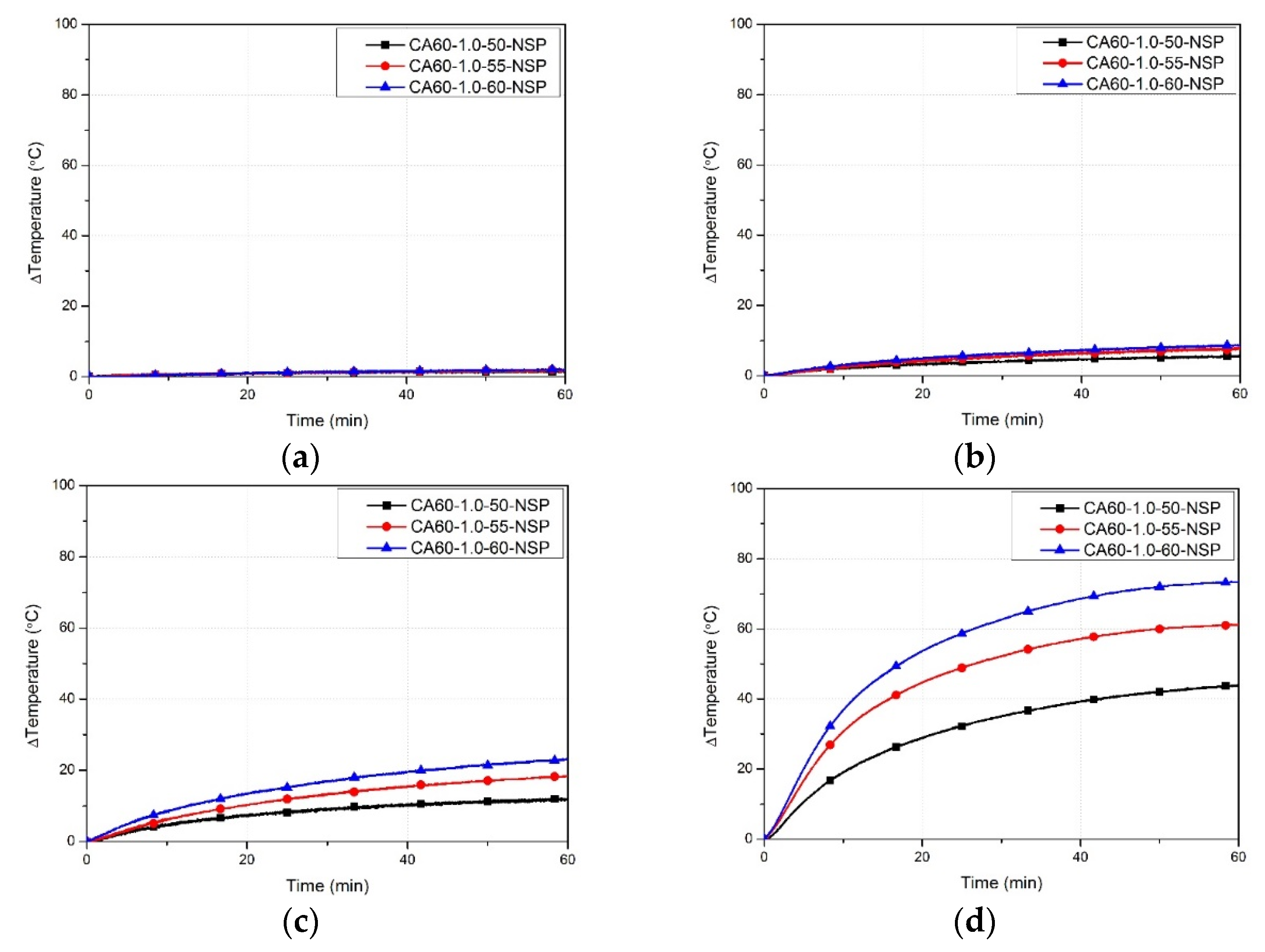

Specimen Name | Maximum Temperature Variation (°C) | |||
---|---|---|---|---|
10 V | 20 V | 30 V | 60 V | |

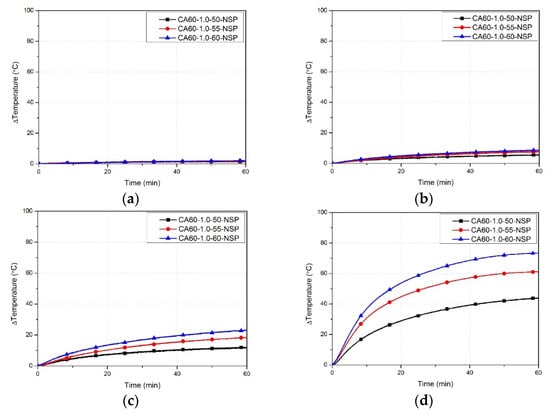

CA60-1.0-50-NSP | 1.6 | 5.3 | 11.8 | 43.8 |
CA60-1.0-55-NSP | 1.7 | 7.7 | 18.4 | 61.3 |
CA60-1.0-60-NSP | 2.0 | 8.7 | 23.3 | 73.6 |

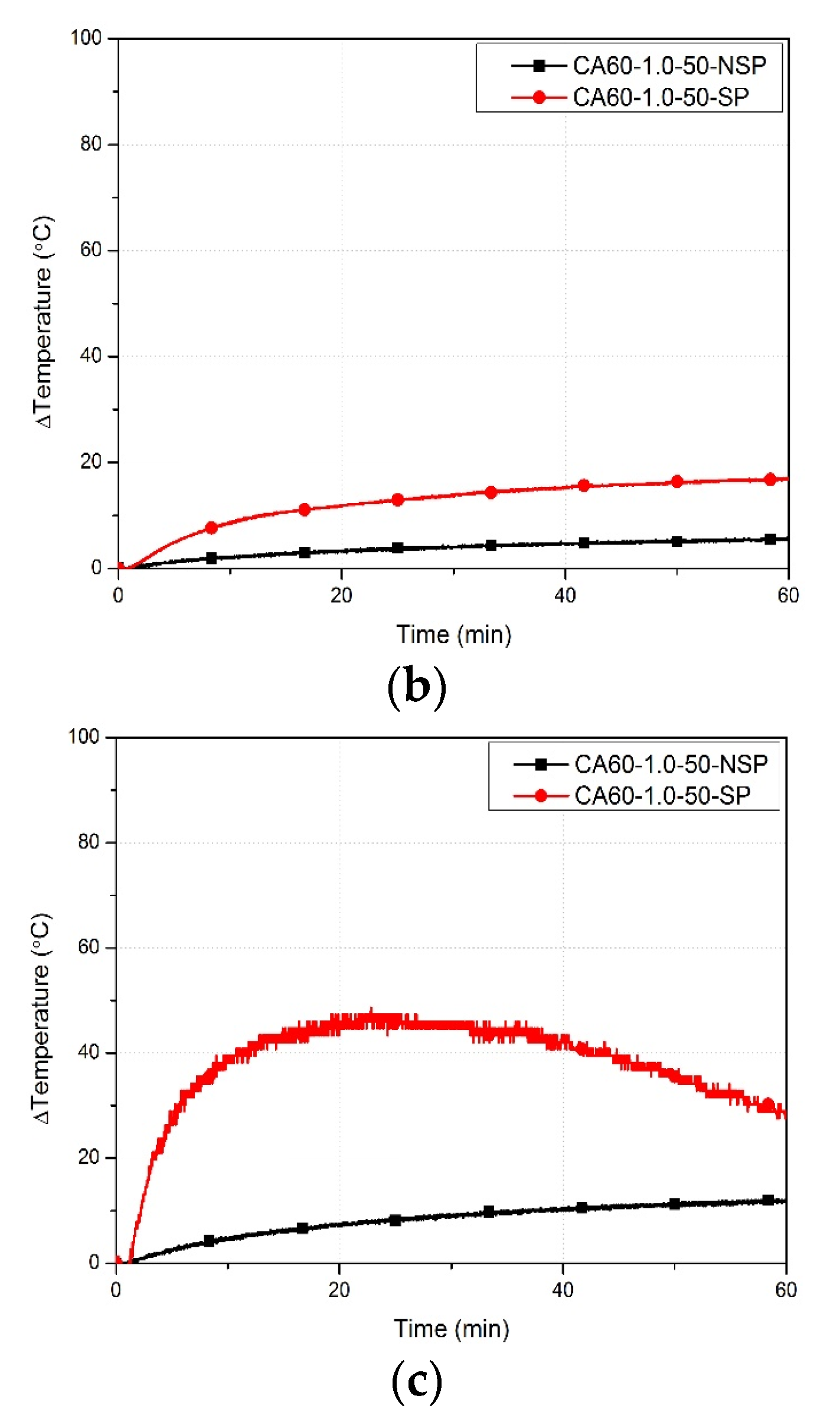

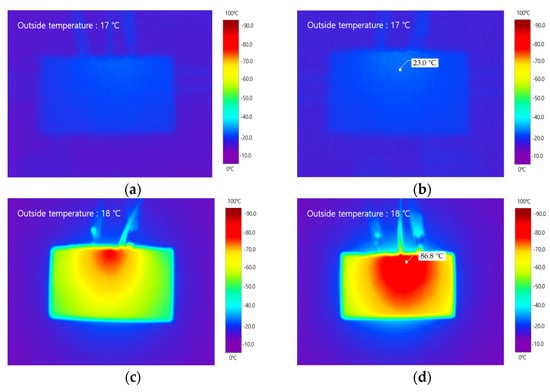

Specimen Name | Maximum Temperature Variation (°C) | ||
---|---|---|---|
10 V | 20 V | 30 V | |

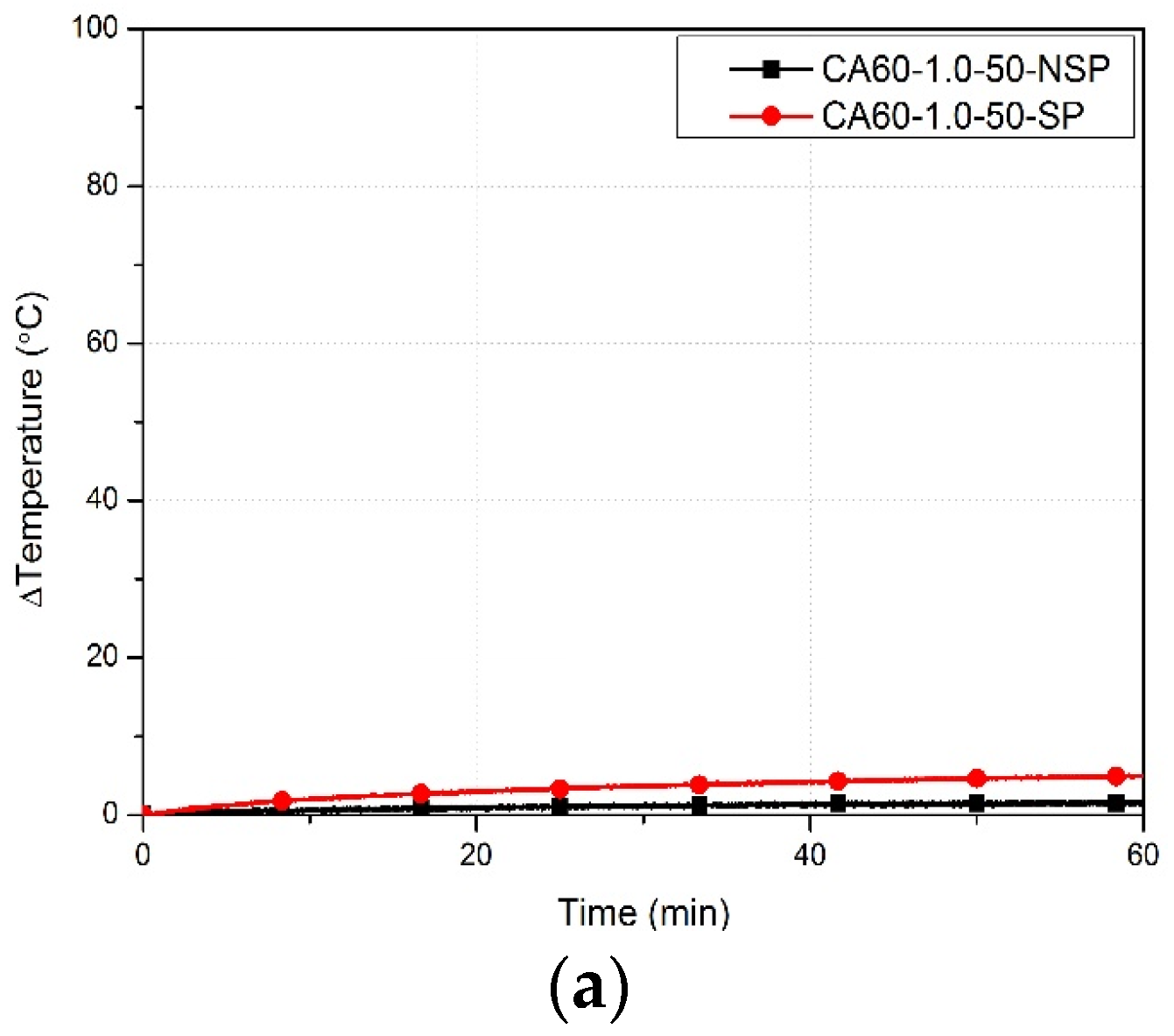

CA60-1.0-50-NSP | 1.6 | 5.3 | 11.8 |
CA60-1.0-50-SP | 5.0 | 16.9 | 48.6 |
