The Selection of Skylight Type for a Certain Building Using Evaluation Criteria and the Multi-Criteria Decision-Making Method
Abstract
:1. Introduction
1.1. The Types of Skylights
1.2. Factors That Help to Consider which Skylight Type to Choose
- Purpose. Skylights may have different primary and secondary purposes, such as to increase the amount of natural light entering the building, provide ventilation or complex smoke and heat extraction, access the roof or, perhaps, increase the aesthetic value of the room. Usually, the primary purpose of the skylight is to increase the amount of natural light in the specific area. It should be noted that a skylight would bring more light than a vertical window of the same size. The required amount of light in a specific area depends on the activities performed there. Therefore, specific areas require different levels of illuminance; for offices and workspaces, for instance, the level of light varies in the range from 300 to 400 lux. It means that, at first, the area where the amount of natural light has to be increased is chosen, and the amount of light in lux is calculated according to the requirements. The secondary purposes of choosing the skylight can be ventilation, smoke and heat extraction, aesthetics, access, etc.
- Orientation and placement. The orientation of the skylight on the roof has an influence on the amount of natural light captured. The size and the number of skylights depend on their orientation. The placement of the skylight has an impact on the distribution of the natural light inside the specific area. The natural light will be more evenly distributed throughout the specific area if the skylight is placed close to the centre of the specific area.
- Size and shape of the room. The amount of natural light entering the specific area directly depends on the size of the chosen skylight. It should be noted that the spacing between the roof trusses for a certain building could be the main factor that limits the size and shape of a skylight. The size of a skylight should be 3–5% bigger than the specific area needing to be illuminated. Therefore, the choice of a skylight depends on the size and shape of the specific area.
- Shape and glazing. The shape of the skylight has an effect on the amount of natural light entering the building, e.g., some shapes are more efficient in delivering daylight. Currently, producers can offer square, rectangle and round-shaped skylights and different type of glazing from single- or multi-paned glass to innovative plastics, with or without insulation, as well as coatings to control such variables as heat and UV radiation. Not only will the choice of glazing influence the visual light transmission but also the heat transfer coefficient and the fire performance of a skylight. These parameters are declared by manufacturers. In addition, skylights with curved glass on flat roofs do not have an issue with rainwater collecting on top.
- Operability. There are two main categories of skylights, namely, fixed and vented. Additional equipment, e.g., moving components such as louvres, reflectors, mirrors or other mechanical devices, are used to assist the delivery of natural light into interior spaces, control ventilation or complete complex smoke and heat extraction systems.
- Compliance. This factor mainly relates to the energy efficiency requirements of the building. Skylight glazing material and frame are the components that affect the thermal performance of the product.
- Cost and installation. The cost of skylight depends on the materials it is made of. Innovative materials and solutions and accessories usually increase the cost of skylight. The shape of the roof slope of certain buildings may require special installation techniques and thus increase the total cost. The choice of materials used to produce a skylight and proper installation will influence the warranty term. To ensure a watertight installation, the professional installer should use the roofing material to flash the curb before fastening the skylight to the curb. The waterproofing is achieved by installing a continuous self-adhesive waterproof membrane beneath the roofing material and flashing material.
1.3. Scientific Methods That Help to Choose the Right Skylight
2. Materials and Methods

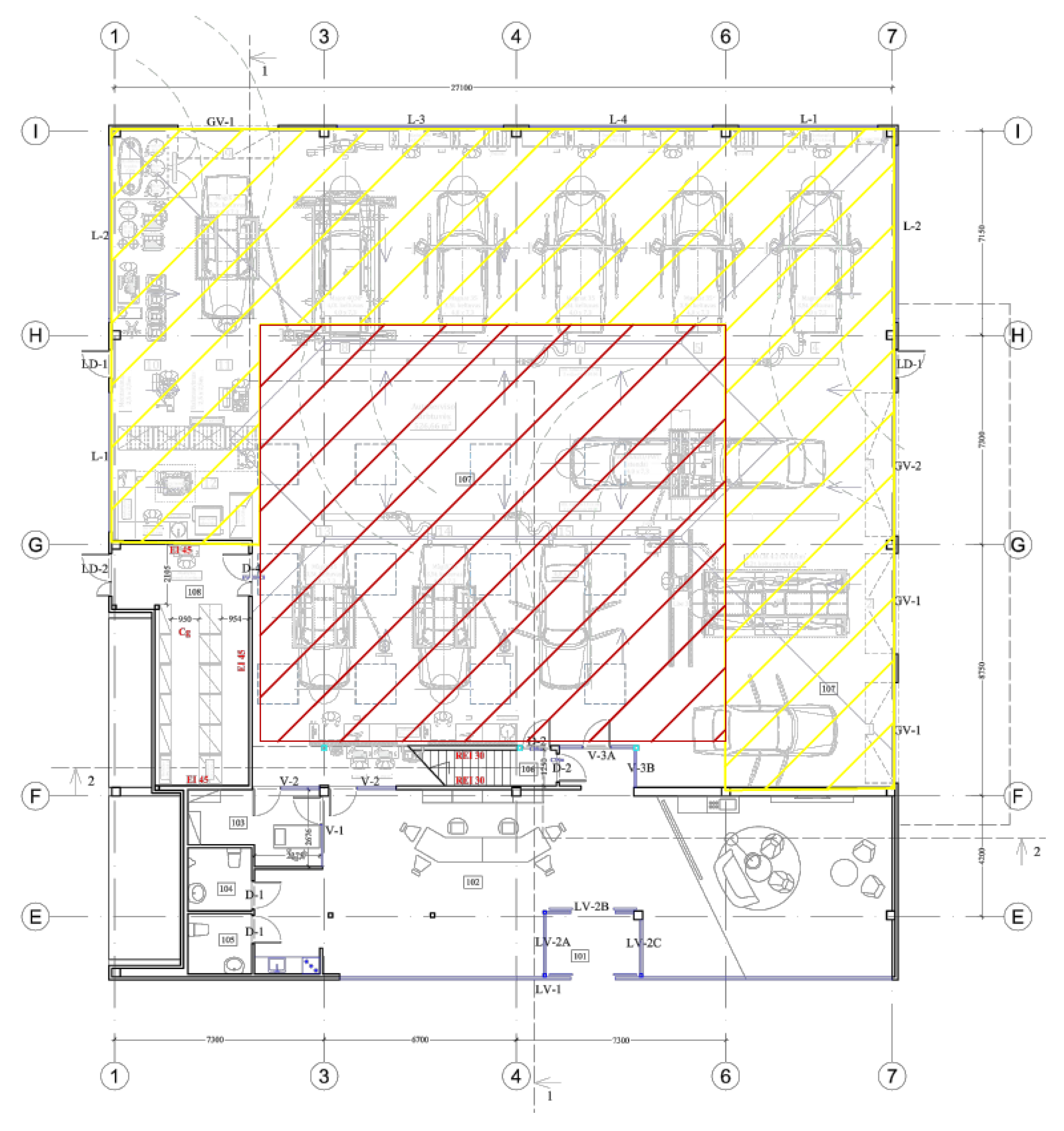

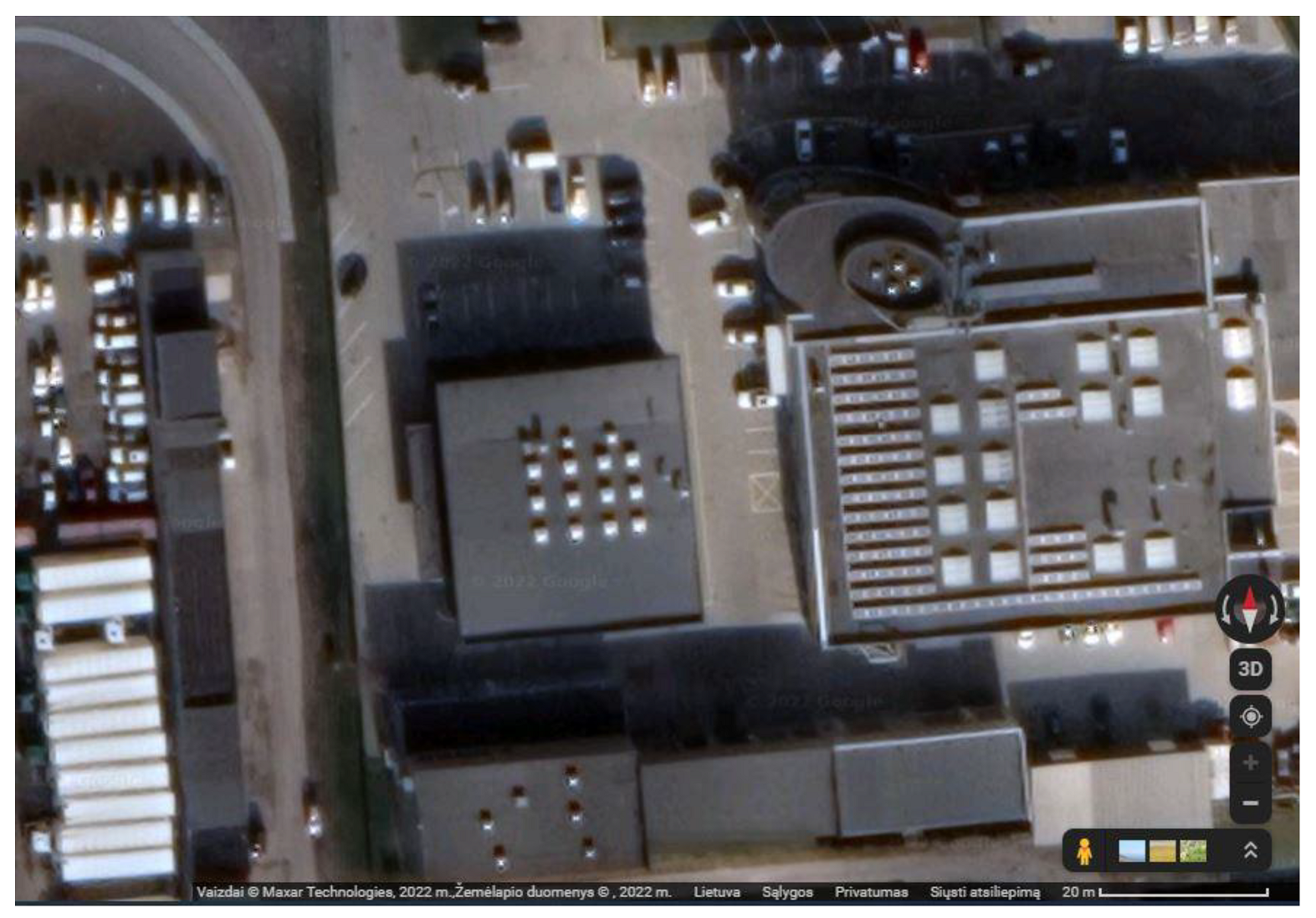

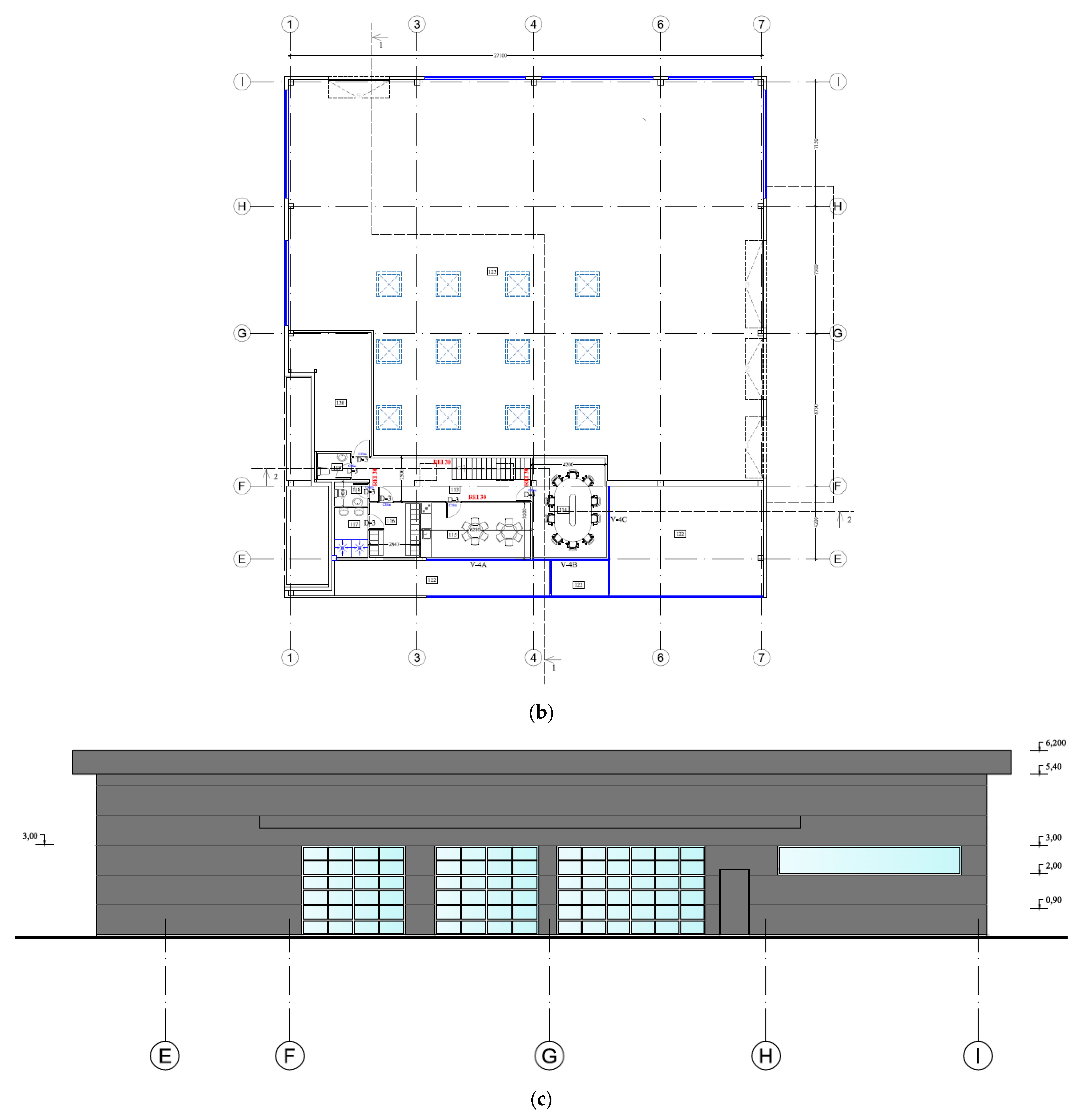

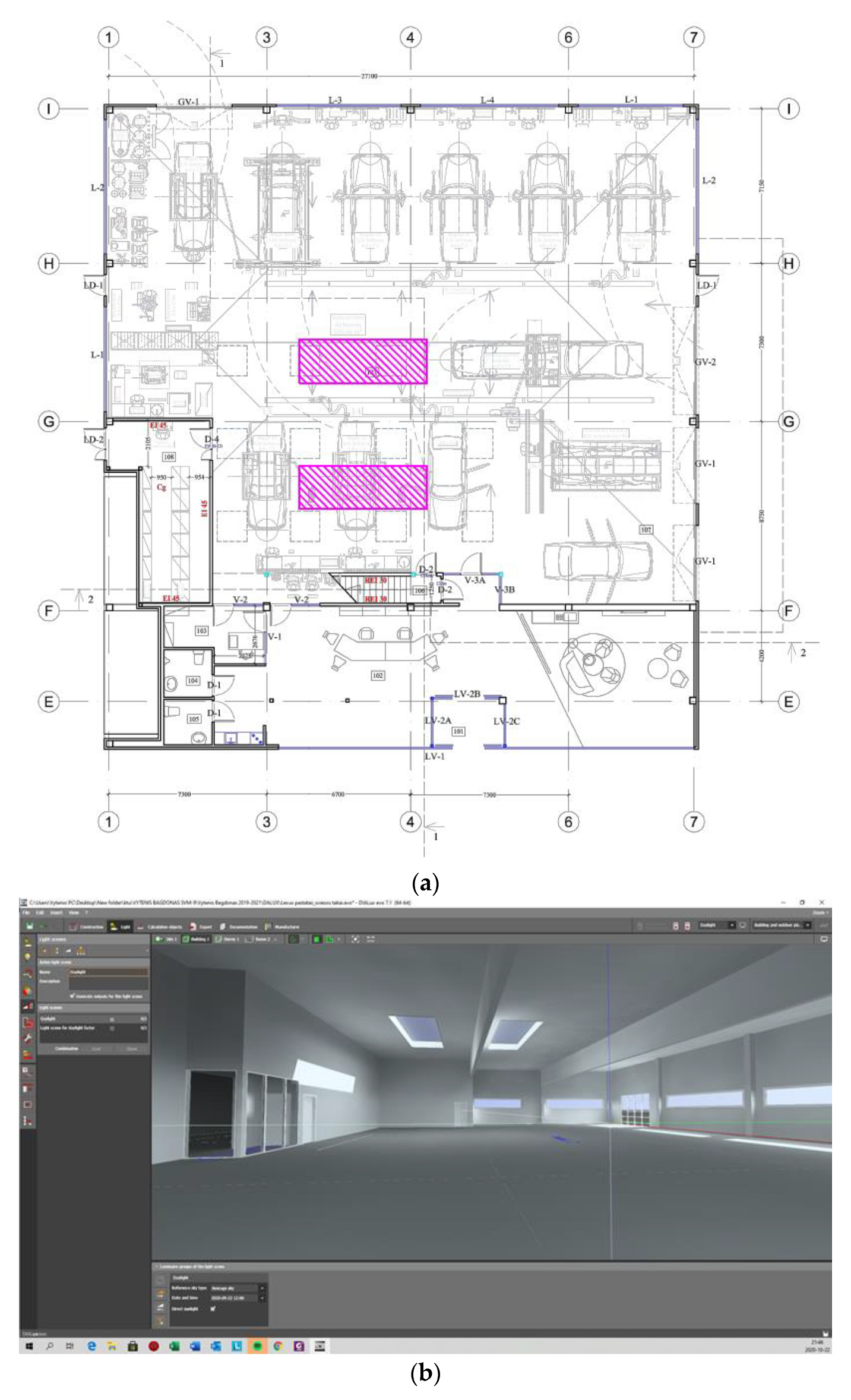

2.1. The Selection of the Specific Building
2.2. The Selection of the Skylight Alternatives
2.3. The Selection of Evaluation Criteria System
2.4. The Determination of the Priority Ranking and Importance of the Evaluation Criteria According to the Survey
2.5. The Determination of Theoretical and Complex Importance of the Criteria Using the Entropy Method
2.6. The Determination of the Most Rational Type of the Skylight Using the Proposed Evaluation Criteria and the TOPSIS Method
3. Results and Discussion

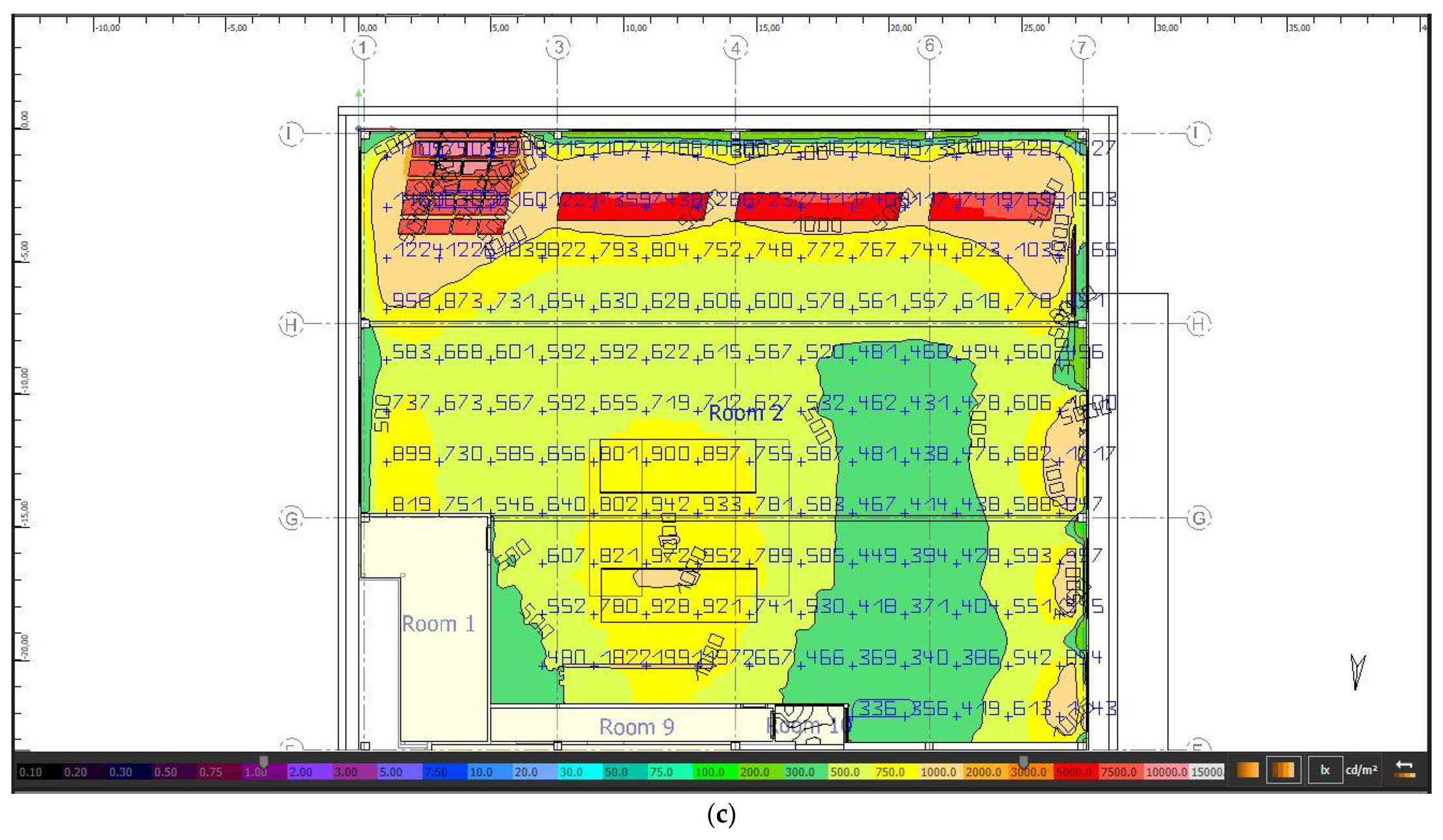

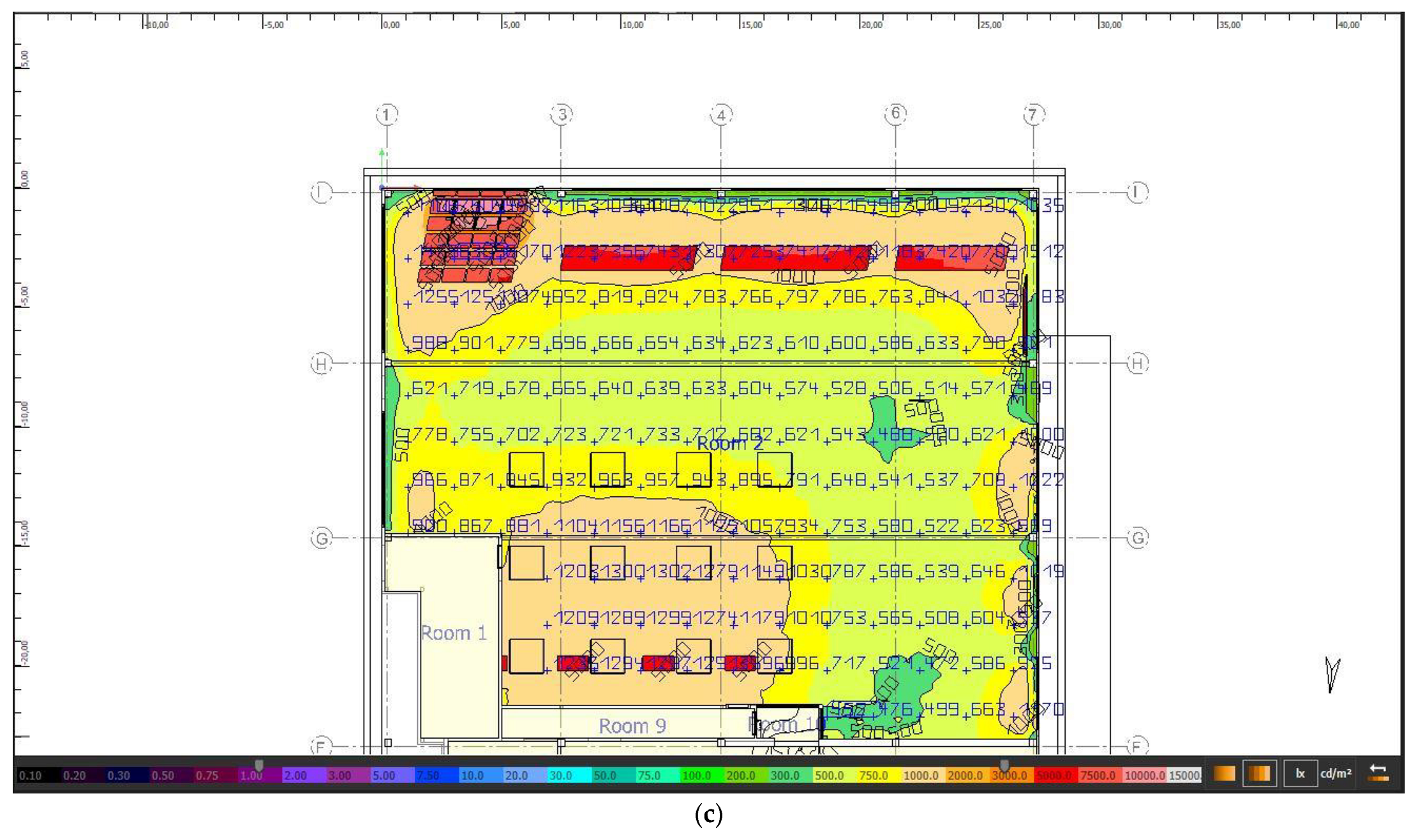

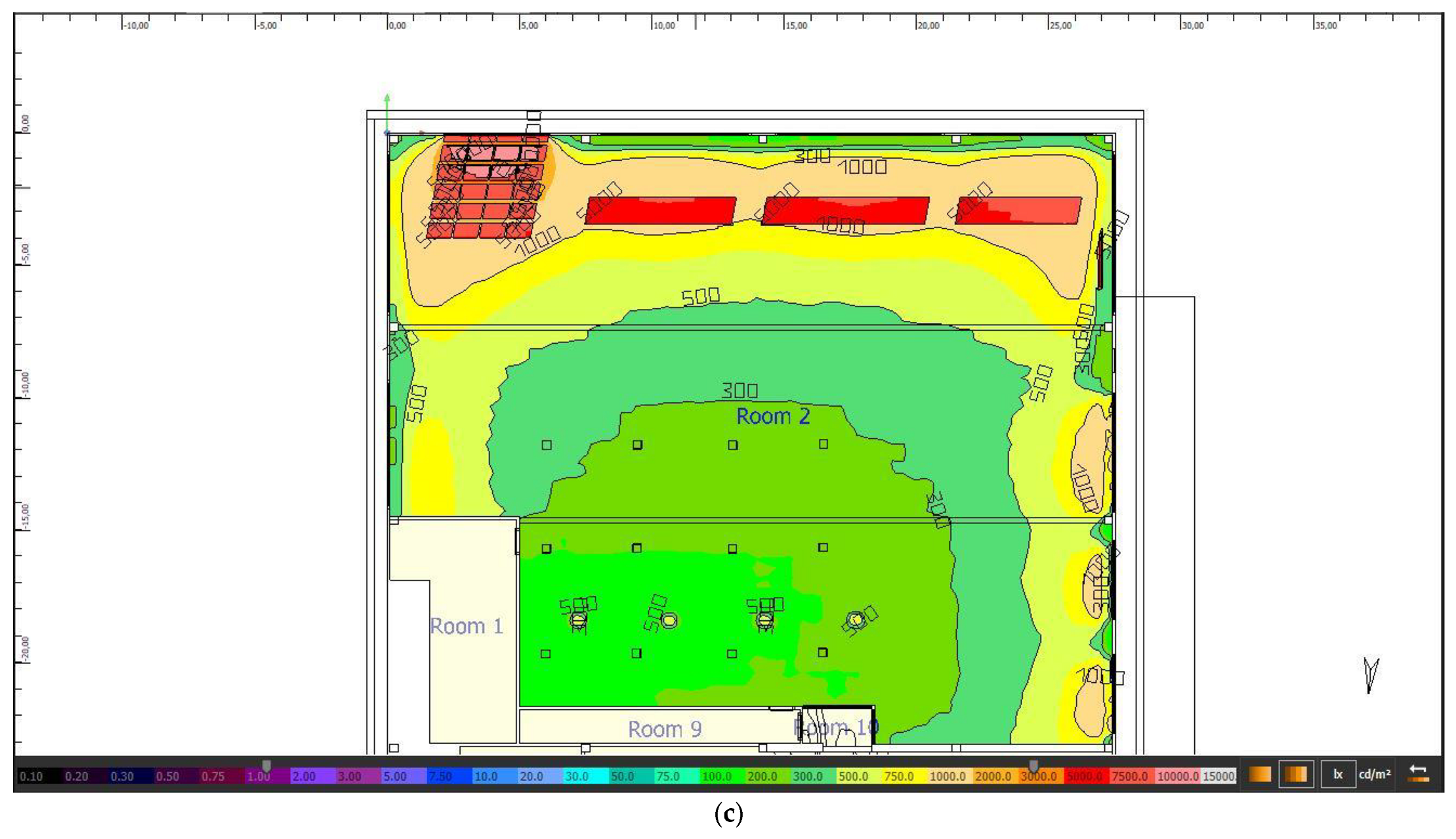

3.1. Comparison of Skylights by Calculating the Amount of Natural Light for the Specific Building
3.2. The Priority Order and Criteria Importance According to the Survey
3.3. Theoretical and Complex Importance of the Evaluation Criteria According to the Entropy Method

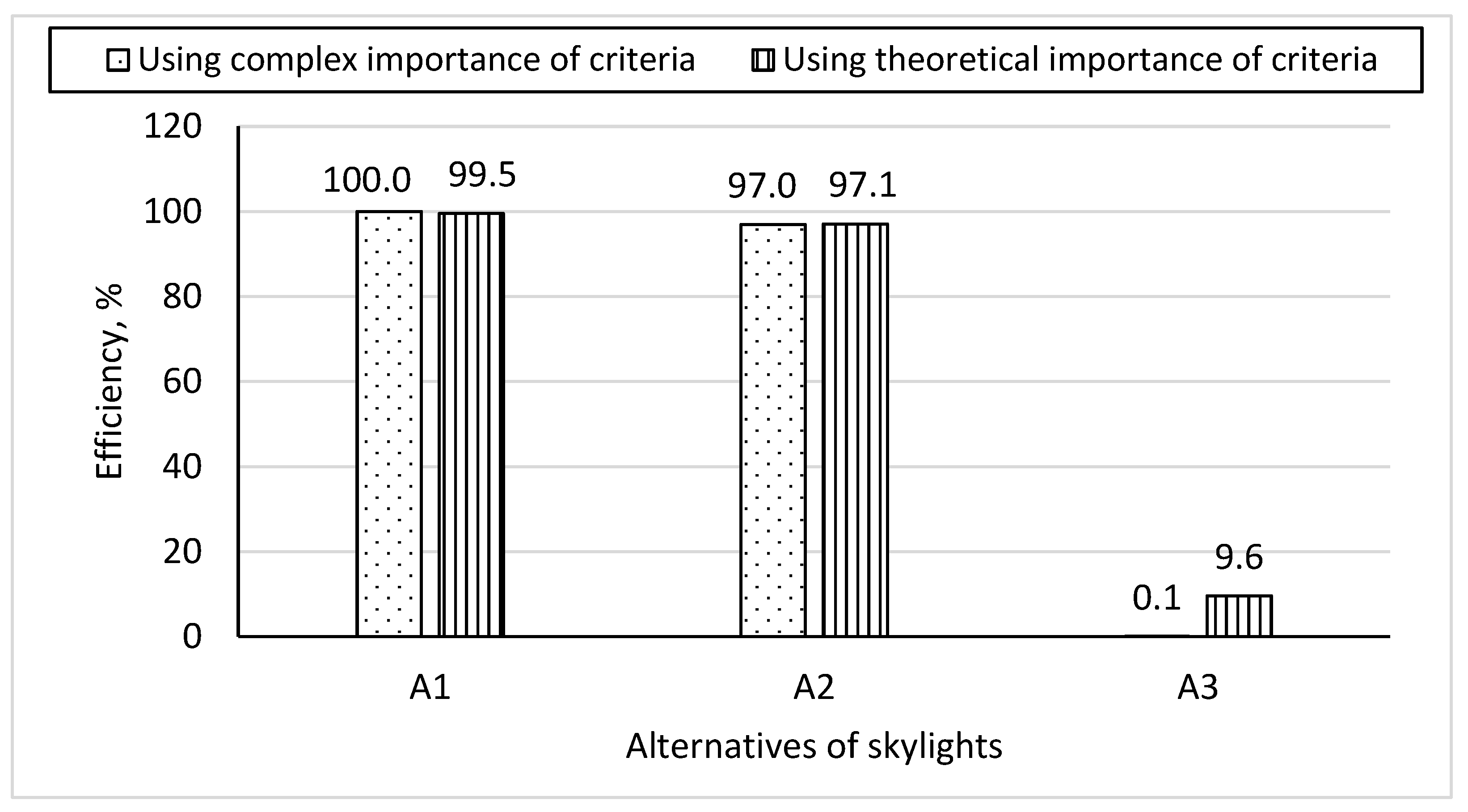

3.4. The Rational Option of Comparing Alternatives According to the TOPSIS Method
4. Conclusions
- The results of natural light modelling and calculation for the chosen building show that the selected skylight domes with light transmission of 71% create the largest average illuminance of 1647 lx compared to longitudinal skylights and tubular skylights. The smallest average illuminance of 1240 lx was obtained using the tubular skylights with light transmission of 54%. The second result of average illuminance of 1452 lx was obtained using longitudinal skylights with light transmission of 28%. Comparing not only the values of illuminance but also the values of light transmission and U values of skylight alternatives, the skylight dome was the best solution for the daylighting system for the selected building roof. The illuminance was calculated referring to the light transmission of dome glazing material of skylight alternatives.
- The expert evaluation of the criteria showed that the heat transfer coefficient (W/m2K) with the value of 16.96% was the most important criterion and the skylight price (EUR/m2) with the value of 15.66% was the second criterion by importance. The remaining criteria lined up as follows: the amount of natural light in the tested object (14.47%), the warranty period granted (13.40%), the fire performance class of glazing materials (13.40%), and the light transmission (13.29%). The installation cost (12.81%) received the lowest value. According to the survey, the criteria were ranked in the order of importance as follows: K4 > K1 > K5 > K6–7 > K3 > K2.
- According to the chosen rating criteria and the subjective opinion of the authors of this study, the installation cost (EUR/m2) criterion K2 received the highest theoretical importance value of 40.6%. In contrast, the complex importance of the evaluation criteria was based on the opinion of experts participating in the survey and the theoretical importance; thus, the skylight price (EUR/m2) criterion K1 received the highest importance value of 40.9%. In both cases, the criteria K1 and K2 had the highest importance determined by Entropy Method.
- In both cases, when alternative solutions were compared using theoretical and complex importance of the evaluation criteria, the same alternative A1, i.e., the skylight dome, was the most rational type of skylight chosen as the daylighting system for the studied building by means of the TOPSIS method. In accordance with the performance values, the second place belonged to alternative A2, the longitudinal skylight, and the third place belonged to alternative A3, the tubular skylight.
Author Contributions
Funding
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Canazei, M.; Pohl, W.; Bliem, H.R.; Martini, M.; Weiss, E.M. Artificial skylight effects in a windowless office environment. Build. Environ. 2017, 124, 69–77. [Google Scholar] [CrossRef]
- Kennedy, D.M.; O’Rourke, F. Experimental analysis of a scaled, multi-aperture, light-pipe, daylighting system. Sol. Energy 2015, 122, 181–190. [Google Scholar] [CrossRef]
- Hraska, J. Chronobiological aspects of green buildings daylighting. Renew. Energ. 2015, 73, 109–114. [Google Scholar] [CrossRef]
- Liu, S.; Liu, J.; Yang, Q.; Pei, J.; Lai, D.; Cao, X.; Chao, J.; Zhou, C. Coupled simulation of natural ventilation and daylighting for a residential community design. Energ. Build. 2014, 68, 686–695. [Google Scholar] [CrossRef]
- Turan, I.; Chegut, A.; Fink, D.; Reinhart, C. The value of daylight in office spaces. Build. Environ. 2020, 168, 106503. [Google Scholar] [CrossRef]
- El-Abd, W.; Kamel, B.; Afify, M.; Dorra, M. Assessment of skylight design configurations on daylighting performance in shopping malls: A case study. Sol. Energy 2018, 170, 358–368. [Google Scholar] [CrossRef]
- Chel, A.; Tiwari, G.N.; Chandra, A. A model for estimation of daylight factor for skylight: An experimental validation using pyramid shape skylight over vault roof mud-house in New Delhi (India). Appl. Energy 2009, 86, 2507–2519. [Google Scholar] [CrossRef]
- Li, D.H.W.; Lam, T.N.T.; Cheung, K.L. Energy and cost studies of semi-transparent photovoltaic skylight. Energ. Convers. Manag. 2009, 50, 1981–1990. [Google Scholar] [CrossRef]
- Karthick, A.; Kalidasa Murugavel, K.; Kalaivani, L. Performance analysis of semitransparent photovoltaic module for skylights. Energy 2018, 162, 798–812. [Google Scholar] [CrossRef]
- Azizkhani, M.; Haberl, J. Assessment and discussion of the level of the application of passive/natural systems and daylighting systems by practitioners in the US. Sci. Technol. Built Environ. 2021, 27, 109–128. [Google Scholar] [CrossRef]
- Falt, M.; Pettersson, F.; Zevenhoven, R. Modified predator-prey algorithm approach to designing a cooling or insulating skylight. Build. Environ. 2017, 126, 331–338. [Google Scholar] [CrossRef]
- Buratti, C.; Belloni, E.; Merli, F.; Zinzi, M. Aerogel glazing systems for building applications: A review. Energ. Build. 2021, 231, 110587. [Google Scholar] [CrossRef]
- Maduru, V.R.; Shaik, S. Laminated glazing for buildings: Energy saving, natural daylighting, and CO2 emission mitigation prospective. Environ. Sci. Pollut. R. 2021, 29, 14299–14315. [Google Scholar] [CrossRef]
- Alhagla, K.; Mansour, A.; Elbassuoni, R. Optimizing windows for enhancing daylighting performance and energy saving. Alex. Eng. J. 2019, 58, 283–290. [Google Scholar] [CrossRef]
- Xuan, Q.; Li, G.; Lu, Y.; Zhao, B.; Zhao, X.; Pei, G. The design, construction and experimental characterization of a novel concentrating photovoltaic/daylighting window for green building roof. Energy 2019, 175, 1138–1152. [Google Scholar] [CrossRef]
- Sharp, F.; Lindsey, D.; Dols, J.; Coker, J. The use and environmental impact of daylighting. J. Clean. Prod. 2014, 85, 462–471. [Google Scholar] [CrossRef]
- Galatioto, A.; Beccali, M. Aspects and issues of daylighting assessment: A review study. Renew. Sust. Energ. Rev. 2016, 66, 852–860. [Google Scholar] [CrossRef]
- Phillips, D. Daylighting: Natural Light in Architecture; Architectural Press: Burlington, NJ, USA, 2004; 212p. [Google Scholar]
- Alrubaih, M.S.; Zain, M.F.M.; Alghoul, M.A.; Ibrahim, N.L.N.; Shameri, M.A.; Elayeb, O. Research and development on aspects of daylighting fundamentals. Renew. Sust. Energ. Rev. 2013, 21, 494–505. [Google Scholar] [CrossRef]
- Zhang, X.; Muneer, T. Mathematical model for the performance of light pipes. Light. Res. Technol. 2000, 32, 141–146. [Google Scholar] [CrossRef]
- Wong, L. A review of daylighting design and implementation in buildings. Renew. Sust. Energ. Rev. 2017, 74, 959–968. [Google Scholar] [CrossRef]
- Carter, D.J. The measured and predicted performance of passive solar light pipe systems. Lighting Res. Technol. 2002, 34, 39–51. [Google Scholar] [CrossRef] [Green Version]
- Jenkins, D.; Muneer, T. Modelling light-pipe performances—A natural daylighting solution. Build. Environ. 2003, 38, 965–972. [Google Scholar] [CrossRef]
- Konis, K. A circadian design assist tool to evaluate daylight access in buildings for human biological lighting needs. Sol. Energy 2019, 191, 449–458. [Google Scholar] [CrossRef]
- Henriques, G.C.; Duarte, J.P.; Leal, V. Strategies to control daylight in a responsive skylight system. Automat. Constr. 2012, 28, 91–105. [Google Scholar] [CrossRef]
- Al-Obaidi, K.M.; Munaaim, M.A.C.; Lsmail, M.A.; Rahman, A.M.A. Designing an integrated daylighting system for deep-plan spaces in Malaysian low-rise buildings. Sol. Energy 2017, 149, 85–101. [Google Scholar] [CrossRef]
- Gosowski, B.; Lorkowski, P.; Redecki, M. Analysis of longitudinal skylights structure made of rectangular tubes in industrial hall. Thin Wall. Struct. 2016, 108, 234–244. [Google Scholar] [CrossRef]
- Acosta, I.; Navarro, J.; Sendra, J.J. Towards an analysis of the performance of lightwell skylights under overcast sky conditions. Energy Build. 2013, 64, 10–16. [Google Scholar] [CrossRef]
- Shin, J.Y.; Yun, G.Y.; Kim, J.T. Evaluation of Daylighting Effectiveness and Energy Saving Potentials of Light-Pipe Systems in Buildings. Indoor Built Environ. 2012, 21, 129–136. [Google Scholar] [CrossRef]
- Kim, J.T.; Kim, G. Overview and new developments in optical daylighting systems for building a healthy indoor environment. Build. Environ. 2010, 45, 256–269. [Google Scholar] [CrossRef]
- Lam, W.M.C. Sunlighting as Formgiver for Architecture; Van Nostrand Reinhold Company Inc.: New York, NY, USA, 1986; Chapter 7; pp. 146–156. [Google Scholar]
- Acosta, I.; Navarro, J.; Sendra, J.J.; Esquivias, P. Daylighting design with lightscoop skylights: Towards an optimization of proportion and spacing under overcast sky conditions. Energy Build. 2012, 49, 394–401. [Google Scholar] [CrossRef]
- Acosta, I.; Navarro, J.; Sendra, J.J. Towards an analysis of the performance of monitor skylights under overcast sky conditions. Energy Build. 2015, 88, 248–261. [Google Scholar] [CrossRef]
- Mayhoub, M.S. Innovative daylighting systems’ challenges: A critical study. Energ. Build. 2014, 80, 394–405. [Google Scholar] [CrossRef]
- Dianagri, A.T.; Sari, W.E.; Harsitanto, B.I.R. Simulation of Natural Daylighting Optimization in College Library. J. Phys. Conf. Ser. 2021, 1858, 012030. Available online: https://iopscience.iop.org/article/10.1088/1742-6596/1858/1/012030/pdf (accessed on 27 September 2019). [CrossRef]
- Tsang, E.K.W.; Kocifaj, M.; Li, D.H.W.; Kundracik, F.; Mohelnikova, J. Straight light pipes’ daylighting: A case study for different climatic zones. Sol. Energy 2018, 170, 56–63. [Google Scholar] [CrossRef]
- Mohapatra, B.N.; Kumar, M.R.; Mandal, S.K. Analysis of light tubes in interior daylighting system for building. Indones. J. Electr. Eng. Comput. Sci. 2020, 17, 710–719. Available online: http://ijeecs.iaescore.com/index.php/IJEECS/article/view/17523 (accessed on 27 September 2019). [CrossRef] [Green Version]
- Li, D.H.W.; Tsang, E.K.W. An analysis of daylighting performance for office buildings in Hong Kong. Build. Environ. 2008, 43, 1446–1458. [Google Scholar] [CrossRef]
- You, W.; Qin, M.; Ding, W. Improving building facade design using integrated simulation of daylighting, thermal performance and natural ventilation. Build. Simul. 2013, 6, 269–282. Available online: https://link.springer.com/article/10.1007/s12273-013-0135-6 (accessed on 27 September 2019). [CrossRef]
- Cutler, B.; Sheng, Y.; Martin, S.; Glaser, D.; Andersen, M. Interactive selection of optimal fenestration materials for schematic architectural daylighting design. Automat. Constr. 2008, 17, 809–823. [Google Scholar] [CrossRef] [Green Version]
- Udhwani, L.; Soni, A. Evaluation of daylighting performance in an office building: A case study. Mater. Today–Proc. 2021, 46, 5626–5631. [Google Scholar] [CrossRef]
- Huang, X.; Zhu, S. Optimization of Daylighting Pattern of Museum Sculpture Exhibition Hall. Sustainability 2021, 13, 1918. [Google Scholar] [CrossRef]
- Description of SOLIDM 3 Skin. Available online: https://solidome.eu/skylight-dome-solidm-3-skin/ (accessed on 15 January 2020).
- Daylighting Systems. Roof & Wall Light Panels, Kingspan Sp. z o.o. 2020. Available online: www.kingspan.com (accessed on 15 January 2020).
- VELUX TCR 0K14 0010 14″ Rigid Sun Tunnel For Flat Roof. Available online: https://www.sterlingbuild.co.uk/product/velux-tcr-0k14-0010-14-rigid-sun-tunnel-for-flat-roof (accessed on 15 January 2020).
- Computer Software—DIAlux evo 10.1. Available online: https://www.dialux.com/en-GB/download (accessed on 9 December 2019).
- Cheng, K.; Wei, S.; Fu, Q.; Pei, W.; Li, T. Adaptive management of water resources based on an advanced entropy method to quantify agent information. J. Hydroinform. 2019, 21, 381–396. [Google Scholar] [CrossRef]
- Žagarinskas, M.; Daukšys, M.; Mockienė, J. Research on installation technologies of retaining walls with ground anchors. J. Sustain. Archit. Civ. Eng. 2020, 26, 53–64. Available online: https://sace.ktu.lt/index.php/DAS/article/view/21540 (accessed on 27 September 2019).
- Kinderis, T.; Daukšys, M.; Mockienė, J. Research on the efficiency of composite beam application in multi-storey buildings. Sustainability 2020, 12, 8328. [Google Scholar] [CrossRef]
- EN 17037:2018; Daylight in Buildings. CEN (European Committee for Standardization): Brussels, Belgium, 2018.
Skylight Domes | Longitudinal Skylights | Tubular Skylights | |
---|---|---|---|
Description | Dome skylights (also known as skylight domes). This product can improve the energy efficiency of a building due to its high thermal values and high levels of light transmission and diffusion. There are two main types of skylight domes: fixed and ventilated. They also can be active and passive [16]. Active skylights contain moving components such as louvres, reflectors, mirrors or other mechanical devices to assist the delivery of natural light into interior spaces [26], while passive skylights do not utilise any moving or other mechanical components. | Longitudinal skylights (also known as arcade rooflight systems). The longitudinal skylight is a system for industrial flat roofs with standard requirements and is an ideal solution for pure daylighting, ventilation or complex smoke and heat extraction systems. Longitudinal skylights can be fixed or ventilated, active or passive. This type of skylight has some limitations due to the length of its frame [27]. | Tubular skylights (also known as a light pipe or sun pipe systems). The light pipe system with a reflective tube extends through adjustable ends and has an internal mirror finish that intensifies and reflects natural daylight, delivering outdoor light to a room or area below, where the light is evenly diffused by a translucent ceiling fixture [20,28]. This type of skylight has a potential to reduce the lighting energy used [29] and can provide adequate visual comfort [30] and light at different floor levels with a single light pipe, or, through innovative layout planning, light pipes can provide natural light for multiple workspaces [2]. |
View of skylight | |||
Technical data of the main skylight components | |||
Frames | -aminated wood (1) -polyvinyl chloride (PVC) profile (2) -aluminium profile (3) | -aluminium profile | -aluminium profile -polyvinyl chloride (PVC) profile |
Frame shape | -square, rectangle, round | -square, rectangle | -round |
Glazing variant | -glass units with optional argon gas filling (1) -polycarbonate (PC) or acrylic (PMMA) (2) | -glass -polycarbonate (PC) sheets | -organic glass |
Glazing form | -flat elements are glazed with single- or double-glazing units or polycarbonate sheets -spherical elements are domes formed from PMMA sheets | -arch shaped -pyramid shaped | -dome or round shaped |
Glazing material | -transparent -matte | -transparent -matte | -matte |
Thermal insulation | -frame insulated with mineral wool | -frame insulated with mineral wool | -trim ring insulated -not insulated |
Thermal performance | -U value: 1.1 ÷ 0.6 W/(m2 − K) (1) -U value: 1.3 ÷ 0.5 W/(m2 − K) (2) -U value: 2.7 ÷ 0.9 W/(m2 − K) (3) | -U value: 3.0 ÷ 1.1 W/(m2 − K) | -U value: 2.9 ÷ 1.8 W/(m2 − K) |
Installation locations | -used in pitched roofs and in the roof structure of detached houses and apartment buildings (1) -used in flat roof structures of industrial, and commercial buildings, warehouses (2) | -used in industrial, and commercial buildings, warehouses, shopping centres | -used in the areas where skylights cannot be installed due to the roof structure, attic, etc. Mainly are used in residential and commercial buildings |

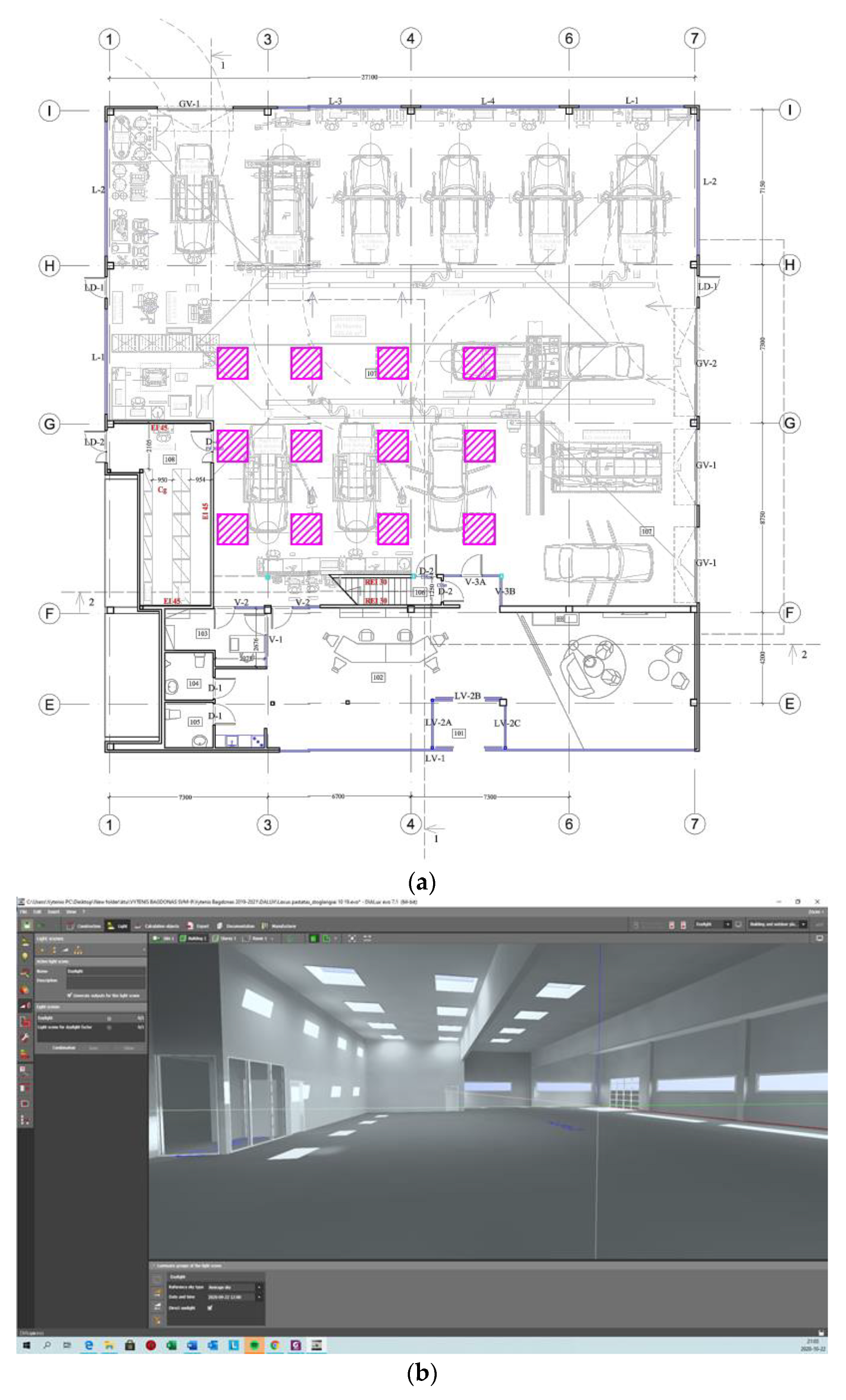

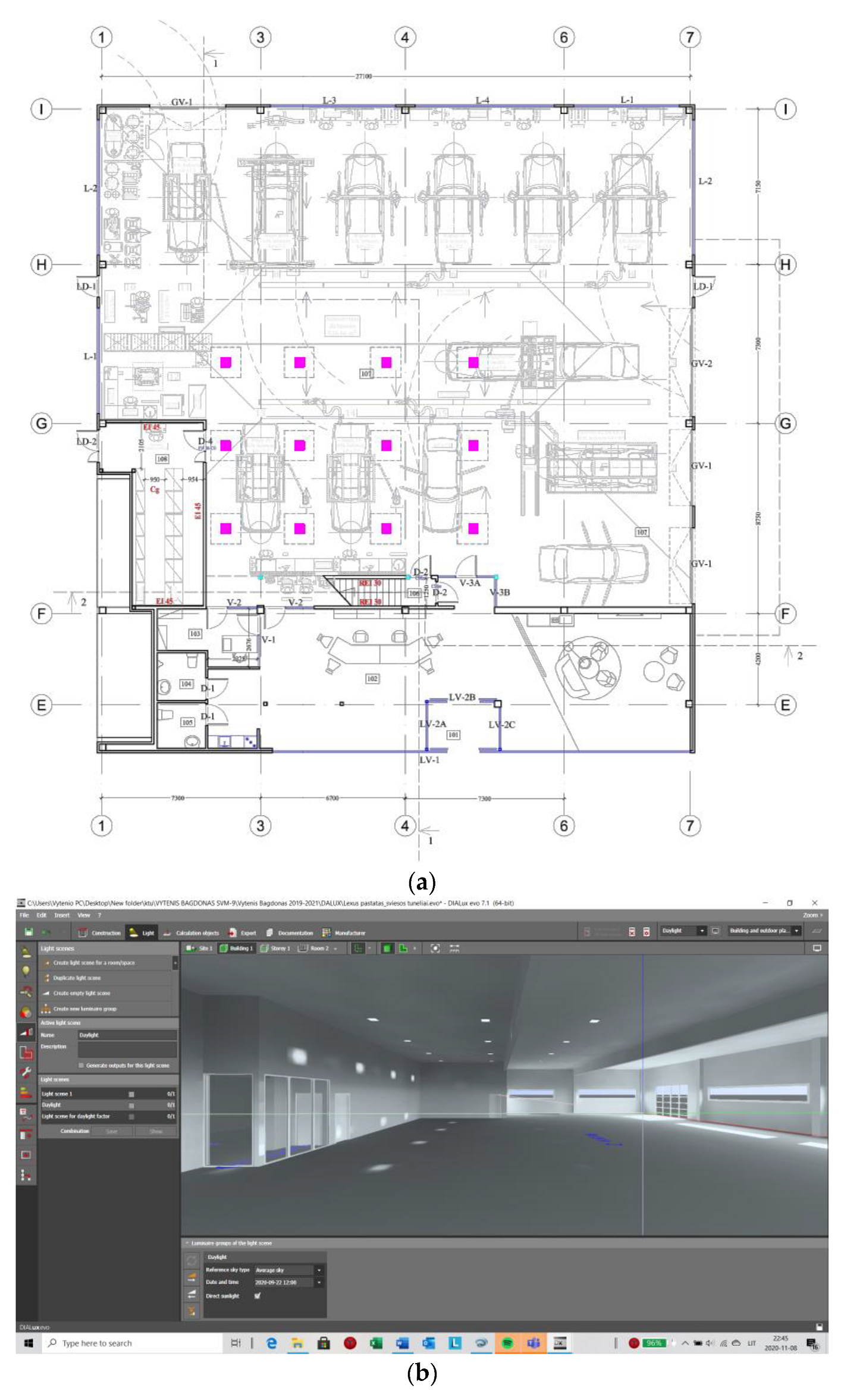

Option/Alternative | Skylight Dome (A1) | Longitudinal Skylight (A2) | Tubular Skylight (A3) |
---|---|---|---|
Type of skylight | SOLIDM 3 Skin with dimensions of 140 × 140 cm [43] | KINGSPAN ESSMANN PC16/7 + PC10/4 with dimensions of 200 × 588 cm [44] | VELUX TCF-0K14 [45] |
Detailed view | where (1) protective frame; (2) skylight frame.; (3) round-shaped glazing; (4) base; (5) thermal insulation. | where (1) skylight frame (2) ark-shaped construction; (3) ark-shaped glazing; (4) base; (5) thermal insulation. | where (1) transparent protective dome; (2) PVC frame; (3) inner, ceiling-mounted part; (4) rigid tunnel made of fibreglass yarn or aluminium with reflective coating |
Sealing assemblies | where (1) domes mounted into closed PVC frame; (2) safety frame mounted with integrated sealing; (3) thermal insulation; (4) roofing membrane; (5) thermal insulation; (6) EPDM seal; (7) formed steel base sheet; (8) corrugated steel deck sheet; (9) roof construction. | where (1) ark-shaped glazing; (2) thermal insulation; (3) roofing membrane; (4) thermal insulation; (5) sealant; (6) formed steel base sheet; (7) corrugated steel deck sheet; (8) roof construction. | where (1) transparent protective dome mounted on the upper part of roof construction; (2) roofing membrane; (3) thermal insulation; (4) EPDM seal; (5) light reflective tube; (6) formed steel base sheet; (7) corrugated steel deck sheet; (8) roof construction; (9) light tube bottom part mounted in the ceiling construction; (10) vapor barrier; (11) ceilings construction. |
Glazing material type | The rooflight is glazed with a dome of 3 × 2 mm thickness formed of three layers: transparent/transparent/ transparent | Two polycarbonate sheets PC16/7 + PC10/4, matte/matte | Acrylic or polycarbonate dome |
Glazing material shape | round shape | ark-shaped | dome |
Light transmission, % | 71% | 28% | 54% |
U value | 1.4 W/m2K | 1.3 W/m2K | 2.6 W/m2K |
Option/Alternative | Skylight Dome (A1) | Longitudinal Skylight (A2) | Tubular Skylight (A3) |
---|---|---|---|
Type of skylight | SOLIDM 3 Skin with dimensions of 140 × 140 cm | KINGSPAN ESSMANN PC16/7 + PC10/4 with dimensions of 200 × 588 cm | VELUX TCF-0K14 |
Amount, pcs./light area, m2 | 12 pcs./23.52 m2 | 2 pcs./23.52 m2 | 12 pcs./−m2 |

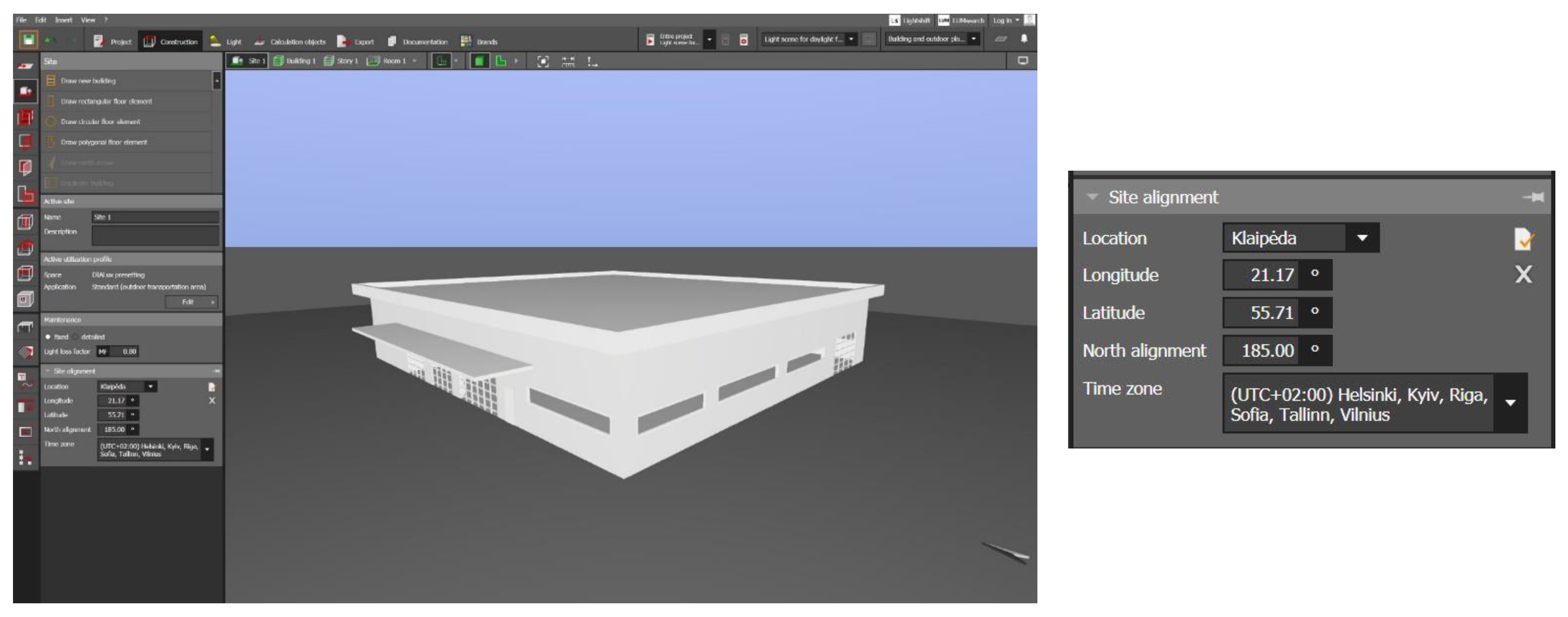

City, Country | Klaipėda, Lithuania | ||
Time zone | UTC + 02:00 Vilnius | ||
Location of building | longitude: 21.17°; latitude 55.71°; north alignment 185.00° | ||
The date and time selected for the calculation of natural lighting | 20 March 2020 (spring equinox) 22 September 2020 (autumn equinox) | from 6:00 a.m. until 22:00 p.m., every hour | |
Sky conditions (sunny/moderate/overcast) | Average cloud cover |
No. | Evaluation Criteria | Optimisation Direction of Criteria | Evaluation in Points (from 1 to 10) | |
---|---|---|---|---|
Min | Max | |||
1. | K1, Skylight cost, (EUR/m2) | × | ||
2. | K2, Installation labour cost, (EUR/m2) | × | ||
3. | K3, Light transmission, % | × | ||
4. | K4, Heat transfer coefficient, U value (W/m2K) | × | ||
5. | K5, Amount of natural light in the test object (lx) | × | ||
6. | K6, Warranty period granted, months | × | ||
7. | K7, Fire performance class of glazing materials | × |
Criteria | K1 | K2 | K3 | K4 | K5 | K6 | Kn | |
---|---|---|---|---|---|---|---|---|
Options | ||||||||
A1 | - | - | - | - | - | - | - | |
Am | - | - | - | - | - | - | - | |
Sum | - | - | - | - | - | - | - | |
Optimisation direction | - | - | - | - | - | - | - |
Criteria | K1 | K2 | K3 | K4 | K5 | K6 | Kn | |
---|---|---|---|---|---|---|---|---|
Options | ||||||||
A1 | - | - | - | - | - | - | - | |
Am | - | - | - | - | - | - | - |
Criteria | K1 | K2 | K3 | K4 | K5 | K6 | Kn | |
---|---|---|---|---|---|---|---|---|
Options | ||||||||
A1 | - | - | - | - | - | - | - | |
Am | - | - | - | - | - | - | - |
Criteria | K1 | K2 | K3 | K4 | K5 | K6 | Kn | |
---|---|---|---|---|---|---|---|---|
Options | ||||||||
Ej | - | - | - | - | - | - | - |
Criteria | K1 | K2 | K3 | K4 | K5 | K6 | Kn | |
---|---|---|---|---|---|---|---|---|
Entropy | ||||||||
dj | - | - | - | - | - | - | - |
Criteria | K1 | K2 | K3 | K4 | K5 | K6 | Kn | |
---|---|---|---|---|---|---|---|---|
Entropy | ||||||||
qj(t) | - | - | - | - | - | - | - |
K1 | K2 | K3 | K4 | K5 | K6 | Km | Total |
---|---|---|---|---|---|---|---|
- | - | - | - | - | - | - | 1.00 |
Criteria | K1 | K2 | K3 | K4 | K5 | K6 | Km | |
---|---|---|---|---|---|---|---|---|
Entropy | ||||||||
qj0 | - | - | - | - | - | - | - |
Criteria | K1 | K2 | K3 | K4 | K5 | K6 | Kn | |
---|---|---|---|---|---|---|---|---|
Options | ||||||||
A1 | - | - | - | - | - | - | - | |
Am | - | - | - | - | - | - | - | |
- | - | - | - | - | - | - | ||
Optimisation direction | - | - | - | - | - | - | - | |
Importance of complex criteria Cq, % | - | - | - | - | - | - | - | |
Importance of theoretical criteria Tq, % | - | - | - | - | - | - | - |
Criteria | K1 | K2 | K3 | K4 | K5 | K6 | Kn | |
---|---|---|---|---|---|---|---|---|
Options | ||||||||
A1 | - | - | - | - | - | - | - | |
Am | - | - | - | - | - | - | - |
Criteria | K1 | K2 | K3 | K4 | K5 | K6 | Kn | |
---|---|---|---|---|---|---|---|---|
Options | ||||||||
When the importance of complex criteria qc is used | ||||||||
A1 | - | - | - | - | - | - | - | |
Am | - | - | - | - | - | - | - | |
When the importance of theoretical criteria qt is used | ||||||||
A1 | - | - | - | - | - | - | - | |
Am | - | - | - | - | - | - | - |
Options | Kbit | Priority Ranking of Alternatives | The Performance Value of Alternatives (Ni), % | ||
---|---|---|---|---|---|
When the importance of complex criteria qc is used | |||||
A1 | - | - | - | - | - |
Am | - | - | - | - | - |
When the importance of theoretical criteria qt is used | |||||
A1 | - | - | - | - | - |
Am | - | - | - | - | - |

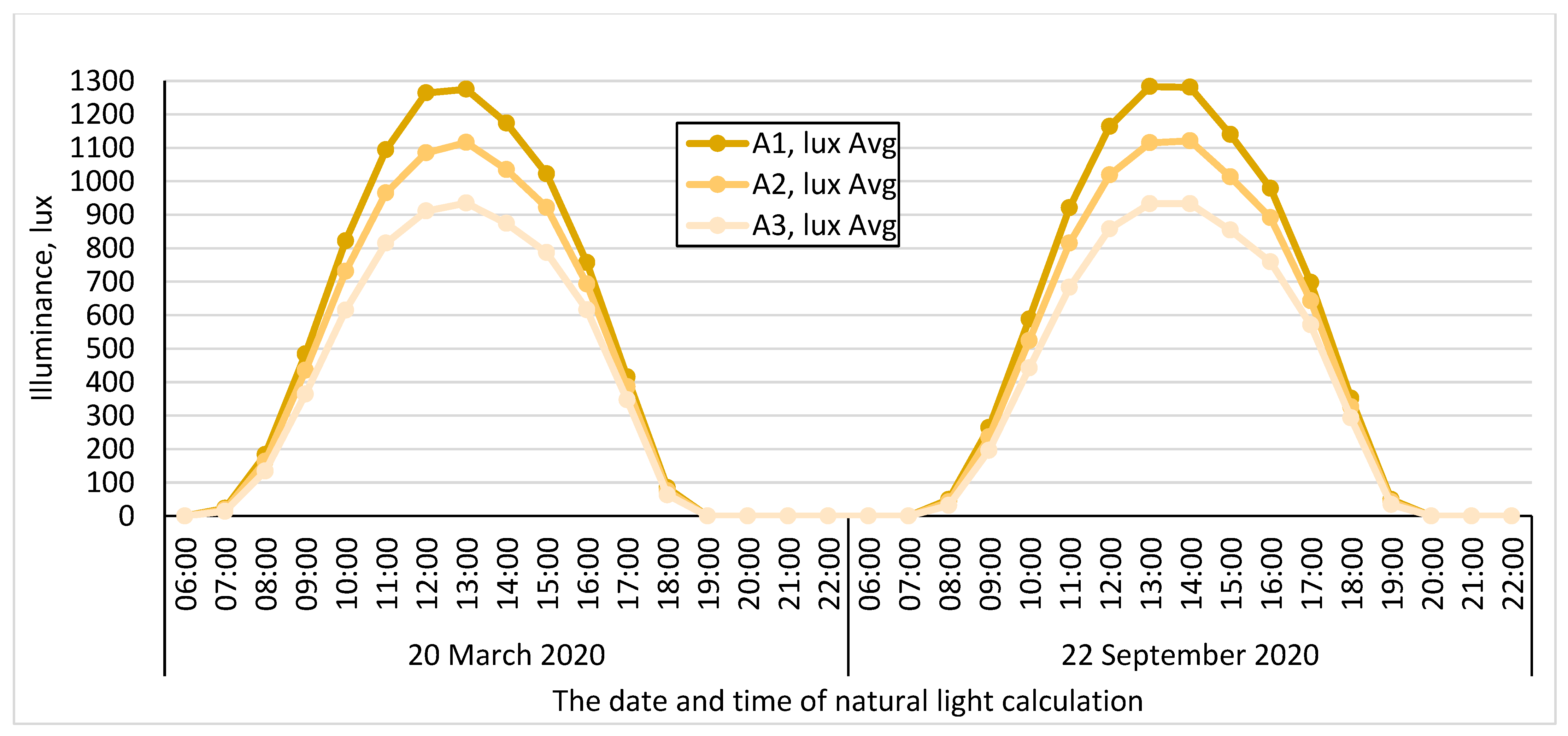

The Date and Time of Natural Light Calculation | The Amount of Natural Light in the Service Workshop, Illuminance (lx) | |||||||||
---|---|---|---|---|---|---|---|---|---|---|
Skylight Domes (A1) | Longitudinal Skylights (A2) | Tubular Skylight (A3) | ||||||||
Min | Max | Average | Min | Max | Average | Min | Max | Average | ||
20 March 2020 | 06:00 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
07:00 | 5 | 110 | 23 | 5 | 111 | 19 | 3 | 110 | 14 | |
08:00 | 32 | 1083 | 183 | 32 | 1078 | 163 | 20 | 1067 | 134 | |
09:00 | 85 | 3587 | 484 | 74 | 3562 | 435 | 47 | 3551 | 364 | |
10:00 | 144 | 6726 | 822 | 123 | 6719 | 731 | 77 | 6644 | 615 | |
11:00 | 188 | 9448 | 1094 | 157 | 9472 | 965 | 111 | 9366 | 815 | |
12:00 | 211 | 11,064 | 1264 | 173 | 11,061 | 1085 | 132 | 10,989 | 911 | |
13:00 | 201 | 11,302 | 1275 | 171 | 11,296 | 1116 | 145 | 11,226 | 935 | |
14:00 | 198 | 10,118 | 1174 | 161 | 10,139 | 1035 | 140 | 10,034 | 874 | |
15:00 | 161 | 7752 | 1022 | 135 | 7794 | 922 | 117 | 7707 | 787 | |
16:00 | 107 | 4746 | 757 | 113 | 4768 | 693 | 86 | 4723 | 616 | |
17:00 | 56 | 1936 | 415 | 53 | 1939 | 386 | 43 | 1920 | 347 | |
18:00 | 13 | 257 | 84 | 14 | 257 | 75 | 8 | 254 | 63 | |
19:00 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
20:00 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
21:00 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
22:00 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
22 September 2020 | 06:00 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
07:00 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
08:00 | 11 | 238 | 49 | 10 | 238 | 42 | 6 | 235 | 32 | |
09:00 | 45 | 1716 | 264 | 45 | 1706 | 236 | 19 | 1684 | 196 | |
10:00 | 104 | 4508 | 588 | 91 | 4504 | 524 | 55 | 4457 | 442 | |
11:00 | 160 | 7702 | 921 | 135 | 7699 | 815 | 88 | 7611 | 683 | |
12:00 | 198 | 10,185 | 1164 | 169 | 10,195 | 1019 | 117 | 10,082 | 858 | |
13:00 | 208 | 11,442 | 1283 | 177 | 11,467 | 1115 | 138 | 11,406 | 933 | |
14:00 | 218 | 11,344 | 1281 | 175 | 11,355 | 1121 | 142 | 11,281 | 933 | |
15:00 | 186 | 9860 | 1140 | 168 | 9847 | 1013 | 136 | 9756 | 854 | |
16:00 | 159 | 7247 | 979 | 142 | 7259 | 891 | 115 | 7189 | 759 | |
17:00 | 99 | 4164 | 698 | 99 | 4157 | 643 | 79 | 4143 | 571 | |
18:00 | 47 | 1499 | 352 | 47 | 1501 | 326 | 39 | 1484 | 293 | |
19:00 | 9 | 175 | 49 | 9 | 174 | 43 | 7 | 169 | 34 | |
20:00 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
21:00 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
22:00 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
No. | Evaluation Criteria | Optimisation Direction of Criteria | Total Amount of Points by the Survey | Importance of Criteria by the Survey | Priority Order by the Survey | |
---|---|---|---|---|---|---|
Min | Max | |||||
1. | K1, Skylight cost, (EUR/m2) | × | 132 | 0.1566 | 2 | |
2. | K2, Installation cost, (EUR/m2) | × | 108 | 0.1281 | 7 | |
3. | K3, Light transmission, % | × | 112 | 0.1329 | 6 | |
4. | K4, Heat transfer coefficient, U value (W/m2K) | × | 143 | 0.1696 | 1 | |
5. | K5, Amount of natural light in the test object, (lux) | × | 122 | 0.1447 | 3 | |
6. | K6, Warranty period granted, months | × | 113 | 0.1340 | 4–5 | |
7. | K7, Fire performance class of glazing materials | × | 113 | 0.1340 | 4–5 | |
Total sum: |
Criteria | K1 | K2 | K3 | K4 | K5 | K6 | K7 | |
---|---|---|---|---|---|---|---|---|
Options | ||||||||
A1 | 234.6 | 35.5 | 71 | 1.4 | 1283 | 24 | 1 | |
A2 | 361.2 | 64.3 | 34 | 1.3 | 1115 | 24 | 5 | |
A3 | 4453.1 | 955.8 | 54 | 2.6 | 933 | 24 | 1 | |
Sum | 5048.9 | 1055.6 | 159 | 5.3 | 3331 | 72 | 7 | |
Optimisation direction | Min | Min | Max | Min | Max | Max | Max |
Criteria | K1 | K2 | K3 | K4 | K5 | K6 | K7 | |
---|---|---|---|---|---|---|---|---|
Entropy | ||||||||
qj(t)(theoretical) | 0.3676 | 0.4054 | 0.0235 | 0.0296 | 0.0047 | 0.0000 | 0.1692 | |
Priority order | 2 | 1 | 3 | 4 | 6 | 7 | 5 | |
qj0(complex) | 0.4082 | 0.3684 | 0.0221 | 0.0356 | 0.0048 | 0.000 | 0.1609 | |
Priority order | 1 | 2 | 4 | 3 | 6 | 7 | 5 |
Criteria | K1 | K2 | K3 | K4 | K5 | K6 | K7 | |
---|---|---|---|---|---|---|---|---|
Options | ||||||||
A1 | 234.6 | 35.5 | 71 | 1.4 | 1283 | 24 | 1 | |
A2 | 361.2 | 64.3 | 34 | 1.3 | 1115 | 24 | 5 | |
A3 | 4453.1 | 955.8 | 54 | 2.6 | 933 | 24 | 1 | |
4473.88 | 958.62 | 95.46 | 3.23 | 1939.02 | 41.57 | 5.20 | ||
Optimisation direction | Min | Min | Max | Min | Max | Max | Max | |
Importance of complex criteria Cq, % | 40.86 | 36.87 | 2.22 | 3.57 | 0.38 | 0.00 | 16.10 | |
Importance of theoretical criteria Tq, % | 36.79 | 40.58 | 2.35 | 2.96 | 0.37 | 0.00 | 16.94 |
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
Bagdonas, V.; Daukšys, M.; Mockienė, J. The Selection of Skylight Type for a Certain Building Using Evaluation Criteria and the Multi-Criteria Decision-Making Method. Buildings 2022, 12, 2058. https://doi.org/10.3390/buildings12122058
Bagdonas V, Daukšys M, Mockienė J. The Selection of Skylight Type for a Certain Building Using Evaluation Criteria and the Multi-Criteria Decision-Making Method. Buildings. 2022; 12(12):2058. https://doi.org/10.3390/buildings12122058
Chicago/Turabian StyleBagdonas, Vytenis, Mindaugas Daukšys, and Jūratė Mockienė. 2022. "The Selection of Skylight Type for a Certain Building Using Evaluation Criteria and the Multi-Criteria Decision-Making Method" Buildings 12, no. 12: 2058. https://doi.org/10.3390/buildings12122058
