# Load-Carrying Capacity of Compressed Wall-Like RC Columns Strengthened with FRP

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Literature Review

## 3. Materials and Methods

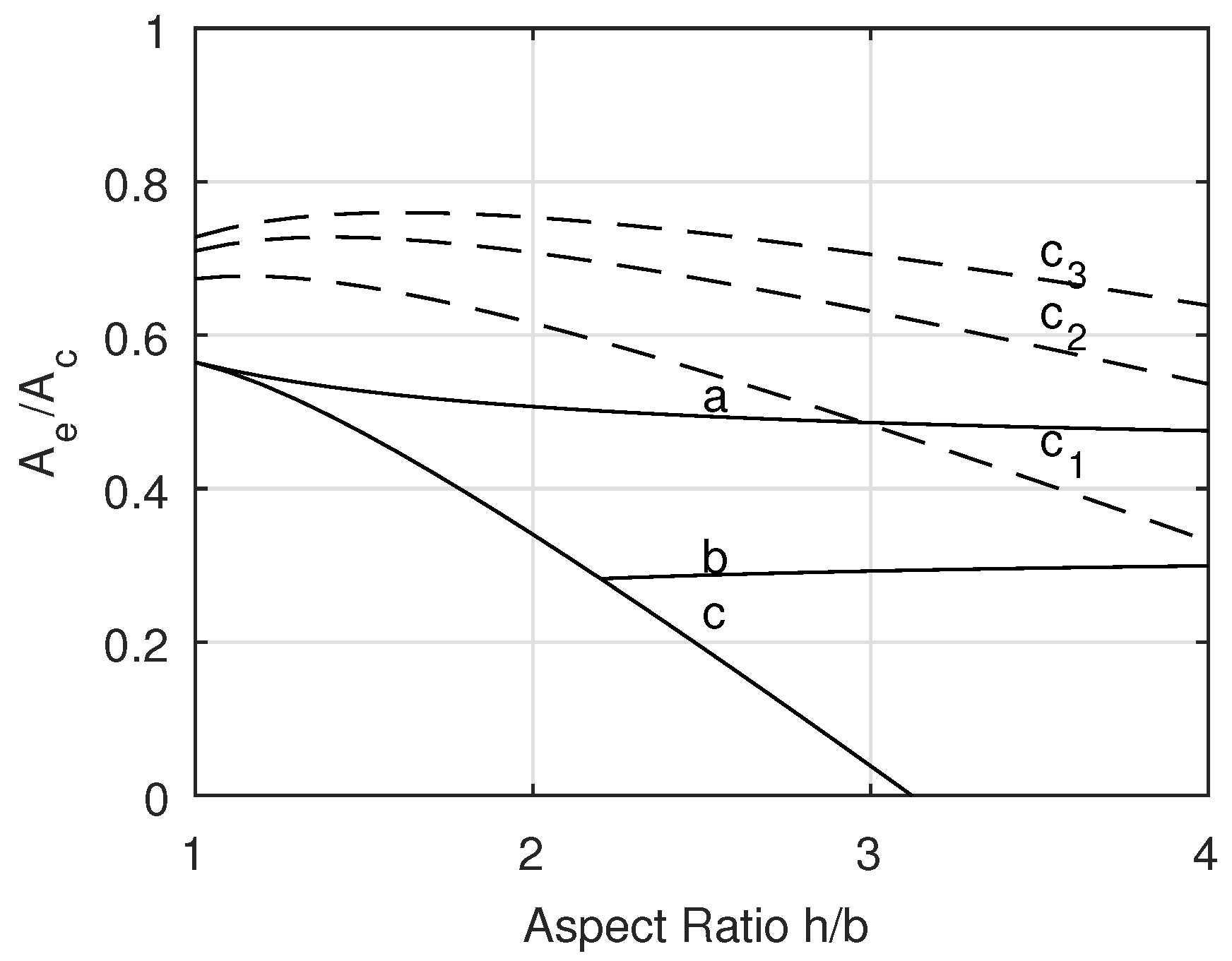

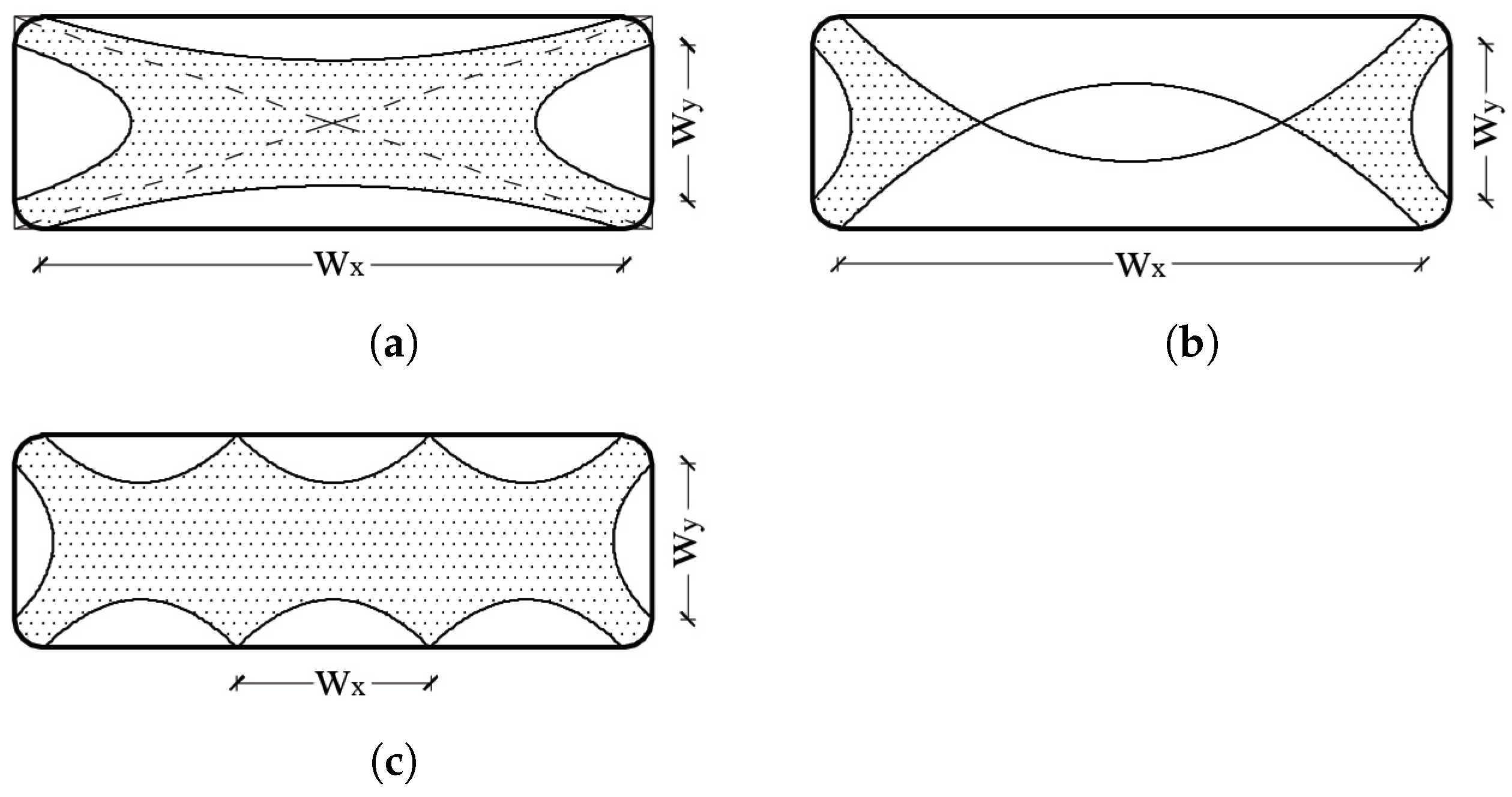

#### 3.1. Analytical Models

#### 3.2. Experimental Results

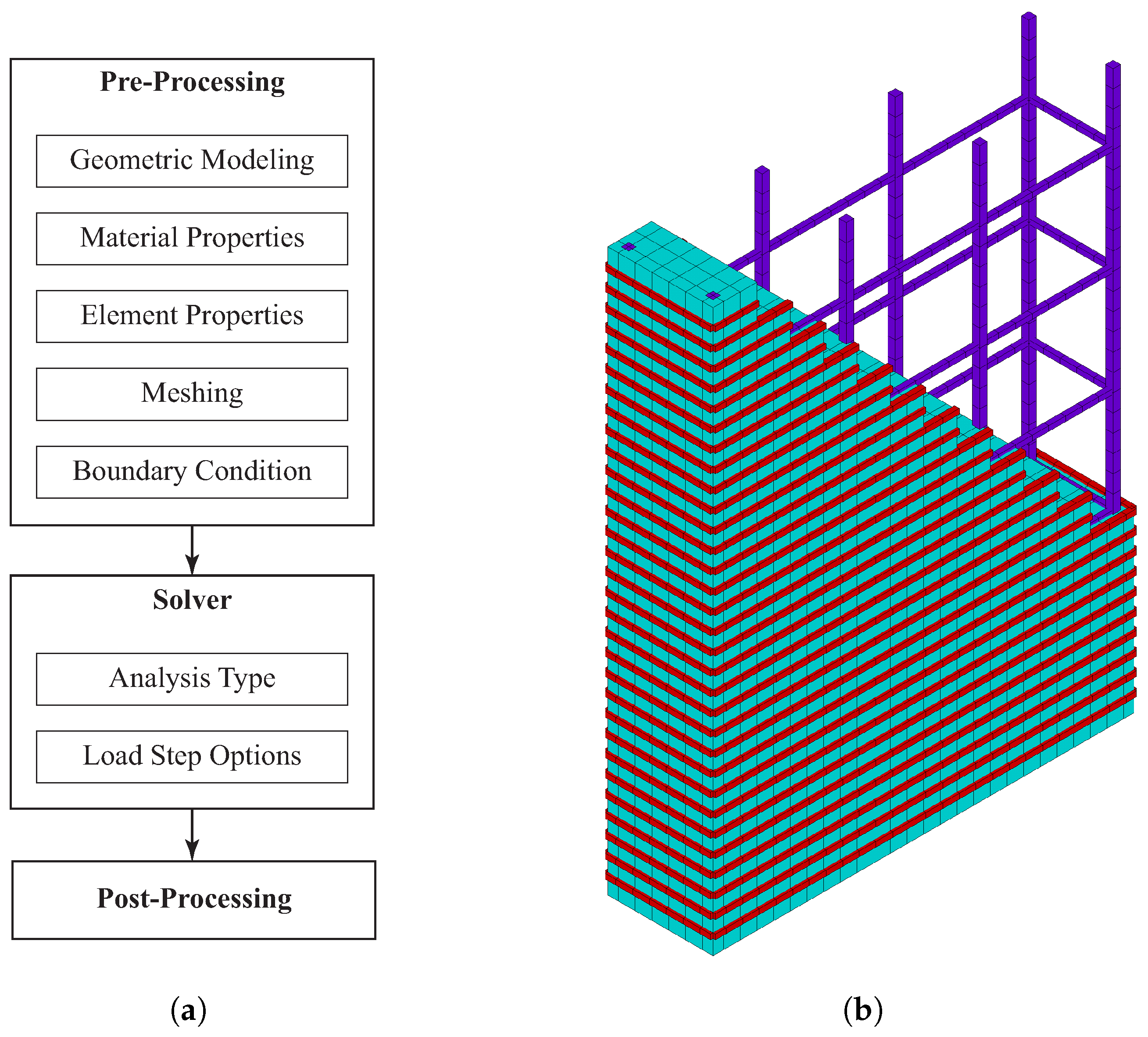

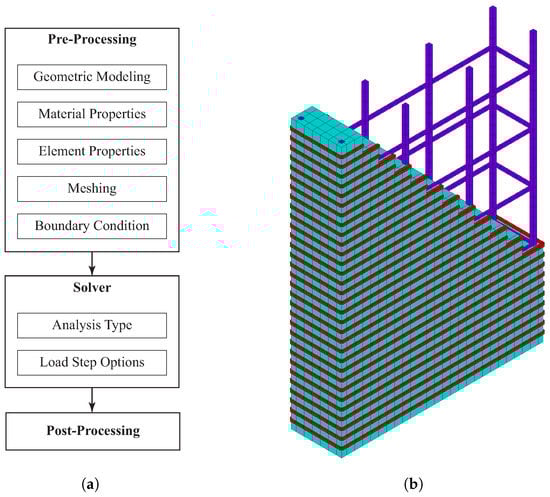

#### 3.3. Numerical Modeling

## 4. Results and Discussion

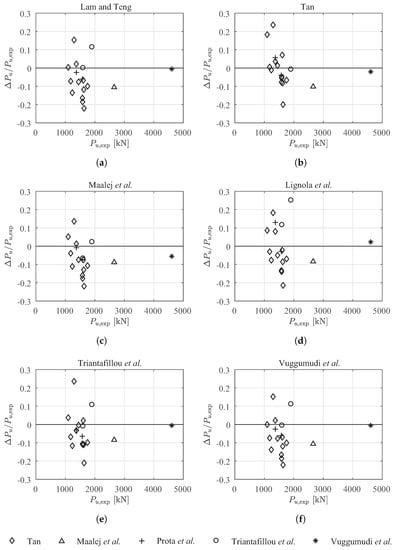

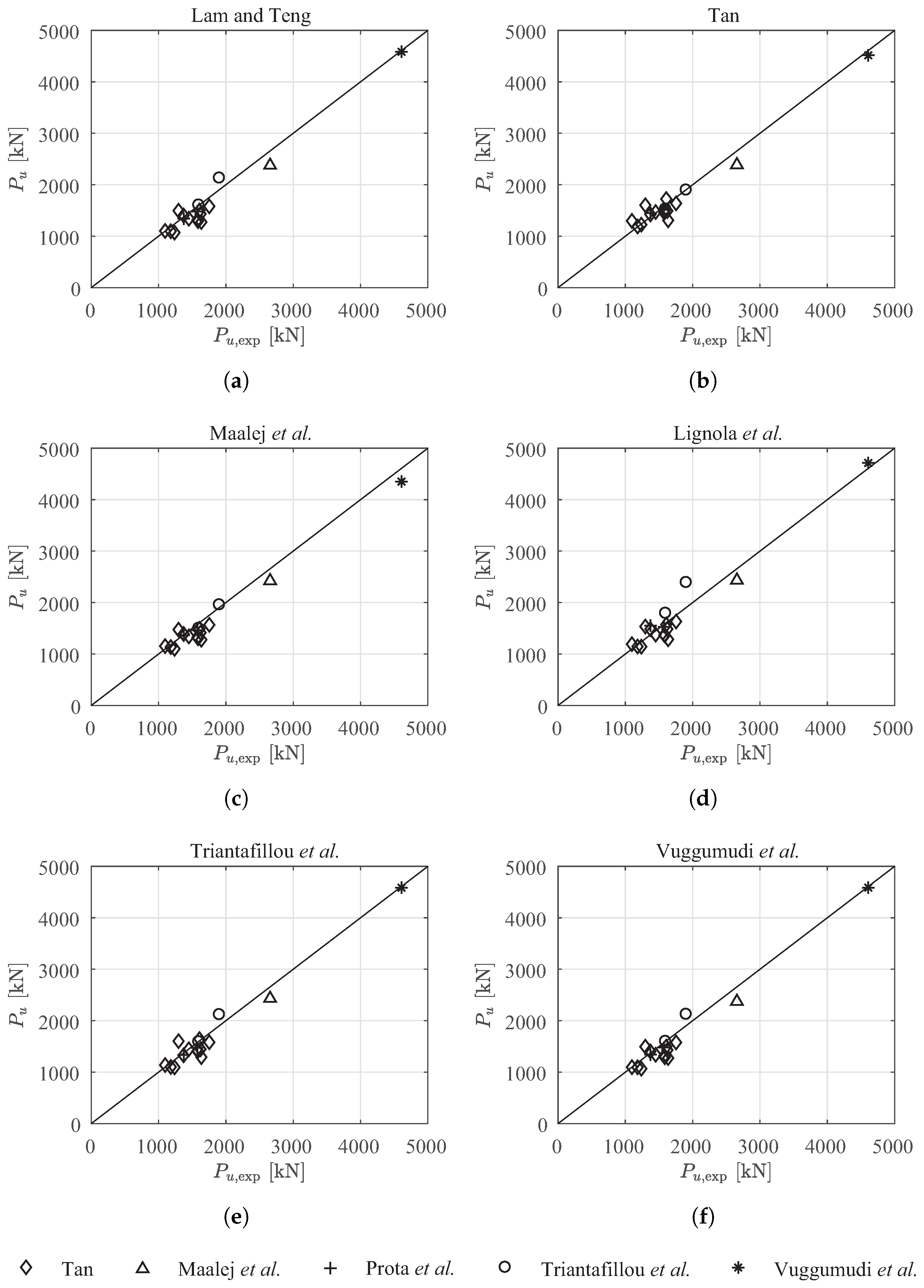

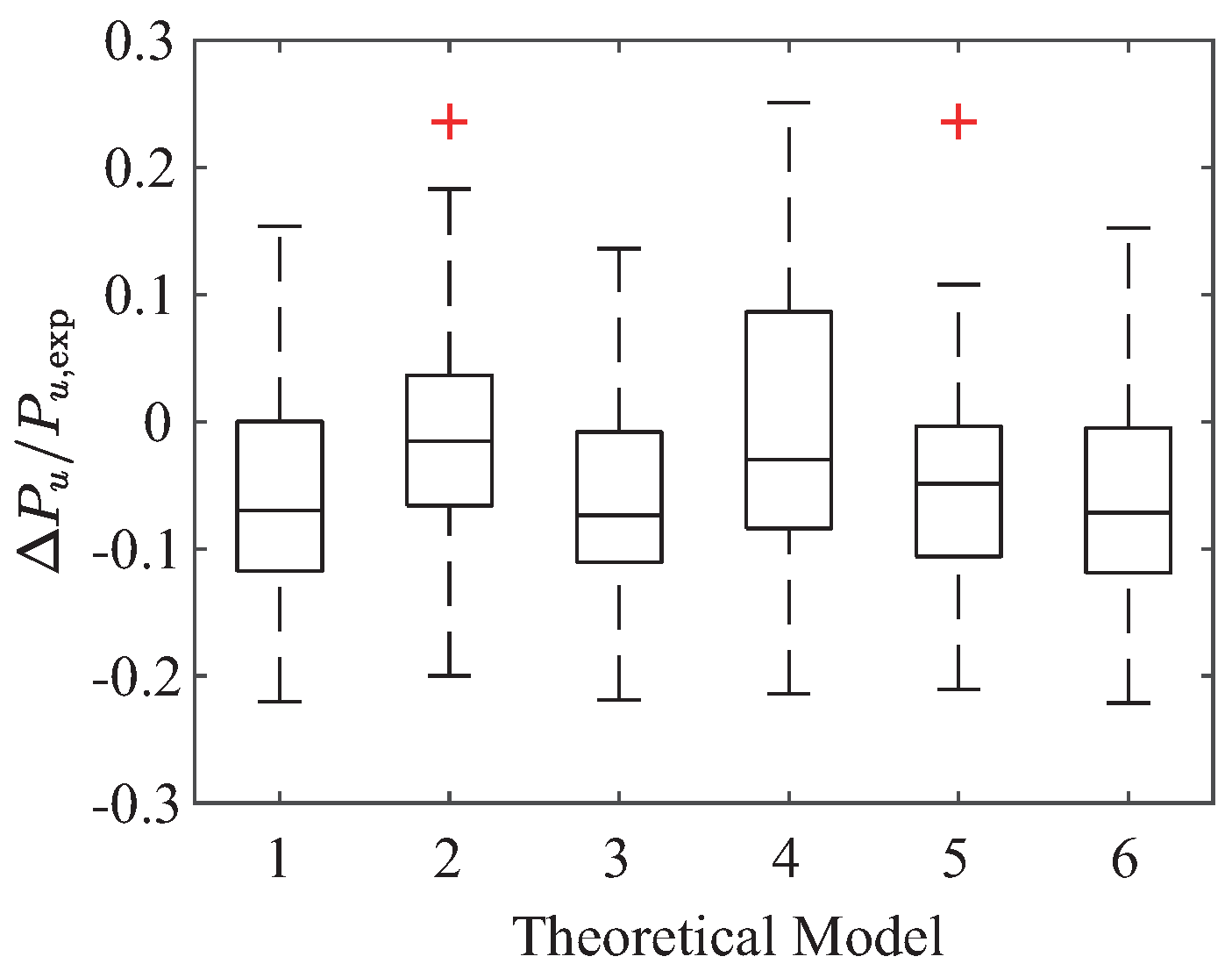

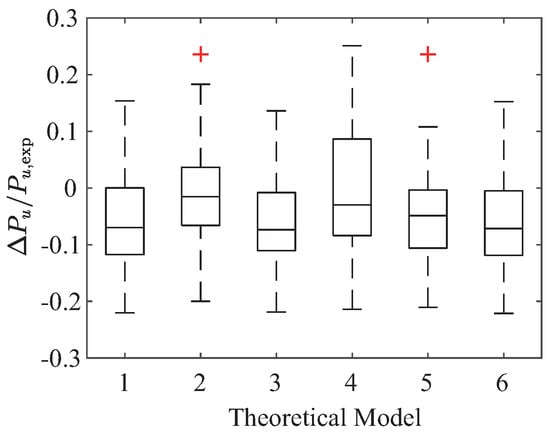

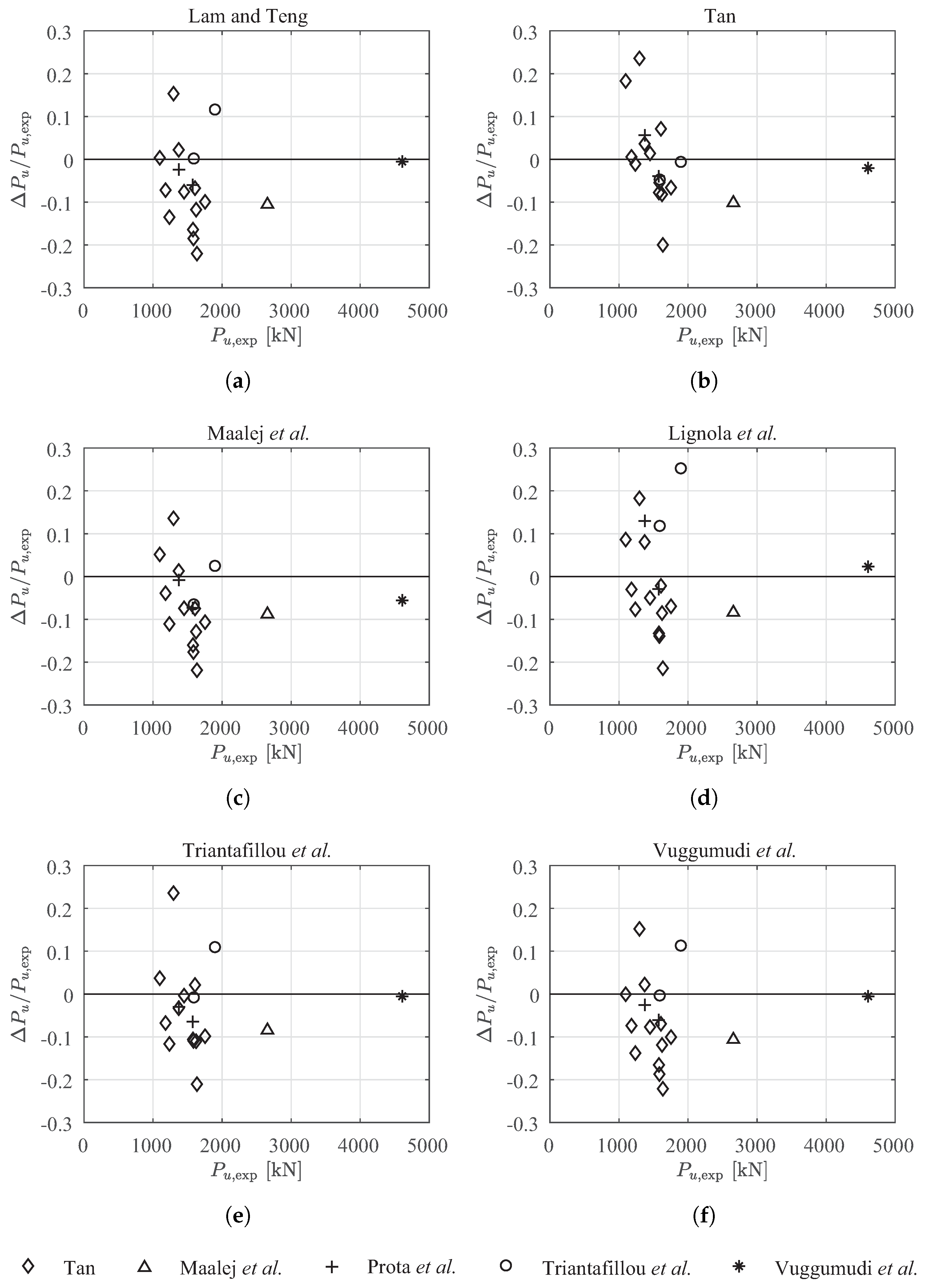

#### 4.1. Analytical Results vs. Experimental Data

#### 4.2. Numerical Results

## 5. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Mirmiran, A.; Shahawy, M. Behavior of Concrete Columns Confined by Fiber Composites. J. Struct. Eng.
**1997**, 123, 583–590. [Google Scholar] [CrossRef] - Spoelstra, M.R.; Monti, G. FRP-Confined Concrete Model. J. Compos. Constr.
**1999**, 3, 143–150. [Google Scholar] [CrossRef] - Campione, G.; Miraglia, N. Strength and strain capacities of concrete compression members reinforced with FRP. Cem. Concr. Compos.
**2003**, 25, 31–41. [Google Scholar] [CrossRef] - Matthys, S.; Toutanji, H.; Taerwe, L. Stress & Strain Behavior of Large-Scale Circular Columns Confined with FRP Composites. J. Struct. Eng.
**2006**, 132, 123–133. [Google Scholar] - Wu, H.L.; Wang, Y.F.; Yu, L.; Li, X.R. Experimental and Computational Studies on High-Strength Concrete Circular Columns Confined by Aramid Fiber-Reinforced Polymer Sheets. J. Compos. Constr.
**2009**, 13, 125–134. [Google Scholar] [CrossRef] - Mander, J.B.; Priestley, M.J.N.; Park, R. Theoretical Stress-Strain Model for Confined Concrete. J. Struct. Eng.
**1988**, 114, 1804–1826. [Google Scholar] [CrossRef] [Green Version] - Mander, J.B.; Priestley, M.J.N.; Park, R. Observed Stress-Strain Behavior of Confined Concrete. J. Struct. Eng.
**1988**, 114, 1827–1849. [Google Scholar] [CrossRef] - Mirmiran, A.; Shahawy, M.; Samaan, M.; Echary, H.E.; Mastrapa, J.C.; Pico, O. Effect of Column Parameters on FRP-Confined Concrete. J. Compos. Constr.
**1998**, 2, 175–185. [Google Scholar] [CrossRef] - Rochette, P.; Labossiere, P. Axial Testing of Rectangular Column Models Confined with Composites. J. Compos. Constr.
**2000**, 4, 129–136. [Google Scholar] [CrossRef] - Lam, L.; Teng, J.G. Design-Oriented Stress-Strain Model for FRP-Confined Concrete in Rectangular Columns. J. Reinf. Plast. Compos.
**2003**, 22, 1149–1186. [Google Scholar] [CrossRef] - De Lorenzis, L.; Tepfers, R. Comparative study of models on confinement of concrete cylinders with fiber-reinforced polymer composites. J. Compos. Constr.
**2003**, 7, 219–237. [Google Scholar] [CrossRef] - Al-Salloum, Y.A. Influence of edge sharpness on the strength of square concrete columns confined with FRP composite laminates. Compos. Part B Eng.
**2007**, 38, 640–650. [Google Scholar] [CrossRef] - Wang, L.M.; Wu, Y.F. Effect of corner radius on the performance of CFRP-confined square concrete columns: Test. Eng. Struct.
**2008**, 30, 493–505. [Google Scholar] [CrossRef] - Lignola, G.; Nardone, F.; Prota, A.; Manfredi, G. Analytical model for the effective strain in FRP-wrapped circular RC columns. Compos. Part B Eng.
**2012**, 43, 3208–3218. [Google Scholar] [CrossRef] - ACI. Guide for the Design and Construction of Externally Bonded FRP Systems for Strengthening Concrete Structures (ACI 440. 2R-17); American Concrete Institute (ACI): Detroit, MI, USA, 2017. [Google Scholar]
- CNR. Guide for the Design and Construction of Externally Bounded FRP Systems for Strengthening Concrete Structures (CNR-DT 200 R1/2013); National Research Council (CNR): Washington, DC, USA, 2014. [Google Scholar]
- Rocca, S.; Galati, N.; Nanni, A. Review of Design Guidelines for FRP Confinement of Reinforced Concrete Columns of Noncircular Cross Sections. J. Compos. Constr.
**2008**, 12, 80–92. [Google Scholar] [CrossRef] [Green Version] - Li, X.; Lu, J.; Ding, D.D.; Wang, W. Axial strength of FRP-confined rectangular RC columns with different cross-sectional aspect ratio. Mag. Concr. Res.
**2017**, 69, 1011–1026. [Google Scholar] [CrossRef] - Tanwongsval, S.; Maalej, M.; Paramasivam, P. Strengthening of RC wall-like columns with FRP under sustained loading. Mater. Struct.
**2003**, 36, 282–290. [Google Scholar] [CrossRef] - Tan, K.H. Strength Enhancement of Rectangular Reinforced Concrete Columns using Fiber-Reinforced Polymer. J. Compos. Constr.
**2002**, 6, 175–183. [Google Scholar] [CrossRef] - Prota, A.; Manfredi, G.; Cosenza, E. Ultimate behavior of axially loaded RC wall-like columns confined with GFRP. Compos. Part B Eng.
**2006**, 37, 670–678. [Google Scholar] [CrossRef] - Lignola, G.P.; Prota, A.; Manfredi, G.; Cosenza, E. Non-linear modeling of RC rectangular hollow piers confined with CFRP. Compos. Struct.
**2009**, 88, 56–64. [Google Scholar] [CrossRef] - Alsayed, S.; Almusallam, T.; Ibrahim, S.; Al-Hazmi, N.; Al-Salloum, Y.; Abbas, H. Experimental and numerical investigation for compression response of CFRP strengthened shape modified wall-like RC column. Constr. Build. Mater.
**2014**, 63, 72–80. [Google Scholar] [CrossRef] - Neale, K.; Demers, M.; DeVino, B.; Ho, N. Strengthening of wall-type reinforced concrete columns with fiber reinforced composite sheets. In Proceedings of the Fifth International Conference: Structural Failure Durability and Retrofitting, Singapore, 27–28 November 1997; Singapore Concrete Institute: Singapore, 1997; pp. 410–417. [Google Scholar]
- Chiew, S.; Lau, J.; Ho, N. Testing of wall-type reinforced concrete column strengthening with advanced composite materials. In Seminar on Strengthening and Upgrading Structures Using Advanced Composite Materials; Singapore Concrete Institute: Singapore, 1999; pp. 1–16. [Google Scholar]
- Wang, Y.; Restrepo, J. Investigation of concentrically loaded reinforced concrete columns confined with glass fiber-reinforced polymer jackets. ACI Struct. J.
**2001**, 98, 377–385. [Google Scholar] - Maalej, M.; Tanwongsval, S.; Paramasivam, P. Modelling of rectangular RC columns strengthened with FRP. Cem. Concr. Compos.
**2003**, 25, 263–276. [Google Scholar] [CrossRef] - Saatcioglu, M.; Razvi, S. Strength and Ductility of Confined Concrete. J. Struct. Eng.
**1992**, 118, 1590–1607. [Google Scholar] [CrossRef] - Yalcin, C.; Saatcioglu, M. Inelastic analysis of reinforced concrete columns. Comput. Struct.
**2000**, 77, 539–555. [Google Scholar] [CrossRef] - Lignola, G.P.; Prota, A.; Manfredi, G.; Cosenza, E. Modeling of RC wall-like columns FRP confinement. In Proceedings of the 1st Middle East Conference on Smart Monitoring, Assessment and Rehabilitation of Civil Structures SMAR 2011, Dubai, United Arab Emirates, 8–10 February 2011. [Google Scholar]
- Triantafillou, T.; Choutopoulou, E.; Fotaki, E.; Skorda, M.; Stathopoulou, M.; Karlos, K. FRP confinement of wall-like reinforced concrete columns. Mater. Struct.
**2015**, 49, 651–664. [Google Scholar] [CrossRef] - Vuggumudi, S.; Alagusundaramoorthy, P. FRP Strengthened RC Rectangular Columns Under Combined Axial and Lateral Loading: Analytical Study. Structures
**2018**, 14, 88–94. [Google Scholar] [CrossRef] - Vuggumudi, S.; Alagusundaramoorthy, P. Interaction diagrams for FRP strengthened RC rectangular columns with large aspect ratio. Constr. Build. Mater.
**2018**, 171, 187–196. [Google Scholar] [CrossRef] - ACI440.2R. Guide for the Design and Construction of Externally Bonded FRP Systems for Strengthening Concrete Structures (ACI 440. 2R-08); American Concrete Institute (ACI): Detroit, MI, USA, 2008. [Google Scholar]
- Lam, L.; Teng, J.G. Design-oriented stress-strain model for FRP-confined concrete. Constr. Build. Mater.
**2003**, 17, 471–489. [Google Scholar] [CrossRef] - Sheikh, S.A.; Uzumeri, S.M. Strength and ductility of tied concrete columns. J. Struct. Div.
**1980**, 106, 1079–1102. [Google Scholar] [CrossRef] - William, K.J.; Warnke, E.D. (Eds.) Constitutive Model for the Triaxial Behaviour of Concrete; International Association for Bridge and Structural Engineering, Seminar on Concrete Structures Subjected to Triaxial Stresses: Bergamo, Italy, 1974; Volume 19, p. 174. [Google Scholar]
- Kent, D.C.; Park, R. Flexural members with confined concrete. J. Struct. Div.
**1971**, 97, 1969–1990. [Google Scholar] [CrossRef] - Kohnke, P. ANSYS Theory Reference Manual; Ansys Inc.: Canonsburg, PA, USA, 2013. [Google Scholar]
- Lam, L.; Teng, J. Strength models for fiber-reinforced plastic-confined concrete. J. Struct. Eng.
**2002**, 128, 612–623. [Google Scholar] [CrossRef]

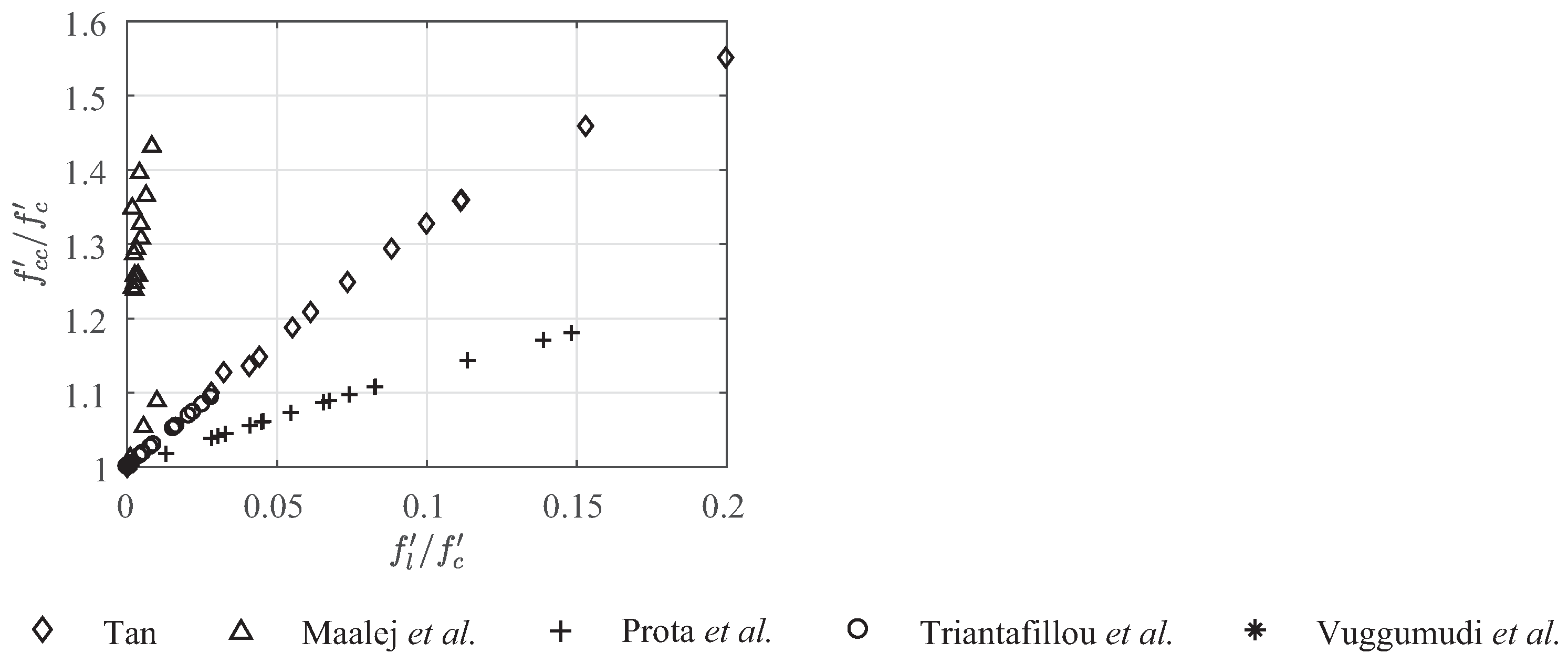

**Figure 7.**Performance of the analytical models in assessment of confined concrete compressive strength vs. confinement ratio.

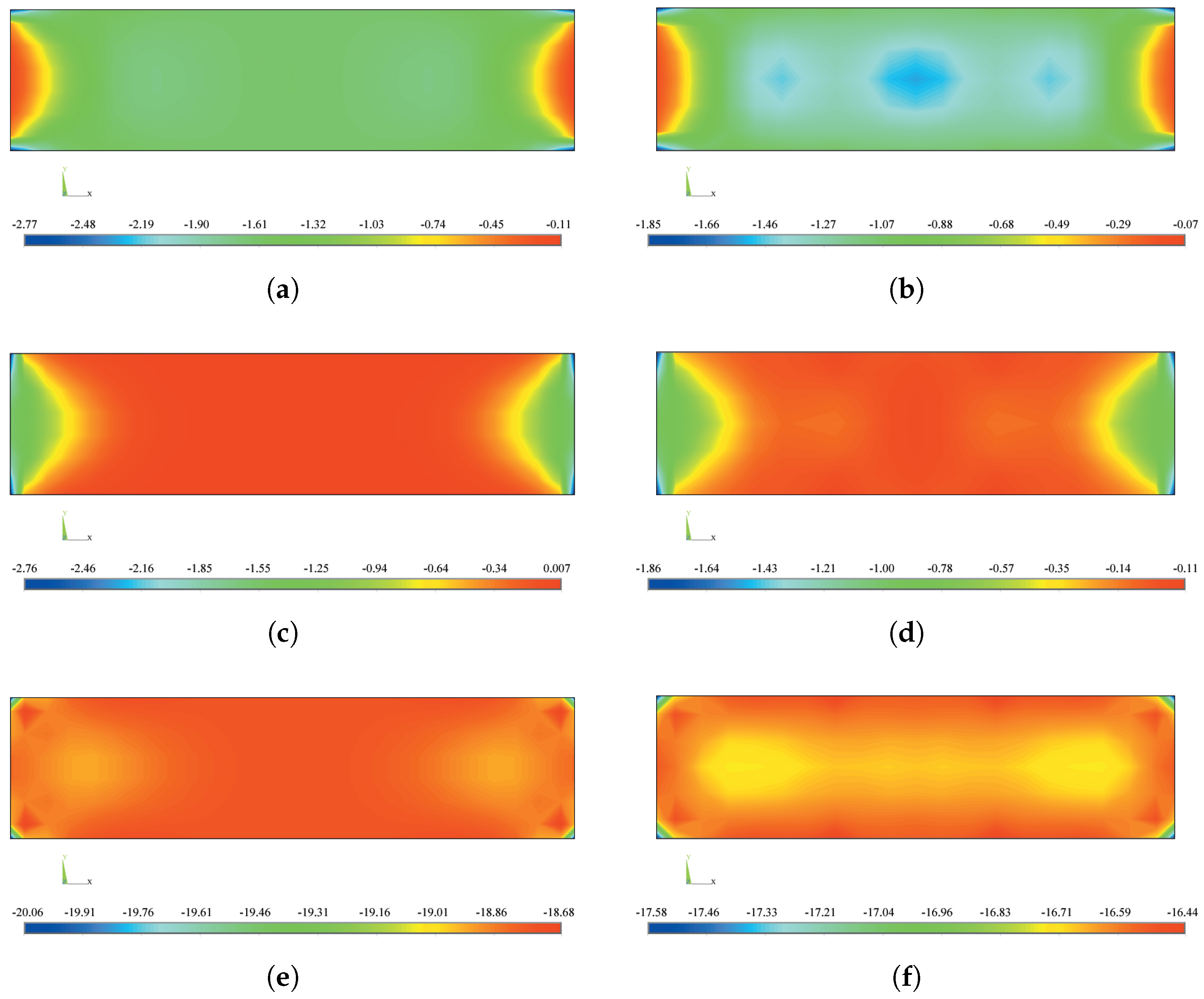

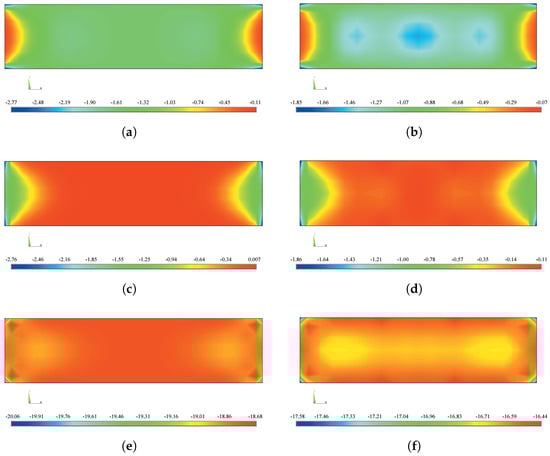

**Figure 8.**Stresses contour plot of columns II4 and S02C at the peak axial force in longitudinal x direction (

**a**,

**b**), in transverse y direction (

**c**,

**d**), and in vertical z direction (

**e**,

**f**).

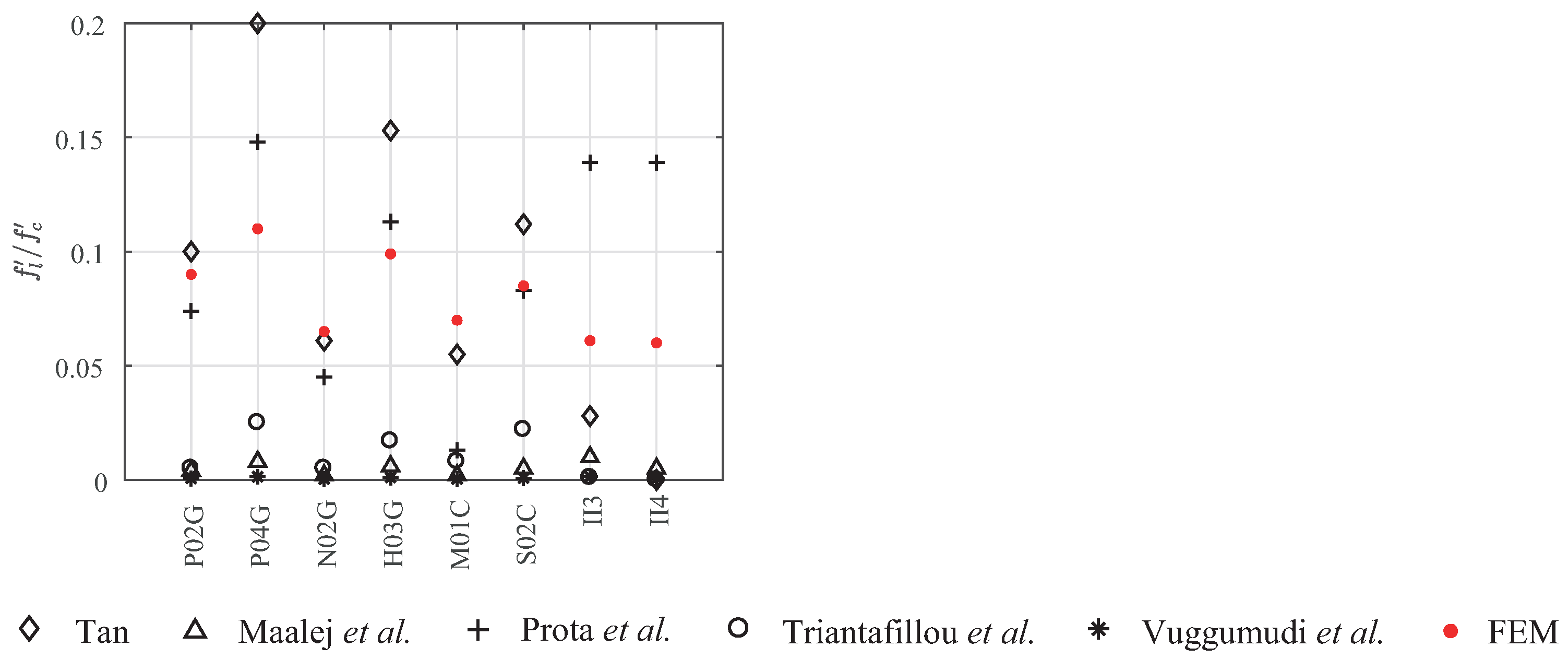

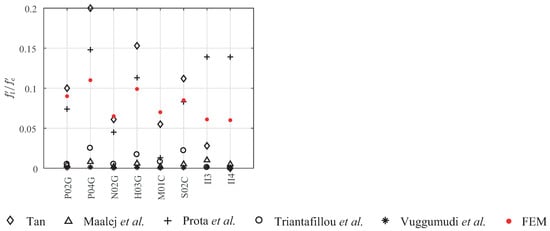

**Figure 9.**Lateral confining pressure ratio ${f}_{l}^{\prime}/{f}_{co}^{\prime}$: comparison between FEM and analytical models.
