Next Article in Journal
Development of Novel AlSi10Mg Based Nanocomposites: Microstructure, Thermal and Mechanical Properties
Previous Article in Journal
Kinetics of MgO Reduction in CaO-Al2O3-MgO Slag by Al in Liquid Fe
Open AccessArticle

Effect of Nonmetallic Inclusions on Fatigue Properties of Superelastic Ti-Ni Fine Wire

1
Department of Applied Science for Electronics and Materials, Interdisciplinary Graduate School of Engineering Science, Kyushu University, Fukuoka 816-8580, Japan
2
Technology Development Department, Special Metals Division, Furukawa Techno Material Co., Ltd., Hiratsuka 254-0016, Japan
3
Department of Materials Processing, Tohoku University, Sendai 980-8579, Japan
4
Special Metals Division, Furukawa Techno Material Co., Ltd., Hiratsuka 254-0016, Japan
5
Department of Advanced Materials Science and Engineering, Faculty of Engineering Sciences, Kyushu University, Fukuoka 816-8580, Japan
*
Author to whom correspondence should be addressed.
Metals 2019, 9(9), 999; https://doi.org/10.3390/met9090999
Received: 5 August 2019 / Revised: 4 September 2019 / Accepted: 6 September 2019 / Published: 11 September 2019

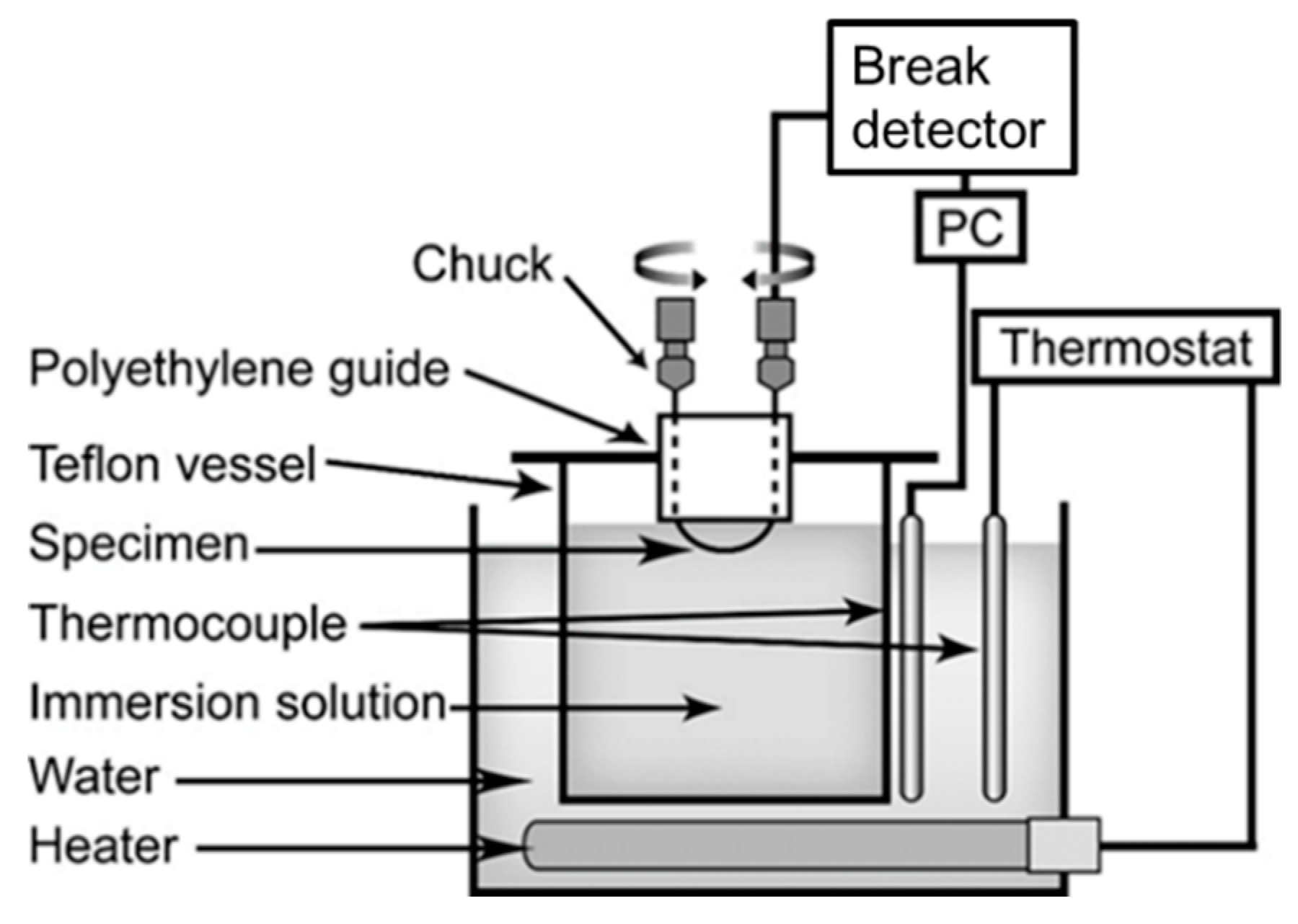

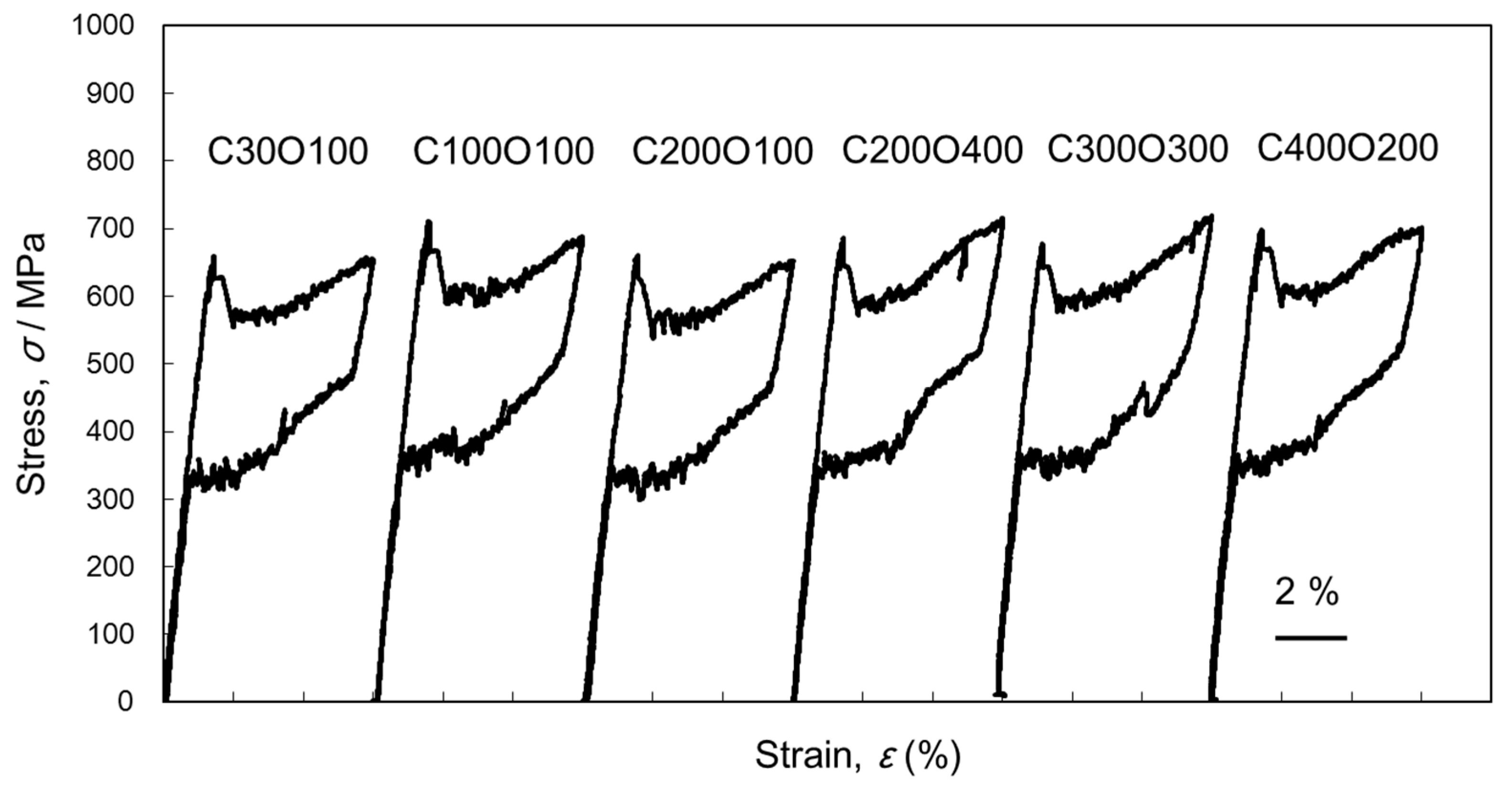

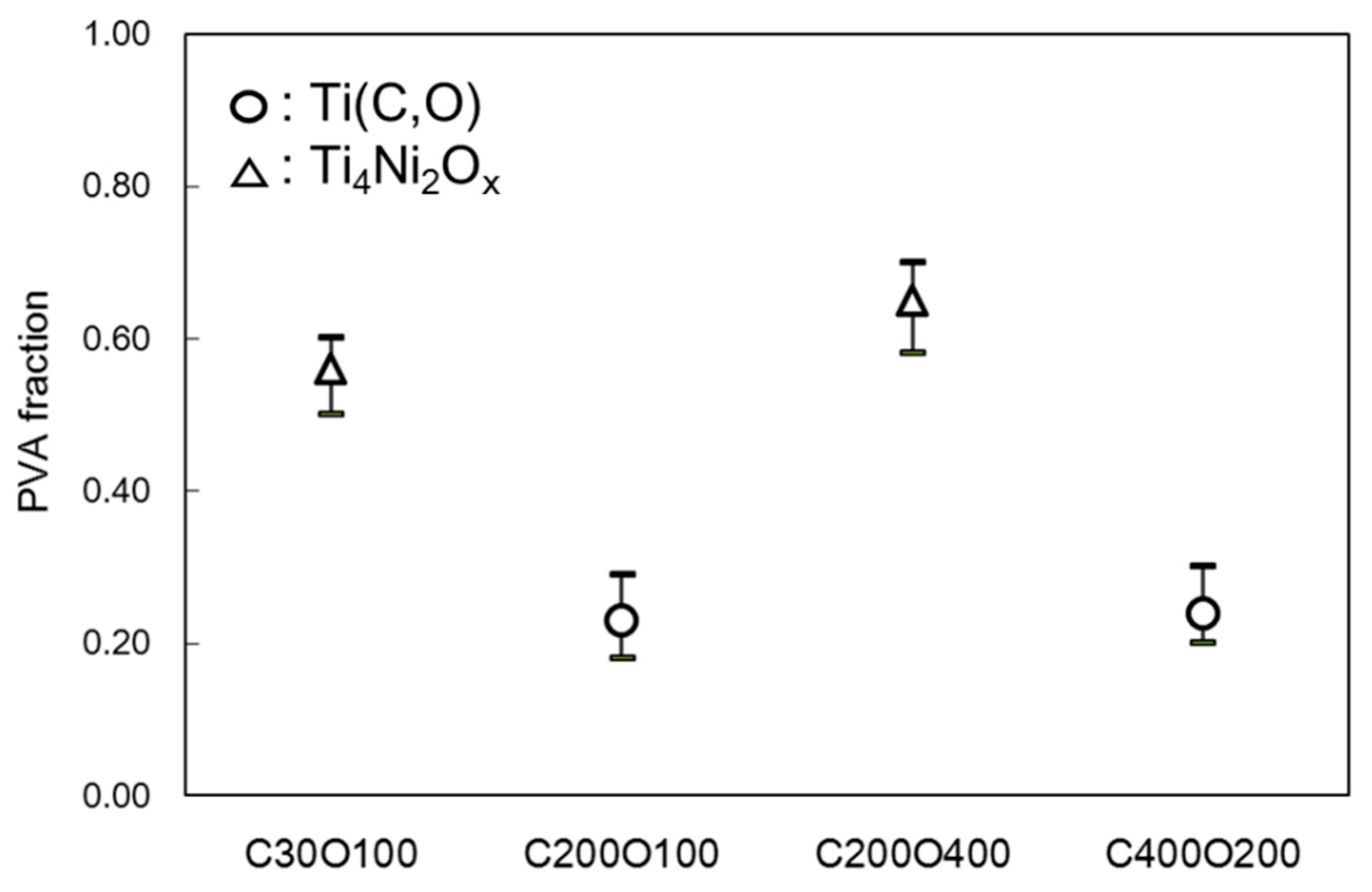

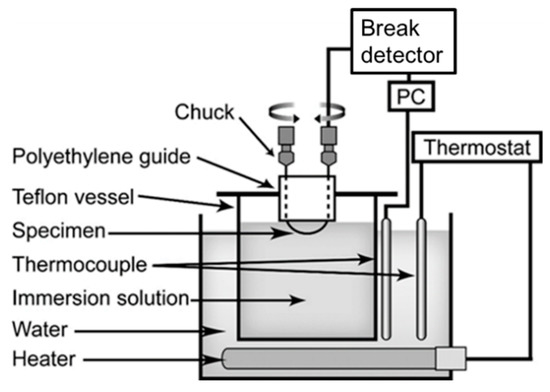

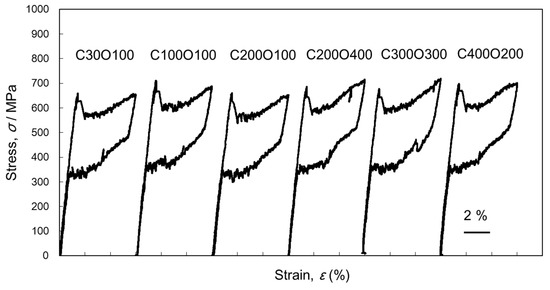

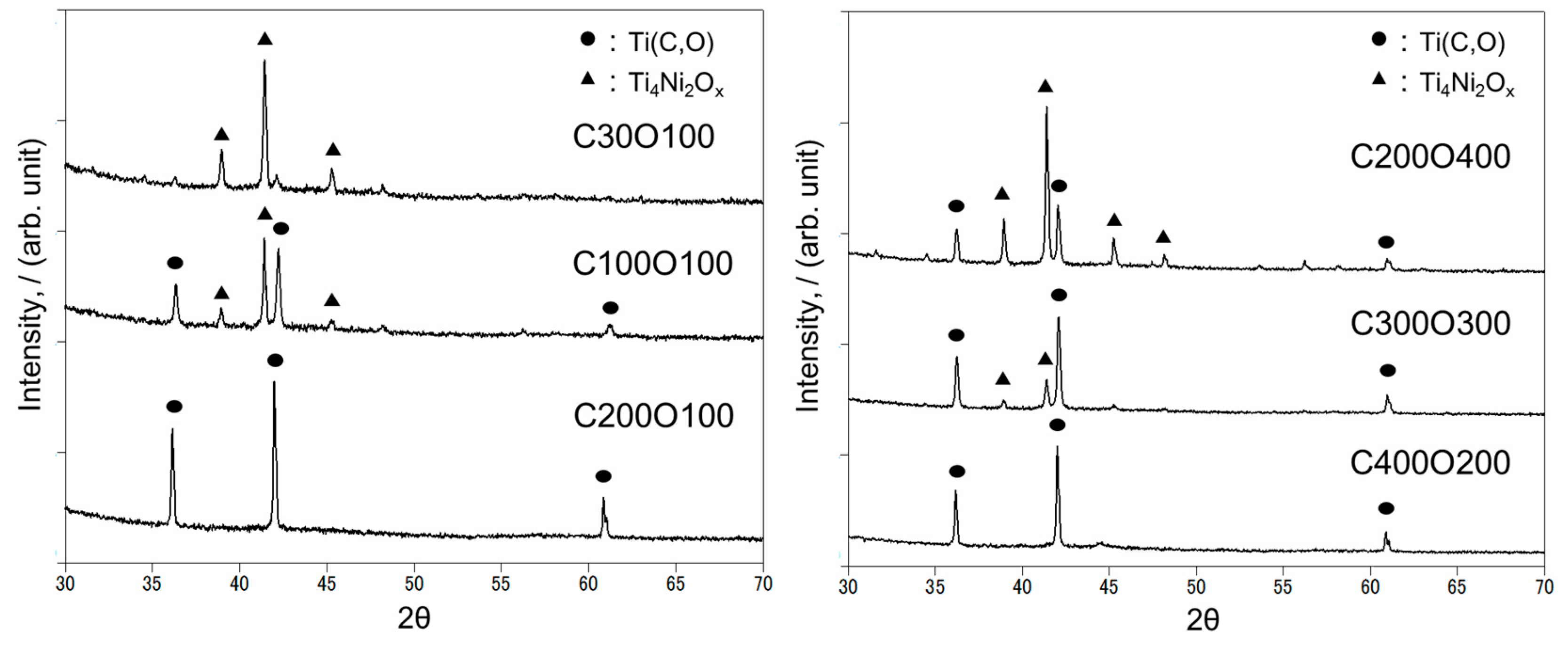

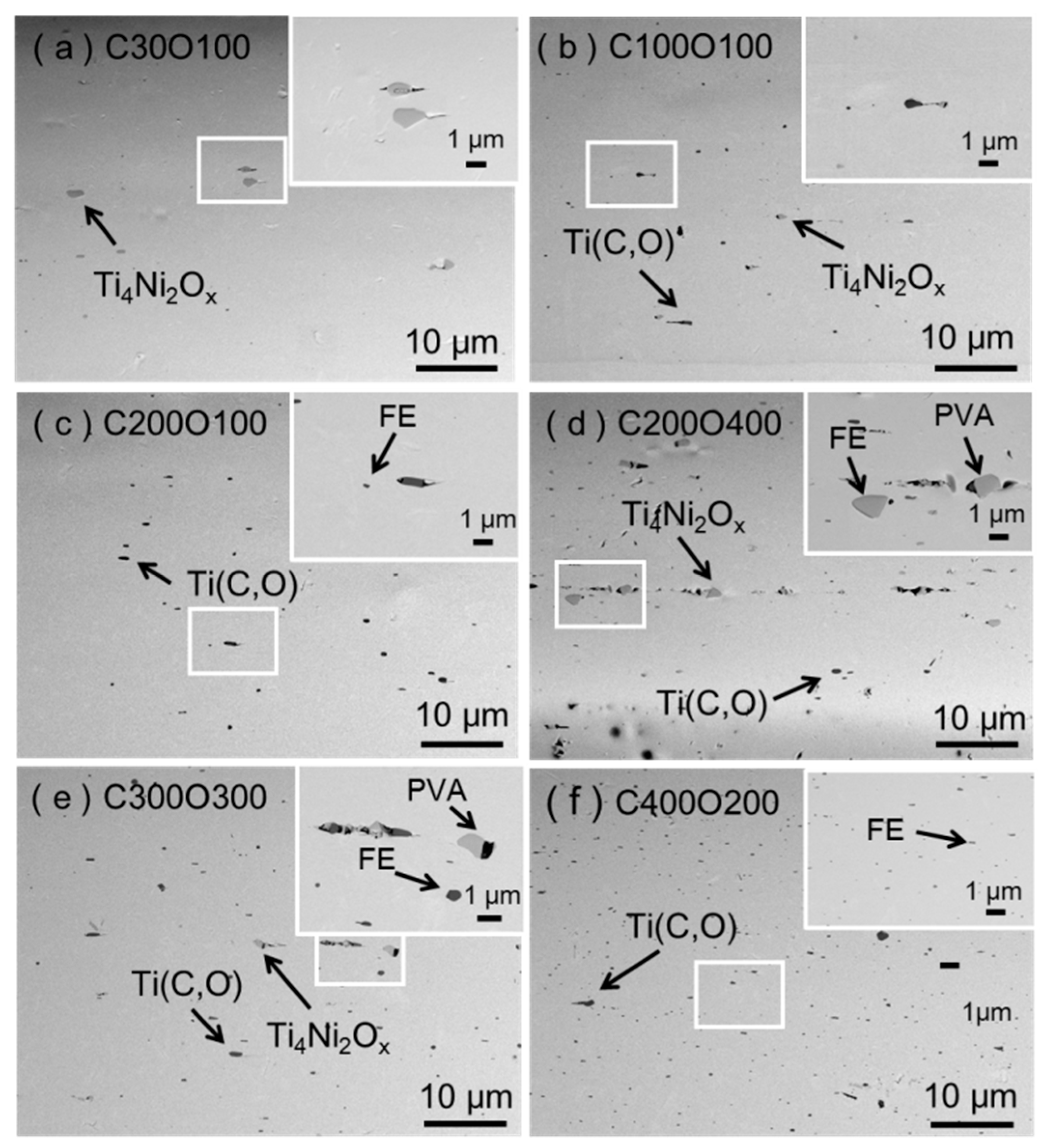

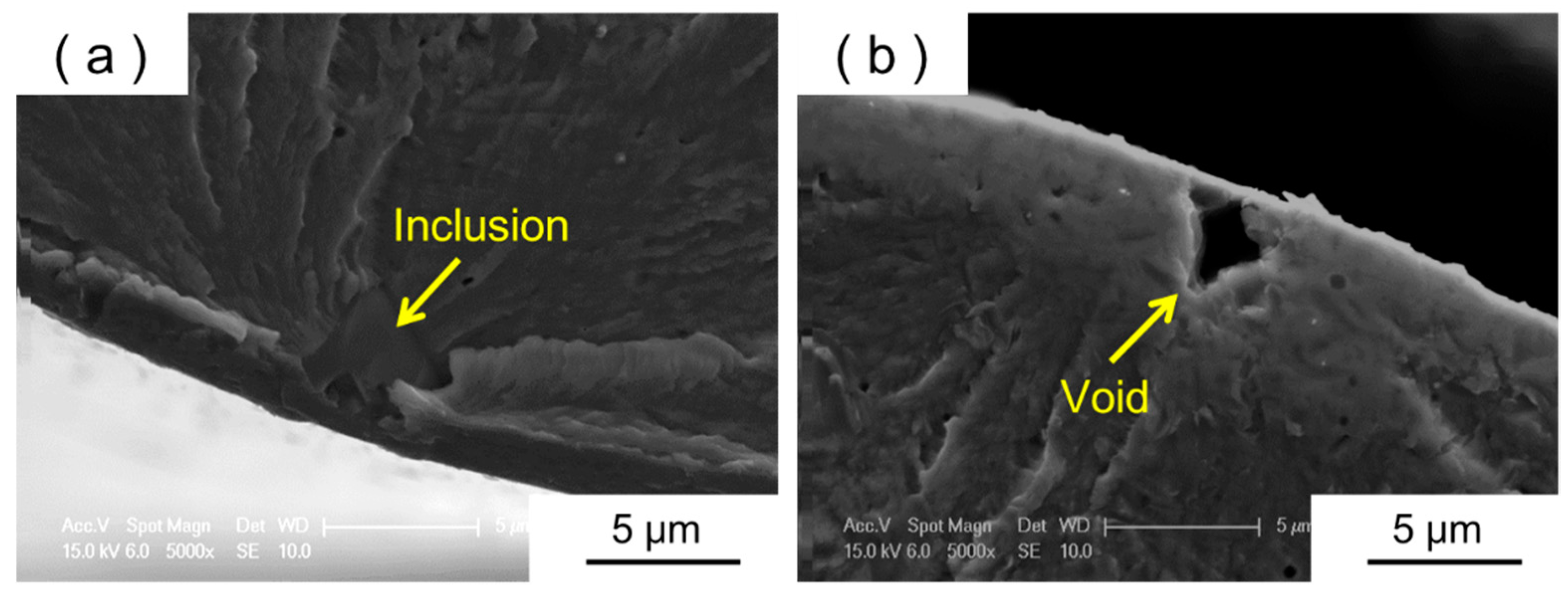

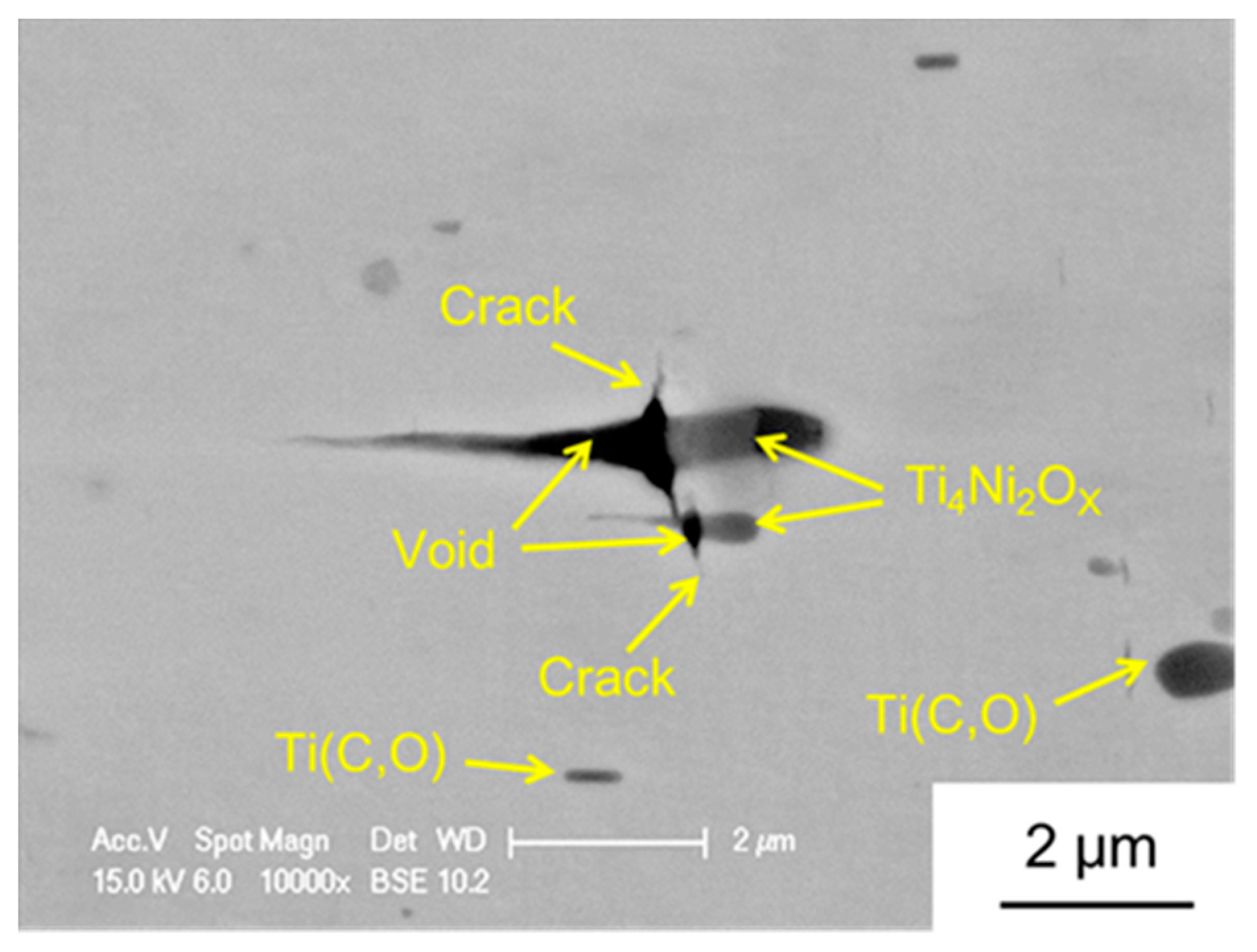

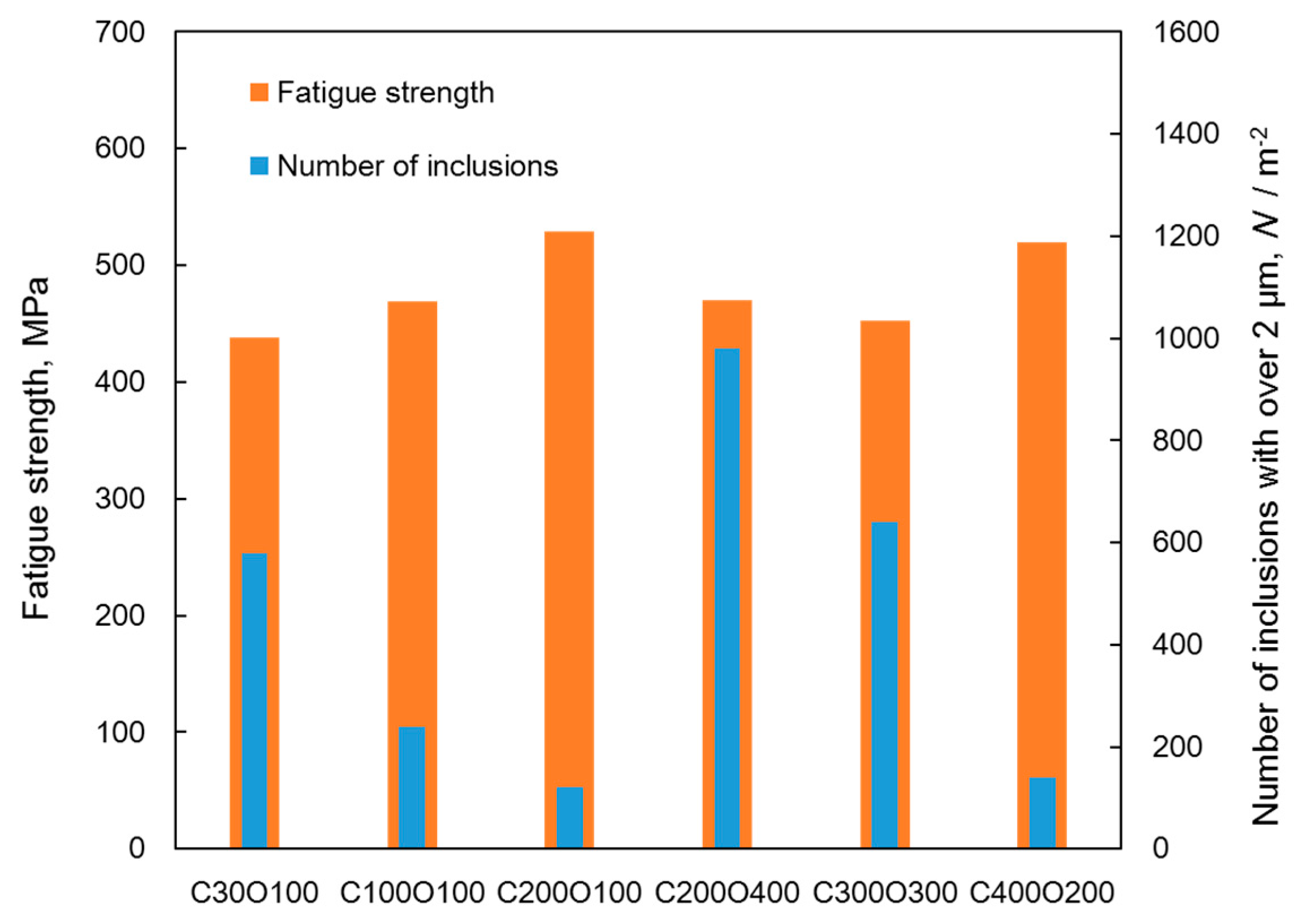

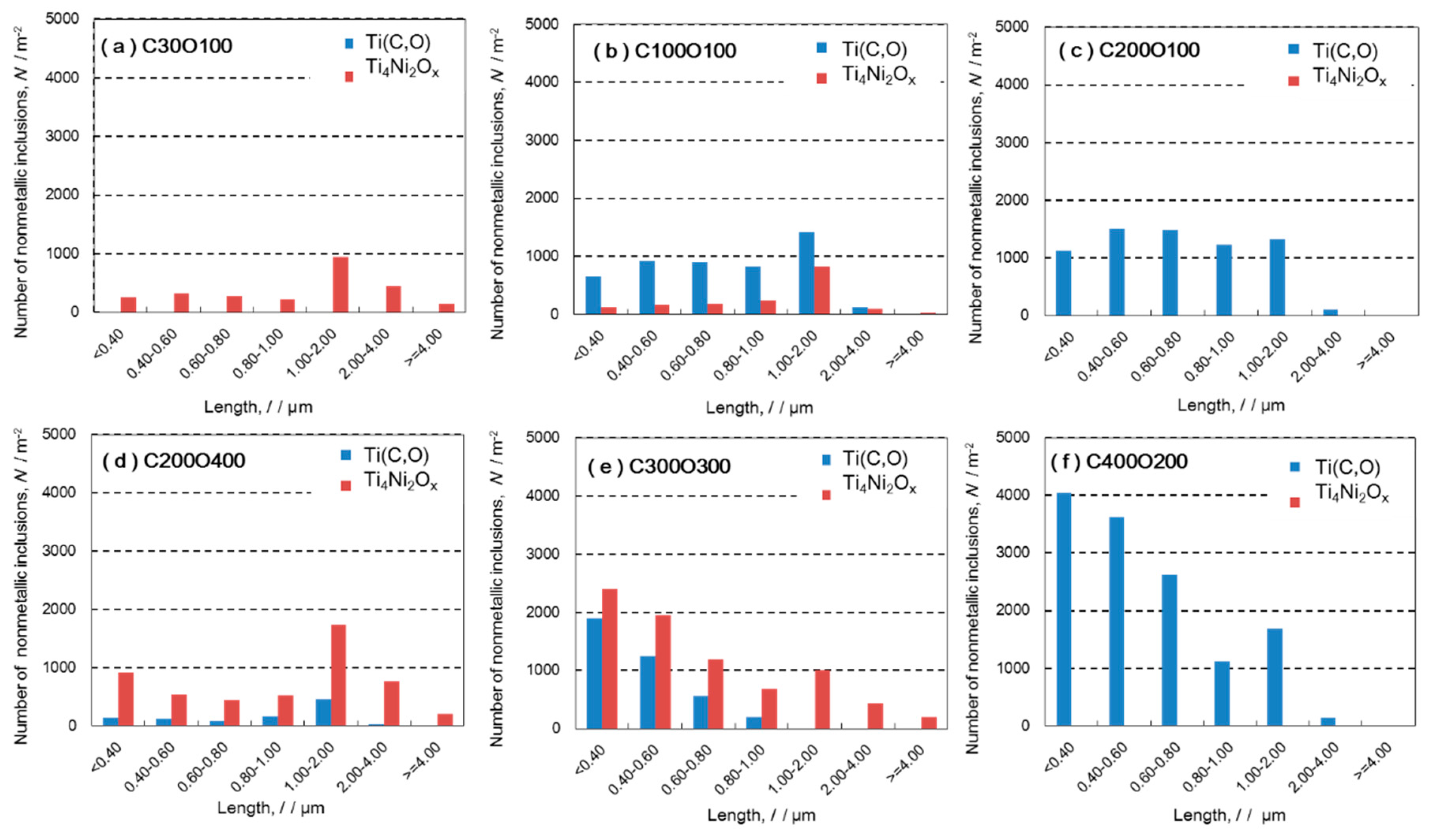

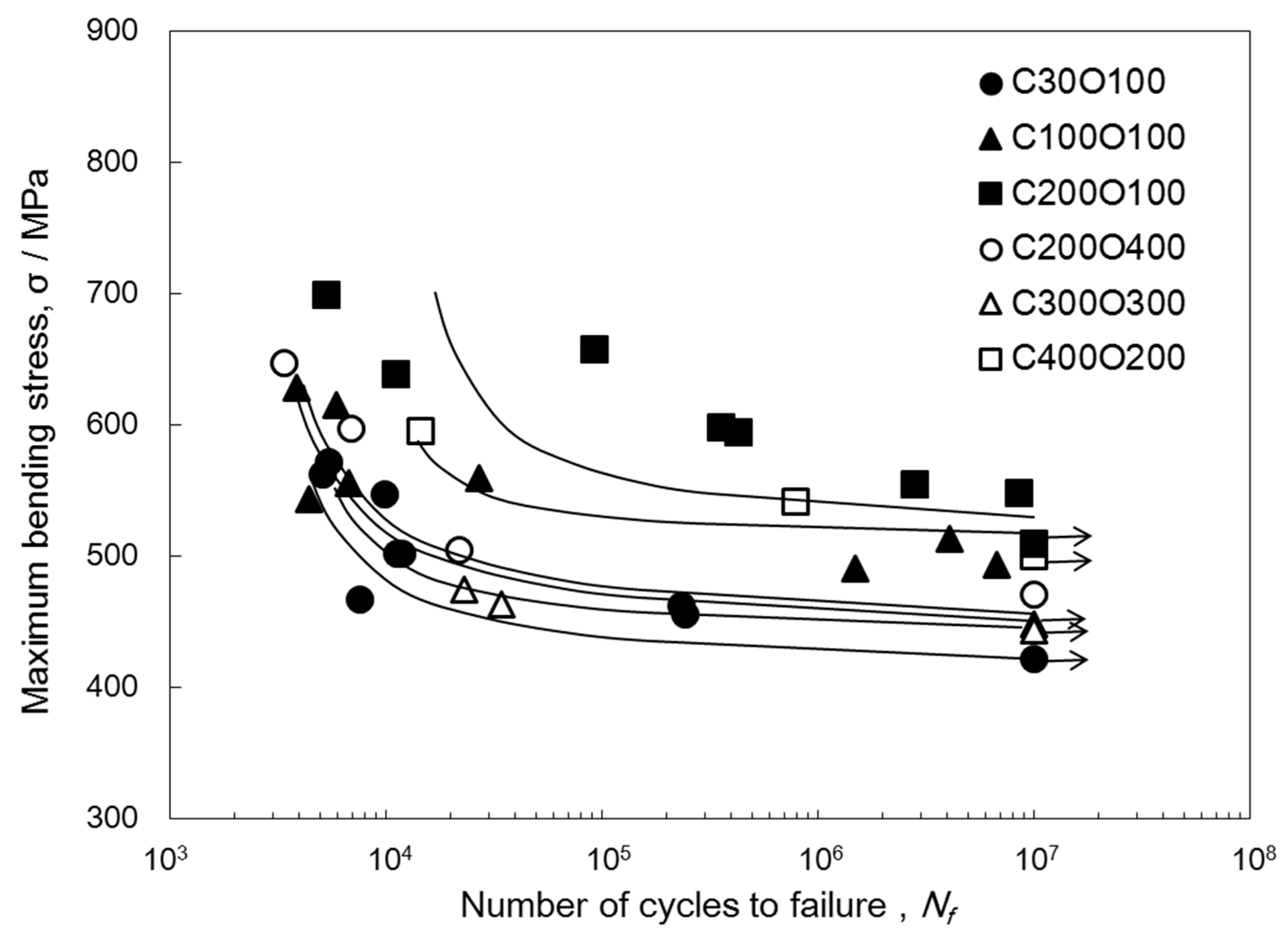

This study investigated the effects of the types and length of nonmetallic inclusions on fatigue properties in rotating bending fatigue testing of Ti-Ni alloy fine wire. It was fabricated to include titanium carbides Ti(C,O) and titanium oxides Ti4Ni2Ox as either single phases or a mixture of both phases as nonmetallic inclusions in Ti-Ni alloy. The fatigue strength of Ti-Ni alloy depended on the number of nonmetallic inclusions of a length of ≥2 μm. Compared with Ti(C,O), Ti4Ni2Ox is coarse. It also exhibited a trend of readily forming particles and void assemblies, which are a defect morphology that originates from nonmetallic inclusions and readily act as crack origins of fatigue fractures. View Full-Text
Keywords: Ti-Ni alloy; nonmetallic inclusions; fatigue properties; particle and void assembly Ti-Ni alloy; nonmetallic inclusions; fatigue properties; particle and void assembly
Show Figures

Figure 1

MDPI and ACS Style

Yamashita, F.; Ide, Y.; Kato, S.; Ueda, K.; Narushima, T.; Kise, S.; Ishikawa, K.; Nishida, M. Effect of Nonmetallic Inclusions on Fatigue Properties of Superelastic Ti-Ni Fine Wire. Metals 2019, 9, 999.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
